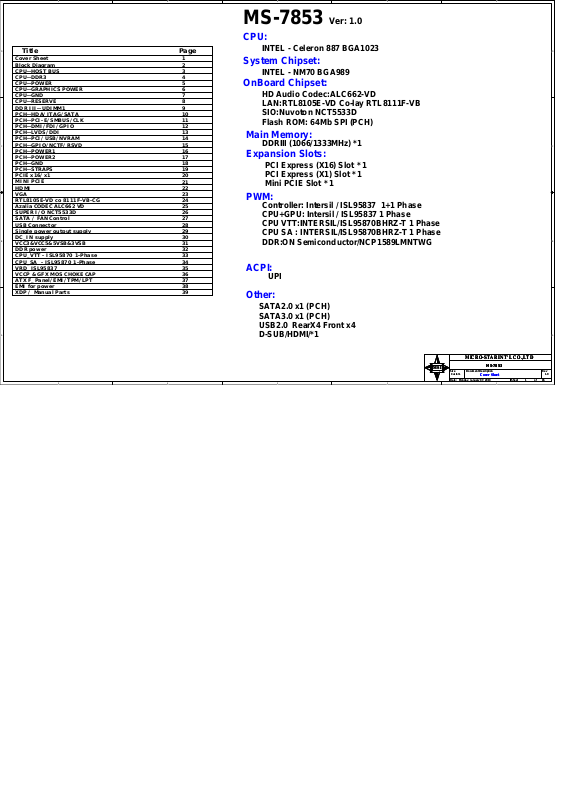

MS-7853
Ver: 1.0
CPU:
D D
Cover Sheet 1
Block Diagram 2
CPU--HOST BUS
CPU--DDR3
CPU--POWER
CPU--GRAPHICS POWER
CPU--GND
CPU--RESERVE 8
DDR III--UDIMM1
PCH--HDA/JTAG/SATA
PCH--PCI-E/SMBUS/CLK
PCH--DMI/FDI/GPIO
PCH--LVDS/DDI
PCH--PCI/USB/NVRAM
PCH--GPIO/NCTF/RSVD
C C
PCH--POWER1
PCH--POWER2
PCH--GND
PCH--STRAPS
PCIE x16/x1
MINI PCIE
HDMI
VGA
RTL8105E-VD co 8111F-VB-CG
Azalia CODEC ALC662 VD
SUPER I/O NCT5533D
SATA / FAN Control
USB Connector
Single power output supply
DC_IN supply
B B
VCC3&VCC5&5VSB&3VSB
DDR power
CPU_VTT - ISL95870 1-Phase
CPU_SA - ISL95870 1-Phase
VRD_ISL95837
VCCP & GFX MOS CHOKE CAP
ATX F_Panel/EMI/TPM/LPT
EMI for power
XDP / Manual Parts
A A
PageTitle
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
INTEL - Celeron 887 BGA1023
System Chipset:
INTEL - NM70 BGA989
OnBoard Chipset:
HD Audio Codec:ALC662-VD
LAN:RTL8105E-VD Co-lay RTL8111F-VB
SIO:Nuvoton NCT5533D
Flash ROM: 64Mb SPI (PCH)
Main Memory:
DDRIII (1066/1333MHz) *1
Expansion Slots:
PCI Express (X16) Slot * 1
PCI Express (X1) Slot * 1
Mini PCIE Slot * 1
PWM:
Controller: Intersil / ISL95837 1+1 Phase
CPU+GPU: Intersil / ISL95837 1 Phase
CPU VTT:INTERSIL/ISL95870BHRZ-T 1 Phase
CPU SA : INTERSIL/ISL95870BHRZ-T 1 Phase
DDR:ON Semiconductor/NCP1589LMNTWG
ACPI:
UPI
Other:
SATA2.0 x1 (PCH)
SATA3.0 x1 (PCH)
USB2.0 RearX4 Front x4
D-SUB/HDMI/*1
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7853ci20313
MS-7853
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
5
4
3
2
Custom
Cover Sheet
Cover Sheet
Cover Sheet
Monday, January 07, 2013
Monday, January 07, 2013
Monday, January 07, 2013
MS-7853
1.0
1.0
Sheet ofDate:
Sheet ofDate:
Sheet ofDate:
1
1.0
146
146
146
5
INTEL CONFIDENTIAL
4
3
2
1
