MSI B85M-E33 V2, MS-7846v2.0 Specifications

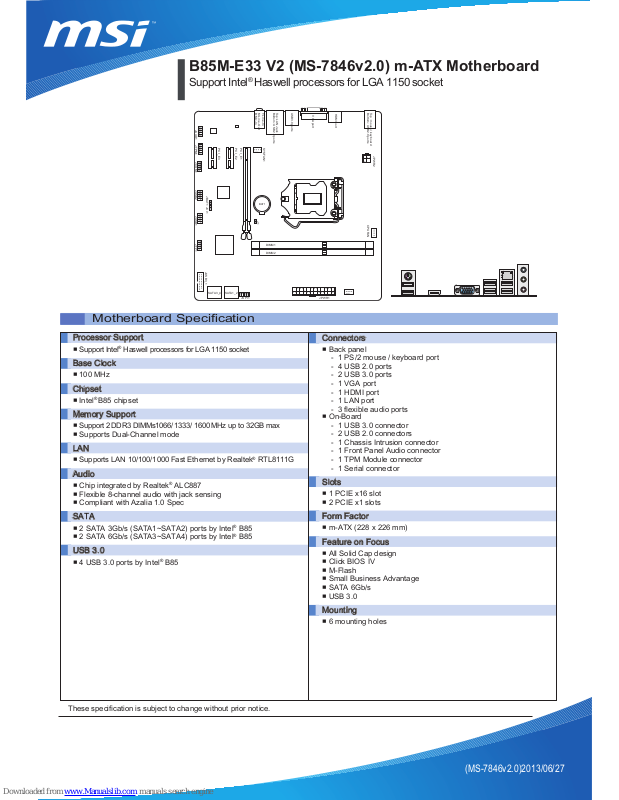

B85M-E33 V2 (MS-7846v2.0) m-ATX Motherboard

* These speci󰘰cation is subject to change without prior notice.

(MS-7846v2.0)2013/06/27

Processor Support

■ Support Intel® Haswell processors for LGA 1150 socket

Base Clock

■ 100 MHz

Chipset

■ Intel® B85 chipset

Memory Support

■ Support 2 DDR3 DIMMs1066/ 1333/ 1600 MHz up to 32GB max

■ Supports Dual-Channel mode

LAN

■ Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G

Audio

■ Chip integrated by Realtek® ALC887

■ Flexible 8-channel audio with jack sensing

■ Compliant with Azalia 1.0 Spec

SATA

■ 2 SATA 3Gb/s (SATA1~SATA2) ports by Intel® B85

■ 2 SATA 6Gb/s (SATA3~SATA4) ports by Intel® B85

USB 3.0

■ 4 USB 3.0 ports by Intel® B85

Connectors

■ Back panel

- 1 PS/2 mouse / keyboard port

- 4 USB 2.0 ports

- 2 USB 3.0 ports

- 1 VGA port

- 1 HDMI port

- 1 LAN port

- 3 󰘱exible audio ports

■ On-Board

- 1 USB 3.0 connector

- 2 USB 2.0 connectors

- 1 Chassis Intrusion connector

- 1 Front Panel Audio connector

- 1 TPM Module connector

- 1 Serial connector

Slots

■ 1 PCIE x16 slot

■ 2 PCIE x1 slots

Form Factor

■ m-ATX (228 x 226 mm)

Feature on Focus

■ All Solid Cap design

■ Click BIOS IV

■ M-Flash

■ Small Business Advantage

■ SATA 6Gb/s

■ USB 3.0

Mounting

■ 6 mounting holes

Support Intel® Haswell processors for LGA 1150 socket

Motherboard Specication

BAT1

Top : mouse /

Botto m:

keybo ard

USB2. 0 ports

VGA port

Top: LAN Ja ck

Botto m: USB2 .0 port s

USB3. 0 ports

T:Line- In

M:Lin e- Out

B:Mic -In

JAUD1 JTPM1

JCOM1

JUSB2 JUSB1

JBAT1 JCI1

J1

JFP1

SATA1_2SATA3_4

JSPI1

JPWR1

PCI_E 1

PCI_E 2

PCI_E 3

SYSFAN 1

JPWR2

CPUFAN

DIMM1

DIMM2

HDMI po rt

JUSB3 _1
