Title Page
Cover Sheet 1
Block Diagram
AM3 HT I/F, CTRL & DEBEG
D D
AM3 DDR III MEMORY I/F 4
AM3 POWER & GND
DDR III DIMM 1 / 3
DDR III DIMM 2 / 4
2
3
5
6
7
NFORCE 200 8
MCP82 HT
MCP82 PCI-E X16
9
10
MCP82 PCI-E X1 & MII & JTAG 11

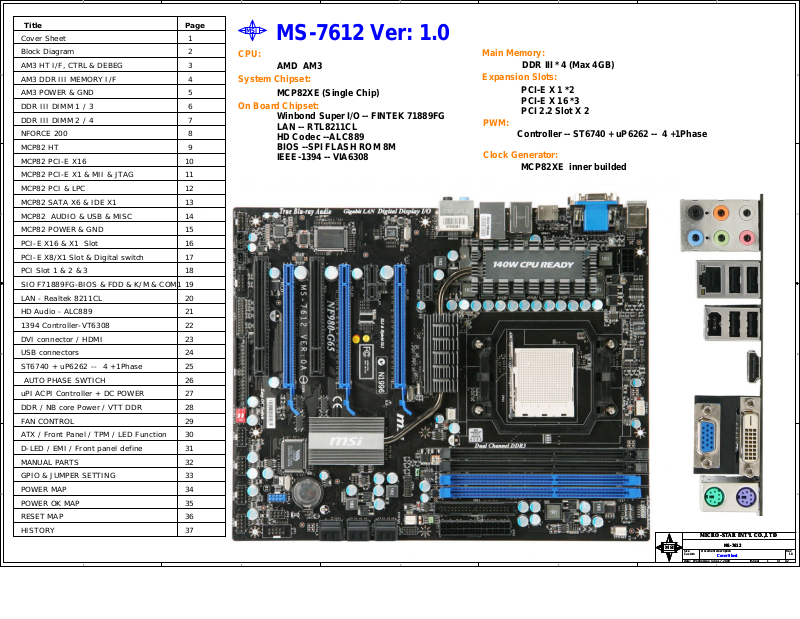

MSI
MS-7612 Ver: 1.0
CPU:
AMD AM3
System Chipset:
MCP82XE (Single Chip)
On Board Chipset:
Winbond Super I/O -- FINTEK 71889FG
LAN -- RTL8211CL
HD Codec --ALC889
BIOS --SPI FLASH ROM 8M
IEEE-1394 -- VIA6308
Main Memory:
DDR III * 4 (Max 4GB)
Expansion Slots:
PCI-E X 1 *2
PCI-E X 16 *3
PCI 2.2 Slot X 2
PWM:
Controller -- ST6740 + uP6262 -- 4 +1Phase
Clock Generator:
MCP82XE inner builded
MCP82 PCI & LPC 12
13MCP82 SATA X6 & IDE X1
C C
MCP82 AUDIO & USB & MISC 14
MCP82 POWER & GND 15
PCI-E X16 & X1 Slot
PCI-E X8/X1 Slot & Digital switch
PCI Slot 1 & 2 & 3
SIO F71889FG-BIOS & FDD & K/M & COM1
LAN - Realtek 8211CL
HD Audio - ALC889
1394 Controller-VT6308
DVI connector / HDMI
USB connectors
B B
ST6740 + uP6262 -- 4 +1Phase
AUTO PHASE SWTICH
uPI ACPI Controller + DC POWER
DDR / NB core Power / VTT DDR
FAN CONTROL
ATX / Front Panel / TPM / LED Function
D-LED / EMI / Front panel define
MANUAL PARTS
GPIO & JUMPER SETTING
POWER MAP
A A
POWER OK MAP
RESET MAP
HISTORY
5
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Wednesday, June 17, 2009
Wednesday, June 17, 2009
4
3
2
Wednesday, June 17, 2009
MS-7612
Cover Sheet
Cover Sheet
Cover Sheet
1
Sheet ofDate:
142
Sheet ofDate:
142
Sheet ofDate:
142
1.0
1.0
1.0
5
4
3
2
1
BLOCK DIAGRAM
D D
POWER
SUPPLY
CONNECTOR
PEX X16 SLOT1,2,3
PEX X1 SLOT1,2
VREG
ST-6740
PCI EXPRESS
PCI EXPRESS
SOCKET 941
AM3
HT 16X16 5.2GHZ
128-BIT 400/533MHZ
RGMII
DDR SDRAM CONN 1
DDR SDRAM CONN 3
DDR SDRAM CONN 2
DDR SDRAM CONN 4
LAN-RTL-8211CL
MCP82
PCI 33MHZ
C C
B B
PRIMARY IDE
X6 - SATA II CONN
FLOPPY CONN
PS2/KBRD CONN
SERIAL PINHEADER
ATA 133
INTEGRATED SATA 1/2
SIO
LPC SUPER I/O
F71889-FG
LPC BUS 33MHZ
X12 USB2.0
TPM HDR
SPI ROM
SPI HDR
AZAILIA
BACK PANEL CONN
USB2.0 PORTS 0-1
USB 2 X 2 CONN
USB2.0 PORTS 4-5
X2/GBIT LAN
FRONT PANEL HDR
USB2.0 PORTS 6-7
USB2.0 PORTS 8-9
USB2.0 PORTS 10-11
Realtek ALC 889 (HD, 7.1Channel)
IEEE1394-VT6308P (connx1, HDRx1)
PCI SLOT 1
PCI SLOT 2
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
5
4
3
2
Wednesday, June 17, 2009
MS-7612
BLOCK DIAGRAM
BLOCK DIAGRAM
BLOCK DIAGRAM
1
242
242
242
Sheet of
Sheet of
Sheet of
1.0
1.0
1.0
5
VDDA_25
L2
C42 22u/6.3V/12C42 22u/6.3V/12
C90 22u/6.3V/12C90 22u/6.3V/12
80/2A/B8L280/2A/B8
L0_CLKOUT_H1
L0_CLKOUT_L1
L0_CLKOUT_H0
L0_CLKOUT_L0
L0_CTLOUT_H1
L0_CTLOUT_L1
L0_CTLOUT_H0
L0_CTLOUT_L0
L0_CADOUT_H15
L0_CADOUT_L15
L0_CADOUT_H14
L0_CADOUT_L14
L0_CADOUT_H13
L0_CADOUT_L13
L0_CADOUT_H12
L0_CADOUT_L12
L0_CADOUT_H11
L0_CADOUT_L11
L0_CADOUT_H10
L0_CADOUT_L10
L0_CADOUT_H9
L0_CADOUT_L9
L0_CADOUT_H8
L0_CADOUT_L8
L0_CADOUT_H7
L0_CADOUT_L7
L0_CADOUT_H6
L0_CADOUT_L6
L0_CADOUT_H5
L0_CADOUT_L5
L0_CADOUT_H4
HT LINK
HT LINK
L0_CADOUT_L4
L0_CADOUT_H3
L0_CADOUT_L3
L0_CADOUT_H2
L0_CADOUT_L2
L0_CADOUT_H1
L0_CADOUT_L1
L0_CADOUT_H0
L0_CADOUT_L0
ACC_DBRDY#
ACC_TDO
ACC_TDO
ACC_TDI12
ACC_TDO14
AD5
AD4
AD1
AC1
Y6
W6
W2
W3
HT_CADOUT_H15
Y5
HT_CADOUT_L15
Y4
HT_CADOUT_H14
AB6
HT_CADOUT_L14
AA6
HT_CADOUT_H13
AB5
HT_CADOUT_L13
AB4
HT_CADOUT_H12
AD6
HT_CADOUT_L12
AC6
HT_CADOUT_H11
AF6
HT_CADOUT_L11
AE6
HT_CADOUT_H10
AF5
HT_CADOUT_L10
AF4
HT_CADOUT_H9
AH6
HT_CADOUT_L9
AG6
HT_CADOUT_H8
AH5
HT_CADOUT_L8
AH4
HT_CADOUT_H7
Y1
HT_CADOUT_L7HT_CADIN_L7
W1
HT_CADOUT_H6
AA2
HT_CADOUT_L6
AA3
HT_CADOUT_H5
AB1
HT_CADOUT_L5
AA1
HT_CADOUT_H4
AC2
HT_CADOUT_L4
AC3
HT_CADOUT_H3
AE2
HT_CADOUT_L3
AE3
HT_CADOUT_H2
AF1
HT_CADOUT_L2
AE1
HT_CADOUT_H1
AG2
HT_CADOUT_L1
AG3
HT_CADOUT_H0
AH1
HT_CADOUT_L0
AG1
8
ACC_TMS
ACC_TCK
8
RN10
RN10
8P4R-10KR0402
8P4R-10KR0402
7
ACC_CPU_RST_L
ACC_DBREQ_L
ACC_TRST_L
ACC_TDIACC_TMS
ACC_DBRDY#
ACC_TDO
LDT_RST# CPU_TRST_L
VCC3 VCC_DDR
246
135
7
5
3
1
D1
D2
HT_CADIN_H[15..0]
HT_CADIN_L[15..0]
HT_CADOUT_H[15..0]
HT_CADOUT_L[15..0]
CPU1A
CPU1A
N6
L0_CLKIN_H1
P6
L0_CLKIN_L1
N3
L0_CLKIN_H0
N2
L0_CLKIN_L0
V4
L0_CTLIN_H1
V5
L0_CTLIN_L1
U1
L0_CTLIN_H0
V1
L0_CTLIN_L0
U6
L0_CADIN_H15
V6
L0_CADIN_L15
T4
L0_CADIN_H14
T5
L0_CADIN_L14
R6
L0_CADIN_H13
T6
L0_CADIN_L13
P4
L0_CADIN_H12
P5
L0_CADIN_L12
M4
L0_CADIN_H11
M5
L0_CADIN_L11
L6
L0_CADIN_H10
M6
L0_CADIN_L10
K4
L0_CADIN_H9
K5
L0_CADIN_L9
J6
L0_CADIN_H8
K6
L0_CADIN_L8
U3
L0_CADIN_H7
U2
L0_CADIN_L7
R1
L0_CADIN_H6
T1
L0_CADIN_L6
R3
L0_CADIN_H5
R2
L0_CADIN_L5
N1
L0_CADIN_H4
P1
L0_CADIN_L4
L1
L0_CADIN_H3
M1
L0_CADIN_L3
L3
L0_CADIN_H2
L2
L0_CADIN_L2
J1
L0_CADIN_H1
K1
L0_CADIN_L1
J3
L0_CADIN_H0
J2
L0_CADIN_L0
ZIF-SOCKET941-RH
ZIF-SOCKET941-RH
Q52
Q52
S1
G1
S2
G2
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
Q49Q49
2
5
5
112233445566778
D1
D2
6
1
3
4
ACC_CPU_RST_L14
ACC_DBRDY#14
HT_CADIN_H[15..0]9
HT_CADIN_L[15..0]9
HT_CADOUT_H[15..0]9
HT_CADOUT_L[15..0]9
D D
HT_CLKIN_H19
HT_CLKIN_L19
HT_CLKIN_H09
HT_CLKIN_L09
HT_CTLIN_H19
HT_CTLIN_L19
HT_CTLIN_H09
HT_CTLIN_L09
HT_CADIN_H15
HT_CADIN_L15
HT_CADIN_H14
HT_CADIN_L14
HT_CADIN_H13
HT_CADIN_L13
HT_CADIN_H12
HT_CADIN_L12
HT_CADIN_H11
HT_CADIN_L11
HT_CADIN_H10
HT_CADIN_L10
HT_CADIN_H9
HT_CADIN_L9
HT_CADIN_H8
C C
B B
A A
ACC_DBREQ_L14
HT_CADIN_L8
HT_CADIN_H7
HT_CADIN_H6
HT_CADIN_L6
HT_CADIN_H5
HT_CADIN_L5
HT_CADIN_H4
HT_CADIN_L4
HT_CADIN_H3
HT_CADIN_L3
HT_CADIN_H2
HT_CADIN_L2
HT_CADIN_H1
HT_CADIN_L1
HT_CADIN_H0
HT_CADIN_L0
VCC3
RN11
RN11
8
6
4
2
8P4R-10KR0402
8P4R-10KR0402
VCC_DDR
Q51
Q51
Q45Q45
6
2
1
5
3
4
RN8
RN8
7
8
5
6
3
4
1
2
8P4R-10KR0402
8P4R-10KR0402
S1
G1
S2
G2
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
VCC3
246
8
RN9
RN9
8P4R-10KR0402
8P4R-10KR0402
135
7
ACC_TMS
ACC_TCK
ACC_DBREQ_L
ACC_TRST_L
CPU_DBRDY
CPU_TDO
ACC_CPU_RST_L
ACC_TDI CPU_TDI
ACC_TMS12
ACC_TCK12
ACC_TRST_L14
4
VDDA25
HT_CLKOUT_H1 9
HT_CLKOUT_L1 9
HT_CLKOUT_H0 9
HT_CLKOUT_L0 9
HT_CTLOUT_H1 9
HT_CTLOUT_L1 9
HT_CTLOUT_H0 9
HT_CTLOUT_L0 9
4
D1
D2
CPU_ALERT9
246
135
D1
D2
246
135
CPU_CLK9
CPU_CLK#9
VCC_DDR
8
RN7
RN7
8P4R-10KR0402
8P4R-10KR0402
7
8
RN6
RN6
8P4R-10KR0402
8P4R-10KR0402
7
CPU_SIC
CPU_SID
2
5
2
5
C109 C3900p16X0402-RHC109 C3900p16X0402-RH
169R/6/1%
169R/6/1%
C108 C3900p16X0402-RHC108 C3900p16X0402-RH
VCC_DDR
R270 1K/4/5%R270 1K/4/5%
R262 1K/4/5%R262 1K/4/5%
VCC_DDR
CPU_ALERT
VCC_DDR
R278
R278
39.2R/6/1%
39.2R/6/1%
R279
R279
39.2R/6/1%
39.2R/6/1%
Q46Q46
6
1
3
4
Q43Q43
CPU_DBREQ_L
6
1
3
4
VCC_DDR
R286
R286
R290
R290
10KR0402
10KR0402
CPU_SIC14,19
CPU_SID14,19
Q48
Q48
S1
G1
S2
G2
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
CPU_TDO
CPU_DBRDY
Q47
Q47
S1
G1
S2
G2
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
R189
R189
10KR0402
10KR0402
CPU_TMS
CPU_TCK
CPU_DBREQ_LCPU_DBREQ_L
LDT_RST#
For AMD ACC function
R194
R194
LDT_PWRGD9,25
LDT_STOP#9
R269 X_1KR0402R269 X_1KR0402
CPU_STRAP_HI_E11
CPU_STRAP_LO_F11
CPU_TMS
CPU_TCK
10KR0402
10KR0402
CPU_TRST_L
CPU_TDI
C97
C4.7u10X50805-RH
C97
C4.7u10X50805-RH
CPUCLKIN
CPUCLKIN#
LDT_RST#9
CPU_SIC
CPU_SID
COREFB+25
COREFB-25
TP10TP10
TP9TP9
R190 300R/4R190 300R/4
R192 300R/4R192 300R/4
3
C101
C0.22u25X-RH
C101
C0.22u25X-RH
LDT_PWRGD
LDT_STOP#
LDT_RST#
C113
C113
X_C1000p50X0402
X_C1000p50X0402
R260 0R0402R260 0R0402
CPU_TDI
CPU_TRST_L
CPU_TCK
CPU_TMS
CPU_DBREQ_L
COREFB+
COREFBÂM_VDDIO_PWRGD
CPU_VDDR_SENSE
CPU_TEST25_H
CPU_TEST25_L
TP5TP5
TP6TP6
TP7TP7
TP4TP4
TP12TP12
3
C106
C3300p50X
C106
C3300p50X
CPU_PRESENT_L
CPU_M_VREF
CPU_TEST19
CPU_TEST18
CPU_TEST17
CPU_TEST16
CPU_TEST15
CPU_TEST14
CPU_TEST12
TP8TP8
VDDA25
CPU_SA0
CPU_RSVD3
VID125
AH10
AH11
AL10
AJ10
AJ11
VID525
VID425
VID325
VID225
VID025
C10
D10
A8
B8
C9
D8
C7
AL3
AL6
AK6
AK4
AL4
AL9
A5
G2
G1
F3
E12
F12
A10
B10
F10
E9
AJ7
F6
D6
E7
F8
C5
AH9
E5
AJ5
AH7
AJ6
C18
C20
F2
G24
G25
H25
L25
L26
VDDA_1
VDDA_2
CLKIN_H
CLKIN_L
PWROK
LDTSTOP_L
RESET_L
CPU_PRESENT_L
SIC
SID
SA0
ALERT_L
TDI
TRST_L
TCK
TMS
DBREQ_L
VDD_FB_H
VDD_FB_L
M_VDDIO_PWRGD
VDDR_SENSE
M_VREF
M_ZN
M_ZP
TEST25_H
TEST25_L
TEST19
TEST18
TEST13
TEST9
TEST17
TEST16
TEST15
TEST14
TEST12
TEST7
TEST6
TEST3
TEST2
RSVD1
RSVD2
RSVD3
RSVD4
RSVD5
RSVD6
RSVD7
RSVD8
CPU1D
CPU1D
MISC.
MISC.
INT. MISC.
INT. MISC.
ZIF-SOCKET941-RH
ZIF-SOCKET941-RH
VCC1_2HT
VCC1_2HT
CORE_TYPE
SVC/VID3
SVD/VID2
PVIEN/VID1
THERMDC
THERMDA
THERMTRIP_L
PROCHOT_L
DBRDY
VDDIO_FB_H
VDDIO_FB_L
VDDNB_FB_H
VDDNB_FB_L
PSI_L
HTREF1
HTREF0
TEST29_H
TEST29_L
TEST24
TEST23
TEST22
TEST21
TEST20
TEST28_H
TEST28_L
TEST27
TEST26
TEST10
TEST8
RSVD9
RSVD10
RSVD11
RSVD12
RSVD13
RSVD14
RSVD15
RSVD16
C244
X_C4.7u10X50805-RH
C244
X_C4.7u10X50805-RH
C225
C0.22u25X-RH
C225
C0.22u25X-RH
VID5
VID4
VID0
TDO
2
C249
X_C4.7u10X50805-RH
C249
X_C4.7u10X50805-RH
C230
C0.22u25X-RH
C230
C0.22u25X-RH
2
CPU_CORE_TYPE
G5
D2
D1
C1
E3
E2
E1
AG9
AG8
AK7
AL7
AK10
B6
AK11
AL11
G4
G3
F1
V8
V7
C11
D11
AK8
AH8
AJ9
AL8
AJ8
J10
H9
AK9
AK5
G7
D4
L30
L31
AD25
AE24
AE25
AJ18
AJ20
AK3
C234
2200pF16X-RH
C234
2200pF16X-RH
C222
C222
C2200p16X0402
C2200p16X0402
VID5
VID4
VID3
VID2
VID1
VID0
THERMDC_CPU
THERMDA_CPU
CPU_PROCHOT#
CPU_TDO
CPU_DBRDY
CPU_PSI_L
HTREF1
HTREF0
CPU_TEST29_H
CPU_TEST29_L
CPU_TEST24
CPU_TEST23
CPU_TEST22
CPU_TEST21
CPU_TEST20
CPU_TEST27
CPU_TEST26
C237
2200pF16X-RH
C237
2200pF16X-RH
C227
C227
X_C2200p16X0402
X_C2200p16X0402
VCC_DDR
NB_VSEN 25
NB_GND 25
TP3TP3
TP11TP11
TP13TP13
R273 X_300R/4R273 X_300R/4
R261 300R/4R261 300R/4
CPU_DBREQ_L
C240
C0.22u25X-RH
C240
C0.22u25X-RH
C242
C4.7u10X50805-RH
C242
C4.7u10X50805-RH
R222
R222
1KR0402
1KR0402
CPU_CORE_TYPE 25,26
THERMDC_CPU 19
THERMDA_CPU 19
VCC_DDR
80.6R/6/1%
80.6R/6/1%
VCC_DDR
300R/4
300R/4
R272
R272
C114
C114
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
CPU_PRESENT_L
CPU_TEST25_H
CPU_TEST25_L
M_VDDIO_PWRGD
MSI
MSI
MSI
1
VCC_DDR
R263
R263
300R/4
300R/4
CPU_THRIP#
VCC_DDR
R271
R271
300R/4
300R/4
TP2TP2
R184
R184
R264
R264
300R0402
300R0402
R274 1K/4/5%R274 1K/4/5%
R191 510R/0402R191 510R/0402
R193 510R/0402R193 510R/0402
R217 1K/4/5%R217 1K/4/5%
R268 44.2R/6/1%R268 44.2R/6/1%
R266 44.2R/6/1%R266 44.2R/6/1%
C215
C1000p50X0402
C215
C1000p50X0402
C214
C1000p50X0402
C214
C1000p50X0402
VCC_DDR
VCC_DDR
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
VCC1_2HT
R185
R185
15R/6/1%
15R/6/1%
CPU_M_VREF
C115
C0.1u25Y0402-RH
C115
C0.1u25Y0402-RH
R183
R183
15R/6/1%
15R/6/1%
R180 300R/4R180 300R/4
R179 300R/4R179 300R/4
VCC_DDR
VCC_DDR
MS-7612
MS-7612
MS-7612
AM3 HT I/F,CTRL&DEBUG
AM3 HT I/F,CTRL&DEBUG
AM3 HT I/F,CTRL&DEBUG
1
CPU_THRIP# 9
CPU_PROCHOT# 9
C1000p50X0402
C1000p50X0402
LDT_STOP#
LDT_PWRGD
Sheet of
Sheet of
Sheet of
342
342
342
TP1TP1
C116
C116
1.0
1.0
1.0
5
4
3
2
1
MEM_MA_DQS_L[7..0]6,7 MEM_MB_DQS_L[7..0]6,7
MEM_MA_DQS_H[7..0]6,7
MEM_MA_DM[7..0]6,7
MEM_MA_ADD[15..0]6,7
MEM_MA_DATA[63..0]6,7
D D
MEM_MA1_CLK_H17
MEM_MA1_CLK_L17
MEM_MA0_CLK_H06
MEM_MA0_CLK_L06
MEM_MA1_CLK_H07
MEM_MA1_CLK_L07
MEM_MA0_CLK_H16
MEM_MA0_CLK_L16
MEM_MA0_CS_L16
MEM_MA0_CS_L06
MEM_MA0_ODT16
MEM_MA0_ODT06
C C
B B
A A
MEM_MA1_CS_L17
MEM_MA1_CS_L07
MEM_MA1_ODT17
MEM_MA1_ODT07
MEM_MA_RESET#6,7
MEM_MA_CAS_L6,7
MEM_MA_WE_L6,7
MEM_MA_RAS_L6,7
MEM_MA_BANK26,7
MEM_MA_BANK16,7
MEM_MA_BANK06,7
MEM_MA_CKE16,7
MEM_MA_CKE06,7
MEM_MA1_CLK_H1
MEM_MA1_CLK_L1
MEM_MA0_CLK_H0
MEM_MA0_CLK_L0
MEM_MA1_CLK_H0
MEM_MA1_CLK_L0
MEM_MA0_CLK_H1
MEM_MA0_CLK_L1
MEM_MA0_CS_L1
MEM_MA0_CS_L0
MEM_MA0_ODT1
MEM_MA0_ODT0
MEM_MA1_CS_L1
MEM_MA1_CS_L0
MEM_MA1_ODT1
MEM_MA1_ODT0
MEM_MA_CAS_L
MEM_MA_WE_L
MEM_MA_RAS_L
MEM_MA_BANK2
MEM_MA_BANK1
MEM_MA_BANK0
MEM_MA_CKE1
MEM_MA_CKE0
MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0
MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0
MEM_MA_DM7
MEM_MA_DM6
MEM_MA_DM5
MEM_MA_DM4
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM1
MEM_MA_DM0
MEM_MA_DQS_L[7..0] MEM_MB_DQS_L[7..0]
MEM_MA_DQS_H[7..0]
MEM_MA_DM[7..0]
MEM_MA_ADD[15..0]
MEM_MA_DATA[63..0]
CPU1B
CPU1B
AG21
MA_CLK_H7
AG20
MA_CLK_L7
AE20
MA_CLK_H6
AE19
MA_CLK_L6
U27
MA_CLK_H5
U26
MA_CLK_L5
V27
MA_CLK_H4
W27
MA_CLK_L4
W26
MA_CLK_H3
W25
MA_CLK_L3
U24
MA_CLK_H2
V24
MA_CLK_L2
G19
MA_CLK_H1
H19
MA_CLK_L1
G20
MA_CLK_H0
G21
MA_CLK_L0
AC25
MA0_CS_L1
AA24
MA0_CS_L0
AE28
MA0_ODT1
AC28
MA0_ODT0
AD27
MA1_CS_L1
AA25
MA1_CS_L0
AE27
MA1_ODT1
AC27
MA1_ODT0
E20
MA_RESET_L
AB25
MA_CAS_L
AB27
MA_WE_L
AA26
MA_RAS_L
N25
MA_BANK2
Y27
MA_BANK1
AA27
MA_BANK0
L27
MA_CKE1
M25
MA_CKE0
M27
MA_ADD15
N24
MA_ADD14
AC26
MA_ADD13
N26
MA_ADD12
P25
MA_ADD11
Y25
MA_ADD10
N27
MA_ADD9
R24
MA_ADD8
P27
MA_ADD7
R25
MA_ADD6
R26
MA_ADD5
R27
MA_ADD4
T25
MA_ADD3
U25
MA_ADD2
T27
MA_ADD1
W24
MA_ADD0
AD15
MA_DQS_H7
AE15
MA_DQS_L7
AG18
MA_DQS_H6
AG19
MA_DQS_L6
AG24
MA_DQS_H5
AG25
MA_DQS_L5
AG27
MA_DQS_H4
AG28
MA_DQS_L4
D29
MA_DQS_H3
C29
MA_DQS_L3
C25
MA_DQS_H2
D25
MA_DQS_L2
E19
MA_DQS_H1
F19
MA_DQS_L1
F15
MA_DQS_H0
G15
MA_DQS_L0
AF15
MA_DM7
AF19
MA_DM6
AJ25
MA_DM5
AH29
MA_DM4
B29
MA_DM3
E24
MA_DM2
E18
MA_DM1
H15
MA_DM0
ZIF-SOCKET941-RH
ZIF-SOCKET941-RH
MA_DATA63
MA_DATA62
MA_DATA61
MA_DATA60
MA_DATA59
MA_DATA58
MA_DATA57
MA_DATA56
MA_DATA55
MA_DATA54
MA_DATA53
MA_DATA52
MA_DATA51
MA_DATA50
MA_DATA49
MA_DATA48
MA_DATA47
MA_DATA46
MA_DATA45
MA_DATA44
MA_DATA43
MA_DATA42
MA_DATA41
MA_DATA40
MA_DATA39
MA_DATA38
MA_DATA37
MA_DATA36
MA_DATA35
MA_DATA34
MA_DATA33
MA_DATA32
MA_DATA31
MA_DATA30
MA_DATA29
MA_DATA28
MA_DATA27
MA_DATA26
MA_DATA25
MA_DATA24
MA_DATA23
MA_DATA22
MA_DATA21
MA_DATA20
MA_DATA19
MA_DATA18
MA_DATA17
MA_DATA16
MA_DATA15
MA_DATA14
MA_DATA13
MA_DATA12
MEM CHA
MEM CHA
MA_DATA11
MA_DATA10
MA_DATA9
MA_DATA8
MA_DATA7
MA_DATA6
MA_DATA5
MA_DATA4
MA_DATA3
MA_DATA2
MA_DATA1
MA_DATA0
MA_DQS_H8
MA_DQS_L8
MA_DM8
MA_CHECK7
MA_CHECK6
MA_CHECK5
MA_CHECK4
MA_CHECK3
MA_CHECK2
MA_CHECK1
MA_CHECK0
MA_EVENT_L
AE14
AG14
AG16
AD17
AD13
AE13
AG15
AE16
AG17
AE18
AD21
AG22
AE17
AF17
AF21
AE21
AF23
AE23
AJ26
AG26
AE22
AG23
AH25
AF25
AJ28
AJ29
AF29
AE26
AJ27
AH27
AG29
AF27
E29
E28
D27
C27
G26
F27
C28
E27
F25
E25
E23
D23
E26
C26
G23
F23
E22
E21
F17
G17
G22
F21
G18
E17
G16
E15
G13
H13
H17
E16
E14
G14
J28
J27
J25
K25
J26
G28
G27
L24
K27
H29
H27
W30
MEM_MA_DATA63
MEM_MA_DATA62
MEM_MA_DATA61
MEM_MA_DATA60
MEM_MA_DATA59
MEM_MA_DATA58
MEM_MA_DATA57
MEM_MA_DATA56
MEM_MA_DATA55
MEM_MA_DATA54
MEM_MA_DATA53
MEM_MA_DATA52
MEM_MA_DATA51
MEM_MA_DATA50
MEM_MA_DATA49
MEM_MA_DATA48
MEM_MA_DATA47
MEM_MA_DATA46
MEM_MA_DATA45
MEM_MA_DATA44
MEM_MA_DATA43
MEM_MA_DATA42
MEM_MA_DATA41
MEM_MA_DATA40
MEM_MA_DATA39
MEM_MA_DATA38
MEM_MA_DATA37
MEM_MA_DATA36
MEM_MA_DATA35
MEM_MA_DATA34
MEM_MA_DATA33
MEM_MA_DATA32
MEM_MA_DATA31
MEM_MA_DATA30
MEM_MA_DATA29
MEM_MA_DATA28
MEM_MA_DATA27
MEM_MA_DATA26
MEM_MA_DATA25
MEM_MA_DATA24
MEM_MA_DATA23
MEM_MA_DATA22
MEM_MA_DATA21
MEM_MA_DATA20
MEM_MA_DATA19
MEM_MA_DATA18
MEM_MA_DATA17
MEM_MA_DATA16
MEM_MA_DATA15
MEM_MA_DATA14
MEM_MA_DATA13
MEM_MA_DATA12
MEM_MA_DATA11
MEM_MA_DATA10
MEM_MA_DATA9
MEM_MA_DATA8
MEM_MA_DATA7
MEM_MA_DATA6
MEM_MA_DATA5
MEM_MA_DATA4
MEM_MA_DATA3
MEM_MA_DATA2
MEM_MA_DATA1
MEM_MA_DATA0
1KR0402
1KR0402
MEM_MA_EVENT_L
R249
R249
MEM_MA_EVENT_L 6,7
MEM_MB_DQS_H[7..0]6,7
MEM_MB_DM[7..0]6,7
MEM_MB_ADD[15..0]6,7
MEM_MB_DATA[63..0]6,7
MEM_MB1_CLK_H17
MEM_MB1_CLK_L17
MEM_MB0_CLK_H06
MEM_MB0_CLK_L06
MEM_MB1_CLK_H07
MEM_MB1_CLK_L07
MEM_MB0_CLK_H16
MEM_MB0_CLK_L16
MEM_MB0_CS_L16
MEM_MB0_CS_L06
MEM_MB0_ODT16
MEM_MB0_ODT06
MEM_MB1_CS_L17
MEM_MB1_CS_L07
MEM_MB1_ODT17
MEM_MB1_ODT07
MEM_MB_RESET#6,7
MEM_MB_CAS_L6,7
MEM_MB_WE_L6,7
MEM_MB_RAS_L6,7
MEM_MB_BANK26,7
MEM_MB_BANK16,7
MEM_MB_BANK06,7
MEM_MB_CKE16,7
MEM_MB_CKE06,7
MEM_MB_DQS_H[7..0]
MEM_MB_DM[7..0]
MEM_MB_ADD[15..0]
MEM_MB_DATA[63..0]
MEM_MB1_CLK_H1
MEM_MB1_CLK_L1
MEM_MB0_CLK_H0
MEM_MB0_CLK_L0
MEM_MB1_CLK_H0
MEM_MB1_CLK_L0
MEM_MB0_CLK_H1
MEM_MB0_CLK_L1
MEM_MB0_CS_L1
MEM_MB0_CS_L0
MEM_MB0_ODT1
MEM_MB0_ODT0
MEM_MB1_CS_L1
MEM_MB1_CS_L0
MEM_MB1_ODT1
MEM_MB1_ODT0
MEM_MB_RESET#MEM_MA_RESET#
MEM_MB_CAS_L
MEM_MB_WE_L
MEM_MB_RAS_L
MEM_MB_BANK2
MEM_MB_BANK1
MEM_MB_BANK0
MEM_MB_CKE1
MEM_MB_CKE0
MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0
MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0
MEM_MB_DM7
MEM_MB_DM6
MEM_MB_DM5
MEM_MB_DM4
MEM_MB_DM3
MEM_MB_DM2
MEM_MB_DM1
MEM_MB_DM0
AJ19
AK19
AL19
AL18
W29
W28
W31
AE30
AC31
AF31
AD29
AE29
AB31
AG31
AD31
AC29
AC30
AB29
AA31
AA28
AE31
AA29
AA30
AK13
AJ13
AK17
AJ17
AK23
AL23
AL28
AL29
AJ14
AH17
AJ23
AK29
U31
U30
Y31
Y30
V31
A18
A19
C19
D19
B19
N31
M31
M29
N28
N29
N30
P29
P31
R29
R28
R31
R30
T31
T29
U29
U28
D31
C31
C24
C23
D17
C17
C14
C13
C30
A23
B17
B13
CPU1C
CPU1C
MB_CLK_H7
MB_CLK_L7
MB_CLK_H6
MB_CLK_L6
MB_CLK_H5
MB_CLK_L5
MB_CLK_H4
MB_CLK_L4
MB_CLK_H3
MB_CLK_L3
MB_CLK_H2
MB_CLK_L2
MB_CLK_H1
MB_CLK_L1
MB_CLK_H0
MB_CLK_L0
MB0_CS_L1
MB0_CS_L0
MB0_ODT1
MB0_ODT0
MB1_CS_L1
MB1_CS_L0
MB1_ODT1
MB1_ODT0
MB_RESET_L
MB_CAS_L
MB_WE_L
MB_RAS_L
MB_BANK2
MB_BANK1
MB_BANK0
MB_CKE1
MB_CKE0
MB_ADD15
MB_ADD14
MB_ADD13
MB_ADD12
MB_ADD11
MB_ADD10
MB_ADD9
MB_ADD8
MB_ADD7
MB_ADD6
MB_ADD5
MB_ADD4
MB_ADD3
MB_ADD2
MB_ADD1
MB_ADD0
MB_DQS_H7
MB_DQS_L7
MB_DQS_H6
MB_DQS_L6
MB_DQS_H5
MB_DQS_L5
MB_DQS_H4
MB_DQS_L4
MB_DQS_H3
MB_DQS_L3
MB_DQS_H2
MB_DQS_L2
MB_DQS_H1
MB_DQS_L1
MB_DQS_H0
MB_DQS_L0
MB_DM7
MB_DM6
MB_DM5
MB_DM4
MB_DM3
MB_DM2
MB_DM1
MB_DM0
ZIF-SOCKET941-RH
ZIF-SOCKET941-RH
MB_DATA63
MB_DATA62
MB_DATA61
MB_DATA60
MB_DATA59
MB_DATA58
MB_DATA57
MB_DATA56
MB_DATA55
MB_DATA54
MB_DATA53
MB_DATA52
MB_DATA51
MB_DATA50
MB_DATA49
MB_DATA48
MB_DATA47
MB_DATA46
MB_DATA45
MB_DATA44
MB_DATA43
MB_DATA42
MB_DATA41
MB_DATA40
MB_DATA39
MB_DATA38
MB_DATA37
MB_DATA36
MB_DATA35
MB_DATA34
MB_DATA33
MB_DATA32
MB_DATA31
MB_DATA30
MB_DATA29
MB_DATA28
MB_DATA27
MB_DATA26
MB_DATA25
MB_DATA24
MB_DATA23
MB_DATA22
MB_DATA21
MB_DATA20
MB_DATA19
MB_DATA18
MB_DATA17
MB_DATA16
MB_DATA15
MB_DATA14
MB_DATA13
MB_DATA12
MB_DATA11
MEM CHB
MEM CHB
MB_DATA10
MB_DATA9
MB_DATA8
MB_DATA7
MB_DATA6
MB_DATA5
MB_DATA4
MB_DATA3
MB_DATA2
MB_DATA1
MB_DATA0
MB_DQS_H8
MB_DQS_L8
MB_DM8
MB_CHECK7
MB_CHECK6
MB_CHECK5
MB_CHECK4
MB_CHECK3
MB_CHECK2
MB_CHECK1
MB_CHECK0
MB_EVENT_L
AH13
AL13
AL15
AJ15
AF13
AG13
AL14
AK15
AL16
AL17
AK21
AL21
AH15
AJ16
AH19
AL20
AJ22
AL22
AL24
AK25
AJ21
AH21
AH23
AJ24
AL27
AK27
AH31
AG30
AL25
AL26
AJ30
AJ31
E31
E30
B27
A27
F29
F31
A29
A28
A25
A24
C22
D21
A26
B25
B23
A22
B21
A20
C16
D15
C21
A21
A17
A16
B15
A14
E13
F13
C15
A15
A13
D13
J31
J30
J29
K29
K31
G30
G29
L29
L28
H31
G31
V29
MEM_MB_DATA63
MEM_MB_DATA62
MEM_MB_DATA61
MEM_MB_DATA60
MEM_MB_DATA59
MEM_MB_DATA58
MEM_MB_DATA57
MEM_MB_DATA56
MEM_MB_DATA55
MEM_MB_DATA54
MEM_MB_DATA53
MEM_MB_DATA52
MEM_MB_DATA51
MEM_MB_DATA50
MEM_MB_DATA49
MEM_MB_DATA48
MEM_MB_DATA47
MEM_MB_DATA46
MEM_MB_DATA45
MEM_MB_DATA44
MEM_MB_DATA43
MEM_MB_DATA42
MEM_MB_DATA41
MEM_MB_DATA40
MEM_MB_DATA39
MEM_MB_DATA38
MEM_MB_DATA37
MEM_MB_DATA36
MEM_MB_DATA35
MEM_MB_DATA34
MEM_MB_DATA33
MEM_MB_DATA32
MEM_MB_DATA31
MEM_MB_DATA30
MEM_MB_DATA29
MEM_MB_DATA28
MEM_MB_DATA27
MEM_MB_DATA26
MEM_MB_DATA25
MEM_MB_DATA24
MEM_MB_DATA23
MEM_MB_DATA22
MEM_MB_DATA21
MEM_MB_DATA20
MEM_MB_DATA19
MEM_MB_DATA18
MEM_MB_DATA17
MEM_MB_DATA16
MEM_MB_DATA15
MEM_MB_DATA14
MEM_MB_DATA13
MEM_MB_DATA12
MEM_MB_DATA11
MEM_MB_DATA10
MEM_MB_DATA9
MEM_MB_DATA8
MEM_MB_DATA7
MEM_MB_DATA6
MEM_MB_DATA5
MEM_MB_DATA4
MEM_MB_DATA3
MEM_MB_DATA2
MEM_MB_DATA1
MEM_MB_DATA0
MEM_MB_EVENT_L
VCC_DDRVCC_DDR
R248
R248
1KR0402
1KR0402
MEM_MB_EVENT_L 6,7
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
A0 A1B0 B1
5
4
3
2
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
MS-7612
MS-7612
MS-7612
AM3 DDR MEMORY I/F
AM3 DDR MEMORY I/F
AM3 DDR MEMORY I/F
Sheet of
Sheet of
Sheet of
1
1.0
1.0
1.0
442
442
442
5
VCCP
D D
C C
B B
B3
VDD_1
C2
VDD_2
C4
VDD_3
D3
VDD_4
D5
VDD_5
E4
VDD_6
E6
VDD_7
F5
VDD_8
F7
VDD_9
G6
VDD_10
G8
VDD_11
H7
VDD_12
H11
VDD_13
H23
VDD_14
J8
VDD_15
J12
VDD_16
J14
VDD_17
J16
VDD_18
J18
VDD_19
J20
VDD_20
J22
VDD_21
J24
VDD_22
K7
VDD_23
K9
VDD_24
K11
VDD_25
K13
VDD_26
K15
VDD_27
K17
VDD_28
K19
VDD_29
K21
VDD_30
K23
VDD_31
L4
VDD_32
L5
VDD_33
L8
VDD_34
L10
VDD_35
L12
VDD_36
L14
VDD_37
L16
VDD_38
L18
VDD_39
L20
VDD_40
L22
VDD_41
M2
VDD_42
M3
VDD_43
M7
VDD_44
M9
VDD_45
M11
VDD_46
M13
VDD_47
M15
VDD_48
M17
VDD_49
M19
VDD_50
M21
VDD_51
M23
VDD_52
N8
VDD_53
N10
VDD_54
N12
VDD_55
N14
VDD_56
N16
VDD_57
N18
VDD_58
N20
VDD_59
N22
VDD_60
P7
VDD_61
P9
VDD_62
P11
VDD_63
P13
VDD_64
P15
VDD_65
P17
VDD_66
P19
VDD_67
P21
VDD_68
P23
VDD_69
R4
VDD_70
R5
VDD_71
R8
VDD_72
R10
VDD_73
R12
VDD_74
R14
VDD_75
R16
VDD_76
R18
VDD_77
R20
VDD_78
R22
VDD_79
T2
VDD_80
T3
VDD_81
T7
VDD_82
T9
VDD_83
T11
VDD_84
T13
VDD_85
CPU1E
CPU1E
ZIF-SOCKET941-RH
ZIF-SOCKET941-RH
A3
VSS_1
A7
VSS_2
A9
VSS_3
A11
VSS_4
B4
VSS_5
B9
VSS_6
B11
VSS_7
B14
VSS_8
B16
VSS_9
B18
VSS_10
B20
VSS_11
B22
VSS_12
B24
VSS_13
B26
VSS_14
B28
VSS_15
B30
VSS_16
C3
VSS_17
D14
VSS_18
D16
VSS_19
D18
VSS_20
D20
VSS_21
D22
VSS_22
D24
VSS_23
D26
VSS_24
D28
VSS_25
D30
VSS_26
E11
VSS_27
F4
VSS_28
F14
VSS_29
F16
VSS_30
F18
VSS_31
F20
VSS_32
F22
VSS_33
F24
VSS_34
F26
VSS_35
F28
VSS_36
F30
VSS_37
G9
VSS_38
G11
VSS_39
H8
VSS_40
H10
VSS_41
H12
VSS_42
H14
VSS_43
H16
VSS_44
H18
VSS_45
H24
VSS_46
H26
VSS_47
H28
VSS_48
H30
VSS_49
J4
VSS_50
J5
VSS_51
POWER/GND1
POWER/GND1
J7
VSS_52
J9
VSS_53
J11
VSS_54
J13
VSS_55
J15
VSS_56
J17
VSS_57
J19
VSS_58
J21
VSS_59
J23
VSS_60
K2
VSS_61
K3
VSS_62
K8
VSS_63
K10
VSS_64
K12
VSS_65
K14
VSS_66
K16
VSS_67
K18
VSS_68
K20
VSS_69
K22
VSS_70
K24
VSS_71
K26
VSS_72
K28
VSS_73
K30
VSS_74
L7
VSS_75
L9
VSS_76
L11
VSS_77
L13
VSS_78
L15
VSS_79
L17
VSS_80
L19
VSS_81
L21
VSS_82
L23
VSS_83
M8
VSS_84
M10
VSS_85
VCCP
AA10
AA12
AA14
AA16
AA18
AA20
AA22
AB11
AB13
AB15
AB17
AB19
AB21
AB23
AC10
AC12
AC14
AC16
AC18
AC20
AC22
AD11
AD23
AE10
AE12
AF11
T15
T17
T19
T21
T23
U8
U10
U12
U14
U16
U18
U20
U22
V9
V11
V13
V15
V17
V19
V21
V23
W4
W5
W8
W10
W12
W14
W16
W18
W20
W22
Y2
Y3
Y7
Y9
Y11
Y13
Y15
Y17
Y19
Y21
Y23
AA8
AB7
AB9
AC4
AC5
AC8
AD2
AD3
AD7
AD9
AF7
AF9
AG4
AG5
AG7
AH2
AH3
4
CPU1F
CPU1F
VDD_86
VDD_87
VDD_88
VDD_89
VDD_90
VDD_91
VDD_92
VDD_93
VDD_94
VDD_95
VDD_96
VDD_97
VDD_98
VDD_99
VDD_100
VDD_101
VDD_102
VDD_103
VDD_104
VDD_105
VDD_106
VDD_107
VDD_108
VDD_109
VDD_110
VDD_111
VDD_112
VDD_113
VDD_114
VDD_115
VDD_116
VDD_117
VDD_118
VDD_119
VDD_120
VDD_121
VDD_122
VDD_123
VDD_124
VDD_125
VDD_126
VDD_127
VDD_128
VDD_129
VDD_130
VDD_131
VDD_132
VDD_133
VDD_134
VDD_135
VDD_136
VDD_137
VDD_138
VDD_139
VDD_140
VDD_141
VDD_142
VDD_143
VDD_144
VDD_145
VDD_146
VDD_147
VDD_148
VDD_149
VDD_150
VDD_151
VDD_152
VDD_153
VDD_154
VDD_155
VDD_156
VDD_157
VDD_158
VDD_159
VDD_160
VDD_161
VDD_162
VDD_163
VDD_164
VDD_165
VDD_166
VDD_167
VDD_168
VDD_169
VDD_170
ZIF-SOCKET941-RH
ZIF-SOCKET941-RH
M12
VSS_86
M14
VSS_87
M16
VSS_88
M18
VSS_89
M20
VSS_90
M22
VSS_91
N4
VSS_92
N5
VSS_93
N7
VSS_94
N9
VSS_95
N11
VSS_96
N13
VSS_97
N15
VSS_98
N17
VSS_99
N19
VSS_100
N21
VSS_101
N23
VSS_102
P2
VSS_103
P3
VSS_104
P8
VSS_105
P10
VSS_106
P12
VSS_107
P14
VSS_108
P16
VSS_109
P18
VSS_110
P20
VSS_111
P22
VSS_112
R7
VSS_113
R9
VSS_114
R11
VSS_115
R13
VSS_116
R15
VSS_117
R17
VSS_118
R19
VSS_119
R21
VSS_120
R23
VSS_121
T8
VSS_122
T10
VSS_123
T12
VSS_124
T14
VSS_125
T16
VSS_126
T18
VSS_127
T20
VSS_128
T22
VSS_129
U4
VSS_130
U5
VSS_131
U7
VSS_132
U9
VSS_133
U11
VSS_134
U13
VSS_135
POWER/GND2
POWER/GND2
VSS_136
VSS_137
VSS_138
VSS_139
VSS_140
VSS_141
VSS_142
VSS_143
VSS_144
VSS_145
VSS_146
VSS_147
VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
U15
U17
U19
U21
U23
V2
V3
V10
V12
V14
V16
V18
V20
V22
W7
W9
W11
W13
W15
W17
W19
W21
W23
Y8
Y10
Y12
Y14
Y16
Y18
Y20
Y22
AA4
AA5
AA7
AA9
3
VCCP_NB
CPU1G
CPU1G
A4
VDDNB_1
A6
VDDNB_2
B5
VDDNB_3
B7
VDDNB_4
C6
VDDNB_5
C8
VDDNB_6
D7
VDDNB_7
D9
VDDNB_8
E8
VDDNB_9
E10
VDDNB_10
F9
VDDNB_11
F11
VDDNB_12
G10
VDDNB_13
G12
VDDNB_14
POWER/GND3
C829 0.22u/25V/6C829 0.22u/25V/6
C811 0.1u/10VC811 0.1u/10V
POWER/GND3
C815 180P/50V/4C815 180P/50V/4
C823 22u/6.3V/12C823 22u/6.3V/12
B2
NP/RSVD
H20
NP/VSS1
AE7
NP/VSS2
ZIF-SOCKET941-RH
ZIF-SOCKET941-RH
C810 22u/6.3V/12C810 22u/6.3V/12
C808 22u/6.3V/12C808 22u/6.3V/12
C807 22u/6.3V/12C807 22u/6.3V/12
C818 0.22u/25V/6C818 0.22u/25V/6
C820 22u/6.3V/12C820 22u/6.3V/12
C814 22u/6.3V/12C814 22u/6.3V/12
VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
VSS_199
VSS_200
VSS_201
VSS_202
VSS_203
VSS_204
VSS_205
VSS_206
VSS_207
VSS_208
VSS_209
VSS_210
VSS_211
VSS_212
VSS_213
VSS_214
AA11
AA13
AA15
AA17
AA19
AA21
AA23
AB2
AB3
AB8
AB10
AB12
AB14
AB16
AB18
AB20
AB22
AC7
AC9
AC11
AC13
AC15
AC17
AC19
AC21
AC23
AD8
AD10
AD12
AD14
AD16
AD20
AD22
AD24
AE4
AE5
AE11
AF2
AF3
AF8
AF10
AF12
AF14
AF16
C824 22u/6.3V/12C824 22u/6.3V/12
C827 4.7u/10V/8C827 4.7u/10V/8
C821 22u/6.3V/12C821 22u/6.3V/12
BACK SIDEBACK SIDE BACK SIDE
2
VCC1_2HT
VCC1_2HT
CPU_VDDR
VCC_DDR
C816 0.22u/25V/6C816 0.22u/25V/6
C832 0.22u/25V/6C832 0.22u/25V/6
C812 0.22u/25V/6C812 0.22u/25V/6
C817 0.22u/25V/6C817 0.22u/25V/6
AJ1
AJ2
AJ3
AJ4
A12
B12
C12
D12
M24
M26
M28
M30
P24
P26
P28
P30
T24
T26
T28
T30
V25
V26
V28
V30
Y24
Y26
Y28
Y29
AB24
AB26
AB28
AB30
AC24
AD26
AD28
AD30
AF30
C154 C0.01u25X0402C154 C0.01u25X0402
R285 0R0805R285 0R0805
R282 0R0805R282 0R0805
C883 0.1u/10VC883 0.1u/10V
CPU1H
CPU1H
VLDT_A_1
VLDT_A_2
VLDT_A_3
VLDT_A_4
VDDR_1
VDDR_2
VDDR_3
VDDR_4
VDDIO_1
VDDIO_2
VDDIO_3
VDDIO_4
VDDIO_5
VDDIO_6
VDDIO_7
VDDIO_8
VDDIO_9
VDDIO_10
VDDIO_11
VDDIO_12
VDDIO_13
VDDIO_14
VDDIO_15
VDDIO_16
VDDIO_17
VDDIO_18
VDDIO_19
VDDIO_20
VDDIO_21
VDDIO_22
VDDIO_23
VDDIO_24
VDDIO_25
VDDIO_26
VDDIO_27
VDDIO_28
VDDIO_29
ZIF-SOCKET941-RH
ZIF-SOCKET941-RH
VCCPVCCP VCC_DDR
C191 180P/50V/4C191 180P/50V/4
C825 22u/6.3V/12C825 22u/6.3V/12
CPU_VDDR
POWER/GND4
POWER/GND4
C819 22u/6.3V/12C819 22u/6.3V/12
C826 22u/6.3V/12C826 22u/6.3V/12
C822 22u/6.3V/12C822 22u/6.3V/12
VLDT_B_1
VLDT_B_2
VLDT_B_3
VLDT_B_4
VDDR_5
VDDR_6
VDDR_7
VDDR_8
VDDR_9
VSS_215
VSS_216
VSS_217
VSS_218
VSS_219
VSS_220
VSS_221
VSS_222
VSS_223
VSS_224
VSS_225
VSS_226
VSS_227
VSS_228
VSS_229
VSS_230
VSS_231
VSS_232
VSS_233
VSS_234
VSS_235
VSS_236
VSS_237
VSS_238
VSS_239
VSS_240
VSS_241
VSS_242
C830 22u/6.3V/12C830 22u/6.3V/12
C831 22u/6.3V/12C831 22u/6.3V/12
H1
H2
H5
H6
AG12
AH12
AJ12
AK12
AL12
AF18
AF20
AF22
AF24
AF26
AF28
AG10
AG11
AH14
AH16
AH18
AH20
AH22
AH24
AH26
AH28
AH30
AK2
AK14
AK16
AK18
AK20
AK22
AK24
AK26
AK28
AK30
AL5
1
C147 C0.01u25X0402C147 C0.01u25X0402
C136 C0.01u25X0402C136 C0.01u25X0402
C149 4.7u/10V/8C149 4.7u/10V/8
VLDT_RUN_B
CPU_VDDR
VCCP_NB
C809 22u/6.3V/12C809 22u/6.3V/12
C813 22u/6.3V/12C813 22u/6.3V/12
C145 C0.01u25X0402C145 C0.01u25X0402
C806 X_22u/6.3V/12C806 X_22u/6.3V/12
C803 C0.01u25X0402C803 C0.01u25X0402
C805 X_22u/6.3V/12C805 X_22u/6.3V/12
C804 C0.01u25X0402C804 C0.01u25X0402
BACK SIDE BACK SIDE
VCC_DDR VTT_DDR
C208 C2200p25N0402C208 C2200p25N0402
C155 C0.1u25Y0402-RHC155 C0.1u25Y0402-RH
5
C142 X_C1000p50N0402C142 X_C1000p50N0402
C209 C2200p25N0402C209 C2200p25N0402
C180 X_C220p25N0402C180 X_C220p25N0402
C307 X_C0.1u25Y0402-RHC307 X_C0.1u25Y0402-RH
C172 C220p50NC172 C220p50N
C297 C0.1u25Y0402-RHC297 C0.1u25Y0402-RH
C295 C0.1u25Y0402-RHC295 C0.1u25Y0402-RH
C294 C100p50N0402C294 C100p50N0402
C290 X_C0.1u25Y0402-RHC290 X_C0.1u25Y0402-RH
C291 C0.1u25Y0402-RHC291 C0.1u25Y0402-RH
C296 C100p50N0402C296 C100p50N0402
C293 C0.1u25Y0402-RHC293 C0.1u25Y0402-RH
4
CPU_VDDR
C886 2200pF/16/XC886 2200pF/16/X
C884 2200pF/16/XC884 2200pF/16/X
C885 2200pF/16/XC885 2200pF/16/X
C229 2200pF/16/XC229 2200pF/16/X
C224 0.22u/25V/6C224 0.22u/25V/6
C219 2200pF/16/XC219 2200pF/16/X
C218 2200pF/16/XC218 2200pF/16/X
C236 4.7u/10V/8C236 4.7u/10V/8
C239 4.7u/10V/8C239 4.7u/10V/8
CPU_VDDR
C102 2200pF/16/XC102 2200pF/16/X
C221 2200pF/16/XC221 2200pF/16/X
C213 2200pF/16/XC213 2200pF/16/X
3
C92 4.7u/10V/8C92 4.7u/10V/8
C89 4.7u/10V/8C89 4.7u/10V/8
C100 2200pF/16/XC100 2200pF/16/X
C117 2200pF/16/XC117 2200pF/16/X
VCCP_NB
C103 22u/6.3V/12C103 22u/6.3V/12
C110 2200pF/16/XC110 2200pF/16/X
C107 2200pF/16/XC107 2200pF/16/X
C112 22u/6.3V/12C112 22u/6.3V/12C167 4.7u/10V/8C167 4.7u/10V/8
C99 C100p50NC99 C100p50N
C91 C0.01u25X0402C91 C0.01u25X0402
C98 0.22u/25V/6C98 0.22u/25V/6
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
2
Wednesday, June 17, 2009
MS-7612
AM2+ POWER & GND
AM2+ POWER & GND
AM2+ POWER & GND
Sheet of
Sheet of
Sheet of
1
1.0
1.0
1.0
542
542
542
C206 C2200p25N0402C206 C2200p25N0402
C193 X_C220p25N0402C193 X_C220p25N0402
C156 X_C0.1u25Y0402-RHC156 X_C0.1u25Y0402-RH
A A
5
DIMM1
DIMM1
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VCC_DDR
MEM_MA_DQS_H[7..0]
MEM_MA_DQS_L[7..0]
MEM_MA_DM[7..0]
MEM_MA_ADD[15..0]
MEM_MA_DATA[63..0]
54
VDD51VDD
VDD57VDD60VDD62VDD65VDD66VDD69VDD72VDD75VDD78VDD
VSS
VSS
VSS
VSS
VSS
107
110
113
116
119
121
5
VCC3
C765
C765
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
VTT_DDR VTT_DDR
MEM_MA_EVENT_L
170
173
176
179
182
183
186
189
191
194
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
DDR3
DDR3
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
124
127
130
133
136
139
142
145
VSS
148
151
154
157
160
163
166
199
53
197
236
VDD
VSS
VSS
202
205
208
120
VDDSPD
VSS
VSS
211
214
79
68
240
48
187
198
167
VTT
VTT
RSVD
FREE1
FREE249FREE3
FREE4
NC/TEST4
NC/PAR_IN
NC/ERR_OUT
A10/AP
A11
A12
A13
A14
A15
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
DQS0
DQS0#
DQS1
DQS1#
DQS2
DQS2#
DQS3
DQS3#
DQS4
DQS4#
DQS5
DQS5#
DQS6
DQS6#
DQS7
DQS7#
DQS8
DQS8#
DM0/DQS9
NC/DQS9#
DM1/DQS10
NC/DQS10#
DM2/DQS11
NC/DQS11#
DM3/DQS12
NC/DQS12#
DM4/DQS13
NC/DQS13#
DM5/DQS14
NC/DQS14#
DM6/DQS15
NC/DQS15#
DM7/DQS16
NC/DQS16#
DM8/DQS17
NC/DQS17#
ODT0
ODT1
CKE0
CKE1
CS0#
CS1#
BA0
BA1
BA2
WE#
RAS#
CAS#
RESET#
CK0
CK0#
CK1(NU)
CK1#(NU)
VREFDQ
VREFCA
SCL
SDA
SA1
VSS
VSS
VSS
217
220
SA0
VSS
VSS
VSS
VSS
VSS
VSS
MEC1
MEC2
223
226
229
232
235
239
MEC1
MEC2
MEM_MA_DQS_H[7..0]4,7
MEM_MA_DQS_L[7..0]4,7
MEM_MA_DM[7..0]4,7
MEM_MA_ADD[15..0]4,7
MEM_MA_DATA[63..0]4,7
D D
MEM_MA_DATA0 MEM_MA_ADD0
MEM_MA_DATA1
MEM_MA_DATA2
MEM_MA_DATA3
MEM_MA_DATA4
MEM_MA_DATA5
MEM_MA_DATA6
MEM_MA_DATA7
MEM_MA_DATA8
MEM_MA_DATA9
MEM_MA_DATA10
MEM_MA_DATA11
MEM_MA_DATA12
MEM_MA_DATA13
MEM_MA_DATA14
MEM_MA_DATA15
MEM_MA_DATA16
MEM_MA_DATA17
MEM_MA_DATA18
MEM_MA_DATA19
MEM_MA_DATA20
MEM_MA_DATA21
MEM_MA_DATA22
MEM_MA_DATA23
MEM_MA_DATA24
MEM_MA_DATA25
C C
MEM_MA_DATA26
MEM_MA_DATA27
MEM_MA_DATA28
MEM_MA_DATA29
MEM_MA_DATA30
MEM_MA_DATA31
MEM_MA_DATA32
MEM_MA_DATA33
MEM_MA_DATA34
MEM_MA_DATA35
MEM_MA_DATA36
MEM_MA_DATA37
MEM_MA_DATA38
MEM_MA_DATA39
MEM_MA_DATA40
MEM_MA_DATA41
MEM_MA_DATA42
MEM_MA_DATA43
MEM_MA_DATA44
MEM_MA_DATA45
MEM_MA_DATA46
MEM_MA_DATA47
MEM_MA_DATA48
MEM_MA_DATA49
MEM_MA_DATA50
MEM_MA_DATA51
MEM_MA_DATA52
MEM_MA_DATA53
MEM_MA_DATA54
MEM_MA_DATA55
MEM_MA_DATA56
MEM_MA_DATA57
MEM_MA_DATA58
B B
MEM_MA_DATA59
MEM_MA_DATA60
MEM_MA_DATA61
MEM_MA_DATA62
MEM_MA_DATA63
A A
3
4
9
10
122
123
128
129
12
13
18
19
131
132
137
138
21
22
27
28
140
141
146
147
30
31
36
37
149
150
155
156
81
82
87
88
200
201
206
207
90
91
96
97
209
210
215
216
99
100
105
106
218
219
224
225
108
109
114
115
227
228
233
234
2
5
8
11
14
17
20
23
26
29
32
35
38
41
44
47
80
83
86
89
92
95
98
101
104
188
A0
MEM_MA_ADD1
181
A1
MEM_MA_ADD2
61
A2
MEM_MA_ADD3
180
A3
MEM_MA_ADD4
59
A4
MEM_MA_ADD5
58
A5
MEM_MA_ADD6
178
A6
MEM_MA_ADD7
56
A7
MEM_MA_ADD8
177
A8
MEM_MA_ADD9
175
A9
MEM_MA_ADD10
70
MEM_MA_ADD11
55
MEM_MA_ADD12
174
MEM_MA_ADD13
196
MEM_MA_ADD14
172
MEM_MA_ADD15
171
39
40
45
46
158
159
164
165
MEM_MA_DQS_H0
7
MEM_MA_DQS_L0
6
MEM_MA_DQS_H1
16
MEM_MA_DQS_L1
15
MEM_MA_DQS_H2
25
MEM_MA_DQS_L2
24
MEM_MA_DQS_H3
34
MEM_MA_DQS_L3
33
MEM_MA_DQS_H4
85
MEM_MA_DQS_L4
84
MEM_MA_DQS_H5
94
MEM_MA_DQS_L5
93
MEM_MA_DQS_H6
103
MEM_MA_DQS_L6
102
MEM_MA_DQS_H7
112
MEM_MA_DQS_L7
111
43
42
125
126
134
135
143
144
152
153
203
204
212
213
221
222
230
231
161
162
MEM_MA0_ODT0
195
MEM_MA0_ODT1
77
MEM_MA_CKE0
50
MEM_MA_CKE1
169
MEM_MA0_CS_L0
193
MEM_MA0_CS_L1
76
MEM_MA_BANK0
71
MEM_MA_BANK1
190
MEM_MA_BANK2
52
MEM_MA_WE_L
73
MEM_MA_RAS_L
192
MEM_MA_CAS_L
74
MEM_MA_RESET#
168
MEM_MA0_CLK_H0
184
MEM_MA0_CLK_L0
185
MEM_MA0_CLK_H1
63
MEM_MA0_CLK_L1
64
1
67
SMB_MEM_CLK
118
SMB_MEM_DATA
238
237
117
MEC3
DDRIII-240P_BLACK-RH
DDRIII-240P_BLACK-RH
MEC3
4
MEM_MA_EVENT_L 4,7
MEM_MA_DM0
MEM_MA_DM1
MEM_MA_DM2
MEM_MA_DM3
MEM_MA_DM4
MEM_MA_DM5
MEM_MA_DM6
MEM_MA_DM7
VDDR_VREF_DQ
VDDR_VREF_CA
4
3
DIMM2
DIMM2
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VCC_DDR
MEM_MB_DQS_H[7..0]
MEM_MB_DQS_L[7..0]
MEM_MB_DM[7..0]
MEM_MB_ADD[15..0]
MEM_MB_DATA[63..0]
54
VDD51VDD
VDD57VDD60VDD62VDD65VDD66VDD69VDD72VDD75VDD78VDD
VSS
VSS
VSS
VSS
VSS
107
110
113
116
119
MEM_MB_DQS_H[7..0]4,7
MEM_MB_DQS_L[7..0]4,7
MEM_MB_DM[7..0]4,7
MEM_MB_DATA0
MEM_MB_DATA1
MEM_MB_DATA2
MEM_MB_DATA3
MEM_MB_DATA4
MEM_MB_DATA5
MEM_MB_DATA6
MEM_MB_DATA7
MEM_MB_DATA8
MEM_MB_DATA9
MEM_MB_DATA10
MEM_MB_DATA11
MEM_MB_DATA12
MEM_MB_DATA13
MEM_MB_DATA14
MEM_MB_DATA15
MEM_MB_DATA16
MEM_MB_DATA17
MEM_MB_DATA18
MEM_MB_DATA19
MEM_MB_DATA20
MEM_MB_DATA21
MEM_MB_DATA22
MEM_MB_DATA23
MEM_MB_DATA24
MEM_MB_DATA25
MEM_MB_DATA26
MEM_MB_DATA27
MEM_MB_DATA28
MEM_MB_DATA29
MEM_MB_DATA30
MEM_MB_DATA31
MEM_MB_DATA32
MEM_MB_DATA33
MEM_MB_DATA34
MEM_MB_DATA35
MEM_MB_DATA36
MEM_MB_DATA37
MEM_MB_DATA38
MEM_MB_DATA39
MEM_MB_DATA40
MEM_MB_DATA41
MEM_MB_DATA42
MEM_MB_DATA43
MEM_MB_DATA44
MEM_MB_DATA45
MEM_MB_DATA46
MEM_MB_DATA47
MEM_MB_DATA48
MEM_MB_DATA49
MEM_MB_DATA50
MEM_MB_DATA51
MEM_MB_DATA52
MEM_MB_DATA53
MEM_MB_DATA54
MEM_MB_DATA55
MEM_MB_DATA56
MEM_MB_DATA57
MEM_MB_DATA58
MEM_MB_DATA59
MEM_MB_DATA60
MEM_MB_DATA61
MEM_MB_DATA62
MEM_MB_DATA63
MEM_MB_ADD[15..0]4,7
MEM_MB_DATA[63..0]4,7
3
4
9
10
122
123
128
129
12
13
18
19
131
132
137
138
21
22
27
28
140
141
146
147
30
31
36
37
149
150
155
156
81
82
87
88
200
201
206
207
90
91
96
97
209
210
215
216
99
100
105
106
218
219
224
225
108
109
114
115
227
228
233
234
2
5
8
11
14
17
20
23
26
29
32
35
38
41
44
47
80
83
86
89
92
95
98
101
104
SMBus Addressing
SMBus 0
VCC_DDR
R256
R256
15R1%
15R1%
R255
R255
15R1%
15R1%
VCC_DDR
8-bit Address (hex)
A0
A2
A4
A6
VDDR_VREF_DQ
C50
C50
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
VDDR_VREF_DQ
C67
C67
C0.1u25Y0402-RH
C0.1u25Y0402-RH
VDDR_VREF_CA
C212
C212
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
VDDR_VREF_CA
C188
C188
C0.1u25Y0402-RH
C0.1u25Y0402-RH
VDDR_VREF_CAVDDR_VREF_DQ
C190
C59
C59
C0.1u25Y0402-RH
C0.1u25Y0402-RH
Z
C190
C1u6.3Y0402-RH
C1u6.3Y0402-RH
3VDUAL3VDUAL
Y
Y
D36
D36
X
X
C60
C60
1000p/50V/4
1000p/50V/4
C186
C186
1000p/50V/4
1000p/50V/4
D35
D35
SMB_MEM_CLKSMB_MEM_DATA
Z
BAV99-7-F_SOT23-LF
BAV99-7-F_SOT23-LF
3
Device
DIMMA0
DIMMB0
DIMMA1
DIMMB1
R124
R124
15R1%
15R1%
R128
R128
15R1%
15R1%
MEM_MA0_ODT0 4
MEM_MA0_ODT1 4
MEM_MA_CKE0 4,7
MEM_MA_CKE1 4,7
MEM_MA0_CS_L0 4
MEM_MA0_CS_L1 4
MEM_MA_BANK0 4,7
MEM_MA_BANK1 4,7
MEM_MA_BANK2 4,7
MEM_MA_WE_L 4,7
MEM_MA_RAS_L 4,7
MEM_MA_CAS_L 4,7
MEM_MA_RESET# 4,7 MEM_MB_RESET# 4,7
MEM_MA0_CLK_H0 4
MEM_MA0_CLK_L0 4
MEM_MA0_CLK_H1 4
MEM_MA0_CLK_L1 4
SMB_MEM_CLK 7,14
SMB_MEM_DATA 7,14
BAV99-7-F_SOT23-LF
BAV99-7-F_SOT23-LF
2
VCC3
C747
C747
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
MEM_MB_EVENT_L
170
173
176
179
182
183
186
189
191
194
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
DDR3
DDR3
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
121
124
127
130
133
136
139
142
145
VSS
148
151
154
157
160
163
166
199
ADDRESS A2ADDRESS A0
2
53
197
VDD
VSS
VSS
202
205
236
VDDSPD
VSS
208
211
79
68
120
240
48
187
198
167
VTT
VTT
NC/PAR_IN
VSS
VSS
VSS
VSS
VSS
214
217
220
223
RSVD
NC/TEST4
NC/ERR_OUT
VSS
VSS
VSS
226
229
232
235
FREE1
FREE249FREE3
FREE4
A10/AP
DQS0
DQS0#
DQS1
DQS1#
DQS2
DQS2#
DQS3
DQS3#
DQS4
DQS4#
DQS5
DQS5#
DQS6
DQS6#
DQS7
DQS7#
DQS8
DQS8#
DM0/DQS9
NC/DQS9#
DM1/DQS10
NC/DQS10#
DM2/DQS11
NC/DQS11#
DM3/DQS12
NC/DQS12#
DM4/DQS13
NC/DQS13#
DM5/DQS14
NC/DQS14#
DM6/DQS15
NC/DQS15#
DM7/DQS16
NC/DQS16#
DM8/DQS17
NC/DQS17#
ODT0
ODT1
CKE0
CKE1
CS0#
CS1#
RAS#
CAS#
RESET#
CK0#
CK1(NU)
CK1#(NU)
VREFDQ
VREFCA
VSS
VSS
MEC1
MEC2
239
MEC1
MEC2
A11
A12
A13
A14
A15
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
BA0
BA1
BA2
WE#
CK0
SCL
SDA
SA1
SA0
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
MEC3
DDRIII-240P_BLACK-RH
DDRIII-240P_BLACK-RH
MEC3
MSI
MSI
MSI
MEM_MB_EVENT_L 4,7
MEM_MB_ADD0
188
MEM_MB_ADD1
181
MEM_MB_ADD2
61
MEM_MB_ADD3
180
MEM_MB_ADD4
59
MEM_MB_ADD5
58
MEM_MB_ADD6
178
MEM_MB_ADD7
56
MEM_MB_ADD8
177
MEM_MB_ADD9
175
MEM_MB_ADD10
70
MEM_MB_ADD11
55
MEM_MB_ADD12
174
MEM_MB_ADD13
196
MEM_MB_ADD14
172
MEM_MB_ADD15
171
39
40
45
46
158
159
164
165
MEM_MB_DQS_H0
7
MEM_MB_DQS_L0
6
MEM_MB_DQS_H1
16
MEM_MB_DQS_L1
15
MEM_MB_DQS_H2
25
MEM_MB_DQS_L2
24
MEM_MB_DQS_H3
34
MEM_MB_DQS_L3
33
MEM_MB_DQS_H4
85
MEM_MB_DQS_L4
84
MEM_MB_DQS_H5
94
MEM_MB_DQS_L5
93
MEM_MB_DQS_H6
103
MEM_MB_DQS_L6
102
MEM_MB_DQS_H7
112
MEM_MB_DQS_L7
111
43
42
MEM_MB_DM0
125
126
MEM_MB_DM1
134
135
MEM_MB_DM2
143
144
MEM_MB_DM3
152
153
MEM_MB_DM4
203
204
MEM_MB_DM5
212
213
MEM_MB_DM6
221
222
MEM_MB_DM7
230
231
161
162
MEM_MB0_ODT0
195
MEM_MB0_ODT1
77
MEM_MB_CKE0
50
MEM_MB_CKE1
169
MEM_MB0_CS_L0
193
MEM_MB0_CS_L1
76
MEM_MB_BANK0
71
MEM_MB_BANK1
190
MEM_MB_BANK2
52
MEM_MB_WE_L
73
MEM_MB_RAS_L
192
MEM_MB_CAS_L
74
MEM_MB_RESET#
168
MEM_MB0_CLK_H0
184
MEM_MB0_CLK_L0
185
MEM_MB0_CLK_H1
63
MEM_MB0_CLK_L1
64
VDDR_VREF_DQ
1
VDDR_VREF_CA
67
SMB_MEM_CLK
118
SMB_MEM_DATA
238
237
117
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
1
MEM_MB0_ODT0 4
MEM_MB0_ODT1 4
MEM_MB_CKE0 4,7
MEM_MB_CKE1 4,7
MEM_MB0_CS_L0 4
MEM_MB0_CS_L1 4
MEM_MB_BANK0 4,7
MEM_MB_BANK1 4,7
MEM_MB_BANK2 4,7
MEM_MB_WE_L 4,7
MEM_MB_RAS_L 4,7
MEM_MB_CAS_L 4,7
MEM_MB0_CLK_H0 4
MEM_MB0_CLK_L0 4
MEM_MB0_CLK_H1 4
MEM_MB0_CLK_L1 4
VCC3
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MS-7612
AM2+ DIMM1/3
AM2+ DIMM1/3
AM2+ DIMM1/3
1
Sheet of
Sheet of
Sheet of
642
642
642
1.0
1.0
1.0
5
MEM_MA_DQS_H[7..0]4,6
MEM_MA_DQS_L[7..0]4,6
MEM_MA_DM[7..0]4,6
MEM_MA_ADD[15..0]4,6
MEM_MA_DATA[63..0]4,6
D D
MEM_MA_DQS_H[7..0]
MEM_MA_DQS_L[7..0]
MEM_MA_DM[7..0]
MEM_MA_ADD[15..0]
MEM_MA_DATA[63..0]
VCC_DDR
VCC3
VTT_DDR
4
C284
C284
C0.1u25Y0402-RH
C0.1u25Y0402-RH
MEM_MA_EVENT_L
MEM_MA_EVENT_L 4,6
3
MEM_MB_DQS_L[7..0]4,6
MEM_MB_DQS_H[7..0]4,6
MEM_MB_DM[7..0]4,6
MEM_MB_ADD[15..0]4,6
MEM_MB_DATA[63..0]4,6
MEM_MB_DQS_L[7..0]
MEM_MB_DQS_H[7..0]
MEM_MB_DM[7..0]
MEM_MB_ADD[15..0]
MEM_MB_DATA[63..0]
VCC_DDR
VCC3
VTT_DDR
2
C282
C282
C0.1u25Y0402-RH
C0.1u25Y0402-RH
MEM_MB_EVENT_L
1
MEM_MB_EVENT_L 4,6
54
DIMM3
MEM_MA_DATA0
MEM_MA_DATA1
MEM_MA_DATA2
MEM_MA_DATA3
MEM_MA_DATA4
MEM_MA_DATA5
MEM_MA_DATA6
MEM_MA_DATA7
MEM_MA_DATA8
MEM_MA_DATA9
MEM_MA_DATA10
MEM_MA_DATA11
MEM_MA_DATA12
MEM_MA_DATA13
MEM_MA_DATA14
MEM_MA_DATA15
MEM_MA_DATA16
MEM_MA_DATA17
MEM_MA_DATA18
MEM_MA_DATA19
MEM_MA_DATA20
MEM_MA_DATA21
MEM_MA_DATA22
C C
B B
A A
MEM_MA_DATA23
MEM_MA_DATA24
MEM_MA_DATA25
MEM_MA_DATA26
MEM_MA_DATA27
MEM_MA_DATA28
MEM_MA_DATA29
MEM_MA_DATA30
MEM_MA_DATA31
MEM_MA_DATA32
MEM_MA_DATA33
MEM_MA_DATA34
MEM_MA_DATA35
MEM_MA_DATA36
MEM_MA_DATA37
MEM_MA_DATA38
MEM_MA_DATA39
MEM_MA_DATA40
MEM_MA_DATA41
MEM_MA_DATA42
MEM_MA_DATA43
MEM_MA_DATA44
MEM_MA_DATA45
MEM_MA_DATA46
MEM_MA_DATA47
MEM_MA_DATA48
MEM_MA_DATA49
MEM_MA_DATA50
MEM_MA_DATA51
MEM_MA_DATA52
MEM_MA_DATA53
MEM_MA_DATA54
MEM_MA_DATA55
MEM_MA_DATA56
MEM_MA_DATA57
MEM_MA_DATA58
MEM_MA_DATA59
MEM_MA_DATA60
MEM_MA_DATA61
MEM_MA_DATA62
MEM_MA_DATA63
DIMM3
3
VDD51VDD
VDD57VDD60VDD62VDD65VDD66VDD69VDD72VDD75VDD78VDD
DQ0
4
DQ1
9
DQ2
10
DQ3
122
DQ4
123
DQ5
128
DQ6
129
DQ7
12
DQ8
13
DQ9
18
DQ10
19
DQ11
131
DQ12
132
DQ13
137
DQ14
138
DQ15
21
DQ16
22
DQ17
27
DQ18
28
DQ19
140
DQ20
141
DQ21
146
DQ22
147
DQ23
30
DQ24
31
DQ25
36
DQ26
37
DQ27
149
DQ28
150
DQ29
155
DQ30
156
DQ31
81
DQ32
82
DQ33
87
DQ34
88
DQ35
200
DQ36
201
DQ37
206
DQ38
207
DQ39
90
DQ40
91
DQ41
96
DQ42
97
DQ43
209
DQ44
210
DQ45
215
DQ46
216
DQ47
99
DQ48
100
DQ49
105
DQ50
106
DQ51
218
DQ52
219
DQ53
224
DQ54
225
DQ55
108
DQ56
109
DQ57
114
DQ58
115
DQ59
227
DQ60
228
DQ61
233
DQ62
234
DQ63
2
VSS
5
VSS
8
VSS
11
VSS
14
VSS
17
VSS
20
VSS
23
VSS
26
VSS
29
VSS
32
VSS
35
VSS
38
VSS
41
VSS
44
VSS
47
VSS
80
VSS
83
VSS
86
VSS
89
VSS
92
VSS
95
VSS
98
VSS
101
VSS
104
VSS
VSS
VSS
VSS
VSS
107
110
113
116
170
173
176
179
182
183
186
189
191
194
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
DDR3
DDR3
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
119
121
124
127
130
133
136
139
142
145
VSS
148
151
154
157
160
163
166
199
53
197
VDD
VSS
VSS
202
205
236
VDDSPD
VSS
VSS
208
211
79
68
120
240
48
187
198
167
VTT
VTT
RSVD
FREE1
FREE249FREE3
NC/TEST4
NC/PAR_IN
NC/ERR_OUT
DM0/DQS9
NC/DQS9#
DM1/DQS10
NC/DQS10#
DM2/DQS11
NC/DQS11#
DM3/DQS12
NC/DQS12#
DM4/DQS13
NC/DQS13#
DM5/DQS14
NC/DQS14#
DM6/DQS15
NC/DQS15#
DM7/DQS16
NC/DQS16#
DM8/DQS17
NC/DQS17#
RESET#
CK1(NU)
CK1#(NU)
VREFDQ
VREFCA
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
214
VSS
217
220
223
226
229
232
235
239
MEC1
MEM_MA_ADD0
188
A0
MEM_MA_ADD1
181
FREE4
A1
MEM_MA_ADD2
61
A2
MEM_MA_ADD3
180
A3
MEM_MA_ADD4
59
A4
MEM_MA_ADD5
58
A5
MEM_MA_ADD6
178
A6
MEM_MA_ADD7
56
A7
MEM_MA_ADD8
177
A8
MEM_MA_ADD9
175
A9
MEM_MA_ADD10
70
A10/AP
MEM_MA_ADD11
55
A11
MEM_MA_ADD12
174
A12
MEM_MA_ADD13
196
A13
MEM_MA_ADD14
172
A14
MEM_MA_ADD15
171
A15
39
CB0
40
CB1
45
CB2
46
CB3
158
CB4
159
CB5
164
CB6
165
CB7
MEM_MA_DQS_H0
7
DQS0
MEM_MA_DQS_L0
6
DQS0#
MEM_MA_DQS_H1
16
DQS1
MEM_MA_DQS_L1
15
DQS1#
MEM_MA_DQS_H2
25
DQS2
MEM_MA_DQS_L2
24
DQS2#
MEM_MA_DQS_H3
34
DQS3
MEM_MA_DQS_L3
33
DQS3#
MEM_MA_DQS_H4
85
DQS4
MEM_MA_DQS_L4
84
DQS4#
MEM_MA_DQS_H5
94
DQS5
MEM_MA_DQS_L5
93
DQS5#
MEM_MA_DQS_H6
103
DQS6
MEM_MA_DQS_L6
102
DQS6#
MEM_MA_DQS_H7
112
DQS7
MEM_MA_DQS_L7
111
DQS7#
43
DQS8
42
DQS8#
MEC1
ODT0
ODT1
CKE0
CKE1
CS0#
CS1#
RAS#
CAS#
CK0#
MEC2
MEC2
BA0
BA1
BA2
WE#
CK0
SCL
SDA
SA1
SA0
MEC3
MEC3
MEM_MA_DM0
125
126
MEM_MA_DM1
134
135
MEM_MA_DM2
143
144
MEM_MA_DM3
152
153
MEM_MA_DM4
203
204
MEM_MA_DM5
212
213
MEM_MA_DM6
221
222
MEM_MA_DM7
230
231
161
162
MEM_MA1_ODT0
195
MEM_MA1_ODT1
77
MEM_MA_CKE0
50
MEM_MA_CKE1
169
MEM_MA1_CS_L0
193
MEM_MA1_CS_L1
76
MEM_MA_BANK0
71
MEM_MA_BANK1
190
MEM_MA_BANK2
52
MEM_MA_WE_L
73
MEM_MA_RAS_L
192
MEM_MA_CAS_L
74
MEM_MA_RESET#
168
MEM_MA1_CLK_H0 MEM_MB1_CLK_H0
184
MEM_MA1_CLK_L0
185
MEM_MA1_CLK_H1
63
MEM_MA1_CLK_L1 MEM_MB1_CLK_L1
64
1
67
SMB_MEM_CLK
118
SMB_MEM_DATA
238
237
117
ZIF-DDRIII240P-RH
ZIF-DDRIII240P-RH
VDDR_VREF_DQ
VDDR_VREF_CA
MEM_MA1_ODT0 4
MEM_MA1_ODT1 4
MEM_MA_CKE0 4,6
MEM_MA_CKE1 4,6
MEM_MA1_CS_L0 4
MEM_MA1_CS_L1 4
MEM_MA_BANK0 4,6
MEM_MA_BANK1 4,6
MEM_MA_BANK2 4,6
MEM_MA_WE_L 4,6
MEM_MA_RAS_L 4,6
MEM_MA_CAS_L 4,6
MEM_MA_RESET# 4,6
MEM_MA1_CLK_H0 4
MEM_MA1_CLK_L0 4
MEM_MA1_CLK_H1 4
MEM_MA1_CLK_L1 4
SMB_MEM_CLK 6,14
SMB_MEM_DATA 6,14
C61
C61
C0.1u25Y0402-RH
C0.1u25Y0402-RH
VDDR_VREF_CAVDDR_VREF_DQ
C187
C187
C0.1u25Y0402-RH
C0.1u25Y0402-RH
MEM_MB_DATA0
MEM_MB_DATA1
MEM_MB_DATA2
MEM_MB_DATA3
MEM_MB_DATA4
MEM_MB_DATA5
MEM_MB_DATA6
MEM_MB_DATA7
MEM_MB_DATA8
MEM_MB_DATA9
MEM_MB_DATA10
MEM_MB_DATA11
MEM_MB_DATA12
MEM_MB_DATA13
MEM_MB_DATA14
MEM_MB_DATA15
MEM_MB_DATA16
MEM_MB_DATA17
MEM_MB_DATA18
MEM_MB_DATA19
MEM_MB_DATA20
MEM_MB_DATA21
MEM_MB_DATA22
MEM_MB_DATA23
MEM_MB_DATA24
MEM_MB_DATA25
MEM_MB_DATA26
MEM_MB_DATA27
MEM_MB_DATA28
MEM_MB_DATA29
MEM_MB_DATA30
MEM_MB_DATA31
MEM_MB_DATA32
MEM_MB_DATA33
MEM_MB_DATA34
MEM_MB_DATA35
MEM_MB_DATA36
MEM_MB_DATA37
MEM_MB_DATA38
MEM_MB_DATA39
MEM_MB_DATA40
MEM_MB_DATA41
MEM_MB_DATA42
MEM_MB_DATA43
MEM_MB_DATA44
MEM_MB_DATA45
MEM_MB_DATA46
MEM_MB_DATA47
MEM_MB_DATA48
MEM_MB_DATA49
MEM_MB_DATA50
MEM_MB_DATA51
MEM_MB_DATA52
MEM_MB_DATA53
MEM_MB_DATA54
MEM_MB_DATA55
MEM_MB_DATA56
MEM_MB_DATA57
MEM_MB_DATA58
MEM_MB_DATA59
MEM_MB_DATA60
MEM_MB_DATA61
MEM_MB_DATA62
MEM_MB_DATA63
54
DIMM4
DIMM4
3
VDD51VDD
VDD57VDD60VDD62VDD65VDD66VDD69VDD72VDD75VDD78VDD
DQ0
4
DQ1
9
DQ2
10
DQ3
122
DQ4
123
DQ5
128
DQ6
129
DQ7
12
DQ8
13
DQ9
18
DQ10
19
DQ11
131
DQ12
132
DQ13
137
DQ14
138
DQ15
21
DQ16
22
DQ17
27
DQ18
28
DQ19
140
DQ20
141
DQ21
146
DQ22
147
DQ23
30
DQ24
31
DQ25
36
DQ26
37
DQ27
149
DQ28
150
DQ29
155
DQ30
156
DQ31
81
DQ32
82
DQ33
87
DQ34
88
DQ35
200
DQ36
201
DQ37
206
DQ38
207
DQ39
90
DQ40
91
DQ41
96
DQ42
97
DQ43
209
DQ44
210
DQ45
215
DQ46
216
DQ47
99
DQ48
100
DQ49
105
DQ50
106
DQ51
218
DQ52
219
DQ53
224
DQ54
225
DQ55
108
DQ56
109
DQ57
114
DQ58
115
DQ59
227
DQ60
228
DQ61
233
DQ62
234
DQ63
2
VSS
5
VSS
8
VSS
11
VSS
14
VSS
17
VSS
20
VSS
23
VSS
26
VSS
29
VSS
32
VSS
35
VSS
38
VSS
41
VSS
44
VSS
47
VSS
80
VSS
83
VSS
86
VSS
89
VSS
92
VSS
95
VSS
98
VSS
101
VSS
104
VSS
VSS
VSS
VSS
VSS
107
110
113
116
170
173
176
179
182
183
186
189
191
194
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
DDR3
DDR3
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
119
121
124
127
130
133
136
139
142
145
VSS
148
151
154
157
160
163
166
199
ADDRESS A6ADDRESS A4
5
4
3
53
197
VDD
VSS
VSS
202
205
236
VDDSPD
VSS
208
211
79
68
120
240
48
187
198
167
VTT
VTT
RSVD
FREE1
FREE249FREE3
NC/TEST4
NC/PAR_IN
NC/ERR_OUT
DM0/DQS9
NC/DQS9#
DM1/DQS10
NC/DQS10#
DM2/DQS11
NC/DQS11#
DM3/DQS12
NC/DQS12#
DM4/DQS13
NC/DQS13#
DM5/DQS14
NC/DQS14#
DM6/DQS15
NC/DQS15#
DM7/DQS16
NC/DQS16#
DM8/DQS17
NC/DQS17#
RESET#
CK1(NU)
CK1#(NU)
VREFDQ
VREFCA
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
214
VSS
217
220
223
226
229
232
235
239
MEC1
2
A0
FREE4
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12
A13
A14
A15
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
DQS0
DQS0#
DQS1
DQS1#
DQS2
DQS2#
DQS3
DQS3#
DQS4
DQS4#
DQS5
DQS5#
DQS6
DQS6#
DQS7
DQS7#
DQS8
DQS8#
ODT0
ODT1
CKE0
CKE1
CS0#
CS1#
BA0
BA1
BA2
WE#
RAS#
CAS#
CK0
CK0#
SCL
SDA
SA1
SA0
MEC1
MEC2
MEC3
ZIF-DDRIII240P-RH
ZIF-DDRIII240P-RH
MEC2
MEC3
188
181
61
180
59
58
178
56
177
175
70
55
174
196
172
171
39
40
45
46
158
159
164
165
7
6
16
15
25
24
34
33
85
84
94
93
103
102
112
111
43
42
125
126
134
135
143
144
152
153
203
204
212
213
221
222
230
231
161
162
195
77
50
169
193
76
71
190
52
73
192
74
168
184
185
63
64
1
67
118
238
237
117
MEM_MB_ADD0
MEM_MB_ADD1
MEM_MB_ADD2
MEM_MB_ADD3
MEM_MB_ADD4
MEM_MB_ADD5
MEM_MB_ADD6
MEM_MB_ADD7
MEM_MB_ADD8
MEM_MB_ADD9
MEM_MB_ADD10
MEM_MB_ADD11
MEM_MB_ADD12
MEM_MB_ADD13
MEM_MB_ADD14
MEM_MB_ADD15
MEM_MB_DQS_H0
MEM_MB_DQS_L0
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DM0
MEM_MB_DM1
MEM_MB_DM2
MEM_MB_DM3
MEM_MB_DM4
MEM_MB_DM5
MEM_MB_DM6
MEM_MB_DM7
MEM_MB1_ODT0
MEM_MB1_ODT1
MEM_MB_CKE0
MEM_MB_CKE1
MEM_MB1_CS_L0
MEM_MB1_CS_L1
MEM_MB_BANK0
MEM_MB_BANK1
MEM_MB_BANK2
MEM_MB_WE_L
MEM_MB_RAS_L
MEM_MB_CAS_L
MEM_MB_RESET#
MEM_MB1_CLK_L0
MEM_MB1_CLK_H1
VDDR_VREF_DQ
VDDR_VREF_CA
SMB_MEM_CLK
SMB_MEM_DATA
MEM_MB1_ODT0 4
MEM_MB1_ODT1 4
MEM_MB_CKE0 4,6
MEM_MB_CKE1 4,6
MEM_MB1_CS_L0 4
MEM_MB1_CS_L1 4
MEM_MB_BANK0 4,6
MEM_MB_BANK1 4,6
MEM_MB_BANK2 4,6
MEM_MB_WE_L 4,6
MEM_MB_RAS_L 4,6
MEM_MB_CAS_L 4,6
MEM_MB_RESET# 4,6
MEM_MB1_CLK_H0 4
MEM_MB1_CLK_L0 4
MEM_MB1_CLK_H1 4
MEM_MB1_CLK_L1 4
VCC3VCC3
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
MS-7612
AM2+ DIMM2/4
AM2+ DIMM2/4
AM2+ DIMM2/4
1
Sheet of
Sheet of
Sheet of
742
742
742
1.0
1.0
1.0
5

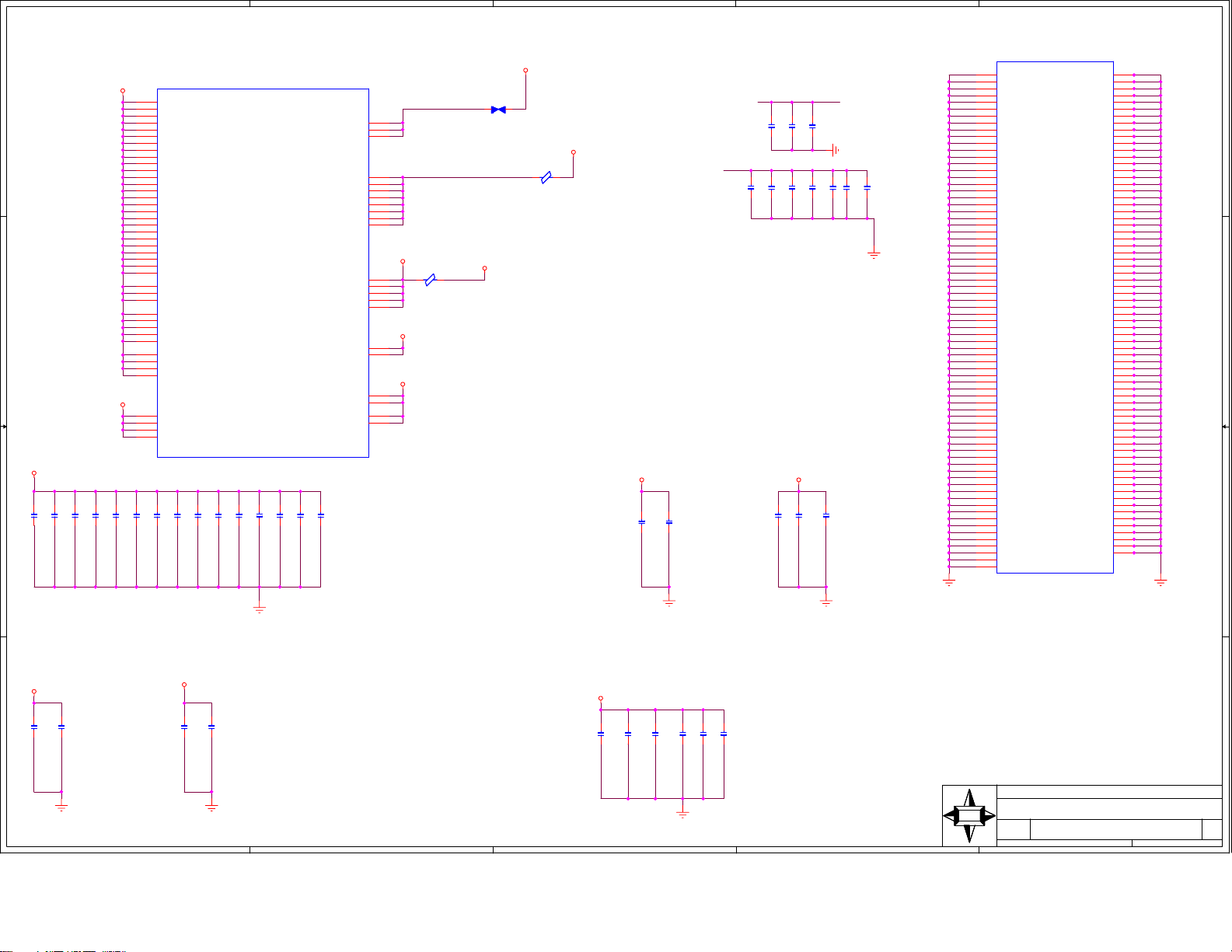

U53A
U53A
PE_RESET#
PE_RESET#10
PE_CLK10
PE_CLK#10
CP3CP3
L12
L12
X_10u100mA_0805-RH
X_10u100mA_0805-RH
C576 4.7u/10V/8C576 4.7u/10V/8
PE_B_PRSNT3#
R719 X_0R0402R719 X_0R0402
R723 X_0R0402R723 X_0R0402
PE_B_RXP016
PE_B_RXP116
PE_B_RXP216
PE_B_RXP316
PE_B_RXP416
PE_B_RXP516
PE_B_RXP616
PE_B_RXP716
PE_B_RXP817
PE_B_RXP917
PE_B_RXP1017
PE_B_RXP1117
PE_B_RXP1217
PE_B_RXP1317
PE_B_RXP1417
PE_B_RXP1517
PE_B_RXN016
PE_B_RXN116
PE_B_RXN216
PE_B_RXN316
PE_B_RXN416
PE_B_RXN516
PE_B_RXN616
PE_B_RXN716
PE_B_RXN817
PE_B_RXN917
PE_B_RXN1017
PE_B_RXN1117
PE_B_RXN1217
PE_B_RXN1317
PE_B_RXN1417
PE_B_RXN1517
HT_VLD
HT_VLD
1
2
C524 C0.1u10X0402C524 C0.1u10X0402
C515 C0.1u10X0402C515 C0.1u10X0402
C494 C0.1u10X0402C494 C0.1u10X0402
C513 C0.1u10X0402C513 C0.1u10X0402
C492 C0.1u10X0402C492 C0.1u10X0402
C511 C0.1u10X0402C511 C0.1u10X0402
C490 C0.1u10X0402C490 C0.1u10X0402
C509 C0.1u10X0402C509 C0.1u10X0402
C488 C0.1u10X0402C488 C0.1u10X0402
C507 C0.1u10X0402C507 C0.1u10X0402
C486 C0.1u10X0402C486 C0.1u10X0402
C505 C0.1u10X0402C505 C0.1u10X0402
C484 C0.1u10X0402C484 C0.1u10X0402
C503 C0.1u10X0402C503 C0.1u10X0402
C517 C0.1u10X0402C517 C0.1u10X0402
C526 C0.1u10X0402C526 C0.1u10X0402
C519 C0.1u10X0402C519 C0.1u10X0402
C514 C0.1u10X0402C514 C0.1u10X0402
C493 C0.1u10X0402C493 C0.1u10X0402
C512 C0.1u10X0402C512 C0.1u10X0402
C491 C0.1u10X0402C491 C0.1u10X0402
C510 C0.1u10X0402C510 C0.1u10X0402
C489 C0.1u10X0402C489 C0.1u10X0402
C508 C0.1u10X0402C508 C0.1u10X0402
C487 C0.1u10X0402C487 C0.1u10X0402
C506 C0.1u10X0402C506 C0.1u10X0402
C485 C0.1u10X0402C485 C0.1u10X0402
C504 C0.1u10X0402C504 C0.1u10X0402
C483 C0.1u10X0402C483 C0.1u10X0402
C502 C0.1u10X0402C502 C0.1u10X0402
C522 C0.1u10X0402C522 C0.1u10X0402
C529 C0.1u10X0402C529 C0.1u10X0402
UP_PEX_PLL_VDD
C545 4.7u/10V/8C545 4.7u/10V/8
C547
C547
C1u16Y
C1u16Y
PE_B_PRSNT2#
U8
F6
V6
E6
U6
F5
U4
R3
P4
M3
L4
J3
H4
F3
G4
E3
D4
D5
E7
D6
C8
D9
U3
R4
P3
M4
L3
J4
H3
F4
G5
E4
C3
C5
D7
C6
D8
C9
3VDUAL
53
U32
U32
VCC
VCC
A
A
4
Y
Y
B
B
GND
GND
X_NC7SZ08M5X_SOT23-5-RH
X_NC7SZ08M5X_SOT23-5-RH
R430 0/4R430 0/4
5
U53C
U53C
DP2_CARD_PRESENT*
DP3_CARD_PRESENT*
DP2_RESET_QUAL*
DP3_RESET_QUAL*
DP2_CLKREQ/GPIO8*
DP3_CLKREQ/GPIO7*
DPB_PEX_RX0_P
DPB_PEX_RX1_P
DPB_PEX_RX2_P
DPB_PEX_RX3_P
DPB_PEX_RX4_P
DPB_PEX_RX5_P
DPB_PEX_RX6_P
DPB_PEX_RX7_P
DPB_PEX_RX8_P
DPB_PEX_RX9_P
DPB_PEX_RX10_P
DPB_PEX_RX11_P
DPB_PEX_RX12_P
DPB_PEX_RX13_P
DPB_PEX_RX14_P
DPB_PEX_RX15_P
DPB_PEX_RX0_N
DPB_PEX_RX1_N
DPB_PEX_RX2_N
DPB_PEX_RX3_N
DPB_PEX_RX4_N
DPB_PEX_RX5_N
DPB_PEX_RX6_N
DPB_PEX_RX7_N
DPB_PEX_RX8_N
DPB_PEX_RX9_N
DPB_PEX_RX10_N
DPB_PEX_RX11_N
DPB_PEX_RX12_N
DPB_PEX_RX13_N
DPB_PEX_RX14_N
DPB_PEX_RX15_N
NF200-SLI-A3-RH
NF200-SLI-A3-RH
PE_TXP010
PE_TXP110
PE_TXP210
PE_TXP310
PE_TXP410
PE_TXP510
PE_TXP610
D D
PE_TXP710
PE_TXP810
PE_TXP910
PE_TXP1010
PE_TXP1110
PE_TXP1210
PE_TXP1310
PE_TXP1410
PE_TXP1510
PE_TXN010
PE_TXN110
PE_TXN210
PE_TXN310
PE_TXN410
PE_TXN510
PE_TXN610
PE_TXN710
PE_TXN810
PE_TXN910
PE_TXN1010
PE_TXN1110
PE_TXN1210
PE_TXN1310
PE_TXN1410
PE_TXN1510
VCC1_2
C C
PE_B_PRSNT2#16
PE_B_PRSNT3#17
B B
HT_VLD,28
A A
DP0_PE_A_RESET#
U7
Y1
AB2
AA3
AB5
AA6
AB8
AA9
AB11
AA13
AB14
AA16
AB17
AA19
AB20
AA22
Y21
AA1
AB3
AA4
AB6
AA7
AB9
AA10
AB12
AA14
AB15
AA17
AB18
AA20
AB21
Y22
W21
V3
V4
U9
C865 C0.01u25X0402C865 C0.01u25X0402
PEX_PWR_GOOD*
UP0_PEX_RX0_P
UP0_PEX_RX1_P
UP0_PEX_RX2_P
UP0_PEX_RX3_P
UP0_PEX_RX4_P
UP0_PEX_RX5_P
UP0_PEX_RX6_P
UP0_PEX_RX7_P
UP0_PEX_RX8_P
UP0_PEX_RX9_P
UP0_PEX_RX10_P
UP0_PEX_RX11_P
UP0_PEX_RX12_P
UP0_PEX_RX13_P
UP0_PEX_RX14_P
UP0_PEX_RX15_P
UP0_PEX_RX0_N
UP0_PEX_RX1_N
UP0_PEX_RX2_N
UP0_PEX_RX3_N
UP0_PEX_RX4_N
UP0_PEX_RX5_N
UP0_PEX_RX6_N
UP0_PEX_RX7_N
UP0_PEX_RX8_N
UP0_PEX_RX9_N
UP0_PEX_RX10_N
UP0_PEX_RX11_N
UP0_PEX_RX12_N
UP0_PEX_RX13_N
UP0_PEX_RX14_N
UP0_PEX_RX15_N
UP0_PEX_REFCLK_IN_P
UP0_PEX_REFCLK_IN_N
UP0_PEX_PLL_VDD
NF200-SLI-A3-RH
NF200-SLI-A3-RH
DP2_PEX_RESET*
DP3_PEX_RESET*
DP2_PEX_REFCLK_OUT_P
DP2_PEX_REFCLK_OUT_N
DP3_PEX_REFCLK_OUT_P
DP3_PEX_REFCLK_OUT_N
DPB_PEX_TX0_P
DPB_PEX_TX1_P
DPB_PEX_TX2_P
DPB_PEX_TX3_P
DPB_PEX_TX4_P
DPB_PEX_TX5_P
DPB_PEX_TX6_P
DPB_PEX_TX7_P
DPB_PEX_TX8_P
DPB_PEX_TX9_P
DPB_PEX_TX10_P
DPB_PEX_TX11_P
DPB_PEX_TX12_P
DPB_PEX_TX13_P
DPB_PEX_TX14_P
DPB_PEX_TX15_P
DPB_PEX_TX0_N
DPB_PEX_TX1_N
DPB_PEX_TX2_N
DPB_PEX_TX3_N
DPB_PEX_TX4_N
DPB_PEX_TX5_N
DPB_PEX_TX6_N
DPB_PEX_TX7_N
DPB_PEX_TX8_N
DPB_PEX_TX9_N
DPB_PEX_TX10_N
DPB_PEX_TX11_N
DPB_PEX_TX12_N
DPB_PEX_TX13_N
DPB_PEX_TX14_N
DPB_PEX_TX15_N
DP2_CLK_RSET_GND
UP0_PEX_TSTCLK_OUT_P
UP0_PEX_TSTCLK_OUT_N
DP2_PE_B_RESET2#
U5
DP3_PE_B_RESET3#
H6
BR2_PE_B_CLK
T5
BR2_PE_B_CLK#
T4
BR3_PE_B_CLK1
C2
BR3_PE_B_CLK1#
D2
U2
R1
P2
M1
K2
J1
G2
F1
C1
A2
B3
A5
B6
A8
B9
A11
T2
P1
N2
L1
J2
H1
F2
E1
B1
A3
B4
A6
B7
A9
B10
A12
F7
PE_TXC_P0
PE_TXC_P1
PE_TXC_P2
PE_TXC_P3
PE_TXC_P4
PE_TXC_P5
PE_TXC_P6
PE_TXC_P7
PE_TXC_P8
PE_TXC_P9
PE_TXC_P10
PE_TXC_P11
PE_TXC_P12
PE_TXC_P13
PE_TXC_P14
PE_TXC_P15
PE_TXC_N0
PE_TXC_N1
PE_TXC_N2
PE_TXC_N3
PE_TXC_N4
PE_TXC_N5
PE_TXC_N6
PE_TXC_N7
PE_TXC_N8
PE_TXC_N9
PE_TXC_N10
PE_TXC_N11
PE_TXC_N12
PE_TXC_N13
PE_TXC_N14
PE_TXC_N15
C537 C0.1u25Y0402-RHC537 C0.1u25Y0402-RH
3VDUAL
VCC
PE_A_RESET# 16 PE_B_RESET3# 17
HT_VLD
DP2_PE_B_RESET2#
VCC
1
A
A
2
B
B
R429 0/4R429 0/4
4
UP_CLKREQ*
UP0_PEX_TX0_P
UP0_PEX_TX1_P
UP0_PEX_TX2_P
UP0_PEX_TX3_P
UP0_PEX_TX4_P
UP0_PEX_TX5_P
UP0_PEX_TX6_P
UP0_PEX_TX7_P
UP0_PEX_TX8_P
UP0_PEX_TX9_P
UP0_PEX_TX10_P
UP0_PEX_TX11_P
UP0_PEX_TX12_P
UP0_PEX_TX13_P
UP0_PEX_TX14_P
UP0_PEX_TX15_P
UP0_PEX_TX0_N
UP0_PEX_TX1_N
UP0_PEX_TX2_N
UP0_PEX_TX3_N
UP0_PEX_TX4_N
UP0_PEX_TX5_N
UP0_PEX_TX6_N
UP0_PEX_TX7_N
UP0_PEX_TX8_N
UP0_PEX_TX9_N
UP0_PEX_TX10_N
UP0_PEX_TX11_N
UP0_PEX_TX12_N
UP0_PEX_TX13_N
UP0_PEX_TX14_N
UP0_PEX_TX15_N
UP_TERMP
BR2_PE_B_CLK 11
BR2_PE_B_CLK# 11
BR3_PE_B_CLK1 11
BR3_PE_B_CLK1# 11
PE_B_TXP0 16
PE_B_TXP1 16
PE_B_TXP2 16
PE_B_TXP3 16
PE_B_TXP4 16
PE_B_TXP5 16
PE_B_TXP6 16
PE_B_TXP7 16
PE_B_TXP8 17
PE_B_TXP9 17
PE_B_TXP10 17
PE_B_TXP11 17
PE_B_TXP12 17
PE_B_TXP13 17
PE_B_TXP14 17
PE_B_TXP15 17
PE_B_TXN0 16
PE_B_TXN1 16
PE_B_TXN2 16
PE_B_TXN3 16
PE_B_TXN4 16
PE_B_TXN5 16
PE_B_TXN6 16
PE_B_TXN7 16
PE_B_TXN8 17
PE_B_TXN9 17
PE_B_TXN10 17
PE_B_TXN11 17
PE_B_TXN12 17
PE_B_TXN13 17
PE_B_TXN14 17
PE_B_TXN15 17
R561 2.37KR1%0402R561 2.37KR1%0402
53
U31
U31
PE_B_RESET2#
4
Y
Y
GND
GND
X_NC7SZ08M5X_SOT23-5-RH
X_NC7SZ08M5X_SOT23-5-RH
4
PE_A_PRSNT#16
TP19TP19
V9
PE_RXC_P0
Y3
W5
V7
W6
Y8
W9
Y11
W12
Y14
W15
Y17
W16
Y18
W19
V19
T18
W4
Y5
W7
Y6
W8
Y9
W11
Y12
W14
Y15
W17
V16
W18
Y20
V20
T19
V10
W2
Y2
C470 C0.1u10X0402C470 C0.1u10X0402
PE_RXC_P1
C452 C0.1u10X0402C452 C0.1u10X0402
PE_RXC_P2
C450 C0.1u10X0402C450 C0.1u10X0402
PE_RXC_P3
C467 C0.1u10X0402C467 C0.1u10X0402
PE_RXC_P4
C466 C0.1u10X0402C466 C0.1u10X0402
PE_RXC_P5
C448 C0.1u10X0402C448 C0.1u10X0402
PE_RXC_P6
C464 C0.1u10X0402C464 C0.1u10X0402
PE_RXC_P7
C445 C0.1u10X0402C445 C0.1u10X0402
PE_RXC_P8
C462 C0.1u10X0402C462 C0.1u10X0402
PE_RXC_P9
C443 C0.1u10X0402C443 C0.1u10X0402
PE_RXC_P10
C474 C0.1u10X0402C474 C0.1u10X0402
PE_RXC_P11
C476 C0.1u10X0402C476 C0.1u10X0402
PE_RXC_P12
C472 C0.1u10X0402C472 C0.1u10X0402
PE_RXC_P13
C527 C0.1u10X0402C527 C0.1u10X0402
PE_RXC_P14
C532 C0.1u10X0402C532 C0.1u10X0402
PE_RXC_P15
C535 C0.1u10X0402C535 C0.1u10X0402
PE_RXC_N0
C469 C0.1u10X0402C469 C0.1u10X0402
PE_RXC_N1
C451 C0.1u10X0402C451 C0.1u10X0402
PE_RXC_N2
C449 C0.1u10X0402C449 C0.1u10X0402
PE_RXC_N3
C468 C0.1u10X0402C468 C0.1u10X0402
PE_RXC_N4
C465 C0.1u10X0402C465 C0.1u10X0402
PE_RXC_N5
C447 C0.1u10X0402C447 C0.1u10X0402
PE_RXC_N6
C463 C0.1u10X0402C463 C0.1u10X0402
PE_RXC_N7
C446 C0.1u10X0402C446 C0.1u10X0402
PE_RXC_N8
C461 C0.1u10X0402C461 C0.1u10X0402
PE_RXC_N9
C444 C0.1u10X0402C444 C0.1u10X0402
PE_RXC_N10
C473 C0.1u10X0402C473 C0.1u10X0402
PE_RXC_N11
C475 C0.1u10X0402C475 C0.1u10X0402
PE_RXC_N12
C471 C0.1u10X0402C471 C0.1u10X0402
PE_RXC_N13
C523 C0.1u10X0402C523 C0.1u10X0402
PE_RXC_N14
C533 C0.1u10X0402C533 C0.1u10X0402
PE_RXC_N15
C539 C0.1u10X0402C539 C0.1u10X0402
UP_TERMP
R485 2.49K/4/1%R485 2.49K/4/1%
R473 X_0R0402R473 X_0R0402
VCC1_2
TP31TP31 R720 10KR0402R720 10KR0402
TP28TP28
TP26TP26
TP24TP24
TP23TP23
TP22TP22
TP21TP21
PE_RXP0 10
PE_RXP1 10
PE_RXP2 10
PE_RXP3 10
PE_RXP4 10
PE_RXP5 10
PE_RXP6 10
PE_RXP7 10
PE_RXP8 10
PE_RXP9 10
PE_RXP10 10
PE_RXP11 10
PE_RXP12 10
PE_RXP13 10
PE_RXP14 10
PE_RXP15 10
PE_RXN0 10
PE_RXN1 10
PE_RXN2 10
PE_RXN3 10
PE_RXN4 10
PE_RXN5 10
PE_RXN6 10
PE_RXN7 10
PE_RXN8 10
PE_RXN9 10
PE_RXN10 10
PE_RXN11 10
PE_RXN12 10
PE_RXN13 10
PE_RXN14 10
PE_RXN15 10
BR04_LANE16_CLK11
BR04_LANE16_CLK#11
CP4CP4
L13
L13
X_10u100mA_0805-RH
X_10u100mA_0805-RH
C637 4.7u/10V/8C637 4.7u/10V/8
R560 X_1KR1%0402R560 X_1KR1%0402
R563 1KR1%0402R563 1KR1%0402
R513 X_1KR1%0402R513 X_1KR1%0402
R477 X_1KR1%0402R477 X_1KR1%0402
R484 X_1KR1%0402R484 X_1KR1%0402
STRAP1~5 default internal 10k pull hight to 2.5V
K18
N18
P17
P18
T17
STRAP1
STRAP2
STRAP3
U15
STRAP4
V17
STRAP5
U18
F15
K19
N19
R14
W10
W13
U53D
U53D
J17
J18
E9
F9
G6
STRAP1
STRAP2
STRAP3
STRAP4
STRAP5
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
STRAP1
STRAP2
STRAP3
STRAP4
STRAP5
ROM_SCLK/STRAP0
ROM_SI/STRAP6
ROM_SO/STRAP7
NC[1]
NC[2]
NC[3]
NC[4]
NC[5]
NC[6]
NC[7]
NF200-SLI-A3-RH
NF200-SLI-A3-RH
C593 4.7u/10V/8C593 4.7u/10V/8
C584
C584
C1u16Y
C1u16Y
STRAP5
JTAG_TCK
JTAG_TDI
JTAG_TDO
JTAG_TMS
JTAG_TRST*
TESTMODE
ROM_CS*
THERMDN
THERMDP
3VDUAL
53
VCC
VCC
1
A
A
2
B
B
GND
GND
X_NC7SZ08M5X_SOT23-5-RH
X_NC7SZ08M5X_SOT23-5-RH
PE_B_RESET2# 16
HT_VLD
DP3_PE_B_RESET3#
PE_A_PRSNT#
VCC3
VCC1_2
DP_PEX_PLL_VDD
C573 C0.1u25Y0402-RHC573 C0.1u25Y0402-RH
C579 C0.01u25X0402C579 C0.01u25X0402
R559 1KR1%0402R559 1KR1%0402
STRAP5STRAP4 configA/B
J6
J5
K4
K5
N5
P6
P5
T6
R6
N4
U16
U17
U30
U30
4
Y
Y
R428 0/4R428 0/4
3
R721 1KR1%0402R721 1KR1%0402
R724 X_0R0402R724 X_0R0402
R722
R722
X_0R0402
X_0R0402
PE_A_RXP016
PE_A_RXP116
PE_A_RXP216
PE_A_RXP316
PE_A_RXP416
PE_A_RXP516
PE_A_RXP616
PE_A_RXP716
PE_A_RXP816
PE_A_RXP916
PE_A_RXP1016
PE_A_RXP1116
PE_A_RXP1216
PE_A_RXP1316
PE_A_RXP1416
PE_A_RXP1516
PE_A_RXN016
PE_A_RXN116
PE_A_RXN216
PE_A_RXN316
PE_A_RXN416
PE_A_RXN516
PE_A_RXN616
PE_A_RXN716
PE_A_RXN816
PE_A_RXN916
PE_A_RXN1016
PE_A_RXN1116
PE_A_RXN1216
PE_A_RXN1316
PE_A_RXN1416
PE_A_RXN1516
R496 X_10KR0402R496 X_10KR0402
BR04_LANE16_CLK
BR04_LANE16_CLK#
R507 X_10KR0402R507 X_10KR0402
300mA
C878
C0.1u25Y0402-RH
C878
C0.1u25Y0402-RH
R531 10KR0402R531 10KR0402
B
Q70
Q70
C E
N-MMBT3904_NL_SOT23
N-MMBT3904_NL_SOT23
11
A X16 B X16
01
A X16 B X8&X8
TP30TP30
TP29TP29
TP27TP27
TP25TP25
BR_ROM_CS
BR_ROM_SCLK
BR_ROM_SI
BR_ROM_SO
PE_B_RESET3#
3
D13
E17
E13
E14
G17
D12
C14
D15
C17
D16
C18
C20
E19
H20
M19
P20
R19
U20
C12
D14
C15
D17
E16
D18
D19
E20
H19
M20
PE_B_PRSNT3# 17
TP18TP18
TP20TP20
BR_ROM_CS
BR_ROM_SO
U53B
U53B
DP0_CARD_PRESENT*
DP1_CARD_PRESENT*
DP0_RESET_QUAL*
F18
DP1_RESET_QUAL*
DP0_CLKREQ/GPIO10*
DP1_CLKREQ/GPIO9*
DPA_PEX_RX0_P
DPA_PEX_RX1_P
DPA_PEX_RX2_P
DPA_PEX_RX3_P
DPA_PEX_RX4_P
DPA_PEX_RX5_P
DPA_PEX_RX6_P
DPA_PEX_RX7_P
F19
DPA_PEX_RX8_P
DPA_PEX_RX9_P
J19
DPA_PEX_RX10_P
L20
DPA_PEX_RX11_P
DPA_PEX_RX12_P
DPA_PEX_RX13_P
DPA_PEX_RX14_P
DPA_PEX_RX15_P
DPA_PEX_RX0_N
DPA_PEX_RX1_N
DPA_PEX_RX2_N
DPA_PEX_RX3_N
DPA_PEX_RX4_N
DPA_PEX_RX5_N
DPA_PEX_RX6_N
DPA_PEX_RX7_N
F20
DPA_PEX_RX8_N
DPA_PEX_RX9_N
J20
DPA_PEX_RX10_N
L19
DPA_PEX_RX11_N
DPA_PEX_RX12_N
P19
DPA_PEX_RX13_N
R20
DPA_PEX_RX14_N
U19
DPA_PEX_RX15_N
V22
DP_PEX_REFCLK_IN_P
U22
DP_PEX_REFCLK_IN_N
NF200-SLI-A3-RH
NF200-SLI-A3-RH
F14
DP_PEX_PLL_VDD
VCC3
VCC3
R520
R520
R521
R521
2
DP0_PE_A_RESET#
DP_TERMP
DP_PEX_IOVDD[1]
DP_PEX_IOVDD[2]
DP_PEX_IOVDD[3]
DP_PEX_IOVDD[4]
DP_PEX_IOVDD[5]
DP_PEX_IOVDD[6]
DP_PEX_IOVDD[7]
DP_PEX_IOVDD[8]
DP_PEX_IOVDDQ[1]
DP_PEX_IOVDDQ[2]
DP_PEX_IOVDDQ[3]
DP_PEX_IOVDDQ[4]
DP_PEX_IOVDDQ[5]
DP_PEX_IOVDDQ[6]
DP_PEX_IOVDDQ[7]
DP_PEX_IOVDDQ[8]
DP_PEX_IOVDDQ[9]
DP_PEX_IOVDDQ[10]
DP_PEX_IOVDDQ[11]
DP_PEX_IOVDDQ[12]
DP_PEX_IOVDDQ[13]
DP_PEX_IOVDDQ[14]
DP_PEX_IOVDDQ[15]
DP_PEX_IOVDDQ[16]
DP_PEX_IOVDDQ[17]
VDD33[1]
VDD33[2]
VDD33[3]
VDD33[4]
C594 C10u10Y0805C594 C10u10Y0805
R469
R469
X_1KR1%0402
X_1KR1%0402
2
E10
F16
BR_PE_A_CLK
C11
BR_PE_A_CLK#
D11
G18
G19
B13
A14
B16
A17
B19
A20
B22
C21
E22
F21
H22
J21
L22
N21
P22
T21
B14
A15
B17
A18
B20
A21
C22
D21
F22
G21
J22
K21
M22
P21
R22
U21
DP0_CLK_RSET_GND
F17
DP_TERMP
D10
V1
U1
H11
H12
H14
H9
J15
J8
K17
K6
F8
G15
G16
G7
G8
H10
H13
H16
H7
L17
L6
M17
M6
N17
N6
P15
P8
F10
F11
F12
F13
C565 C0.1u25Y0402-RHC565 C0.1u25Y0402-RH
C578 C0.1u25Y0402-RHC578 C0.1u25Y0402-RH
DP0_PEX_RESET*
DP1_PEX_RESET*
DP0_PEX_REFCLK_OUT_P
DP0_PEX_REFCLK_OUT_N
DP1_PEX_REFCLK_OUT_P
DP1_PEX_REFCLK_OUT_N
DPA_PEX_TX0_P
DPA_PEX_TX1_P
DPA_PEX_TX2_P
DPA_PEX_TX3_P
DPA_PEX_TX4_P
DPA_PEX_TX5_P
DPA_PEX_TX6_P
DPA_PEX_TX7_P
DPA_PEX_TX8_P
DPA_PEX_TX9_P
DPA_PEX_TX10_P
DPA_PEX_TX11_P
DPA_PEX_TX12_P
DPA_PEX_TX13_P
DPA_PEX_TX14_P
DPA_PEX_TX15_P
DPA_PEX_TX0_N
DPA_PEX_TX1_N
DPA_PEX_TX2_N
DPA_PEX_TX3_N
DPA_PEX_TX4_N
DPA_PEX_TX5_N
DPA_PEX_TX6_N
DPA_PEX_TX7_N
DPA_PEX_TX8_N
DPA_PEX_TX9_N
DPA_PEX_TX10_N
DPA_PEX_TX11_N
DPA_PEX_TX12_N
DPA_PEX_TX13_N
DPA_PEX_TX14_N
DPA_PEX_TX15_N
DP0_CLK_RSET_GND
DP_PEX_TSTCLK_OUT_P
DP_PEX_TSTCLK_OUT_N
U53E
VCC1_2
6A
2.6A
CLKVDDQ VDD3_NF200
R523
R523
X_10KR0402
X_10KR0402
X_10KR0402
X_10KR0402
1
2
3
R522
R522
X_1KR1%0402
X_1KR1%0402
X_1KR1%0402
X_1KR1%0402
U53E
R16
UP0_PEX_IOVDD[1]
R9
UP0_PEX_IOVDD[2]
U14
UP0_PEX_IOVDD[3]
V13
UP0_PEX_IOVDD[4]
V14
UP0_PEX_IOVDD[5]
R11
UP0_PEX_IOVDDQ[1]
R12
UP0_PEX_IOVDDQ[2]
T15
UP0_PEX_IOVDDQ[3]
T16
UP0_PEX_IOVDDQ[4]
T7
UP0_PEX_IOVDDQ[5]
T8
UP0_PEX_IOVDDQ[6]
U10
UP0_PEX_IOVDDQ[7]
U11
UP0_PEX_IOVDDQ[8]
U12
UP0_PEX_IOVDDQ[9]
U13
UP0_PEX_IOVDDQ[10]
K15
VDD[1]
K8
VDD[2]
N15
VDD[3]
N8
VDD[4]
R10
VDD[5]
R13
VDD[6]
R17
VDD[7]
R7
VDD[8]
H17
CLKVDDQ
150mA
NF200-SLI-A3-RH
NF200-SLI-A3-RH
VCC3
R468
R468
U36
U36
CS
SO
HOLD
WP
GND4SI
X_AT25040AN-10SU-2.7_SOIC8
X_AT25040AN-10SU-2.7_SOIC8
X_10KR0402
X_10KR0402
8
VCC
7
BR_ROM_SCLK
6
SCK
BR_ROM_SI
5
SEC 5 OF 6
SEC 5 OF 6
VCC3
L14 30ohm/500mA/6L14 30ohm/500mA/6
R470
R470
X_1KR1%0402
X_1KR1%0402
1
BR_PE_A_CLK 11
BR_PE_A_CLK# 11
PE_A_TXP0 16
PE_A_TXP1 16
PE_A_TXP2 16
PE_A_TXP3 16
PE_A_TXP4 16
PE_A_TXP5 16
PE_A_TXP6 16
PE_A_TXP7 16
PE_A_TXP8 16
PE_A_TXP9 16
PE_A_TXP10 16
PE_A_TXP11 16
PE_A_TXP12 16
PE_A_TXP13 16
PE_A_TXP14 16
PE_A_TXP15 16
PE_A_TXN0 16
PE_A_TXN1 16
PE_A_TXN2 16
PE_A_TXN3 16
PE_A_TXN4 16
PE_A_TXN5 16
PE_A_TXN6 16
PE_A_TXN7 16
PE_A_TXN8 16
PE_A_TXN9 16
PE_A_TXN10 16
PE_A_TXN11 16
PE_A_TXN12 16
PE_A_TXN13 16
PE_A_TXN14 16
PE_A_TXN15 16
R530 2.37KR1%0402R530 2.37KR1%0402
R562 2.49KR1%0402R562 2.49KR1%0402
R476 X_0R0402R476 X_0R0402
VCC1_2
VCC1_2
UP0_PEX_IOVDD/VDDQ
U53F
U53F
AA11
GND[1]
AA12
GND[2]
AA15
GND[3]
AA18
GND[4]
AA2
GND[5]
AA21
GND[6]
AA5
GND[7]
AA8
GND[8]
B11
GND[9]
B12
GND[10]
B15
GND[11]
B18
GND[12]
B2
GND[13]
B21
GND[14]
B5
GND[15]
B8
GND[16]
E11
GND[17]
E12
GND[18]
E15
GND[19]
E18
GND[20]
E2
GND[21]
E21
GND[22]
E5
GND[23]
E8
GND[24]
H15
GND[25]
H18
GND[26]
H2
GND[27]
H21
GND[28]
H5
GND[29]
H8
GND[30]
K10
GND[31]
K11
GND[32]
K12
GND[33]
K13
GND[34]
L10
GND[35]
L11
GND[36]
NF200-SLI-A3-RH
NF200-SLI-A3-RH
C641 C10u10Y0805C641 C10u10Y0805
C551 C10u10Y0805C551 C10u10Y0805
C575 4.7u/10V/8C575 4.7u/10V/8
C635 C1u6.3Y0402-RHC635 C1u6.3Y0402-RH
C871 C0.1u25Y0402-RHC871 C0.1u25Y0402-RH
VCC1_2
C574 4.7u/10V/8C574 4.7u/10V/8
C577 4.7u/10V/8C577 4.7u/10V/8
C874 C0.1u25Y0402-RHC874 C0.1u25Y0402-RH
C568 C0.1u25Y0402-RHC568 C0.1u25Y0402-RH
C867 C0.1u25Y0402-RHC867 C0.1u25Y0402-RH
C552 C0.1u25Y0402-RHC552 C0.1u25Y0402-RH
C869 C0.1u25Y0402-RHC869 C0.1u25Y0402-RH
C866 C0.1u25Y0402-RHC866 C0.1u25Y0402-RH
C397 C0.1u25Y0402-RHC397 C0.1u25Y0402-RH
C518 C0.1u25Y0402-RHC518 C0.1u25Y0402-RH
VDD
VDD2_5
CP5CP5
L15
L15
X_10u100mA_0805-RH
X_10u100mA_0805-RH
C638 4.7u/10V/8C638 4.7u/10V/8
C629 4.7u/10V/8C629 4.7u/10V/8
CLKVDDQ
C624 0.22u/25V/6C624 0.22u/25V/6
175mA
U39
VCC5 VDD2_5
VDD3_NF200
C876 C0.047u16X0402C876 C0.047u16X0402
C877 C0.047u16X0402C877 C0.047u16X0402
C879 C0.1u25Y0402-RHC879 C0.1u25Y0402-RH
C582 C0.1u25Y0402-RHC582 C0.1u25Y0402-RH
U39
VIN3VOUT
C645
C645
1u/6.3V/4
1u/6.3V/4
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
2
ADJ
L1087CG_SOT89-3
L1087CG_SOT89-3
1
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MS-7612
DDR Terminatior
DDR Terminatior
DDR Terminatior
Wednesday, June 17, 2009
Wednesday, June 17, 2009
Wednesday, June 17, 2009
1
GND[37]
GND[38]
GND[39]
GND[40]
GND[41]
GND[42]
GND[43]
GND[44]
GND[45]
GND[46]
GND[47]
GND[48]
GND[49]
GND[50]
GND[51]
GND[52]
GND[53]
GND[54]
GND[55]
GND[56]
GND[57]
GND[58]
GND[59]
GND[60]
GND[61]
GND[62]
GND[63]
GND[64]
GND[65]
GND[66]
GND[67]
GND[68]
GND[69]
GND[70]
GND[71]
GND[72]
VCC1_2
C870 C0.1u25Y0402-RHC870 C0.1u25Y0402-RH
C477 C0.1u25Y0402-RHC477 C0.1u25Y0402-RH
C872 C0.1u25Y0402-RHC872 C0.1u25Y0402-RH
C868 C0.1u25Y0402-RHC868 C0.1u25Y0402-RH
C554 C0.1u25Y0402-RHC554 C0.1u25Y0402-RH
C569 C1u6.3Y0402-RHC569 C1u6.3Y0402-RH
C460 C1u6.3Y0402-RHC460 C1u6.3Y0402-RH
C631 C0.1u25Y0402-RHC631 C0.1u25Y0402-RH
C873 C0.1u25Y0402-RHC873 C0.1u25Y0402-RH
C567 C0.1u25Y0402-RHC567 C0.1u25Y0402-RH
C566 C0.1u25Y0402-RHC566 C0.1u25Y0402-RH
DP_PEX_IOVDD/VDDQ
C581 C0.1u25Y0402-RHC581 C0.1u25Y0402-RH
C875 C0.1u25Y0402-RHC875 C0.1u25Y0402-RH
C587 0.22u/25V/6C587 0.22u/25V/6
R584
R584
1KST/4
1KST/4
R583
R583
1KST/4
1KST/4
Sheet of
Sheet of
Sheet of
L12
L13
L15
L18
L2
L21
L5
L8
M10
M11
M12
M13
M15
M18
M2
M21
M5
M8
N10
N11
N12
N13
R15
R18
R2
R21
R5
R8
V11
V12
V15
V18
V2
V21
V5
V8
+
+
12
EC47
EC47
CD100u16SO-RH
CD100u16SO-RH
842
842
842
1.0
1.0
1.0

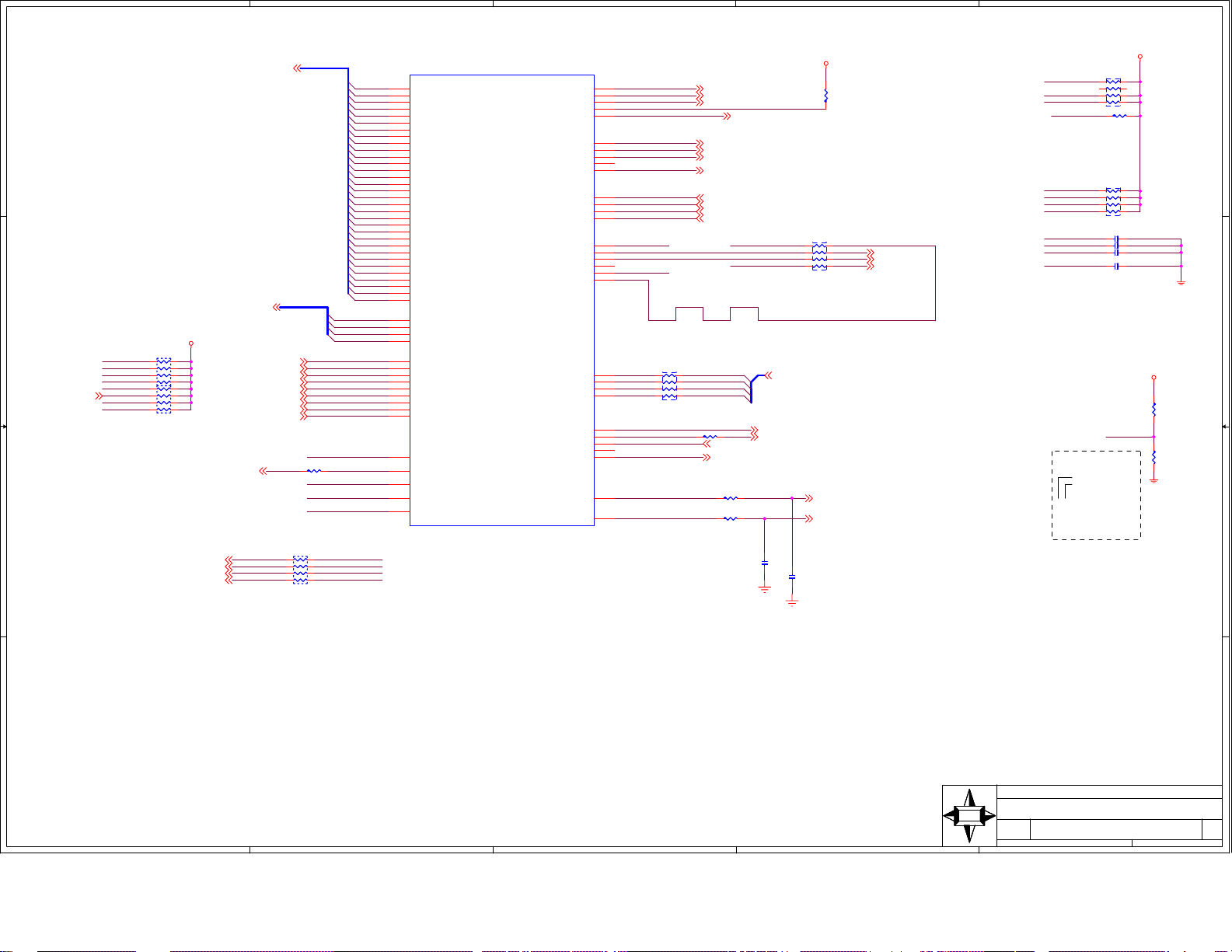

5
D D
C C
1.1V_PLL_HT
C840
C840
C1u6.3Y0402-RH
C1u6.3Y0402-RH
B B
HT_CADOUT_H[15..0]3
HT_CADOUT_L[15..0]3
R707 150/4/1R707 150/4/1
R708 150/4/1R708 150/4/1
R341 , R342
Within 600 mils of MCP72
HT_CADOUT_H[15..0]
HT_CADOUT_L[15..0]
1.1V_PLL_HT
L22
L22
10n300mA_0402-RH
10n300mA_0402-RH
HT_CLKOUT_H03
HT_CLKOUT_L03
HT_CLKOUT_H13
HT_CLKOUT_L13
HT_CTLOUT_H03
HT_CTLOUT_L03
HT_CTLOUT_H13
HT_CTLOUT_L13
Max Length: 600mil
CPU_ALERT3
CPU_PROCHOT#3
CPU_THRIP#3
1.1V_PLL_HT
Solder Side
4
R702 X_0/4R702 X_0/4
R703 0/4R703 0/4
width 12 mil ?
C837
C837
C839
C839
C4.7u6.3X5-1
C4.7u6.3X5-1
HT_CADOUT_H0
HT_CADOUT_H1
HT_CADOUT_H2
HT_CADOUT_H3
HT_CADOUT_H4
HT_CADOUT_H5
HT_CADOUT_H6
HT_CADOUT_H7
HT_CADOUT_H8
HT_CADOUT_H9
HT_CADOUT_H10
HT_CADOUT_H11
HT_CADOUT_H12
HT_CADOUT_H13
HT_CADOUT_H14
HT_CADOUT_H15
HT_CADOUT_L0
HT_CADOUT_L1
HT_CADOUT_L2
HT_CADOUT_L3
HT_CADOUT_L4
HT_CADOUT_L5
HT_CADOUT_L6
HT_CADOUT_L7
HT_CADOUT_L8
HT_CADOUT_L9
HT_CADOUT_L10
HT_CADOUT_L11
HT_CADOUT_L12
HT_CADOUT_L13
HT_CADOUT_L14
HT_CADOUT_L15
HT_MCP_COMP_VDD
HT_MCP_COMP_GND
CPU_ALERT_SB#
PROCHOT_SB#
CPU_THRIP#
C2.2u6.3X50402-RH
C2.2u6.3X50402-RH
+1.1V_PLL
C856
C856
C2.2u6.3Y
C2.2u6.3Y
128mA
17mA
AG8
HT_MCP_RXD0_P
AG9
HT_MCP_RXD1_P
AK9
HT_MCP_RXD2_P
AJ10
HT_MCP_RXD3_P
AG12
HT_MCP_RXD4_P
AG13
HT_MCP_RXD5_P
AK13
HT_MCP_RXD6_P
AJ14
HT_MCP_RXD7_P
AB10
HT_MCP_RXD8_P
AD10
HT_MCP_RXD9_P
AF10
HT_MCP_RXD10_P
AC12
HT_MCP_RXD11_P
AB11
HT_MCP_RXD12_P
AB13
HT_MCP_RXD13_P
AF14
HT_MCP_RXD14_P
AE14
HT_MCP_RXD15_P
AH8
HT_MCP_RXD0_N
AH9
HT_MCP_RXD1_N
AJ9
HT_MCP_RXD2_N
AH10
HT_MCP_RXD3_N
AH12
HT_MCP_RXD4_N
AH13
HT_MCP_RXD5_N
AJ13
HT_MCP_RXD6_N
AH14
HT_MCP_RXD7_N
AC10
HT_MCP_RXD8_N
AE10
HT_MCP_RXD9_N
AG10
HT_MCP_RXD10_N
AD12
HT_MCP_RXD11_N
AC11
HT_MCP_RXD12_N
AB12
HT_MCP_RXD13_N
AG14
HT_MCP_RXD14_N
AD14
HT_MCP_RXD15_N
AJ11
HT_MCP_RX_CLK0_P
AH11
HT_MCP_RX_CLK0_N
AE12
HT_MCP_RX_CLK1_P
AF12
HT_MCP_RX_CLK1_N
AJ15
HT_MCP_RXCTL0_P
AH15
HT_MCP_RXCTL0_N
AB14
HT_MCP_RXCTL1_P
AC14
HT_MCP_RXCTL1_N
AB9
HT_MCP_COMP_VDD
AB8
HT_MCP_COMP_GND
AE7
THERM_ALERT/PWR_LED/GPIO_47*
AD8
PROCHOT/GPIO_20*
AE8
THERMTRIP/GPIO_58*
AC15
+1.1V_PLL_HT
AB15
+1.1V_PLL_CPU
NVIDIA-NF780A-SLI-N-A2-RH
NVIDIA-NF780A-SLI-N-A2-RH
U25A
U25A
3
HT_MCP_TXD0_P
HT_MCP_TXD1_P
HT_MCP_TXD2_P
HT_MCP_TXD3_P
HT_MCP_TXD4_P
HT_MCP_TXD5_P
HT_MCP_TXD6_P
HT_MCP_TXD7_P
HT_MCP_TXD8_P
HT_MCP_TXD9_P
HT_MCP_TXD10_P
HT_MCP_TXD11_P
HT_MCP_TXD12_P
HT_MCP_TXD13_P
HT_MCP_TXD14_P
HT_MCP_TXD15_P
HT_MCP_TXD0_N
HT_MCP_TXD1_N
HT_MCP_TXD2_N
HT_MCP_TXD3_N
HT_MCP_TXD4_N
HT_MCP_TXD5_N
HT_MCP_TXD6_N
HT_MCP_TXD7_N
HT_MCP_TXD8_N
HT_MCP_TXD9_N
HT_MCP_TXD10_N
HT_MCP_TXD11_N
HT_MCP_TXD12_N
HT_MCP_TXD13_N
HT_MCP_TXD14_N
HT_MCP_TXD15_N
HT_MCP_TX_CLK0_P
HT_MCP_TX_CLK0_N
HT_MCP_TX_CLK1_P
HT_MCP_TX_CLK1_N
HT_MCP_TXCTL0_P
HT_MCP_TXCTL0_N
HT_MCP_TXCTL1_P
HT_MCP_TXCTL1_N
HT_MCP_REQ*
HT_MCP_STOP*
HT_MCP_RST*
HT_MCP_PWRGD
CLKOUT_200MHZ_P
CLKOUT_200MHZ_N
CPU_SBVREF
CLKOUT_25MHZ
CLK200_TERM_GND
R173
Within 1000 mils of MCP72P
AH23
AH22
AJ21
AH21
AH19
AH18
AJ17
AH17
AF22
AB20
AC20
AE20
AD18
AF18
AB17
AC16
AJ23
AJ22
AK21
AG21
AJ19
AJ18
AK17
AG17
AG22
AB19
AD20
AF20
AE18
AG18
AB16
AD16
AH20
AG20
AC18
AB18
AH16
AG16
AE16
AF16
AH25
AH24
AG23
AG24
AK25
AJ25
5/5/20
4/12/12
AF24
AK26
CLK200_TERM_GND
AJ26
5/10/10
HT_CADIN_H0
HT_CADIN_H1
HT_CADIN_H2
HT_CADIN_H3
HT_CADIN_H4
HT_CADIN_H5
HT_CADIN_H6
HT_CADIN_H7
HT_CADIN_H8
HT_CADIN_H9
HT_CADIN_H10
HT_CADIN_H11
HT_CADIN_H12
HT_CADIN_H13
HT_CADIN_H14
HT_CADIN_H15
HT_CADIN_L0
HT_CADIN_L1
HT_CADIN_L2
HT_CADIN_L3
HT_CADIN_L4
HT_CADIN_L5
HT_CADIN_L6
HT_CADIN_L7
HT_CADIN_L8
HT_CADIN_L9
HT_CADIN_L10
HT_CADIN_L11
HT_CADIN_L12
HT_CADIN_L13
HT_CADIN_L14
HT_CADIN_L15
HT_MCP_REQ#
LDT_STOP#
LDT_RST#
LDT_PWRGD
CPU_CLK
CPU_CLK#
CLKOUT25Mhz
HT_CLKIN_H0 3
HT_CLKIN_L0 3
HT_CLKIN_H1 3
HT_CLKIN_L1 3
HT_CTLIN_H0 3
HT_CTLIN_L0 3
HT_CTLIN_H1 3
HT_CTLIN_L1 3
LDT_STOP# 3
LDT_RST# 3
LDT_PWRGD 3,25
CPU_CLK 3
CPU_CLK# 3
R301
R301
2.37K/1%/4
2.37K/1%/4
2
C283
C283
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
R299
R299
X_22/4
X_22/4
HT_CADIN_H[15..0]
HT_CADIN_L[15..0]
VCC3
R298
R298
10K/4
10K/4
VCC1_1VCC1_1
C577
Within 500 mils of MCP72P
Solder Side
1
HT_CADIN_H[15..0] 3
HT_CADIN_L[15..0] 3
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
5
4
3
2
Wednesday, June 17, 2009
MS-7612
MCP72P-HT
MCP72P-HT
MCP72P-HT
1
Sheet of
Sheet of
Sheet of
942
942
942
1.0
1.0
1.0
5
4
3
2
1
PCI-Express x1 SLOT 1
VCC3
D D
22mA
80mA
C850
C850
H23
PE_RX0_P
H25
PE_RX1_P
K22
PE_RX2_P
K24
PE_RX3_P
K26
PE_RX4_P
M22
PE_RX5_P
M23
PE_RX6_P
M26
PE_RX7_P
P22
PE_RX8_P
P26
PE_RX9_P
P25
PE_RX10_P
T23
PE_RX11_P
T26
PE_RX12_P
U23
PE_RX13_P
V24
PE_RX14_P
V27
PE_RX15_P
H24
PE_RX0_N
H26
PE_RX1_N
K23
PE_RX2_N
K25
PE_RX3_N
K27
PE_RX4_N
L22
PE_RX5_N
M24
PE_RX6_N
M25
PE_RX7_N
P23
PE_RX8_N
P27
PE_RX9_N
P24
PE_RX10_N
T24
PE_RX11_N
T25
PE_RX12_N
V23
PE_RX13_N
V25
PE_RX14_N
V26
PE_RX15_N
B22
PE_WAKE/GPIO_21*
AF29
PE_PRSNTX16/PRSNTX8*
W22
+1.1V_PLL_PE_SS1
Y22
+1.1V_PLL_DPPLL
U22
+1.1V_PLL_PE1
C848
C848
NVIDIA-NF780A-SLI-N-A2-RH
NVIDIA-NF780A-SLI-N-A2-RH
C2.2u6.3X50402-RH
C2.2u6.3X50402-RH
C4.7u6.3X5-1
C4.7u6.3X5-1
PE_RXP08
PE_RXP18
PE_RXP28
PE_RXP38
PE_RXP48
PE_RXP58
PE_RXP68
PE_RXP78
PE_RXP88
PE_RXP98
PE_RXP108
PE_RXP118
PE_RXP128
PE_RXP138
PE_RXP148
PE_RXP158
PE_RXN08
PE_RXN18
PE_RXN28
PE_RXN38
PE_RXN48
PE_RXN58
PE_RXN68
PE_WAKE*16,17
L23
L23
L24
L24
10n300mA_0402-RH
10n300mA_0402-RH
PE_RXN78
PE_RXN88
PE_RXN98
PE_RXN108
PE_RXN118
PE_RXN128
PE_RXN138
PE_RXN148
PE_RXN158
R426 X_10K/4R426 X_10K/4
PE_WAKE*
PE_PRSNTX16#
1.1V_PLL_PE_SS
C841
C841
C838
C838
C4.7u6.3X5-1
C4.7u6.3X5-1
C2.2u6.3X50402-RH
C2.2u6.3X50402-RH
1.1V_PLL_PE
C C
3VDUAL
R312
R312
0/4
0/4
VCC1_1
10n300mA_0402-RH
10n300mA_0402-RH
VCC1_1
B B
A A
U25B
U25B
PE_TX0_P
PE_TX1_P
PE_TX2_P
PE_TX3_P
PE_TX4_P
PE_TX5_P
PE_TX6_P
PE_TX7_P
PE_TX8_P
PE_TX9_P
PE_TX10_P
PE_TX11_P
PE_TX12_P
PE_TX13_P
PE_TX14_P
PE_TX15_P
PE_TX0_N
PE_TX1_N
PE_TX2_N
PE_TX3_N
PE_TX4_N
PE_TX5_N
PE_TX6_N
PE_TX7_N
PE_TX8_N
PE_TX9_N
PE_TX10_N
PE_TX11_N
PE_TX12_N
PE_TX13_N
PE_TX14_N
PE_TX15_N
PEA_REFCLK_P
PEA_REFCLK_N
PE_RESET*
+1.1V_DP_VDD
PE_CLK_COMP
G29
H27
J27
J30
K29
L29
M27
N27
N30
P29
R29
T27
U27
U30
V29
W29
G28
H28
J28
J29
K28
L28
M28
N28
N29
P28
R28
T28
U28
U29
V28
W28
Y24
Y23
AH29
V22
width 15 mil
AJ30
NV_PE_RESET#
1P1V_DP_VDD
PE_COMP
R311
R311
2.37K/1%/4
2.37K/1%/4
PE_TXP0 8
PE_TXP1 8
PE_TXP2 8
PE_TXP3 8
PE_TXP4 8
PE_TXP5 8
PE_TXP6 8
PE_TXP7 8
PE_TXP8 8
PE_TXP9 8
PE_TXP10 8
PE_TXP11 8
PE_TXP12 8
PE_TXP13 8
PE_TXP14 8
PE_TXP15 8
PE_TXN0 8
PE_TXN1 8
PE_TXN2 8
PE_TXN3 8
PE_TXN4 8
PE_TXN5 8
PE_TXN6 8
PE_TXN7 8
PE_TXN8 8
PE_TXN9 8
PE_TXN10 8
PE_TXN11 8
PE_TXN12 8
PE_TXN13 8
PE_TXN14 8
PE_TXN15 8
PE_CLK 8
PE_CLK# 8
R709 X_0/4R709 X_0/4
Solder Side
VCC1_1
PEX1_SLOT_TXP11
PEX1_SLOT_TXN11
PEX1_SLOT_TXN
PCI-Express x1 SLOT 2
PEX1_SLOT_PRSNT#11
VCC3
DG-03311-001_v00C.pdf remove.
PEX2_SLOT_TXP11
PEX2_SLOT_TXN11
3VDUAL
53
U21
U21
VCC
NV_PE_RESET#
ATX_PWR_OK14,19,31
VCC
A
A
1
2
B
B
GND
GND
NC7SZ08M5X_SOT23-5-RH
NC7SZ08M5X_SOT23-5-RH
4
Y
Y
R306 X_0/4R306 X_0/4
PE_RESET# 8
PEX2_SLOT_PRSNT#11
VCC3
SMBCLK11,14,16,17,23,25,26,28
SMBDATA11,14,16,17,23,25,26,28
PE_WAKE*16,17 PE_RESET# 8
C541 C0.1u10X0402C541 C0.1u10X0402
C544 C0.1u10X0402C544 C0.1u10X0402
R506 4.7KR0402R506 4.7KR0402
SMBCLK11,14,16,17,23,25,26,28
SMBDATA11,14,16,17,23,25,26,28
PE_WAKE*16,17 PE_RESET# 8
C324 C0.1u10X0402C324 C0.1u10X0402
C325 C0.1u10X0402C325 C0.1u10X0402
R340 4.7KR0402R340 4.7KR0402
3VDUAL
PEX1_SLOT_TXP_CPEX1_SLOT_TXP
PEX1_SLOT_TXN_C
PEX1_SLOT_PRSNT#
3VDUAL
PEX2_SLOT_TXP_C
PEX2_SLOT_TXN_C
PEX2_SLOT_PRSNT#
VCC3
+12V
+12V
R408
R408
10K/4
10K/4
R505
R505
10K/4
10K/4
B10
B11
B12
B13
B14
B15
B16
B17
B18
B10
B11
B12
B13
B14
B15
B16
B17
B18
B1
B2
B3
B4
B5
B6
B7
B8
B9
PCI_E3
PCI_E3
B1
B2
B3
B4
B5
B6
B7
B8
B9
PCI_E1
PCI_E1
12V
12V
12V
GND
SMCLK
SMDATA
GND
3.3V
JTAG1
3.3VAUX
WAKE_#
RSVD
GND
HSOP0+
HSOP0ÂGND
PRSNT2_#
GND
12V
12V
12V
GND
SMCLK
SMDATA
GND
3.3V
JTAG1
3.3VAUX
WAKE_#
RSVD
GND
HSOP0+
HSOP0ÂGND
PRSNT2_#
GND
A1
PRSNT1_#
A2
12V
A3
12V
A4
GND
A5
JTAG2
A6
JTAG3
A7
JTAG4
A8
JTAG5
A9
3.3V
A10
3.3V
A11
PWRGD
X1
X1
A12
GND
A13
REFCLK+
A14
REFCLK-
A15
GND
A16
HSIP0+
A17
HSIP0-
A18
GND
X2
X2
SLOT-PCI36P-2PITCH-RH-6
SLOT-PCI36P-2PITCH-RH-6
A1
PRSNT1_#
A2
12V
A3
12V
A4
GND
A5
JTAG2
A6
JTAG3
A7
JTAG4
A8
JTAG5
A9
3.3V
A10
3.3V
A11
PWRGD
X1
X1
A12
GND
A13
REFCLK+
A14
REFCLK-
A15
GND
A16
HSIP0+
A17
HSIP0-
A18
GND
X2
X2
SLOT-PCI36P-2PITCH-RH-6
SLOT-PCI36P-2PITCH-RH-6
VCC3
PEX1_SLOT_RXP
PEX1_SLOT_RXN
+12V
VCC3
+12V
PEX1_SLOT_CLK 11
PEX1_SLOT_CLK# 11
PEX1_SLOT_RXP 11
PEX1_SLOT_RXN 11
PEX2_SLOT_CLK 11
PEX2_SLOT_CLK# 11
PEX2_SLOT_RXP 11
PEX2_SLOT_RXN 11
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7560
MS-7560
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
5
4
3
2
Wednesday, June 17, 2009
MS-7560
MCP72P-PCIE X16
MCP72P-PCIE X16
MCP72P-PCIE X16
1
Sheet of
Sheet of
Sheet of
10 42
10 42
10 42
1.0
1.0
1.0

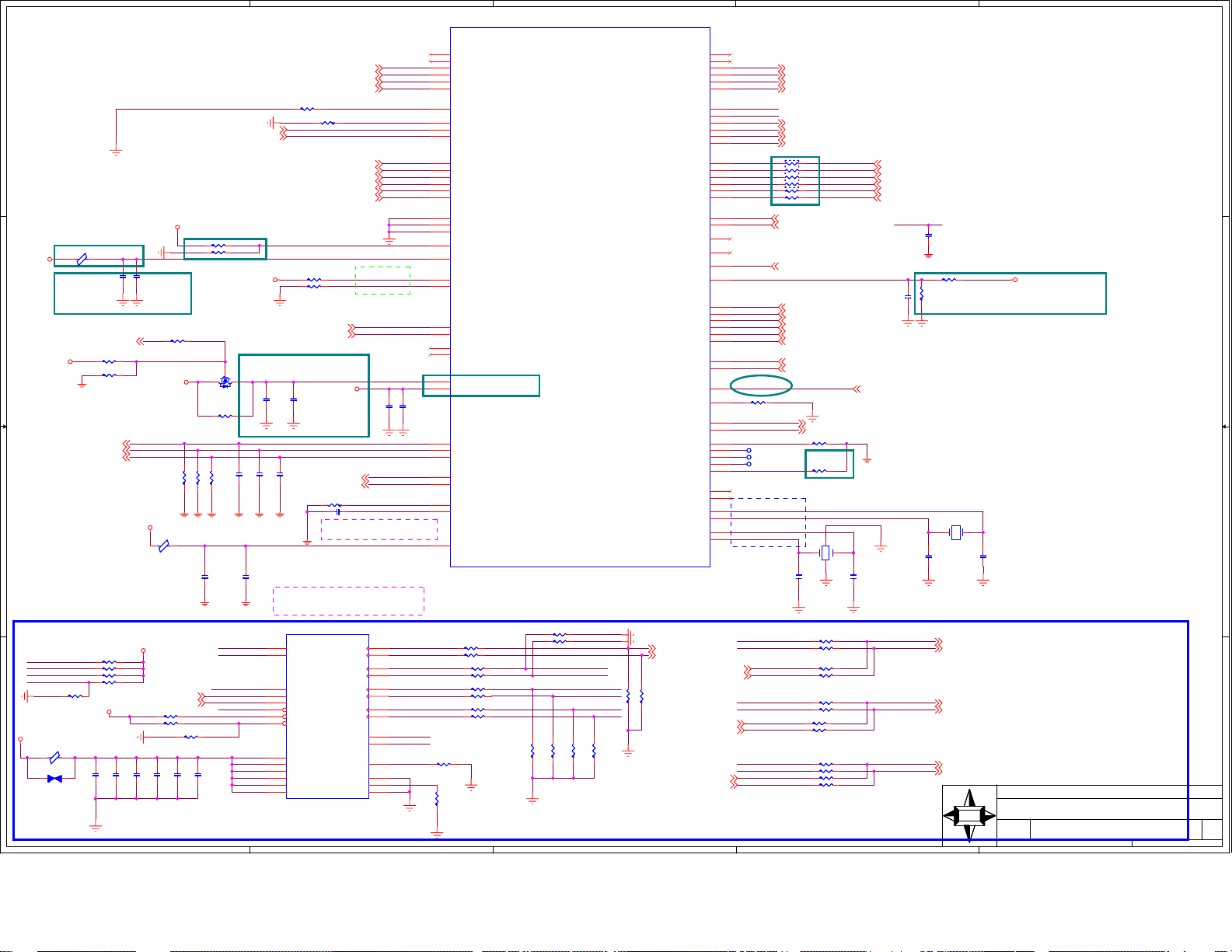

5
4
U25C
U25C
3
2
1
Y28
PE_RX16_P
Y27
PE_RX16_N
RGMII_RXD0
RGMII_RXD1
RGMII_RXD2
RGMII_RXD3
RGMII_RXCLK
RGMII_RXCTL
MII_INTR
C301
C301
C2.2u6.3X0805
C2.2u6.3X0805
DAC_VREF
AB29
PE_RX17_P
AB28
PE_RX17_N
AD27
PE_RX18_P
AD28
PE_RX18_N
AK29
PEA_CLKREQ*
AG28
PEA_PRSNT*
AG30
PEB_PRSNT*
AG29
PEC_PRSNT*
D26
RGMII_RXD0/MII_RXD0
E26
RGMII_RXD1/MII_RXD1
B26
RGMII_RXD2/MII_RXD2
B27
RGMII_RXD3/MII_RXD3
A26
RGMII_RXCLK/MII_RXCLK
C26
RGMII_RXCTL/MII_RXDV
D24
MII_RXER/GPIO_36
E24
MII_COL
F23
MII_CRS
G24
RGMII/MII_INTR/GPIO_35
M9
+1.1V_PLL_MAC_DUAL
B23
MII_COMP_3P3V
C23
MII_COMP_GND
AE29
DDC_CLK3
AE30
DDC_DATA3
AF28
AUX_CH_N
AF30
AUX_CH_P
+3.3V_HDMI
AE26
+3.3V_HDMI
AF27
+3.3V_HDMI_PLL_HVDD
D30
RGB_DAC_RED
D29
RGB_DAC_GREEN
C30
RGB_DAC_BLUE
B30
RGB_DAC_HSYNC
C29
RGB_DAC_VSYNC
B29
RGB_DAC_RSET
A29
RGB_DAC_VREF
F28
+3.3V_RGB_DAC
NVIDIA-NF780A-SLI-N-A2-RH
NVIDIA-NF780A-SLI-N-A2-RH
PEB_REFCLK_P
PEB_REFCLK_N
PEC_REFCLK_P
PEC_REFCLK_N
PED_REFCLK_P
PED_REFCLK_N
RGMII_TXD0/MII_TXD0
RGMII_TXD1/MII_TXD1
RGMII_TXD2/MII_TXD2
RGMII_TXD3/MII_TXD3
RGMII_TXCLK/MII_TXCLK
RGMII_TXCTL/MII_TXEN
RGMII/MII_MDC
RGMII/MII_MDIO
RGMII/MII_PWRDWN/GPIO_37*
HDMI_TXD0_P/ML0_LANE2_P
HDMI_TXD0_N/ML0_LANE2_N
HDMI_TXD1_P/ML0_LANE1_P
HDMI_TXD1_N/ML0_LANE1_N
HDMI_TXD2_P/ML0_LANE0_P
HDMI_TXD2_N/ML0_LANE0_N
HDMI_TXC_P/ML0_LANE3_P
HDMI_TXC_N/ML0_LANE3_N
HPLUG_DET3
TV_XTALOUT
XTALOUT_RTC
PEX2_SLOT_RXP10
PEX2_SLOT_RXN10
PEX1_SLOT_RXP10
CRB Empty.
D D
PEX2_SLOT_PRSNT#10
PEX1_SLOT_PRSNT#10
3VDUAL
Design Guide (must be)
L26 30ohm/500mA/6L26 30ohm/500mA/6
1_1VDUAL
C860
C860
C4.7u6.3X5-1
C4.7u6.3X5-1
C859
C859
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
Solder Side
C C
ATX_PWR_OK_5V28,31
R326 10K/4R326 10K/4
+12V
R319 100KST/4R319 100KST/4
DAC_RED27
DAC_GREEN27
DAC_BLUE27
B B
VCC3
R315 X_0/4R315 X_0/4
VCC3
R382
R382
150R1%0402
150R1%0402
L10 60L3A-40L10 60L3A-40
R711 X_10K/4R711 X_10K/4
R713 10K/4R713 10K/4
G
Q56
Q56
2N7002
2N7002
R318
R318
X_0R
X_0R
R390
R390
R388
R388
150R1%0402
150R1%0402
150R1%0402
150R1%0402
+3.3V_RGB_DAC
C343
C343
C4.7u6.3X5
C4.7u6.3X5
3VDUAL
solder side
DS
C350
C350
C10p50N0402
C10p50N0402
C345
C345
C0.1u16X0402
C0.1u16X0402
C352
C352
C10p50N0402
C10p50N0402
R307 X_0/4R307 X_0/4
R310 10K/4R310 10K/4
6mA
width 15 mil ?
R718 49.9R1%0402R718 49.9R1%0402
R715 49.9R1%0402R715 49.9R1%0402
Please R284 , R305
within 750 mil of MCP68 and
route with trace Width >7.5 mils
DVI_DDC_CLK23
DVI_DDC_DATA23
C305 4.7u/10V/8C305 4.7u/10V/8
C292 0.1uf/10V/X7R/4C292 0.1uf/10V/X7R/4
C355
C355
DAC_HSYNC27
DAC_VSYNC27
R398 124R1%0402R398 124R1%0402
C367 C0.1u16X0402C367 C0.1u16X0402
C10p50N0402
C10p50N0402
PEX1_SLOT_RXN10
internal pull hi.
PEX2_SLOT_PRSNT#
PEX1_SLOT_PRSNT#
RGMII_RXD020
RGMII_RXD120
RGMII_RXD220
RGMII_RXD320
RGMII_RXCLK20
RGMII_RXCTL20
1P1V_PLL_MAC_DUAL
MII_COMP_3.3V
MII_COMP_GND
DVI_DDC_CLK
DVI_DDC_DATA
VCC3
C861
C861
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
DAC_HSYNC
DAC_VSYNC
DAC_RSET
Layout:DAC_RSET<0.75'
DAC_VREF<0.5'
CRB: C359 Stuff 0R W/O VGA
U35
U35
ICS_PD#
ICS_OE_1
ICS_OE_6
ICS_BYPASS#/PLL
R517 X_1KR0402R517 X_1KR0402
VCC3
A A
L11 X_60L3A-40L11 X_60L3A-40
CP2CP2
VCC3
R519 1KR0402R519 1KR0402
R497 1KR0402R497 1KR0402 R495 0R0402R495 0R0402
R524 1KR0402R524 1KR0402 R500 0R0402R500 0R0402
R516 1KR0402R516 1KR0402
SMBCLK10,14,16,17,23,25,26,28
C543
C543
C0.1u16X0402
C0.1u16X0402
C10u10Y0805
C10u10Y0805
5
C531
C531
C0.1u16X0402
C0.1u16X0402
SMBDATA10,14,16,17,23,25,26,28
R518 1KR0402R518 1KR0402
R515 1KR0402R515 1KR0402
R514 X_1KR0402R514 X_1KR0402
C549
C0.1u16X0402
C0.1u16X0402
C520
C520
VCC3
C525
C525
C0.1u16X0402
C0.1u16X0402
PE_LANE16_CLK
PE_LANE16_CLK#
ICS_BYPASS#/PLL
ICS_DIF_STOP#
ICS_HIGH_BW#
C530
C530
C0.1u16X0402
C0.1u16X0402
ICS_PD#
2
SRC_IN
3
SRC_IN#
12
BYPASS#/PLL
13
SCLK
14
SDATA
15
PD#
16
DIF_STOP#
17
HIGH_BW#
28
VDDA
24
VDD
18
VDD
11
VDD
5
VDD
1
VDD
X_ICS9DB403DGLFT_TSSOP28-RH
X_ICS9DB403DGLFT_TSSOP28-RH
DIF_6
DIF_6#
DIF_5
DIF_5#
DIF_2
DIF_2#
DIF_1
DIF_1#
GNDA
OE_INV
BR04_LANE16_CLK_R
23
BR04_LANE16_CLK#_R
22
ICS_PE_A_CLK_R ICS_PE_A_CLK
20
ICS_PE_A_CLK#_R
19
ICS_PE_B_CLK1_R
9
ICS_PE_B_CLK1#_R
10
ICS_PE_B_CLK_R
6
ICS_PE_B_CLK#_R
7
ICS_OE_1
8
OE_1
OE_6
IREF
GND
21
26
27
25
4
4
ICS_OE_6
ICS_IREF
ICS_OE_INV
R474 33R0402R474 33R0402
R487 33R0402R487 33R0402
R493 33R0402R493 33R0402
R498 33R0402R498 33R0402
R504 33R0402R504 33R0402
R512 33R0402R512 33R0402
R482 33R0402R482 33R0402
R492 33R0402R492 33R0402
R471 475R1%0402R471 475R1%0402
R472
R472
1KR0402
1KR0402
R486 49.9R1%0402R486 49.9R1%0402
R508 49.9R1%0402R508 49.9R1%0402
ICS_PE_A_CLK#
ICS_PE_B_CLK
R481
R481
R503
R503
R511
R511
49.9R1%0402
49.9R1%0402
49.9R1%0402
49.9R1%0402
BR04_LANE16_CLK
BR04_LANE16_CLK#
ICS_PE_B_CLK1
ICS_PE_B_CLK1#
ICS_PE_B_CLK#
R491
R491
49.9R1%0402
49.9R1%0402
49.9R1%0402
49.9R1%0402
3
R475
R475
49.9R1%0402
49.9R1%0402
R488
R488
49.9R1%0402
49.9R1%0402
BR04_LANE16_CLK 8
BR04_LANE16_CLK# 8
PE_TX16_P
PE_TX16_N
PE_TX17_P
PE_TX17_N
PE_TX18_P
PE_TX18_N
BUF_25MHZ
MII_RESET*
MII_VREF
HDMI_RSET
DDC_CLK0
DDC_DATA0
JTAG_TCK
JTAG_TDI
JTAG_TDO
JTAG_TMS
JTAG_TRST*
TV_XTALIN
XTALIN
XTALOUT
XTALIN_RTC
BR_PE_A_CLK8
BR_PE_A_CLK#8
BR2_PE_B_CLK8
BR2_PE_B_CLK#8
BR3_PE_B_CLK18
BR3_PE_B_CLK1#8
AA28
AA27
AA30
AA29
AC29
AC28
PE_LANE16_CLK
Y26
PE_LANE16_CLK#
Y25
AB23
AA23
AB24
AB25
RGMIITXD0
A28
RGMIITXD1
B28
RGMIITXD2
D28
E27
RGMIITXCLK
D27
RGMIITXCTL
E28
RGMII_MDC
B25
RGMII_MDIO
A25
F24
C24
RGMII_RST#
C25
C27
TXD00P
AC25
TXD00N
AC24
TXD01P
AC26
TXD01N
AC27
TXD02P
AB26
TXD02N
AB27
TXC0P
AE27
TXC0N
AE28
AH30
R308 X_1KR1%0402R308 X_1KR1%0402
AJ29
VGA_DDC_CLK
B6
VGA_DDC_DATA
A6
M7
TP15TP15
M5
TP16TP16
M6
TP14TP14
M8
L9
D5
E5
XTALIN_25M
K7
XTALOUT_25M
K8
XTALIN_RTC
K6
XTALOUT_RTC
K5
Ref to GND
C15p50N0402
C15p50N0402
ICS_PE_A_CLK
ICS_PE_A_CLK#
BR_PE_A_CLK
BR_PE_A_CLK#
ICS_PE_B_CLK
ICS_PE_B_CLK#
BR2_PE_B_CLK
BR2_PE_B_CLK#
ICS_PE_B_CLK1
BR3_PE_B_CLK1
BR3_PE_B_CLK1#
PEX2_SLOT_TXP 10
PEX2_SLOT_TXN 10
PEX1_SLOT_TXP 10
PEX1_SLOT_TXN 10
PEX2_SLOT_CLK 10
PEX2_SLOT_CLK# 10
PEX1_SLOT_CLK 10
PEX1_SLOT_CLK# 10
RN20 8P4R-0R0402RN20 8P4R-0R0402
R421 0R0402R421 0R0402
R375 0R0402R375 0R0402
1
3
5
7
RGMII_MDC 20
RGMII_MDIO 20
RGMII_RST# 20
TXD00P 23
TXD00N 23
TXD01P 23
TXD01N 23
TXD02P 23
TXD02N 23
TXC0P 23
TXC0N 23
HOTPLUG_DET
2
4
6
8
RGMII_TXD0
RGMII_TXD1
RGMII_TXD2
RGMII_TXD3RGMIITXD3
RGMII_TXCLK
RGMII_TXCTL
Design Guide and Checklist leave EMPTY.
VGA_DDC_CLK 27
VGA_DDC_DATA 27
R338 10K/4R338 10K/4
R361
R361
X_10K/4
X_10K/4
21
C365
C365
3 4
Y1
Y1
32.768KHZ/12.5pF
32.768KHZ/12.5pF
R494 X_0R0402R494 X_0R0402
R499 X_0R0402R499 X_0R0402
R480 X_0R0402R480 X_0R0402
R490 X_0R0402R490 X_0R0402
R479 0R0402R479 0R0402
R489 0R0402R489 0R0402
R502 X_0R0402R502 X_0R0402
R510 X_0R0402R510 X_0R0402C549
R501 0R0402R501 0R0402
R509 0R0402R509 0R0402
RGMII_TXD0 20
RGMII_TXD1 20
RGMII_TXD2 20
RGMII_TXD3 20
RGMII_TXCLK 20
RGMII_TXCTL 20
RGMIITXCLK
C374
C374
X_C22p50N0402
X_C22p50N0402
MII_VREF
R717 1.47KR1%0402R717 1.47KR1%0402
C863
C863
R716
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
HOTPLUG_DET 23
R716
1.47KR1%0402
1.47KR1%0402
Checklist change to 1.47K Ohm
from 1K Ohm.
Design Guide 10K, but Checklist 15K.
25MHZ/18pf/HC49S
25MHZ/18pf/HC49S
NPO
C372
C372
C18p50N0402
C18p50N0402
For Nforce 200 clock jitter issue
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
NPO
C356
C356
C15p50N0402
C15p50N0402
2
C373
C373
C18p50N0402
C18p50N0402
Y2
Y2
Y5, Y1
Within 1000 mils of MCP68
PE_A_CLK
PE_A_CLK#
PE_B_CLK
PE_B_CLK#
PE_B_CLK1
PE_B_CLK1#ICS_PE_B_CLK1#
PE_A_CLK 16
PE_A_CLK# 16
PE_B_CLK 16
PE_B_CLK# 16
PE_B_CLK1 17
PE_B_CLK1# 17
3VDUAL
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7560
MS-7560
MS-7560
MCP72P-PCIE X1 & MII & DAC
MCP72P-PCIE X1 & MII & DAC
Wednesday, June 17, 2009
Wednesday, June 17, 2009
Wednesday, June 17, 2009
MCP72P-PCIE X1 & MII & DAC
1
Sheet of
Sheet of
Sheet of
11 42
11 42
11 42
1.0
1.0
1.0
5
4
3
2
1
VCC3
RN25
RN25
8.2K_8P4R/4
8.2K_8P4R/4
12
34
56
78
R714 X_10K/4R714 X_10K/4
RN21
RN21
8.2K_8P4R/4
8.2K_8P4R/4
12
34
56
78
C370 10pf/50V/NPO/4C370 10pf/50V/NPO/4
C376 10pf/50V/NPO/4C376 10pf/50V/NPO/4
C377 10pf/50V/NPO/4C377 10pf/50V/NPO/4
C375 X_10pf/50V/NPO/4C375 X_10pf/50V/NPO/4
VCC3
LPC_FRAME#
R425
R425
X_10K/4
X_10K/4
R419
R419
10K/4
10K/4
RN22
RN22
22R_8P4R/4
22R_8P4R/4
7 8
5 6
3 4
1 2
LPC_AD[3..0] 19
C362
C362
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
VCC3
R712
R712
8.2K/4
8.2K/4
SIO_PCLK 19
TPM_CLK 19
PCICLK_SLOT1 18
PCICLK_SLOT2 18
PCICLK_1394 22
PCI2REQ#
PCI1REQ#
1394REQ#
ACC_TDI
PCI_INTC#
PCI_INTA#
PCI_INTD#
PCI_INTB#
PCICLK_1394
PCICLK_SLOT1
PCICLK_SLOT2
PCI_CLKIN
RN37,R366,R397,C266,C269,C264,C535,C536
Within 500 mils of MCP72P
STRAP
HDA_SDOUT
LPC_FRAME
DEFAULT*
00 = LPC BIOS
01 = PCI BIOS
10 = SPI BIOS DEFAULT
11 = RESERVED
U25D
AD[31..0]
AD[31..0]18,22
AD0
D14
AD1
AD2
AD3
FRAME#
IRDY#
TRDY#
STOP#
DEVSEL#
PAR
PERR#
SERR#
PME#
PCI_RESET1#
PCI_RESET2#
HD_RST_L#
1394_TPM_RST_L#
SIORST#
PCI_RESET1#
1394_TPM_RST_L#
SIORST#SIO_RST#
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
C_BE#0
C_BE#1
C_BE#2
C_BE#3
D D
C_BE#[3..0]18,22
C C
FRAME#
IRDY#
TRDY#
DEVSEL#
STOP#
LOCK#
LOCK#18
PERR#
SERR#
2
4
6
8
2
4
6
8
RN27
RN27
VCC3
1
3
8.2K/4/8P4R
8.2K/4/8P4R
5
7
1
RN26
RN26
3
5
8.2K/4/8P4R
8.2K/4/8P4R
7
Within 500 mils of MCP72
PCIRST_SLOT2#18
B B
PCIRST_SLOT1#18
1394_TPM_RST#19,22
HD_RST#13
SIO_RST#19
PCIRST_SLOT1#
C_BE#[3..0]
FRAME#18,22
IRDY#18,22
TRDY#18,22
STOP#18,22
DEVSEL#18,22
PAR18,22
PERR#18,22
SERR#18
PME#18,22
R335 33R0402R335 33R0402
RN24
RN24
1
2
3
5
7
8P4R-33R0402
8P4R-33R0402
4
6
8
HD_RST# HD_RST_L#
PCI_AD0
E14
PCI_AD1
A13
PCI_AD2
C14
PCI_AD3
A14
PCI_AD4
B14
PCI_AD5
C15
PCI_AD6
J16
PCI_AD7
G16
PCI_AD8
F16
PCI_AD9
E16
PCI_AD10
B15
PCI_AD11
D16
PCI_AD12
C16
PCI_AD13
D17
PCI_AD14
C17
PCI_AD15
J19
PCI_AD16
J20
PCI_AD17
H20
PCI_AD18
G20
PCI_AD19
F20
PCI_AD20
E20
PCI_AD21
B18
PCI_AD22
C19
PCI_AD23
D20
PCI_AD24
C20
PCI_AD25
D21
PCI_AD26
C21
PCI_AD27
B21
PCI_AD28
H22
PCI_AD29
G22
PCI_AD30
F22
PCI_AD31
H16
PCI_CBE0*
B17
PCI_CBE1*
A18
PCI_CBE2*
B19
PCI_CBE3*
C18
PCI_FRAME*
A17
PCI_IRDY*
D18
PCI_TRDY*
F18
PCI_STOP*
E18
PCI_DEVSEL*
J18
PCI_PAR
G18
PCI_PERR/GPIO_43/RS232_DCD*
H18
PCI_SERR*
E22
PCI_PME/GPIO_30*
C13
PCI_RESET0*
G14
PCI_RESET1*
B11
PCI_RESET2*
F12
PCI_RESET3*
D9
LPC_RESET*
NVIDIA-NF780A-SLI-N-A2-RH
NVIDIA-NF780A-SLI-N-A2-RH
U25D
PCI_REQ2/GPIO_40/RS232_DSR*
PCI_REQ3/GPIO_38/RS232_CTS*
PCI_REQ4/GPIO_52/RS232_SIN*
PCI_GNT2/GPIO_41/RS232_DTR*
PCI_GNT3/GPIO_39/RS232_RTS*
PCI_GNT4/GPIO_53/RS232_SOUT*
LPC_PWRDWN/GPIO_54/EXT_NMI*
LPC_DRQ0/GPIO_50*
LPC_DRQ1/GPIO_19/FANRPM1*
PCI_REQ0*
PCI_REQ1*
PCI_GNT0*
PCI_GNT1*
PCI_INTW*
PCI_INTX*
PCI_INTY*
PCI_INTZ*
PCI_CLK0
PCI_CLK1
PCI_CLK2
PCI_CLK3
PCI_CLK4
PCI_CLKIN
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME*
LPC_SERIRQ
LPC_CLK0
LPC_CLK1
1394REQ#
G12
A10
C11
H14
D13
A9
C10
B10
J14
C12
C22
D22
A22
A21
B13
F14
D12
E12
H12
J12
1394GNT#
PCI1GNT#
PCI2GNT#
ACC_TMS
PCI_INTA#
PCI_INTB#
PCI_INTC#
PCI_INTD#
PCICLK_1394_L
PCICLK1
PCICLK2
PCICLK4
PCI_CLKIN
PCI1REQ#
PCI2REQ#
PCI1REQ3
ACC_TDI
Length=PCI slot clock + 3 inchs
LPC length should be less than 18 inches.
LPCAD0
G10
F10
D10
E10
C8
H10
C9
B9
J10
E8
D8
LPCAD1
LPCAD2
LPCAD3
LPC_FRAME#_C
LPC_DRQ#0
SERIRQ
SIOPCLK
TPMPCLK
7 8
5 6
3 4
1 2
RN28
RN28
22R_8P4R/4
22R_8P4R/4
ACC_TCK
R411 22R/4R411 22R/4
R217 , C270
Within 500 mils of MCP72
1394REQ# 22
PCI1REQ# 18
PCI2REQ# 18
ACC_TDI 3
1394GNT# 22
PCI1GNT# 18
PCI2GNT# 18
ACC_TMS 3
PCI_INTA# 18
PCI_INTB# 18
PCI_INTC# 18
PCI_INTD# 18,22
PCICLK4
PCICLK_1394_L
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_DRQ#0 19
SERIRQ 19
R402 33R0402R402 33R0402
R399 33R0402R399 33R0402
ACC_TCK 3
LPC_FRAME# 19
C359
C359
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
5
4
3
2
Wednesday, June 17, 2009
MS-7612
MCP72P-PCI & LPC
MCP72P-PCI & LPC
MCP72P-PCI & LPC
1
Sheet of
Sheet of
Sheet of
12 42
12 42
12 42
1.0
1.0
1.0

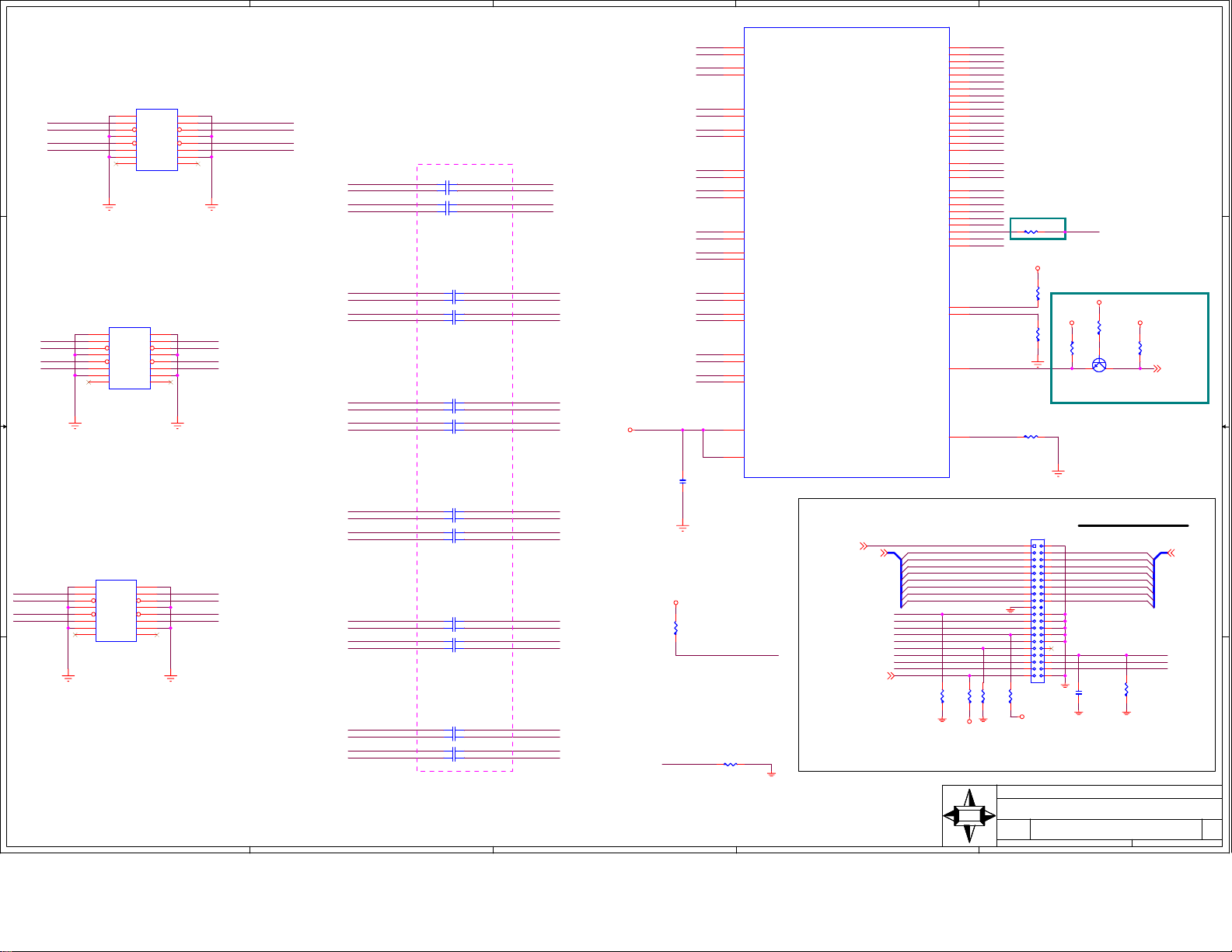

5
4
3
U25E
U25E
2
1
TXP_A0
V2
80mA
5mA
R320 10K/4R320 10K/4
W3
W2
AA4
AA3
AA2
AA1
AB1
AB2
AC3
AC2
AD4
AD3
AE4
AE3
AE1
AE2
U13
SATA_A0_TX_P
V1
SATA_A0_TX_N
SATA_A0_RX_N
SATA_A0_RX_P
Y8
SATA_A1_TX_P
Y7
SATA_A1_TX_N
Y5
SATA_A1_RX_N
Y6
SATA_A1_RX_P
Y4
SATA_B0_TX_P
Y3
SATA_B0_TX_N
SATA_B0_RX_N
SATA_B0_RX_P
SATA_B1_TX_P
SATA_B1_TX_N
SATA_B1_RX_N
SATA_B1_RX_P
SATA_C0_TX_P
SATA_C0_TX_N
SATA_C0_RX_N
SATA_C0_RX_P
SATA_C1_TX_P
SATA_C1_TX_N
SATA_C1_RX_N
SATA_C1_RX_P
NVIDIA-NF780A-SLI-N-A2-RH
NVIDIA-NF780A-SLI-N-A2-RH
Y9
+1.1V_PLL_SP_VDD
+1.1V_PLL_SP_SS
IRQ14
ATA 66/100/133 Connector
HD_RST#12
PDD[15..0] PDD[15..0]
TXN_A0
RXN_A0
RXP_A0
SATA1_2
SATA1_2
D D
C C
B B
A A
TXPB0
TXNB0
RXNB0
RXPB0
TXPC0
TXNC0
RXNC0 RXNC1
RXPC0
TXPA0
TXNA0
RXNA0
RXPA0
SATA3_4
SATA3_4
1
GND
2
HT+1
3
HT-1
4
GND
5
HR-1
6
HR+1
7
GND
15
MEC2
SATA5_6
SATA5_6
1
GND
GND
2
HT+2
HT+1
3
HT-2
HT-1
4
GND
GND
5
HR-2
HR-1
6
HR+2
HR+1
7
GND
GND
15
MEC1
MEC2
SATA14PM_BLACK-ST-RH
SATA14PM_BLACK-ST-RH
1
2
3
4
5
6
7
15
GND
HT+2
HT-2
GND
HR-2
HR+2
GND
MEC1
SATA14PM_BLACK-ST-RH
SATA14PM_BLACK-ST-RH
8
GND
GND
9
HT+2
HT+1
10
HT-2
HT-1
11
GND
GND
12
HR-2
HR-1
13
HR+2
HR+1
14
GND
GND
16
MEC1
MEC2
SATA14PM_BLACK-ST-RH
SATA14PM_BLACK-ST-RH
8
TXPB1
9
TXNB1
10
11
RXNB1
12
RXPB1
13
14
16
8
9
10
11
12
13
14
16
TXPC1
TXNC1
RXPC1
TXPA1
TXNA1
RXNA1
RXPA1
Trace lengths must be less 8 inches
Cap Near SATA CONNECTOR
X7R
C403
TXPA0
TXNA0
RXNA0
RXPA0
TXPA1
TXNA1
RXNA1
RXPA1
TXPB0
TXNB0
RXNB0
RXPB0
TXPB1
TXNB1
RXNB1
RXPB1
TXPC0
TXNC0
RXNC0
RXPC0
TXPC1
TXNC1
RXNC1
RXPC1
C403
C438
C438
C498
C498
C501
C501
C453
C453
C455
C455
C480
C480
C482
C482
C534
C534
C540
C540
C561
C561
C563
C563
C546
C546
C550
C550
C553
C553
C556
C556
C583
C583
C586
C586
C571
C571
C572
C572
C616
C616
C627
C627
C634
C634
C633
C633
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
TXP_A0
TXN_A0
RXN_A0
RXP_A0
TXP_A1
TXN_A1
RXN_A1
RXP_A1
TXP_B0
TXN_B0
RXN_B0
RXP_B0
TXP_B1
TXN_B1
RXN_B1
RXP_B1
TXP_C0
TXN_C0
RXN_C0
RXP_C0
TXP_C1
TXN_C1
RXN_C1
RXP_C1
VCC1_1
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
TXP_A1
TXN_A1
RXN_A1
RXP_A1
TXP_B0
TXN_B0
RXN_B0
RXP_B0
TXP_B1
TXN_B1
RXN_B1
RXP_B1
TXP_C0
TXN_C0
RXN_C0
RXP_C0
TXP_C1
TXN_C1
RXN_C1
RXP_C1
C277
C277
Solder Side
VCC3
R304
R304
X_8.2K/4
X_8.2K/4
PDD7
IDE_DATA_P0
IDE_DATA_P1
IDE_DATA_P2
IDE_DATA_P3
IDE_DATA_P4
IDE_DATA_P5
IDE_DATA_P6
IDE_DATA_P7
IDE_DATA_P8
IDE_DATA_P9
IDE_DATA_P10
IDE_DATA_P11
IDE_DATA_P12
IDE_DATA_P13
IDE_DATA_P14
IDE_DATA_P15
IDE_ADDR_P0
IDE_ADDR_P1
IDE_ADDR_P2
IDE_DACK_P*
IDE_DREQ_P
CABLE_DET_P/GPIO_63
IDE_COMP_3P3V
IDE_COMP_GND
SATA_LED/GPIO_57*
SATA_TERMP
HD_RST#
PD_DREQ
PD_IOW#
PD_IOR#
PD_IORDY
PD_DACK#
IRQ14
PD_A1
PD_A0
PD_CS#1
PD_LED
PD_LED31
IDE_CS1_P*
IDE_CS3_P*
IDE_IOW_P*
IDE_INTR_P
IDE_IOR_P*
IDE_RDY_P
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1 PDD14
R296
R296
5.6K/4
5.6K/4
AJ3
AJ2
AH3
AH1
AG2
AF2
AF4
AE6
AE5
AF5
AF3
AG1
AG3
AH2
AJ1
AK2
AG6
AJ5
AH6
AK6
AJ6
AG5
AH4
AH5
AK3
AJ4
AK4
AF6
AD5
AD6
A5
AB5
R257
R257
4.7K/4
4.7K/4
PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
PD_A0
PD_A1
PD_A2
PD_CS#1
PD_CS#3
PD_DACK#
PD_IOW#
IRQ14
PD_DREQ
PD_IOR#_C
PD_IORDY
PD_DET
IDE_COMP_3P3V
IDE_COMP_GND
SATA_TERMP
VCC5
Design Guide
R303 33R/4R303 33R/4
13 14
17 18
19
21
23
25
27
29
31
33
35
37
R284
R284
R288
R288
10K/4
10K/4
4.7K/4
4.7K/4
VCC3
R706
R706
IDE1
IDE1
1
3 4
5 6
7 8
91110
VCC3
PD_IOR#
R705
R705
VCC3
121/4/1
121/4/1
VCC3
R452
R704
R704
121/4/1
121/4/1
2.49KR1%0402
2.49KR1%0402
R452
4.7K/4
4.7K/4
R451
R451
330/4
330/4
B
CE
Q66
Q66
2N3904S
2N3904S
R154
Within500 mils of MCP72P
PRIMARY IDE BLOCK
2
PDD8
PDD9
PDD10
PDD11
PDD12
12
PDD13
1615
PDD15PDD0
22
24
BH2X20(20)_yellow-1
BH2X20(20)_yellow-1
26
28
30
32
34
36
38
4039
C235 X_C4700P50X0402-RHC235 X_C4700P50X0402-RH
VCC5
PD_DET
PD_A2
PD_CS#3
R277
R277
15KST/4
15KST/4
R449
R449
4.7K/4
4.7K/4
SATA_LED_SB 31
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
5
4
3
2
Wednesday, June 17, 2009
MS-7612
MCP72P-SATA X6 & IDE X1
MCP72P-SATA X6 & IDE X1
MCP72P-SATA X6 & IDE X1
1
Sheet of
Sheet of
Sheet of
13 42
13 42
13 42
1.0
1.0
1.0

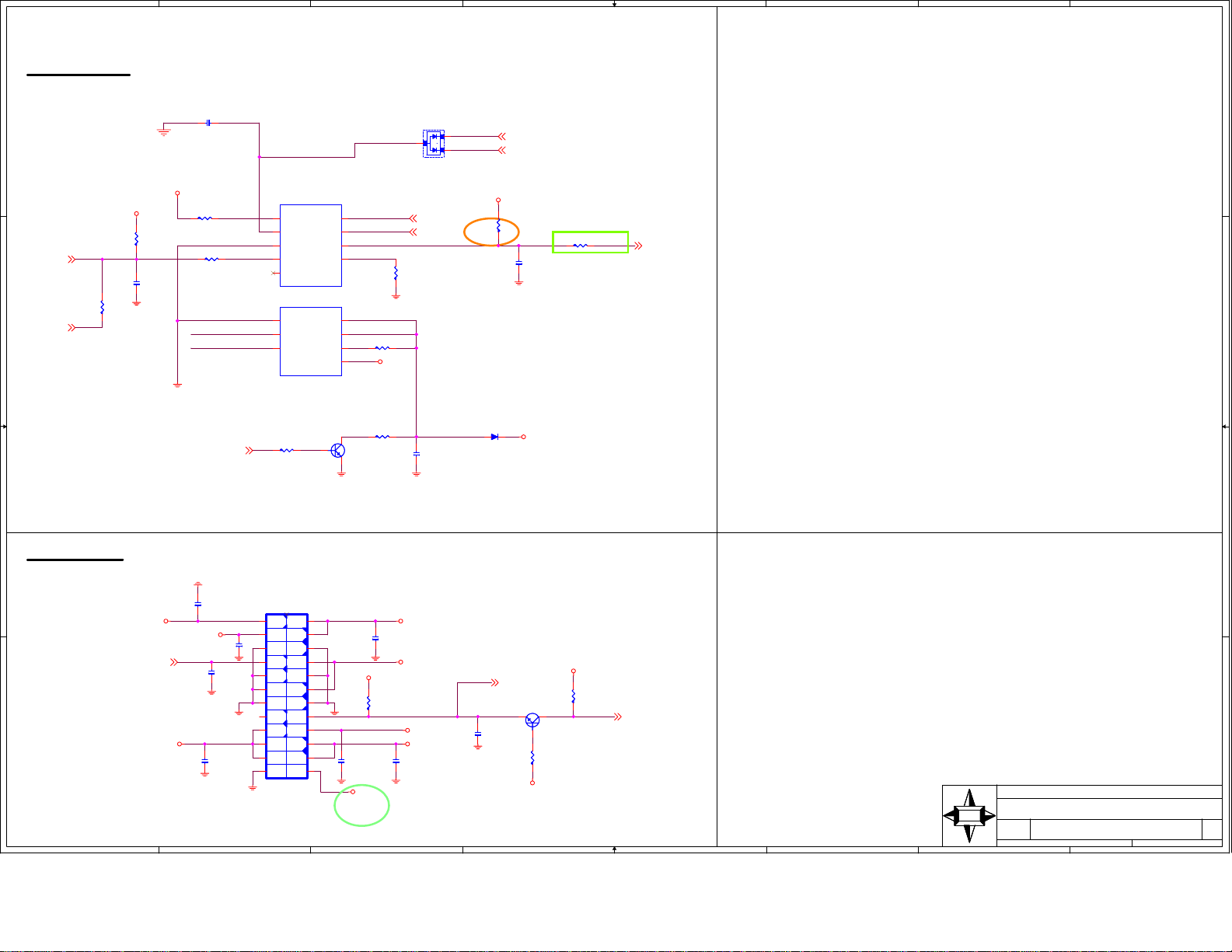

5
STRAP
AZ_SDOUT
LPC_FRAME
DEFAULT*
00 = LPC BIOS
01 = PCI BIOS
10 = *SPI BIOS DEFAULT
11 = RESERVED
D D
SPI DEBUG PORT
Place close to SPI ROM
Part Number : N31-2051451-H06
C C
SLP_S5#19,28,29
HDA_RESET
AZ_BITCLK
0.1uf/25V/Y5V/4
0.1uf/25V/Y5V/4
AZ_SYNC
(SIO CLK)
1 = 24MHZ
0 = *14.318MHZ
* = DEFAULT
0 = MII
1= RGMII
10pf/50V/NPO/4C361 10pf/50V/NPO/4C361
C323
C323
MEM_VLD8,28
R354 0/4R354 0/4
AZ_BITCLK21
3VDUAL
C340
C340
NC
R733 X_0/4R733 X_0/4
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
AZ_SDOUT21
AZ_SYNC21
AZ_RST#21
AZ_SDIN021
C10u10Y0805
C10u10Y0805
C332
C332
3VDUAL VCC3
AZ_BITCLK
R401 22R/4R401 22R/4
RN23
RN23
22R_8P4R/4
22R_8P4R/4
1 2
3 4
5 6
7 8
VCC3
R424
R424
SPKR MCP82 CRB
10K/4
10K/4
and checklist : 10K
R422
R422
X_10K/4
X_10K/4
3VDUAL
GPIO4 defaul GPIO input 3.3vdual,
just for first time usb power can be shutdown
MEM_VLD_R
MEM_VLD_R
R416
R416
10K/4
10K/4
R414
R414
X_10K/4
X_10K/4
AZSYNC
NSPI_CLK
C348 X_10pf/50V/NPO/4C348 X_10pf/50V/NPO/4
R404 X_10KR0402R404 X_10KR0402
R367 10KR0402R367 10KR0402
R403 X_10KR0402R403 X_10KR0402
R366 X_10KR0402R366 X_10KR0402
VCC1_1
POWER SEQUENCE
B B
3VDUAL
JSPI1
JSPI1
NSPI_CS#
NSPI_DI
NSPI_WP#
1 2
3 4
6
5
7 8
9
H2X5(10)_black-RH
H2X5(10)_black-RH
R336
R336
1KR1%0402
1KR1%0402
U26
U26
1
CS#
2
SO
3
WP#
4
GND
MX25L8005M2C-15G-RH
MX25L8005M2C-15G-RH
5
NSPI_DI NSPI_DO
NSPI_CS#
NSPI_HOLD#
3VDUAL 3VDUAL
R349
R349
10K/4
10K/4
A A
SPI FLASH MEMORY
VCC
SI
MCP82 SPI CLK STRAP
* 00 = 31MHZ DEFAULT
8
NSPI_HOLD#
7
NSPI_CLK
6
5
C344
C344
NSPI_CLK
HOLD#
SCLK
0.1uf/16V/Y5V/4
0.1uf/16V/Y5V/4
SPI_DO|SPI_CLK
01 = 42MHZ
10 = 25MHZ
11 = 1MHZ
R360
R360
10K/4
10K/4
12
+
+
EC38
EC38
X_C10u10SO-RH
X_C10u10SO-RH
R363
R363
NSPI_DO
R391
R391
X_10K/4
X_10K/4
X_10K/4
X_10K/4
R369
R369
10K/4
10K/4
R415
R415
10K/4
10K/4
ACC_CPU_RST_L3
ACC_DBREQ_L3
ACC_TRST_L3
PE_SLI_DET#
PE_SLI_DET#
R387
R387
10K/4
10K/4
4
C369
C369
NSPI_WP#
VCC3
USB_EN24
PE_SLI_DET# 17
USB_EN
USB_EN
L25
L25
10n300mA_0402-RH
10n300mA_0402-RH
C858
C858
C4.7u6.3X5-1
C4.7u6.3X5-1
HT_VLD8,28
HTVDD_EN28,29
PWR_GOOD25,26
VCORE_EN25
R405
R405
1KR1%0402
1KR1%0402
CMOS CLEAR BUTTOM
4
AZRST#
10pf/50V/NPO/4
10pf/50V/NPO/4
AZBITCLK
AZRST#
AZSYNC
AZSDOUT
AZ_SDIN0
PE_SLI_DET#
R348 X_10KR0402R348 X_10KR0402
R347 X_10KR0402R347 X_10KR0402
R385 X_10KR0402R385 X_10KR0402
USB_EN
ACC_CPU_RST_L
ACC_DBREQ_L
ACC_TRST_L
NSPI_DI
NSPI_DO
NSPI_CS#
NSPI_CLK
VCC3
VCC3
+1.1V_PLL
3VDUAL
XBT1
XBT1
Battery Socket
Battery Socket
18mA
C334
C334
X_0.1uf/10V/X7R/4
X_0.1uf/10V/X7R/4
70mA
C851
C851
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
73mA
C842
C842
C2.2u6.3X50402-RH
C2.2u6.3X50402-RH
RTC_RST#
MEM_VLD_R
HT_VLD
HTVDD_EN
PWR_GOOD
VCORE_EN
TEST_MODE_EN
R613 X_0/4R613 X_0/4
BATR1
12
R611
R611
1KR1%0402
1KR1%0402
N91-01F0151-H06
U25F
U25F
B4
HDA_BITCLK
C3
HDA_RESET*
B3
HDA_SYNC/GPIO_44
A3
HDA_SDATA_OUT/GPIO_45
A2
HDA_SDATA_IN0/GPIO_22
B1
HDA_SDATA_IN1/GPIO_23/MGPIO_0
B2
HDA_SDATA_IN2/GPIO_24/MGPIO_2
F2
GPIO_1/PWRDN_OK/SPI_CS1
F1
GPIO_2/NMI/PS2_CLK0*
F6
GPIO_3/SMI/PS2_DATA0*
J8
GPIO_4/SCI/INTR/PS2_CLK1
G3
GPIO_5/INIT/PS2_DATA1*
G5
GPIO_6/FERR/SYS_SERR/IGPU_GPIO_6*
G6
GPIO_7/NFERR/SYS_PERR/IGPU_GPIO_7*
D3
SPI_DI/GPIO_8
D4
SPI_DO/GPIO_9
E4
SPI_CS0/GPIO_10
E3
SPI_CLK/GPIO_11
U12
+3.3V_PLL_USB
R22
+3.3V_DLL_HT
T22
RESERVED2
V12
+1.1V_PLL_LEG
M12
+1.1V_PLL_DISP
H9
RESERVED1
AB6
RESERVED3
AA6
RESERVED4
B7
RESERVED5
K4
RTC_RST*
J3
MEM_VLD
H3
MCP_VLD/HT_VLD
J4
MCPVDD_EN/HTVDD_EN
J1
CPU_VLD
J2
CPUVDD_EN
L8
PKG_TEST
F8
TEST_MODE_EN
NVIDIA-NF780A-SLI-N-A2-RH
NVIDIA-NF780A-SLI-N-A2-RH
S-BAT54C_SOT23
S-BAT54C_SOT23
G
DS
Q73
Q73
P-PA502FMG
P-PA502FMG
R597
R597
X_0R/6
X_0R/6
NC
3VDUAL
BATR3
RSMRST#
R612
R612
X_1KR1%0402
X_1KR1%0402
BATR2
DA-03005-001_v01.pdf
3
USB0+
M3
USB0_P
USB0_N
USB1_P
USB1_N
USB2_P
USB2_N
USB3_P
USB3_N
USB4_P
USB4_N
USB5_P
USB5_N
USB6_P
USB6_N
USB7_P
USB7_N
USB8_P
USB8_N
USB9_P
USB9_N
USB10_P
USB10_N
USB11_P
USB11_N
USB_OC0/GPIO_25*
USB_OC1/GPIO_26*
USB_OC2/GPIO_27*
USB_OC3/GPIO_28/MGPIO_1*
USB_OC4/GPIO_29/MGPIO_3*
USB_RBIAS_GND
A20GATE/FANCTL3/GPIO_55
KBRDRSTIN/FANRPM3/GPIO_56*
THERM_SIC/MI2C_CLK/GPIO_48
THERM_SID/MI2C_DATA/GPIO_49
VBAT
width 15 mil
D39
D39
Y
Z
X
EC48 X_CD100u16SO-RH+EC48 X_CD100u16SO-RH
12
+
3
INTRUDER*
EXT_SMI/GPIO_32*
RI/GPIO_33*
SPKR
PWRBTN*
SIO_PME/GPIO_31*
SMB_CLK0
SMB_DATA0
SMB_CLK1/MSMB_CLK
SMB_DATA1/MSMB_DATA
+3.3V_VBAT
BUF_SIO_CLK
SUS_CLK/GPIO_34
THERM/GPIO_59*
RSTBTN*
SLP_S5*
SLP_S3*
PWRGD_SB
PS_PWRGD
FANRPM0/GPIO_60
FANCTL0/GPIO_61
FANCTL1/GPIO_62
place near chipset pin
C857 X_C4.7u6.3X5-1C857 X_C4.7u6.3X5-1
R393 49.9KR1%0402R393 49.9KR1%0402
C364
C364
X_C1u16Y
X_C1u16Y
C357 10u/16V/12C357 10u/16V/12
C353 X_C0.1u25Y0402-RHC353 X_C0.1u25Y0402-RH
X_0.1uf/25V/Y5V/4C363 X_0.1uf/25V/Y5V/4C363
M4
N3
N4
N1
N2
P1
P2
R2
R3
P3
P4
T3
T4
U3
U4
T6
T5
T8
T7
V5
V4
V7
V6
P7
P8
P9
P5
P6
T9
F5
K2
F3
H4
C7
G4
F4
A4
C2
C1
D2
E2
K3
B5
E1
C6
H5
H8
G8
H6
G2
E6
D6
C5
AH7
AF8
RSMRST#
RTC_RST#
USB_OCP#0
USB_OCP#1
USB_OCP#2
USB_OCP#3
USB_OCP#4
USB_RBIAS_GND
INTRUDER#
SPKR
PWRBTN#
SIO_PME#
KBRST#
SMBMEM_CLK
SMBMEM_DATA
SMB_CLK
SMB_DATA
SIO24M
ACC_DBRDY#_R
FP_RST#
SLP_S5#
SLP_S3#
RSMRST#
ATX_PWR_OK
THERMSIC
THERMSID
USB0ÂUSB1+
USB1ÂUSB2+
USB2ÂUSB3+
USB3ÂUSB4+
USB4ÂUSB5+
USB5ÂUSB6+
USB6ÂUSB7+
USB7ÂUSB8+
USB8ÂUSB9+
USB9ÂUSB10+
USB10ÂUSB11+
USB11-
R373 0/4R373 0/4
ACC_TDO
R614 X_100KST/4R614 X_100KST/4
JBAT1
JBAT1
1
2
3
N31-1030151+N33-1020271-RH
N31-1030151+N33-1020271-RH
2
USB_OCP#0 24
USB_OCP#1 24
USB_OCP#2 24
USB_OCP#3 24
USB_OCP#4 24
R710 845R1%0402-RHR710 845R1%0402-RH
R341 49.9KST/4R341 49.9KST/4
THRM#
SPKR 19,31
PWRBTN# 19
SIO_PME# 19
KBRST# 19
5
VBAT
TP17TP17
R302 X_0/4R302 X_0/4
R701 X_0/4R701 X_0/4
G
G
2
USB0+ 24
USB0- 24
USB1+ 24
USB1- 24
USB2+ 24
USB2- 24
USB3+ 24
USB3- 24
USB4+ 24
USB4- 24
USB5+ 24
USB5- 24
USB6+ 24
USB6- 24
USB7+ 24
USB7- 24
USB8+ 24
USB8- 24
USB9+ 24
USB9- 24
USB10+ 24
USB10- 24
USB11+ 24
USB11- 24
A20GATE 19
VBAT
THRM# 19
RN18 8P4R-0R0402RN18 8P4R-0R0402
7
8
5
6
3
4
1
2
FP_RST# 31
SLP_S5# 19,28,29
SLP_S3# 19,28
RSMRST# 19
ATX_PWR_OK 10,19,31
ACC_TDO 3
CPU_SIC 3,19
CPU_SID 3,19
ACC_DBRDY#_R
SPKR Strapping
1 = SAFE MODE ( TCO )
0 = USER*(Normal)
SPKR MCP72P CRB : 1K
but MCP72P Design Guide : 10K
MSI
MSI
MSI
1
RN17
RN17
15K_8P4R/4
15K_8P4R/4
RN16
RN16
15K_8P4R/4
15K_8P4R/4
RN15
RN15
15K_8P4R/4
15K_8P4R/4
RN12
RN12
15K_8P4R/4
15K_8P4R/4
RN14
RN14
15K_8P4R/4
15K_8P4R/4
RN13
RN13
15K_8P4R/4
15K_8P4R/4
ACC_DBRDY# 3
C319
C319
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
1
Close to MCP72
X_0.1uf/25V/Y5V/4C342 X_0.1uf/25V/Y5V/4C342
C320
C320
C333
C333
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
Sheet of
Sheet of
Sheet of
USB1+
USB1ÂUSB0+
USB0-
USB3ÂUSB3+
USB2ÂUSB2+
USB4ÂUSB4+
USB5+
USB5-
USB7+
USB7ÂUSB6+
USB6-
USB8+
USB8ÂUSB9ÂUSB9+
USB10ÂUSB10+
USB11ÂUSB11+
VCC33VDUAL
246
8
RN19
RN19
8P4R-2.7KR0402
8P4R-2.7KR0402
135
7
R400 22R/4R400 22R/4
R293 22R/4R293 22R/4
R380 X_22R/4R380 X_22R/4
VCC3
R386
R386
X_1KR1%0402
X_1KR1%0402
SPKR
R381
R381
1KR1%0402
1KR1%0402
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
Close to MCP82
SMB_MEM_CLK 6,7
SMB_MEM_DATA 6,7
SMBCLK 10,11,16,17,23,25,26,28
SMBDATA 10,11,16,17,23,25,26,28
SIO_24M 19
C360
C360
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
FP_RST#
ACC_DBRDY#
THRM#
C310
C310
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MS-7612
MCP72P-AUDIO & USB & MISC
MCP72P-AUDIO & USB & MISC
MCP72P-AUDIO & USB & MISC
USB_OCP#0
USB_OCP#1
USB_OCP#2
USB_OCP#3
USB_OCP#4
C315
C315
0.01uf/25V/X7R/4
0.01uf/25V/X7R/4
14 42
14 42
14 42
1.0
1.0
1.0
5
U25G
C855 X_C0.1u10X0402C855 X_C0.1u10X0402
U25G
C854 C0.1u10X0402C854 C0.1u10X0402
C834 X_C0.1u10X0402C834 X_C0.1u10X0402
+3.3V_USB_DUAL1
+3.3V_USB_DUAL2
C254 C22u6.3X1206C254 C22u6.3X1206
C259 X_C0.1u10X0402C259 X_C0.1u10X0402
C836 X_C0.1u10X0402C836 X_C0.1u10X0402
C266 C4.7u10X50805-RHC266 C4.7u10X50805-RH
VCC1_1
AK27
VCC3
C843 X_C0.1u10X0402C843 X_C0.1u10X0402
V18
U19
W19
W18
T16
U16
T14
W14
AB21
AC21
AH27
U14
T18
U15
R15
R19
U17
R17
AJ27
AG26
AG25
U18
AE22
AE23
V19
V15
V16
W15
AB22
AE24
AD22
AA22
AC22
V13
W13
V14
W12
H15
J15
AC6
AC5
C835 C0.1u10X0402C835 C0.1u10X0402
+1.1V1
+1.1V10
+1.1V11
+1.1V12
+1.1V13
+1.1V14
+1.1V15
+1.1V16
+1.1V17
+1.1V18
+1.1V19
+1.1V2
+1.1V20
+1.1V21
+1.1V22
+1.1V23
+1.1V24
+1.1V25
+1.1V26
+1.1V3
+1.1V4
+1.1V5
+1.1V6
+1.1V7
+1.1V8
+1.1V9
+1.1V_HT_D1
+1.1V_HT_D2
+1.1V_HT_D3
+1.1V_PED1
+1.1V_PED2
+1.1V_PED3
+1.1V_PED4
+1.1V_PED5
+1.1V_SPD1
+1.1V_SPD2
+1.1V_SPD3
+1.1V_SPD4
+3.3V1
+3.3V2
+3.3V3
+3.3V4
NVIDIA-NF780A-SLI-N-A2-RH
NVIDIA-NF780A-SLI-N-A2-RH
C260 C0.1u10X0402C260 C0.1u10X0402
D D
8365mA
800mA
C C
550mA
60mA
325mA 405mA
VCC1_1
all VCC1_1=14.781A
C287 C4.7u10X50805-RHC287 C4.7u10X50805-RH
C278 C0.1u10X0402C278 C0.1u10X0402
C852 C0.1u10X0402C852 C0.1u10X0402
C276 X_C0.1u10X0402C276 X_C0.1u10X0402
B B
+1.1V_HT_A1
+1.1V_HT_A2
+1.1V_HT_A3
+1.1V_PEA1
+1.1V_PEA2
+1.1V_PEA3
+1.1V_PEA4
+1.1V_PEA5
+1.1V_PEA6
+1.1V_PEA7
+1.1V_PEA8
+1.1V_SPA1
+1.1V_SPA2
+1.1V_SPA3
+1.1V_SPA4
+1.1V_SPA5
+1.1V_DUAL1
+1.1V_DUAL2
+3.3V_DUAL1
+3.3V_DUAL2
C262 X_C0.1u10X0402C262 X_C0.1u10X0402
4
2370mA
V17
W16
W17
1980mA
AK28
AJ28
AH28
AG27
AF26
AE25
AD24
AC23
320mA
W9
W8
V8
V9
U9
70mA
F26
F27
L4
J22
L3
L2
1P1V_SP_A
1_1VDUAL
3VDUAL
FB5
FB5
30ohm/500mA/6
30ohm/500mA/6
80mA
1.1V_HT_A
+1.1V_PEA
VCC1_1
CP16CP16
VCC1_1
L8 60L3A-40L8 60L3A-40
VCC1_1
3
all 1_1DUAL=76mA
1_1VDUAL
C862 0.1uf/10V/X7R/4C862 0.1uf/10V/X7R/4
C864 C1u6.3Y0402-RHC864 C1u6.3Y0402-RH
+1.1V_PEA
C267
C267
C10u10Y0805
C10u10Y0805
C853
C853
C264
C264
C4.7u6.3X5-1
C4.7u6.3X5-1
C4.7u10X50805-RH
C4.7u10X50805-RH
1.1V_HT_A
C844
C844
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C270
C270
C1u6.3Y0402-RH
C1u6.3Y0402-RH
1P1V_SP_A
C846 0.1uf/10V/X7R/4C846 0.1uf/10V/X7R/4
2
U25H
U25H
P19
GND1
AC9
GND10
AB30
GND100
V30
GND101
P30
GND102
K30
C849
C849
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C268
C268
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C845 0.1uf/10V/X7R/4C845 0.1uf/10V/X7R/4
C847
C847
C271
C271
C280
C280
C273
C273
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
0.1uf/10V/X7R/4
C4.7u6.3X5-1
C4.7u6.3X5-1
GND103
H21
GND104
AD26
GND105
AA25
GND106
W25
GND107
U25
GND108
R25
GND109
N25
GND11
L25
GND110
J25
GND111
W27
GND112
N13
GND113
R27
GND114
L27
GND115
W23
GND116
U8
GND117
J9
GND118
AE9
GND119
G26
GND12
AG7
GND120
F25
GND121
P18
GND122
F21
GND123
F19
GND124
F29
GND125
AK5
GND126
R4
GND127
V3
GND128
W4
GND129
F17
GND13
AC4
GND130
C28
GND131
T19
GND132
AC13
GND133
AK10
GND134
AF1
GND135
AG4
GND136
R8
GND137
A27
GND138
H11
GND139
F15
GND14
D1
GND140
AC19
GND141
AC17
GND142
E29
GND143
AJ7
GND144
AB4
GND145
F13
GND15
F11
GND16
F9
GND17
NVIDIA-NF780A-SLI-N-A2-RH
NVIDIA-NF780A-SLI-N-A2-RH
D25
GND18
H17
GND19
H19
GND2
D19
GND20
J17
GND21
H13
GND22
AH26
GND23
AA9
GND24
AE21
GND25
AE19
GND26
AE17
GND27
AE15
GND28
AE13
GND29
AE11
GND3
AA8
GND30
AK22
GND32
AG19
GND33
AK18
GND34
GND35
GND36
GND37
GND38
GND39
GND4
GND40
GND41
GND42
GND43
GND44
GND45
GND46
GND47
GND48
GND49
GND5
GND50
GND51
GND52
GND53
GND54
GND55
GND56
GND57
GND58
GND59
GND6
GND60
GND61
GND62
GND63
GND64
GND65
GND66
GND67
GND68
GND69
GND7
GND70
GND71
GND72
GND73
GND74
GND75
GND76
GND77
GND78
GND79
GND8
GND80
GND81
GND82
GND83
GND84
GND85
GND86
GND87
GND88
GND89
GND9
GND90
GND91
GND92
GND93
GND94
GND95
GND96
GND97
GND98
GND99
1
AG15
C4
E30
D15
D11
D7
J6
L6
N6
R6
U6
N22
R13
M19
AK1
J23
G27
R23
M18
N18
P16
N15
R18
T13
T17
M17
L23
AB7
P17
J11
R16
A1
J13
M16
N16
N17
AG11
N23
T15
R14
T12
R12
AC7
M15
AK14
P15
W6
N19
AC8
U2
N12
N14
P14
M14
M13
U1
R9
N9
P12
D23
P13
AK30
H7
A30
AB3
K9
F30
N8
F7
J21
K1
all VCC3=465mA
VCC3
C378 0.1uf/10V/X7R/4C378 0.1uf/10V/X7R/4
C381 X_0.1uf/10V/X7R/4C381 X_0.1uf/10V/X7R/4
A A
5
all 3VDUAL=490mA
3VDUAL
C371 X_0.1uf/10V/X7R/4C371 X_0.1uf/10V/X7R/4
C382 X_0.1uf/10V/X7R/4C382 X_0.1uf/10V/X7R/4
VCC1_1
C833 X_0.1uf/10V/X7R/4C833 X_0.1uf/10V/X7R/4
C279 C0.1u10X0402C279 C0.1u10X0402
4
3
C275 X_C4.7u10X50805-RHC275 X_C4.7u10X50805-RH
C288 C22u6.3X1206C288 C22u6.3X1206
C269 C22u6.3X1206C269 C22u6.3X1206
C261 C10u10Y0805C261 C10u10Y0805
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7560
MS-7560
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
2
Wednesday, June 17, 2009
MS-7560
MCP72P-POWER & GND
MCP72P-POWER & GND
MCP72P-POWER & GND
1
Sheet of
Sheet of
Sheet of
15 42
15 42
15 42
1.0
1.0
1.0
5
4
3
2
1
PCI-Express X16 Primary Slot
PCI_E2
+12V
SMBCLK10,11,14,17,23,25,26,28
D D
PE_A_TXP08
PE_A_TXN08
PE_A_TXP18
PE_A_TXN18
PE_A_TXP28
PE_A_TXN28
PE_A_TXP38
PE_A_TXN38
C C
B B
PE_A_TXP48
PE_A_TXN48
PE_A_TXP58
PE_A_TXN58
PE_A_TXP68
PE_A_TXN68
PE_A_TXP78
PE_A_TXN78
PE_A_TXP88
PE_A_TXN88
PE_A_TXP98
PE_A_TXN98
PE_A_TXP108
PE_A_TXN108
PE_A_TXP118
PE_A_TXN118
PE_A_TXP128
PE_A_TXN128
PE_A_TXP138
PE_A_TXN138
PE_A_TXP148
PE_A_TXN148
PE_A_TXP158
PE_A_TXN158
PE_A_TXP0
PE_A_TXN0
PE_A_TXP1
PE_A_TXN1
PE_A_TXP2
PE_A_TXN2
PE_A_TXP3
PE_A_TXN3
PE_A_TXP4
PE_A_TXN4
PE_A_TXP5
PE_A_TXN5
PE_A_TXP6
PE_A_TXN6
PE_A_TXP7
PE_A_TXN7
PE_A_TXP8
PE_A_TXN8
PE_A_TXP9
PE_A_TXN9
PE_A_TXP10
PE_A_TXN10
PE_A_TXP11
PE_A_TXN11
PE_A_TXP12
PE_A_TXN12
PE_A_TXP13
PE_A_TXN13
PE_A_TXP14
PE_A_TXN14
PE_A_TXP15
PE_A_TXN15
VCC3
SMBDATA10,11,14,17,23,25,26,28
3VDUAL
PE_WAKE*10,17
C408 C0.1u10X0402C408 C0.1u10X0402
C409 C0.1u10X0402C409 C0.1u10X0402
C410 C0.1u10X0402C410 C0.1u10X0402
C411 C0.1u10X0402C411 C0.1u10X0402
C412 C0.1u10X0402C412 C0.1u10X0402
C413 C0.1u10X0402C413 C0.1u10X0402
C439 C0.1u10X0402C439 C0.1u10X0402
C405 C0.1u10X0402C405 C0.1u10X0402
C414 C0.1u10X0402C414 C0.1u10X0402
C415 C0.1u10X0402C415 C0.1u10X0402
C416 C0.1u10X0402C416 C0.1u10X0402
C417 C0.1u10X0402C417 C0.1u10X0402
C418 C0.1u10X0402C418 C0.1u10X0402
C419 C0.1u10X0402C419 C0.1u10X0402
C420 C0.1u10X0402C420 C0.1u10X0402
C421 C0.1u10X0402C421 C0.1u10X0402
C422 C0.1u10X0402C422 C0.1u10X0402
C423 C0.1u10X0402C423 C0.1u10X0402
C424 C0.1u10X0402C424 C0.1u10X0402
C425 C0.1u10X0402C425 C0.1u10X0402
C426 C0.1u10X0402C426 C0.1u10X0402
C427 C0.1u10X0402C427 C0.1u10X0402
C428 C0.1u10X0402C428 C0.1u10X0402
C429 C0.1u10X0402C429 C0.1u10X0402
C430 C0.1u10X0402C430 C0.1u10X0402
C431 C0.1u10X0402C431 C0.1u10X0402
C432 C0.1u10X0402C432 C0.1u10X0402
C433 C0.1u10X0402C433 C0.1u10X0402
C434 C0.1u10X0402C434 C0.1u10X0402
C435 C0.1u10X0402C435 C0.1u10X0402
C436 C0.1u10X0402C436 C0.1u10X0402
R442 10KR1%0402R442 10KR1%0402
VCC3
R441 10KR1%0402R441 10KR1%0402
PE_A_TXP0_PC
PE_A_TXN0_PC
PE_A_TXP1_PC
PE_A_TXN1_PC
PE_A_TXP2_PC
PE_A_TXN2_PC
PE_A_TXP3_PC
PE_A_TXN3_PC
PE_A_TXP4_PC
PE_A_TXN4_PC
PE_A_TXP5_PC
PE_A_TXN5_PC
PE_A_TXP6_PC
PE_A_TXN6_PC
PE_A_TXP7_PC
PE_A_TXN7_PC
PE_A_TXP8_PC
PE_A_TXN8_PC
PE_A_TXP9_PC
PE_A_TXN9_PC
PE_A_TXP10_PC
PE_A_TXN10_PC
PE_A_TXP11_PC
PE_A_TXN11_PC
PE_A_TXP12_PC
PE_A_TXN12_PC
PE_A_TXP13_PC
PE_A_TXN13_PC
PE_A_TXP14_PC
PE_A_TXN14_PC
PE_A_TXP15_PC
PE_A_TXN15_PC
PE_A_PRSNT#
PCI_E2
X2
X2
B1
12V
B2
12V
B3
RSVD5
B4
GND
B5
SMCLK
B6
SMDAT
B7
GND
B8
3.3V
B9
JTAG1
B10
3.3VAUX
B11
WAKE#
B12
RSVD6
B13
GND
B14
HSOP0
B15
HSON0
B16
GND
B17
PRSNT2#1
B18
GND
B19
HSOP1
B20
HSON1
B21
GND
B22
GND
B23
HSOP2
B24
HSON2
B25
GND
B26
GND
B27
HSOP3
B28
HSON3
B29
GND
B30
RSVD7
B31
PRSNT2#2
B32
GND
B33
HSOP4
B34
HSON4
B35
GND
B36
GND
B37
HSOP5
B38
HSON5
B39
GND
B40
GND
B41
HSOP6
B42
HSON6
B43
GND
B44
GND
B45
HSOP7
B46
HSON7
B47
GND
B48
PRSNT2#3
B49
GND
B50
HSOP8
B51
HSON8
B52
GND
B53
GND
B54
HSOP9
B55
HSON9
B56
GND
B57
GND
B58
HSOP10
B59
HSON10
B60
GND
B61
GND
B62
HSOP11
B63
HSON11
B64
GND
B65
GND
B66
HSOP12
B67
HSON12
B68
GND
B69
GND
B70
HSOP13
B71
HSON13
B72
GND
B73
GND
B74
HSOP14
B75
HSON14
B76
GND
B77
GND
B78
HSOP15
B79
HSON15
B80
GND
B81
PRSNT2#4
B82
RSVD8
X1
X1
SLOT-PCI164P_BLUE-2PITCH-RH
SLOT-PCI164P_BLUE-2PITCH-RH
PRSNT1#
GND
JTAG2
JTAG3
JTAG4
JTAG5
3.3V
3.3V
PWRGD
GND
REFCLK+
REFCLK-
GND
HSIP0
HSIN0
GND
RSVD1
GND
HSIP1
HSIN1
GND
GND
HSIP2
HSIN2
GND
GND
HSIP3
HSIN3
GND
RSVD2
RSVD3
GND
HSIP4
HSIN4
GND
GND
HSIP5
HSIN5
GND
GND
HSIP6
HSIN6
GND
GND
HSIP7
HSIN7
GND
RSVD4
GND
HSIP8
HSIN8
GND
GND
HSIP9
HSIN9
GND
GND
HSIP10
HSIN10
GND
GND
HSIP11
HSIN11
GND
GND
HSIP12
HSIN12
GND
GND
HSIP13
HSIN13
GND
GND
HSIP14
HSIN14
GND
GND
HSIP15
HSIN15
GND
A1
A2
12V
A3
12V
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
VCC3
PE_A_CLK
PE_A_CLK#
PE_A_RXP0
PE_A_RXN0
PE_A_RXP1
PE_A_RXN1
PE_A_RXP2
PE_A_RXN2
PE_A_RXP3
PE_A_RXN3
PE_A_RXP4
PE_A_RXN4
PE_A_RXP5
PE_A_RXN5
PE_A_RXP6
PE_A_RXN6
PE_A_RXP7
PE_A_RXN7
PE_A_RXP8
PE_A_RXN8
PE_A_RXP9
PE_A_RXN9
PE_A_RXP10
PE_A_RXN10
PE_A_RXP11
PE_A_RXN11
PE_A_RXP12
PE_A_RXN12
PE_A_RXP13
PE_A_RXN13
PE_A_RXP14
PE_A_RXN14
PE_A_RXP15
PE_A_RXN15
+12V
PE_A_RESET# 8
PE_A_CLK 11
PE_A_CLK# 11
PE_A_RXP0 8
PE_A_RXN0 8
PE_A_RXP1 8
PE_A_RXN1 8
PE_A_RXP2 8
PE_A_RXN2 8
PE_A_RXP3 8
PE_A_RXN3 8
PE_A_RXP4 8
PE_A_RXN4 8
PE_A_RXP5 8
PE_A_RXN5 8
PE_A_RXP6 8
PE_A_RXN6 8
PE_A_RXP7 8
PE_A_RXN7 8
PE_A_RXP8 8
PE_A_RXN8 8
PE_A_RXP9 8
PE_A_RXN9 8
PE_A_RXP10 8
PE_A_RXN10 8
PE_A_RXP11 8
PE_A_RXN11 8
PE_A_RXP12 8
PE_A_RXN12 8
PE_A_RXP13 8
PE_A_RXN13 8
PE_A_RXP14 8
PE_A_RXN14 8
PE_A_RXP15 8
PE_A_RXN15 8PE_A_PRSNT#8
within 500mil
A A
PCI-Express X16 Secondary Slot
+12V
SMBCLK10,11,14,17,23,25,26,28
SMBDATA10,11,14,17,23,25,26,28
3VDUAL
PE_WAKE*10,17
PE_B_TXP08
PE_B_TXN08
PE_B_TXP18
PE_B_TXN18
PE_B_TXP28
PE_B_TXN28
PE_B_TXP38
PE_B_TXN38
PE_B_TXP48
PE_B_TXN48
PE_B_TXP58
PE_B_TXN58
PE_B_TXP68
PE_B_TXN68
PE_B_TXP78
PE_B_TXN78
PE_B_TXP8_P17
PE_B_TXN8_P17
PE_B_TXP9_P17
PE_B_TXN9_P17
PE_B_TXP10_P17
PE_B_TXN10_P17
PE_B_TXP11_P17
PE_B_TXN11_P17
PE_B_TXP12_P17
PE_B_TXN12_P17
PE_B_TXP13_P17
PE_B_TXN13_P17
PE_B_TXP14_P17
PE_B_TXN14_P17
PE_B_TXP15_P17
PE_B_TXN15_P17
PE_B_TXP0
PE_B_TXN0
PE_B_TXP1
PE_B_TXN1
PE_B_TXP2
PE_B_TXN2
PE_B_TXP3
PE_B_TXN3
PE_B_TXP4
PE_B_TXN4
PE_B_TXP5
PE_B_TXN5
PE_B_TXP6
PE_B_TXN6
PE_B_TXP7
PE_B_TXN7
PE_B_TXP8_P
PE_B_TXN8_P
PE_B_TXP9_P
PE_B_TXN9_P
PE_B_TXP10_P
PE_B_TXN10_P
PE_B_TXP11_P
PE_B_TXN11_P
PE_B_TXP12_P
PE_B_TXN12_P
PE_B_TXP13_P
PE_B_TXN13_P
PE_B_TXP14_P
PE_B_TXN14_P
PE_B_TXP15_P
PE_B_TXN15_P
C617 C0.1u10X0402C617 C0.1u10X0402
C618 C0.1u10X0402C618 C0.1u10X0402
C597 C0.1u10X0402C597 C0.1u10X0402
C596 C0.1u10X0402C596 C0.1u10X0402
C598 C0.1u10X0402C598 C0.1u10X0402
C599 C0.1u10X0402C599 C0.1u10X0402
C619 C0.1u10X0402C619 C0.1u10X0402
C588 C0.1u10X0402C588 C0.1u10X0402
C620 C0.1u10X0402C620 C0.1u10X0402
C589 C0.1u10X0402C589 C0.1u10X0402
C621 C0.1u10X0402C621 C0.1u10X0402
C590 C0.1u10X0402C590 C0.1u10X0402
C622 C0.1u10X0402C622 C0.1u10X0402
C591 C0.1u10X0402C591 C0.1u10X0402
C623 C0.1u10X0402C623 C0.1u10X0402
C592 C0.1u10X0402C592 C0.1u10X0402
C600 C0.1u10X0402C600 C0.1u10X0402
C601 C0.1u10X0402C601 C0.1u10X0402
C602 C0.1u10X0402C602 C0.1u10X0402
C603 C0.1u10X0402C603 C0.1u10X0402
C604 C0.1u10X0402C604 C0.1u10X0402
C605 C0.1u10X0402C605 C0.1u10X0402
C606 C0.1u10X0402C606 C0.1u10X0402
C607 C0.1u10X0402C607 C0.1u10X0402
C608 C0.1u10X0402C608 C0.1u10X0402
C609 C0.1u10X0402C609 C0.1u10X0402
C610 C0.1u10X0402C610 C0.1u10X0402
C611 C0.1u10X0402C611 C0.1u10X0402
C612 C0.1u10X0402C612 C0.1u10X0402
C613 C0.1u10X0402C613 C0.1u10X0402C437 C0.1u10X0402C437 C0.1u10X0402
C614 C0.1u10X0402C614 C0.1u10X0402
C615 C0.1u10X0402C615 C0.1u10X0402
R569 10KR1%0402R569 10KR1%0402
VCC3
VCC3
R566 10KR1%0402R566 10KR1%0402
PE_B_TXP0_PC
PE_B_TXN0_PC
PE_B_TXP1_PC
PE_B_TXN1_PC
PE_B_TXP2_PC
PE_B_TXN2_PC
PE_B_TXP3_PC
PE_B_TXN3_PC
PE_B_TXP4_PC
PE_B_TXN4_PC
PE_B_TXP5_PC
PE_B_TXN5_PC
PE_B_TXP6_PC
PE_B_TXN6_PC
PE_B_TXP7_PC
PE_B_TXN7_PC
PE_B_TXP8_PC
PE_B_TXN8_PC
PE_B_TXP9_PC
PE_B_TXN9_PC
PE_B_TXP10_PC
PE_B_TXN10_PC
PE_B_TXP11_PC
PE_B_TXN11_PC
PE_B_TXP12_PC
PE_B_TXN12_PC
PE_B_TXP13_PC
PE_B_TXN13_PC
PE_B_TXP14_PC
PE_B_TXN14_PC
PE_B_TXP15_PC
PE_B_TXN15_PC
PE_B_PRSNT2#
PCI_E4
PCI_E4
X2
X2
B1
12V
B2
12V
B3
RSVD5
B4
GND
B5
SMCLK
B6
SMDAT
B7
GND
B8
3.3V
B9
JTAG1
B10
3.3VAUX
B11
WAKE#
B12
RSVD6
B13
GND
B14
HSOP0
B15
HSON0
B16
GND
B17
PRSNT2#1
B18
GND
B19
HSOP1
B20
HSON1
B21
GND
B22
GND
B23
HSOP2
B24
HSON2
B25
GND
B26
GND
B27
HSOP3
B28
HSON3
B29
GND
B30
RSVD7
B31
PRSNT2#2
B32
GND
B33
HSOP4
B34
HSON4
B35
GND
B36
GND
B37
HSOP5
B38
HSON5
B39
GND
B40
GND
B41
HSOP6
B42
HSON6
B43
GND
B44
GND
B45
HSOP7
B46
HSON7
B47
GND
B48
PRSNT2#3
B49
GND
B50
HSOP8
B51
HSON8
B52
GND
B53
GND
B54
HSOP9
B55
HSON9
B56
GND
B57
GND
B58
HSOP10
B59
HSON10
B60
GND
B61
GND
B62
HSOP11
B63
HSON11
B64
GND
B65
GND
B66
HSOP12
B67
HSON12
B68
GND
B69
GND
B70
HSOP13
B71
HSON13
B72
GND
B73
GND
B74
HSOP14
B75
HSON14
B76
GND
B77
GND
B78
HSOP15
B79
HSON15
B80
GND
B81
PRSNT2#4
B82
RSVD8
X1
X1
SLOT-PCI164P_BLUE-2PITCH-RH
SLOT-PCI164P_BLUE-2PITCH-RH
PRSNT1#
GND
JTAG2
JTAG3
JTAG4
JTAG5
PWRGD
GND
REFCLK+
REFCLK-
GND
HSIP0
HSIN0
GND
RSVD1
GND
HSIP1
HSIN1
GND
GND
HSIP2
HSIN2
GND
GND
HSIP3
HSIN3
GND
RSVD2
RSVD3
GND
HSIP4
HSIN4
GND
GND
HSIP5
HSIN5
GND
GND
HSIP6
HSIN6
GND
GND
HSIP7
HSIN7
GND
RSVD4
GND
HSIP8
HSIN8
GND
GND
HSIP9
HSIN9
GND
GND
HSIP10
HSIN10
GND
GND
HSIP11
HSIN11
GND
GND
HSIP12
HSIN12
GND
GND
HSIP13
HSIN13
GND
GND
HSIP14
HSIN14
GND
GND
HSIP15
HSIN15
GND
3.3V
3.3V
A1
A2
12V
A3
12V
A4
A5
A6
A7
A8
A9
A10
PE_B_RESET2#
A11
A12
PE_B_CLK
A13
PE_B_CLK#
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
VCC3
PE_B_CLK 11
PE_B_CLK# 11
PE_B_RXP0
PE_B_RXN0
PE_B_RXP1
PE_B_RXN1
PE_B_RXP2
PE_B_RXN2
PE_B_RXP3
PE_B_RXN3
PE_B_RXP4
PE_B_RXN4
PE_B_RXP5
PE_B_RXN5
PE_B_RXP6
PE_B_RXN6
PE_B_RXP7
PE_B_RXN7
PE_B_RXP8_P
PE_B_RXN8_P
PE_B_RXP9_P
PE_B_RXN9_P
PE_B_RXP10_P
PE_B_RXN10_P
PE_B_RXP11_P
PE_B_RXN11_P
PE_B_RXP12_P
PE_B_RXN12_P
PE_B_RXP13_P
PE_B_RXN13_P
PE_B_RXP14_P
PE_B_RXN14_P
PE_B_RXP15_P
PE_B_RXN15_P
+12V
PE_B_RESET2# 8
PE_B_RXP0 8
PE_B_RXN0 8
PE_B_RXP1 8
PE_B_RXN1 8
PE_B_RXP2 8
PE_B_RXN2 8
PE_B_RXP3 8
PE_B_RXN3 8
PE_B_RXP4 8
PE_B_RXN4 8
PE_B_RXP5 8
PE_B_RXN5 8
PE_B_RXP6 8
PE_B_RXN6 8
PE_B_RXP7 8
PE_B_RXN7 8
PE_B_RXP8_P 17
PE_B_RXN8_P 17
PE_B_RXP9_P 17
PE_B_RXN9_P 17
PE_B_RXP10_P 17
PE_B_RXN10_P 17
PE_B_RXP11_P 17
PE_B_RXN11_P 17
PE_B_RXP12_P 17
PE_B_RXN12_P 17
PE_B_RXP13_P 17
PE_B_RXN13_P 17
PE_B_RXP14_P 17
PE_B_RXN14_P 17
PE_B_RXP15_P 17
PE_B_RXN15_P 17PE_B_PRSNT2#8
12
+
+
EC44
EC44
CD560u4SO-2
CD560u4SO-2
12
+
+
EC40
EC40
CD470u16SO-RH
CD470u16SO-RH
5
+12V
C385 C0.1u25Y0402-RHC385 C0.1u25Y0402-RH
VCC3+12VVCC3
C407 C0.1u25Y0402-RHC407 C0.1u25Y0402-RH
+12V
12
+
+
EC49
EC49
CD470u16SO-RH
CD470u16SO-RH
4
3
C500 C0.1u25Y0402-RHC500 C0.1u25Y0402-RH
VCC3+12V
C562 C0.1u25Y0402-RHC562 C0.1u25Y0402-RH
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
MS-7612
PCI-E X16 and X1 Slot
PCI-E X16 and X1 Slot
PCI-E X16 and X1 Slot
1
Sheet of
Sheet of
Sheet of
16 42
16 42
16 42
1.0
1.0
1.0
5
PCI-Express X8 Third Slot
PCI_E5
X2
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
X1
R654
R654
R655
R655
10KR0402
10KR0402
10KR0402
10KR0402
R658 680R1%0402R658 680R1%0402
PCI_E5
X2
12V
12V
RSVD5
GND
SMCLK
SMDAT
GND
3.3V
JTAG1
3.3VAUX
WAKE#
RSVD6
GND
HSOP0
HSON0
GND
PRSNT2#1
GND
HSOP1
HSON1
GND
GND
HSOP2
HSON2
GND
GND
HSOP3
HSON3
GND
RSVD7
PRSNT2#2
GND
HSOP4
HSON4
GND
GND
HSOP5
HSON5
GND
GND
HSOP6
HSON6
GND
GND
HSOP7
HSON7
GND
PRSNT2#3
GND
HSOP8
HSON8
GND
GND
HSOP9
HSON9
GND
GND
HSOP10
HSON10
GND
GND
HSOP11
HSON11
GND
GND
HSOP12
HSON12
GND
GND
HSOP13
HSON13
GND
GND
HSOP14
HSON14
GND
GND
HSOP15
HSON15
GND
PRSNT2#4
RSVD8
X1
SLOT-PCI164P_BLUE-2PITCH-RH-1
SLOT-PCI164P_BLUE-2PITCH-RH-1
3VDUAL
Q75Q75
2
5
+12V
Trace width > 100 mils
SMBCLK10,11,14,16,23,25,26,28
D D
VCC3
R642
R642
X_4.7KR0402
X_4.7KR0402
PE_B_TXP8_S
PE_B_TXN8_S
PE_B_TXP9_S
PE_B_TXN9_S
PE_B_TXP10_S
PE_B_TXN10_S
PE_B_TXP11_S
PE_B_TXN11_S
C C
PE_B_TXP12_S
PE_B_TXN12_S
PE_B_TXP13_S
PE_B_TXN13_S
PE_B_TXP14_S
PE_B_TXN14_S
PE_B_TXP15_S
PE_B_TXN15_S
SMBDATA10,11,14,16,23,25,26,28
R640 10KR1%0402R640 10KR1%0402
3VDUAL
PE_WAKE*10,16
C690 C0.1u10X0402C690 C0.1u10X0402
C691 C0.1u10X0402C691 C0.1u10X0402
C692 C0.1u10X0402C692 C0.1u10X0402
C693 C0.1u10X0402C693 C0.1u10X0402
C694 C0.1u10X0402C694 C0.1u10X0402
C695 C0.1u10X0402C695 C0.1u10X0402
C696 C0.1u10X0402C696 C0.1u10X0402
C697 C0.1u10X0402C697 C0.1u10X0402
C682 C0.1u10X0402C682 C0.1u10X0402
C683 C0.1u10X0402C683 C0.1u10X0402
C684 C0.1u10X0402C684 C0.1u10X0402
C685 C0.1u10X0402C685 C0.1u10X0402
C686 C0.1u10X0402C686 C0.1u10X0402
C687 C0.1u10X0402C687 C0.1u10X0402
C688 C0.1u10X0402C688 C0.1u10X0402
C689 C0.1u10X0402C689 C0.1u10X0402
PE_B_TXP8_SC
PE_B_TXN8_SC
PE_B_PRSNT3#
PE_B_TXP9_SC
PE_B_TXN9_SC
PE_B_TXP10_SC
PE_B_TXN10_SC
PE_B_TXP11_SC
PE_B_TXN11_SC
PE_B_TXP12_SC
PE_B_TXN12_SC
PE_B_TXP13_SC
PE_B_TXN13_SC
PE_B_TXP14_SC
PE_B_TXN14_SC
PE_B_TXP15_SC
PE_B_TXN15_SC
VCC3
within 500mil
PE_B_PRSNT3# 8
B B
CD470u16SO-RH
CD470u16SO-RH
A A
PE_SLI_DET# X8_X8#
VCC5
+12V
EC46
EC46
VCC3
C680 C0.1u25Y0402-RHC680 C0.1u25Y0402-RH
R657
R657
X_2.2KR1%0402
X_2.2KR1%0402
+12V
12
+
+
R638
R638
X_4.7KR0402
X_4.7KR0402
B
CE
Q74 X_2N3904SQ74 X_2N3904S
5
C542 C0.1u25Y0402-RHC542 C0.1u25Y0402-RH
3VDUAL
C681 C0.1u25Y0402-RHC681 C0.1u25Y0402-RH
VCC3_SWVCC3 VCC3_SW
R637
R637
X_4.7KR0402
X_4.7KR0402
PE_SLI_DET#
VCC3
6
1
3
4
PRSNT1#
GND
JTAG2
JTAG3
JTAG4
JTAG5
3.3V
3.3V
PWRGD
GND
REFCLK+
REFCLK-
GND
HSIP0
HSIN0
GND
RSVD1
GND
HSIP1
HSIN1
GND
GND
HSIP2
HSIN2
GND
GND
HSIP3
HSIN3
GND
RSVD2
RSVD3
GND
HSIP4
HSIN4
GND
GND
HSIP5
HSIN5
GND
GND
HSIP6
HSIN6
GND
GND
HSIP7
HSIN7
GND
RSVD4
GND
HSIP8
HSIN8
GND
GND
HSIP9
HSIN9
GND
GND
HSIP10
HSIN10
GND
GND
HSIP11
HSIN11
GND
GND
HSIP12
HSIN12
GND
GND
HSIP13
HSIN13
GND
GND
HSIP14
HSIN14
GND
GND
HSIP15
HSIN15
GND
4
12V
12V
VCC3_SW
R636
R636
10KR0402
10KR0402
X8_X8#
4
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
VCC3
PE_B_RESET3#
PE_B_CLK1
PE_B_CLK1#
PE_B_RXP8_S
PE_B_RXN8_S
PE_B_RXP9_S
PE_B_RXN9_S
PE_B_RXP10_S
PE_B_RXN10_S
PE_B_RXP11_S
PE_B_RXN11_S
PE_B_RXP12_S
PE_B_RXN12_S
PE_B_RXP13_S
PE_B_RXN13_S
PE_B_RXP14_S
PE_B_RXN14_S
PE_B_RXP15_S
PE_B_RXN15_S
PE_SLI_DET#
R727 0R0402R727 0R0402
+12V
PE_B_RESET3# 8
PE_B_CLK1 11
PE_B_CLK1# 11
PE_SLI_DET# 14
R656
R656
X_0R0402
X_0R0402
PE_B_PRSNT3# 8
3
Digital Switch
SELECT pin
SEL (X8_X8#) Output
Low
Hi
PE_B_RXN98
PE_B_RXP98
PE_B_TXN98
PE_B_TXP98
X8_X8#
PE_B_RXN88
PE_B_RXP88
PE_B_TXN88
PE_B_TXP88
PE_B_RXN138
PE_B_RXP138
PE_B_TXN138
PE_B_TXP138
X8_X8#
PE_B_RXN128
PE_B_RXP128
PE_B_TXN128
PE_B_TXP128
3
B1
B2
1
2
5
6
30
10
11
14
15
1
2
5
6
30
10
11
14
15
VCC3_SW
U44
U44
AI+
AI-
BI+
BI-
SEL
CI+
CI-
DI+
DI-
U40
U40
AI+
AI-
BI+
BI-
SEL
CI+
CI-
DI+
DI-
SLI function
PCI_E1/PCI_E3
X8 / X8
X16 / X0
VCC3_SW
19
9
VDD
VDD21VDD26VDD39VDD31VDD
VDD
GND
GND
GND
GND20GND25GND29GND35GND38GND40GND4243
GND
18
22
VCC3_SW
19
9
VDD
VDD21VDD26VDD39VDD31VDD
VDD
GND
GND
GND
GND20GND25GND29GND35GND38GND40GND4243
GND
18
22
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C701
C701
VCC5
C674 C1u6.3Y0402-RHC674 C1u6.3Y0402-RH
34
41
VDD
AOa+
AOa-
AOb+
AOb-
BOa+
BOa-
BOb+
BOb-
COa+
COa-
COb+
COb-
DOa+
DOa-
DOb+
DOb-
43
PI3PCIE2415
PI3PCIE2415
C648 C1u6.3Y0402-RHC648 C1u6.3Y0402-RH
34
41
VDD
AOa+
AOa-
AOb+
AOb-
BOa+
BOa-
BOb+
BOb-
COa+
COa-
COb+
COb-
DOa+
DOa-
DOb+
DOb-
43
PI3PCIE2415
PI3PCIE2415
2
VCC3 VCC3_SW
C723
C723
1u/6.3V/4
1u/6.3V/4
37
36
3
4
33
32
7
8
28
27
12
13
24
23
16
17
37
36
3
4
33
32
7
8
28
27
12
13
24
23
16
17
R641
R641
X_200K/4
X_200K/4
PE_B_RXN9_S
PE_B_RXP9_S
PE_B_RXN9_P 16
PE_B_RXP9_P 16
PE_B_TXN9_SPE_B_TXN9_S
PE_B_TXP9_SPE_B_TXP9_S
PE_B_TXN9_P 16
PE_B_TXP9_P 16
PE_B_RXN8_S
PE_B_RXP8_S
PE_B_RXN8_P 16
PE_B_RXP8_P 16
PE_B_TXN8_S
PE_B_TXP8_S
PE_B_TXN8_P 16
PE_B_TXP8_P 16
PE_B_RXN13_S
PE_B_RXP13_S
PE_B_RXN13_P 16
PE_B_RXP13_P 16
PE_B_TXN13_S
PE_B_TXP13_S
PE_B_TXN13_P 16
PE_B_TXP13_P 16
PE_B_RXN12_S
PE_B_RXP12_S
PE_B_RXN12_P 16
PE_B_RXP12_P 16
PE_B_TXN12_S
PE_B_TXP12_S
PE_B_TXN12_P 16
PE_B_TXP12_P 16
VCC3_SW
R6160RR616
0R
U47 X_UP7707_SOT23-5U47 X_UP7707_SOT23-5
1
VIN
3
EN
C672 C0.1u16X0402-2C672 C0.1u16X0402-2
C647 C0.1u16X0402-2C647 C0.1u16X0402-2
C700 C0.1u16X0402-2C700 C0.1u16X0402-2
C675 C0.1u16X0402-2C675 C0.1u16X0402-2
C652 C0.1u16X0402-2C652 C0.1u16X0402-2
C649 C0.1u16X0402-2C649 C0.1u16X0402-2
2
1
VCC3_SW
5
VOUT
FB
GND
C725
C725
4
2
X_0.1u/25V/4
X_0.1u/25V/4
PE_B_RXN118
PE_B_RXP118
PE_B_TXN118
PE_B_TXP118
X8_X8#
PE_B_RXN108
PE_B_RXP108
PE_B_TXN108
PE_B_TXP108
PE_B_RXN158
PE_B_RXP158
PE_B_TXN158
PE_B_TXP158
X8_X8#
PE_B_RXN148
PE_B_RXP148
PE_B_TXN148
PE_B_TXP148
MSI
MSI
MSI
C726
C726
R635
R635
C4.7u10X50805-RH
C4.7u10X50805-RH
X_49.9KR1%0402
X_49.9KR1%0402
VCC3_SW
R644
R644
X_16KR0402
X_16KR0402
19
9
U45
U45
VDD
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
GND
GND20GND25GND29GND35GND38GND40GND4243
18
22
VCC3_SW
19
9
U41
U41
VDD
1
AI+
2
AI-
5
BI+
6
BI-
30
SEL
10
CI+
11
CI-
14
DI+
15
DI-
GND
GND20GND25GND29GND35GND38GND40GND4243
18
22
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
VDD
GND
VDD
GND
GND
GND
GND
GND
34
VDD21VDD26VDD39VDD31VDD
34
VDD21VDD26VDD39VDD31VDD
C673 C1u6.3Y0402-RHC673 C1u6.3Y0402-RH
41
37
VDD
AOa+
36
AOa-
3
AOb+
4
AOb-
33
BOa+
32
BOa-
7
BOb+
8
BOb-
28
COa+
27
COa-
12
COb+
13
COb-
24
DOa+
23
DOa-
16
DOb+
17
DOb-
43
PI3PCIE2415
PI3PCIE2415
C651 C1u6.3Y0402-RHC651 C1u6.3Y0402-RH
41
37
VDD
AOa+
36
AOa-
3
AOb+
4
AOb-
33
BOa+
32
BOa-
7
BOb+
8
BOb-
28
COa+
27
COa-
12
COb+
13
COb-
24
DOa+
23
DOa-
16
DOb+
17
DOb-
43
PI3PCIE2415
PI3PCIE2415
MS-7612
MS-7612
MS-7612
PCI-E X8/X1 Slot
PCI-E X8/X1 Slot
PCI-E X8/X1 Slot
1
PE_B_RXN11_S
PE_B_RXP11_S
PE_B_TXN11_S
PE_B_TXP11_S
PE_B_RXN10_S
PE_B_RXP10_S
PE_B_TXN10_S
PE_B_TXP10_S
PE_B_RXN15_S
PE_B_RXP15_S
PE_B_TXN15_S
PE_B_TXP15_S
PE_B_RXN14_S
PE_B_RXP14_S
PE_B_TXN14_S
PE_B_TXP14_S
Sheet of
Sheet of
Sheet of
PE_B_RXN11_P 16
PE_B_RXP11_P 16
PE_B_TXN11_P 16
PE_B_TXP11_P 16
PE_B_RXN10_P 16
PE_B_RXP10_P 16
PE_B_TXN10_P 16
PE_B_TXP10_P 16
PE_B_RXN15_P 16
PE_B_RXP15_P 16
PE_B_TXN15_P 16
PE_B_TXP15_P 16
PE_B_RXN14_P 16
PE_B_RXP14_P 16
PE_B_TXN14_P 16
PE_B_TXP14_P 16
17 42
17 42
17 42
1.0
1.0
1.0
5
C_BE#[3..0]12,22
PCI SLOT 1 (PCI VER: 2.2 COMPLY)
-12V
PCI1
PCI1
B1
-12V
B2
TCK
VCC3
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
X1
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED1
PRSNT#2
GND
GND
RESERVED2
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
X1
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI-RH
SLOT-PCI-RH
RESERVED3
RESERVED4
3.3VAUX
SMBCLK
SMBDAT
D D
VCC5
PCI_INTB#12
PCI_INTD#12,22
PCICLK_SLOT112
PCI1REQ#12
C C
IRDY#12,22
DEVSEL#12,22
LOCK#12
PERR#12,22
SERR#12
B B
C_BE#3
C_BE#2
IRDY#
DEVSEL#
LOCK#
PERR#
SERR#
C_BE#1
AD31
AD29
AD27
AD25
AD23
AD21
AD19
AD17
AD14
AD12
AD10
AD8
AD7
AD5
AD3
AD1
ACK64#
TRST#
+12V
TMS
INTA#
INTC#
+5V(I/O)
GND
GND
RST#
+5V(I/O)
GNT#
GND
PME#
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3V
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
C/BE#0
+3.3V
AD6
AD4
GND
AD2
AD0
+5V(I/O)
REQ64#
+12V
A1
A2
A3
A4
TDI
A5
+5V
A6
A7
A8
+5V
A9
VCC3
A10
A11
A12
A13
A14
A15
A16
A17
A18
PME#
A19
AD30
A20
A21
AD28
A22
AD26
A23
A24
AD24
A25
ID1
A26
A27
AD22
A28
AD20
A29
A30
AD18
A31
AD16
A32
A33
FRAME#
A34
A35
TRDY#
A36
A37
STOP#
A38
A39
A40
A41
A42
PAR
A43
AD15
A44
A45
AD13
A46
AD11
A47
A48
AD9
A49
X2
X2
+5V
+5V
C_BE#0
A52
A53
AD6
A54
AD4
A55
A56
AD2
A57
AD0
A58
A59
REQ64#A
A60
A61
A62
IDSEL = AD22
MASTER = PCI1REQ*
PCI1GNT*
4
AD[31..0]12,22
C_BE#[3..0]
VCC5
3VDUAL
PCIRST_SLOT1# 12
PCI1GNT# 12
PME# 12,22
R577
R577
100R1%0402
100R1%0402
FRAME# 12,22
TRDY# 12,22
STOP# 12,22
PAR 12,22
AD[31..0]
PCI_INTA# 12
PCI_INTC# 12
AD22
3
2
1
PCI SLOT 2 (PCI VER: 2.2 COMPLY)
-12V
PCI2
PCI2
B1
-12V
B2
TCK
B3
GND
B4
TDO
VCC3
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
X1
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED1
PRSNT#2
GND
GND
RESERVED2
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
X1
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI-RH
SLOT-PCI-RH
RESERVED3
RESERVED4
3.3VAUX
SMBCLK
SMBDAT
VCC5
PCI_INTC#12
PCI_INTA#12
PCICLK_SLOT212
PCI2REQ#12
IRDY#12,22
DEVSEL#12,22
LOCK#12
PERR#12,22
SERR#12
AD31
AD29
AD27
AD25
C_BE#3
AD23
AD21
AD19
AD17
C_BE#2
IRDY#
DEVSEL#
LOCK#
PERR#
SERR#
C_BE#1
AD14
AD12
AD10
AD8
AD7
AD5
AD3
AD1
ACK64#
TRST#
+12V
TMS
INTA#
INTC#
+5V(I/O)
GND
GND
RST#
+5V(I/O)
GNT#
GND
PME#
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3V
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
C/BE#0
+3.3V
AD6
AD4
GND
AD2
AD0
+5V(I/O)
REQ64#
+5V
+5V
+12V
A1
A2
A3
A4
TDI
A5
+5V
A6
A7
A8
+5V
A9
VCC3
A10
A11
A12
A13
A14
A15
A16
A17
A18
PME#
A19
AD30
A20
A21
AD28
A22
AD26
A23
A24
AD24
A25
ID2
A26
A27
AD22
A28
AD20
A29
A30
AD18
A31
AD16
A32
A33
FRAME#
A34
A35
TRDY#
A36
A37
STOP#
A38
A39
A40
A41
A42
PAR
A43
AD15
A44
A45
AD13
A46
AD11
A47
A48
AD9
A49
X2
X2
C_BE#0
A52
A53
AD6
A54
AD4
A55
A56
AD2
A57
AD0
A58
A59
REQ64#A
A60
A61
A62
PCI_INTB# 12
PCI_INTD# 12,22
VCC5
3VDUAL
PCIRST_SLOT2# 12
PCI2GNT# 12
PME# 12,22
R667
R667
100R1%0402
100R1%0402
FRAME# 12,22
TRDY# 12,22
STOP# 12,22
PAR 12,22
AD23
IDSEL = AD23
MASTER = PCI2REQ#
PCI2GNT#
VCC5 VCC3
12
+
+
EC54
EC54
CD470u6.3SO-RH
CD470u6.3SO-RH
A A
5
+
+
12
EC52
EC52
X_CD470u6.3SO-RH
X_CD470u6.3SO-RH
4
PCI PULL-UP RESISTORS
REQ64#A
ACK64#
R680 2.7KR0402R680 2.7KR0402
R679 2.7KR0402R679 2.7KR0402
3
VCC5
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
2
Wednesday, June 17, 2009
MS-7612
PCI Slot 1 & 2 & 3
PCI Slot 1 & 2 & 3
PCI Slot 1 & 2 & 3
1
Sheet of
Sheet of
Sheet of
18 42
18 42
18 42
1.0
1.0
1.0
5
LPC_FRAME#
SIO_GPIO00
SLOTOCC#
LED_VSB
LED_VCC
BEEP
SYS_TEM
D2+
D1+
TMP_VREF
5VSB_SIO
12V_SIO
5V_SIO
VCORE_SIO
WDT#
DCDA#
RIA#
CTSA#
DTRA#
RTSA#
DSRA#
SOUTA
SINA
DCDB
RIB
CTSB
DTRB#
RTSB#
DSRB
SOUTB
SINB
VCC3
VCC3
VCC3
5
LPC_AD[3..0]12
CPU_SIC_SIO
CPU_SID_SIO
118
119
120
121
122
123
124
125
126
127
128
27
28
29
30
31
32
33
34
36
37
51
52
53
54
55
56
57
58
59
60
89
90
91
92
93
94
95
96
97
98
75
45
46
47
48
49
61
40
41
42
43
44
21
22
23
24
25
26
U38
U38
2
3
4
5
6
2E
SPI_ENABLE
FAN START DUTY 100%
PIN51-56=GPIO
LPC SUPER I/O F71882
LRESET#
LDRQ#
SERIRQ
LFRAM#
LAD0
LAD1
LAD2
LAD3
PCICLK
CLKIN
BUSIN0/GPIO25
BUSIN1/GPIO26
BUSIN2/GPIO27
BUSOUT0/GPIO00
BUSOUT1/GPIO01
BUSOUT2/GPIO02
SLOTOCC#/GPIO03
GPIO04/LED_VSB
GPIO05/LED_VCC
GPIO06/BEEP/ALERT#
D3+(System)
D2+
D1+(CPU)
VREF
VIN6
VIN5
VIN4
VIN3
VIN2
VCORE(VIN1)
PME#
GPIO20/SPI_CLK
GPIO21/SPI_CS0#
GPIO22/SPI_MISO
GPIO23/SPI_MOSI
GPIO24/FWH_DIS
OVT#
GPIO12/WDTRST#
PECI_REQ#/IRTX/GPIO13
PECI_AVL/IRRX/GPIO14
SST/TSI_CLK/GPIO15
PECI/TSI_DAT/GPIO16
FANIN1
FANCTL1
FANIN2
FANCTL2
FANIN3/GPIO10/IRRX1
FANCTL3/GPIO11/IRTX1
DCD1#
RI1#
CTS1#
DTR1#/FAN60_100
RTS1#/80PORT_TRAP
DSR1#
SOUT1/Config4E_2E
SIN1
DCD2#/SEGG/GPIO30
RI2#/SEGFGPIO31
CTS2#/SEGA/GPIO32
DTR2#/SEGD/GPIO33/FWH_TRAP
RTS2#/SEGC/GPIO34/PWM_DC
DSR2#/L#/GPIO35
SOUT2/SEGB/GPIO36/SPI_TRAP
SIN2/SEGE/GPIO37
LPC_DRQ#0
DTRB#
SOUTB
SOUTA
DTRA#
RTSA#
RTSB#
LPC Interface
LPC Interface
Bus Interface
Bus Interface
Hardware Monitor,SPI Interface
Hardware Monitor,SPI Interface
UART, SIR and 80-Port
UART, SIR and 80-Port
F71889F
F71889F
R588 X_560R0402R588 X_560R0402
R581 X_560R0402R581 X_560R0402
R602 X_560R0402R602 X_560R0402
R600 X_560R0402R600 X_560R0402
R601 560R0402R601 560R0402
R585 X_560R0402R585 X_560R0402
R567 560R0402R567 560R0402
PD6/SEGG/VIDOUT6/GPIO76
PD5/SEGF/VIDOUT5/GPIO75
PD4/SEGE/VIDOUT4/GPIO74
PD3/SEGD/VIDOUT3/GPIO73
PD2/SEGC/VIDOUT2/GPIO72
PD1/SEGB/VIDOUT1/GPIO71
PD0/SEGA/VIDOUT0/GPIO70
Parallel Port
Parallel Port
STUFFDon't STUFF
DSKCHG#/GPIO54
WPT#/GPIO53
INDEX#/GPIO52
TRK0#/GPIO51
RDATA#/GPIO50
WGATE#/GPIO47
HDSEL#/GPIO46
STEP#/GPIO45
DIR#/GPIO44
FDC
FDC
WDATA#/GPIO43
DRVA#/GPIO42
MOA#/GPIO41
DENSEL#/GPIO40
PD7/VIDOUT7/GPIO77
STB#/L#/VIDIN7/GPIO67
AFD#/H#/VIDIN6/GPIO66
ERR#/VIDIN5/GPIO65
INIT#/VIDIN4/GPIO64
SLIN#/CoreTP/VIDIO_TRAP
ACK#/VIDIN3/GPIO63
BUSY/VIDIN2/GPIO62
PE/VIDIN1/GPIO61
SLCT/VIDIN0/GPIO60
VREF_VDRAM
VREF_VSYS
VREF_VTT
VREF_EN
RSMRST#
PWSOUT#
ATXPG_IN
ACPI Function
ACPI Function
DUALGATE
VCCGATE
PCIRST3#
PCIRST2#
PCIRST1#
KBC Function
KBC Function
Power Pin
Power Pin
AGND(D-)
VCC5_SB
3VDUAL
VCC3 VCC3
R535
R535
4.7KR0402
4.7KR0402
EZ_OC1# EZ_OC2#EZ_OC1#
OC1 OC2
ON ON 200M(defult)
off on 210M
on off 220M
off off 230M
Super I/O
SIO_RST#12
LPC_DRQ#012
SERIRQ12
LPC_FRAME#12
LPC_AD012
LPC_AD112
LPC_AD212
LPC_AD312
D D
VBAT
3VDUAL
SLOTOCC# default vcc source VSB
OC_AVG_LI_P25,26
THERMDA_CPU3
CPU_FAN_GPO30
C C
THRM#
B B
STRAPPING RESISTOR
WDT#
PECI_AVL
THRM#
RTSB#
RTSA#
SOUTA
DTRB#,SOUTB
DTRA#
A A
LPC_DRQ#0
SIO_PCLK12
SIO_24M14
EZ_OC1#
R550 0R0402R550 0R0402
EZ_OC2#
R549 0R0402R549 0R0402
R548 X_2M/4R548 X_2M/4
R533 4.7K/4R533 4.7K/4
OC_AVG_LI_P
R725 10KR1%0402R725 10KR1%0402
R564 X_4.7K/4R564 X_4.7K/4
CPU_FAN_GPO
EXTRA_GPIO0
EXTRA_GPIO1
EXTRA_GPIO2
THRM#
WDT#31
PECI_AVL
CPU_SIC
R554 0R0402R554 0R0402
CPU_SID
R539 0R0402R539 0R0402
CPU-FAN30
CPU-FAN_CTL30
SYS-FAN30
SYS-FAN_CTL30
SYS-FAN230
R556 4.7K/4R556 4.7K/4
R555 4.7K/4R555 4.7K/4
R374 X_4.7K/4R374 X_4.7K/4
SIO_OC_AVG_LI_P
R578R578
SIO_OC_AVG_LI_P
R726 X_4.7K/4R726 X_4.7K/4
C880 X_102P/50V/4C880 X_102P/50V/4
SIO_PME#14
CPU_SIC3,14
CPU_SID3,14
SYS-FAN2_CTL30
PWM FAN LINEAR FAN
80 PORT ENABLE 80 PORT DISABLE
4E
SPI_DISABLE
FAN START DUTY 60%
PIN54-56=VID_OUT
PIN51-53=VIDIN
4
FLOPPY CONN BOLCK
DSKCHG#
19
WP#
18
INDEX#
17
TRACK0#
16
RDDATA#
15
WE#
14
HEAD#
13
STEP#
12
DIR#
11
WDATA#
10
DSA#
9
MOA#
8
DRVDEN0
7
PRND7
116
PRND6
115
PRND5
114
PRND4
113
PRND3
112
111
110
109
108
107
106
105
104
103
102
101
100
C636 X_0.1u/16V/Y/4C636 X_0.1u/16V/Y/4
87
86
85
84
83
COPEN#
81
80
PWOK
79
PS_ON#
78
S3#
77
76
PWSIN#
74
73
S5#
72
71
64
63
62
69
MCLK
68
MDATA
67
KCLK
66
KDATA
38
KBRST#
39
GA20
PIN99 is analog 3.3VSB voltage, datasheet version 0.18p update
65
VSB3V
82
VBAT
99
VCC
35
VCC
1
VCC
117
GND
70
GND
50
GND
20
GND
88
THERMDC_CPU
F71889-V017P-C-RH
F71889-V017P-C-RH
R568 4.7K/4R568 4.7K/4
R565 X_4.7K/4R565 X_4.7K/4
internal pull hi
R342 4.7K/4R342 4.7K/4
VCC5
PRND2
PRND1
PRND0
RSTB#
RAFD#
RERR#
RINIT#
RSLIN#
RACK#
RBUSY
RPE
RSLCT
C639 X_0.1u/16V/Y/4C639 X_0.1u/16V/Y/4
SIO_VREF_VSYS
R576 X_0R0402R576 X_0R0402
VREF_VTT_R
R575 X_0R0402R575 X_0R0402
VREF_EN
COPEN#
SIO_PWROK
VREF_EN
MSCLK
MSDATA
KBCLK NRIA#
KBDATA
VBAT
C630
C630
0.1u/25V/4
0.1u/25V/4
C653
C653
0.1u/25V/4
0.1u/25V/4
CP6
CP6
X_COPPER
X_COPPER
PS_ON#
PWRBTN#
RSMRST#
RSLIN#
R599
R599
X_1KR0402
X_1KR0402
R598 X_4.7K/4R598 X_4.7K/4
3VDUAL
R570
R570
X_4.7K/4
SIO_PWROK
RSMRST# 14
PS_ON# 31
SLP_S3# 14,28
PWRBTN# 14
PSIN# 31
ATX_PWR_OK 10,14,31
SLP_S5# 14,28,29
R572 X_4.7K/4R572 X_4.7K/4
R573 X_4.7K/4R573 X_4.7K/4
KBRST# 14
A20GATE 14
C570
C570
C580
C580
0.1u/25V/4
0.1u/25V/4
X_4.7K/4
BR04_REF3VDUAL
3VDUAL
C0.1u25Y0402-RH
C0.1u25Y0402-RH
C660
C660
C0.1u25Y0402-RH
C0.1u25Y0402-RH
VCC3
TPM
1394_TPM_RST#12,22
3VDUAL
TPM_CLK12
VOLTAGE SENSING(H/W Monitor).
The best voltage input level is about 1V.
OCSWITCH1
OCSWITCH1
ON
ON
1
1A
3
1B
OFF OFF
OFF OFF
SW-DIPP2-RH
SW-DIPP2-RH
ON
ON
2
2A
4
2B
4
R534
R534
VCCP
VCC5_SB
4.7KR0402
4.7KR0402
VCC5
RN29
RN29
WP#
1
INDEX#
TRACK0#
RDDATA#
DSKCHG#
2
3
4
5
6
7
8
1K/4/8P4R
1K/4/8P4R
R574 1KR1%0402R574 1KR1%0402
CASE OPEN CIRCUIT
VREF_VTT
3VDUAL
SIO_GPIO00
TPM_CLK
1394_TPM_RST#
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#
R593 10KR1%0402R593 10KR1%0402
X_47KRST/4
X_47KRST/4
R587
R587
R582 X_10KR1%0402R582 X_10KR1%0402
47KRST/4
47KRST/4
R592
R592
R590 10KR1%0402R590 10KR1%0402
R591 100KST/4R591 100KST/4
+12V
R589 10KR1%0402R589 10KR1%0402
3
1 2
VCC5
R540
R540
X_4.7KR0402
X_4.7KR0402
R557
R557
X_4.7KR0402
X_4.7KR0402
1 2
3 4
5
7 8
9
11 12
13 14
3
7 8
9 10
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34
VBAT
COPEN#
C632
C632
X_102P/50V/4
X_102P/50V/4
VCC3
R537
R537
R538
R538
X_4.7KR0402
X_4.7KR0402
X_4.7KR0402
X_4.7KR0402
R552
R552
R553
R553
X_4.7KR0402
X_4.7KR0402
X_4.7KR0402
X_4.7KR0402
VCC3
RN30 8P4R-4.7KR0402RN30 8P4R-4.7KR0402
R579 4.7KR1%0402R579 4.7KR1%0402
3VDUAL
JTPM1
JTPM1
SERIRQ
6
H2X7[10]M-2PITCH_BLACK-RH
H2X7[10]M-2PITCH_BLACK-RH
VCORE_SIO
5VSB_SIO SYS_TEM
5V_SIO
12V_SIO
3
FDD1
FDD1
DRVDEN0
INDEX#
MOA#
DSA#
DIR#
STEP#
20
WDATA#
WE#
TRACK0#
WP#
RDDATA#
HEAD#
DSKCHG#
BH2X17(4)(5)(6)_black
BH2X17(4)(5)(6)_black
R571
R571
2M/4
2M/4
JCI1
JCI1
1
2
H1X2M_BLACK-RH
H1X2M_BLACK-RH
R536
R536
X_4.7KR0402
X_4.7KR0402
EXTRA_GPIO0
EXTRA_GPIO1
EXTRA_GPIO2
R551
R551
X_4.7KR0402
X_4.7KR0402
不用的需上拉
DSRB
1
2
CTSB
3
4
RIB
5
6
DCDB
7
8
SINB
VCC3
VCC5
Keyboard/Mouse
2
4.7K/4/8P4R
4.7K/4/8P4R
PARALLAL PORT
D53
D53
S-SM5817A
S-SM5817A
LPT_VC
A C
VCC5
C772 C0.1u16Y0402C772 C0.1u16Y0402
RN34 8P4R-2.7KR0402RN34 8P4R-2.7KR0402
PRND6
PRND5
PRND4
PRND3
RPE
RBUSY
RACK#
PRND7
PRND0
RERR#
RSTB#
RAFD#
PRND2
RSLIN#
PRND1
RINIT#
RSLCT
1
2
3
4
5
6
7
8
RN35 8P4R-2.7KR0402RN35 8P4R-2.7KR0402
1
2
3
4
5
6
7
8
RN32 8P4R-2.7KR0402RN32 8P4R-2.7KR0402
1
2
3
4
5
6
7
8
RN33 8P4R-2.7KR0402RN33 8P4R-2.7KR0402
1
2
3
4
5
6
7
8
R699 2.7KR0402R699 2.7KR0402
COM PORT
C661 X_0.1u/16V/Y/4C661 X_0.1u/16V/Y/4
VCC5
NRIA#
NCTSA#
NDSRA#
NSINA
NDCDA#
RTSA#
DTRA#
SOUTA
Temperature Sensing
DIODE SENSING CIRCUIT
C643
C643
X_2200P/50V/4
X_2200P/50V/4
TMP_VREF
C650
C650
X_2200P/50V/4
THERMDC_CPU
THERMDC_CPU
TMP_VREF
D2+
X_2200P/50V/4
C642
C642
2200P/50V/4
2200P/50V/4
R586 X_10KST/4R586 X_10KST/4
Place To Bottom
U42
U42
20
VCC
2
RA1
3
RA2
4
RA3
7
RA4
9
RA5
16
DA1
15
DA2
13
DA3
11
GND
GD75232_SSOP20
GD75232_SSOP20
THERMDA_CPU 3
THERMDC_CPU 3
B
RT2
RT2
X_10KRT1%
X_10KRT1%
2
246
VDD
135
RY1
RY2
RY3
RY4
RY5
DY1
DY2
DY3
VSS
8
7
FB2 X_R/3FB2 X_R/3
FB4 X_R/3FB4 X_R/3
FB1 X_R/3FB1 X_R/3
FB3 X_R/3FB3 X_R/3
PRND7
1
RACK#
3
RBUSY
5
RPE
7
PRND3
1
PRND4
3
PRND5
5
PRND6
7
RINIT#
1
PRND1
3
RSLIN#
5
PRND2
7
RAFD#
1
RSTB#
3
RERR#
5
PRND0
7
RSLCT
C801 X_C330p50X0402C801 X_C330p50X0402
C676 X_0.1u/16V/Y/4C676 X_0.1u/16V/Y/4
D40 1N4148SD40 1N4148S
+12VCOM
1
RIA#
19
CTSA#
18
DSRA#
17
SINA
14
DCDA#
12
NRTSA
5
NDTRA
6
NSOUTA
8
-12VCOM
10
D41 1N4148SD41 1N4148S
C677
C677
X_0.1u/16V/Y/4
X_0.1u/16V/Y/4
A C
2
4
6
8
2
4
6
8
2
4
6
8
2
4
6
8
AC
X_0.1u/25V/4
X_0.1u/25V/4
CN5
CN5
X_8p4C-330p50N
X_8p4C-330p50N
CN4
CN4
X_8p4C-330p50N
X_8p4C-330p50N
CN3
CN3
X_8p4C-330p50N
X_8p4C-330p50N
CN6
CN6
X_8p4C-330p50N
X_8p4C-330p50N
+12V
-12V
RN1
RN1
MSDATA
MSCLK
KBDATA KB_DATA
KBCLK
LED ( for Fintek 71882)
3VDUAL
R545
R545
1KR1%0402
1KR1%0402
LED_VCC PWR_LED
R544 4.7K/4R544 4.7K/4
R547 4.7K/4R547 4.7K/4
R546
R546
1KR1%0402
1KR1%0402
3VDUAL
VCC3
R541
R541
X_4.7KR0402
X_4.7KR0402
BEEP
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Q72
Q72
P-MMBT3906
P-MMBT3906
C E
FOR SYSTEM
FOR CPU
FOR CPU
1
R25
C6
C6
MS_DATA
MS_CLK
KB_CLK
R25
X_1KR1%0402
X_1KR1%0402
JKBMS1 MINIDIN12P-RH
JKBMS1 MINIDIN12P-RH
7
8
11
12
1
2
5
6
C37 180P/50V/4C37 180P/50V/4
C22 180P/50V/4C22 180P/50V/4
C32 180P/50V/4C32 180P/50V/4
C28 180P/50V/4C28 180P/50V/4
JLPT1
JLPT1
RSTB#
1
PRND0
3 4
PRND1
5
PRND2
7 8
PRND3
PRND4
11 12
PRND5
13 14
PRND6
15 16
PRND7
17 18
RACK#
19 20
RBUSY
21 22
RPE
23 24
RSLCT
25
H2X13[26]M-2PITCH_BLACK-RH
H2X13[26]M-2PITCH_BLACK-RH
131415
2
6
109
N31-2131151-H06
JCOM1
JCOM1
NDCDA#
NSOUTA NDTRA
NDSRA#
NRTSA
NRIA#
NCTSA#
NDTRA
NSINA
NSOUTA
NDCDA#
Q69Q69
6
2
1
5
3
4
CE
B
Q71
Q71
X_N-MMBT3904_NL_SOT23
X_N-MMBT3904_NL_SOT23
MS-7612
MS-7612
MS-7612
LPC-Super I/O FINTEK 71882FG
LPC-Super I/O FINTEK 71882FG
LPC-Super I/O FINTEK 71882FG
1
1 2
3 4
5
7 8
9
H2X5[10]M_BLACK-RH
H2X5[10]M_BLACK-RH
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
VCC5_SB
R532
R532
330R0402
330R0402
SUS_LEDLED_VSB
R580
R580
330R0402
330R0402
VCC5_SB
SPKR 14,31
Sheet of
Sheet of
Sheet of
NSINA
NDSRA#
6
NCTSA#NRTSA
RUSB_VCC1
16
17
10
9
MS
MS
4
3
KB
KB
RAFD#
RERR#
RINIT#
RSLIN#
CN2
CN2
X_180P/50V/6/8P4C
X_180P/50V/6/8P4C
CN1
CN1
X_180P/50V/6/8P4C
X_180P/50V/6/8P4C
PWR_LED 31
SUS_LED 31
19 42
19 42
19 42
1.0
1.0
1.0
5
RTL8211CL RGMII PHY
4
3
2
1
REST
VDDREG
45
46
GND
RSET
VDDREG
VDD33/VDD25
RXD1/TXDLY
RSMRST#
VDDREG
44
RXD2/AN0
RGMII_CKXTAL2
43
VDDREG
RXD3/AN1
PHY_AVDD33
PHY_VDD33
Note:RTL8211CL:Pin40 is Input
RGMII_CKXTAL1
LED2_RXDLY_COL
ENREG/RXER/FXEN
AVDD12/PWOUT12D
38
40
37
41
39
42
AVDD33
DVDD33
CKXTAL1
CKXTAL2
V12/CRS_RPTR
LED1/PHYAD1
ENREG/RXER/FXEN
DVDD12/PWOUT12D
LED0/PHYAD0
GND
CLK125
LED2RXDLY/COLMII/SNIB
MDIO
MDC
PHYRSTB
DVDD12
TXCTL/TXEN
TXD3
TXD2
24
RGMII_TXD0
RGMIIRXCLK
RGMII_TXD1
VDD33/VDD25
RGMIITX_CLK
RGMII_TXD1 11
RGMII_TXD0 11
R458 0R0402R458 0R0402
C496
C496
X_C22p50N0402
X_C22p50N0402
RGMII_RST# 11
RSMRST# 11
VDD12/CRS_RPTR
36
LAN_LINK1000
35
LAN_LINK100
34
33
32
RGMII_MDIO
31
RGMII_MDC
30
RGMII_RET#
29
PHY_VDD12
28
RGMII_TXCTL
27
RGMII_TXD3
26
RGMII_TXD2
25
RTL8211CL-GR-RH
RTL8211CL-GR-RH
C402 C0.1u16X0402C402 C0.1u16X0402
R437 0R0402R437 0R0402
RGMII_MDIO 11
RGMII_MDC 11
RGMII_TXCTL 11
RGMII_TXD3 11
RGMII_TXD2 11
RGMII_MDIO
RTL8211CL: R38 ( 10K )
RGMII_TXCLK 11
4
PHY_VDD12
PHY_VDD33
R445
R445
10KR0402
10KR0402
R434 4.7KR0402R434 4.7KR0402 R435 X_4.7KR0402R435 X_4.7KR0402
R438 4.7KR0402R438 4.7KR0402
R443 4.7KR0402R443 4.7KR0402
R456 X_4.7KR0402R456 X_4.7KR0402
R457 X_4.7KR0402R457 X_4.7KR0402
R455 4.7KR0402R455 4.7KR0402
RTL8211CL:
R693,R694: Config for all capability
R691,R692: PHY Address=01
R684,R689: Without TX/RX Delay
C389 C0.1u16X0402C389 C0.1u16X0402
ENREG/RXER/FXEN
Note 2: The Trace length from C556, C3857 to
8211CL Pin 44,45 must be within 1 cm. The
trace width from PHY_AVDD33 to Pin 44,45
should>40mils
VDDREG
AVDD12/PWOUT12D
LED2_RXDLY_COL
C386
C386
C22u6.3X1206
C22u6.3X1206
LAN_LINK1000
LAN_LINK100
RXD2/AN0
RXD3/AN1
RXD1/TXDLY
R432 0R0402R432 0R0402
C390
C390
C0.1u16X0402
C0.1u16X0402
C394
C394
R436 2.49KR1%0402R436 2.49KR1%0402
12
RGMII_CKXTAL1
RGMII_CKXTAL2
C391
C391
C27p50N0402
C27p50N0402
MDI0+
MDI0ÂPHY_AVDD12
MDI1+
MDI1-
PHY_AVDD33
MDI2+
MDI2-
PHY_AVDD12
MDI3+
MDI3-
U33
U33
1
MDI[0]+
2
MDI[0]-
3
FB12
4
MDI[1]+
5
MDI[1]-
6
AVDD33
7
GND
8
MDI[2]+
9
MDI[2]-
10
AVDD12
11
MDI[3]+
12
MDI[3]-
REGOUT
47
48
REGOUT/PWOUT12A
RTL8211CL
RTL8211CL
RTL8201EL
RTL8201EL
RXCTL/RXDV/RMII13RXD014DVDD3315RXD1/TXDLY16RXD2/AN017RXD3/AN118RXC19GND20DVDD3321TXC22TXD023TXD1
RX_CTL/RMII
RXD0
Y3 25MHZ18P_D-4Y3 25MHZ18P_D-4
D D
C392
C392
C27p50N0402
C27p50N0402
C C
Close to PHY
Reserve for
EMI
RGMII_RXCTL
RGMII_RXCTL11
RGMII_RXD011
RGMII_RXD111
RGMII_RXD211
RGMII_RXD311
B B
RGMII_RXCLK11
for NV initial RGMII_RET# alway high issue
A A
R453 22R0402R453 22R0402
RGMII_RXD0
R454 22R0402R454 22R0402
RGMII_RXD1
R465 22R0402R465 22R0402
RGMII_RXD2
R466 22R0402R466 22R0402
RGMII_RXD3
R467 22R0402R467 22R0402
RGMII_RXCLK RGMIIRXCLK
PHY_VDD33
R446
R446
X_4.7KR0402
X_4.7KR0402
R447 0R0402R447 0R0402
C442
C442
R729 X_0R0402R729 X_0R0402
4.7KR0402
4.7KR0402
5
RX_CTL/RMII
RXD0
RXD1/TXDLY
RXD2/AN0
RXD3/AN1
R463 0R0402R463 0R0402
C521
C521
X_C22p50N0402
X_C22p50N0402
RGMII_RST#RGMII_RET#
PHY_VDD33
PHY_AVDD33
R427 0R0805R427 0R0805
PHY_AVDD12
R433 0R0402R433 0R0402
C0.1u16X0402
C0.1u16X0402
R439 X_4.7KR0402R439 X_4.7KR0402
R444 X_4.7KR0402R444 X_4.7KR0402
R461 4.7KR0402R461 4.7KR0402
R462 4.7KR0402R462 4.7KR0402
R460 X_4.7KR0402R460 X_4.7KR0402
PHY address[1:0] ''0"
RXDLY "0"
LED active HIGH
3
REGOUT
Near the Choke17
Within 0.5cm
PHY_VDD33
3VDUAL
CHOKE9
CHOKE9
RTL8211CL: C555 close to 4.7uH
1 2
CH-4.7u1.7A-RH
CH-4.7u1.7A-RH
LAN_USB1B
LAN_USB1B
AMBER+
AMBER+
AMBER-
AMBER-
POWER
POWER
TD1+
TD1+
TD1-
TD1ÂTD2+
TD2+
TD2-
TD2ÂTD3+
TD3+
TD3-
TD3ÂTD4+
TD4+
TD4-
TD4-
GND
GND
GREEN+
GREEN+
GREEN-
CONN-RJ45_USBX2_LEDX2_TX-RH
CONN-RJ45_USBX2_LEDX2_TX-RH
GREEN-
2
R431 0R0805R431 0R0805
C22u6.3X1206
C22u6.3X1206
C395
C395
Reserve for EMI
C887
C887
C400
C400
C387
C387
C22u6.3X1206
C22u6.3X1206
C22u6.3X1206
C22u6.3X1206
C0.1u16X0402
C0.1u16X0402
3VDUAL
R281
R281
X_330R0402
X_330R0402
LAN_LINK1000
19
20
13
MDI0+
18
MDI0-
12
MDI1+
17
MDI1-
11
MDI2+
16
MDI2-
10
MDI3+
15
MDI3-
9
14
LED2_RXDLY_COL
21
LAN_LINK100
22
C247
C247
C1000p50X0402
C1000p50X0402
PHY_VDD33
C398
C398
C388
C388
C399
C516
C516
C399
PHY_AVDD33
R450
C0.1u16X0402
C0.1u16X0402
R450
0R0805
0R0805
C481
C481
R440 0R0805R440 0R0805
C0.1u16X0402
C0.1u16X0402
C0.1u16X0402
C0.1u16X0402
C0.1u16X0402
C0.1u16X0402
C440
C440
C0.1u16X0402
C0.1u16X0402
C404
C404
C454
C454
C0.1u16X0402
C0.1u16X0402
C393
C393
C0.1u16X0402
C0.1u16X0402
C441
C441
Reserve for EMI
C0.1u16X0402
C0.1u16X0402
C0.1u16X0402
R448 0R0805R448 0R0805
C479
C479
C1U10Y
C1U10Y
Reserve for EMI
C0.1u16X0402
C459
C459
C0.1u16X0402
C0.1u16X0402
C457
C457
C0.1u16X0402
C0.1u16X0402
PHY_VDD33
VDD33/VDD25
C228
C228
C1000p50X0402
C1000p50X0402
C253
C253
C1000p50X0402
C1000p50X0402
MSI
MSI
MSI
C497
C497
R464 0R0805R464 0R0805
C495
C495
C0.1u16X0402
C0.1u16X0402
C0.1u16X0402
C0.1u16X0402
C252
C252
C1000p50X0402
C1000p50X0402
R728
R728
0R0402
0R0402
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
R287
R287
0R0402
0R0402
C241
C241
X_C1000p50X0402
X_C1000p50X0402
MS-7612
MS-7612
MS-7612
LAN RTL-8211CL
LAN RTL-8211CL
LAN RTL-8211CL
1
PHY_AVDD12
PHY_VDD12
C0.1u16X0402
C0.1u16X0402
C458
C458
C0.1u16X0402
C0.1u16X0402
Giga-Lan
N58-22F0181-F02
Yellow
Link
Active22Blinking
1000
Orange
100
Green
10
None
19
20
Yellow
Orange
21
Green
Sheet of
Sheet of
Sheet of
20 42
20 42
20 42
1.0
1.0
1.0
5
135
246
CD-L
CD-G
CD-R
SPDIFO
R661 0R0402R661 0R0402
R648 0R0402R648 0R0402
VCC3
C715
C715
SURR
CEN/BAS
SIDE_SROUT
7
8
X_10pf/50V/NPO/4
X_10pf/50V/NPO/4
8
6
4
2
C714 C1u10YC714 C1u10Y
C713 C1u10YC713 C1u10Y
C712 C1u10YC712 C1u10Y
1
2
3
4
5
6
7
8
9
10
11
12
MIC1_VREFOR
MIC1_VREFOL
RN31
RN31
7
5
3
1
8P4R-4.7KR0402
8P4R-4.7KR0402
R69822KR0402 R69822KR0402
R69122KR0402 R69122KR0402
CD-L_L
CD-G_L
CD-R_L
20
DVDD
SPDIFO2
GPIO0/DMIC-CLK
PIO1/DMIC-DATA
SDATA-OUT
BCLK
DVSS
SDATA-IN
DVDD-IO
SYNC
RESET#
PCBEEP
32
MIC1_VREFOR
LINE2_VREFOL
C10u6.3X50805
C10u6.3X50805
R689 68R0402R689 68R0402
R700 68R0402R700 68R0402
R690X_22KR0402 R690X_22KR0402
R686X_22KR0402 R686X_22KR0402
CD-R
MIC2_VREFOL
place put it near connector
RN37
RN37
47K/4/8P4R
47K/4/8P4R
D D
AZ_SDOUT14
AZ_BITCLK14
AZ_SYNCAZ_SYNC
C380
C380
X_10pf/50V/NPO/4
C C
B B
A A
X_10pf/50V/NPO/4
LIN_IN
D
LIN_OUT
E
MIC1
F
MIC2R
MIC2L
MIC2_VREFOL
C722 X_C0.1u16Y0402C722 X_C0.1u16Y0402
LINE2_VREFOL
C732 X_C0.1u16Y0402C732 X_C0.1u16Y0402
LINE2R
AZ_SDIN014
AZ_SYNC14
AZ_RST#14
VCC3
C742
C742
C721
C721
C0.1u16Y0402
C0.1u16Y0402
C10u10Y0805
C10u10Y0805
15pf/50V/NPO/4C379 15pf/50V/NPO/4C379
AZ_SDOUT
AZ_BITCLK
C731 X_C33p50N0402C731 X_C33p50N0402
R645 22R0402R645 22R0402
C358
C358
15pf/50V/NPO/4
15pf/50V/NPO/4
AZ_SYNC BASSR
AZ_RST#
X_4.7KR0402
X_4.7KR0402
R633
R633
VCC3
C710 C10u6.3X50805C710 C10u6.3X50805
C711 C10u6.3X50805C711 C10u6.3X50805
D47
D47
Y
Z
X
S-BAT54A_SOT23
S-BAT54A_SOT23
D48
D48
Y
Z
X
S-BAT54A_SOT23
S-BAT54A_SOT23
+
+
EC62 CD100u16SO-RH
EC62 CD100u16SO-RH
1 2
+
+
EC63 CD100u16SO-RH
EC63 CD100u16SO-RH
1 2
5
4
LINE2L
LINE2R
MIC2L
MIC2R
SENSE_A
SURRBACKL
SURRBACKR
18
19
17
15
16
CD-L
CD-G
MIC2-L
MIC2-R
ALC888
ALC888
VREF
MIC1_VREFOL
C719
C719
C740
C740
C728
C728
X_C0.1u16Y0402
X_C0.1u16Y0402
45
48
46
13
47
14
SIDE-L
SIDE-R
LINE2-L
SPDIFO
Sense A
LINE2-R
SPDIFI/EAPD
REALTEK
REALTEK
PIN37-VREFO
VREF27MIC1-VREFO-L28LINE1-VREFO29MIC2-VREFO30LINE2-VREFO31MIC1-VREFO-R
26
LINE_INL
LINE_INR
C746
C746
C748
C748
C0.1u16Y0402
C0.1u16Y0402
C10u10Y0805
C10u10Y0805
X_C0.1u16Y0402
X_C0.1u16Y0402
CD-L
CD-R
SenseC
Sense B
FRONT-L
FRONT-R
AVDD2
SURR-L
SURR-R
CENTER
MIC1-L21MIC1-R22LINE1-L23LINE1-R24AVDD125AVSS1
MIC1R
MIC1L
JDREF
AVSS2
LFE
+5VR
Azalia Front Audio Connector
MIC2_L
MIC2_R
X_C470p16X0402-RH
X_C470p16X0402-RH
R692 68R0402R692 68R0402
SENSE_B FRONT_IO_SENSE
R697 68R0402R697 68R0402
LINE2_R
R694
R694
47R0402
47R0402
LINE2_LLINE2L
C767
C767
C766
C766
4
U48
U48
ALC889-GR-RH
ALC889-GR-RH
33
SENSE_B
34
LINE_0UTL
35
LINE_0UTR
36
37
38
SURRL
39
JDREF
40
41
42
43
44
RN36
RN36
8
6
4
2
8P4R-10KR0402
8P4R-10KR0402
C768
C768
X_C470p16X0402-RH
X_C470p16X0402-RH
R666 20KR1%0402R666 20KR1%0402
SURRR
CENOUT
SPDIFO
R685 10R0402R685 10R0402
SENSE_B SURRBACK_JD
SENSE_A SURR_JD
CD-L-R
7
CD-G-RCD-G
5
3
CD-R-R
1
JAUD1
JAUD1
1
MIC
MICPWR3PRESENCE#
5
7
H2X5[8]M_BLACK-RH
H2X5[8]M_BLACK-RH
C769
C769
X_C470p16X0402-RH
X_C470p16X0402-RH
X_C470p16X0402-RH
X_C470p16X0402-RH
LINE NEXT R
FLINE OUTR
HPON
FLINE OUTL9LINE NEXT L
FRONT_IO_SENSE
C802 C470p16X0402-RHC802 C470p16X0402-RH
+5VR
C717
C717
C0.1u16Y0402
C0.1u16Y0402
C797
C797
X_C470p16X0402-RH
X_C470p16X0402-RH
R663 5.1K/4/1R663 5.1K/4/1
R662 10KR1%0402R662 10KR1%0402
R687 X_20KR1%R687 X_20KR1%
R695 X_39.2KR1%0402R695 X_39.2KR1%0402
R629 39.2KR1%0402R629 39.2KR1%0402
R625 5.1K/4/1R625 5.1K/4/1
R626 10KR1%R626 10KR1%
R627 20KR1%R627 20KR1%
place near codec
JCD1
JCD1
4
3
2
1
CD1*4/BLACK
CD1*4/BLACK
AGND
2
GND
4
MIC2_JD
6
8
8
LINE2_JD
10
R696
R696
39.2KR1%0402
39.2KR1%0402
C798
C798
+5VR
3
VCC5
X_C470p16X0402-RH
X_C470p16X0402-RH
R688
R688
X_10KR1%
X_10KR1%
3
1
2
3
CEN_JD
FRONT_JD
LINE1_JD
MIC1_JD
5
R693
R693
20KR1%0402
20KR1%0402
AGND
JSP1
JSP1
BH1X3_BLACK-RH
BH1X3_BLACK-RH
MIC2_JD
LINE2_JD
+12V
LINE_INL
LINE_INR
MIC1L
MIC1_VREFOR
MIC1_VREFOL
SURRL
SURRR
CENOUT
BASSR
SURRBACKL
SURRBACKR
Trace Width 40mils.
C761
C761
C756
C10u10Y0805
C10u10Y0805
For improving the
background noise of
MIC boosting.
C756
C0.1u16Y0402
C0.1u16Y0402
2
+
+
LINE_0UTL
LINE_0UTR
C707 C10u6.3X50805C707 C10u6.3X50805
C706 C10u6.3X50805C706 C10u6.3X50805
C709 C10u6.3X50805C709 C10u6.3X50805
C708 C10u6.3X50805C708 C10u6.3X50805
C753 C10u10Y0805C753 C10u10Y0805
C754 C10u10Y0805C754 C10u10Y0805
LINE_OUT__L
1 2
EC50 C10u10SO-RH
EC50 C10u10SO-RH
+
+
LINE_OUT__R
1 2
EC55 C10u10SO-RH
EC55 C10u10SO-RH
LINE_IN_L
LINE_IN_R
R647 4.7K/5%/04R647 4.7K/5%/04
R351 4.7K/5%/04R351 4.7K/5%/04
C749 C10u10Y0805C749 C10u10Y0805
SURR_L
SURR_R
C750 C10u10Y0805C750 C10u10Y0805
C751 C10u10Y0805C751 C10u10Y0805
CEN_OUT
BASS
C752 C10u10Y0805C752 C10u10Y0805
SURRBACK_L
SURRBACK_R
AUDIO CODE REGULATORS
D46
U50
U50
VIN3VOUT
ADJ
1
L1087CG_SOT89-3
L1087CG_SOT89-3
D46
2
A C
1N5817SR
1N5817SR
R677
R677
100R1%/2
100R1%/2
R678
R678
348R1%0402
348R1%0402
2
R359 1KR1%/2R359 1KR1%/2
R358 1KR1%/2R358 1KR1%/2
MIC1_L
R343 1KR1%/2R343 1KR1%/2
MIC1_R
R628 1KR1%/2R628 1KR1%/2
R356 68R0402R356 68R0402
R357 68R0402R357 68R0402
R377 68R0402R377 68R0402
R378 68R0402R378 68R0402
R345 68R0402R345 68R0402
R353 68R0402R353 68R0402
VCC5_SB
AC
For Standby
mode-De-pop
R376 68R0402R376 68R0402
R379 68R0402R379 68R0402
D43
D43
1N5817SR
1N5817SR
C744
C744
C10u10Y0805
C10u10Y0805
MSI
MSI
MSI
1
AUDIO1E
LINE_OUT__LR
LINE_OUT__RR
C335
C335
LINE_IN_LR
LINE_IN_RR
SURR_LR
SURR_RR
CEN_OUT_R
BASS_R
SURRBACK_LR
SURRBACK_RR
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
FRONT_JD
C336
C336
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
C470p16X0402-RH
C470p16X0402-RH
C330
C330
C470p16X0402-RH
C470p16X0402-RH
C321
C321
C470p16X0402-RH
C470p16X0402-RH
C329
C329
C470p16X0402-RH
C470p16X0402-RH
C338
C338
C470p16X0402-RH
C470p16X0402-RH
C322
C322
C327
C327
C470p16X0402-RH
C470p16X0402-RH
+5VR
C743
C743
C0.1u16Y0402
C0.1u16Y0402
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
C470p16X0402-RH
C470p16X0402-RH
LINE1_JD
C331
C331
C326
C326
C328
C328
C337
C337
C470p16X0402-RH
C470p16X0402-RH
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
C470p16X0402-RH
C470p16X0402-RH
MIC1_L_J
MIC1_JD
MIC1_R_JMIC1R
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
C470p16X0402-RH
C470p16X0402-RH
C470p16X0402-RH
C470p16X0402-RH
C470p16X0402-RH
C470p16X0402-RH
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
SURR_JD
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
CEN_JD
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
SURRBACK_JD
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
JACK-AUDIOX6F_PK/GR/BU/GY/OR/BL-2
LINE_OUT__L
LINE_OUT__R
SURR_L
SURR_R
BASS
CEN_OUT
SURRBACK_L
SURRBACK_R
MS-7612
MS-7612
MS-7612
CODEC ALC888
CODEC ALC888
CODEC ALC888
1
24
23
22
21
G5
34
33
32
31
L5
G6
14
13
12
11
G3
64
63
62
61
R5
MEC1
MEC2
54
53
52
51
G4
44
43
42
41
R665 22KR0402R665 22KR0402
R670 22KR0402R670 22KR0402
R671 X_22KR0402R671 X_22KR0402
R672 X_22KR0402R672 X_22KR0402
R674 X_22KR0402R674 X_22KR0402
R673 X_22KR0402R673 X_22KR0402
R675 X_22KR0402R675 X_22KR0402
R676 X_22KR0402R676 X_22KR0402
CP17 X_COPPERCP17 X_COPPER
C678 X_C0.1u16Y0402C678 X_C0.1u16Y0402
C799 X_C0.1u16Y0402C799 X_C0.1u16Y0402
C383 X_C0.1u16Y0402C383 X_C0.1u16Y0402
Sheet of
Sheet of
Sheet of
AUDIO1E
AUDIO1D
AUDIO1D
AUDIO1F
AUDIO1F
AUDIO1A
AUDIO1A
AUDIO1B
AUDIO1B
AUDIO1C
AUDIO1C
21 42
21 42
21 42
Green
Green
Blue
Blue
Pink
Pink
Black
Black
Orang
Orang
Gray
Gray
1.0
1.0
1.0
5
4
3
2
1
VT6308P - 1394 Controller
PWRDET_VCC
VCC3
D D
C C
C_BE#[3..0]12,18
AD25
B B
AD[31..0]
AD[31..0]12,18
C_BE#[3..0]
PAR12,18
FRAME#12,18
IRDY#12,18
TRDY#12,18
STOP#12,18
DEVSEL#12,18
1394REQ#12
1394GNT#12
PERR#12,18
PCI_INTD#12,18
PCICLK_139412
1394_TPM_RST#12,19
PME#12,18
AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
C_BE#3
C_BE#2
C_BE#1
C_BE#0
PAR
FRAME#
IRDY#
TRDY#
STOP#
R621 100RST/4R621 100RST/4
DEVSEL#
1394REQ#
1394GNT#
PERR#
PCI_INTD#
PCICLK_1394
C657 X_10pf/50V/NPO/4C657 X_10pf/50V/NPO/4
R653 X_0R/4R653 X_0R/4
97
98
99
100
101
104
105
106
109
110
112
116
117
118
119
120
5
6
7
10
11
12
13
14
17
18
19
21
22
23
27
28
107
122
4
15
3
123
124
126
128
108
127
96
95
2
91
93
92
37
IDSEL = AD25
INT = PCI_INTD#
102
113
AD31
VDD1
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
CBE3#
CBE2#
CBE1#
CBE0#
PAR
FRAME#
IRDY#
TRDY#
STOP#
IDSEL
DEVSEL#
REQ#
GNT#
PERR#
INTA#
PCICLK
PCIRST#
PME#
VDD2
VT6308P/VT6308S
VT6308P/VT6308S
VSS2
VSS1
94
103
125
111
8
VDD3
VSS3
121
VDD4
VSS4
20
1
VDD5
VSS5
33
9
RAMVDD
VSS6
16
114
VSS7
26
VDDC1
VSS8
VDD
35
PWRDET
RAMVSS
34
24
VDDC2
59
39
GNDATX0
GNDARX0
GNDATX283GNDARX2
GNDATX169GNDARX1
64
82
68
MASTER = 1394REQ*
1394GNT*
VDD
C735
C734
C734
0.1u/25V/4
0.1u/25V/4
C662
C662
0.1u/25V/4
0.1u/25V/4
C664
C664
0.1u/25V/4
0.1u/25V/4
5
C735
0.1u/25V/4
0.1u/25V/4
C733
C733
0.1u/25V/4
0.1u/25V/4
C668
C668
0.1u/25V/4
0.1u/25V/4
C702
C702
0.1u/25V/4
0.1u/25V/4
C698
C698
0.1u/25V/4
0.1u/25V/4
C670
C670
0.1u/25V/4
0.1u/25V/4
C716
C716
X_0.1u/25V/4
X_0.1u/25V/4
C720
C720
0.1u/25V/4
0.1u/25V/4
C663
C663
0.1u/25V/4
0.1u/25V/4
X_4.7K/4
X_4.7K/4
VCC3 VCC3
R650
R650
4
EECK
EEDI
R651
R651
X_4.7K/4
X_4.7K/4
U49
U49
1
2
3
4
HT24LC02-8 SOP-A-RH
HT24LC02-8 SOP-A-RH
C705
C705
0.1u/25V/4
0.1u/25V/4
VCC3
C737
C737
0.1u/25V/4
0.1u/25V/4
A A
P3VA
C666
C666
X_0.1u/25V/4
X_0.1u/25V/4
P3VA
62
90
76
49
VDD6
VDDC3
25
VDDATX0
VSSC2
75
65
VDDATX1
VDDARX1
VDDARX0
VSSC1
VSS9
36
115
89
XTPBIAS0
XTPA0P
XTPA0M
VDDATX2
VDDARX2
XTPB0P
XTPB0M
XTPBIAS1
XTPA1P
XTPA1M
XTPB1P
XTPB1M
NC/REG_OUT
NC/REG_fb
NC#86
NC/REG_en
NC/INTREG
XCPS
XREST
NC/D6/CMC_JMP
PHYRESET#
NC/CTL0/PC0JMP
NC/CTL1/PC1JMP
NC/D7/PC2JMP
NC/LINKON
NC/LREQ
NC/D5
NC/D4
D3/CARDBUS
D2/I2CEEN
NC/D1
NC/D0
NC/MODE0
NC/MODE1
NC/SCLK
NC/LPS
NC#67
EECK/SCL
EEDI/SDA
EEDO
EECS
VSS10
VSSC3
VT6308P-CD-RH
VT6308P-CD-RH
41
50
U46
U46
TPBIAS0
74
TPA0+
73
TPA0-
72
TPB0+
71
TPB0-
70
TPBIAS1
81
TPA1+
80
TPA1-
79
TPB1+
78
TPB1-
77
88
REG_FB
87
86
85
84
63
66
52
58
54
55
53
57
56
51
48
47
46
45
44
43
42
40
38
67
32
31
30
29
60
XI
61
XO
R596 6.2KR1%0402R596 6.2KR1%0402
C679
C679
1u/6.3V/4
1u/6.3V/4
R632 4.7K/4R632 4.7K/4
EECK
EEDI
R649 X_4.7K/4R649 X_4.7K/4
R624
R624
1M/6
1M/6
R615 11KST/4R615 11KST/4
R617 1KR1%0402R617 1KR1%0402
C667
C667
C47P50N0402
C47P50N0402
R500 X : USE EEPROM
R500 O: NO EEPROM
C703 10P/50V/6C703 10P/50V/6
Y4
Y4
24.576MHZ16P_D-1
24.576MHZ16P_D-1
1 2
C704 10P/50V/6C704 10P/50V/6
P3VA
P3VA
CPWR_F
TPA1+
TPA1-
TPB1+
TPB1-
For VT6308
L6
L6
5
6
7
8
X_CMC-L12-121D017-LF
X_CMC-L12-121D017-LF
L17
L17
5
6
7
8
X_CMC-L12-121D017-LF
X_CMC-L12-121D017-LF
PWRDET_VCC
VCC3
R652
R652
4.7K/4
4.7K/4
C736
C736
0.1u/25V/4
0.1u/25V/4
For VT6308
VCC3
L16
VCC3
8
A0
VCC
R664 510/4R664 510/4
7
A1
WP
EECK
6
A2
SCL
EEDI
5
VSS
SDA
L16
21
X_80ohm/3000m/8
X_80ohm/3000m/8
CP7
CP7
X_COPPER
X_COPPER
3
P3VA
REG_FB
+12V
D27
S-SS24A-TG_DO214AC-RH
S-SS24A-TG_DO214AC-RH
TPA0+
1
TPA0-
2
TPB0+
3
TPB0-
4
1
2
3
4
+12V
A C
S-SS24A-TG_DO214AC-RH
S-SS24A-TG_DO214AC-RH
X_102P/50V/4
X_102P/50V/4
D42
D42
D27
A C
C182
C182
CPWR
1 2
Termination resister and bypass Capacitor
Must be close1394 chip.
C655
C655
0.33u/16V/6
0.33u/16V/6
CPWR_0
CPWR_F
C730
C730
102P/50V/4
102P/50V/4
R595 4.99KST/4R595 4.99KST/4
C184
C184
X_0.01u/50V/6
X_0.01u/50V/6
F3
F3
1 2
F-MF-MSMF150-24X-RH
F-MF-MSMF150-24X-RH
Termination resister and bypass Capacitor
Must be close1394 chip.
C656
C656
0.33u/16V/6
0.33u/16V/6
TPA1+ TPA1-
CPWR_1 CPWR_1
VDD
For Intel 1394 pinheader
C665
C665
0.1u/25V/4
0.1u/25V/4
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
2
Wednesday, June 17, 2009
F2
F2
F-MF-MSMF150-24X-RH
F-MF-MSMF150-24X-RH
TPBIAS0
C659 270P/50V/4C659 270P/50V/4
TPB0ÂTPB0+
TPA0ÂTPA0+
CPWR_1
TPBIAS1
R594 4.99KST/4R594 4.99KST/4
C658 270P/50V/4C658 270P/50V/4
J1394_1
J1394_1
5
BH2X5(9)_GREEN-RH
BH2X5(9)_GREEN-RH
MS-7612
MS-7612
MS-7612
1394 Controller - 6308P
1394 Controller - 6308P
1394 Controller - 6308P
CPWR_0
R607 54.9RST/4R607 54.9RST/4
R608 54.9RST/4R608 54.9RST/4
R609 54.9RST/4R609 54.9RST/4
R610 54.9RST/4R610 54.9RST/4
10
11
12
13
14
C724
C724
X_0.01u/50V/6
X_0.01u/50V/6
R603 54.9RST/4R603 54.9RST/4
R604 54.9RST/4R604 54.9RST/4
R605 54.9RST/4R605 54.9RST/4
R606 54.9RST/4R606 54.9RST/4
21
43
6
87
10
1
C189
C189
X_0.01u/50V/6
X_0.01u/50V/6
1394_USB1A
1394_USB1A
PWR
PWR
9
GND
GND
TP-
TP-
TP+ TP+
TP+ TP+
TP-
TP-
1394_USBX2-RH
1394_USBX2-RH
TPB1-TPB1+
Sheet of
Sheet of
Sheet of
22 42
22 42
22 42
TPA0+
TPA0ÂTPB0+
TPB0-
TPA1+
TPA1ÂTPB1+
TPB1-
1.0
1.0
1.0
5
DVI_TXD00+
DVI_TXD00-
D D
C C
B B
DVI_TXD02+
DVI_TXD02-
HDMI_TXD00+
HDMI_TXD00-
HDMI_TXD02+
HDMI_TXD02-
DVI_TXD01+
DVI_TXD01ÂDVI_TXD02+
DVI_TXD02-
DVI_TXD00+
DVI_TXD00ÂDVI_TXC+
DVI_TXC-
HDMI_TXD01+
HDMI_TXD01ÂHDMI_TXD02+
HDMI_TXD02-
HDMI_TXD00+
HDMI_TXD00ÂHDMI_TXC+
HDMI_TXC-
R221
R221
X_110R0402
X_110R0402
R226
R226
X_110R0402
X_110R0402
R236
R236
X_110R0402
X_110R0402
R242
R242
X_110R0402
X_110R0402
RN3
RN3
1
3
5
7
8P4R-0R
8P4R-0R
RN2
RN2
1
3
5
7
8P4R-0R
8P4R-0R
RN5
RN5
1
3
5
7
8P4R-0R
8P4R-0R
RN4
RN4
1
3
5
7
8P4R-0R
8P4R-0R
DVI_TXD01+
DVI_TXD01-
DVI_TXC+
DVI_TXC-
HDMI_TXD01+
HDMI_TXD01-
HDMI_TXC+
HDMI_TXC-
DVI_TXD01+_R
2
DVI_TXD01-_R
4
DVI_TXD02+_R
6
DVI_TXD02-_R
8
DVI_TXD00+_R
2
DVI_TXD00-_R
4
DVI_TXC+_R
6
DVI_TXC-_R
8
HDMI_TXD01+_R
2
HDMI_TXD01-_R
4
HDMI_TXD02+_R
6
HDMI_TXD02-_R
8
HDMI_TXD00+_R
2
HDMI_TXD00-_R
4
HDMI_TXC+_R
6
HDMI_TXC-_R
8
R230
R230
X_110R0402
X_110R0402
R214
R214
X_110R0402
X_110R0402
R245
R245
X_110R0402
X_110R0402
R232
R232
X_110R0402
X_110R0402
Shiner_Rev2.3c
for EMI request
I2C EEPROM for DHCP.
C499
C499
C0.1u25Y0402-RH
8
7
6
5
C0.1u25Y0402-RH
U34
A A
U34
1
A0
2
A1
3
A2
GND4SDA
AT24C16BN-SH-T
AT24C16BN-SH-T
VCC
SCL
WP
M33-24C16M3-A26
5
VCC3VCC3
R459
R459
10K/4
10K/4
SMBCLK
SMBDATA
SMBCLK 10,11,14,16,17,25,26,28
SMBDATA 10,11,14,16,17,25,26,28
AP Note
DA-03105-001-v03
4
Reserved for rear USB power
VCC3
Q20 X_N-2N7002_SOT23
Q20 X_N-2N7002_SOT23
S
DVI_DDC_CLK11
C62
C62
X_C10p50N0402
X_C10p50N0402
DVI_DDC_DATA11
C71
C71
X_C10p50N0402
X_C10p50N0402
HDMI_HOT_DET
DVI_HOT_DET
4
S
R116 33R0402R116 33R0402
VCC3
Q21
Q21
S
S
R131 33R0402R131 33R0402
place near HDMI connector
R229 200K/4R229 200K/4
R218 200K/4R218 200K/4
G
G
D
D
X_N-2N7002_SOT23
X_N-2N7002_SOT23
G
G
D
D
HDMI_HOT_DET
DVI_HOT_DET
VCC5
Y
D9
Z
X
Q35Q35
2
5
C144
C144
C135
C135
X_C470p50X0402
X_C470p50X0402
X_C470p50X0402
X_C470p50X0402
DVI_SEL
R205 X_10KR0402R205 X_10KR0402
R206 10KR0402R206 10KR0402
3
1PS226_SOT23D91PS226_SOT23
D11
D11
Z
VCC3
R216
R216
33R0402
33R0402
6
R219 33R0402R219 33R0402
1
3
4
TXD01P11
TXD01N11
TXD02P11
TXD02N11
TXD00P11
TXD00N11
TXC0P11
TXC0N11
R225
R225
10K/4
10K/4
TXD01P
TXD01N
TXD02P
TXD02N
DVI_SEL_IC
TXD00P
TXD00N
TXC0P
TXC0N
R224 1.5KR1%0402R224 1.5KR1%0402
VCC5_SB
R211
R211
10KR0402
10KR0402
DVI_CTL
Q30
Q30
D
D
G
G
S
S
R203
R203
N-2N7002_SOT23
N-2N7002_SOT23
150KR0402
150KR0402
DVI_CTL DVI_SEL
3
F-MICROSMD110F-RH
F-MICROSMD110F-RH
VCC5
C68
C68
C10u10Y0805
C10u10Y0805
VCC5
Y
X
1PS226_SOT23
1PS226_SOT23
VCC3
R228
R228
1.8KR1%0402-LF
1.8KR1%0402-LF
DVI_SEL_IC
VCC3
G
G
S
S
R212 X_0R0402R212 X_0R0402
DVIFS1
DVIFS1
1 2
R130
R130
HOTPLUG_DET 11
3
4
6
7
9
11
12
14
15
R210
R210
10KR0402
10KR0402
Q31
Q31
D
D
N-2N7002_SOT23
N-2N7002_SOT23
2.7KR0402
2.7KR0402
R129
R129
D0+
D0-
D1+
D1-
SEL
D2+
D2-
D3+
D3-
DVI_SEL
R127
R127
X_0R
X_0R
2.7KR0402
2.7KR0402
R143 0R0402R143 0R0402
R144 0R0402R144 0R0402
R238 X_R/2R238 X_R/2
R241 X_R/2R241 X_R/2
U14
U14
R204
R204
150KR0402
150KR0402
AC
D10
D10
S-BAS40WS_SOD323-RH
S-BAS40WS_SOD323-RH
VCC3
Y
D22
D22
Z
X
C151
C151
C133
C133
C0.1u16Y0402
C0.1u16Y0402
C0.1u16Y0402
C0.1u16Y0402
S-BAS40WS_SOD323-RH
S-BAS40WS_SOD323-RH
8
18
20
16
30
2
VDD
VDD
VDD
VDD
VDD
VDD
GND
GND
VSS13VSS
VSS
VSS
VSS
VSS
5
1
17
19
10
C130 C0.01u25X0402C130 C0.01u25X0402
C159
C159
X_C0.1u16Y0402
X_C0.1u16Y0402
L1 X_R/3L1 X_R/3
DVI_DDC_CLK_R
DVI_DDC_DATA_R
HDMI_DDC_CLK_R
HDMI_DDC_DATA_R
DVI_TXC+
DVI_TXC-
HDMI_TXC+
HDMI_TXC-
for EMI request
1PS226_SOT23
1PS226_SOT23
C129
C129
C158
C158
R233 X_0RR233 X_0R
C0.1u16Y0402
C0.1u16Y0402
C0.1u16Y0402
C0.1u16Y0402
42
40
VDD
VDD
D0+A
D0-A
D1+A
D1-A
D2+A
D2-A
D3+A
D3-A
D0+B
D0-B
D1+B
D1-B
D2+B
D2-B
D3+B
D3-B
VSS
VSS
VSS41VSS
PI3HDMI412FT-BZHE_TQFN42-RH
PI3HDMI412FT-BZHE_TQFN42-RH
21
39
43
HDMI_1_5V
C157 C0.01u25X0402C157 C0.01u25X0402
Truth Table
LHDx to DxA
SEL
Dx to DxB
DVI mode
default
2
HDMI5V
C69
C69
C0.1u25Y0402-RH
C0.1u25Y0402-RH
C134 X_10pf/50V/NPO/4C134 X_10pf/50V/NPO/4
C132 X_10pf/50V/NPO/4C132 X_10pf/50V/NPO/4
C153 X_10pf/50V/NPO/4C153 X_10pf/50V/NPO/4
C148 X_10pf/50V/NPO/4C148 X_10pf/50V/NPO/4
VCC3
VCC3
C22u6.3X50805-RH
C22u6.3X50805-RH
C152
C152
C160
AC
D24
D24
38
37
36
35
34
33
32
31
29
28
27
26
25
24
23
22
I2C Default Value
Byte-1 : Address : 0xC0
Byte-2 : Data : 0x47
Byte-3 : Data : 0x41
2
C161
C161
C0.1u16Y0402
C0.1u16Y0402
HDMI_TXD01+
HDMI_TXD01-
HDMI_TXD02+
HDMI_TXD02-
HDMI_TXD00+
HDMI_TXD00-
HDMI_TXC+
HDMI_TXC-
DVI_TXD01+
DVI_TXD01-
DVI_TXD02+
DVI_TXD02-
DVI_TXD00+
DVI_TXD00-
DVI_TXC+
DVI_TXC-
C160
C0.1u16Y0402
C0.1u16Y0402
DVI CONNECTOR
DVI_TXD02-_R
DVI_TXD02+_R
DVI_DDC_CLK_R
DVI_DDC_DATA_R
DVI_TXD01-_R
DVI_TXD01+_R
HDMI5V
DVI_HOT_DET
DVI_TXD00-_R
DVI_TXD00+_R
DVI_TXC+_R
DVI_TXC-_R
N5B-24F0171-K06 - AVL
N5B-24F0231-H06 - AVL
HDMI_TXD02+_R
HDMI_TXD02-_R
HDMI_TXD01+_R
HDMI_TXD01-_R
HDMI_TXD00+_R
HDMI_TXD00-_R
HDMI_TXC+_R
HDMI_TXC-_R
HDMI_DDC_CLK_R
HDMI_DDC_DATA_R
HDMI5V
HDMI_HOT_DET
U2:I94-3H4121C-P22
VCC5
C162 C10u6.3X50805C162 C10u6.3X50805
C166 C0.1u16Y0402C166 C0.1u16Y0402
C171 C10000p16X0402-RHC171 C10000p16X0402-RH
UP7707M5-00_SOT23-5-RH
UP7707M5-00_SOT23-5-RH
U15
U15
1
VIN
3
EN
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
1
VGA_DVI1B
VGA_DVI1B
25
Shell
D1
DATA2
D2
DATA2
D3
SHIELD24
D4
DATA4
D5
DATA4
D6
DDCCLK
D7
DDCDATA
D8
NC
D9
DATA1
D10
DATA1
D11
SHIELD13
D12
DATA3
D13
DATA3
D14
VCC5
D15
GND5
D16
HPDET
D17
DATA0
D18
DATA0
D19
SHIELD05
D20
DATA5
D21
DATA5
D22
SHIELDCLK
D23
CLK
D24
CLK
26
Shell1
VGA_DVI-RH-4
VGA_DVI-RH-4
HDMI CONNECTOR
CONN-HDMI19P_BLACK-RH-10
CONN-HDMI19P_BLACK-RH-10
HDMI1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
HDMI1
D2+
D2+
D2 Shield
D2 Shield
D2-
D2ÂD1+
D1+
D1 Shield
D1 Shield
D1-
D1ÂD0+
D0+
D0 Shield
D0 Shield
D0-
D0ÂCK+
CK+
CK Shield
CK Shield
CK-
CKÂCE Remote
CE Remote
NC
NC
DDC CLK
DDC CLK
DDC DATA
DDC DATA
GND
GND
+5V
+5V
HP DET
HP DET
SHELL1
SHELL1
SHELL2
SHELL2
21
MEC1
20
N5I-19M0161-L06
5
VOUT
FB
GND
4
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
HDMI_1_5V
C163
C163
R240
R240
887R1%0402
887R1%0402
R237
R237
1KR1%0402
1KR1%0402
X_C0.1u16Y0402
X_C0.1u16Y0402
MS-7612
MS-7612
MS-7612
JMicron 363 e-SATA X2/ IDE X1
JMicron 363 e-SATA X2/ IDE X1
JMicron 363 e-SATA X2/ IDE X1
1
Sheet of
Sheet of
Sheet of
23 42
23 42
23 42
C170
C170
C10u6.3X50805
C10u6.3X50805
R239
R239
120R0402
120R0402
1.0
1.0
1.0
5
4
3
2
1
Rear USB Connector Front USB Connector
USB POWER FOR PORT 0,1
NEAR CONNECTOR
RUSB_VCC1
5VDRV1_EN28
D D
USB_OCP#014
USB_EN14
R244
R244
4.7K/4
4.7K/4
VCC5
VCC5_SB
2
1
U16
U16
5
S3#
6
OC#
5VSB
5VCC
4
EN
GND
3
VOUT
VOUT
UP7533A_SOT23-8
UP7533A_SOT23-8
7
8
C174
C174
X_0.1u/10V/4
X_0.1u/10V/4
RUSB_VCC1
12
+
+
EC15
EC15
CD470u6.3SO-RH
CD470u6.3SO-RH
USB POWER FOR PORT 2,3 USB POWER FOR PORT 6,7
FUSB_VCC1
VCC5
R681
R681
4.7K/4
4.7K/4
5VDRV1_EN28
USB_OCP#414
USB_EN14
5
6
4
VCC5_SBFUSB_VCC4
2
1
U51
U51
S3#
OC#
EN
5VSB
5VCC
GND
3
VOUT
VOUT
UP7533A_SOT23-8
UP7533A_SOT23-8
7
8
C773
C773
X_0.1u/10V/4
X_0.1u/10V/4
FUSB_VCC4
12
+
+
EC57
EC57
CD470u6.3SO-RH
CD470u6.3SO-RH
5VDRV1_EN28
USB_OCP#214 USB_OCP#314
USB_EN14
R684
R684
4.7K/4
4.7K/4
VCC5
VCC5_SB
2
1
U55
U55
5
S3#
6
OC#
5VSB
5VCC
4
EN
GND
3
VOUT
VOUT
UP7533A_SOT23-8
UP7533A_SOT23-8
7
8
C790
C790
X_0.1u/10V/4
X_0.1u/10V/4
FUSB_VCC1
12
+
+
USB POWER FOR PORT 8,9
FUSB_VCC2
5VDRV1_EN28
EC61
EC61
CD470u6.3SO-RH
CD470u6.3SO-RH
USB_EN14
R682
R682
4.7K/4
4.7K/4
VCC5
VCC5_SB
2
1
U52
U52
5
S3#
6
OC#
5VSB
5VCC
4
EN
GND
3
VOUT
VOUT
UP7533A_SOT23-8
UP7533A_SOT23-8
7
8
C779
C779
X_0.1u/10V/4
X_0.1u/10V/4
FUSB_VCC2
12
+
+
EC58
EC58
CD470u6.3SO-RH
CD470u6.3SO-RH
USB POWER FOR PORT 4, 5
VCC5
RUSB_VCC3
5VDRV1_EN28
USB_OCP#114
USB_EN14
C C
R280
R280
4.7K/4
4.7K/4
5
6
4
REAR USB PORT 0,1 (With 1394)
RUSB_VCC1
SBD0ÂSBD0+
SBD1ÂSBD1+
FRONT USB PORT 2,3
B B
SBD3-
C774
C774
X_C0.1u16Y0402
X_C0.1u16Y0402
SBD3+
VCC5_SB
2
1
U19
U19
S3#
OC#
EN
C178 C0.1u25Y0402-RHC178 C0.1u25Y0402-RH
1394_USB1B
1394_USB1B
5
6
7
8
1
2
3
4
1394_USBX2-RH
1394_USBX2-RH
5VCC
3
PWR
PWR
USB-
USBÂUSB+
USB+
GND
GND
PWR
PWR
USB-
USBÂUSB+
USB+
DOWN
DOWN
JUSB1
JUSB1
VCC1VCC
USB0-3USB1ÂUSB0+5USB1+
GND7GND
2X5(9)USB_yellow
2X5(9)USB_yellow
VOUT
5VSB
VOUT
GND
UP7533A_SOT23-8
UP7533A_SOT23-8
GND
GND
GND
GND
GND
GND
UP
UP
GND
GND
GND
GND
GND
GND
GND
GND
GNDGND
GNDGND
SBD3-
SBD3+
SBD2-
SBD2+
USBOC
7
C217
C217
8
X_0.1u/10V/4
X_0.1u/10V/4
15
16
17
18
SBD1+ USB1+
19
20
21
SBD0+ USB0+
22
C777 X_C47p50N0402-RHC777 X_C47p50N0402-RH
C778 X_C47p50N0402-RHC778 X_C47p50N0402-RH
C775 X_C47p50N0402-RHC775 X_C47p50N0402-RH
C776 X_C47p50N0402-RHC776 X_C47p50N0402-RH
2
SBD2-
4
SBD2+
6
8
10
SBD2- USB2-
SBD3+ USB3+
12
+
+
EC23
EC23
CD470u6.3SO-RH
CD470u6.3SO-RH
4
3
2
1
X_CMC-L12-1218017-RH
X_CMC-L12-1218017-RH
L7
L7
SBD0-
C199 X_C47p50N0402-RHC199 X_C47p50N0402-RH
SBD0+
C200 X_C47p50N0402-RHC200 X_C47p50N0402-RH
SBD1-
C202 X_C47p50N0402-RHC202 X_C47p50N0402-RH
SBD1+
C205 X_C47p50N0402-RHC205 X_C47p50N0402-RH
1
2
3
4
8
7
6
5
L18
L18
X_CMC-L12-1218017-RH
X_CMC-L12-1218017-RH
VCC5_SBVCC5_SBRUSB_VCC3
VCC5
EC56 CD470u6.3SO-RH+EC56 CD470u6.3SO-RH
12
+
RUSB_VCC1
SBD1+ SBD0+
6
SBD1- SBD0-
1
USB1-SBD1-
USB0-SBD0-
USB1+ 14
USB1- 14
USB0+ 14
USB0- 14
SBD2ÂSBD2+
FUSB_VCC4
C764 C10u10Y0805C764 C10u10Y0805
52
6
1
VCC5_SB
C760 C10u10Y0805C760 C10u10Y0805
D28
D28
4
3
ESD-IP4220
ESD-IP4220
52
D49
D49
4
3
ESD-IP4220
ESD-IP4220
C763 C10u10Y0805C763 C10u10Y0805
SBD3-
SBD3+
NEAR CONNECTOR
5
USB2+SBD2+
6
USB3-SBD3-
7
8
USB2- 14
USB2+ 14
USB3- 14
USB3+ 14
USB POWER FOR PORT 10,11
FUSB_VCC3
5VDRV1_EN28
USB_OCP#414
USB_EN14
R683
R683
4.7K/4
4.7K/4
VCC5
U54
U54
5
S3#
6
OC#
4
EN
FRONT USB PORT 6,7
L21
SBD6+
SBD7- USB7ÂSBD7+
L21
1
2
3
4
X_CMC-L12-1218017-RH
X_CMC-L12-1218017-RH
USB6+
5
USB6-SBD6-
6
7
USB7+
8
FRONT USB PORT 8,9
L19
SBD8+
SBD9- USB9ÂSBD9+
L19
1
2
3
4
X_CMC-L12-1218017-RH
X_CMC-L12-1218017-RH
USB8+
5
USB8-SBD8-
6
7
USB9+
8
VCC5_SB
2
1
5VSB
5VCC
GND
UP7533A_SOT23-8
UP7533A_SOT23-8
3
USB6+ 14
USB6- 14
USB7- 14
USB7+ 14
USB8+ 14
USB9+ 14
7
VOUT
8
VOUT
X_C0.1u16Y0402
X_C0.1u16Y0402
X_C0.1u16Y0402
X_C0.1u16Y0402
USB8- 14
USB9- 14
C791
C791
X_0.1u/10V/4
X_0.1u/10V/4
FUSB_VCC3
C785
C785
C780
C780
12
+
+
EC60
EC60
CD470u6.3SO-RH
CD470u6.3SO-RH
FUSB_VCC1
SBD6ÂSBD6+
SBD6ÂSBD6+
SBD7ÂSBD7+
SBD8ÂSBD8+
JUSB4
JUSB4
VCC1VCC
USB0-3USB1ÂUSB0+5USB1+
GND7GND
2X5(9)USB_yellow
2X5(9)USB_yellow
C794 X_C47p50N0402-RHC794 X_C47p50N0402-RH
C795 X_C47p50N0402-RHC795 X_C47p50N0402-RH
C793 X_C47p50N0402-RHC793 X_C47p50N0402-RH
C792 X_C47p50N0402-RHC792 X_C47p50N0402-RH
FUSB_VCC2FUSB_VCC4
JUSB2
JUSB2
VCC1VCC
USB0-3USB1ÂUSB0+5USB1+
GND7GND
2X5(9)USB_yellow
2X5(9)USB_yellow
SBD8-
C783 X_C47p50N0402-RHC783 X_C47p50N0402-RH
SBD8+
C784 X_C47p50N0402-RHC784 X_C47p50N0402-RH
SBD9-
C782 X_C47p50N0402-RHC782 X_C47p50N0402-RH
SBD9+
C781 X_C47p50N0402-RHC781 X_C47p50N0402-RH
USBOC
USBOC
VCC5 VCC5_SBVCC5_SB
EC53 CD470u6.3SO-RH+EC53 CD470u6.3SO-RH
12
+
FUSB_VCC1
SBD6-
2
SBD7-
4
SBD7+
6
8
10
2
SBD9-
4
SBD9+
6
8
10
SBD6+ SBD7+
FUSB_VCC2
SBD8ÂSBD8+ SBD9+
C179 C10u10Y0805C179 C10u10Y0805
C246 C10u10Y0805C246 C10u10Y0805
52
D52
D52
6
4
1
3
ESD-IP4220
ESD-IP4220
NEAR CONNECTOR
52
D50
D50
6
4
1
3
ESD-IP4220
ESD-IP4220
SBD7-
SBD9-
NEAR CONNECTOR
SBD10ÂSBD10+
FUSB_VCC3
JUSB3
JUSB3
VCC1VCC
USB0-3USB1ÂUSB0+5USB1+
GND7GND
2X5(9)USB_yellow
2X5(9)USB_yellow
MSI
MSI
MSI
2
SBD11-
4
SBD11+
6
8
10
USBOC
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
USB Connector
USB Connector
USB Connector
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
SBD5-
C258 X_C47p50N0402-RHC258 X_C47p50N0402-RH
SBD5+
REAR USB PORT 4,5 (With LAN)
A A
SBD5ÂSBD5+
SBD4ÂSBD4+
L9
L9
1
2
3
4
5
6
7
8
X_CMC-L12-1218017-RH
X_CMC-L12-1218017-RH
5
C257 X_C47p50N0402-RHC257 X_C47p50N0402-RH
SBD4-
C256 X_C47p50N0402-RHC256 X_C47p50N0402-RH
SBD4+
C255 X_C47p50N0402-RHC255 X_C47p50N0402-RH
USB5- 14
USB5+ 14
USB4- 14
USB4+ 14
C233
C233
C0.1u25Y0402-RH
C0.1u25Y0402-RH
SBD5ÂSBD5+
SBD4ÂSBD4+
RUSB_VCC3
LAN_USB1A
LAN_USB1A
CONN-RJ45_USBX2_LEDX2_TX-RH
CONN-RJ45_USBX2_LEDX2_TX-RH
5
6
7
8
UP
UP
1
2
3
4
DOWN
DOWN
4
RUSB_VCC3
23
24
25
26
SBD4+ SBD5+
27
28
29
30
52
D31
D31
6
4
1
3
ESD-IP4220
ESD-IP4220
NEAR USB CONNECTOR
SBD5-SBD4-
FRONT USB PORT 10,11
L20
SBD10-
SBD10+
SBD11- USB11-
SBD11+
3
L20
1
2
3
4
5
6
7
8
X_CMC-L12-1218017-RH
X_CMC-L12-1218017-RH
USB10ÂUSB10+
USB11+
X_C0.1u16Y0402
X_C0.1u16Y0402
USB10- 14
USB10+ 14
USB11- 14
USB11+ 14
SBD10ÂSBD10+
SBD11ÂSBD11+
C786
C786
C789 X_C47p50N0402-RHC789 X_C47p50N0402-RH
C796 X_C47p50N0402-RHC796 X_C47p50N0402-RH
C788 X_C47p50N0402-RHC788 X_C47p50N0402-RH
C787 X_C47p50N0402-RHC787 X_C47p50N0402-RH
2
SBD10ÂSBD10+
MS-7612
MS-7612
MS-7612
1
FUSB_VCC3
6
1
NEAR CONNECTOR
Sheet of
Sheet of
Sheet of
52
D51
D51
ESD-IP4220
ESD-IP4220
SBD11-
4
SBD11+
3
24 42
24 42
24 42
1.0
1.0
1.0
5
VCC5_SB
R15
R15
4.7KR0402
4.7KR0402
VCC3
R23 4.7KR0402R23 4.7KR0402
R14 4.7KR0402R14 4.7KR0402
R71
R71
X_4.7KR0402
X_4.7KR0402
VCC3
R95
R95
4.7KR0402
4.7KR0402
LDT_PWRGD3,9
D D
VCORE_EN14
PWR_GOOD14,26
C25
C25
C100p50N0402
C100p50N0402
CORE Compensation
Network
C C
R159 X_0R0402R159 X_0R0402
RT1
RT1
X_10KRT1%
X_10KRT1%
NTC (Place
close to Lcore
L1_PWM1)
R158 X_0R0402R158 X_0R0402
UP6262_ FB
COREFB+
COREFB-
NB Compensation Network
NB_VSEN3
R4
49.9R1%0402R449.9R1%0402
UP6262 NB_FB
0R0402
0R0402
2.2KR0402R22.2KR0402
R3
0R0402R30R0402
R153
R153
2.2KR1%0402
2.2KR1%0402
R16
R16
R2
GND
R142 820R0402R142 820R0402
R145
R145
0R0402
0R0402
R146
R146
R1
4.99KR1%0402R14.99KR1%0402
C4
C4
C0.01u25X0402
C0.01u25X0402
R18
R18
100R1%0402
100R1%0402
C33
C33
C0.1u16Y0402
C0.1u16Y0402
R154
R154
VCC3
R30
R30
4.7KR0402
652
1
3
4
GND
VID33
VID23
VRMST_PWROK
C66 C100p50NC66 C100p50N
R148 2KR1%0402R148 2KR1%0402
R48 68KR0402R48 68KR0402
R61 33KR0402R61 33KR0402
C63 C3300p50X0402C63 C3300p50X0402
R141
R141
11.5KR1%0402
11.5KR1%0402
C10p50X0402-RH
C10p50X0402-RH
0R0402
0R0402
R19 0R0402R19 0R0402
C3
C3
C0.01u16X0402
C0.01u16X0402
C11
C11
C470p16X0402
C470p16X0402
4.7KR0402
VCC_DDR
R86
R86
1KR0402
1KR0402
R149 3KR1%0402R149 3KR1%0402
VRM_VDD_RUN_OSC
C64
C64
R133
R133
0R0402
0R0402
C65 C0.1u10X0402C65 C0.1u10X0402
VRM_VDD_RUN_NB_OS
R17
R17
X_0R0402
X_0R0402
NB_VSEN_R
C12 C0.1u10X0402C12 C0.1u10X0402
VRMST_PWROK
C17
C17
X_C100p50N0402
X_C100p50N0402
GND
R87
R87
1KR0402
1KR0402
VID3
VID2
VCORE_EN
VCC5_SB
VRM_VDD_RUN_FIXEN
VRM_VDD_RUN
R134
R134
150KR1%0402-RH
150KR1%0402-RH
CORE_COMP
VRM_VDD_RUN_DROOP
NB_COMP
VRM_VDD_RUN_NB_DROOP
NB_FB
U4
U4
39
40
38
37
41
10
27
21
8
3
5
4
6
7
29
34
32
33
31
30
Q3Q3
C75 X_C0.01u16X0402C75 X_C0.01u16X0402
R152 X_130R1%0402R152 X_130R1%0402 CP12CP12
49.9R1%0402
49.9R1%0402
NB_GND
L6740L_HTQFP48-RH
C73
C73
X_C150p50N0402
X_C150p50N0402
L6740L_HTQFP48-RH
VRM_VDD_RUN_NB_DROOP
NB Load Indicator
by Droop NB pin
Place close L6740L
VRM_VDD_RUN_DROOP
CORE Load Indicator
by Droop pin
CPU_VDD_RUN_LTB_GAIN
LTB Tecnology
(TM) Network
R156
R156
X_100R1%0402
X_100R1%0402
R155
R155
100R1%0402
100R1%0402
GND
R147
R147
100R1%0402
100R1%0402
GND
R39
R39
100R1%0402
100R1%0402
CORE_COMP
COREFB+
COREFB-
NB_VSEN
NB_GND
R38 0R0402R38 0R0402
R132 X_0RR132 X_0R
47KR1%0402-RH
47KR1%0402-RH
R136
R136
CPU_VDD_RUN_LTB
R135
R135
0R0402
0R0402
CORE_COMP26
COREFB+3
COREFB-3
CORE Remote
Sense Connections
Sense under the socket close to regulation point
VCCP
B B
NB_VSEN3
NB_GND3
NB Remote Sense
Connections
Sense under the socket close to regulation point
R21
R21
100R1%0402
100R1%0402
VCCP_NB
VDD_12V2_RUN VDD_12V2_RUN_CORE
MEC1
PWR1
PWR1
1
5
GNDGNDGNDGND
GNDGNDGNDGND
+12V+12V+12V+12V
+12V+12V+12V+12V
2
6
3
7
4
A A
GND
8
PWRCONN8P_BLACK-RH-2
PWRCONN8P_BLACK-RH-2
CHOKE1
CHOKE1
1 2
CH-1.1u27A1.7m-RH
CH-1.1u27A1.7m-RH
5
CD270u16SO-RH-2
+
+
12
+
+
12
EC26
EC26
EC5
EC5
CP1CP1
12
GND
CD270u16SO-RH-2
CD270u16SO-RH-2
CD270u16SO-RH-2
CD270u16SO-RH-2
+
+
12
+
+
12
+
+
12
EC13
EC13
EC10
EC10
EC21
EC21
UP6262_ FB
R28
R28
GND
CD270u16SO-RH-2
CD270u16SO-RH-2
CD270u16SO-RH-2
CD270u16SO-RH-2
CD270u16SO-RH-2
4
why though 300 ohm pull down to GND
R35 X_300R0402R35 X_300R0402
VCC_DDR
VID0
VID1
VID4
VID5
PWM1
PWM2
PWM3
PWM4
CS1+
CS1-
CS2+
CS2-
CS3+
CS3-
CS4+
CS4-
VCC
SGND
PSI_L
LTB9LTB_GAIN11THERMALPAD
OC_AVG_LI_P19,26
R36 X_27R0402R36 X_27R0402
VID0 3
VID1 3
VID4 3
VID5 3
CPU_VDD_RUN_PWMDRV1CPU_VDD_RUN_PWMDRV1CPU_VDD_RUN_PWMDRV1CPU_VDD_RUN_PWMDRV1
48
CPU_VDD_RUN_PWMDRV2CPU_VDD_RUN_PWMDRV2CPU_VDD_RUN_PWMDRV2CPU_VDD_RUN_PWMDRV2
47
CPU_VDD_RUN_PWMDRV3CPU_VDD_RUN_PWMDRV3CPU_VDD_RUN_PWMDRV3
46
CPU_VDD_RUN_PWMDRV4CPU_VDD_RUN_PWMDRV4CPU_VDD_RUN_PWMDRV4CPU_VDD_RUN_PWMDRV4
45
CPU_VDD_RUN_CS1+
13
R121
R121
14
CPU_VDD_RUN_CS2+
15
R106
R106
16
CPU_VDD_RUN_CS3+
17
R92 3KR1%0402R92 3KR1%0402
18
CPU_VDD_RUN_CS4+
19
20
R67
R67
Place close L6740L
44
R53
R53
23
7.5KR1%0402
7.5KR1%0402
42
R101
R101
43
0R0402
0R0402
1
C44
C44
2
C1u16X0805
C1u16X0805
12
CPU_VDD_RUN_LTB
CPU_VDD_RUN_LTB_GAIN
OC_AVG_LI_P
VCORE_EN
C1500p50X0402
C1500p50X0402
L6740L
Average Over Current/LI
OC_AVG_LI_P
C51 C0.22u10Y0402C51 C0.22u10Y0402
2.37KR1%0402
2.37KR1%0402
C39 C0.22u10Y0402C39 C0.22u10Y0402
2.37KR1%0402
2.37KR1%0402
C31 C0.22u10Y0402C31 C0.22u10Y0402
C23 C0.22u10Y0402C23 C0.22u10Y0402
3.74KR1%0402
3.74KR1%0402
NB_PWM
CPU_VDD_ISEN_NB
NB OCP Change while use Dr-MOS
ENDRV_L6740 26
R115
R115
10R1%0805
10R1%0805
C58
C58
C0.1u16X
C0.1u16X
PSI_L
Fit the NB Core OVP
L6740L PreOVP Reset
C20
C20
R54
R54
3.3KR1%0402
3.3KR1%0402
R64
R64
3.3KR1%0402
3.3KR1%0402
R20
R20
47.5KR1%0402
47.5KR1%0402
SVC/VID3
SVD/VID2
EN
PWROK
PWRGOOD
OVP/V_FIX
OSC / FLT
OC_PHASE
OS
COMP
DROOP
FB
VSEN
FBG
NB_OS
NB_COMP
NB_DROOP
NB_FB
NB_VSEN
NB_FBG
NC122OC_AVG/LI
NC2
24
GND
COREFB+
CPU_CORE_TYPE3,26
25
36
VID526VID4
VID035VID1
NB_PWM
NB_ISEN
NB_ENDRV
ENDRV
ST L6740L - AMD (4+1) SVID CONTROLLER
ST L6740L - AMD (4+1) SVID CONTROLLER
28
49
UP6262 : VCCP & VCCP_NB OV
VCC5
R31 2.2R/0603R31 2.2R/0603
C5
C0.1u16Y0402C5C0.1u16Y0402
1
U1
0R0402
0R0402
SMBDATA10,11,14,16,17,23,26,28
UP6262_ FB_R
U1
3
GND
4
SDA
8
OUT1
R11
R11
X_1KR0402
X_1KR0402
4
UP6262 NB_FB_R
7
OUT2
VCC
BRO4_CORE_R BR04_CORE
6
OUT3
5
SCL
BUS_SEL
2
UP6262M8_SOT23-8-RH
UP6262M8_SOT23-8-RH
R8
10KR0402R810KR0402
VCC5
VDD_12V2_RUN_CORE
VCC5_SB
VID1
R37
R37
300R0402
300R0402
GND
CPU_VDD_RUN_CS1-CPU_VDD_RUN_CS1-CPU_VDD_RUN_CS1-CPU_VDD_RUN_CS1-
GND
CPU_VDD_RUN_CS2-CPU_VDD_RUN_CS2-CPU_VDD_RUN_CS2-CPU_VDD_RUN_CS2-CPU_VDD_RUN_CS2-CPU_VDD_RUN_CS2-CPU_VDD_RUN_CS2-CPU_VDD_RUN_CS2-
GND
CPU_VDD_RUN_CS3-CPU_VDD_RUN_CS3-CPU_VDD_RUN_CS3-CPU_VDD_RUN_CS3-CPU_VDD_RUN_CS3-
GND
CPU_VDD_RUN_CS4-CPU_VDD_RUN_CS4-
VDD_12V2_RUN
VCC3
R150
R150
X_3.3KR1%0402
X_3.3KR1%0402
R137
R137
5.1KR0402
5.1KR0402
NB_PWM
R100
R100
200R0402
200R0402
C
C
Q8
Q8
B
B
E
E
2N3904
2N3904
Place close L6740L
C9
C100p50N0402C9C100p50N0402
UP6262 NB_FB
R22 0R0402R22 0R0402
R7
0R0402R70R0402
SMBCLK 10,11,14,16,17,23,26,28
BUS_SEL=100%VCC
I2C address:0X60
R643=10K;R644=OPEN
D32
D32
S-BAT54C_SOT23
S-BAT54C_SOT23
X
Y
EN_PHASE226
VDD_12V2_RUN_CORE
VCC5_SB
BR04_CORE 29
Z
CPU_VDD_PVCC_4
C274
C274
C2.2u16Y0805
C2.2u16Y0805
GND
EN_PHASE426
CPU_VDD_PVCC_3
GND
GND
GND
S-BAT54C_SOT23
S-BAT54C_SOT23
X
Y
3
CORE_PRE_OVP
CPU_VDD_RUN_PWMDRV4
CORE_PRE_OVP
C223
C223
C2.2u16Y0805
C2.2u16Y0805
CPU_VDD_RUN_PWMDRV3
EN_PHASE326
CORE_PRE_OVP
CPU_VDD_PVCC_2
C181
C181
C2.2u16Y0805
C2.2u16Y0805
EN_PHASE2
CORE_PRE_OVP
CPU_VDD_PVCC_1
C137
C137
C2.2u16Y0805
C2.2u16Y0805
GND
EN_PHASE126
D12
D12
Z
GND
3
R300
R300
2.2R0805
2.2R0805
EN_PHASE4
R267
R267
2.2R0805
2.2R0805
EN_PHASE3
R251
R251
2.2R0805
2.2R0805
CPU_VDD_RUN_PWMDRV2
R223
R223
2.2R0805
2.2R0805
CPU_VDD_RUN_PWMDRV1
EN_PHASE1
NB_CORE_PRE_OVP
CPU_VDD_PVCC_NB
C70
C70
C2.2u16Y0805
C2.2u16Y0805
GND
NB_PWM
GND
GND
GND
GND
R161
R161
2.2R0805
2.2R0805
R151 2.2R0805R151 2.2R0805
2
4
3
2
4
3
C72
C72
C10p50N0402
C10p50N0402
R295 4.7RR295 4.7R
CPU_VDD_ISEN_4
CPU_VDD_BOOT4_RC
D30 X_1N4148W-F_SOD123-RHD30 X_1N4148W-F_SOD123-RH
U20
U20
PWM
VCC
UGATE
EN
PHASE
GND6LGATE
CPU_VDD_ISEN_3
BOOT
L6743_SO8-RH
L6743_SO8-RH
1
8
7
5
CPU_VDD_BOOT4
CPU_VDD_RUN_PWMUGATE4
CPU_VDD_ISEN_4
CPU_VDD_RUN_PWMLGATE4
R265 4.7RR265 4.7R
CPU_VDD_BOOT3_RC
D29 X_1N4148W-F_SOD123-RHD29 X_1N4148W-F_SOD123-RH
U18
U18
2
PWM
4
VCC
3
EN
GND6LGATE
U17
U17
PWM
VCC
EN
GND6LGATE
UGATE
PHASE
CPU_VDD_ISEN_2
BOOT
UGATE
PHASE
CPU_VDD_ISEN_1
1
BOOT
8
7
5
L6743_SO8-RH
L6743_SO8-RH
1
8
7
5
L6743_SO8-RH
L6743_SO8-RH
R250 4.7RR250 4.7R
R220 4.7RR220 4.7R
CPU_VDD_BOOT3
CPU_VDD_RUN_PWMUGATE3CPU_VDD_RUN_PWMUGATE3CPU_VDD_RUN_PWMUGATE3
CPU_VDD_ISEN_3
CPU_VDD_RUN_PWMLGATE3
CPU_VDD_BOOT2_RC CPU_VDD_BOOT2
D26
D26
X_1N4148W-F_SOD123-RH
X_1N4148W-F_SOD123-RH
CPU_VDD_BOOT2
CPU_VDD_RUN_PWMUGATE2
CPU_VDD_ISEN_2
CPU_VDD_RUN_PWMLGATE2
CPU_VDD_BOOT1_RC CPU_VDD_BOOT1
D23 X_1N4148W-F_SOD123-RHD23 X_1N4148W-F_SOD123-RH
U13
U13
2
PWM
4
VCC
3
EN
GND6LGATE
CPU_VDD_BOOT1
1
BOOT
CPU_VDD_RUN_PWMUGATE1
8
UGATE
7
PHASE
5
CPU_VDD_RUN_PWMLGATE1
L6743_SO8-RH
L6743_SO8-RH
R157 4.7RR157 4.7R
CPU_VDD_ISEN_NB CPU_VDD_BOOTNB_RC CPU_VDD_BOOTNB
D13 X_1N4148W-F_SOD123-RHD13 X_1N4148W-F_SOD123-RH
U9
U9
6
7
4
3
ST/L6741_SOIC8-RH
ST/L6741_SOIC8-RH
VCC
PVCC
GND
PWM
UGATE
PHASE
LGATE
BOOT
1
2
8
5
C265
C265
C0.22u25X-RH
C0.22u25X-RH
CPU_VDD_BOOT4
R297 1R1%0805R297 1R1%0805
C211
C211
C0.22u25X-RH
C0.22u25X-RH
C176
C176
C0.22u25X-RH
C0.22u25X-RH
R246 1R1%0805R246 1R1%0805
C131
C131
C0.22u25X-RH
C0.22u25X-RH
CPU_VDD_ISEN_1
CPU_VDD_RUN_PWMUGATENB
CPU_VDD_BOOTNBCPU_VDD_BOOTNB
CPU_VDD_ISEN_NB
CPU_VDD_RUN_PWMLGATENB
2
VDD_12V2_RUN_CORE
R294
R294
10KR
10KR
R283 0RR283 0R
R275 0RR275 0R
CPU_VDD_BOOT3
R258 1R1%0805R258 1R1%0805
R252 0RR252 0R
R254 0RR254 0R
R247
R247
10KR
10KR
R227 0RR227 0R
R235 0RR235 0R
R213 1R1%0805R213 1R1%0805
R172 0RR172 0R
R186 0RR186 0R
C79
C79
C0.22u25X-RH
C0.22u25X-RH
R165 1R1%R165 1R1%
R119 0RR119 0R
2
Q53
Q53
N-048090_TO252
N-048090_TO252
D
D
G
G
S
S
D
D
Q42
Q42
G
G
N-048060_TO252
N-048060_TO252
S
S
VDD_12V2_RUN_CORE
Q41
Q41
N-048090_TO252
N-048090_TO252
D
D
G
G
S
S
R259
R259
10KR
10KR
D
D
G
G
N-048060_TO252
N-048060_TO252
S
S
VDD_12V2_RUN_CORE
Q38
Q38
N-048090_TO252
N-048090_TO252
D
D
G
G
S
S
D
D
Q37
Q37
G
G
N-048060_TO252
N-048060_TO252
S
S
VDD_12V2_RUN_CORE
Q34
Q34
N-048090_TO252
N-048090_TO252
D
D
G
G
S
S
R215
R215
10KR
10KR
D
D
Q29
Q29
G
G
N-048060_TO252
N-048060_TO252
S
S
VDD_12V2_RUN_CORE
R164
R164
10KR
10KR
R120 0RR120 0R
Q40
Q40
G
G
G
G
D
D
G
G
S
S
D
D
G
G
S
S
D
D
G
G
S
S
D
D
G
G
S
S
Q24
Q24
N-048090_TO252
N-048090_TO252
D
D
S
S
D
D
Q23
Q23
N-048060_TO252
N-048060_TO252
S
S
Q44
Q44
N-048060_TO252
N-048060_TO252
GND
Q39
Q39
N-048060_TO252
N-048060_TO252
GND
Q36
Q36
N-048060_TO252
N-048060_TO252
GND
Q27
Q27
N-048060_TO252
N-048060_TO252
GND
D
D
Q22
Q22
G
G
N-048060_TO252
N-048060_TO252
S
S
GND
C40
C40
C1u16Y
C1u16Y
C245
C245
C1u16Y
C1u16Y
C196
C196
C1u16Y
C1u16Y
C165
C165
C1u16Y
C1u16Y
C120
C120
C1u16Y
C1u16Y
GND
C251
C251
C10u16Y1206
C10u16Y1206
GND
C194
C194
C10u16Y1206
C10u16Y1206
GND
C169
C169
C10u16Y1206
C10u16Y1206
GND
C47
C47
GND
C124
C124
C10u16Y1206
C10u16Y1206
C10u16Y1206
C10u16Y1206
CHOKE7
CHOKE7
CH-0.25u40A0.65m-RH
CH-0.25u40A0.65m-RH
1 2
C226
C226
12
C2200p50X
C2200p50X
CP14CP14
R85
R85
39.2KR1%0402
39.2KR1%0402
C29 C0.01u25X0402C29 C0.01u25X0402
CPU_VDD_RUN_SNUB4
R276
R276
2.2R0805
2.2R0805
GND
CPU_VDD_RUN_CS4+
CHOKE6
CHOKE6
CH-0.25u40A0.65m-RH
CH-0.25u40A0.65m-RH
1 2
C185
C185
12
C2200p50X
C2200p50X
R97
R97
39.2KR1%0402
39.2KR1%0402
C35 C0.01u25X0402C35 C0.01u25X0402
CPU_VDD_RUN_SNUB3
R253
R253
2.2R0805
2.2R0805
GND
CPU_VDD_RUN_CS3+
CHOKE5
CHOKE5
CH-0.25u40A0.65m-RH
CH-0.25u40A0.65m-RH
1 2
C146
C146
12
C2200p50X
C2200p50X
CP10CP10
R111
R111
39.2KR1%0402
39.2KR1%0402
CPU_VDD_RUN_SNUB2
C43
C43
C0.01u25X0402
C0.01u25X0402
R231
R231
2.2R0805
2.2R0805
GND
CPU_VDD_RUN_CS2+
CHOKE3
CHOKE3
CH-0.25u40A0.65m-RH
CH-0.25u40A0.65m-RH
1 2
C96
C96
12
C2200p50X
C2200p50X
CP8CP8
R123
R123
39.2KR1%0402
39.2KR1%0402
C57
C57
CPU_VDD_RUN_SNUB1
C0.01u25X0402
C0.01u25X0402
R181
R181
2.2R0805
2.2R0805
GND
CPU_VDD_RUN_CS1+
CPU_VDDNB_RUN
C83
C83
C2200p50X0402
C2200p50X0402
CPU_VDD_RUN_SNUBNB
R171
R171
2.2R0805
2.2R0805
GND
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Date:
Date:
1
+
12
12
EC11
CD820u2.5SO-RH-1+EC11
12
CP15CP15
CD820u2.5SO-RH-1
GND
CPU_VDD_RUN_CS4-
+
12
EC12
CD820u2.5SO-RH-1+EC12
12
CP13CP13
CD820u2.5SO-RH-1
CPU_VDD_RUN_CS3-CPU_VDD_RUN_CS2-
12
+
12
EC18
CD820u2.5SO-RH-1+EC18
12
CP11CP11
12
CP9CP9
CD820u2.5SO-RH-1
GND
+
12
EC24
CD820u2.5SO-RH-1+EC24
CD820u2.5SO-RH-1
CPU_VDD_RUN_CS1-
CHOKE2
CHOKE2
CH-1.1u27A2.5m-RH
CH-1.1u27A2.5m-RH
1 2
+
12
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MS-7612
ST L6740L+uPI6262 -- 4+1 PHASE
ST L6740L+uPI6262 -- 4+1 PHASE
ST L6740L+uPI6262 -- 4+1 PHASE
Wednesday, June 17, 2009
Wednesday, June 17, 2009
Wednesday, June 17, 2009
1
Sheet of
Sheet of
Sheet of
+
CD820u2.5SO-RH-1+EC9
CD820u2.5SO-RH-1
+
12
GND
+
CD820u2.5SO-RH-1+EC22
CD820u2.5SO-RH-1
+
12
GND
EC6
CD820u2.5SO-RH-1+EC6
CD820u2.5SO-RH-1
VCCP
EC9
EC14
CD820u2.5SO-RH-1+EC14
CD820u2.5SO-RH-1
EC22
EC25
CD820u2.5SO-RH-1+EC25
CD820u2.5SO-RH-1
+
12
CD820u2.5SO-RH-1+EC3
CD820u2.5SO-RH-1
GND GND
25 42
25 42
25 42
GND
VCCP_NB
EC3
R243
R243
47.5R1%
47.5R1%
R177
R177
47.5R1%
47.5R1%
1.0
1.0
1.0
5
ref
C18
C18
C4700p16X7-RH
C4700p16X7-RH
D D
C4700p16X7-RH
C4700p16X7-RH
C13
C13
R50
R50
56KR1%0402
56KR1%0402
R49
R49
4.7KR1%0402
4.7KR1%0402
R42
R42
4.7KR1%0402
4.7KR1%0402
OC_AVG_LI_P
TH_PHASE4
OC_AVG_LI_P 19,25
3
2
C7
C7
X_C0.1u10X0402
X_C0.1u10X0402
VCC5
C16
C16
C0.1u10X0402
C0.1u10X0402
R29
R29
1MR1%0402-RH
1MR1%0402-RH
U3A
U3A
+
+
1
-
-
LM324DR2G_SOIC14-RH
LM324DR2G_SOIC14-RH
11 4
VCC5
R66
R66
2MR1%0402-RH
2MR1%0402-RH
U3B
C4700p16X7-RH
C4700p16X7-RH
TH_PHASE3
R55
R55
C19
C19
12KR1%0402-RH-1
12KR1%0402-RH-1
C24
C24
X_C0.1u10X0402
X_C0.1u10X0402
U3B
5
+
+
7
6
-
-
LM324DR2G_SOIC14-RH
LM324DR2G_SOIC14-RH
11 4
VCC5
R62
R62
3MR1%0402-RH
3MR1%0402-RH
U3C
TH_PHASE2
C C
C21
C21
X_C0.1u10X0402
X_C0.1u10X0402
U3C
10
+
+
9
-
-
LM324DR2G_SOIC14-RH
LM324DR2G_SOIC14-RH
11 4
8
VCC5_SB
VCC5
PWR_GOOD14,25
R107
R107
1KR0402
1KR0402
X_C1u6.3X50402-1
X_C1u6.3X50402-1
C36
C36
GND
U8
U8
GND
Q12
Q12
D
D
G
G
S
S
N-2N7002_SOT23
N-2N7002_SOT23
GND
1
VIN
3
EN
UP7707M5-00_SOT23-5-RH
UP7707M5-00_SOT23-5-RH
VCC5
C49
C49
C1u6.3X50402-1
C1u6.3X50402-1
B B
VCC3
R74
R74
1KR0402
1KR0402
GPIO_PHASESWITCH
GPIO_EN High Disable Phase Switch
2
GND
FB
GND
4
5
VOUT
C38
C38
X_C0.1u10X0402
X_C0.1u10X0402
GND
R104
R104
3.9KR1%0402
3.9KR1%0402
R98
R98
2.4KR1%0402-1
2.4KR1%0402-1
ref
VCC5_SB
ENDRV_L674025
VCC3
GND
C45
C45
C4.7u10Y0805
C4.7u10Y0805
4.7KR0402
4.7KR0402
R103
R103
R112
R112
4.7KR0402
4.7KR0402
GPIO_EN Low Enable Phase Switch
U2
U2
GND
1
2
3
4
5
6
7
8
9
10
R6 10K/4R6 10K/4
R10 10K/4R10 10K/4
R26 10K/4R26 10K/4
SCL
SDA
LED0/GP10
LED1/GP11
LED2/GP12
LED3/GP13
VSS
GP20
GP21
GP22
W83L604G-RH
W83L604G-RH
GND
3VDD
A0/GP17
A1/GP16
A2/GP15
BEEP/GP14
RST#
INT#
GP25
GP24
GP23
SMBCLK10,11,14,16,17,23,25,28
SMBDATA10,11,14,16,17,23,25,28
PHASE4_EN#
PHASE3_EN#
A A
5
PHASE2_EN#
PHASE3_FB
PHASE2_FB
PHASE4_EN#
PHASE3_EN#
PHASE2_EN#
R5
4.7KR0402R54.7KR0402
Q4
Q4
S1
G1
G2S2D2
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
GND
20
19
18
17
16
15
14
13
12
11
GPIO_PHASESWITCH
4
R13
R13
1KR0402
1KR0402
R12 1KR0402R12 1KR0402
R90
R90
1KR0402
1KR0402
R65 1KR0402R65 1KR0402
R91
R91
1KR0402
1KR0402
R75 1KR0402R75 1KR0402
D1
S1
G1
G2S2D2
GND
A0_GP17
C1u16X5
C1u16X5
GPIO_LEDPHASE4_FB
4
LED4_Control
YZX
VCC5
R102
R102
4.7KR0402
4.7KR0402
Q14
Q14
D1
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
VCC3
R27
R27
10K/4
10K/4
C1
C0.1u10XC1C0.1u10X
C10
C10
GND
LED3_Control
LED2_Control
S-BAT54C_SOT23
S-BAT54C_SOT23
D1
D1
YZX
C2
C1u16X5C2C1u16X5
GND
Q7
Q7
S1
G1
G2S2D2
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
S-BAT54C_SOT23
S-BAT54C_SOT23
D2
D2
Y
D4
D4
Z
S-BAT54C_SOT23
S-BAT54C_SOT23
X
Y
D7
D7
Z
S-BAT54C_SOT23
S-BAT54C_SOT23
X
+12V
R41
R41
4.7KR0402
4.7KR0402
D1
+12V
R94
R94
4.7KR0402
4.7KR0402
Q10
Q10
D
D
G
G
S
S
N-2N7002_SOT23
N-2N7002_SOT23
PHASE4_EN#
PHASE4_FB
+12V
R96
R96
4.7KR0402
4.7KR0402
PHASE3_EN#
PHASE3_FB
PHASE2_EN#
PHASE2_FB
R51
R51
47KR0402
47KR0402
R72
R72
47KR0402
47KR0402
R63
R63
47KR0402
47KR0402
R109 X_R/2R109 X_R/2
3
Q5
Q5
S1
D1
G1
G2S2D2
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
R33
LED4_Control_R
S1
G1
G2S2D2
LED3_Control_R
R33
4.7KR0402
4.7KR0402
VCC5
Q11
Q11
D1
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
R89
R89
4.7KR0402
4.7KR0402
R34
R34
4.7KR0402
4.7KR0402
R73
R73
4.7KR0402
4.7KR0402
VCC5
Q9
Q9
S1
D1
G1
G2S2D2
NN-2N7002DW_SOT363-RH
R58
R58
4.7KR0402
4.7KR0402
CORE_COMP25
NN-2N7002DW_SOT363-RH
R57
R57
LED2_Control_R
4.7KR0402
4.7KR0402
Connect to Core Comp pin
Layout Note: place the component close to compensation
netwok so that Compo Core connection lenght
is minimized and far from any noise source.
R --> in the range of 100 Ohm (starting value)
C --> 10 x Ciss --> 10 x 30pF = 300pF
(Ciss is 30pFtyp value)
Rg --> once C is selected Rg sets the discharge time
for the cap that need to be in the range of 15-20 usec.
CORE_COMP
R59 X_1KR0402R59 X_1KR0402
VCC3
R52
R52
X_10K/4
X_10K/4
A0_GP17
3
VCC5
R32
R32
47KR0402
47KR0402
R88
R88
47KR0402
47KR0402
R56
R56
47KR0402
47KR0402
C14
C14
X_C0.1u10X
X_C0.1u10X
EN_PHASE4
X_N-2N7002_SOT23
X_N-2N7002_SOT23
R60
R60
X_1KR0402
X_1KR0402
TRANSIENT_TH
D
D
G
G
S
S
Q6
Q6
EN_PHASE3
EN_PHASE2
EN_PHASE1
X_S-BAT54C_SOT23
X_S-BAT54C_SOT23
2
EN_PHASE4 25
EN_PHASE3 25
ENDRV_L674025
EN_PHASE2 25
EN_PHASE1 25
GPIO_LED High Enable LED
GPIO_LED Low Disable LED
Y
D8
D8
Z
X_S-BAT54C_SOT23
X_S-BAT54C_SOT23
X
Y
Z
D5
D5
X
2
LED Placement turn:
LED_NB-->LED1-->LED2->LED3-->LED4
LED4_Control_R
LED3_Control_R
LED2_Control_R
VCC5
VCC5_SB
R113
R113
4.7KR0402
4.7KR0402
S1
G1
G2S2D2
VCC5
X_N-MMBT3904_NL_SOT23
VCC_DDR
X_N-MMBT3904_NL_SOT23
R9 X_1KR0402R9 X_1KR0402
R24 X_1KR0402R24 X_1KR0402
CPU_CORE_TYPE3,25
why pull high again
VCC5
R40
R40
1KR0402
1KR0402
GPIO_LED
LED2_Control
LED3_Control
LED4_Control
MSI
MSI
MSI
1
LED2
R44
R44
1K/6/1
1K/6/1
R45
R45
1K/6/1
1K/6/1
R43
R43
1K/6/1
1K/6/1
R46
R46
1K/6/1
1K/6/1
Q19
Q19
LED2
A C
LED-B_1608
LED-B_1608
LED3
LED3
A C
LED-B_1608
LED-B_1608
LED1
LED1
A C
LED-B_1608
LED-B_1608
LED4
LED4
A C
LED-B_1608
LED-B_1608
R125
R125
X_R/2
X_R/2
D1
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
LED_NB1
R47
R47
X_1K/6/1
X_1K/6/1
LED_NB1
A C
X_LED-B_1608
X_LED-B_1608
CE
Q1
Q1
B
Q2
Q2
S1
D1
G1
G2S2D2
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
By this connection we can decide independently
which phases turn on immediately @ the Comp
Rising edge.
Alternatively we can connect "TRANSIENT_TH"
to the positive input of comparators.
In this case note that when one
single positive input of the comparator is
lowered by the Mosfet turn on,
also the other comparator's positive
input changes (all threshold are
related to the same divider)
--> in case we can use
different divider for each threshold.
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Wednesday, June 17, 2009
Wednesday, June 17, 2009
Wednesday, June 17, 2009
MS-7612
MS-7612
MS-7612
AUTO PHASE SWITCH
AUTO PHASE SWITCH
AUTO PHASE SWITCH
Sheet ofDate:
Sheet ofDate:
Sheet ofDate:
1
26 42
26 42
26 42
1.0
1.0
1.0
5
4
3
2
1
close VGA connector
VGA_R
VGA_G
VGA_B
For EMI
VCC5
VCC5
R160 10KR0402R160 10KR0402
C881 C0.1u16Y0402C881 C0.1u16Y0402
DAC_HSYNC11
DAC_HSYNC
53
VCC
VCC
1
A
A
2
B
B
GND
GND
DAC_VSYNC11
U10
U10
4
Y
Y
NC7SZ08M5X_SOT23-5
NC7SZ08M5X_SOT23-5
DAC_VSYNC
5V_HSYNC
1
A
A
2
B
B
VCC5
1617
VGA_DVI1A
12
F1
F1
F-SMD1812P110TF-RH
F-SMD1812P110TF-RH
VGA_VCC5
C76
C76
X_C10000p10X0402
X_C10000p10X0402
C78
C78
C0.1u16Y0402
C0.1u16Y0402
VGA_R
VGA_G
VGA_B
C87
C87
X_C470p16X0402-RH
X_C470p16X0402-RH
6
1
7
2
8
3
9
4
10
5
VGA_DVI1A
VGA_DVI-RH-4
VGA_DVI-RH-4
C88
C88
53
U11
U11
C0.1u16Y0402
C0.1u16Y0402
VCC
VCC
4
Y
Y
GND
GND
NC7SZ08M5X_SOT23-5
NC7SZ08M5X_SOT23-5
C122
C122
11
VGA_5V_DDCDA
12
VGA_5V_HSYNC
X_C470p16X0402-RH
X_C470p16X0402-RH
13
VGA_5V_VSYNC
14
VGA_5V_DDCCL
15
5V_VSYNC
VGA CONNECTOR
DAC_RED11
R196
R196
150R1%0402
D D
150R1%0402
VCC3
Y
D21
D21
Z
BAV99
BAV99
X
DAC_GREEN11
VCC3
Y
D19
R188
R188
150R1%0402
150R1%0402
DAC_BLUE11
R182
R182
150R1%0402
150R1%0402
C C
D19
Z
BAV99
BAV99
X
VCC3
Y
D18
D18
Z
BAV99
BAV99
X
L5 0.082U300mL5 0.082U300m
C118
C119
C119
C10p50N0402
C10p50N0402
C118
X_C15p50N0402
X_C15p50N0402
L4 0.082U300mL4 0.082U300m
C104
C105
C105
C10p50N0402
C10p50N0402
C104
X_C15p50N0402
X_C15p50N0402
L3 0.082U300mL3 0.082U300m
C94
C94
C10p50N0402
C10p50N0402
C93
C93
X_C15p50N0402
X_C15p50N0402
change C119 C105 C94 to 10pf for SI issue
Y
D17
D17
X
BAV99
BAV99
VCC5VCC5 VCC5VCC5
Y
D14
D14
Z
Z
BAV99
BAV99
X
Y
Y
D15
D16
D16
D15
Z
BAV99
BAV99
BAV99
X
BAV99
X
C82
C82
C85
C85
C47p50N0402-RH
C47p50N0402-RH
C47p50N0402-RH
C47p50N0402-RH
C81
C81
C86
C86
X_C470p16X0402-RH
X_C470p16X0402-RH
X_C470p16X0402-RH
X_C470p16X0402-RH
3
VGA_5V_DDCCL
VGA_5V_DDCDA
VGA_5V_HSYNC
VGA_5V_VSYNC
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
2
Wednesday, June 17, 2009
MS-7612
DVI/WALTAGE MONITOR
DVI/WALTAGE MONITOR
DVI/WALTAGE MONITOR
1
27 42
27 42
27 42
Sheet of
Sheet of
Sheet of
1.0
1.0
1.0
VCC5
R173
R173
R162
R162
Z
2.2KR0402
2.2KR0402
2.2KR0402
2.2KR0402
B B
A A
VGA_DDC_CLK11
VGA_DDC_DATA11
5
VGA_DDC_CLK
VGA_DDC_DATA
5V_HSYNC
5V_VSYNC
DAC_HSYNC
DAC_VSYNC 5V_VSYNC
R174 33R0402R174 33R0402
R163 33R0402R163 33R0402
R167 33R0402R167 33R0402
R170 33R0402R170 33R0402
R168 X_0R0402R168 X_0R0402
R176 X_0R0402R176 X_0R0402
5V_HSYNC
4
5
4
3
2
1
2
ADJ
L1087CG_SOT89-3
L1087CG_SOT89-3
5
VOUT
FB
4
C349
C349
X_0.1u/25V/4
X_0.1u/25V/4
1
U5
U5
3
SCL
4
SDA
8
EN
UP6264BMA8_SOT23-8-RH
UP6264BMA8_SOT23-8-RH
2
R409
R409
10K/4
10K/4
C368
C368
1u/6.3V/4
1u/6.3V/4
VDDA_25, 250mA
+
+
12
R105
R105
EC1
EC1
1KST/4
1KST/4
CD100u16SO-RH
CD100u16SO-RH
R93
R93
1KST/4
1KST/4
1_1VDUAL, 76mA.
1_1VDUAL3VDUAL
+
+
12
R370
R370
1KST/4
1KST/4
EC37
EC37
CD100u16SO-RH
CD100u16SO-RH
0.8V
R371
R371
2.67KR1%0402-RH
2.67KR1%0402-RH
C26 C0.1u25Y0402-RHC26 C0.1u25Y0402-RH
RAM_VREF
7
1.5V
VCC
0_9VREF
6
0.9V
5
1.2V
GND
Q62Q62
2
5
6
1
3
4
C52
C52
0.1u/25V/4
0.1u/25V/4
MSI
MSI
MSI
1_2VREF
R418
R418
4.7K/4
4.7K/4
VCC5_SBVCC5
R138
R138
X_11KR1%0402
X_11KR1%0402
0_9VREF
C53
C53
0.1u/25V/4
0.1u/25V/4
HT_VLD 8,14
R139
R139
X_11KR1%0402
X_11KR1%0402
RAM_VREF
C54
C54
0.1u/25V/4
0.1u/25V/4
for sequence control
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
uPI ACPI CONTROLLER / DC POWER
uPI ACPI CONTROLLER / DC POWER
uPI ACPI CONTROLLER / DC POWER
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
MS-7612
1
28 42
28 42
28 42
Sheet of
Sheet of
Sheet of
1.0
1.0
1.0
5VDIMM FOR DDR
C55 18n/16V/4C55 18n/16V/4
R80 510/4R80 510/4
VCC5
Q18
Q18
2N7002
2N7002
R81 10K/4R81 10K/4
SLP_S3#14,19
SLP_S5#14,19,29
pin4(MODE pin):
when pull VCC5_SB,
Output = 5V in S5,
when pull GND,
Output = 0V in S5.
U6
U6
S3#55VSB_DRV
6
S5#
4
MODE
R78
R78
47KRST/4
47KRST/4
Q13
Q13
2N7002
2N7002
ATX_PWR_OK_5V11,31
DS
G
C41
C41
C1u6.3Y0402-RH
C1u6.3Y0402-RH
D D
VCC3 VCC5_SB
R82
R82
1KR1%0402
1KR1%0402
G
R83
R83
4.99KST/4
4.99KST/4
DS
R79 10R/4R79 10R/4
C27 0.1u/25V/4C27 0.1u/25V/4
1
2
5VSB
5VCC
5VCC_DRV
GND
UP7501M8_SOT23-8-RH
UP7501M8_SOT23-8-RH
3
VCC5_SB
5VSBDRV1
7
5VDRV1
8
R126
R126
1.5K/6
1.5K/6
+12V
5VCC_DRV is Open Drain
C56
C56
22n/16V/4
22n/16V/4
G1
G2
VCC5_SB
5VSBDRV1
5VDRV1 0
5VDIMM Y Y
VCC5_SBVCC5_SB
R623 0R/4R623 0R/4
DS
Q63
Q63
2N7002
2N7002
R622 10/4R622 10/4
1
2
3
5
AZ358M-E1_SOIC8-RH
AZ358M-E1_SOIC8-RH
C C
12
+
C347
C347
0.1u/25V/4
0.1u/25V/4
CE
C354
C354
X_0.1u/25V/4
X_0.1u/25V/4
5
Q64
Q64
2N3904S
2N3904S
+
EC59
EC59
470u/6.3V/8*8
470u/6.3V/8*8
G
C762
C762
X_C10u10Y0805
X_C10u10Y0805
1_2VREF
B B
VCC5_SB
HTVDD_EN14,29
1_2VREF
A A
R383 3.01KR1%0402R383 3.01KR1%0402
R410 10KR0402R410 10KR0402
R423 4.7KR0402R423 4.7KR0402
VREF_VTT
R395 X_3.01KR1%0402R395 X_3.01KR1%0402
R394 X_3.01KR1%0402R394 X_3.01KR1%0402
B
U43
U43
POK
EN
VIN
REFIN
C699 C1u6.3Y0402-RHC699 C1u6.3Y0402-RH
4
6
VOUT
CNTL
7
FB
GND8GND
9
UP7706U8_PSOP8-RH
UP7706U8_PSOP8-RH
+12V
U27A
U27A
3
+
+
2
-
-
4 8
+12V
5
+
+
6
-
-
C671
C671
15n/16V/4
15n/16V/4
1
R355
R355
20KR1%0402
20KR1%0402
R368 4.7KR0402R368 4.7KR0402
R364
R364
X_20KR1%0402
X_20KR1%0402
U27B
U27B
7
AZ358M-E1_SOIC8-RH
AZ358M-E1_SOIC8-RH
4 8
N-APM3023NUC_TO252
N-APM3023NUC_TO252
R620
R620
10K/4
10K/4
R618
R618
3.3K/4
3.3K/4
VCC_DDR
G
R350
R350
X_20KR1%0402
X_20KR1%0402
R352 X_4.7KR0402R352 X_4.7KR0402
R362
R362
X_20KR1%0402
X_20KR1%0402
4
VCC3
5VDRV1
Q76
Q76
G
D S
12
+
R619
R619
200KR1%0402
200KR1%0402
+
5VDRV1
3VDUAL, 2.88A (S0)
CPU VCC1_2HT = 1.4A
DS
Q61
Q61
N-APM3023NUC_TO252
N-APM3023NUC_TO252
+
+
12
EC29
EC29
CD820u2.5Fp-1
CD820u2.5Fp-1
CPU VDDR = 1.75A
VCC_DDR
DS
Q60
Q60
G
X_N-APM3023NUC_TO252
X_N-APM3023NUC_TO252
+
+
12
EC30
EC30
X_CD820u2.5Fp-1
X_CD820u2.5Fp-1
VCC1_2HT
3VDUAL
EC51
EC51
CD470u6.3SO-RH
CD470u6.3SO-RH
CPU_VDDR
VCC5
S1
Q25
Q25
NP-P2003ND5G_TO252-5-RH
NP-P2003ND5G_TO252-5-RH
D
S2
5VDIMM
C74
C74
X_0.1u/25V/4
X_0.1u/25V/4
S0 S3YS5
X
XMODE
110
0
3
VCC5 VDDA_25
up7707: 600mA Low Dropout Linear Requlator
0
1
C366
0
?
?
C366
1u/6.3V/4
1u/6.3V/4
N
Reference Voltage
SMBCLK10,11,14,16,17,23,25,26
SMBDATA10,11,14,16,17,23,25,26
5VDRV1 1_2VREF
5VDRV1_EN24
EN : 0.4~1.4V
VCC1_1
U7
U7
VIN3VOUT
C48
C48
1u/6.3V/4
1u/6.3V/4
1
U29 UP7707_SOT23-5U29 UP7707_SOT23-5
1
VIN
3
EN
GND
2
Vout=0.8* (R1+R2)/R1
VCC5_SB
R77 10/4R77 10/4
R140 200KR1%0402R140 200KR1%0402
R122
R122
56KST/4
56KST/4
VCC1_2HT VCC5_SB VCC3
R417
R417
R407
R407
4.7K/4
4.7K/4
X_4.7K/4
X_4.7K/4
2
5
4
3
2
1
DDR III 1.5V POWER
D25
Iripple=16*0.5477*0.8366/1=7.3A
D25
X_S-BAT54ALT1G_SOT23-RH
X_S-BAT54ALT1G_SOT23-RH
R234 0R/6R234 0R/6
DDR_UG
DDR_PHASE
DDR_LG
U22
U22
7
REFIN
6
FB
YZX
C150
C150
1u/25V/8
1u/25V/8
C303 1u/25V/8C303 1u/25V/8
5
BOOT
VCC
UGATE
PHASE
LGATE
GND
UP6103S8_SOP8-RH
UP6103S8_SOP8-RH
3
5VDIMM_IN
DS
G
DS
G
R334 0RR334 0R CHOKE8
1
NB_UG
2
NB_PHASE
8
NB_LG
4
R187 0R/6R187 0R/6
+12V
Q58
Q58
X_2N7002
X_2N7002
YZX
D20
D20
R209
R209
3.01KR1%0402
3.01KR1%0402
R201
R201
X_0R/6
X_0R/6
X_C1000p50X0402
X_C1000p50X0402
0_9VREF_R
R333
R333
X_15KST/4
X_15KST/4
C125
C125
C313
C313
X_33P/50V/4
X_33P/50V/4
D D
DS
Q28
Q28
G
2N7002
2N7002
R337
R337
R346 X_10KR0402R346 X_10KR0402
RAM_VREF_R
R207
R207
X_15KST/4
X_15KST/4
RAM_VREF
C C
R200 3.01KR1%0402R200 3.01KR1%0402
R198
R198
X_12.1KR1%0402
X_12.1KR1%0402
VCC5_SB
SLP_S5#14,19,28
R178 10KR0402R178 10KR0402
R175 4.7K/4R175 4.7K/4
C121
C121
1u/6.3V/4
1u/6.3V/4
CE
B
Q26
Q26
N-MMBT3904_NL_SOT23
N-MMBT3904_NL_SOT23
NB CORE POWER VCC1_1V & VCC1_1HT POWER
0_9VREF
HTVDD_EN14,28
R332 3.01KR1%0402R332 3.01KR1%0402
X_22.1KR1%0402
X_22.1KR1%0402
VCC5_SB
R339 X_4.7K/4R339 X_4.7K/4
C127 X_10n/25V/4C127 X_10n/25V/4
C128
C128
X_33P/50V/4
X_33P/50V/4
C312
C312
1u/6.3V/4
1u/6.3V/4
G
CE
Q59
Q59
B
X_N-MMBT3904_NL_SOT23
X_N-MMBT3904_NL_SOT23
S-BAT54C_SOT23
S-BAT54C_SOT23
DS
R199 X_0R/6R199 X_0R/6
R195
R195
X_0R/6
X_0R/6
R197 2.2R1%0805R197 2.2R1%0805
U12
U12
7
6
R208
R208
X_9.53KR1%0402
X_9.53KR1%0402
C311 X_10n/25V/4C311 X_10n/25V/4
REFIN
FB
R325
R325
X_0R/6
X_0R/6
R328
R328
3.01KR1%0402
3.01KR1%0402
5VDIMM
VCC5_SB
C126
C126
1u/25V/8
1u/25V/8
5
1
BOOT
VCC
2
UGATE
8
PHASE
4
LGATE
GND
UP6103S8_SOP8-RH
UP6103S8_SOP8-RH
3
+12V
R317 2.2R1%0805R317 2.2R1%0805
C306
C306
X_C1000p50X0402
X_C1000p50X0402
R327
R327
13.3KR1%0402
13.3KR1%0402
EC7
EC7
C111X_C0.1u25Y0402-RHC111X_C0.1u25Y0402-RH
C95 X_C10u10Y0805C95 X_C10u10Y0805
12
+
+
Q32
Q32
N-P0903BD_TO252
N-P0903BD_TO252
Q33
Q33
N-P0403BD_TO252
N-P0403BD_TO252
+12V
D34
D34
X_S-BAT54ALT1G_SOT23-RH
X_S-BAT54ALT1G_SOT23-RH
YZX
C316
C316
1u/25V/8
1u/25V/8
CD470u6.3SO-RH
CD470u6.3SO-RH
COIL1
COIL1
CH-1.2u15A3.0m-RH
CH-1.2u15A3.0m-RH
EC8
EC8
EC4
EC4
1 2
CD470u6.3SO-RH
CD470u6.3SO-RH
CD470u6.3SO-RH
CD470u6.3SO-RH
12
12
+
+
+
+
CHOKE4 CH-1.1u27A2.5m-RHCHOKE4 CH-1.1u27A2.5m-RH
1 2
R202
R202
2.2R1%0805
2.2R1%0805
C123
C123
3300P/5V/4
3300P/5V/4
VCC_DDR
Iripple=20*0.577*0.8367/1=9.65A
C298 X_C10u16Y1206C298 X_C10u16Y1206
DS
Q55
Q55
G
N-P0903BD_TO252
N-P0903BD_TO252
DS
Q54
Q54
G
N-P0403BD_TO252
N-P0403BD_TO252
5VDIMM
C84
C84
C0.1u25Y0402-RH
C0.1u25Y0402-RH
+
+
1 2
+
+
1 2
+
+
1 2
+
+
1 2
EC31 CD470u6.3SO-RH+EC31 CD470u6.3SO-RH
12
12
+
+
1 2
R305
R305
2.2R1%0805
2.2R1%0805
C272
C272
3300P/5V/4
3300P/5V/4
EC20
EC20
CD560u4SO-2
CD560u4SO-2
EC17
EC17
CD560u4SO-2
CD560u4SO-2
EC16
EC16
CD560u4SO-2
CD560u4SO-2
EC19
EC19
CD560u4SO-2
CD560u4SO-2
COIL2
COIL2
CH-1.2u15A3.0m-RH
CH-1.2u15A3.0m-RH
1 2
EC34 CD470u6.3SO-RH+EC34 CD470u6.3SO-RH
C302
C302
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
CHOKE8
CH-1.1u27A2.5m-RH
CH-1.1u27A2.5m-RH
To CPU Copper trace width > 200mils
DDR VTT Power
VCC5_SB
R365
R365
0R/6
0R/6
VCC1_1
8
7
6
5
UP7711U8_PSOP8-RH
UP7711U8_PSOP8-RH
VCC3
C346
C346
X_0.1u/25V/4
X_0.1u/25V/4
EC28 CD820u2.5Fp-1
EC28 CD820u2.5Fp-1
+
+
1 2
EC32 CD820u2.5Fp-1
EC32 CD820u2.5Fp-1
+
+
1 2
EC27 CD820u2.5Fp-1
EC27 CD820u2.5Fp-1
+
+
1 2
NC3
NC2
VCNTL
NC1
VIN
GND
REFIN
VOUT
GND
0.9V/1.2A+1.75=2.95A
VCC_DDR
R730
R730
X_4.7K/4
X_4.7K/4
VCC_DDR VCC_DDR
U24
U24
1
2
3
4
9
R329
R329
1KR1%0402
DDRVTT_REF
1KR1%0402
1KR1%0402
1KR1%0402
R331
R331
CD820u2.5Fp-1
CD820u2.5Fp-1
VCC5_SB VCC3
R731
R731
X_10K/4
X_10K/4
2
5
C882
C882
X_1u/6.3V/4
X_1u/6.3V/4
VTT_DDR
12
12
+
+
+
+
EC36
EC36
EC35
EC35
100u/16V/6.3*10.5
100u/16V/6.3*10.5
R732
R732
X_4.7K/4
Q78Q78
X_4.7K/4
MEM_VLD
6
1
3
4
MEM_VLD
B B
NF200 CORE POWER VCC1_2
+12V
D38
D38
X_S-BAT54ALT1G_SOT23-RH
X_S-BAT54ALT1G_SOT23-RH
R478 0RR478 0R
NF200_UG
NF200_PHASE
NF200_LG
3
YZX
C548
C548
1u/25V/8
1u/25V/8
G
G
+12VBR04_REF
BR04_CORE
R542
R542
3.01KR1%0402
3.01KR1%0402
C558
C558
X_C1000p50X0402
X_C1000p50X0402
BR04_CORE 25
R525 2.2R1%0805R525 2.2R1%0805
7
6
R526
R526
X_13.7KR1%0402
X_13.7KR1%0402
R543 X_22.1KR1%0402R543 X_22.1KR1%0402
1_2VREF
A A
5
R529 3.01KR1%0402R529 3.01KR1%0402
R527
R527
X_22.1KR1%0402
X_22.1KR1%0402
C555
C555
1u/6.3V/4
1u/6.3V/4
1_2VREF_R
R528
R528
X_15KST/4
X_15KST/4
C559 X_10n/25V/4C559 X_10n/25V/4
C560
C560
X_33P/50V/4
X_33P/50V/4
4
R558
R558
X_0R/6
X_0R/6
U37
U37
REFIN
FB
C557 1u/25V/8C557 1u/25V/8
5
BOOT
VCC
UGATE
PHASE
LGATE
GND
UP6103S8_SOP8-RH
UP6103S8_SOP8-RH
3
1
2
8
4
Iripple=8.9*0.6*0.797/1=4.256A
C456 X_C10u16Y1206C456 X_C10u16Y1206
+
DS
Q68
Q68
N-P0903BD_TO252
N-P0903BD_TO252
DS
Q67
Q67
N-P0403BD_TO252
N-P0403BD_TO252
EC43 CD470u6.3SO-RH+EC43 CD470u6.3SO-RH
12
12
+
COIL4
COIL4
CH-1.2u15A3.0m-RH
CH-1.2u15A3.0m-RH
1 2
R483
R483
2.2R1%0805
2.2R1%0805
C528
C528
3300P/5V/4
3300P/5V/4
COIL3
COIL3
CH-1.2u15A3.0m-RH
CH-1.2u15A3.0m-RH
1 2
EC42 CD470u6.3SO-RH+EC42 CD470u6.3SO-RH
C478
C478
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
total need 8.9A
VCC1_2
1 2
1 2
1 2
2
VCC3
C401
C401
X_0.1u/25V/4
X_0.1u/25V/4
EC45 CD820u2.5Fp-1
EC45 CD820u2.5Fp-1
+
+
EC41 CD820u2.5Fp-1
EC41 CD820u2.5Fp-1
+
+
EC39 CD820u2.5Fp-1
EC39 CD820u2.5Fp-1
+
+
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
MS-7612
DDR / chipset core power
DDR / chipset core power
DDR / chipset core power
1
29 42
29 42
29 42
Sheet of
Sheet of
Sheet of
1.0
1.0
1.0
5
CPU FAN
D D
only support 4 pin fan.
CPU-FAN_CTL19
R114
R114
4.7K/4
4.7K/4
CPU_FAN_GPO19
CPU_FAN_GPO
CPU-FAN_CTL
VCC5
G
DS
Q17
Q17
N-2N7002_SOT23
N-2N7002_SOT23
+12V
U23A
U23A
LM358DR2G_SOIC8
LM358DR2G_SOIC8
3
+
+
2
-
-
4 8
1
CPUFAN_DRV
R117
R117
10K/4
10K/4
4
R344
R344
X_4.7K/4
X_4.7K/4
C46 X_0.1u/25V/4C46 X_0.1u/25V/4
P-P06P03LCG_SOT89-3-RH
P-P06P03LCG_SOT89-3-RH
G
+12V
Q15
Q15
D S
R108
R108
10K/4
10K/4
R118
R118
3.6KR1%0402
3.6KR1%0402
D6 1N4148D6 1N4148
R70 4.7K/4R70 4.7K/4
R99
R99
X_0R0805
X_0R0805
CD100u16SO-RH
CD100u16SO-RH
EC2
EC2
3
CPUFAN_PWR
12
+
+
X_0.1u/25V/4
X_0.1u/25V/4
C34
C34
R69 27KR/0603R69 27KR/0603
CPU-FAN_CTL_R
R84 200R 1%R84 200R 1%
CPUFAN1
CPUFAN1
4
MEC1
3
2
1
BH1X4B_WHITE-RH-2
BH1X4B_WHITE-RH-2
2
CPU-FAN 19
R68
R68
10K/4
10K/4
VCC5
R76
R76
4.7K/4
4.7K/4
If using 3 pin fan, The Q9 will turn off to
avoid the VCC5(R288) bias to CPU-FANPWM.
If using 4 pin fan, the NMOS turn ON.
If using 3 pin fan, the NMOS turn OFF,
D3
1N4148D31N4148
R110 X_0R0805R110 X_0R0805
Q16
Q16
N-2N7002_SOT23
N-2N7002_SOT23
D S
G
CPU_FAN_GPO
1
CPU-FAN_CTL 19
CPU_FAN_GPO 19
If using 4 pin fan, the NMOS turn ON,
If using 3 pin fan, the NMOS turn OFF.
C C
+12V
U23B
U23B
LM358DR2G_SOIC8
LM358DR2G_SOIC8
5
+
SYS-FAN_CTL19
B B
SYS-FAN_CTL
+
6
-
-
4 8
7
X_0.1u/25V/4
X_0.1u/25V/4
C304
C304
SYSFAN_DRVSYSFAN_DRV
R322
R322
10K/4
10K/4
R321
R321
X_4.7K/4
X_4.7K/4
G
+12V
Q57
Q57
P-P06P03LCG_SOT89-3-RH
P-P06P03LCG_SOT89-3-RH
D S
R323
R323
10K/4
10K/4
R324
R324
3.6KR1%0402
3.6KR1%0402
D33 1N4148D33 1N4148
R314 4.7K/4R314 4.7K/4
R330
R330
X_0R0805
X_0R0805
SYSFAN_PWR
12
+
+
EC33
EC33
CD100u16SO-RH
CD100u16SO-RH
R313 27KR/0603R313 27KR/0603
C299 X_0.1u/25V/4C299 X_0.1u/25V/4
SYS FAN1
R309
R309
10K/4
10K/4
SYSFAN1
SYSFAN1
3
2
1
BH1X3B-FR_WHITE-RH
BH1X3B-FR_WHITE-RH
SYS-FAN 19
SYS FAN3
+12V
AC
SYS FAN2
R397 27KR0402R397 27KR0402
SYSFAN2
SYSFAN2
3
2
1
BH1X3B-FR_WHITE-RH
BH1X3B-FR_WHITE-RH
R392
R392
10KR0402
10KR0402
SYS-FAN2 19
C77
C77
C10u16Y1206
C10u16Y1206
+12V
R406
R406
X_4.7K/4
U28B
U28B
LM358DR2G_SOIC8
LM358DR2G_SOIC8
5
+
SYS-FAN2_CTL19
A A
SYS-FAN2_CTL
+
6
-
-
4 8
7
C351
C351
X_0.1u/25V/4
X_0.1u/25V/4
SYSFAN2_DRV
X_4.7K/4
R389
R389
10K/4
10K/4
Q65
Q65
G
P-P06P03LCG_SOT89-3-RH
P-P06P03LCG_SOT89-3-RH
D S
R372
R372
10K/4
10K/4
+12V
D37 BAS32L_LL34D37 BAS32L_LL34
R396 4.7KR0402R396 4.7KR0402
R420
R420
X_0R0805
X_0R0805
C384
C384
C10u16Y1206
C10u16Y1206
SYSFAN3
SYSFAN3
3
2
1
BH1X3B-FR_WHITE-RH
BH1X3B-FR_WHITE-RH
R384
R384
3.6KR1%0402
3.6KR1%0402
MSI
MSI
MSI
5
4
3
2
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
MS-7612
FAN Controller
FAN Controller
FAN Controller
1
Sheet of
Sheet of
Sheet of
30 42
30 42
30 42
1.0
1.0
1.0
8
7
ATX connector / Front Panel
Intel Front Panel
6
5
4
3
2
1
D D
3VDUAL
Internal pull hi
FP_RST#14
R630
R630
X_33R0402
X_33R0402
C C
WDT#19
B B
C741 X_C180p50NC741 X_C180p50N
VCC5
R631
R631
X_10KR0402
X_10KR0402
C718
C718
C0.1u25Y0402-RH
C0.1u25Y0402-RH
ESD Protect
R669
R669
330R0402
330R0402
R634
R634
33R0402
33R0402
SUS_LED
PWR_LED
Y
Z
X
S-BAT54A_SOT23D44 S-BAT54A_SOT23D44
For MSI / Intel Front Panel
JFP1
RESET+
JFP1
1
HDD+
3
HDDÂRESET-5PWSW+
7
RESET+
9
NC
H2X5[10]M_COLORS-RH
H2X5[10]M_COLORS-RH
JFP2
JFP2
GND1SPEAKER
3
SLED
5
PLED
H2X4[7]M_COLOR-RH
H2X4[7]M_COLOR-RH
R659
R659
2.2KR1%0402
2.2KR1%0402
PLED
SLED
PWSW-
BUZ+
BUZ-
VCCSPK
B
PWR_LED
2
SUS_LED
4
PWSW+
6
PWSW-
8
2
4
R660 X_0R/4R660 X_0R/4
6
8
VCC5
R668 220R0805R668 220R0805
CE
Q77
Q77
N-MMBT3904_NL_SOT23
N-MMBT3904_NL_SOT23
PWR_LED 19
SUS_LED 19
R639
R639
330R0402
330R0402
C745
C745
C0.1u25Y0402-RH
C0.1u25Y0402-RH
HDD+
SPKR14,19
3VDUAL
R643
R643
4.7KR0402
4.7KR0402
A C
SATA_LED_SB 13
PD_LED 13
C0.1u25Y0402-RH
C0.1u25Y0402-RH
D45
D45
VCC5
X_BAS32L_LL34
X_BAS32L_LL34
C739
C739
Near Super I/O
R646 100R1%0402R646 100R1%0402
PSIN# 19
ATX Connector
C317
C317
C0.1u25Y0402-RH
C0.1u25Y0402-RH
VCC3
PS_ON#19
A A
C0.1u25Y0402-RH
C0.1u25Y0402-RH
8
VCC5
-12V
C1000p50X0402
C1000p50X0402
C238
C238
C318
C318
C289
C289
C1000p50X0402
C1000p50X0402
PWRCONN24P_CREAM-RH-1
PWRCONN24P_CREAM-RH-1
7
13
14
15
16
17
18
19
20
21
22
23
ATX1
ATX1
3.3V
-12V
GND
P_ON
GND
GND
GND
-5V
5V
5V
5V
GND243.3V
25
5VSB
3.3V
25
3.3V
GND
GND
GND
POK
+12V
+12V
1
2
3
4
5V
5
6
5V
7
8
9
10
11
C243
C243
12
C0.1u25Y0402-RH
C0.1u25Y0402-RH
VCC3
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
VCC5
R289
R289
10K/4
10K/4
B
C309
C309
6
VCC3
VCC5
VCC5_SB
+12V
C220
C220
C0.1u25Y0402-RH
C0.1u25Y0402-RH
ATX_PWR_OK_5V 11,28
C248
C248
C0.1u25Y0402-RH
C0.1u25Y0402-RH
VCC3
VCC3
Q50
Q50
CE
N-MMBT3904_NL_SOT23
N-MMBT3904_NL_SOT23
B
R292
R292
10KR0402
10KR0402
5
R291
R291
10KR0402
10KR0402
ATX_PWR_OK 10,14,19
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
4
3
Wednesday, June 17, 2009
2
MS-7612
ATX/Front Panel/ LED function/TPM
ATX/Front Panel/ LED function/TPM
ATX/Front Panel/ LED function/TPM
Sheet of
Sheet of
Sheet of
31 42
31 42
31 42
1
1.0
1.0
1.0
VCC_DDR
EMI CAP
5
VCC3
4
C286 C0.1u10X0402C286 C0.1u10X0402
C644 X_C0.1u10X0402C644 X_C0.1u10X0402
C654 X_C0.1u10X0402C654 X_C0.1u10X0402
C285 C0.1u10X0402C285 C0.1u10X0402
C210 X_C0.1u10X0402C210 X_C0.1u10X0402
C738 X_C0.1u10X0402C738 X_C0.1u10X0402
C216 X_C0.1u10X0402C216 X_C0.1u10X0402
C729 C0.1u10X0402C729 C0.1u10X0402
C669 C0.1u10X0402C669 C0.1u10X0402
C300 C0.1u10X0402C300 C0.1u10X0402
3
C339 X_C0.1u10X0402C339 X_C0.1u10X0402 C263 X_C0.1u10X0402C263 X_C0.1u10X0402
2
1
C197 X_C0.1u10X0402C197 X_C0.1u10X0402
C173 X_C0.1u10X0402C173 X_C0.1u10X0402
D D
C308 C100p50N0402C308 C100p50N0402
C204 X_C0.1u10X0402C204 X_C0.1u10X0402
VCC3
VCC5_SB +12V
C538 X_C0.1u10X0402C538 X_C0.1u10X0402
C250 X_C0.1u10X0402C250 X_C0.1u10X0402
C396 X_C0.1u10X0402C396 X_C0.1u10X0402
C C
VCC_DDR
B B
C143
C143
C138
X_C180p50N0402
X_C180p50N0402
X_C180p50N0402
X_C180p50N0402
C138
C198
C198
C759 X_C0.1u10X0402C759 X_C0.1u10X0402
C828
C828
X_C180p50N0402
X_C180p50N0402
VCC3
VCC5
VTT_DDR
VCC5
C341 X_C0.1u16X0402-2C341 X_C0.1u16X0402-2
C139
C139
X_C220p16X0402
X_C220p16X0402
X_C220p16X0402
X_C220p16X0402
C406 X_C0.1u16X0402-2C406 X_C0.1u16X0402-2
C192
C192
X_C220p16X0402
X_C220p16X0402
VCC_DDR
C195
C195
C177 C1000p50N0402C177 C1000p50N0402
C314 X_C0.1u10X0402C314 X_C0.1u10X0402
C232 X_C0.1u10X0402C232 X_C0.1u10X0402
C595 X_C0.1u16X0402-2C595 X_C0.1u16X0402-2
C231 X_C0.1u16X0402-2C231 X_C0.1u16X0402-2
C140
C140
C203
C203
X_C680p50X0402-RH
X_C680p50X0402-RH
X_C680p50X0402-RH
X_C680p50X0402-RH
X_C220p16X0402
X_C220p16X0402
C141
C141
VCC5
C646 X_C0.1u10X0402C646 X_C0.1u10X0402
C30 X_C0.1u10X0402C30 X_C0.1u10X0402
C536 X_C0.1u10X0402C536 X_C0.1u10X0402
C80 X_C0.1u10X0402C80 X_C0.1u10X0402
C640 X_C0.1u10X0402C640 X_C0.1u10X0402
C770 C0.1u10X0402C770 C0.1u10X0402
C175 X_C1000p50N0402C175 X_C1000p50N0402
C201
C201
X_C680p50X0402-RH
X_C680p50X0402-RH
X_C680p50X0402-RH
X_C680p50X0402-RH
C207 X_C1000p50N0402C207 X_C1000p50N0402
C755 X_C0.1u10X0402C755 X_C0.1u10X0402
C183 X_C0.1u10X0402C183 X_C0.1u10X0402
C8 X_C0.1u10X0402C8 X_C0.1u10X0402
C771 C0.1u10X0402C771 C0.1u10X0402
C15 X_C0.1u10X0402C15 X_C0.1u10X0402
C800 X_C0.1u10X0402C800 X_C0.1u10X0402C585 X_C0.1u10X0402C585 X_C0.1u10X0402
C628 X_C0.1u10X0402C628 X_C0.1u10X0402
C281 X_C0.1u10X0402C281 X_C0.1u10X0402
VCC5
C757 X_C0.1u10X0402C757 X_C0.1u10X0402
C758 X_C0.1u10X0402C758 X_C0.1u10X0402
C727 X_C0.1u10X0402C727 X_C0.1u10X0402
A A
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
DLED/EMI/SMBUS GPIO Controller
DLED/EMI/SMBUS GPIO Controller
Date:
Date:
5
4
3
2
Date:
DLED/EMI/SMBUS GPIO Controller
Wednesday, June 17, 2009
Wednesday, June 17, 2009
Wednesday, June 17, 2009
MS-7612
1
Sheet of
Sheet of
Sheet of
32 42
32 42
32 42
1.0
1.0
1.0
5
4
3
2
1
Option Part
VBAT1-S1
VBAT1-S1
BAT-BCR2032P-RH
BAT-BCR2032P-RH
PCB1
D D
Optics Orientation Holes
C C
B B
FM7
FM7
X
FM9
FM9
X
FM1
FM1
X
X_FM
X_FM
X_FM
X_FM
X_FM
X_FM
FM13
FM13
X
FM10
FM10
FM11
FM11
X_FM
X_FM
FM2
X_FM
X_FM
X_FM
X_FM
FM2
FM4
FM4
X
X
X_FM
X_FM
X_FM
X_FM
FM6
FM6
FM8
X
X_FM
X_FM
FM8
X
X_FM
X_FM
140W CPU READY
140W CPU READY
FM3
FM3
X
X_FM
X_FM
FM12
FM12
X
X
X_FM
X_FM
X_FM
X_FM
X
FM5
FM5
X
Mounting Holes
9
2
MH6MH6
9
2
MH1MH1
2
ME2
7
8
6
5
3
4
7
8
6
5
3
4
1
ME1
PCB1
PCB PD0-0761210-G37
PCB PD0-0761210-G37
R413
R413
R412
R412
0R0402
0R0402
0R0402
0R0402
7
8
9
2
MH4MH4
9
2
MH3MH3
6
5
3
4
7
8
6
5
3
4
8
9
2
MH8MH8
3
8
9
2
MH7MH7
3
H_DF90_IN3_4.5/5.5/15
L_DF90_IN3_4.5/5.5/16
CPU2
CPU2
E95-0000003-H06
E95-0000003-H06
AVL: E95-0000004-A21
Simulation
7
9
2
MH9MH9
9
2
MH2MH2
8
6
5
3
4
7
X_JS1
X_JS1
X_JS2
X_JS2
8
9
2
MH5MH5
6
TOP bottom impedence control
5
3
4
H_DF100_IN3_4/8/20
L_DF100_IN3_4/8/20
7
8
6
5
3
4
X_PIN1*2
X_PIN1*2
X_PIN1*2
X_PIN1*2
X_JS3
X_JS3
X_PIN1*2
X_PIN1*2
SIM1SIM2
X_PIN1*2
X_PIN1*2
X_JS6
X_JS6
X_PIN1*2
X_PIN1*2
X_JS7
X_JS7
X_PIN1*2
X_PIN1*2
X_JS5
X_JS5
7
6
5
4
7
6
5
4
X_JS4
SE50_IN3_5/5/5
5
ME5
6
MSI
MSI
A A
ME6
ME33ME4
4
5
4
3
SE 50ohm
X_JS4
X_PIN1*2
X_PIN1*2
2
int3 impedence control
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MICRO-STAR INT'L CO.,LTD
MS-7612
MS-7612
MSI
MSI
MSI
Size Document Description Rev
Size Document Description Rev
Size Document Description Rev
Custom
Custom
Custom
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
Date:
Wednesday, June 17, 2009
MS-7612
MANUAL PARTS
MANUAL PARTS
MANUAL PARTS
1
Sheet of
Sheet of
Sheet of
33 42
33 42
33 42
1.0
1.0
1.0
Loading...
