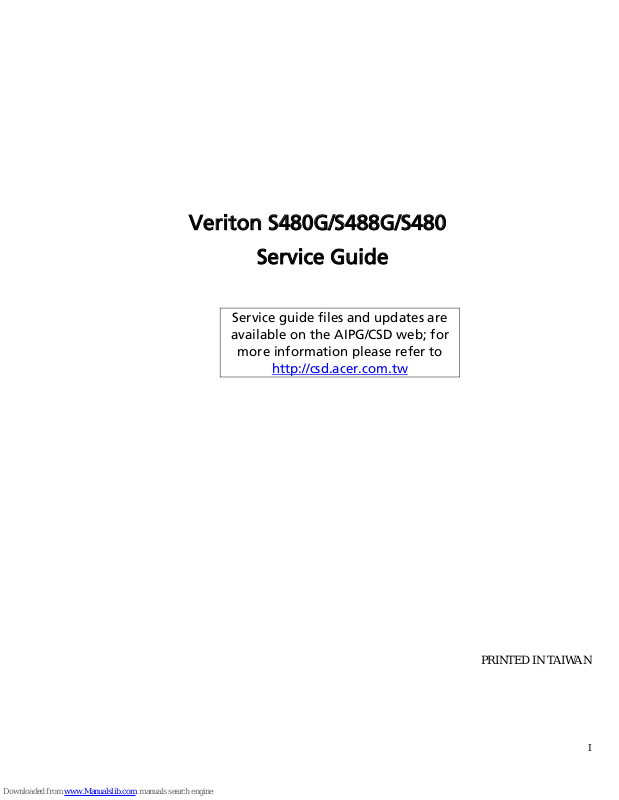

Veriton S480G/S488G/S480
Service Guide
Service guide files and updates are
available on the AIPG/CSD web; for
more information please refer to
http://csd.acer.com.tw
PRINTED IN TAIWAN
Page 2
II
Revision History
Please refer to the table below for the updates made on Veriton
S480G/S488G/S480 Service Guide.
Date Chapter Updates
Page 3
III
Copyright
Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic
,
optical, chemical, manual or otherwise, without the prior written permission of Acer
Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with
respect to the contents hereof and specifically disclaims any warranties of merchantability or
fitness for any particular purpose. Any Acer Incorporated software described in this manual is
sold or licensed "as is". Should the programs prove defective following their purchase, the
buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential damages resulting from any
defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium 4 and Celeron are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their
respective holders.
Page 4
IV
Conventions
The following conventions are used in this manual:
SCREEN
MESSAGES
Denotes actual messages that appear on
screen.
NOTE
Gives bits and pieces of additional information
related to the current topic.
WARNING
Alerts you to any damage that might result from
doing or not doing specific actions.
CAUTION
Gives precautionary measures to avoid possible
hardware or software problems.
IMPORTANT
Remind you to do specific actions relevant to the
accomplishment of procedures.
Page 5
V
Preface
Before using this information and the product it supports, please read the following general
information.
1. This Service Guide provides you with all technical information relating to the BASIC
CONFIGURATION decided for Acer's "global" product offering. To better fit local market
requirements and enhance product competitiveness, your regional office MAY have decided
to extend the functionality of a machine (e.g. add-on card, modem, or extra memory
capability). These LOCALIZED FEATURES will NOT be covered in this generic service
guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date
information available on your regional web or channel. If, for whatever reason, a part
number change is made, it will not be noted in the printed Service Guide. For
ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT
part number code to those given in the FRU list of this printed Service Guide. You MUST use
the list provided by your regional Acer office to order FRU parts for repair and service of
customer machines.
Page 6
Chapter 1 System Specifications 1
Features……………………………………………………………………………………………... 1
Block Diagram…………………………………………………………..………………...………..6
VeritonS80G/S488G/S480Front Panel………………………………………..…….………..7
Ver iton S480G /S4 88G/S 480 Rear Panel…………………..…………………………….……………………8
Hardware Specifications and Configurations………………….…….……..9
Power Management Function (ACPI support function)…………………………..…...16
Chapter 2 System Utilities 17
Entering Setup…………………………………………………………………………..18
Product Information…………………………………………………………….20
Standard CMOS Features……………………………….……………………………………21
Advanced BIOS Features………………………………………..……………………23
Advanced Chipset Features………………………………………..……………………24
Integrated Peripherals…………………………...…………………………………………..25
Power Management Setup…………………………………………………………27
PC Health Status……………………………………………………………...28
Frequency/Voltage Control……………..………………………….…….29
BIOS Security Features………………………………………..……………………30
Load Default Settings………………………………………………..……. 31
Save & Exit Setup………………………………………………….…………32
Exit Without Saving………………………………………………….……..33
Chapter 3 Machine Disassembly and Replacement 34
General Information………………………………………………………. 35
Disassembly Procedure……………………………………………………36
VeritonS480G/S488G/S480 Disassembly Procedure…………….…..……37
Chapter 4 Troubleshooting 50

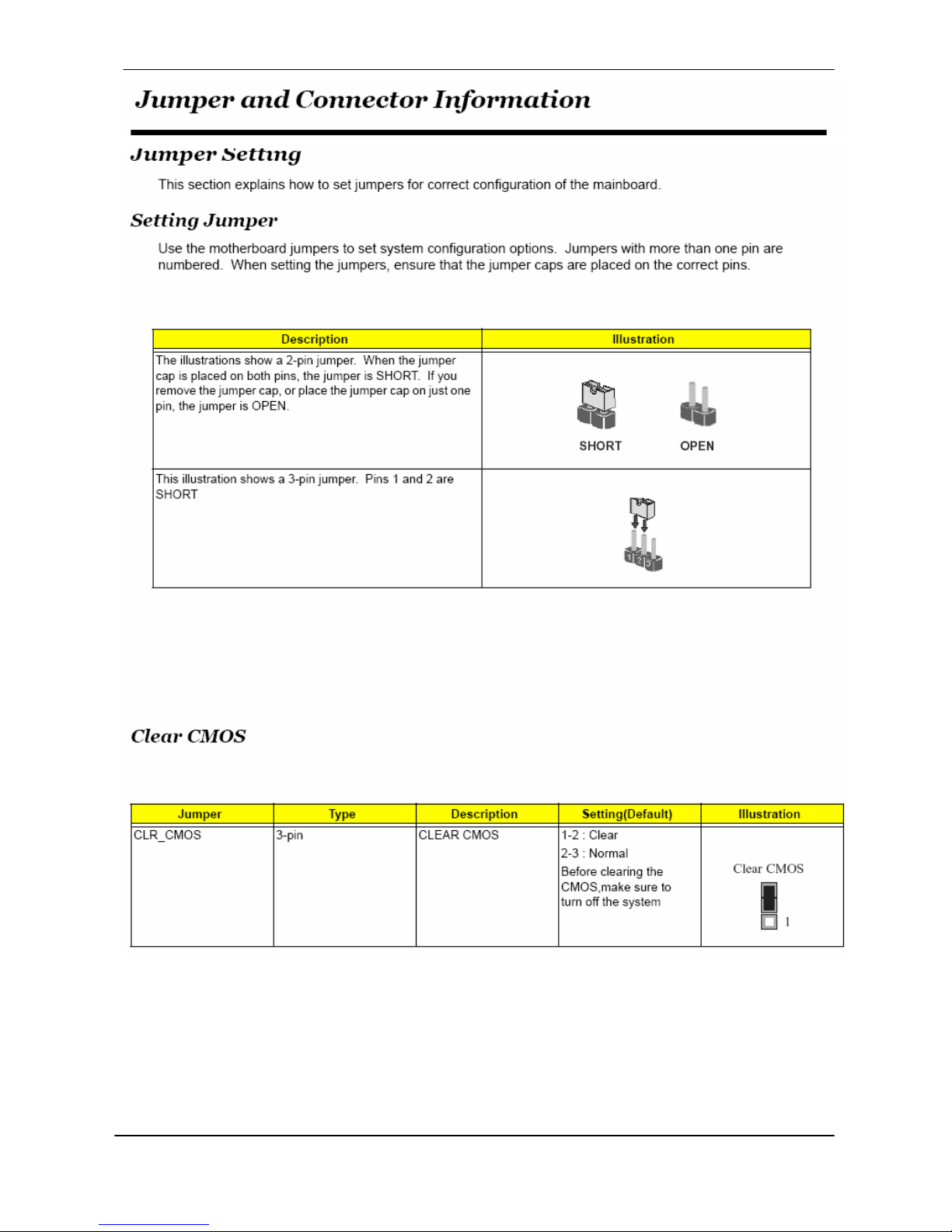

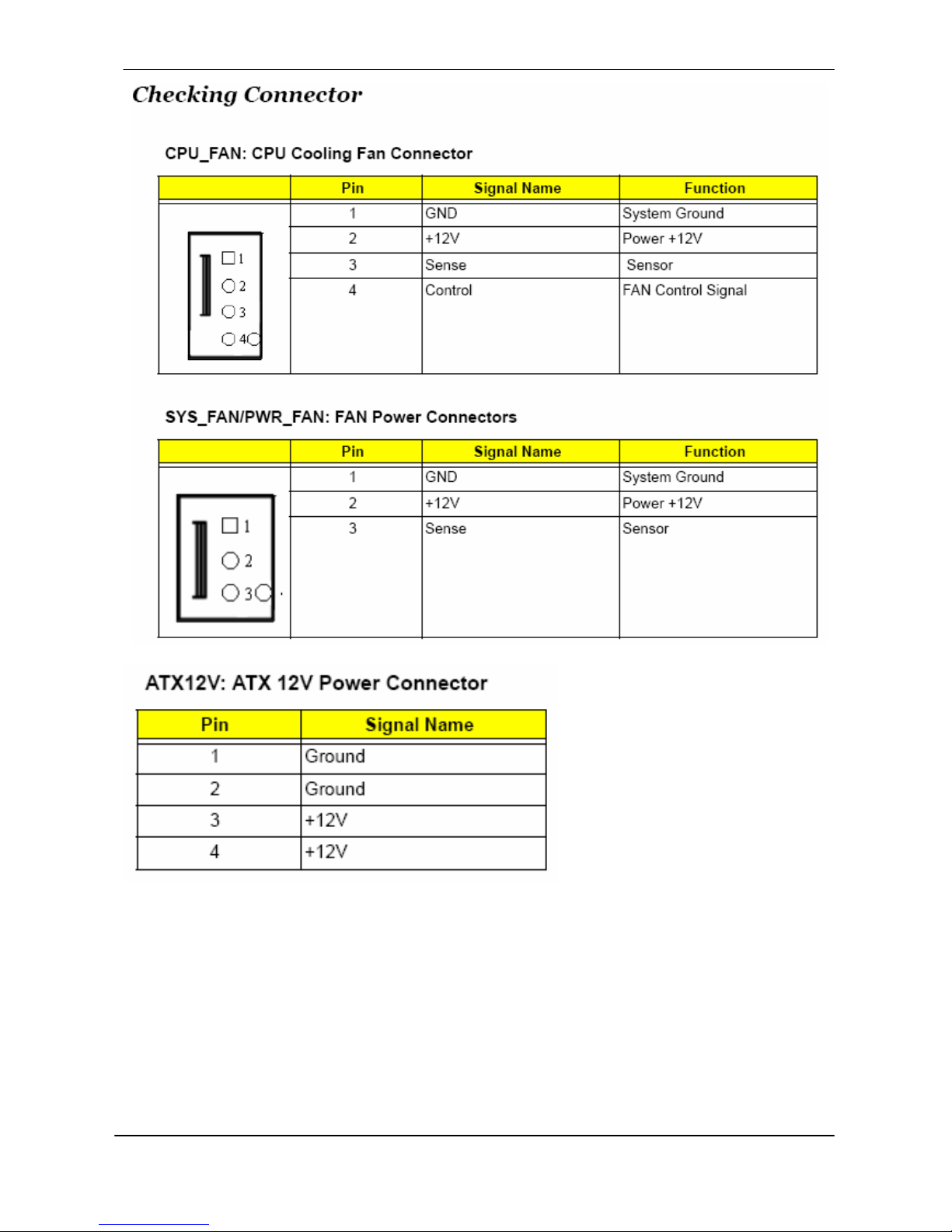

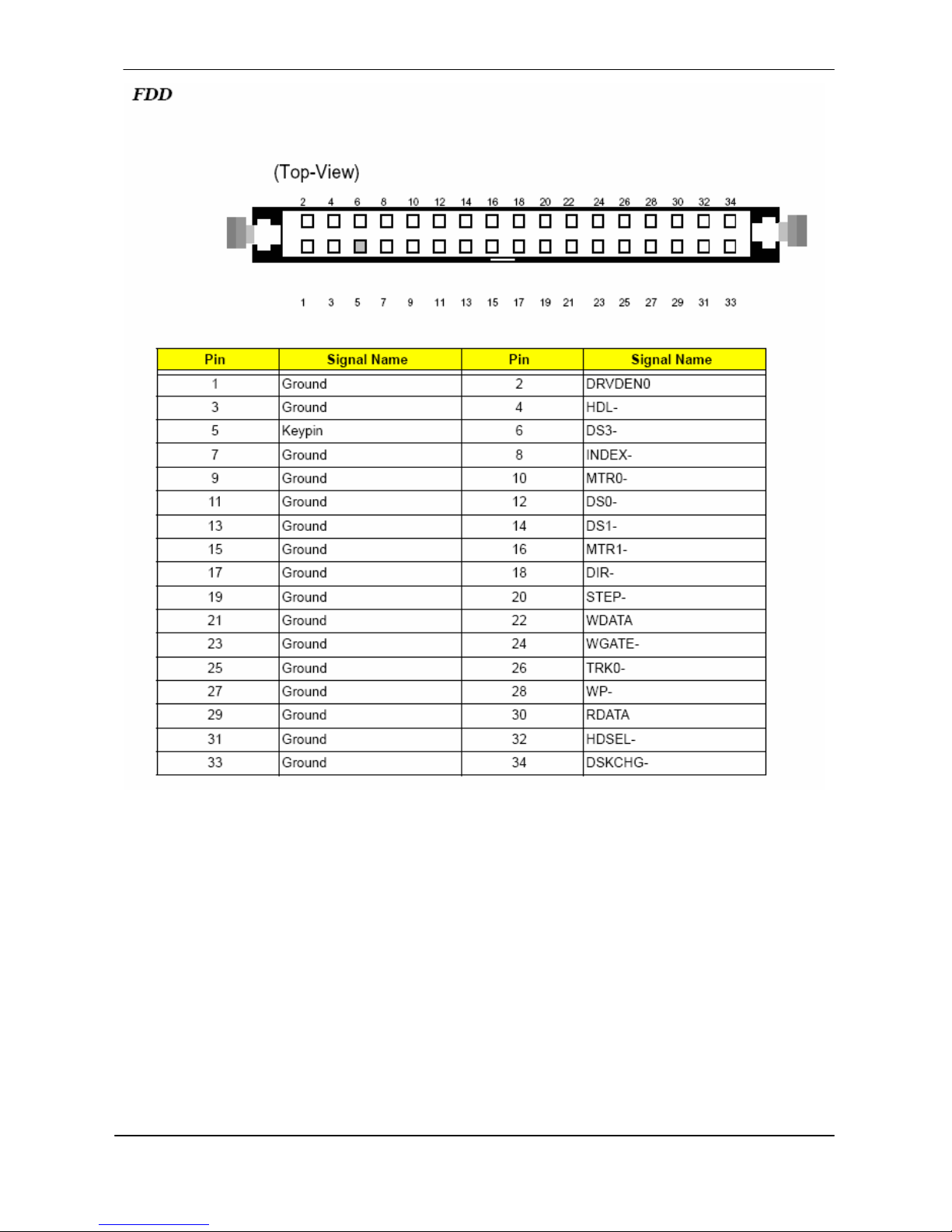

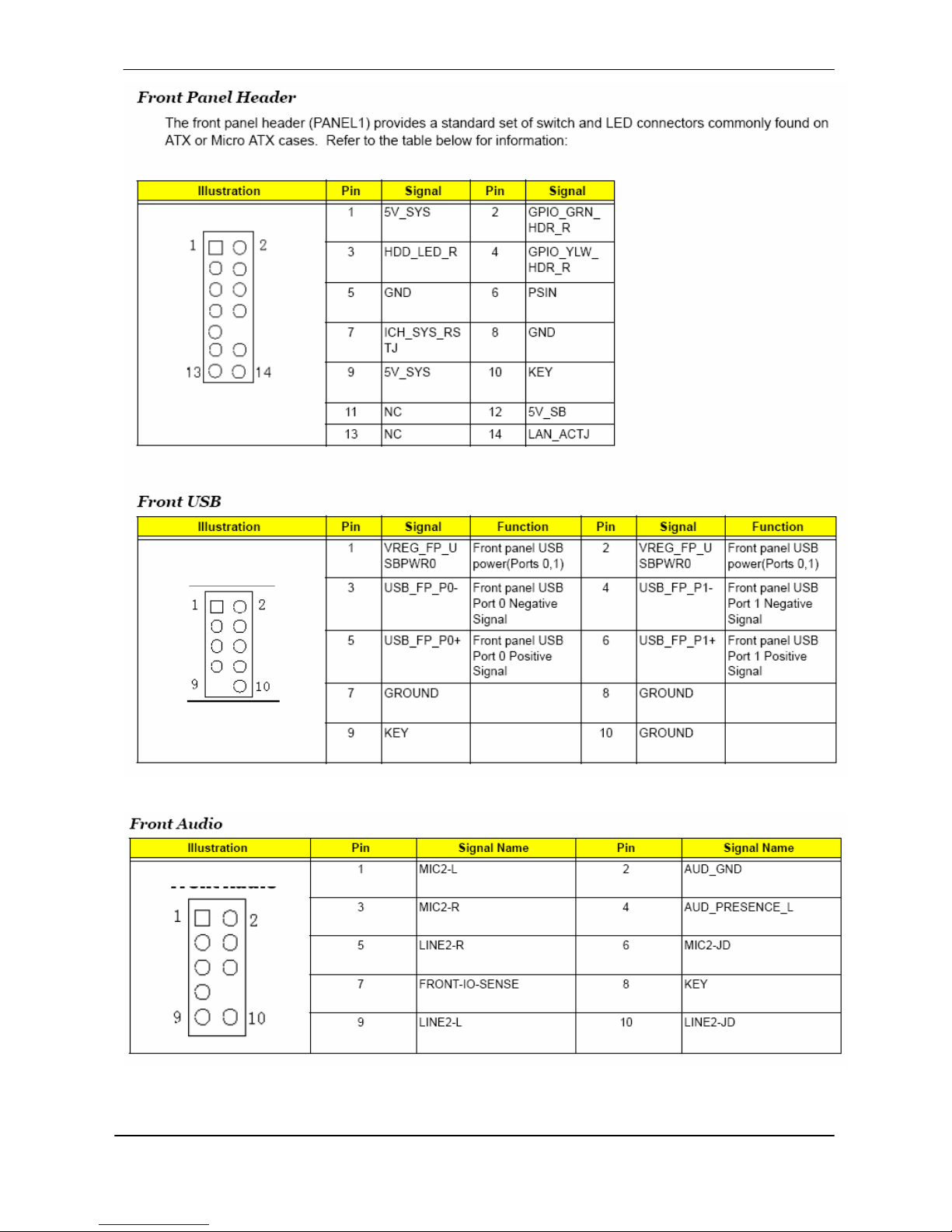

Chapter 5 Jumper and Connector Information 51
Jumper Setting…………………………………………………..………………..51

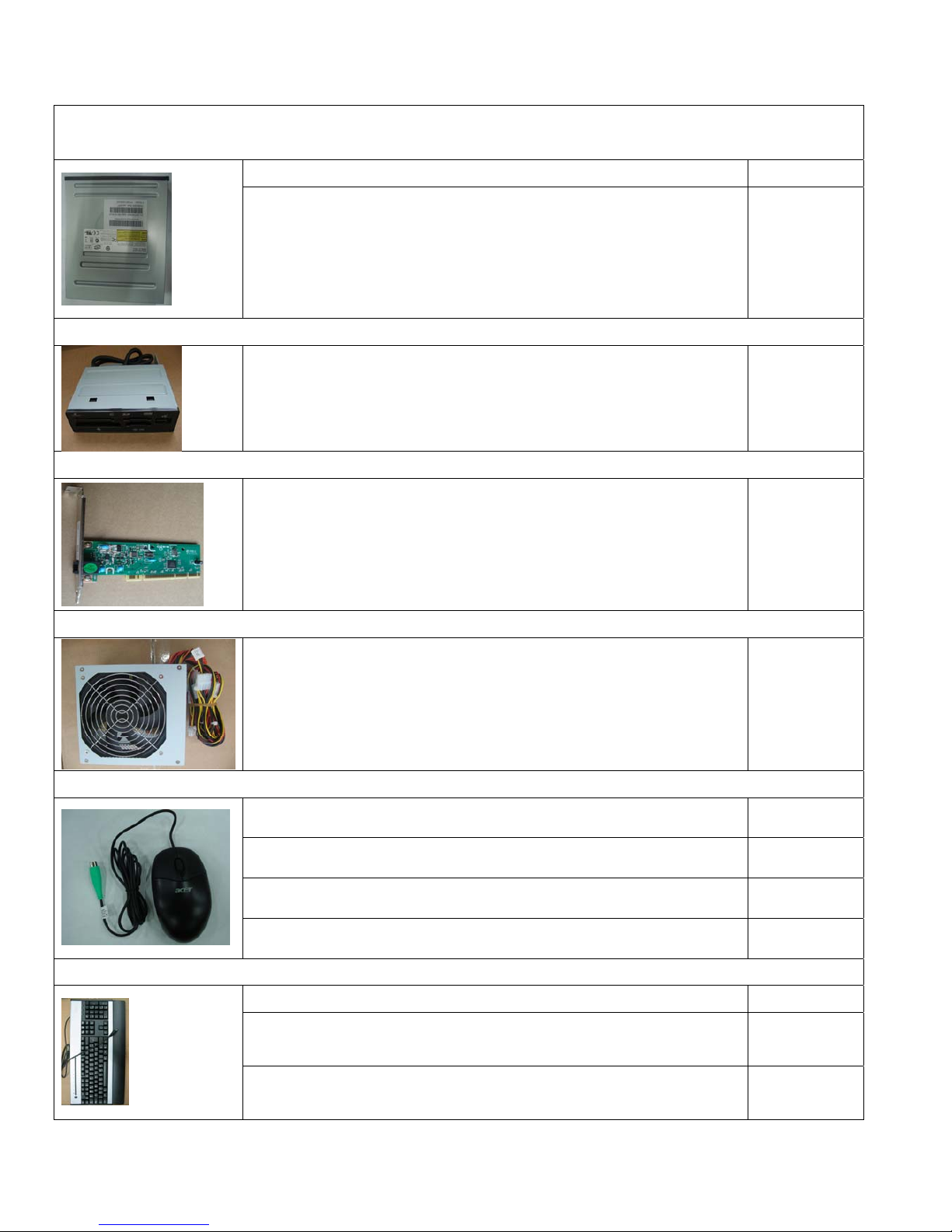

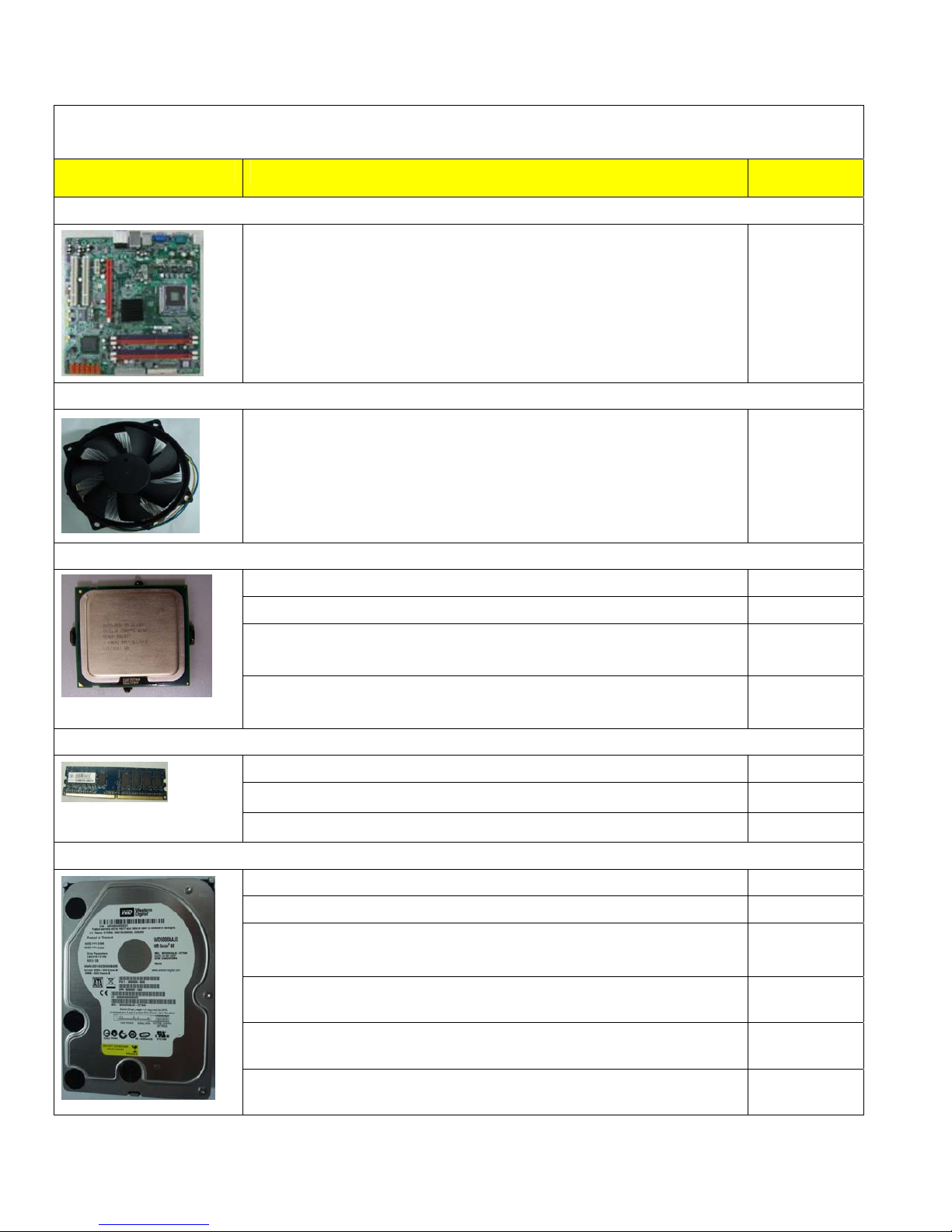

Chapter 6 FRU (Field Replaceable Unit) List 57

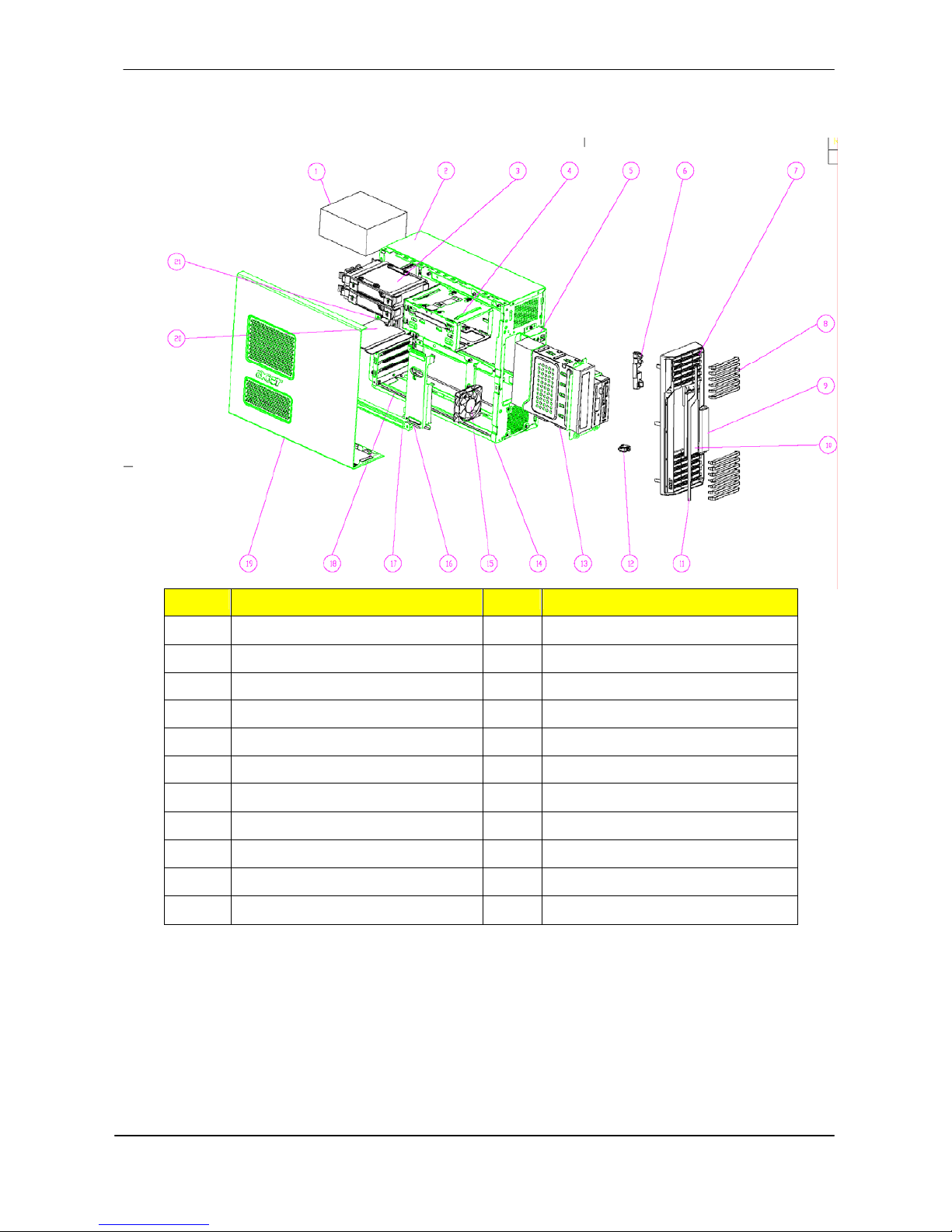

Exploded Diagram………………………………………………………….58

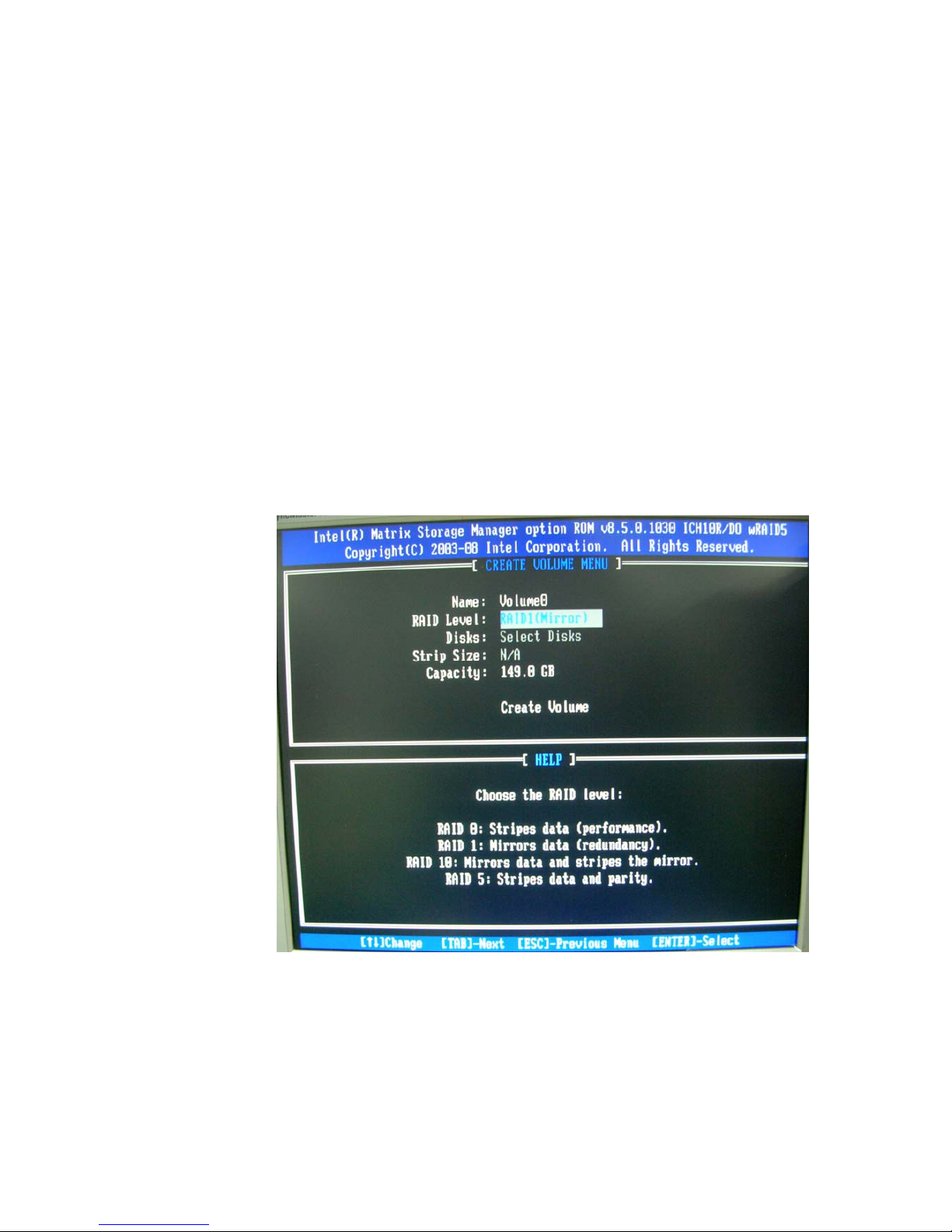

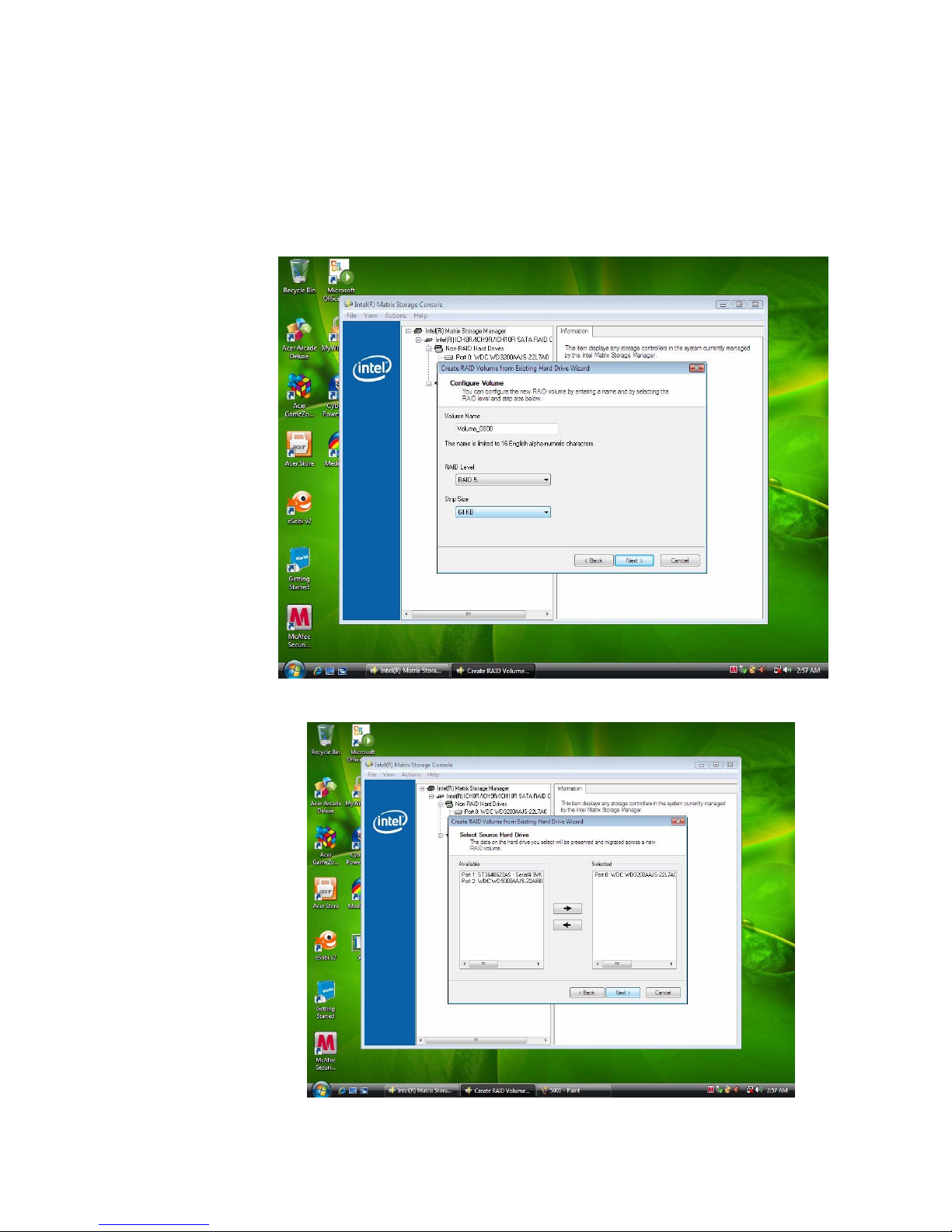

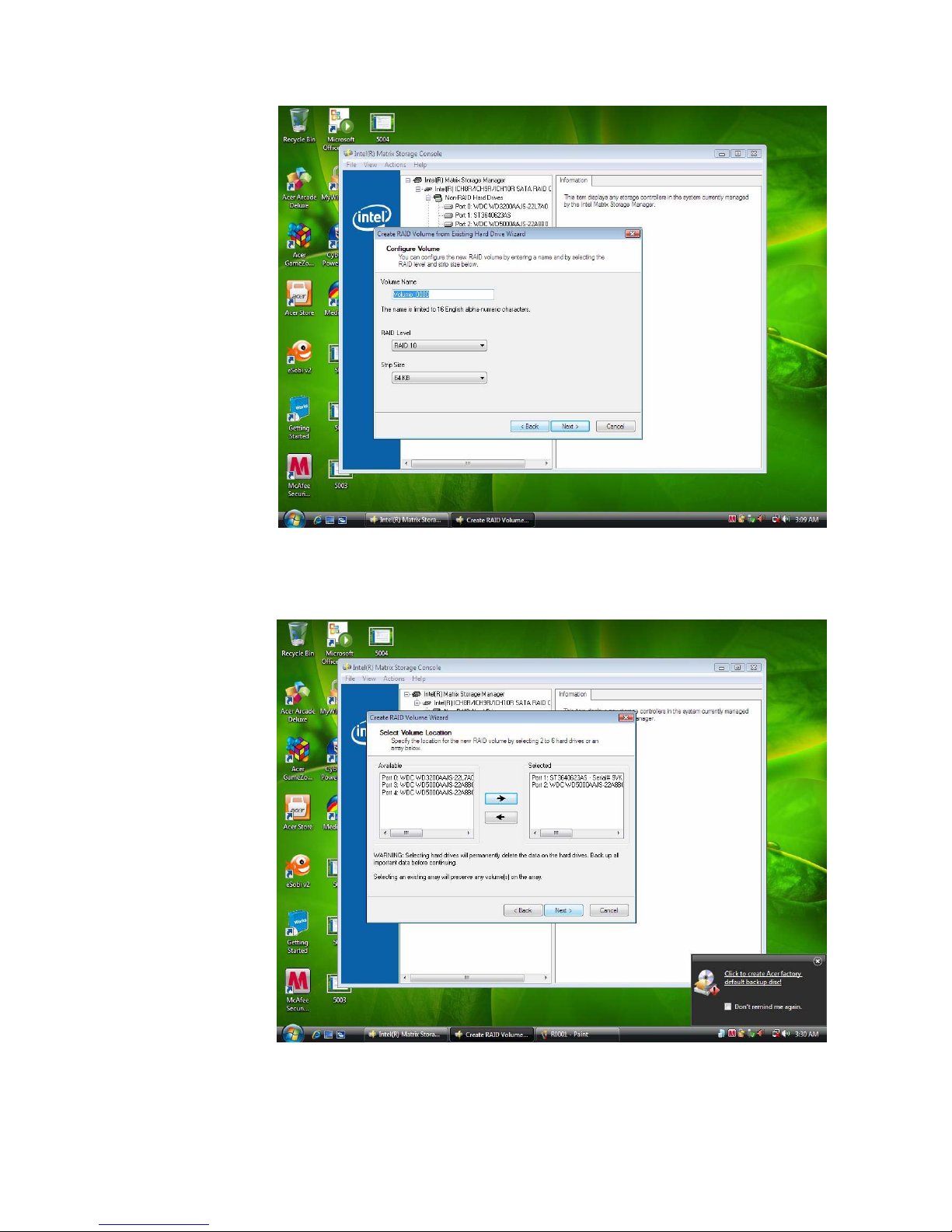

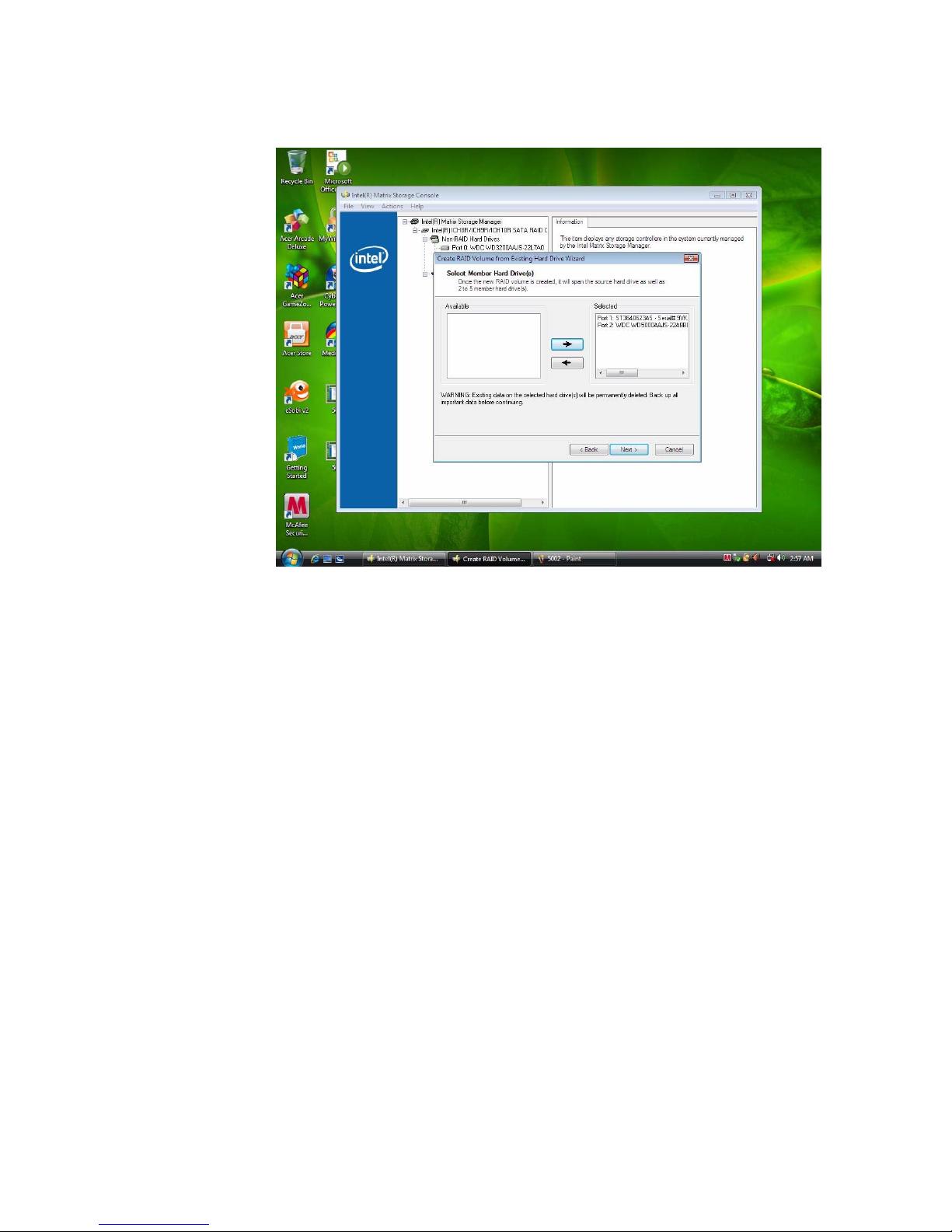

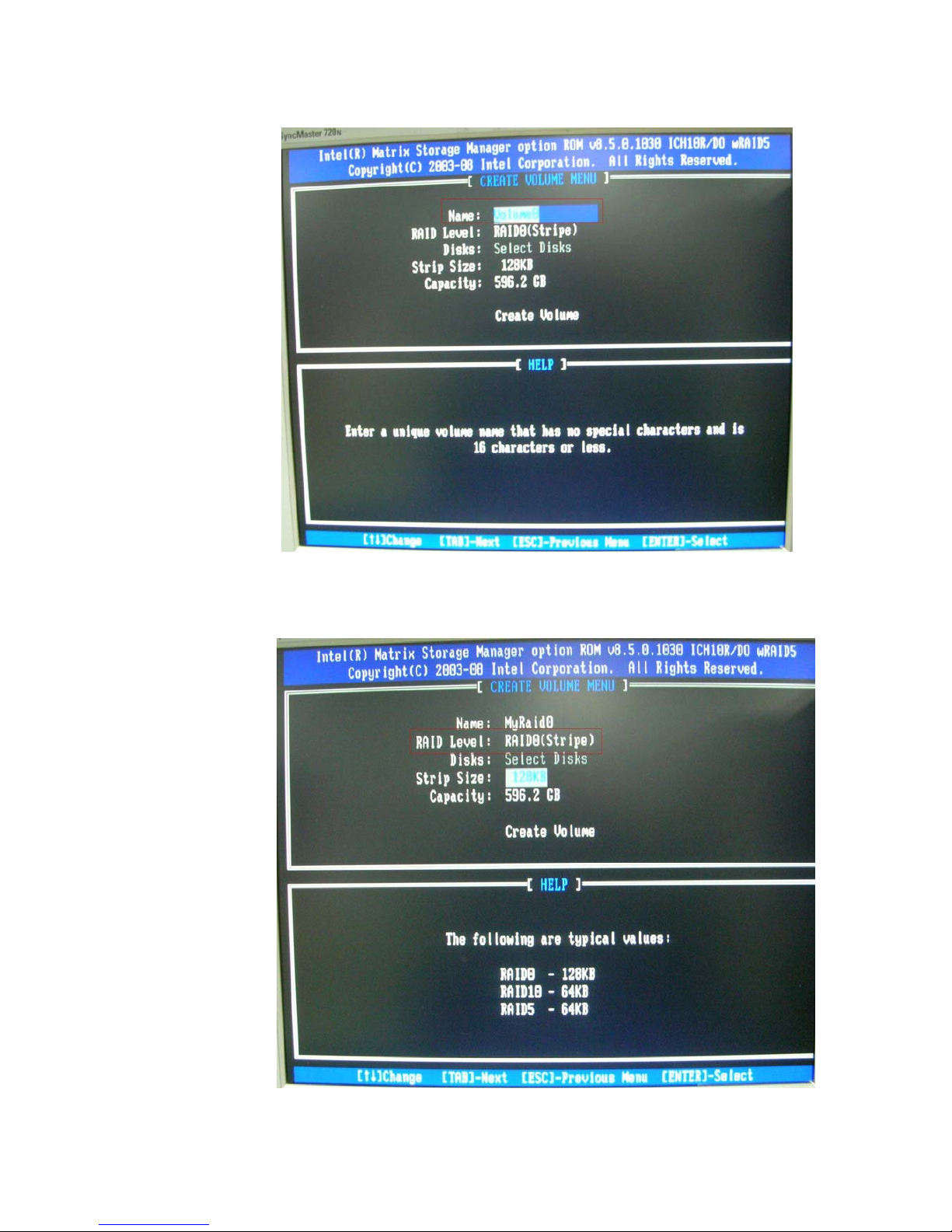

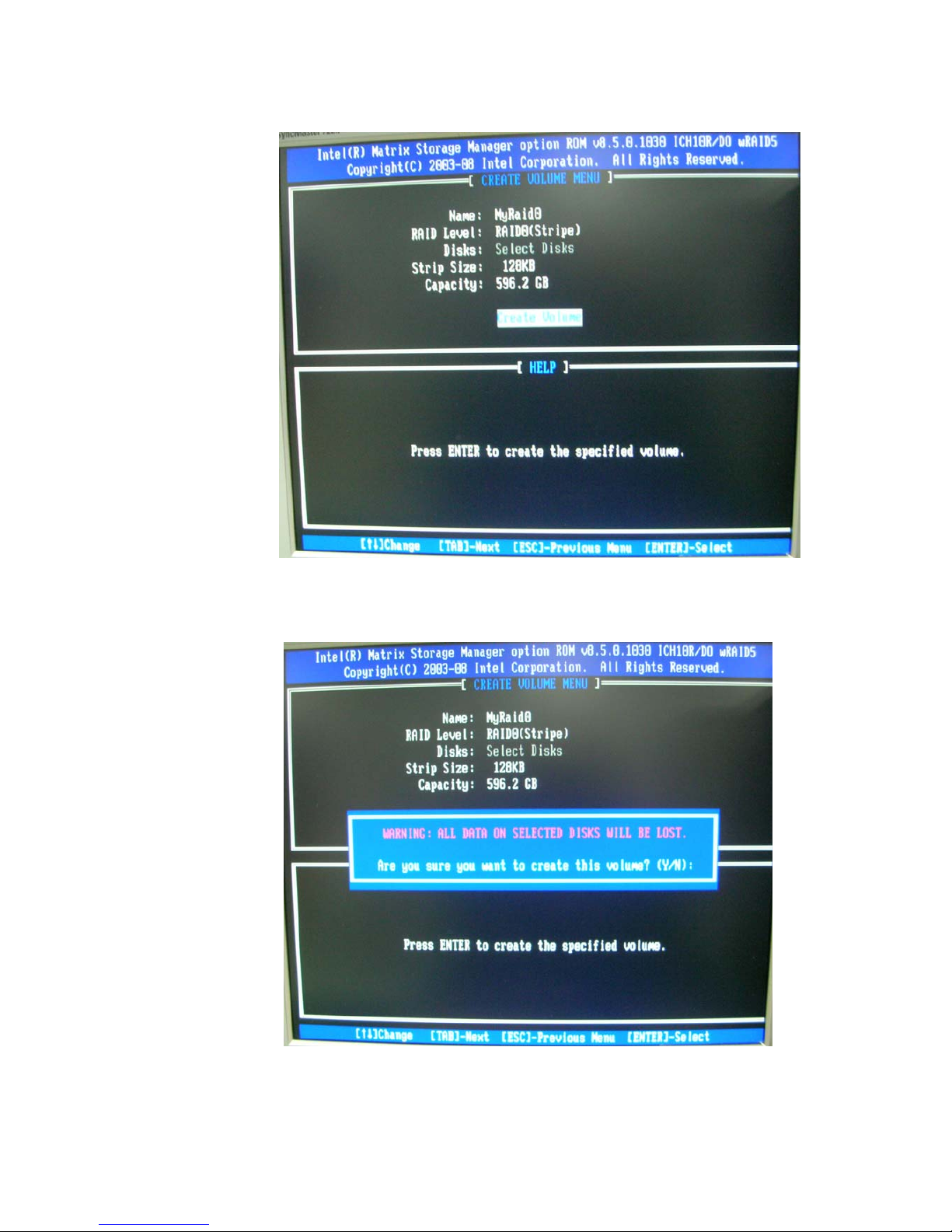

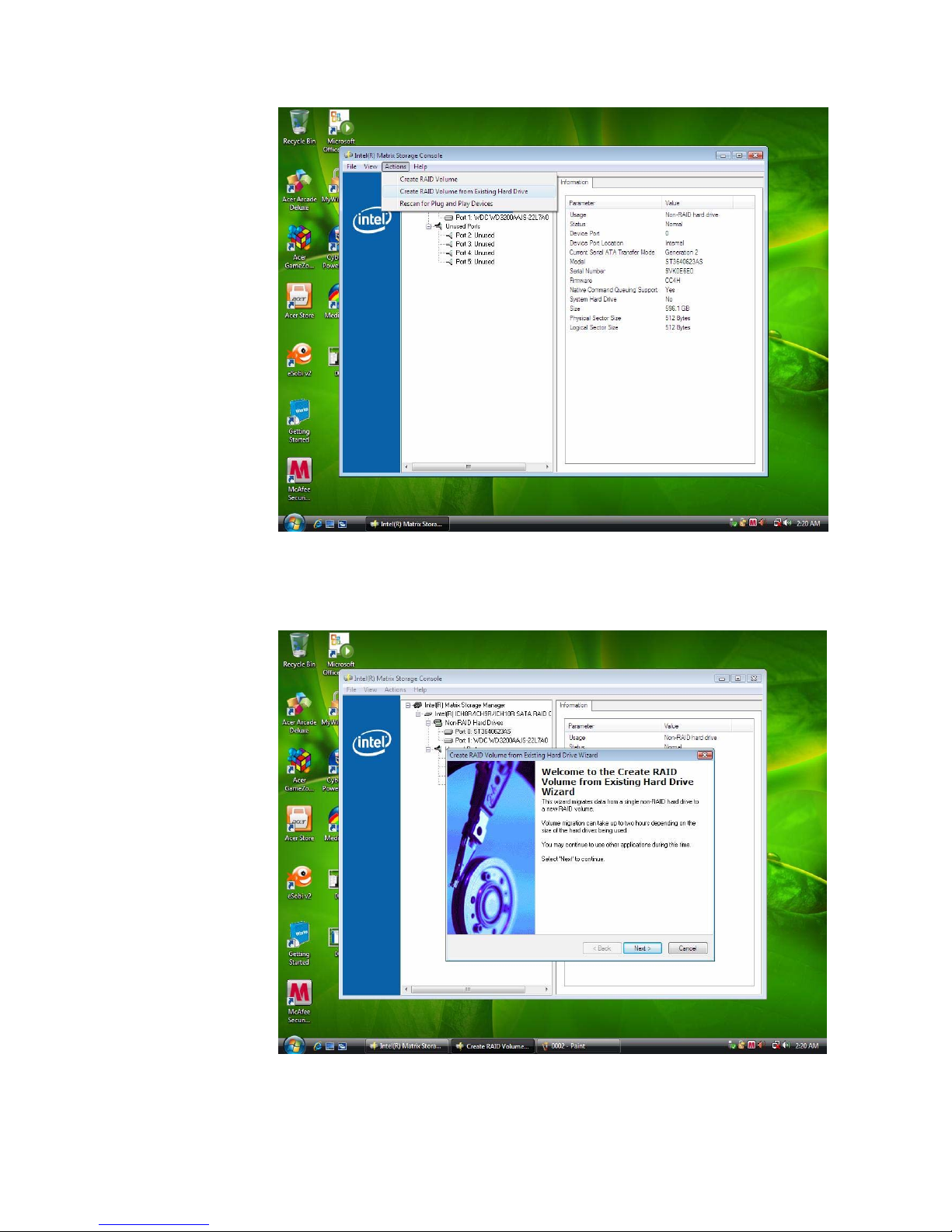

Chapter 7 Intel Raid 59
Intel Raid………………………………………………………….59
Page 7
1
System Specifications
Features
Operating System
Microsoft Windows Vista Home Basic SP1
Microsoft Windows Vista Business SP1(32bit)
Microsoft Windows Vista Business SP1(64bit)
Microsoft Windows XP Professional SP3
Linpus Linux X Window mode
FreeDOS
Microsoft Windows Vista Home Premium SP1(32bit)(Only for Extensa)
Processor
Socket Type: Intel® Socket T LGA 775 pin
Processor Type:
CPUs which compliant with Intel FSB 800/1066/1333 MHz CPUs
Chipset
Intel G43 + ICH10R
PCB
Form Factor: Micro ATX
Dimension/Layer: 244mm x244mm
Memory
Memory Ty pe: DDR3 1066/800
Support single channel 64 bit mode with maximum memory size up to 8GB
Support un-buffered DIMM (ICH10R)
DIMM Slot: 6
Memory Max: 1GB to8GB DDR3 memory technologies
Capacity: Up to 2GB per DIMM with maximum memory size up to 8GB
Page 8
2
PCI
PCI Express Slot Type: x16
PCI Express x16 Slot Quantity: 1
PCI Express Slot Type: x1
PCI Express x1 Slot Quantity: 1
PCI Slot Type: PCI 2.25V
Quantity: 2
FDD
Slot Quantity: 1
Design Criteria:
Should support 1.44MB/3 mode 3.5” Devices

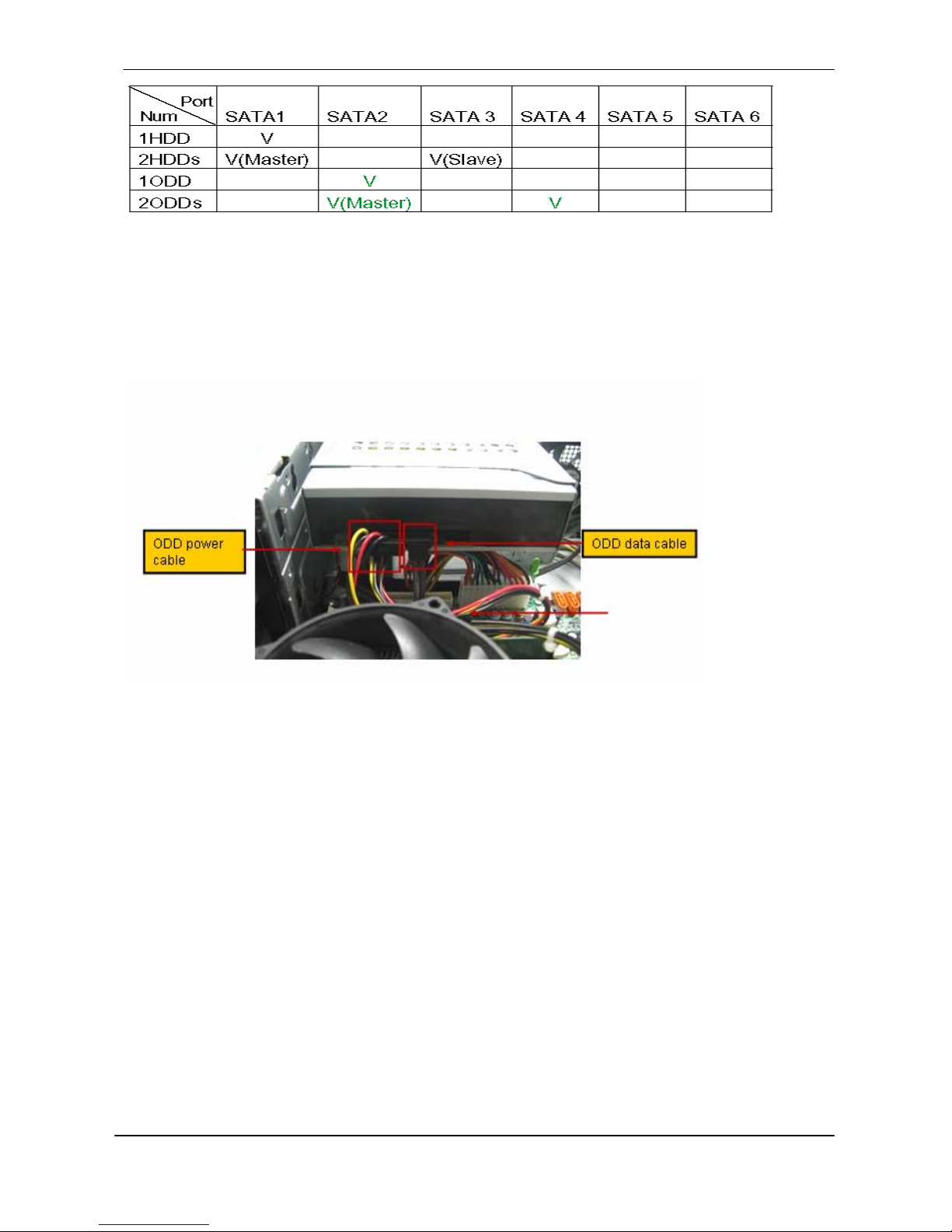

SATA
Slot Type: SATA slot
Slot Quantity: 6
Storage Type support:
HDD/CD-ROM/CD-RW/DVD-ROM/DVD-RW/DVD+RW/DVD Dual/DVD
SuperMultiPlus/Blu-Ray ODD
Audio
Audio Type: HD audio codec
Audio Channel: 5.1 channel
Audio Controller /Codec: ALC662-VC 5.1CH
Connectors support:
Rear 3 jack follow HD audio definition,
Audio jacks color coding: should meet Microsoft Windows Logo Program Device
Requirements: Audio-0002
1 S/PDIF-out header (1*4)
1 front panel audio header (2*5)
S/N ratio: 90 dB at rear output jack
Page 9
3
LAN
MAC Controller: ICH10R
Should be worked under 10M/100M/1000Mbs environment
PHY: Proposed by ODM (Marvel 88E8071)
USB
Controller Type: ICH10R
Ports Quantity: 12
6 port for real panel
On-board: 3 2*5 headers
4 ports for front daughter board(2ports for Extensa)
2 ports for internal card reader
Connector Pin: standard Intel FPIO pin definition
Data transfer rate support:
USB 2.0/1.1
Design Criteria:
Should meet Acer USB drop criteria
BIOS
BIOS Type: AMI Kernel with Gateway skin
Size: 4Mb/8MB
Note:
Boot ROM should be included (PXE function should be built in with default and
RPL function is optional by service BIOS)
BIOS shall auto detect FDD to avoid checksum error when boot
I/O Connector
Controller: Super I/O ITE8720
Rear I/O Connector
1 PS/2 Keyboard port,
1 PS/2 Mouse port,
Page 10
4
1 Serial port
1 D-Sub VGA port
1 DVI-D port
1 RJ45 LAN port,
6 USB ports
1 1394 port
5.1 channel phone jack (3 audio jacks)
On-board connectors
1 CPU socket
4 DDR-3 memory sockets
1 PCI Express x16 slot
1 PCI Express x 1 slots
2 PCI slots
6 SATAII connectors(Need to confirm no interfere with gfx card)
3 2*5 pin Intel FPIO specification USB pin connectors (follow Intel FPIO standard
Specification)
1 2*5 pin Intel FPIO spec. Microphone In/ Headphone Out pin connectors
1 SPDIF out header x2
1 4 pin CPU/SYS Fan connector
1 3 pin System FAN connector with linear circuit
1 24pin + 4pin ATX interface PS3/PS2 SPS connector
1 2*7 pin front panel I/O header
1 Jumper for clear CMOS
1 2pin OBR header
1 on board buzzer
2 reserved 2pin GPIO connector
1 2*10pin TPM header
1 Serial port header (COM2)
Page 11
5
1 2pin Intrusion Alarm connector
1 LPT 2*13pin header
1 2*4 pin internal speaker header
Color management for on board connecter
Power Supply
Power Supply Mounting Features
Chassis accepts ATX-style power supply
Chasses accepts PS2, PS3 style power supply
Features for internal mounting tab
Location of 4 external mounting holes
Power Supply Electrical Design Feature
300W/250W in stable mode (Acer Assign System Power Unit)
Voltage design should be covered +5V, +3.3V, +12V, +5VSB, -12V (attention to
12V output capability)
Demand for both PFC/Non-PFC solutions (two different quotations are needed)
Minimum 4 Serial ATA power connector solution should be included (by default)
Minimum 1 big4-pin power connector included
Minimum 1 small 4-pin power connector included
Full Range PSU
PS2 style
Page 12
6

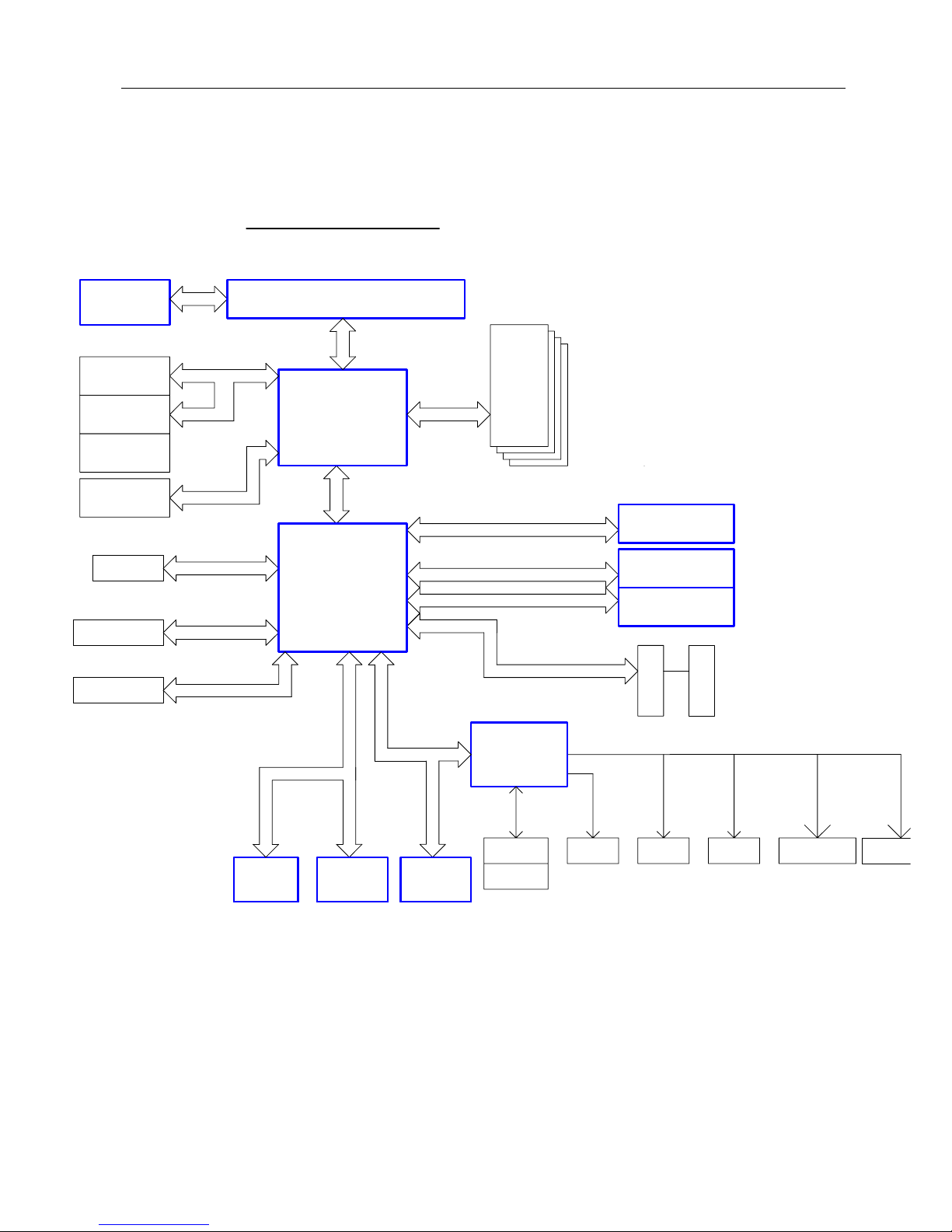

Block Diagram
SPI
PCI
PCI_E x1
PCI_E x1
Serial-1 Serial
MARVELL 88E8071
LAN
TPM
FSB
SPI 8M
FLASH ROM
SLOT
PCI_E X16
PCI Slot 1
ALC662
HD Audio Codec
USB Port 1~12
Modules
Eaglelake
GMCH/G43
SATA2
Block Diagram
SATA-II 1~6
4 DDR III
FSB 800/1066/1333
Intel LGA775 Processor
PCI_E x1
VRD 11
DDRIII
3-Phase PW M
DDR3 800/1066
DIMM
ISL6333
PCI EXPRESS X16
Analog
Video O ut
RGB
PCI_E x1
VIA VT6315N
1394(reserve)
Connector
DVI
PCI EXPRESS X4
LPT
PCI Slot 2
iTE
IT8720
Floppy
ICH10R
LPC SIO
DMI
USB2.0
LPC Bus
Keyboard
Mouse
HD Audio Link
Page 13
7

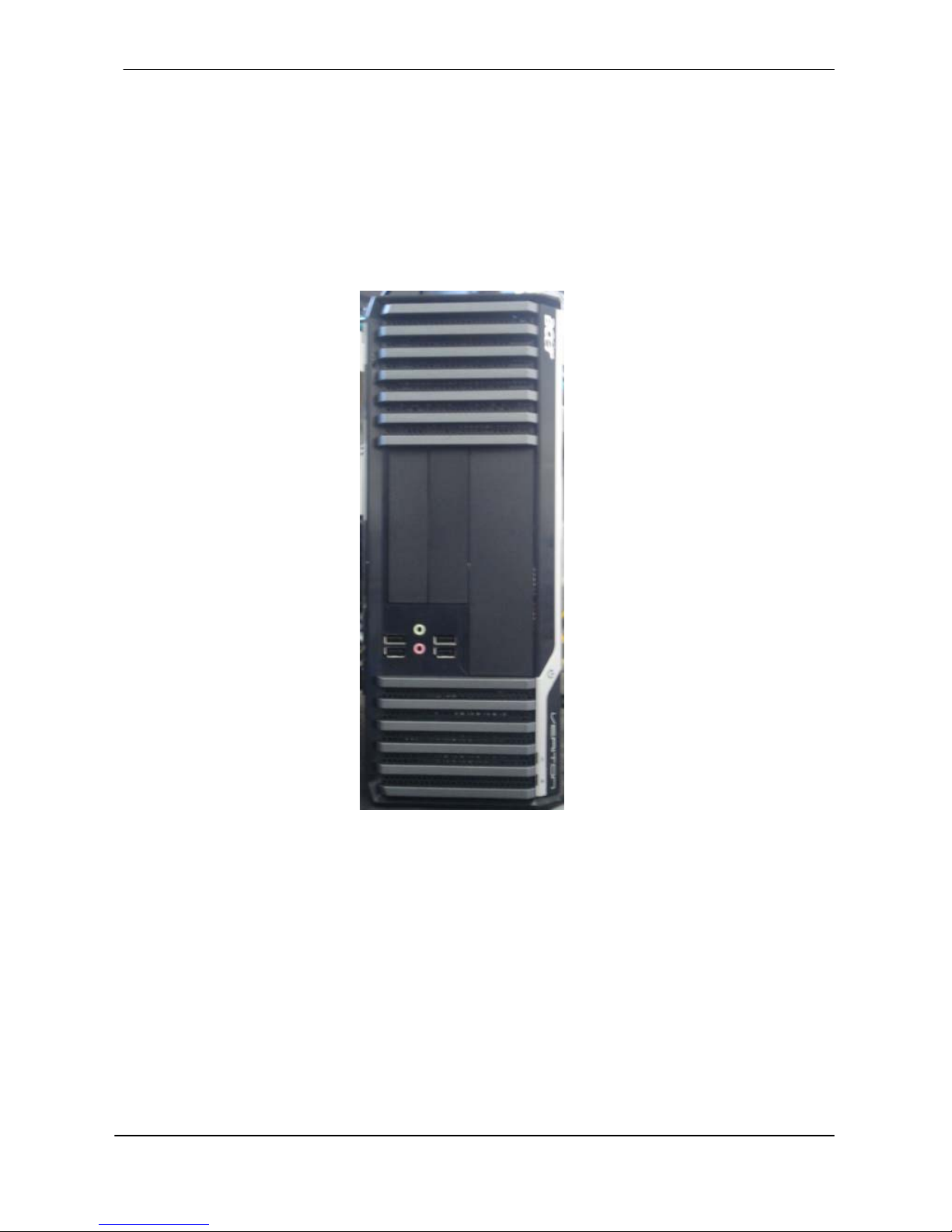

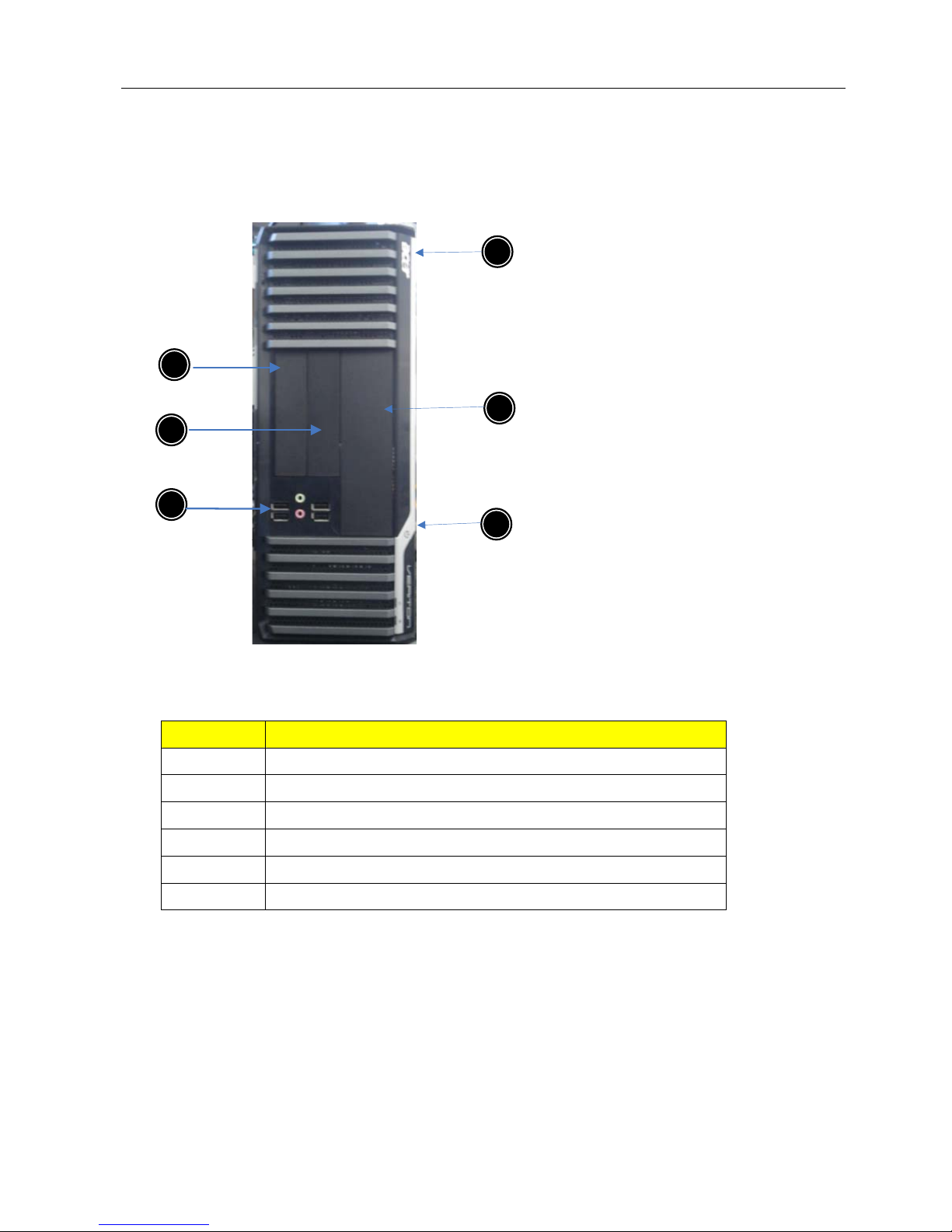

Veriton S480G/S488G/S480 Front Panel
The computer’s front panel consists of the following:
1
3
2
4
5
6
Label Description
1 Card reader
2 FDD
3 USB and audio jack ports
4 Acer Logo
5 Optical drive
6 Power Button
Page 14
8

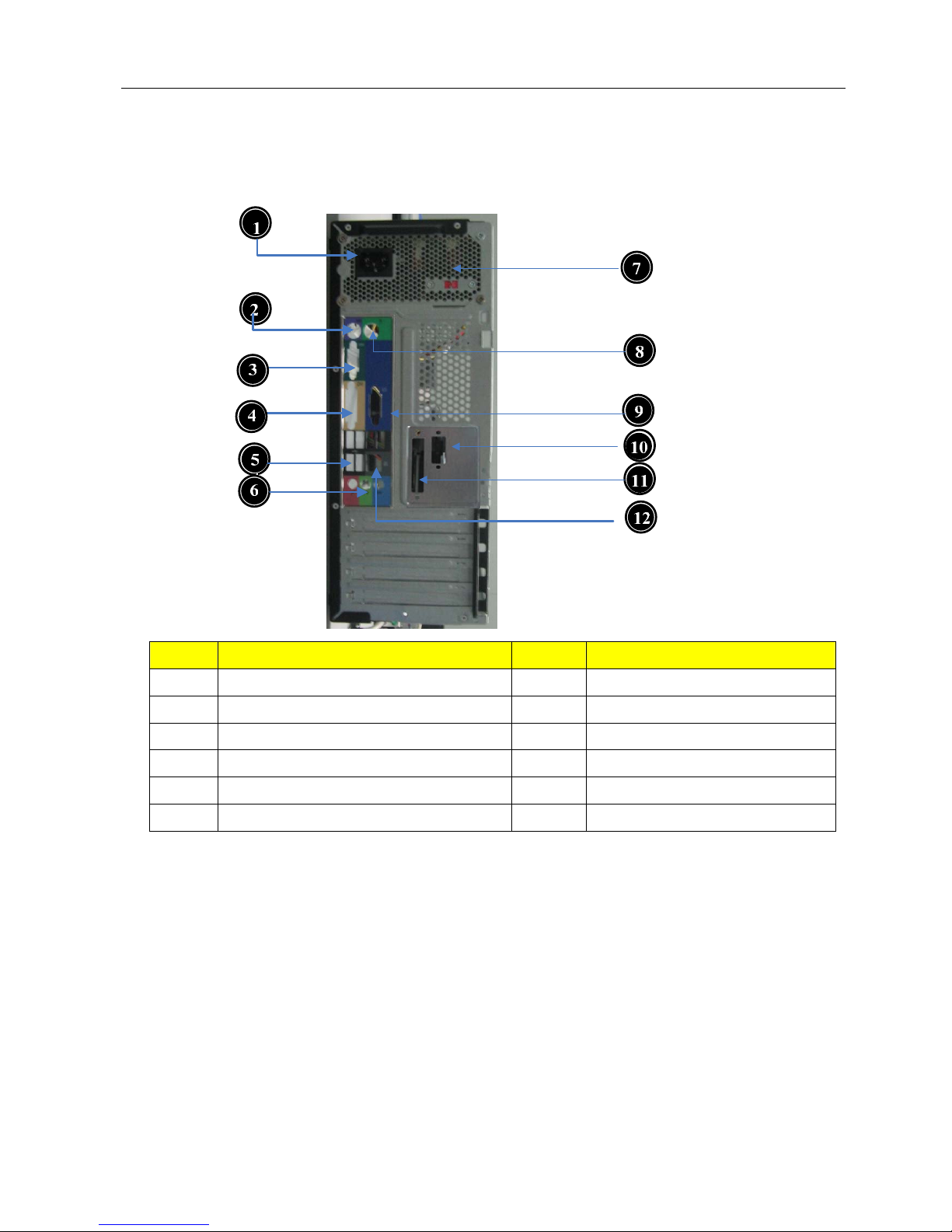

Veriton S480G/S488G/S480 Rear Panel
Label Description Label Description
1 Power card socket 7 Fan aperture
2 PS/2 keyboard connecter 8 PS/2 mouse connecter
3 Serial port 9 D-Sub port
4 DVI-D port 10 COM2 port
5 USB 2.0 connector 11 Print port
6 Audio connector 12 LAN connector
Page 15
9
Hardware Specifications and Configurations
Processor
Item Specification
Type Intel Socket T LGA 775 pin
Socket LGA 775 pin
FSB 800/1066/1333 MHz
Minimum operating
speed
0 MHz (If Stop CPU Clock in Sleep State in BIOS
Setup is set to Enabled.)
BIOS
Item Specification
BIOS code programmer AMI Kernel with Gateway skin
BIOS version P01-A0
BIOS ROM type SPI Flash
BIOS ROM size 4Mb/8MB
Support protocol SMBIOS(DMI)2.4/DMI2.0
Device Boot Support - 1st priority: SATA HDD
- 2nd priority: CD-ROM
- 3rd priority: FDD
- 4th priority: LAN
- 5th priority: USB device
Support to LS-120 drive YES
Support to BIOS boot block
feature
YES
Page 16
10
BIOS Hotkey List
Hotkey Function Description
Del Enter BIOS Setup Utility Press while the system is booting to
enter BIOS Setup Utility.
Main Board Major Chips
Item Specification
North Bridge Intel G43
South Bridge ICH 10R
APG controller Intel G43
Super I/O controller ITE 8720
Audio controller Realtek HD audio codec ALC662-VC HD codec 5.1
LAN controller Marvel 88E8071
HDD controller ICH 10R
Keyboard controller ITE 8720
Page 17
11
Memory Combinations
Slot Memory Total Memory
Slot 1 1GB, 2GB 1GB ~2GB
Slot 2 1GB, 2GB 1GB ~2GB
Slot 3 1GB, 2GB 1GB ~2GB
Slot 4 1GB, 2GB 1GB ~2GB
Maximum System Memory Supported 1GB ~8GB
System Memory
Item Specification
Memory slot number 4slot
Support Memory size per socket 1GB/2GB
Support memory type DDR3
Support memory interface DDR3 1066/800MHz
Support memory voltage 1.5V
Support memory module package 240-pin DDR3
Support to parity check feature Yes
Support to error correction code
(ECC) feature
No
Memory module combinations
Y
ou can install memory modules in any
combination as long as they match the
above specifications.
Page 18
12
Audio Interface
Item Specification
Audio controller Intel ICH 10R
Audio controller type ALC662-VC HD
Audio channel codec 5.1
Audio function control Enable/disable by BIOS Setup
Mono or stereo Stereo
Compatibility Sound Blaster Pro/16 compatible
Mixed digital and analog high
performance chip Enhanced stereo
full duplex operation High
performance audio accelerator and
AC’97 support Full native DOS
games compatibility Virtual FM
enhances audio experience through
real-time FM-to-Wavetable
conversionMPU-401 (UART mode)
interface for Wavetable synthesizers
and MIDI devices Integrated dual
game port Meets AC’97and WHQL
specifications
Music synthesizer Yes, internal FM synthesizer
Sampling rate 48 KHz (max.)
MPU-401 UART support Yes
Microphone jack Supported
Headphone jack Supported
Page 19
13
SATA Interface
Item Specification
SATA controller Intel ICH 10R
SATA controller resident bus PCI bus
Number of SATA channel SATA X 6
Support bootable CD-ROM YES
USB Port
Item Specification
Universal HCI USB 2.0/1.1
USB Class Support legacy keyboard for legacy
mode
USB Connectors Quantity 6 back panel ports
4 ports for front daughter board
2 ports for 3.5’’ card reader module
Page 20
14
Environmental Requirements
Item Specification
Temperature
Operating +5°C ~ +35°C
Non-operating -20 ~ +60°C (Storage package)
Humidity
Operating 15% to 80% RH
Non-operating 10% to 90% RH
Vibration
Operating (unpacked) 5 ~ 500 Hz: 2.20g RMS random, 10 minutes per axis in
all 3 axes
5 ~500 Hz: 1.09g RMS random, 1 hour per axis in all 3
axes
Page 21
15
Power Management
Devices S1 S3 S4 S5
Power Button V V V V
USB
Keyboard/Mouse
V V N/A N/A
PME Disabled Disabled Disabled Disabled
RCT Disabled Disabled Disabled Disabled
WOR Disabled Disabled Disabled Disabled
Devices wake up from S3 should be less than
Devices wake up from S5 should be less than 10 seconds
Page 22
16
Power Management Function(ACPI support function)
Device Standby Mode
Independent power management timer for hard disk drive devices(0-15
minutes,time step=1minute).
Hard Disk drive goes into Standby mode(for ATA standard interface).
Disable V-sync to control the VESA DPMS monitor.
Resume method:device activated (keyboard for DOS, keyboard &mouse
for Windows.
Resume recovery time 3-5sec.
Global Standby Mode
Global power management timer(2-120minutes,time step=10minute).
Hard disk drive goes into Standby mode(for ATA standard interface).
Disable H-sync and V-sync signals to control the VESA DPMS monitor.
Resume method: Resume to original state by pushing external switch
Button,modem ring in,keyboard an mouse for APM mode.
Resume recovery time :7-10sec
Suspend Mode
Independent power management timer(2-120minutes,time step=10minute)or
pushing extern switch button.
CPU goes into SMM
CPU asserts STPCLK# and goes into the Stop Grant State.
LED on panel turns amber colour.
Hard disk drive goes into SLEEP mode (for ATA standard interface).
Disable H-sync and V-sync signals to control the VESA DPMS monitor.
Ultra I/O and VGA chip go into power saving mode.
Resume method: Resume to original state by pushing external switch
Button,modem ring in,keyboard an mouse for APM mode
Return to original state by pushing external switch button,modem ring in
and USB keyboard for ACPI mode.
ACPI
ACPI specification 1.0b
S0,S1,S2 and S5 sleep state support.
On board device power management support.
On board device configuration support.
Page 23
17
System Utilities
The manufacturer or the dealer already configures most systems.
There is no need to run Setup when starting the computer unless you
get a Run Setup message.
The Setup program loads configuration values into the battery-backed nonvolatile
memory called CMOS RAM.
This memory area is not part of the system RAM.
NOTE: If you repeatedly receive Run Setup messages, the battery may be bad/flat. In
this case, the system cannot retain configuration values in CMOS.
Before you run Setup, make sure that you have saved all open files. The system reboots
immediately after you exit Setup.
Page 24
18
Entering Setup
Power on the computer and the system will start POST (Power On Self Test) process.
When the message of “Press DEL to enter SETUP” appears on the screen, press the
key of [Delete] to enter the setup menu.
NOTE: If the message disappears before you respond and you still wish to enter
Setup, restart the system by turning it OFF and On. You may also restart the
system by simultaneously pressing [Ctrl+ Alt+ Delete].
The Setup Utility main menu then appears:
Product Information
Standard CMOS Features
Advance BIOS Features CMOS
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PC Health Status
Frequency/VoltageControl
BIOS Security Features
Load Default Settings
Save & Exit Setu
p
Exit Without Savin
g
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9:
Optimized Defaults
CMOS Setup Utility– Copyright (c) 1985-2008,American Megatrends, Inc.
Page 25
19
The items in the main menu are explained below:
Parameter Description
Production Information This page shows the relevant information of the main
board
Standard CMOS Features This setup page includes all the items in standard
compatible BIOS
Advance BIOS Features This setup page includes all the items of Award special
enhanced features
Advance Chipset Features This setup page includes all advanced chipset features
Integrated Peripherals This setup page includes all onboard peripherals
Power Management Setup This setup page includes all the items of Green function
features
PC Health Status This setup page is the System auto detect
Temperature, voltage, and fan speed
Frequency/Voltage Control This setup page is the System Frequency/Voltage setup
BIOS Security Features Change, set or disable password. It allows you to limit
access to the System
Load Optimized Defaults Load Optimized Settings Default Settings indicates the
value of the system parameters which the system
would be in best performance configuration
Save & Exit Setup Save CMOS value settings to CMOS and exit setup
Exit Without Saving Abandon all CMOS value changes and exit setup
Page 26
20
Product Information
The screen below appears if you select Product Information from the main menu: The
Product Information menu contains general data about the system, such as the product
name, serial number, BIOS version, etc. This information is necessary for
troubleshooting (maybe required when asking for technical support).
The following table describes the parameters found in this menu:
Parameter Description
Processor Type This item lists the Processor Type
Processor speed This item lists the Processor speed
System Memory This item lists the System Memory
System Manufacturer This item lists the System Manufacturer
Product Name This item lists the system BIOS version
System Serial Number This item lists the system serial number
System BIOS Version This item lists the system BIOS version
BIOS Release Date This item lists the BIOS release date
Processor Type :
Inter(R) Core(TM)2 Quad CPU Q9300 @ 2.50GHZ
Proscessor speed 2.5GHZ
System Memory 4.96MHZ
System Manufacture :Acer
Product Name : Veriton M480
System Serial Number :
System BIOS Version :P01-A0
BIOS Release Date : 04/10/2009
Asset Tag Number :
Item Help
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9: Optimized Defaults
CMOS Setup Utility– Copyright (c) 1985-2008,American Megatrends, Inc.
Product Information
Page 27
21
Standard CMOS Setup
Select standard CMOS features from the main menu to configure some basic parameters
in your system the following screen shows the standard CMOS features menu:
BIOS Security Features
KLIJ: Move ENTER: Select Item +/-/: Value F10: Save ESC: Exit
CMOS Setup Utility – Copyright (c) 1985-2005,American Megatrends, Inc.
System Date [Fri 01/30/2009]
System Time [16:11:21]
Floppy A [1.44 MB 3 1/2’’]
ACPI Port 1 [Hard Disk]
ACPI Port 2 [ATAPI CDROM]
ACPI Port 3 [Hard Disk]
ACPI Port 4 [Not Detected]
ACPI Port 5 [Not Detected]
ACPI Port 6 [ATAPI CDROM]
Holt on [All, But Keyboard]
Item Help
Use [ENTER], [TAB] or
[SHIFT-TAB] to select
A field .
Use [+] or [-] to configure
system Time.
Page 28
22
The following table describes the parameters found in this menu.
Parameter Description Options
System Date To set the date following
the
weekday-month-date-year
format
Week: From [Sun.] to [Sat.]. determined
by BIOS and is display only
Day: from [1] to [31] (or the maximum
allowed in the month.
Year: from 1999 to 2099
System Time To set the time following
the hour-minute-second
format
The items format is [hour]
[minute][second]. The time is calculated
base on the 24-hour timer clock.
Halt On This item enables use to
select the situation if the
BIOS stops the POST
process and the
notification
All Errors
No Errors
All, But Keyboard
All, But Diskette
All, But Disk/Key
Page 29
23
Advanced Setup
The following screen shows the Advanced Setup:
The following table describes the parameters found in this menu.
Parameter Description Options
Quick Boot Allows BIOS to skip certain tests while
booting. This will decrease the time needed
to boot the system
[Enabled],
[Disabled]
1 st Boot Device
2 nd Boot Device
3 rd Boot Device
4 th Boot Device
The item allows you to see the sequence of
boot device where BIOS attempts to load
the disk operation system.
Hard Disk Drive
Priority
Removable Device
Priority
Specifies the boot device. Priority
sequence from available Hard Drives
Boot up Num-Lock On Select Power-on state for Numlock On,Off
USB Beep Message Enables the beep during USB device
enumeration
[Enabled],
[Disabled]
Quick Boot Enabled
Quiet Boot Enabled
1st Boot Device [Raid ST3320813AS]
2nd Boot Device [CD&DVD:P1-ATAPI DV]
3rd Boot Device [USB:Generic USB SD ]
4th Boot Device [LAN]
Hard Disk Drive Priority [Press Enter]
Optical Disk Device Priority [Press Enter]
Removable Device Priority [Press Enter]
Boot up Num-Lock On
BIOS Write Protect Disabled
USB Beep Message Disabled
Item Help
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9:
Optimized Defaults
CMOS Setup Utility Copyright (c) 1985-2008,American Megatrends, Inc.
Advanced BIOS Features
Allows BIOS to skip certain tests while
Booting .This will decrease the time
needed to boot the system.
Page 30
24
Advanced Chipset Setup
The following table describes the parameters found in this menu.
Parameter Description Options
Intel EIST For Intel platform Disabled/Enabled
Intel XD Bit For Intel platform Disabled/Enabled
Intel VT For Intel platform Disabled/Enabled
Memory Hole
Remapping
You can reserve this area of system memory
for ISA adapter ROM. When this area is
reserved, it cannot be cached. The user
information of peripherals that need to use
this area of system memory usually discuss
their memory requirements.
Disabled/Enabled
Primary Video Priority for Auto : PCIE -> Onboard -> PCI Auto/PCIE/Onbo
ard/PCI
Video Memory
Size
This item lists the system Video Memory Size
DUMT/Fixed
Memory Size
This item lists the system DUMT/Fixed
Memory Size
Intel EIST Enabled
Intel XD Bit Enabled
Intel VT Enabled
Memory Hole Remapping Enabled
Primary Video Auto
Video Memory Size [32MB]
DUMT Mode [DUMT Mode]
DUMT/Fixed Memory Size [256MB]
Item Help
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9: Load Default Settings
CMOS Setup Utility Copyright (c) 1985-2008,American Megatrends, Inc
Advanced Chipset Features
Disable: Disable GV3
Enable: Enable GV3
Page 31
25
Integrated Peripherals
Onboard SATA Mode [RAID]
Onboard USB Controller [Enabled]
Legacy USB Support [Enabled]
USB Storage Emulation [Auto]
Onboard Graphics Controller [Enabled]
Onboard Audio Controller [Enabled]
Onboard LAN Controller [Enabled]
Onboard LAN Option ROM [Disabled]
Onboard Floppy Controller [Enabled]
Serial Port1 Address [3F8/IRQ4]
Serial Port2 Address [2F8/IRQ3]
Serial Port2 Mode [Normal]
Parallel Port Address [378]
Parallel Port Mode [Normal]
Parallel Port IRQ [IRQ7]
Item Help
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9:
Optimized Defaults
CMOS Setup Utility – Copyright (c) 1985-2008, American Megatrends, Inc.
Integrated Peripherals
Options
[Disabled]
[Enabled]
Page 32
26
The following table describes the parameters found in this menu.
Parameter Description Options
Onboard SATA Mode This item is only available when
onboard SATA controller is enabled
Disabled/Enabled
Onboard USB Controller Always enabled USB keyboard
during POST no matter what option
is set
Disabled/Enabled
Legacy USB Support This item is only available when on
board USB controller is enabled
Disabled/Enabled
Onboard Audio Controller Always enabled Audio POST no
matter what option is set
Disabled/Enabled
Onboard LAN Controller Always enabled Audio POST no
matter what option is set
Disabled/Enabled
Onboard LAN Option ROM This item is only available when
onboard LAN controller is enabled
Disabled/Enabled
Onboard Floppy Controller Always enabled FloppyOST no
matter what option is set
Disabled/Enabled
Serial Port1 Address Allows BIOS to select serial port1
base addresses
Disabled /
3F8/IRQ4 /
2F8/IRQ3 /
3E8/IRQ4 /
2E8/IRQ3
Serial Port2 Address Allows BIOS to select serial port1
base addresses
Disabled /
3F8/IRQ4 /
2F8/IRQ3 /
3E8/IRQ4 /
2E8/IRQ3
Serial Port2 Mode Allows BIOS to select serial port1
base Mode
Normal/IrDA/ASK
IR
Page 33
27
Power Management
The Power Management menu lets you configure your system to most effectively save
energy while operating in a manner consistent with your own style of computer use. The
following screen shows the Power Management parameters and their default settings:
The following table describes the parameters found in this menu.
Parameter Description Options
ACPI Aware O/S No/Yes
ACPI Suspend Mode S1(POS)/S3 (STR)
Power On by RTC Alarm Disabled/Enabled
Power On by Modem Ring Disabled/Enabled
Power On by PCIE Devices Disabled/Enabled
Power On by PCI Devices
Control wake up event for
S1/S3/S4/S5
Disabled/Enabled
Wake Up by PS/2 KB/Mouse Disabled/Enabled
Wake Up by USB KB//Mouse
Control wake up event for
S1/S3
Disabled/Enabled
ACPI Aware O/S [Yes]
ACPI Suspend Mode [S3 (STR)]
Power On by RTC Alarm [Disabled]
Power On by PCIE Devices Enabled]]
Power On by PCI Devices [Enabled]]
Power On by Modem Ring [Enabled]]
Wake Up by PS/2 KB/Mouse [Enabled]
Wake Up by USB KB//Mouse [Enabled]
Restore On AC Power Loss [Last State]
Item Help
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9:
Optimized Defaults
CMOS Setup Utility– Copyright (c) 1985-2008,American Megatrends, Inc
Power Mana
g
ement Setup
Yes/ No
ACPI support for
Operating System.
Yes: If OS supports ACPI.
No: If OS does not support ACPI.
Page 34
28
PC Health Status
The following table describes the parameters found in this menu:
Parameter Description Options
CPU/System Temperature Detect CPU Temperature
automatically
CPU/SYSTEM FAN Speed (RPM) Detect CPU/SYSTEM Fan Speed
Status automatically
CPU Smart FAN Control The item displays the system Smart
Fan Function status. It is always
enabled by system.
CPU Temperature (PECI Mode) : 40℃/104℉
System Temperature : 45℃113℉
CPU Fan Speed : 1167 RPM
System Fan Speed : N/A
CPU Core : 1.184V
+1.1V : 1.136V
+3.30V : 3.36V
+5.00V : 5.053V
+12.0V : 11.840V
5VSB : 4.999V
VBAT : 3.264V
CPU Shutdown Temperature [Disabled]
System Shutdown Temperature [Disabled]
Smart Fan [Enabled]
Item Help
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9:
Optimized Defaults
CMOS Setup Utility– Copyright (c) 1985-2008,American Megatrends, Inc.
PC Health Status
Fan configuration mode setting
Page 35
29
Frequency/Voltage Control
The following table describes the parameters found in this menu:
Parameter Description Options
Spread Spectrum Always auto detect Spread
Spectrum
Disabled/Enabled
Enable Clock to All PCI/PCIE Enabled
Spread Spectrum Enabled
Item Help
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9:
Optimized Defaults
CMOS Setup Utility– Copyright (c) 1985-2008,American Megatrends, Inc
Frequency/Voltage Control
Options
Disabled
Enabled
Page 36
30
BIOS Security Features
The following table describes the parameters found in this menu:
Parameter Description Options
Change Supervisor
Password
This item is only available when
supervisor password is installed, If clear
supervisor password, user password
should also be cleared. All setup items will
be view-only except user password item
when login with user password
Press Enter
Supervisor Password : Not installed
User Password : Not Installed
HDD Password : Not Installed
Change Supervisor Password [Press Enter]
Change User Password [Press Enter]
Change HDD Password [Press Enter]
Removable Device Boot [Enabled]
Chassis Opened Warning [Enabled]
Chassis Opened [Yes]
Item Help
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9:
Optimized Defaults
CMOS Setup Utility – Copyright (c) 1985-2008,American Megatrends, Inc.
BIOS Security Features
Install or Change the Password
Page 37
31
Load Default Settings
This option opens a dialog box that lets you install defaults for all appropriate items in the
Setup Utility.
The following table describes the parameters found in this menu:
Parameter Description Options
Load Default
Settings
Select the field loads the factory defaults for BIOS and
Chipset Features, which the system automatically
detects. This option opens a dialog box that lets you
install optimized defaults for all appropriate items in the
Setup Utility.
Advance BIOS Features CMOS
Product Information
Standard CMOS Features
Advanced Chipset Features BIOS
Integrated Peripherals
Power Management Setup
PC Health Status
Frequency/Voltage Control
BIOS Security Features
Loab Default Settings
Save & Exit Setup
Exit Without Saving
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9:
Optimized Defaults
CMOS Setup Utility – Copyright (c) 1985-2008,American Megatrends, Inc.
Loab Default Settings
Load Default Settings?
[OK] [Cancal]
Page 38
32
Save & Exit Setup
Highlight this item and press <Enter> to save the changes that you have made in the
Setup Utility and exit the Setup Utility.
The following table describes the parameters found in this menu:
Parameter Description Options
Save &exit setup Press <Enter> to save the changes that have made
in the Setup Utility and exit the Setup Utility.
Press<Y> to save and Exit or <N> to return to the
main menu.
Advance BIOS Features CMOS
Product Information
Standard CMOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PC Health Status
Frequency/Voltage Control
BIOS Security Features
Loab Default Settings
Save & Exit Setup
Exit Without Saving
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9: Load Default Settings
CMOS Setup Utility – Copyright (c) 1985-2008,American Megatrends, Inc.
Save & Exit Setup
Save &Exit Setup?
[OK] [Cancal]
Page 39
33
Exit Without Saving
Highlight this item and press <Enter> to discard any changes that you have made in the
Setup Utility and exit the Setup Utility.
Parameter Description Options
Discard changes and
exit setup
Press<Enter> to discard any changes and
exit the Setup Utility
Advance BIOS Features CMOS
Product Information
Standard CMOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PC Health Status
Frequency/Voltage Control
BIOS Security Features
Loab Default Settings
Save & Exit Setup
Exit Without Saving
KLIJ: Move Enter: Select +/-/: Value F10: Save ESC: Exit
F1: General Help F9: Load Default Settings
CMOS Setup Utility – Copyright (c) 1985-2008,American Megatrends, Inc.
Exit Without Saving
Discard Changes and exit Setup?
[OK] [Cancal]
Page 40
34
Machine Disassembly and Replacement
To disassemble the computer, you need the following tools:
Wrist grounding strap and conductive mat for preventing electrostatic discharge.
Wire cutter.
Phillips screwdriver (may require different size).
NOTE: The screws for the different components vary in size. During the disassembly
process, group the screws with the corresponding components to avoid
mismatches when putting back the components.
Page 41
35
General Information
Before You Begin
Before proceeding with the disassembly procedure, make sure that you do the
following:
1. Turn off the power to the system and all peripherals.
2. 2.Unplug the AC adapter and all power and signal cables from the system
Page 42
36
Disassembly Procedure
This section tells you how to disassemble the system when you need to perform
system service. Please also refer to the disassembly video, if available.
CAUTION: Before you proceed, make sure you have turned off the system and all
peripherals connected to it.
Page 43
37
Russian Blue Veriton S480G/S488G/S480 Standard
Disassembly Process Bezel
Process:
1. According to the requirement, paste ATI, OS, CPU, HDMI and marketing label by SKU.
Page 44
38

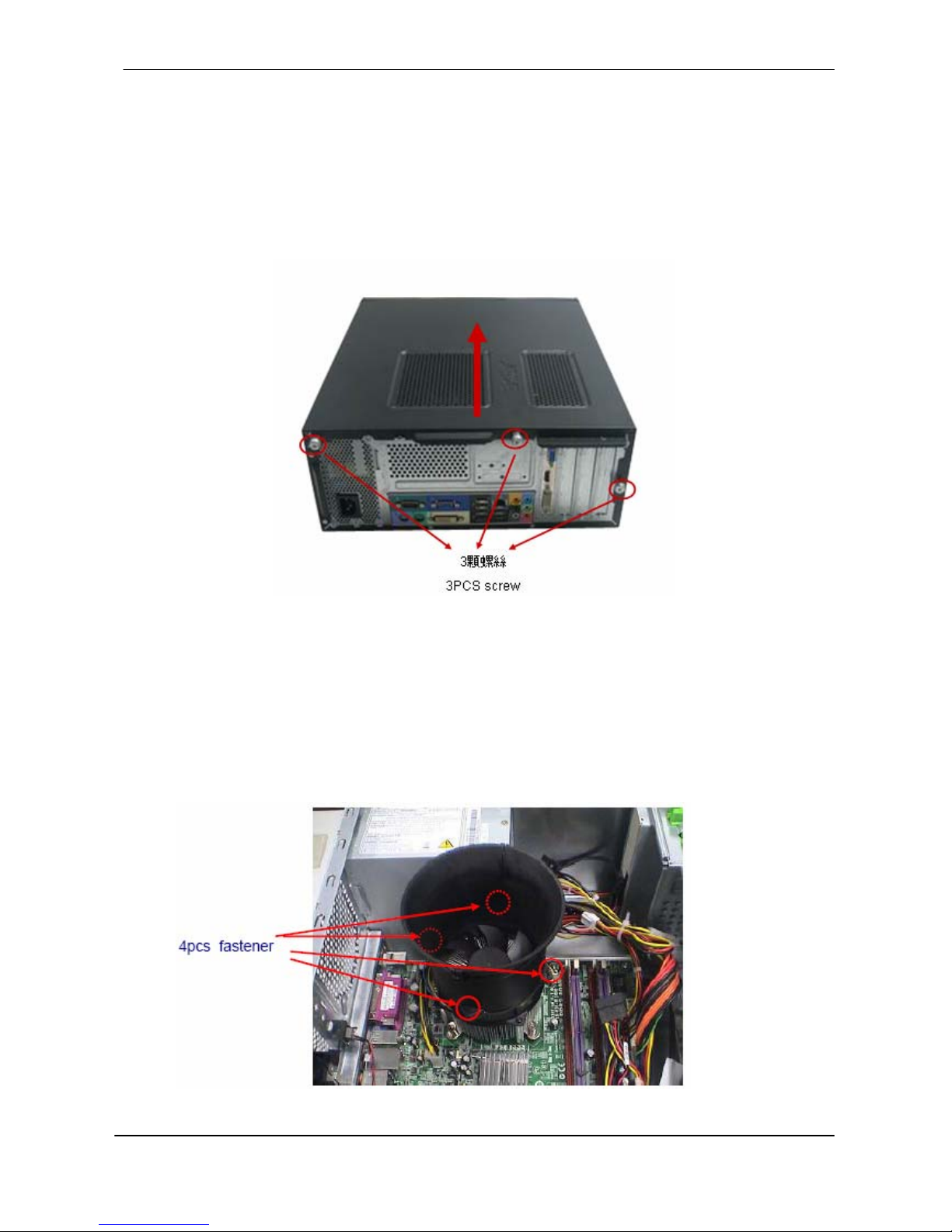

Remove side cover
Process:
1. Put the Computer on the worktable lightly.
2. Release left side cover with 3 screws then remove left side cover.
Remove CPU fan pipe
Process:
1. Release the CPU fan pipe.
Page 45
39

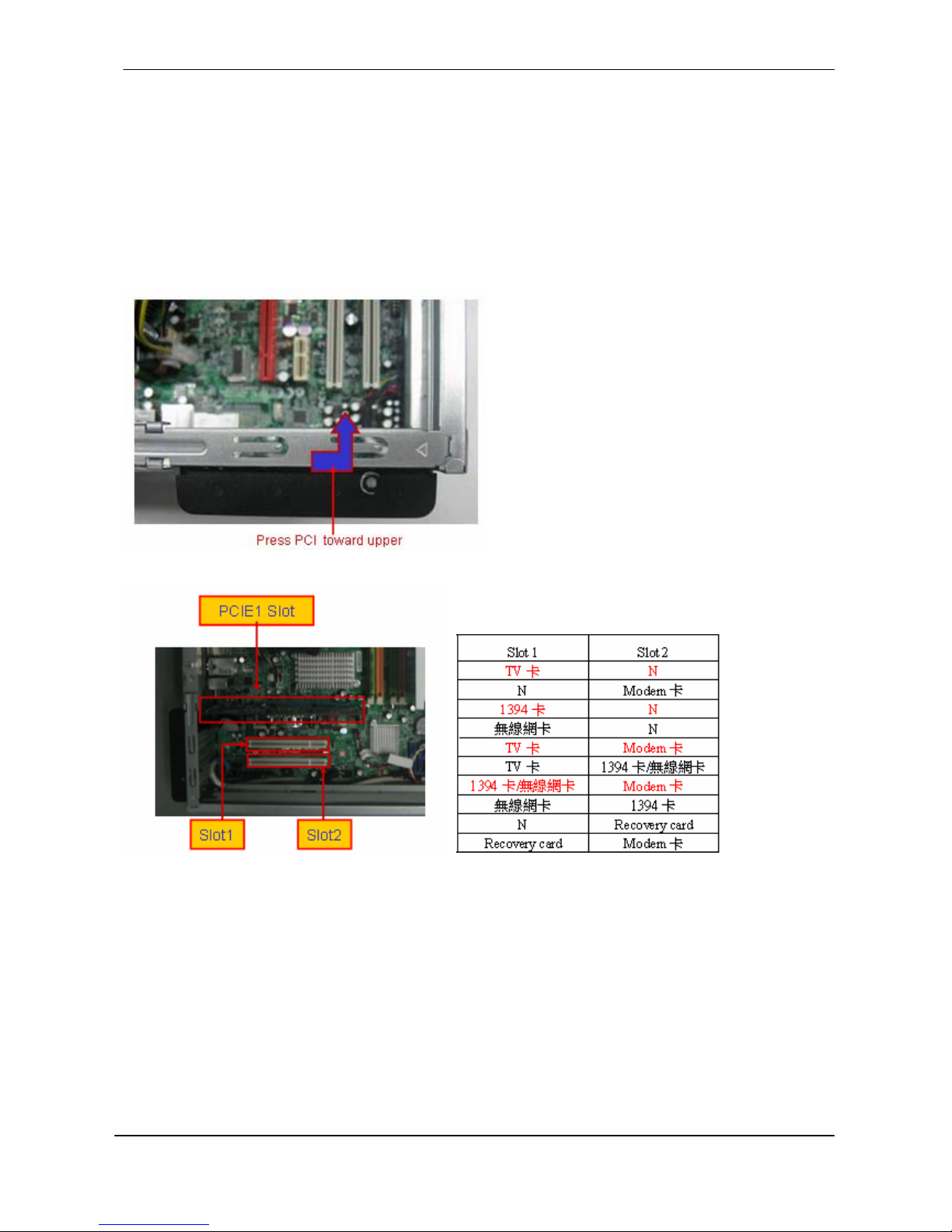

Remove Cards
Process:
1. Release the slot cover tooless
2. Remove VGA ､TV､Modem Card，the following list is for your reference about the mutual
location relation (Optional by SKU).
Remove HDD Data Cables
Process:
1. Remove master HDD data cable from M/B SATA1/SATA3.
2. Remove slave ODD data cable from M/B SATA2.
Page 46
40
Remove ODD DATA cable
Process:
1. Remove master ODD data/power cable from Master ODD.
Remove HDD power cable
Process:
1. Remove master HDD data cable from master HDD.
2. Remove slave HDD data cable from slave HDD
Page 47
41

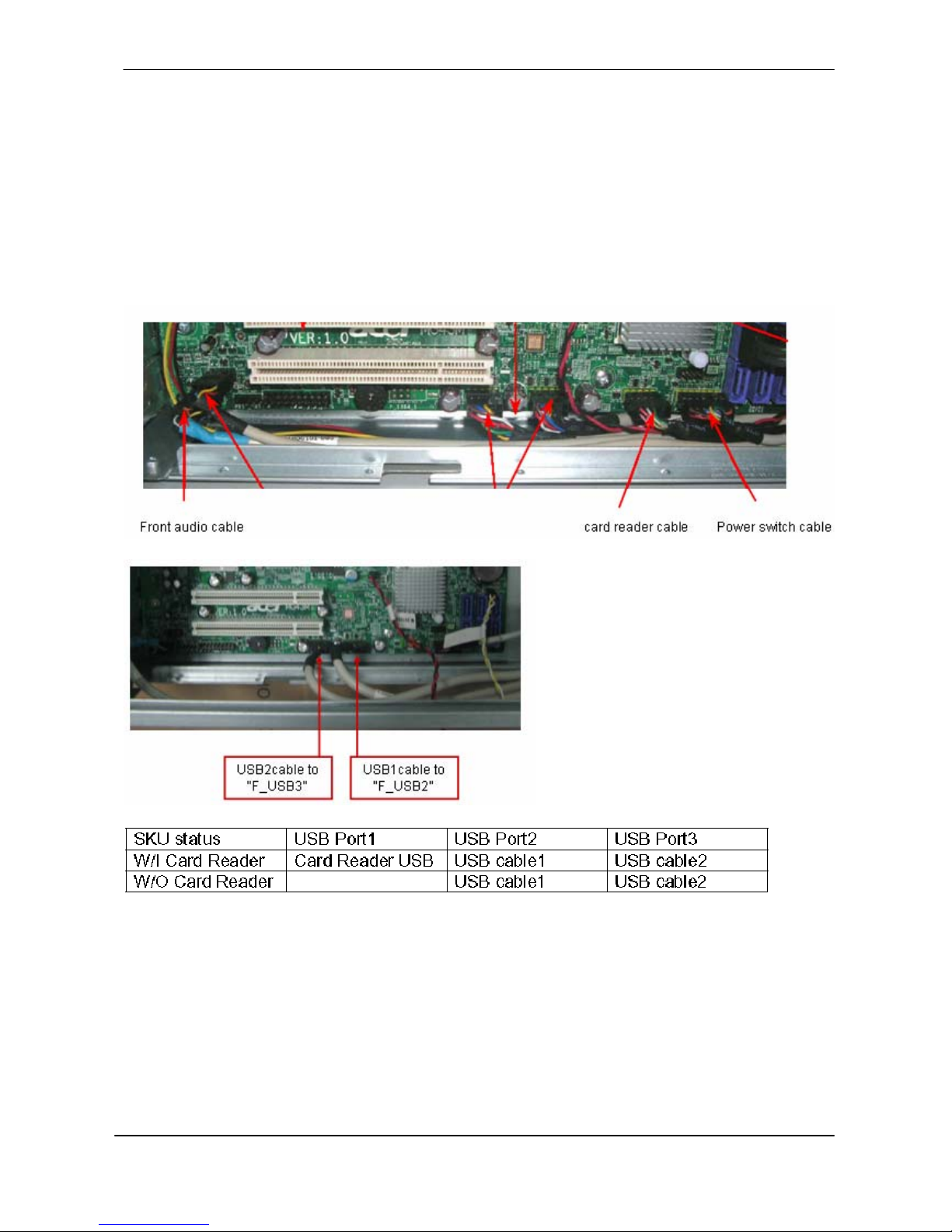

Remove Cables
Process:
1. Remove front panel light cable from“PANEL1” slot of M/B.
2. Remove USB1 cable from M/B”F_ USB3”。
3. Remove USB2 cable from M/B”F_ USB4”。
4. Remove Card reader cable from M/B”USB2”.
5. Remove audio cable from the “AUDIO” port on M/B.

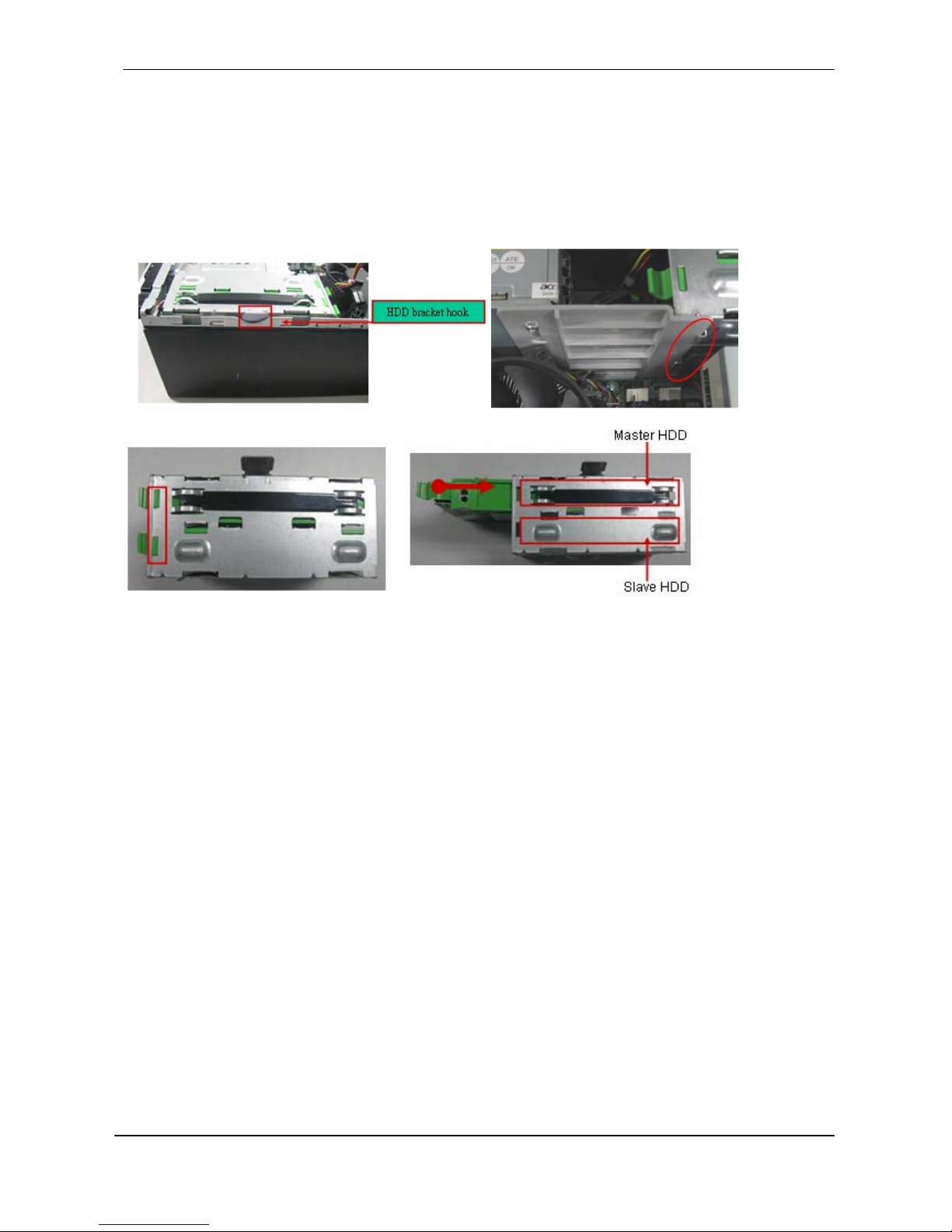

Remove HDD
Page 48
42
Process:
1. Remove Master HDD from the first HDD location.
2. Remove Slave HDD from the second HDD location. (Optional by SKU)

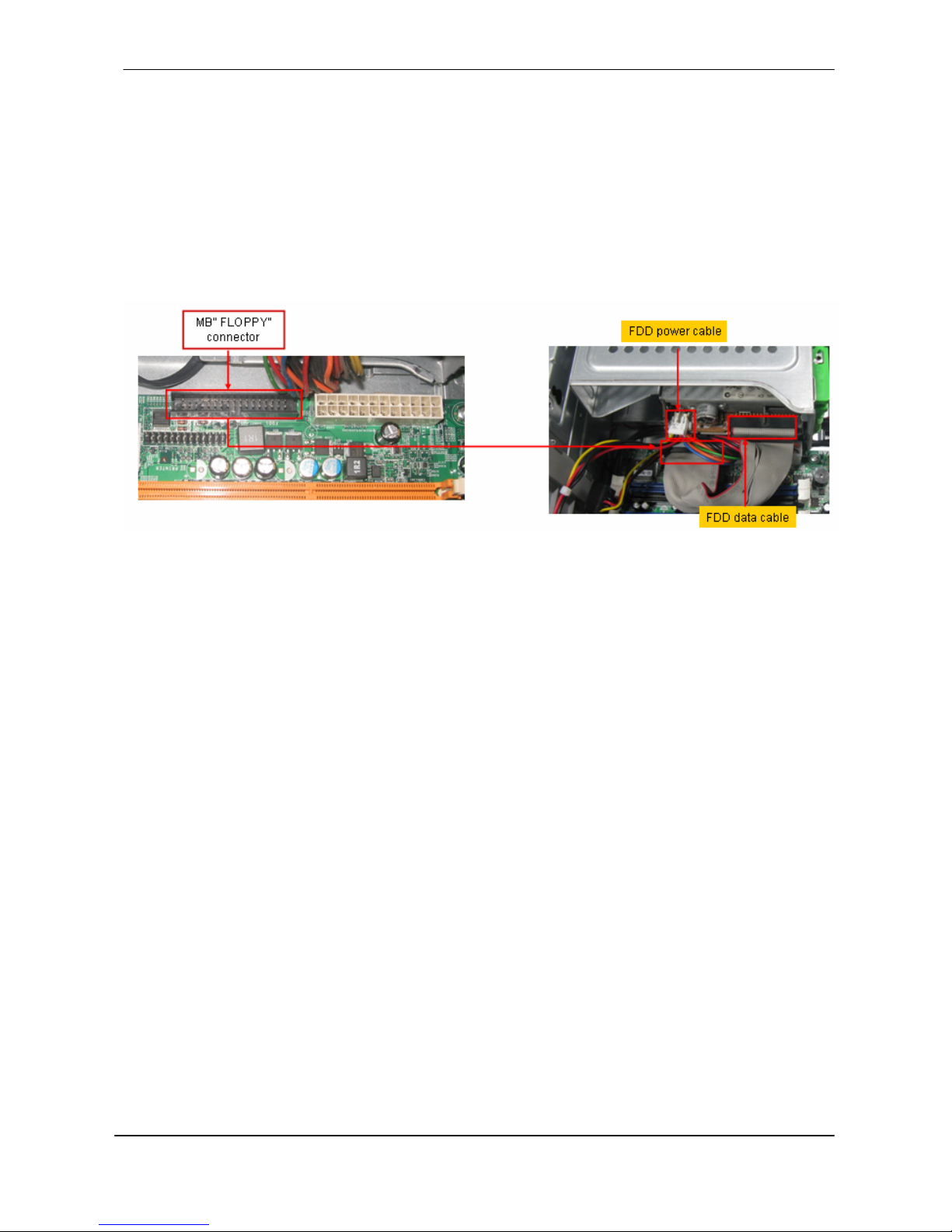

Remove FDD Cable
Page 49
43
Process:
1. Remove FDD digital cable just as pictures (Optional by SKU).
2. Plug 4 pins power cord from FDD slot.
3. Remove front bezel light cable from PATA power cable
Remove card reader
Process:
1. Remove card reader from chassis.
Page 50
44

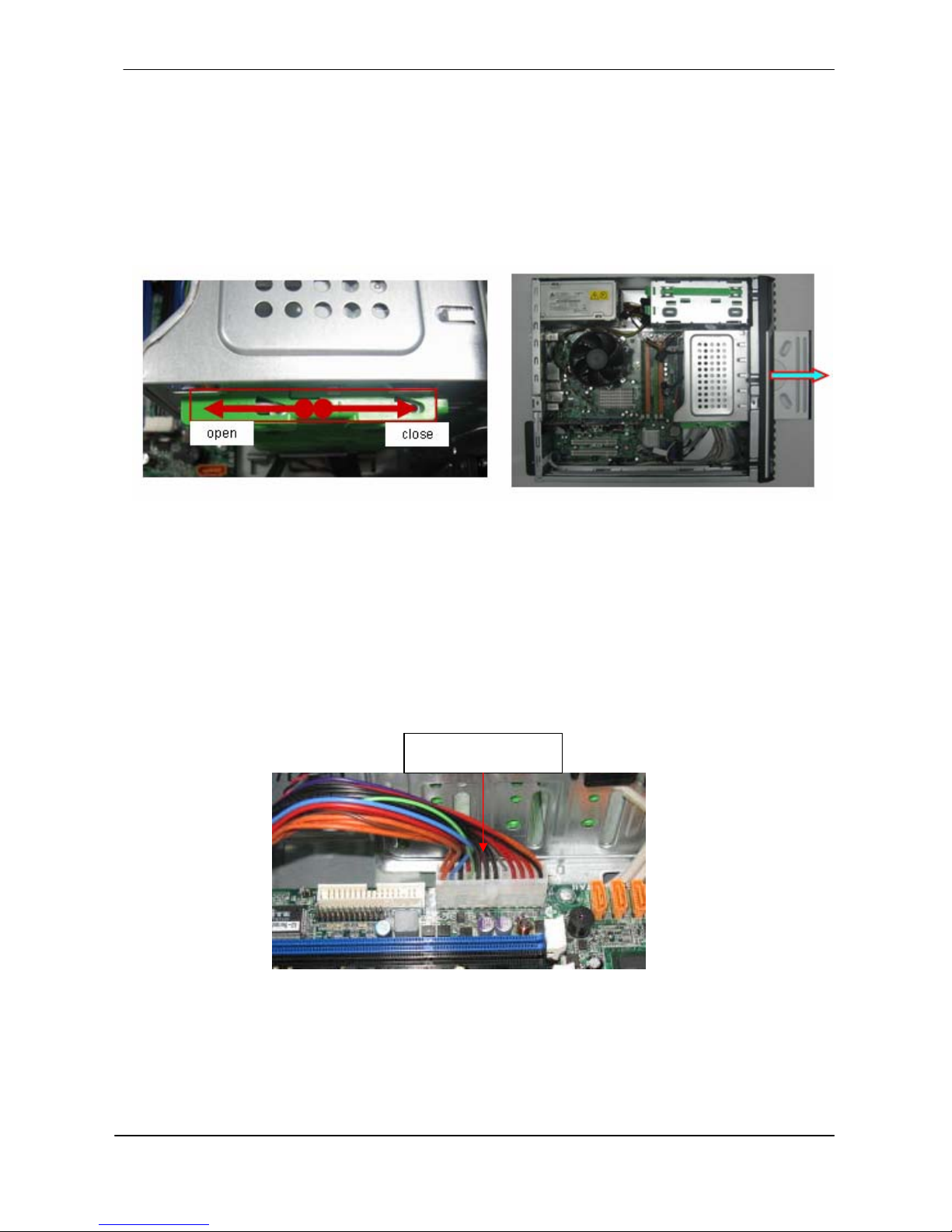

Remove ODD
Process:
1. Push the lock handle release ODD.
2. Remove ODD from the location.

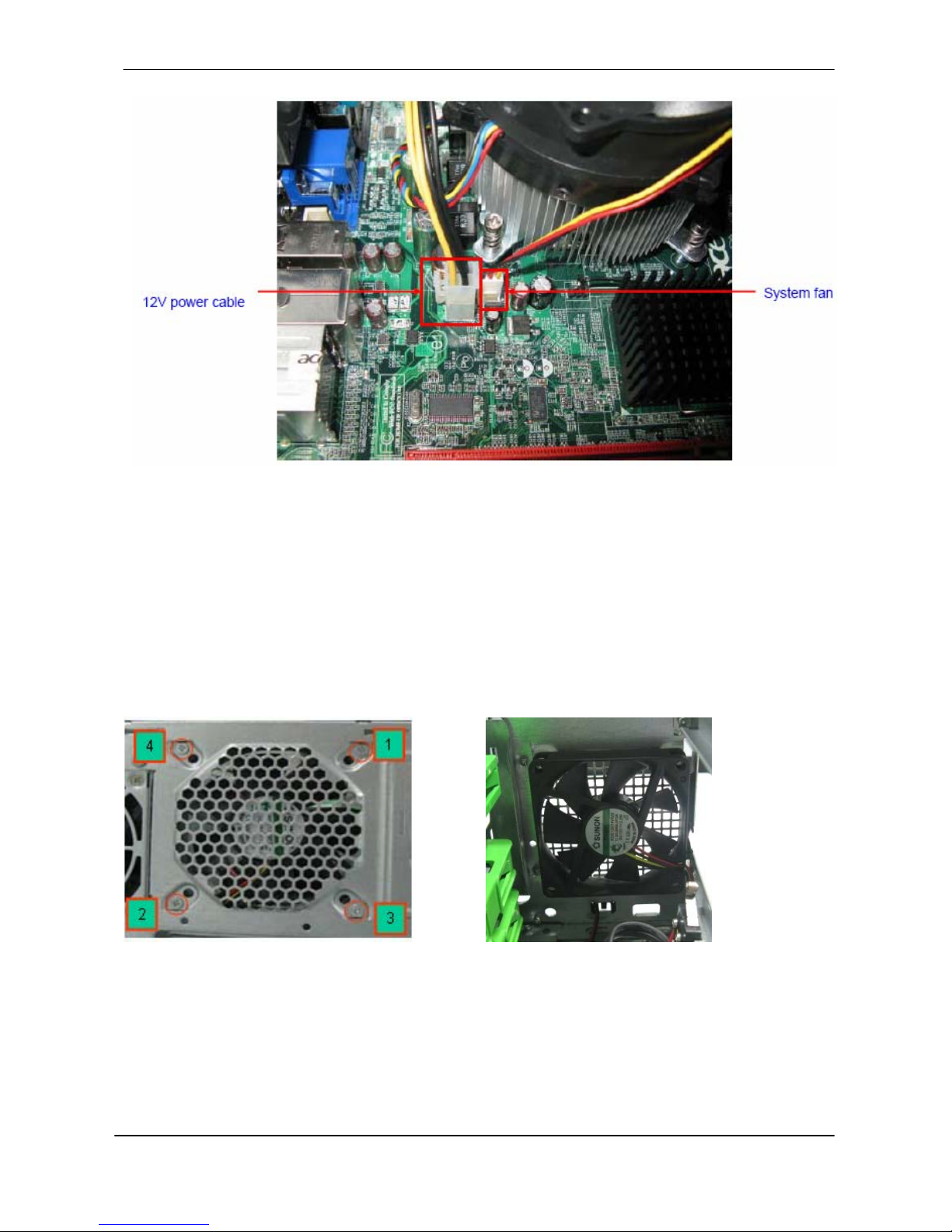

Remove Cables
Process:
1. Remove M/B power cable from M/B “ATX1”.
2. Remove 12 V power cable from M/B” JPW1”
3. Remove System Fan cable from M/B”SYS-F2”.
MB power cable
Page 51
45
Remove System FAN
Process:
1. Release four screws according to the following picture.

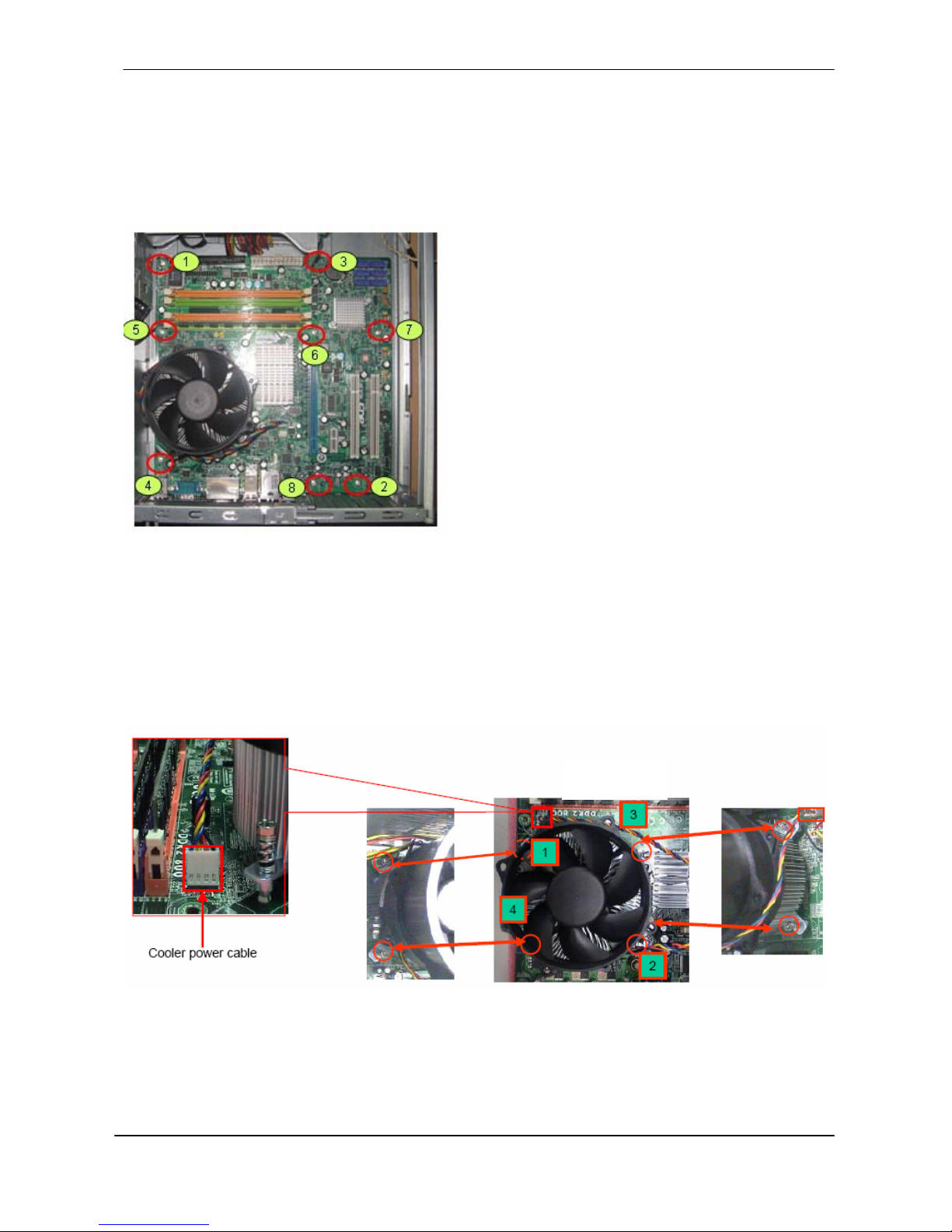

Remove mother board
Process:
Page 52
46
1. Release 8 pcs screws form the corresponding hole.
2. Release screws according to the following picture in turn.
3. Remove the Mother board from chassis.
Remove CPU cooler
Process:
1. Remove cooler power cable from M/B “CPU-F2”.
2. Release screw 1 first, then fixes screw 2, screw 3 & screw 4 (As Picture).
3. Remove Cooler from the Retention module.

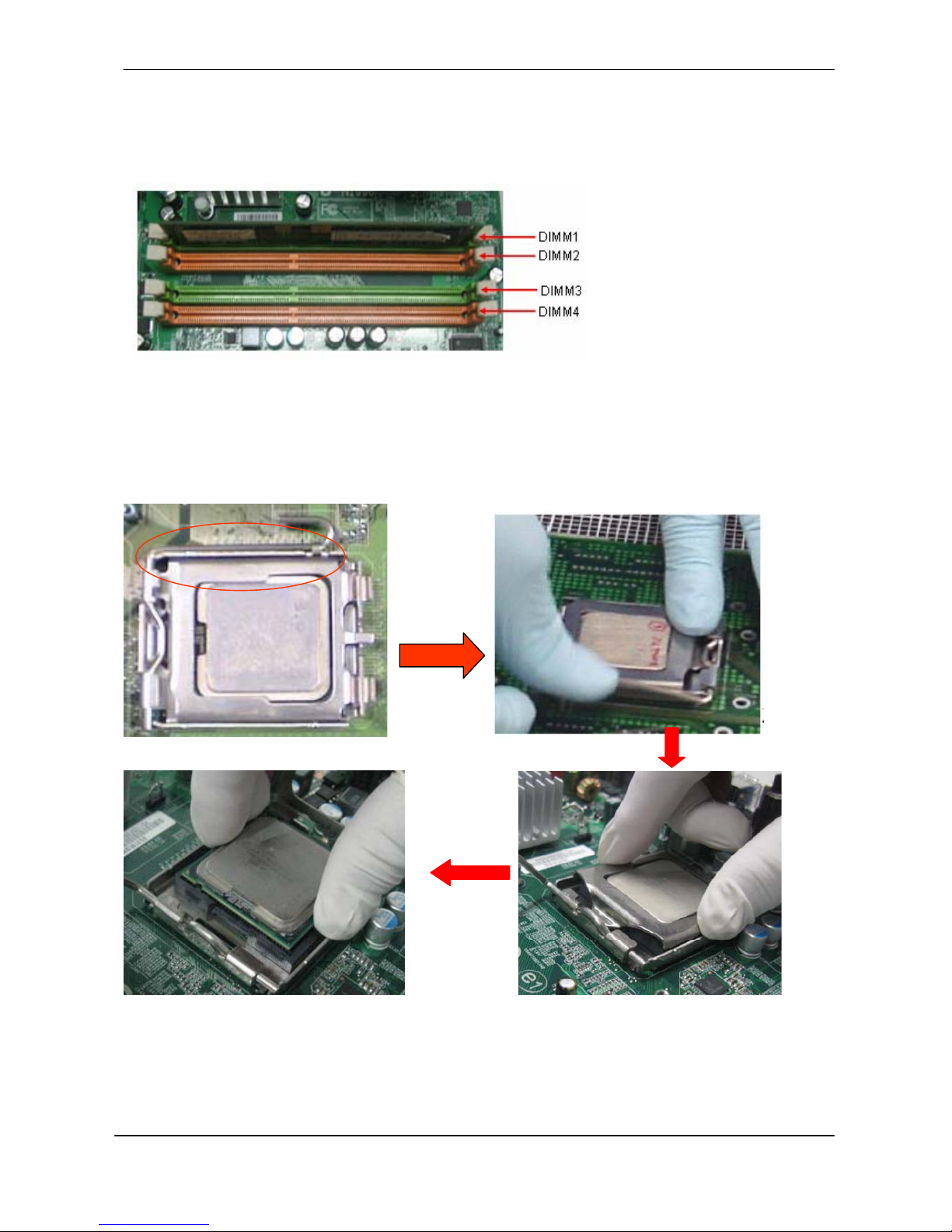

Remove memory
Process:
Page 53
47
1. Remove the first Memory from DIMM.
2. Remove the second Memory from DIMM2 (Optional by SKU).
Remove CPU
Process:
1. Remove CPU according following the pictures.

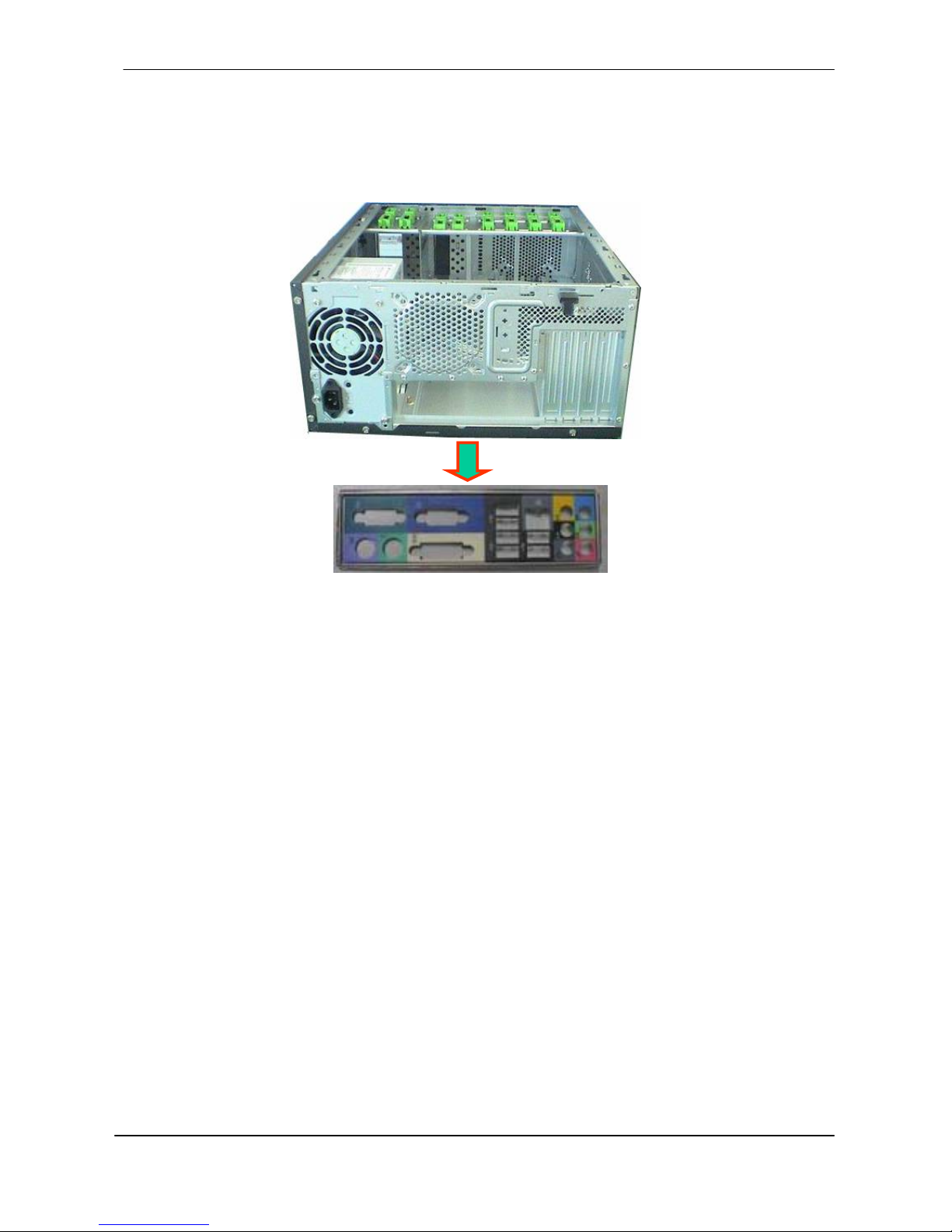

Remove I/O shielding
Process:
Open the
Handle
Page 54
48
1. Remove I/O Shielding.
Page 55
49
Troubleshooting
Please refer to generic troubleshooting guide for troubleshooting information relating to
following topics:
Power-On Self-Test (POST)
POST Check Points
POST Error Messages List
Error Symptoms List
Page 56
50
Page 57
51
Page 58
52
ATX_POWER: ATX 24-pin Power Connector
987654321
242322212019181716151413
121110
Pin Signal Name Pin Signal Name
1 +3.3 13 +3.3V
2 +3.3 14 -12V
3 COM 15 COM
4 +5V 16 PS_ON
5 COM 17 COM
6 +5V 18 COM
7 COM 19 COM
8 PWR OK 20 -5V
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 COM
Page 59
53
Page 60

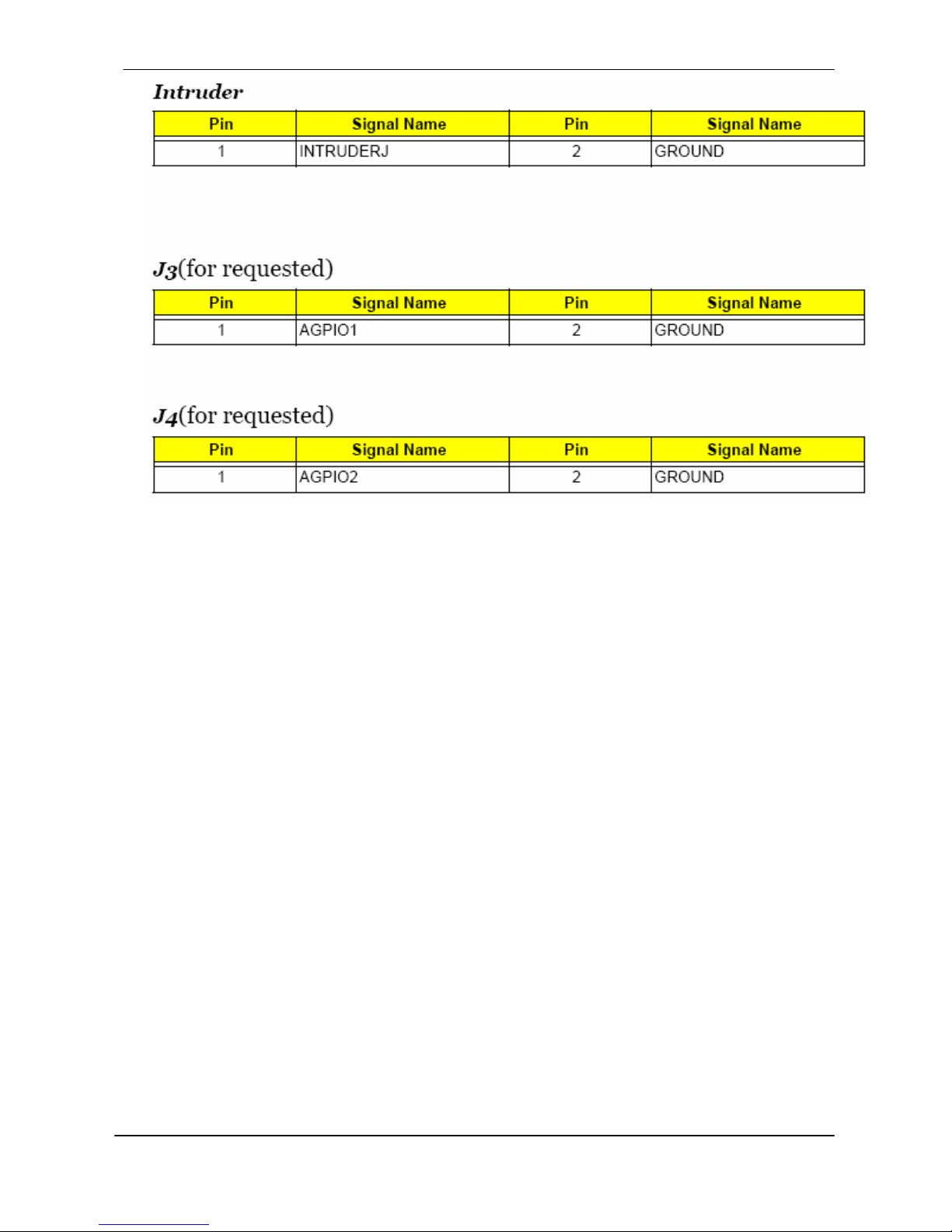

54
Page 61
55
Page 62
56
FRU (Field Replaceable Unit) List
This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations
of Veriton S480G/S488G/S480 Refer to this chapter whenever ordering for parts to
repair or for RMA (Return Merchandise Authorization).
NOTE: Please note WHEN ORDERING FRU PARTS, that you should check the most
up-to-date information available on your regional web or channel. For whatever
reasons a part number change is made, it will not be noted in the printed Service
Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may
have a DIFFERENT part number code to those given in the FRU list of this printed
Service Guide. You MUST use the local FRU list provided by your regional Acer
office to order FRU parts for repair and service of customer machines.
Page 63
57
Exploded Diagram
NO DESCRIPTION NO DESCRIPTION
1 POWER SUPPLY 12 HOLDER-SWITCH
2 ACER-16L-BASE 13 ODD-CAGE
3 HDD-MOUDLE 14 ACER-16L-FRONT-CHASSIS
4 HDD-CAGE 15 FAN
5 USB-MOUDLE 16 ACER-16L-ODD-SUPPORT-BK
T
6 LENS-HOLDER 17 ACER-16L-SUPPORT
7 MAIN-BEZEL 18 ACER-16L-CHASSIS-SUPPORT
8 FRONT-STRIP 19 ACER-16L-TOP-COVER
9 FDD-COVER 20 ACER-16L-FAN-DUCK
10 ODD-COVER 21 ACER-16L-REAR-CHASSIS
11 UP-BEZEL 22
Page 64
58
Veriton S488G/S480/S480G FRU List
Category Description Part Number
MAINBOARD
MG43M Intel G43/ICH10R, Intel LGA775 CPU, DDR3, GbE, HD codec (with IO
shielding and CPU RM), RoHS compliance
MB.V7605.005
CPU Cooler
Cooler-Intel CPU cooler for HS080
HI.10800.026
CPU
Core 2 Quad Q9450 (2.66G 12M 1333FSB), 95W , C1 KC.94501.QQ0
Core 2 Quad Q8200 (2.33G 4M 1333FSB) 95W , M1 KC.82001.QQ0
Core 2 Duo E4700 (2.6G 2M 800FSB) , 65W , G0 KC.4 7 00 1 . DE0
Celeron 450 (2.2G 512K 800FSB ) , 35W , A1 KC.D0001.450
Memory
1GB DDRIII1066(Samsung) KN.1GB0B.022
1GB DDRIII1066(Micron)
KN.1GB04.008
1GB DDRIII1333(Unifosa)
KN.1GB0H.012
HDD
160G SATA3.0Gbps 8MB 7200 NCQ,
KH.16007.023
HGST 3.5" 7200rpm 320GB
KH.32007.006
HDD HGST 3.5" 7200rpm 640GB
640G SATA2 16MB 7200 NCQ(Seagate)
KH.64007.001
160G SATA3.0Gbps 8MB 7200 NCQ, KH.16008.025
320G SATA 3.0Gbps KH.32008.016
640G SATA 3.0Gbps KH.64008.003
Page 65
59
ODD
HLDS DVD-ROM HH 16X DH-10N LF Black Bezel 0A02 SATA
KV.0160D.015
PHILIPS DVD-ROM HH DL 16X DH-16D4S LF W/O bezel JA12 SA TA
KV.0160F.001
Card Reader
3.5" USB1.1 9-in-1 card reader, with USB cable , with improved USB
connector,support USB2.0
CR.10400.002
Modem
Pro-Nets PCI Modem card, HPI56L6, LSI Universal Modem (PCI) 56K V.92 Pinball (P40)
FX.10100.006
Power Supply
300W ES5.0 for HS080
PY.30009.015
Mouse
Acer 0810 Project PS2 Optical mouse MS.1 1200.013
Logitech 0810_USB Optical mouse USB M-UAY-ACR2 MS.11200.014
Lite-On PS2 optical mouse PS2 SM-9620 MS.1 1200.017
Lite-On USB optical USB SM-9625 MS.11200.01 8
KEYBOARD
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black US w/o eKey KB.PS203.284
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black T raditional
Chinese w/o eKey
KB.PS203.285
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black Simplified
Chinese w/o eKey
KB.PS203.286
Page 66
60
Keyboard CHICONY KB-0759 PS/2 S tandard 104KS Black US International
w/o eKey
KB.PS203.287
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black Arabic/English
w/o eKey
KB.PS203.288
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black Thailand w/o
eKey
KB.PS203.289
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Spanish w/o
eKey
KB.PS203.290
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Portuguese w/o
eKey
KB.PS203.291
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Canadian
French w/o eKey
KB.PS203.292
Keyboard CHICONY KB-0759 PS/2 Standard 107KS Black Brazilian
Portuguese w/o eKey
KB.PS203.293
Keyboard CHICONY KB-0759 PS/2 Standard 109KS Black Japanese w/o
eKey
KB.PS203.294
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black German w/o
eKey
KB.PS203.295
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Italian w/o eKey KB.PS203.296
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black French w/o
eKey
KB.PS203.297
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Swedish w/o
eKey
KB.PS203.298
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black UK w/o eKey KB.PS203.299
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Dutch w/o eKey KB.PS203.300
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Swiss/G w/o
eKey
KB.PS203.301
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Belgium w/o
eKey
KB.PS203.302
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Icelandic w/o
eKey
KB.PS203.303
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Norwegian w/o
eKey
KB.PS203.304
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black Hebrew w/o
eKey
KB.PS203.305
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Polish w/o eKey KB.PS203.306
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Slovenian w/o
eKey
KB.PS203.307
Page 67
61
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Slovak w/o
eKey
KB.PS203.308
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black Russian w/o
eKey
KB.PS203.309
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Hungarian w/o
eKey
KB.PS203.310
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black Greek w/o eKey KB.PS203.31 1
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Danish w/o
eKey
KB.PS203.312
Keyboard CHICONY KB-0759 PS/2 S t andard 104KS Black Czech w/o eKey KB.PS203.313
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Romanian w/o
eKey
KB.PS203.314
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black T urkish w/o
eKey
KB.PS203.315
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Spanish Latin
w/o eKey
KB.PS203.316
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black T urkish-Q w/o
eKey
KB.PS203.317
Keyboard CHICONY KB-0759 PS/2 Standard 105KS Black Arabic/French
w/o eKey
KB.PS203.318
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black Kazakh w/o
eKey
KB.PS203.319
Keyboard CHICONY KB-0759 PS/2 Standard 104KS Black T urkmen w/o
eKey
KB.PS203.320
Keyboard CHICONY KB-0759 PS/2 S tandard 105 KS Black Nordic w/o eKey KB.PS203.321
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black US w/o eKey KB.PS20B.069
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black Traditional
Chinese w/o eKey
KB.PS20B.070
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black Simplified
Chinese w/o eKey
KB.PS20B.071
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black US International
w/o eKey
KB.PS20B.072
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black Arabic/English
w/o eKey
KB.PS20B.073
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black Thailand w/o
eKey
KB.PS20B.074
Keyboard LITE-ON SK-9620 PS/2 St andard 105 KS Black Spanish w/o eKey KB.PS20B.075
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Portuguese w/o KB.PS20B.076
Page 68
62
eKey
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Canadian French
w/o eKey
KB.PS20B.077
Keyboard LITE-ON SK-9620 PS/2 Standard 107KS Black Brazilian
Portuguese w/o eKey
KB.PS20B.078
Keyboard LITE-ON SK-9620 PS/2 Standard 109KS Black Japanese w/o
eKey
KB.PS20B.079
Keyboard LITE-ON SK-9620 PS/2 S tandard 1 05KS Black German w/o eKey KB.PS20B.080
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Italian w/o eKey KB.PS20B.081
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black French w/o eKey KB.PS20B.082
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Swedish w/o
eKey
KB.PS20B.083
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black UK w/o eKey KB.PS20B.084
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Dutch w/o eKey KB.PS20B.085
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Swiss/G w/o
eKey
KB.PS20B.086
Keyboard LITE-ON SK-9620 PS/2 S tandard 1 05KS Black Belgium w/o eKey KB.PS20B.087
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Icelandic w/o
eKey
KB.PS20B.088
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Norwegian w/o
eKey
KB.PS20B.089
Keyboard LITE-ON SK-9620 PS/2 St and ard 1 04KS Black Hebrew w/o eKey KB.PS20B.090
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Polish w/o eKey KB.PS20B.091
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Slovenian w/o
eKey
KB.PS20B.092
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Slovak w/o eKey KB.PS20B.093
Keyboard LITE-ON SK-9620 PS/2 S tandard 1 04KS Black Russian w/o eKey KB.PS20B.094
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Hungarian w/o
eKey
KB.PS20B.095
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black Greek w/o eKey KB.PS20B.096
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Danish w/o eKey KB.PS20B.097
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black Czech w/o eKey KB.PS20B.098
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Romanian w/o
eKey
KB.PS20B.099
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Turkish w/o eKey KB.PS20B.100
Keyboard LITE-ON SK-9620 PS/2 St andard 105KS Black Spanish Latin w/o
eKey
KB.PS20B.101
Page 69
63
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Turkish-Q w/o
eKey
KB.PS20B.102
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Arabic/French
w/o eKey
KB.PS20B.103
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black Kazakh w/o eKey KB.PS20B.104
Keyboard LITE-ON SK-9620 PS/2 Standard 104KS Black Turkmen w/o
eKey
KB.PS20B.105
Keyboard LITE-ON SK-9620 PS/2 Standard 105KS Black Nordic w/o eKey KB.PS20B.106
Keyboard CHICONY KU-0760 USB Standard 104KS Black US w/o eKey KB.USB03.192
Keyboard CHICONY KU-0760 USB Standard 104KS Black Traditional
Chinese w/o eKey
KB.USB03.193
Keyboard CHICONY KU-0760 USB Standard 104KS Black Simplified
Chinese w/o eKey
KB.USB03.194
Keyboard CHICONY KU-0760 USB Standard 104KS Black US International
w/o eKey
KB.USB03.195
Keyboard CHICONY KU-0760 USB Standard 104KS Black Arabic/English
w/o eKey
KB.USB03.196
Keyboard CHICONY KU-0760 USB Standard 104KS Black Thailand w/o
eKey
KB.USB03.197
Keyboard CHICONY KU-0760 USB Standard 105KS Black S panish w/o
eKey
KB.USB03.198
Keyboard CHICONY KU-0760 USB Standard 105KS Black Portuguese w/o
eKey
KB.USB03.199
Keyboard CHICONY KU-0760 USB Standard 105KS Black Canadian
French w/o eKey
KB.USB03.200
Keyboard CHICONY KU-0760 USB Standard 107KS Black Brazilian
Portuguese w/o eKey
KB.USB03.201
Keyboard CHICONY KU-0760 USB Standard 109KS Black Japanese w/o
eKey
KB.USB03.202
Keyboard CHICONY KU-0760 USB Standard 105KS Black German w/o
eKey
KB.USB03.203
Keyboard CHICONY KU-0760 USB Standard 105KS Black Italian w/o eKey KB.USB03.204
Keyboard CHICONY KU-0760 USB Standard 105KS Black French w/o
eKey
KB.USB03.205
Keyboard CHICONY KU-0760 USB Standard 105KS Black Swedish w/o
eKey
KB.USB03.206
Keyboard CHICONY KU-0760 USB Standard 105KS Black UK w/o eKey KB.USB03.207
Keyboard CHICONY KU-0760 USB Standard 105KS Black Dutch w/o eKey KB.USB03.208
Page 70
64
Keyboard CHICONY KU-0760 USB Standard 105KS Black Swiss/G w/o
eKey
KB.USB03.209
Keyboard CHICONY KU-0760 USB Standard 105KS Black Belgium w/o
eKey
KB.USB03.210
Keyboard CHICONY KU-0760 USB Standard 105KS Black Icelandic w/o
eKey
KB.USB03.211
Keyboard CHICONY KU-0760 USB Standard 105KS Black Norwegian w/o
eKey
KB.USB03.212
Keyboard CHICONY KU-0760 USB Standard 104KS Black Hebrew w/o
eKey
KB.USB03.213
Keyboard CHICONY KU-0760 USB Standard 105KS Black Polish w/o eKey KB.USB03.214
Keyboard CHICONY KU-0760 USB Standard 105KS Black Slovenian w/o
eKey
KB.USB03.215
Keyboard CHICONY KU-0760 USB S tandard 105 KS Black Slovak w/o eKey KB.USB03.216
Keyboard CHICONY KU-0760 USB Standard 104KS Black Russian w/o
eKey
KB.USB03.217
Keyboard CHICONY KU-0760 USB Standard 105KS Black Hungarian w/o
eKey
KB.USB03.218
Keyboard CHICONY KU-0760 USB Standard 104KS Black Greek w/o eKey KB.USB03.219
Keyboard CHICONY KU-0760 USB Standard 105KS Black Danish w/o
eKey
KB.USB03.220
Keyboard CHICONY KU-0760 USB S tandard 104KS Black Czech w/o eKey KB.USB03.221
Keyboard CHICONY KU-0760 USB Standard 105KS Black Romanian w/o
eKey
KB.USB03.222
Keyboard CHICONY KU-0760 USB Standard 105KS Black Turkish w/o
eKey
KB.USB03.223
Keyboard CHICONY KU-0760 USB Standard 105KS Black S panish Latin
w/o eKey
KB.USB03.224
Keyboard CHICONY KU-0760 USB Standard 105KS Black Turkish-Q w/o
eKey
KB.USB03.225
Keyboard CHICONY KU-0760 USB Standard 105KS Black Arabic/French
w/o eKey
KB.USB03.226
Keyboard CHICONY KU-0760 USB Standard 104KS Black Kazakh w/o
eKey
KB.USB03.227
Keyboard CHICONY KU-0760 USB Standard 104KS Black Turkmen w/o
eKey
KB.USB03.228
Keyboard CHICONY KU-0760 USB S t andard 105KS Black Nordic w/o eKey KB.USB03.229
Keyboard LITE-ON SK-9625 USB Standard 104KS Black US w/o eKey KB.USB0B.158
Page 71
65
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Traditional
Chinese w/o eKey
KB.USB0B.159
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Simplified
Chinese w/o eKey
KB.USB0B.160
Keyboard LITE-ON SK-9625 USB Standard 104KS Black US International
w/o eKey
KB.USB0B.161
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Arabic/English
w/o eKey
KB.USB0B.162
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Thailand w/o
eKey
KB.USB0B.163
Keyboard LITE-ON SK-9625 USB St and ard 1 05KS Black Spanish w/o eKey KB.USB0B.164
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Portuguese w/o
eKey
KB.USB0B.165
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Canadian French
w/o eKey
KB.USB0B.166
Keyboard LITE-ON SK-9625 USB Standard 107KS Black Brazilian
Portuguese w/o eKey
KB.USB0B.167
Keyboard LITE-ON SK-9625 USB Standard 109KS Black Japanese w/o
eKey
KB.USB0B.168
Keyboard LITE-ON SK-9625 USB St andard 1 05KS Black Germa n w/o eKey KB.USB0B.169
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Italian w/o eKey KB.USB0B.170
Keyboard LITE-ON SK-9625 USB Standard 105KS Black French w/o eKey KB.USB0B.171
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Swedish w/o
eKey
KB.USB0B.172
Keyboard LITE-ON SK-9625 USB Standard 105KS Black UK w/o eKey KB.USB0B.173
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Dutch w/o eKey KB.USB0B.174
Keyboard LITE-ON SK-9625 USB St andard 105KS Black Swi ss/G w/o eKey KB.USB0B.175
Keyboard LITE-ON SK-9625 USB St andard 1 05KS Black Belgium w/o eKe y KB.USB0B.176
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Icelandic w/o
eKey
KB.USB0B.177
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Norwegian w/o
eKey
KB.USB0B.178
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Hebrew w/o eKey KB.USB0B.179
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Polish w/o eKey KB.USB0B.180
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Slovenian w/o
eKey
KB.USB0B.181
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Slovak w/o eKey KB.USB0B.182
Keyboard LITE-ON SK-9625 USB St andard 1 04KS Black Russian w/o eKe y KB.USB0B.183
Page 72
66
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Hungarian w/o
eKey
KB.USB0B.184
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Greek w/o eKey KB.USB0B.185
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Danish w/o eKey KB.USB0B.186
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Czech w/o eKey KB.USB0B.187
Keyboard LITE-ON SK-9625 USB Stand ard 105KS Black Romanian w/o
eKey
KB.USB0B.188
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Turkish w/o eKey KB.USB0B.189
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Spanish Latin w/o
eKey
KB.USB0B.190
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Turkish- Q w/o
eKey
KB.USB0B.191
Keyboard LITE-ON SK-9625 USB St andard 105KS Black Arabic/French w/o
eKey
KB.USB0B.192
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Kazakh w/o eKey KB.USB0B.193
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Turkmen w/o
eKey
KB.USB0B.194
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Nordic w/o eKey KB.USB0B.195
Page 73
Intel RAID SOP (Windows)
2.Intel(R) Matrix Storage Console
2-1:Create a“RAID Ready” System into" RAID 0" with two Hard Drives by‘Create RAID Volume from
Existing HDD Drive ’.
Step 1:
Install Vista OS with one SATA HDD.
Step 2:
Shut down the system,then add one Serial ATA hard drive in the system.

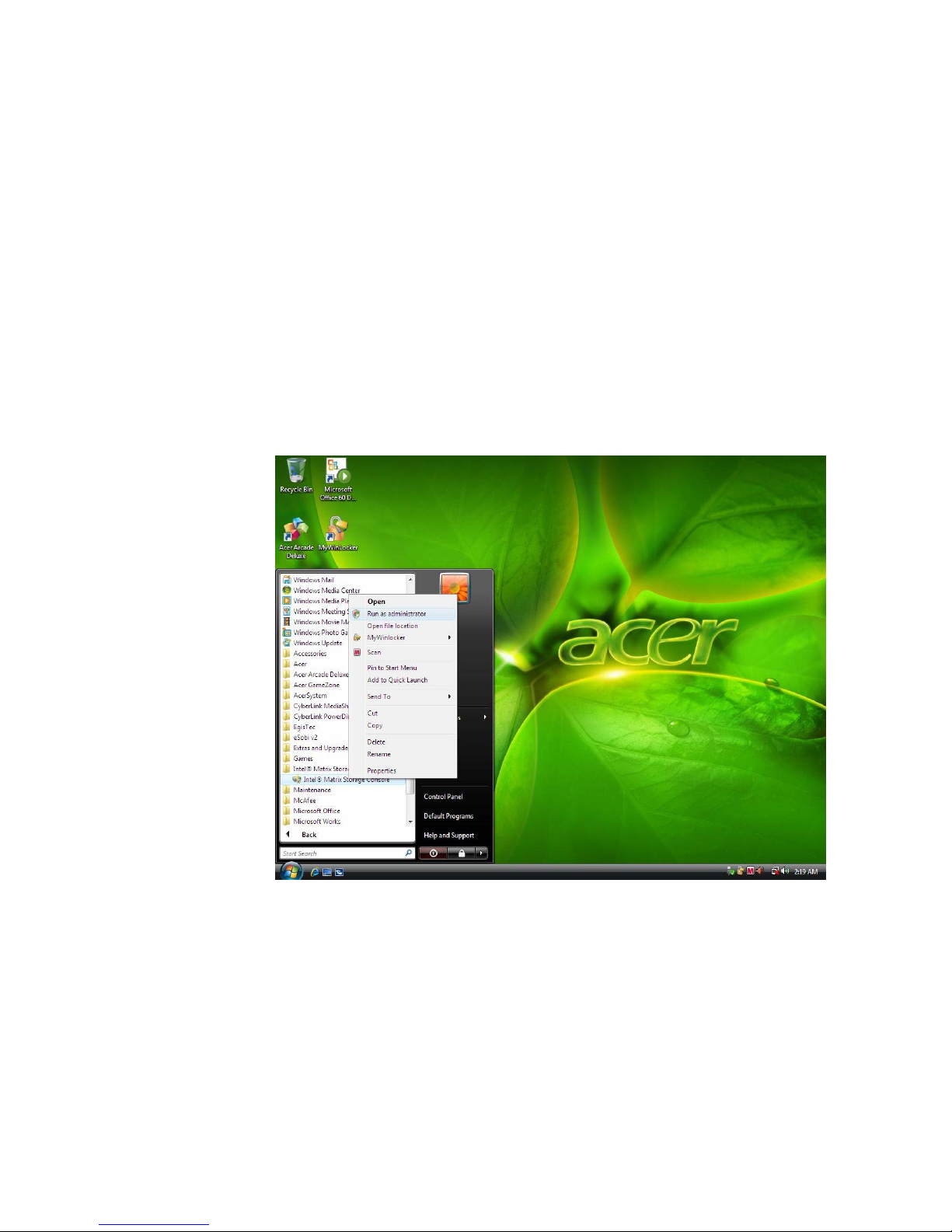

Step 3:
Boot to OS desktop, open the Intel® Matrix Storage Console.
Step 4:
Click on the by‘Create RAID Volume from Existing HDD Drive ’ to create a RAID
volume.
Page 74
Step 5:
Click "Next" at create a RAID volume window.
Page 75

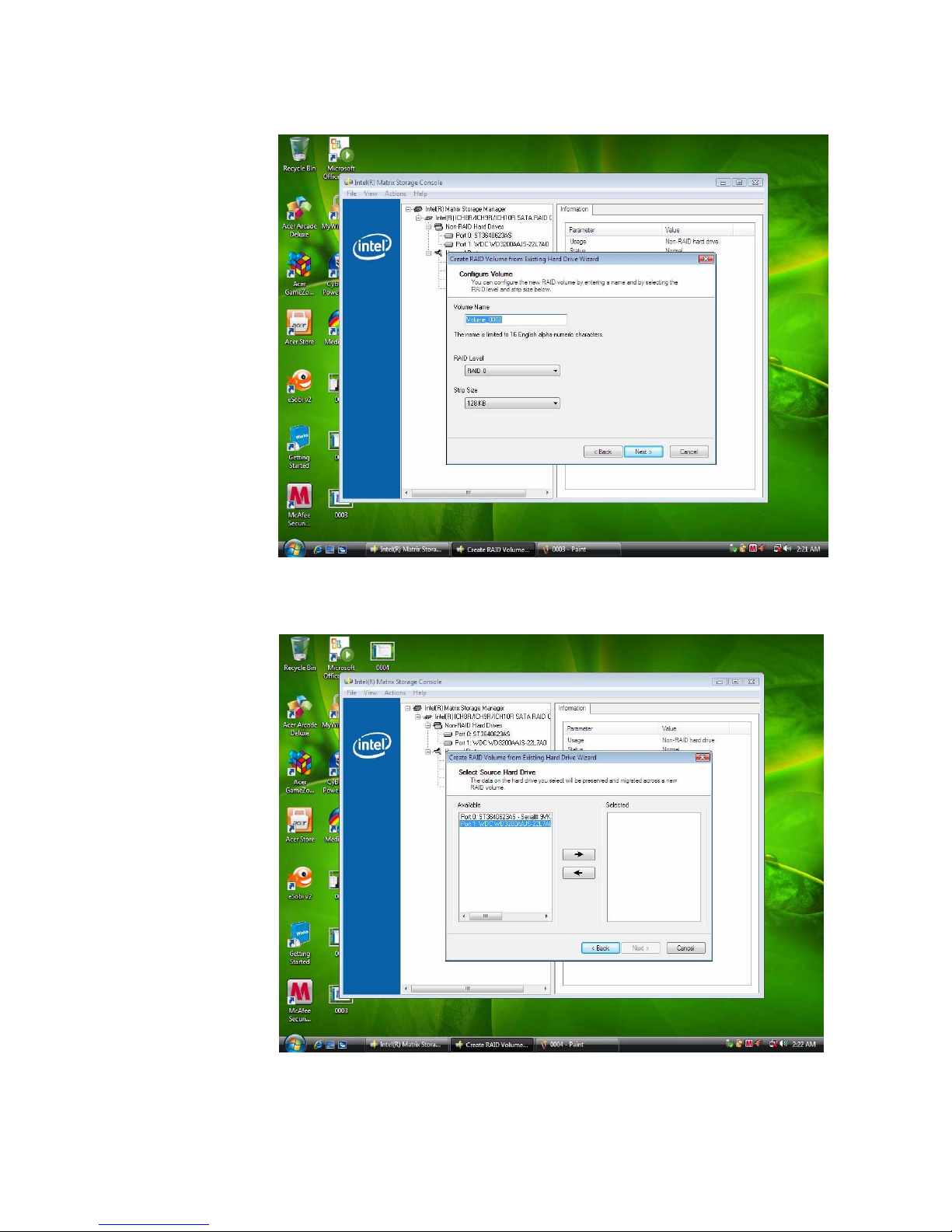

Step 6:
Key the name in "Volume Name" and select "RAID 0" in RAID Level.
Step 7:
Select minimum HDD as "Source Hard Drive".
Page 76

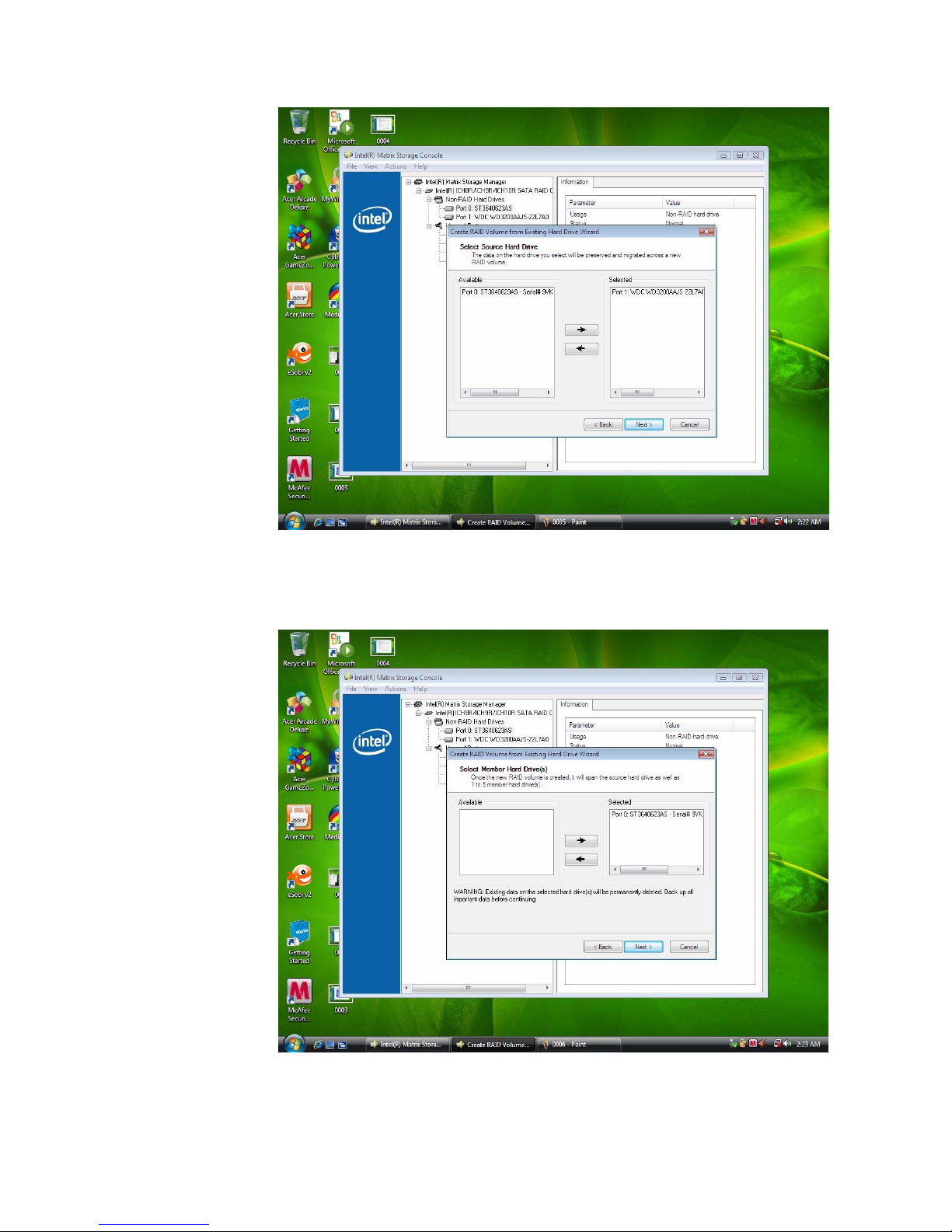

Step 8:
Select Menber Hard Drive(s).
Page 77

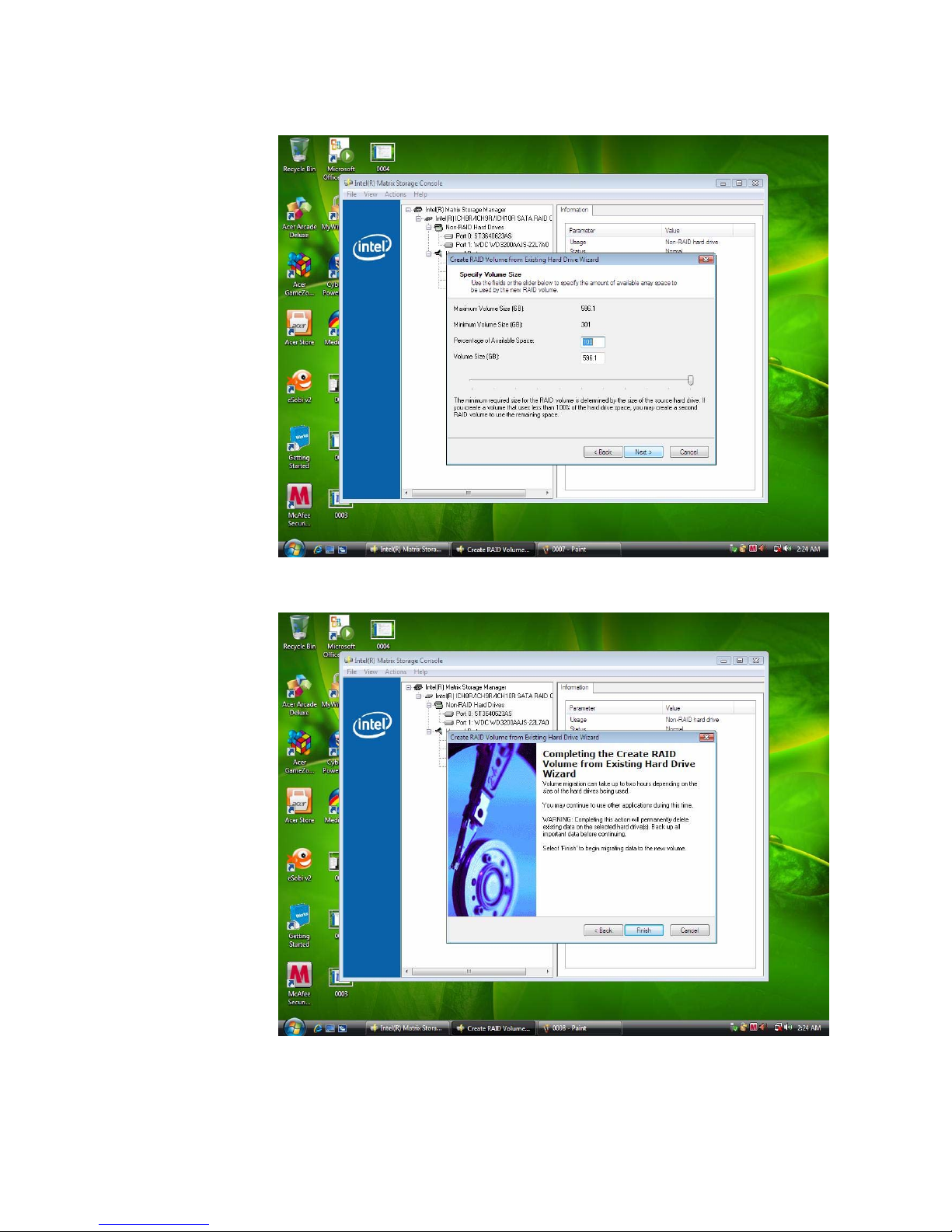

Step 9:
Specify Volume Size then press "next".
Step 10:
Press "next" to finish setup and start create RAID0.
Step 11:
It may takes half and hours to create RAID0.After create completely,it will ask to
reboot to finish create RAID0.
Page 78
2-2:Create a“RAID Ready” System into" RAID 1" with two Hard Drives by‘Create RAID Volume from
Existing HDD Drive ’.
Step 1:
Install Vista OS with one SATA HDD.
Step 2:
Shut down the system,then add another Serial ATA hard drive in the system.
Step 3:
Boot to OS desktop, open the Intel® Matrix Storage Console.
Step 4:
Click on the by‘Create RAID Volume from Existing HDD Drive ’ to create a RAID
volume.
Step 5:
Click "Next" at create a RAID volume window.

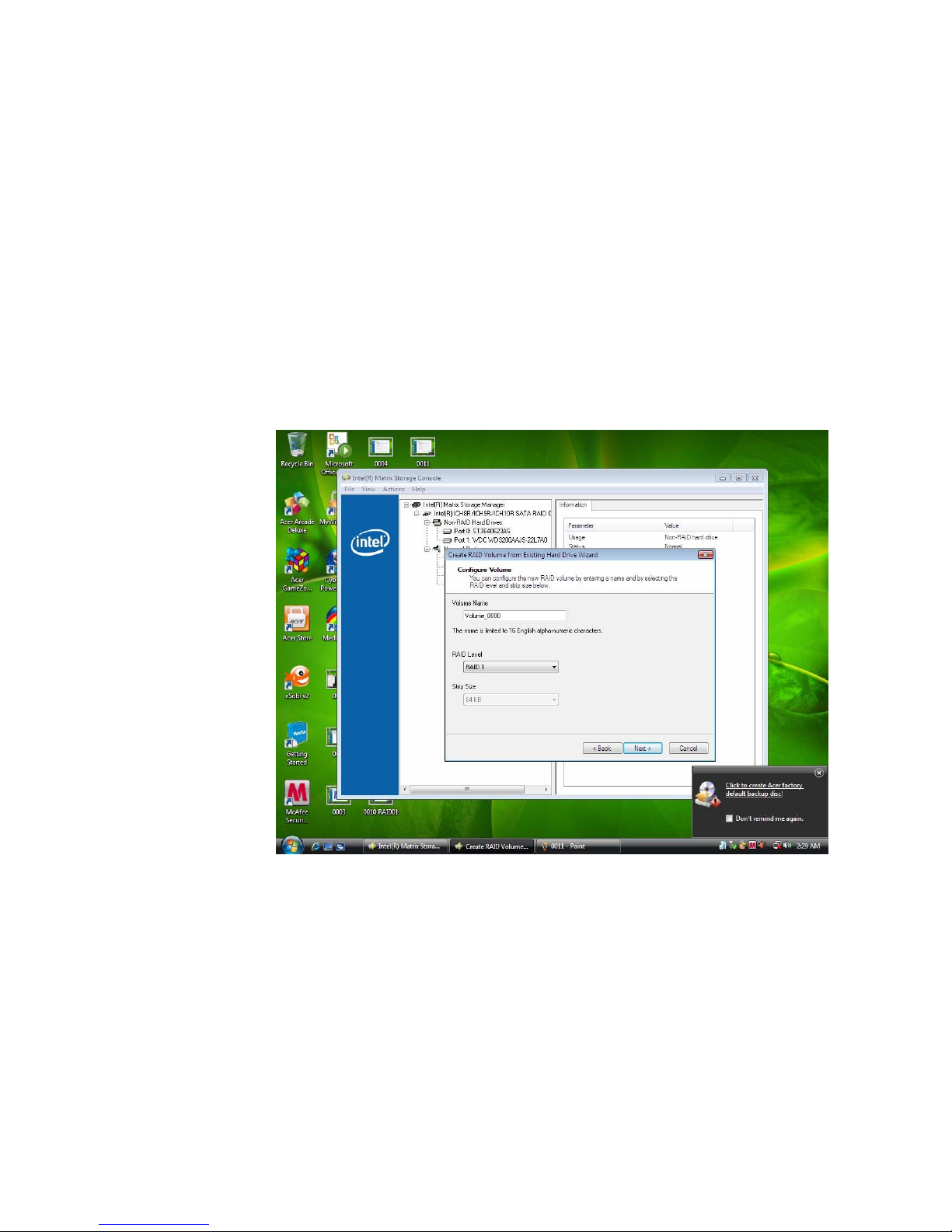

Step 6:
Key the name in "Volume Name" and select "RAID 1" in RAID Level.
Step 7:
Select minimum HDD as "Source Hard Drive".
Step 8:
Select Menber Hard Drive(s).
Step 9:
Specify Volume Size then press "next".
Step 10:
Press "next" to finish setup and start create RAID1.
Step 11:
It may takes half and hours to create RAID1.After create completely,it will ask to
reboot to finish create RAID1.
Page 79
2-3:Create a“RAID Ready” System into" RAID 5" with three Hard Drives by‘Create RAID Volume from
Existing HDD Drive ’.
Step 1:
Install Vista OS with one SATA HDD.
Step 2:
Shut down the system,then add other two serial ATA hard drives in the system.
Step 3:
Boot to OS desktop, open the Intel® Matrix Storage Console.
Step 4:
Click on the by‘Create RAID Volume from Existing HDD Drive ’ to create a RAID
Step 5:
Click "Next" at create a RAID volume window.
Step 6:
Key the name in "Volume Name" and select "RAID 5" in RAID Level.
Step 7:
Select minimum HDD as "Source Hard Drive".
Page 80
Step 8:
At least select two HDD as Menber Hard Drive(s).
Step 9:
Specify Volume Size then press "next".
Step 10:
Press "next" to finish setup and start create RAID5.
Step 11:
It may takes half and hours to create RAID5.After create completely,it will ask to
reboot to finish create RAID5.
2-4:Create a“RAID Ready” System into" RAID 10" with three Hard Drives by‘Create RAID Volume
from Existing HDD Drive ’.
Step 1:
Install Vista OS with one SATA HDD.
Step 2:
Shut down the system,then add other two serial ATA hard drives in the system.
Step 3:
Boot to OS desktop, open the Intel® Matrix Storage Console.
Step 4:
Click on the by‘Create RAID Volume from Existing HDD Drive ’ to create a RAID
Step 5:
Click "Next" at create a RAID volume window.
Step 6:
Key the name in "Volume Name" and select "RAID 10" in RAID Level.
Page 81
Step 7:
Select two HDDs as "Source Hard Drive".
Page 82
Step 8:
At least select two HDD as Menber Hard Drive(s).
Step 9:
Specify Volume Size then press "next".
Step 10:
Press "next" to finish setup and start create RAID 10.
Step 11:
It may takes half and hours to create RAID 10.After create completely,it will ask to
reboot to finish create RAID10.
2-5:Create a“RAID Ready” System into" RAID 0" with two Hard Drives by ‘Create RAID Volume ’.
Step 1:
Install Vista OS with one SATA HDD.
Step 2:
Shut down the system,then add another two serial ATA hard drives in the system.
Step 3:
Boot to OS desktop, open the Intel® Matrix Storage Console.

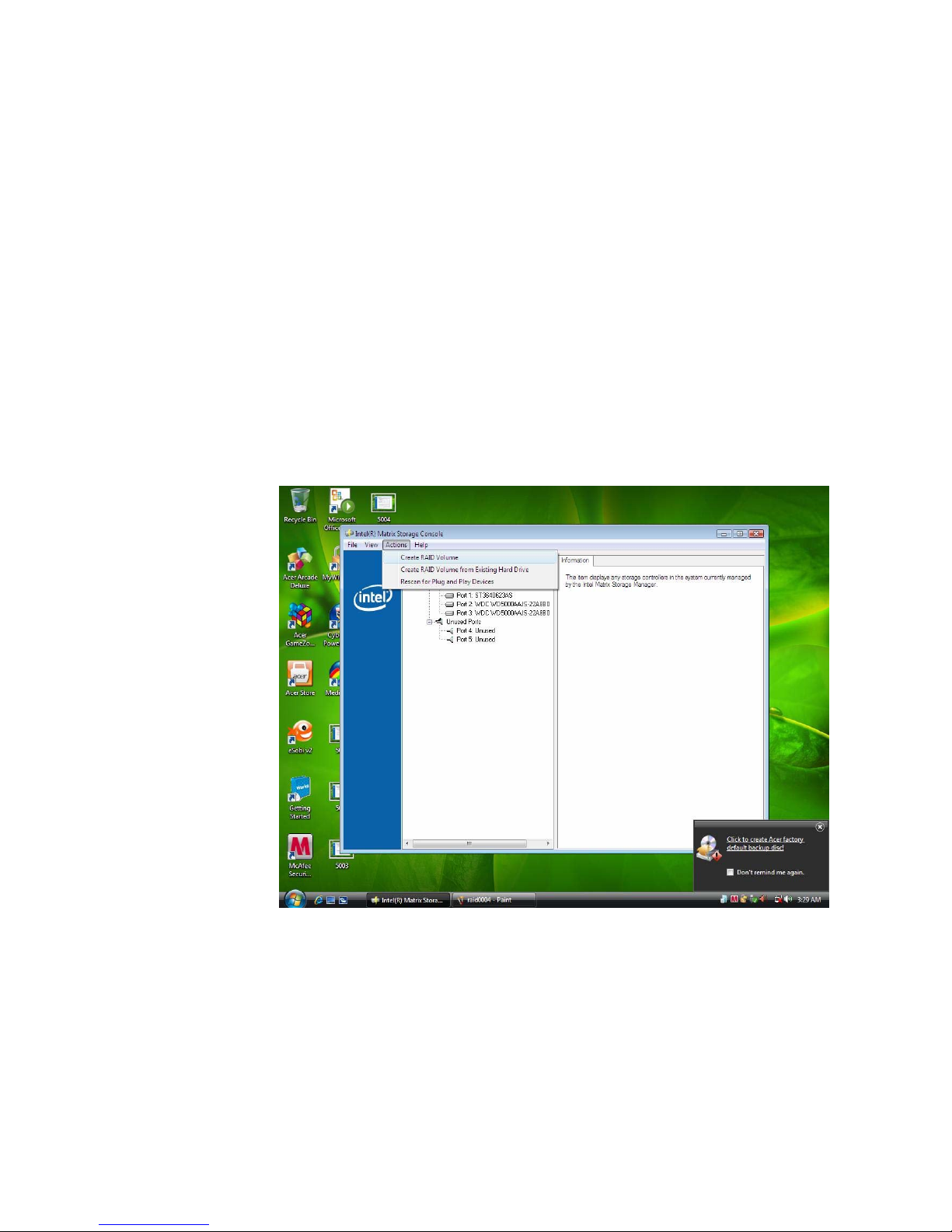

Step 4:
Click on the by‘Create RAID Volume’ to create a RAID volume.
Step 5:
Click "Next" at create a RAID volume window.
Step 6:
Key the name in "Volume Name" and select "RAID 0" in RAID Level.

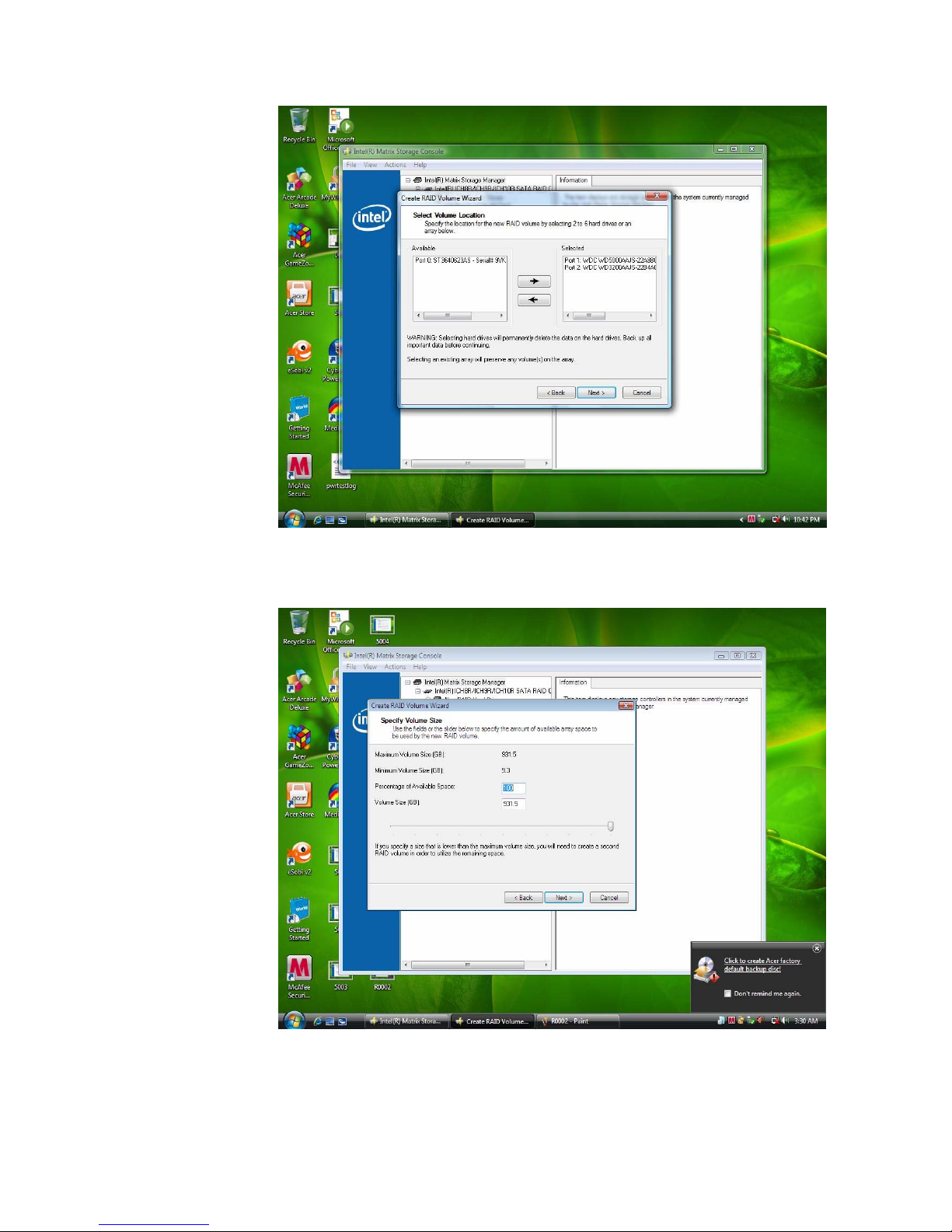

Step 7:
At least select two HDDs as "Volume Location".
Page 83
Step 8:
Specify Volume Size then press "next".
Step 9:
Press "next" to finish setup and start create RAID 0.
Step 10:
It may takes half and hours to create RAID 0.After create completely,it will ask to
reboot to finish create RAID 0.
Page 84
2-6:Create a“RAID Ready” System into" RAID 1" with two Hard Drives by ‘Create RAID Volume ’.
Step 1:
Install Vista OS with one SATA HDD.
Step 2:
Shut down the system,then add another two serial ATA hard drives in the system.
Step 3:
Boot to OS desktop, open the Intel® Matrix Storage Console.
Step 4:
Click on the by‘Create RAID Volume’ to create a RAID volume.
Step 5:
Click "Next" at create a RAID volume window.
Step 6:
Key the name in "Volume Name" and select "RAID 1" in RAID Level.
Step 7:
At least select two HDDs as "Volume Location".
Step 8:
Specify Volume Size then press "next".
Step 9:
Press "next" to finish setup and start create RAID 1.
Step 10:
It may takes half and hours to create RAID 1.After create completely,it will ask to
reboot to finish create RAID 1.
2-7:Create a“RAID Ready” System into" RAID 5" with two Hard Drives by ‘Create RAID Volume ’.
Step 1:
Install Vista OS with one SATA HDD.
Step 2:
Shut down the system,then add another three serial ATA hard drives in the system.
Step 3:
Boot to OS desktop, open the Intel® Matrix Storage Console.
Step 4:
Click on the by‘Create RAID Volume’ to create a RAID volume.
Step 5:
Click "Next" at create a RAID volume window.
Step 6:
Key the name in "Volume Name" and select "RAID 5" in RAID Level.
Step 7:
At least select three HDDs as "Volume Location".
Step 8:
Specify Volume Size then press "next".
Step 9:
Press "next" to finish setup and start create RAID 5.
Step 10:
It may takes half and hours to create RAID 5.After create completely,it will ask to
reboot to finish create RAID 5.
2-8:Create a“RAID Ready” System into" RAID 10" with two Hard Drives by ‘Create RAID Volume ’.
Step 1:
Install Vista OS with one SATA HDD.
Step 2:
Shut down the system,then add another four serial ATA hard drives in the system.
Step 3:
Boot to OS desktop, open the Intel® Matrix Storage Console.
Step 4:
Click on the by‘Create RAID Volume’ to create a RAID volume.
Step 5:
Click "Next" at create a RAID volume window.
Step 6:
Key the name in "Volume Name" and select "RAID 10" in RAID Level.
Step 7:
At least select three HDDs as "Volume Location".
Step 8:
Specify Volume Size then press "next".
Step 9:
Press "next" to finish setup and start create RAID 10.
Step 10:
It may takes half and hours to create RAID 10.After create completely,it will ask to
reboot to finish create RAID 10.
Page 85
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
At "Integrated_Peripherals" page "OnChip SATA Type" item set is as "RAID" mode,save
and exit.

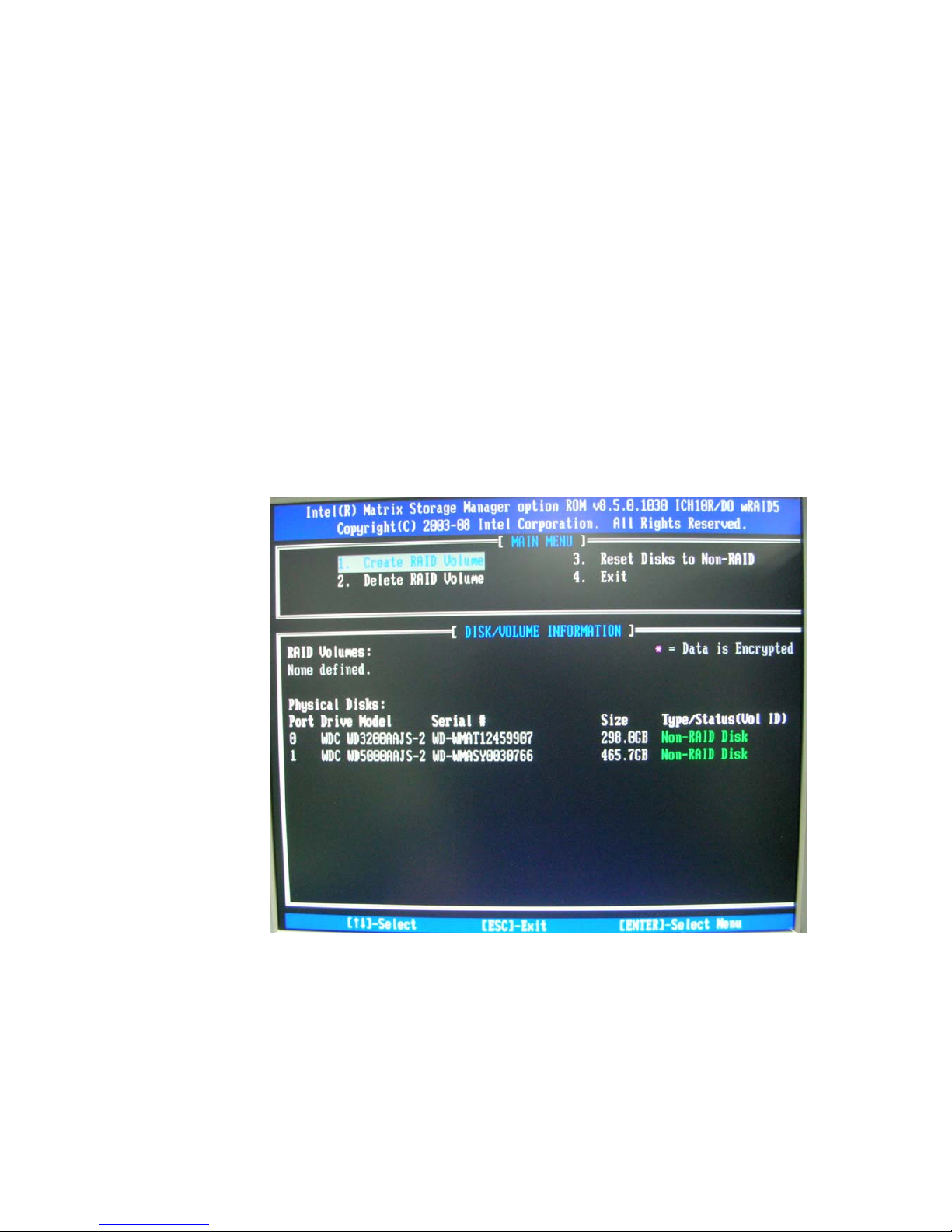

During BIOS post, press <Ctrl-I> to enter into Intel RAID setup utility,as picture1.
Select "1" to enter create RAID mode ,if there is no enough avalable space (there was exist a
Raid , delete it ).
Intel RAID SOP
1. INTEL® MATRIX STORAGE TECHNOLOGY CHECK (DOS)
1-1: Create SATA RAID 0
Shut down the EUT, unplug the power cable,connect two SATA HDDS to EUT , check the
EUT all devices are connect/plug ok
Press "PWR-BTTN" to power on the EUT,Load BIOS default setting .
Create RAID 0 Mode,enter the RAID name,such as "MyRaid0",default is"Volume0".
Page 86
Step 7:
Select "RAID0(Stripe)" at "RAID Level".
Page 87
Step 8:
Step 9:
Step 10:
It will back to create RAID interface,then press "ESC" or select 4 to exit and install
OS.
You can select the "Strip Size" and define RAID capacity in "Capactity".
Press "Create Volume" to create RAID0,it will pop the warning message that all data
will be lost,"press "Y" to confirm it.
Page 88
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
Step 9:
Step 10:
1-2: Create SATA RAID 1
Shut down the EUT, unplug the power cable,connect two SATA HDDS to EUT , check the
EUT all devices are connect/plug ok
Press "PWR-BTTN" to power on the EUT,Load BIOS default setting .
At "Integrated_Peripherals" page "OnChip SATA Type" item set is as "RAID" mode,save
and exit.
During BIOS post, press <Ctrl-I> to enter into Intel RAID setup utility.
Select "1" to enter create RAID mode ,if there is no enough avalable space (there was exist a
Raid , delete it ).
Create RAID 1 Mode,enter the RAID name,such as "MyRaid1",default is"Volume0".
Select "RAID1(Mirror)" at "RAID Level".
You can select the "Strip Size" and define RAID capacity in "Capactity".
Press "Create Volume" to create RAID1,it will pop the warning message that all data
will be lost,"press "Y" to confirm it.
It will back to create RAID interface,then press "ESC" or select 4 to exit and install
OS.
Page 89
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
Step 9:
Step 10:
1-3: Create SATA RAID 5
Shut down the EUT, unplug the power cable,connect three SATA HDDS to EUT , check the
EUT all devices are connect/plug ok
Press "PWR-BTTN" to power on the EUT,Load BIOS default setting .
At "Integrated_Peripherals" page "OnChip SATA Type" item set is as "RAID" mode,save
and exit.
During BIOS post, press <Ctrl-I> to enter into Intel RAID setup utility.
Select "1" to enter create RAID mode ,if there is no enough avalable space (there was exist a
Raid , delete it ).
Create RAID 5 Mode,enter the RAID name,such as "MyRaid5",default is"Volume0".

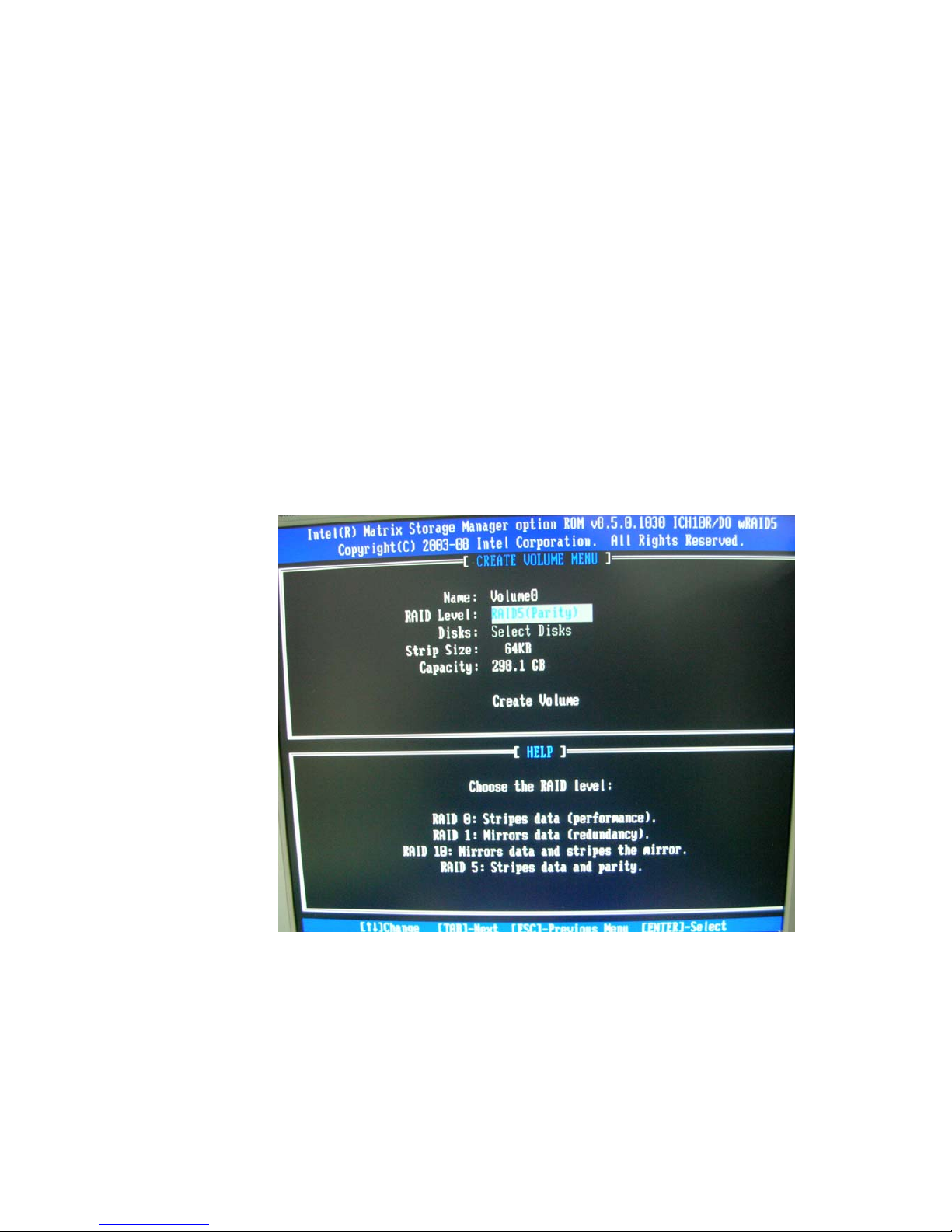

Select "RAID5(Parity)" at "RAID Level".
You can select the "Strip Size" and define RAID capacity in "Capactity".
Press "Create Volume" to create RAID5,it will pop the warning message that all data
will be lost,"press "Y" to confirm it.
It will back to create RAID interface,then press "ESC" or select 4 to exit and install
OS.
Page 90
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
Step 9:
Step 10:
1-4: Create SATA RAID 0+1
Shut down the EUT, unplug the power cable,connect four SATA HDDS to EUT , check the
EUT all devices are connect/plug ok
Press "PWR-BTTN" to power on the EUT,Load BIOS default setting .
At "Integrated_Peripherals" page "OnChip SATA Type" item set is as "RAID" mode,save
and exit.
During BIOS post, press <Ctrl-I> to enter into Intel RAID setup utility.
Select "1" to enter create RAID mode ,if there is no enough avalable space (there was exist a
Raid , delete it ).
Repeat RAID1 creation step and exit,then install OS.
Create RAID 0+1 Mode,firstly create RAID 0 Mode,enter the RAID name,such as
"MyRaid0+1",default is"Volume0".
Select "RAID0(Stripe)" at "RAID Level".

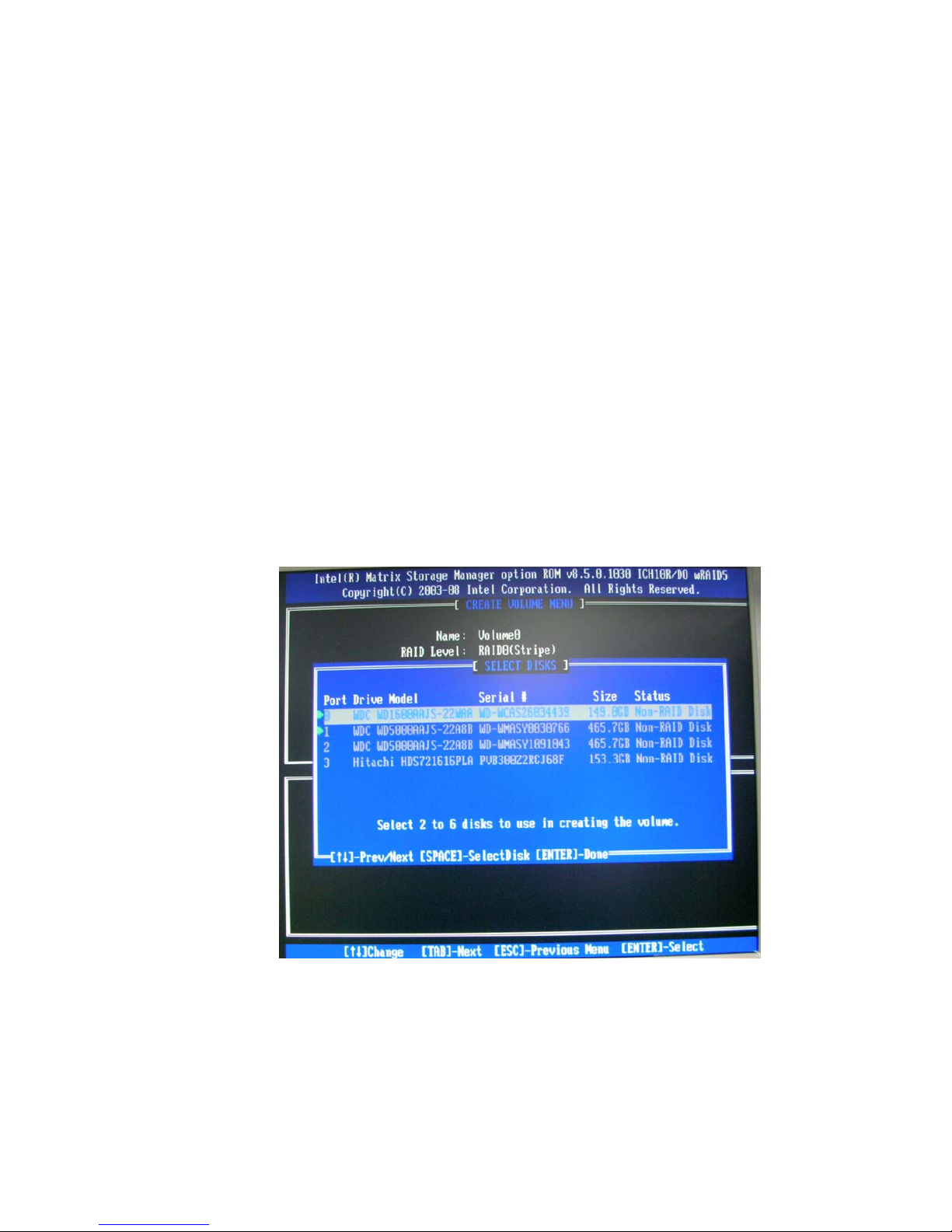

Select two HDDs in "Disk" by space key.
Press "Enter" to finish HDD selection and it will back to RAID creation interface.
Loading...
