MSI MS-7368 Schematics

5

4

3

2

1

MSI

MS-7368 Ver:0A

D D

C C

B B

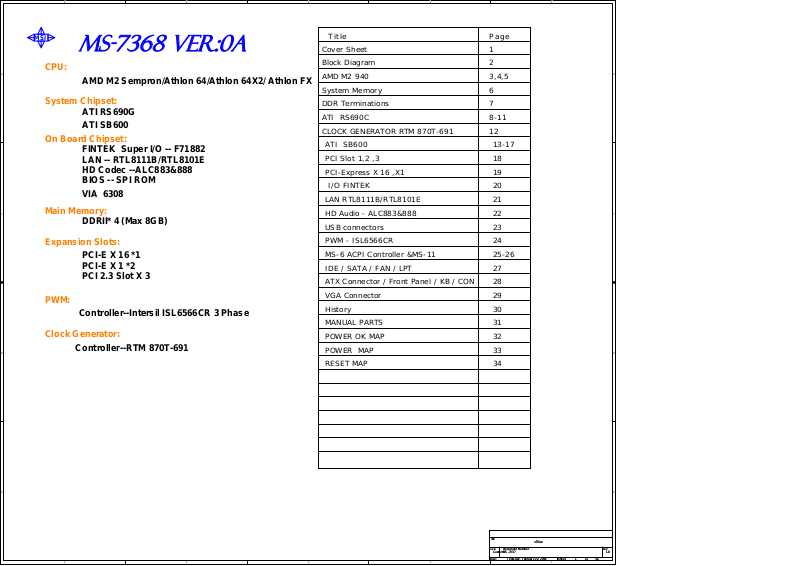

CPU:

AMD M2 Sempron/Athlon 64/Athlon 64X2/ Athlon FX

System Chipset:

ATI RS690G
ATI SB600

On Board Chipset:

FINTEK Super I/O -- F71882
LAN -- RTL8111B/RTL8101E
HD Codec --ALC883&888
BIOS -- SPI ROM

VIA 6308

Main Memory:

DDRII* 4 (Max 8GB)

Expansion Slots:

PCI-E X 16 *1
PCI-E X 1 *2
PCI 2.3 Slot X 3

PWM:

Controller--Intersil ISL6566CR 3 Phase

Clock Generator:

Controller--RTM 870T-691

Title Page

Cover Sheet 1
Block Diagram
AMD M2 940
System Memory
DDR Terminations

2
3,4,5
6

7
ATI RS690C 8-11
CLOCK GENERATOR RTM 870T-691 12

ATI SB600 13-17
PCI Slot 1,2 ,3
PCI-Express X 16 ,X1
I/O FINTEK
LAN RTL8111B/RTL8101E
HD Audio - ALC883&888
USB connectors
PWM - ISL6566CR
MS-6 ACPI Controller &MS-11
IDE / SATA / FAN / LPT
ATX Connector / Front Panel / KB / CON
VGA Connector
History
MANUAL PARTS
POWER OK MAP
POWER MAP
RESET MAP

18
19
20
21
22
23
24
25-26
27
28
29
30
31
32
33
34

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

<Title>

<Title>

<Title>

of

136Thursday, February 22, 2007

of

136Thursday, February 22, 2007

of

136Thursday, February 22, 2007

1

5

4

3

2

1

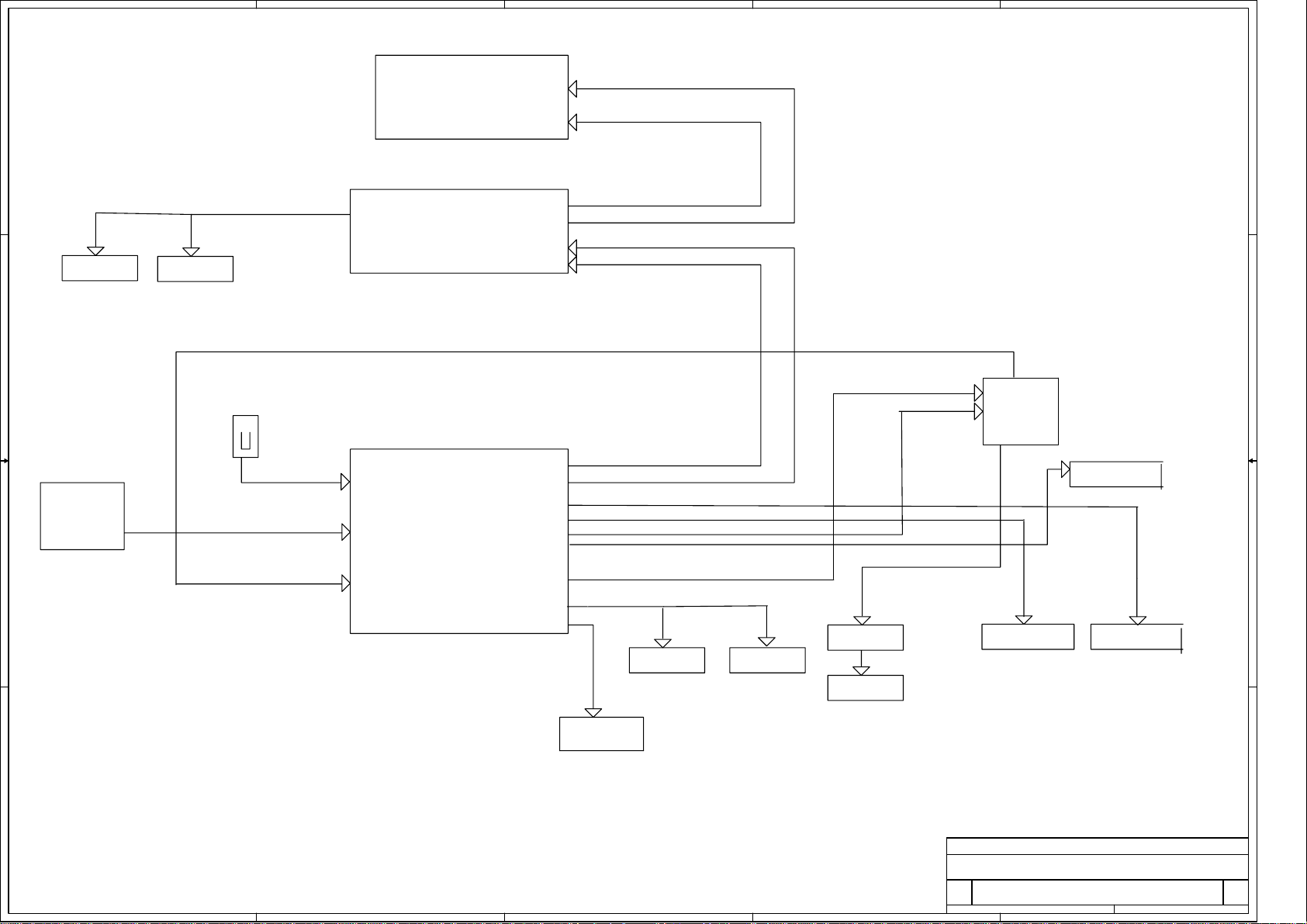

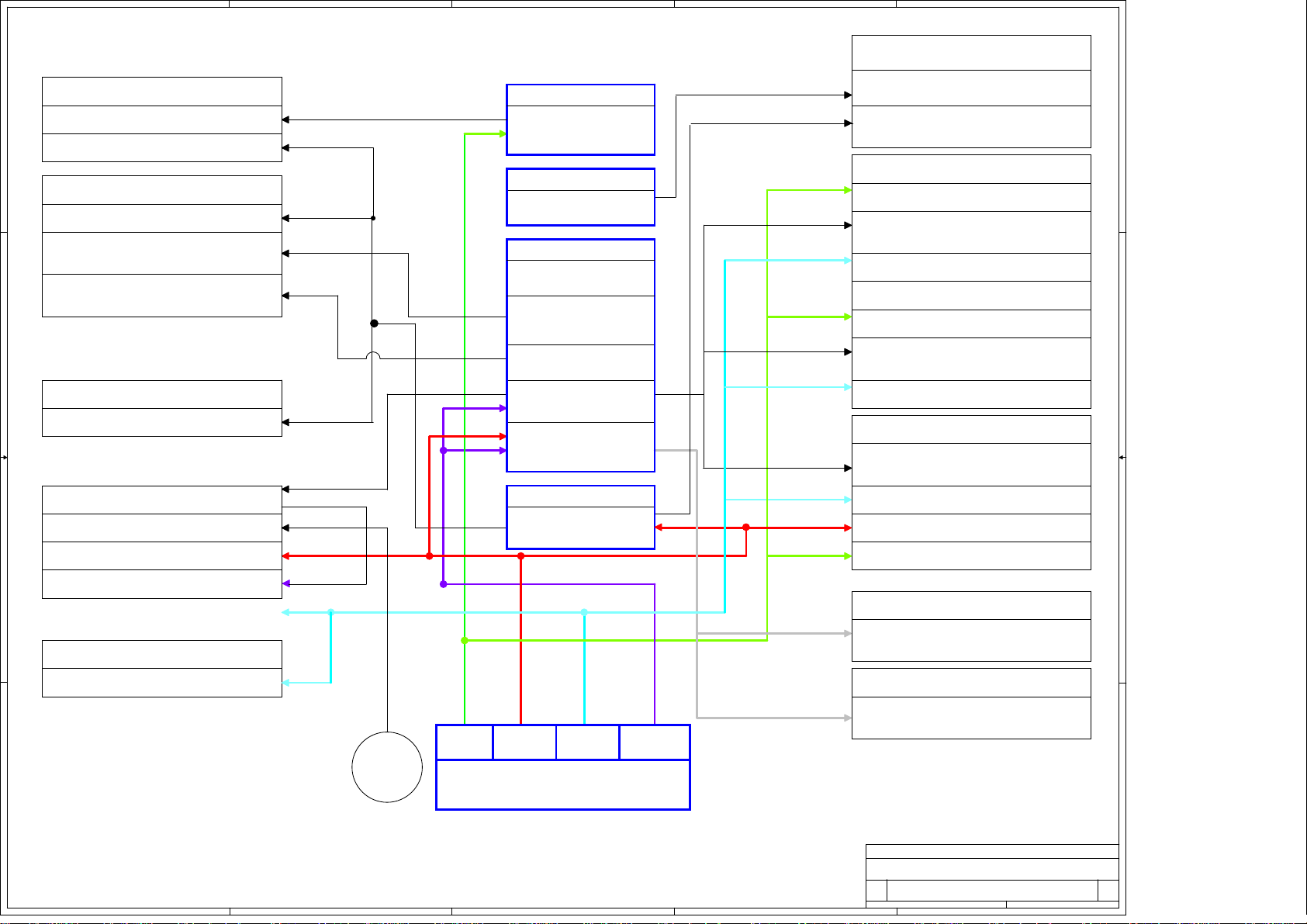

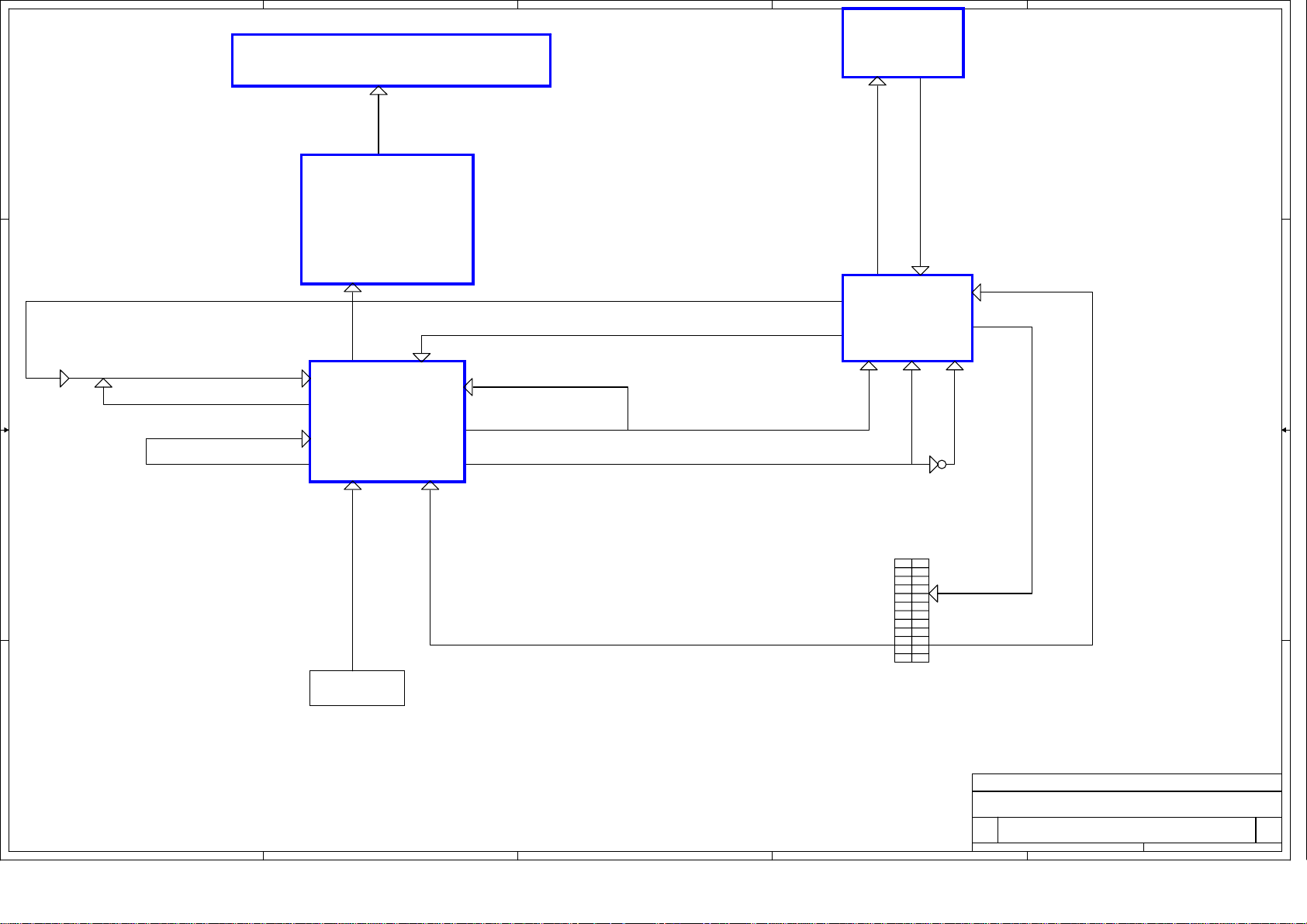

BLOCK DIAGRAM

D D

C C

PRIMARY IDE

SATA CONN x4

FLOPPY CONN

B B

PS2/KB CONN

PARALLEL CONN

SERIAL CONN x2

POWER

SUPPLY

CONNECTOR

ATA 66/100/133

INTEGRATED SATA I/II

SIO

LPC SUPER I/O
F71882

SPI ROM 4M

PE X16

PE X1

PE X1

VREG

PCI EXPRESS

PCI EXPRESS

PCI EXPRESS

LPC BUS 33MHZ

SOCKET 940

K9

HT 16X16 1GHZ

ATI
RS690
465 BGA

HT 8X8 1GHZ

ATI
SB600
564 BGA

USB2.0 x10

128-BIT 400/533/667/800MHZ

AZAILIA

VGA CONN

PCI-E 100MHZ

PCI 33MHZ

BACK PANEL CONN

USB2 PORTS 0-1

DOUBLE STACK

USB2 PORTS 2-3

X2/GBIT LAN

FRONT PANEL HDR

USB2 PORTS 4-5

Realtek ALC 883/888 (HD, 7.1Channel)

DDRII CONN 0

DDRII CONN 1

LAN-RTL8111B

PCI SLOT 1

PCI SLOT 2

PCI SLOT 3

USB2 PORTS 6-7

USB2 PORTS 8-9

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet of

5

4

3

2

Date: Sheet of

1

of

236Friday, February 16, 2007

236Friday, February 16, 2007

236Friday, February 16, 2007

5

HT_CADIN_H[15..0]10

HT_CADIN_L[15..0]10

HT_CADOUT_H[15..0]10

HT_CADOUT_L[15..0]10

VCCA_1V2

D D

VLDT

C179

C179
224P/16v/6

224P/16v/6

C199

C199

224P/16v/6

224P/16v/6

HT_CADIN_H[15..0]
HT_CADIN_L[15..0]
HT_CADOUT_H[15..0]
HT_CADOUT_L[15..0]

C73

C73
180p/0402

180p/0402

C75

C75

180p/0402

180p/0402

CPU1ACPU1A

HT_CLKIN_H110

HT_CLKIN_L110

VLDT

C C

B B

HT_CLKIN_H010

HT_CLKIN_L010

R116 51/4R116 51/4
R117 51/4R117 51/4

HT_CTLIN_H010

HT_CTLIN_L010

HT_CADIN_H15
HT_CADIN_L15
HT_CADIN_H14
HT_CADIN_L14
HT_CADIN_H13
HT_CADIN_L13
HT_CADIN_H12
HT_CADIN_L12
HT_CADIN_H11
HT_CADIN_L11
HT_CADIN_H10
HT_CADIN_L10
HT_CADIN_H9
HT_CADIN_L9
HT_CADIN_H8
HT_CADIN_L8

HT_CADIN_H7
HT_CADIN_L7
HT_CADIN_H6
HT_CADIN_L6
HT_CADIN_H5
HT_CADIN_L5
HT_CADIN_H4
HT_CADIN_L4
HT_CADIN_H3
HT_CADIN_L3
HT_CADIN_H2
HT_CADIN_L2
HT_CADIN_H1
HT_CADIN_L1
HT_CADIN_H0
HT_CADIN_L0

N6

L0_CLKIN_H(1)

P6

L0_CLKIN_L(1)

N3

L0_CLKIN_H(0)

N2

L0_CLKIN_L(0)

V4

L0_CTLIN_H(1)

V5

L0_CTLIN_L(1)

U1

L0_CTLIN_H(0)

V1

L0_CTLIN_L(0)

U6

L0_CADIN_H(15)

V6

L0_CADIN_L(15)

T4

L0_CADIN_H(14)

T5

L0_CADIN_L(14)

R6

L0_CADIN_H(13)

T6

L0_CADIN_L(13)

P4

L0_CADIN_H(12)

P5

L0_CADIN_L(12)

M4

L0_CADIN_H(11)

M5

L0_CADIN_L(11)

L6

L0_CADIN_H(10)

M6

L0_CADIN_L(10)

K4

L0_CADIN_H(9)

K5

L0_CADIN_L(9)

J6

L0_CADIN_H(8)

K6

L0_CADIN_L(8)

U3

L0_CADIN_H(7)

U2

L0_CADIN_L(7)

R1

L0_CADIN_H(6)

T1

L0_CADIN_L(6)

R3

L0_CADIN_H(5)

R2

L0_CADIN_L(5)

N1

L0_CADIN_H(4)

P1

L0_CADIN_L(4)

L1

L0_CADIN_H(3)

M1

L0_CADIN_L(3)

L3

L0_CADIN_H(2)

L2

L0_CADIN_L(2)

J1

L0_CADIN_H(1)

K1

L0_CADIN_L(1)

J3

L0_CADIN_H(0)

J2

L0_CADIN_L(0)

L0_CLKOUT_H(1)

L0_CLKOUT_L(1)

L0_CLKOUT_H(0)

L0_CLKOUT_L(0)

L0_CTLOUT_H(1)

L0_CTLOUT_L(1)

L0_CTLOUT_H(0)

L0_CTLOUT_L(0)

L0_CADOUT_H(15)

L0_CADOUT_L(15)

L0_CADOUT_H(14)

L0_CADOUT_L(14)

L0_CADOUT_H(13)

L0_CADOUT_L(13)

L0_CADOUT_H(12)

L0_CADOUT_L(12)

L0_CADOUT_H(11)

L0_CADOUT_L(11)

L0_CADOUT_H(10)

L0_CADOUT_L(10)

L0_CADOUT_H(9)

L0_CADOUT_L(9)

L0_CADOUT_H(8)

L0_CADOUT_L(8)

L0_CADOUT_H(7)

L0_CADOUT_L(7)

L0_CADOUT_H(6)

L0_CADOUT_L(6)

L0_CADOUT_H(5)

L0_CADOUT_L(5)

L0_CADOUT_H(4)

L0_CADOUT_L(4)

L0_CADOUT_H(3)

L0_CADOUT_L(3)

L0_CADOUT_H(2)

L0_CADOUT_L(2)

L0_CADOUT_H(1)

L0_CADOUT_L(1)

L0_CADOUT_H(0)

L0_CADOUT_L(0)

AD5
AD4
AD1
AC1

Y6
W6
W2
W3

Y5
Y4
AB6
AA6
AB5
AB4
AD6
AC6
AF6
AE6
AF5
AF4
AH6
AG6
AH5
AH4

Y1
W1
AA2
AA3
AB1
AA1
AC2
AC3
AE2
AE3
AF1
AE1
AG2
AG3
AH1
AG1

HT_CADOUT_H15
HT_CADOUT_L15
HT_CADOUT_H14
HT_CADOUT_L14
HT_CADOUT_H13
HT_CADOUT_L13
HT_CADOUT_H12
HT_CADOUT_L12
HT_CADOUT_H11
HT_CADOUT_L11
HT_CADOUT_H10
HT_CADOUT_L10
HT_CADOUT_H9
HT_CADOUT_L9
HT_CADOUT_H8
HT_CADOUT_L8

HT_CADOUT_H7
HT_CADOUT_L7
HT_CADOUT_H6
HT_CADOUT_L6
HT_CADOUT_H5
HT_CADOUT_L5
HT_CADOUT_H4
HT_CADOUT_L4
HT_CADOUT_H3
HT_CADOUT_L3
HT_CADOUT_H2
HT_CADOUT_L2
HT_CADOUT_H1
HT_CADOUT_L1
HT_CADOUT_H0
HT_CADOUT_L0

4

HT_CLKOUT_H1 10
HT_CLKOUT_L1 10
HT_CLKOUT_H0 10
HT_CLKOUT_L0 10

TP15TP15
TP14TP14

HT_CTLOUT_H0 10
HT_CTLOUT_L0 10

3

SIO_THERM_SIC20

SIO_THERM_SID20

R513 X_0/4R513 X_0/4

R515 X_0/4R515 X_0/4

THERM_SIC

THERM_SID

VDDA25

C64

C64

C58

C56

VCC_DDR

R109

R109
300/4

300/4

C56

C3900P25X

C3900P25X

C55

C55

C3900P25X

C3900P25X

R104

R104
300/4

300/4

THERM_SIC
THERM_SID

R280

R280
X_300/4

X_300/4

R73

R73

169R1%

169R1%

CPU_CLK12

CPU_CLK#12

VCC_DDR

R112

R112

39.2R1%/4

39.2R1%/4

CPU_STRAP_HI_E11
CPU_STRAP_LO_F11

R113

R113

39.2R1%/4

39.2R1%/4

LDT_RST#
LDT_PWRGD
LDT_STOP#

For SB600

475P/0805

475P/0805

CPUCLKIN
CPUCLKIN#

COREFB+24

COREFB-24

CPU_M_VREF

THERMDC_CPU20
THERMDA_CPU20

LDT_STOP#13,15
LDT_PWRGD15

LDT_RST#15

1
3
5
7

8P4R-10k

8P4R-10k

C50

C50

X_C1000P50X

X_C1000P50X

TP24TP24
TP27TP27
TP16TP16
TP22TP22

TP6TP6

TP1TP1

TP10TP10
TP11TP11
TP13TP13
TP8TP8
TP18TP18

RN58

RN58

2
4
6
8

224P/16v/6

224P/16v/6

C45

C45

R43 300/4R43 300/4
R42 300/4R42 300/4

C58

3300P/50V/4

3300P/50V/4

LDT_PWRGD
LDT_STOP#
LDT_RST#

CPU_PRESENT_L

CPU_TDI
CPU_TRST_L
CPU_TCK
CPU_TMS

CPU_DBREQ_L
COREFB+

COREFB­CPU_VTT_SENSE

CPU_TEST25_H
CPU_TEST25_L

LDT_STOP#
LDT_PWRGD
LDT_RST#

VCC_DDR

1
3
5
7

TEST19
TEST18

RN6

RN6

2
4
6
8

X_8P4R-330R

X_8P4R-330R

C10
D10

A8
B8

C9
D8
C7

AL3

AL6

AK6

AL10
AJ10

AH10

AL9

A5
G2

G1

E12

F12

AH11

AJ11

A10
B10
F10

E9

AJ7

F6
D6

E7
F8
C5

AH9

E5

AJ5
AG9
AG8
AH7

AJ6

LDT_RST#
LDT_PWRGD
LDT_STOP#

VDDA1
VDDA2

CLKIN_H
CLKIN_L

PWROK
LDTSTOP_L
RESET_L

CPU_PRESENT_L

SIC
SID

TDI
TRST_L
TCK
TMS

DBREQ_L
VDD_FB_H

VDD_FB_L
VTT_SENSE

M_VREF
M_ZN
M_ZP

TEST25_H
TEST25_L
TEST19
TEST18
TEST13
TEST9

TEST17
TEST16
TEST15
TEST14
TEST12

TEST7
TEST6
TEST5
TEST4
TEST3
TEST2

2

CPU1DCPU1D

THERMTRIP_L

PROCHOT_L

DBRDY

VDDIO_FB_H

VDDIO_FB_L

HTREF1
HTREF0

TEST29_H

TEST29_L

TEST24
TEST23
TEST22
TEST21
TEST20

TEST28_H

TEST28_L

TEST27
TEST26
TEST10

TEST8

VID(5)
VID(4)
VID(3)
VID(2)
VID(1)
VID(0)

TDO

PSI_L

80S/0805L480S/0805

2 1

D2
D1
C1
E3
E2
E1

AK7
AL7

AK10

B6
AK11

AL11
F1

V8
V7

C11
D11

AK8
AH8
AJ9
AL8
AJ8

J10
H9
AK9
AK5
G7
D4

VCC_DDR

R57

R57

16.9/6/1

16.9/6/1

1

VDDA25VDDA_25

L4

VID[0..4] 24

VCC_DDR

VID4
VID3
VID2
VID1
VID0

THERMTRIP_L

TP9TP9

R18

R18
300/4

300/4

TP26TP26

VCC_DDRVCC_DDR

R511

R511

R510

R510
300/4

300/4

4.7K/4

4.7K/4

Q45 N-MMBT3904_NL_SOT23Q45 N-MMBT3904_NL_SOT23

VCC_DDR

TP12TP12

HTREF1
HTREF0

TEST29_H
TEST29_L

TEST21

R52

R52

80.6R1%/4

80.6R1%/4

TP21TP21
TP17TP17
TP20TP20

TP19TP19

VCC_DDR

300/4

300/4

TEST26

R108

R108

Test26 is pulled up to VDDIO according to CPU revision guide errata 133.
TEST18, TEST19, and TEST21 are pulled down to VSS according to CPU revision guide errata 133.

R54

R54

16.9/6/1

16.9/6/1

0.1u/10V/4

0.1u/10V/4

CPU_M_VREF

C59

C65

C65

C59
C1000P50X

C1000P50X

C160

C160

102P/50V/X7R/4

102P/50V/X7R/4

R106

R106
300/4

300/4

CPU_PRESENT_L
CPU_TEST25_H

CPU_TEST25_L

R111 44.2RSTR111 44.2RST
R114 44.2RSTR114 44.2RST

C161

C161

102P/50V/X7R/4

102P/50V/X7R/4

R118 1K/4R118 1K/4
R67 510R/4R67 510R/4

R72 510R/4R72 510R/4

VCC_DDR

CPU_THRIP# 14

VLDT

VCC_DDR

R105

R105
300/4

300/4

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

336Friday, February 23, 2007

of

336Friday, February 23, 2007

of

336Friday, February 23, 2007

5

4

3

2

1

MEM_MA_DQS_L[7..0]6

MEM_MA_DQS_H[7..0]6

MEM_MA_DM[7..0]6

D D

MEM_MA0_CLK_H26,8
MEM_MA0_CLK_L26,8
MEM_MA0_CLK_H16,8
MEM_MA0_CLK_L16,8
MEM_MA0_CLK_H06,8
MEM_MA0_CLK_L06,8

MEM_MA0_CS_L16,8
MEM_MA0_CS_L06,8

MEM_MA0_ODT06,8
MEM_MA1_CLK_H26,8

MEM_MA1_CLK_L26,8
MEM_MA1_CLK_H16,8
MEM_MA1_CLK_L16,8
MEM_MA1_CLK_H06,8
MEM_MA1_CLK_L06,8

MEM_MA1_CS_L16,8
MEM_MA1_CS_L06,8

MEM_MA1_ODT06,8

MEM_MA_CAS_L6,8
MEM_MA_WE_L6,8

C C

MEM_MA_RAS_L6,8
MEM_MA_BANK26,8

MEM_MA_BANK16,8
MEM_MA_BANK06,8

MEM_MA_CKE16,8
MEM_MA_CKE06,8

MEM_MA_ADD[15..0]6,8

B B

MEM_MA0_CLK_H2
MEM_MA0_CLK_L2
MEM_MA0_CLK_H1
MEM_MA0_CLK_L1
MEM_MA0_CLK_H0
MEM_MA0_CLK_L0

MEM_MA0_CS_L1
MEM_MA0_CS_L0

MEM_MA0_ODT0
MEM_MA1_CLK_H2

MEM_MA1_CLK_L2
MEM_MA1_CLK_H1
MEM_MA1_CLK_L1
MEM_MA1_CLK_H0
MEM_MA1_CLK_L0

MEM_MA1_CS_L1
MEM_MA1_CS_L0

MEM_MA1_ODT0

MEM_MA_CAS_L
MEM_MA_WE_L
MEM_MA_RAS_L

MEM_MA_BANK2
MEM_MA_BANK1
MEM_MA_BANK0

MEM_MA_CKE1
MEM_MA_CKE0

MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0

MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0

MEM_MA_DM7
MEM_MA_DM6
MEM_MA_DM5
MEM_MA_DM4
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM1
MEM_MA_DM0

AG21
AG20

AC25
AA24

AC28
AE20

AE19

AD27
AA25

AC27

AB25
AB27
AA26

AA27

AC26

AD15
AE15
AG18
AG19
AG24
AG25
AG27
AG28

AF15
AF19
AJ25

AH29

G19
H19
U27
U26

G20
G21
V27
W27

N25
Y27

M25
M27

N24
N26

P25
Y25
N27
R24
P27
R25
R26
R27

U25
W24

D29
C29
C25
D25
E19

G15

B29
E24
E18
H15

L27

T25
T27

F19
F15

MA0_CLK_H(2)
MA0_CLK_L(2)
MA0_CLK_H(1)
MA0_CLK_L(1)
MA0_CLK_H(0)
MA0_CLK_L(0)

MA0_CS_L(1)
MA0_CS_L(0)

MA0_ODT(0)
MA1_CLK_H(2)

MA1_CLK_L(2)
MA1_CLK_H(1)
MA1_CLK_L(1)
MA1_CLK_H(0)
MA1_CLK_L(0)

MA1_CS_L(1)
MA1_CS_L(0)

MA1_ODT(0)

MA_CAS_L
MA_WE_L
MA_RAS_L

MA_BANK(2)
MA_BANK(1)
MA_BANK(0)

MA_CKE(1)
MA_CKE(0)

MA_ADD(15)
MA_ADD(14)
MA_ADD(13)
MA_ADD(12)
MA_ADD(11)
MA_ADD(10)
MA_ADD(9)
MA_ADD(8)
MA_ADD(7)
MA_ADD(6)
MA_ADD(5)
MA_ADD(4)
MA_ADD(3)
MA_ADD(2)
MA_ADD(1)
MA_ADD(0)

MA_DQS_H(7)
MA_DQS_L(7)
MA_DQS_H(6)
MA_DQS_L(6)
MA_DQS_H(5)
MA_DQS_L(5)
MA_DQS_H(4)
MA_DQS_L(4)
MA_DQS_H(3)
MA_DQS_L(3)
MA_DQS_H(2)
MA_DQS_L(2)
MA_DQS_H(1)
MA_DQS_L(1)
MA_DQS_H(0)
MA_DQS_L(0)

MA_DM(7)
MA_DM(6)
MA_DM(5)
MA_DM(4)
MA_DM(3)
MA_DM(2)
MA_DM(1)
MA_DM(0)

CPU1BCPU1B

MA_DATA(63)
MA_DATA(62)
MA_DATA(61)
MA_DATA(60)
MA_DATA(59)
MA_DATA(58)
MA_DATA(57)
MA_DATA(56)
MA_DATA(55)
MA_DATA(54)
MA_DATA(53)
MA_DATA(52)
MA_DATA(51)
MA_DATA(50)
MA_DATA(49)
MA_DATA(48)
MA_DATA(47)
MA_DATA(46)
MA_DATA(45)
MA_DATA(44)
MA_DATA(43)
MA_DATA(42)
MA_DATA(41)
MA_DATA(40)
MA_DATA(39)
MA_DATA(38)
MA_DATA(37)
MA_DATA(36)
MA_DATA(35)
MA_DATA(34)
MA_DATA(33)
MA_DATA(32)
MA_DATA(31)
MA_DATA(30)
MA_DATA(29)
MA_DATA(28)
MA_DATA(27)
MA_DATA(26)
MA_DATA(25)
MA_DATA(24)
MA_DATA(23)
MA_DATA(22)
MA_DATA(21)
MA_DATA(20)
MA_DATA(19)
MA_DATA(18)
MA_DATA(17)
MA_DATA(16)
MA_DATA(15)
MA_DATA(14)
MA_DATA(13)
MA_DATA(12)
MA_DATA(11)
MA_DATA(10)

MA_DATA(9)
MA_DATA(8)
MA_DATA(7)
MA_DATA(6)
MA_DATA(5)
MA_DATA(4)
MA_DATA(3)
MA_DATA(2)
MA_DATA(1)
MA_DATA(0)

MA_DQS_H(8)

MA_DQS_L(8)

MA_DM(8)

MA_CHECK(7)
MA_CHECK(6)
MA_CHECK(5)
MA_CHECK(4)
MA_CHECK(3)
MA_CHECK(2)
MA_CHECK(1)
MA_CHECK(0)

AE14
AG14
AG16
AD17
AD13
AE13
AG15
AE16
AG17
AE18
AD21
AG22
AE17
AF17
AF21
AE21
AF23
AE23
AJ26
AG26
AE22
AG23
AH25
AF25
AJ28
AJ29
AF29
AE26
AJ27
AH27
AG29
AF27
E29
E28
D27
C27
G26
F27
C28
E27
F25
E25
E23
D23
E26
C26
G23
F23
E22
E21
F17
G17
G22
F21
G18
E17
G16
E15
G13
H13
H17
E16
E14
G14

J28
J27

J25
K25

J26
G28
G27
L24
K27
H29
H27

MEM_MA_DATA63
MEM_MA_DATA62
MEM_MA_DATA61
MEM_MA_DATA60
MEM_MA_DATA59
MEM_MA_DATA58
MEM_MA_DATA57
MEM_MA_DATA56
MEM_MA_DATA55
MEM_MA_DATA54
MEM_MA_DATA53
MEM_MA_DATA52
MEM_MA_DATA51
MEM_MA_DATA50
MEM_MA_DATA49
MEM_MA_DATA48
MEM_MA_DATA47
MEM_MA_DATA46
MEM_MA_DATA45
MEM_MA_DATA44
MEM_MA_DATA43
MEM_MA_DATA42
MEM_MA_DATA41
MEM_MA_DATA40
MEM_MA_DATA39
MEM_MA_DATA38
MEM_MA_DATA37
MEM_MA_DATA36
MEM_MA_DATA35
MEM_MA_DATA34
MEM_MA_DATA33
MEM_MA_DATA32
MEM_MA_DATA31
MEM_MA_DATA30
MEM_MA_DATA29
MEM_MA_DATA28
MEM_MA_DATA27
MEM_MA_DATA26
MEM_MA_DATA25
MEM_MA_DATA24
MEM_MA_DATA23
MEM_MA_DATA22
MEM_MA_DATA21
MEM_MA_DATA20

MEM_MA_DATA19
MEM_MA_DATA18
MEM_MA_DATA17
MEM_MA_DATA16
MEM_MA_DATA15
MEM_MA_DATA14
MEM_MA_DATA13
MEM_MA_DATA12
MEM_MA_DATA11
MEM_MA_DATA10

MEM_MA_DATA9

MEM_MA_DATA8

MEM_MA_DATA7

MEM_MA_DATA6

MEM_MA_DATA5

MEM_MA_DATA4

MEM_MA_DATA3

MEM_MA_DATA2

MEM_MA_DATA1

MEM_MA_DATA0

MEM_MA_DATA[63..0] 6

MEM_MB_ADD[15..0]7,8

MEM_MB_DQS_L[7..0]7

MEM_MB_DQS_H[7..0]7

MEM_MB_DM[7..0]7

CPU1CCPU1C

MEM_MB0_CLK_H27,8
MEM_MB0_CLK_L27,8
MEM_MB0_CLK_H17,8
MEM_MB0_CLK_L17,8
MEM_MB0_CLK_H07,8
MEM_MB0_CLK_L07,8

MEM_MB0_CS_L17,8
MEM_MB0_CS_L07,8

MEM_MB0_ODT07,8
MEM_MB1_CLK_H27,8

MEM_MB1_CLK_L27,8
MEM_MB1_CLK_H17,8
MEM_MB1_CLK_L17,8
MEM_MB1_CLK_H07,8
MEM_MB1_CLK_L07,8

MEM_MB1_CS_L17,8
MEM_MB1_CS_L07,8

MEM_MB1_ODT07,8

MEM_MB_CAS_L7,8
MEM_MB_WE_L7,8
MEM_MB_RAS_L7,8

MEM_MB_BANK27,8
MEM_MB_BANK17,8
MEM_MB_BANK07,8

MEM_MB_CKE17,8
MEM_MB_CKE07,8

MEM_MB0_CLK_H2
MEM_MB0_CLK_L2
MEM_MB0_CLK_H1
MEM_MB0_CLK_L1
MEM_MB0_CLK_H0
MEM_MB0_CLK_L0

MEM_MB0_CS_L1
MEM_MB0_CS_L0

MEM_MB0_ODT0
MEM_MB1_CLK_H2

MEM_MB1_CLK_L2
MEM_MB1_CLK_H1
MEM_MB1_CLK_L1
MEM_MB1_CLK_H0
MEM_MB1_CLK_L0

MEM_MB1_CS_L1
MEM_MB1_CS_L0

MEM_MB1_ODT0

MEM_MB_CAS_L
MEM_MB_WE_L
MEM_MB_RAS_L

MEM_MB_BANK2
MEM_MB_BANK1
MEM_MB_BANK0

MEM_MB_CKE1
MEM_MB_CKE0

MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0

MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0

MEM_MB_DM7
MEM_MB_DM6
MEM_MB_DM5
MEM_MB_DM4
MEM_MB_DM3
MEM_MB_DM2
MEM_MB_DM1
MEM_MB_DM0

AJ19

AK19

U31
U30

AE30
AC31

AD29
AL19

AL18

C19
D19
W29
W28

AE29
AB31

AD31

AC29
AC30
AB29

N31
AA31
AA28

M31

M29

N28

N29
AE31

N30
AA29

R29

R28

R31

R30

U29

U28
AA30

AK13

AJ13

AK17

AJ17
AK23
AL23
AL28
AL29

D31
C31
C24
C23
D17
C17
C14
C13

AJ14
AH17

AJ23
AK29

C30

A18
A19

P29
P31

T31
T29

A23
B17
B13

MB0_CLK_H(2)
MB0_CLK_L(2)
MB0_CLK_H(1)
MB0_CLK_L(1)
MB0_CLK_H(0)
MB0_CLK_L(0)

MB0_CS_L(1)
MB0_CS_L(0)

MB0_ODT(0)
MB1_CLK_H(2)

MB1_CLK_L(2)
MB1_CLK_H(1)
MB1_CLK_L(1)
MB1_CLK_H(0)
MB1_CLK_L(0)

MB1_CS_L(1)
MB1_CS_L(0)

MB1_ODT(0)

MB_CAS_L
MB_WE_L
MB_RAS_L

MB_BANK(2)
MB_BANK(1)
MB_BANK(0)

MB_CKE(1)
MB_CKE(0)

MB_ADD(15)
MB_ADD(14)
MB_ADD(13)
MB_ADD(12)
MB_ADD(11)
MB_ADD(10)
MB_ADD(9)
MB_ADD(8)
MB_ADD(7)
MB_ADD(6)
MB_ADD(5)
MB_ADD(4)
MB_ADD(3)
MB_ADD(2)
MB_ADD(1)
MB_ADD(0)

MB_DQS_H(7)
MB_DQS_L(7)
MB_DQS_H(6)
MB_DQS_L(6)
MB_DQS_H(5)
MB_DQS_L(5)
MB_DQS_H(4)
MB_DQS_L(4)
MB_DQS_H(3)
MB_DQS_L(3)
MB_DQS_H(2)
MB_DQS_L(2)
MB_DQS_H(1)
MB_DQS_L(1)
MB_DQS_H(0)
MB_DQS_L(0)

MB_DM(7)
MB_DM(6)
MB_DM(5)
MB_DM(4)
MB_DM(3)
MB_DM(2)
MB_DM(1)
MB_DM(0)

MB_DATA(63)
MB_DATA(62)
MB_DATA(61)
MB_DATA(60)
MB_DATA(59)
MB_DATA(58)
MB_DATA(57)
MB_DATA(56)
MB_DATA(55)
MB_DATA(54)
MB_DATA(53)
MB_DATA(52)
MB_DATA(51)
MB_DATA(50)
MB_DATA(49)
MB_DATA(48)
MB_DATA(47)
MB_DATA(46)
MB_DATA(45)
MB_DATA(44)
MB_DATA(43)
MB_DATA(42)
MB_DATA(41)
MB_DATA(40)
MB_DATA(39)
MB_DATA(38)
MB_DATA(37)
MB_DATA(36)
MB_DATA(35)
MB_DATA(34)
MB_DATA(33)
MB_DATA(32)
MB_DATA(31)
MB_DATA(30)
MB_DATA(29)
MB_DATA(28)
MB_DATA(27)
MB_DATA(26)
MB_DATA(25)
MB_DATA(24)
MB_DATA(23)
MB_DATA(22)
MB_DATA(21)
MB_DATA(20)
MB_DATA(19)
MB_DATA(18)
MB_DATA(17)
MB_DATA(16)
MB_DATA(15)
MB_DATA(14)
MB_DATA(13)
MB_DATA(12)
MB_DATA(11)
MB_DATA(10)

MB_DATA(9)
MB_DATA(8)
MB_DATA(7)
MB_DATA(6)
MB_DATA(5)
MB_DATA(4)
MB_DATA(3)
MB_DATA(2)
MB_DATA(1)
MB_DATA(0)

MB_DQS_H(8)

MB_DQS_L(8)

MB_DM(8)

MB_CHECK(7)
MB_CHECK(6)
MB_CHECK(5)
MB_CHECK(4)
MB_CHECK(3)
MB_CHECK(2)
MB_CHECK(1)
MB_CHECK(0)

AH13
AL13
AL15
AJ15
AF13
AG13
AL14
AK15
AL16
AL17
AK21
AL21
AH15
AJ16
AH19
AL20
AJ22
AL22
AL24
AK25
AJ21
AH21
AH23
AJ24
AL27
AK27
AH31
AG30
AL25
AL26
AJ30
AJ31
E31
E30
B27
A27
F29
F31
A29
A28
A25
A24
C22
D21
A26
B25
B23
A22
B21
A20
C16
D15
C21
A21
A17
A16
B15
A14
E13
F13
C15
A15
A13
D13

J31
J30

J29
K29

K31
G30
G29
L29
L28
H31
G31

MEM_MB_DATA63
MEM_MB_DATA62
MEM_MB_DATA61
MEM_MB_DATA60
MEM_MB_DATA59
MEM_MB_DATA58
MEM_MB_DATA57
MEM_MB_DATA56
MEM_MB_DATA55
MEM_MB_DATA54
MEM_MB_DATA53
MEM_MB_DATA52
MEM_MB_DATA51
MEM_MB_DATA50
MEM_MB_DATA49
MEM_MB_DATA48
MEM_MB_DATA47
MEM_MB_DATA46
MEM_MB_DATA45
MEM_MB_DATA44
MEM_MB_DATA43
MEM_MB_DATA42
MEM_MB_DATA41
MEM_MB_DATA40
MEM_MB_DATA39
MEM_MB_DATA38
MEM_MB_DATA37
MEM_MB_DATA36
MEM_MB_DATA35
MEM_MB_DATA34
MEM_MB_DATA33
MEM_MB_DATA32
MEM_MB_DATA31
MEM_MB_DATA30
MEM_MB_DATA29
MEM_MB_DATA28
MEM_MB_DATA27
MEM_MB_DATA26
MEM_MB_DATA25
MEM_MB_DATA24
MEM_MB_DATA23
MEM_MB_DATA22
MEM_MB_DATA21
MEM_MB_DATA20

MEM_MB_DATA19
MEM_MB_DATA18
MEM_MB_DATA17
MEM_MB_DATA16
MEM_MB_DATA15
MEM_MB_DATA14
MEM_MB_DATA13
MEM_MB_DATA12
MEM_MB_DATA11
MEM_MB_DATA10

MEM_MB_DATA9

MEM_MB_DATA8

MEM_MB_DATA7

MEM_MB_DATA6

MEM_MB_DATA5

MEM_MB_DATA4

MEM_MB_DATA3

MEM_MB_DATA2

MEM_MB_DATA1

MEM_MB_DATA0

MEM_MB_DATA[63..0] 7

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

436Thursday, February 22, 2007

of

436Thursday, February 22, 2007

of

436Thursday, February 22, 2007

5

4

3

2

1

VCCP

CPU1FCPU1F

A4

VDD

A6

VDD

AA8

VDD

AA10

VDD

AA12

VDD

AA14

VDD

AA16

VDD

AA18

VDD

D D

C C

B B

AB7
AB9

AB11

AC4
AC5
AC8

AC10

AD2
AD3
AD7
AD9

AE10

AF7
AF9
AG4
AG5
AG7
AH2
AH3

E10

G10
G12

H11
H23

K11
K13
K15
K17
K19
K21
K23

Y17
Y19

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

B3

VDD

B5

VDD

B7

VDD

C2

VDD

C4

VDD

C6

VDD

C8

VDD

D3

VDD

D5

VDD

D7

VDD

D9

VDD

E4

VDD

E6

VDD

E8

VDD
VDD

F5

VDD

F7

VDD

F9

VDD

F11

VDD

G6

VDD

G8

VDD
VDD
VDD

H7

VDD
VDD
VDD

J8

VDD

J12

VDD

J14

VDD

J16

VDD

J18

VDD

J20

VDD

J22

VDD

J24

VDD

K7

VDD

K9

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

L4

VDD

L5

VDD

L8

VDD

L10

VDD

L12

VDD
VDD
VDD

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

A3
A7
A9
A11
AA4
AA5
AA7
AA9
AA11
AA13
AA15
AA17
AA19
AA21
AA23
AB2
AB3
AB8
AB10
AB12
AB14
AB16
AB18
AB20
AB22
AC7
AC9
AC11
AC13
AC15
AC17
AC19
AC21
AC23
AD8
AD10
AD12
AD14
AD16
AD20
AD22
AD24
AE4
AE5
AE9
AE11
AF2
AF3
AF8
AF10
AF12
AF14
AF16
AF18
AF20
AF22
AF24
AF26
AF28
AG10
AG11
AH14
AH16
AH18
AH20
AH22
AH24
AH26
AH28
AH30
AK2
AK14
AK16
AK18
Y14
Y16

VCCP

M11
M13
M15
M17
M19

N10
N12
N14
N16
N18

P11
P13
P15
P17
P19

R10
R12
R14
R16
R18
R20

U10
U12
U14
U16
U18
U20

V11
V13
V15
V17
V19
V21

W10
W12
W14
W16
W18
W20

Y11
Y13
Y15
Y21

CPU1GCPU1G

L14

VDD

L16

VDD

L18

VDD

M2

VDD

M3

VDD

M7

VDD

M9

VDD
VDD
VDD
VDD
VDD
VDD

N8

VDD
VDD
VDD
VDD
VDD
VDD

P7

VDD

P9

VDD
VDD
VDD
VDD
VDD
VDD

R4

VDD

R5

VDD

R8

VDD
VDD
VDD
VDD
VDD
VDD
VDD

T2

VDD

T3

VDD

T7

VDD

T9

VDD

T11

VDD

T13

VDD

T15

VDD

T17

VDD

T19

VDD

T21

VDD

U8

VDD
VDD
VDD
VDD
VDD
VDD
VDD

V9

VDD
VDD
VDD
VDD
VDD
VDD
VDD

W4

VDD

W5

VDD

W8

VDD
VDD
VDD
VDD
VDD
VDD
VDD

Y2

VDD

Y3

VDD

Y7

VDD

Y9

VDD
VDD
VDD
VDD
VDD

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

AK20
AK22
AK24
AK26
AK28
AK30
AL5
B4
B9
B11
B14
B16
B18
B20
B22
B24
B26
B28
B30
C3
D14
D16
D18
D20
D22
D24
D26
D28
D30
E11
F4
F14
F16
F18
F20
F22
F24
F26
F28
F30
G9
G11
H8
H10
H12
H14
H16
H18
H22
H24
H26
H28
H30
J4
J5
J7
J9
J11
J13
J15
J17
J19
J21
J23
K2
K3
K8
K10
K12
K14
K16
K18
K20
K22
Y18

VCCP

AA20
AA22
AB13
AB15
AB17
AB19
AB21
AB23
AC12
AC14
AC16
AC18
AC20
AC22
AD11
AD23
AE12
AF11

M21
M23

W22

L20
L22

N20
N22
P21
P23
R22
T23
U22
V23

Y23

CPU1HCPU1H

N17

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

5

5

6

6

7

7

8

8

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

N19
N21
N23
P2
P3
P8
P10
P12
P14
P16
P18
P20
P22
R7
R9
R11
R13
R15
R17
R19
R21
R23
T8
T10
T12
T14
T16
T18
T20
T22
U4
U5
U7
U9
U11
U13
U15
U17
U19
U21
U23
V2
V3
V10
V12
V14
V16
V18
V20
V22
W9
W11
W13
W15
W17
W19
W21
W23
Y8
Y10
Y12
W7
Y20
Y22

VCCP

VCC_DDR

VLDT

VTT_DDR

VCCP

C645

C645
X_224P/16v/6

X_224P/16v/6

AJ4
AJ3
AJ2
AJ1

D12
C12

B12
A12

AB24
AB26
AB28
AB30
AC24
AD26
AD28
AD30
AF30

M24
M26
M28
M30

P24
P26
P28
P30
T24
T26
T28
T30
V25
V26
V28
V30
Y24
Y26
Y28
Y29

C648

C648

X_224P/16v/6

X_224P/16v/6

VLDT_A1
VLDT_A2
VLDT_A3
VLDT_A4

VTT
VTT
VTT
VTT

VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO
VDDIO

C647

C647

224P/16v/6

224P/16v/6

CPU1ICPU1I

VLDT_B1
VLDT_B2
VLDT_B3
VLDT_B4

VTT
VTT
VTT
VTT
VTT

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

For EMI

C649

C649

0.01u/50V/6/X7R

0.01u/50V/6/X7R

H6
H5
H2
H1

AK12
AJ12
AH12
AG12
AL12

K24
K26
K28
K30
L7
L9
L11
L13
L15
L17
L19
L21
L23
M8
M10
M12
M14
M16
M18
M20
M22
N4
N5
N7
N9
N11
N13
N15

VCC_DDR

C678

C678
X_0.1u/25V/4

X_0.1u/25V/4

C670

C670
22P50N0402

22P50N0402

VLDT_RUN_B

VTT_DDR

4.7u/10V/8

4.7u/10V/8

C681

C681
X_0.1u/25V/4

X_0.1u/25V/4

C84

C84

C682

C682
X_0.1u/25V/4

X_0.1u/25V/4

C683

C683
X_0.1u/25V/4

X_0.1u/25V/4

C640

C640

C633

C633

X_C10U6.3X51206

X_C10U6.3X51206

X_C10U6.3X51206

X_C10U6.3X51206

C635

C635

C10U6.3X51206

C10U6.3X51206

C642

C642

C10U6.3X51206

C10U6.3X51206

C10U6.3X51206

C10U6.3X51206

VTT_DDR

C157

C157
224P/16v/6

224P/16v/6

A A

VTT_DDR

C238

C238
224P/16v/6

224P/16v/6

C274

C274

224P/16v/6

224P/16v/6

C34

C34

224P/16v/6

224P/16v/6

C207

C207
C4.7U10Y0805

C4.7U10Y0805

C213

C213
X_C4.7U10Y0805

X_C4.7U10Y0805

5

C202

C202

X_C4.7U10Y0805

X_C4.7U10Y0805

C291

C291

C4.7U10Y0805

C4.7U10Y0805

C194

C194
X_180P

X_180P

C187

C187
X_180P

X_180P

C184

C184
X_180P

X_180P

C226

C226
180P

180P

C62

C62
C1000P50X

C1000P50X

C237

C237
C1000P50X

C1000P50X

C229

C229

C1000P50X

C1000P50X

C51

C51

C1000P50X

C1000P50X

C204

C638

C638

224P/16v/6

224P/16v/6

C204
224P/16v/6

224P/16v/6

C263

C263

C4.7U10Y0805

C4.7U10Y0805

C189

C189
C4.7U10Y0805

C4.7U10Y0805

C634

C634
X_224P/16v/6

X_224P/16v/6

VCC3

C671

C671
103P/16V/4

103P/16V/4

4

3

C627

C627

+

+

EC22

EC22
1000U/16V

1000U/16V

C636

C636

X_C10U6.3X51206

X_C10U6.3X51206

C10U6.3X51206

C10U6.3X51206

VCC_DDRVCC_DDR

C641

C641

X_C22U6.3X1206/B

X_C22U6.3X1206/B

C646

C646

C133

C133

X_C22U6.3X1206

X_C22U6.3X1206

2

C632

C632

X_C10U6.3X51206

X_C10U6.3X51206

X_C10U6.3X51206

X_C10U6.3X51206

C4.7U10Y0805

C4.7U10Y0805

C628

C628

C195

C195

C639

C639

X_C10U6.3X51206

X_C10U6.3X51206

X_C10U6.3X51206

X_C10U6.3X51206

C631

C631

224P/16v/6

224P/16v/6

224P/16v/6

224P/16v/6

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet

Date: Sheet

Date: Sheet

C630

C630

C70

C70

C10U6.3X51206

C10U6.3X51206

C220

C220

C197

C197

C10U6.3X51206

C10U6.3X51206

0.01u/50V/6/X7R

0.01u/50V/6/X7R

<Title>

<Title>

<Title>

MS-7337 1.0

MS-7337 1.0

MS-7337 1.0

C644

C644

C643

C643

C10U6.3X51206

C10U6.3X51206

C669

C669
180P

180P

1

C629

C629

C10U6.3X51206

C10U6.3X51206

536Friday, February 23, 2007

536Friday, February 23, 2007

536Friday, February 23, 2007

C95

C95

X_C10U6.3X51206

X_C10U6.3X51206

of

of

of

5

4

3

2

1

MEM_MA_DQS_H[7..0]4
MEM_MA_DQS_L[7..0]4

D D

MEM_MA_DM[7..0]4

C C

SCL7,12,14

SDA7,12,14
MEM_MA_BANK24,8
MEM_MA_BANK14,8
MEM_MA_BANK04,8

MEM_MA_ADD[15..0]4,8

B B

MEM_MA0_CLK_H04,8
MEM_MA0_CLK_L04,8
MEM_MA0_CLK_H14,8
MEM_MA0_CLK_L14,8
MEM_MA0_CLK_H24,8
MEM_MA0_CLK_L24,8

MEM_MA_CKE04,8
MEM_MA_RAS_L4,8

MEM_MA_CAS_L4,8
MEM_MA0_CS_L04,8

MEM_MA0_CS_L14,8

MEM_MA_DM7
MEM_MA_DM6
MEM_MA_DM5
MEM_MA_DM4
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM1
MEM_MA_DM0

MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0

SCL

SDA
MEM_MA_BANK2
MEM_MA_BANK1
MEM_MA_BANK0

MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0

MEM_MA0_CLK_H0
MEM_MA0_CLK_L0
MEM_MA0_CLK_H1
MEM_MA0_CLK_L1
MEM_MA0_CLK_H2
MEM_MA0_CLK_L2

MEM_MA_CKE0
MEM_MA_RAS_L

MEM_MA_CAS_L
MEM_MA0_CS_L0

MEM_MA0_CS_L1

VCC_DDR

69

170

175

64

VDD753VDD859VDD9

181

VDD1067VDD11

VDDQ1

VDDQ2

172

178

184

187

189

197

VDD1

VDD2

VDD3

VDD4

VDD5

164

DQS17_H

165

DQS17_L

232

DQS16_H

233

DQS16_L

223

DQS15_H

224

DQS15_L

211

DQS14_H

212

DQS14_L

202

DQS13_H

203

DQS13_L

155

DQS12_H

156

DQS12_L

146

DQS11_H

147

DQS11_L

134

DQS10_H

135

DQS10_L

125

DQS9_H

126

DQS9_L

46

DQS8_H

45

DQS8_L

114

DQS7_H

113

DQS7_L

105

DQS6_H

104

DQS6_L

93

DQS5_H

92

DQS5_L

84

DQS4_H

83

DQS4_L

37

DQS3_H

36

DQS3_L

28

DQS2_H

27

DQS2_L

16

DQS1_H

15

DQS1_L

7

DQS0_H

6

DQS0_L

101

SA2

240

SA1

239

SA0

120

SCL

119

SDA

54

BA2

190

BA1

71

BA0

173

A15

174

A14

196

A13

176

A12

57

A11

70

A10

177

A9

179

A8

58

A7

180

A6

60

A5

61

A4

182

A3

63

A2

183

A1

188

A0

168

CB7

167

CB6

162

CB5

161

CB4

49

CB3

48

CB2

43

CB1

42

CB0

185

CK0_H

186

CK0_L

137

CK1_H

138

CK1_L

220

CK2_H

221

CK2_L

18

RESET_L

52

CKE0

171

CKE1

192

RAS_L

74

CAS_L

193

S0_L

76

S1_L

VDD6

191

VDDQ3

VDDQ4

194

VDDQ5

VDDQ651VDDQ756VDDQ862VDDQ9

VCC3

78

238

72

DIMM1DIMM1

VDDQ1075VDDQ11

VDDSPD

DQ63
DQ62
DQ61
DQ60
DQ59
DQ58
DQ57
DQ56
DQ55
DQ54
DQ53
DQ52
DQ51
DQ50
DQ49
DQ48
DQ47
DQ46
DQ45
DQ44
DQ43
DQ42
DQ41
DQ40
DQ39
DQ38
DQ37
DQ36
DQ35
DQ34
DQ33
DQ32
DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24
DQ23
DQ22
DQ21
DQ20
DQ19
DQ18
DQ17
DQ16
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10

WE_L
VREF
TEST
ODT0

ODT1

ERR_OUT_L

PAR_IN

DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0

NC1

MEM_MA_DATA63

236

MEM_MA_DATA62

235

MEM_MA_DATA61

230

MEM_MA_DATA60

229

MEM_MA_DATA59

117

MEM_MA_DATA58

116

MEM_MA_DATA57

111

MEM_MA_DATA56

110

MEM_MA_DATA55

227

MEM_MA_DATA54

226

MEM_MA_DATA53

218

MEM_MA_DATA52

217

MEM_MA_DATA51

108

MEM_MA_DATA50

107

MEM_MA_DATA49

99

MEM_MA_DATA48

98

MEM_MA_DATA47

215

MEM_MA_DATA46

214

MEM_MA_DATA45

209

MEM_MA_DATA44

208

MEM_MA_DATA43

96

MEM_MA_DATA42

95

MEM_MA_DATA41

90

MEM_MA_DATA40

89

MEM_MA_DATA39

206

MEM_MA_DATA38

205

MEM_MA_DATA37

200

MEM_MA_DATA36

199

MEM_MA_DATA35

87

MEM_MA_DATA34

86

MEM_MA_DATA33

81

MEM_MA_DATA32

80

MEM_MA_DATA31

159

MEM_MA_DATA30

158

MEM_MA_DATA29

153

MEM_MA_DATA28

152

MEM_MA_DATA27

40

MEM_MA_DATA26

39

MEM_MA_DATA25

34

MEM_MA_DATA24

33

MEM_MA_DATA23

150

MEM_MA_DATA22

149

MEM_MA_DATA21

144

MEM_MA_DATA20

143

MEM_MA_DATA19

31

MEM_MA_DATA18

30

MEM_MA_DATA17

25

MEM_MA_DATA16

24

MEM_MA_DATA15

141

MEM_MA_DATA14

140

MEM_MA_DATA13

132

MEM_MA_DATA12

131

MEM_MA_DATA11

22

MEM_MA_DATA10

21

MEM_MA_DATA9

13

MEM_MA_DATA8

12

MEM_MA_DATA7

129

MEM_MA_DATA6

128

MEM_MA_DATA5

123

MEM_MA_DATA4

122

MEM_MA_DATA3

10

MEM_MA_DATA2

9

MEM_MA_DATA1

4

MEM_MA_DATA0

3

MEM_MA_WE_L

73

VDDR_VREF

1
102

MEM_MA0_ODT0

195
77

55
68

19

MEM_MA_DATA[63..0] 4

MEM_MA_WE_L 4,8

MEM_MA0_ODT0 4,8

VDDR_VREF

C44

C44

_0.1u/25V/4

_0.1u/25V/4

MEM_MA_DQS_H[7..0]4
MEM_MA_DQS_L[7..0]4

69

170

175

VDD6

VDD753VDD859VDD9

181

64

VDD1067VDD11

VDDQ1

VDDQ2

172

178

184

187

189

197

VDD1

VDD2

VDD3

VDD4

164

DQS17_H

MEM_MA_DM[7..0]4

MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0

SCL7,12,14

SDA7,12,14
MEM_MA_BANK24,8
MEM_MA_BANK14,8
MEM_MA_BANK04,8

MEM_MA_ADD[15..0]4,8

MEM_MA1_CLK_H04,8
MEM_MA1_CLK_L04,8
MEM_MA1_CLK_H14,8
MEM_MA1_CLK_L14,8
MEM_MA1_CLK_H24,8
MEM_MA1_CLK_L24,8

MEM_MA_CKE14,8
MEM_MA_RAS_L4,8

MEM_MA_CAS_L4,8
MEM_MA1_CS_L04,8

MEM_MA1_CS_L14,8

MEM_MA_BANK2
MEM_MA_BANK1
MEM_MA_BANK0

MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0

MEM_MA1_CLK_H0
MEM_MA1_CLK_L0
MEM_MA1_CLK_H1
MEM_MA1_CLK_L1
MEM_MA1_CLK_H2
MEM_MA1_CLK_L2

MEM_MA_CKE1
MEM_MA_RAS_L

MEM_MA_CAS_L
MEM_MA1_CS_L0

MEM_MA1_CS_L1

MEM_MA_DM7
MEM_MA_DM6
MEM_MA_DM5
MEM_MA_DM4
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM1
MEM_MA_DM0

VCC3

SCL
SDA

165

DQS17_L

232

DQS16_H

233

DQS16_L

223

DQS15_H

224

DQS15_L

211

DQS14_H

212

DQS14_L

202

DQS13_H

203

DQS13_L

155

DQS12_H

156

DQS12_L

146

DQS11_H

147

DQS11_L

134

DQS10_H

135

DQS10_L

125

DQS9_H

126

DQS9_L

46

DQS8_H

45

DQS8_L

114

DQS7_H

113

DQS7_L

105

DQS6_H

104

DQS6_L

93

DQS5_H

92

DQS5_L

84

DQS4_H

83

DQS4_L

37

DQS3_H

36

DQS3_L

28

DQS2_H

27

DQS2_L

16

DQS1_H

15

DQS1_L

7

DQS0_H

6

DQS0_L

101

SA2

240

SA1

239

SA0

120

SCL

119

SDA

54

BA2

190

BA1

71

BA0

173

A15

174

A14

196

A13

176

A12

57

A11

70

A10

177

A9

179

A8

58

A7

180

A6

60

A5

61

A4

182

A3

63

A2

183

A1

188

A0

168

CB7

167

CB6

162

CB5

161

CB4

49

CB3

48

CB2

43

CB1

42

CB0

185

CK0_H

186

CK0_L

137

CK1_H

138

CK1_L

220

CK2_H

221

CK2_L

18

RESET_L

52

CKE0

171

CKE1

192

RAS_L

74

CAS_L

193

S0_L

76

S1_L

VDD5

191

VDDQ3

194

VDDQ4

VDDQ5

72

VDDQ651VDDQ756VDDQ862VDDQ9

VCC3VCC_DDR

78

VDDQ1075VDDQ11

238

VDDSPD

ERR_OUT_L

PAR_IN

DIMM2DIMM2

DQ63
DQ62
DQ61
DQ60
DQ59
DQ58
DQ57
DQ56
DQ55
DQ54
DQ53
DQ52
DQ51
DQ50
DQ49
DQ48
DQ47
DQ46
DQ45
DQ44
DQ43
DQ42
DQ41
DQ40
DQ39
DQ38
DQ37
DQ36
DQ35
DQ34
DQ33
DQ32
DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24
DQ23
DQ22
DQ21
DQ20
DQ19
DQ18
DQ17
DQ16
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10

WE_L
VREF

TEST

ODT0
ODT1

DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0

NC1

MEM_MA_DATA63

236

MEM_MA_DATA62

235

MEM_MA_DATA61

230

MEM_MA_DATA60

229

MEM_MA_DATA59

117

MEM_MA_DATA58

116

MEM_MA_DATA57

111

MEM_MA_DATA56

110

MEM_MA_DATA55

227

MEM_MA_DATA54

226

MEM_MA_DATA53

218

MEM_MA_DATA52

217

MEM_MA_DATA51

108

MEM_MA_DATA50

107

MEM_MA_DATA49

99

MEM_MA_DATA48

98

MEM_MA_DATA47

215

MEM_MA_DATA46

214

MEM_MA_DATA45

209

MEM_MA_DATA44

208

MEM_MA_DATA43

96

MEM_MA_DATA42

95

MEM_MA_DATA41

90

MEM_MA_DATA40

89

MEM_MA_DATA39

206

MEM_MA_DATA38

205

MEM_MA_DATA37

200

MEM_MA_DATA36

199

MEM_MA_DATA35

87

MEM_MA_DATA34

86

MEM_MA_DATA33

81

MEM_MA_DATA32

80

MEM_MA_DATA31

159

MEM_MA_DATA30

158

MEM_MA_DATA29

153

MEM_MA_DATA28

152

MEM_MA_DATA27

40

MEM_MA_DATA26

39

MEM_MA_DATA25

34

MEM_MA_DATA24

33

MEM_MA_DATA23

150

MEM_MA_DATA22

149

MEM_MA_DATA21

144

MEM_MA_DATA20

143

MEM_MA_DATA19

31

MEM_MA_DATA18

30

MEM_MA_DATA17

25

MEM_MA_DATA16

24

MEM_MA_DATA15

141

MEM_MA_DATA14

140

MEM_MA_DATA13

132

MEM_MA_DATA12

131

MEM_MA_DATA11

22

MEM_MA_DATA10

21

MEM_MA_DATA9

13

MEM_MA_DATA8

12

MEM_MA_DATA7

129

MEM_MA_DATA6

128

MEM_MA_DATA5

123

MEM_MA_DATA4

122

MEM_MA_DATA3

10

MEM_MA_DATA2

9

MEM_MA_DATA1

4

MEM_MA_DATA0

3

MEM_MA_WE_L

73

VDDR_VREF

1
102

MEM_MA1_ODT0

195
77

55
68

19

MEM_MA_DATA[63..0] 4

MEM_MA_WE_L 4,8

MEM_MA1_ODT0 4,8

VDDR_VREF

C166

C166

_0.1u/25V/4

_0.1u/25V/4

R24

R24

56.2R1%

56.2R1%

R22

R22

56.2R1%

56.2R1%

VCC_DDR

SCL

SDA

C19

C19

X_0.1u/25V/4

X_0.1u/25V/4

VDDR_VREF

_0.1u/25V/4

_0.1u/25V/4

VCC_DDR

3

VCC_DDR

3

VDDR_VREF

C26

C26

2

1

2

1

D17

D17
X_BAV99

X_BAV99

D16

D16
X_BAV99

X_BAV99

A A

5

Address A0 Address A2

4

3

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

2

Date: Sheet

1

of

636Friday, February 23, 2007

of

636Friday, February 23, 2007

of

636Friday, February 23, 2007

5

4

3

2

1

MEM_MB_DQS_H[7..0]4
MEM_MB_DQS_L[7..0]4

D D

MEM_MB_DM[7..0]4

C C

SCL6,12,14
SDA6,12,14
MEM_MB_BANK24,8
MEM_MB_BANK14,8
MEM_MB_BANK04,8

MEM_MB_ADD[15..0]4,8

MEM_MB0_CLK_H04,8

B B

MEM_MB0_CLK_L04,8
MEM_MB0_CLK_H14,8
MEM_MB0_CLK_L14,8
MEM_MB0_CLK_H24,8
MEM_MB0_CLK_L24,8

MEM_MB_CKE04,8
MEM_MB_RAS_L4,8

MEM_MB_CAS_L4,8
MEM_MB0_CS_L04,8

MEM_MB0_CS_L14,8

VCC3

MEM_MB_DM7
MEM_MB_DM6
MEM_MB_DM5
MEM_MB_DM4
MEM_MB_DM3
MEM_MB_DM2
MEM_MB_DM1
MEM_MB_DM0

MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0

SCL
SDA
MEM_MB_BANK2
MEM_MB_BANK1
MEM_MB_BANK0

MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0

MEM_MB0_CLK_H0
MEM_MB0_CLK_L0
MEM_MB0_CLK_H1
MEM_MB0_CLK_L1
MEM_MB0_CLK_H2
MEM_MB0_CLK_L2

MEM_MB_CKE0
MEM_MB_RAS_L

MEM_MB_CAS_L
MEM_MB0_CS_L0

MEM_MB0_CS_L1

VCC_DDR

172

178

184

187

189

197

64

69

170

175

181

191

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD753VDD859VDD9

VDD1067VDD11

VDDQ1

VDDQ2

164

DQS17_H

165

DQS17_L

232

DQS16_H

233

DQS16_L

223

DQS15_H

224

DQS15_L

211

DQS14_H

212

DQS14_L

202

DQS13_H

203

DQS13_L

155

DQS12_H

156

DQS12_L

146

DQS11_H

147

DQS11_L

134

DQS10_H

135

DQS10_L

125

DQS9_H

126

DQS9_L

46

DQS8_H

45

DQS8_L

114

DQS7_H

113

DQS7_L

105

DQS6_H

104

DQS6_L

93

DQS5_H

92

DQS5_L

84

DQS4_H

83

DQS4_L

37

DQS3_H

36

DQS3_L

28

DQS2_H

27

DQS2_L

16

DQS1_H

15

DQS1_L

7

DQS0_H

6

DQS0_L

101

SA2

240

SA1

239

SA0

120

SCL

119

SDA

54

BA2

190

BA1

71

BA0

173

A15

174

A14

196

A13

176

A12

57

A11

70

A10

177

A9

179

A8

58

A7

180

A6

60

A5

61

A4

182

A3

63

A2

183

A1

188

A0

168

CB7

167

CB6

162

CB5

161

CB4

49

CB3

48

CB2

43

CB1

42

CB0

185

CK0_H

186

CK0_L

137

CK1_H

138

CK1_L

220

CK2_H

221

CK2_L

18

RESET_L

52

CKE0

171

CKE1

192

RAS_L

74

CAS_L

193

S0_L

76

S1_L

VDDQ3

VDDQ4

194

VDDQ5

72

VDDQ651VDDQ756VDDQ862VDDQ9

VCC3

78

VDDQ1075VDDQ11

238

VDDSPD

DQ63
DQ62
DQ61
DQ60
DQ59
DQ58
DQ57
DQ56
DQ55
DQ54
DQ53
DQ52
DQ51
DQ50
DQ49
DQ48
DQ47
DQ46
DQ45
DQ44
DQ43
DQ42
DQ41
DQ40
DQ39
DQ38
DQ37
DQ36
DQ35
DQ34
DQ33
DQ32
DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24
DQ23
DQ22
DQ21
DQ20
DQ19
DQ18
DQ17
DQ16
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10

WE_L
VREF

TEST

ODT0
ODT1

ERR_OUT_L

PAR_IN

DIMM3DIMM3

DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0

NC1

MEM_MB_DATA63

236

MEM_MB_DATA62

235

MEM_MB_DATA61

230

MEM_MB_DATA60

229

MEM_MB_DATA59

117

MEM_MB_DATA58

116

MEM_MB_DATA57

111

MEM_MB_DATA56

110

MEM_MB_DATA55

227

MEM_MB_DATA54

226

MEM_MB_DATA53

218

MEM_MB_DATA52

217

MEM_MB_DATA51

108

MEM_MB_DATA50

107

MEM_MB_DATA48

99

MEM_MB_DATA49

98

MEM_MB_DATA47

215

MEM_MB_DATA46

214

MEM_MB_DATA45

209

MEM_MB_DATA44

208

MEM_MB_DATA43

96

MEM_MB_DATA42

95

MEM_MB_DATA41

90

MEM_MB_DATA40

89

MEM_MB_DATA39

206

MEM_MB_DATA38

205

MEM_MB_DATA37

200

MEM_MB_DATA36

199

MEM_MB_DATA35

87

MEM_MB_DATA34

86

MEM_MB_DATA33

81

MEM_MB_DATA32

80

MEM_MB_DATA31

159

MEM_MB_DATA30

158

MEM_MB_DATA29

153

MEM_MB_DATA28

152

MEM_MB_DATA26

40
39

MEM_MB_DATA25

34

MEM_MB_DATA24

33

MEM_MB_DATA23

150

MEM_MB_DATA22

149

MEM_MB_DATA21

144

MEM_MB_DATA20

143

MEM_MB_DATA19

31

MEM_MB_DATA18

30

MEM_MB_DATA17

25

MEM_MB_DATA16

24

MEM_MB_DATA15

141

MEM_MB_DATA14

140

MEM_MB_DATA13

132

MEM_MB_DATA12

131

MEM_MB_DATA10

22

MEM_MB_DATA11

21

MEM_MB_DATA9

13

MEM_MB_DATA8

12

MEM_MB_DATA7

129

MEM_MB_DATA6

128

MEM_MB_DATA5

123

MEM_MB_DATA4

122

MEM_MB_DATA2

10

MEM_MB_DATA3

9

MEM_MB_DATA1

4

MEM_MB_DATA0

3

MEM_MB_WE_L

73

VDDR_VREF

1
102

MEM_MB0_ODT0

195
77

55
68

19

MEM_MB_DATA[63..0] 4

SWAP

SWAP

SWAP

SWAP

MEM_MB_WE_L 4,8

VDDR_VREF

C43

C43

_0.1u/25V/4

_0.1u/25V/4

MEM_MB0_ODT0 4,8

MEM_MB_DQS_H[7..0]4
MEM_MB_DQS_L[7..0]4

MEM_MB_DM[7..0]4

VCC3

MEM_MB_BANK24,8
MEM_MB_BANK14,8
MEM_MB_BANK04,8

MEM_MB_ADD[15..0]4,8

MEM_MB1_CLK_H04,8
MEM_MB1_CLK_L04,8
MEM_MB1_CLK_H14,8
MEM_MB1_CLK_L14,8
MEM_MB1_CLK_H24,8
MEM_MB1_CLK_L24,8

MEM_MB_CKE14,8
MEM_MB_RAS_L4,8

MEM_MB_CAS_L4,8
MEM_MB1_CS_L04,8

MEM_MB1_CS_L14,8

MEM_MB_DM7
MEM_MB_DM6
MEM_MB_DM5
MEM_MB_DM4
MEM_MB_DM3
MEM_MB_DM2
MEM_MB_DM1
MEM_MB_DM0

MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0

SCL
SDA
MEM_MB_BANK2
MEM_MB_BANK1
MEM_MB_BANK0

MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0

MEM_MB1_CLK_H0
MEM_MB1_CLK_L0
MEM_MB1_CLK_H1
MEM_MB1_CLK_L1
MEM_MB1_CLK_H2
MEM_MB1_CLK_L2

MEM_MB_CKE1
MEM_MB_RAS_L

MEM_MB_CAS_L
MEM_MB1_CS_L0

MEM_MB1_CS_L1

VCC_DDR

172

178

184

187

189

197

64

69

170

175

181

191

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD753VDD859VDD9

VDD1067VDD11

VDDQ1

VDDQ2

164

DQS17_H

165

DQS17_L

232

DQS16_H

233

DQS16_L

223

DQS15_H

224

DQS15_L

211

DQS14_H

212

DQS14_L

202

DQS13_H

203

DQS13_L

155

DQS12_H

156

DQS12_L

146

DQS11_H

147

DQS11_L

134

DQS10_H

135

DQS10_L

125

DQS9_H

126

DQS9_L

46

DQS8_H

45

DQS8_L

114

DQS7_H

113

DQS7_L

105

DQS6_H

104

DQS6_L

93

DQS5_H

92

DQS5_L

84

DQS4_H

83

DQS4_L

37

DQS3_H

36

DQS3_L

28

DQS2_H

27

DQS2_L

16

DQS1_H

15

DQS1_L

7

DQS0_H

6

DQS0_L

101

SA2

240

SA1

239

SA0

120

SCL

119

SDA

54

BA2

190

BA1

71

BA0

173

A15

174

A14

196

A13

176

A12

57

A11

70

A10

177

A9

179

A8

58

A7

180

A6

60

A5

61

A4

182

A3

63

A2

183

A1

188

A0

168

CB7

167

CB6

162

CB5

161

CB4

49

CB3

48

CB2

43

CB1

42

CB0

185

CK0_H

186

CK0_L

137

CK1_H

138

CK1_L

220

CK2_H

221

CK2_L

18

RESET_L

52

CKE0

171

CKE1

192

RAS_L

74

CAS_L

193

S0_L

76

S1_L

VDDQ3

VDDQ4

194

VDDQ5

72

VDDQ651VDDQ756VDDQ862VDDQ9

VCC3

78

VDDQ1075VDDQ11

ERR_OUT_L

238

DIMM4DIMM4

VDDSPD

DQ63
DQ62
DQ61
DQ60
DQ59
DQ58
DQ57
DQ56
DQ55
DQ54
DQ53
DQ52
DQ51
DQ50
DQ49
DQ48
DQ47
DQ46
DQ45
DQ44
DQ43
DQ42
DQ41
DQ40
DQ39
DQ38
DQ37
DQ36
DQ35
DQ34
DQ33
DQ32
DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24
DQ23
DQ22
DQ21
DQ20
DQ19
DQ18
DQ17
DQ16
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10

WE_L
VREF
TEST
ODT0

ODT1

PAR_IN

DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0

NC1

MEM_MB_DATA63

236

MEM_MB_DATA62

235

MEM_MB_DATA61

230

MEM_MB_DATA60

229

MEM_MB_DATA59

117

MEM_MB_DATA58

116

MEM_MB_DATA57

111

MEM_MB_DATA56

110

MEM_MB_DATA55

227

MEM_MB_DATA54

226

MEM_MB_DATA53

218

MEM_MB_DATA52

217

MEM_MB_DATA51

108

MEM_MB_DATA50

107

MEM_MB_DATA48

99

MEM_MB_DATA49

98

MEM_MB_DATA47

215

MEM_MB_DATA46

214

MEM_MB_DATA45

209

MEM_MB_DATA44

208

MEM_MB_DATA43

96

MEM_MB_DATA42

95

MEM_MB_DATA41

90

MEM_MB_DATA40

89

MEM_MB_DATA39

206

MEM_MB_DATA38

205

MEM_MB_DATA37

200

MEM_MB_DATA36

199

MEM_MB_DATA35

87

MEM_MB_DATA34

86

MEM_MB_DATA33

81

MEM_MB_DATA32

80

MEM_MB_DATA31

159

MEM_MB_DATA30

158

MEM_MB_DATA29

153

MEM_MB_DATA28

152

MEM_MB_DATA26MEM_MB_DATA27

40

MEM_MB_DATA27

39

MEM_MB_DATA25

34

MEM_MB_DATA24

33

MEM_MB_DATA23

150

MEM_MB_DATA22

149

MEM_MB_DATA21

144

MEM_MB_DATA20

143

MEM_MB_DATA19

31

MEM_MB_DATA18

30

MEM_MB_DATA17

25

MEM_MB_DATA16

24

MEM_MB_DATA15

141

MEM_MB_DATA14

140

MEM_MB_DATA13

132

MEM_MB_DATA12

131

MEM_MB_DATA10

22

MEM_MB_DATA11

21

MEM_MB_DATA9

13

MEM_MB_DATA8

12

MEM_MB_DATA7

129

MEM_MB_DATA6

128

MEM_MB_DATA5

123

MEM_MB_DATA4

122

MEM_MB_DATA2

10

MEM_MB_DATA3

9

MEM_MB_DATA1

4

MEM_MB_DATA0

3

MEM_MB_WE_L

73

VDDR_VREF

1
102

MEM_MB1_ODT0

195
77

55
68

19

MEM_MB_DATA[63..0] 4

SWAP

SWAP

SWAP

SWAP

MEM_MB_WE_L 4,8

VDDR_VREF

C77

C77

_0.1u/25V/4

_0.1u/25V/4

MEM_MB1_ODT0 4,8

Address A1

A A

5

4

3

Address A3

2

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

<Doc> <RevCode>

C

<Doc> <RevCode>

C

<Doc> <RevCode>

C

Date: Sheet of

Date: Sheet of

Date: Sheet

1

of

736Monday, February 26, 2007

736Monday, February 26, 2007

736Monday, February 26, 2007

5

VTT_DDR

MEM_MA_BANK24,6
MEM_MA_ADD144,6
MEM_MA_ADD154,6
MEM_MA_CKE04,6
MEM_MB_ADD64,7
MEM_MB_ADD144,7
MEM_MB_ADD94,7
MEM_MB_ADD114,7

D D

C C

B B

A A

MEM_MA_ADD64,6
MEM_MB_ADD54,7
MEM_MB_ADD84,7
MEM_MB_ADD44,7
MEM_MA_ADD14,6
MEM_MB_ADD14,7
MEM_MA_ADD24,6
MEM_MB_ADD24,7

MEM_MA_ADD04,6
MEM_MA_ADD104,6
MEM_MB_WE_L4,7
MEM_MB_CAS_L4,7

MEM_MB_RAS_L4,7
MEM_MA_BANK14,6
MEM_MB0_CS_L04,7
MEM_MA_RAS_L4,6

MEM_MA1_ODT04,6
MEM_MB1_CS_L04,7
MEM_MA1_CS_L04,6
MEM_MA_BANK04,6

MEM_MB_CKE14,7

MEM_MB_ADD154,7

MEM_MB_BANK24,7

MEM_MB_ADD124,7
MEM_MB_ADD74,7
MEM_MA_ADD74,6
MEM_MA_ADD114,6
MEM_MA_ADD94,6
MEM_MA_ADD54,6
MEM_MA_ADD44,6
MEM_MB_ADD34,7
MEM_MA_ADD34,6

MEM_MB_ADD04,7
MEM_MB_BANK14,7

MEM_MB_ADD104,7
MEM_MB_BANK04,7

MEM_MA0_CS_L04,6
MEM_MA0_ODT04,6
MEM_MA_CAS_L4,6

MEM_MB0_ODT04,7

MEM_MB_CKE04,7
MEM_MA_ADD84,6
MEM_MA_ADD124,6
MEM_MA_CKE14,6

MEM_MA_WE_L4,6

MEM_MB1_ODT04,7
MEM_MB_ADD134,7
MEM_MB0_CS_L14,7

MEM_MA1_CS_L14,6
MEM_MB1_CS_L14,7
MEM_MA0_CS_L14,6
MEM_MA_ADD134,6

MEM_MA_BANK2
MEM_MA_ADD14
MEM_MA_ADD15
MEM_MA_CKE0
MEM_MB_ADD6
MEM_MB_ADD14
MEM_MB_ADD9
MEM_MB_ADD11

MEM_MA_ADD6

MEM_MB_ADD5
MEM_MB_ADD8
MEM_MB_ADD4
MEM_MA_ADD1
MEM_MB_ADD1
MEM_MA_ADD2
MEM_MB_ADD2

MEM_MA_ADD0
MEM_MA_ADD10
MEM_MB_WE_L
MEM_MB_CAS_L

MEM_MB_RAS_L
MEM_MA_BANK1
MEM_MB0_CS_L0
MEM_MA_RAS_L

MEM_MA1_ODT0
MEM_MB1_CS_L0
MEM_MA1_CS_L0
MEM_MA_BANK0

MEM_MB_CKE1
MEM_MB_ADD15
MEM_MB_BANK2
MEM_MB_ADD12
MEM_MB_ADD7
MEM_MA_ADD7
MEM_MA_ADD11
MEM_MA_ADD9
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MB_ADD3
MEM_MA_ADD3

MEM_MB_ADD0
MEM_MB_BANK1
MEM_MB_ADD10
MEM_MB_BANK0

MEM_MA0_CS_L0
MEM_MA0_ODT0
MEM_MA_CAS_L
MEM_MB0_ODT0

MEM_MB_CKE0
MEM_MA_ADD8
MEM_MA_ADD12
MEM_MA_CKE1

MEM_MA_WE_L
MEM_MB1_ODT0
MEM_MB_ADD13
MEM_MB0_CS_L1

MEM_MA1_CS_L1
MEM_MB1_CS_L1
MEM_MA0_CS_L1
MEM_MA_ADD13

RN15 8P4R-47R0402RN15 8P4R-47R0402

1

2

3

4

5

6

7

RN16 8P4R-47R0402RN16 8P4R-47R0402

RN18 8P4R-47R0402RN18 8P4R-47R0402

RN20 8P4R-47R0402RN20 8P4R-47R0402

RN23 8P4R-47R0402RN23 8P4R-47R0402

RN22 8P4R-47R0402RN22 8P4R-47R0402

RN26 8P4R-47R0402RN26 8P4R-47R0402

RN14 8P4R-47R0402RN14 8P4R-47R0402

RN17 8P4R-47R0402RN17 8P4R-47R0402

RN19 8P4R-47R0402RN19 8P4R-47R0402

RN21 8P4R-47R0402RN21 8P4R-47R0402

RN24 8P4R-47R0402RN24 8P4R-47R0402

RN13 8P4R-47R0402RN13 8P4R-47R0402

RN25 8P4R-47R0402RN25 8P4R-47R0402

RN27 8P4R-47R0402RN27 8P4R-47R0402

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

VTT_DDR

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

4

3

2

1

VCC_DDRVCC_DDR

MEM_MA_ADD15
MEM_MA_ADD14

VTT_DDR

C224

C224

VTT_DDR

C92

C92

VCC_DDR

C136

C136

MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0

MEM_MA_CAS_L
MEM_MA_WE_L
MEM_MA_RAS_L

MEM_MA_BANK2
MEM_MA_BANK1
MEM_MA_BANK0

C223

C223

For EMI

X_0.1u/25V/4

X_0.1u/25V/4

C94

C94

0.1u/10X/4

0.1u/10X/4

C175

C175

180p/NPO

180p/NPO

0.1u/25V/4

0.1u/25V/4

0.1u/10X/4

0.1u/10X/4

MEM_MA0_CLK_H24,6

MEM_MA0_CLK_L24,6

MEM_MA0_CLK_H14,6

MEM_MA0_CLK_L14,6

MEM_MA0_CLK_H04,6

MEM_MA0_CLK_L04,6

MEM_MB0_CLK_H24,7

MEM_MB0_CLK_L24,7

MEM_MB0_CLK_H14,7

MEM_MB0_CLK_L14,7

MEM_MB0_CLK_H04,7

MEM_MB0_CLK_L04,7

MEM_MA1_CLK_H24,6

MEM_MA1_CLK_L24,6

MEM_MA1_CLK_H14,6

MEM_MA1_CLK_L14,6

MEM_MA1_CLK_H04,6

MEM_MA1_CLK_L04,6

MEM_MB1_CLK_H24,7

MEM_MB1_CLK_L24,7

MEM_MB1_CLK_H14,7

MEM_MB1_CLK_L14,7

MEM_MB1_CLK_H04,7

MEM_MB1_CLK_L04,7

MEM_MA0_CLK_H2

MEM_MA0_CLK_L2

MEM_MA0_CLK_H1

MEM_MA0_CLK_L1

MEM_MA0_CLK_H0

MEM_MA0_CLK_L0

MEM_MB0_CLK_H2

MEM_MB0_CLK_L2

MEM_MB0_CLK_H1

MEM_MB0_CLK_L1

MEM_MB0_CLK_H0

MEM_MB0_CLK_L0

MEM_MA1_CLK_H2

MEM_MA1_CLK_L2

MEM_MA1_CLK_H1

MEM_MA1_CLK_L1

MEM_MA1_CLK_H0

MEM_MA1_CLK_L0

MEM_MB1_CLK_H2

MEM_MB1_CLK_L2

MEM_MB1_CLK_H1

MEM_MB1_CLK_L1

MEM_MB1_CLK_H0

MEM_MB1_CLK_L0

C182

C182
C1.5P/4

C1.5P/4

C63

C63
C1.5P/4

C1.5P/4

C107

C107

C1.5P/4

C1.5P/4

C173

C173
C1.5P/4

C1.5P/4

C47

C47
C1.5P/4

C1.5P/4

C113

C113
C1.5P/4

C1.5P/4

C233

C233
C1.5P/4

C1.5P/4

C103

C103
C1.5P/4

C1.5P/4

C234

C234

C1.5P/4

C1.5P/4

C235

C235
C1.5P/4

C1.5P/4

C236

C236
C1.5P/4

C1.5P/4

C255

C255
C1.5P/4

C1.5P/4

0.1u/25V/4

0.1u/25V/4

C22P50N0402C93 C22P50N0402C93
C22P50N0402C90 C22P50N0402C90
C22P50N0402C185 C22P50N0402C185
C22P50N0402C99 C22P50N0402C99
C22P50N0402C100 C22P50N0402C100
C22P50N0402C141 C22P50N0402C141 C22P50N0402C163 C22P50N0402C163
C22P50N0402C106 C22P50N0402C106
C22P50N0402C110 C22P50N0402C110
C22P50N0402C105 C22P50N0402C105
C22P50N0402C115 C22P50N0402C115 C22P50N0402C129 C22P50N0402C129
C22P50N0402C108 C22P50N0402C108
C22P50N0402C114 C22P50N0402C114
C22P50N0402C120 C22P50N0402C120
C22P50N0402C126 C22P50N0402C126
C22P50N0402C131 C22P50N0402C131
C22P50N0402C143 C22P50N0402C143

C22P50N0402C154 C22P50N0402C154
C22P50N0402C162 C22P50N0402C162
C22P50N0402C145 C22P50N0402C145

C22P50N0402C96 C22P50N0402C96
C22P50N0402C146 C22P50N0402C146
C22P50N0402C151 C22P50N0402C151

Decoupling Between Processor and DIMMs

Layout: Spread out on VTT pour

C221

C221

0.1u/25V/4

0.1u/25V/4

VTT_DDR

C686

C685

C685

C177

C177

180p/NPO

180p/NPO

X_0.1u/25V/4

X_0.1u/25V/4

C67

C67

0.1u/10X/4

0.1u/10X/4

180p/NPO

180p/NPO

C686

C178

C178

X_0.1u/25V/4

X_0.1u/25V/4

C66

C66

0.1u/10X/4

0.1u/10X/4

X_0.1u/25V/4

X_0.1u/25V/4

C687

C687

C180

C180

X_0.1u/25V/4

X_0.1u/25V/4

C273

C273

C183

C183

0.1u/25V/4

0.1u/25V/4

C688

C688

0.1u/10X/4

0.1u/10X/4

MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0

MEM_MB_CAS_L
MEM_MB_WE_L
MEM_MB_RAS_L

MEM_MB_BANK2
MEM_MB_BANK1
MEM_MB_BANK0

C188

C188

0.1u/25V/4

0.1u/25V/4

X_0.1u/25V/4

X_0.1u/25V/4

C97

C97

C186

C186

X_100P/NPO

X_100P/NPO

C689

C689

X_0.1u/25V/4

X_0.1u/25V/4

0.1u/10X/4

0.1u/10X/4

C191

C191

X_100P/NPO

X_100P/NPO

C140

C140

C196

C196
X_100P/NPO

X_100P/NPO

C690

C690

0.1u/10X/4

0.1u/10X/4

X_100P/NPO

X_100P/NPO

C22P50N0402C101 C22P50N0402C101
C22P50N0402C98 C22P50N0402C98
C22P50N0402C190 C22P50N0402C190
C22P50N0402C109 C22P50N0402C109
C22P50N0402C111 C22P50N0402C111

C22P50N0402C117 C22P50N0402C117
C22P50N0402C124 C22P50N0402C124
C22P50N0402C116 C22P50N0402C116

C22P50N0402C121 C22P50N0402C121
C22P50N0402C128 C22P50N0402C128
_C22P50N0402C132 _C22P50N0402C132
C22P50N0402C135 C22P50N0402C135
C22P50N0402C138 C22P50N0402C138
C22P50N0402C150 C22P50N0402C150

C22P50N0402C170 C22P50N0402C170
C22P50N0402C176 C22P50N0402C176
C22P50N0402C168 C22P50N0402C168

C22P50N0402C104 C22P50N0402C104
C22P50N0402C153 C22P50N0402C153
C22P50N0402C159 C22P50N0402C159

X_0.1u/25V/4

X_0.1u/25V/4
C85

C85

C123

C123

X_0.1u/25V/4

X_0.1u/25V/4

C155

C155

C200

C200

C144

C144

0.1u/25V/4

0.1u/25V/4

C691

C691

X_0.1u/25V/4

X_0.1u/25V/4

0.1u/10X/4

0.1u/10X/4

C201

C201

X_22P/NPO

X_22P/NPO

0.1u/25V/4

0.1u/25V/4

C692

C692

VCC_DDR

X_22P/NPO

X_22P/NPO

C205

C205

22P/NPO

22P/NPO

X_0.1u/25V/4

X_0.1u/25V/4

C300

C300

C302

C302

X_0.1u/25V/4

X_0.1u/25V/4

X_0.1u/25V/4

X_0.1u/25V/4

C310

C310

VCC_DDR

C370

C370

C485

X_0.1u/25V/4

X_0.1u/25V/4

C485

X_0.1u/25V/4

X_0.1u/25V/4

X_0.1u/25V/4

X_0.1u/25V/4

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet

1

of

836Monday, February 26, 2007

836Monday, February 26, 2007

836Monday, February 26, 2007

C367

C367

5

4

3

5

PED_RX019
PED_RX0*19
PED_RX119
PED_RX1*19
PED_RX219

D D

C C

A_RX2P15
A_RX2N15

A_RX3P15
A_RX3N15

PE0_RX19
PE0_RX*19

RX_LANP021
RX_LANN021

B B

A_RX0P15
A_RX0N15

A_RX1N15
A_RX1P15

PED_RX2*19
PED_RX319
PED_RX3*19
PED_RX419
PED_RX4*19
PED_RX519
PED_RX5*19
PED_RX619
PED_RX6*19
PED_RX719
PED_RX7*19
PED_RX819
PED_RX8*19
PED_RX919
PED_RX9*19
PED_RX1019
PED_RX10*19
PED_RX1119
PED_RX11*19
PED_RX1219
PED_RX12*19
PED_RX1319
PED_RX13*19
PED_RX1419
PED_RX14*19
PED_RX1519
PED_RX15*19

A_RX2P
A_RX2N

A_RX3P
A_RX3N

PE0_RX
PE0_RX*

RX_LANP0
RX_LANN0

W4
W5

W9
AB7
AB6

W11
W12

AA11
AB11

AA7

AB9
AA9

W14
W15

AA12
AB12

AA14
AB14

G5
G4

M8
M7
M4
M5
P8
P7
P4
P5
R4
R5
R7
R8
U4
U5

Y4
Y5
V9

Y7

4

J8
J7
J4
J5
L8
L7
L4
L5

U12B

U12B

GFX_RX0P
GFX_RX0N
GFX_RX1P
GFX_RX1N
GFX_RX2P
GFX_RX2N
GFX_RX3P
GFX_RX3N
GFX_RX4P
GFX_RX4N
GFX_RX5P
GFX_RX5N
GFX_RX6P
GFX_RX6N
GFX_RX7P
GFX_RX7N
GFX_RX8P
GFX_RX8N
GFX_RX9P
GFX_RX9N
GFX_RX10P
GFX_RX10N
GFX_RX11P
GFX_RX11N
GFX_RX12P
GFX_RX12N
GFX_RX13P
GFX_RX13N
GFX_RX14P
GFX_RX14N
GFX_RX15P
GFX_RX15N

GPP_RX0P
GPP_RX0N

GPP_RX1P
GPP_RX1N

GPP_RX2P
GPP_RX2N

GPP_RX3P
GPP_RX3N

SB_RX0P
SB_RX0N

SB_RX1P
SB_RX1N

PCEH_ISET
PCEH_TXISET

PART 2 OF 5

PART 2 OF 5

PCIE GFX I/F

PCIE GFX I/F

PCIE I/F GPP

PCIE I/F GPP

PCIE I/F SB

PCIE I/F SB

GFX_TX0P
GFX_TX0N
GFX_TX1P
GFX_TX1N
GFX_TX2P
GFX_TX2N
GFX_TX3P
GFX_TX3N
GFX_TX4P
GFX_TX4N
GFX_TX5P
GFX_TX5N
GFX_TX6P
GFX_TX6N
GFX_TX7P
GFX_TX7N
GFX_TX8P
GFX_TX8N
GFX_TX9P
GFX_TX9N

GFX_TX10P
GFX_TX10N
GFX_TX11P
GFX_TX11N
GFX_TX12P
GFX_TX12N
GFX_TX13P
GFX_TX13N
GFX_TX14P
GFX_TX14N
GFX_TX15P
GFX_TX15N

GPP_TX0P
GPP_TX0N

GPP_TX1P
GPP_TX1N

GPP_TX2P

GPP_TX2N

GPP_TX3P
GPP_TX3N

SB_TX0P
SB_TX0N

SB_TX1P
SB_TX1N

PCEH_PCAL

PCEH_NCAL

3

J1
H2
K2
K1
K3
L3
L1
L2
N2
N1
P2
P1
P3
R3
R1
R2
T2
U1
V2
V1
V3
W3
W1
W2
Y2
AA1
AA2
AB2
AB1
AC1
AE3
AE4

AD8
AE8

AD7
AE7

AD4
AE5

AD5
AD6

AE9
AD10

AC8
AD9

AD11
AE11

A_TX2P0
A_TX2N0

A_TX3P0
A_TX3N0

PE0_TX
PE0_TX*

TX_LANP0
TX_LANN0

A_TX0P_C
A_TX0N_C

A_TX1P_C
A_TX1N_C

PCEH_PCAL
PCEH_NCAL

PED_TX0 19
PED_TX0* 19
PED_TX1 19
PED_TX1* 19
PED_TX2 19
PED_TX2* 19
PED_TX3 19
PED_TX3* 19
PED_TX4 19
PED_TX4* 19
PED_TX5 19
PED_TX5* 19
PED_TX6 19
PED_TX6* 19
PED_TX7 19
PED_TX7* 19
PED_TX8 19
PED_TX8* 19
PED_TX9 19
PED_TX9* 19
PED_TX10 19
PED_TX10* 19
PED_TX11 19
PED_TX11* 19
PED_TX12 19
PED_TX12* 19
PED_TX13 19
PED_TX13* 19
PED_TX14 19
PED_TX14* 19
PED_TX15 19
PED_TX15* 19

C347 0.1u/10/4C347 0.1u/10/4
C345 0.1u/10/4C345 0.1u/10/4

C354 0.1u/10/4C354 0.1u/10/4
C350 0.1u/10/4C350 0.1u/10/4

C355 0.1u/16V/4C355 0.1u/16V/4
C362 0.1u/16V/4C362 0.1u/16V/4

C322 0.1u/10/4C322 0.1u/10/4
C316 0.1u/10/4C316 0.1u/10/4

C341 0.1u/10/4C341 0.1u/10/4
C338 0.1u/10/4C338 0.1u/10/4

R191 562R1%0402R191 562R1%0402
R195 2KR1%0402R195 2KR1%0402

2

VDDA12_PKG2

A_TX2P 15
A_TX2N 15

A_TX3P 15
A_TX3N 15

PE0_TX 19
PE0_TX* 19

TXLANP 21
TXLANN 21

A_TX0P 15
A_TX0N 15

A_TX1P 15
A_TX1N 15

1

RS690

RS690

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

Date: Sheet

2

of

936Monday, February 26, 2007

of

936Monday, February 26, 2007

of

936Monday, February 26, 2007

1

5

HT_CADOUT_H15 HT_CADIN_H15
HT_CADOUT_L15
HT_CADOUT_H14
HT_CADOUT_L14

D D

C C

VDDHT_PKG

B B

HT_CADOUT_H13
HT_CADOUT_L13
HT_CADOUT_H12
HT_CADOUT_L12
HT_CADOUT_H11
HT_CADOUT_L11
HT_CADOUT_H10
HT_CADOUT_L10
HT_CADOUT_H9
HT_CADOUT_L9
HT_CADOUT_H8
HT_CADOUT_L8

HT_CADOUT_H7
HT_CADOUT_L7
HT_CADOUT_H6
HT_CADOUT_L6
HT_CADOUT_H5
HT_CADOUT_L5
HT_CADOUT_H4
HT_CADOUT_L4
HT_CADOUT_H3
HT_CADOUT_L3
HT_CADOUT_H2
HT_CADOUT_L2
HT_CADOUT_H1
HT_CADOUT_L1
HT_CADOUT_H0
HT_CADOUT_L0

HT_CLKOUT_H13
HT_CLKOUT_L13

HT_CLKOUT_H03
HT_CLKOUT_L03

HT_CTLOUT_H03
HT_CTLOUT_L03

R152 49.9/4R152 49.9/4
R137 49.9/4R137 49.9/4

4

HT_RXCALP
HT_RXCALN

R19
R18
R21
R22
U22
U21
U18

U19
W19
W20

AC21
AB22
AB20
AA20
AA19

Y19

T24

R25

U25

U24

V23

U23

V24

V25

AA25
AA24
AB23
AA23
AB24
AB25
AC24
AC25

W21
W22

Y24
W25

P24

P25

A24

C24

U12A

U12A

HT_RXCAD15P
HT_RXCAD15N
HT_RXCAD14P
HT_RXCAD14N
HT_RXCAD13P
HT_RXCAD13N
HT_RXCAD12P
HT_RXCAD12N
HT_RXCAD11P
HT_RXCAD11N
HT_RXCAD10P
HT_RXCAD10N
HT_RXCAD9P
HT_RXCAD9N
HT_RXCAD8P
HT_RXCAD8N

HT_RXCAD7P
HT_RXCAD7N
HT_RXCAD6P
HT_RXCAD6N
HT_RXCAD5P
HT_RXCAD5N
HT_RXCAD4P
HT_RXCAD4N
HT_RXCAD3P
HT_RXCAD3N
HT_RXCAD2P
HT_RXCAD2N
HT_RXCAD1P
HT_RXCAD1N
HT_RXCAD0P
HT_RXCAD0N

HT_RXCLK1P
HT_RXCLK1N

HT_RXCLK0P
HT_RXCLK0N

HT_RXCTLP
HT_RXCTLN

HT_RXCALP
HT_RXCALN

RS690

RS690

3

PART 1 OF 5

PART 1 OF 5

HYPER TRANSPORT I/F

HYPER TRANSPORT I/F

HT_TXCAD15P
HT_TXCAD15N
HT_TXCAD14P
HT_TXCAD14N
HT_TXCAD13P
HT_TXCAD13N
HT_TXCAD12P
HT_TXCAD12N
HT_TXCAD11P
HT_TXCAD11N
HT_TXCAD10P
HT_TXCAD10N

HT_TXCAD9P
HT_TXCAD9N
HT_TXCAD8P
HT_TXCAD8N

HT_TXCAD7P
HT_TXCAD7N
HT_TXCAD6P
HT_TXCAD6N
HT_TXCAD5P
HT_TXCAD5N
HT_TXCAD4P
HT_TXCAD4N
HT_TXCAD3P
HT_TXCAD3N
HT_TXCAD2P
HT_TXCAD2N
HT_TXCAD1P
HT_TXCAD1N
HT_TXCAD0P
HT_TXCAD0N

HT_TXCLK1P

HT_TXCLK1N

HT_TXCLK0P

HT_TXCLK0N

HT_TXCTLP
HT_TXCTLN

HT_TXCALP

HT_TXCALN

P21
P22
P18
P19
M22
M21
M18
M19
L18
L19
G22
G21
J20
J21
F21
F22

N24
N25
L25
M24
K25
K24
J23
K23
G25
H24
F25
F24
E23
F23
E24
E25

L21
L22

J24
J25

N23
P23

C25
D24

HT_TXCALP
HT_TXCALN

2

HT_CADIN_L15
HT_CADIN_H14
HT_CADIN_L14
HT_CADIN_H13
HT_CADIN_L13
HT_CADIN_H12
HT_CADIN_L12
HT_CADIN_H11
HT_CADIN_L11
HT_CADIN_H10
HT_CADIN_L10
HT_CADIN_H9
HT_CADIN_L9
HT_CADIN_H8
HT_CADIN_L8

HT_CADIN_H7
HT_CADIN_L7
HT_CADIN_H6
HT_CADIN_L6
HT_CADIN_H5
HT_CADIN_L5
HT_CADIN_H4
HT_CADIN_L4
HT_CADIN_H3
HT_CADIN_L3
HT_CADIN_H2
HT_CADIN_L2
HT_CADIN_H1
HT_CADIN_L1
HT_CADIN_H0
HT_CADIN_L0

R138 100/4/1R138 100/4/1

HT_CLKIN_H1 3
HT_CLKIN_L1 3

HT_CLKIN_H0 3
HT_CLKIN_L0 3

HT_CTLIN_H0 3
HT_CTLIN_L0 3

1

HT_CADIN_H[15..0]3

HT_CADIN_L[15..0]3

HT_CADOUT_H[15..0]3

HT_CADOUT_L[15..0]3

A A

5

HT_CADIN_H[15..0]
HT_CADIN_L[15..0]
HT_CADOUT_H[15..0]
HT_CADOUT_L[15..0]

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

4

3

Date: Sheet

2

of

10 36Thursday, February 22, 2007

of

10 36Thursday, February 22, 2007

of

10 36Thursday, February 22, 2007

1

5

U12E

U12E

D D

RS690

RS690

B7

VSS61

VSS62

H12

4

VSS60

AC16

VSS59

M13

VSS57

D4

VSS56

F17

VSS55

AC15

AE10

M3

VSSA50

VSSA51

VSS54

VSS53

A23

M17

P9

AE6

VSSA49

VSS52

H23

R17

Y15

AC4

VSSA47

VSSA48

VSS50

VSS51

T25

AE14

AC10

G6

VSSA45

VSSA46

VSS48

VSS49

T23

AE22

AD3

AC9

VSSA43

VSSA44

VSS46C4VSS47

R23

AC6

AC7

VSSA41

VSSA42

VSS44

VSS45

AC22

AD1

AC5

VSSA39

VSSA40

VSS42

G24

AC14

R9

AA3

VSSA37

VSSA38

VSS40

VSS41

D25

AC23

Y14

VSSA94

VSSA95

VSS38

VSS39

Y22

W6

AC2

Y3

Y9

Y11

Y12

VSSA32

VSSA33

VSSA34

VSSA35

VSSA36

VSSA93

GROUND

GROUND

VSS31

VSS32

VSS33

VSS34

VSS35

VSS36

VSS37

Y25

R20

U20

H25

W23

W24

AD25

3

Y1

VSSA30

VSS30

R12

R14

U6

VSSA28

VSS28

VSS29

P15

T3

U3

VSSA26

VSSA27

VSS26

VSS27

P13

P20

R6

U2

VSSA25

VSS25

L24

N3

VSSA24

VSS23

N12

N14

P6

T1

VSSA21

VSSA22

VSS21

VSS22

M23

M25

M6

J3

VSSA19

VSSA20

VSS19

VSS20

M11

M20

L6

M2

VSSA17

VSSA18

VSS17

VSS18

L20

L23

F1

VSSA15

VSSA16

VSS15

VSS16

L12

L14

J6

VSSA13

VSS13

VSS14

J12

VSS12

G23

J2

H3

VSSA11

VSS11

J22

M15

G3

VSSA10

VSS9

VSS10

R24

AE18

VSS8

P11

V15

VSSA7A1VSSA8H1VSSA9

VSS7

Y23

VSS6

G11

VSSA5F3VSSA6

V14

VSSA4

VSS4E9VSS5

V11

VSSA3

VSS3

D23

V12

VSSA2

PAR 5 OF 5

PAR 5 OF 5

VSS2

F11

A25

2

VSS1

1

VCCA_1V2

CP9CP9

C C

C265

C265

10u/10V/8

10u/10V/8

+1.8V_S0

1.5A

VCCA_1V2

VCC3

B B

+1.8V_S0

VCCA_1V2

0.5A

L41

L41
X_28L900m_100_0805

X_28L900m_100_0805

1 2

C266

C266

X_10u/10V/8

X_10u/10V/8

L24 X_500mALL24 X_500mAL

CP21CP21

1 2

L45 28L900m_100_0805L45 28L900m_100_0805
L40 28L900m_100_0805L40 28L900m_100_0805

L25 X_500mALL25 X_500mAL

CP26CP26

1 2

L22 X_500mALL22 X_500mAL

CP16CP16

1 2

L26 X_500mALL26 X_500mAL

CP28CP28

1 2

CURRENT MEASUREMENT

C256

C256
X_1u/6.3V/4

X_1u/6.3V/4

C284

C284

X_1u/6.3V/4

X_1u/6.3V/4

VDDR3

C358

C358

2.2u/10V/8

2.2u/10V/8

C280

C280

C279

C279

X_1u/6.3V/4

X_1u/6.3V/4

X_1u/6.3V/4

X_1u/6.3V/4

C365

C365

X_4.7u/10V/8

X_4.7u/10V/8

C261

C261
X_1u/6.3V/4

X_1u/6.3V/4

C283

C283
1u/6.3V/4

1u/6.3V/4

C369

C369

10u/10V/8

10u/10V/8

C278

C278
1u/6.3V/4

1u/6.3V/4

C363

C363
1u/10V/6

1u/10V/6

C262

C262
X_1u/6.3V/4

X_1u/6.3V/4

C368

C368
X_1u/6.3V/4

X_1u/6.3V/4

C650

C650

0.1u/16V/6

0.1u/16V/6

C359

C359
1u/6.3V/4

1u/6.3V/4

VDDA_12

C655

C655

0.1u/16V/6

0.1u/16V/6

C656

C656

0.1u/16V/6

0.1u/16V/6

VDDHT_PKG
VDDA12_PKG1
VDDA12_PKG2

VDD_HT

VDD18

0.1u/16V/6

0.1u/16V/6

C374

C374

AE24
AD24
AD22
AB17
AE23

W17
AC18
AD21
AC19
AC20
AB19
AD23
AA17
AE25

AC3

AD2

AC12
AD12
AE12

AC11

Y17

AE2
AB3

AB4

AE1
E11

D11

D22

U12D

U12D

J14
J15

U7

W7

E7
F7
F9
G9

M1

PART 4 OF 5

PART 4 OF 5

VDD_HT1
VDD_HT2
VDD_HT5
VDD_HT6
VDD_HT9
VDD_HT10
VDD_HT11
VDD_HT12
VDD_HT13
VDD_HT14
VDD_HT15
VDD_HT16
VDD_HT17
VDD_HT18
VDD_HT19

VDD18_1
VDD18_2

VDDA18_1
VDDA18_2
VDDA18_3
VDDA18_4
VDDA18_5
VDDA18_6
VDDA18_7
VDDA18_8

VDDR3_2
VDDR3_1

VDDR_1
VDDR_2
VDDR_3

VDDA12/VDDPLL_1
VDDA12/VDDPLL_2
VSSA12/VSSPLL_1
VSSA12/VSSPLL_2

VDDHT_PKG
VDDA12_PKG1
VDDA12_PKG2

VDDA_12_1
VDDA_12_2
VDDA_12_3
VDDA_12_4
VDDA_12_5
VDDA_12_6
VDDA_12_7
VDDA_12_8

VDDA_12_9
VDDA_12_10
VDDA_12_11
VDDA_12_12

POWER

POWER

RS690

RS690

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8

VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15
VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22
VDDC_23
VDDC_24
VDDC_25
VDDC_26
VDDC_27
VDDC_28
VDDC_29
VDDC_30
VDDC_31
VDDC_32

D1
G7
E2
C1
E3
D2
M9
F4
B1
D3
L9
E6

L11
L13
L15
M12
R15
M14
N11
N13
N15
J11
H11
P12
P14
R11
R13
A19
B19
U11
U14
P17
L17
J19
D20
G20
A9
B9
C9
D9
A7
A4
U12
U15

VDDA_12

0.1u/25V/4

0.1u/25V/4

C251

C251

0.1u/25V/4

0.1u/25V/4

C259

C259

0.1u/16V/6

0.1u/16V/6

C653

C653

0.1u/16V/6

0.1u/16V/6

C657

C657

0.1u/16V/6

0.1u/16V/6

C652

C652

0.1u/16V/6

0.1u/16V/6

C654

C654

C360

C360
1u/10V/6

1u/10V/6

0.1u/16V/6

0.1u/16V/6

C651

C651

10A

4.7u/10V/8

4.7u/10V/8

C247

C247

VCCA_1V2

CURRENT MEASUREMENT

C244

C244

4.7u/10V/8

4.7u/10V/8

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

11 36Tuesday, February 27, 2007

of

11 36Tuesday, February 27, 2007

of

11 36Tuesday, February 27, 2007

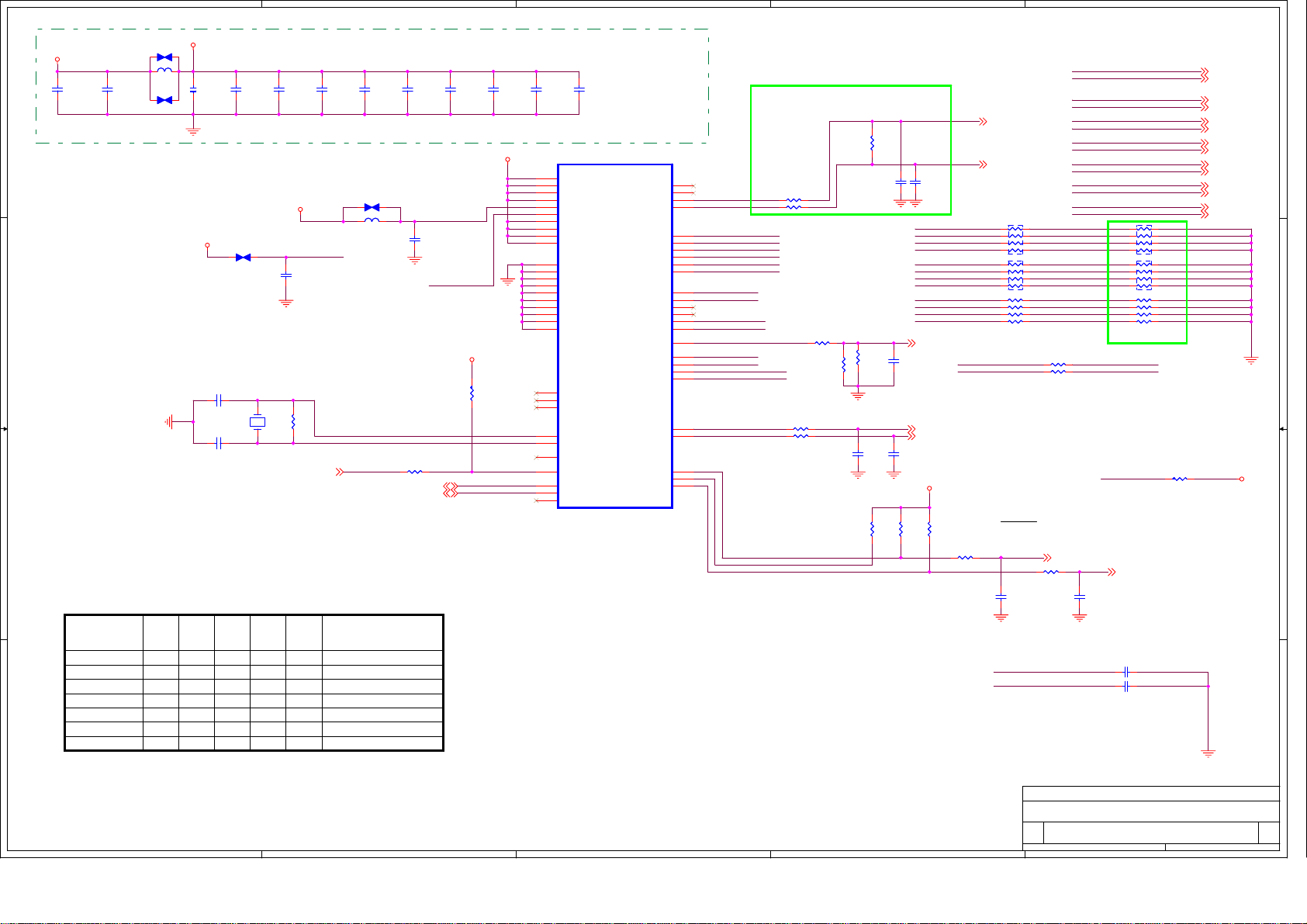

5

CLK_VDD

VCC3

C431

C431
C4.7U10Y0805

C4.7U10Y0805

D D

CP14CP14

1 2

L20

L20

X_28L900m_100_0805

X_28L900m_100_0805

C348

C348
1u/25V/4

1u/25V/4

1 2

1- PLACE ALL THE SERIES TERMINATION
RESISTORS AS CLOSE AS U9 AS POSSIBLE

CP22CP22

C281

C281
10u/10V/8

10u/10V/8

C334

C334

0.1u/25V/4

0.1u/25V/4

C270

C270

0.1u/25V/4

0.1u/25V/4

C272

C272

0.1u/25V/4

0.1u/25V/4

2- ROUTE ALL CPUCLK/#, NBSRCCLK/#, GPPCLK/# AS DIFFERENT PAIR RULE
3- PUT DECOUPLING CAPS CLOSE TO U9

POWER PIN

CLK_VDD

CP8CP8

C C

12

C271

C271

0.1u/25V/4

0.1u/25V/4

CLK_VDD

CLK_VDDA

Parallel Resonance Crystal

C311

C311

12

Y1

Y1

21

R187

R187
X_1M/4

C22P50N

C22P50N
C289

C289

12

_14.318MHZ16P_D

_14.318MHZ16P_D

C22P50N

C22P50N

B B

EXT CLK FREQUENCY SELECT TABLE(MHZ)

FS2

0 0 0
0 0 1

0 1 0
0 1 1
1 0 0
1 0 1

A A

1 1 1

CPUFS1

Hi-Z
X

180.00

220.00

100.00

133.33

200.00

SRCCLK

HTTFS0 PCI

[2:1]

Hi-Z Hi-Z100.00 Reserved

100.00

100.00

36.56 73.12

100.00

66.66 33.33

100.00

66.66 33.33

100.00

66.66 33.33 Normal HAMMER operation

100.00

X_1M/4

FP_RST#14,25,28

USB

COMMENT

48.00

48.00

48.00

48.00

48.00

48.00

Reserved
Reserved
Reserved
Reserved
Reserved

X/6X/3

30.0060.00

48.00

4

C268

C268

0.1u/25V/4

0.1u/25V/4

CP24CP24

1 2

L23 X_500mALL23 X_500mAL

R201 X_0RR201 X_0R

C333

C333

0.1u/25V/4

0.1u/25V/4

SCL6,7,14

SDA6,7,14

C335

C335

0.1u/25V/4

0.1u/25V/4

C269

C269

0.1u/25V/4

0.1u/25V/4

CLK_VDDA

CLK_VDD

4.7K/4

4.7K/4
R253

R253

C267

C267

0.1u/25V/4

0.1u/25V/4

CLK_VDD

3

C297

C297

C295

C295

0.1u/25V/4

0.1u/25V/4

C4.7U10Y0805

C4.7U10Y0805

U9

U9

14

VDDSRC

5

VDD48

36

VDDSRC

26

VDDSRC

46

VDDCPU

42

VDDA

2

VDDREF

52

VDDHTT

33

VDDATIG

23

VDDSRC

15

GNDSRC

32

GNDATIG

1

GNDREF

50

GNDHTT

8

GND48

37

GNDSRC

27

GNDSRC

22

GNDSRC

41

GNDA

45

GNDCPU

29

CLKREQC#

28

CLKREQB#

49

CLKREQA#

4

X2

3

X1

53

NC

11

RESET_IN#

9

SMBCLK

10

SMBDATA

40

IREF

RTM870T-691-LF

RTM870T-691-LF

OVERLAP COMMON PADS FOR DUAL-OP
RESISTORS

CPUCLK8T1

CPUCLK8C1

CPUCLK8T0

CPUCLK8C0

SRCCLKT7
SRCCLKC7
SRCCLKT6
SRCCLKC6
SRCCLKT5
SRCCLKC5

SRCCLKT4
SRCCLKC4
SRCCLKT2
SRCCLKC2
SCRCLKT0
SRCCLKC0

HTTCLK0

ATIGCLKT1
ATIGCLKC1
ATIGCLKT0
ATIGCLKC0

48MHZ_0
48MHZ_1

FS0/REF0
FS1/REF1
FS2/REF2

44
43
48
47

12
13
16
17
18
19

20
21
24
25
39
38

51
31

30
35
34

6
7

56
55
54

CPUCLK_EXT_R
CPUCLK#_EXT_R

PCI_EX3CLK_R
PCI_EX3CLK#_R
PCI_EX1CLK_R
PCI_EX1CLK#_R
LANCLK0_R
LANCLK0#_R

NBSRCCLK_R
NBSRCCLK#_R

GFXCLK_R
GFXCLK#_R

HTREFCLK_R

SBLINKCLK_R
SBLINKCLK#_R
SBSRCCLK_R
SBSRCCLK#_R

SIO_CLK_R

USBCLK_EXT_R

R167 47.5/4R167 47.5/4
R166 47.5/4R166 47.5/4

R159 33R/4R159 33R/4
R231 33R/4R231 33R/4

AC97_CLK_R

R161 22R/4R161 22R/4

R151

R151

X_51.1/4

X_51.1/4

C249

C249

X_33P/50V/4

X_33P/50V/4

R148

R148
261/4

261/4

C257

C257

X_C10P50N

X_C10P50N

R149

R149

51.1/4

51.1/4

R165

R165
10K/4

10K/4

2

CPU_CLK 3

CPU_CLK# 3

C258

C258
X_C10P50N

X_C10P50N

PCI_EX1CLK_R
PCI_EX1CLK#_R
LANCLK0_R
LANCLK0#_R

SBSRCCLK_R
SBSRCCLK#_R SBSRCCLK#
SBLINKCLK_R
SBLINKCLK#_R

GFXCLK#_R
GFXCLK_R
NBSRCCLK#_R
NBSRCCLK_R

HTREFCLK 13

C464

C464

C10P50N

C10P50N

SIO_CLK 20

USBCLK_EXT 14

C337

C337
X_33P/50V/4

X_33P/50V/4

CLK_VDD

R207

R207

R164

R164

10K/4

10K/4

10K/4

10K/4

R158 33R/4R158 33R/4

OSC14M_REFOUT

RN40 8P4R-0R0402RN40 8P4R-0R0402

7 8
5 6
3 4
1 2

RN30

RN30

1 2
3 4
5 6
7 8

R184 0RR184 0R
R185 0RR185 0R
R189 0RR189 0R
R190 0RR190 0R

PCI_EX3CLK_R
PCI_EX3CLK#_R

CLK FREQ

8P4R-0R0402

8P4R-0R0402

R160 33R/4R160 33R/4

C248

C248
X_33P/50V/4

X_33P/50V/4

LANCLK0
LANCLK0#

PCI_EX1CLK
PCI_EX1CLK#

LANCLK0
LANCLK0#

SBSRCCLK

SBLINKCLK

SBLINKCLK#
GFXCLK#

GFXCLK
NBSRCCLK#
NBSRCCLK

R172 0RR172 0R
R173 0RR173 0R

SB_OSC_14M 14

1

PCI_EX3CLK
PCI_EX3CLK#

GFXCLK
GFXCLK#

NBSRCCLK
NBSRCCLK#

SBSRCCLK
SBSRCCLK#

SBLINKCLK
SBLINKCLK#

PCI_EX1CLK
PCI_EX1CLK#

LANCLK0
LANCLK0#

7 8

RN39

RN39

5 6
3 4
1 2

RN29 X_49.9_8P4RRN29 X_49.9_8P4R

1 2
3 4
5 6
7 8

R197 X_49.9RR197 X_49.9R
R196 X_49.9RR196 X_49.9R
R199 X_49.9RR199 X_49.9R
R198 X_49.9RR198 X_49.9R

SIO_CLK_R

NB_OSC_14M 13

C294X_C10P50N C294X_C10P50N

C327X_C10P50N C327X_C10P50N

是否去掉？

R331 X_10K/4R331 X_10K/4

PCI_EX3CLK
PCI_EX3CLK#

C250

C250
X_33P/50V/4

X_33P/50V/4

X_49.9_8P4R

X_49.9_8P4R

PCI_EX3CLK 19
PCI_EX3CLK# 19

GFXCLK 19
GFXCLK# 19

NBSRCCLK 13
NBSRCCLK# 13

SBSRCCLK 15
SBSRCCLK# 15

SBLINKCLK 13
SBLINKCLK# 13

PCI_EX1CLK 19
PCI_EX1CLK# 19

LANCLK0 21
LANCLK0# 21

CLK_VDD

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

12 36Friday, February 23, 2007

of

12 36Friday, February 23, 2007

of

12 36Friday, February 23, 2007

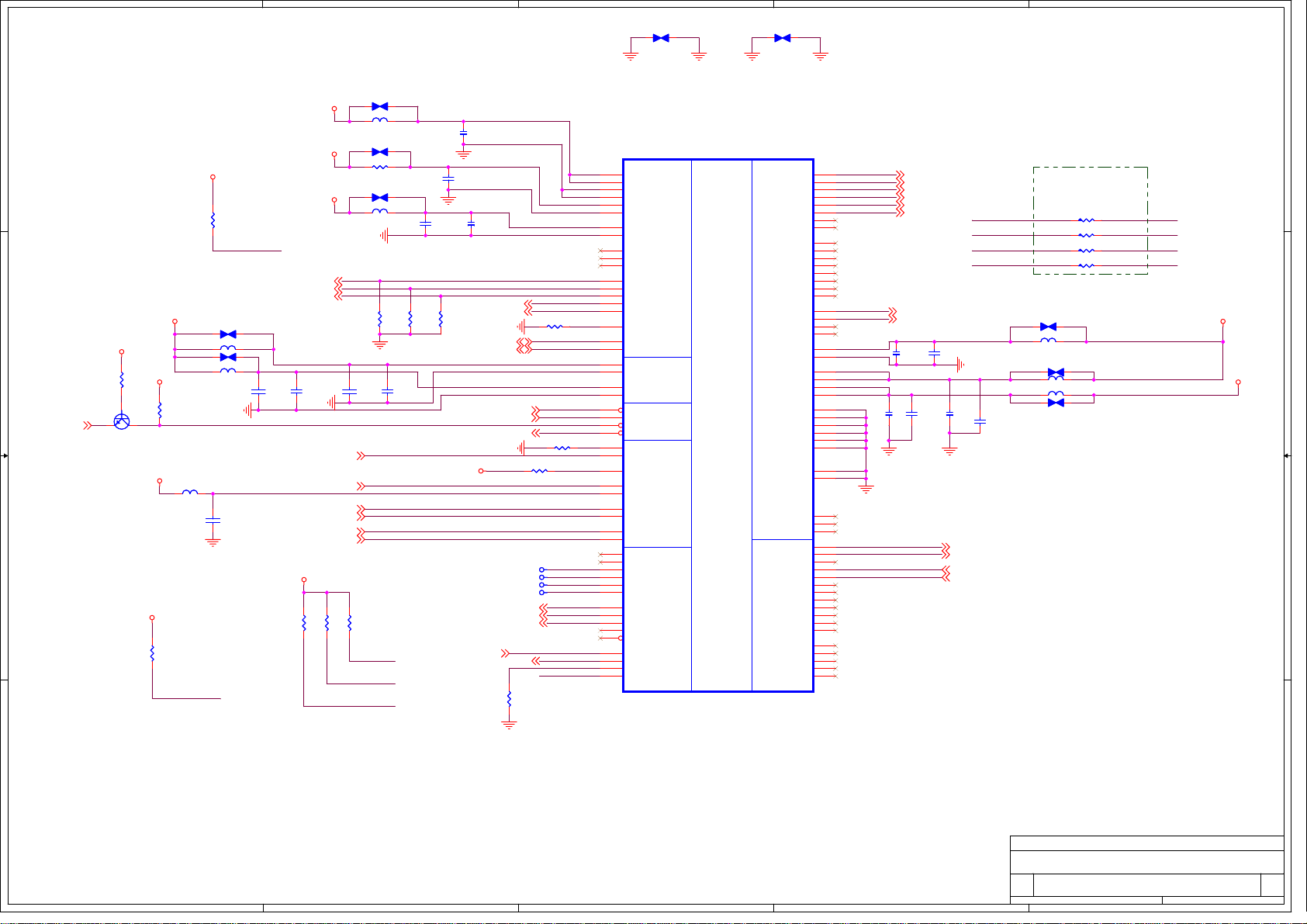

5

4

3

2

1

1 2

CP11CP11

1 2

CP23CP23

LPVSSAVSSQ

NOTE: CONNECT TO GND CLOSE TO FIRST CAP

VCC3

D D

+1.8V_S0

VCC3

+1.8V_S0

R234

R234

4.7K/4

4.7K/4

DAC_SCL

R29
G29
B29

+1.8V_S0

CP25CP25

C C

LDT_STOP#3,15

B B

+1.8V_S0

R249

R249

4.7K/4

4.7K/4

Q34

Q34
N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

R239

R239

2K/4

2K/4

VCC3

VCCA_1V2

VCC3

1 2

L32 X_500mALL32 X_500mAL

CP7CP7

1 2

L15 X_500mALL15 X_500mAL

R257

R257
1K/4

1K/4

L30 500mALL30 500mAL

STRP_DATA

C312

C312

_4.7u/10V/8

_4.7u/10V/8

C246

C246

2.2u/6.3V/6

2.2u/6.3V/6

R233

R233

4.7K/4

4.7K/4

100nF/4

100nF/4

NB_OSC_14M12

NBSRCCLK12
NBSRCCLK#12

SBLINKCLK12
SBLINKCLK#12

VCC3

C243

C243

HTREFCLK12

4.7K/4

4.7K/4

R245

R245

I2C_DATA

150R/1/4

150R/1/4

2.2u/6.3V/6

2.2u/6.3V/6

LDT_STOP_NB#

R256

R256

I2C_CLK

CP13CP13

1 2

L19 X_500mALL19 X_500mAL

1 2

R181 X_500mALR181 X_500mAL

1 2

L21 X_500mALL21 X_500mAL

AVSSQ

R170

R170

R168

R168

150R/1/4

150R/1/4

C344

C344

C340

C340
100nF/4

100nF/4

4.7K/4

4.7K/4

DDC_DATA DDC_DATA

CP20CP20

CP15CP15

R163

R163

150R/1/4

150R/1/4

AVDD

C252

C252

2.2u/6.3V/6

2.2u/6.3V/6

R
G
B

TMDS_HPD129

AVDD

C260

C260

0.1u/16V/4

0.1u/16V/4

C296

C296

0.1u/16V/4

0.1u/16V/4

ALLOW_LDTSTOP15

VCC3

AVDDDI

AVDDQ

C254

C254
100nF/4

100nF/4

DAC_SCL29
DAC_SDAT29

PCI_RST1#20,25
NB_PWRGD14,25

DDC_DATA29

VSYNC#29
HSYNC#29

BMREQ#15
I2C_CLK29
I2C_DATA29

R176 715RR176 715R

PLLVDD

R246 10K/4R246 10K/4

TP28TP28
TP29TP29
TP30TP30
TP31TP31

STRP_DATA

R237

R237

4.7K/4

4.7K/4

I2C_CLK
I2C_DATA

R15310K/4 R15310K/4

RSET

AA15
AB15

B22
C22
G17
H17
A20
B20

A21
A22

C21
C20
D19

E19
F19
G19

B21

A10
B10

B24
B25

C10
C11

C23
B23

B11
A11

C14

C6

A5

B6
A6

C5

B5

C2

F2
E1

G1
G2

D6
D7
C8
C7

B8
A8

B2
A2
B4

B3

C3

A3

U12C

U12C

RS690

RS690

AVDD1
AVDD2
AVSSN1
AVSSN2
AVDDDI
AVSSDI

AVDDQ
AVSSQ

C_R
Y_G
COMP_B

RED
GREEN
BLUE
DACVSYNC
DACHSYNC

RSET
DACSCL

DACSDA
PLLVDD

PLLVSS
HTPVDD

HTPVSS
SYSRESET#

POWERGOOD
LDTSTOP#
ALLOW_LDTSTOP

HTTSTCLK
HTREFCLK

TVCLKIN
OSCIN

OSCOUT
GFX_CLKP

GFX_CLKN
SB_CLKP

SB_CLKN
DFT_GPIO0

DFT_GPIO1
DFT_GPIO2
DFT_GPIO3
DFT_GPIO4
DFT_GPIO5

BMREQb
I2C_CLK
I2C_DATA
THERMALDIODE_P
THERMALDIODE_N

TMDS_HPD
DDC_DATA
TESTMODE
STRP_DATA

PART 3 OF 5

PART 3 OF 5

CRT/TVOUT

CRT/TVOUT

PLL PWR

PLL PWR

PM

PM

CLOCKs

CLOCKs

MIS.

MIS.

TXOUT_L0P
TXOUT_L0N
TXOUT_L1P
TXOUT_L1N
TXOUT_L2P
TXOUT_L2N
TXOUT_L3P
TXOUT_L3N

TXOUT_U0P
TXOUT_U0N
TXOUT_U1P
TXOUT_U1N
TXOUT_U2P
TXOUT_U2N
TXOUT_U3P
TXOUT_U3N

TXCLK_LP

TXCLK_LN
TXCLK_UP
TXCLK_UN

LVTMDVO

LVTMDVO

LPVDD
LPVSS

LVDDR18D_1
LVDDR18D_2
LVDDR18A_1
LVDDR18A_2

LVSSR1
LVSSR3
LVSSR5
LVSSR6
LVSSR7
LVSSR8

LVSSR12
LVSSR13

LVDS_DIGON

LVDS_BLON

LVDS_BLEN

DVO_D0
DVO_D1
DVO_D2
DVO_D3
DVO_D4
DVO_D5
DVO_D6
DVO_D7
DVO_D8

DVO_D9
DVO_D10
DVO_D11

DVO_VSYNC

DVO_DE

DVO_HSYNC

DVO_IDCKP

DVO_IDCKN

B14
B15
B13
A13
H14
G14
D17
E17

A15
B16
C17
C18
B17
A17
A18
B18

E15
D15
H15
G15

D14
E14

A12
B12
C12
C13

A16
A14
D12
C19
C15
C16

F14
F15

E12
G12
F12

AD14
AD15
AE15
AD16
AE16
AC17
AD18
AE19
AD19
AE20
AD20
AE21

AD13
AC13
AE13
AE17
AD17

TMDS_00P 29
TMDS_00N 29
TMDS_01P 29
TMDS_01N 29
TMDS_02P 29
TMDS_02N 29

TMDS_01N
TMDS_02N
TMDS_CLKN

TMDS_CLKP 29
TMDS_CLKN 29

X_2.2u/6.3V/6

X_2.2u/6.3V/6

C320

C320

L29 X_500mALL29 X_500mAL

LPVDD

LVDDR18D

LVDDR18AHTPVDD

C321

C321

C319 X_2.2u/6.3V/6C319 X_2.2u/6.3V/6

C324

C324

X_0.1u/16V/4

X_0.1u/16V/4

LPVSS





PE3_TX 19
PE3_TX* 19

PE3_RX 19
PE3_RX* 19

X_0.1u/16V/4

X_0.1u/16V/4

X_2.2u/6.3V/6

X_2.2u/6.3V/6

C351

C351

X_0.1u/16V/4

X_0.1u/16V/4

1. Each LVSSR ball should connect to GND
through seperated via.

2. LPVSS connect to GND through dedicated via.

PLACE WITHIN

0.7" OF NB BALLS

R426 82.5R1%0402R426 82.5R1%0402
R431 82.5R1%0402R431 82.5R1%0402
R434 82.5R1%0402R434 82.5R1%0402
R440 82.5R1%0402R440 82.5R1%0402

CP27CP27

1 2

CP29CP29

1 2

L27 X_500mALL27 X_500mAL
L33 X_500mALL33 X_500mAL

CP30CP30

1 2

TMDS_00PTMDS_00N
TMDS_01P
TMDS_02P
TMDS_CLKP

+1.8V_S0

VCC3

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

13 36Friday, February 23, 2007

of

13 36Friday, February 23, 2007

of

13 36Friday, February 23, 2007

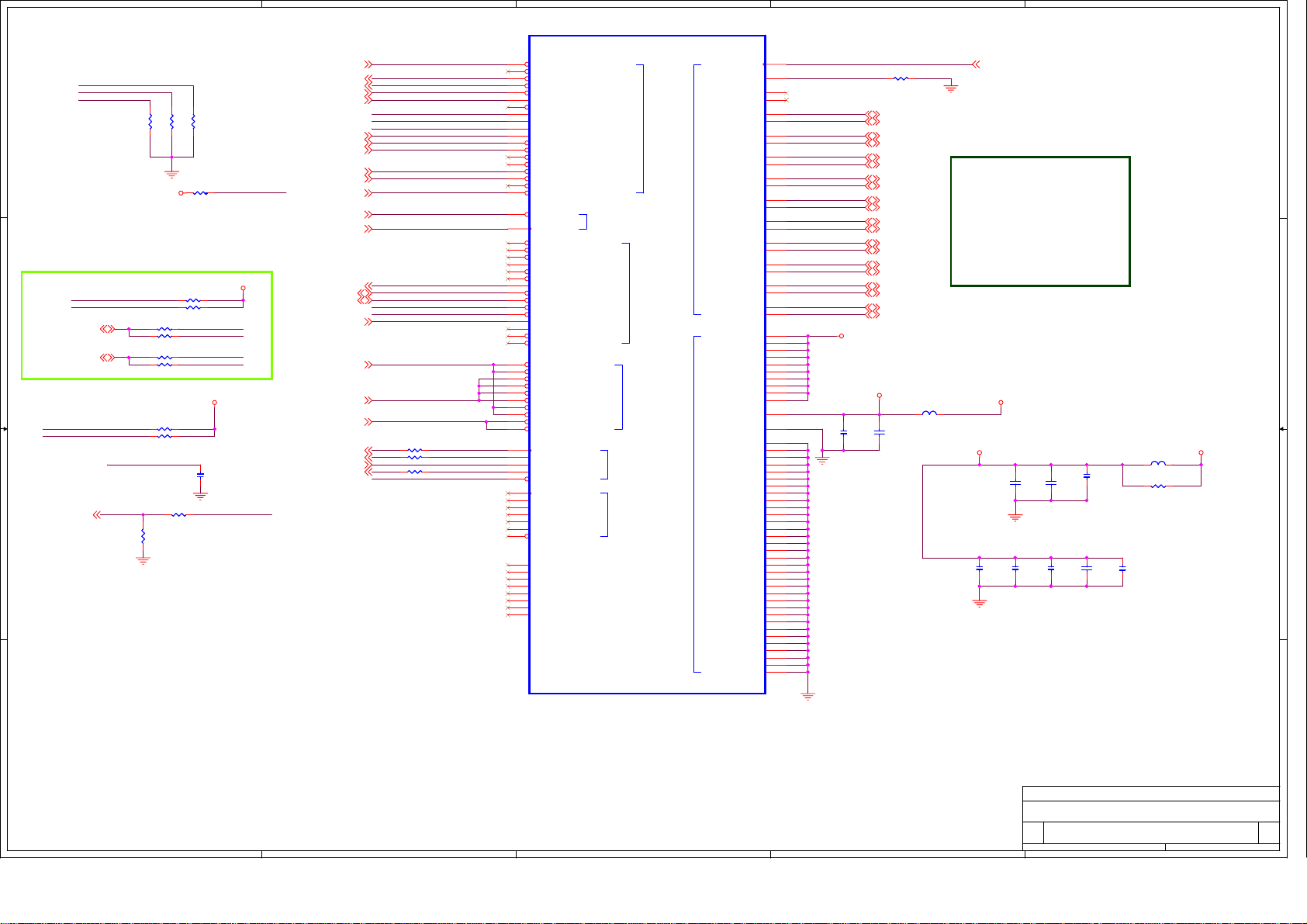

5

PCI_PME#18,30

SB_TEST0
SB_TEST1
SB_TEST2

D D

SB600_SCL1
SB600_SDA1

C C

B B

SCL
SDA

SCLK119,25

SDATA119,25

AZ_BIT_CLK

AZ_RST#22

R354

R354

R353

R353

R362

R362

10K/4

10K/4

10K/4

10K/4

10K/4

10K/4

3VDUAL

R392 2.2K/4R392 2.2K/4
R404 2.2K/4R404 2.2K/4

R290 0/4R290 0/4
R391 X_0/4R391 X_0/4

R286 X_0/4R286 X_0/4
R287 0/4R287 0/4

R314 2.2K/4R314 2.2K/4
R288 2.2K/4R288 2.2K/4

C570

C570

33P/50V/4

33P/50V/4

R405 33/4R405 33/4

R393

R393
10K/4

10K/4

R244

R244

4.7K/4

4.7K/4

SCL
SB600_SCL1

SB600_SDA1
SDA

VCC3

SB600_AZ_RST#

CPU_THRIP#

3VDUAL

SLP_S3#20,25
SLP_S5#25

PWRBTIN20

NB_PWRGD13,25

A20GATE20
KBRST#20

LPC_PME#20

FP_RST#12,25,28

PCIE_WAKE_UP#19,21

CPU_THRIP#3

RSMRST#25

SB_OSC_14M12

SPKR28

SCL6,7,12

SDA6,7,12

PD_DET27

USB_OCP#231

USB_OCP#331

USB_OCP#131

AZ_BIT_CLK22

AZ_SDATA_OUT22

ACZ_SDATA_IN322

AZ_SYNC22

4

SB_TEST2
SB_TEST1
SB_TEST0
A20GATE
KBRST#
LPC_PME#

CPU_THRIP#

RSMRST#

shutdown#做PCI-E 的Reset

SB600_SCL1
SB600_SDA1

R425 33/4R425 33/4
R432 33/4R432 33/4

R456 33/4R456 33/4

SB600_AZ_RST#

AZ_BIT_CLK_R
AZ_SDATA_OUT_R

AZ_SYNC1

3

U22D

U22D

Part 4 of 4

SB600 SB 23x23mm

A3

PCI_PME#/GEVENT4#

B2

RI#/EXTEVNT0#

F7

SLP_S3#

A5

SLP_S5#

E3

PWR_BTN#

B5

PWR_GOOD

B3

SUS_STAT#

F9

TEST2

E9

TEST1

G9

TEST0

AF26

GA20IN

AG26

KBRST#

D7

LPC_PME#/GEVENT3#

C25

LPC_SMI#/EXTEVNT1#

D9

S3_STATE/GEVENT5#

F4

SYS_RESET#/GPM7#

E7

WAKE#/GEVENT8#

C2

BLINK/GPM6#

G7

SMBALERT#/THRMTRIP#/GEVENT2#

E2

RSMRST#

B23

14M_OSC

C28

SATA_IS0#/GPIO10

A26

ROM_CS#/GPIO1

B29

GHI#/SATA_IS1#/GPIO6

A23

WD_PWRGD/GPIO7

B27

SMARTVOLT/SATA_IS2#/GPIO4

D23

？

SHUTDOWN#/GPIO5

B26

SPKR/GPIO2

C27

SCL0/GPOC0#

B28

SDA0/GPOC1#

C3

SCL1/GPOC2#

F3

SDA1/GPOC3#

D26

DDC1_SCL/GPIO9

C26

DDC1_SDA/GPIO8

A27

SSMUXSEL/SATA_IS3#/GPIO0

A4

LLB#/GPIO66

C6

USB_OC9#/SLP_S2/GPM9#

C5

USB_OC8#/AZ_DOCK_RST#/GPM8#

C4

USB_OC7#/GEVENT7#

B4

USB_OC6#/GEVENT6#

B6

USB_OC5#/DDR3_RST#/GPM5#

A6

USB_OC4#/GPM4#

C8

USB_OC3#/GPM3#

C7

USB_OC2#/GPM2#

B8

USB_OC1#/GPM1#

A8

USB_OC0#/GPM0#

N2

AZ_BITCLK

M2

AZ_SDOUT

K2

AZ_SDIN3/GPIO46

L3

AZ_SYNC

K3

AZ_RST#

L1

AC_BITCLK/GPIO38

L2

AC_SDOUT/GPIO39

L4

ACZ_SDIN0/GPIO42

J2

ACZ_SDIN1/GPIO43

J4

ACZ_SDIN2/GPIO44

M3

AC_SYNC/GPIO40

L5

AC_RST#/GPIO45

E23

NC1

AC21

NC2

AD7

NC3

AE7

NC4

AA4

NC5

T4

NC6

D4

NC7

AB19

NC8

ATI-SB600-218S6ECLA13FG-A13-RH

ATI-SB600-218S6ECLA13FG-A13-RH

SB600 SB 23x23mm

ACPI / WAKE UP EVENTS

ACPI / WAKE UP EVENTS

OSC / RST

OSC / RST

GPIO

GPIO

USB OC

USB OC

AC97 AZALIA

AC97 AZALIA

Part 4 of 4

USB INTERFACE

USB INTERFACE

USB PWR

USB PWR

USBCLK
USB_RCOMP
USB_ATEST1

USB_ATEST0

USB_HSDP9+
USB_HSDM9-

USB_HSDP8+
USB_HSDM8-

USB_HSDP7+
USB_HSDM7-

USB_HSDP6+
USB_HSDM6-

USB_HSDP5+
USB_HSDM5-

USB_HSDP4+
USB_HSDM4-

USB_HSDP3+
USB_HSDM3-

USB_HSDP2+
USB_HSDM2-

USB_HSDP1+
USB_HSDM1-

USB_HSDP0+
USB_HSDM0-

AVDDTX_0
AVDDTX_1
AVDDTX_2
AVDDTX_3
AVDDTX_4
AVDDRX_0
AVDDRX_1
AVDDRX_2
AVDDRX_3
AVDDRX_4

AVDDC

AVSSC

AVSS_USB_1
AVSS_USB_2
AVSS_USB_3
AVSS_USB_4
AVSS_USB_5
AVSS_USB_6
AVSS_USB_7
AVSS_USB_8

AVSS_USB_9
AVSS_USB_10
AVSS_USB_11
AVSS_USB_12
AVSS_USB_13
AVSS_USB_14
AVSS_USB_15
AVSS_USB_16
AVSS_USB_17
AVSS_USB_18
AVSS_USB_19
AVSS_USB_20
AVSS_USB_21
AVSS_USB_22
AVSS_USB_23
AVSS_USB_24
AVSS_USB_25
AVSS_USB_26
AVSS_USB_27
AVSS_USB_28
AVSS_USB_29
AVSS_USB_30
AVSS_USB_31
AVSS_USB_32
AVSS_USB_33

A17

USB_RCOMP

A14
A11

A10
H12

G12
E12

D12
E14

D14
G14

H14
D16

E16
D18

E18
G16

H16
G18

H18
D19

E19
G19

H19

B9
B11
B13
B16
B18
A9
B10
B12
B14
B17

A12
A13
A16

C9
C10
C11
C12
C13
C14
C16
C17
C18
C19
C20
D11
D21
E11
E21
F11
F12
F14
F16
F18
F19
F21
G11
G21
H11
H21
J11
J12
J14
J16
J18
J19

AVDD_USB

C497

C497

0.1u/16V/4

0.1u/16V/4

R350 11.8K/4R350 11.8K/4

USBP9 31
USBN9 31

USBP8 31
USBN8 31

USBP7 31
USBN7 31

USBP6 31
USBN6 31

USBP5 31
USBN5 31

USBP4 31
USBN4 31

USBP3 31
USBN3 31

USBP2 31
USBN2 31

USBP1 31
USBN1 31

USBP0 31
USBN0 31

+3.3V_AVDDC

C491

C491
X_1u/6.3V/4

X_1u/6.3V/4

2

L28 500mALL28 500mAL

USBCLK_EXT 12

USB9 FRONT PANEL
USB8 FRONT PANEL
USB7 FRONT PANEL
USB6 FRONT PANEL
USB5 FRONT PANEL
USB4 FRONT PANEL
USB3 LAN USB
USB2 LAN USB
USB1 REAR
USB0 REAR

3VDUAL

AVDD_USB

C505

C505
1u/6.3V/4

1u/6.3V/4

C509

C509

C510

C510

X_0.1u/16V/4

X_0.1u/16V/4

X_0.1u/16V/4

X_0.1u/16V/4

C476

C476
1u/6.3V/4

1u/6.3V/4

C486

C486

X_0.1u/16V/4

X_0.1u/16V/4

C480

C480
10u/10V/8

10u/10V/8

C477

C477
1u/6.3V/4

1u/6.3V/4

1

L48

L48
28L900m_100_0805

28L900m_100_0805

R289 0/4R289 0/4

C483

C483
10u/10V/8

10u/10V/8

3VDUAL

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

14 36Thursday, February 22, 2007

of

14 36Thursday, February 22, 2007

of

14 36Thursday, February 22, 2007

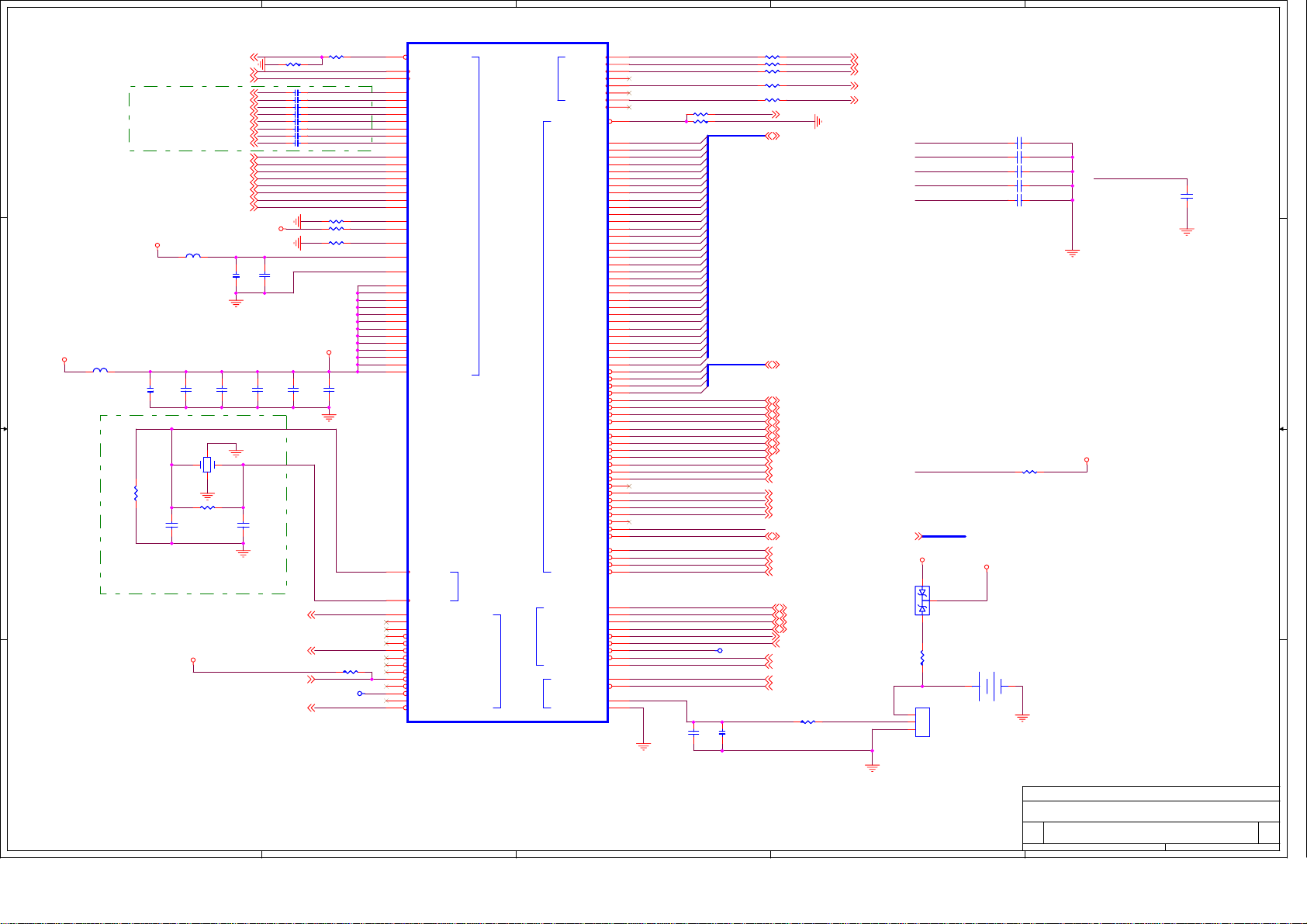

5

A_RST#

A_RST#25
SBSRCCLK12

SBSRCCLK#12

A_RX0P9
A_RX0N9

D D

C C

VCCA_1V2

L49 500mALL49 500mAL

B B

A A

PLACE PCIE CAPS
CLOSE TO U22

VCCA_1V2

L43 500mALL43 500mAL

C393

C393

10u/10V/8

10u/10V/8

R408

R408
20M/6

20M/6

12

PLACE THESE COMPONENTS CLOSE TO U22, AND
USE GROUND GUARD FOR 32K_X1 AND 32K_X2

CPU_PWR_SB

A_RX1P9
A_RX1N9 PCIRST# 18,30
A_RX2P9
A_RX2N9
A_RX3P9
A_RX3N9

A_TX0P9
A_TX0N9
A_TX1P9

A_TX1N9
A_TX2P9
A_TX2N9
A_TX3P9
A_TX3N9

PCIE_VDDR

C442

C442

X_10u/10V/8

X_10u/10V/8

C448

C448

C446

C446

0.1u/6.3V/4

0.1u/6.3V/4

1u/6.3V/4

1u/6.3V/4

32K_X1

32K_X2

21

Y5

Y5

32.768KHZ12.5P_D

32.768KHZ12.5P_D

3 4

R406 20M/6R406 20M/6

C541

C541
C18P50N

C18P50N

12

ALLOW_LDTSTOP13

C527

C527
C18P50N

C18P50N

LDT_PWRGD3

LDT_STOP#3,13

R371 X_8.2K/4R371 X_8.2K/4

C437 0.1u/10/4C437 0.1u/10/4
C438 0.1u/10/4C438 0.1u/10/4
C452 0.1u/10/4C452 0.1u/10/4
C449 0.1u/10/4C449 0.1u/10/4
C450 0.1u/10/4C450 0.1u/10/4
C451 0.1u/10/4C451 0.1u/10/4
C440 0.1u/10/4C440 0.1u/10/4
C439 0.1u/10/4C439 0.1u/10/4

562R/1/4

562R/1/4

C453

C453
1u/6.3V/4

1u/6.3V/4

C447

C447

C433

C433

0.1u/6.3V/4

0.1u/6.3V/4

X_1u/6.3V/4

X_1u/6.3V/4

LDT_RST#3

R370 33/4R370 33/4

R276

R276
R293

R293

2.05K/1/4

2.05K/1/4
R322 0/4R322 0/4

PCIE_VDD

PCIE_VDDR

C441

C441
X_1u/6.3V/4

X_1u/6.3V/4

R326 10K/4R326 10K/4

A_RST#1

A_RX0P_C
A_RX0N_C
A_RX1P_C
A_RX1N_C
A_RX2P_C
A_RX2N_C
A_RX3P_C
A_RX3N_C

PCIE_CARLP
PCIE_CARLN

PCIE_CALI

32K_X1

32K_X2

TP2TP2

LDT_RST#

4

U22A

U22A

AG10

A_RST#

J24

PCIE_RCLKP

J25

PCIE_RCLKN

P29

PCIE_TX0P

P28

PCIE_TX0N

M29

PCIE_TX1P

M28

PCIE_TX1N

K29

PCIE_TX2P

K28

PCIE_TX2N

H29

PCIE_TX3P

H28

PCIE_TX3N

T25

PCIE_RX0P

T26

PCIE_RX0N

T22

PCIE_RX1P

T23

PCIE_RX1N

M25

PCIE_RX2P

M26

PCIE_RX2N

M22

PCIE_RX3P

M23

PCIE_RX3N

E29

PCIE_CALRP

E28

PCIE_CALRN

E27

PCIE_CALI

U29

PCIE_PVDD

U28

PCIE_PVSS

F27

PCIE_VDDR_1

F28

PCIE_VDDR_2

F29

PCIE_VDDR_3

G26

PCIE_VDDR_4

G27

PCIE_VDDR_5

G28

PCIE_VDDR_6

G29

PCIE_VDDR_7

J27

PCIE_VDDR_8

J29

PCIE_VDDR_9

L25

PCIE_VDDR_10

L26

PCIE_VDDR_11

L29

PCIE_VDDR_12

N29

PCIE_VDDR_13

D2

X1

C1

X2

AC26

CPU_PG/LDT_PG

W26

INTR/LINT0

W24

NMI/LINT1

W25

INIT#

AA24

SMI#

AA23

SLP#/LDT_STP#

AA22

IGNNE#/SIC

AA26

A20M#/SID

Y27

FERR#

AA25

STPCLK#/ALLOW_LDTSTP

AH9

CPU_STP#/DPSLP_3V#

B24

DPSLP_OD#/GPIO37

W23

DPRSLPVR

AC25

LDT_RST#/DPRSTP#/PROCHOT#

ATI-SB600-218S6ECLA13FG-A13-RH

ATI-SB600-218S6ECLA13FG-A13-RH

SB600 SB 23x23mm

SB600 SB 23x23mm

XTAL

XTAL

Part 1 of 4

Part 1 of 4

SPDIF_OUT/PCICLK7/GPIO41

PCI EXPRESS INTERFACE

PCI EXPRESS INTERFACE

PCI INTERFACE

PCI INTERFACE

LPC

LPC

LDRQ1#/GNT5#/GPIO68

BMREQ#/REQ5#/GPIO65

CPU

CPU

RTC

RTC

PCICLK0
PCICLK1
PCICLK2
PCICLK3
PCICLK4
PCICLK5

PCI CLKS

PCI CLKS

PCICLK6

PCIRST#

AD0/ROMA18
AD1/ROMA17
AD2/ROMA16
AD3/ROMA15
AD4/ROMA14
AD5/ROMA13
AD6/ROMA12
AD7/ROMA11

AD8/ROMA9

AD9/ROMA8
AD10/ROMA7
AD11/ROMA6
AD12/ROMA5
AD13/ROMA4
AD14/ROMA3
AD15/ROMA2
AD16/ROMD0
AD17/ROMD1
AD18/ROMD2
AD19/ROMD3
AD20/ROMD4
AD21/ROMD5
AD22/ROMD6
AD23/ROMD7

AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

CBE0#/ROMA10

CBE1#/ROMA1

CBE2#/ROMWE#

CBE3#

FRAME#

DEVSEL#/ROMA0

IRDY#

TRDY#/ROMOE#

PAR/ROMA19

STOP#
PERR#
SERR#
REQ0#
REQ1#

REQ2#
REQ3#/GPIO70
REQ4#/GPIO71

GNT0#

GNT1#

GNT2#
GNT3#/GPIO72
GNT4#/GPIO73

CLKRUN#

LOCK#

INTE#/GPIO33

INTF#/GPIO34
INTG#/GPIO35
INTH#/GPIO36

LAD0
LAD1
LAD2
LAD3

LFRAME#

LDRQ0#

SERIRQ

RTCCLK

RTC_IRQ#/GPIO69

VBAT

RTC_GND

U2
T2
U1
V2
W3
U3
V1
T1

AJ9

W7
Y1
W8
W5
AA5
Y3
AA6
AC5
AA7
AC3
AC7
AJ7
AD4
AB11
AE6
AC9
AA3
AJ4
AB1
AH4
AB2
AJ3
AB3
AH3
AC1
AH2
AC2
AH1
AD2
AG2
AD1
AG1

PCI_CBE#0

AB9

PCI_CBE#1

AF9

PCI_CBE#2

AJ5

PCI_CBE#3

AG3
AA2
AH6
AG5
AA1
AF7
Y2
AG8
AC11
AJ8
AE2
AG9
AH8
AH5
AD11
AF2
AH7
AB12
AG4
AG7
AF6

AD3
AF1
AF4
AF3

AG24
AG25
AH24
AH25
AF24
AJ24

SB600_PCI_GNT5#

AH26
W22
AF23

D3
F5

E1
D1

3

CK_P_33M1394
PCICLK4

R377 33R/4R377 33R/4
R504 X_8.2K/4R504 X_8.2K/4

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

VBAT_IN

AD[31..0]

PCI_CBE#[3..0]

PCI_CLKRUN#

C458

C458
1u/6.3V/4

1u/6.3V/4

R409 33R/4R409 33R/4
R410 33R/4R410 33R/4
R417 33R/4R417 33R/4

R424 22R/4R424 22R/4
R420 22R/4R420 22R/4

TP37TP37

C581

C581

0.1u/16V/4

0.1u/16V/4

PCI_CLK0PCICLK0
PCI_CLK1PCICLK1

PCI_CLK4
PCI_CLK6PCICLK6

AD[31..0] 18,23,30

PCI_CBE#[3..0] 18,30

PCI_FRAME# 18,30
PCI_DEVSEL# 18,30
PCI_IRDY# 18,30
PCI_TRDY# 18,30
PCI_PAR 18,30
PCI_STOP# 18,30
PCI_PERR# 18,30
PCI_SERR# 18
PCI_REQ#0 18
PCI_REQ#1 18
PCI_REQ#2 18
PCI_REQ#3 18,30

PCI_GNT#0 18
PCI_GNT#1 18
PCI_GNT#2 18
PCI_GNT#3 30

PCI_LOCK# 18
PCI_INTA# 18,30

PCI_INTB# 18
PCI_INTC# 18
PCI_INTD# 18

LPC_AD0 20
LPC_AD1 20
LPC_AD2 20
LPC_AD3 20
LPC_FRAME# 20
LPC_DRQ#0 20

BMREQ# 13

SERIRQ 20

RTC_CLK 23
AUTO_ON# 23

R335 499R/4R335 499R/4

2

PCI_CLK0 18,23
PCI_CLK1 18,23
CK_P_33M_1394 30

PCI_CLK4 18,23
PCI_CLK6 20,23

LPC_AD[3..0]20

3VDUAL

PCI_CLK0
PCI_CLK1
PCI_CLK4
PCI_CLK6
CK_P_33M_1394

PCI_CLKRUN#

12

3

D19

D19
S-BAT54C_SOT23

S-BAT54C_SOT23

R336

R336
1K/4

1K/4

1
2
3

JBAT1JBAT1

20mil

For EMI

VBAT

VBAT1

VBAT1

BAT-2P_SO41

BAT-2P_SO41

1 2

C580 33P/50V/4C580 33P/50V/4

12

C571 33P/50V/4C571 33P/50V/4

12

C565 33P/50V/4C565 33P/50V/4

12

C559 33P/50V/4C559 33P/50V/4

12

C574 33P/50V/4C574 33P/50V/4

12

R390 10K/4R390 10K/4

VCC3

PCI_CLK6

1

12

C596

C596
15/50V/4

15/50V/4

FOR SB600

Title

Title

Title

<Title>

<Title>

Normal --> 1-2
Clear CMOS -->2-3

5

4

3

2

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

Date: Sheet

1

of

15 36Friday, February 23, 2007

of

15 36Friday, February 23, 2007

of

15 36Friday, February 23, 2007

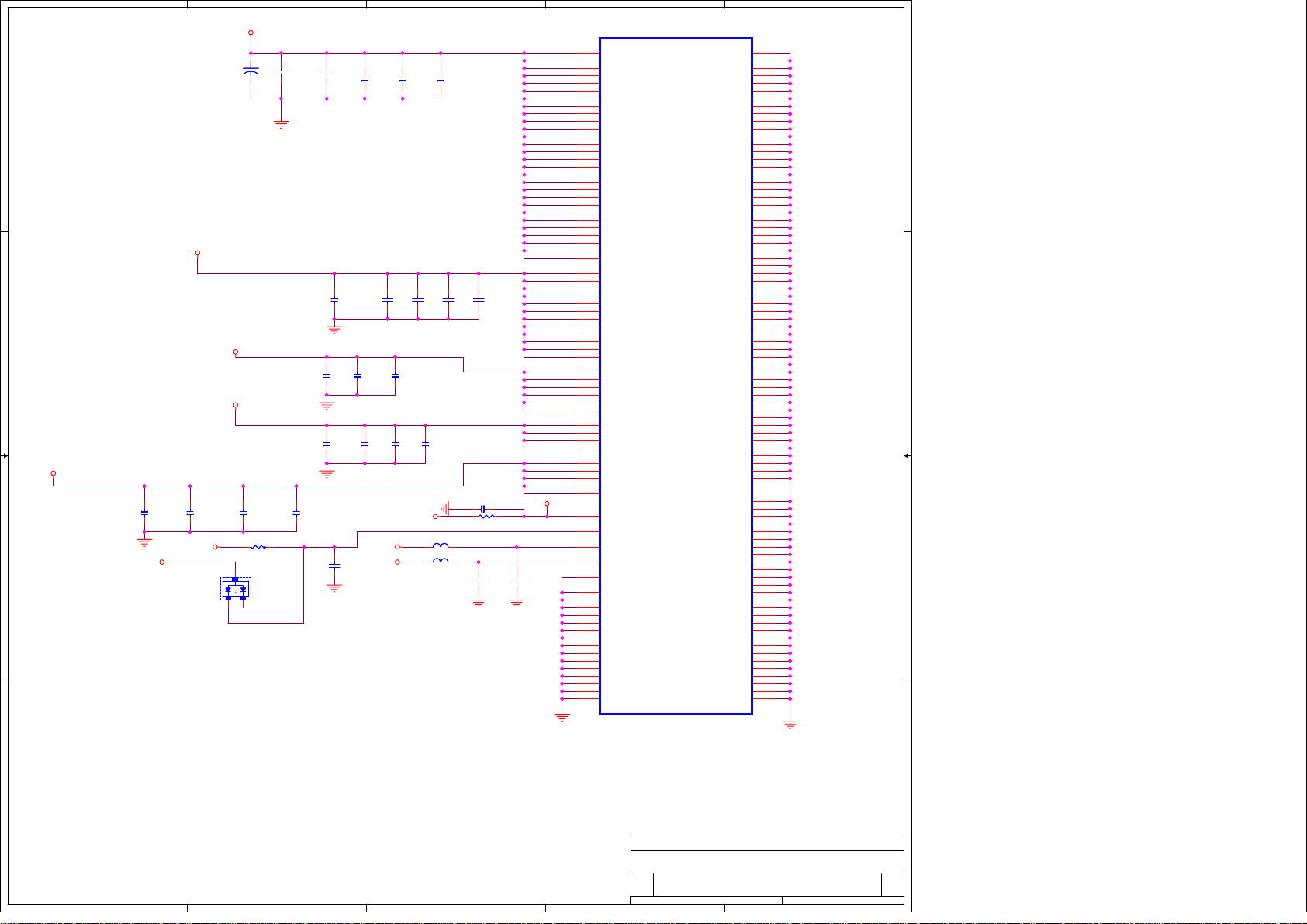

5

D D

VCCA_1V2

C470

C470
X_0.1u/16V/4

X_0.1u/16V/4

VCC5

SOT23

SOT23

3VDUAL

USB_PHY

231

C C

USB_PHY

C474

C474
C10U/8

C10U/8

B B

VCC3

VCC3

+

+

EC37

EC37
1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

C471

C471

0.1u/16V/4

0.1u/16V/4

R384 1K/4R384 1K/4

D20

D20
BAT54A-S-SOT23

BAT54A-S-SOT23

4

C658

C658
1u/10V/6

1u/10V/6

C392

C392
C10U/8

C10U/8

C554

C554
C10U/8

C10U/8

0.1u/16V/4

0.1u/16V/4

C659

C659

0.1u/16V/6

0.1u/16V/6

V5_VREF

C666

C666
1u/10V/6

1u/10V/6

0.1u/16V/4

0.1u/16V/4

C561

C561

X_0.1u/16V/4

X_0.1u/16V/4

VCCA_1V2

C515

C515
X_1u/6.3V/4

X_1u/6.3V/4

C556

C556

0.1u/16V/4

0.1u/16V/4

1u/10V/6

1u/10V/6

C555

C555

C562

C562

VCC3

C557

C557

0.1u/16V/4

0.1u/16V/4

C661

C661

1u/6.3V/4

1u/6.3V/4

C665

C665

0.1u/16V/6

0.1u/16V/6

C548

C548

X_0.1u/16V/4

X_0.1u/16V/4

+1.8V_S0

3

C572

C572

0.1u/16V/4

0.1u/16V/4

C388

C388

C662

C662

1u/10V/6

1u/10V/6

C667

C667

0.1u/16V/6

0.1u/16V/6

C445 0.1u/16V/4C445 0.1u/16V/4
R320 0RR320 0R

L46 500mALL46 500mAL
L47 500mALL47 500mAL

1u/10V/6

1u/10V/6

C664

C664

C466

C466
1u/6.3V/4

1u/6.3V/4

CPU_PWR_SB

C461

C461
1u/6.3V/4

1u/6.3V/4

U22C

U22C

A25

SB600 SB 23x23mm

SB600 SB 23x23mm

VDDQ_1

A28

VDDQ_2

C29

VDDQ_3

D24

VDDQ_4

L9

VDDQ_5

L21

VDDQ_6

M5

VDDQ_7

P3

VDDQ_8

P9

VDDQ_9

T5

VDDQ_10

V9

VDDQ_11

W2

VDDQ_12

W6

VDDQ_13

W21

VDDQ_14

W29

VDDQ_15

AA12

VDDQ_16

AA16

VDDQ_17

AA19

VDDQ_18

AC4

VDDQ_19

AC23

VDDQ_20

AD27

VDDQ_21

AE1

VDDQ_22

AE9

VDDQ_23

AE23

VDDQ_24

AH29

VDDQ_25

AJ2

VDDQ_26

AJ6

VDDQ_27

AJ26

VDDQ_28

M13

VDD_1

M17

VDD_2

N12

VDD_3

N15

VDD_4

N18

VDD_5

R13

VDD_6

R17

VDD_7

U12

VDD_8

U15

VDD_9

U18

VDD_10

V13

VDD_11

V17

VDD_12

A2

S5_3.3V_1

A7

S5_3.3V_2

F1

S5_3.3V_3

J5

S5_3.3V_4

J7

S5_3.3V_5

K1

S5_3.3V_6

G4

S5_1.2V_1

H1

S5_1.2V_2

H2

S5_1.2V_3

H3

S5_1.2V_4

A18

USB_PHY_1.2V_1

A19

USB_PHY_1.2V_2

B19

USB_PHY_1.2V_3

B20

USB_PHY_1.2V_4

B21

USB_PHY_1.2V_5

AA27

CPU_PWR

AE11

V5_VREF

A24

AVDDCK_3.3V

A22

AVDDCK_1.2V

B22

AVSSCK

V29

PCIE_VSS_42

V28

PCIE_VSS_41

V27

PCIE_VSS_40

V26

PCIE_VSS_39

V25

PCIE_VSS_38

V24

PCIE_VSS_37

V23

PCIE_VSS_36

V22

PCIE_VSS_35

U27

PCIE_VSS_34

T29

PCIE_VSS_33

T28

PCIE_VSS_32

T27

PCIE_VSS_31

T24

PCIE_VSS_30

T21

PCIE_VSS_29

P27

PCIE_VSS_28

SB600 IXP600 A11, LF

SB600 IXP600 A11, LF

2

Part 3 of 4

Part 3 of 4

POWER

POWER

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57

PCIE_VSS_1
PCIE_VSS_2
PCIE_VSS_3
PCIE_VSS_4
PCIE_VSS_5
PCIE_VSS_6
PCIE_VSS_7
PCIE_VSS_8

PCIE_VSS_9
PCIE_VSS_10
PCIE_VSS_11
PCIE_VSS_12
PCIE_VSS_13
PCIE_VSS_14
PCIE_VSS_15
PCIE_VSS_16
PCIE_VSS_17
PCIE_VSS_18
PCIE_VSS_19
PCIE_VSS_20
PCIE_VSS_21
PCIE_VSS_22
PCIE_VSS_23
PCIE_VSS_24
PCIE_VSS_25
PCIE_VSS_26
PCIE_VSS_27

A1
A20
A21
A29
B1
B7
B25
C21
C22
C24
D6
E24
F2
F23
G1
J1
J8
L6
L8
M9
M12
M15
M18
N13
N17
P1
P6
P21
R12
R15
R18
T6
T9
U13
U17
V3
V8
V12
V15
V18
V21
W1
W9
Y29
AA11
AA14
AA18
AC6
AC24
AD9
AD23
AE3
AE27
AG6
AJ1
AJ25
AJ29

D27
D28
D29
F26
G23
G24
G25
H27
J23
J26
J28
K27
L22
L23
L24
L27
L28
M21
M24
M27
N27
N28
P22
P23
P24
P25
P26

1

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

Date: Sheet

2

of

16 36Tuesday, February 27, 2007

of

16 36Tuesday, February 27, 2007

of

16 36Tuesday, February 27, 2007

1

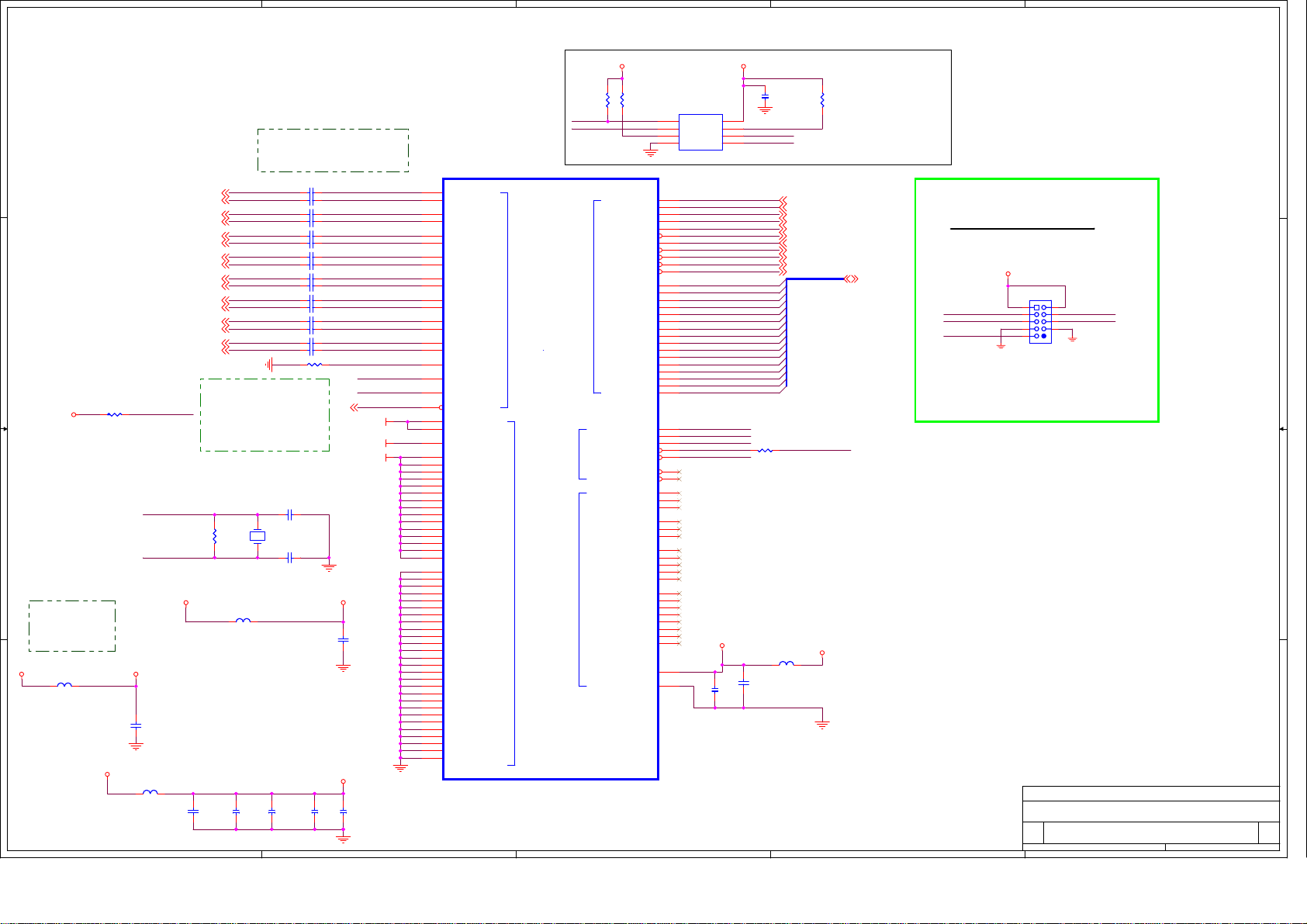

5

4

3

2

1

3VDUAL 3VDUAL

R444

R444

1K/4

D D

PLACE SATA AC COUPLING
CAPS CLOSE TO SB600

U22B

SATA_TX0+_C27

SATA_TX0-_C27
SATA_RX0-_C27

SATA_RX0+_C27
SATA_TX1+_C27

SATA_TX1-_C27
SATA_RX1-_C27

SATA_RX1+_C27
SATA_TX2+_C27

SATA_TX2-_C27
SATA_RX2-_C27

SATA_RX2+_C27

C C

R516 2.2K/4R516 2.2K/4

VCC3

B B

C490 CLOSE TO THE
BALL OF U22

VCC3 XTLVDD_SATA

L50 500mALL50 500mAL

A A

VCCA_1V2

SATA_TX3+_C27

SATA_TX3-_C27
SATA_RX3-_C27

SATA_RX3+_C27

SATA_ACT#

SATA_X1

SATA_X2

VCCA_1V2

C490

C490
1u/6.3V/4

1u/6.3V/4

L44 28L900m_100_0805L44 28L900m_100_0805

10U/1206

10U/1206

5

SATA_TX0+_C
SATA_TX0-_C

SATA_RX0-_C
SATA_RX0+_C

SATA_TX1+_C
SATA_TX1-_C

SATA_RX1-_C
SATA_RX1+_C

SATA_TX2+_C
SATA_TX2-_C

SATA_RX2-_C
SATA_RX2+_C

SATA_TX3+_C
SATA_TX3-_C

SATA_RX3-_C
SATA_RX3+_C

PLACE R364 CLOSE
TO U22 BALL

R364 IS 1K 1% FOR XTAL,

4.99K 1% FOR INTERNAL CLK

R334

R334
10M/6

10M/6

L53 500mALL53 500mAL

C454

C454

0.1u/16V/4

0.1u/16V/4

C462 10P50NC462 10P50N

Y3

Y3

25MHZ18P_D-1

25MHZ18P_D-1

2 1

C457 10P50NC457 10P50N

C465

C465

X_0.1u/16V/4

X_0.1u/16V/4

C500 103P/16V/4C500 103P/16V/4
C501 103P/16V/4C501 103P/16V/4

C481 103P/16V/4C481 103P/16V/4
C482 103P/16V/4C482 103P/16V/4

C506 103P/16V/4C506 103P/16V/4
C503 103P/16V/4C503 103P/16V/4

C493 103P/16V/4C493 103P/16V/4
C489 103P/16V/4C489 103P/16V/4

C563 103P/16V/4C563 103P/16V/4
C564 103P/16V/4C564 103P/16V/4

C538 103P/16V/4C538 103P/16V/4
C539 103P/16V/4C539 103P/16V/4

C568 103P/16V/4C568 103P/16V/4
C569 103P/16V/4C569 103P/16V/4

C536 103P/16V/4C536 103P/16V/4
C535 103P/16V/4C535 103P/16V/4
R364 1K/4R364 1K/4

C468

C468

SATA_ACT#28

PLLVDD_SATA

AVDD_SATA

C660

C660

1u/16V/6

1u/16V/6

SATA_TX0+
SATA_TX0-

SATA_RX0­SATA_RX0+

SATA_TX1+
SATA_TX1-

SATA_RX1­SATA_RX1+

SATA_TX2+
SATA_TX2-

SATA_RX2­SATA_RX2+

SATA_TX3+
SATA_TX3-

SATA_RX3­SATA_RX3+

SATA_CAL

SATA_X1
SATA_X2

SATA_ACT#

PLLVDD_SATA

XTLVDD_SATA

AVDD_SATA

C504

C504
1u/6.3V/4

1u/6.3V/4

C663

C663

1u/16V/6

1u/16V/6

4

U22B

AH21

SATA_TX0+

AJ21

SATA_TX0-

AH20

SATA_RX0-

AJ20

SATA_RX0+

AH18

SATA_TX1+

AJ18

SATA_TX1-

AH17

SATA_RX1-

AJ17

SATA_RX1+

AH13

SATA_TX2+

AH14

SATA_TX2-

AH16

SATA_RX2-

AJ16

SATA_RX2+

AJ11

SATA_TX3+

AH11

SATA_TX3-

AH12

SATA_RX3-

AJ13

SATA_RX3+

AF12

SATA_CAL

AD16

SATA_X1

AD18

SATA_X2

AC12

SATA_ACT#/GPIO67

AD14

PLLVDD_SATA_1

AJ10

PLLVDD_SATA_2

AC16

XTLVDD_SATA

AE14

AVDD_SATA_1

AE16

AVDD_SATA_2

AE18

AVDD_SATA_3

AE19

AVDD_SATA_4

AF19

AVDD_SATA_5

AF21

AVDD_SATA_6

AG22

AVDD_SATA_7

AG23

AVDD_SATA_8

AH22

AVDD_SATA_9

AH23

AVDD_SATA_10

AJ12

AVDD_SATA_11

AJ14

AVDD_SATA_12

AJ19

AVDD_SATA_13

AJ22

AVDD_SATA_14

AJ23

AVDD_SATA_15

AB14

AVSS_SATA_1

AB16

AVSS_SATA_2

AB18

AVSS_SATA_3

AC14

AVSS_SATA_4

AC18

AVSS_SATA_5

AC19

AVSS_SATA_6

AD12

AVSS_SATA_7

AD19

AVSS_SATA_8

AD21

AVSS_SATA_9

AE12

AVSS_SATA_10

AE21

AVSS_SATA_11

AF11

AVSS_SATA_12

AF14

AVSS_SATA_13

AF16

AVSS_SATA_14

AF18

AVSS_SATA_15

AG11

AVSS_SATA_16

AG12

AVSS_SATA_17

AG13

AVSS_SATA_18

AG14

AVSS_SATA_19

AG16

AVSS_SATA_20

AG17

AVSS_SATA_21

AG18

AVSS_SATA_22

AG19

AVSS_SATA_23

AG20

AVSS_SATA_24

AG21

AVSS_SATA_25

AH10

AVSS_SATA_26

AH19

AVSS_SATA_27

ATI-SB600-218S6ECLA13FG-A13-RH

ATI-SB600-218S6ECLA13FG-A13-RH

SB600 SB 23x23mm

SB600 SB 23x23mm

Part 2 of 4

Part 2 of 4

SERIAL ATA

SERIAL ATA

SERIAL ATA POWER

SERIAL ATA POWER

1K/4

SPI_CS#

IDE_DACK#

IDE_D0/GPIO15
IDE_D1/GPIO16
IDE_D2/GPIO17
IDE_D3/GPIO18
IDE_D4/GPIO19
IDE_D5/GPIO20
IDE_D6/GPIO21

ATA 66/100

ATA 66/100

IDE_D7/GPIO22
IDE_D8/GPIO23

IDE_D9/GPIO24
IDE_D10/GPIO25
IDE_D11/GPIO26
IDE_D12/GPIO27
IDE_D13/GPIO28
IDE_D14/GPIO29
IDE_D15/GPIO30

SPI_DI/GPIO12

SPI_DO/GPIO11
SPI_CLK/GPIO47

SPI_HOLD#/GPIO31

SPI_CS#/GPIO32

LAN_RST#/GPIO13

SPI ROMHW MONITOR

SPI ROMHW MONITOR

ROM_RST#/GPIO14

FANOUT0/GPIO3

FANOUT1/GPIO48
FANOUT2/GPIO49

FANIN0/GPIO50

FANIN1/GPIO51

FANIN2/GPIO52

TEMP_COMM
TEMPIN0/GPIO61
TEMPIN1/GPIO62
TEMPIN2/GPIO63

TEMPIN3/TALERT#/GPIO64

VIN0/GPIO53
VIN1/GPIO54
VIN2/GPIO55
VIN3/GPIO56
VIN4/GPIO57
VIN5/GPIO58
VIN6/GPIO59
VIN7/GPIO60

R278

R278
_10K/4

_10K/4

IDE_IORDY

IDE_IRQ

IDE_A0
IDE_A1
IDE_A2

IDE_DRQ

IDE_IOR#

IDE_IOW#

IDE_CS1#
IDE_CS3#

AVDD

AVSS

FOR SB600

SST SPI ROM

U17

U17

1

CE#

2

SO

3

WP#

4

VSS

_SST25LF040A-33-4C-S2A

_SST25LF040A-33-4C-S2A

AB29
AA28
AA29
AB27
Y28
AB28
AC27
AC29
AC28
W28
W27

AD28
AD26
AE29
AF27
AG29
AH28
AJ28
AJ27
AH27
AG27
AG28
AF28
AF29
AE28
AD25
AD29

J3
J6
G3
G2
G6

C23
G5

M4
T3
V4

N3
P2
W4

P5
P7
P8
T8
T7

V5
L7
M8
V6
M6
P4
M7
V7

N1
M1

3

8

VDD

7

HOLD#

6

SCK

5

SI

PDA_R0
PDA_R1
PDA_R2

PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15

SPI_DATAIN
SPI_DATAOUT
SPI_CLK

SPI_CS#

好東西啊！

AVDD_HWM

C469

C469

X_0.1u/16V/4

X_0.1u/16V/4

單獨下地！

C546

C546
_0.1u/25V/4

_0.1u/25V/4

SPI_HOLD#SPI_DATAIN
SPI_CLK
SPI_DATAOUT

PD_IORDY 27
PD_SIRQ 27
PDA_R0 27
PDA_R1 27
PDA_R2 27
PD_DACK# 27
PD_DREQ 27
PD_IOR# 27
PD_IOW# 27
PD_CS#1 27
PD_CS#3 27

R538 X_0/4R538 X_0/4

HW Monitor

L54

L54
500mAL

500mAL

C529

C529
1u/10V/6

1u/10V/6

SPI_HOLD#

VCC3

R318

R318

_10K/4

_10K/4

PDD[15..0] 27

SPI FLASH MEMORY

SPI DEBUG PORT

Place close to SPI ROM

3VDUAL

JSPI1

JSPI1

SPI_DATAIN SPI_DATAOUT
SPI_CS#

SPI_HOLD#

Part Number : N31-2051451-H06

2

1 2
3 4
5
7 8
9

H2X5(10)_black-RH

H2X5(10)_black-RH

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet

Date: Sheet

Date: Sheet

SPI_CLK

6

<Title>

<Title>

<Title>

MS-7337 1.0

MS-7337 1.0

MS-7337 1.0

1

of

17 36Monday, February 26, 2007

of

17 36Monday, February 26, 2007

of

17 36Monday, February 26, 2007

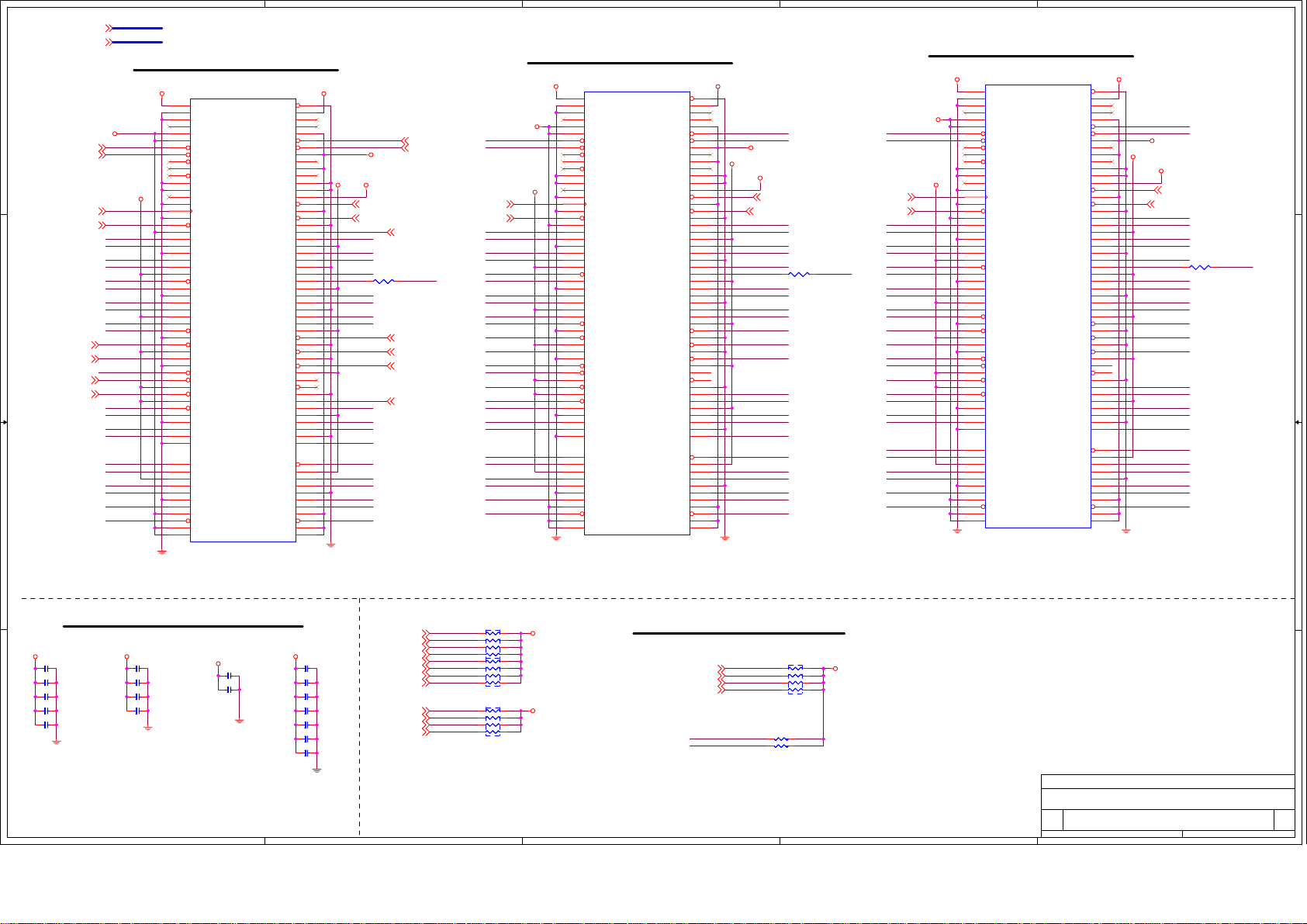

5

AD[31..0]

AD[31..0]15,23,30

PCI_CBE#[3..0]15,30

PCI_CBE#[3..0]

PCI SLOT 1 (PCI VER: 2.2 COMPLY)

-12V

PCI1

PCI1

B1

-12V

VCC3

B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62

B2
B3
B4
B5
B6
B7
B8
B9

TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND

AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V

YSLOT120

YSLOT120

RESERVED

+5V(I/O)

RESERVED

RESERVED

+5V(I/O)

RESERVED

FRAME#

+5V(I/O)
REQ64#

D D

VCC5

PCI_INTB#15

PCI_INTD#15

PCI_CLK015,23

PCI_REQ#015

AD31
AD29

AD27
AD25

PCI_CBE#3
AD23

AD21
AD19

C C

PCI_IRDY#15,30

PCI_DEVSEL#15,30

PCI_PERR#15,30
PCI_SERR#15

B B

AD17
PCI_CBE#2

PCI_IRDY#

PCI_DEVSEL#

PCI_LOCK#
PCI_PERR#

PCI_SERR#
PCI_CBE#1

AD14
AD12

AD10

AD8
AD7

AD5
AD3

AD1
ACK64#

TRST#

+12V

TMS

+5V
INTA#
INTC#

+5V

GND

GND
RST#
GNT#

GND
AD30

+3.3V
AD28
AD26

GND
AD24

IDSEL

+3.3
AD22
AD20

GND
AD18
AD16
+3.3V

GND

TRDY#

GND

STOP#

+3.3V

SDONE

SBO#

GND

PAR
AD15
+3.3V
AD13
AD11

GND

AD9

C/BE#0

+3.3V

AD6

AD4

GND

AD2

AD0

+5V
+5V

+12V

A1
A2
A3
A4

TDI

A5
A6
A7
A8
A9
A10
A11

VCC3

A12
A13
A14
A15
A16
A17
A18

PCI_PME#

A19

AD30

A20
A21

AD28

A22

AD26

A23
A24

AD24

A25

ID1

A26
A27

AD22

A28

AD20

A29
A30

AD18

A31

AD16

A32
A33

PCI_FRAME#

A34
A35

PCI_TRDY#

A36
A37

PCI_STOP#

A38
A39
A40
A41
A42

PCI_PAR

A43

AD15

A44
A45

AD13

A46

AD11

A47
A48

AD9

A49

PCI_CBE#0

A52
A53

AD6

A54

AD4

A55
A56

AD2

A57

AD0

A58
A59

REQ64#

A60
A61
A62

IDSEL = AD18
MASTER = PCI_REQ#0

PCI_GNT#0

4

VCC5

3VDUAL

PCIRST# 15,30
PCI_GNT#0 15

PCI_PME# 14,30

R342 100/4/1R342 100/4/1

PCI_FRAME# 15,30
PCI_TRDY# 15,30
PCI_STOP# 15,30

PCI_PAR 15,30

PCI_INTA# 15,30
PCI_INTC# 15

PCI_CLK115,23

PCI_REQ#115

AD18

PCI SLOT 2 (PCI VER: 2.2 COMPLY)

-12V

PCI2

PCI2

B1

-12V

B2

TCK

B3

GND

B4

TDO

VCC3

B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62

B5
B6
B7
B8
B9

+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND

AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V

YSLOT120

YSLOT120

VCC5

PCI_INTC#
PCI_INTA#

AD31
AD29

AD27
AD25

PCI_CBE#3
AD23

AD21
AD19

AD17
PCI_CBE#2

PCI_IRDY#

PCI_DEVSEL#

PCI_LOCK#
PCI_PERR#

PCI_SERR#
PCI_CBE#1

AD14
AD12

AD10

AD8
AD7

AD5
AD3

AD1

ACK64#

IDSEL = AD19
MASTER = PCI_REQ#1

3

TRST#

+12V

TMS

TDI

+5V
INTA#
INTC#

+5V

RESERVED

+5V(I/O)

RESERVED

GND
GND

RESERVED

RST#

+5V(I/O)

GNT#

GND

RESERVED

AD30

+3.3V

AD28
AD26

GND

AD24

IDSEL

+3.3
AD22
AD20

GND
AD18
AD16

+3.3V

FRAME#

GND

TRDY#

GND

STOP#

+3.3V

SDONE

SBO#

GND

PAR

AD15

+3.3V

AD13
AD11

GND

AD9

C/BE#0

+3.3V

AD6
AD4

GND

AD2

AD0
+5V(I/O)
REQ64#

+5V
+5V

PCI_GNT#1

2

1

PCI SLOT 3 (PCI VER: 2.2 COMPLY)

+12V

A1
A2
A3
A4
A5

PCI_INTB#

A6

PCI_INTD#

A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

VCC3

VCC5

3VDUAL

PCIRST# 15,30
PCI_GNT#1 15

PCI_PME#
AD30

AD28
AD26

AD24

ID2

R343 100/4/1R343 100/4/1

AD22
AD20

AD18
AD16

PCI_FRAME#
PCI_TRDY#
PCI_STOP#

PCI_PAR
AD15

AD13
AD11

AD9

PCI_CBE#0
AD6

AD4
AD2

AD0
REQ64#

AD19

PCI_INTD#
PCI_INTB#

PCI_CLK415,23

PCI_REQ#215

PCI_DEVSEL#

ACK64#

-12V

PCI3

PCI3

B1

-12V

B2

TCK

B3

GND

B4

TDO

VCC3

B5
B6
B7
B8

B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62

+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND

AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V

YSLOT120

YSLOT120

RESERVED

+5V(I/O)

RESERVED

RESERVED

+5V(I/O)

RESERVED

FRAME#

+5V(I/O)
REQ64#

VCC5

AD31
AD29

AD27
AD25

PCI_CBE#3 ID3
AD23

AD21
AD19

AD17
PCI_CBE#2

PCI_IRDY#

PCI_LOCK#
PCI_PERR#

PCI_SERR#
PCI_CBE#1

AD14
AD12

AD10

AD8
AD7

AD5
AD3

AD1

TRST#

+12V

TMS

INTA#
INTC#

GND
GND

RST#

GNT#

GND

AD30

+3.3V

AD28
AD26

GND

AD24

IDSEL

+3.3
AD22
AD20

GND
AD18
AD16

+3.3V

GND

TRDY#

GND

STOP#

+3.3V

SDONE

SBO#

GND

PAR

AD15

+3.3V

AD13
AD11

GND

AD9

C/BE#0

+3.3V

AD6
AD4

GND

AD2
AD0

+5V
+5V

+12V

A1
A2
A3
A4

TDI

A5

+5V

+5V

PCI_INTC#

A6

PCI_INTA#

A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

VCC3

VCC5

3VDUAL

PCIRST# 15,30
PCI_GNT#2 15

PCI_PME#
AD30

AD28
AD26

AD24

R344 100/4/1R344 100/4/1

AD22
AD20

AD18
AD16

PCI_FRAME#
PCI_TRDY#
PCI_STOP#

PCI_PAR
AD15

AD13
AD11

AD9

PCI_CBE#0
AD6

AD4
AD2

AD0
REQ64#

AD21

IDSEL = AD21
MASTER = PCI_REQ#2

PCI_GNT#2

PCI SLOT DECOUPLING CAPACITORS

PCI_DEVSEL#15,30

PCI_TRDY#15,30

VCC5

C517

C517

0.1u/25V/4

0.1u/25V/4
C544

C544

0.1u/25V/4

0.1u/25V/4
C519

C519

0.1u/25V/4

0.1u/25V/4
C181

C181
X_0.1u/25V/4

X_0.1u/25V/4
C245

C245
X_0.1u/25V/4

A A

X_0.1u/25V/4

VCC3

C518

C518

0.1u/25V/4

0.1u/25V/4
C551

C551

0.1u/25V/4

0.1u/25V/4
C543

C543

0.1u/25V/4

0.1u/25V/4
C434

C434

0.1u/25V/4

0.1u/25V/4

3VDUAL

C549

C549

0.1u/25V/4

0.1u/25V/4
C521

C521

0.1u/25V/4

0.1u/25V/4

VCC5

C520

C520
X_0.1u/25V/4

X_0.1u/25V/4
C545

C545
X_0.1u/25V/4

X_0.1u/25V/4
C522

C522
X_0.1u/25V/4

X_0.1u/25V/4
C208

C208
X_0.1u/25V/4

X_0.1u/25V/4
C253

C253
X_0.1u/25V/4

X_0.1u/25V/4
C478

C478

0.1u/25V/4

0.1u/25V/4
C264

C264
X_0.1u/25V/4

X_0.1u/25V/4

PCI_IRDY#15,30

PCI_FRAME#15,30

PCI_STOP#15,30
PCI_LOCK#15
PCI_PERR#15,30
PCI_SERR#15

PCI_INTA#15,30
PCI_INTB#15
PCI_INTC#15

PCI_INTD#15

PCI_DEVSEL#
PCI_TRDY#
PCI_IRDY#
PCI_FRAME#
PCI_STOP#
PCI_LOCK#
PCI_PERR#
PCI_SERR#

12
34
56
78
12
34
56
78

RN44

RN44

12
34
56
78

X_8.2K/4/8P4R

X_8.2K/4/8P4R

VCC3

RN45

RN45
X_8.2K/4/8P4R

X_8.2K/4/8P4R
RN42

RN42
X_8.2K/4/8P4R

X_8.2K/4/8P4R

VCC3

For EMI

5

4

PCI PULL-UP / DOWN RESISTORS

RN43 X_8.2K/4/8P4RRN43 X_8.2K/4/8P4R

PCI_REQ#015
PCI_REQ#115
PCI_REQ#215
PCI_REQ#315,30

ACK64#

R430 8.2K/4R430 8.2K/4

REQ64#

R437 8.2K/4R437 8.2K/4

3

12
34
56
78

VCC3

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

2

Date: Sheet

1

of

18 36Thursday, February 22, 2007

of

18 36Thursday, February 22, 2007

of

18 36Thursday, February 22, 2007

5

4

3

2

1

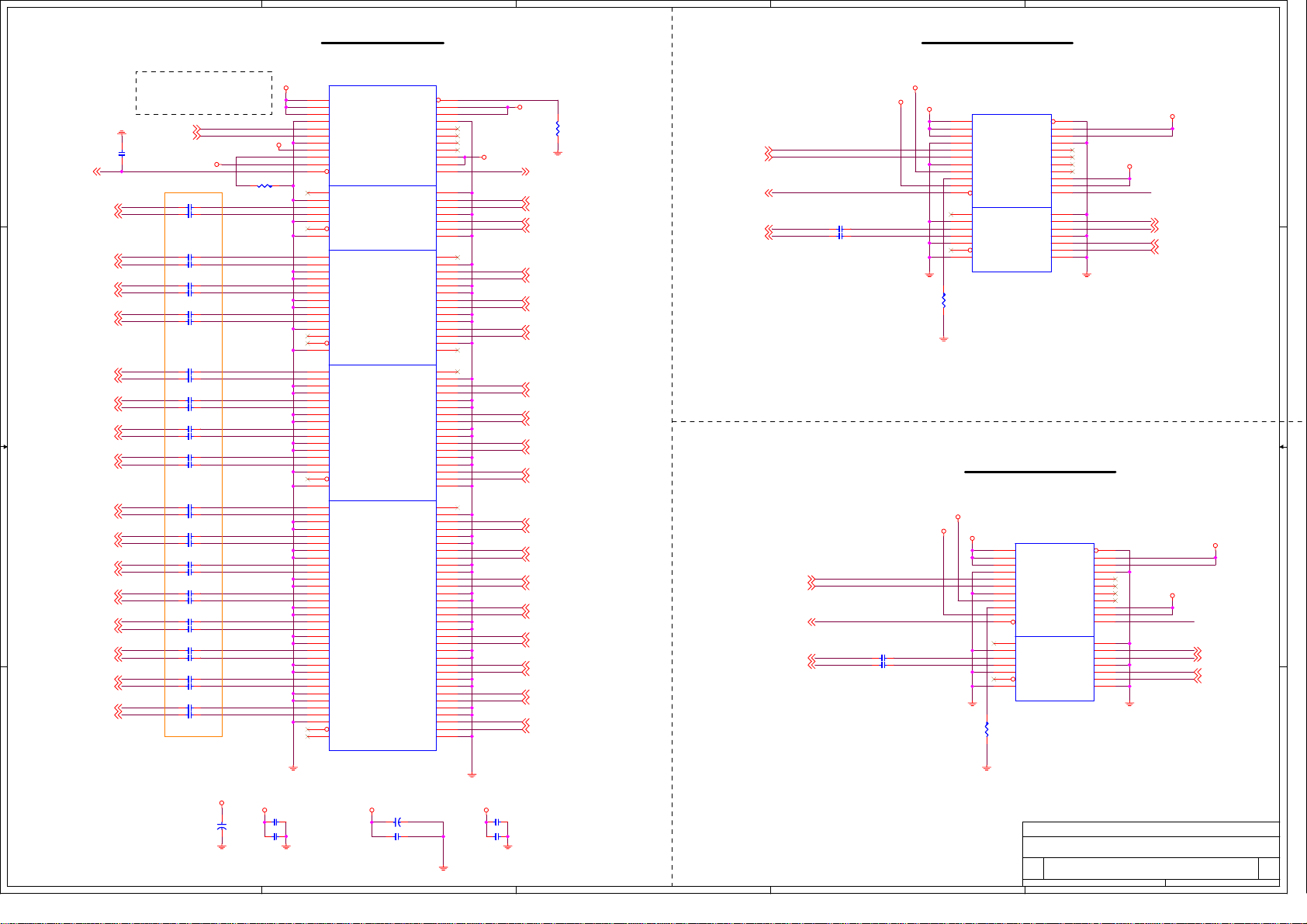

PCI-Express x1 SLOT 1PCI EXPRESS_16

PCI_EX1

B10
B11

B12
B13
B14
B15
B16
B17
B18

B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32

B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82

C426

C426

0.1u/25V/4

0.1u/25V/4
C376

C376

0.1u/25V/4

0.1u/25V/4

B1
B2
B3
B4
B5
B6
B7
B8
B9

PCI_EX1

12V
12V
RSVD
GND
SMCLK
SMDAT
GND

3.3V
JTAG1

3.3VAUX
WAKE#

RSVD
GND
HSOP0
HSON0
GND
PRSNT2#
GND

HSOP1
HSON1
GND
GND
HSOP2
HSON2
GND
GND
HSOP3
HSON3
GND
RSVD
PRSNT2#
GND

HSOP4
HSON4
GND
GND
HSOP5
HSON5
GND
GND
HSOP6
HSON6
GND
GND
HSOP7
HSON7
GND
PRSNT2#
GND

HSOP8
HSON8
GND
GND
HSOP9
HSON9
GND
GND
HSOP10
HSON10
GND
GND
HSOP11
HSON11
GND
GND
HSOP12
HSON12
GND
GND
HSOP13
HSON13
GND
GND
HSOP14
HSON14
GND
GND
HSOP15
HSON15
GND
PRSNT2#
RSVD

PCI EXPRESS X16 POART

PCI EXPRESS X16 POART

VCC3

EC47

EC47

+

+

C378

C378

4

PRSNT1#

GND
JTAG2
JTAG3
JTAG4
JTAG5

PWRGD

GND

REFCLK+

REFCLK-

GND

HSIP0

HSIN0

GND

RSVD

GND

HSIP1
HSIN1

GND

GND

HSIP2
HSIN2

GND

GND

HSIP3
HSIN3

GND

RSVD

RSVD

GND

HSIP4
HSIN4

GND

GND

HSIP5
HSIN5

GND

GND

HSIP6
HSIN6

GND

GND

HSIP7
HSIN7

GND

RSVD

GND

HSIP8
HSIN8

GND

GND

HSIP9
HSIN9

GND

GND

HSIP10
HSIN10

GND

GND

HSIP11
HSIN11

GND

GND

HSIP12
HSIN12

GND

GND

HSIP13
HSIN13

GND

GND

HSIP14
HSIN14

GND

GND

HSIP15
HSIN15

GND

470/16V

470/16V

0.1u/25V/4

0.1u/25V/4

3.3V

3.3V

A1
A2

12V

A3

12V

A4
A5
A6
A7
A8
A9
A10
A11

A12
A13
A14
A15
A16
A17
A18

A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32

A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82

VCC3

PCI_E_RST#

3VDUAL+12V

+12V

PCI_E_RST# 21,25

GFXCLK 12
GFXCLK# 12

PED_RX0 9
PED_RX0* 9

PED_RX1 9
PED_RX1* 9

PED_RX2 9
PED_RX2* 9

PED_RX3 9
PED_RX3* 9

PED_RX4 9
PED_RX4* 9

PED_RX5 9
PED_RX5* 9

PED_RX6 9
PED_RX6* 9

PED_RX7 9
PED_RX7* 9

PED_RX8 9
PED_RX8* 9

PED_RX9 9
PED_RX9* 9

PED_RX10 9
PED_RX10* 9

PED_RX11 9
PED_RX11* 9

PED_RX12 9
PED_RX12* 9

PED_RX13 9
PED_RX13* 9

PED_RX14 9
PED_RX14* 9

PED_RX15 9
PED_RX15* 9

C379

C379

0.1u/25V/4

0.1u/25V/4
C460

C460

0.1u/25V/4

0.1u/25V/4

R2160RR216
0R

SCLK114,25

SDATA114,25

PCIE_WAKE_UP#14,21

Near Connector

PE0_TX*

SCLK114,25

C375 0.1u/25V/4C375 0.1u/25V/4
C381 0.1u/25V/4C381 0.1u/25V/4

PE0_TX9

PE0_TX*9

SDATA114,25

PCIE_WAKE_UP#14,21

Near Connector

PE3_TX13

PE3_TX*13

3

PE3_TX*

Trace width >200 mils

+12V

D D

C479

C479

0.1u/16V/4

0.1u/16V/4

PCIE_WAKE_UP#14,21

PED_TX09

PED_TX0*9

PED_TX19

PED_TX1*9

PED_TX29

PED_TX2*9

PED_TX39

PED_TX3*9

C C

PED_TX49

PED_TX4*9

PED_TX59

PED_TX5*9

PED_TX69

PED_TX6*9

PED_TX79

PED_TX7*9

PED_TX89

PED_TX8*9

PED_TX99

PED_TX9*9

B B

A A

PED_TX109

PED_TX10*9

PED_TX119

PED_TX11*9

PED_TX129

PED_TX12*9

PED_TX139

PED_TX13*9

PED_TX149

PED_TX14*9

PED_TX159

PED_TX15*9

SCLK114,25

SDATA114,25

Near Connector

C395 0.1u/16V/4C395 0.1u/16V/4
C394 0.1u/16V/4C394 0.1u/16V/4

C396 0.1u/16V/4C396 0.1u/16V/4
C397 0.1u/16V/4C397 0.1u/16V/4

C398 0.1u/16V/4C398 0.1u/16V/4
C399 0.1u/16V/4C399 0.1u/16V/4

C400 0.1u/16V/4C400 0.1u/16V/4
C401 0.1u/16V/4C401 0.1u/16V/4

C402 0.1u/16V/4C402 0.1u/16V/4
C403 0.1u/16V/4C403 0.1u/16V/4

C404 0.1u/16V/4C404 0.1u/16V/4
C405 0.1u/16V/4C405 0.1u/16V/4

C406 0.1u/16V/4C406 0.1u/16V/4
C407 0.1u/16V/4C407 0.1u/16V/4

C408 0.1u/16V/4C408 0.1u/16V/4
C409 0.1u/16V/4C409 0.1u/16V/4

C410 0.1u/16V/4C410 0.1u/16V/4
C411 0.1u/16V/4C411 0.1u/16V/4

C412 0.1u/16V/4C412 0.1u/16V/4
C413 0.1u/16V/4C413 0.1u/16V/4

C414 0.1u/16V/4C414 0.1u/16V/4
C415 0.1u/16V/4C415 0.1u/16V/4

C416 0.1u/16V/4C416 0.1u/16V/4
C417 0.1u/16V/4C417 0.1u/16V/4

C418 0.1u/16V/4C418 0.1u/16V/4
C419 0.1u/16V/4C419 0.1u/16V/4

C420 0.1u/16V/4C420 0.1u/16V/4
C421 0.1u/16V/4C421 0.1u/16V/4

C422 0.1u/16V/4C422 0.1u/16V/4
C423 0.1u/16V/4C423 0.1u/16V/4

C424 0.1u/16V/4C424 0.1u/16V/4
C425 0.1u/16V/4C425 0.1u/16V/4

470/16V

470/16V

5

EC35

EC35

3VDUAL

+12V

VCC3

R332 10K/4R332 10K/4

PED_TX0C
PED_TX0C*

PED_TX1C
PED_TX1C*

PED_TX2C
PED_TX2C*

PED_TX3C
PED_TX3C*

PED_TX4C
PED_TX4C*

PED_TX5C
PED_TX5C*

PED_TX6C
PED_TX6C*

PED_TX7C
PED_TX7C*

PED_TX8C
PED_TX8C*

PED_TX9C
PED_TX9C*

PED_TX10C
PED_TX10C*

PED_TX11C
PED_TX11C*

PED_TX12C
PED_TX12C*

PED_TX13C
PED_TX13C*

PED_TX14C
PED_TX14C*

PED_TX15C
PED_TX15C*

+

+

VCC3

3VDUAL

PE0_TXCPE0_TX
PE0_TXC*

C377 0.1u/25V/4C377 0.1u/25V/4
C382 0.1u/25V/4C382 0.1u/25V/4

2

+12V

R267

R267
10K/4

10K/4

3VDUAL

PE3_TXCPE3_TX
PE3_TXC*

PCI_EX2

PCI_EX2

B1
B2
B3
B4
B5
B6
B7
B8

B9
B10
B11

B12
B13
B14
B15
B16
B17
B18

12V
12V
12V
GND
SMCLK
SMDAT
GND

3.3V
JTAG1

3.3VAUX
WAKE#

RSVD
GND
HSOP0
HSON0
GND
PRSNT2#
GND

PCIE X1

PCIE X1

PRSNT1#

GND
JTAG2
JTAG3
JTAG4
JTAG5

PWRGD

GND

REFCLK+

REFCLK-

GND

HSIP0

HSIN0

GND

3.3V

3.3V

12V
12V

PCI-Express x1 SLOT 2

VCC3

+12V

R269

R269
10K/4

10K/4

PCI_EX3

PCI_EX3

B1

12V

B2

12V

B3

12V

B4

GND

B5

SMCLK

B6

SMDAT

B7

GND

B8

3.3V

B9

JTAG1

B10

3.3VAUX

B11

WAKE#

B12

RSVD

B13

GND

B14

HSOP0

B15

HSON0

B16

GND

B17

PRSNT2#

B18

GND

PCIE X1

PCIE X1

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet

Date: Sheet

Date: Sheet

VCC3

PCI_EX1CLK 12
PCI_EX1CLK# 12

PE0_RX 9
PE0_RX* 9

VCC3

PCI_E_RST#

1

+12V

+12V

PCI_EX3CLK 12
PCI_EX3CLK# 12

PE3_RX 13
PE3_RX* 13

of

19 36Thursday, February 22, 2007

of

19 36Thursday, February 22, 2007

of

19 36Thursday, February 22, 2007

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10

PCI_E_RST#

A11

A12
A13
A14
A15

PE0_RX

A16

PE0_RX*

A17
A18

A1

PRSNT1#

A2

12V

A3

12V

A4

GND

A5

JTAG2

A6

JTAG3

A7

JTAG4

A8

JTAG5

A9

3.3V

A10

3.3V

A11

PWRGD

A12

GND

A13

REFCLK+

A14

REFCLK-

A15

GND

A16

HSIP0

A17

HSIN0

A18

GND

<Title>

<Title>

<Title>

MS-7337 1.0

MS-7337 1.0

MS-7337 1.0

5

4

3

2

1

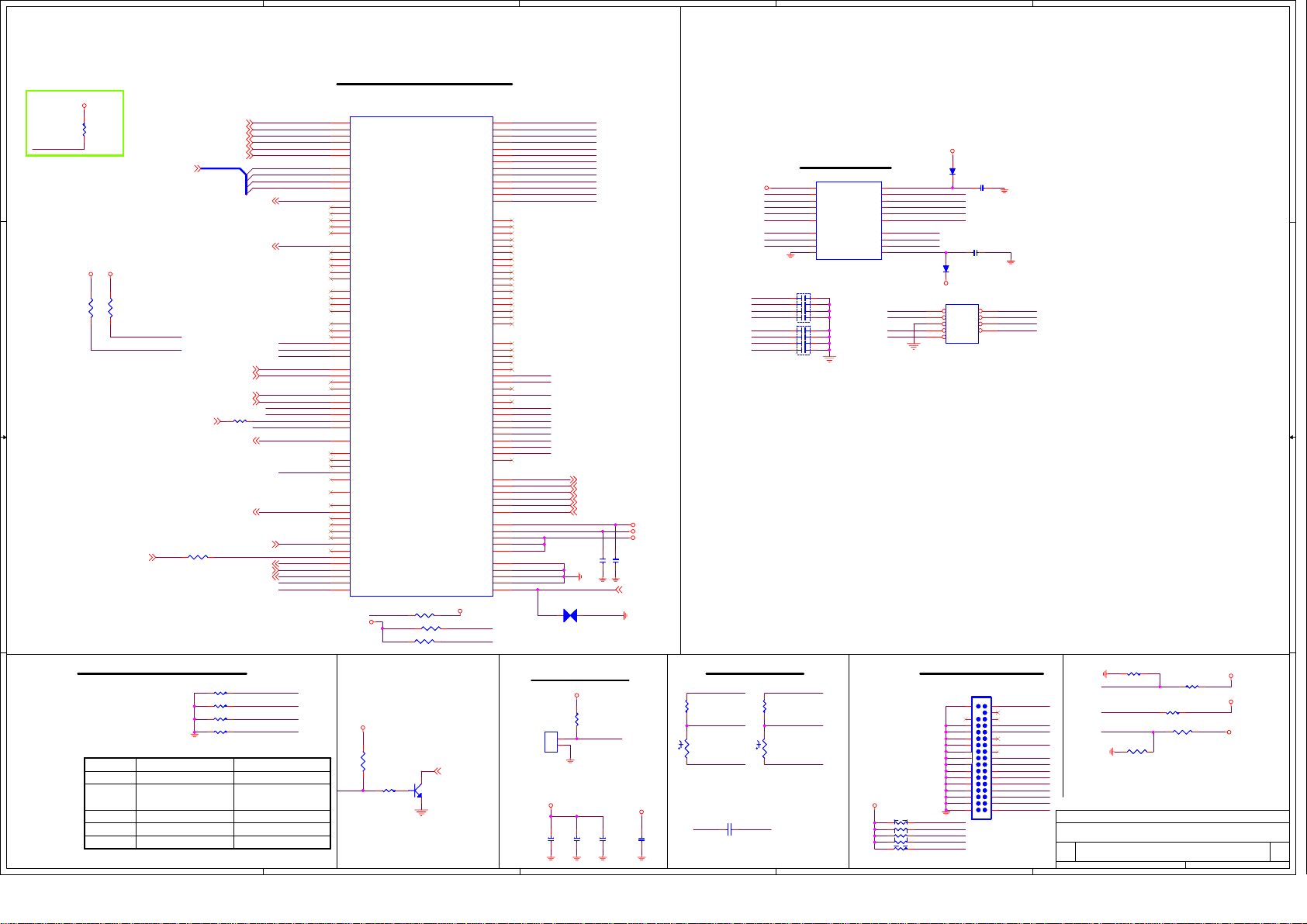

Super I/O

LPC SUPER I/O F71882

VCC3

D D

LPC_FRAME#

C C

B B

A A

R21

R21

X_4.7K/4

X_4.7K/4

RTSB#
RTSA#

LPC_AD[3..0]15

VCC3VCC3

R28

R28

R29

R29

4.7K/4

4.7K/4

4.7K/4

4.7K/4

CPU-FANPWM
SYS-FANPWM

PSIN28

PWM FAN LINEAR FAN
PIN49-54=VID_OUT

THERMDA_CPU3

R58 100/4/1R58 100/4/1

PCI_RST1#13,25

LPC_DRQ#015

SERIRQ15

LPC_FRAME#15

PCI_CLK615,23

SIO_CLK12

SIO_THERM_SID3

SIO_THERM_SIC3

CPU-FAN27
CPU-FANPWM27

SYS-FAN27
SYS-FANPWM27

R527 X_0/4R527 X_0/4

LPC_PME#14

CPU_FAN_GPO27

R66 X_1K/4R66 X_1K/4
R63 X_1K/4R63 X_1K/4
R61 1K/4R61 1K/4
R60 X_1K/4R60 X_1K/4

PIN42-47=VIDIN

SOUTA

4E 2E

DTRA# FAN START DUTY 60%

5

PCI_RST1#

LPC_DRQ#0

SERIRQ

LPC_FRAME#

PCI_CLK6

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3

SIO_THERM_SID

SIO_THERM_SIC

5VIN
+12_VIN

CPUVCORE

SYS_TMP

CPU_TMP_2

CPU_TMP

TMP_VREF

BEEP

ATX_PWROK25,28

PWRBTIN14

SLP_S3#14,25

PS_ON#25

DTRA#
SOUTA
RTSA#
RTSB#

PS_ON#

RSMTST_IO
CHASSIS

STUFFDon't STUFF

PIN49-54=GPIO
PIN42-47=VIDIN/OUT

FAN START DUTY 100%

U4

29

LRESET#

30

LDRQ#

31

SERIRQ

32

LFRAME#

38

PCICLK

39

CLKIN

33

LAD0

34

LAD1

35

LAD2

36

LAD3

47

VIDIN5/OUT5/SID

46

VIDIN4/OUT4

45

VIDIN3/OUT3

44

VIDIN2/OUT2

43

VIDIN1/OUT1

42

VIDIN0/OUT0

54

VIDOUT5/GP5/SIC

53

VIDOUT4/GP4

52

VIDOUT3/GP3

51

VIDOUT2/GP2

50

VIDOUT1/GP1

49

VIDOUT0/GP0

55

SLOTOCC#/GP66

56

GP7/Turbo#/WDTRST#

57

VSI/SST

58

VSO/PECI

93

VIN6

94

VIN5

95

VIN4

96

VIN3

97

VIN2

98

Vcore(VIN1)

21

FANIN1

22

FAN_CTL1

23

FANIN2

24

FAN_CTL2

25

FANIN3/GP40

26

FAN_CTL3/GP41

89

D3+ (System)

90

D2+

91

D1+(CPU)

92

VREF

79

PME#

59

GP25/GP10/SPI_SLK

60

FANIN4/GP11/SPI_CS0#/FAN_CTL4

61

GP12/SPI_MISO

62

FANCTL1_1/GP13/SPI_MOSI/BEEP

63

GP14/FWH_DIS_WDTRST#/SPI_CSI#

67

OVT#

64

GP15/LED_VSB/ALERT#

65

GP16/LED_VCC/Turbo2#

74

PCIRST1#/GP20

75

PCIRST2#/GP21

76

PCIRST3#/GP22

77

GP23/RSTCON#

78

ATXPG_IN/GP24

84

PWROK/GP32

80

PWSIN#/GP26

81

PWSOUT#/GP27

82

S3#/GP30

83

PSON#/GP31

85

RSMRST#/GP33

87

COPEN#

F71882U4F71882

PS_ON#

R32

3VDUAL

R32

R34

R34

R36

R36

BEEP

VCC3

R27

R27

4.7K/4

4.7K/4

330R/2

R367

R367

330R/2

4

BEEP

DENSEL#

INDEX#

DRVA#

STEP#
WDATA#
WGATE#

TRK0#

RDATA#
HDSEL#

DSKCHG#

GP42/IRTX
GP43/IRRX

DCD1#

CTS1#

DTR1#/FAN60_100

RTS1#/VIDOUT_TRAP

DSR1#

SOUT1/Config4E_2E

CTS2#

DTR2#/FWH_TRAP

RTS2#/HPWM_DC

DSR2#

SOUT2/SPI_TRAP

GPIO17

KBRST#

KDATA

AGND(D_)

VCC5_SB

4.7K/4

4.7K/4

PWRBTIN

4.7K/4

4.7K/4

RSMTST_IO

4.7K/4

4.7K/4

ALARM 28

Q4

Q4
N-MMBT3904_SOT23

N-MMBT3904_SOT23

MOA#

DIR#

WPT#

SLCT

BUSY
ACK#
SLIN#

INIT#

ERR#

AFD#
STB#

RI1#

SIN1

DCD2

RI2#

SIN2

AG20

KCLK
MDAT
MCLK

VBAT

VCC
VCC
VCC

GND
GND
GND
GND

DRVDEN0

7

INDEX#

17

MOA#

8

DSA#

9

DIR#

11

STEP#

12

WRDATA#

10

WE#

14

TRACK0#

16

WP#

18

RDDATA#

15

HEAD#

13

DSKCHG#

19

100
101

PE

102
103
104
105
106
107
108
109

PD0

110

PD1

111

PD2

112

PD3

113

PD4

114

PD5

115

PD6

116

PD7

27
28
118
119
120

DTRA#

121

RTSA#

122
123

SOUTA

124
125

DCDB#

126

RIB#

127

CTSB#

128

DTRB#

1

RTSB#

2

DSRB#

3

SOUTB

5

SINB

6
66

40
41
69
70
71
72

68

VSB

86
4
37
99

20
48
73
117
88

CP19

CP19

KBRST# 14
A20GATE 14

KBDATA 28
KBCLK 28
MSDATA 28
MSCLK 28

C315

C315

0.1u/25V/4

0.1u/25V/4

X_COPPER

X_COPPER

3VDUAL
VBAT
VCC3

C52

C52

0.1u/25V/4

0.1u/25V/4

THERMDC_CPU 3

Chasiss Intrusion

D1x2-BK

D1x2-BK

C33

C33

0.1u/25V/4

0.1u/25V/4

JCI1

JCI1

VCC3

1
2

C20

C20

0.1u/25V/4

0.1u/25V/4

1
2

VBAT

R752MR75
2M

CHASSIS

N31-1020011-C09

C21

C21

0.1u/25V/4

0.1u/25V/4

VBAT

C54

C54

X_100p/50V/4

X_100p/50V/4

3

R51

R51
10K/4

10K/4

RT3

RT3

YT103S-1N

YT103S-1N

THERMDC_CPU

NOTE: LOCATE CLOSE
STATUS PANEL

CPU_TMP THERMDC_CPU

VCC5

Thermal Resistor

TMP_VREF

SYS_TMP

C46

C46

X_2200p

X_2200p

SERIAL PORT 2

U11

U11

20

TMP_VREF

CPU_TMP_2

RT2

RT2

YT103S-1N

YT103S-1N

1
3
5
7

1
3
5
7

VCC

2

RIN1

3

RIN2

4

RIN3

7

RIN4

9

RIN5

16

DIN1

15

DIN2

13

DIN3

11

GND

75232S-SSOP20

75232S-SSOP20

2
4
6
8

2
4
6
8

8P4C-180P50N

8P4C-180P50N

CN7

CN7

CN8

CN8
8P4C-180P50N

8P4C-180P50N

NRIB
NDCDB#
NDSRB#
NSINB
NCTSB#

RTSB#
DTRB# NDTRB
SOUTB NSOUTB

NRIB
NDCDB#
NDSRB#
NRTSB

NSOUTB
NSINB
NDTRB
NCTSB#

R50

R50
10K/4

10K/4

THERMDC_CPU

ROUT1
ROUT2
ROUT3
ROUT4
ROUT5

DOUT1
DOUT2
DOUT3

V+

V-

VCC5

1
19
18
17
14
12

5
6
8
10

1K/8P4R/4

1K/8P4R/4

NDCDB#

NSOUTB

NRTSB
NRIB

RN3

RN3

+12V

D18

D18
1N4148S

1N4148S

U5_1

FLOPPY CONNECTORLPC I/O STRAPPING RESISTOR

INDEX#

TRACK0#
RDDATA#
DSKCHG#

-12V

JCOM1

JCOM1

1 2
3 4
5 6
7 8
9

CON5x2-white

CON5x2-white

WP#

D30

D30
1N4148S

1N4148S

C325 C0.1U25YC325 C0.1U25Y

C326 C0.1U25YC326 C0.1U25Y

FDD1

FDD1

1 2
546

7 8

9 10
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34

CN-BH-D2x17-1:3-BK

CN-BH-D2x17-1:3-BK

20

NSINB
NDTRB
NDSRB#
NCTSB#

DRVDEN0

INDEX#
MOA#

DSA#
DIR#

STEP#
WRDATA#
WE#
TRACK0#
WP#
RDDATA#
HEAD#
DSKCHG#

R64 47K/4/1%R64 47K/4/1%

5VIN

CPUVCORE

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

Date: Sheet

+12_VIN

R77 20K/4R77 20K/4

R65 10K/4R65 10K/4

12

1

200KR1%

200KR1%

R70 200K/4/1%R70 200K/4/1%

R74

R74

12

20 36Monday, February 26, 2007

20 36Monday, February 26, 2007

20 36Monday, February 26, 2007

VCC5

VCCP

+12V

of

of

of

RIB#
DCDB#
DSRB#
SINB
CTSB#

NRTSB

U5_10

12
34
56
78

R151K/4 R151K/4

2

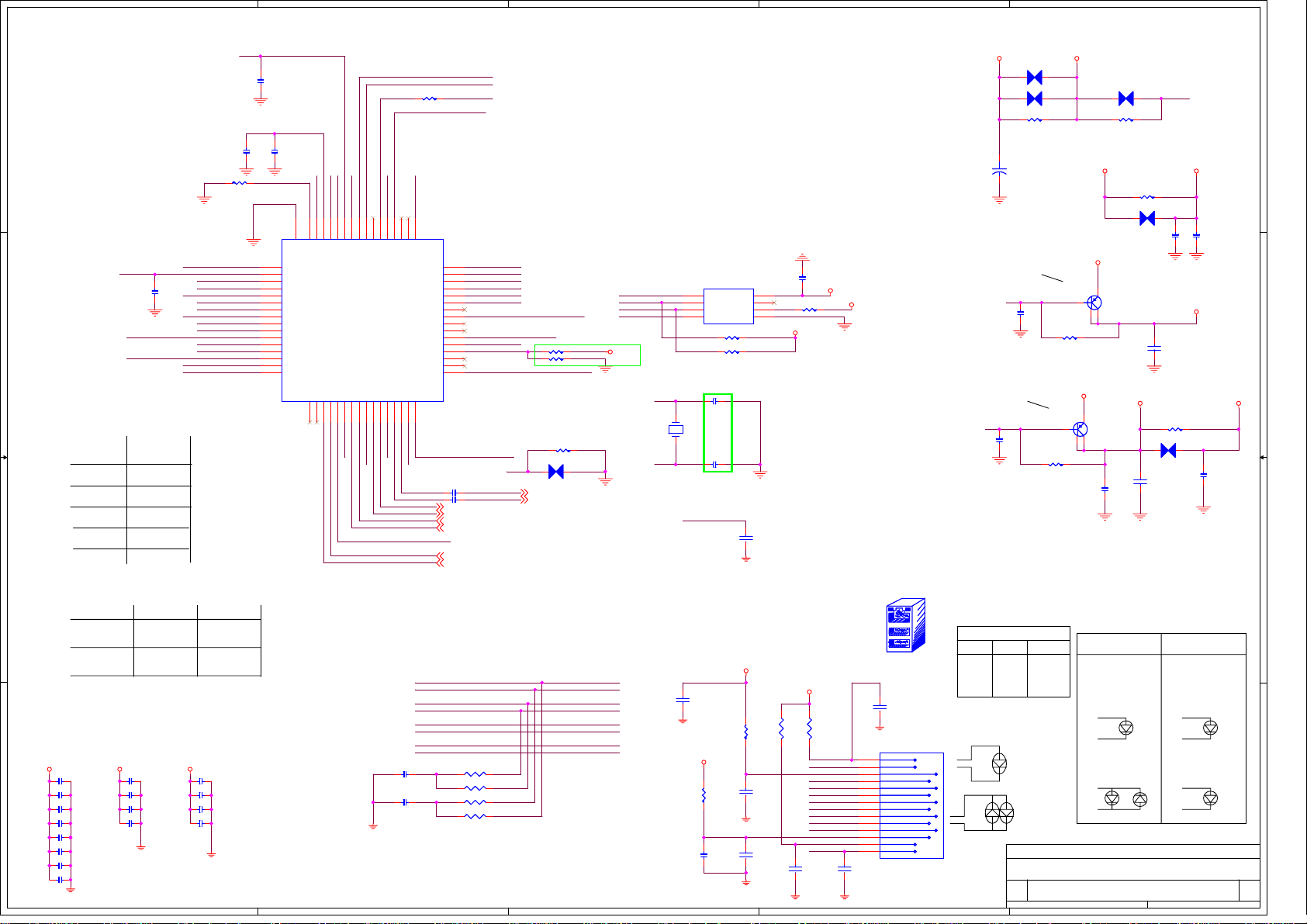

5

4

3

2

1

AVDD33

54

VDD33

52

VDD3353VDD15

EVDD18

LANCLK0#
LANCLK0

LAN_LINK_UP
LINK_100_C

R574 0/4R574 0/4

DVDD15

49

50

NC#5151NC#50

VDD15

EESK

EEDI/AUX

VDD33

EEDO
EECS

VDD15

NC
VDD15
NC#40
NC#39
VDD15
VDD33

ISOLATEB

NC#35
NC#34
VDD15

32

EGND

HSON

C390 0.1u/16V/4C390 0.1u/16V/4

HSOP

C391 0.1u/16V/4C391 0.1u/16V/4

DVDD15

LINK_1000

DVDD15

EESK

48

EEDI

47

VDD33

46

EEDO

45

EECS

44

DVDD15

43
42
41
40
39
38

VDD33

37

ISOLATEB

36
35
34
33

RTL8101E/8111B

RTL8101E/8111B

DVDD15

LANCLK0# 12
LANCLK0 12
TXLANN 9
TXLANP 9

PCI_E_RST# 19,25

PCIE_WAKE_UP# 14,19

DVDD15

DVDD15

DVDD15

EGND

R298 1K/4R298 1K/4
R299 15K/4R299 15K/4

R357 X_0RR357 X_0R

CP4 X_COPPERCP4X_COPPER

RX_LANN0 9
RX_LANP0 9

VCC3

EECS
EESK
EEDI
EEDO

XTAL1

XTAL2

U26

U26

1

CS

VCC

2

SK

3

DI

4

DO

GND

ATL-128x8-0.5us-SOIC8

ATL-128x8-0.5us-SOIC8

R366 X_10K/4R366 X_10K/4
R356 3.6KSTR356 3.6KST

C459

C459
27p

27p

Y2

25MHZY225MHZ

C455 27pC455 27p

LAN_LINK_UP

8
7

NC

6

NC

5

27p

C206

C206

102P/50V/X7R/4

102P/50V/X7R/4

C502

C502

0.1u/25V/4

0.1u/25V/4

R355 10K/4R355 10K/4

VDD33

VDD33

VDD33

LAN_USB1_G

LAN_USB1_G

C612

C612

0.1u/25V/4

0.1u/25V/4

D D

CFG001 For RTL8111B
CFG002 For RTL8101E

2K for 8101E; 2.49k for 8111B

AVDD33

C610

C610

0.1u/25V/4

0.1u/25V/4

C C

AVDD18

AVDD18

C435

C435

X_0.1u/25V/4

X_0.1u/25V/4

R131 2.49KR1%0402R131 2.49KR1%0402

CTRL18

MDI_0+
MDI_0-

AVDD18

MDI_1+
MDI_1-

AVDD18

MDI_2+
MDI_2-

MDI_3+
MDI_3-

DVDD15
VDD33

C430

C430

1000P/50X/4

1000P/50X/4

XTAL2

CTRL15/VDD33

GVDD

RSET_LAN

U20

U20

63

64

65

62

65

RSET

GVDD

CKTAL261CKTAL1

VCTRL15

NC#1717NC#1818LANWAKEB19PERSTB20VDD1521EVDD1822HSIP23HSIN24EGND25REFCLK_P26REFCLK_N27EVDD1828HSOP29HSON30EGND31VDD15

10
11
12
13
14
15
16

1
2
3
4
5
6
7
8
9

VCTRL18
AVDD33
MDIP0
MDIN0
AVDD18
MDIP1
MDIN1
AVDD18
MDIP2
MDIN2
AVDD18
MDIP3
MDIN3
AVDD18
VDD15
VDD33

XTAL1

60

DVDD15

59

58

VDD15

AVDD33

LED057LED156LED255LED3

Power domain chart

EGND

RTL8111B /
RTL8101E

AVDD33

AVDD18
EVDD18
DVDD15

B B

RTL8111B

3.3V

1.8V

1.8V

1.5V

Q31

Need Need

Q32

EVDD18

PCI_E_RST#

PCIE_WAKE_UP#

3VDUAL

R358 X_0RR358 X_0R

12

+

+

for 8111B

C607

C607

X_1000P/25V/4

X_1000P/25V/4

for 8111B

CTRL18CTRL18

C608

C608

X_0.1u/25V/4

X_0.1u/25V/4

Power comsuption

100UF/16V/6.3X5/2.5mm

100UF/16V/6.3X5/2.5mm
EC54

EC54

CTRL15/VDD33

P-BCP69_SOT223

P-BCP69_SOT223

1G

3.3V

X_GIGA

LAN_USB1B

LAN_USB1B
RJ45(10/100)+USB*2

RJ45(10/100)+USB*2

19
20
13
18
12
17
11
16
10
15

9
14
21
22

N58-22F0181-S42

N58-22F0181-S42

102P/50V/X7R/4

102P/50V/X7R/4
C219

C219

X_GIGA

C203

C203

102P/50V/X7R/4

102P/50V/X7R/4

AMBER+

AMBER+
AMBER-

AMBER-

POWER

POWER

TD1+

TD1+
TD1-

TD1­TD2+

TD2+
TD2-

TD2­TD3+

TD3+
TD3-

TD3­TD4+

TD4+
TD4-

TD4-

GND

GND

GREEN+

GREEN+
GREEN-

GREEN-

2

N58-16F0031-F02

RTL8101E

DVDD15

C427

C427

0.1u/25V/4

0.1u/25V/4
C463

A A

C463

0.1u/25V/4

0.1u/25V/4
C492

C492
1000P/50X/4

1000P/50X/4
C495

C495

0.1u/25V/4

0.1u/25V/4
C456

C456

0.1U/16V/4

0.1U/16V/4
C428

C428
103P/16V/4

103P/16V/4
C473

C473
103P/16V/4

103P/16V/4
C484

C484

0.1u/25V/4

0.1u/25V/4

AVDD18

5

N/A N/A

VDD33

C373

C373
_104P

_104P
C357

C357
_104P

_104P
C364

C364
_104P

_104P
C387

C387
_104P

_104P

C496

C496
22U/0805

22U/0805
C467

C467

0.1u/25V/4

0.1u/25V/4
C429

C429

0.1u/25V/4

0.1u/25V/4
C472

C472

0.1u/25V/4

0.1u/25V/4

MDI_0+
MDI_0-

MDI_1+
MDI_1-

MDI_2+
MDI_2-

MDI_3+

X_0.01u/50V/4/X7R

X_0.01u/50V/4/X7R
C371

C371

X_0.01u/50V/4/X7R

X_0.01u/50V/4/X7R
C389

C389

MDI_3-

For 8111B remove

4

R307 X_49.9/4R307 X_49.9/4
R303 X_49.9/4R303 X_49.9/4
R304 X_49.9/4R304 X_49.9/4
R305 X_49.9/4R305 X_49.9/4

AVDD18

R127

R127
_0/4

_0/4

1000P/50X/4

1000P/50X/4
C214

C214

C209

C209

0/4

0/4

VDD33

X_330

X_330
R125

R125

LINK_1000

102P/50V/X7R/4

102P/50V/X7R/4
C211

C211

330

330
R123

R123

LAN_ACTLED

LAN_LINK_UP
MDI_0+

MDI_0­MDI_1+
MDI_1­MDI_2+
MDI_2­MDI_3+
MDI_3-

LINK_100_C

C217

C217

4.7u/10V/8

4.7u/10V/8

AVDD18

R133

R133
X_0/4

X_0/4

C619

C619

X_0.1u/25V/4

X_0.1u/25V/4

3

103mA TBD

1.5V

367mA
198mA TBD1.8V

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet

Date: Sheet

Date: Sheet

VDD33

CP32X_COPPERCP32X_COPPER

CP33X_COPPERCP33X_COPPER

Q31

Q31

_P-BCP69_SOT223

_P-BCP69_SOT223

R565 X_0/8R565 X_0/8

Q32

Q32

1

R564 X_0/8R564 X_0/8

X_105P/6

X_105P/6

100M

TBD

<Title>

<Title>

<Title>

MS-7337 1.0

MS-7337 1.0

MS-7337 1.0

CP34X_COPPERCP34X_COPPER

AVDD33

R360 X_0RR360 X_0R

EVDD18

C626

C626

DVDD15

R363 X_0RR363 X_0R

CP39 X_COPPERCP39 X_COPPER

C444

C444

X_0.1u/25V/4

X_0.1u/25V/4

07/25

1

VDD33

4

C443

C443

VDD33

4

2 3

VL1_8

2 3

0.1u/25V/4

0.1u/25V/4

22U/0805

22U/0805

R361 X_0RR361 X_0R

CP38 X_COPPERCP38 X_COPPER

C604

C604

0.1u/25V/4

0.1u/25V/4

C372

C372

VL1_8

C475

C475
22U/0805

22U/0805

Giga-Lan 10/100-Lan

N58-22F0181-S42 N58-22F0201-F02

Yellow

Link
Active

Blinking
Orange

100

Green

10

None

19

20

Yellow

21

22

Green

Orange

1

N58-22F0201-S42

Yellow

Link
Active

Blinking
Green1000

100
10

None

19

20

Yellow

21

22

Green

of

21 36Monday, February 26, 2007

of

21 36Monday, February 26, 2007

of

21 36Monday, February 26, 2007

AVDD18

5

4

3

2

1

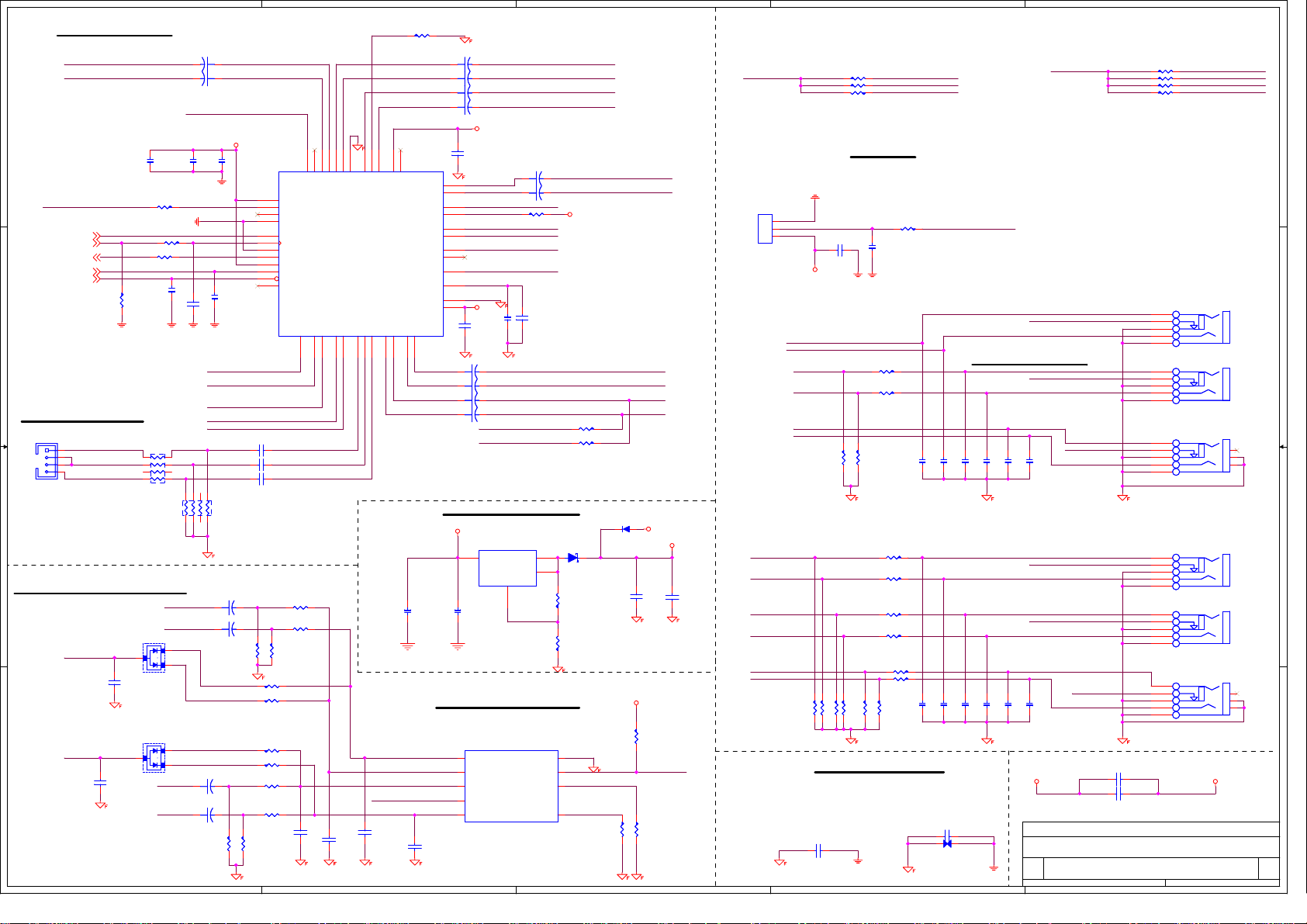

ALC883 CODEC

+

SURRBACK_L

D D

Trace Width 20mils.

C516

C516

0.1u/25V/4

0.1u/25V/4

X_C10U10Y5

X_C10U10Y5

FMIC_JD

AZ_SDATA_OUT14
AZ_BIT_CLK14

ACZ_SDATA_IN314
AZ_SYNC14

AZ_RST#14

X_10K/4

X_10K/4

C C

R435

R435

R448 X_0/4R448 X_0/4

R450 0/4R450 0/4

R427 33/4R427 33/4

C540

C540

X_0.1u/25V/4

X_0.1u/25V/4

AUDIO CODE CD HEADERS

JCD1

JCD1
CD1*4/BLACK

CD1*4/BLACK

CD IN

B B

1
2
3
4

CDL

CDGND

CDR

RN52

RN52

1 2
3 4
5 6
7 8

47K/4/8P4R

47K/4/8P4R

+

C560

C560

27P/50V/4

27P/50V/4

78

SPDIFO

C573

C573

1 2

12

+

+

12

VCC3

C553

C553

0.1u/25V/4

0.1u/25V/4

X_33P/50V/4

X_33P/50V/4

2 1

C537

C537

SENSE_A
LINE2_L

LINE2_R
MIC2_L

MIC2_R

C514 1u/10V/6C514 1u/10V/6
C513 1u/10V/6C513 1u/10V/6
C512 1u/10V/6C512 1u/10V/6

123456

RN51

RN51
47K/4/8P4R

47K/4/8P4R

EC53 CD10U16EL5

EC53 CD10U16EL5
EC58 CD10U16EL5

EC58 CD10U16EL5

2 1

JD0

SURR_BR CENO

46

48

47

SPDIFI

SPDIFO

1

DVDD1

SURR_BR

XTL_IN
XTL_OUT
DVSS1

SDATA_OUT
BIT_CLK
DVSS2
SDATA_IN
DVDD2
SYNC
RESET#
PC_BEEP

SENSEA13LINE2L/AUXL14LINE2R/AUXR15MIC2L/JD216MIC2R/JD117CD-L18CD-GND19CD-R20MIC1L21MIC2R22LIN1L23LIN1R

CDLX
CDGNDX
CDRX

10
11
12

ALC883

ALC883

2
3
4

5
6
7
8
9

12
12
12

45

44

LFE-OUT

SURR_BL

LFEO

43

CEN-OUT

Speaker Out Decoupling

MIC2_R

MIC2_L

MIC2_VREFO

LINE2_VREFO

C575

A A

Place those component close to
audio connector.

C575

X_0.1u/25V/4

X_0.1u/25V/4

12

12

C609

C609

X_0.1u/25V/4

X_0.1u/25V/4

3

SOT23

SOT23

D28

D28

3

SOT23

SOT23

LINE2_R

100UF/16V/6.3X5/2.5mm

100UF/16V/6.3X5/2.5mm

LINE2_L

100UF/16V/6.3X5/2.5mm

100UF/16V/6.3X5/2.5mm

5

1 2

EC56

EC56

+

+

1 2

EC57 CD10U16EL5

EC57 CD10U16EL5

+

EC60

EC60

EC59

EC59

+

+

+

+

+

R55422KR/2R55422KR/2

D29

D29

1

BAT54A-S-SOT23

BAT54A-S-SOT23

2

1

BAT54A-S-SOT23

BAT54A-S-SOT23

2

R55222KR/2R55222KR/2

R560 0R/4/1R560 0R/4/1

R561 0R/4/1R561 0R/4/1

R55522KR/2R55522KR/2

R557 100/4/1R557 100/4/1

CD10U16EL5

CD10U16EL5

R559 100/4/1R559 100/4/1

R55322KR/2R55322KR/2

R519

R519

4.7K/4

4.7K/4

R499

R499

4.7K/4

4.7K/4

R520

R520

4.7K/4

4.7K/4

R521

R521

4.7K/4

4.7K/4

C601

C601

X_C1000P50X

X_C1000P50X

C618

C618

C616

C616
X_C1000P50X

X_C1000P50X

X_C1000P50X

X_C1000P50X

42

AVSS2

SUR_O_R

41

R479 20K/4/1R479 20K/4/1

SUR_O_L

39

38

40

AVDD2

JDREF/JD3

SENSEB/FMIC1

SURR-OUTL

SURR-OUT-R

MIC1_REFR/FMIC2

MIC2_REF/AFILT2

L1_REFL/AFILT1

C680

C680
X_1u/16V/8

X_1u/16V/8

AZ_FRONT_JD

LINE_OUT_L

4

EC43 CD10U16EL5

EC43 CD10U16EL5

1 2

+

+

EC48 CD10U16EL5

EC48 CD10U16EL5

1 2

+

+

EC49 CD10U16EL5

EC49 CD10U16EL5

1 2

+

+

EC50 CD10U16EL5

EC50 CD10U16EL5

1 2

+

+

12

C579

C579

0.1u/25V/4

37

FR-OUTR

L1_REFR

VREFOUT2

L2_REF/JD4

MIC1_REFL

MIC1_IN_R
MIC1_IN_L

0.1u/25V/4

U28

U28

36
35

FR-OUTL

34
33

32
31

30
29

28
27

VREF

26

AVSS1

25

AVDD1

24

1 2

LIN1R

EC61 CD10U16EL5

EC61 CD10U16EL5

LIN1L

EC62 CD10U16EL5

EC62 CD10U16EL5

EC63 CD10U16EL5

EC63 CD10U16EL5

1 2

EC64 CD10U16EL5

EC64 CD10U16EL5

1 2

FR_OUTR
FR_OUTL

X_10u/10V/8

X_10u/10V/8
CB3

CB3

0.1u/25V/4

0.1u/25V/4

+

+

+

+

+

+

+

+

AUDIO CODE REGULATORS

Trace Width 30mils.

+12V

C582

C582
10u/16V/8

10u/16V/8

Azalia Front Audio Connector

FRONT_MIC
MIC_VREF

LINE_OUT_R

C602

C602
X_C1000P50X

X_C1000P50X

1

MIC
MICPWR3PRESENCE#

5

FLINE OUTR

7

HPON
FLINE OUTL9LINE NEXT L

JAUD1

JAUD1
YJ205-IA

YJ205-IA

CENTER_OUTSURRBACK_R

SURR_OUTL

+5VR

EC51 100UF/16V/6.3X5/2.5mm

EC51 100UF/16V/6.3X5/2.5mm

1 2

+

+

EC52 100UF/16V/6.3X5/2.5mm

EC52 100UF/16V/6.3X5/2.5mm

1 2

+

SENSE_B

AUX_JD

+5VR

C566

C566

MIC1_VREFO_L
MIC1_VREFO_R

U27

U27
YLT1087S-0.8A-R

YLT1087S-0.8A-R

VIN3VOUT

+

R452 X_10K/4/1R452 X_10K/4/1

MIC1_VREFO_R

LINE2_VREFO
MIC2_VREFO

MIC1_VREFO_L

12

C558

C558

0.1u/25V/4

0.1u/25V/4

MIC1_R
MIC1_L

2
4

TH

ADJ

1

GND

LINE NEXT R

R445 4.7K/4R445 4.7K/4
R468 4.7K/4R468 4.7K/4

D22

D22

1N5817S

1N5817S

R485

R485

100/4/1

100/4/1

R488

R488
324/4

324/4

2
4
6

8

8

10

LFE_OUT

SURR_OUTR

+5VR

MIC2_JD

LINE2_JD

R498

R498

39.2K/4/1

39.2K/4/1

LINE_FOUTR
LINE_FOUTLLINE_FOUTL

LINE1_1R
LINE1_1L

D23 1N4148SD23 1N4148S

12

CB4

CB4

0.1u/25V/4

0.1u/25V/4

VCC3

R496

R496

4.7K/4

4.7K/4

R497

R497
20K/4/1

20K/4/1

3

VCC5_SB

+5VR

FMIC_JD

C600

C600
X_4.7u/10V/8

X_4.7u/10V/8

SENSE_B

JSPD1

JSPD1

3
2
1

BH1X2_black

BH1X2_black

SURR_OUTR

SURR_OUTL

LFE_OUT

CENTER_OUT

SURRBACK_R
SURRBACK_L

R474 5.1K/4/1R474 5.1K/4/1
R467 10K/4/1R467 10K/4/1
R475 0/6R475 0/6

Closer to Codec.

SPDIF OUT

R476 0/6R476 0/6

C588

C588

0.1u/25V/4

0.1u/25V/4
C611

22KR/2

22KR/2

R539

22KR/2

R539

22KR/2

R54522KR/2R54522KR/2

R54422KR/2R54422KR/2

R54322KR/2R54322KR/2

EMI Solution

C611

X_100p/50V/6

X_100p/50V/6

R465 0/4R465 0/4

R466 0/4R466 0/4

R540

R540

R469 0/4R469 0/4

R470 0/4R470 0/4

R471 0/4R471 0/4

R473 0/4R473 0/4

R477 0/4R477 0/4
R478 0/4R478 0/4

R54622KR/2R54622KR/2

C470P50X0402

C470P50X0402
C470P50X0402

C470P50X0402

1 2

VCC5

LINE1_1R
LINE1_1L

LINE_FOUTR

LINE_FOUTL

MIC1_R
MIC1_L

R54122KR/2R54122KR/2

R54222KR/2R54222KR/2

C710 X_0.1u/16V/4C710 X_0.1u/16V/4

SURRBACK_JD
CEN_JD
AZ_FRONT_JD

C332

C332

C576

C576

C470P50X0402

C470P50X0402

2

C100P50N0402

C100P50N0402

C100P50N0402

C100P50N0402

C577

C577

CP37 X_COPPERCP37 X_COPPER

Closer to Codec.

SPDIFO

Rear audio jack

C336

C336

C328

C328

C470P50X0402

C470P50X0402
C329

C329

C470P50X0402

C470P50X0402

C524

C524

C470P50X0402

C470P50X0402

C525

C525

C711 C1000P50X0402C711 C1000P50X0402

SENSE_A

LINE1_JD

FRONT_JD

MIC1_JD

C330

C330

C331

C331
C100P50N0402

C100P50N0402

C100P50N0402

C100P50N0402

SURR_JD

CEN_JD

SURRBACK_JD

C552

C552
C470P50X0402

C470P50X0402

C550

C550
C470P50X0402

C470P50X0402

VCC3 VCC5

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

Date: Sheet

R379 5.1K/4/1R379 5.1K/4/1
R374 10K/4/1R374 10K/4/1
R372 20K/4/1R372 20K/4/1
R373 39.2K/4/1R373 39.2K/4/1

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

C696 X_0.1u/16V/4C696 X_0.1u/16V/4
C694 X_0.1u/16V/4C694 X_0.1u/16V/4

1

10
11
12
13
18

6
7
8
9

17

1
2
4
5
3

10
11
12
13
18

6
7
8
9

17

1
2
4
5
3

FRONT_JD
LINE1_JD
MIC1_JD
SURR_JD

(Upper)

(Upper)

AUDIO1A

AUDIO1A

(Middle)

(Middle)

AUDIO1B

AUDIO1B

JACK-AUDIOX6-26P_L-pbg_R-obl

JACK-AUDIOX6-26P_L-pbg_R-obl

(Down)

(Down)

AUDIO1C

AUDIO1C

(Upper)

(Upper)

AUDIO2A

AUDIO2A

(Middle)

(Middle)

AUDIO2B

AUDIO2B

(Down)

(Down)

AUDIO2C

AUDIO2C

of

22 36Tuesday, February 27, 2007

of

22 36Tuesday, February 27, 2007

of

22 36Tuesday, February 27, 2007

14
15
16

14
15
16

Line_IN
BLUE

Line_OUT
LIME

MIC_IN
PINK

Line_IN
BLUE

Line_OUT
LIME

MIC_IN
PINK

5

4

3

2

1

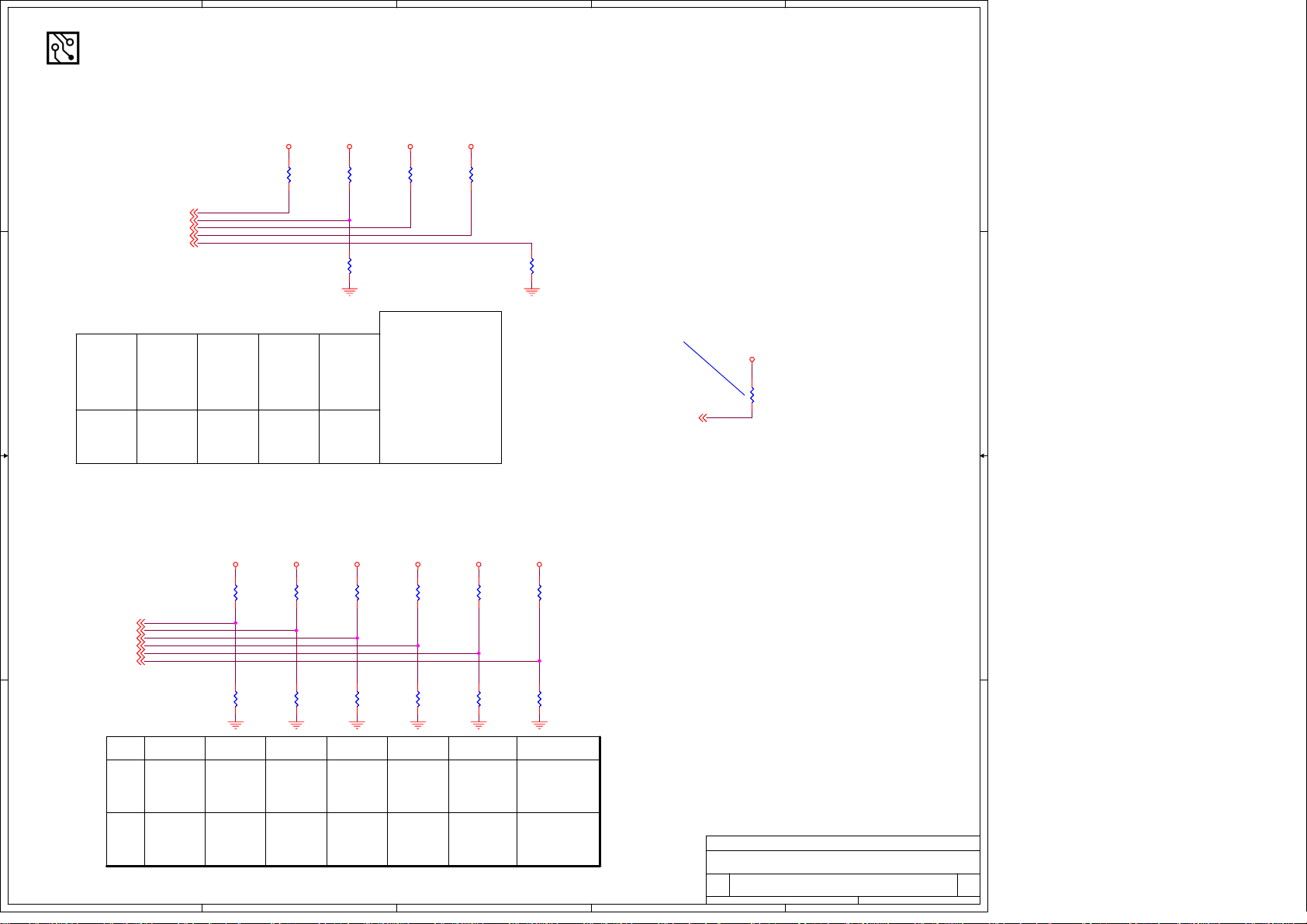

REQUIRED STRAPS

SB600 HAS 15K INTERNAL PD FOR AC_SDATA_OUT,
15K PU FOR RTC_CLK, EXTERNAL PU/PD IS
NOT REQUIRED

D D

R449

R449
X_10K/4

X_10K/4

R433

R433
10K/4

10K/4

VCC3

3VDUAL

R388

R388
X_10K/4

X_10K/4

RTC_CLK15
PCI_CLK415,18
PCI_CLK615,20
PCI_CLK015,18
PCI_CLK115,18

R428

R428
10K/4

10K/4

VCC3VCC3

R472

R472
10K/4

10K/4

R436

R436
10K/4

10K/4

NOTE: R751 PU RESISTOR FOR
RTC_IRQ# IS REQUIRED FOR SB600

SB600

C C

PULL
HIGH

PULL
LOW

AC_SDOUT

USE
DEBUG
STRAPS

IGNORE
DEBUG
STRAPS

DEFAULT

RTC_CLK

INTERNAL
RTC

DEFAULT

EXTERNAL
RTC

PCI_CLK4 PCI_CLK6

USE INT.
PLL48

USE EXT.
48MHZ

DEFAULT

CPU IF=K8

DEFAULT

CPU IF=P4

ROM TYPE:
H, H = PCI ROM
H, L = SPI ROM
L, H = LPC ROM
L, L = FWH ROM

PCI_CLK1PCI_CLK0

DEFAULT

TO KEEP THE INPUT FROM FLOATING.

3VDUAL

R386

R386
10K/4

10K/4

AUTO_ON#15

DEBUG STRAPS

SB600 HAS 15K INTERNAL PU FOR PCI_AD[28:23]

B B

AD2815,18,30
AD2715,18,30
AD2615,18,30
AD2515,18,30
AD2415,18,30
AD2315,18,30

VCC3 VCC3 VCC3 VCC3 VCC3 VCC3

R411

R412

R412
X_10K/4

X_10K/4

R413

R413
X_10K/4

X_10K/4

R411
X_10K/4

X_10K/4

R414

R414
X_10K/4

X_10K/4

R415

R415
X_10K/4

X_10K/4

R416

R416
X_10K/4

X_10K/4

2.2K IF USED FOR SB600.

R399

R419

R419
X_10K/4

X_10K/4

PCI_AD28

PULL

A A

HIGH

PULL
LOW

USE
LONG
RESET

DEFAULT

USE
SHORT
RESET

R403

R403
X_2.2K/4

X_2.2K/4

R443

R443
X_2.2K/4

X_2.2K/4

PCI_AD27 PCI_AD26

USE PCI
PLL

DEFAULT

BYPASS
PCI PLL

USE ACPI
BCLK

DEFAULT

BYPASS
ACPI
BCLK

R399
X_2.2K/4

X_2.2K/4

PCI_AD25

USE IDE
PLL

DEFAULT

BYPASS IDE
PLL

R429

R429
X_2.2K/4

X_2.2K/4

PCI_AD24

USE DEFAULT
PCIE STRAPS

DEFAULT

USE EEPROM
PCIE STRAPS

SB600 ONLY

5

4

3

R396

R396
X_2.2K/4

X_2.2K/4

PCI_AD23

BOOTFAILTIMER
DISABLED

DEFAULT

BOOTFAILTIMER
ENABLED

SB600 ONLY

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

Date: Sheet

2

of

23 36Thursday, February 22, 2007

of

23 36Thursday, February 22, 2007

of

23 36Thursday, February 22, 2007

1

5

IPF06N03LA
C100U2SP
.CD3300U6.3EL25 ESR<12m ,Ripplecur.<2800mA,105C,longlife3000hrs,KZGSeries
560u_2.5V

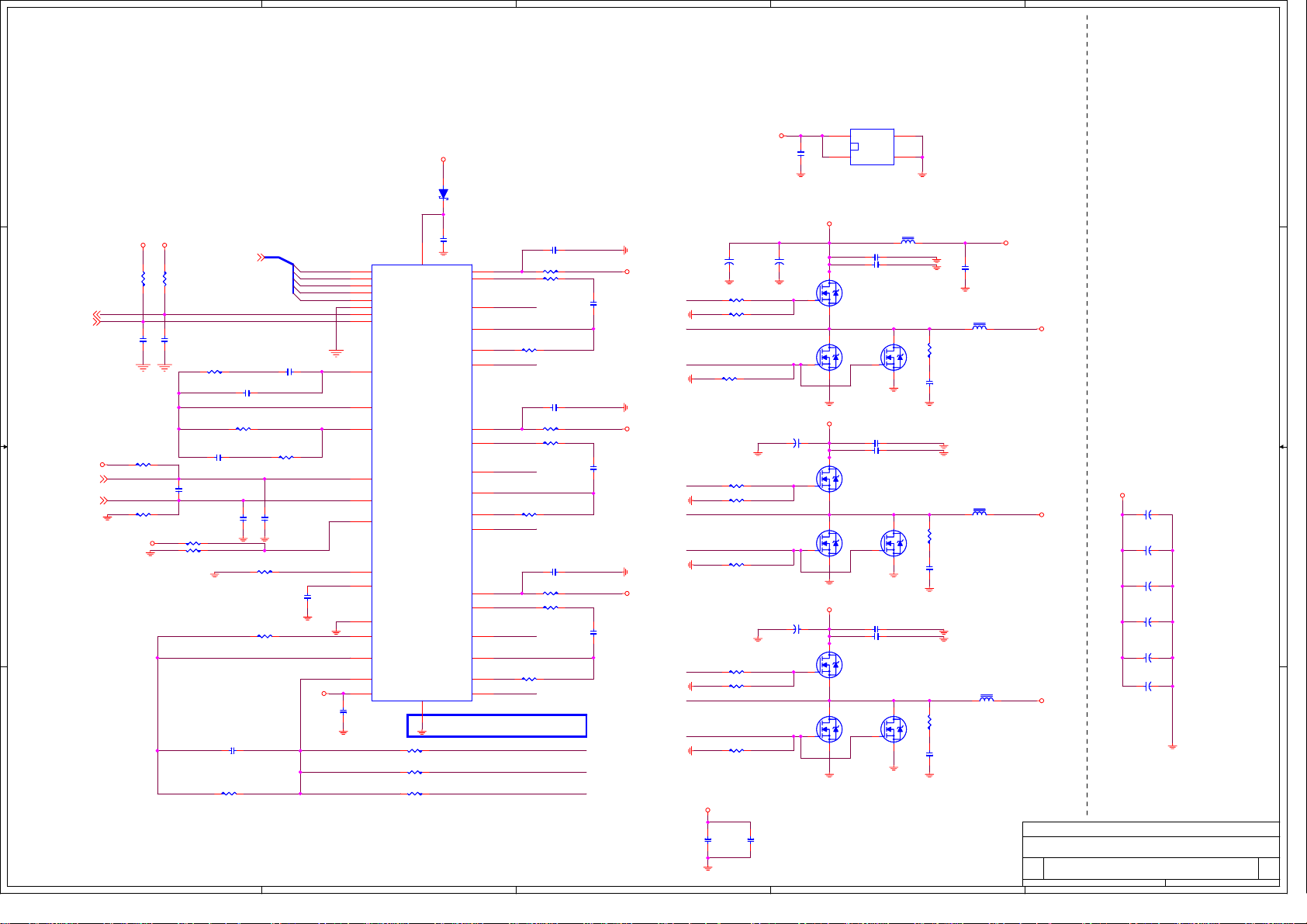

Voltage Regular

D D

Module

VCC5 VCC5

R8

R8

C7

C7

VCC5

R9
1KR0402R91KR0402

C6

C6
C0.1U16Y0402

C0.1U16Y0402

C12

C12
X_C1000P50X0402

X_C1000P50X0402

C0.01U25X0402

C0.01U25X0402

R6 100KR1%R6 100KR1%
R19 X_15KR1%R19 X_15KR1%

4.7KR0402

4.7KR0402

VRM_GD25

PWM_EN25

C C

B B

A A

C0.1U16Y0402

C0.1U16Y0402

R11 51RR11 51R

VCCP

COREFB+3

COREFB-3

CHECK THIS! CONNECT TO
BULK CAPACITOR

R12 51RR12 51R

Close low side
mosfet

1800UF/6.3V

CH-1.2U18A 1.2u/20%,Dip-2/vertical7.5mm,1.2 /5.5turns,18A

VID[0..4]3

R7

3.4KR1%R73.4KR1%

R17 1KR0402R17 1KR0402

C5

C5

X_C560P50X

X_C560P50X

C29

C29

C30 C0.047U16XC30 C0.047U16X

R30 9.1KR1%R30 9.1KR1%

C8

C8
C3300P50X

C3300P50X

COP COMPP

C220P50N0402C11 C220P50N0402C11

R10

R10

X_750R

X_750R

C18

C18

C0.01U25X0402

C0.01U25X0402

R20 150KRR20 150KR

C14

C14

C0.01U25X0402

C0.01U25X0402

R31 280R1%R31 280R1%

Rds(on)=8.7m (@4.5V,30A),Vgs(on)=1.2~2V,Id=50A,Ciss=3110pf,Qg=10nC,Vds=25V,Vgs= 20V

ESR<13m ,Ripple
cur.<2.7A,LC<12uA,105C

ESR=6m ,Ripplecur.=4400mA,Lc.<500uA,105C/2000hrs

VID4
VID3
VID2
VID1
VID0

FB

VDIFF

OFS

FS
REF

VCCP

4

　 ∮

3

ESR<12m , Ripplecur<2350mA,105C, longlife change from 2000hrs to 3000hrs
,KZJ series

0.6u/20%, Isat=40A,Rdc=1.2m ohm,PEW wire0.6uH/40A

VCC5

DZ1

DZ1

S-1N5817_DO214AC

S-1N5817_DO214AC

C15

U3

U3

ISL6566CRZ_QFN40

ISL6566CRZ_QFN40

38

VID4

39

VID3

40

VID2

1

VID1

2

VID0

3

DACSEL/VID5

35

PGOOD

37

ENLL

8

COMP

9

FB

10

VDIFF

12

VSEN

11

RGND

6

OFST

36

FS

5

REF

4

VRM10

13

OCSET

14

ICOMP

15

ISUM

16

IREF

C32

C32

C0.01U25X0402

C0.01U25X0402

R59 39.2KR1%R59 39.2KR1%

R68 39.2KR1%R68 39.2KR1%

R62 39.2KR1%R62 39.2KR1%

C15
C4.7U10Y0805

C4.7U10Y0805

7

VCC

GND

41

33

PVCC1

30

BOOT1

31

UGATE1

29

PHASE1

32

ISEN1

34

LGATE1

24

PVCC2

26

BOOT2

27

UGATE2

28

PHASE2

25

ISEN2

23

LGATE2

18

PVCC3

21

BOOT3

20

UGATE3

22

PHASE3

19

ISEN3

17

LGATE3

BOTTOM PAD CONNECT TO GND
THROUGH 10 vias

C41 C1U16Y0805C41 C1U16Y0805

12VP1

R46 2.2R0805R46 2.2R0805

BOOT1

R49 2.2R0805R49 2.2R0805

U_G1

PHASE1

R47 3.0KR1%R47 3.0KR1%

L_G1

C42 C1U16Y0805C42 C1U16Y0805

12VP2

R115 2.2R0805R115 2.2R0805

BOOT2

R119 2.2R0805R119 2.2R0805

U_G2

PHASE2

R53 2.8KR1%R53 2.8KR1%

L_G2

C35 C1U16Y0805C35 C1U16Y0805

12VP3

R37 2.2R0805R37 2.2R0805

BOOT3

R56 2.2R0805R56 2.2R0805

U_G3

PHASE3

R55 2.0KR1%R55 2.0KR1%

L_G3

PHASE1

PHASE2

PHASE3

C86

C86
C0.1U25X

C0.1U25X

C53

C53
C0.1U25X

C0.1U25X

C61

C61
C0.1U25X

C0.1U25X

+12VIN

+12VIN

+12VIN

CD1000U16EL20-2

CD1000U16EL20-2

+

+

U_G1

R33 1R0805R33 1R0805
R35 10KR0402R35 10KR0402

PHASE1

L_G1

R69 X_10KR0402R69 X_10KR0402

U_G2

R99 1R0805R99 1R0805
R76 10KR0402R76 10KR0402

PHASE2

L_G2

R93 X_10KR0402R93 X_10KR0402

U_G3

R91 1R0805R91 1R0805

R94 10KR0402R94 10KR0402

PHASE3

L_G3

R120 X_10KR0402R120 X_10KR0402

VCCP

+12VIN

C212

C212

C0.01U25X0402

C0.01U25X0402

CD1000U16EL20-2

CD1000U16EL20-2

+

+

EC14

EC8

EC8

EC14

N-IPD09N03LA_TO252-LF

N-IPD09N03LA_TO252-LF

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

EC15

EC15

CD1000U16EL20-2

CD1000U16EL20-2

N-IPD09N03LA_TO252-LF

N-IPD09N03LA_TO252-LF

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

EC7

EC7

CD1000U16EL20-2

CD1000U16EL20-2

N-IPD09N03LA_TO252-LF

N-IPD09N03LA_TO252-LF

UG3

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

PWR-2X2M_white-4.2pitch-RH

PWR-2X2M_white-4.2pitch-RH

+12VP_FET

DS

Q2

Q2

UG1

G

DS

Q5

Q5

G

+12VP_FET

+

+

DS

Q11

Q11

UG2

G

DS

Q7

Q7

G

+12VP_FET

+

+

DS

Q13

Q13

G

DS

Q12

Q12

G

2

JPW1

JPW1

3

4

C36 C4.7U35Y1206C36 C4.7U35Y1206
C198 C1U16Y0805C198 C1U16Y0805

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

C91 X_C4.7U35Y1206C91 X_C4.7U35Y1206
C127 C1U16Y0805C127 C1U16Y0805

C172 C4.7U35Y1206C172 C4.7U35Y1206
C122 C1U16Y0805C122 C1U16Y0805

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

1

GND

12V

2

GND

12V

COIL4

COIL4
CH-1.2U18A-LF

CH-1.2U18A-LF

DS

Q3

Q3

G

DS

Q9

Q9

G

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

DS

Q15

Q15

G

C210

C210
C4.7U35Y1206

C4.7U35Y1206

COIL1

COIL1
_L04-25B7021

_L04-25B7021

0.8375~1.6V / 119A

R71

R71

2.2R0805

2.2R0805

C78

C78

C1000P50X0402

C1000P50X0402

COIL2

COIL2
_L04-25B7021

_L04-25B7021

R92

R92

2.2R0805

2.2R0805

C118

C118
C1000P50X0402

C1000P50X0402

COIL3

COIL3
_L04-25B7021

_L04-25B7021

R98

R98

2.2R0805

2.2R0805

C174

C174
C1000P50X0402

C1000P50X0402

+12VIN

VCCP

VCCP

VCCP

1

EL Capacitors

VCCP

+

+

+

+

+

+

+

+

+

+

+

+

EC29

EC29

CD1800U6.3EL20-2

CD1800U6.3EL20-2

EC9

EC9
CD1800U6.3EL20-2

CD1800U6.3EL20-2

EC4

EC4
CD1800U6.3EL20-2

CD1800U6.3EL20-2

EC5

EC5
CD1800U6.3EL20-2

CD1800U6.3EL20-2

EC6

EC6
CD1800U6.3EL20-2

CD1800U6.3EL20-2

EC10

EC10
CD1800U6.3EL20-2

CD1800U6.3EL20-2

Title

Title

C624

C624

C706

C706

22P50N0402

22P50N0402

22P50N0402

22P50N0402

5

4

3

2

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

Date: Sheet

1

of

24 36Friday, February 23, 2007

of

24 36Friday, February 23, 2007

of

24 36Friday, February 23, 2007

5

4

3

2

1

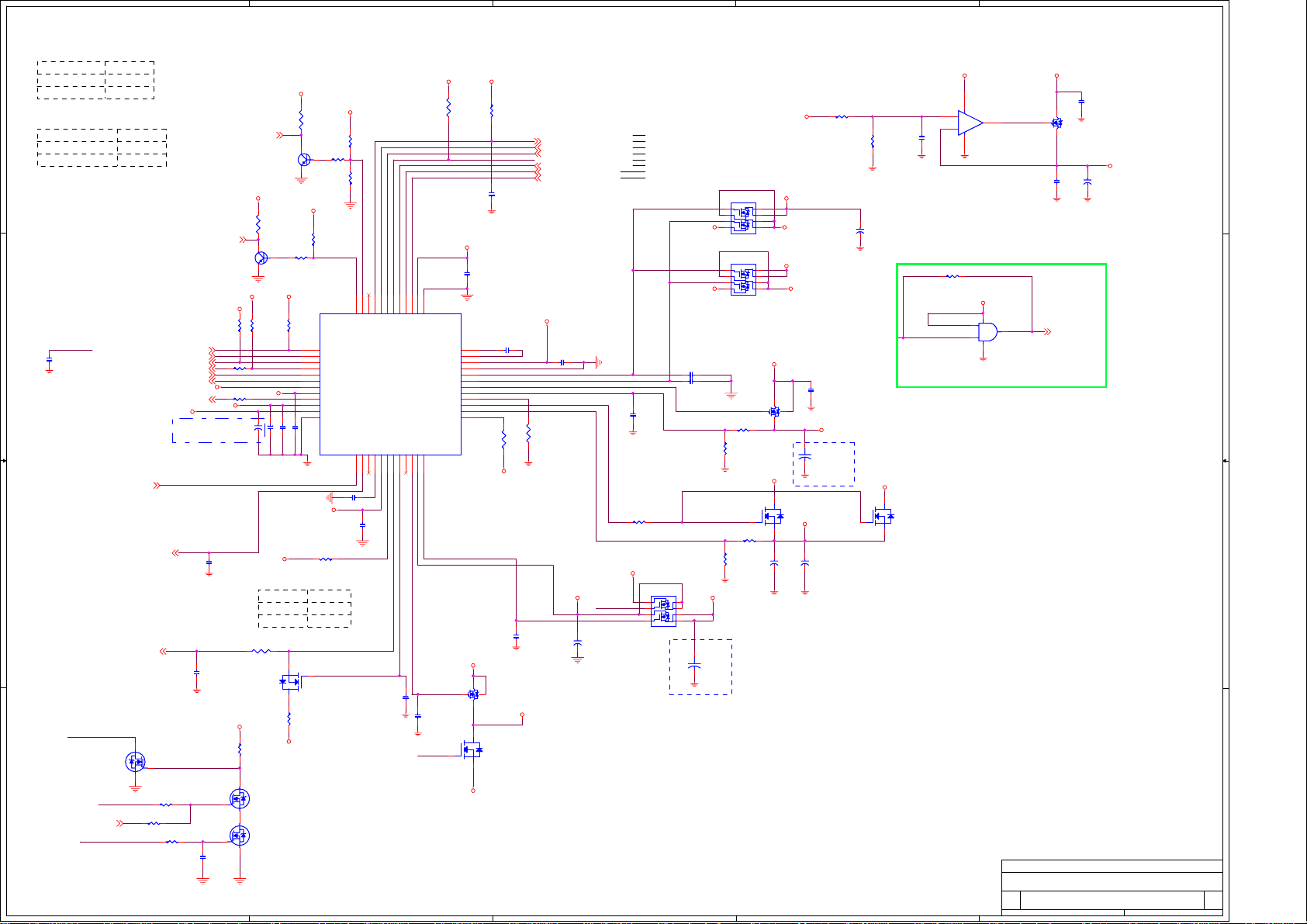

3VSB MODE SELECT

3VSB MODE
DUAL MOSFET

SINGLE MOSFET

D D

VDIMM LINEAR OR PWM SELECT

VDIMM MODE

LINEAR REGULATOR

PWM REGULATOR

C C

B B

A A

HD_RST#

C361

C361
X_C22P50N

X_C22P50N

Turn off VCCA_1V2
when enter S3.

VCCA_1V2_DRV

N-2N7002_SOT23

N-2N7002_SOT23

5V_DRV

VRM_GD24

3VDLDEC#
PULL LOW
PULL HIGH

EXTRAM
PULL LOW
PULL HIGH

PS_ON#20

RAM_VREF26

Q38

Q38

SLP_S3#

5

FP_RST#12,14,28

A_RST#15

HD_RST#27

PCI_RST1#13,20

VRM_GD24

PWM_EN24

1.25VREF

PCI_E_RST#19,21

VDDA_25

CLOSE TO CPU SECKET

ATX_PSON#28

R209

R209

1KR1%0402

1KR1%0402
R218 X_1KR0402R218 X_1KR0402

R217 1KR0402R217 1KR0402

C0.1U10X1206

C0.1U10X1206

N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

PLED228

N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

VCC5

R243

R243
330R

330R

R235 22R/4R235 22R/4

1.25VREF

R505 22R/4R505 22R/4

VCC3

EC26

EC26

_CD100U16EL11

_CD100U16EL11

ATX_PSON#

C342

C342
X_0.1u/25V/4

X_0.1u/25V/4

C313

C313
C1000P16X

C1000P16X

VCC5_SB

C346

C346

VCC5_SB

R250

R250
330R

Q28

Q28

R251

R251
330R

330R

3VDUAL

R252

R252

4.7K/4

4.7K/4

C356 X_0.1u/25V/4C356 X_0.1u/25V/4

C349 C4.7U10Y0805C349 C4.7U10Y0805

DDRTYPE
PULL LOW
PULL HIGH

3VDUAL

R240

R240

4.7K/4

4.7K/4

C352 0.1u/25V/4C352 0.1u/25V/4

S

D

R211

R211
1K/4

1K/4

330R

VCC5_SB

1
2
3
4
5
6
7
8

9
10
11
12

VCC5_SB

R255

R255

VDIMM

RAM_REF

Q27

Q27
N-2N7002_SOT23

N-2N7002_SOT23

G

PLED128

VCC5_SB

Q33

Q33

VCC3

R242

R242
330R

330R

VCC5

12

+

+

PS_ON#

VCC5_SB

DDR AND DDR II VOLT SELECT

R194 33/4R194 33/4

R208

R208

1KR1%0402

1KR1%0402

Q29

Q29
N-2N7002_SOT23

N-2N7002_SOT23

Q30

Q30
N-2N7002_SOT23

N-2N7002_SOT23

R232

R232

4.7K/4

4.7K/4

R238

R238
1K/4

1K/4

FP_RST#
PCIRST#
HDD_RST#
DEV_RST#
VDD_GD
VDD_EN

1.25VREF
VCC5
SLOT_RST#
VCC3

2.5VDDA
AGND0

C339

C339

0.1u/25V/4

0.1u/25V/4

4.7K/4

4.7K/4

2.5V

1.8V

C343 224P/16v/6C343 224P/16v/6

VCC5_SB

R224

R224
X_1KR

X_1KR

R210

R210
1KR

1KR

46

44

48

47

45

I2C_CLK

CPU_PWGD

CHIP_PWGD

PLED1/EXTRAM

PLED0/3VDLDEC#

PSIN#13PSOUT#14MEMBT15SS165VSB17DDRTYPE18VDIMM_LSEN19VDIMM_LDRV20VDIMM_HSEN21VDIMM_HDRV223VSB_SEN233VSB_DRV

DDRTYPE

C307

C307

X_C1000P16X

X_C1000P16X

4

3VDUAL

3VDUAL

10K/4

10K/4

R192

R192

R186

R186

1K/4

1K/4

RSMRST#_1

SLP_S5#

SLP_S3#

ATX_PWROK

C317

C317
X_C1000P50X

X_C1000P50X

VCC5_SB

C292

C292

0.1u/25V/4

0.1u/25V/4

U14

37

GND

5VSB

C1
C2

CHRPMP

AGND1

5VUSB_DRV

5V_DRV

VAGP_DRV

VAGP_SEN

WD_DET

1.2VLDT_DRV

1.2VLDT_SEN
TMP_FAULT#

24

MS-6G-RBF-RH

MS-6G-RBF-RH

C304

C304

X_0.01u/50V/6/X7R

X_0.01u/50V/6/X7R

5V_DRV

G

U14

36
35
34
33
32
31
30
29
28
27
26
25

VCC5_SB

1234

D

S

Q10

Q10
N-P45N02LD_TO252

N-P45N02LD_TO252

VCC5

C285 0.1u/25V/X7R/6C285 0.1u/25V/X7R/6

5VSB_DRV
5V_DRV

WD_DET

10K/4

10K/4

10K/4

10K/4

R188

R188

R200

R200

VCC3

Q8

Q8
N-APM2054N_SOT89

N-APM2054N_SOT89

5VDIMM

38

39

41

43

S3#40S5#

PWR_OK

RSMRST#42I2C_DATA

PWM MODE

THESE OUTPUT AND INPUT PIN MUST
BE PULL HIGH

CPU PWR_GD OUTPUT

NB_PWRGD 13,14
SCLK1 14,19
SDATA1 14,19

SLP_S5# 14
SLP_S3# 14,20
ATX_PWROK 20,28

9VSB

CHARGE PUMP
VOLTAGE
OUTPUT

C282

C282

1u/10V/6

1u/10V/6

3VSB REGULATE BY 5VSB AND VCC3

3VDUAL

3VDUAL

5V_DRV

C299

C299

X_C1000P50X

X_C1000P50X

EC33

EC33

12

+

1000u/6.3V/8*11.5

+

1000u/6.3V/8*11.5

CHIP PWR_GD OUTPUT
I2C BUS
I2C BUS
CONNECT TO SOUTH BRIDGE RSMRST# SIGNAL
SOUTH BRIDGE POWER CONTROL(SLP_S4# OR SUSB#) SIGNAL
SOUTH BRIDGE POWER CONTROL(SLP_S3# OR SUSC#) SIGNAL
ATX POWER OK INPUT

C286 X__C2200P50X/20%C286 X__C2200P50X/20%
C287 X__C2200P50X/20%C287 X__C2200P50X/20%

C288

C288
X_C1000P50X

X_C1000P50X

R193

R193

4.7K/4

4.7K/4

VCC3

Q35

Q35

8

1

7

2
3

6

4 5

NN-P07D03LV_SO8

NN-P07D03LV_SO8

NEED CLOSE TO MS6

3

NN-P07D03LV_SO8

NN-P07D03LV_SO8

VCC5

NN-P07D03LV_SO8

NN-P07D03LV_SO8

VCC5

VCC18_G1

VCC18_FB1

N-P45N02LD_TO252

N-P45N02LD_TO252

VCCA_1V2_DRV

VCC5_SB

12

+

+

EC32

EC32

CD470U10EL11-2

CD470U10EL11-2

4 5
3
2
1

Q22

Q22

4 5
3
2
1

Q44

Q44

R175 200R 1%R175 200R 1%

R177

R177
1K/4

1K/4

Q23

Q23

G

R221 100R 1%R221 100R 1%

R222

R222

2.4K/4

2.4K/4

1.25VREF

VCC5_SB

6
7
8

+5VUSB_REAR

VCC5_SB

6
7
8

+5VUSB_FRONT1

VCC3

1234

Q37

Q37
N-APM2054NDC-TRL_SOT89-LF

N-APM2054NDC-TRL_SOT89-LF

+

+

VCC_DDR

D

VCCA_1V2

S

+

+

+

+

EC23

EC23

EC21

EC21

.CD1800U6.3EL20

.CD1800U6.3EL20

X_CD1800U6.3EL20

X_CD1800U6.3EL20

R179 49.9R 1%R179 49.9R 1%

3A

C385

C385
X_0.1u/25V/4

X_0.1u/25V/4

+1.8V_S0

EC28

EC28
1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

N-P45N02LD_TO252

N-P45N02LD_TO252

+

+

EC27

EC27

1.5A

Q25

Q25

G

2

R180

R180

1.2KR 1%

1.2KR 1%

1000U/6.3V

1000U/6.3V

VCC_DDR

D

S

時序！

C380

C380
X_C1000P50X

X_C1000P50X

RSMRST#_1RSMRST#_1

9VSB

84

3

+

+

2

-

-

R236 _22R/4R236 _22R/4

1
2

3VDUAL

C386

C386
X_0.1u/25V/4

X_0.1u/25V/4

G

DS

CB1

CB1

0.1u/25V/4

0.1u/25V/4

Q36

Q36
_N-NDS351AN_SOT23

_N-NDS351AN_SOT23

USB_PHY

+

+

EC42

EC42
470/16V

470/16V

VCC12SB_G

1

U15A

U15A
LM358MX_SOIC8

LM358MX_SOIC8

SB600=1.2V

3VDUAL

53

4

U13

U13

X_NC7SZ126_SOT23-5

X_NC7SZ126_SOT23-5

T70-SZ12609-F01

T70-SZ12609-F01

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet

Date: Sheet

Date: Sheet

RSMRST# 14

<Title>

<Title>

<Title>

MS-7337 1.0

MS-7337 1.0

MS-7337 1.0

1

of

25 36Monday, February 26, 2007

of

25 36Monday, February 26, 2007

of

25 36Monday, February 26, 2007

5

4

3

2

1

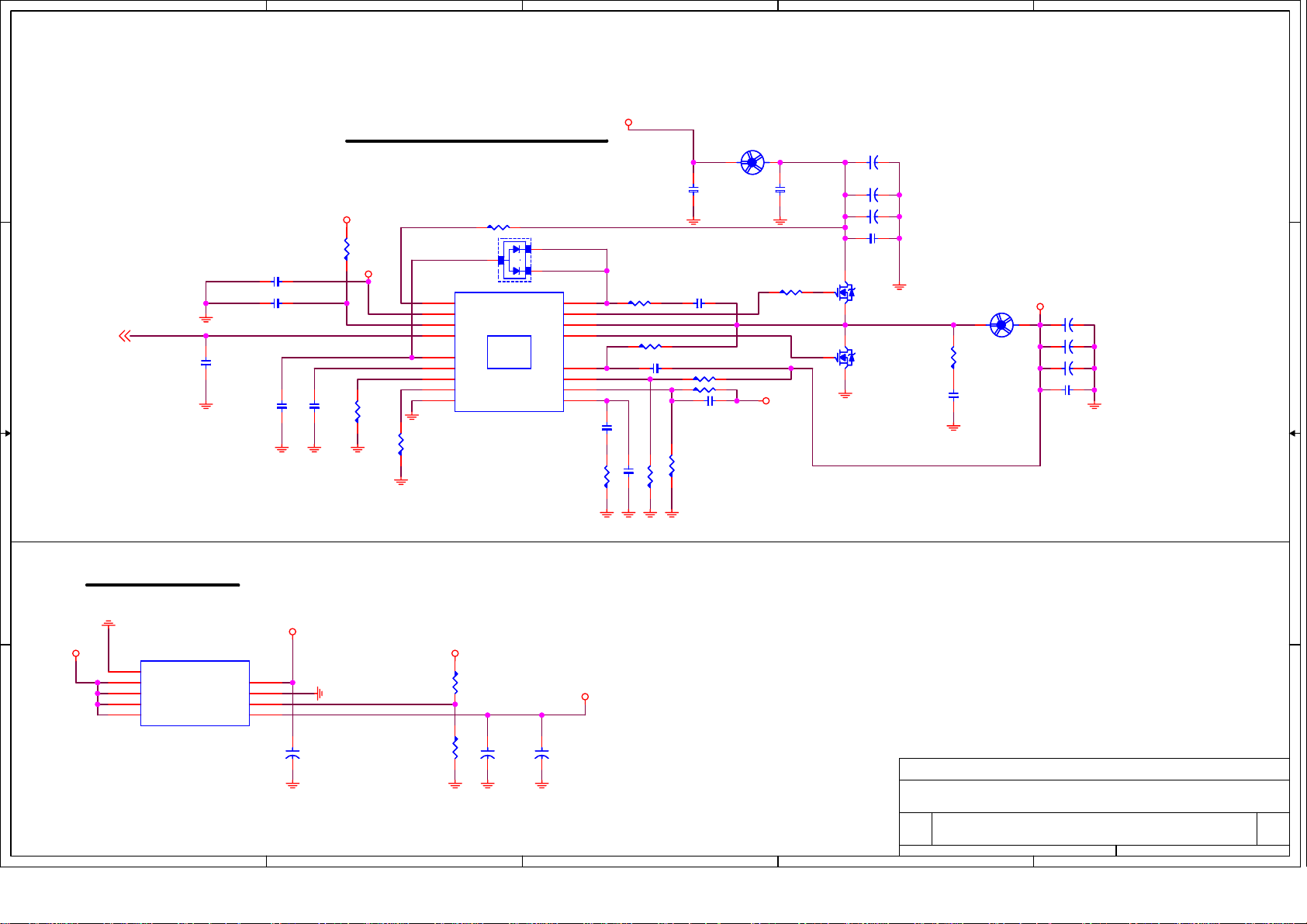

Iripple=20*0.6*0.8/1=9.6A

2.22*3*1.7=11.322A>9.6A

C76

C76

5VDIMM

15
14
13
12

R85 2KR1%0402R85 2KR1%0402

6
5
8
7

R87

R87

R86

R86

0R0805

0R0805

C72 1u/16V/8C72 1u/16V/8C81

C74 C33P50N0402C74 C33P50N0402

R84 X_56KR1%0402R84 X_56KR1%0402

CHOKE1

CHOKE1

CH-1.2U18A

CH-1.2U18A

C68

C68
103P/16V/4

103P/16V/4

C79

C79

1u/16V/8

1u/16V/8

R80 2KR1%0402R80 2KR1%0402
R88 1KR1%0402R88 1KR1%0402

C80

C80
X_103P/25V/4

X_103P/25V/4

CLOSE TO DEVICE FB

R89

R89
1KR1%0402

1KR1%0402

VCC_DDR

EC30

EC30

+

5VDIMM_IN

C684

C684
X_0.1u/25V/4

X_0.1u/25V/4

R102

R102

0R0805

0R0805

+

EC31

EC31

+

+

+

+

DS

Q20

Q20

G

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

DS

Q19

G

Q19

EC36 X_1000u/6.3V/8*11.5

EC36 X_1000u/6.3V/8*11.5

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

CONNECT TO CHOKE OUTPUT

1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

C89

C89
10u/10V/8

10u/10V/8

R107

R107

2.2/8

2.2/8
C171

C171
103P/16V/4

103P/16V/4

Irms(MAX) of VCC_DDR=20A

CHOKE2

CHOKE2

CH-1.1U25A-1

CH-1.1U25A-1

VCC_DDR

+

+

1 2

+

+

1 2

+

+

1 2

EC19

EC19
.CD1500U6.3EL20

.CD1500U6.3EL20
EC17

EC17
.CD1500U6.3EL20

.CD1500U6.3EL20
EC25

EC25
.CD1500U6.3EL20

.CD1500U6.3EL20
C241

C241
1u/10V/6

1u/10V/6

D D

DDR II 1.8V POWER

5VDIMM

R78

R78

2.2/6

2.2/6

C71 1u/16V/8C71 1u/16V/8
C69 1u/16V/8C69 1u/16V/8

C C

B B

RAM_VREF25

C81
103P/25V/4

103P/25V/4

C82

C82

1u/16V/8

1u/16V/8

+12V

RAM_VREF

C83

C83

223P/16v/6

223P/16v/6

R82

R82

X_68KR0402

X_68KR0402

R81

R81
X_0R0402

X_0R0402

4

RR

16

VCC12

1

5VSB

9

PI

11

PVCC

10

SS

2

RT

3

I_IND

17

GND

MS-11

MS-11

R79 200KR0402R79 200KR0402

BAT54A-S-SOT23D33

BAT54A-S-SOT23D33

U5

U5

SOT23

SOT23

BOOT

PHASE

GND

GND

COMP

222P/50V/X7R/4

222P/50V/X7R/4

1
2

UG

LG

CSP

CSN

FB

3

22K/4

22K/4

DDR VTT Power

To CPU Copper trace width > 250mils , Fill

VCC_DDR

3VDUAL

A A

U8

U8

9

NC

8

VREF2

7

ENABLE

6

VCNTL

5

BOOT_SEL

W83310DG_SOP8-RH

W83310DG_SOP8-RH

1.25V/2.9A

5

VIN

GND

VREF1

VOUT

1
2
3
4

island behind DIMM > 400mils .

VCC_DDR

R142

R142
1K/4

1K/4

+

12

+

+

EC11

EC11
X_470u/6.3V/6.3*11

X_470u/6.3V/6.3*11

R146

R146
1K/4

1K/4

4

+

X_CD470U10EL11-2

X_CD470U10EL11-2

EC24

EC24

1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

+

+

EC20

EC20

VTT_DDR

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

of

Date: Sheet of

Date: Sheet of

3

Date: Sheet

2

26 36Monday, February 26, 2007

26 36Monday, February 26, 2007

26 36Monday, February 26, 2007

1

5

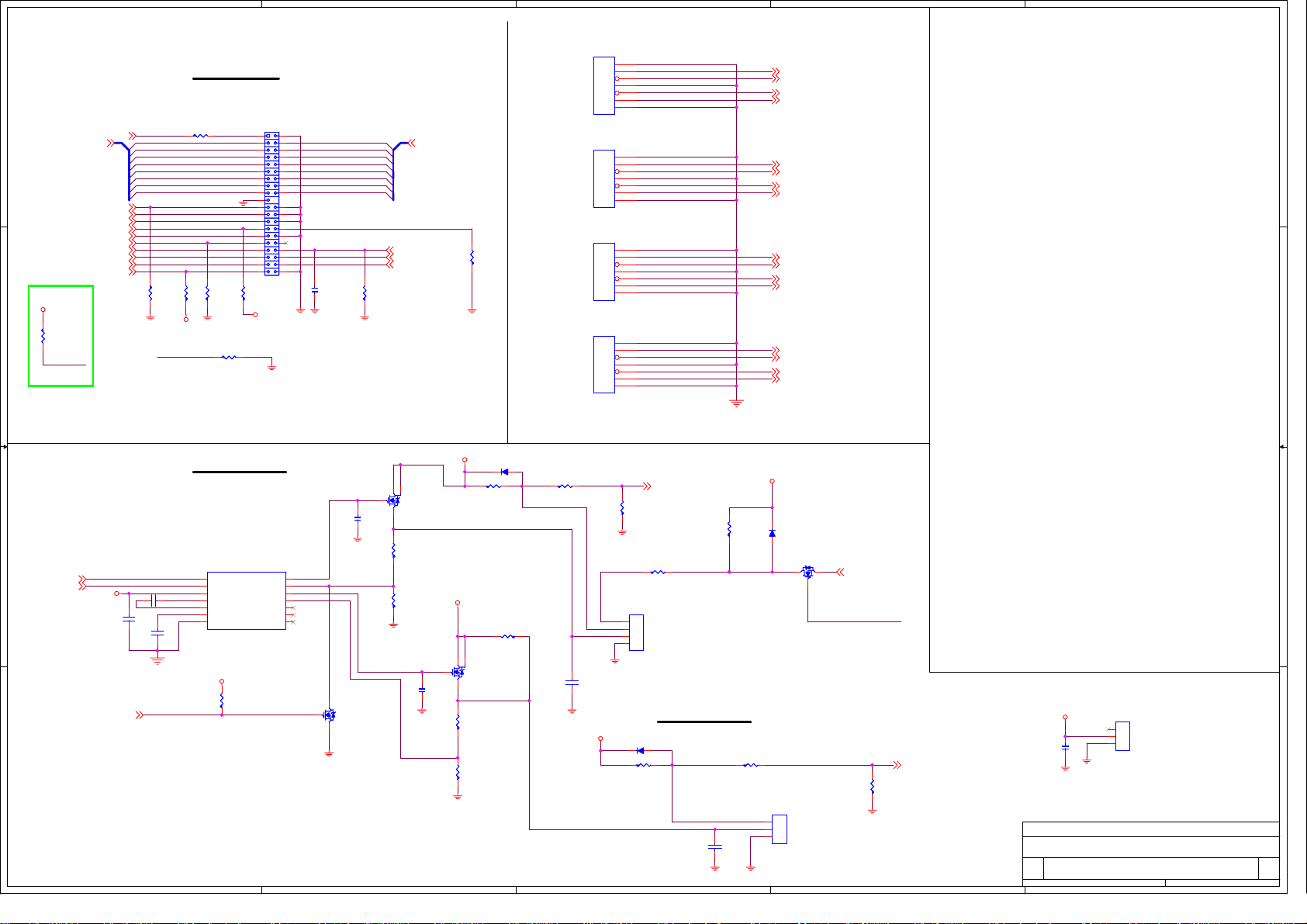

IDE 1

IDE1

D D

HD_RST#25

PDD[15..0]17 PDD[15..0] 17

PD_DREQ17

PD_IOW#17

PD_IORDY17
PD_DACK#17

PD_CS#117 PD_CS#3 17

VCC3

R130

C C

R130
X_8.2K/4

X_8.2K/4

PD_SIRQ

HD_RST#

R248 33/4R248 33/4

PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1 PDD14

PD_IOR#17

PD_SIRQ17

PDA_R017

PD_LED28

R150

R150

R126

X_5.6K/4

X_5.6K/4

R126

4.7K/4

4.7K/4

VCC5

PDD7

R129

R129
X_10K/4

X_10K/4

R247 X_10K/4R247 X_10K/4

HDRST#P

IDE1
YJ220-CB-1

YJ220-CB-1

1
3 4
5 6
7 8
91110

13 14
17 18

19
21
23
25
27
29
31
33
35
37

R143

R143
X_4.7K/4

X_4.7K/4

VCC3

2

PDD8
PDD9
PDD10
PDD11
PDD12

12

PDD13

1615

PDD15PDD0

22
24
26

PCSEL

28
30
32
34
36
38
4039

C225

C225
X_47n/16V/4

X_47n/16V/4

R128

R128
15K

15K

4

PD_DET 14PDA_R117
PDA_R2 17

R132

R132
470R/4

470R/4

3

SATA CONNECTOR

SATA1

SATA1

1

GND

2

HT+

3

HT-

4

GND

5

HR-

6

HR+

7

GND

SATA_H

SATA_H

SATA2

SATA2

1

GND

2

HT+

3

HT-

4

GND

5

HR-

6

HR+

7

GND

SATA_H

SATA_H

SATA3

SATA3

1

GND

2

HT+

3

HT-

4

GND

5

HR-

6

HR+

7

GND

SATA_H

SATA_H

SATA4

SATA4

1

GND

2

HT+

3

HT-

4

GND

5

HR-

6

HR+

7

GND

SATA_H

SATA_H

SATA_TX0+_C

SATA_TX1+_C
SATA_TX1-_C

SATA_RX1-_C
SATA_RX1+_C

SATA_TX0-_C

SATA_RX0-_C
SATA_RX0+_C

SATA_TX2+_C

SATA_TX2-_C

SATA_RX2-_C
SATA_RX2+_C

SATA_TX3+_C

SATA_TX3-_C

SATA_RX3-_C
SATA_RX3+_C

SATA_TX0+_C 17
SATA_TX0-_C 17

SATA_RX0-_C 17
SATA_RX0+_C 17

SATA_TX1+_C 17
SATA_TX1-_C 17

SATA_RX1-_C 17
SATA_RX1+_C 17

SATA_TX2+_C 17
SATA_TX2-_C 17

SATA_RX2-_C 17
SATA_RX2+_C 17

SATA_TX3+_C 17
SATA_TX3-_C 17

SATA_RX3-_C 17
SATA_RX3+_C 17

2

1

If using 3 pin fan, The Q49 will turn off to
avoid the VCC5(R458) bias to CPU-FANPWM.

R522

R522

4.7K/4

4.7K/4

VCC5

D32

D32
1N4148_SOD123

1N4148_SOD123

Q46

Q46
N-2N7002_SOT23

N-2N7002_SOT23

D S

G

CPU-FAN 20

R2
10K/4R210K/4

R523 200R 1%R523 200R 1%

CPUFAN1

CPUFAN1

4
3
2
1

FAN1*4/WHITE

FAN1*4/WHITE

If using 3 pin fan, The Q50 will turn off to
avoid the VCC5(R417) bias to CPU-FANPWM.

SYS FAN

D34 X_1N4148_SOD123D34 X_1N4148_SOD123
R13 4.7K/4R13 4.7K/4

3

C436

C436
10U/0805

10U/0805

R5 27KRR5 27KR

SYSFAN1

SYSFAN1

3
2
1

BH1X3BP_white-RH

BH1X3BP_white-RH

CPU-FANPWM 20

CPU_FAN_GPO

R4

10K/4R410K/4

SYS-FAN 20

2

+12V

X_0.1u/25V/4

X_0.1u/25V/4

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

Date: Sheet

C49

C49

SYSFAN2

SYSFAN2

3
2
1

BH1X3BP_white-RH

BH1X3BP_white-RH

1

of

27 36Monday, February 26, 2007

of

27 36Monday, February 26, 2007

of

27 36Monday, February 26, 2007

FAN1_SEN

1

C25

C25

X_0.1u/25V/4

X_0.1u/25V/4

+12V

D3 1N4148_SOD123D3 1N4148_SOD123

R3 4.7K/4R3 4.7K/4

+12V

R575 _0/8R575 _0/8

23

4

Q24

Q24
X_N-APM2054N_SOT89

X_N-APM2054N_SOT89

R41

R41
X_10K/4

X_10K/4

R48

R48
X_3.48KR1%

X_3.48KR1%

R1 27KRR1 27KR

C432

C432

10U/0805

10U/0805

+12V

SYS_FAN

FAN CONTROL

CPU-FANPWM connect to 627EHF pin
115;default is PWM mode

B B

CPU-FANPWM20

SYS-FANPWM20

If using 4 pin fan, The GPIO
must drive to high.

If using 3 pin fan, The GPIO

A A

must drive to low.

CPU-FANPWM FAN1_DRV

CPU_FAN_GPO20

+12V

C3

C3

0.1u/25V/4

0.1u/25V/4

5

C2

C2

0.1u/25V/4

0.1u/25V/4

C1

C1

0.1u/50V/6

0.1u/50V/6

CPU_FAN_GPO

CPU FAN

U1

U1

1

FAN1_IN

2

FAN2_IN

3

VCC12

4

C1

5

C2

6

CHRPMP

7

GND

VCC5

R524

R524

4.7K/4

4.7K/4

FAN1_DRV

FAN1_SEN

FAN2_DRV

FAN2_SEN

FAN3_DRV

FAN3_SEN

FAN3_IN

W83391TS

W83391TS

23

4

Q1

Q1
N-APM2054N_SOT89

N-APM2054N_SOT89

1

C24

C24

X_0.1u/25V/4

X_0.1u/25V/4

R26

R26
10K/4

10K/4

14
13
12
11
10
9
8

DS

Q47

Q47

G

N-2N7002_SOT23

N-2N7002_SOT23

FAN2_DRV

4

R25

R25

3.48KR1%

3.48KR1%

5

4

3

2

1

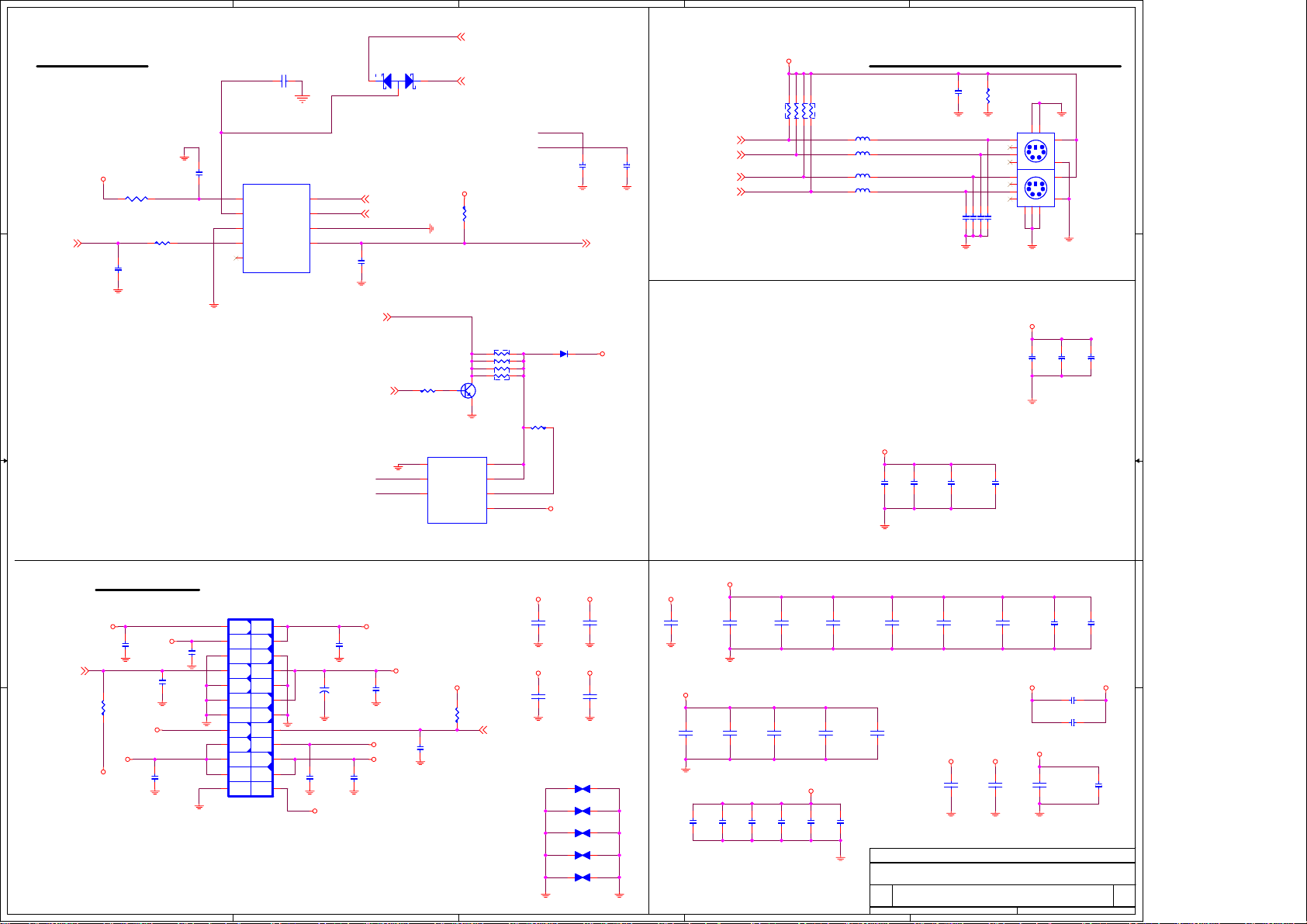

ATX connector / Front Panel

ESD Protect

C593

C593

X_181P

X_181P

D D

EMI

C589

R494 33/4R494 33/4

C594

C594

0.1u/25V/4

0.1u/25V/4

C589

X_0.1u/25V/4

X_0.1u/25V/4

HDD+

VCC5

R492 330/6R492 330/6

FP_RST#12,14,25

C C

For MSI / Intel Front Panel

JFP1

RESET+

HDD-

RESET-

JFP1

1

HDD+

3

HDD­RESET-5PWSW+

7

RESET+

9

NC

JFP1

JFP1

PLED
SLED

PWSW-

PLED1

2

PLED2

4
6
8

C591

C591

X_0.1u/25V/4

X_0.1u/25V/4

D21

D21
BAT54A-S-SOT23

BAT54A-S-SOT23

2

PLED1 25
PLED2 25

ALARM20

SPKR14

PLED2
PLED1

3

R455

R455

1
3

7

7

SATA_ACT# 17

1

PD_LED 27

3VDUAL

R526

R526
_4.7K/4

_4.7K/4

RN8 8P4R-100R-LFRN8 8P4R-100R-LF

1 2
3 4
5 6
7 8

CE

Q67

Q67

B

2.2K/6

2.2K/6

2N3904S

2N3904S

JFP2

JFP2

GND

SPK-

BUZ+

PLED2
PLED15BUZ-

SPK+

CUT

CUT

H2X4(7)_color-N31-2041101

H2X4(7)_color-N31-2041101

2
4
6
8

PLED1
PLED2

C613

C613

X_0.1u/25V/4

X_0.1u/25V/4

D10

D10

BAS32L_LL34

BAS32L_LL34

R90 X_0R-1R90 X_0R-1

VCC5

C597

C597

X_0.1u/25V/4

X_0.1u/25V/4

PSIN 20

VCC5

SVCC1

RN4

RN4

4.7K/4/8P4R

4.7K/4/8P4R

1 2

3 4

5 6

7 8

MSDATA20

MSCLK20

KBDATA20

KBCLK20

FB1 0RFB1 0R
FB2 0RFB2 0R

FB3 0RFB3 0R
FB4 0RFB4 0R

C165

C165

X_0.1u/25V/4

X_0.1u/25V/4

PS2 KEYBOARD & MOUSE CONNECTORIntel Front Panel

VCC3

C192

C192

0.1u/25V/4

0.1u/25V/4

C10

C10

X_0.1u/25V/4

X_0.1u/25V/4

C28

C28
180P

180P

C305

C305

X_0.1u/25V/4

X_0.1u/25V/4

R14

R14
X_1K/4

X_1K/4

JKBMS1 CONN-KB-R

JKBMS1 CONN-KB-R

7

8
11
12

1

2

5

6

131415

C13

C13
180P

180P

C23

C23

C27

C27

180P

180P

180P

180P

3VDUAL

C88

C88

X_0.1u/25V/4

X_0.1u/25V/4

C147

C147

X_0.1u/25V/4

X_0.1u/25V/4

16

17

MS

MS

KB

KB

C216

C216

0.1u/25V/4

0.1u/25V/4

10

9
4

3

C119

C119

0.1u/25V/4

0.1u/25V/4

B B

ATX_PSON#25

A A

ATX Connector

VCC3

X_0.1u/25V/4

X_0.1u/25V/4

R178

R178

VCC5

VCC5_SB

C230

C230

C239

C239

102P/50V/X7R/4

102P/50V/X7R/4

10K/4

10K/4

-5V

5

-12V

C228

C228

102P/50V/X7R/4

102P/50V/X7R/4

C298

C298
X_0.1u/25V/4

X_0.1u/25V/4

ATX1

ATX1

13

3.3V

14

-12V

15

GND

16

P_ON

17

GND

18

GND

19

GND

20

-5V

21

5V

22

5V

23

5V
GND243.3V

2X12 POWER

2X12 POWER

PWRCONN2*12

PWRCONN2*12

3.3V

3.3V
GND

GND

GND
POK

5VSB

+12V
+12V

C323

C323
X_0.1u/16V/4

X_0.1u/16V/4

C314

C314
X_0.1u/16V/4

X_0.1u/16V/4

3

3VDUAL

+1.8V_S0

CP18CP18

CP17CP17

CP12CP12

CP5CP5

CP2CP2

C301

C301
X_0.1u/16V/4

X_0.1u/16V/4

C306

C306
X_0.1u/16V/4

X_0.1u/16V/4

12

12

12

12

12

VCCP

0.1u/25V/4

0.1u/25V/4
C232

C232

+1.8V_S0

1
2
3
4

5V

5

+

+

6

5V

7
8
9
10
11

C309

C309

0.1u/25V/4

0.1u/25V/4

12

VCC3

C240

C240

0.1u/25V/4

0.1u/25V/4

EC34

EC34

12

1000u/6.3V/8*11.5

1000u/6.3V/8*11.5

C318

C318

0.1u/25V/4

0.1u/25V/4

4

VCC3

VCC5_SB
+12V

VCC5

C308

C308

0.1u/25V/4

0.1u/25V/4

C290

C290

0.1u/25V/4

0.1u/25V/4

VCC5

R174

R174

10K/4

10K/4

ATX_PWROK 20,25

+1.8V_S0

C57

C57
22P50N0402

22P50N0402

VCC3

C578

C578

0.1u/16V/4

0.1u/16V/4

VCC5

C534

C534

0.1u/16V/4

0.1u/16V/4

C383

C383
X_0.1u/16V/4

X_0.1u/16V/4

C293

C293

X_0.1u/25V/4

X_0.1u/25V/4

C277

C277

X_0.1u/25V/4

X_0.1u/25V/4

C542

C542

0.1u/16V/4

0.1u/16V/4

C617

C617

0.1u/16V/4

0.1u/16V/4

C48

C48

X_0.1u/25V/4

X_0.1u/25V/4

2

C614

C614
X_0.1u/16V/4

X_0.1u/16V/4

EMI solution

C699

C699
X_0.1u/16V/4

X_0.1u/16V/4

C242

C242

0.1u/25V/4

0.1u/25V/4

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet

Date: Sheet of

Date: Sheet of

+12V

C31

C31
X_0.1u/16V/4

X_0.1u/16V/4

C4

C4
X_0.1u/25V/4

X_0.1u/25V/4

C227

VCC5_SB

C275

C275
X_0.1u/16V/4

X_0.1u/16V/4

C227
X_0.1u/16V/4

X_0.1u/16V/4

VCC5_SB

1

C567

C567

X_0.1u/25V/4

X_0.1u/25V/4

C605 X_0.1u/25V/4C605 X_0.1u/25V/4

C606 X_0.1u/25V/4C606 X_0.1u/25V/4

X_0.1u/25V/4

X_0.1u/25V/4

C102

C102

C276

C276
X_0.1u/16V/4

X_0.1u/16V/4

of

28 36Friday, February 23, 2007

28 36Friday, February 23, 2007

28 36Friday, February 23, 2007

C603

C603
X_0.1u/25V/4

X_0.1u/25V/4

VCC5VCC3

C231

C384

C384

0.1u/16V/4

0.1u/16V/4

<Title>

<Title>

<Title>

MS-7337 1.0

MS-7337 1.0

MS-7337 1.0

C231

0.1u/16V/4

0.1u/16V/4

-12V

C60

C60
X_0.1u/16V/4

X_0.1u/16V/4

5

VCC5

C134 X_0.1u/25V/4C134 X_0.1u/25V/4

1 2

53

1

5V_HSYNC

HSYNC#

HSYNC#13

D D

VSYNC#

VSYNC#13

VGA CONNECTOR

R13

5VDDCCL
5VDDCDA
5V_HSYNC
5V_VSYNC

G13

B13

R96 33/4R96 33/4
R103 33/4R103 33/4
R101 27R0402R101 27R0402
R100 27R0402R100 27R0402

C C

B B

2

U7

NC7WZ08U7NC7WZ08

VCC5

C139 X_0.1u/25V/4C139 X_0.1u/25V/4

53
1
2

U6

NC7WZ08U6NC7WZ08

Closed NB

VCC5

2

3

D5
BAV99D5BAV99

1

4

1 2

4

5V_VSYNC

VCC5

3

DAC_SCL13

I2C_CLK13

close VGA connector

3

R171

R171
150R/1/4

150R/1/4

3

R169

R169
150R/1/4

150R/1/4

R162

R162

3

150R/1/4

150R/1/4

VCC5

2

1

1.1A_microSMD110

1.1A_microSMD110
FS2

FS2

VCC5

D7
BAV99D7BAV99

R97

R97

6.8K/4

6.8K/4

C130

C130

R110

R110

X_1u/16V/8

X_1u/16V/8

6.8K/4

6.8K/4

47p 470p

C137

C137
X_100P

X_100P

C142

C142
X_100P

X_100P

R182 _0RR182 _0R

R183 X_0RR183 X_0R

DAC_SDAT13

VCC3

2

D8
BAV99D8BAV99

1

VCC3

2

D6
BAV99D6BAV99

1

VCC3

2

D9
BAV99D9BAV99

1

C169

C169
X_100P

X_100P

L9 120nH/300mAL9 120nH/300mA
C158

C158
10P/4

10P/4

1 2

L8 120nH/300mAL8 120nH/300mA

C152

C152
10P/4

10P/4

1 2

L7 120nH/300mAL7 120nH/300mA

C148

C148
10P/4

10P/4

1 2

C125

C125

0.1u/25V/4

0.1u/25V/4

VGA_15

VGA_14
VGA_9

VGA_12

C112

C112

X_100P

X_100P

VCC3

Q26

Q26

5VDDCCL

N-2N7002_SOT23

N-2N7002_SOT23

VCC3

VCC3

R212

R212

4.7K/4

4.7K/4
Q21

Q21

5VDDCDA

N-2N7002_SOT23

N-2N7002_SOT23

C164

C164

1 2

10P/4

10P/4

C156

C156

1 2

10P/4

10P/4

C149

C149

1 2

10P/4

10P/4

JVGA1

JVGA1

17

5

15
10

4

14

9

13

8

12

7

11

6

VGA-D15-BL-B-SC

VGA-D15-BL-B-SC

VGA_BVGA_13

3

VGA_G

2

VGA_R

1

16

4

X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

TMDS_02P13

TMDS_02N13

TMDS_CLKN13

TMDS_CLKP13

TMDS_HPD113

TMDS_01N13

TMDS_01P13

I2C_CLK13

DDC_DATA13

I2C_DATA13

TMDS_00P13

TMDS_00N13

L5X_CMC-L02-9008014-T34 L5X_CMC-L02-9008014-T34

SHARE COMMON PADS
AVIOD STUB

L1

L1

1 2

L2

L2

1 2

L6

L6

1 2

4 3

1 2

R518 X_0R0402R518 X_0R0402

R529 _0R0402R529 _0R0402

TMDS_00P

TMDS_02N
TMDS_02P TMDS_02P_DVI
TMDS_00P
TMDS_00N

4 3

TMDS_00N

TMDS_01N

4 3

TMDS_01P

TMDS_02P

TMDS_CLKP
TMDS_CLKN

A3

TMDS_01N
TMDS_01P

4 3

TMDS_02N

H3X4_BLACK-2.6MM-RH

H3X4_BLACK-2.6MM-RH

TMDS_CLKN

TMDS_CLKP

r1213 33/4r1213 33/4

VCC3

VCC3

J1

J1

A3

H3X4_BLACK-2.6MM-RH

H3X4_BLACK-2.6MM-RH

J2

J2

R241 18R241 18

C4

R226 18R226 18

C3

R154 18R154 18

C2

R155 18R155 18

C1

R229 18R229 18

B4A4

R225 18R225 18

B3

R145 18R145 18

B2A2

R147 18R147 18

B1A1

D39

D39

231

Z-MMBZ5222BLT1_SOT23

Z-MMBZ5222BLT1_SOT23

VCC5

R214

R214

Q41

Q41

6.8K/4

6.8K/4

N-2N7002_SOT23

N-2N7002_SOT23

VCC5

R215

R215

Q42

Q42

6.8K/4

6.8K/4

N-2N7002_SOT23

N-2N7002_SOT23

R227 18R227 18

C4

R230 18R230 18

C3

R144 18R144 18

C2

R141 18R141 18

C1
B4A4

B3
B2A2
B1A1

R376100K/4/1R376100K/4/1

R223 18R223 18
R228 18R228 18
R139 18R139 18
R140 18R140 18

TMDS_CLKP_DMI
TMDS_CLKN_DMI
TMDS_01N_DMI
TMDS_01P_DMI

TMDS_CLKP_DVI
TMDS_CLKN_DVI
TMDS_01N_DVI
TMDS_01P_DVI

TMDS_02N_DMI
TMDS_02P_DMI
TMDS_00P_DMI
TMDS_00N_DMI

TMDS_02N_DVI
TMDS_00P_DVI

TMDS_00N_DVI

3

DVI COLAY HDMI

TMDS_00N_DVI

TMDS_00P_DVI

TMDS_00N_DMI

TMDS_00P_DMI

TMDS_01N_DVI

TMDS_01P_DVI

TMDS_01N_DMI

TMDS_01P_DMI

TMDS_02N_DVI

TMDS_02P_DVI

TMDS_02N_DMI

TMDS_02P_DMI

TMDS_CLKN_DVI

TMDS_CLKP_DVI

TMDS_CLKN_DMI

TMDS_CLKP_DMI

TMDS_HPD_CON

DDC_CLK_CON

DDC_DATA_CON

R556

R556
X_0R0402

X_0R0402

R558

R558
X_0R0402

X_0R0402

R562

R562
X_0R0402

X_0R0402

R563

R563
X_0R0402

X_0R0402

R566

R566
X_0R0402

X_0R0402

R567

R567
X_0R0402

X_0R0402

R568

R568
X_0R0402

X_0R0402

R569

R569
X_0R0402

X_0R0402

TMDS_02P_DMI
TMDS_02N_DMI

TMDS_01P_DMI
TMDS_01N_DMI

TMDS_00P_DMI
TMDS_00N_DMI

TMDS_CLKP_DMI

TMDS_CLKN_DMI

DDC_CLK_CON
DDC_DATA_CON

+5V_CON
TMDS_HPD_CON

VCC5

1.1A_microSMD110

1.1A_microSMD110
FS6

FS6

C592

C592
X_1u/16V/8

X_1u/16V/8

DDC_CLK_CON
DDC_DATA_CON

R219 20K/4R219 20K/4

+5V_CON

R531_0R0402 R531_0R0402
R535_0R0402 R535_0R0402

TMDS_02N_DVI
TMDS_02P_DVI

TMDS_01N_DVI
TMDS_01P_DVI

DDC_CLK_HDMI
DDC_DATA_HDMI

TMDS_HPD_HDMI

C353

C353
100nF/4

100nF/4

R530

R530
_0R0402

_0R0402

DDC_CLK_CON_1

R536_0R0402 R536_0R0402

DDC_DATA_CON1

R537_0R0402 R537_0R0402

2

U31

U31

1

D2+

D2+

2

D2 Shield

D2 Shield

3

D2-

D2-

4

D1+

D1+

5

D1 Shield

D1 Shield

6

D1-

D1-

7

D0+

D0+

8

D0 Shield

D0 Shield

9

D0-

D0-

10

CK+

CK+

11

CK Shield

CK Shield

12

CK-

CK-

13

CE Remote

CE Remote

14

NC

NC

15

DDC CLK

DDC CLK

16

DDC DATA

DDC DATA

17

GND

GND

18

+5V

+5V

19

HP DET

HP DET

DVI1

DVI1

1

DATA2

2

DATA2

3

SHIELD24

4

DATA4

5

DATA4

6

DDCCLK

7

DDCDATA

8

NC

9

DATA1

10

DATA1

11

SHIELD13

12

DATA3

CONN-DVI24P_white-RH

CONN-DVI24P_white-RH

SHELL1

SHELL1

SHELL2

SHELL2

21

20

STARTAKE_19P

STARTAKE_19P

DATA3

VCC5

GND5

HPDET

DATA0
DATA0

SHIELD05

DATA5
DATA5

SHIELDCLK

CLK

CLK
Shell
Shell

13
14
15
16
17
18
19
20
21
22
23
24
25
26

+5V_CON

TMDS_HPD_CON1

TMDS_00N_DVI
TMDS_00P_DVI

TMDS_CLKP_DVI
TMDS_CLKN_DVI

+5V_CON

R220 20K/4R220 20K/4

C366

C366
100nF/4

100nF/4

1

TMDS_HPD_CON

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

D

MS-7337 1.0

D

MS-7337 1.0

D

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

29 36Tuesday, February 27, 2007

of

29 36Tuesday, February 27, 2007

of

29 36Tuesday, February 27, 2007

5

4

3

2

1

1394a OHCI Link Layer
Controller

VCC3

97

AD31

98

AD30

99

AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16

5

AD15

6

AD14

7

AD13

10

AD12

11

AD11

12

AD10

13

AD9

14

AD8

17

AD7

18

AD6

19

AD5

21

AD4

22

AD3

23

AD2

27

AD1

28

AD0
CBE3#

CBE2#

4

CBE1#

15

CBE0#

3

PAR
FRAME#
IRDY#
TRDY#
STOP#
IDSEL
DEVSEL#

96

REQ#

95

GNT#

2

PERR#

91

INTA#

93

PCICLK

92

PCIRST#

37

PME#

CK_P_33M_1394

102

VCC1

VSS1

94

D D

PCI_CBE#[3..0]15,18

C C

VDD

B B

X_0.1u/16V/4

X_0.1u/16V/4

VCC3

P3VA

0.1u/16V/Y/4

0.1u/16V/Y/4

C583

C583

C584

C584

0.1u/16V/Y/4

0.1u/16V/Y/4

C709

C709

AD[31..0]

AD[31..0]15,18,23

PCI_CBE#[3..0]

PCI_PAR15,18

PCI_FRAME#15,18

PCI_IRDY#15,18

PCI_TRDY#15,18

PCI_STOP#15,18

PCI_DEVSEL#15,18

PCI_REQ#315,18
PCI_GNT#315

PCI_PERR#15,18

PCI_INTA#15,18

CK_P_33M_139415

PCIRST#15,18

PCI_PME#14,18

PCI_PME#

IDSEL = AD22
MASTER = PCI_REQ#3

PCI_IRQ#C(INTA)

C587

C587

C625

C625

0.1u/16V/Y/4

0.1u/16V/Y/4

0.1u/16V/Y/4

0.1u/16V/Y/4

C590

C590

0.1u/16V/Y/4

0.1u/16V/Y/4

C677

C677

C673

C673

0.1u/16V/Y/4

0.1u/16V/Y/4

0.1u/16V/Y/4

0.1u/16V/Y/4

AD22

PCI_GNT#3

C620

C620

0.1u/16V/Y/4

0.1u/16V/Y/4

C599

C599

0.1u/16V/Y/4

0.1u/16V/Y/4

C668

C668

0.1u/16V/Y/4

0.1u/16V/Y/4

AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0

PCI_CBE#3
PCI_CBE#2
PCI_CBE#1
PCI_CBE#0

PCI_PAR
PCI_FRAME#
PCI_IRDY#
PCI_TRDY#
PCI_STOP#

R503 100R1%/2R503 100R1%/2

PCI_DEVSEL#
PCI_REQ#3
PCI_GNT#3
PCI_PERR#

PCI_INTA#
CK_P_33M_1394
PCIRST#

R462 X_0/4R462 X_0/4

C637

C637

0.1u/16V/Y/4

0.1u/16V/Y/4

C674

C674

X_0.1u/16V/4

X_0.1u/16V/4

EMI

100
101
104
105
106
109
110
112
116
117
118
119
120

107
122

123
124
126
128
108
127

C676

C676
X_10P/4

X_10P/4

C621

C621
X_0.1u/16V/4

X_0.1u/16V/4

C598

C598

0.1u/16V/Y/4

0.1u/16V/Y/4

PWRDET_VCC

VDD

113

125

8

20

35

33

114

24

VCC2

VCC3

VCC4

VCC5

VDD/VCC

VDD/VCC

VDD/VCC6

PWRDET/VCC

VSS5

VSS2

VSS3

VSS4

VSS6

VSS7

VSS8

VSS9

GNDATX0

GNDARX0

26

34

59

R451

R451
X_4.7K/4

X_4.7K/4

U25

U25

1

A0

VCC

2

A1

3

A2

4

GND

SDA

X_ATMEL AT24C02

X_ATMEL AT24C02

GNDATX169GNDARX1

64

82

68

R461

R461
X_4.7K/4

X_4.7K/4

8
7

WP

6

SCL

5

1

9

16

103

111

121

VCC3 VCC3

62

39

49

VCC

VDD/VCC

RAMVSS

GNDATX283GNDARX2

25

EECK
EEDI

VCC3

R460 X_510/4R460 X_510/4

EECK
EEDI

VDDATX0

65

VDDARX0

VSSC1

115

P3VA

76

75

VDDATX1

VDDARX1

VSSC2

36

90

89

XTPBIAS0

VDDATX2

VDDARX2

XTPBIAS1

REG_OUT

REG_FB

BJT_CTL

D6/CMCJMP

PHYRESET

CTL0/PC0JMP
CTL1/PC1JMP

D7/PC2JMP

LINKON/TSIJMP

LREQ/TSOJMP

LPS/CMC

SCL/EECK

SDA/EEDI

PGND1

PGND2

41

50

U30

U30

XTPA0P
XTPA0M
XTPB0P
XTPB0M

XTPA1P
XTPA1M
XTPB1P
XTPB1M

NC
NC

XCPS

XREXT

D5
D4
D3
D2
D1

D0
MODE0
MODE1

SCLK

NC

EEDO
EECS

XI

XO

VT6308-CD-LF

VT6308-CD-LF

74
73
72
71
70

81
80
79
78
77

88
87
86
85
84

63

66

52
58

54
55
53

57
56
51
48
47
46
45
44
43
42
40
38
67

32
31
30
29

60

61

TPBIAS0
TPA0+
TPA0­TPB0+
TPB0-

TPBIAS1
TPA1+
TPA1­TPB1+
TPB1-

REG_OUT
REG_FB

BJT_CTL

C622 0.1u/16V/Y/4C622 0.1u/16V/Y/4

R480 4.7K/5%/04R480 4.7K/5%/04

EECK
EEDI

R464 4.7K/5%/04R464 4.7K/5%/04

VCC3

CP31 X_COPPERCP31 X_COPPER

TPA0+ 31
TPA0- 31
TPB0+ 31
TPB0- 31

R528 11K/1/4R528 11K/1/4
R517 1KR1%/2R517 1KR1%/2

R532 6.34K/1/4R532 6.34K/1/4

C675

C675
47P/NPO/4

47P/NPO/4

P3VA

R464 X : USE EEPROM
R464 O: NO EEPROM

P3VA

L38 X_L02-8008044-J07L38 X_L02-8008044-J07

21

CPWR_F

P3VA

R506

R506
1M/6

1M/6

12

Y6
24M-16pfY624M-16pf

X_2SB1197K

X_2SB1197K

BJT_CTL

C623 10P/4C623 10P/4

C679 10P/4C679 10P/4

VCC3VDD

Q70

Q70

C E

For VT6308

R533 X_4.7K/4R533 X_4.7K/4

For VT6308

B

R534

R534

0/4

0/4

C672

C672

0.1u/16V/Y/4

0.1u/16V/Y/4

+12V

A C

DIODE,40V,2A,

DIODE,40V,2A,

C218

C218
334P

334P

For VT6308

PWRDET_VCC

REG_OUT

REG_FB

VCC3

D2

D2

TPBIAS0

R136 4.99K/1/4R136 4.99K/1/4
C222 270p/X7R/4C222 270p/X7R/4

+12V

X_DIODE,40V,2A,

X_DIODE,40V,2A,

VCC3

C215

C215
X_102P/50V/X7R/4

X_102P/50V/X7R/4

D27

D27

A C

R463

R463

4.7K/5%/04

4.7K/5%/04

C586

C586

0.1u/16V/Y/4

0.1u/16V/Y/4

F2

CPWR

F2

1 2

F-SMD1812P150TF/24-RH

F-SMD1812P150TF/24-RH

R122 54.9/1/4R122 54.9/1/4
R135 54.9/1/4R135 54.9/1/4
R134 54.9/1/4R134 54.9/1/4
R83 54.9/1/4R83 54.9/1/4

CPWR_F

C693

C693
X_102P/50V/X7R/4

X_102P/50V/X7R/4

TPBIAS1

R547 X_4.99K/1/4R547 X_4.99K/1/4

C698

C698
X_334P

X_334P

C700 X_270p/X7R/4C700 X_270p/X7R/4

TPA1+ TPA1-

CPWR_1 CPWR_1

CPWR_0

C167

C167
X_103P/16V/4

X_103P/16V/4

TPA0+
TPA0­TPB0+
TPB0-

F3

F3

1 2

X_F-SMD1812P150TF/24-RH

X_F-SMD1812P150TF/24-RH

R551 X_54.9/1/4R551 X_54.9/1/4
R550 X_54.9/1/4R550 X_54.9/1/4
R549 X_54.9/1/4R549 X_54.9/1/4
R548 X_54.9/1/4R548 X_54.9/1/4

J1394_1

J1394_1

1 2
3 4
5
7 8

X_H2X5[9]_GREEN-RH-1

X_H2X5[9]_GREEN-RH-1

For Intel 1394 pinheader

CPWR_1

6
10

CPWR_0 31

X_C697

X_C697

0.01u/16V/4

0.01u/16V/4

TPA1+
TPA1­TPB1+
TPB1-

TPB1-TPB1+

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

<Doc> <RevCode>

Custom

<Doc> <RevCode>

Custom

<Doc> <RevCode>

Custom

Date: Sheet of

Date: Sheet of

5

4

3

2

Date: Sheet

1

of

30 36Friday, February 23, 2007

30 36Friday, February 23, 2007

30 36Friday, February 23, 2007

5

POWER CIRCUIT FOR USB PORT 0,1

+5VUSB_REAR +5VUSB_FRONT1

120 mils

D D

USB_OCP#114

FS3

FS3

2.6A_miniSMDM260

2.6A_miniSMDM260

R121

R121

5.1K/6

5.1K/6

C193

C193

X_0.1u/25V/4

X_0.1u/25V/4

R124

R124

10K/4

10K/4

C87

C87

0.1u/25V/4

0.1u/25V/4

NEAR USB CONNECTOR

SVCC1

+

+

EC18

EC18
1000/6.3V

1000/6.3V

4

POWER CIRCUIT FOR USB PORT 4,5,6,7

FS4

FS4

1.5A_miniSMDM260

1.5A_miniSMDM260

60 mils

USB_OCP#314

3

R486

R486

5.1K/6

5.1K/6

FRONT USB CONNECTOR

R487

R487

10K/4

10K/4

C615

C615

0.1u/25V/4

0.1u/25V/4

SVCC2

+

+

EC41

EC41
470/16V

470/16V

2

POWER CIRCUIT FOR USB PORT 2,3

+5VUSB_FRONT1

FS5

FS5

2.6A_miniSMDM260

2.6A_miniSMDM260

60 mils

USB_OCP#214

R491

R491

5.1K/6

5.1K/6

FRONT USB CONNECTOR

R359

R359

10K/4

10K/4

C595

C595

X_0.1u/25V/4

X_0.1u/25V/4

1

SVCC3

+

+

EC46

EC46
1000/6.3V

1000/6.3V

12

C585

C585

0.1u/25V/4

0.1u/25V/4

REAR PANEL USB CONNECTOR FOR USB PORT 2,3

SVCC1

ESD Protection

LAN_USB1A

L13

L13

USBP3

USBP314
USBP214

USBN3
USBP2
USBN2

USBP3 SBD3+
USBN3 SBD3­USBP2 SBD2+
USBN2 SBD2-

C C

ESD Protection

SVCC1

SBD1+
SBD1-

6
1

52

4
3

D15

D15
X_ESD-IP4220

X_ESD-IP4220

SBD0+

SBD0-

USBN314
USBN214

????

NEAR USB CONNECTOR

5
6
7
8

X_Common Chock

X_Common Chock

1
2
3
4

SBD2+

SBD3­SBD3+

LAN_USB1A

5
6
7
8

UP

UP

1
2
3
4

DOWN

DOWN

RJ45(10/100)+USB*2

RJ45(10/100)+USB*2

23
24
25
26
27
28
29
30

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

REAR PANEL USB CONNECTOR FOR USB PORT 0,1

SVCC1

SBD1-

SBD1+

1
2
3

SBD0-

4

SBD0+

6
1

SVCC1

52

4
3

D13

D13
X_ESD-IP4220

X_ESD-IP4220

SBD2+

SBD2-

L17

L17

USBP1

USBP114

USBN114

USBP014

USBN014

5

USBN1

6

USBP0

7

USBN0

8

X_Common Chock

X_Common Chock

USBP1 SBD1+
USBN1 SBD1­USBP0 SBD0+
USBN0 SBD0-

B B

ESD Protection

SBD3+
SBD3-

19

1
2
3
4
5
6
7
8

21

15

1617

18

USB_1394

USB_1394

CONN-1394_USBX2_black-RH

CONN-1394_USBX2_black-RH

20

9
10

TPB0-

11

TPB0+

12

TPA0-

13

TPA0+

14

22

CPWR_0 30
TPB0- 30

TPB0+ 30
TPA0- 30
TPA0+ 30

SBD5+
SBD5-SBD2-

X_ESD-IP4220

X_ESD-IP4220

ESD Protection

SBD7+
SBD7-

ESD Protection

SBD6+

6
1

4
3

6
1

D26

D26

SVCC3

52

52

D25

D25
X_ESD-IP4220

X_ESD-IP4220

SVCC2

52

D24

D24
X_ESD-IP4220

X_ESD-IP4220

SBD4+

6

SBD4-

1

SBD8+

4

SBD8-

3

SBD9+

4

SBD9-SBD6-

3

Reserved, can be taken off riser card within bead

L57

USBP514
USBN514

USBP414
USBN414

USBP5
USBN5
USBP4
USBN4

L57

1

5

2

6

3

7

4

8

X_Common Chock

X_Common Chock

USBP5 SBD5+
USBN5 SBD5­USBP4 SBD4+
USBN4 SBD4-

SBD5+
SBD5­SBD4+
SBD4-

SBD4­SBD4+

JUSB2

JUSB2

1 2
3 4
5 6
7 8

CON2X5-1_W

CON2X5-1_W

10

FRONT PANEL USB CONNECTOR FOR USB PORT 7,8

L56

L56

USBN8

USBN814
USBP814
USBN714
USBP714

5

USBP8

6

USBN7

7

USBP7 SBD7+

8

USBN8 SBD8­USBP8 SBD8+
USBN7 SBD7­USBP7 SBD7+

1
2
3
4

X_Common Chock

X_Common Chock

SBD8­SBD8+
SBD7-

SBD8­SBD8+

JUSB3

JUSB3

1 2
3 4
5 6
7 8

CON2X5-1_W

CON2X5-1_W

10

FRONT PANEL USB CONNECTOR FOR USB PORT 6,9

L58

L58

USBP914
USBN914
USBN614
USBP614

USBP9 SBD9+
USBN9
USBN6
USBP6

USBP9 SBD9+
USBN9 SBD9­USBN6 SBD6­USBP6 SBD6+

5
6
7
8

X_Common Chock

X_Common Chock

1

SBD9-

2

SBD6-

3

SBD6+

4

SBD9­SBD9+

JUSB1

JUSB1

1 2
3 4
5 6
7 8

CON2X5-1_W

CON2X5-1_W

10

SVCC3

SVCC2

SBD6­SBD6+

SVCC3SVCC3

SBD5­SBD5+

SBD7­SBD7+

FRONT PANEL USB CONNECTOR FOR USB PORT 4,5

A A

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

5

4

3

C705 X_0.1u/25V/4C705 X_0.1u/25V/4

CP6 X_COPPERCP6 X_COPPER

CP10 X_COPPERCP10 X_COPPER

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

2

Date: Sheet

1

of

31 36Thursday, February 22, 2007

of

31 36Thursday, February 22, 2007

of

31 36Thursday, February 22, 2007

EMI TEST

5

U32_X1

U32_X1

D D

MSI

MSI

12

DDR

DDR

NB_HEATSINK

NB_HEATSINK

U29

U29

MSI

MSI

DDR

DDR

SB_HEATSINK

SB_HEATSINK

12

4

PCB1

PCB1

3

P80-0733710-D05

P80-0733710-D05

PCB

PCB

VBAT1-S1

VBAT1-S1

BAT-BCR2032P-RH

BAT-BCR2032P-RH

2

CPU5

CPU5

_E91-0000076

_E91-0000076

1

P80-073370A-Y34

C C

B B

A A

Optics Orientation Holes

FM2

FM2

X

FM6

FM6

X

FM10

FM10

X

X_FM

X_FM

X_FM

X_FM

X_FM

X_FM

FM13

FM13

FM4

FM4

FM12

FM12

X

X_FM

X_FM

X

X

X_FM

X_FM

X_FM

X_FM

5

FM7

FM7

FM11

FM11

X

X_FM

X_FM

X

X_FM

X_FM

FM1

FM1

FM9

FM9

X

X

X_FM

X_FM

X_FM

X_FM

FM3

FM3

FM8

FM8

X

X

X_FM

X_FM

X_FM

X_FM

FM5

FM5

X

X_FM

X_FM

4

Mounting Holes

8

9
2

MH1MH1

3

8

9
2

MH4MH4

3

Simulation

7

9
2

9
2

MH2MH2

MH5MH5

8

6
5

3

4

7

8

6
5

3

4

9
2

9
2

MH7MH7

MH8MH8

7

8

6
5

3

4

7

8

6
5

3

4

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet

X_JS2

X_JS2

X_PIN1*2

X_PIN1*2

VCC5

1

SIM1SIM2

X_PIN1*2

X_PIN1*2

32 36Friday, February 16, 2007

32 36Friday, February 16, 2007

32 36Friday, February 16, 2007

X_JS1

X_JS1

of

7

6
5

4

7

6
5

4

3

5

4

3

2

1

DDR DIMM & TERMINATOR

M2

D D

0.8V - 1.55V Core

VLDT 1.2V

- 95A

- 0.5A

RS690C

+1.2V REGULATOR

+1.8V_S0

+2.5V REGULATOR - 500 mA

C C

- 10A

-850mA

SB460/600

+1.2V REGULATOR - TBD A

+3.3V DUAL

RTC

5V

B B

- TBD A

- 5uA(G3)

- TBD A

- 200 mA1.2V DUAL

ISL6566

VCCP

0.8375V-1.6000V
3-Phase Switch

VRM 10.1

W83310DS

VTT_DDR

Linear

0.9V 1.5A

MS6 Regulator

V_FSB_VTT

5.0A1.2V Linear

V_1P5_CORE

1.5V

(S0,S1)
Linear

14A

V_2P5_MCH

Linear2.5V

100mA

VCC3_SB

Linear3.3V

1.5A

5VDUAL1,2

22mA

MS11 Regulator

VCC_DDR

1.8V
Linear

(S3)

425mA

95A

20ASwitch

1.8V VCC_DDR -9.4A

1.8V VCC_DDR

(S0,S1)
(S3)

PCI Express x16 slot

+12V

+3.3Vaux
+3.3Vaux

(wake)
(no wake)

+3.3V

PCI Express x1 slot

+12V

+3.3Vaux

(wake)
(no wake)+3.3Vaux

+3.3V - 3.0A

PCI slot x2

+3.3Vaux
+3.3Vaux

+3.3V

+5V

+12V

(wake)
(no wake)

- 1.2A0.9V VTT_DDR

-400mA

- 5.5 A

- 375mA

- 20mA

- 3.0A

- 0.5 A

- 375mA

- 20mA

- 375mALinear5V

- 20mA

- 7.6A

- 5.0A

- 0.5A

USB

(S0,S1) - 4.0A+5V

FWH

- 107mA(S0,S1)+3.3V

3V

+5VSB+12V +5V +3.3V

Battery

A A

ATX POWER

PS2

(S0,S1)+5V - 345mA

- 20mA(S3)+5V

- 2.0mA(S3)+5V

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

33 36Friday, February 16, 2007

of

33 36Friday, February 16, 2007

of

33 36Friday, February 16, 2007

5

4

3

2

1

VRM 10.1

PWROK MAP

AMD K9 940

ISL6566CR

3-Phases PWM

D D

RS485/690

HT_CPU_PWRGD

PWM_EN

VRM_GD

HT_PWRGD

C C

HT_VLD

HT_MCP_PWRGD

MEM_VLD

RSMRST#

MS6

HTVDD_EN

CPU_VLD

SB460/600

CPUVDD_EN

B B

SLP_S5#

SLP_S3#

PSIN#

PWRBTN#

ATX_PWR_OK

Front Panel

A A

5

4

3

POWER CONN

2

PS_ON#

ATX_PWR_OK

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

of

Date: Sheet of

Date: Sheet of

Date: Sheet

34 36Friday, February 16, 2007

34 36Friday, February 16, 2007

34 36Friday, February 16, 2007

1

5

4

3

2

1

K9 SKT 940

CPU RST*

D D

CPU PWRGD

RS485/690

PE_RST*

PEX X1

C C

PEX X16

PE_RESET*

HT CPU PWRGD
HT CPU RST*

HT MCP PWRGD
HT MCP RST*

RESET SWITCH

CPU_PWRGD
CPU_RST#

HT_MCP_PWRGD
HT_MCP_RST*

RESET MAP

MS6

SB460/600

PWR CONN

PS ON

PWR GOOD

B B

FPRST#

POWER_GOOD

RSMRST#

RSTBTN

PWRGD

PWRGD_SB

GPIO_AUX*

HT MCP RST*

HT MCP PWRGD

PCI RST0*
PCI RST1*
PCI RST2*
PCI RST3*

SLP S3*

LPC_RST*

AC_RESET*

HT_MCP_RST*
HT_MCP_PWRGD

PCIRST_SLOT0*
PCIRST_SLOT1*

MS6_RST*

1394_RST*

SLP S3*

SIO_RST*

LPC_RST*

SIO FLASH

PRI IDE

HD_RST#

PCI SLOT 2

1394

PCI SLOT 1

SEC IDE

AC97 Audio

RESET*

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

35 36Friday, February 16, 2007

of

35 36Friday, February 16, 2007

of

35 36Friday, February 16, 2007

5

1.SIO Pin88接的0ohm電阻拿掉了。

2.DIMM B Address改爲A2。

3.SIO Alert#拉到CLOCK GEN做超頻動作。

4.LAN AVDD3通過copper接到3VDUAL.
EMI:LAN的VCTRL18&VCTRL15 pin預留2pcs 104 cp
LAN的第2&59 pin(AVDD33)預留2顆104 cp
分別在LANCLK0_R&LANCLK0#_R預留10p bypass cp
在AUDIO的3組綫上串聯0ohm電阻。

5.HTTCLK0的下拉由49.9ohm換成51.1ohm。

6.FP_RST#上拉改爲VCC3。

7.將電池綫路依照design guide修改。

8.按照power team要求，將三顆1800uf電容換成3300uf一顆。

D D

9.北橋 DAC_SCL上拉VCC3,預留到DDCCLK的綫路.

10.根據POWER要求修改R83,R78,加一棵輸入電容.

11.VCC_SB全部被VCCA_1V2取代.

12.增加時序電路在MS-6部分

13.LAN isolate的上拉電壓改爲VCC3。

14.AMD SIC,SID不再接到南橋。

15.將連到CPU的VCCA_1V2加電感隔斷。
EMI:上件3pcs 180p VCC_DDR to GND cap; 上件2pcs 104 VCC_DDR to GND cap.预留 4pcs 100p VCC_DDR to GND cap;预留 3pcs 22p VCC_DDR to GND cap.

16.時序電路預留VRM_GD控制。

17.DFT_GPIO預留測試點.

18.DCC_DATA上拉4.7KR到VCC3。

19.對各部分電源作了調整，特別是電容的大小和容值。

20.去掉CLOCK GEN的REQ#的預留。改變clockgen的電源。

21.去掉南橋LPC_SMI#的測試點。

22.FP_RST#不再接到MS-6。

23.去掉南橋A27,B29的測試點,A4的上拉，L2下拉。

24.SIO FAN_CTL加上拉電阻。

25.MS-6的25pin上拉到vcc3。
26,在RSMRST#上加了延時器。

27.CPU AL11 unconnected.

28.Please note that AMD SI is not functional on AMD Rev. F CPU, the designer should keep R104, un-mount R109, R280 and let these signals left as unconnected.

29.HTREFCLK加下地電容10p一顆。

30.Swap usb line.

31.thermal的地連到sio上。

32.換掉NB heatsink。
EMI:1. C327&C294改為0402

2. C183,C186,C191,C196,C200,C201,C205屬性改為預留.

33.將散熱片換回來。

34.將LAN電源pin預留的0ohm電阻去掉。

35.USB的串聯0ohm排阻拿掉，換成直綫。

C C

36.Strp_Data上拉VCC3。

37.去掉3VDUAL ELcap EC25。

38.LAN power 大力砍掉大電容。LAN的3VDUAL加一顆100u電容。

39.swap Memory net.

40.CLOCK GEN的reset#用0ohm電阻隔斷。

41.Lan的connector做了一點改動。AVDD3從VDD3接過去。

42.MS-11的input和output choke用一樣的。

43.LVDS的電源部分全部不上件，去掉兩顆電容。

44.將q37換成SOT89封裝。

45.REMOVE CP36, MOVE C712 TO BOTTOM.

46.A_rx1n/p北橋接反了，調整過來。

47.R574 change size.

48.short VCCA_1V2 and VLDT.

49.去掉了 SIO OVT#綫路，ALERT#綫路，修改了CLOCKGEN pin6的上拉。

50.將FP_RST#接到MS-6.

4

3

2

1

B B

A A

Title

Title

Title

<Title>

<Title>

<Title>

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7337 1.0

Custom

MS-7337 1.0

Custom

MS-7337 1.0

Custom

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

36 36Friday, February 16, 2007

of

36 36Friday, February 16, 2007

of

36 36Friday, February 16, 2007
