MSI MS-7066 Schematics

1

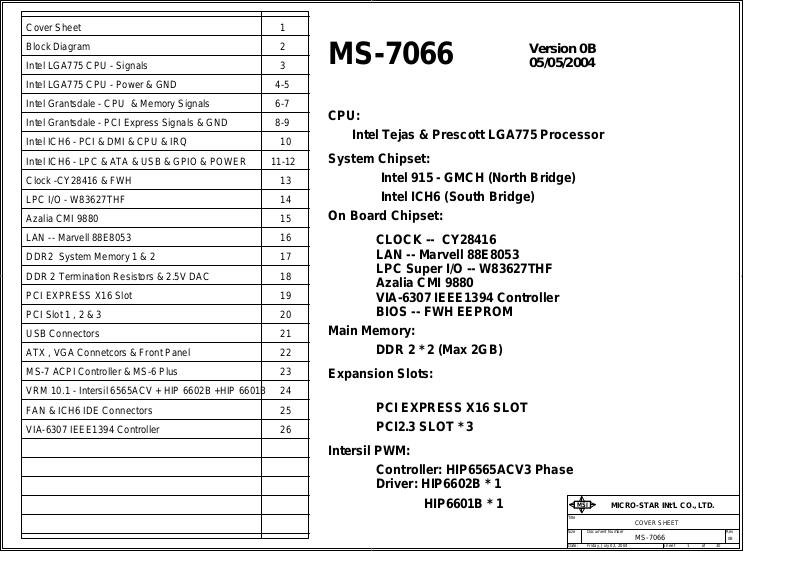

Cover Sheet
Block Diagram
Intel LGA775 CPU - Signals
Intel LGA775 CPU - Power & GND

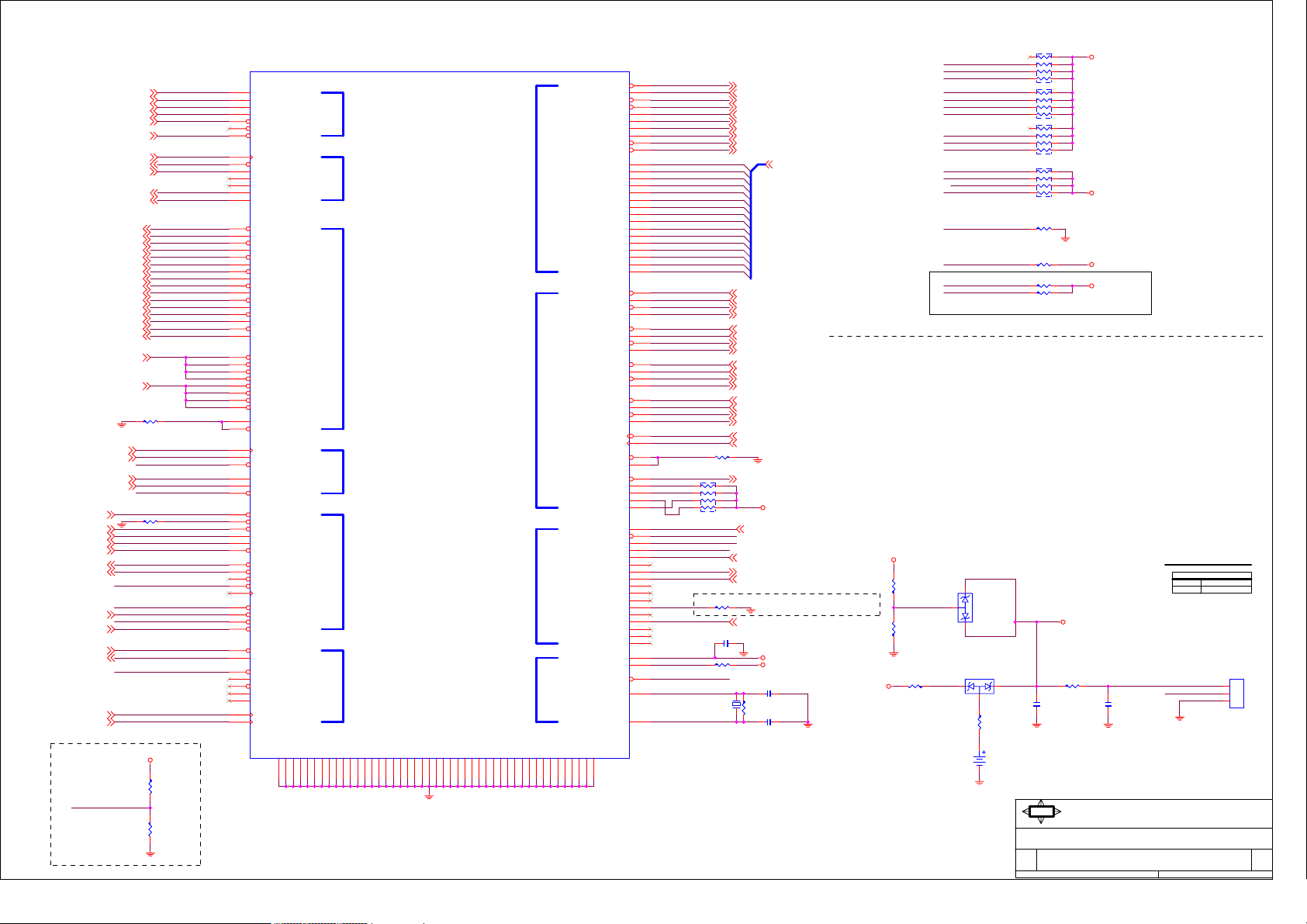

Intel Grantsdale - CPU & Memory Signals
Intel Grantsdale - PCI Express Signals & GND

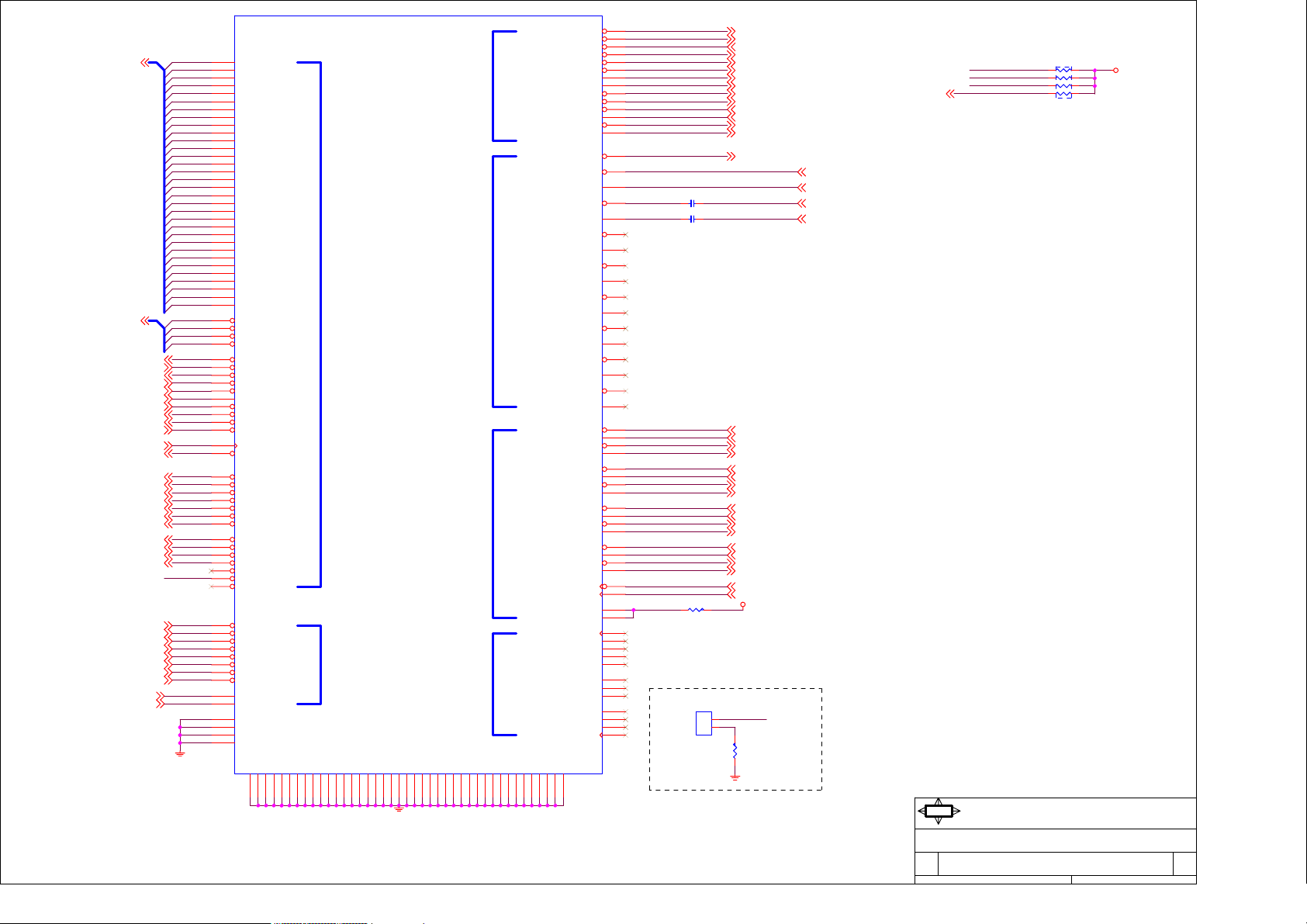

Intel ICH6 - PCI & DMI & CPU & IRQ

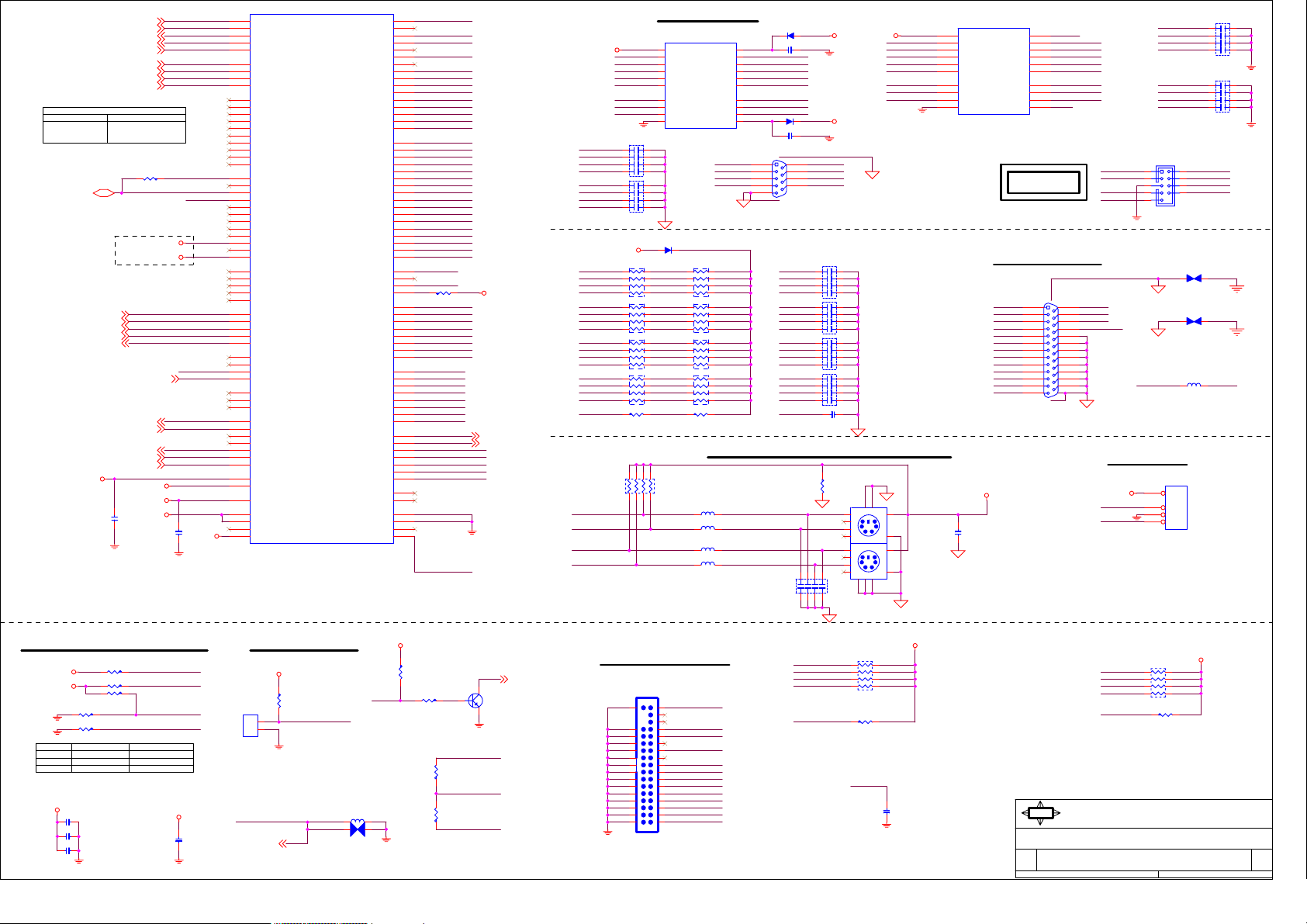

Intel ICH6 - LPC & ATA & USB & GPIO & POWER

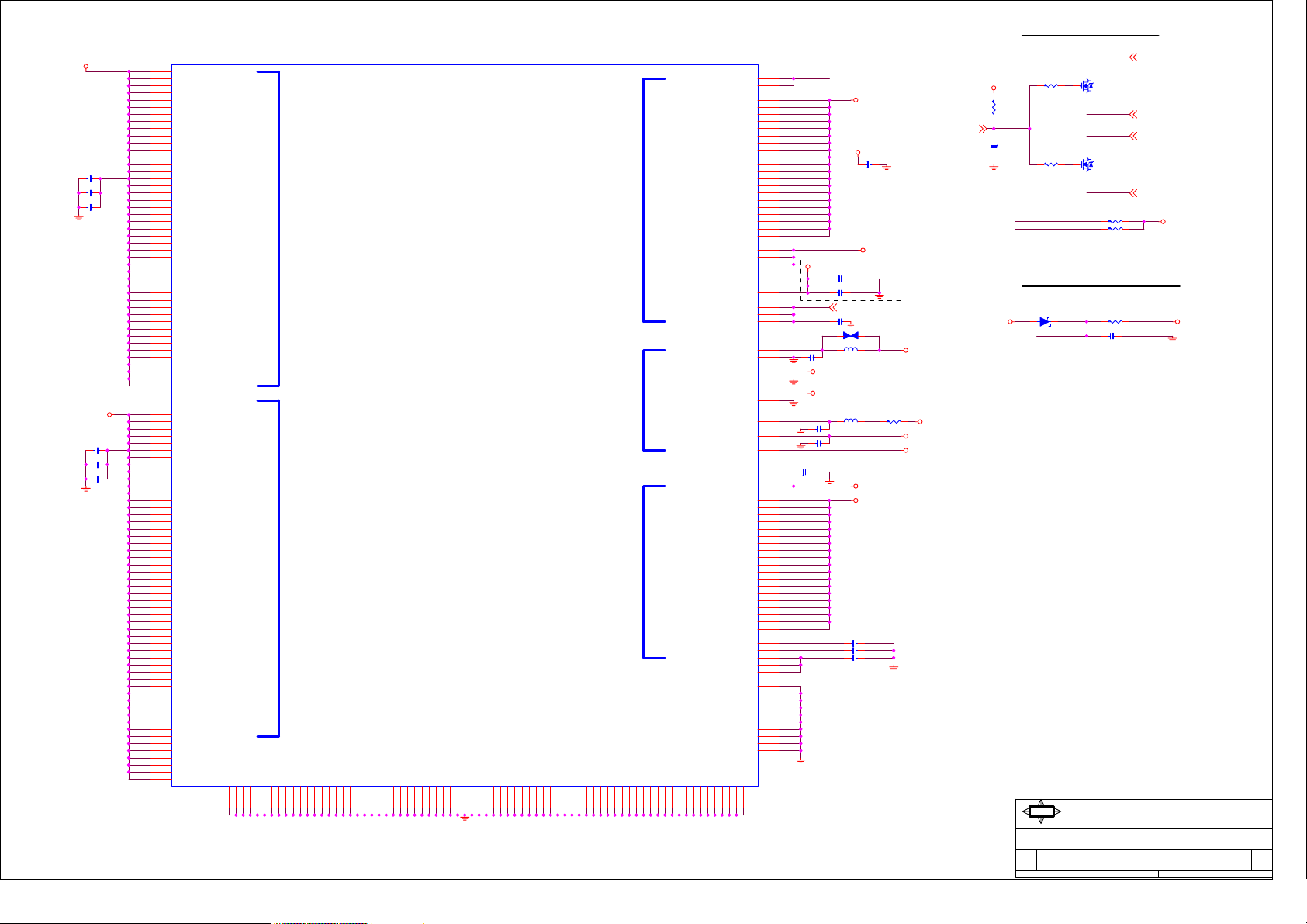

LPC I/O - W83627THF

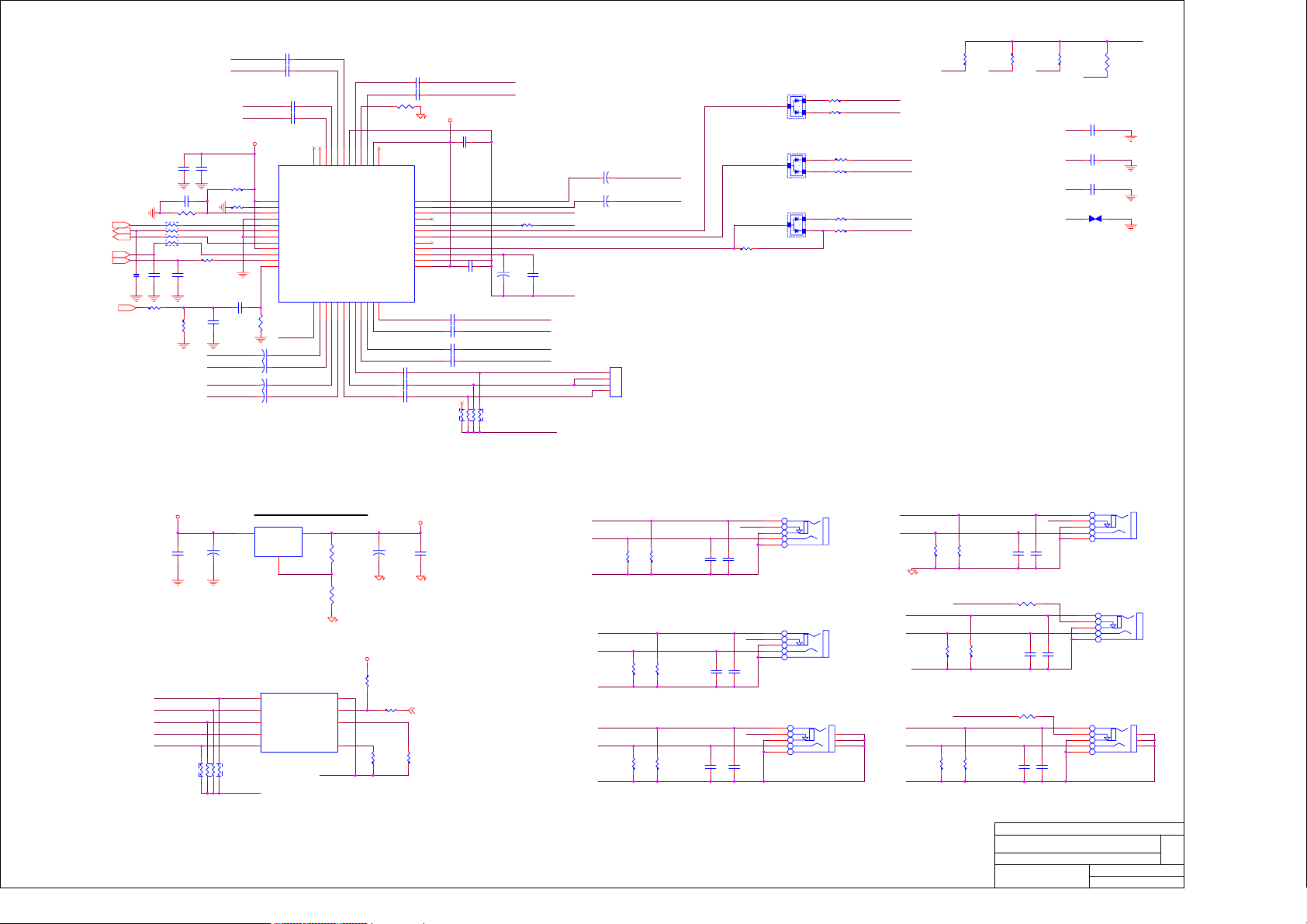

Azalia CMI 9880

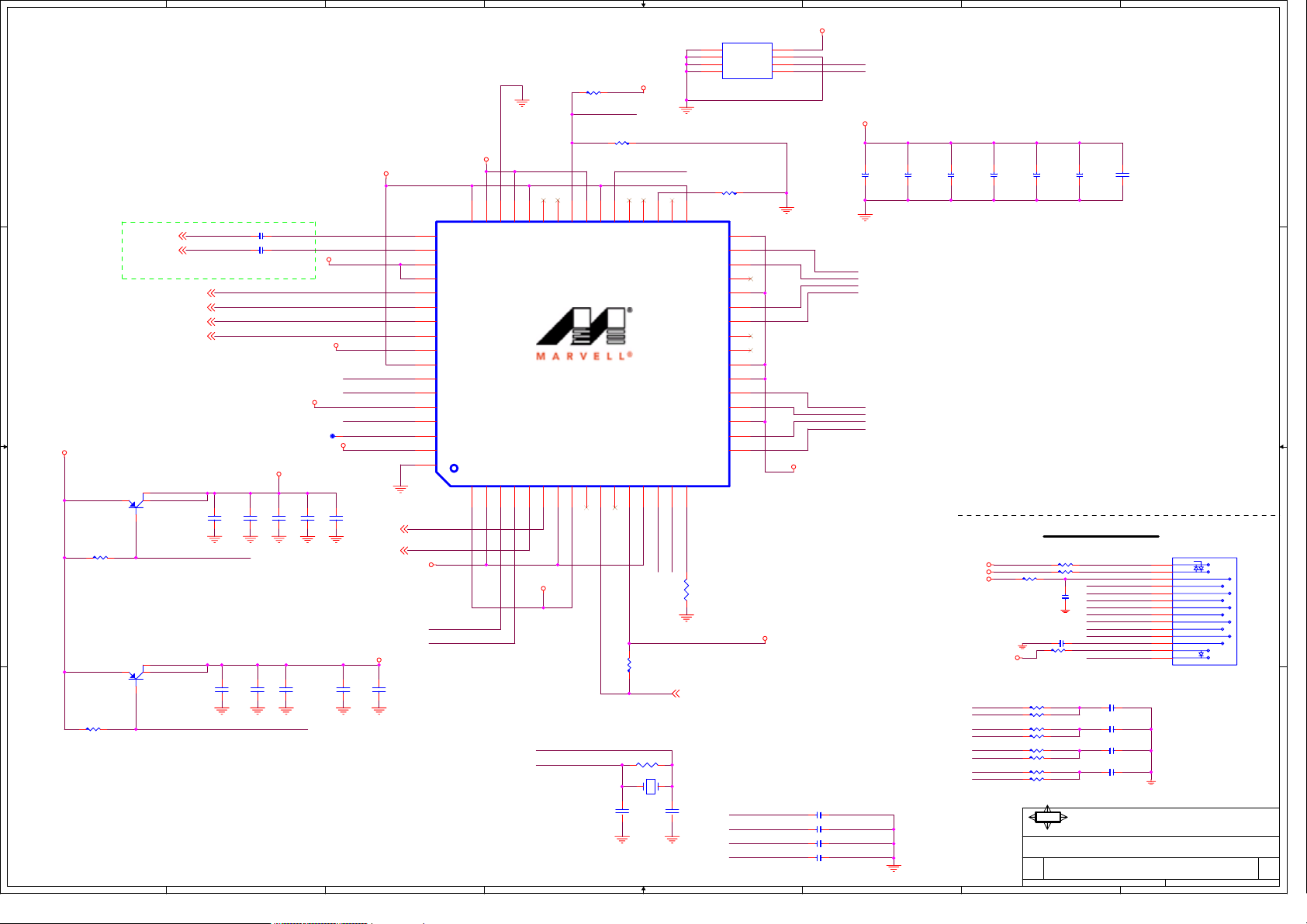

LAN -- Marvell 88E8053

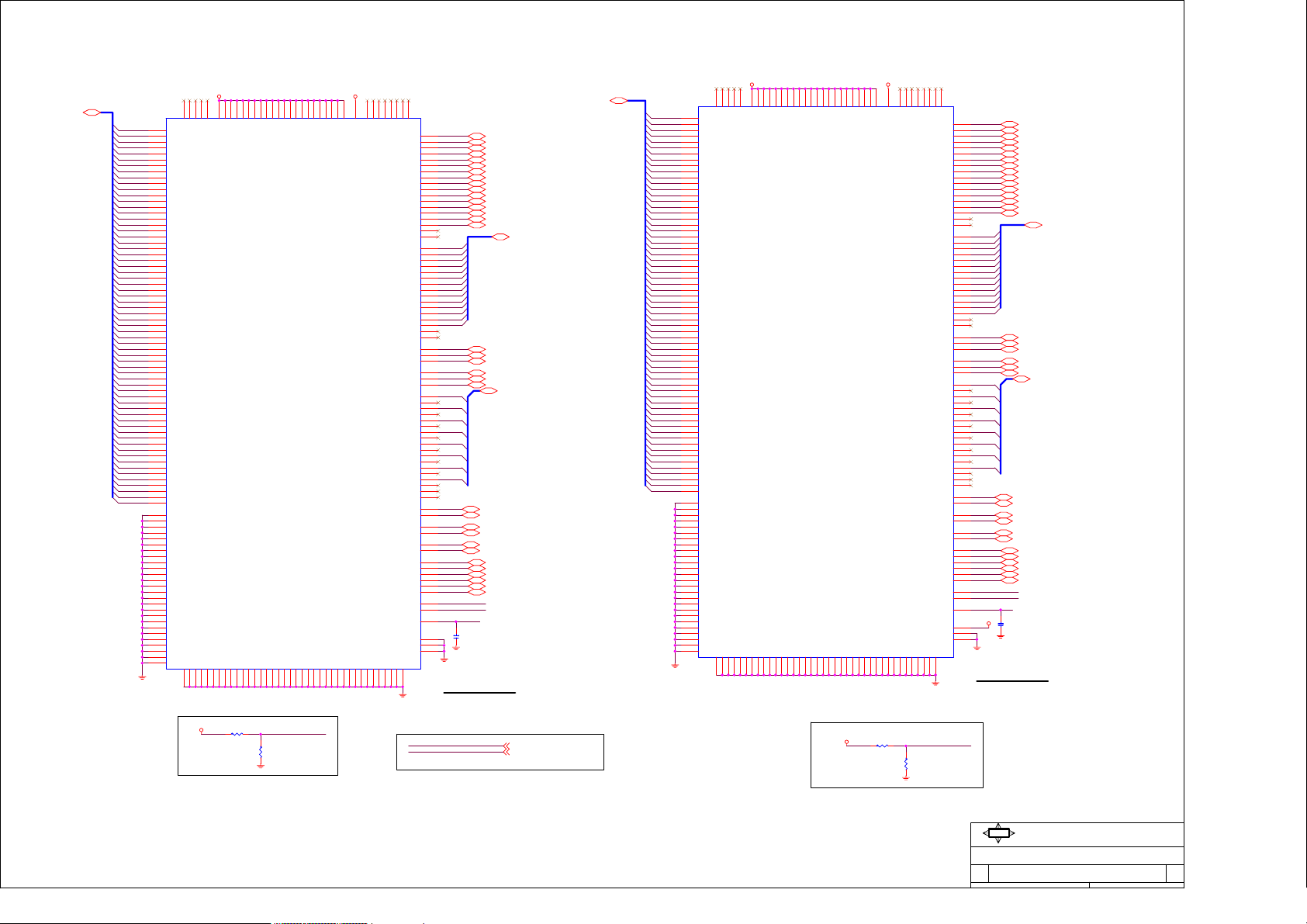

DDR2 System Memory 1 & 2

A A

1
2

3
4-5
6-7
8-9

10

11-12

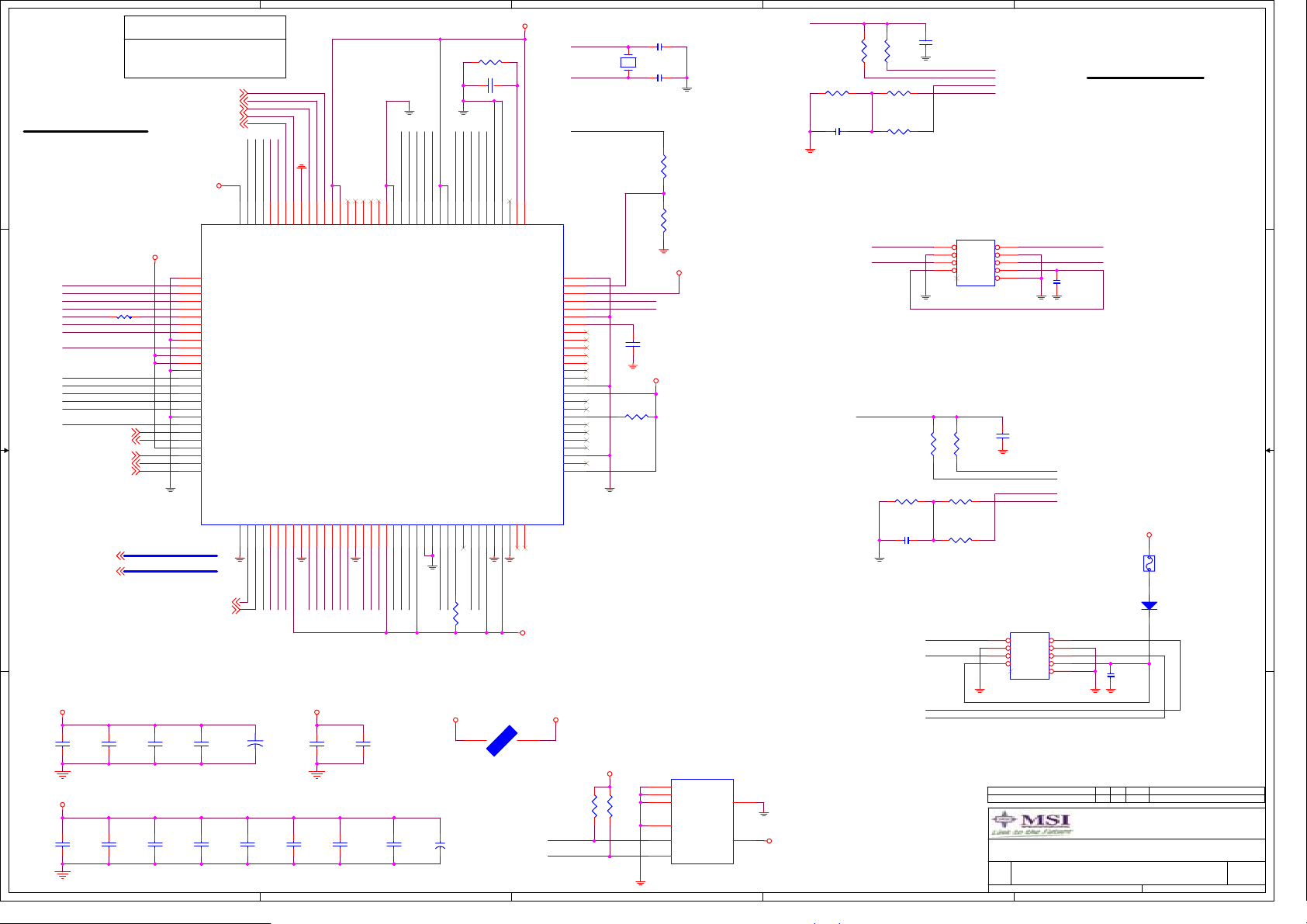

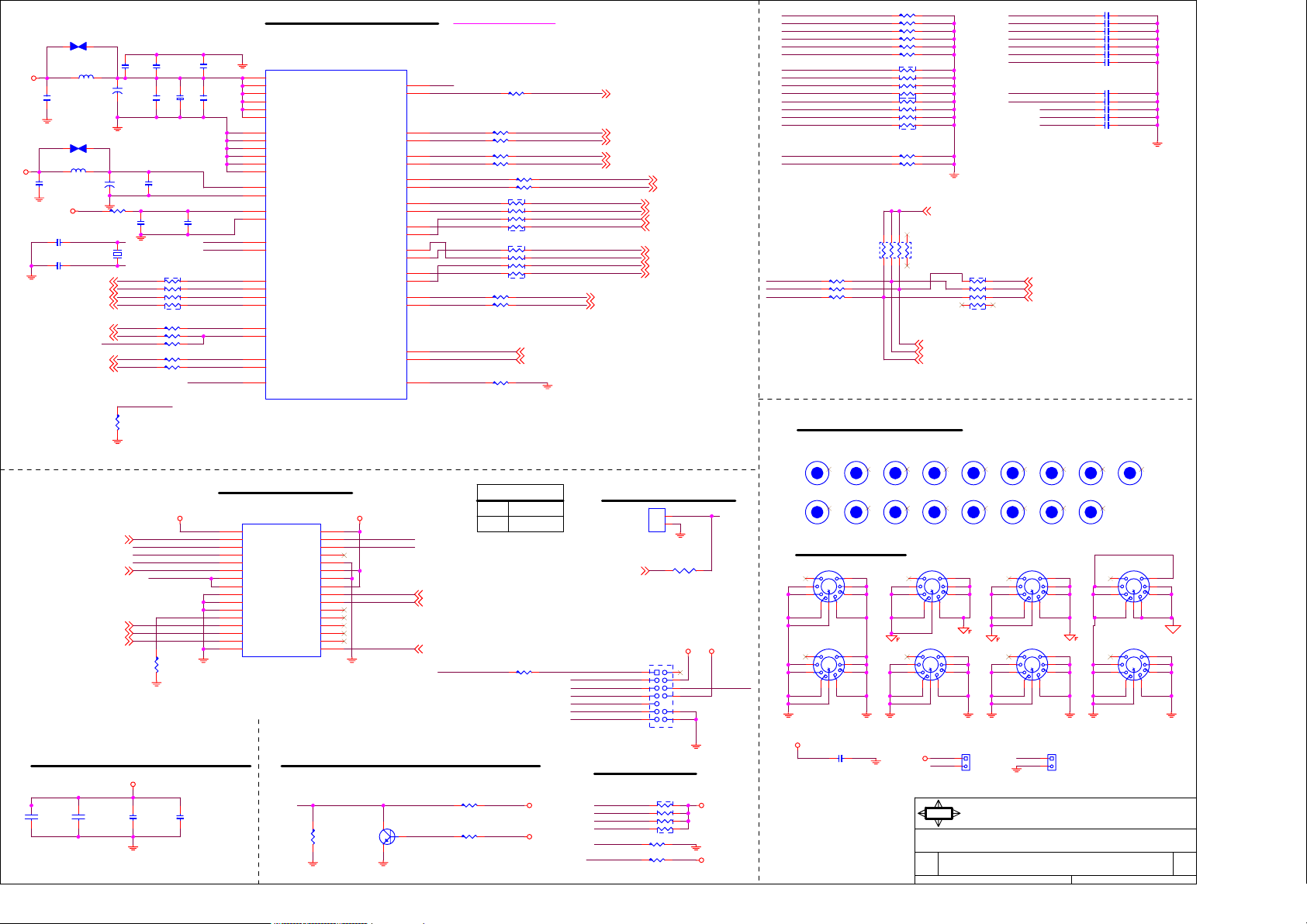

13Clock -CY28416 & FWH

14

15

16

17

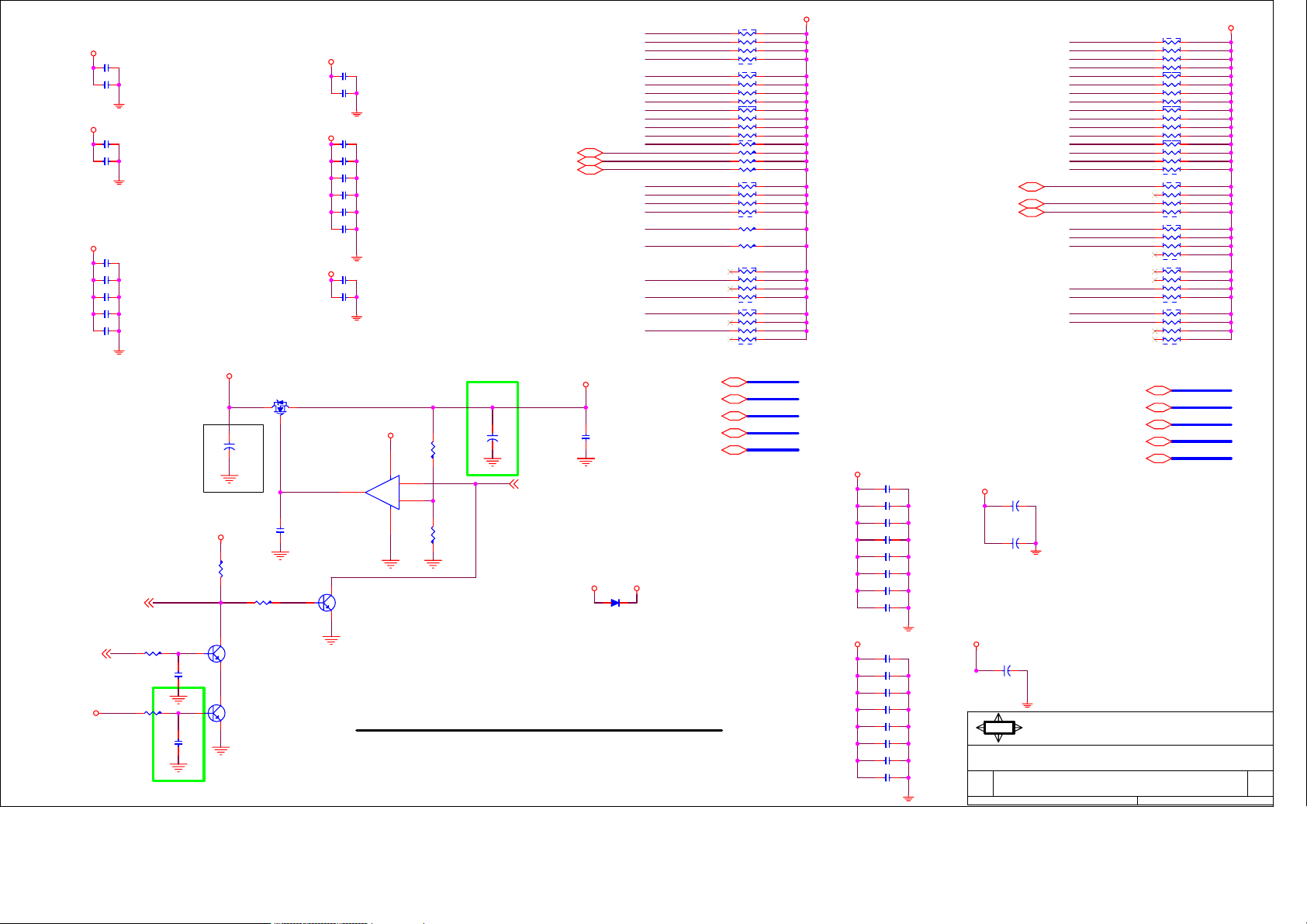

18DDR 2 Termination Resistors & 2.5V DAC

Version 0B

MS-7066

05/05/2004

CPU:

Intel Tejas & Prescott LGA775 Processor

System Chipset:

Intel 915 - GMCH (North Bridge)
Intel ICH6 (South Bridge)

On Board Chipset:

CLOCK -- CY28416
LAN -- Marvell 88E8053
LPC Super I/O -- W83627THF
Azalia CMI 9880

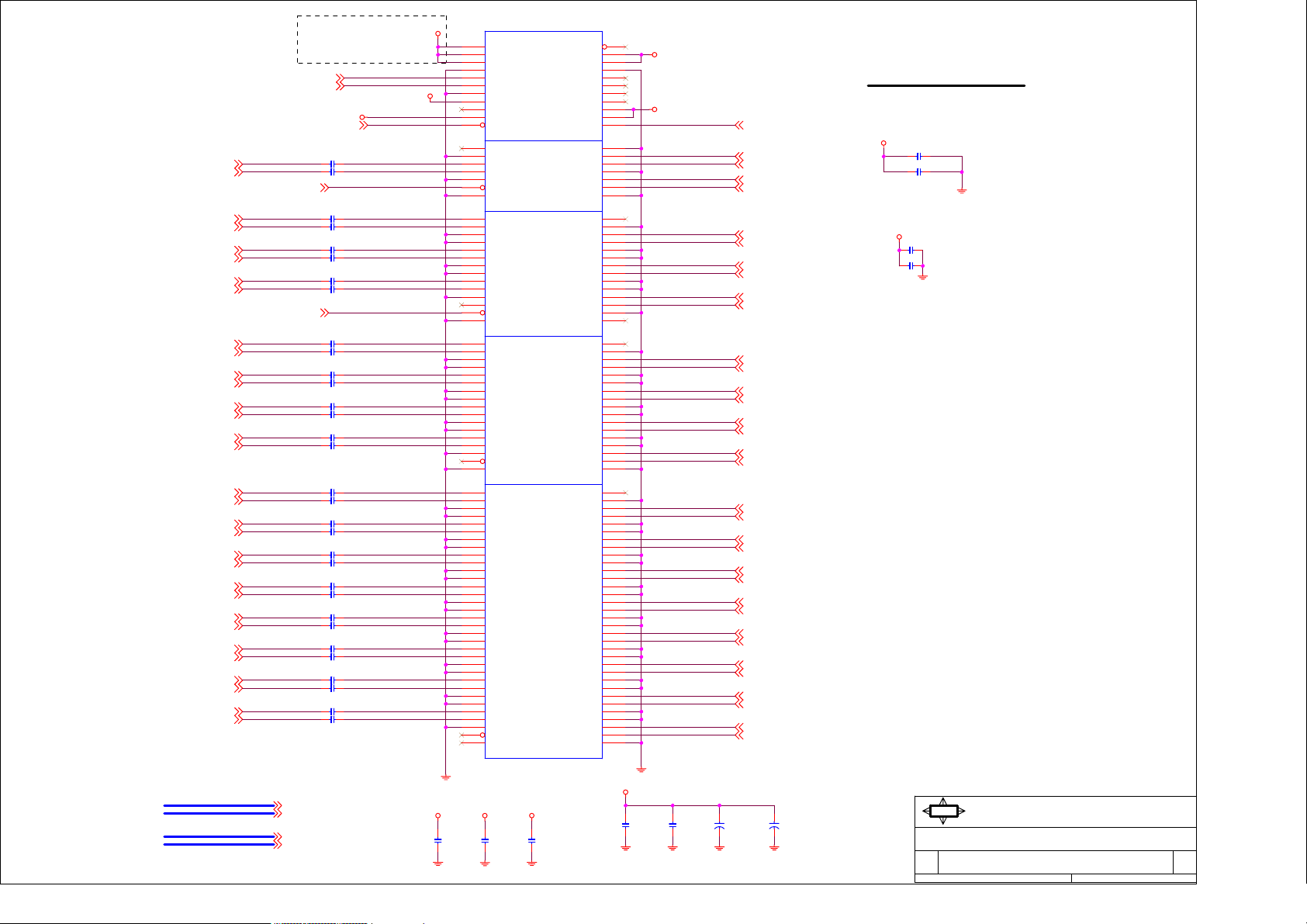

PCI EXPRESS X16 Slot

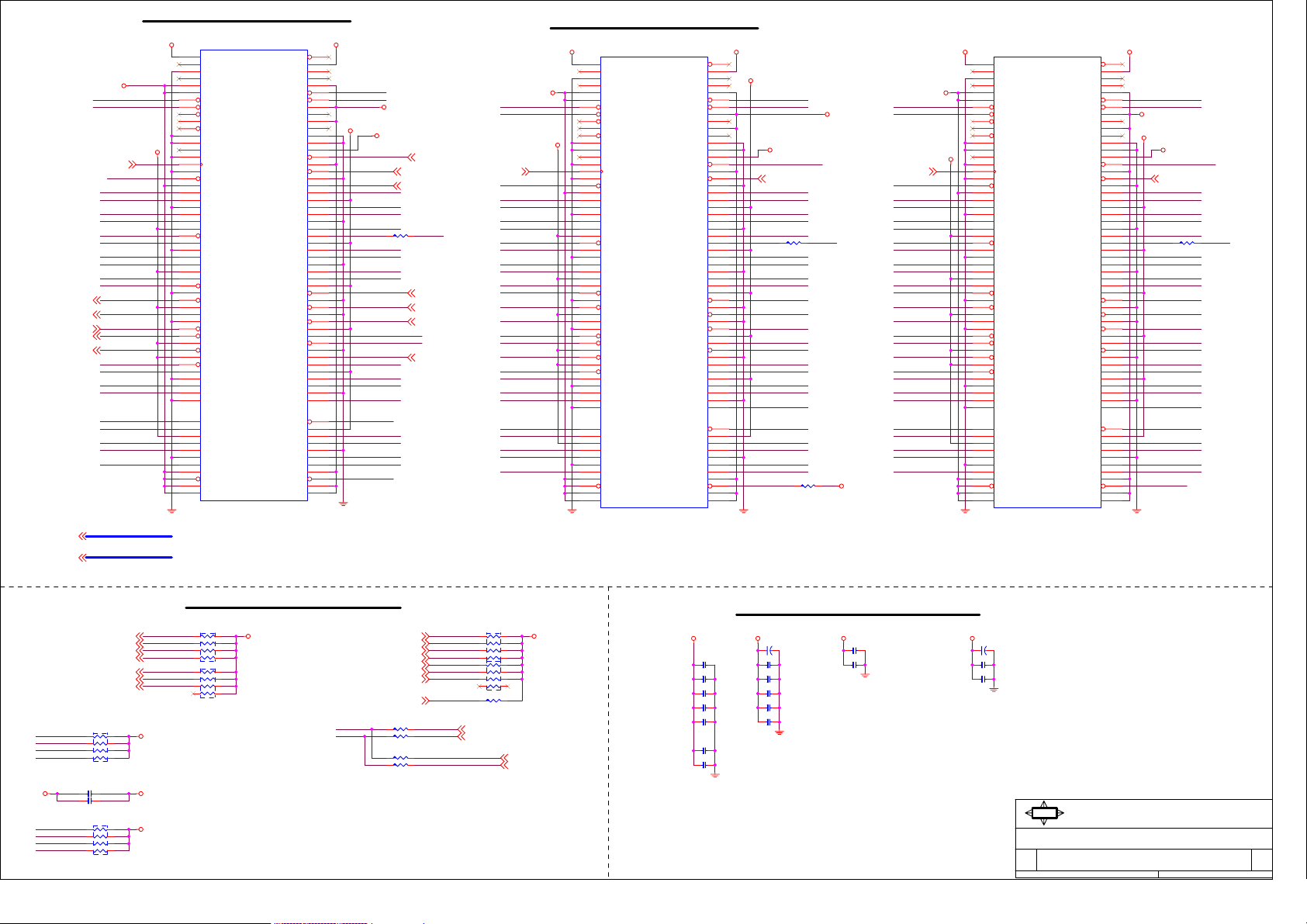

PCI Slot 1 , 2 & 3

19

20

VIA-6307 IEEE1394 Controller
BIOS -- FWH EEPROM

USB Connectors

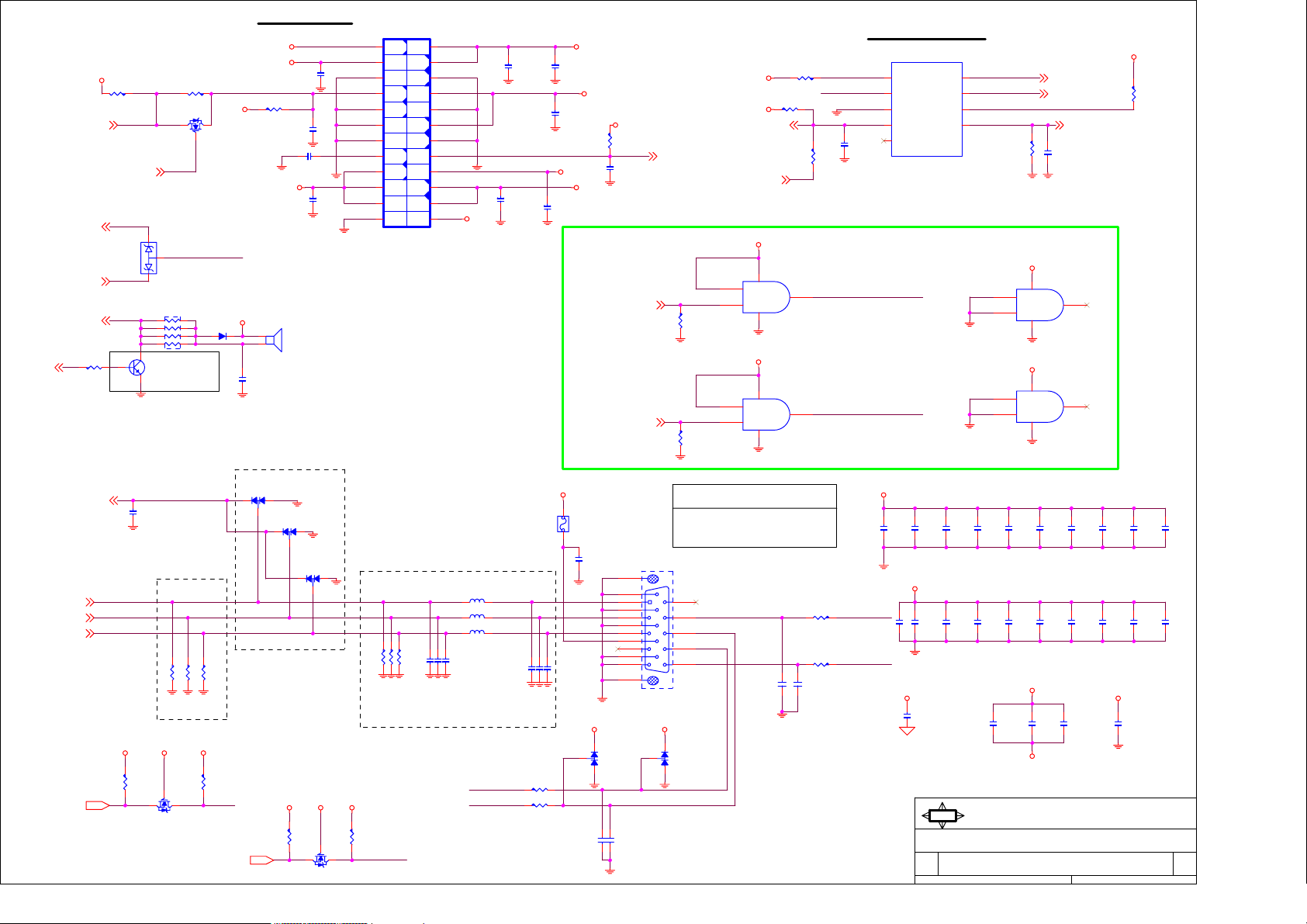

ATX , VGA Connetcors & Front Panel

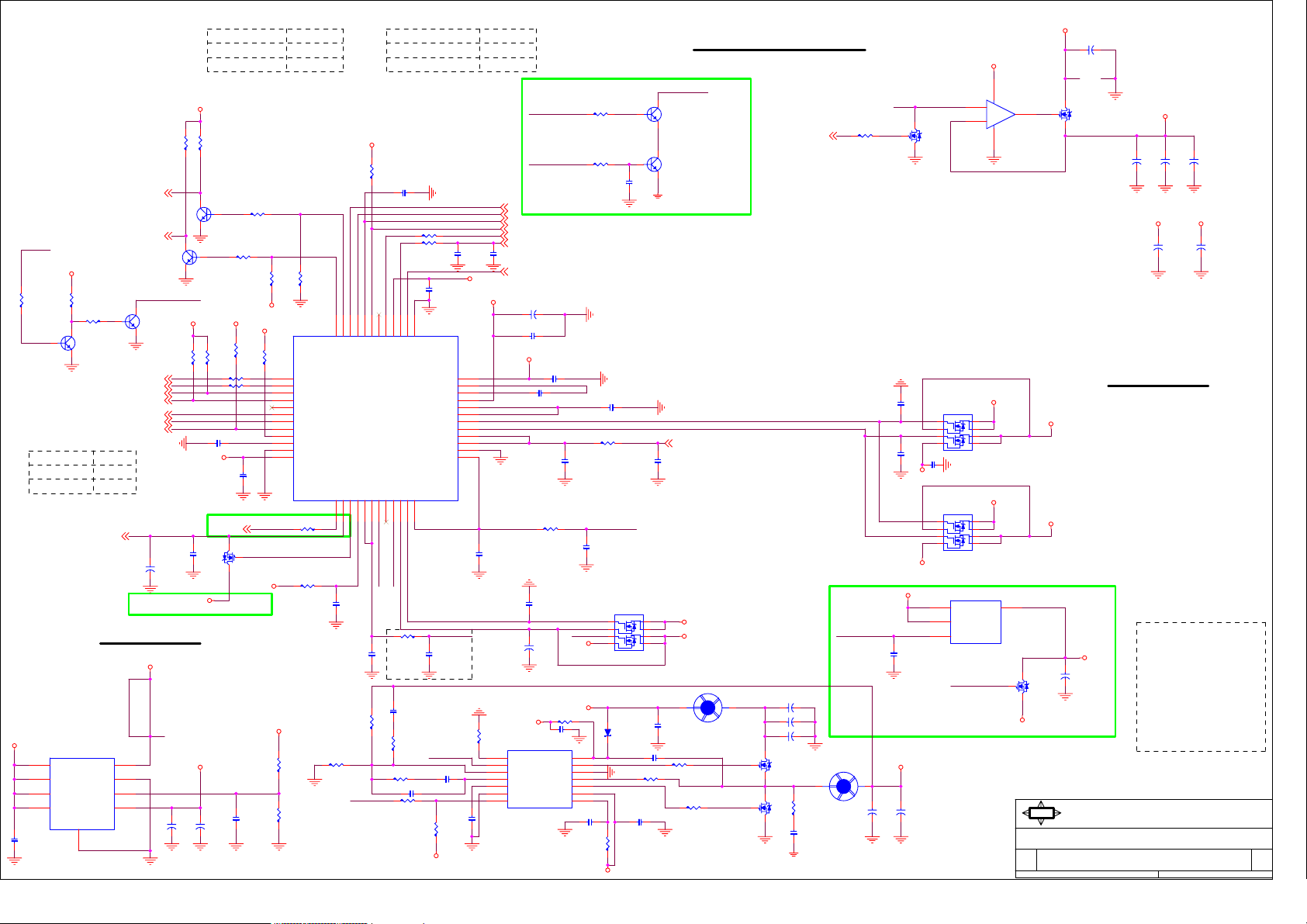

MS-7 ACPI Controller & MS-6 Plus

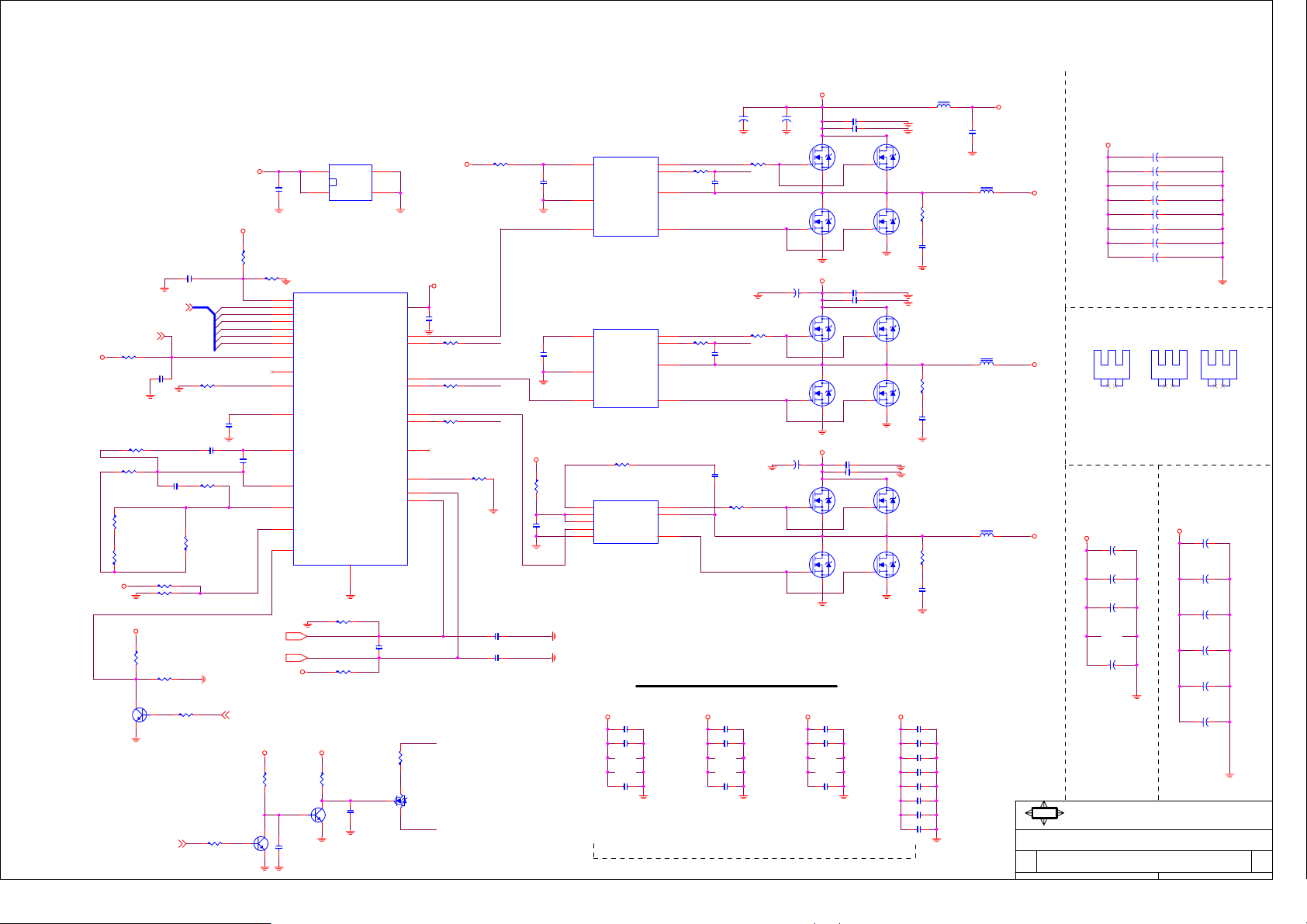

VRM 10.1 - Intersil 6565ACV + HIP 6602B +HIP 6601B

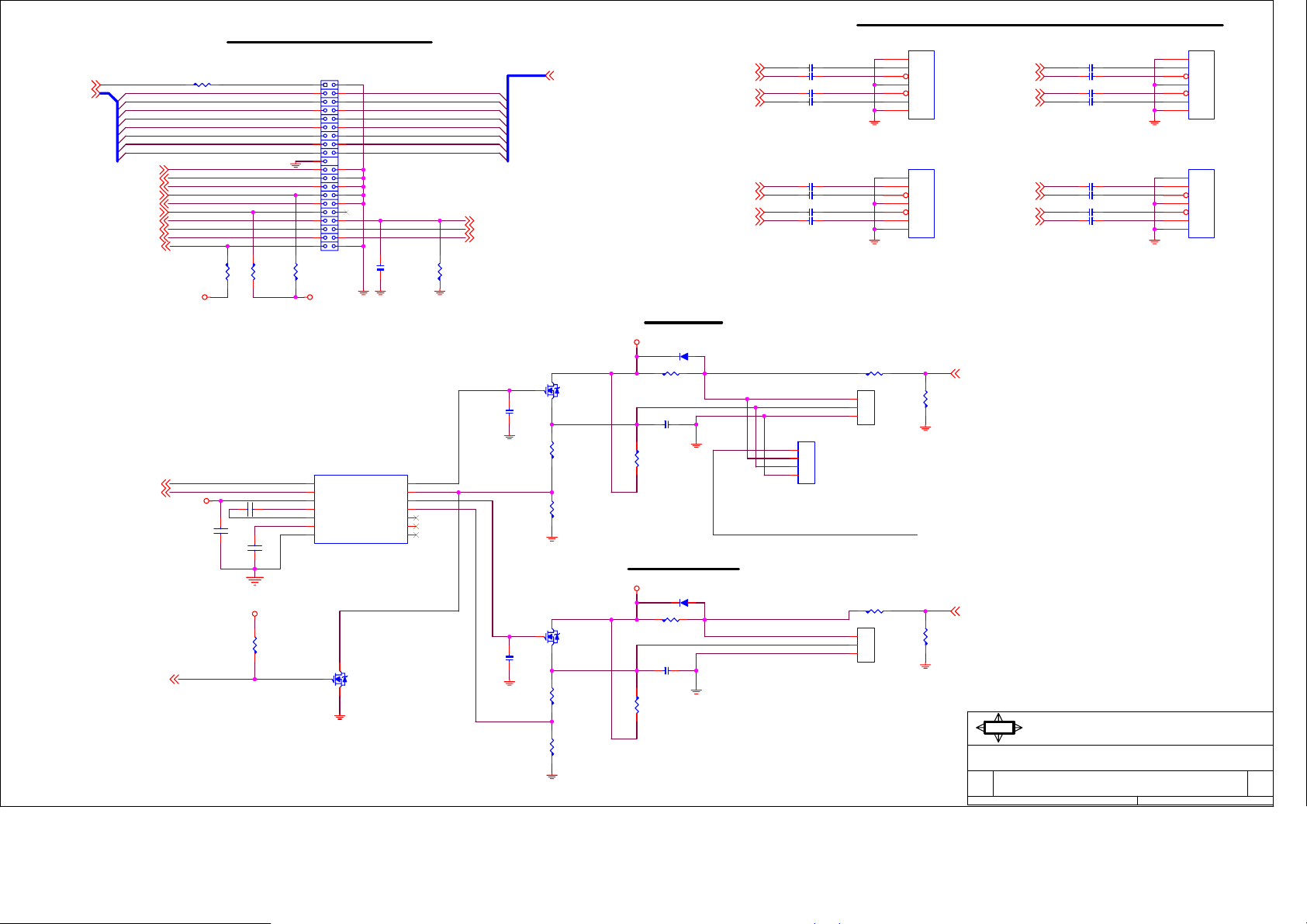

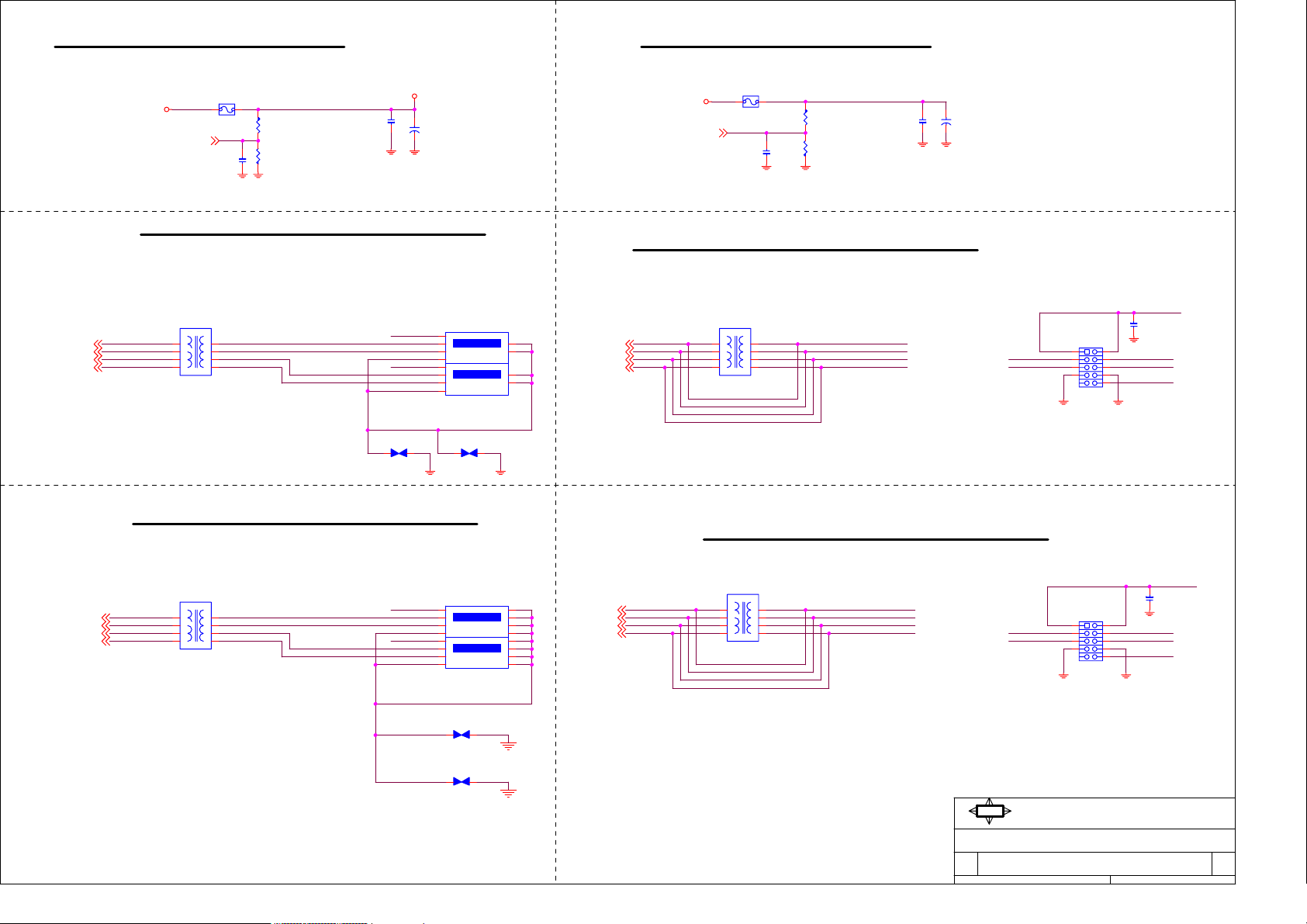

FAN & ICH6 IDE Connectors
VIA-6307 IEEE1394 Controller

21

22

23

24

25

26

Main Memory:

DDR 2 * 2 (Max 2GB)

Expansion Slots:

PCI EXPRESS X16 SLOT
PCI2.3 SLOT * 3

Intersil PWM:

Controller: HIP6565ACV3 Phase
Driver: HIP6602B * 1

HIP6601B * 1

1

MSI

Title

Size Document Number Rev

Date: Sheet

MICRO-STAR INt'L CO., LTD.

COVER SHEET

MS-7066

130Friday, July 02, 2004

of

0B

VRM 10.1

Intersil 6565ACV

3-Phase PWM

Intel LGA775 Processor

FSB

133/200MHz

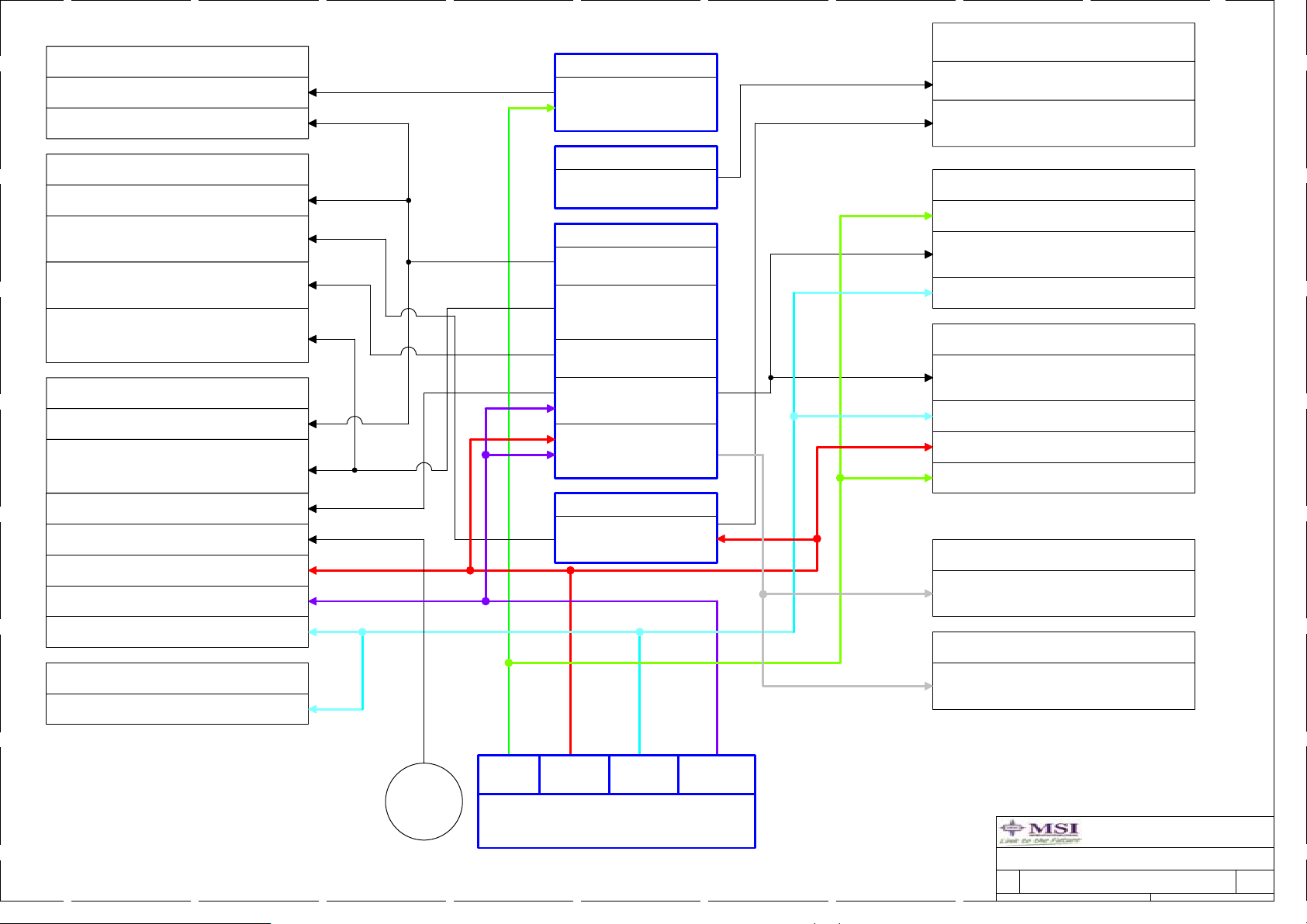

Block Diagram

PCI EXPRESS
X16
Connector

Serial
Digital
Video
Out

IDE Primary

SATA 0~3

USB Port 0~7

Azalia CMI
9880

UltraDMA
33/66/100

SATA

USB

Azalia

150MB/s

915

Grantsdale P/G

DMI

2GB/s

ICH6

33MHz@16.5MB/s

LPC Bus

64bit DDR

133/166/200MHz

PCI-E x1

LPC SIO
Winbond

83627THF

2 DDR II

DIMM
Modules

PCI CNTRL

PCI ADDR/DATA

LAN
Marvell88E8053

PCI Slot x 3

PCI BUS

IEEE-1394
VIA-VT6307

Flash

Keyboard

Floopy Parallel Serial

Mouse

.............

.

.

.

.

.

.

.

.

.

.

.

.

............

.....

....

.....

.....

.....

Line_In

Line_Out

Mic_In

MSI

Title

Size Document Number Rev

Date: Sheet

MICRO-STAR INt'L CO., LTD.

BLOCK DIAGRAM

MS-7066

of

230Friday, July 02, 2004

0B

VTT_OUT_RIGHT

VTT_OUT_RIGHT

H_DBI#[0..3](6)

H_EDRDY#(6)

H_STPCLK#(10)

H_DRDY#(6)

H_DEFER#(6)

RN8B
RN6A
RN8A
RN6C
RN8D

TRMTRIP#(4,10)

H_PROCHOT#(4)

H_IGNNE#(10)

ICH_H_SMI#(10)

C41 X_C0.1U25Y

R68 X_1KR0402

H_D#[0..63](6)

CPU SIGNAL BLOCK

H_A#[3..31](6)

H_A#7

H_A#6

H_A#8

H_A#5

H_A#4

A9#

A8#

A7#

A6#

A5#

D22#

D21#

D20#

D19#

D18#

D10

E10D7E9F9F8G9D11

H_D#20

H_D#21

H_D#18

H_D#19

H_D#17

H_A#3

A4#

A3#

D17#

D16#

H_D#16

AC2

DBR#

D15#

D14#

C12

H_D#14

H_D#15

AN3

VCC_SENSE

D13#

D12#

B12D8C11

H_D#13

H_D#12

AN4

H_D#11

AN5

AN6

AJ3

AK3

RSVD

RSVD

ITP_CLK1

VSS_SENSE

D11#

D10#

D9#

D8#

D7#

B10

A11

A10A7B7B6A5C6A4C5B4

H_D#10

H_D#8

H_D#9

H_D#7

H_D#6

ITP_CLK0

D6#

H_D#5

H_A#15

A16#

D29#

G14

H_D#28

H_A#14

A15#

D28#

F14

H_D#27

H_A#13

A14#

D27#

G13

H_D#26

H_A#12

A13#

D26#

E13

H_D#25

H_A#11

A12#

D25#

D13

H_D#24

H_A#10

A11#

D24#

F12

H_D#23

A10#

D23#

F11

H_D#22

H_A#26

H_A#27

H_A#29

H_A#30

H_A#31

AJ6

AJ5

AH5

AH4

AG5

AG4

AG6

AF4

A33#

A32#

D46#

D45#

E22

H_D#45

A31#

A30#

D44#

D43#

G21

F21

H_D#44

H_D#43

A29#

A28#

D42#

D41#

E21

F20

H_D#41 H_A#28

H_D#42

AF5

A27#

D40#

E19

H_D#39

H_D#40

U8A

H_DBI#0
H_DBI#1
H_DBI#2
H_DBI#3

H_IERR#(4)

H_FERR#(4,10)

H_INIT#(10)

H_DBSY#(6)
H_TRDY#(6)

H_ADS#(6)

H_LOCK#(6)

H_BNR#(6)

H_HIT#(6)
H_HITM#(6)
H_BPRI#(6)

3 4
1 2
1 2
5 6
7 8

H_A20M#(10)

H_SLP#(10)

LL_ID0(24)

CPU_BSEL0(13)
CPU_BSEL1(13)
CPU_BSEL2(13)

H_PWRGD(4,10)

H_TDI
H_TDO
H_TMS
H_TRST#
H_TCK
TMPA
TMPAGND

CPU_BOOT
LL_ID0

H_D#63
H_D#62
H_D#61
H_D#60
H_D#59
H_D#58
H_D#57
H_D#56
H_D#55
H_D#54

G11
D19
C20

AB2
AB3

AD3

AD1
AF1
AC1
AG1
AE1
AL1
AK1

AE8
AL2

AH2
AE6
G10

D16
A20

AA2
G29

H30
G30

G23
B22

A22
A19
B19
B21
C21
B18
A17
B16
C18

A8

F2

R3

M3

P3

H4

B2

C1

E3

D2
C3
C2
D4

E4
G8
G7

M2

N2

P2

K3

L2

N5
C9

Y1

V2

N1

DBI0#
DBI1#
DBI2#
DBI3#

EDRDY#
IERR#
MCERR#
FERR#/PBE#
STPCLK#
BINIT#
INIT#
RSP#

DBSY#
DRDY#
TRDY#

ADS#
LOCK#
BNR#
HIT#
HITM#
BPRI#
DEFER#

TDI
TDO
TMS
TRST#
TCK
THERMDA
THERMDC
THERMTRIP#
GND/SKTOCC#
PROCHOT#
IGNNE#
SMI#
A20M#
SLP#

RSVD
RESERVED0
RESERVED1
RESERVED2
RESERVED3
RESERVED4
RESERVED5

BOOTSELECT
LL_ID0
LL_ID1

BSEL0
BSEL1
BSEL2

PWRGOOD
RESET#
D63#

D62#
D61#
D60#
D59#
D58#
D57#
D56#
D55#
D54#

D53#

D52#

B15

C14

H_D#52

H_D#53

D51#

D50#

C15

A14

H_D#51

H_D#50

A35#

D49#

D48#

D17

D20

H_D#49

H_D#48

A34#

D47#

G22

D22

H_D#47

H_D#46

H_A#20

H_A#25

AB4

A26#

D39#

E18

H_D#38

H_A#24

AC5

A25#

D38#

F18

H_D#37

H_A#18

H_A#23

H_A#21

H_A#17

AB5

AA5

AD6

AA4Y4Y6W6AB6W5V4V5U4U5T4U6T5R4M4L4M5P6L5

A24#

A23#

A22#

A21#

A20#

A19#

A18#

A17#

D37#

D36#

D35#

D34#

D33#

D32#

D31#

D30#

F17

G17

G18

E16

E15

G16

G15

F15

H_D#34

H_D#32

H_D#30

H_D#33

H_D#29

H_D#31

H_D#36

H_D#35

H_A#16

H_A#19

H_A#22

H_A#9

D5#

H_D#4

AM5

D4#

H_D#3

VID5

AL4

RSVD

D3#

H_D#2

VID3

VID4

AK4

AL6

VID5#

VID4#

TESTHI12
TESTHI11
TESTHI10

LINT1/NMI

LINT0/INTR

D2#

D1#

H_D#0

H_D#1

VCC_SENSE

VSS_SENSE

VID2

VID0

VID1

AM3

AL5

AM2

VID3#

VID2#

VID1#

VID0#

GTLREF

BPM5#
BPM4#
BPM3#
BPM2#
BPM1#
BPM0#

PCREQ#

REQ4#
REQ3#
REQ2#
REQ1#
REQ0#

TESTHI9
TESTHI8
TESTHI7
TESTHI6
TESTHI5
TESTHI4
TESTHI3
TESTHI2
TESTHI1
TESTHI0

RSVD
RSVD

BCLK1#
BCLK0#

RS2#
RS1#
RS0#

AP1#
AP0#
BR0#

COMP3
COMP2
COMP1
COMP0

DP3#
DP2#
DP1#
DP0#

ADSTB1#
ADSTB0#
DSTBP3#
DSTBP2#
DSTBP1#
DSTBP0#
DSTBN3#
DSTBN2#
DSTBN1#
DSTBN0#

D0#

TEJAS

VID[0..5] (24)

H1

AG3
AF2
AG2
AD2
AJ1
AJ2

G5
J6
K6
M6
J5
K4

W2
P1
H5
G4
G3
F24
G24
G26
G27
G25
F25
W3
F26
AK6
G6

G28
F28

A3
F5
B3

U3
U2
F3

R1
G2
T1
A13

J17
H16
H15
J16

AD5
R6
C17
G19
E12
B9
A16
G20
G12
C8

L1
K1

CPU_GTLREF

H_BPM#5
H_BPM#4
H_BPM#3
H_BPM#2
H_BPM#1
H_BPM#0

H_PCREQ#
H_REQ#4
H_REQ#3
H_REQ#2
H_REQ#1
H_REQ#0

H_TESTHI12
H_TESTHI11
H_TESTHI10
H_TESTHI9
H_TESTHI8

H_TESTHI2_7
H_TESTHI1
H_TESTHI0
RSVD_AK6
RSVD_G6

H_RS#2
H_RS#1
H_RS#0

TEST-U3
TEST-U2

H_COMP3
H_COMP2
H_COMP1
H_COMP0

TEST-J17
TEST-H16
TEST-H15
TEST-J16

R46 0R
R45 0R

VID3
VID1
VID2
VID4
VID0
VID5

RN6B 8P4R-51R
RN6D 8P4R-51R
RN8C 8P4R-51R
RN4B 8P4R-51R
RN4C 8P4R-51R

H_PCREQ# (6)
H_REQ#[0..4] (6)

R71 62

1 2
3 4
5 6
7 8

R101 62R
R69 62R
R102 62R
R58 X_62R
R73 X_62R

CK_H_CPU# (13)
CK_H_CPU (13)

H_RS#[0..2] (6)

T2
T1

H_BR#0 (4,6)

R74 100R1%
R81 100R1%
R70 60.4R1%
R105 60.4R1%

T5
T7

PLACE RESISTORS OUTSIDE SOCKET

T6

CAVITY IF NO ROOM FOR VARIABLE

T3

RESISTOR DON'T PLACE

H_ADSTB#1 (6)
H_ADSTB#0 (6)H_CPURST#(4,6)
H_DSTBP#3 (6)
H_DSTBP#2 (6)
H_DSTBP#1 (6)
H_DSTBP#0 (6)
H_DSTBN#3 (6)
H_DSTBN#2 (6)
H_DSTBN#1 (6)
H_DSTBN#0 (6)

H_NMI (10)
H_INTR (10)

VCC_VRM_SENSE (24)
VSS_VRM_SENSE (24)

RN2

8P4R-680R

1

2

3

4

5

6

7

8

R53 680R
R51 680R

CPU_GTLREF (4)

RN4A

12
34
78
56
34
56

VTT_OUT_RIGHT

RN11
8P4R-62

VTT_OUT_LEFT

VTT_OUT_RIGHT

C30

C0.1U25Y

V_FSB_VTT (4,6,8,12,13,23)

VTT_OUT_RIGHT (4)

VTT_OUT_LEFT (4,5)

C49

X_C0.1U25Y

VTIN_GND(14)

CPU_TMPA(14)

C34
C0.1U25Y

R42 0
R36 0

TMPAGND

L2 request

TMPA

CPU_TEMP1

3
2
1

X_D1x3-BK

MSI

Title

Size Document Number Rev

Date: Sheet

MICRO-STAR INt'L CO., LTD.

Intel LGA775 CPU - Signals

MS-7066

of

330Friday, July 02, 2004

0B
