Page 1
1
Cover Sheet 1
Block Diagram
GPIO
Intel mPGA478B CPU - Signals
2
3
4
5Intel mPGA478B CPU - Power
Intel Springdale - Host Signals
Intel Springdale - Memory Signals
Intel Springdale - AGP Signals
DDR DIMM 1,2
DDR DIMM 3,4
Broadcom BCM 4401/5705
Intel ICH5 - PCI & IDE & AC97 Signals
Intel ICH5 - Other Signals
A A
CY28404 & FWH & FDD & TPM
6
7
8
9
10
11
12
13
14
15LPC I/O -47M192
AC97 Audio & D-LED
AGP 4X/8X Slot & Ext PCI
PCI Slots 1 & 2 & 3
ATA33/66/100 IDE & Video Connectors
USB Connectors
16
17
18
19
20
21W83302 ACPI controller
MS(6772)

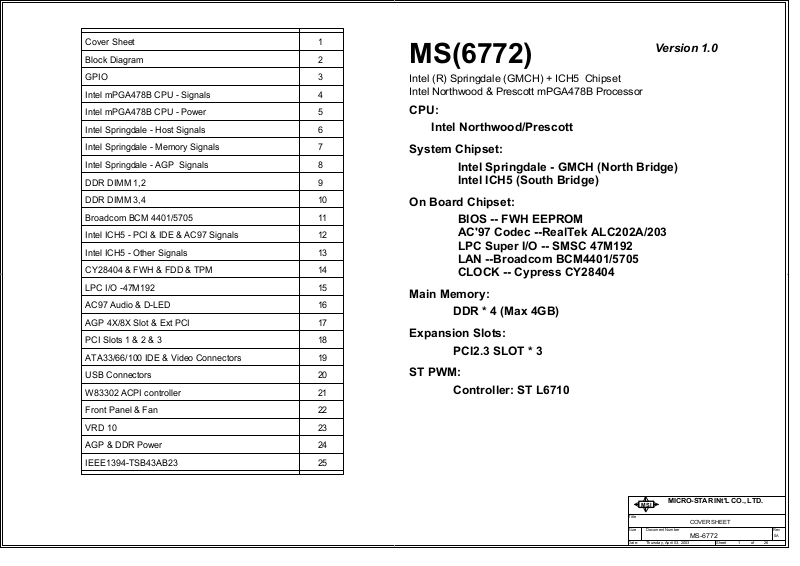

Intel (R) Springdale (GMCH) + ICH5 Chipset
Intel Northwood & Prescott mPGA478B Processor
CPU:
Intel Northwood/Prescott
System Chipset:
Intel Springdale - GMCH (North Bridge)
Intel ICH5 (South Bridge)
On Board Chipset:
BIOS -- FWH EEPROM
AC'97 Codec --RealTek ALC202A/203
LPC Super I/O -- SMSC 47M192
LAN --Broadcom BCM4401/5705
CLOCK -- Cypress CY28404
Main Memory:
DDR * 4 (Max 4GB)
Expansion Slots:
PCI2.3 SLOT * 3
ST PWM:
Controller: ST L6710
Version 1.0
Front Panel & Fan
VRD 10
AGP & DDR Power
22
23
24
25IEEE1394-TSB43AB23
MICRO-STAR INt'L CO., LTD.
MSI
Title
Size Document Number Rev
1
Date: Sheet
COVER SHEET
MS-6772
126Thursday, April 03, 2003
0A
of
Page 2
1
VRM 10
ST L6710
Intel mPAG478B Processor
Block Diagram
2-Phase PWM
FSB
AGP 1.5V
4X/8X
Connector
Analog
Video
Out
IDE Primary
UltraDMA 33/66/100
Springdale
HUB
Link
64bit DDR
Channel 1
64bit DDR
Channel 2
IDE Secondary
ICH5
A A
USB Port 0
4 DDR
DIMM
Modules
(1+1)
PCI BUS
PCI BUS
PCI BUS
PCI Slot 1
PCI Slot 2
PCI Slot 3
IEEE1394
TSB43AB23
USB Port 1
USB Port 2
USB Port 3
USB
LPC Bus
LAN
BCM4401/5705
USB Port 4
LPC SIO
USB Port 5
SMSC
47M192
USB Port 6
USB Port 7
AC'97 Codec
Serial ATA 0
Serial ATA 1
AC'97 Link
Serial ATA
Flash
Keyboard
Mouse
Floopy Parallel Serial
1
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
BLOCK DIAGRAM
MS-6772
226Thursday, January 30, 2003
of
0A
Page 3
1
ICH5
FunctionTypeGPIO Pin
I
GPIO 0
GPIO 1
GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 9
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15
GPIO 16
GPIO 17
GPIO 18
GPIO 19
GPIO 20
GPIO 21
GPIO 22 GPO22
GPIO 23
ISA_REQ#
I
PREQ#5
I
PIRQ#E
I
PIRQ#F
I
PIRQ#G
I
PIRQ#H
I
SIO_SMI#
I
GPI7
I
GPI8
I
OC4#
I
OC5#
I
RECOVER#
I
GPI12
I
SIO_PME#
I OC#6
I
OC#7
O
ISA_GNT#
PGNT#5
O
O
GPO18
O
GPO19
O
GPO20
O
ISA_NOGO
OD
GPO23
O
GPIO 24 I/O GPIO24
GPIO 25 I/O
A A
*
GPIO 27
GPIO 28
GPIO 32
GPIO 33
GPIO 34
GPIO 40 PREQ#4
GPIO 41
GPIO 48
GPIO 49
GPIO25
I/O
GPO27
I/O GPIO28
I/O
BIOS_WP#
I/O
SATA LED
I/O
GPIO34
I
I
GPI41
O PGNT#4
OD
CPUPWRGD
Power well
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
RESUME
RESUME
RESUME
RESUME
RESUME
RESUME
RESUME
RESUME
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
RESUME
RESUME
RESUME
RESUME
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
default output
default output
default output
default output
default output
default output
default output
PCI Config.
DEVICE
INTA#
INTB#
PCI_REQ#0PCI Slot 1
PCI_GNT#0
INTC#
INTD#
PCI Slot 2
INTB#
INTC#
PCI_REQ#1 AD17 PCICLK1
PCI_GNT#1
INTD#
INTA#
PCI Slot 3 PCI_REQ#2 AD18
INTC#
INTD#
PCI_GNT#2
INTA#
INTB#
IDSEL
AD16
DDR DIMM Config.
DEVICE
DIMM 1 MCLK_A0/MCLK_A0#
DIMM 2
DIMM 3
DIMM 4
1010000B
1010001B
1010010B
1010011B
CLOCKREQ#/GNT#
PCICLK0
PCICLK2
CLOCKADDRESS
MCLK_A1/MCLK_A1#
MCLK_A2/MCLK_A2#
MCLK_A3/MCLK_A3#
MCLK_A3/MCLK_A3#
MCLK_A4/MCLK_A4#
MCLK_B0/MCLK_B0#
MCLK_B1/MCLK_B1#
MCLK_B2/MCLK_B2#
MCLK_B3/MCLK_B3#
MCLK_B4/MCLK_B4#
MCLK_B5/MCLK_B5#
CLK GEN PIN OUTMCP1 INT Pin
13 (PCI_CLK0)
14 (PCI_CLK1)
15 (PCI_CLK2)
FWH
TypeGPIO Pin
GPI 0 PD_DET
GPI 1
*
GPI 3
GPI 4
SIO
TypeGPIO Pin
GP12 DLED1
GP13
GP15
GP26
Function
I
I
SD_DET
Pull down through 1K ohms (unused)GPI 2
I
Pull down through 1K ohms (unused)
I
MODEL Select
I
Function
O
O
DLED2
O
DLED3GP14
DLED4
O
I
VID5
IGP43
VID4
PCI RESET DEVICE
Signals
PCIRST#_ICH5 AGP slot, FWH, MS5,
PCIRST#1
HD_RST#
1
Target
Springdale,LAN, Super I/O,1394,TPM
PCI slot 1-3, ext PCI slotPCIRST#2
Primary, Scondary IDE
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
General Purpose Spec
MS-6772
of
326Thursday, April 03, 2003
0A
Page 4
8
7
6
5
4
3
2
1

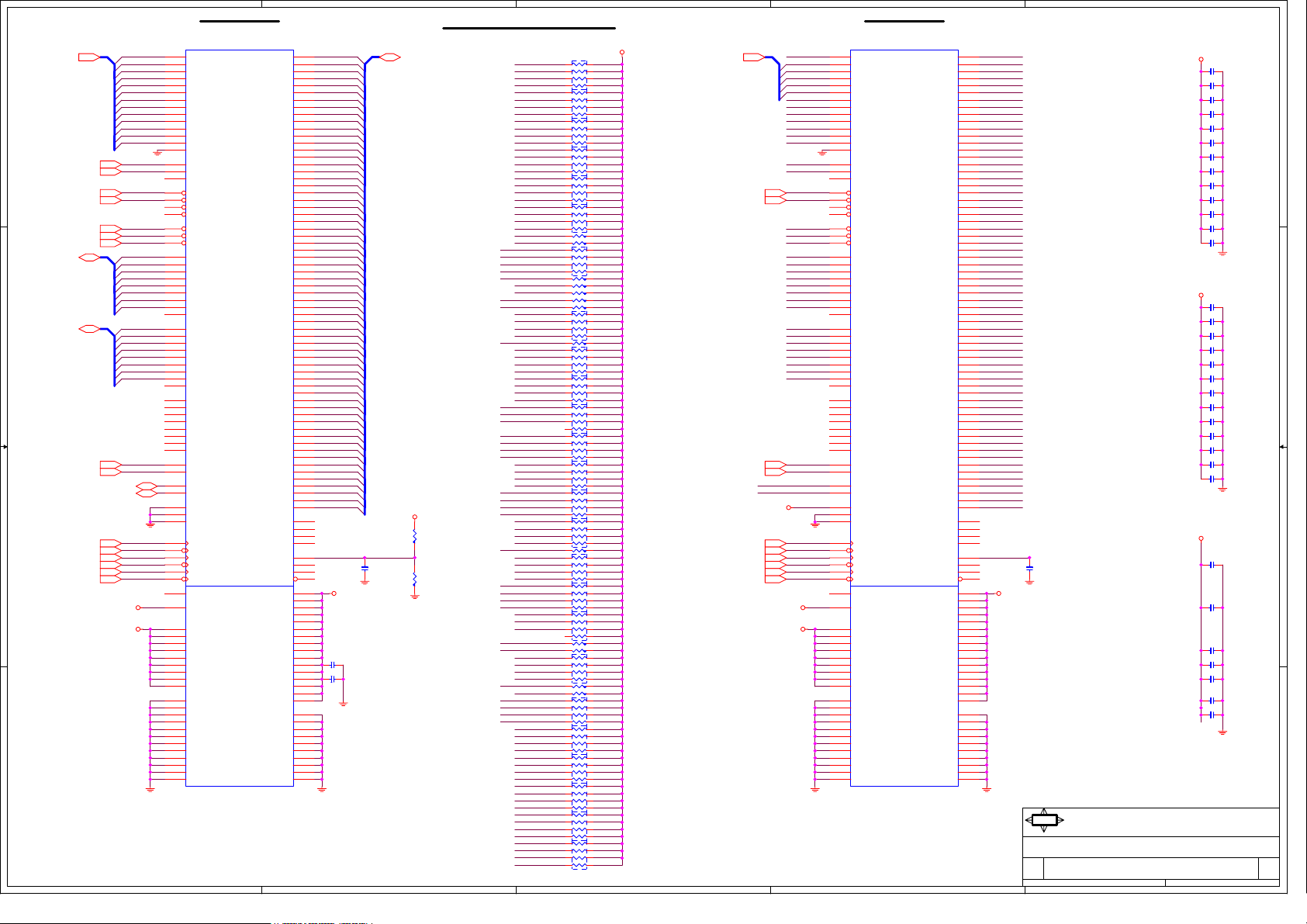

CPU SIGNAL BLOCK
VID1
VID0
AE4
AE5
VID1#
VID0#
GTLREF3
GTLREF2
GTLREF1
GTLREF0
BPM5#
BPM4#
BPM3#
BPM2#
BPM1#
BPM0#
REQ4#
REQ3#
REQ2#
REQ1#
REQ0#
TESTHI12
TESTHI11
TESTHI10
TESTHI9
TESTHI8
TESTHI7
TESTHI6
TESTHI5
TESTHI4
TESTHI3
TESTHI2
TESTHI1
TESTHI0
BCLK1#
BCLK0#
COMP1
COMP0
ADSTB1#
ADSTB0#
DSTBP3#
DSTBP2#
DSTBP1#
DSTBP0#
DSTBN3#
DSTBN2#
DSTBN1#
DSTBN0#
LINT1/NMI
LINT0/INTR
D2#
D1#
D0#
PGA-S478-GD10-F02
A23
B22
B21
CRITICAL
CPUVID_GD (23)
VID[0..5] (15,23)
AA21
AA6
F20
F6
AB4
AA5
Y6
AC4
AB5
AC6
H3
J3
J4
K5
J1
AD25
A6
Y3
W4
U6
AB22
AA20
AC23
AC24
AC20
AC21
AA2
AD24
AF23
AF22
F4
RS2#
G5
RS1#
F1
RS0#
V5
AP1#
AC1
AP0#
H6
BR0#
P1
L24
L25
DP3#
K26
DP2#
K25
DP1#
J26
DP0#
R5
L5
W23
P23
J23
F21
W22
R22
K22
E22
E5
D1
BPM#5
BPM#4
BPM#3
BPM#2
BPM#1
BPM#0
HREQ#4
HREQ#3
HREQ#2
HREQ#1
HREQ#0
TESTHI12
TESTHI11
TESTHI10
TESTHI9
TESTHI8
TESTHI2
TESTHI1
TESTHI0
HRS#2
HRS#1
HRS#0
HBR#0
COMP1
COMP0
C116 C220P16X
HA#[3..31](6)
HA#17
A18#
D33#
M23
HA#16
A17#
D32#
H25
HA#15
A16#
D31#
K23
HA#14
A15#
D30#
J24
HA#13
A14#
D29#
L22
HA#12
A13#
D28#
M21
HA#11
A12#
D27#
H24
HA#25
HA#27
HA#30
HA#26
HA#29
HA#31
A35#
D50#
HA#28
A34#
A33#
A32#
A31#
A30#
A29#
A28#
A27#
A26#
D49#
D48#
D47#
D46#
D45#
D44#
D43#
D42#
D41#
U24
U26
T23
T22
T25
T26
R24
R25
P24
R21
D D
CPU1A
HDBI#[0..3](6)
FERR#(13)
STPCLK#(13)
HINIT#(13,14)
HDBSY#(6)
HDRDY#(6)
HTRDY#(6)
HADS#(6)
HLOCK#(6)
HBNR#(6)
HITM#(6)
HBPRI#(6)
C C
B B
HDEFER#(6)
THERMD+(15)
THERMD-(15)
TRMTRIP#(13)
PROCHOT#(6)
IGNNE#(13)
A20M#(13)
BOOT(23)
BSEL0(14)
BSEL1(14)
CPU_GD(13)
CPURST#(6)
HD#[0..63](6)
HDBI#0
HDBI#1
HDBI#2
HDBI#3
HIT#(6)
ITP_TDI
ITP_TDO
ITP_TMS
ITP_TRST#
ITP_TCK
PROCHOT#
SMI#(13)
SLP#(13)
BOOT
CPU_GD
CPURST#
HD#63
HD#62
HD#61
HD#60
HD#59
HD#58
HD#57
HD#56
HD#55
HD#54
G25
AC3
AA3
AB2
AF26
AB26
AE21
AF24
AF25
AD1
AE26
AD6
AD5
AB23
AB25
AA24
AA22
AA25
W25
W26
E21
P26
V21
V6
B6
Y4
W5
H5
H2
J6
G1
G4
G2
F3
E3
D2
E2
C1
D5
F7
E6
D4
B3
C4
A2
C3
B2
B5
C6
A22
A7
Y21
Y24
Y23
Y26
V24
AB1Y1W2V3U4T5W1R6V2T4U3P6U1T2R3P4P3R2T1N5N4N2M1N1M4M3L2M6L3K1L6K4K2
DBI0#
DBI1#
DBI2#
DBI3#
IERR#
MCERR#
FERR#
STPCLK#
BINIT#
INIT#
RSP#
DBSY#
DRDY#
TRDY#
ADS#
LOCK#
BNR#
HIT#
HITM#
BPRI#
DEFER#
TDI
TDO
TMS
TRST#
TCK
THERMDA
THERMDC
THERMTRIP#
GND/SKTOCC#
PROCHOT#
IGNNE#
SMI#
A20M#
SLP#
RESERVED0
RESERVED1
RESERVED2
RESERVED3
RESERVED4
BOOTSELECT
OPTIMIZED/COMPAT#
BSEL0
BSEL1
PWRGOOD
RESET#
D63#
D62#
D61#
D60#
D59#
D58#
D57#
D56#
D55#
D54#
D53#
D52#
D51#
V22
U21
V25
U23
HA#24
A25#
D40#
N25
HA#23
A24#
D39#
N26
HA#22
A23#
D38#
M26
HA#21
A22#
D37#
N23
HA#20
A21#
D36#
M24
HA#19
A20#
D35#
P21
HA#18
A19#
D34#
N22
HA#10
A11#
D26#
G26
A10#
D25#
HA#9
L21
A9#
D24#
HA#8
D26
A8#
D23#
HA#7
F26
A7#
D22#
HA#6
E25
HA#5
A6#
D21#
HA#4
HA#3
AE25A5A4
AD26
A5#
A4#
A3#
DBR#
VSS_SENSE
VCC_SENSE
D20#
D19#
D18#
D17#
D16#
D15#
D14#
D13#
D12#
D11#
F24
F23
G23
E24
H22
D25
J21
D23
C26
H21
G22
AC26
ITP_CLK1
ITP_CLK0
D10#
D9#
D8#
B25
C24
AD2
C23
VID2
VID4
VID3
VID5
AE1
AE2
AE3
AD3
VID5#
VID4#
VID3#
VID2#
VIDPWRGD
D7#
D6#
D5#
D4#
D3#
B24
D22
C21
A25
VIDPWRGD DC Specifications
VIL
VIH
It must rout to the enable pin of PWM and CK-409.
VIDGD to Vccp delay time is from 1ms to 10ms.
VIDGD rising time is 150ns.
X7R
16V
R69 62R
R137 62R
R93 62R
R97 62R
R102 62R
R82 62R
R87 62R
R78 62R
R106 61.9R1%
R109 61.9R1%
0.9
GTLREF (6)
HREQ#[0..4] (6)
VCCP
CPU_CLK# (14)
CPU_CLK (14)
HRS#[0..2] (6)
HBR#0 (6)
HADSTB#1 (6)
HADSTB#0 (6)
HDSTBP#3 (6)
HDSTBP#2 (6)
HDSTBP#1 (6)
HDSTBP#0 (6)
HDSTBN#3 (6)
HDSTBN#2 (6)
HDSTBN#1 (6)
HDSTBN#0 (6)
NMI (13)
INTR (13)
Min MaxTyp
CPU GTL REFERNCE VOLTAGE BLOCK
0.3
VCCP
VTT
R189
R142
200R1%
GTLREF
C147
C0.01U50X
X7R X7R
0.63*Vccp
C197
C0.1U16X
200R1%
R153
169R1%
CPU ITP BLOCK
ITP_TDI
ITP_TRST#
ITP_TMS
ITP_TDO
ITP_TCK
R76 150R
R92 680R
R104 39R
R77 75R
R81 27R
VCCP
VCCP
HD#1
HD#6
HD#4
HD#3
HD#5
HD#7
HD#8
HD#52
HD#53
HD#50
HD#51
HD#49
HD#48
HD#47
HD#46
HD#45
HD#44
HD#43
HD#42
HD#40
HD#41
HD#38
HD#39
HD#36
HD#37
HD#35
HD#34
HD#33
HD#32
HD#31
HD#30
HD#29
HD#28
HD#27
HD#26
HD#25
HD#24
HD#23
HD#22
HD#21
HD#20
HD#18
HD#19
HD#16
HD#17
HD#15
HD#14
HD#12
HD#13
HD#10
HD#11
HD#9
HD#2
HD#0
CPU STRAPPING RESISTORS
A A
8
7
BPM#4
R91 62R
BPM#5
R83 62R
BPM#2 CPU_GD
R80 62R
BPM#3
R95 62R
BPM#1
R89 62R
BPM#0
R85 62R
VCCP
6
ALL COMPONENTS CLOSE TO CPU
5
PROCHOT#
HBR#0
CPURST#
R140 62R
R75 300R
R101 220R
R86 62R
VCCP
MSI
Title
Size Document Number Rev
4
3
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Intel mPGA478B - Signals
6772
2
426Tuesday, April 01, 2003
1
0A
of
Page 5
8
7
6
5
4
3
2
1
D15
D17
VCC
VCC
VSS
VSS
E7E9F10
D19D7D9
VCC
VSS
F12
VCC
VSS
F14
E10
VCC
VSS
F16
VCC_VID
E12
VCC
VCC
VSS
VSS
F18F2F22
C33
C1U10Y
E14
E16
VCC
VCC
VSS
VSS
E18
F25F5F8
VCC_VID(21,23)
CPU VOLTAGE BLOCK
VID Voltage is from 1.14V to 1.32V.
It is derived from 3.3V.
It should be able to source 150mA.
D D
VCCP
A10
A12
A14
A16
A18
A20A8AA10
AA12
AA14
AA16
AA18
AA8
AB11
AB13
AB15
AB17
AB19
AB7
AB9
AC10
AC12
AC14
AC16
AC18
AC8
AD11
AD13
AD15
AD17
AD19
AD7
AD9
AE10
AE12
AE14
AE16
AE18
AE20
AE6
AE8
AF11
AF13
AF15
AF17
CPU1B
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VSS
B23
VSS
B26B4B8
VSS
VSS
VSS
VCC
VSS
VSS
C11
C13
D10
VSS
A11
VSS
A13
VSS
A15
VSS
A17
VSS
A19
VSS
A21
VSS
A24
VSS
A26
VSS
A3
VSS
A9
VSS
AA1
VSS
AA11
VSS
AA13
VSS
AA15
VSS
AA17
VSS
AA19
VSS
AA23
C C
B B
AA26
AB10
AB12
AB14
AB16
AB18
AB20
AB21
AB24
AC11
AC13
AC15
AC17
AC19
AC22
AC25
AA4
AA7
AA9
AB3
AB6
AB8
AC2
AC5
AC7
AC9
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AD10
VSS
AD12
VSS
AD14
VSS
AD16
VSS
AD18
VSS
AD21
VSS
AD23
AD4
VSS
AD8
VSS
AE11
VSS
VSS
AE13
AE15
VSS
VSS
AE17
VSS
AE19
VSS
AE22
VSS
AE24
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AE7
AE9
AF1
AF10
AF12
AF14
AF16
AF18
AF20
AF6
AF8
B10
B12
B14
B16
B18
B20
AF19
VCC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
C15
C17C2C19
C22
C25C5C7C9D12
It drives the power logic of BSEL[1:0] and VID[5:0].
VID to VIDGD delay time is from 1ms to 10ms.
VID to VIDGD deassertion time is 1ms for max.
AF2
AF21
AF5
AF7
AF9
B11
B13
B15
B17
B19B7B9
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
D14
D16
D18
D20
D21D3D24D6D8E1E11
VCC
VSS
C10
C12
C14
C16
C18
C20C8D11
D13
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
E13
E15
E17
E19
E23
E4
E26
E20E8F11
VCC
VCC
VSS
VSS
VCC
VSS
F13
VCC
VSS
G21G6G24
1.2V 150mA
C41
0.1u
Near processor
F15
F17
F19
F9
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
G3H1H23
VCC
VSS
H26H4J2
VSS
AF4
VCC-VID
VSS
AF3
VSS
J22
AD20
VCC-VIDPRG
VSS
VSS
J25J5K21
AE23
VCCA
VSSA
VCC-IOPLL
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
PGA-S478-GD10-F02
CRITICAL
AD22
Y5
Y25
Y22
Y2
W6
W3
W24
W21
V4
V26
V23
V1
U5
U25
U22
U2
T6
T3
T24
T21
R4
R26
R23
R1
P5
P25
P22
P2
N6
N3
N24
N21
M5
M25
M22
M2
L4
L26
L23
L1
K6
K3
K24
C42
X_1u
C43
X_C1U10Y
It support DC current if 100mA.
CPU_IOPLL
L2 10U100m_0805
L3 10U100m_0805
DC voltage drop should
C46
C22U10Y1206
10V
C38
X_C10U10Y1206
10V
be less than 70mV.
VSSA
The ESL is less than 5nH, and the ESR is less than 0.3ohm.
VCCP
VCCP
VCCP
A A
Place these caps within socket cavity Place these caps within south side of processor
C77
C10U10Y1206
C78
C10U10Y1206
CPU DECOUPLING CAPACITORS
VCCP VCCP VCCP VCCPVCCP VCCP
C93
C10U10Y1206
C85
C10U10Y1206
C72
C10U10Y1206
C67
C10U10Y1206
C94
C10U10Y1206
C86
C10U10Y1206
C73
C10U10Y1206
C68
C10U10Y1206
C24
C10U10Y1206
C12
X_10u-1206
C21
X_10u-1206
C29
C10U10Y1206
C16
X_10u-1206
C8
X_10u-1206
C23
C10U10Y1206
C13
X_10u-1206
C15
X_10u-1206
C27
C10U10Y1206
C10
X_10u-1206
C25
C10U10Y1206
Place these caps within north side of processor
8
7
6
C22
10u-1206
C14
X_10u-1206
C11
X_10u-1206
C26
C10U10Y1206
C28
C10U10Y1206
C9
X_10u-1206
4
C117
C10U10Y1206
MSI
Title
Size Document Number Rev
3
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Intel mPGA478B - Power
6772
2
526Wednesday, April 02, 2003
1
0A
of
C118
C10U10Y1206
C119
C10U10Y1206
C120
C10U10Y1206
C121
C10U10Y1206
C122
C10U10Y1206
5
Page 6
8
VCCA_FSB
C143 0.1u
VCCA_DPLL
D26
D30
C30
C31
D34
C32
C34
G27
H27
G30
G26
D28
C29
D24
G24
G22
C27
AE14
AK4
C25
L23
E29
B32
K23
J25
B31
E30
B33
J24
F25
F28
J27
F29
E28
K24
E32
F31
J26
B30
B24
B26
B28
E25
F27
B29
J23
L22
J21
K21
E23
L21
E27
B27
B7
C7
E8
AJ8
L20
L13
L12
E24
F23
U10A
HA3#
HA4#
HA5#
HA6#
HA7#
HA8#
HA9#
HA10#
HA11#
HA12#
HA13#
HA14#
HA15#
HA16#
HA17#
HA18#
HA19#
HA20#
HA21#
HA22#
HA23#
HA24#
HA25#
HA26#
HA27#
HA28#
HA29#
HA30#
HA31#
HAD_STB0#
HAD_STB1#
BREQ0#
BPRI#
BNR#
HLOCK#
ADS#
HREQ0#
HREQ1#
HREQ2#
HREQ3#
HREQ4#
HIT#
HITM#
DEFER#
HTRDY#
DBSY#
DRDY#
RS0#
RS1#
RS2#
HCLKP
HCLKN
PWROK
CPURST#
RSTIN#
ICH_SYNC#
PROCHOT#
BSEL0
BSEL1
HDRCOMP
HDSWING
HDVREF
HA#[3..31](4)
D D
HADSTB#0(4)
HADSTB#1(4)
HBR#0(4)
C C
HBPRI#(4)
HBNR#(4)
HA#3
HA#4
HA#5
HA#6
HA#7
HA#8
HA#9
HA#10
HA#11
HA#12
HA#13
HA#14
HA#15
HA#16
HA#17
HA#18
HA#19
HA#20
HA#21
HA#22
HA#23
HA#24
HA#25
HA#26
HA#27
HA#28
HA#29
HA#30
HA#31
HLOCK#(4)
HADS#(4)
HREQ#[0..4](4)
HIT#(4)
HITM#(4)
HDEFER#(4)
HTRDY#(4)
HDBSY#(4)
HDRDY#(4)
HRS#[0..2](4)
MCH_CLK(14)
MCH_CLK#(14)
MS5_POK(21)
CPURST#(4)
B B
PCIRST#1(11,14,15,21,25)
PROCHOT#(4)
BSEL0_SPG(14)
BSEL1_SPG(14)
R162 20R1%
HREQ#0
HREQ#1
HREQ#2
HREQ#3
HREQ#4
HRS#0
HRS#1
HRS#2
ICH_SYNC#
HRCOMP
HSWING
GTLREF(4)
7
B3
A31
B4
VCCA_FSB
VCCA_DPLL
VSS
VSS
C12
C10
C8
VCCA_FSB
VSS
C14
VCC_AGP
J6J7J8J9K6K7K8K9L6L7L9
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
C16
C18
C20
C22
C24
C26
C28D1D11
D9
VCC
VSS
VCC
VSS
6
N11N9P10
P11
R11
T16
T17
T18
T19
U16
U17
U20
V16
V18
V20
W16
N10
M10
M11M8M9
L10
L11
VCC
VCC
VCC
VSS
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
D19
D21
D23
D25
D27
D29
D31
D33
VCC
VCC
VSS
VSS
D13
D15
D17
VCC
VSS
T20
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
D35
F3F5F8
E3
F1
E1
F10
W19
VCC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
F18
F20
F22
F24
F14
F16
F12
VCC
VSS
W20
F26
VCC
VSS
5
Y16
Y17
Y18
Y19
Y20
A3
A33
A35B2B25
B34C1C23
C35
E26
M31
AF13
AF23
AJ12
R25
NCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
G31
G35
G28
VSS
VSS
VSS
H12
H14
H16H2H20
H5
H18
H8
H9
VSS
NC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
H22
H24
H26
H30
H33
J10
J12
J14
J16
AN1
J18
VSS
4
VTT
AP2
AR3
AR33
AR35
A7A9A11
A13
A16
A20
A23
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
J20
J22
J28
J32
J35
K11
K12
K14
K16
K18
K20
K22
D5D6D7E6E7
A25
A27
A29
A32
C4
VTT
VTT
VSS
VSS
VSS
VSS
K25
K27
VTT
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
K33
K29
L24
L25
L26
L35
L31
VTT
VSS
M3M6M26
F7
VTT
VSS
3
A4A5A6B5B6C5C6
VTT
VTT
VTT
VTT
VTT
VTT
VSS
VSS
VSS
VSS
VSS
VSS
M27
M28
M30
M33N1N4
VTT_FSB1
VTT_FSB2
A15
A21
HD0#
VTT
VTT
HD1#
HD2#
HD3#
VTT_FSB
VTT_FSB
HD4#
HD5#
HD6#
HD7#
HD8#
HD9#
HD10#
HD11#
HD12#
HD13#
HD14#
HD15#
HD16#
HD17#
HD18#
HD19#
HD20#
HD21#
HD22#
HD23#
HD24#
HD25#
HD26#
HD27#
HD28#
HD29#
HD30#
HD31#
HD32#
HD33#
HD34#
HD35#
HD36#
HD37#
HD38#
HD39#
HD40#
HD41#
HD42#
HD43#
HD44#
HD45#
HD46#
HD47#
HD48#
HD49#
HD50#
HD51#
HD52#
HD53#
HD54#
HD55#
HD56#
HD57#
HD58#
HD59#
HD60#
HD61#
HD62#
HD63#
DINV_0#
DINV_1#
DINV_2#
DINV_3#
HD_STBP0#
HD_STBN0#
HD_STBP1#
HD_STBN1#
HD_STBP2#
HD_STBN2#
HD_STBP3#
HD_STBN3#
VSS
INTEL-SpringDale
CRITICAL
C179 C0.47U16Y
C165 C0.47U16Y
HD#0
B23
HD#1
E22
HD#2
B21
HD#3
D20
HD#4
B22
HD#5
D22
HD#6
B20
HD#7
C21
HD#8
E18
HD#9
E20
HD#10
B16
HD#11
D16
HD#12
B18
HD#13
B17
HD#14
E16
HD#15
D18
HD#16
G20
HD#17
F17
HD#18
E19
HD#19
F19
HD#20
J17
HD#21
L18
HD#22
G16
HD#23
G18
HD#24
F21
HD#25
F15
HD#26
E15
HD#27
E21
HD#28
J19
HD#29
G14
HD#30
E17
HD#31
K17
HD#32
J15
HD#33
L16
HD#34
J13
HD#35
F13
HD#36
F11
HD#37
E13
HD#38
K15
HD#39
G12
HD#40
G10
HD#41
L15
HD#42
E11
HD#43
K13
HD#44
J11
HD#45
H10
HD#46
G8
HD#47
E9
HD#48
B13
HD#49
E14
HD#50
B14
HD#51
B12
HD#52
B15
HD#53
D14
HD#54
C13
HD#55
B11
HD#56
D10
HD#57
C11
HD#58
E10
HD#59
B10
HD#60
C9
HD#61
B9
HD#62
D8
HD#63
B8
HDBI#0
C17
HDBI#1
L17
HDBI#2
L14
HDBI#3
C15
B19
C19
L19
K19
G9
F9
D12
E12
2
HD#[0..63] (4)
HDBI#[0..3] (4)
HDSTBP#0 (4)
HDSTBN#0 (4)
HDSTBP#1 (4)
HDSTBN#1 (4)
HDSTBP#2 (4)
HDSTBN#2 (4)
HDSTBP#3 (4)
HDSTBN#3 (4)
1
VCC3
VTT
A A
X7R
C191
C0.01U50X
HSWING
C149
C0.01U50X
X7R
16V
8
1/4*Vccp
R186
301R1%
R150
100R1%
7
0.1u
VCCA_FSB
I=35mA
VCCA_DPLL
C208
C205
0.1u
ESR is 0.1mohm to GMCH
EC26
CD100U10EL7
6
L5 0.82U30m
+
EC24
CD100U10EL7
L7 100N300m
+
FSB
DPLL
R198 0R
R200 1R1%
VCC_AGP
VCC_AGP
5
I=30mA
ICH_SYNC# MS5_POK ICH_PWROK
0
10
00
1
111
0
0
0
MS5_POK(21)
4
ICH_SYNC#
MS5_POK
VCC3
R383 X_220
R333
X_220
Q45 X_2N3904S
Q47 X_2N3904S
R331 0R
3
R332
X_1K
ICH_PWROK (13)
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Intel Springdale - CPU Signals
6772
2
626Monday, March 17, 2003
of
1
0A
Page 7
8
MCS_A#0(9)
MCS_A#1(9)
MCS_A#2(9)
D D
MCS_A#3(9)
MRAS_A#(9)
MCAS_A#(9)
MWE_A#(9)
MA_A[0..12](9)
MAB_A[1..5](9)
MBA_A0(9)
MBA_A1(9)
C C
MDQM_A[0..7](9)
MDQS_A[0..7](9)
MCLK_A0(9)
MCLK_A#0(9)
MCLK_A1(9)
MCLK_A#1(9)
MCLK_A2(9)
MCLK_A#2(9)
MCLK_A3(9)
B B
MCLK_A#3(9)
MCLK_A4(9)
MCLK_A#4(9)
MCLK_A5(9)
MCLK_A#5(9)
C0.01U50XC269
C0.01U50XC263
C0.01U50XC270 0.1uC262
0.1uC136
C135 C2.2U6.3Y
MDQ_A[0..63](9) MCKE_A[0..3] (9)
U10B
AA34
SCS_A0#
Y31
SCS_A1#
Y32
SCS_A2#
W34
SCS_A3#
AC33
SRAS_A#
Y34
SCAS_A#
AB34
SWE_A#
MA_A0
AJ34
AL33
AK29
AN31
AL30
AL26
AL28
AN25
AP26
AP24
AJ33
AN23
AN21
AL34
AM34
AP32
AP31
AM26
AE33
AH34
AP12
AP16
AM24
AP30
AF31
W33
M34
H32
AN11
AP15
AP23
AM30
AF34
M32
H31
AK32
AK31
AP17
AN17
N33
N34
AK33
AK34
AM16
AL16
AK9
AN9
V34
P31
P32
AL9
E34
SMAA_A0
SMAA_A1
SMAA_A2
SMAA_A3
SMAA_A4
SMAA_A5
SMAA_A6
SMAA_A7
SMAA_A8
SMAA_A9
SMAA_A10
SMAA_A11
SMAA_A12
SMAB_A1
SMAB_A2
SMAB_A3
SMAB_A4
SMAB_A5
SBA_A0
SBA_A1
SDM_A0
SDM_A1
SDM_A2
SDM_A3
SDM_A4
SDM_A5
SDM_A6
SDM_A7
SDQS_A0
SDQS_A1
SDQS_A2
SDQS_A3
SDQS_A4
SDQS_A5
SDQS_A6
SDQS_A7
SMDCLK_A0
SMDCLK_A0#
SMDCLK_A1
SMDCLK_A1#
SMDCLK_A2
SMDCLK_A2#
SMDCLK_A3
SMDCLK_A3#
SMDCLK_A4
SMDCLK_A4#
SMDCLK_A5
SMDCLK_A5#
SMXRCOMP
SMXCOMPVOH
SMXCOMPVOL
SMVREF_A
MA_A1
MA_A2
MA_A3
MA_A4
MA_A5
MA_A6
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12
MAB_A1
MAB_A2
MAB_A3
MAB_A4
MAB_A5
MDQM_A0
MDQM_A1
MDQM_A2
MDQM_A3
MDQM_A4
MDQM_A5
MDQM_A6
MDQM_A7
MDQS_A0
MDQS_A1
MDQS_A2
MDQS_A3
MDQS_A4
MDQS_A5
MDQS_A6
MDQS_A7
XRCOMP
XCOMPH
XCOMPL
XVREF
C144 C0.47U16Y
C162 C0.22U16Y
C170 C0.01U50X
C234 C0.22U16Y
MDQ_A1
MDQ_A0
AP10
AP11
SDQ_A0
E35
7
MDQ_A4
MDQ_A2
MDQ_A3
AM12
AN13
SDQ_A1
SDQ_A2
SDQ_A3
VCC_DDR
VCC_DDR
VCC_DDR
AA35
R35
MDQ_A6
MDQ_A5
AM10
AL10
AL12
SDQ_A4
SDQ_A5
VCC_DDR
VCC_DDR
AR15
AR21
AL6
MDQ_A8
MDQ_A7
MDQ_A9
AP13
AP14
AM14
SDQ_A6
SDQ_A7
SDQ_A8
VCC_DDR
VCC_DDR
VCC_DDR
AM1
AM2
AL7
MDQ_A11
MDQ_A10
MDQ_A12
AL18
AP19
AL14
SDQ_A9
SDQ_A10
SDQ_A11
VCC_DDR
VCC_DDR
VCC_DDR
AN8
AP3
AP4
MDQ_A14
MDQ_A15
MDQ_A13
AN15
AP18
AM18
SDQ_A12
SDQ_A13
SDQ_A14
VCC_DDR
VCC_DDR
VCC_DDR
AP5
AP6
AP7
MDQ_A16
MDQ_A17
MDQ_A18
AP22
AM22
AL24
SDQ_A15
SDQ_A16
SDQ_A17
VCC_DDR
VCC_DDR
VCC_DDR
AR4
AR5
AR7
MDQ_A20
MDQ_A21
MDQ_A19
AN27
AP21
AL22
SDQ_A18
SDQ_A19
SDQ_A20
VCC_DDR
VCC_DDR
AR31
AJ10
6
MDQ_A22
MDQ_A23
AP25
AP27
SDQ_A21
SDQ_A22
SDQ_A23
SDQ_B0
SDQ_B1
SDQ_B2
AE15
AL11
MDQ_A24
MDQ_A25
AP28
AP29
SDQ_A24
SDQ_A25
SDQ_B3
SDQ_B4
AE16
AL8
MDQ_A27
MDQ_A26
AP33
AM33
SDQ_A26
SDQ_A27
SDQ_B5
SDQ_B6
AF12
AK11
MDQ_A28
MDQ_A29
AM28
AN29
SDQ_A28
SDQ_A29
SDQ_B7
SDQ_B8
AG12
AE17
MDQ_A31
MDQ_A30
AM31
AN34
SDQ_A30
SDQ_A31
SDQ_B9
SDQ_B10
AL13
AK17
MDQ_A32
MDQ_A33
AH32
AG34
SDQ_A32
SDQ_A33
SDQ_B11
SDQ_B12
AL17
AK13
MDQ_A35
MDQ_A34
AF32
AD32
SDQ_A34
SDQ_A35
SDQ_B13
SDQ_B14
AJ14
AJ16
MDQ_A36
MDQ_A37
AH31
AG33
SDQ_A36
SDQ_A37
SDQ_B15
SDQ_B16
AJ18
AE19
MDQ_A39
MDQ_A38
AE34
AD34
SDQ_A38
SDQ_B17
AE20
AG23
MDQ_A41
MDQ_A40
AC34
AB31
SDQ_A39
SDQ_A40
SDQ_A41
SDQ_B18
SDQ_B19
SDQ_B20
AK23
AL19
MDQ_A43
MDQ_A42
V32
V31
SDQ_A42
SDQ_A43
SDQ_B21
SDQ_B22
AK21
AJ24
MDQ_A44
MDQ_A45
AD31
AB32
SDQ_A44
SDQ_A45
SDQ_B23
SDQ_B24
AE22
AK25
5
MDQ_A46
MDQ_A47
U34
U33
SDQ_A46
SDQ_A47
SDQ_B25
SDQ_B26
AH26
AG27
MDQ_A48
MDQ_A49
T34
T32
SDQ_A48
SDQ_A49
SDQ_B27
SDQ_B28
AF27
AJ26
MDQ_A51
MDQ_A50
K34
K32
SDQ_A50
SDQ_A51
SDQ_B29
SDQ_B30
AJ27
AD25
MDQ_A53
MDQ_A52
T31
P34
SDQ_A52
SDQ_A53
SDQ_B31
SDQ_B32
AF28
AE30
MDQ_A54
MDQ_A55
L34
L33
SDQ_A54
SDQ_A55
SDQ_B33
SDQ_B34
AC27
AC30
MDQ_A56
MDQ_A57
J33
H34
SDQ_A56
SDQ_A57
SDQ_B35
SDQ_B36
Y29
AE31
MDQ_A58
MDQ_A59
E33
F33
SDQ_A58
SDQ_A59
SDQ_B37
SDQ_B38
AB29
AA26
MDQ_A60
MDQ_A61
K31
J34
SDQ_A60
SDQ_B39
AA27
AA30
MDQ_A62
MDQ_A63
G34
F34
SDQ_A61
SDQ_A62
SDQ_A63
SDQ_B40
SDQ_B41
SDQ_B42
W30
U27
MCKE_A0
MCKE_A1
AL20
SCKE_A0
SDQ_B43
SDQ_B44
T25
AA31
MCKE_A2
AN19
AM20
SCKE_A1
SCKE_A2
SDQ_B45
SDQ_B46
V29
U25
4
MCKE_A3
AP20
AB25
SCKE_A3
SDQ_B47
SDQ_B48
R27
P29
R30
AC26
AC25
AL35
VCCA_DDR
VCCA_DDR
VCCA_DDR
VCCA_DDR
SDQ_B49
SDQ_B50
SDQ_B51
SDQ_B52
K28
L30
R31
VCCA_DDR
AN4
AM3
AN5
VCC_DDR
VCC_DDR
SDQ_B53
SDQ_B54
SDQ_B55
R26
P25
L32
K30
0.1uC200
AM5
AM6
AM7
VCC_DDR
VCC_DDR
VCC_DDR
SDQ_B56
SDQ_B57
SDQ_B58
H29
F32
G33
VCC_DDR
AM8
AN2
AN6
VCC_DDR
VCC_DDR
VCC_DDR
SDQ_B59
SDQ_B60
SDQ_B61
N25
M25
J29
AN7
VCC_DDR
VCC_DDR
SDQ_B62
SDQ_B63
G32
N35
N32
VSS
VSS
SCKE_B0
SCKE_B1
AK19
AF19
P3P6P8
AG19
3
SCS_B0#
VSS
VSS
VSS
SCS_B1#
SCS_B2#
SCS_B3#
SRAS_B#
SCAS_B#
SWE_B#
SMAA_B0
SMAA_B1
SMAA_B2
SMAA_B3
SMAA_B4
SMAA_B5
SMAA_B6
SMAA_B7
SMAA_B8
SMAA_B9
SMAA_B10
SMAA_B11
SMAA_B12
SMAB_B1
SMAB_B2
SMAB_B3
SMAB_B4
SMAB_B5
SBA_B0
SBA_B1
SDM_B0
SDM_B1
SDM_B2
SDM_B3
SDM_B4
SDM_B5
SDM_B6
SDM_B7
SDQS_B0
SDQS_B1
SDQS_B2
SDQS_B3
SDQS_B4
SDQS_B5
SDQS_B6
SDQS_B7
SCMDCLK_B0
SCMDCLK_B0#
SCMDCLK_B1
SCMDCLK_B1#
SCMDCLK_B2
SCMDCLK_B2#
SCMDCLK_B3
SCMDCLK_B3#
SCMDCLK_B4
SCMDCLK_B4#
SCMDCLK_B5
SCMDCLK_B5#
SMYRCOMP
SMYCOMPVOH
SMYCOMPVOL
SMVREF_B
SCKE_B2
SCKE_B3
INTEL-SpringDale
AE18
CRITICAL
Its current is 5.1A.
U26
T29
V25
W25
W26
W31
W27
MA_B0
AG31
MA_B1
AJ31
MA_B2
AD27
MA_B3
AE24
MA_B4
AK27
MA_B5
AG25
MA_B6
AL25
MA_B7
AF21
MA_B8
AL23
MA_B9
AJ22
MA_B10
AF29
MA_B11
AL21
MA_B12
AJ20
MAB_B1
AE27
MAB_B2
AD26
MAB_B3
AL29
MAB_B4
AL27
MAB_B5
AE23
Y25
AA25
MDQM_B0
AG11
MDQM_B1
AG15
MDQM_B2
AE21
MDQM_B3
AJ28
MDQM_B4
AC31
MDQM_B5
U31
MDQM_B6
M29
MDQM_B7
J31
MDQS_B0
AF15
MDQS_B1
AG13
MDQS_B2
AG21
MDQS_B3
AH27
MDQS_B4
AD29
MDQS_B5
U30
MDQS_B6
L27
MDQS_B7
J30
AG29
AG30
AF17
AG17
N27
N26
AJ30
AH29
AK15
AL15
N31
N30
YRCOMP
AA33
YCOMPH
R34
YCOMPL
R33
AP9
2
MCS_B#0 (10)
MCS_B#1 (10)
MCS_B#2 (10)
MCS_B#3 (10)
MRAS_B# (10)
MCAS_B# (10)
MWE_B# (10)
MA_B[0..12] (10)
MAB_B[1..5] (10)
MBA_B0 (10)
MBA_B1 (10)
MDQM_B[0..7] (10)
MDQS_B[0..7] (10)
MCLK_B0 (10)
MCLK_B#0 (10)
MCLK_B1 (10)
MCLK_B#1 (10)
MCLK_B2 (10)
MCLK_B#2 (10)
MCLK_B3 (10)
MCLK_B#3 (10)
MCLK_B4 (10)
MCLK_B#4 (10)
MCLK_B5 (10)
MCLK_B#5 (10)
C0.01U50XC160
C0.01U50XC159
C0.01U50XC132
YVREF
VCC_DDR C268 C2.2U6.3Y
MDQ_B2
MDQ_B0
MDQ_B1
MDQ_B[0..63](10)
MDQ_B9
MDQ_B8
MDQ_B3
MDQ_B5
MDQ_B7
MDQ_B6
MDQ_B4
MDQ_B15
MDQ_B12
MDQ_B11
MDQ_B10
MDQ_B19
MDQ_B21
MDQ_B16
MDQ_B20
MDQ_B22
MDQ_B23
MDQ_B18
MDQ_B17
MDQ_B14
MDQ_B13
MDQ_B30
MDQ_B28
MDQ_B29
MDQ_B31
MDQ_B24
MDQ_B26
MDQ_B25
MDQ_B33
MDQ_B27
MDQ_B32
MDQ_B40
MDQ_B34
MDQ_B41
MDQ_B36
MDQ_B35
MDQ_B37
MDQ_B44
MDQ_B38
MDQ_B45
MDQ_B39
MDQ_B43
MDQ_B42
MDQ_B52
MDQ_B47
MDQ_B46
MDQ_B49
MDQ_B50
MDQ_B48
MDQ_B57
MDQ_B54
MDQ_B51
MDQ_B53
MDQ_B55
MDQ_B56
MDQ_B59
MDQ_B58
MDQ_B60
MCKE_B2
MCKE_B3
MCKE_B0
MCKE_B1
MDQ_B63
MDQ_B62
MDQ_B61
MCKE_B[0..3] (10)
R291 150R1%
R286 150R1%
6.3V
1
VCC_DDR
C241 0.1u
VCC_DDR_C3
XRCOMP
YRCOMP
7
VCC_DDR_C2
R290 42.2R1%
R287 42.2R1%
R180 42.2R1%
R161 42.2R1%
values still need verification
XCOMPL
VCC_DDR
VCC_DDR_C3
XCOMPH
AA35AA33
6
R289 31.6KR1%
VCC_DDR
C0.01U50XC594 C0.01U50XC595
R251 10.2KR1%
R252 31.6KR1%
VCC_DDR
YCOMPL
R33
YCOMPH
R34
5
R143 31.6KR1%
R145 10.2KR1%R283 10.2KR1%
R166 10.2KR1%
R146 31.6KR1%
VCC_DDR_C2
R35
VCCA_DDR
0.1u
4
C239
L10 1U1_1206
+
EC29
CD100U10EL7
ALE
3
VCC_AGP
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Intel Springdale - Memory Signals
6772
2
726Tuesday, April 01, 2003
1
0A
of
A A
8
Page 8
8
7
6
5
4
3
2
1
C266 0.1u
C243 0.1u
VCC_AGP
P26
P27
P28
P30
P33R1R4
R32T1T3
VSS
VSS
VSS
VSS
AE32
VSS
VSS
AE35
T6T8T9
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AF3
AF11
AF14
AF6
AF9
VSS
AD30
VSS
AD33
VSS
AD28
P9
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AE1
AE10
AE11
AE12
AE13
AE25
AE26
AE4
GAD[0..31](17)
D D
C C
GC_BE#[0..3](17)
AD_STB0(17)
AD_STB#0(17)
AD_STB1(17)
AD_STB#1(17)
GREQ#(17)
GGNT#(17)
ST[0..2](17)
RBF#(17)
WBF#(17)
GFRAME#(17)
GIRDY#(17)
GTRDY#(17)
GDEVSEL#(17)
GSTOP#(17)
GAD0
GAD1
GAD3
GAD4
GAD5
GAD6
GAD7
GAD8
GAD9
GAD10
GAD11
GAD12
GAD13
GAD14
GAD15
GAD16
GAD17
GAD18
GAD19
GAD20
GAD21
GAD22
GAD23
GAD24
GAD25
GAD26
GAD27
GAD28
GAD29
GAD30
GAD31
GC_BE#0
GC_BE#1
GC_BE#2
GC_BE#3
ST0
ST1
ST2
RBF#
WBF#
GPAR(17)
MCH_66(14)
VCC_AGP
SBA[0..7](17)
SB_STB(17)
SB_STB#(17)
PIPE#(17)
DBI_LO(17)
R243 43.2R1%
C0.01U50XC251
GSWING(17)
C0.01U50XC265
AGP_REF(17)
B B
A A
SBA0
SBA1
SBA2
SBA3
SBA4
SBA5
SBA6
SBA7
GRCOMP
GSWING
U10C
AE6
GAD0/DVOB_HSYNC
AC11
GAD1/DVOB_VSYNC
AD5
GAD2/DVOB_D1
AE5
GAD3/DVOB_D0
AA10
GAD4/DVOB_D3
AC9
GAD5/DVOB_D2
AB11
GAD6/DVOB_D5
AB7
GAD7/DVOB_D4
AA9
GAD8/DVOB_D6
AA6
GAD9/DVOB_D9
AA5
GAD10/DVOB_D8
W10
GAD11/DVOB_D11
AA11
GAD12/DVOB_D10
W6
GAD13/DVOBC_CLKINT
W9
GAD14/DVOB_FLDSTL
V7
GAD15/MDDC_DATA
AA2
GAD16/DVOC_VSYNC
Y4
GAD17/DVOC_HSYNC
Y2
GAD18/DVOC_BLANK#
W2
GAD19/DVOC_D0
Y5
GAD20/DVOC_D1
V2
GAD21/DVOC_D2
W3
GAD22/DVOC_D3
U3
GAD23/DVOC_D4
T2
GAD24/DVOC_D7
T4
GAD25/DVOC_D6
T5
GAD26/DVOC_D9
R2
GAD27/DVOC_D8
P2
GAD28/DVOC_D11
P5
GAD29/DVOC_D10
P4
GAD30/DVOBC_INTR#
M2
GAD31/DVOC_FLDSTL
Y7
GCBE0/DVOB_D7
W5
GCBE1/DVOB_BLANK#
AA3
GCBE2
U2
GCBE3/DVOC_D5
AC6
GADSTBF0/DVOB_CLK
AC5
GADSTBS0/DVOB_CLK#
V4
GADSTBF1/DVOC_CLK
V5
GADSTBS1/DVOC_CLK#
N6
GREQ
M7
GGNT
N3
GST0
N5
GST1
N2
GST2
R10
GRBF
R9
GWBF
U6
GFRAME/MDVI_DATA
V11
GIRDY/MI2CCLK
AB5
GTRDY/MDVI_CLK
AB4
GDEVSEL/MI2CDATA
W11
GSTOP/MDDC_CLK
AB2
GPAR/ADD_DETECT
H4
GCLKIN
R6
GSBA0#/ADD_ID0
P7
GSBA1#/ADD_ID1
R3
GSBA2#/ADD_ID2
R5
GSBA3#/ADD_ID3
U9
GSBA4#/ADD_ID4
U10
GSBA5#/ADD_ID5
U5
GSBA6#/ADD_ID6
T7
GSBA7#/ADD_ID7
U11
GSBSTBF
T11
GSBSTBS
M4
DBI_HI
M5
DBI_LO
AC2
GRCOMP/DVOBC_RCOMP
AC3
GVSWING
AD2
GVREF
AF16
VSS
VSS
AF18
VSS
VSS
T10
AF20
VSS
VSS
T26
AF22
VSS
VSS
T27
AF24
VSS
VSS
T28
VSS
VSS
AF25
T30
AF30
VSS
VSS
T33
VSS
VSS
AF33
T35
AG4
U4
VSS
VSS
AG8
U18
U19
U32V3V8V9V10
VSS
VSS
VSS
VSS
VSS
VSS
AG14
AG16
AG18
VSS
VSS
VSS
VSS
AG20
V6
VSS
VSS
AG22
VSS
VSS
AG24
VSS
VSS
AG26
AG28
VSS
VSS
V17
VSS
VSS
AG32
V19
VSS
VSS
AG35
V26
AH3
V27
VSS
VSS
AH6
VSS
VSS
V28
VSS
VSS
AH10
V33
V30W4W17
VSS
VSS
VSS
VSS
VSS
VSS
AH12
AH14
AH16
AH18
Y3
W18
W32Y6Y8Y9Y26
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AH20
AH22
AH24
AH30
Y28
Y30
Y33
Y35
Y27
AA1
AA4
AA32
AB10
AB26
AB27
AB6
VSS
VSS
AK20
AB8
VSS
VSS
AK22
AB9
AK24
VSS
VSS
AK26
VSS
VSS
AK28
VSS
VSS
AB28
VSS
VSS
AL1
AL32
VSS
VSS
AH33
Y10
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AJ1
AJ4
AJ9
AJ32
AJ35
AB3
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AK3
AK16
AK18
AK8
AK10
AK12
AK14
Springdale Decoupling Capacitors
VSS
VSS
AB30
AM9
VSS
VSS
AB33
VSS
VSS
AM11
AC1
VSS
VSS
AM13
AC4
VSS
VSS
AM15
AC32
VSS
VSS
AM17
AC35
VSS
VSS
AM19
AD3
AM21
VSS
VSS
L1L5Y1J1J2J3K2K3K4K5J4J5L4L2L3
AD6
AD8
AD9
AD10
VSS
VSS
VSS
VSS
VCC_AGP
VSS
VSS
VSS
VSS
VSS
VSS
AM23
AM25
AM27
AM29
AM35
AN10
AN12
VCC_AGP
VCC_AGP
VCC_AGP
VSS
VSS
VSS
AN14
AN16
VCC_AGP
VCC_AGP
VSS
VSS
AN18
AN20
AN22
VCC_AGP
VCC_AGP
VCC_AGP
VSS
VSS
VSS
AN24
AN26
AN28
VCC_AGP
VCC_AGP
VCC_AGP
VSS
VSS
VSS
AN30
AN32
VCC_AGP
VCC_AGP
VSS
VSS
AR9
AR11
AR13
AG1
Y11
VCC_AGP
VCCA_AGP
VCCA_AGP
HI_STRF
HI_STRS
HI_RCOMP
HI_SWING
HI_VREF
CISTRF
CISTRS
CI_RCOMP
CI_SWING
CI_VREF
DREFCLK
DDCA_CLK
DDCA_DATA
VSYNC
HSYNC
GREEN
GREEN#
REFSET
VCC_DAC
VCC_DAC
VCCA_DAC
VSSA_DAC
EXTTS#
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
VSS
VSS
VSS
VSS
AR23
AR16
AR20
AF5
HI0
AG3
HI1
AK2
HI2
AG5
HI3
AK5
HI4
AL3
HI5
AL2
HI6
AL4
HI7
AJ2
HI8
AH2
HI9
AJ3
HI10
AH5
AH4
AD4
AE3
AE2
AK7
CI0
AH7
CI1
AD11
CI2
AF7
CI3
AD7
CI4
AC10
CI5
AF8
CI6
AG7
CI7
AE9
CI8
AH9
CI9
AG6
CI10
AJ6
AJ5
AG2
AF2
AF4
G4
F2
H3
E2
G3
H7
BLUE
G6
BLUE#
H6
G5
F4
RED
E4
RED#
D2
G1
G2
C2
D3
AP8
AG9
AG10
AN35
AP34
AR1
AR25
VSS
AR27
VSS
AR29
VSS
AR32
VSS
INTEL-SpringDale
CRITICAL
HL0
HL1GAD2
HL2
HL3
HL4
HL5
HL6
HL7
HL8
HL9
HL10
HL_COMP
HL_SWING
HL_VREF
CI_RCOMP
GSET
C217
C0.01U50X
C0.01U50X
C213
C228
0.1u
C222
0.1u
R261 52.3R1%
R270 52.3R1%
CI_SWING
CI_VREF
R220 137R1%
VCC_AGP
VCC_AGP
HL[0..10] (13)
HI_RCOMP Calculation
R=[(1.5V-08V)/0.8V]*60ohm=52.5ohm
HL_STRF (13)
HL_STRS (13)
C0.01U50XC252
VCC_AGP
C0.01U50XC282
VCC_AGP
C0.01U50XC250
C0.01U50XC276
DOT_48 (14)
3VDDCCL (19)
3VDDCDA (19)
CRT_VSYNC (19)
CRT_HSYNC (19)
CRT_B (19)
CRT_G (19)
CRT_R (19)
VCC3
VCCA_DAC
R262 226R1%
R255 147R1%
L9 100N300m
+
EC27
XX
R281 113R1%
R237 0R
CI_SWING
CI_VREF
VCC_DAC
1.7V/60mA
800mV
350mV
H_SWING=(0.8*VCC_AGP)+-2%
7
800mV
HL_SWING (13)
350mV
HL_VREF (13)
VCCP
VCC_DDR
C264
C156
0.1u
6
C260
0.1u
5
4
0.1u
C261
0.1u
VTTVCC_AGP
C195
C1U10Y
C201
0.1u
3
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Intel Springdale - AGP & HLink & LAN Signals
6772
2
826Monday, March 17, 2003
1
0A
of
VCC_AGP
R345 226R1%
R344 147R1%
R342 113R1%
8
HL_SWING
HL_SWING
C317 0.1u
HL_VREF
HL_VREF
C324 0.1u
H_SWING=(0.233*VCC_AGP)+-2%
Page 9
5
SMBCLK_ISO(10,14,21)
SMBDATA_ISO(10,14,21)
VCC_DDR
VCC_DDR
MA_A0
MA_A1
MA_A2
MA_A3
MA_A4
MA_A5
MA_A6
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12
MBA_A0
MBA_A1
MRAS_A#
MCAS_A#
MWE_A#
MDQS_A0
MDQS_A1
MDQS_A2
MDQS_A3
MDQS_A4
MDQS_A5
MDQS_A6
MDQS_A7
MDQM_A0
MDQM_A1
MDQM_A2
MDQM_A3
MDQM_A4
MDQM_A5
MDQM_A6
MDQM_A7
MA_A[0..12](7)
D D
MBA_A0(7)
MBA_A1(7)
MCS_A#0(7)
MCS_A#1(7)
MRAS_A#(7)
MCAS_A#(7)
MWE_A#(7)
MDQS_A[0..7](7)
MDQM_A[0..7](7)
C C
MCKE_A0(7)
MCKE_A1(7)
MCLK_A1(7)
MCLK_A#1(7)
B B
A A
MCLK_A0(7)
MCLK_A#0(7)
MCLK_A2(7)
MCLK_A#2(7)
48
43
41
130
37
32
125
29
122
27
141
118
115
103
59
52
113
157
158
71
163
154
65
63
5
14
25
36
56
67
78
86
47
97
107
119
129
149
159
169
177
140
44
45
49
51
134
135
142
144
21
111
92
91
181
182
183
16
17
137
138
76
75
82
184
7
38
46
70
85
108
120
148
168
81
89
93
100
116
124
132
139
145
152
160
176
DDR DIMM1
DIMM1
SIGNALS
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/NC
A13/NC
BA0
BA1
NC/BA2
CS0#
CS1#
NC/CS2#
NC/CS3#
RAS#
CAS#
WE#
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
DQM0/DQS9
DQM1/DQS10
DQM2/DQS11
DQM3/DQS12
DQM4/DQS13
DQM5/DQS14
DQM6/DQS15
DQM7/DQS16
DQM8/DQS17
MECC0
MECC1
MECC2
MECC3
MECC4
MECC5
MECC6
MECC7
CKE0
CKE1
SCL
SDA
SA0
SA1
SA2
CK0/NC
CK0#/NC
CK1/CK0
CK1#/CK0#
CK2/NC
CK2#/NC
ID_VDD
SPD_VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DIMM-184
POWER
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VREF
FETEN/NC
NC/RESET#
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
MDQ_A0
2
MDQ_A1
4
MDQ_A2
6
MDQ_A3
8
MDQ_A4
94
MDQ_A5
95
MDQ_A6
98
MDQ_A7
99
MDQ_A8
12
MDQ_A9
13
MDQ_A10
19
MDQ_A11
20
MDQ_A12
105
MDQ_A13
106
MDQ_A14
109
MDQ_A15
110
MDQ_A16
23
MDQ_A17
24
MDQ_A18
28
MDQ_A19
31
MDQ_A20
114
MDQ_A21
117
MDQ_A22
121
MDQ_A23
123
MDQ_A24
33
MDQ_A25
35
MDQ_A26
39
MDQ_A27
40
MDQ_A28
126
MDQ_A29
127
MDQ_A30
131
MDQ_A31
133
MDQ_A32
53
MDQ_A33
55
MDQ_A34
57
MDQ_A35
60
MDQ_A36
146
MDQ_A37
147
MDQ_A38
150
MDQ_A39
151
MDQ_A40
61
MDQ_A41
64
MDQ_A42
68
MDQ_A43
69
MDQ_A44
153
MDQ_A45
155
MDQ_A46
161
MDQ_A47
162
MDQ_A48
72
MDQ_A49
73
MDQ_A50
79
MDQ_A51
80
MDQ_A52
165
MDQ_A53
166
MDQ_A54
170
MDQ_A55
171
MDQ_A56
83
MDQ_A57
84
MDQ_A58
87
MDQ_A59
88
MDQ_A60
174
MDQ_A61
175
MDQ_A62
178
MDQ_A63
179
9
NC
101
NC
102
NC
173
NC
DDR_VREF1 DDR_VREF1
1
90
WP
167
10
15
VCC_DDR
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180
3
11
18
26
34
42
50
58
66
74
ADDR.=1010000B
5
C124
0.1u
C150
0.1u
C273
0.1u
4
4
VCC_DDR
DDR Terminational Resisitors
MDQ_A58
MDQ_A59
MDQ_A63
MDQ_A62
MDQS_A7
MDQM_A7
MDQ_A57
MDQ_A56
MDQ_A61
MDQ_A60
MDQ_A51
MDQ_A50
MDQ_A55
MDQ_A54
MDQS_A6
MDQM_A6
MDQ_A53
MDQ_A52
MDQ_A49
MDQ_A48
MDQ_A47
MDQ_A46
MDQ_A43
MDQ_A42
MDQS_A5
MDQM_A5
MCS_A#3
MCS_A#1
MCS_A#2
MCAS_A#
MCS_A#0
MDQ_A41
MDQ_A45
MWE_A#
MRAS_A#
MDQ_A40
MDQ_A44
MDQ_A35
MDQ_A39
MBA_A0
MDQ_A38
MDQM_A4
MDQ_A34
MDQS_A4
MDQ_A37
MDQ_A33
MDQ_A36
MDQ_A32
MBA_A1
MA_A10
MA_A0
MA_A1
MAB_A1
MA_A2
MAB_A2
MDQ_A31
MDQ_A27
MDQ_A26
MDQ_A30
MAB_A3
MA_A3
MAB_A4
MA_A4
MDQM_A3
MA_A6
MA_A5
MAB_A5
MA_A8
MA_A7
MA_A9
MA_A11
MA_A12
MCKE_A0
MCKE_A2
MCKE_A3
MCKE_A1
MDQS_A3
MDQ_A29
MDQ_A25
MDQ_A28
MDQ_A24
MDQ_A19
MDQ_A23
MDQ_A22
MDQ_A18
MDQM_A2
MDQS_A2
MDQ_A21
MDQ_A17
MDQ_A16
MDQ_A20
MDQ_A11
MDQ_A10
MDQ_A15
MDQ_A14
MDQM_A1
MDQ_A13
MDQS_A1
MDQ_A12
MDQ_A9
MDQ_A8
MDQ_A3
MDQ_A7
MDQ_A6
MDQ_A2
MDQM_A0
MDQS_A0
MDQ_A1
MDQ_A5
MDQ_A4
MDQ_A0
R279
75R1%
R280
75R1%
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
VTT_DDR
RN4
8P4R-56R
RN6
8P4R-56R
RN8
8P4R-56R
RN9
8P4R-56R
RN12
8P4R-56R
RN14
8P4R-56R
R11056R
R11556R
RN63
8P4R-47R
R49047
R11856R
R12356R
R12547
R12847
RN21
8P4R-56R
R13547
RN24
8P4R-56R
RN26
8P4R-56R
RN29
8P4R-47R
RN64
8P4R-47R
RN32
8P4R-56R
RN65
8P4R-47R
RN35
8P4R-56R
R16947
RN37
8P4R-56R
RN66
8P4R-47R
RN38
8P4R-56R
R18447
R18747
RN40
8P4R-56R
R19547
R19756R
RN67
8P4R-47R
RN43
8P4R-56R
RN44
8P4R-56R
RN47
8P4R-56R
RN49
8P4R-56R
RN50
8P4R-56R
3
MA_A0
MAB_A[1..5](7)MDQ_A[0..63] (7)
MCS_A#2(7)
MCS_A#3(7)
MCKE_A2(7)
MCKE_A3(7)
SMBCLK_ISO
SMBDATA_ISO
VCC_DDR
MCLK_A4(7)
MCLK_A#4(7)
MCLK_A3(7)
MCLK_A#3(7)
MCLK_A5(7)
MCLK_A#5(7)
VCC_DDR
VCC_DDR
3
MAB_A1
MAB_A2
MAB_A3
MAB_A4
MAB_A5
MA_A6
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12
MBA_A0
MBA_A1
MRAS_A#
MCAS_A#
MWE_A#
MDQS_A0
MDQS_A1
MDQS_A2
MDQS_A3
MDQS_A4
MDQS_A5
MDQS_A6
MDQS_A7
MDQM_A0
MDQM_A1
MDQM_A3
MDQM_A4
MDQM_A5
MDQM_A6
MDQM_A7
48
43
41
130
37
32
125
29
122
27
141
118
115
103
59
52
113
157
158
71
163
154
65
63
5
14
25
36
56
67
78
86
47
97
107
119
129
149
159
169
177
140
44
45
49
51
134
135
142
144
21
111
92
91
181
182
183
16
17
137
138
76
75
82
184
7
38
46
70
85
108
120
148
168
81
89
93
100
116
124
132
139
145
152
160
176
2
DDR DIMM2
DIMM2
SIGNALS
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/NC
A13/NC
BA0
BA1
NC/BA2
CS0#
CS1#
NC/CS2#
NC/CS3#
RAS#
CAS#
WE#
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
DQM0/DQS9
DQM1/DQS10
DQM2/DQS11
DQM3/DQS12
DQM4/DQS13
DQM5/DQS14
DQM6/DQS15
DQM7/DQS16
DQM8/DQS17
MECC0
MECC1
MECC2
MECC3
MECC4
MECC5
MECC6
MECC7
CKE0
CKE1
SCL
SDA
SA0
SA1
SA2
CK0/NC
CK0#/NC
CK1/CK0
CK1#/CK0#
CK2/NC
CK2#/NC
POWER
ID_VDD
SPD_VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DIMM-184
ADDR.=1010001B
2
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VREF
FETEN/NC
NC/RESET#
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
1
MDQ_A0
2
MDQ_A1
4
MDQ_A2
6
MDQ_A3
8
MDQ_A4
94
MDQ_A5
95
MDQ_A6
98
MDQ_A7
99
MDQ_A8
12
MDQ_A9
13
MDQ_A10
19
MDQ_A11
20
MDQ_A12
105
MDQ_A13
106
MDQ_A14
109
MDQ_A15
110
MDQ_A16
23
MDQ_A17
24
MDQ_A18
28
MDQ_A19
31
MDQ_A20
114
MDQ_A21
117
MDQ_A22
121
MDQ_A23
123
MDQ_A24
33
MDQ_A25
35
MDQ_A26
39
MDQ_A27
40
MDQ_A28
126
MDQ_A29
127
MDQ_A30
131
MDQ_A31
133
MDQ_A32
53
MDQ_A33
55
MDQ_A34
57
MDQ_A35
60
MDQ_A36
146
MDQ_A37
147
MDQ_A38
150
MDQ_A39
151
MDQ_A40MDQM_A2
61
MDQ_A41
64
MDQ_A42
68
MDQ_A43
69
MDQ_A44
153
MDQ_A45
155
MDQ_A46
161
MDQ_A47
162
MDQ_A48
72
MDQ_A49
73
MDQ_A50
79
MDQ_A51
80
MDQ_A52
165
MDQ_A53
166
MDQ_A54
170
MDQ_A55
171
MDQ_A56
83
MDQ_A57
84
MDQ_A58
87
MDQ_A59
88
MDQ_A60
174
MDQ_A61
175
MDQ_A62
178
MDQ_A63
179
9
NC
101
NC
102
NC
173
NC
1
90
WP
167
10
15
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180
3
11
18
26
34
42
50
58
66
74
C454
0.1u
VCC_DDR
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
DDR DIMM 1 & 2
6772
VTT_DDR
C175
0.1u
C245
0.1u
C199
0.1u
C109
0.1u
C248
0.1u
C71
0.1u
C53
0.1u
C91
0.1u
C87
0.1u
C76
0.1u
C61
0.1u
C45
0.1u
C31
0.1u
VTT_DDR
C183
0.1u
C103
0.1u
C204
0.1u
C112
0.1u
C104
0.1u
C211
0.1u
C57
0.1u
C96
0.1u
C88
0.1u
C83
0.1u
C69
0.1u
C48
0.1u
C40
0.1u
VCC_DDR
C134
0.1u
C133
0.1u
C287
0.1u
C297
0.1u
C292
0.1u
C571
0.1u
C572
0.1u
1
926Thursday, February 27, 2003
0A
of
Page 10
8
7
6
5
4
3
2
1

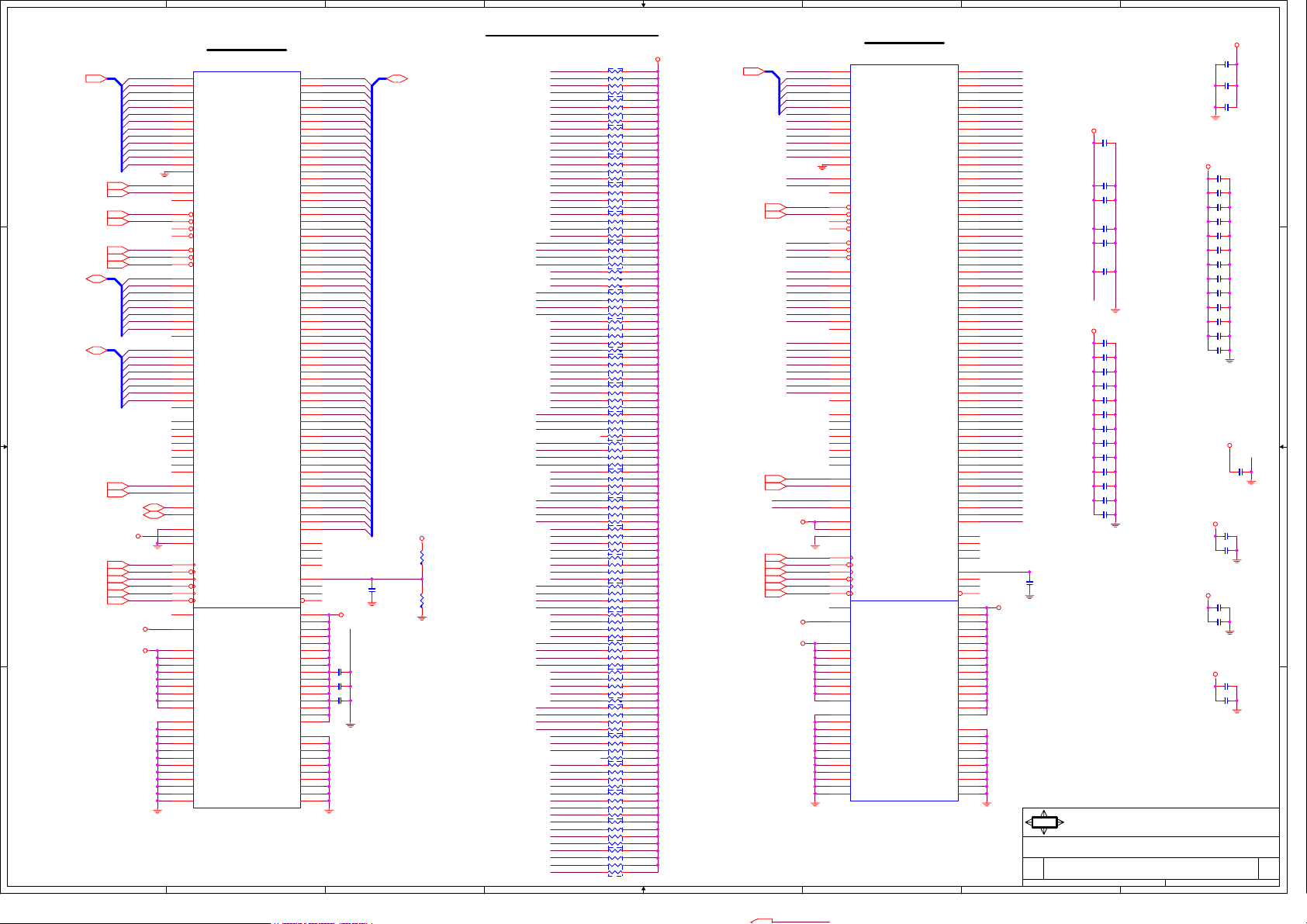

DDR DIMM3
48
43
41
130
37
32
125
29
122
27
141
118
115
103
59
52
113
157
158
71
163
154
65
63
5
14
25
36
56
67
78
86
47
97
107
119
129
149
159
169
177
140
44
45
49
51
134
135
142
144
21
111
92
91
181
182
183
16
17
137
138
76
75
82
184
7
38
46
70
85
108
120
148
168
81
89
93
100
116
124
132
139
145
152
160
176
DIMM3
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/NC
A13/NC
BA0
BA1
NC/BA2
CS0#
CS1#
NC/CS2#
NC/CS3#
RAS#
CAS#
WE#
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
DQM0/DQS9
DQM1/DQS10
DQM2/DQS11
DQM3/DQS12
DQM4/DQS13
DQM5/DQS14
DQM6/DQS15
DQM7/DQS16
DQM8/DQS17
MECC0
MECC1
MECC2
MECC3
MECC4
MECC5
MECC6
MECC7
CKE0
CKE1
SCL
SDA
SA0
SA1
SA2
CK0/NC
CK0#/NC
CK1/CK0
CK1#/CK0#
CK2/NC
CK2#/NC
ID_VDD
SPD_VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DIMM-184
SIGNALS
POWER
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VREF
FETEN/NC
NC/RESET#
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
MDQ_B0
2
MDQ_B1
4
MDQ_B2
6
MDQ_B3
8
MDQ_B4
94
MDQ_B5
95
MDQ_B6
98
MDQ_B7
99
MDQ_B8
12
MDQ_B9
13
MDQ_B10
19
MDQ_B11
20
MDQ_B12
105
MDQ_B13
106
MDQ_B14
109
MDQ_B15
110
MDQ_B16
23
MDQ_B17
24
MDQ_B18
28
MDQ_B19
31
MDQ_B20
114
MDQ_B21
117
MDQ_B22
121
MDQ_B23
123
MDQ_B24
33
MDQ_B25
35
MDQ_B26
39
MDQ_B27
40
MDQ_B28
126
MDQ_B29
127
MDQ_B30
131
MDQ_B31
133
MDQ_B32
53
MDQ_B33
55
MDQ_B34
57
MDQ_B35
60
MDQ_B36
146
MDQ_B37
147
MDQ_B38
150
MDQ_B39
151
MDQ_B40
61
MDQ_B41
64
MDQ_B42
68
MDQ_B43
69
MDQ_B44
153
MDQ_B45
155
MDQ_B46
161
MDQ_B47
162
MDQ_B48
72
MDQ_B49
73
MDQ_B50
79
MDQ_B51
80
MDQ_B52
165
MDQ_B53
166
MDQ_B54
170
MDQ_B55
171
MDQ_B56
83
MDQ_B57
84
MDQ_B58
87
MDQ_B59
88
MDQ_B60
174
MDQ_B61
175
MDQ_B62
178
MDQ_B63
179
9
NC
101
NC
102
NC
173
NC
DDR_VREF2
1
90
WP
167
10
15
VCC_DDR
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180
3
11
18
26
34
42
50
58
66
74
C65
0.1u
C126
0.1u
C100
0.1u
C272
0.1u
MDQ_B[0..63] (7)
VCC_DDR
R258
75R1%
R278
75R1%
SMBCLK_ISO(9,14,21)
SMBDATA_ISO(9,14,21)
VCC_DDR
VCC_DDR
VCC_DDR
MA_B0
MA_B1
MA_B2
MA_B3
MA_B4
MA_B5
MA_B6
MA_B7
MA_B8
MA_B9
MA_B10
MA_B11
MA_B12
MBA_B0
MBA_B1
MRAS_B#
MCAS_B#
MWE_B#
MDQS_B0
MDQS_B1
MDQS_B2
MDQS_B3
MDQS_B4
MDQS_B5
MDQS_B6
MDQS_B7
MDQM_B0
MDQM_B1
MDQM_B2
MDQM_B3
MDQM_B4
MDQM_B5
MDQM_B6
MDQM_B7
MA_B[0..12](7)
D D
MBA_B0(7)
MBA_B1(7)
MCS_B#0(7)
MCS_B#1(7)
MRAS_B#(7)
MCAS_B#(7)
MWE_B#(7)
MDQS_B[0..7](7)
C C
MDQM_B[0..7](7)
MCKE_B0(7)
MCKE_B1(7)
B B
A A
MCLK_B1(7)
MCLK_B#1(7)
MCLK_B0(7)
MCLK_B#0(7)
MCLK_B2(7)
MCLK_B#2(7)
ADDR.=1010010B
8
7
6
MCS_B#1
MCS_B#0
MCS_B#3
MCS_B#2
MBA_B0
MRAS_B#
MWE_B#
MCAS_B#
MBA_B1
MA_B10
MA_B0
MA_B1
MA_B2
MAB_B1
MAB_B2
MA_B3
MAB_B3
MAB_B4
MA_B4
MA_B6
MA_B5
MAB_B5
MA_B8
MA_B9
MA_B7
MA_B11
MA_B12
MCKE_B0
MCKE_B2
MCKE_B1
MCKE_B3
MDQ_B63
MDQ_B59
MDQ_B58
MDQ_B62
MDQS_B7
MDQM_B7
MDQ_B57
MDQ_B56
MDQ_B61
MDQ_B60
MDQ_B51
MDQ_B50
MDQ_B55
MDQS_B6
MDQ_B54
MDQM_B6
MDQ_B53
MDQ_B49
MDQ_B48
MDQ_B52
MDQ_B47
MDQ_B43
MDQ_B46
MDQM_B5
MDQ_B42
MDQS_B5
MDQ_B45
MDQ_B41
MDQ_B44
MDQ_B40
MDQ_B35
MDQ_B39
MDQ_B38
MDQM_B4
MDQ_B34
MDQS_B4
MDQ_B37
MDQ_B33
MDQ_B36
MDQ_B32
MDQ_B27
MDQ_B31
MDQ_B30
MDQ_B26
MDQM_B3
MDQS_B3
MDQ_B29
MDQ_B25
MDQ_B28
MDQ_B24
MDQ_B23
MDQ_B19
MDQ_B22
MDQM_B2
MDQ_B18
MDQ_B21
MDQS_B2
MDQ_B17
MDQ_B16
MDQ_B20
MDQ_B11
MDQ_B10
MDQ_B15
MDQ_B14
MDQM_B1
MDQ_B13
MDQS_B1
MDQ_B12
MDQ_B9
MDQ_B8
MDQ_B3
MDQ_B7
MDQ_B6
MDQ_B2
MDQM_B0
MDQS_B0
MDQ_B1
MDQ_B5
MDQ_B4
MDQ_B0
5
12
RN3
34
8P4R-56R
56
78
12
RN5
34
8P4R-56R
56
78
12
RN7
34
8P4R-56R
56
78
12
RN10
34
8P4R-56R
56
78
12
RN11
34
8P4R-56R
56
78
12
RN13
34
8P4R-56R
56
78
12
RN16
34
8P4R-47R
56
78
12
RN68
34
8P4R-47R
56
78
78
RN20
56
34
12
12
RN23
34
8P4R-56R
56
78
12
RN25
34
8P4R-56R
56
78
12
RN30
34
8P4R-47R
56
78
78
RN69
56
34
12
12
RN33
34
8P4R-56R
56
78
12
RN70
34
8P4R-47R
56
78
12
RN34
34
8P4R-56R
56
78
78
RN36
56
34
8P4R-56R
12
78
RN71
56
34
12
78
RN39
56
34
8P4R-56R
12
78
RN72
56
34
12
78
RN41
56
34
8P4R-56R
12
12
RN73
34
8P4R-47R
56
78
12
RN42
34
8P4R-56R
56
78
12
RN45
34
8P4R-56R
56
78
12
RN46
34
8P4R-56R
56
78
12
RN48
34
8P4R-56R
56
78
12
RN51
34
8P4R-56R
56
78
VTT_DDR
R11156R
R11656R
R11956R
8P4R-56R
R12456R
8P4R-47R
8P4R-47R
8P4R-47R
R17656R
SMBCLK_ISO
SMBDATA_ISO
VCC_DDR
VCC_DDR
VCC_DDR
MA_B0
MAB_B1
MAB_B2
MAB_B3
MAB_B4
MAB_B5
MA_B6
MA_B7
MA_B8
MA_B9
MA_B10
MA_B11
MA_B12
MBA_B0
MBA_B1
MRAS_B#
MCAS_B#
MWE_B#
MDQS_B0
MDQS_B1
MDQS_B2
MDQS_B3
MDQS_B4
MDQS_B5
MDQS_B6
MDQS_B7
MDQM_B0
MDQM_B1
MDQM_B2
MDQM_B3
MDQM_B4
MDQM_B5
MDQM_B6
MDQM_B7
MAB_B[1..5](7)
MCS_B#2(7)
MCS_B#3(7)
MCKE_B2(7)
MCKE_B3(7)
MCLK_B4(7)
MCLK_B#4(7)
MCLK_B3(7)
MCLK_B#3(7)
MCLK_B5(7)
MCLK_B#5(7)
4
DDR Terminational Resisitors
DDR DIMM4
DIMM4
48
A0
43
A1
41
A2
130
A3
37
A4
32
A5
125
A6
29
A7
122
A8
27
A9
141
A10/AP
118
A11
115
A12/NC
103
A13/NC
59
BA0
52
BA1
113
NC/BA2
157
CS0#
158
CS1#
71
NC/CS2#
163
NC/CS3#
154
RAS#
65
CAS#
63
WE#
5
DQS0
14
DQS1
25
DQS2
36
DQS3
56
DQS4
67
DQS5
78
DQS6
86
DQS7
47
DQS8
97
DQM0/DQS9
107
DQM1/DQS10
119
DQM2/DQS11
129
DQM3/DQS12
149
DQM4/DQS13
159
DQM5/DQS14
169
DQM6/DQS15
177
DQM7/DQS16
140
DQM8/DQS17
44
MECC0
45
MECC1
49
MECC2
51
MECC3
134
MECC4
135
MECC5
142
MECC6
144
MECC7
21
CKE0
111
CKE1
92
SCL
91
SDA
181
SA0
182
SA1
183
SA2
16
CK0/NC
17
CK0#/NC
137
CK1/CK0
138
CK1#/CK0#
76
CK2/NC
75
CK2#/NC
82
ID_VDD
184
SPD_VDD
7
VDD
38
VDD
46
VDD
70
VDD
85
VDD
108
VDD
120
VDD
148
VDD
168
VDD
81
GND
89
GND
93
GND
100
GND
116
GND
124
GND
132
GND
139
GND
145
GND
152
GND
160
GND
176
GND
DIMM-184
ADDR.=1010011B
SIGNALS
POWER
3
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VREF
FETEN/NC
NC/RESET#
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
VCC_DDR
MDQ_B0
2
MDQ_B1
4
MDQ_B2
6
MDQ_B3
8
MDQ_B4
94
MDQ_B5
95
MDQ_B6
98
MDQ_B7
99
MDQ_B8
12
MDQ_B9
13
MDQ_B10
19
MDQ_B11
20
MDQ_B12
105
MDQ_B13
106
MDQ_B14
109
MDQ_B15
110
MDQ_B16
23
MDQ_B17
24
MDQ_B18
28
MDQ_B19
31
MDQ_B20
114
MDQ_B21
117
MDQ_B22
121
MDQ_B23
123
MDQ_B24
33
MDQ_B25
35
MDQ_B26
39
MDQ_B27
40
MDQ_B28
126
MDQ_B29
127
MDQ_B30
131
MDQ_B31
133
MDQ_B32
53
MDQ_B33
55
MDQ_B34
57
MDQ_B35
60
MDQ_B36
146
MDQ_B37
147
MDQ_B38
150
MDQ_B39
151
MDQ_B40
61
MDQ_B41
64
MDQ_B42
68
MDQ_B43
69
MDQ_B44
153
MDQ_B45
155
MDQ_B46
161
MDQ_B47
162
MDQ_B48
72
MDQ_B49
73
MDQ_B50
79
MDQ_B51
80
MDQ_B52
165
MDQ_B53
166
MDQ_B54
170
MDQ_B55
171
MDQ_B56
83
MDQ_B57
84
MDQ_B58
87
MDQ_B59
88
MDQ_B60
174
MDQ_B61
175
MDQ_B62
178
MDQ_B63
179
9
NC
101
NC
102
NC
173
NC
DDR_VREF2
1
90
WP
167
10
15
VCC_DDR
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180
3
11
18
26
34
42
50
58
66
74
Title
Size Document Number Rev
Date: Sheet
C455
0.1u
MSI
2
VCC_DDR
C30
0.1u
C66
0.1u
C173
0.1u
C131
0.1u
C198
0.1u
C253
0.1u
VTT_DDR
C158
0.1u
C142
0.1u
C139
0.1u
C190
0.1u
C242
0.1u
C177
0.1u
C153
0.1u
C207
0.1u
C128
0.1u
C108
0.1u
C215
0.1u
C60
0.1u
C99
0.1u
MICRO-STAR INt'L CO., LTD.
DIMM 3,4
6772
C59 0.1u
C244 0.1u
C82 0.1u
VTT_DDR
VCC_DDR
VCC_DDR
VCC_DDR
10 26Thursday, February 27, 2003
1
VCC_DDR
of
C168
0.1u
C151
0.1u
C148
0.1u
C194
0.1u
C225
0.1u
C186
0.1u
C163
0.1u
C210
0.1u
C130
0.1u
C111
0.1u
C216
0.1u
C64
0.1u
C101
0.1u
C84
0.1u
C63
0.1u
C107
0.1u
C44
0.1u
C214
0.1u
C97
0.1u
C113
0.1u
0A

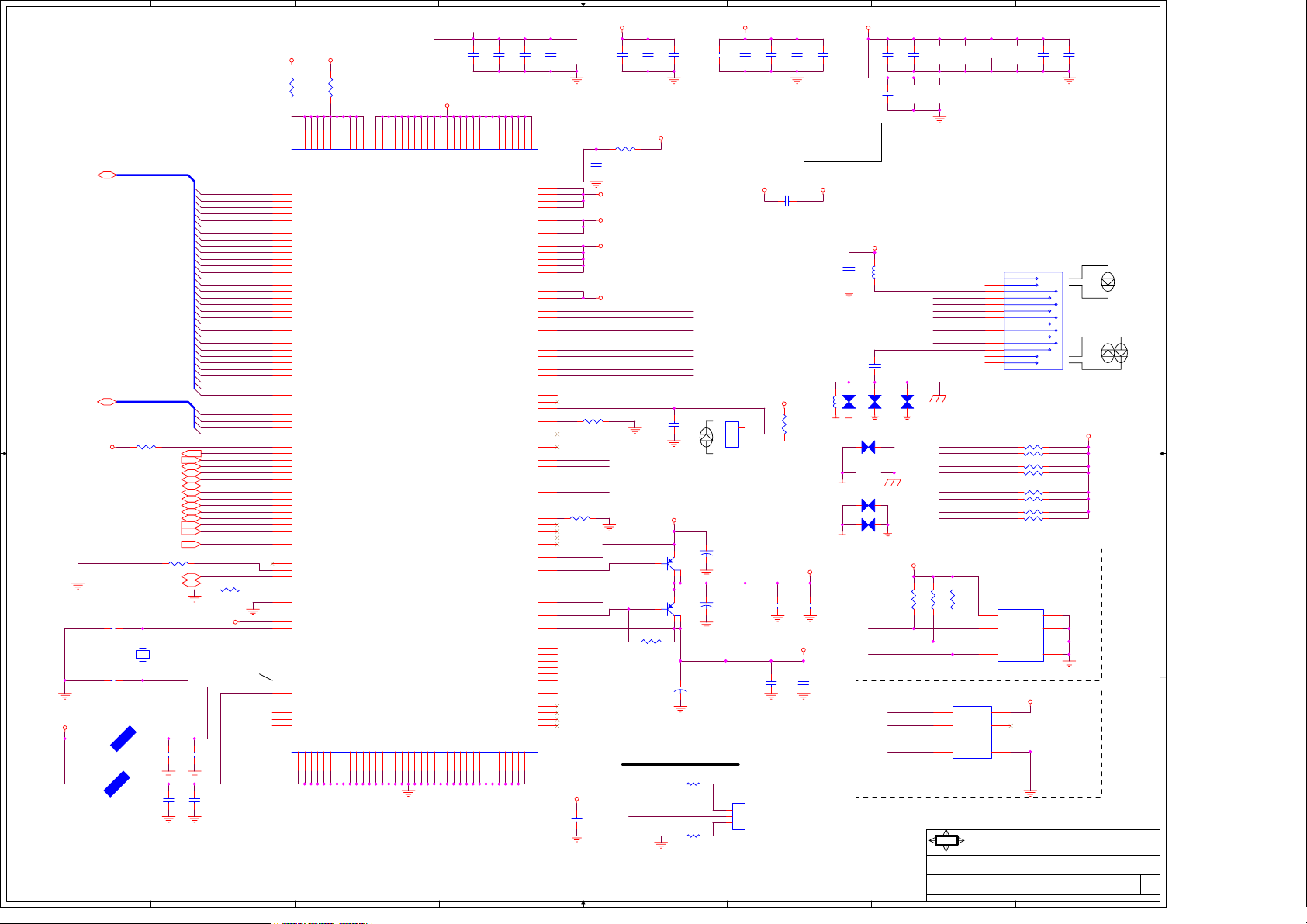

Page 11
8
Gigabit Ethernet MAC-PHY
D D
R496 4.7KR
C481
C18P50N
C482
25MHZ18P_D-1
C18P50N
L16
60L900m_200_0805
L17
AD[0..31]
C_BE#[0..3]
PREQ#3(12,18)
PGNT#3(12)
FRAME#(12,17,18,25)
IRDY#(12,17,18,25)
DEVSEL#(12,17,18,25)
STOP#(12,17,18,25)
TRDY#(12,17,18,25)
PERR#(12,17,18,25)
SERR#(12,17,18,25)
PIRQ#G(12,18)
PCIRST#1(6,14,15,21,25)
LAN_PCLK(14)
PME#(12,17,18,25)
R506 X_1KR
SMBCLK(13,14,15,17,18)
SMBDATA(13,14,15,17,18)
X1
PAR(12,17,18,25)
C486
0.1u
C488
0.1u
AD[0..31](12,17,18,25)
C C
C_BE#[0..3](12,17,18,25)
VCC3_SB
B B
For BCM4401,PLLVDD3 filter can
be depoulated
VCC1_2
A A
60L900m_200_0805
8
7
R507 0R
LAN2_5
Only 5702 need
C487
C1U10Y
C489
C1U10Y
7
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
C_BE#0
C_BE#1
C_BE#2
C_BE#3
PREQ#3
PGNT#3
FRAME#
IRDY#
DEVSEL#
STOP#
TRDY#
PAR
PERR#
SERR#
PIRQ#G
PCIRST#1
LAN_PCLK
LAN_ID
SMBCLK
SMBDATA
6
4401:VCC3_SB
5702/5705:VCC3
VCC3
VCC3_SB
R492
R491
0R0805
0R0805
VDD_IO
A7B3C5E1E4G1K3L4N6
U33
VDDIO_PCI
VDDIO_PCI
N7
AD0
M7
AD1
P6
AD2
P5
AD3
N5
AD4
M5
AD5
P4
AD6
N4
AD7
P3
AD8
N3
AD9
N2
AD10
M1
AD11
M2
AD12
M3
AD13
L1
AD14
L2
AD15
K1
AD16
E3
AD17
D1
AD18
D2
AD19
D3
AD20
C1
AD21
B1
AD22
B2
AD23
B4
AD24
A5
AD25
B5
AD26
B6
AD27
C6
AD28
C7
AD29
A8
AD30
B8
AD31
M4
CBE_0#
L3
CBE_1#
F3
CBE_2#
C4
CBE_3#
J12
VAUXPRSNT
C3
REQ#
J3
GNT#
F2
FRAME#
F1
IRDY#
H3
DEVSEL#
H1
STOP#
G3
TRDY#
J1
PAR
J2
PERR#
A2
SERR#
H2
INTA#
C2
PCI_RST#
A3
PCI_CLK
A4
IDSEL
A6
PME#
C8
CSTSCHG
H4
CLKRUN#
A10
SMB_CLK
C9
SMB_DATA
M11
LOW_PWR
F4
M66EN
J14
XTALVDD
N11
XTALI
N10
XTALO
P7 L14
PLLVDD3 NC8
H14
PLLVDD2
L8
NC10
M9
NC11
N8
NC12
VSS
VSS
VSS
B7D4D5D6D7D8D9E2E5E6E7E8E9F5F6F7F8F9F10G4G5G6G7G8G9
P2
E12H5H6
VDDC
VDDC
VDDIO_PCI
VDDIO_PCI
VDDIO_PCI
VDDIO_PCI
VDDC
VDDIO_PCI
VDDIO_PCI
VDDIO_PCI
VDDIO_PCI
BCM4401KFB
15mm x 15mm
BGA196
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
6
H7H8J5J6J7J8J9
VDDC
VDDC
VDDC
VDDC
VDDC
VSS
VSS
VSS
VSS
VSS
VDD_IO
VCC1_2
J10K5K6K7K8K9K10L5L10
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VSS
VSS
VSS
VSS
VSS
VSS
G10H9K2L6L9
5
C456
C457
0.1u
0.1u
PLACE CAPACITORS AS CLOSE TO
POWER PINS AS POSSIBLE
M14
N14P8P12
P13
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
BIASVDD
VDDIO
VDDIO
VDDIO
VDDIO
VESD1
VESD2
VESD3
VDDP
VDDP
VDDP
AVDD
AVDD
AVDDL
AVDDL
TRD[3]-
TRD[3]+
TRD[2]-
TRD[2]+
TRD[1]-
TRD[1]+
TRD[0]-
TRD[0]+
LINKLEDB
SPD100LEDB
SPD1000LEDB
TRAFFICLEDB
RDAC
GPIO0
GPIO1
GPIO2
EECLK
EEDATA
SPROMDOUT
SPROMDIN
TRST#
TDI
TCK
TMS
TDO
REGSUP25
REGCTL25
REGSEN25
REGSUP12
REGCTL12
REGSEN12
NC1
NC2
NC3
NC4
NC5
NC6
NC7
NC9
SI
SO
SCLK
CS#
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
M12
M13
N1
N12
N13
M6
5
C458
0.1u
P14
VDDC
A14
A11
F11
K12
L12
P1
G2
A1
K14
L13
P11
A13
F14
F12
F13
E14
E13
D14
D13
C14
C13
B14
B13
G13
H13
G12
G14
D10
H12
K13
J13
M10
P10
N9
P9
D11
D12
C12
A12
B12
B11
C11
C10
B9
B10
A9
L7
K11
K4
J11
J4
H10
M8
L11
E10
G11
E11
H11
C459
0.1u
R493 2.2R
MDI_3ÂMDI_3+
MDI_2ÂMDI_2+
MDI_1ÂMDI_1+
MDI_0ÂMDI_0+
R494 1.24KR1%
EEWP#
EECLK
EEDATA
SPRDOUT
SPRDIN
R504 4.7KR
VCC3_SB
C490
C1U10Y
4
LAN2_5 VCC1_2
C460
0.1u
PLACE CAPACITORS AS CLOSE TO
POWER PINS AS POSSIBLE
Place close to pin-A14.
C474
C0.01U50X
VCC3_SB
VCC3_SB
LAN2_5
VCC1_2
P-BCP69_SOT223
P-BCP69_SOT223
C462
C461
0.1u
C1U10Y
LAN2_5
C477
C1000P50X
Depopulate Q48 and Q49 for BCM4401
VCC3_SB
32
Q54
1
4
32
Q55
1
4
R511 330R
CD100U10EL7
CD100U10EL7
EC59
CD100U10EL7
VCC3_SB
C463
0.1u
ACT_LED
JLAN_LED1
3
2
1
H1X3(3)_black
EC57
EC58
C464
0.1u
VCC3_SB VCC5
3
C466
C465
0.1u
PLACE CAPACITORS AS CLOSE TO
POWER PINS AS POSSIBLE
VCC3_SB
C605
0.1u
0.1u
CB12
X_0.1u
300L300m_350
R495
330R
LAN2_5
C603
0.1u
VCC1_2
MDI[0]+/ÂMDI[1]+/ÂMDI[2]+/ÂMDI[3]+/-
FB48
C604
0.1u
C606
0.1u
CB1
0.1u
0.1u
C475
CP10 X
LAN Disable Header
AD29
R513 330R
LAN_ID
R514 330R
4
H1X3_black
1
2
3
JLAN1
1-2: ENABLE
2-3:DISABLE
3
10/1001000
TX+/-
RX+/ÂUnused
Unused
LAN2_5
CP17
X
CP11
CP12
C467
C468
0.01u
C1U10Y
C471
0.1u
PLACE CAPACITORS AS CLOSE TO
POWER PINS AS POSSIBLE
FB50
300L300m_350
0.1u
C476
CP16
CP5
X
X
X
X
VCC3_SB
R508
1KR
EEWP#
EECLK
EEDATA
EEDATA
EECLK
SPRDOUT
SPRDIN
2
C470
C469
0.1u
0.1u
G-LAN
IDSEL: AD29
1
INT : PIRQG
REQ: PREQ#3
GNT: PGNT#3
LAN_USB1B
AMBER+
19
AMBER-
20
NC
13
MDI_0+
MDI_0ÂMDI_1+
MDI_1ÂMDI_2+
MDI_2ÂMDI_3+
MDI_3-
MDI_3ÂMDI_3+
MDI_2ÂMDI_2+
MDI_1ÂMDI_1+
MDI_0ÂMDI_0+
R510
R509
1KR
1KR
U35
1
CSDOVCC
2
NC
SK
3
DI
NC
4
GND
AT93C46-10SI-2.7
MSI
Title
BCM4401/5705
Size Document Number Rev
Date: Sheet
2
TD1+
18
TD1-
12
TD2+
17
TD2-
11
TD3+
16
TD3-
10
TD4+
15
TD4-
9
14
NC
GREEN+
21
GREEN-
22
XX
R497 49.9R1%
R498 49.9R1%
R499 49.9R1%
R500 49.9R1%
R501 49.9R1%
R502 49.9R1%
R503 49.9R1%
R505 49.9R1%
LAN2_5
close to controllerput these resistors
FOR 5702/5705
U34
8
7
6
5 4
AT24C128N-10SI-2.7
8
7
6
5
VCC
WP#
SCL
SDA GND
VCC3_SB
1
A0
2
A1
3
A2
FOR 4401
MICRO-STAR INt'L CO., LTD.
6772
of
11 26Thursday, April 03, 2003
1
0A

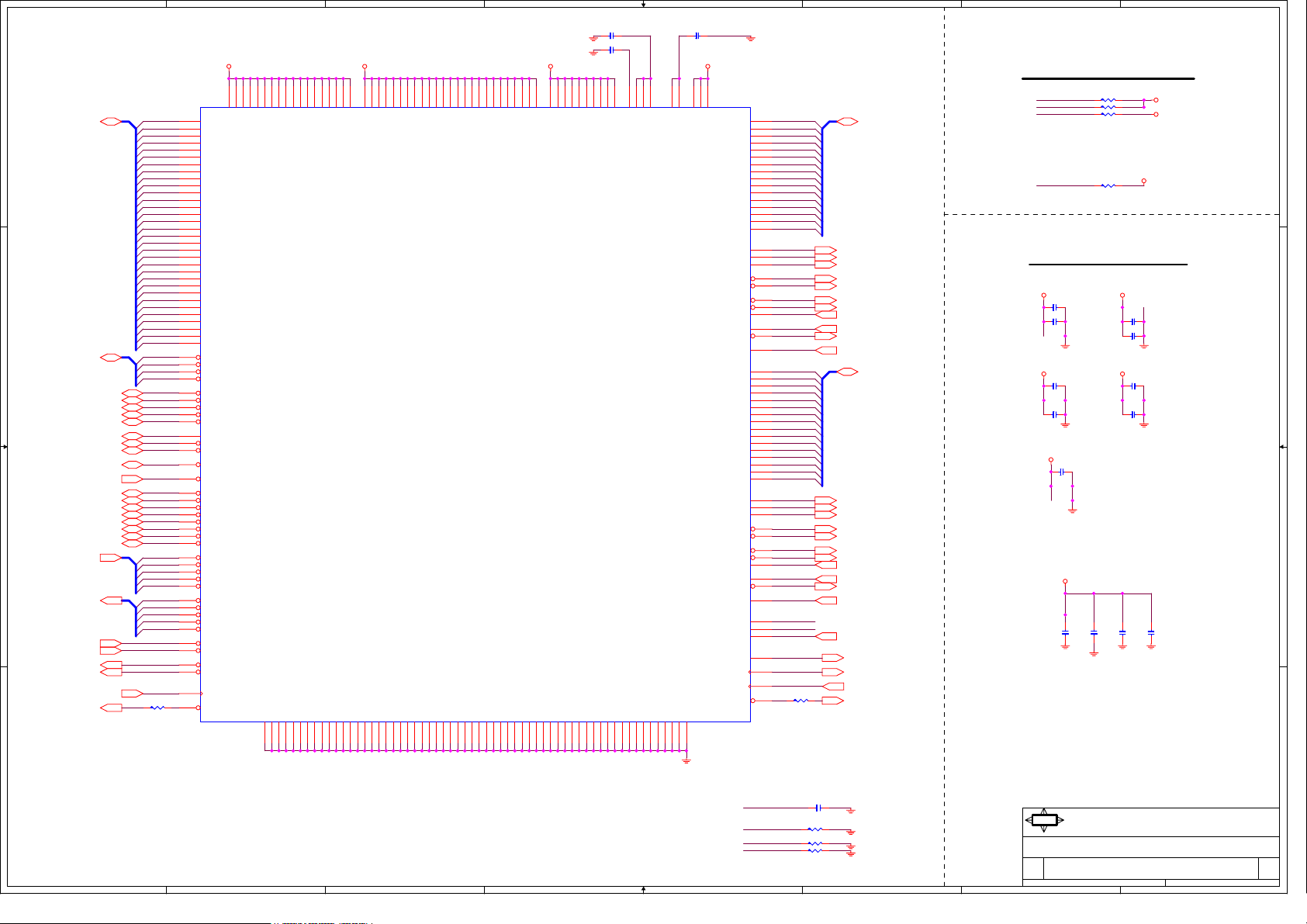

Page 12
8
7
6
5
4
3
2
1
C405C0.01U 50X C394
C375
VCC3 VCC_AGP VCC3_SBVCC3_SB
B5F6G1H6K6L6M10
D D
C C
AD[0..31](11,17,18,25)
C_BE#[0..3](11,17,18,25)
FRAME#(11,17,18,25)
IRDY#(11,17,18,25)
TRDY#(11,17,18,25)
DEVSEL#(11,17,18,25)
STOP#(11,17,18,25)
PERR#(11,17,18,25)
SERR#(11,17,18,25)
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
C_BE#0
C_BE#1
C_BE#2
C_BE#3
PAR(11,17,18,25)
LOCK#(17,18)
PME#(11,17,18,25)
PIRQ#A(17,18)
PIRQ#B(17,18)
PIRQ#C(17,18)
PIRQ#D(17,18)
PIRQ#E(18)
PIRQ#F(18)
PIRQ#G(11,18)
PIRQ#H(18,25)
B B
PREQ#[0..4](11,18,25)
PGNT#[0..4](11,18,25)
ISA_REQ#(17)
PREQ#5(17)
ISA_GNT#(17)
PGNT#5(17)
ICH_PCLK(14)
PCIRST_ICH5#(14,17,21)
PREQ#0
PREQ#1
PREQ#2
PREQ#3
PREQ#4
PGNT#0
PGNT#1
PGNT#2
PGNT#3
PGNT#4
ISA_REQ#
PREQ#5
ISA_GNT#
PGNT#5
R470 33R
U19A
J4
AD0
J5
AD1
G3
AD2
K4
AD3
H5
AD4
H2
AD5
J3
AD6
J2
AD7
K5
AD8
F2
AD9
M4
AD10
H4
AD11
L5
AD12
G2
AD13
K1
AD14
G5
AD15
G4
AD16
L1
AD17
B2
AD18
P5
AD19
H3
AD20
N5
AD21
C4
AD22
N4
AD23
E6
AD24
P3
AD25
D3
AD26
N2
AD27
F5
AD28
P4
AD29
F4
AD30
P2
AD31
E3
C/BE0#
J1
C/BE1#
N3
C/BE2#
M2
C/BE3#
D2
FRAME#
M3
IRDY#
E4
TRDY#
L3
DEVSEL#
E5
STOP#
F1
PAR
K2
PERR#
L4
SERR#
L2
PLOCK#
V2
PME#
B3
PIRQA#
E1
PIRQB#
A2
PIRQC#
C2
PIRQD#
D7
PIRQE#/GPI2
A6
PIRQF#/GPI3
E2
PIRQG#/GPI4
B1
PIRQH#/GPI5
D5
REQ0#
C1
REQ1#
C5
REQ2#
B6
REQ3#
C6
REQ4#/GPI40
D4
GNT0#
A3
GNT1#
B7
GNT2#
C7
GNT3#
A4
GNT4#/GPO48
A5
REQA#/GPI0
E7
REQB#REQ5#/GPI1
E8
GNTA#/GPO16
B4
GNTB#/GNT5#/GPO17
N1
PCICLK
V4
PCIRST#
Intel ICH5-N
CRITICAL
VCC3_3
VCC3_3
VCC3_3
G19
G21
VCC3_3
VCC3_3
VCC3_3
GND
A1A7A10
VCC3_3
VCC3_3
GND
GND
A15
N10P6R13
VCC3_3
VCC3_3
GND
GND
A17
A19
V19
VCC3_3
VCC3_3
GND
GND
A21
A23
W15
W17
VCC3_3
VCC3_3
GND
GND
AA5
AA7
W24
AD13
VCC3_3
VCC3_3
GND
GND
AA9
AA11
AD20
VCC3_3
VCC3_3
GND
GND
AA13
AA21
K10
GND
AA24
K12
K13
VCC1_5
VCC1_5
GND
GND
AB5
AB7
L19
P19
VCC1_5
VCC1_5
GND
GND
AB9
AB11
R10R6H24
VCC1_5
VCC1_5
GND
GND
AB15
VCC1_5
VCC1_5
GND
GND
AB18
AC2
J19
VCC1_5
GND
AC4
K19
M15
VCC1_5
GND
AC6
AC8
N15
VCC1_5
VCC1_5
GND
GND
AC10
N23
E15
VCC1_5
GND
AC13
AC23
F15
F14
VCC1_5
VCC1_5
GND
GND
AD4
AD6
W19
R12W9W10
VCC1_5
VCC1_5
GND
GND
AD8
AD17
VCC1_5
VCC1_5
GND
GND
AD21
AD12
W11W6W7W8E22
VCC1_5
VCC1_5
VCC1_5
VCC1_5
GND
GND
GND
GND
B13
B17
B19
VCC1_5
GND
B21
VCC1_5
GND
GND
B23C3C8
B15
E13
E14
E18
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
GND
GND
GND
C16
C18
C20
C0.01U50X
F16
F17
F18
K15U6V6
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
GND
GND
GND
GND
C22D1D6
D11
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
GND
GND
GND
GND
D16
D18
D20
F19Y5AA4
AB4F7F8
VCCSUS1_5A
VCCSUS1_5B
VCCSUS1_5B
VCCSUS1_5B
GND
GND
GND
GND
D22
D24
E17
E19
GND
E20
E21
VCCLAN1_5/VCCSUS1_5C
VCCLAN1_5/VCCSUS1_5C
GND
GND
GND
GND
E23F3F9
C0.01U50X
E11
F10
F11
VCCLAN3_3/VCCSUS3_3
VCCLAN3_3/VCCSUS3_3
VCCLAN3_3/VCCSUS3_3
AC_SDIN0
AC_SDIN1
AC_SDIN2
AC_SDOUT
AC_BIT_CLK
PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
PDA0
PDA1
PDA2
PDCS1#
PDCS3#
PDIOR#
PDIOW#
PIORDY
PDDREQ
PDDACK#
IRQ14
SDD0
SDD1
SDD2
SDD3
SDD4
SDD5
SDD6
SDD7
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15
SDA0
SDA1
SDA2
SDCS1#
SDCS3#
SDIOR#
SDIOW#
SIORDY
SDDREQ
SDDACK#
IRQ15
AC_SYNC
AC_RST#
AB16
Y13
Y14
AC14
AA14
AC15
AD14
AB14
AD15
Y15
AD16
AA15
AC16
Y16
AA16
AB17
AA19
AD19
AC19
AB19
Y18
AD18
AA17
AA18
AC17
AC18
Y17
AA22
AB23
AD23
AD24
AB21
AC21
AB20
AC20
Y19
AD22
AC22
AA20
AB22
AC24
AB24
AA23
W22
W23
W21
V22
V20
Y23
Y22
Y21
Y20
W20
Y24
E12
D12
A13
A9
B8
D8
C12
PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
SDD0
SDD1
SDD2
SDD3
SDD4
SDD5
SDD6
SDD7
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15
AC_SDIN0
AC_SDIN1
AC_SDIN2
AC_SDOUT
AC_SYNC
AC_BITCLK
R399 0R
PDD[0..15] (19)
PD_A0 (19)
PD_A1 (19)
PD_A2 (19)
PD_CS#1 (19)
PD_CS#3 (19)
PD_IOR# (19)
PD_IOW# (19)
PD_IORDY (19)
PD_DREQ (19)
PD_DACK# (19)
IRQ14 (19)
SDD[0..15] (19)
SD_A0 (19)
SD_A1 (19)
SD_A2 (19)
SD_CS#1 (19)
SD_CS#3 (19)
SD_IOR# (19)
SD_IOW# (19)
SD_IORDY (19)
SD_DREQ (19)
SD_DACK# (19)
IRQ15 (19)
AC_SDIN2 (16)
AC_SDOUT (16)
AC_SYNC (16)
AC_BITCLK (16)
AC_RST# (16)
ICH5 Pull-Up / Down Resistors
PREQ#5
PREQ#4
ISA_REQ#
AC_SDOUT
R515 8.2KR
R516 8.2KR
R640 2.7KR
(0402)
R405 X_1K
VCC3
VCC5
VCC3
internal pull down 20K
HI:CPU speed strap SAFE MODE
ICH5 Decoupling Capacitors
All caps be placed less than 100mils.
VCC3 VCC3
C422
0.1u
VCC3_SB
VCC_AGP
VCC3
C379
0.1u
C423
0.1u
C386
0.1u
C491
0.1u
C403
0.1u
C492
0.1u
VCC3_SB
C493
0.1u
C347
0.1u
C401
0.1u
C378
C1U16Y0805
C424
0.1u
C494
0.1u
A A
AC_BITCLK
AC_SDIN2
AC_SDIN1
AC_SDIN0
8
7
6
5
4
R393 10KR
R394 X_10K
R398 X_10K
X_10pC391
internal pull down 20K
internal pull down 20K
internal pull down 20K
3
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
Intel ICH5 - PCI & IDE & AC97 Signals
6772
2
12 26Wednesday, April 02, 2003
of
1
0A

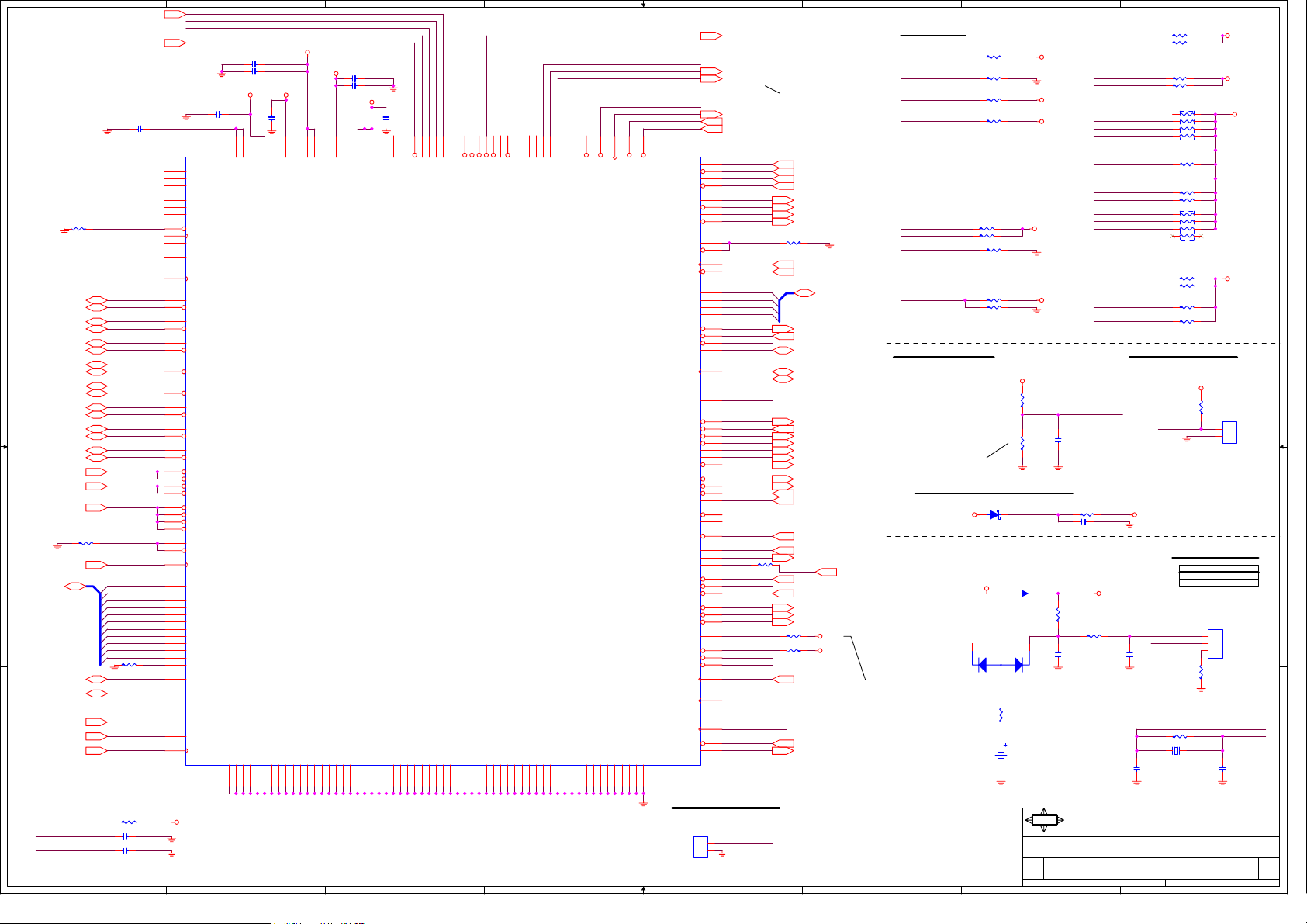

Page 13
8
SIO_PME#(15)
SIO_SMI#(15)
D D
R641 10KR
USB0+(20)
USB0-(20)
USB1+(20)
C C
B B
A A
USB1-(20)
USB2+(20)
USB2-(20)
USB3+(20)
USB3-(20)
USB4+(20)
USB4-(20)
USB5+(20)
USB5-(20)
USB6+(20)
USB6-(20)
USB7+(20)
USB7-(20)
OC#1(20)
OC#2(20)
OC#3_4(20)
R354 22.6R1%
USB_48(14)
HL[0..10](8)
HL_STRF(8)
HL_STRS(8)
HL_SWING(8)
HL_VREF(8)
ICH_66(14)
H_COMP
Impedance is equal 60ohm.
HL_SWING
HL_VREF
R353
R346 52.3R1%
8
C392 0.1u
Close A8 of ICH5.
LAN_RST#
ICH5_EE_DO
USB_BIAS
HL0
HL1
HL2
HL3
HL4
HL5
HL6
HL7
HL8
HL9
HL10
HL11
61.9R1%
H_COMP
H_SWING
H_VREF
C0.01U50XC352
C0.01U50XC351
1.5V
C10
C9
C11
D9
E9
B12
AA1
E10
D10
B11
B9
B10
A12
C23
D23
A22
B22
C21
D21
A20
B20
C19
D19
A18
B18
C17
D17
A16
B16
C15
D15
D14
C14
B14
A14
D13
C13
A24
B24
F24
H20
H21
J20
H23
M23
M21
N21
M20
L22
J22
K21
G22
K23
J24
N24
L20
L24
N22
INTEL-ICH5
CRITICAL
VCC_AGP
SIO_PME#
GPI12
GPI8
GPI7
SIO_SMI#
C377 0.1u
5VREF
U19B
LAN_RXD0
LAN_RXD1
LAN_RXD2
LAN_TXD0
LAN_TXD1
LAN_TXD2
LAN_RST#
LAN_CLK
LAN_RSTSYNC
EE_DIN
EE_DOUT
EE_CS
EE_SHCLK
USBP0P
USBP0N
USBP1P
USBP1N
USBP2P
USBP2N
USBP3P
USBP3N
USBP4P
USBP4N
USBP5P
USBP5N
USBP6P
USBP6N
USBP7P
USBP7N
OC0#
OC1#
OC2#
OC3#
OC4#/GPI9
OC5#/GPI10
OC6#/GPI14
OC7#/GPI15
USBRBIAS
USBRBIAS#
CLK48
HI0
HI1
HI2
HI3
HI4
HI5
HI6
HI7
HI8
HI9
HI10
HI11
HI_STBF
HI_STBS
HIRCOMP
HI_VSWING
HIREF
CLK66
7
C348 0.1u
C398 C0.01U50X
VBAT
VCC5_SB
C380
0.1u
A8
W14
E16
V5REF
V5REF
V5REF_SUS
GND
GND
GND
GND
GND
GND
GND
G6
G20
G24H1H19
H22J6J21
7
AD11
VCCRTC
GND
GND
J23K3K11
AA6
VCCSATAPLL
GND
GND
GND
K14
VCC_AGP
VCC_AGP
C349
AB6
C24
VCCSATAPLL
GND
GND
GND
K20
K22
K24
L10
C350
0.1u
C0.01U50X
VCCP
R15
R19
V_CPU_IO
VCCUSBPLL
GND
GND
GND
GND
L11
L12
L13
L14
6
0.1u
C344
T19
A11R5U3Y2W4W5U21
NC
V_CPU_IO
V_CPU_IO
GND
GND
GND
GND
GND
GND
GND
L15
L21
L23M1M5
M11
6
GPI7
GPI8
GPI12
GPI13
AGPBUSY#/GPI6
GND
GND
GND
GND
GND
M12
M13
M14
M22
M24
T20
SLP_S1#/GPO19
STP_PCI#/GPO18
GND
GND
GND
GND
N11
N12
N13
N14
U22R1U20
F22
AC1W3V3W2T1
C3_STAT#/GPO21
CLKRUN#/GPIO24
STP_CPU#/GPO20
CPUPERF#/GPO22
SSMUXSEL/GPO23
GND
GND
GND
GND
GND
GND
N20P1P10
P11
P12
P13
5
ISA_NOGO
GPIO28
BIOS_WP#
GPIO33
BATLOW#
THRM#
G23
F21
AB1
AB2Y1T2
T21
SATA0RXP
SATA0RXN
SATA1RXP
GPIO25
GPIO27
GPIO28
GPIO32
GPIO33
GPIO34
GND
GND
GND
GND
GND
GND
GND
GND
GND
P14
P15
P21
R11
R14
T23T3T6
U19V1V21
5
BATLOW#
SUS_STAT#
GND
GND
GND
GND
W16
W18Y3Y6Y7Y8
THRM#
SUSCLK
THRMTRIP#
LRDQ1#/GPI41
CPUPWRGD/GPO49
VGATE/VRMPWRGD
SMBALERT#/GPI11
GND
GND
GND
GND
GND
Y10
SATA1RXN
SATA0TXP
SATA0TXN
SATA1TXP
SATA1TXN
SATARBIASP
SATARBIASN
CLK100P
CLK100N
LFRAME#
LDRQ0#
SERIRQ
SMBCLK
SMBDATA
SMLINK1
SMLINK0
A20M#
FERR#
IGNNE#
CPU_SLP#
STPCLK#
A20GATE
DPSLP#
DPRSLPVR
PWRBTN#
PWROK
SYS_RESET#
RTCRST#
RSMRST#
SLP_S3#
SLP_S4#
SLP_S5#
INTERVEN
INTRUDER#
LINKALERT#
RTCX1
RTCX2
4
ISA_NOGO (17)
BIOS_WP# (14)
GPIO33 (22)
SUSCLK (15)
THRM# (15)
TRMTRIP# (4)
AC7
AD7
AC9
AD9
AA8
AB8
AA10
AB10
SATA_BIAS
Y11
Y9
AC5
AD5
LPC_AD0
T5
LAD0
LAD1
LAD2
LAD3
INIT#
INTR
SMI#
RCIN#
CLK14
SPKR
LPC_AD1
R4
LPC_AD2
R3
LPC_AD3
U4
T4
U5
GPI41
R2
SERIRQ
F23
AD2
AD1
SMLINK1
AA2
SMLINK0
AD3
V23
U24
R21
R23
U23
R22
NMI
V24
P22
T24
P23
T22
R24
P20
Y4
AC12
P24
VRMGD
R20
R347 0R
ICH_RST#
U1
RTCRST#
AA12
RSMRST#
AB13
W1
U2
AA3
INTERVEN
AD10
INTRUDER#
Y12
LINK_ALERT#
V5
RECOVER#
AC3
F20
RTCX1
AC11
RTCX2
AB12
RING#
AB3
RI#
SPKR
E24
Chasiss Intrusion
JCI1
INTRUDER#
1
1
2
2
H1X2_black
4
SATA LED for
ver:A1 chip
SATA_RX0 (22)
SATA_RX#0 (22)
SATA_RX1 (22)
SATA_RX#1 (22)
SATA_TX0 (22)
SATA_TX#0 (22)
SATA_TX1 (22)
SATA_TX#1 (22)
R409 24.9R1%
SATA_100 (14)
SATA_100# (14)
LPC_AD[0..3] (14,15)
LPC_FRAME# (14,15)
LPC_DRQ#0 (15)
SERIRQ (14,15,17)
SMBCLK (11,14,15,17,18)
SMBDATA (11,14,15,17,18)
A20M# (4)
FERR# (4)
IGNNE# (4)
HINIT# (4,14)
INTR (4)
NMI (4)
SMI# (4)
SLP# (4)
STPCLK# (4)
KBRST# (15)
A20GATE (15)
PWRBTN# (22)
ICH_PWROK (6)
CPU_GD (4)
VRM_GD
ICH_RST# (22)
RSMRST# (21)
SLP_S3# (21,22)
SLP_S4# (21,24)
SLP_S5# (21)
R397 390KR
R388 1MR
ICH_14 (14)
RING# (15)
SPKR (22)
VRM_GD (22,23)
VBAT
VBAT
Enable the integrated
VCCSUS1_5 voltage
regulator
3
STRAPS
HI:NO REBOOT
SPKR
RESERVED
ICH5_EE_DO
HI:enable ASF
LINK_ALERT#
internal pull up 20K
GPI41
THRM#
VRMGD
ICH_PWROK
Prevent excessive IccRTC leakage
GPIO28
Reservered GPI
R448 4.7KR
R356 4.7KR
RESUME RESET
Prevent excessive IccRTC leakage
V5REF Sequencing Circuit
VCC3
S-1N5817_DO214AC
D24
S-BAT54A_SOT23
3
2
(0402)
R362 X_1K
(0402)
R406 X_10K
R465 10KR
(0402)
R447 X_8.2K
VCC3
R376 10KR
R449 X_10K
R461 1KR
VCC5_SB
R482
4.7KR
R472
10KR
D19
5VREF
* Put a GND Plane under X'TAL
* Please put this block close ICH5
VCC3_SB
2
D25
1N4148_SOD123
R522
1
3
R382
1KR
BAT1
MSI
Title
Size Document Number Rev
Date: Sheet
2
FERR#
TRMTRIP#
VCC3
SMBCLK
SMBDATA
VCC3_SB
VCC3
VCC3_SB
RING#
BATLOW#
GPI12
PWRBTN#
SMLINK1
SMLINK0
SIO_PME#
ICH_RST#
GPI8
SIO_SMI#
SERIRQ
ISA_NOGO
GPI7
Recovery Button
RSMRST#
C441
X_0.1u
R385 1KR
C361 C1U16Y0805
The RC delay time should
be in 10~20ms.
0R
R403 180KR
C373
C1U16Y0805
16V
ICH5 provide internal VBIAS circuit
VCC5
16V
VBAT
C390
C0.1U16X
X7R
C388
C18P50N
Use 5% Use 5%
MICRO-STAR INt'L CO., LTD.
Intel ICH5 - Oth er Signals
6772
1
R358 62R
R348 62R
R443 2.7KR
R444 2.7KR
RN59 8P4R-10KR
1 2
3 4
5 6
7 8
VCC3_SB
R521
8.2KR
internal pull up 20K
default is high
JRECOVER
H1X2_black
R450 X_1K
R451 10KR
R423 10KR
1 2
3 4
5 6
7 8
RN58 8P4R-10KR
R519 10KR
R520 8.2KR
R644 10KR
R643 10KR
RECOVER#
V5REF must be powered up before
VCC3,or after within 0.7V
RTC BLOCK
CLR_CMOS
Normal
1 - 2
2 - 3
Clear CMOS
J_RTCRST#
RTCRST#
R404 10MR
Y2
32.768KHZ12.5P_D
+-30PPM
32pF
1
2
3
R421
4.7KR
12
13 26Tuesday, April 01, 2003
of
1
VCCP
VCC3_SB
VCC3_SB
VCC3
1
2
*
JBAT1
H1X3_black
RTCX1
RTCX2
C389
C18P50N
0A

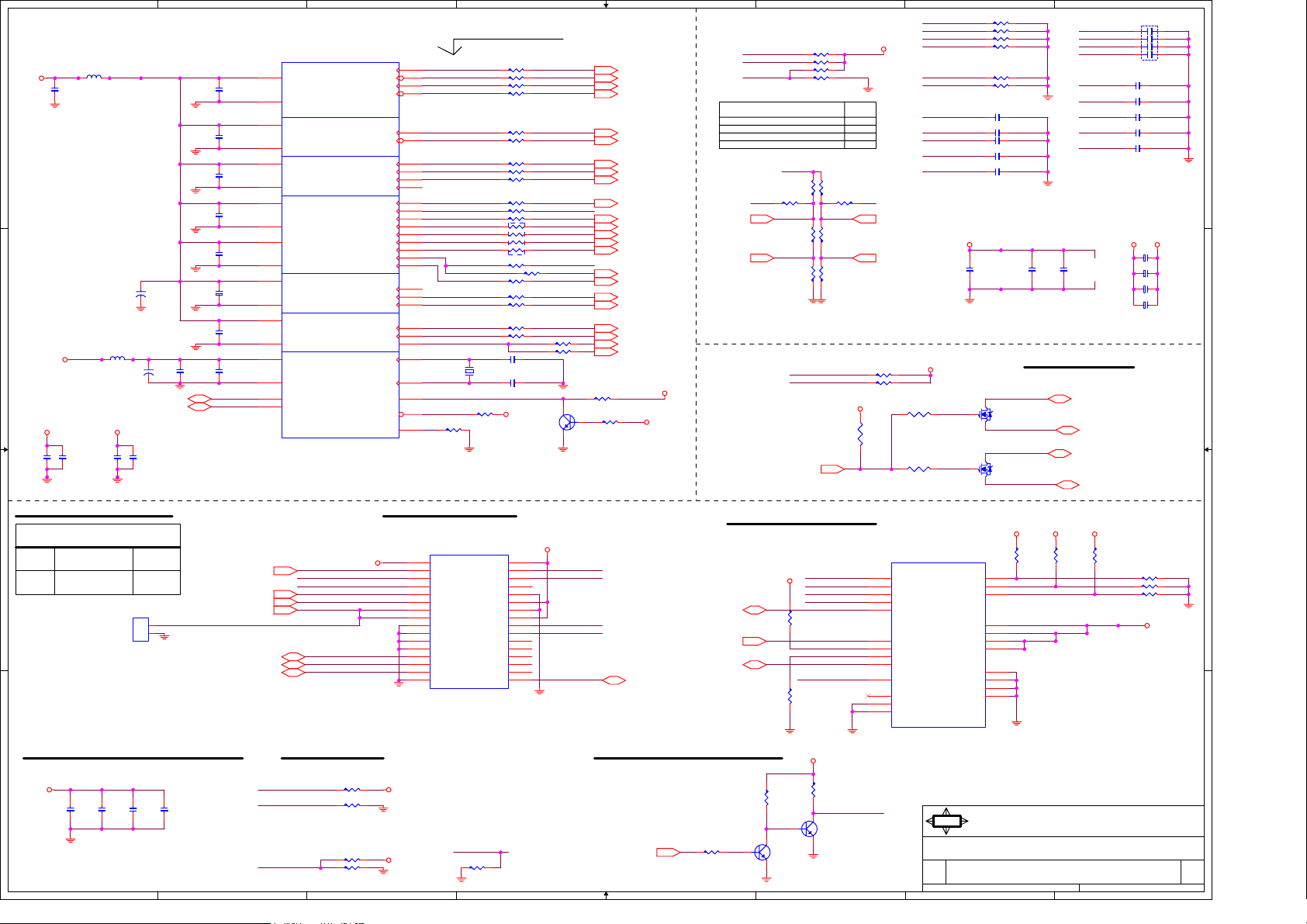

Page 14
8
VCC3
D D
Use 2 VIA hole on BEAD both side
Use 2 VIA hole on BEAD both side
C C
VCC3
VCC3 VCC5
C599
0.1u
300-0805-3A
FB25
C230
0.1u
FB24 300-0805-3A
C600
C601
0.1u
0.1u
EC60
C10U16EL
+
SMBDATA_ISO(9,10,21)
SMBCLK_ISO(9,10,21)
C602
0.1u
EC33
C10U16EL
+
BIOS PROTECT BLOCK
BIOS Update Config.
HIGH
LOW
Un_protected
Protected
Default
JBIOS1
1
2
H1X2_black
ICH5 GPO32 default value is HIGH
B B
FWH DECOUPLING CAPACITORS
A A
VCC3
Place Cap. as Close to FWH< 350 mil
C437
0.1u
8
C406
C1U10Y
C407
C1U10Y
C554
0.1u
VCC3V
C229
0.1u
PCIRST_ICH5#(12,17,21)
7
U11
41 39
C257
0.1u
0.1u
C258
0.1u
C221
0.1u
C235
0.1u
C219
0.1u
C224
0.1u
C233
0.1u
BIOS_WP#(13)
CPU_VDD CPU0#
44
CPU_GND
35
SRC_VDD
38
SRC_GND
28
3V66_VDD
10
PCI_VDD1
11
PCI_GND1
16
PCI_VDD2
17
PCI_GND2
25
48_VDD
3
REF_VDD
6
REF_GND
47
VDD
46
GND
33
SDATA
32
SCLK
CYPRESS CY28404
CRITICAL
SD_DET(19)
PD_DET(19)
LPC_AD0(13,15)
LPC_AD1(13,15)
LPC_AD2(13,15)
* 150k Pull-up
** 150k Pull-down
PRES3
PRES2
SD_DET
PD_DET
BIOS_WP#
LPC_AD0
LPC_AD1
LPC_AD2
FWH Resistors
default is high
BIOS_WP#
PRES3
Reservered GPI
PRES2
7
3V66_0
3V66_1
3V66_2/MODE*
3V66_3/VCH3V66_GND
*FS_C/PCI_F0
*FS_D/PCI_F1
*FS_E/PCI_F2
*SEL24_48#/24_48
**FS_A/REF_1
**FS_B/REF_0
VTT_PWRGD#
RST#/PWR_DN#
VCC3
R489 1KR
R475 1KR
R477 X_1K
R480 1KR
6
MCHCLK
40
CPU0
CPU1
CPU1#
SRC
SRC#
PCI0
PCI1
PCI2
PCI3
PCI4
PCI5
DOT48
USB4848_GND
REF2
XOUT
IREF
XIN
MCHCLK#
CPUCLK
43
CPUCLK#
42
SATA100
37
SATA100#
36
MCH66
31
ICH66
30
AGPCLK
27
2629
ICHPCLK
7
FWHPCLK
8
FS_E
9
LANPCLK
12
PCICLK0
13
PCICLK1
14
PCICLK2
15
18
19
1394PCLK
MS1PCLK
21
DOT48
22
USB48
2324
SEL0
1
SEL1
2
SIO14
48
4
5
34
PLL_EN
20
R210 475R1%
45
Iref = 2.32mA
Firware Hub (FWH)
BIOS1
1
VPP
2
RST#
3
FGPI3
4
FGPI2
5
FGPI1
6
FGPI0
7
WP#
8
TBL#
9
ID3
10
ID2
11
ID1
12
ID0
13
FWH0
14
FWH1
15
FWH2
16 17
GND FWH3
PLCC-32
CRITICAL
VCC3
VCC3
6
*Trace less 0.5"
R232 33R
R231 33R
R233 33R
R234 33R
R228 33R
R229 33RC256
R230 33R
R219 33R
R235 33R
R267 33R
R269 33R
R523 33R
7 8
5 6
3 4
1 2
RN52 8P4R-33R
R524 X_22
R525 X_22
R526 33R
R253 33R
R263 33R
R288 33R
R282 33R
Y1
14.318MHZ32P_D
CG_PWRGD#
R273 1KR
VCC
CLK
FGPI4
IC(VIL)
GNDA
VCCA
GND
VCC
INIT#
FWH4
RFU
RFU
RFU
RFU
RFU
PRES4
R452 1KR
5
MCH_CLK
MCH_CLK#
CPU_CLK
CPU_CLK#
SATA_100
SATA_100#
FWH_PCLK
R527 22R
R528 22R
C18P50NC247
C18P50NC240
VCC3
Q27
N-MMBT3904_SOT23
VCC3
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
5
TPM_CLK
R217 10KR
R191 220R
FWH_PCLK
PRES4
FWH_INIT#
LPC_FRAME#
LPC_AD3
4
FS_E
(FS_D)
MCH_CLK (6)
MCH_CLK# (6)
CPU_CLK (4)
CPU_CLK# (4)
SATA_100 (13)
SATA_100# (13)
MCH_66 (8)
ICH_66 (13)
AGP_CLK (17)
ICH_PCLK (12)
SIO_PCLK (15)
LAN_PCLK (11)
PCI_CLK0 (18)
PCI_CLK1 (18)
PCI_CLK2 (18)
1394_PCLK (25)
MS1_PCLK (17)
DOT_48 (8)
USB_48 (13)
ICH_14 (13)
AC_14 (16)
SIO_14 (15)
ISA_14 (17)
VCC3
VCCP
FWHPCLK
ICHPCLK
(FS_C)
FS_E FS_D FS_C FS_B FS_A
1
1
1
1
1
111
1
SEL0 SEL1
BSEL0(4)
BSEL0_SPG(6)
Trusted Platform Module
LPC_FRAME#(13,15)
PCIRST#1(6,11,21,25)
SERIRQ(13,15,17)
LPC_AD3 (13,15)
INIT signal voltage translation
HINIT#(4,13)
R357 330R
4
3
10KR
R266
R249 10KR
R248 10KR
R268 X_10KR
CPU
SEL0SEL1
0
0
133.9
1
0
0
200.9
1
0
133.3
1
0
11
VCC3V
R254
1KR1%
R250 4.7KR R271 4.7KR
R265
2KR1%
R257
2.49KR1%
SMBCLK_ISO
SMBDATA_ISO
PWROK_SMB(21)
VCC3
R536
X_4.7KR
R537
X_0R
VCC3
R441
2.2KR
Q42
N-MMBT3904_SOT23
200.0
R264
1KR1%
R272
2KR1%
R285
2.49KR1%
R215 4.7KR
R216 4.7KR
+12VP
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#
PCIRST#1
CLKRUN#
SERIRQ
TPM_CLK
R442
330R
FWH_INIT#
Q43
N-MMBT3904_SOT23
3
VCC3
BSEL1 (4)
BSEL1_SPG (6)
R305
3.3KR
U36
2
LAD0
3
LAD1
6
LAD2
7
LAD3
13
LFRAMEn
27
LRESETn
26
LPCPDn
23
CLKRUNn
12
SERIRQ
8
LCLK
16
TESTIO
17
TESTEN
9
RSVD
X_SLD9630
CPU_CLK
CPU_CLK#
MCH_CLK
MCH_CLK#
SATA_100
SATA_100#
MCH_66
ICH_66
AGP_CLK
USB_48
DOT_48
2
R211 49.9R1%
R212 49.9R1%
R208 49.9R1%
R209 49.9R1%
R213 49.9R1%
R214 49.9R1%
X_10p_NPOC212
X_10p_NPOC254
X_10p_NPOC259
1394_PCLK
MS1_PCLK
ICH_14
X_10p_NPOC220
AC_14
X_10p_NPOC223
SIO_14
PCI_CLK2
PCI_CLK1
PCI_CLK0
LAN_PCLK
1
CN10 X_10P
1
3
5
7
C565
C566
X_10p_NPOC562
X_10p_NPOC563
X_10p_NPOC564
X_10p_NPO
X_10p_NPO
EMC HF filter capacitors, located close to PLL
VCC3
C209
0.1u
VCC3
R529
10KR
R240
10KR
PENABLE
PACCESS
BADDR
VDDC
MSI
Title
Size Document Number Rev
Date: Sheet
C236
C289
0.1u
0.1u
SMBus Isolation
SMBCLK
DS
Q31
G
N-2N7002_SOT23
SMBCLK_ISO
SMBDATA
DS
Q30
G
N-2N7002_SOT23
SMBDATA_ISO
VCC3 VCC3 VCC3
R530
R531
X_4.7KR
X_4.7KR
22
21
20
5
VDD
11
VDD
19
25
VDD
4
GND
10
GND
18
GND
24
GND
MICRO-STAR INt'L CO., LTD.
CY28404 & FWH & TPM
6772
2
VCC3
VCC5
SMBCLK (11,13,15,17,18)
SMBCLK_ISO (9,10,21)
SMBDATA (11,13,15,17,18)
SMBDATA_ISO (9,10,21)
R532
X_4.7KR
R533 X_0R
R534 X_0R
R535 X_0R
14 26Wednesday, April 02, 2003
of
1
VCC3
2
4
6
8
C574
0.1u
C575
0.1u
C576
0.1u
C592
X_0.1u
0A
Page 15

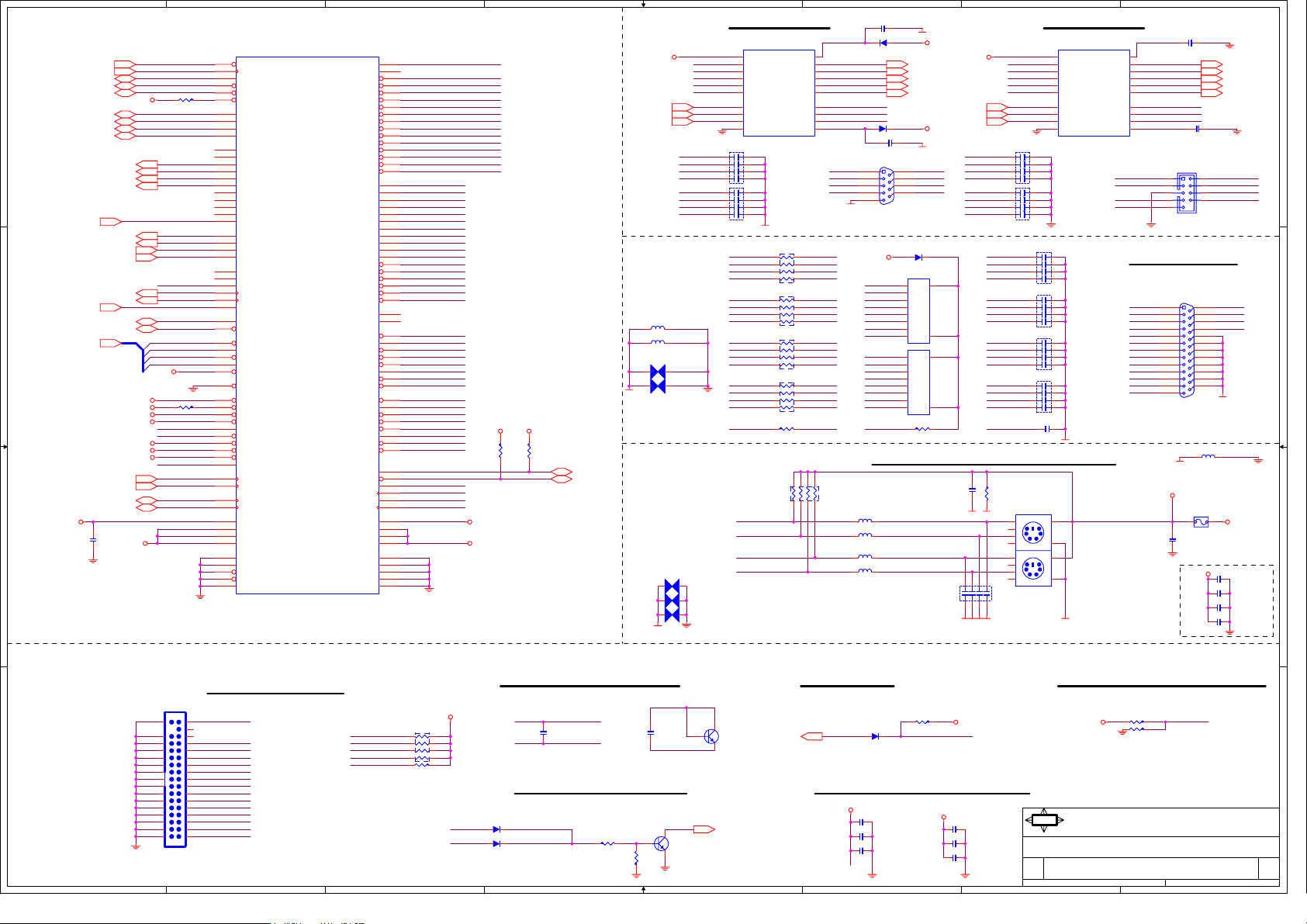

8
PCIRST#1(6,11,21,25)
SIO_PCLK(14)
SERIRQ(13,14,17)
LPC_DRQ#0(13)
LPC_FRAME#(13,14)
D D
C C
B B
LPC_AD0(13,14)
LPC_AD1(13,14)
LPC_AD2(13,14)
LPC_AD3(13,14)
VID5(4,23)
VID4(4,23)
VID[0..3](4,23)
VCC3
W/Game port VREF=5V
W/O Game port VREF depends on layout
CPU_CTRL(22)
SYS_CTRL(22)
SIO_SMI#(13)
SIO_PME#(13)
CB2
0.1u
CPU_FAN(22)
SYS_FAN(22)
SMBDATA(11,13,14,17,18)
SMBCLK(11,13,14,17,18)
SUSCLK(13)
SIO_14(14)
THERMD+(4)
THERMD-(4)
DLED1(16)
DLED2(16)
DLED3(16)
DLED4(16)
VCC_AGP
VCC3_SB
VCC_DDR
VCC3
VCC3
VCCP
VCC3
VCC5
VCC3
R539 4.7KR
SIO_ADDR
VID4
VID0
VID1
VID2
VID3
+12V
R540 120KR
DÂD+
OVT#
7
LPC SUPER I/O 47M192
U12
26
PCI_RESET#
29
PCI_CLK
30
SER_IRQ
25
LDRQ#
24
LFRAME#
27
LPC_PD#
20
LAD0
21
LAD1
22
LAD2
23
LAD3
32
J1B1/GP10
33
J1B2/GP11
34
J2B1/GP12
35
J2B2/GP13
36
JX1/GP14
37
JY1/GP15
38
JX2/GP16
39
JY2/GP17
41
GP20/P17
46
MIDI_IN/GP25
47
MIDI_OUT/GP26
55
FAN_CTL1/GP33
54
FAN_CTL2/GP32
52
FAN_SEN1/GP31
51
FAN_SEN2/GP30
48
LED1/GP60
49
LED2/GP61
45
SYSOPT/GP24
50
IO_SMI#/GP27
17
IO_PME#/GP42
28
DDRC/GP43
103
SDA
104
SCLK
106
VID0
107
VID1
108
VID2
109
VID3
110
+12V_IN/VID4
112
HGND
118
VCCP_IN
119
NC1(+1.8V_IN)
120
NC2(+1.5V_IN)
121
HVCC
113
D0-(XNOR_IN)
114
D0+
115
+5V_IN
116
+3.3V_IN
117
+2.5V_IN
105
A0/RESET#/THERM#(XNOR_OUT)
6
SUSCLK
19
CLK_14M
123
NC3(D1+)
124
NC4(D1-)
44
VREF
53
VCC
65
VCC
93
VCC
101
HGND
125
NC5(HGND)
126
NC6(HGND)
127
HGND
128
HGND
LPC47M192-B
DRVDEN0/GP40
DRVDEN1/GP41
INDEX#
MTR#0
DS#1/GP21/P16
DS#0
MTR#1/GP22/P12
DIR#
STEP#
WDATA#
WGATE#
TRACK0#
WP#
RDATA#
HEAD#
DSKCHG#
PD0/INDEX#
PD1/TRK0#
PD2/WRTPRT#
PD3/RDATA#
PD4/SDKCHG#
PD6/MTR0#
SLCT/WGATE#
PE/WDATA#
BUSY/MTR1#
ACK#/DS1#
SLCTIN#/STEP#
INIT#/DIR#
ERR#/HDSEL#
ALF#/DRVDEN0#
STB#/DS0#
IRRX2/GP34
IRTX2/GP35
RI#1
RXD1
CTS#1
DCD#1
DSR#1
TXD1
RTS#1
DTR#1
RI2#/GP50
RXD2/GP52/IRRX
CTS#2/GP56
DCD#2/GP51
DSR#2/GP54
TXD2/GP53/IRTX
RTS#2/GP55
DTR2#/GP57
GA20/GP37
KBRST#/GP36
KBDATA
KBCLK
MSDATA
MSCLK
VTR
HVCC
HVCC
HVCC
AGND
GND
GND
GND
GND
PD5
PD7
6
PRD0
PRD1
PRD2
PRD3
PRD4
PRD5
PRD6
PRD7
RSLCT
RPE
RBUSY
RACK#
RSLIN#
RINIT#
RERR#
RAFD#
RSTB#
RIA#
SINA
CTSA#
DCDA#
DSRA#
SOUTA
RTSA#
DTRA#
RIB#
SINB
CTSB#
DCDB#
DSRB#
SOUTB
RTSB#
DTRB#
KBDAT#
KBCLK#
MSDAT#
MSCLK#
DRVDEN0
INDEX#
MOT_A#
DRV_B#
DRV_A#
MOT_B#
DIR#
STEP#
WT_DT#
WT_EN#
TRACK0#
FDD_WP#
RDATA#
HEAD#
DSKCHG#
VCC3_SB
VCC3_SB
VCC3 VCC3
R669
10K
1
2
13
3
42
5
43
8
9
10
11
14
15
16
12
4
68
69
70
71
72
73
74
75
77
78
79
80
67
66
81
82
83
61
62
90
84
88
91
86
85
87
89
92
95
99
94
97
96
98
100
64
63
56
57
58
59
18
111
122
102
40
7
31
60
76
R670
10K
5
A20GATE (13)
KBRST# (13)
VCC5
RTSA#
DTRA#
SOUTA
FB1 X_0R
FB15 X_0R
CP18
CP19 X
CP6 X
CP7 X
CP8 X
X
NCTSA#
NDSRA#
NSINA
NDCDA#
RTSA#
DTRA#
SOUTA
NRTSA
NDSRA#
NCTSA#
NRIA#
NDCDA#
NSOUTA
NSINA
NDTRA
4
SERIAL PORT 1
U6
20
VCC
2
RIN1
3
RIN2
4
RIN3
7
RIN4
9
RIN5
16
DIN1
15
DIN2
13
DIN3
11
GND
GD75232_SSOP20
1
2
3
5
7
1
3
5
7
CN5
4
8P4C-220P50N
6
8
2
CN4
4
8P4C-220P50N
6
8
RN17
PRD7
7 8
RACK#
5 6
RBUSY
3 4
RPE
1 2
RN22
PRD3
1 2
PRD4
3 4
PRD5
5 6
PRD6
7 8
RN27
PRD1
7 8
RINIT#
5 6
PRD2
3 4
RSLIN#
1 2
RN31 8P4R-33R
RSTB#
1 2
PRD0
3 4
RAFD#
5 6
RERR#
7 8
RSLCT SLCT
R105 33R
ROUT1
ROUT2
ROUT3
ROUT4
ROUT5
DOUT1
DOUT2
DOUT3
V+
V-
8P4R-33R
PRND7
ACK#
BUSY
PE
8P4R-33R
PRND3
PRND4
PRND5
PRND6
8P4R-33R
PRND1
PINIT#
PRND2
SLIN#
STB#
PRND0
AFD#
ERR#
+12VCOM
1
19
18
17
14
12
5
6
8
-12VCOM
10
1N4148_SOD123
3
C55 0.1u
D2
1N4148_SOD123
RIA#NRIA#
CTSA#
DSRA#
SINA
DCDA#
NRTSA
NDTRA
NSOUTA
D6
C70
LPT1B
NDCDA#
26
NSINA NRTSA
27
NSOUTA
28
NDTRA
29
30
CONN-COM
VCC5
PRND6
PRND5
PRND4
PRND3
PE
BUSY
ACK#
PRND7
SLIN#
PRND2
PINIT#
PRND1
ERR#
AFD#
PRND0
STB#
SLCT
PS2 KEYBOARD & MOUSE CONNECTOR
RN1
8P4R-4.7KR
1 2
3 4
5 6
MSDAT#
MSCLK#
KBCLK# KB_CK
7 8
FB3 120L600m_250
FB4 120L600m_250
FB6 120L600m_250
FB5 120L600m_250
+12VP
-12V
D4
RN18
10P8R-2.7KR
RN28
10P8R-2.7KR
C1
0.1u
MS_DT
MS_CK
KB_DTKBDAT#
CN1
8P4C-220P50N
VCC5
RTSB#
DTRB#
SOUTB
135
246
NRTSB
NDSRB#
NCTSB#
NRIB#
NDCDB#
NSOUTB
NSINB
NDTRB
7
8
PE
BUSY
ACK#
PRND7
PRND6
PRND5
PRND4
PRND3
SLIN#
PRND2
PINIT#
PRND1
ERR#
AFD#
PRND0
STB#
SLCT
R15
1KR
11
12
1
3
5
7
1
3
5
7
7
8
1
2
5
6
RIA#
CTSA#
DSRA#
SINA
DCDA#
0.1u
NDSRA#
31
32
NCTSA#
33
NRIA#
34
D7 1N4148_SOD123
1
1
2
2
3
3
4
4
6
6
7
7
8
8
9510
9510
1
1
2
2
3
3
4
4
6
6
7
7
8
8
9510
9510
R96 2.7KR C220P16XC81
2
SERIAL PORT 2
20
2
NCTSB#
3
NDSRB#
4
NSINB
7
NDCDB#
9
RTSB#
16
DTRB#
15
SOUTB
13
11
2
4
6
8
2
4
6
8
1
3
5
7
7
5
3
1
7
5
3
1
7
5
3
1
JKBMS1
MS
KB
CONN-KB_MS
U4
VCC
RIN1
RIN2
RIN3
RIN4
RIN5
DIN1
DIN2
DIN3
GND
GD75232_SSOP20
CN2
8P4C-220P50N
CN3
8P4C-220P50N
2
CN6
4
8P4C-220P50N
6
8
8
CN7
6
8P4C-220P50N
4
2
8
CN8
6
8P4C-220P50N
4
2
8
CN9
6
8P4C-220P50N
4
2
10
9
4
3
+12VCOM
C17 0.1u
1
ROUT1
ROUT2
ROUT3
ROUT4
ROUT5
DOUT1
DOUT2
DOUT3
V+
RIB#NRIB#
19
CTSB#
18
DSRB#
17
SINB
14
DCDB#
12
NRTSB
5
NDTRB
6
NSOUTB
8
-12VCOM
C19 0.1u
10
V-
NDCDB#
NSOUTB
NRTSB NCTSB#
NRIB#
COM1
1
3 4
5 6
7 8
9
BH2X5(10)COM_white
PARALLAL PORT
LPT1A
STB#
1
PRND0
2
PRND1
3
PRND2
4
PRND3
5
PRND4
6
PRND5
7
PRND6
8
PRND7
9
ACK#
10
BUSY
11
PE
12
SLCT
13
CONN-LPT
FB49 X_0R
KB_VCC
FS1
F-MINISMDC150
C7
0.1u
1
14
15
16
17
18
19
20
21
22
23
24
25
VCC5
2
NSINB
12
RIB#
CTSB#
DSRB#
SINB
DCDB#
NDTRB
NDSRB#
AFD#
ERR#
PINIT#
SLIN#
5VDUAL
For EMI
C593
X_0.1u
C188
X_0.1u
C304
X_0.1u
C39
0.1u
FLOPPY CONNECTOR
CB4
B
D+
CE
B
D-
X_N-MMBT3904_SOT23
CE
RING# (13)
N-MMBT3904_SOT23
Q56
4
FDD1
4
6
20
DRVDEN0
INDEX#
MOT_A#
DRV_B#
DRV_A#
MOT_B#
DIR#
STEP#
WT_DT#
WT_EN#
TRACK0#
FDD_WP#
RDATA#
HEAD#
DSKCHG#
INDEX#
TRACK0#
FDD_WP#
RDATA#
DSKCHG#
7
1 2
5
7 8
9 10
11 12
13 14
15 16
A A
8
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34
CONN-FDD(4)(5)(6)V
RN19
7 8
5 6
3 4
1 2
R132 150R
6
VCC5
8P4R-150R
C1000P50X
CB3
THERMD+
THERMD-
Internal Ring Wake Up Block
NRIA#
D1 1N4148_SOD123
NRIB#
D3 1N4148_SOD123 R6 1KR Q2
5
X_C1000P50X
R5
10KR
THRM# IsolationTHERMAL RESISTOR BLOCK
SMBus address strapping
R541 4.7KR
THRM#(13)
1N4148_SOD123
D27
OVT# power plane belongs to HVCC=VCC3_SB
LPC I/O DECOUPLING CAPACITORS
VCC3_SB
CB5
0.1u
CB7
0.1u
CB9
0.1u
3
VCC3
OVT#
VCC3_SB
CB6
0.1u
CB8
0.1u
CB10
0.1u
Hi=5A
Low=58
SUPER I/O STRAPPING RESISTOR
R542 X_4.7KR
VCC3
R543 4.7KR
SIO_ADDR
H: 0x04E
L: 0x02E
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
LPC SUPER I/O & CONNECTORS
6772
2
SIO_ADDR
(DEFAULT)
15 26Thursday, April 03, 2003
of
1
0A
Page 16

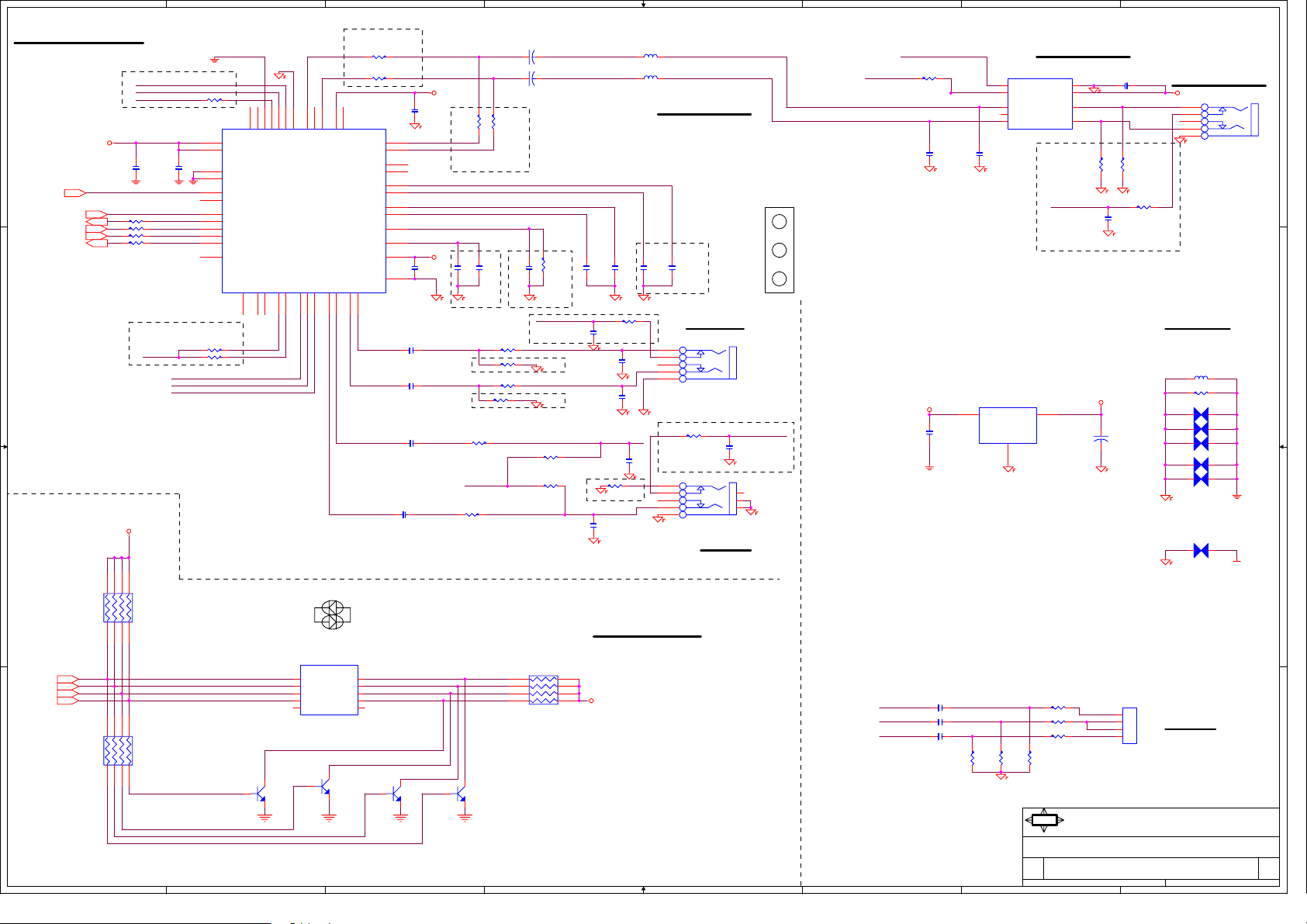

8
7
6
5
4
3
2
1
Realtek ALC202A/203
D D
VCC3
C445
0.1u
AC_14(14)
AC_RST#(12)
AC_SDIN2(12)
AC_SDOUT(12)
AC_SYNC(12)
AC_BITCLK(12)
C C
R468 33R
R473 33R
R464 33R
R457 10R
For 202/203 :ENABLE 14.318MHz
JD_LINE-OUT
JD_LINE-IN
JD_MIC-IN
C433
0.1u
AC_RST#
97_SDIN2
97_SDOUT
97_SYNC
97_BITCLK
203
JD_MIC-IN
203
R683 0R
4847464544424140394338
U22
1
DVDD1
9
DVDD2
4
DVSS1
7
DVSS2
2
XTL_IN
3
XTL_OUT
11
RESET#
8
SDATA_IN
5
SDATA_OUT
10
SYNC
6
BIT_CLK
12
PC_BEEP
R684 0R
R685 0R
CD_L
CD_GND INLIN_L
CD_R
ID0#
SPDIF
XTLSEL
EAPD/JD
PHONE
AUXL
AUXR
1314151617181920212223
GPIO0
GPIO1
VIDEOL
VIDEOR
AVSS2
CDL
NC
HPOUT-R
CDGND
CDR
37
MONO
AVDD2
HPOUT-L
VREFOUT
MIC1
MIC2
LINL
* AC'97 Trace Spacing : 5 mils
* Maxium trace length <8"
* Length(longest)-Length(shortest)<150mils
VCC5
B B
MIC_IN MIC
203
R544 0R
R545 0R
36
LOUTR
35
LOUTL
34
NC
33
NC
32
VRDA
31
VRAD
30
AFILT2
29
AFILT1
28
27
VREF
25
AVDD1
26
AVSS1
LINR
24
CRITICAL
IN_R
C418 C1U16Y0805
C421 1U R284 1K
EC61
C431
10U
CD100U10EL7
CD100U10EL7
EC62
R676
5.6K
203
JD_LINE-IN
203
203
203
R550 2.2KR
R453 2.2KR
C1000P50X
C597
C1000P50X
C1000P50X
C279
HPOUT_R MIC2
HPOUT_L
+5VR
C453
0.1u
R6730RR674
C436
1U
0.1u
R427 10K
VREF_OUT
0R
202A
C607
R425 1K
R426 10K
R428 1KC419 C1U16Y0805
ROUT
LOUT
AFILT2
AFILT1
VREF_OUT
+5VR
C425
0.1u
203:10U
202A:1U
R420 1KRC420 C1U16Y0805
C438
1000p
2.2U
INR
C284
C283
1000p
R679 10K
300L300m_350
FB26
FB36
300L300m_350
C440
1000p
R677 10K
MIC2
C271
203
SPEAKER OUT
202A202A
C4961uC497
1u
LINE IN
10
11
12
13
18
AUDIO1B
_
R678 10K
1
2
4
5
3
AUDIO1C
_
LINE_IN
C598
2.2U
MIC_IN
MIC IN
LINE-IN
BLUE
LINE-OUT
GREEN
MIC
RED
JD_MIC-IN
14
15
16
FROUT_R
FROUT_L
203
VREF_OUT
R386 X_2.2K
C365
C1000P50X
+12V
C383
0.1u
C372
C1000P50X
JAUD1
1 2
MIC GNDA
3 4
MIC_VCC VCCA
5 6
FPOUT_R RET_R
7 8
DET# KEY
9 10
FPOUT_L RET_L
H2X5(8)_black
VR2
MC78L05ACP_TO92
3 1
VIN VOUT
GND
2
FRONT AUDIO
R546
10K
JD_LINE-OUT
C596
2.2U
+5VR
C376 0.1u
R547
10K
R675 10K
EC55
X_22u
LINE_R
LINE_L
203
COPPER
CP20 X
CP21 X
CP9 X
CP13 X
CP14 X
CP15 X
SPEAKER OUT
+5VR
6
7
LINE_OUT
8
9
17
AUDIO1A
_
FB38 X_0R
R292 X_0
RN74
8P4R-330R
1 2
3 4
5 6
7 8
DLED1
DLED2
DLED3
DLED4
DLED1(15)
DLED2(15)
DLED3(15)
DLED4(15)
RN76
8P4R-1KR
1 2
3 4
5 6
A A
7 8
8
G_DLED4
G_DLED3
G_DLED2
G_DLED1
N-MMBT3904_SOT23
Q58
3
2
1
7
GREEN
RED
D_LED1
1
1
3
3
5 6
56
7
7
9 10
910
H2X5(9)(10)_blue
Q57
3
2
1
N-MMBT3904_SOT23
2
2
4
4
8
8
Q59
2
N-MMBT3904_SOT23
3
1
6
DDLED1
DDLED2
DDLED3
DDLED4
Q60
3
2
1
N-MMBT3904_SOT23
RN75
7 8
5 6
3 4
1 2
8P4R-470R
Debug LED
VCC5
5
CD_R C_R
C415 C1U10Y
CD_L
C411 C1U10Y
R434
X_10KR
4
3
R430 5.6KRC414 C1U10Y
C_GCD_GND
R431 5.6KR
C_L CD1_L
R433 5.6KR
R429
R432
X_10KR
X_10KR
MSI
Title
Size Document Number Rev
Date: Sheet
2
CD1
CD1_R
4
CD1_G
3
2
1
AUDIO-CDIN1X4
(Black)
2.54mm
CD IN
MICRO-STAR INt'L CO., LTD.
AC97 AUDIO & D-LED
6772
16 26Thursday, April 03, 2003
of
1
0A
Page 17

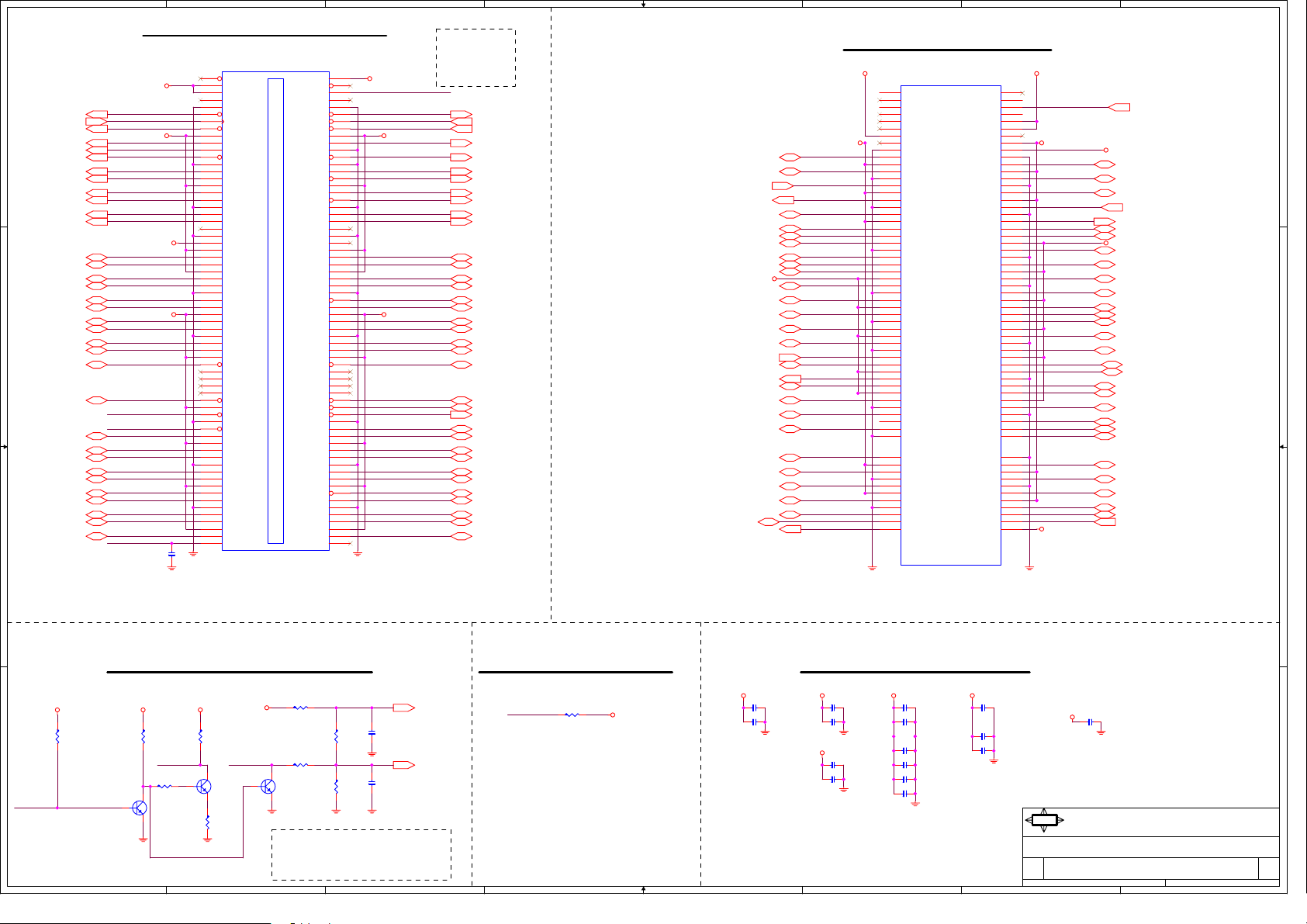

8
7
6
5
4
3
2
1
AGP 1.5V 4X/8X SLOT(AGP VER:3.0)
VCC5 = 60mils trace / 15 mils space
AGP1
B1
-OVRCNT
B2
VCC5
D D
C C
B B
PIRQ#B(12,18)
AGP_CLK(14)
GREQ#(8)
RBF#(8)
DBI_LO(8)
SBA0(8)
SBA2(8)
SB_STB(8)
SBA4(8)
SBA6(8)
GAD31(8)
GAD29(8)
GAD27(8)
GAD25(8)
AD_STB1(8)
GAD23(8)
GAD21(8)
GAD19(8)
GAD17(8)
GC_BE#2(8)
GIRDY#(8)
GDEVSEL#(8)
GC_BE#1(8)
GAD14(8)
GAD12(8)
GAD10(8)
GAD8(8)
AD_STB0(8)
GAD7(8)
GAD5(8)
GAD3(8)
GAD1(8)
GREQ#
RBF#
GIRDY#
GDEVSEL#
GPERR#
GSERR#
AGP_REF
0.1u
VCC3
VCC3_SB
VCC_AGP
C318
ST0(8)
ST2(8)
5V
B3
5V
B4
USB+
B5
GND
B6
-INTB
B7
CLK
B8
-REQ
B9
3.3V
B10
ST0
B11
ST2
B12
-RBF
B13
GND
B14
RESERVED
B15
SBA0
B16
3.3V
B17
SBA2
B18
SB_STB
B19
GND
B20
SBA4
B21
SBA6
B22
RSVD/KEY
B23
GND/KEY
B24
AUX3V/KEY
B25
3.3V/KEY
B26
AD31
B27
AD29
B28
3.3V
B29
AD27
B30
AD25
B31
GND
B32
AD_STB1
B33
AD23
B34
VDDQ
B35
AD21
B36
AD19
B37
GND
B38
AD17
B39
C/-BE2
B40
VDDQ
B41
-IRDY
B42
AUX3V/KEY
B43
GND/KEY
B44
RSVD/KEY
B45
3.3V/KEY
B46
-DEVSEL
B47
VDDQ
B48
-PERR
B49
GND
B50
-SERR
B51
C/-BE1
B52
VDDQ
B53
AD14
B54
AD12
B55
GND
B56
AD10
B57
AD8
B58
VDDQ
B59
AD_STB0
B60
AD7
B61
GND
B62
AD5
B63
AD3
B64
VDDQ
B65
AD1
B66
VREF_CG
SLOT-AGP1.5
PIRQ#A / PIRQ#B
-TYPEDET
RESERVED
USBÂGND
-INTA
-RST
-GNT
3.3V
RESERVED
-PIPE
GND
-WBF
SBA1
3.3V
SBA3
-SB_STB
GND
SBA5
SBA7
RSVD/KEY
GND/KEY
RSVD/KEY
3.3V/KEY
AD30
AD28
3.3V
AD26
AD24
GND
-AD_STB1
C/-BE3
VDDQ
AD22
AD20
GND
AD18
AD16
VDDQ
-FRAME
RSVD/KEY
GND/KEY
RSVD/KEY
3.3V/KEY
-TRDY
-STOP
-PME
GND
PAR
AD15
VDDQ
AD13
AD11
GND
AD9
C/-BE0
VDDQ
-AD_STB0
AD6
GND
AD4
AD2
VDDQ
AD0
VREF_GC
A1
12V
ST1
+12V
A2
G_DET#
A3
A4
A5
A6
PCIRST_ICH5#
A7
GGNT#
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
VCC3
PIPE#
WBF#
VCC_AGP
GFRAME#
GTRDY#
GSTOP#
PME#
GPAR
AGP Slot Imax
VCCq 2.0A
VCC3 6.0A
VCC12 1.0A
VCC5 2.0A
VCC3_SB 0.75A
PIRQ#A (12,18)
PCIRST_ICH5# (12,14,21)
GGNT# (8)
ST1 (8)
PIPE# (8)
WBF# (8)
SBA1 (8)
SBA3 (8)
SB_STB# (8)
SBA5 (8)
SBA7 (8)
GAD30 (8)
GAD28 (8)
GAD26 (8)
GAD24 (8)
AD_STB#1 (8)
GC_BE#3 (8)
GAD22 (8)
GAD20 (8)
GAD18 (8)
GAD16 (8)
GFRAME# (8)
GTRDY# (8)
GSTOP# (8)
PME# (11,12,18,25)
GPAR (8)
GAD15 (8)
GAD13 (8)
GAD11 (8)
GAD9 (8)
GC_BE#0 (8)
AD_STB#0 (8)
GAD6 (8)
GAD4 (8)
GAD2 (8)
GAD0 (8)
COMPONENT Side SOLDER Side
PIRQ#B(12,18)
PIRQ#D(12,18)
MS1_PCLK(14)
PREQ#5(12)
AD31(11,12,18,25)
AD29(11,12,18,25)
AD27(11,12,18,25)
AD25(11,12,18,25)
C_BE#3(11,12,18,25)
AD23(11,12,18,25)
AD21(11,12,18,25)
VCC3
AD19(11,12,18,25)
AD17(11,12,18,25)
C_BE#2(11,12,18,25)
IRDY#(11,12,18,25)
DEVSEL#(11,12,18,25)
LOCK#(12,18)
PERR#(11,12,18,25)
SERR#(11,12,18,25)
C_BE#1(11,12,18,25)
AD14(11,12,18,25)
AD12(11,12,18,25)
AD10(11,12,18,25)
AD8(11,12,18,25)
AD7(11,12,18,25)
AD5(11,12,18,25)
AD3(11,12,18,25)
AD1(11,12,18,25)
SERIRQ(13,14,15)
ISA_REQ#(12)
PIRQ#B
PIRQ#D
PREQ#5
AD31
AD29
AD27
AD25
C_BE#3
AD23
AD21
AD19
AD17
C_BE#2
IRDY#
DEVSEL#
LOCK#
PERR#
SERR#
C_BE#1
AD14
AD12
AD10
AD8
AD7
AD5
AD3
AD1
SERIRQ
ISA_REQ#
PCI Extended Golden Finger
-12V
FINGER1
B1
-12V
B2
RESERVED
B3
SERIAL_IRQ
B4
RESERVED
B5
RESERVED
B6
RESERVED
B7
+5V
VCC5
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
RESERVED
GND
INTB#
+5V
INTD#
GND
PCI_CLK
+5V
REQ#
GND
AD31
+5V
AD29
AD27
AD25
GND
CBE3#
AD23
AD21
+3.3V
AD19
GND
AD17
+3.3V
CBE2#
GND
IRDY#
+3.3V
DEVSEL#
GND
PCILOCK#
PERR#
+3.3V
SERR#
CBE1#
+3.3V
AD14
GND
AD12
+3.3V
AD10
GND
AD8
+5V
AD7
GND
AD5
+5V
AD3
GND
AD1
+5V
RESERVED
X_EXTENDER
RESERVED
+12V
RESERVED
+12V
EXTEND_INST
RESERVED
RESERVED
+3.3VSB
GND
INTA#
INTC#
GND
PCI_RESET
GNT#
GND
PCI_PME
AD30
AD28
+3.3V
AD26
GND
AD24
+3.3V
AD22
GND
AD20
+3.3V
AD18
AD16
FRAME#
+3.3V
TRDY#
GND
STOP#
+3.3V
SMBCLK
SMBDATA
GND
PCI_PAR
AD15
+3.3V
AD13
GND
AD11
CBE#0
GND
GND
GND
RESERVED
+5V
+5V
+5V
AD9
AD6
+5V
AD4
AD2
+5V
AD0
+5V
+12V
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
VCC5
PIRQ#A
PIRQ#C
PCIRST#2
PGNT#5
PME#
AD30
AD28
AD26
AD24
AD22
AD20
AD18
AD16
FRAME#
TRDY#
STOP#
SMBCLK
SMBDATA
PAR
AD15
AD13
AD11
AD9
C_BE#0
AD6
AD4
AD2
AD0
ISA_NOGO
ISA_GNT#
-5V
ISA_14
ISA_14 (14)
VCC3_SB
PIRQ#A (12,18)
PIRQ#C (12,18)
PCIRST#2 (18,21)
PGNT#5 (12)
PME# (11,12,18,25)
AD30 (11,12,18,25)
AD28 (11,12,18,25)
VCC3
AD26 (11,12,18,25)
AD24 (11,12,18,25)
AD22 (11,12,18,25)
AD20 (11,12,18,25)
AD18 (11,12,18,25)
AD16 (11,12,18,25)
FRAME# (11,12,18,25)
TRDY# (11,12,18,25)
STOP# (11,12,18,25)
SMBCLK (11,13,14,15,18)
SMBDATA (11,13,14,15,18)
PAR (11,12,18,25)
AD15 (11,12,18,25)
AD13 (11,12,18,25)
AD11 (11,12,18,25)
AD9 (11,12,18,25)
C_BE#0 (11,12,18,25)
AD6 (11,12,18,25)
AD4 (11,12,18,25)
AD2 (11,12,18,25)
AD0 (11,12,18,25)
ISA_NOGO (13)
ISA_GNT# (12)
Springdale Reference & Swing Voltage Circuit AGP TERMINATION RESISTORS AGP SLOT DECOUPLING CAPACITORS
C313
0.1u
C409
0.1u
VCC3_SB
VCC5
VCC_AGP
R310
8.2KR
A A
G_DET#
8
+12V VCC_AGP
R321
8.2KR
GPERR#
R664 2.2KR
Q39
N-MMBT3904_SOT23
R315
8.2KR
Q38
N-MMBT3904_SOT23
R317
100R
VCC_AGP
7
R313 60.4R1%
R314 39.2R1%
Q40
N-2N7002_SOT23
G_DET#
FLOATING
LOW
SPEC
AGP2.0
AGP3.0
R309
39.2R1%
AGP_REFAGPREF
R318
100R1%
C328
0.1u
C326
0.1u
AGP_REF
0.75V>0.55V
0.35V<0.55V
6
GSWING (8)
AGP_REF (8)
GSERR#
R308 8.2KR
5
VCC_AGP
+12V
4
C320
0.1u
C319
0.1u
C368
0.1u
C314
0.1u
VCC_AGP
3
C325
0.1u
C322
0.1u
C327
0.1u
C323
0.1u
C321
0.1u
C281
0.1u
VCC3
C315
0.1u
C280
0.1u
C316
0.1u
VCC_AGP
MSI
Title
Size Document Number Rev
Date: Sheet
2
C277
0.1u
MICRO-STAR INt'L CO., LTD.
AGP 1.5V SLOT & Eext PCI
6772
17 26Thursday, April 03, 2003
1
0A
of
Page 18

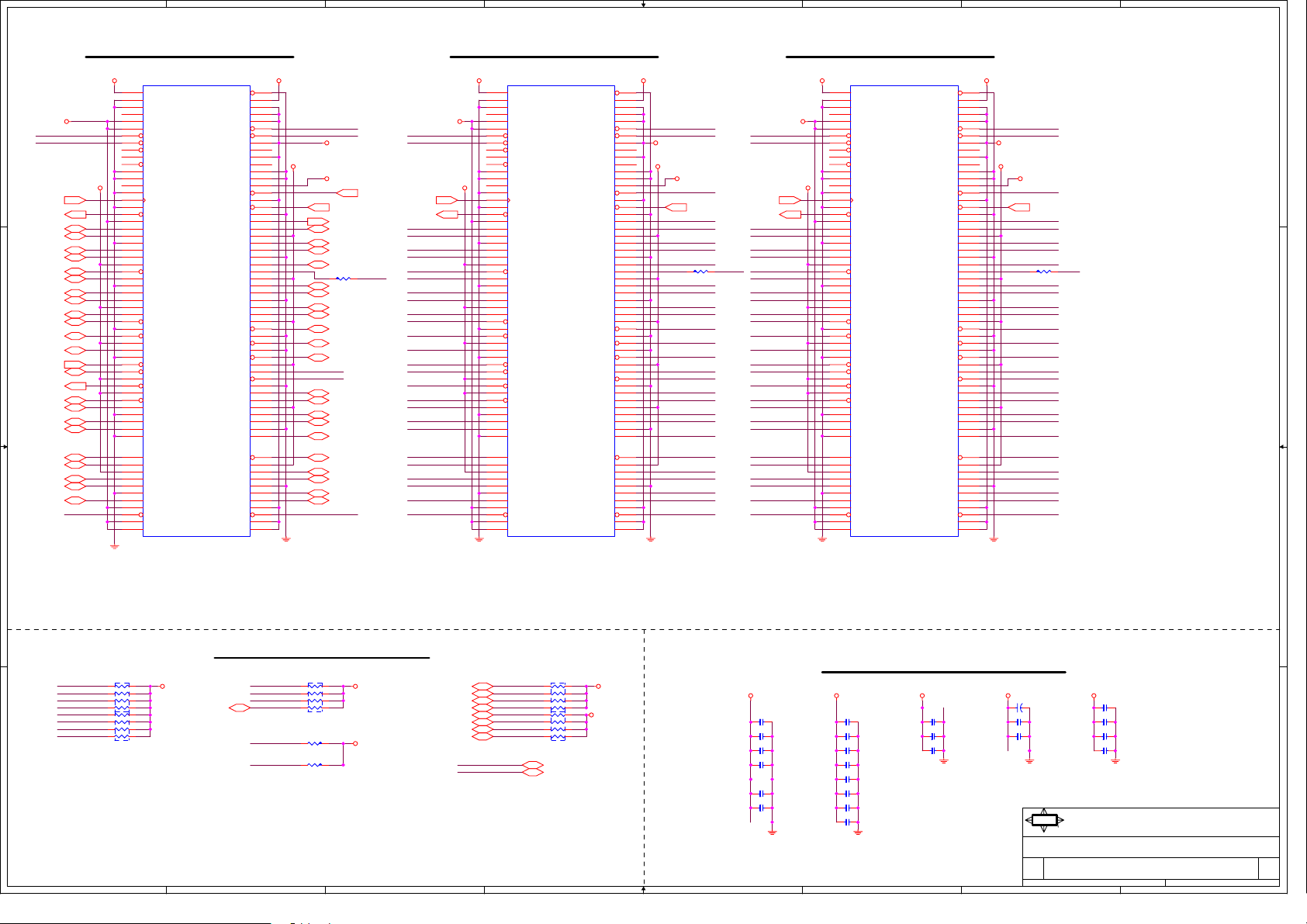

8
7
6
5
4
3
2
1
PCI SLOT 1 (PCI VER: 2.2 COMPLY) PCI SLOT 2 (PCI VER: 2.2 COMPLY)
-12V
PCI1
B1
-12V
B2
TCK
B3
GND
B4
TDO
D D
VCC5
PIRQ#B
PIRQ#D
PCI_CLK0(14)
PREQ#0(12)
AD31(11,12,17,25)
AD29(11,12,17,25)
AD27(11,12,17,25)
AD25(11,12,17,25)
C_BE#3
1,12,17,25)
AD23(11,12,17,25)
AD21(11,12,17,25)
AD19(11,12,17,25)
AD17(11,12,17,25)
C_BE#2
1,12,17,25)
IRDY#
11,12,17,25)
C C
DEVSEL#,12,17,25)
LOCK#(12,17)
PERR#11,12,17,25)
SERR#11,12,17,25)
C_BE#1
1,12,17,25)
AD14(11,12,17,25)
AD12(11,12,17,25)
AD10(11,12,17,25)
AD8(11,12,17,25)
AD7(11,12,17,25)
AD5(11,12,17,25)
AD3(11,12,17,25)
AD1(11,12,17,25)
ACK#64
B B
B5
+5V
B6
+5V
B7
INTB#
B8
INTD#
B9
PRSNT#1
B10
RESERVED
B11
PRSNT#2
B12
GND
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI
VCC3 VCC3
RESERVED
+5V(I/O)
RESERVED
RESERVED
+5V(I/O)
RESERVED
FRAME#
SDONE
C/BE#0
+5V(I/O)
REQ64#
IDSEL = AD16 IDSEL = AD17
TRST#
+12V
TMS
INTA#
INTC#
GND
GND
RST#
GNT#
GND
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3
AD22
AD20
GND
AD18
AD16
+3.3V
GND
TRDY#
GND
STOP#
+3.3V
SBO#
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
+3.3V
AD6
AD4
GND
AD2
AD0
+12V
A1
A2
A3
A4
TDI
A5
+5V
A6
A7
A8
+5V
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
+5V
A62
+5V
VCC3
PCIRST#2
ID1
R375 330R
SMBCLK
SMBDATA
PIRQ#A
PIRQ#C
VCC5
PCIRST#2 (17,21)
PGNT#0 (12)
PME# (11,12,17,25)
AD30 (11,12,17,25)
AD28 (11,12,17,25)
AD26 (11,12,17,25)
AD24 (11,12,17,25)
AD16
AD22 (11,12,17,25)
AD20 (11,12,17,25)
AD18 (11,12,17,25)
AD16 (11,12,17,25)
FRAME# (11,12,17,25)
TRDY# (11,12,17,25)
STOP# (11,12,17,25)
PAR (11,12,17,25)
AD15 (11,12,17,25)
AD13 (11,12,17,25)
AD11 (11,12,17,25)
AD9 (11,12,17,25)
C_BE#0 (11,12,17,25)
AD6 (11,12,17,25)
AD4 (11,12,17,25)
AD2 (11,12,17,25)
AD0 (11,12,17,25)
REQ#64
PIRQ#C
PIRQ#A
PCI_CLK1(14)
PREQ#1(12)
AD31
AD29
AD27
AD25
C_BE#3
AD23
AD21
AD19
AD17
C_BE#2
IRDY#
DEVSEL#
LOCK#
PERR#
SERR#
C_BE#1
AD14
AD12
AD10
AD8
AD7
AD5
AD3
AD1
ACK#64
-12V
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B1
B2
B3
B4
B5
B6
B7
B8
B9
PCI2
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI
TRST#
+12V
TMS
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
RESERVED
RST#
+5V(I/O)
GNT#
GND
RESERVED
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SDONE
SBO#
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
C/BE#0
+3.3V
AD6
AD4
GND
AD2
AD0
+5V(I/O)
REQ64#
+12V
A1
A2
A3
A4
TDI
A5
+5V
A6
A7
A8
+5V
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
+5V
A62
+5V
VCC3
VCC5
ID2
PIRQ#B
PIRQ#D
PCIRST#2
PGNT#1 (12)
PME#
AD30
AD28
AD26
AD24
R374 330R
AD22
AD20
AD18
AD16
FRAME#
TRDY#
STOP#
SMBCLK
SMBDATA
PAR
AD15
AD13
AD11
AD9
C_BE#0
AD6
AD4
AD2
AD0
REQ#64
AD17
PCI SLOT 3 (PCI VER: 2.2 COMPLY)
-12V
PCI3
B1
-12V
B2
TCK
B3
GND
B4
TDO
B5
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B6
B7
B8
B9
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
SLOT-PCI
VCC5VCC5
PIRQ#D
PIRQ#B
VCC3
PCI_CLK2(14)
PREQ#2(12)
AD31
AD29
AD27
AD25
C_BE#3
AD23
AD21
AD19
AD17
C_BE#2
IRDY#
DEVSEL#
LOCK#
PERR#
SERR#
C_BE#1
AD14
AD12
AD10
AD8
AD7
AD5
AD3
AD1
ACK#64
IDSEL = AD18
TRST#
+12V
TMS
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
RESERVED
RST#
+5V(I/O)
GNT#
GND
RESERVED
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SDONE
SBO#
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
C/BE#0
+3.3V
AD6
AD4
GND
AD2
AD0
+5V(I/O)
REQ64#
+12V
A1
A2
A3
A4
TDI
A5
+5V
A6
A7
A8
+5V
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
+5V
A62
+5V
VCC3
VCC5
PIRQ#C
PIRQ#A
PCIRST#2
PME#
AD30
AD28
AD26
AD24
ID3
AD22
AD20
AD18
AD16
FRAME#
TRDY#
STOP#
SMBCLK
SMBDATA
PAR
AD15
AD13
AD11
AD9
C_BE#0
AD6
AD4
AD2
AD0
REQ#64
VCC3_SBVCC3_SBVCC3_SB
PGNT#2 (12)
R413
330R
AD18
MASTER = PREQ#2MASTER = PREQ#1MASTER = PREQ#0
PIRQ#A PIRQ#D PIRQ#C
RN61
DEVSEL#
TRDY#
IRDY#
FRAME#
SERR#
PERR#
LOCK#
STOP#
A A
8P4R-8.2KR
12
VCC3 VCC3 VCC5
34
56
78
12
34
RN62
56
8P4R-8.2KR
78
8
PCI PULL-UP / DOWN RESISTORS
PREQ#2
PREQ#1
PREQ#3(11,12)
PREQ#3
REQ#64
ACK#64 SMBCLK
7
12
34
56
78
R366 4.7KR
R369 4.7KR
RN57
8P4R-8.2KR
VCC5
PCI SLOT DECOUPLING CAPACITORS
SMBDATA
PIRQ#B
PIRQ#DPREQ#0
PIRQ#A
PIRQ#C
PIRQ#G
PIRQ#E
PIRQ#F
PIRQ#H
PIRQ#B(12,17)
PIRQ#D(12,17)
PIRQ#A(12,17)
PIRQ#C(12,17)
PIRQ#G(11,12)
PIRQ#E(12)
PIRQ#F(12)
PIRQ#H(12,25)
6
78
56
RN55
34
8P4R-2.7KR
12
78
VCC3
56
RN60
34
8P4R-8.2KR
12
SMBCLK (11,13,14,15,17)
SMBDATA (11,13,14,15,17)
5
EC43
C10U16EL
C428
0.1u
C399
0.1u
MSI
2
VCC3_SB
C435
0.1u
C371
0.1u
C381
0.1u
C354
0.1u
MICRO-STAR INt'L CO., LTD.
PCI 1& 2 & 3 Slots
6772
18 26Thursday, February 27, 2003
1
0A
of
VCC5
C427
0.1u
C356
0.1u
C400
0.1u
C367
0.1u
C370
0.1u
C357
0.1u
4
VCC3
C369
0.1u
C358
0.1u
C395
0.1u
C384
0.1u
C385
0.1u
C430
0.1u
C359
0.1u
C396
0.1u
-12V
C434
0.1u
C382
0.1u
C426
0.1u
3
+12V
+
Title
Size Document Number Rev
Date: Sheet
Page 19
8
7
6
5
4
3
2
1

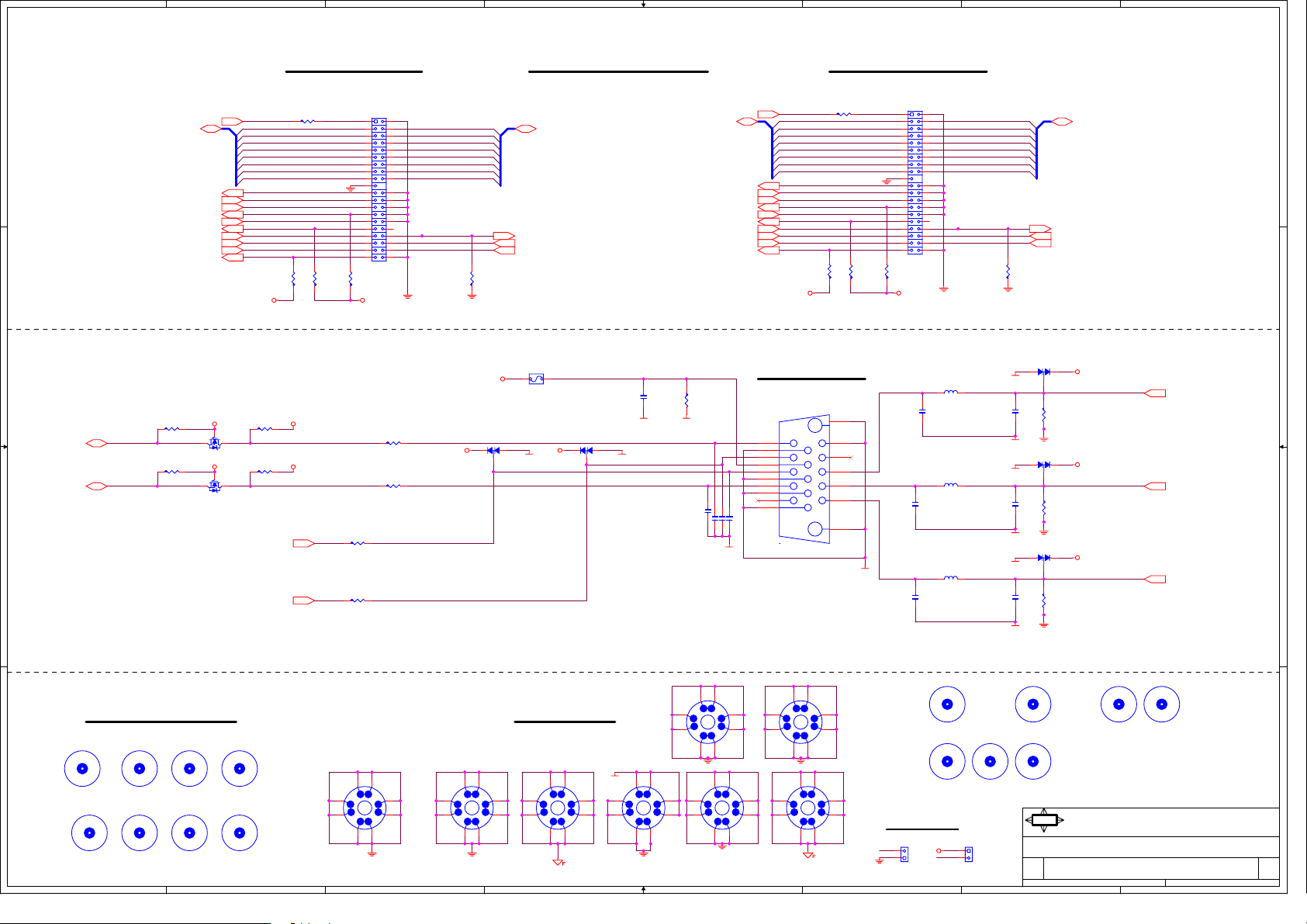

ATA 33/66/100 IDE ConnectorsPRIMARY IDE BLOCK SECONDARY IDE BLOCK
IDE2
IDE1
D D
C C
3VDDCCL(8)
3VDDCDA(8)
B B
HD_RST#(21)
PDD[0..7](12)
PD_DREQ(12)
PD_IOW#(12)
PD_IOR#(12)
PD_IORDY(12)
PD_DACK#(12)
PD_CS#1(12)
PD_LED(22)
R223 2.2KR
Q28 N-2N7002_SOT23
R224 2.2KR
Q29 N-2N7002_SOT23
IRQ14(12)
PD_A1(12)
PD_A0(12)
VCC3
VCC3
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
R371
4.7KR
R222 2.2KR
5VDDCCL
R221 2.2KR
5VDDCDA
CRT_HSYNC(8)
CRT_VSYNC(8)
R192 33R
VCC5
VCC5
R256
8.2KR
HDRST#P
R175 47R
R170 47R
CONN-IDE(20)V_blue
1
2
3 4
5 6
7 8
91110
12
13 14
1615
17 18
19
22
21
24
23
26
25
28
27
30
29
32
31
34
33
36
35
38
37
4039
R277
4.7KR
VCC3VCC3
R160 100R
R156 100R
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14PDD1
PDD15PDD0
R246
15KR
VCC5
5V_DCCL
5V_DCDA
Place clamping diodes close to VGA conn.
VCC5 VCC5
PDD[8..15] (12)
PD_DET (14)
PD_A2 (12)
PD_CS#3 (12)
FS2 F-MICROSMD110
POLY SWITCH
D10 X_BAV99D11 X_BAV99
HSYNC
VSYNC
C145
C47P50N
C152
C47P50N
C182
0.1u
C157
C47P50N
C166
C47P50N
SDD[0..7](12)
VGA_PWR
R183
X_47K
FOR ESD
HD_RST#(21)
SD_DREQ(12)
SD_IOW#(12)
SD_IOR#(12)
SD_IORDY(12)
SD_DACK#(12)
IRQ15(12)
SD_A1(12)
SD_A0(12)
SD_CS#1(12)
SD_LED(22)
Video Connector
15
10
14
9
13
8
12
7
11
6
R194 33R
SDD7
SDD6
SDD5
SDD4
SDD3
SDD2
SDD1
SDD0
4.7KR
R236
8.2KR
17
5
4
3
2
1
16
R205
VCC3 VCC3
VGA1
CONN-VGA
CONN-IDE(20)V_white
HDRST#S
1
2
3 4
5 6
7 8
91110
12
13 14
1615
17 18
19
22
21
24
23
26
25
28
27
30
29
32
31
34
33
36
35
38
37
4039
R238
4.7KR
FB16 0.082U300m
CRTB
C164
C22P50N
50V
BLUE "rounted GND", use one via to GND.
CRTG
FB17 0.082U300m
C174
C22P50N
50V
GREEN "rounted GND", use one via to GND.
CRTR
FB18 0.082U300m
C180
C22P50N
50V
RED "rounted GND", use one via to GND.
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15
SD_DET (14)
SD_A2 (12)
SD_CS#3 (12)
R218
15KR
1PS226_SOT23
D14
C169
C3.3P50N
C176
C3.3P50N
C185
C3.3P50N
Place another RC to close VGA connector.
1PS226_SOT23
D13
1PS226_SOT23
D12
R203
75R1%
R206
75R1%
R207
75R1%
SDD[8..15] (12)
VCC_AGP
CRT_B (8)
VCC_AGP
CRT_G (8)
VCC_AGP
CRT_R (8)
Simulation
J2
X_PIN1*2
3
FM11
X
X_FM
FM5
X
X_FM
5VDUAL
J1
SIM1
X_PIN1*2
7
7
8
Optics Orientation Holes Mounting Holes
X
X
X_FM
X_FM
FM17
FM1
X
X
X_FM
X_FM
7
7
7
8
9
2
MH4
7
6
5
3
4
6
8
9
2
MH2
6
5
3
4
8
9
2
MH3
6
9
5
2
3
4
5
MH1
FM16
X
A A
X_FM
FM13
FM18
FM3
X
X_FM
8
FM19
X
X_FM
FM14
X
X_FM
9
2
MH8
7
8
6
5
3
4
6
5
3
4
7
8
9
2
MH6
3
4
4
8
9
2
MH7
9
6
2
5
MH5
6
5
3
4
7
8
6
5
3
4
SIM2
FM7
X
FM9
X
X_FM
FM4
X
X_FM
X_FM
MSI
Title
Size Document Number Rev
Date: Sheet
2
FM6
FM2
X
X
X_FM
X_FM
MICRO-STAR INt'L CO., LTD.
ATA33/66/100 IDE & VIDEO Connectors
6772
19 26Wednesday, April 02, 2003
1
0A
of
Page 20
E
D
C
B
A

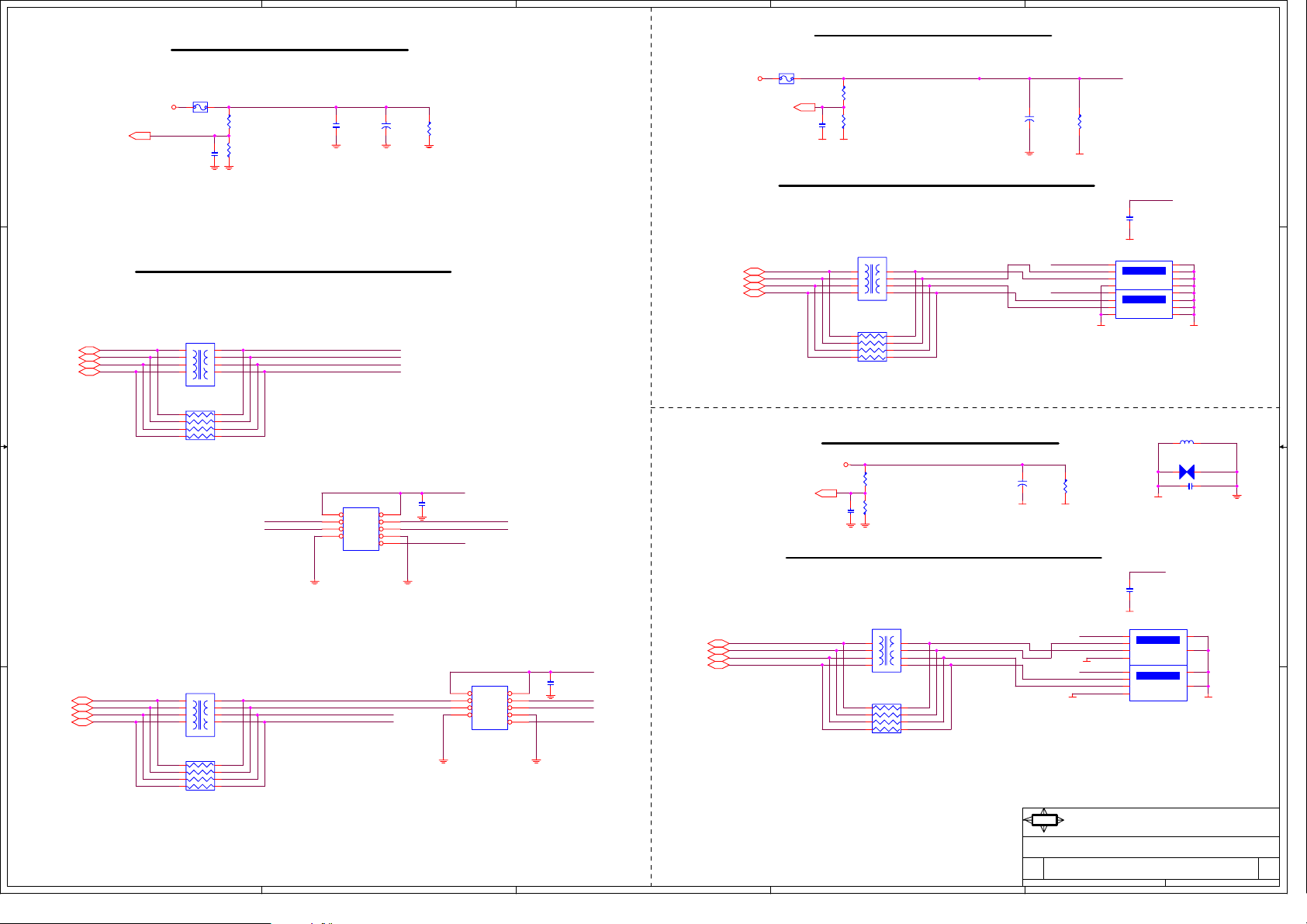

POWER CIRCUIT FOR USB PORT 0,1,2,3
POWER CIRCUIT FOR USB PORT 4,5
FS3
5VDUAL
5VDUAL
4 4
F-MINISMDM260
OC#3_4(13)
0.1u
C397
R395
2.7KR
R390
5.1KR
C408
C1U16Y0805
NEAR USB CONNECTOR
FS4
1 2
REAR PANEL USB CONNECTOR FOR USB PORT 0,1,2,3
3 3
2 2
USB4-(13)
USB4+(13)
USB5-(13)
USB5+(13)
NEAR USB CONNECTOR
L20
4
5
3
6
2
7
1
8
X_CMC-L02-9007030-C71
RN79
7 8
5 6
3 4
1 2
8P4R-0R
USB2
SBD5ÂSBD5+ SBD4+
12
34
56
78
H2X5(9)_yellow
USBVCC3_4
+
EC48
CD1000U6.3EL15
SBD4ÂSBD4+
SBD5ÂSBD5+
10
R454
1KR
USBVCC3_4
C410 C1000P50X
SBD4-
USB3+(13)
USB3-(13)
USB2+(13)
USB2-(13)
12
F-MINISMDC150
OC#2(13)
C227
0.1u
R225
2.7KR
R226
5.1KR
NEAR USB CONNECTOR
REAR PANEL USB CONNECTOR FOR USB PORT 4,5
L19
1
8
2
7
3
6
4
5
X_CMC-L02-9007030-C71
RN78
1 2
3 4
5 6
7 8
8P4R-0R
POWER CIRCUIT FOR USB PORT6,7
KB_VCC
OC#1(13)
0.1u
R40
2.7KR
R45
5.1KR
C20
NEAR USB CONNECTOR
REAR PANEL USB CONNECTOR FOR USB PORT 6,7
USBVCC2
+
CD1000U6.3EL15
USBVCC1
+
EC13
CD1000U6.3EL15
EC25
USBVCC2
SBD3ÂSBD3+
USBVCC2
SBD2ÂSBD2+
1KR
R190
1KR
C193
C1000P50X
5
6
7
8
1
2
3
4
C5
C1000P50X
USBVCC2
LAN_USB1A
UP
DOWN
XX
USBVCC1
23
24
25
26
27
28
29
30
FB8 X_0R
CP22 X
C171 X_0.1uR39
L21
1
USB0+(13)
USB0-(13)
USB1+(13)
USBVCC3_4
L22
4
USB6-(13)
USB6+(13)
USB7-(13)
USB7+(13)
X_CMC-L02-9007030-C71
1 1
E
3
2
1
RN81
7 8
5 6
3 4
1 2
8P4R-0R
5
6
7
8
SBD6ÂSBD6+ SBD7+
SBD7ÂSBD7+
D
USB3
12
34
56
78
10
D2x5-1:2
C393 C1000P50X
SBD7-
USB1-(13)
X_CMC-L02-9007030-C71
C
2
3
4
RN80
1 2
3 4
5 6
7 8
8P4R-0R
8
7
6
5
MSI
Title
Size Document Number Rev
B
Date: Sheet
USB Connectors
USB1
USBVCC1
SBD0ÂSBD0+
USBVCC1
SBD1ÂSBD1+
5
6
7
8
1
2
3
4
5
6
7
UP
8
1
2
3
DOWN
4
9
10
11
12
H2X5(9)_yellow
9
10
11
12
MICRO-STAR INt'L CO., LTD.
6772
A
20 26Thursday, April 03, 2003
of
0A
Page 21

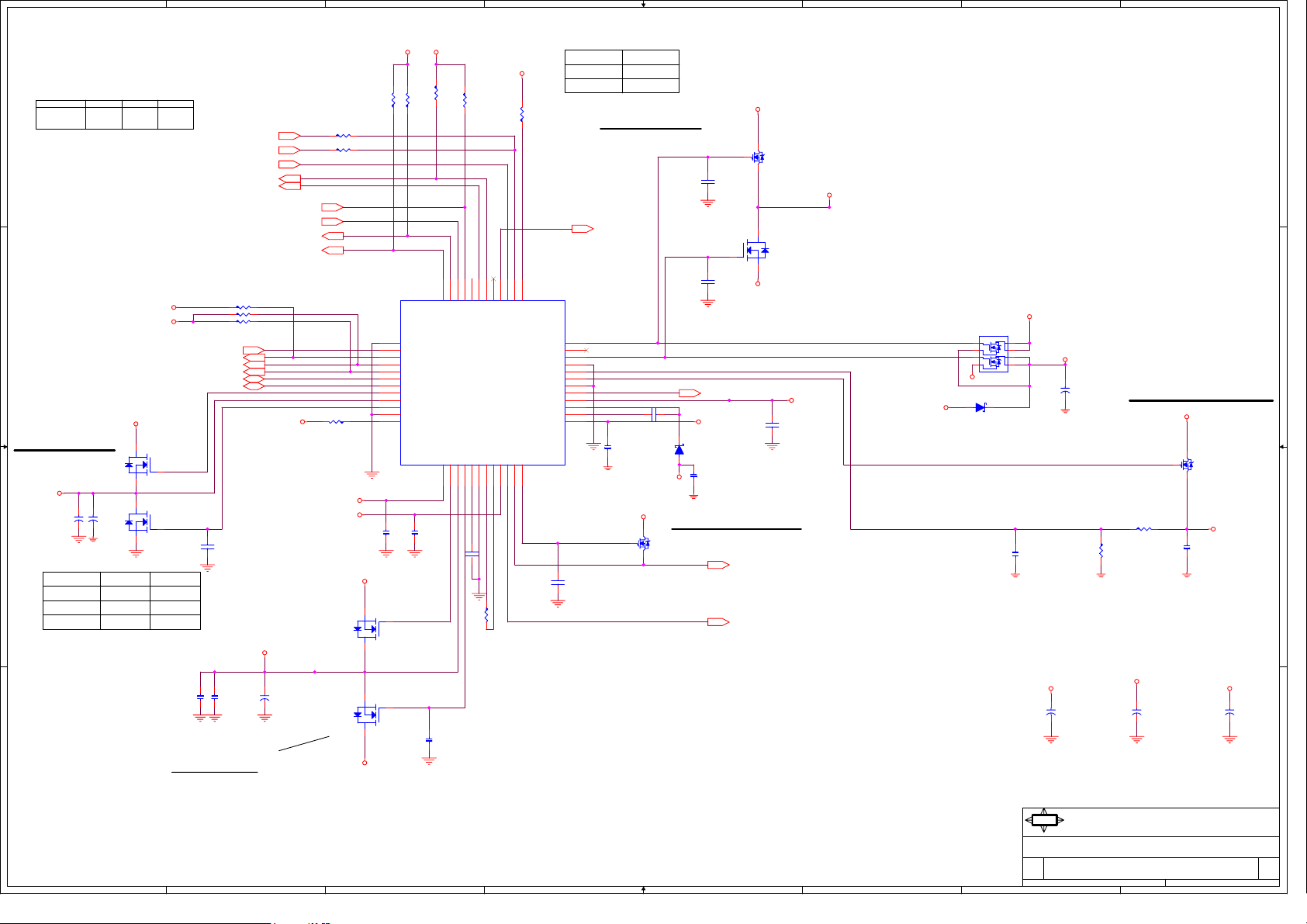

8
VCC3_SB Main Standby
VCC5_STR
D D
**INPUT 2 AND 3 MUST BE HI LEVEL WHEN USE
OUTPUT 1 AND 2 FOR GPIO FUNCTION
C C
DDR VTT Power
1.25V/2.1A
VTT_DDR
CD1000U6.3EL15
B B
TRI-STATE 3.3VSB
Pin 15,19,22,32 Must
reserve capacitor.
S0Power S5S3
Main
Main
+
+
EC12
EC28
CD1000U6.3EL15
SEL1
VRAM
3.3VDUALH
3.3VSTR
L
FOR 3VSB OR 3VSTR
SETTING BY SEL1
Standby
Standby
VCC_DDR
D
S
D
S
Standby
VCC5
VCC3
Q33
XX
G
G
Q6
XX
VRAM_2.5
2.5V
2.5V
1.25V
0.1u
0V
0VMEM_STR
PCIRST_ICH5#(12,14,17)
SMBDATA_ISO(9,10,14)
C448
PCI 375+20+20= 415mA
A A
8
VCC3_SB
PWROK_SMB(14)
R322 330R
R319 X_330
R312 180R
HD_RST#(19)
PCIRST#2(17,18)
PCIRST#1(6,11,14,15,25)
SMBCLK_ISO(9,10,14)
C2
X
C451
0.1u
ICH5 300mA
715mA
7
SLP_S5#(13)
SLP_S4#(13,24)
SLP_S3#(13,22)
MS5_POK(6)
VCC3_SB
7
R325
330R
R658 X_0
R659 0R
SLP_S3#
MS5_RST#(22)
PWR_OK(22)
PLED1(22)
PLED2(22)
Near
302D
PCIRST#2
PCIRST#1
VTT_GATEH
VTT_GATEL
VCC5_SB
R304 10KR
VCC5
VCC5_SB
VCC3
FOR 3VDUAL
SETTING BY
SEL1
+
EC50
CD1000U6.3EL15
** SETTING 3VSTR THEN VRAM_2.5
BECOME TO 1.25 VREF
S
N-P45N02LD_TO252
D
S
Q52
D
VCC5_SB
6
VCC5_SB
R324
330R
1
DGND
2
PCIRST#/GPIOA
3
HDD_RST#/GPIOA
4
SLOT_RST#/GPIOA
5
DEV_RST#/GPIOA
6
I2C_DATA
7
I2C_CLK
8
BT_DRV
9
BT_SEN
10
BT_SINK
11
AGND0
12
SEL1
C294
C305
0.1u
0.1u
3VSB_GATE1
G
Q53
Wide Trace
3VSB_GATE2
G
XX
6
VCC3
R328
1KR
R329
4.7KR
48
PLED0
PLED1
PWR_OK
FP_RST#/GPIOB
PWR_OK1/GPIOC
VCC
VRAMDRV2
VRAMSEN
VRAMDRV1SSAGND1
1314151617181920212223
C295
C0.47U10X
X7R
R666
1K
C293
X_102P
5
VCC5_SB
R326
10KR
RSMRST#
3738394041424344454647
SLP_S5#
SLP_S3#
5V_USB
5VSB_DRV
5V_DRV
S5O#/GPIOB/SEL0
RSM_RST#/GPIOB
CPU_PWGD/GPIOC
CHIP_PWGD/GPIOC
TYPEDET#
EXTRA_PWGD/GPIOC
VAGP_SEN
VAGP_DRV
AGND2
1.25VREF
9VSB
C2
C1
VCC3
VRAM_2.5_DEN
VRAM_2.5_DRV
5VSB
VRGOOD
1.2V_SEN
1.2V_DRV
24
W83302-GCRB
C296
X
THIS PIN IS OPEN DRAIN OUTPUT
5
SEL0
U14
36
35
34
33
32
31
30
29
28
27
26
25
H
L
RSMRST# (13)
VID_G2
5VUSB
2 MOSFET
1 MOSFET
5V DUAL Power
5VDUAL_GATEH
5VDUAL_GATEL
VREF1_25
C308
C4.7U10Y0805
C306
0.1u
VCC5_SB
VCC3
VCC_VID / VID_GOOD
DS
Q36
G
N-NDS351AN_SOT23
VCC_VID
4
**S5O# pin function(Hi level = 5V)
same as 5VUSB(Hi level = 12V)
5VUSB USE 2 MOSFET
VCC5_SB
DS
Q51
G
G
N-SI2302DS_SOT23
D
Q34
N-P45N02LD_TO252
S
VCC5
5VDUAL
C417
C2200P50X
C267
X
Low RDS ON MOSFET
VREF1_25
VCC3
D15
S-1N5817_DO214AC
C330
0.1u
9VSB
C312
C1U10Y
CHARGE PUMP VOLTAGE OUTPUT
Place MOSFET near CPU
VCC_VID (5,23)
1.2V/150mA
VID_GD (23)
4
3
Q81
NN-P07D03LV_SO8
4 5
3
2
1
VCC5
D36
VCC5
S-1N5817_DO214AC
VCC_DAC_FB
2
VCC5_SB
6
DDR_5VDUAL
7
8
+
EC54
CD1000U6.3EL15
VCC_DAC_G2
R337
C337
C1000P50X
EC32
CD1000U6.3EL15
X_226R1%
VCC5 VCC5_SB
+
1.7V Voltage Regulation
VCC3
G
R276
0R
VCC3
+
EC85
CD1000U6.3EL15
1
DS
Q32
N-2N7002_SOT23
1.7V/60mA
C238
0.1u
EC30
CD1000U6.3EL15
VCC_DAC
+
Near Pin 21
MSI
Title
Size Document Number Rev
3
Date: Sheet
MICRO-STAR INt'L CO., LTD.
W83302 ACPI controller
2
6772
21 26Wednesday, April 02, 2003
1
0A
of
Page 22
8
7
6
5
4
3
2
1

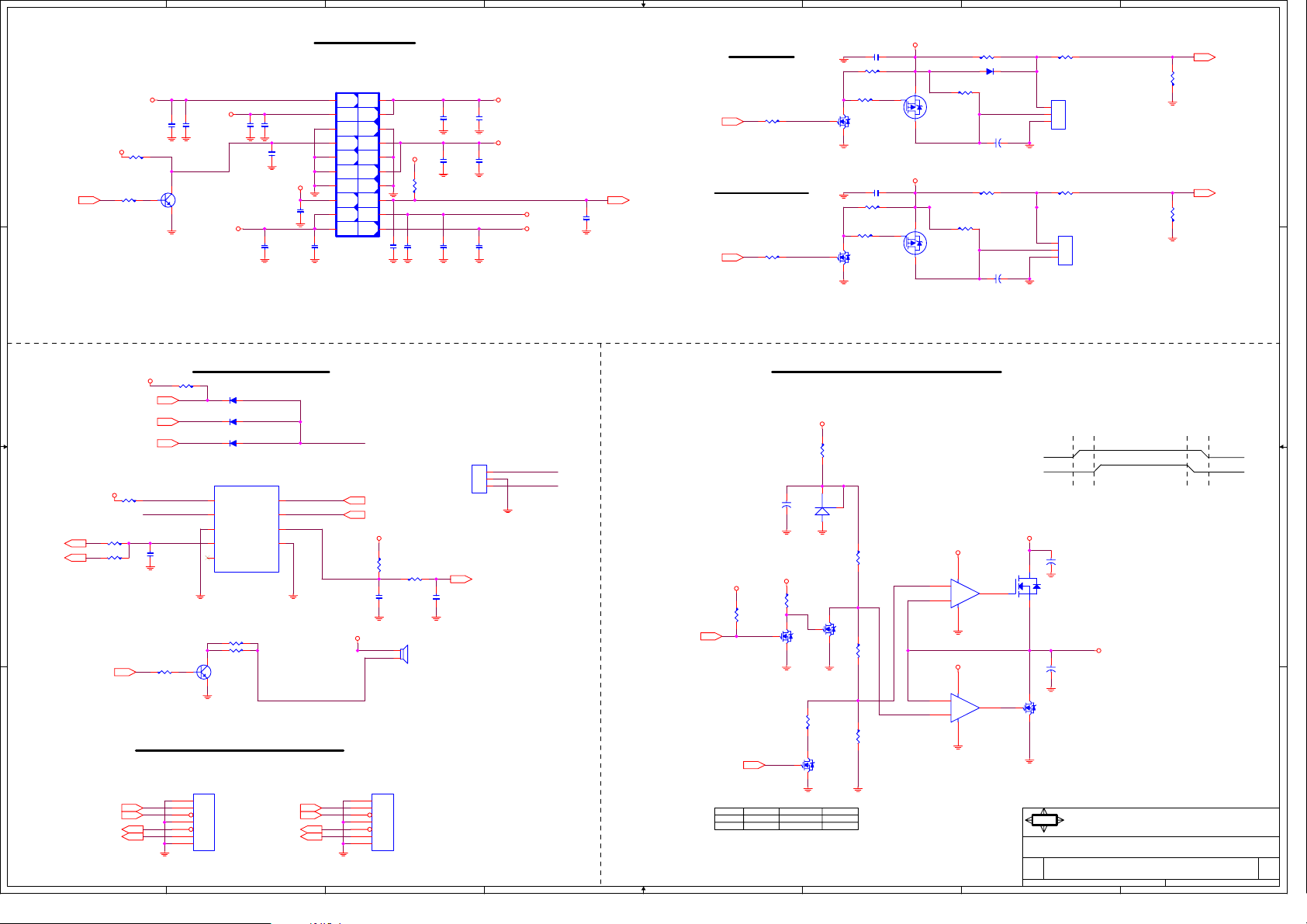

ATX Connector
CPU FAN
Q3
N-2N7002_SOT23
Q17
N-2N7002_SOT23
VCC5
R165
220R
VR1
3 1
Q23
R164
20KR1%
Q22
1.45V
1.225V
R1 2.2KR
R2
R131 2.2KR
R130
2
R171
ATX1
3.3V
-12V
GND
PSON
GND
GND
GND
-5V
5V
5V
VCC5
3.3V
3.3V
GND
5V
GND
5V
GND
POK
5VSB
12V
C106
C1000P50X
PLED1 (21)
PLED2 (21)
VCC3_SB
1
2
3
4
5
6
7
8
9
10
R561
1KR
CB11
X_0.1u
BZ1
BUZZER
VCC5
R562
510R
R133
10KR
C129
C33P50N
C196
0.1u
C141
X
C127
0.1u
C498
C1U16Y0805
VCC3
C187
X
VCC5
C161
X
C123
0.1u
JFP2
1
2
3
_
PWRBTN# (13)
PLED1
PLED2
VCC5_SB
+12V
PWR_OK
C137
X_0.1u
PWR_OK (21)
CPU_CTRL(15)
R11 510R
SYSTEM FAN
SYS_CTRL(15)
R129 510R
Intel reference GMCH VTT power cirucit
+
C155
C1U10Y
APL431BAC_SOT23
R649
1KR
VCC5
R149
1KR
Q24
N-2N7002_SOT23
VCC3
VRM_GD(13,23)
N-2N7002_SOT23
VCC3
D D
SLP_S3#(13,21)
C C
MS5_RST#(21)
ICH_RST#(13)
B B
ICH5 will debounce signal on this
pin(16ms) and allow the SMBus to
go idle before resetting the
system
R407 X_0
R408 0R
SPKR(13)
C181
VCC5_SB
R167 4.7KR
R560 4.7KR
B
VCC3
GPIO33(13)
PD_LED(19)
SD_LED(19)
VCC3
R392 56R
R458
C33P50N
R396 4.7KR
HDD+ PLED1
FP_RST#
0.1u
C387
-12V
C255
C184
X
0.1u
C167
X_C1000P50X
CE
Q82
N-MMBT3904_SOT23
VCC5
C115
0.1u
Front Panel Connector
D23 1N4148_SOD123
D20 1N4148_SOD123
D21 1N4148_SOD123
JFP1 _
1
HDD+
3
HDD-
5 6
RESET- PWSW+
7
RESET+
NC
R424 220R
R459 220R
CE
Q50
N-MMBT3904_SOT23
PWSW-
2.2KR
9
B
PLED
SLED
C178
C33P50N
C47
0.1u
11
12
13
14
15
16
-5V
17
18
19
20
POWER
C125
C33P50N
SATA LED
IDE_LED
2
PLED2IDE_LED
4
8
PWSW+
SERIAL ATA CONNECTOR BLOCK
BOOT+(23)
BOOT
LOW
HIGH
4
N-2N7002_SOT23
CPU Voltage
Northwood
Prescott
A A
SATA_TX0(13) SATA_TX1(13)
SATA_RX#0(13)
SATA_RX0(13)
8
SATA1
1
GND
2
HT+
3
HT-
4
GND
5
HR-
6
HR+
7
GND
CONN-SATA1_black
SATA2
1
GND
2
HT+
SATA_TX#1(13)SATA_TX#0(13)
SATA_RX#1(13)
SATA_RX1(13)
7
3
HT-
4
GND
5
HR-
6
HR+
7
GND
CONN-SATA1_black
6
5
+12V
X_33pC6 R44 27KR
SD
G
1KR
P-PMBT2907ALT1_SOT23
+12V
X_33pC102 R121 27KR
SD
G
1KR
P-PMBT2907ALT1_SOT23
R47 4.7KR
1N4148_SOD123
R42 X_0
Q1
R122 4.7KR
R139 X_0
Q18
EC11
EC19
D35
CPUFAN1
C10U16EL
C10U16EL
FAN1X3_white
+
+
CPU_VTT
GMCH_VTT
R163
6.81KR1%
300R1%
R172
10KR1%
3
+12VP
3
+
2
-
+12VP
5
+
6
-
84
LM358MX_SOIC8
84
LM358MX_SOIC8
VCC3
+
U9A
D
G
1
U9B
7
N-NDS351AN_SOT23
XX
Q26
S
+
Q25
MSI
Title
Size Document Number Rev
Date: Sheet
2
3
2
1
SYSFAN1
3
2
1
FAN1X3_white
C189
C1U10Y
Icc=1.6A
VTT
NORTHWOOD:1.45V
EC22
PRESCOTT:1.2V
XX
MICRO-STAR INt'L CO., LTD.
Front Panel/Fan/VTT
6772
R94
R98
10KR
10KR
CPU_FAN (15)
SYS_FAN (15)
22 26Wednesday, April 02, 2003
1
0A
of
Page 23

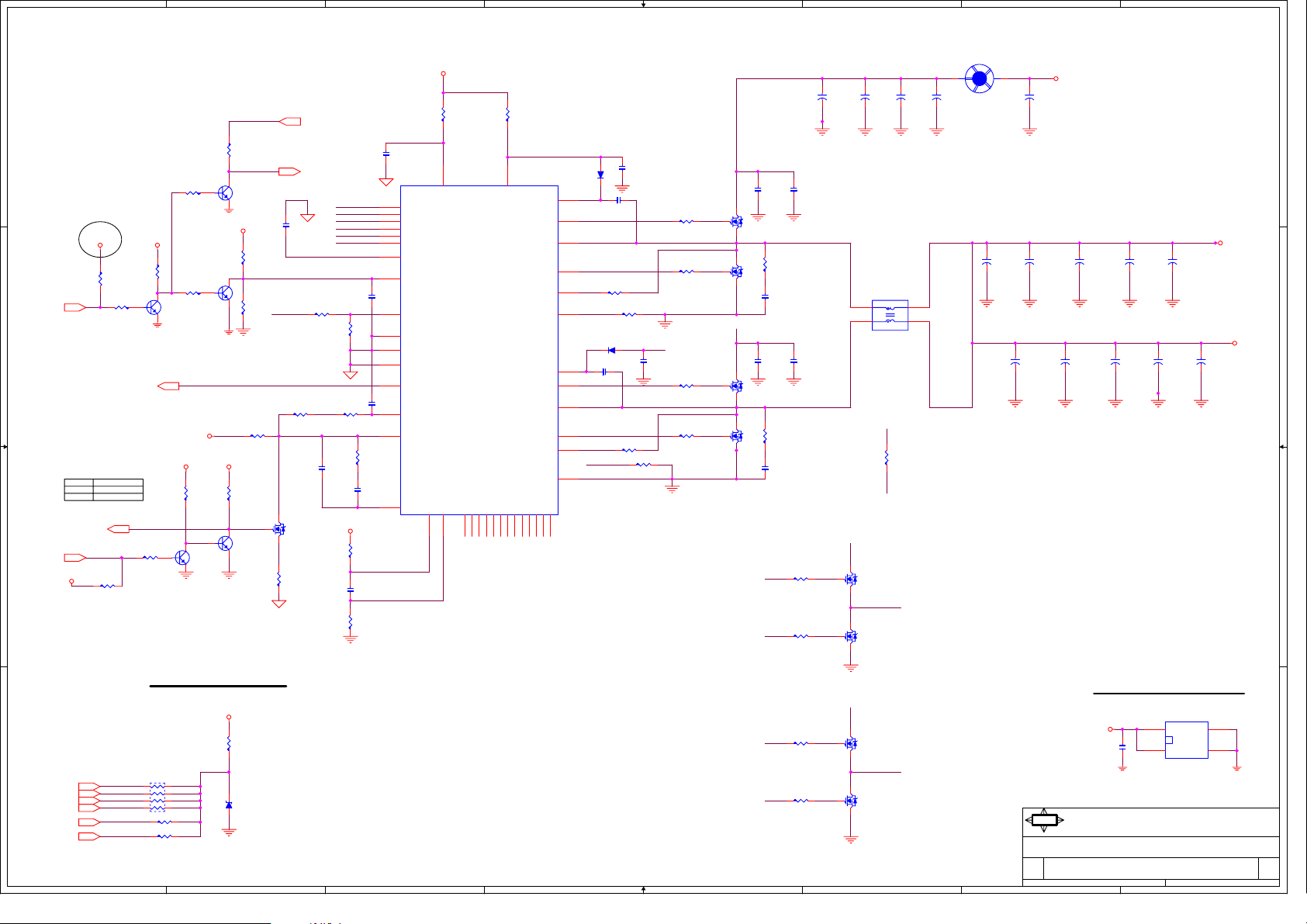

8
7
6
5
4
3
2
1
R588
12
NTC
+
EC65
CHOKE1 CH-1.1U20A
+
12
EC66
CD1800U16EL23
+
12
Phase 1
+12VP
+
12
+
12
EC68
X_2200uF/6.3V
+
12
EC73
CD2200U6.3EL20
+12VP
EC67
X_CD100U16EL11
EC69
X_2200uF/6.3V
+
12
EC74
CD1500U6.3EL16
+
12
EC70
CD2200U6.3EL20
CD1500U6.3EL16
+
12
EC75
+
12
EC71
CD2200U6.3EL20
VCCP
CD2200U6.3EL20
+
12
+
12
EC76
EC72
CD2200U6.3EL20
+
12
EC77
CD2200U6.3EL20
VCCP
VCCP
+12VP
+
12
+
12
N.C.2
N.C.4
N.C.10
N.C.11
41
VCCDR
N.C.15
N.C.16
R564
4.7R0805
VBOOT
HGATE1
PHASE1
LGATE1
HGATE2
PHASE2
LGATE2
N.C.23
N.C.32
BOOT1
ISEN1
PGNDS
BOOT2
ISEN2
PGND
N.C.34
N.C.33
N.C.37
37
N.C.44
44
D29
1N4148_SOD123
3
HGATE1
43
42
LGATE1
40
19
PGNDS
20
C509 C0.1U25X
31
HGATE2
35
36
LGATE2
38
21
PGNDS
39
C500
C1U16X0805-1
C503C0.1U25X
R573 5.76KR1%
R577 5.76KR1%
1N4148_SOD123
D30
R586 5.76KR1%
R589 5.76KR1%
VBOOT
C506
C1U16X0805-1
R566
2.2R0805
R591
3.3R0805
R579
2.2R0805
R597
3.3R0805
HG11
LG11
HG21
LG21
VIN MOS
D1
DS
Q62
G
N-IPD09N03LA_TO252
DS
Q69
G
N-PD06N03LA_TO252
VIN MOS
D1
DS
Q66
G
N-IPD09N03LA_TO252
DS
Q73
G
N-PD06N03LA_TO252
CD1800U16EL23
C501
C502
C0.1U16X
C10U16Y1206
CLOSE TO MOSFET
Q1
PHASE1
R568
4.7R
C505
C4700P25X
C507
C508
C0.1U16X
C10U16Y1206
CLOSE TO MOSFET Q2
PHASE2
R585
4.7R
C512
C4700P25X
R590
HGATE1
2.2R0805
R570
LGATE1
3.3R0805
HG12
LG12
D D
R565
4.7KR
R671
R571
4.7KR
R574
Northwood
R686
x_4.7k
1KR
VRM_GD(13,22)
VCC5_SB
R569
1KR
Q65
N-MMBT3904_SOT23
R598
10KR
R572
VCC5
VCC5_SB
VID_GD(21)
BOOT(4)
HIGH(>1.23V)
ENABLE VRM
BOOT CPU
LOW
HIGH Prescott
BOOT+(22)
VCCP
C C
B B
Q61
N-MMBT3904_SOT23
1KR
+12VP
1KR
Q64
N-MMBT3904_SOT23
560KR1%
+12VPVCC5_SB
R594
R595
4.7KR
4.7KR
Q72
Q74
N-MMBT3904_SOT23
N-MMBT3904_SOT23
R567
R575
R583
5.6KR
1KR
G
VCC_VID (5,21)
CPUVID_GD (4)
C504
C47000P25X
+12Vosc
R581
b
3KR1%
DS
Q71
N-2N7002_SOT23
R652
560KR1%
R576
NC
VID0
VID1
VID2
VID3
VID4
VID5
C570
C1000P10X
R582
0R
C511
C10P10N
VCCP
C499
C1U16X0805-1
U40 L6710TR_TQFP44
24
VID0
25
VID1
26
VID2
27
VID3
28
VID4
29
VID5
12
REF_OUT
14
OUTEN
22
OSC/Fault
R578
140KR1%
6
SGND
7
SGND
45
SGND
30
PGOOD
C510
C1000P10X
a
13
VSEN
9
FB
R587
10KR1%
C513
C0.01U50X
8
COMP
R660
0
C514
C0.1U16X
R661
0
R563
10R
+12Vosc
5
VCC
FBR
FBG
N.C.1
17181241011151623323433
EC64
EC63
CD1800U16EL23
CD1800U16EL23
Output CHOKE(0.5uH Integrated choke)
L04-05A7041-W15
L18
1 2
3 4
CMC-L04-05A7041-W15
a
CLOSE TO
MOSFET
b
D1
DS
Q68
G
N-IPD09N03LA_TO252
PHASE1
DS
Q63
G
N-PD06N03LA_TO252
VID Pull-Up Rresistors
+12VP
LGATE2
R593
2.2R0805
R584
3.3R0805
R592
8P4R-4.7KR
A A
VID0
VID0(4,15)
VID1
VID1(4,15)
VID2
VID2(4,15)
VID3
VID3(4,15)
VID4
VID4(4,15)
VID5
VID5(4,15)
8
RN77
7
5
3
1
R599 4.7KR
R600 4.7KR
8
6
4
2
1KR0805
D31
Z-TZMC3V3_SOD80C
7
6
5
4
HG22HGATE2
LG22
D1
DS
Q70
G
N-IPD09N03LA_TO252
DS
Q67
G
N-PD06N03LA_TO252
PHASE2
Phase 2
MSI
Title
Size Document Number Rev
3
Date: Sheet
2
ATX12V Power Connector
JPW1
3
GND
4
PWR-2X2M
12V
GND
12V
+12VP
C515
C0.01U50X
MICRO-STAR INt'L CO., LTD.
VRM 10
6772
23 26Thursday, April 03, 2003
1
1
2
0A
of
Page 24

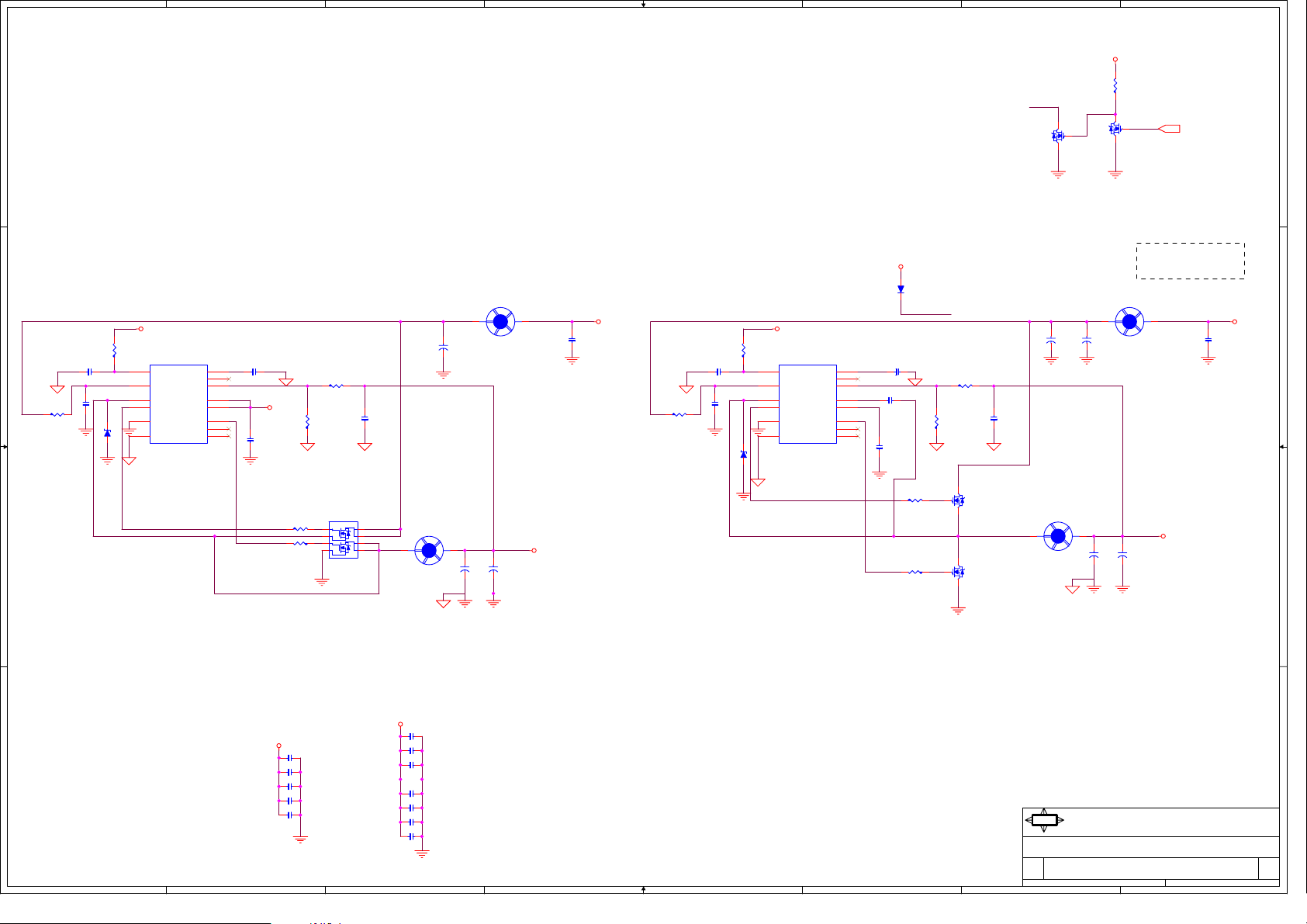

8
D D
7
6
5
4
3
OFF
N-2N7002_SOT23
2
DS
Q80
N-2N7002_SOT23
1
DDR_5VDUAL
R558
4.7KR
DS
Q79
G
G
SLP_S4# (13,21)
1.5V POWER
CH-1.2U8A
CHOKE2
L04-12A7031-T15
1.5V/4A
C516
C1U10Y
VCC5
R608
1.5KR1%
R604
C520
C0.1U16X
C523
C0.1U16X
D34
S-1N5817_DO214AC
10R0805
C C
C518
C0.1U16X
C522
R607
C0.1U16X
620R0805
B B
D33
S-1N5817_DO214AC
R603
10R0805
VCC5
1
4
5
6
7
14
U37
VCC
OCP
VSENSE
PHASE
BOOSTH
DH
BOOSTL
PGND
GND
N2101_SOIC14
VREF
SS
DL
NC
NC
C519 C0.1U25X0805
13
12
11
10
9
8
2
3
X7R
+12V
C527
C1U16X0805-1
R614 0R
R605
27.4R1%
R609
127R1%
R612
4 5
3
0R
2
1
Q75
NN-P07D03LV_SO8
C525
C1U10Y
6
7
8
First source:
P07D03LV(NIKO):D03-07D0303-N03
Second source:
7313(ANPEC):D03-0731303-A30
+
12
CHOKE4
CH-4.7U10A
L04-12A7031-T15
EC80
CD1000U6.3EL15
AGPSEN
12
+
EC81
CD1000U6.3EL15
12
+
VCC_AGP
EC82
CD1000U6.3EL15
2.5V POWER
DDR_5VDUAL
D32
1N4148_SOD123
DDR_5VDUAL
1
4
5
6
7
14
U38
VCC
OCP
VSENSE
PHASE
BOOSTH
DH
BOOSTL
PGND
GND
N2101_SOIC14
VREF
OFF
13
SS
12
11
BH
10
DDR_5VDUAL
9
8
DL
2
NC
3
NC
X7R
C521 C0.1U25X0805
C524
C1U16X0805-1
C528
C1U16X0805-1
R611
0R
R613
0R
First source:
P50N03LD(NIKO):D03-50N033B-N03
Second source:
P55N02LD(NIKO):D03-55N021B-N03
IPD12N03L(Infineon):D03-12N030B-I14
BH
G
G
R606
130R1%
R610
127R1%
DS
Q76
N-P50N03LD_TO252
DS
Q78
N-P50N03LD_TO252
C526
C1U10Y
+
12
CHOKE5
CH-4.7U10A
+
12
EC78
CD1000U6.3EL15
+
12
EC83
CH-1.2U8A
CHOKE3
L04-12A7031-T15
EC79
CD1000U6.3EL15
+
12
CD1000U6.3EL15
EC84
Iin=Iload*D/efficiency
Iin=7A*(2.5/ 5)/0.8=4.375A
VCC_DDR
2.5V/7A
CD1000U6.3EL15
DDR_5VDUAL
C517
C1U10Y
VCC5
VCC3
C579
X_0.1u
C581
A A
8
7
X_0.1u
C583
X_0.1u
C585
X_0.1u
C587
X_0.1u
C577
0.1u
C578
X_0.1u
C580
X_0.1u
C584
X_0.1u
C586
X_0.1u
C588
X_0.1u
C589
X_0.1u
6
5
4
3
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
AGP/DDR Power
6772
2
24 26Tuesday, April 01, 2003
1
0A
of
Loading...
