MSI MS-6507E User Manual

i

Version 1.0

G52-MA00561

MS-6507E (v1.X) Micro ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

ii

Manual Rev: 1.0
Release Date: March 2002

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.

Micro-Star International MS-6507E

T ested to comply
with FCC Standard

For Home or Office Use

iii

Edition

March 2002

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.

Trademarks

All trademarks are the properties of their respective owners.
Intel® and Pentium® are registered trademarks of Intel Corporation.

PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 95/98/2000/NT/XP are registered trademarks of Microsoft
Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

V1.0 First release March 2002

iv

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10 . Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

z The power cord or plug is damaged
z Liquid has penetrated into the equipment
z The equipment has been exposed to moisture
z The equipment has not work well or you can not get it work according

to User’s Manual.

z The equipment has dropped and damaged
z If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERA TURE ABOVE 600 C (1400F), IT
MA Y DAMAGE THE EQUIPMENT.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the
manufacturer.

v

CONTENTS

Chapter 1. Getting Started ........................................................................ 1-1

Mainboard Specification ......................................................................1-2

Mainboard Layout ...............................................................................1-4

Quick Components Guide .................................................................... 1-5

Key Features ........................................................................................1-6

MSI Special Features ........................................................................... 1-7

PC Alert™ III .................................................................................1-7

Chapter 2. Hardware Setup ....................................................................... 2-1

Central Processing Unit: CPU .............................................................. 2-2

CPU Installation Procedures ......................................................... 2-2

Installing the CPU Fan .................................................................. 2-3

CPU Core Speed Derivation Procedure .........................................2-4

Memory................................................................................................2-5

Introduction to DDR SDRAM....................................................... 2-5

DDR Module Combination ............................................................2-6

Installing DDR Modules ............................................................... 2-6

Power Supply ....................................................................................... 2-7

ATX 20-Pin Power Connector ....................................................... 2-7

A TX 12V Power Connector: JPW1 ................................................2-7

Back Panel ............................................................................................2-8

Mouse Connector ......................................................................... 2-8

Keyboard Connector ..................................................................... 2-9

USB Connectors ............................................................................ 2-9

Serial Port Connector: COM A & COM B ................................... 2-10

Joystick/Midi Connectors ........................................................... 2-10

Audio Port Connectors ............................................................... 2-10

Parallel Port Connector ................................................................ 2-11

LAN Jack (RJ-45) ......................................................................... 2-12

vi

Connectors......................................................................................... 2-13

Floppy Disk Drive Connector: FDD1........................................... 2-13

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-14

CD-In Connector: JCD1 ............................................................... 2-15

Aux Line-In Connector: JAUX1 .................................................. 2-15

Modem-In Connector: JPHN1 ..................................................... 2-15

Fan Power Connectors: C_F AN1/S_FAN1 .................................. 2-16

Chassis Intrusion Switch Connector: JCI1 .................................. 2-17

IrDA Infrared Module Header: JIR1 ............................................ 2-17

W ake On Ring Connector: JMDM1............................................. 2-18

W ake On LAN Connector: JWOL1..............................................2-18

SPDIF Connector: JSP1 ............................................................... 2-19

Front Panel Audio Connector: JAUD1 ........................................ 2-20

Modem Connector: MC1 ............................................................. 2-21

Front Panel Connectors: JFP1 & JFP2 ......................................... 2-22

Front USB Connector: JUSB1 or JUSB2 ...................................... 2-23

Jumpers .............................................................................................. 2-24

Clear CMOS Jumper: JBA T1........................................................ 2-24

Slots ................................................................................................... 2-25

AGP (Accelerated Graphics Port) Slot......................................... 2-25

PCI Slots...................................................................................... 2-25

CNR (Communication Network Riser) ......................................... 2-25

PCI Interrupt Request Routing .................................................... 2-26

Chapter 3. A WARD® BIOS Setup............................................................ 3-1

Entering Setup......................................................................................3-2

Control Keys ................................................................................. 3-2

Getting Help .................................................................................. 3-3

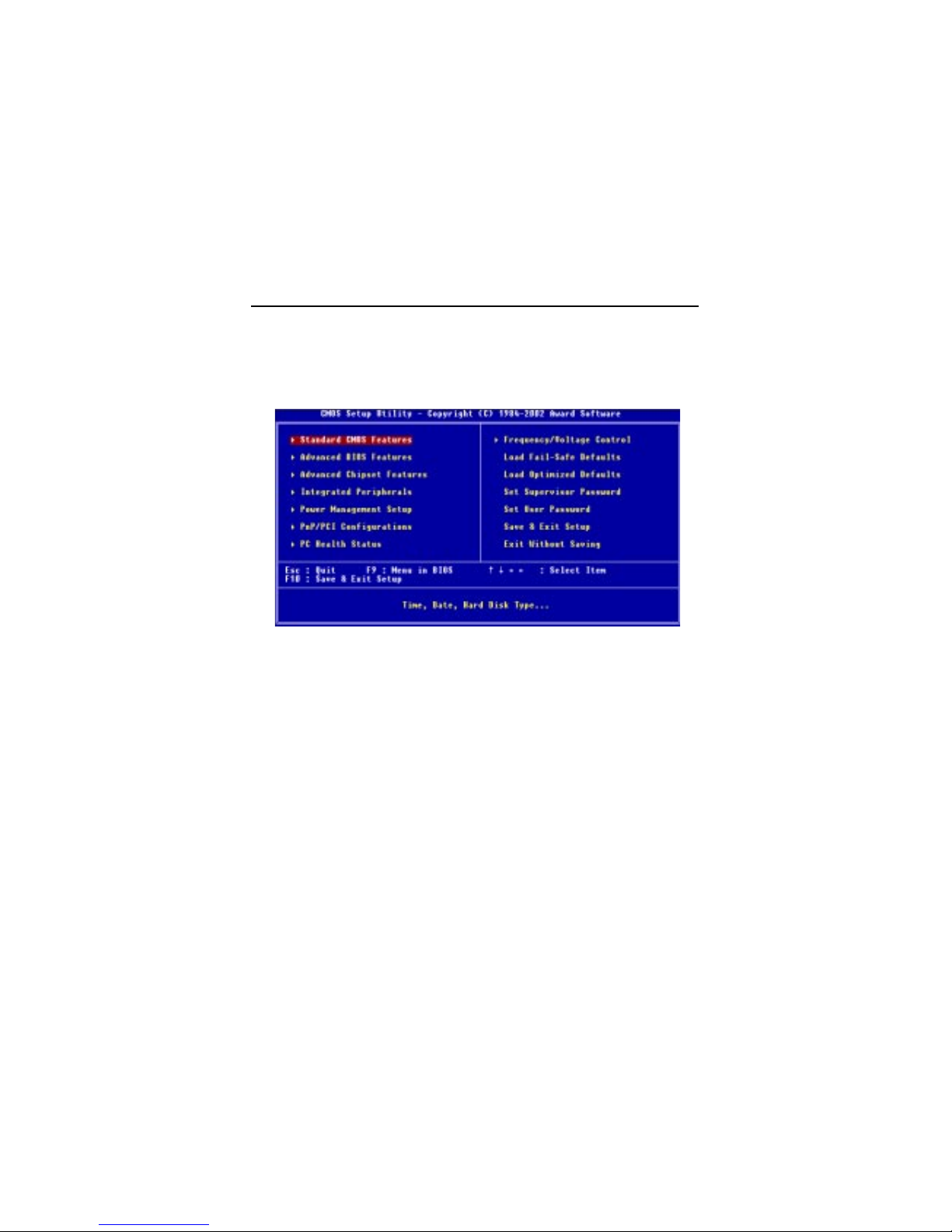

The Main Menu ................................................................................... 3-4

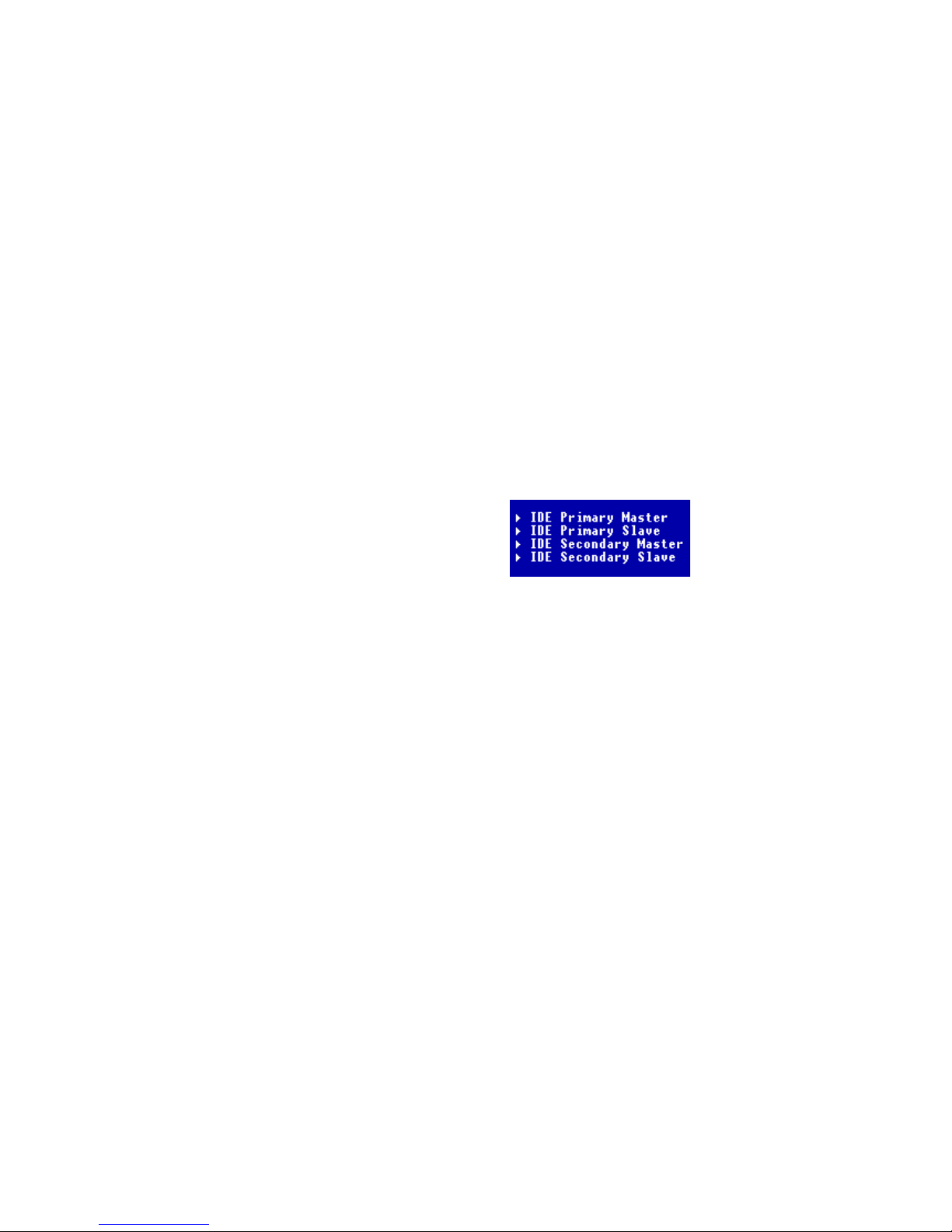

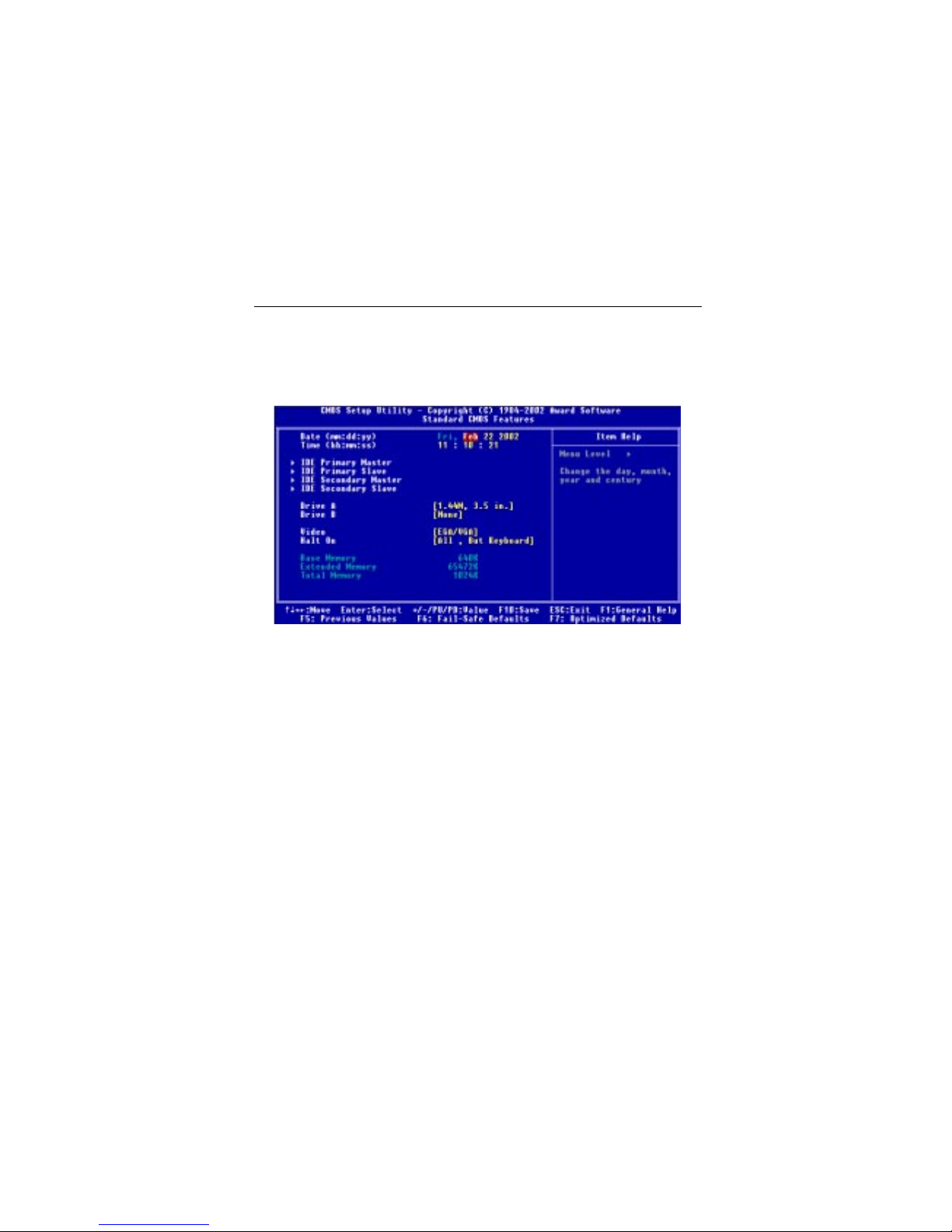

Standard CMOS Features .................................................................... 3-6

vii

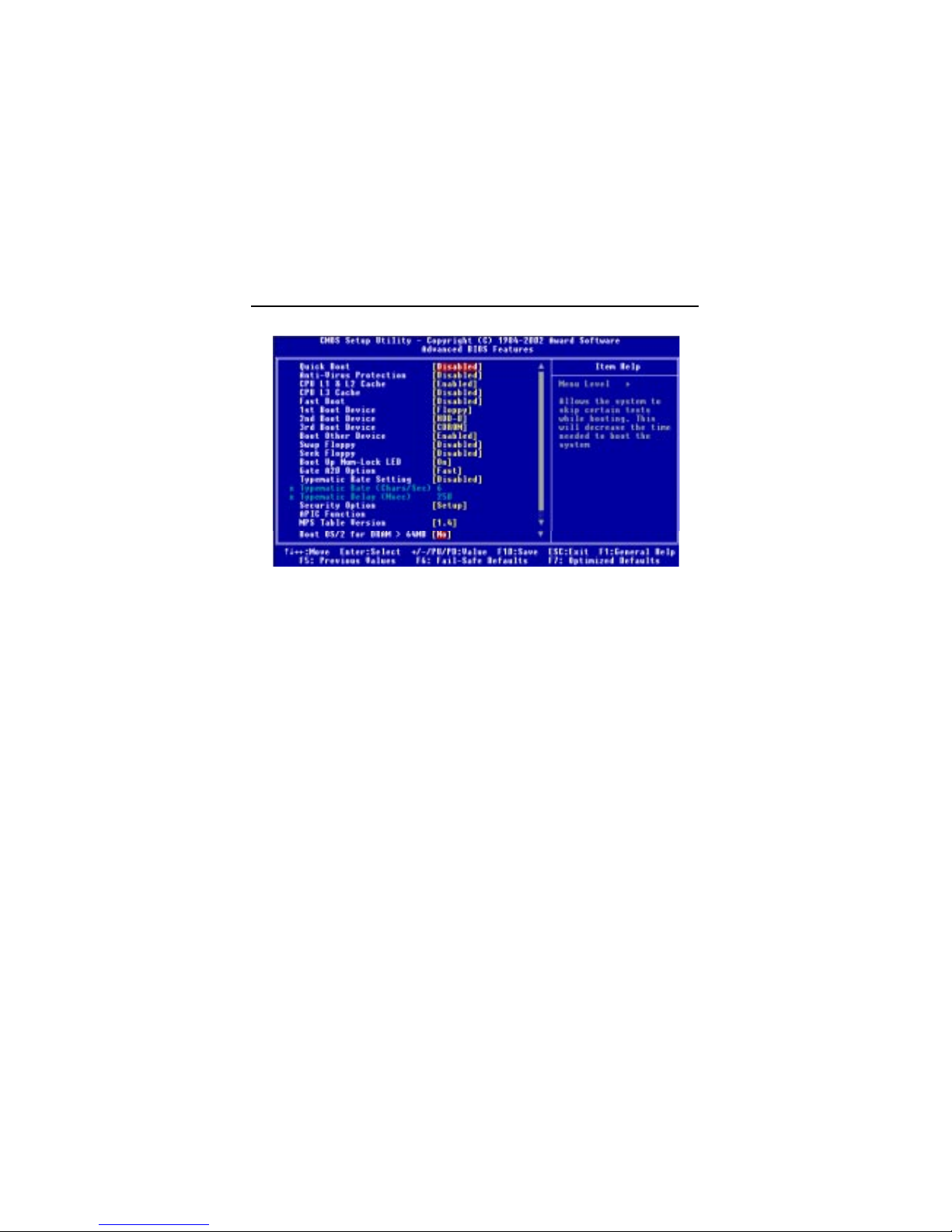

Advanced BIOS Features .................................................................... 3-8

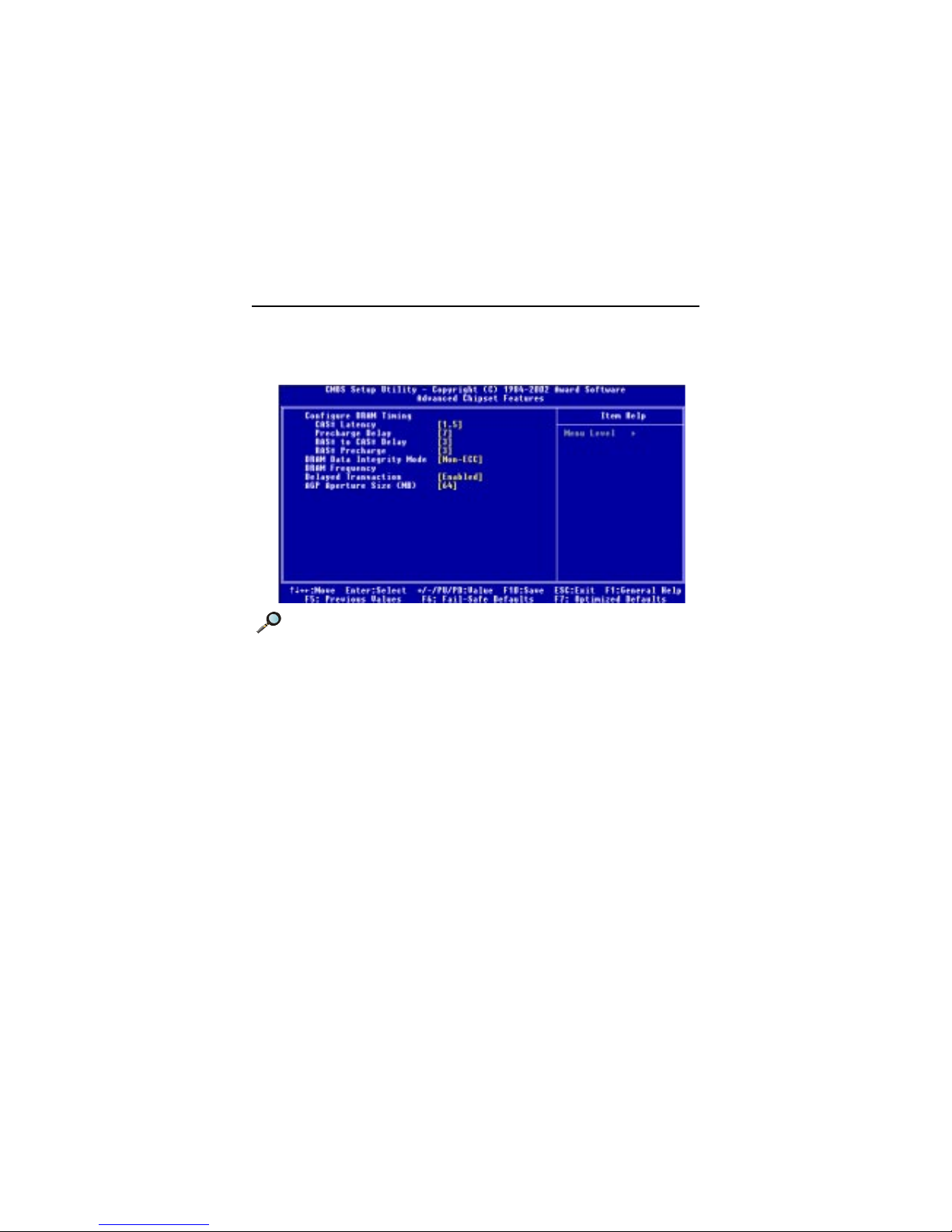

Advanced Chipset Features............................................................... 3-12

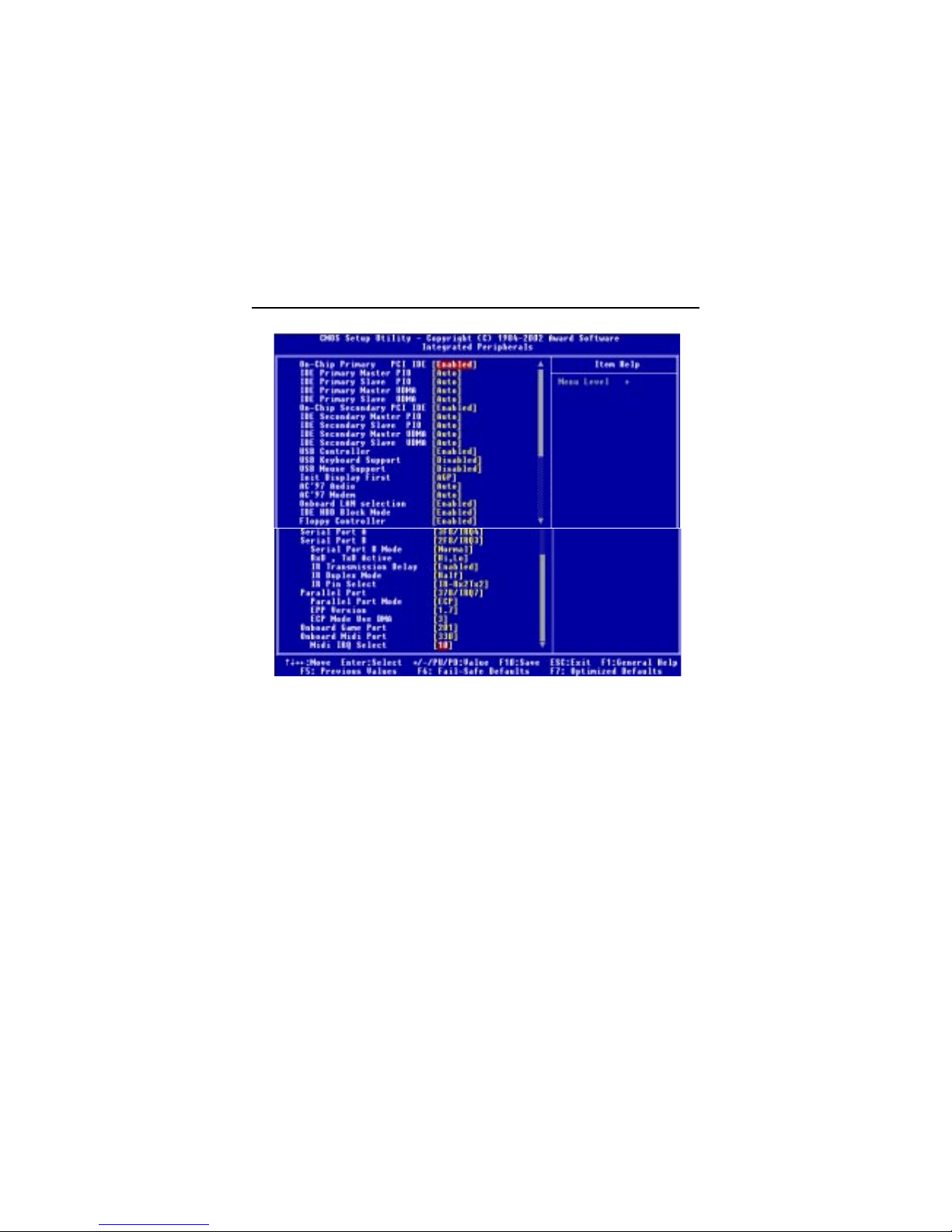

Integrated Peripherals ........................................................................ 3-14

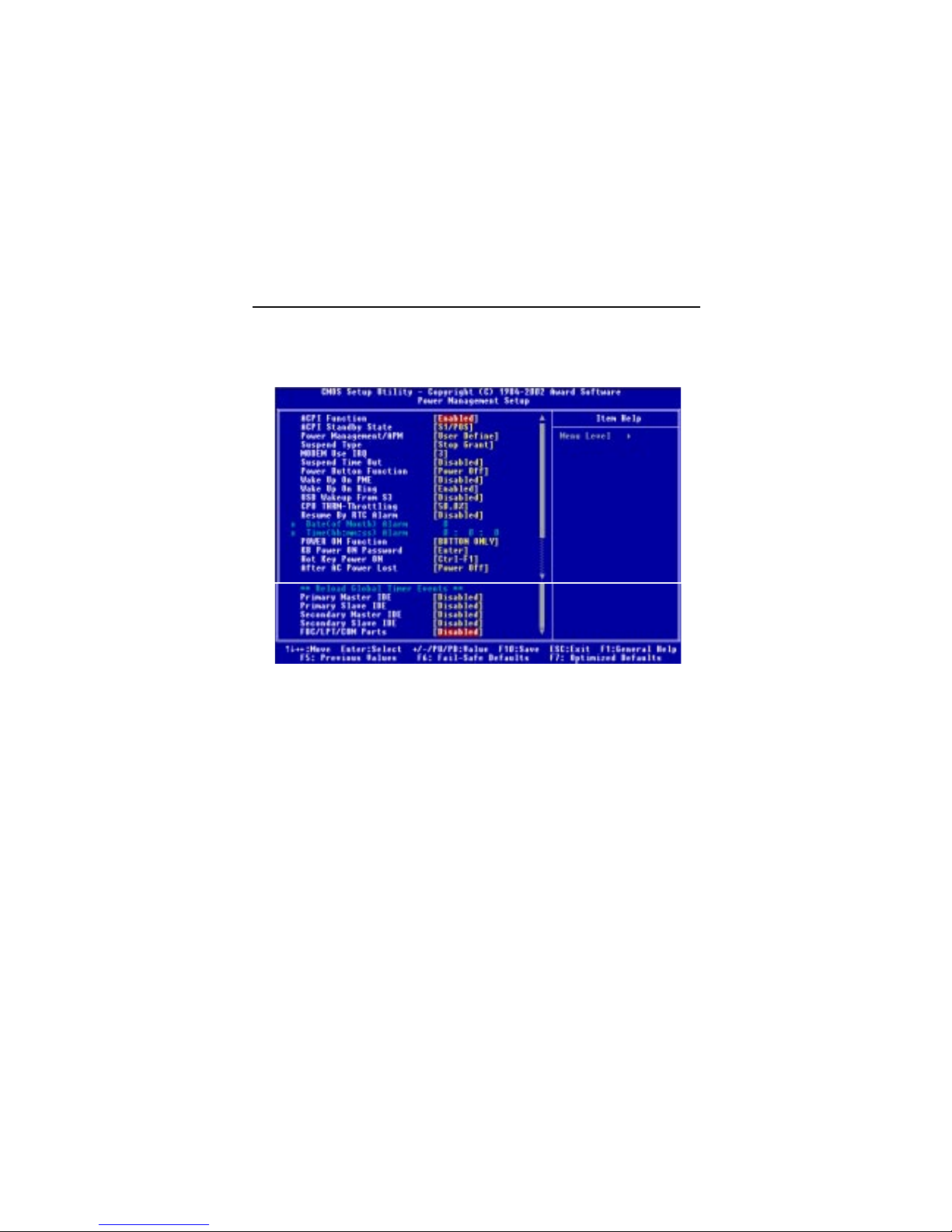

Power Management Setup ................................................................. 3-18

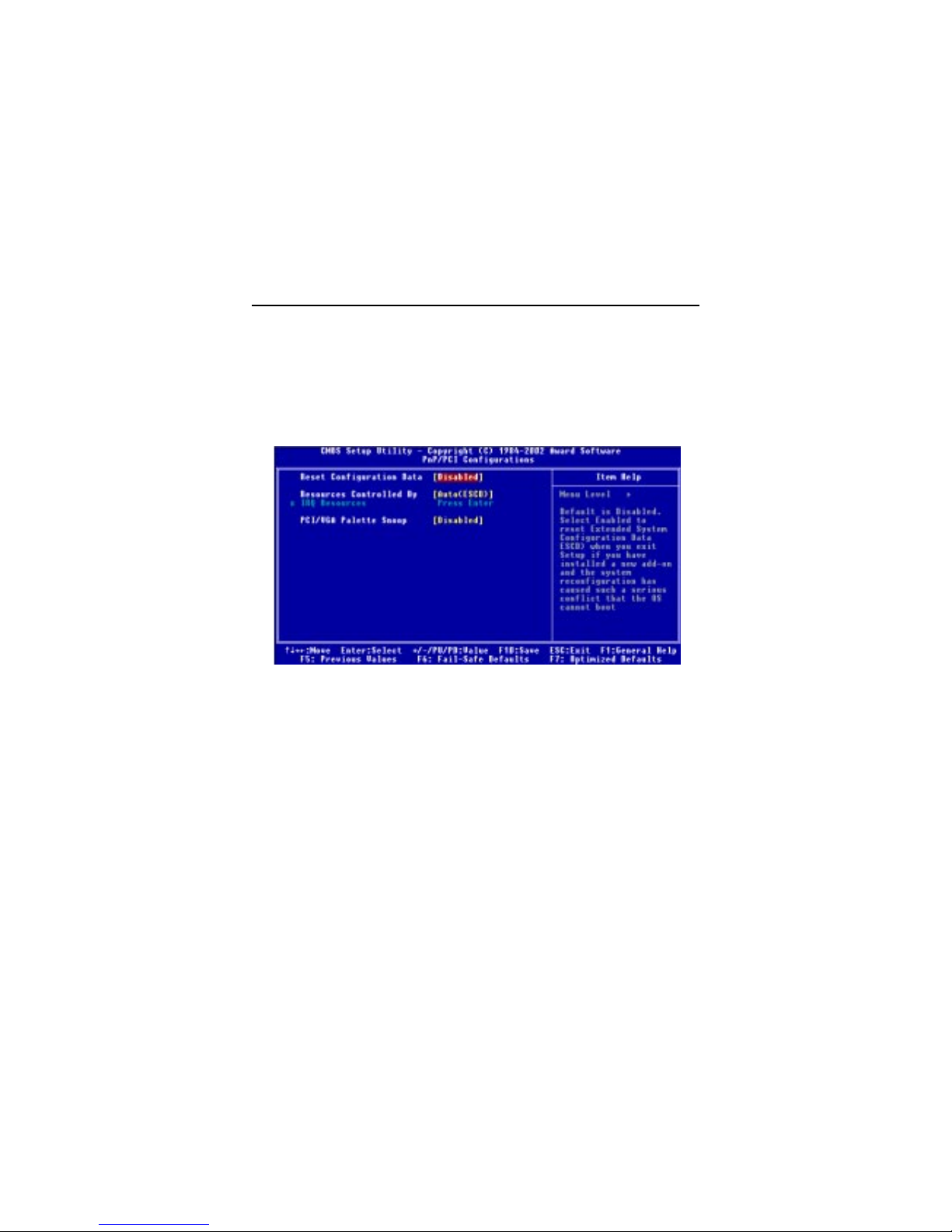

PNP/PCI Configurations..................................................................... 3-22

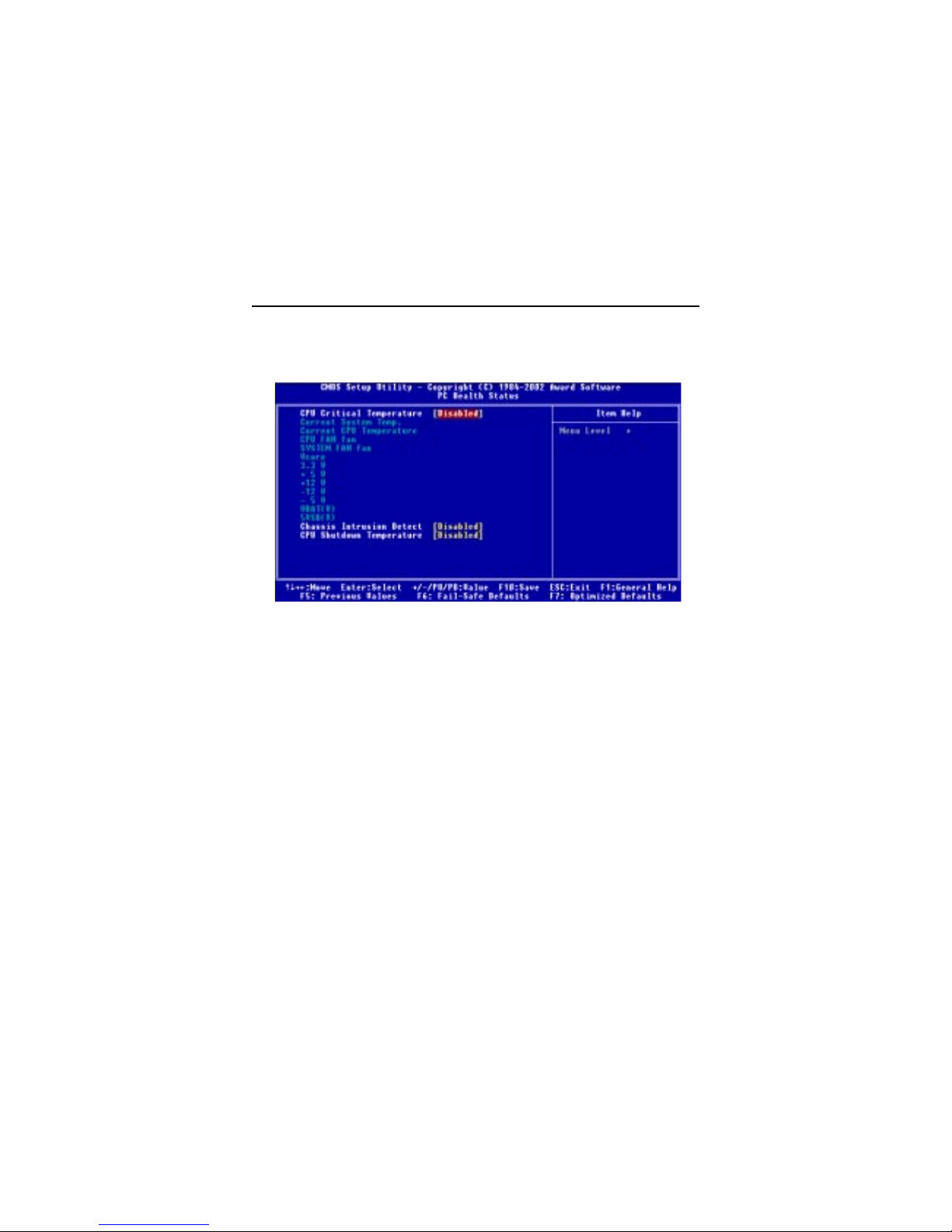

PC Health Status ................................................................................ 3-24

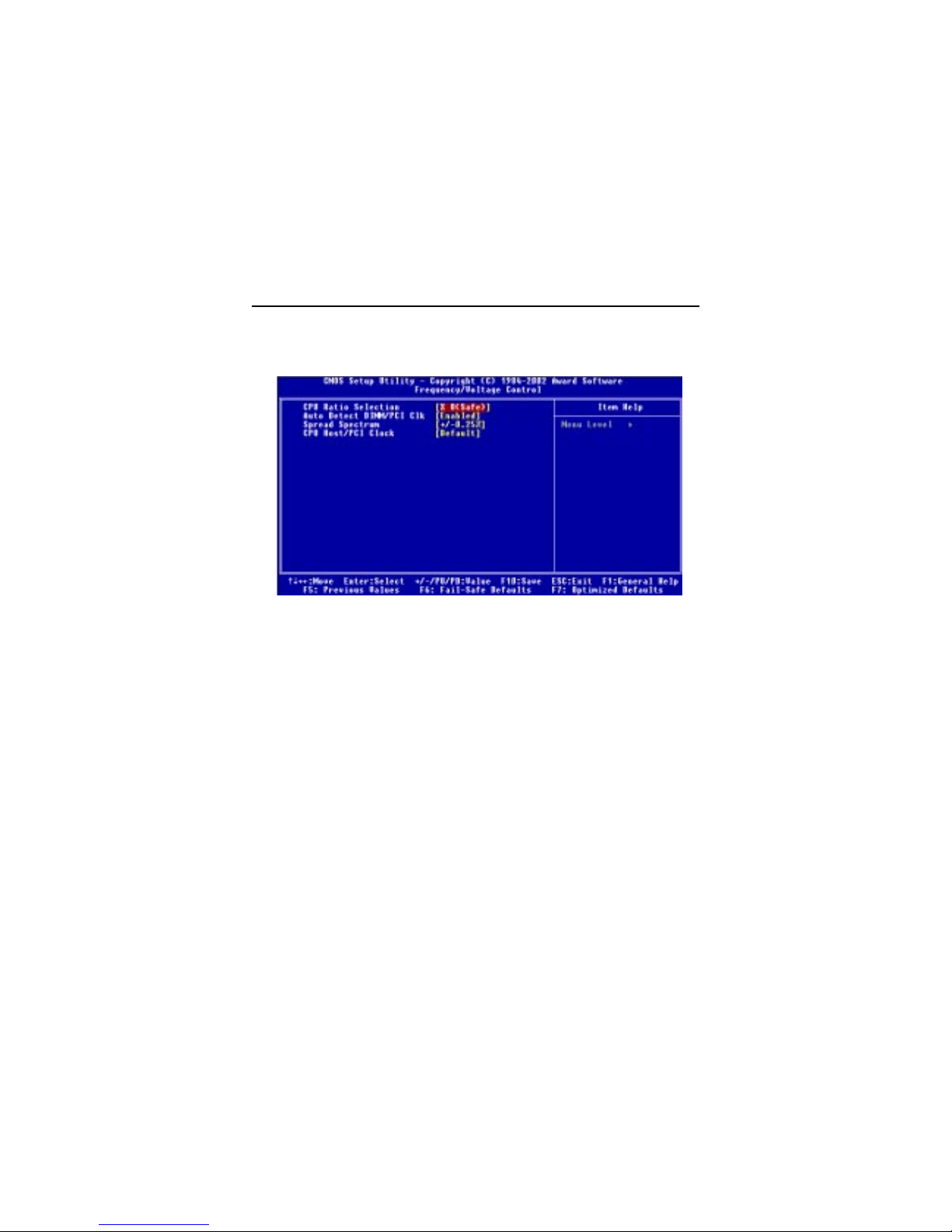

Frequency/Voltage Control ................................................................ 3-25

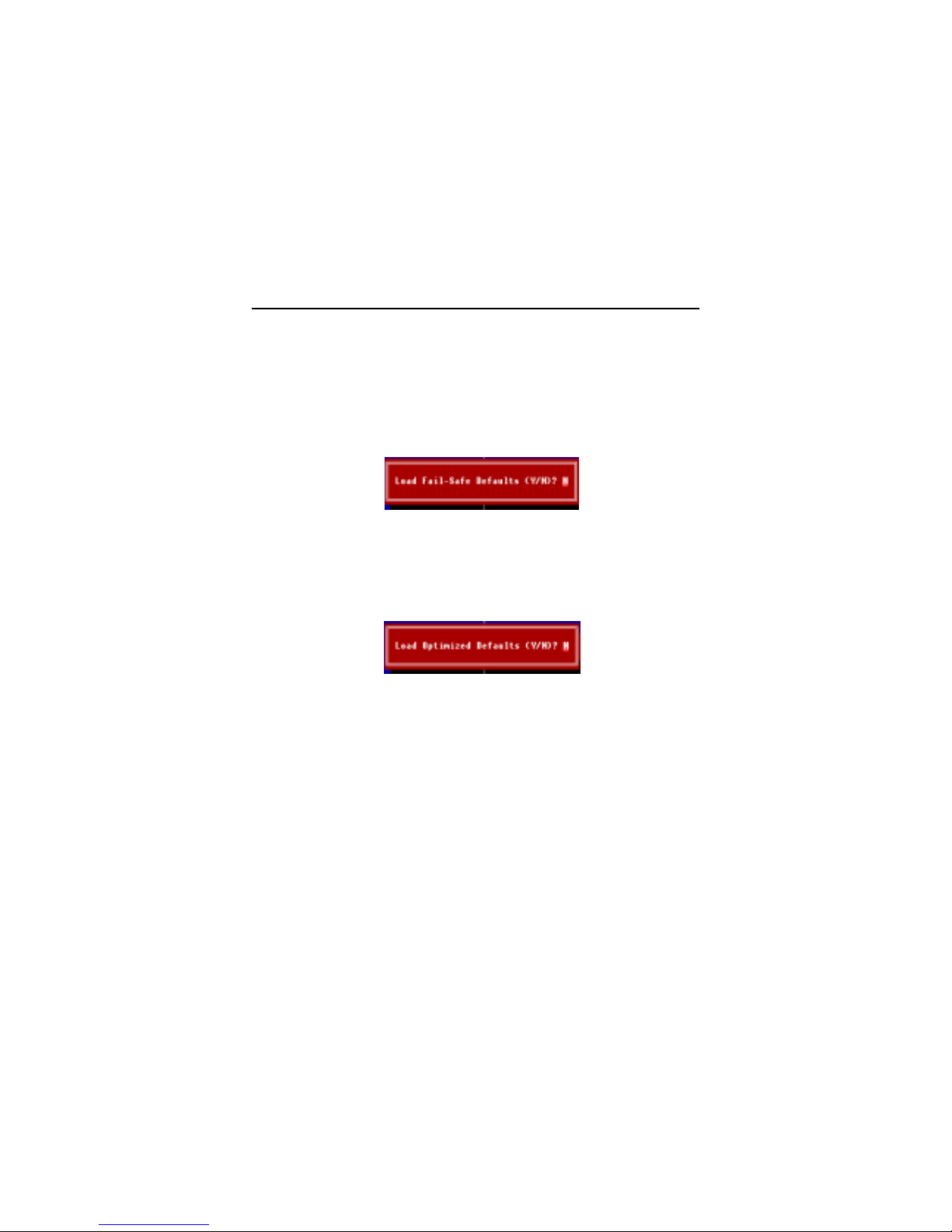

Load Fail-Safe/Optimized Defaults ..................................................... 3-27

Set Supervisor/User Password........................................................... 3-28

Glossary ....................................................................................................G-1

Getting Started

1-1

Chapter 1. Getting Started

1

Getting Started

Thank you for purchasing the MS-6507E v1.X Micro ATX mainboard.
The MS-6507E is based on Intel® Brookdale-E & ICH4 chipsets for optimal
system efficiency. Designed to fit the advanced Intel® Pentium® 4 processors
in the 478 pin package, the MS-6507E delivers a high performance and profes­sional desktop platform solution.

TOPICS

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

MSI Special Features 1-7

Chapter 1

1-2

CPU

Supports Intel® Pentium® 4 processor in 478-pin package.
Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GH z, 2GHz and up.

Chipset

Intel® Brookdale-E chipset

- Support 100MHz/133MHz system clock.

- Intel NetBurst micro-architecture supports 400MHz/533MHz system bus.

- 1.5V AGP interface with 4x data transfer and 4x fast write capability.
Intel® ICH4 chipset

- 2 channel Ultra ATA 100 bus Master IDE controller.

- PCI Master 2.2.

- I/O APIC.

- AC’97 2.2 interface.

- 3 UHCI Host controllers and 1 EHCI Host controller.

Main Memory

Supports four memory banks using two 184-pin DDR DIMM.
Supports up to 2GB PC2100/PC1600 DDR SDRAMs.
Supports 2.5v DDR SDRAM.

Slots

One AGP(Accelerated Graphics Port) slot.

- Support AGP2.0 including 1x/2x/4x AGP data transfer.

- AGP 1.5V support only. No support for 3.3V or Universal AGP connector.
Three PCI 2.2 32-bit Master PCI bus slots (support 3.3V/5V PCI bus interface).
One CNR (Communication Network Riser) slot.

On-Board IDE

Support Ultra ATA 100/66/33, BMIDE and PIO operation modes.
2 channel ATA 100 IDE controller integrated.
Can connect up to four IDE devices.

On-Board Peripherals

External

- PS2 KBD + PS2 Mouse

- Parallel x 1 + Serial x 2 (COM A + COM B)

- USB 2.0 x 2 + Lan (RJ-45) x 1

Mainboard Specification

Getting Started

1-3

- Game port + Audio (Mic_in, Line_in, Line_out)

Internal

- Floppy port x 1, IDE x 2, ATX 12V Power Connector

- Front Panel (2 x 5 pin, Intel FPIO pin-define + 2 x 4 pin MSI pin-define)

- Front Audio (2 x 5 pin Intel FPIO pin-define)

- USB2.0 pin header x 2 sets (2 x 5 )

- Front IR, Chassis Intrusion, Onboard buzzer, JBAT1

- CPU Fan, System Fan, Audio (CD-in, Aux-in, Modem-in)

- S/PDIF output (1 x 3) with housing

- Modem Header for optional MSI proprietary modem MS6961

Audio

AC97 2.2 interface provided by ICH4
2 channel S/W audio codec

- AC'97 2.2 Compliant

- Meet PC2001 audio performance requirement

LAN (optional)

PCI local bus single-chip Fast Ethernet Controller, RealTek RTL8101L.

- Integrated Fast Ethernet MAC and PHY in one chip.

- Supports 10Mb/s and 100Mb/s auto-negotiation operation.

- Compliance with PCI v2.2.

- Compliance with PC99 and PC2001 standard.

- Supports Wake-On-LAN and remote wake-up.

- Supports ACPI power management.

Modem (optional with LAN)

MSI proprietary design.

BIOS

PnP (Plug & Play) BIOS to detect peripheral devices and expansion cards
automatically.
DMI (Desktop Management Interface) function to record motherboard
specification.
Provide WOL, chassis intrusion and SMBus for system management.

Dimension

Micro-ATX Form Factor (9.6" x 9.1").

Mounting

6 mounting holes.

Chapter 1

1-4

Mainboard Layout

MS-6507E v1.X Micro ATX Mainboard

AGP Slot

D

D

R

1

D

D

R

2

S_FAN1

A

T

X

P

o

w

e

r

S

u

p

p

l

y

JFP1JFP2

JBAT1

PCI Slot 1

PCI Slot 2

PCI Slot 3

IDE1

IDE2

CNR

JPW1

C_FAN1

JAUX1

JIR1

JCI1

JCD1

JPHN1

MC1

JSP1

T:LAN Jack
B:USB Ports

Top : P ara llel
Port

Bottom:
COM A
COM B

Top : m ouse
Bottom: keyboard

Top :
Game port

Bottom:
Line-Out
Line-In
Mic

F

D

D

1

RTL

8101L

Codec

Winbond
83627HF

Intel

Brookdale-E

Chipset

BATT

+

ICH4

BIOS

JMDM1

(optional)

JWOL1

(optional)

Getting Started

1-5

Quick Components Guide

Component Function Reference

Socket 478 Installing CPU See p. 2-2

DDR1~2 Installing DDR modules See p. 2-5

ATX Power Connector Installing power supply See p. 2-7

USB Connectors Connecting to USB devices See p. 2-9

COM A & COM B Serial port connector See p. 2-10

LPT1 Parallel port connector See p. 2-11

RJ-45 LAN Jack Connecting to LAN devices See p. 2-12

FDD1 Floppy disk drive connector See p. 2-13

IDE1~ IDE2 Hard disk connectors See p. 2-14

JCD1 CD-in connector See p. 2-15

JAUX1 Aux line-in connector See p. 2-15

JPHN1 Modem-in connector See p. 2-15

C_FAN1/S_FAN1 Fan power connectors See p. 2-16

JCI1 Chassis intrusion switch See p. 2-17

JIR1 IrDA infrared module connector See p. 2-17

JMDM1 Wake On Ring connector See p. 2-18

JWOL1 Wake On LAN connector See p. 2-18

JSP1 SPDIF connector See p. 2-19

JAUD1 Front panel audio connector See p. 2-20

MC1 Modem connector See p. 2-21

JFP1/JFP2 Front panel connector See p. 2-22

JUSB1/JUSB2 Front USB connector See p. 2-23

JBAT1 Clear CMOS jumper See p. 2-24

AGP Slot Connecting to AGP cards See p. 2-25

PCI Slots Connecting to expansion cards See p. 2-25

CNR Slot Connecting to expansion cards See p. 2-25

Chapter 1

1-6

Micro ATX Form Factor

PC Alert™ III system hardware monitor

USB 2.0/1.1 support; a maximum of 6 USB ports

Onboard LAN solution (Realtek RTL8101L)

LAN Wake Up Function

Modem (Internal/External) Ring Wake Up Function

Suspend to RAM/Disk

Support S/PDIF out

Microsoft® PC2001 Compliant

MSI proprietary cost effective modem design (Optional)

Key Features

Getting Started

1-7

MSI Special Features

PC Alert™ III

The PC AlertTM III is a utility you can find in the CD-ROM disk. The
utility is just like your PC doctor that can de­tect the following PC hardware status during
real time operation:

* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion

If one of the items above is abnormal,
the program main screen will be immediately
shown on the screen, with the abnormal item
highlighted in red. This will continue to be
shown until users disable the warning.

Note: Items shown on PC Alert III vary depending on your system’s

status.

Hardware Setup

2-1

Chapter 2. Hardware Setup

TOPICS

Central Processing Unit: CPU 2-2
Memory 2-5
Power Supply 2-7
Back Panel 2-8
Connectors 2-13
Jumpers 2-24
Slots 2-25

2

Hardware Setup

This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

Chapter 2

2-2

Central Processing Unit: CPU

1. Pull the lever sideways away

from the socket. Then, raise
the lever up to a 90-degree
angle.

2. Look for the dot/cut edge. The

dot/cut edge should point to­wards the lever pivot. The
CPU will only fit in the correct
orientation.

3. Hold the CPU down firmly,

and then close the lever to
complete the installation.

CPU Installation Procedures

Open Lever

Dot / Cut edge

Sliding

Plate

Close
Lever

The mainboard supports Intel® Pentium® 4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a heat
sink and a cooling fan attached on the top to prevent overheating. If you do not
find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.

Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.

WARNING!

Hardware Setup

2-3

Installing the CPU Fan

As processor technology pushes to faster speeds and higher
performance, thermal management becomes increasingly important. To dissi­pate heat, you need to attach the CPU cooling fan and heatsink on top of the
CPU. Follow the instructions below to install the Heatsink/Fan:

2. Position the heatsink onto the reten-

tion mechanism.

1. Locate the CPU and its retention

mechanism on the motherboard.

3. Mount the fan on top of the heatsink.

Press down the fan until its four clips
get wedged in the holes of the reten­tion mechanism.

4. Press the two levers down to fasten

the fan. Each lever can be pressed
down in only ONE direction.

retention mechanism

levers

Chapter 2

2-4

CPU Core Speed Derivation Procedure

If CPU Clock = 100MHz

Core/Bus ratio = 14

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 14
= 1.4GHz

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector

on the board.

fan power cable

Overclocking

This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks

caused by inadequate operation or beyond product
specifications.

WARNING!

Hardware Setup

2-5

Memory

The mainboard provides 2 slots for 184-pin, 2.5V DDR DIMM with 4
memory banks. You can install DDR200/PC1600 or DDR266/PC2100 DDR
SDRAM modules on the DDR DIMM slots (DDR 1~2). To operate properly, at
least one DIMM module must be installed.

Introduction to DDR SDRAM

DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as
opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod­ules rather than 168-pin DIMM modules used by SDR SDRAM. Two types of
DDR are available at the time of writing: PC1600 & PC2100. PC1600 DDR SDRAM
running at 100MHz will produce about 1.6GB/s memory bandwidth. PC2100
running at 133MHz will produce 2.1GB/s memory bandwidth. High memory
bandwidth makes DDR an ideal solution for high performance PC, worksta­tions and servers.

D

D

R

1

D

D

R

2

Chapter 2

2-6

You can install either single sided or double sided 184-pin DDR DIMM
modules into DDR DIMM slots to meet your needs. Different from the SDR
DIMM, the DDR DIMM has only one notch on the center of module. The
number of pins on either side of the breaks are different. The module will only
fit in the right orientation.

Y ou can install memory modules in any combination as follows:

Slot Memory Module Total Memory

Slot 1

(Bank 0 & Bank 1)

64MB, 128MB ,
256MB, 512MB , 1GB

64MB~1GB

Slot 2

(Bank 2 & Bank 3)

64MB, 128MB ,
256MB, 512MB , 1GB

64MB~1GB

Maximum System M em ory Supported

64MB~2GB

DDR Module Combination

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module

will only fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then

push it in.

3. The plastic clip at each side of the DIMM slot will automatically close.

Volt

notch

Hardware Setup

2-7

Power Supply

A TX 20-Pin Power Connector

This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plugs of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector. The power connector supports
instant power on function which means that system will boot up immediately
when the power supply connector is inserted on the board.

The mainboard supports ATX power supply for the power system. Be­fore inserting the power supply connector, always make sure that all compo­nents are installed properly to ensure that no damage will be caused.

A TX 12V Power Connector: JPW1

This 12V power connector is used to provide power to the CPU.

PIN SIGNAL

1 GND
2 GND
3 12V
4 12V

JPW1 Pin Definition

PIN SIGNAL

1 1 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

Pin Definition

JPW1

1 2

3 4

10

1

20

11

Chapter 2

2-8

The Back Panel provides the following connectors:

Back Panel

Mouse Connector

The mainboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector. The connector location and pin assignments are as follows:

Mouse

Keyboard

USB

Parallel

COM A

COM B

L-out L-in MIC

Midi/Joystick

PIN SIGNAL DESCRIPTION

1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection

Pin Definition

PS/2 Mouse (6-pin Female)

2

1

3

4

5

6

LAN

Hardware Setup

2-9

Keyboard Connector

The mainboard provides a standard PS/2® keyboard mini DIN connector
for attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into
this connector.

USB Connectors

The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into
ths connector.

USB Ports

1 2 3 4

5 6 7 8

PIN SIGNAL DESCRIPTION

1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground

USB Port Description

PIN SIGNAL DESCRIPTION

1 Keyboard DATA Keyboard DAT A
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection

Pin Definition

PS/2 Keyboard (6-pin Female)

2

1

3

4

5

6

Chapter 2

2-10

Joystick/Midi Connectors

You can connect a joystick or game pad to this connector.

Audio Port Connectors

Line Out is a connector for Speakers or Headphones. Line In is used for

external CD player, Tape player, or other audio devices. Mic is a connector for
microphones.

1/8” Stereo Audio Connectors

Line Out Line In MIC

Serial Port Connector: COM A & COM B

The mainboard offers two 9-pin male DIN connectors for serial port COM
A and COM B. The ports are 16550A high speed communication ports that
send/receive 16 bytes FIFOs. You can attach a serial mouse or other serial
devices directly to them.

9-Pin Male DIN Connectors

1 2 3 4 5

6 7 8 9

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request T o Send
8 CTS Clear To Send
9 RI Ring Indicate

Pin Definition

Hardware Setup

2-11

Parallel Port Connector

The mainboard provides a 25-pin female centronic connector for LPT. A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.

13 1

14

25

PIN SIGNAL DESCRIPTION

1 STROBE Strobe
2 DAT A0 Data0
3 DAT A1 Data1
4 DAT A2 Data2
5 DAT A3 Data3
6 DAT A4 Data4
7 DAT A5 Data5
8 DAT A6 Data6
9 DAT A7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground

Pin Definition

Chapter 2

2-12

LAN Jack (RJ-45)

The mainboard provides one standard RJ-45 jack for connection to Local
Area Network (LAN). Y ou can connect a network cable to the LAN jack.

RJ-45 LAN Jack

Pin Definition

PIN SIGNAL DESCRIPTION

1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used

Hardware Setup

2-13

The mainboard provides connectors to connect to FDD, IDE HDD, case,

modem, LAN, USB Ports, IR module and CPU/System F AN.

Floppy Disk Drive Connector: FDD1

The mainboard provides a standard floppy disk drive connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.

Connectors

FDD1

Chapter 2

2-14

Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100
controller that provides PIO mode 0~4, Bus Master, and Ultra DMA33/66/100
function. Y ou can connect up to four hard disk drives, CD-ROM, 120MB Floppy
(reserved for future BIOS) and other devices. These connectors support the
provided IDE hard disk cable.

IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can

connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly.

IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.

TIP:

If you install two hard disks on cable, you must configure the
second drive to Slave mode by setting its jumper. Refer to the
hard disk documentation supplied by hard disk vendors for jumper
setting instructions.

I

D

E

2

I

D

E

1

Hardware Setup

2-15

CD-In Connector: JCD1

The connector is for CD-ROM audio connector.

Aux Line-In Connector: JAUX1

The connector is for DVD add-on card with Line-in connector.

Modem-In Connector: JPHN1

The connector is for modem with internal audio connector.

JPHN1

GND

Phone_In

Mono_Out

JCD1

GND

R

L

JAUX1

GND

R

L

Chapter 2

2-16

Fan Power Connectors: C_F AN1/S_F AN1

The C_FAN1 (processor fan) & S_FAN1 (system fan) support system
cooling fan with +12V. It supports three-pin head connector. When connect­ing the wire to the connectors, always take note that the red wire is the positive
and should be connected to the +12V, the black wire is Ground and should be
connected to GND. If the mainboard has a System Hardware Monitor chipset
on-board, you must use a specially designed fan with speed sensor to take
advantage of the CPU fan control.

Note:

1. Always consult the vendor for proper CPU cooling fan.

2. CPU Fan supports the fan control. You can install the PC Alert
utility that will automatically control the CPU Fan speed accord­ing to the actual CPU temperature.

C_FAN1

SENSOR

+12V

GND

S_FAN1

SENSOR

+12V

GND

Hardware Setup

2-17

IrDA Infrared Module Header: JIR1

This connector allows you to connect to IrDA Infrared modules and is
compliant with Intel® Front Panel I/O Connectivity Design Guide. You must
configure the setting through the BIOS setup to use the IR function.

Pin Signal

1NC
2NC
3 VCC
4 GND
5 IRTX
6 IRRX

Pin Definition

2 1

JIR1

6 5

Chassis Intrusion Switch Connector: JCI1

This connector is connected to 2-pin connector chassis switch. If the
Chassis is open, the switch will be short. The system will record this status. To
clear the warning, you must enter the BIOS settting and clear the status.

JCI1

Chapter 2

2-18

Wake On Ring Connector: JMDM1

This connector allows you to connect to a modem card with Wake On
Ring function. The connector will power up the system when a signal is re­ceived through the modem card.

Wake On LAN Connector: JWOL1

This connector allows you to connect to a LAN card with W ake On LAN
function. Y ou can wake up the computer via remote control through a local area
network.

Note: To be able to use this function, you need a power supply that provides

enough power for this feature. (750 mA 5V Stand-by)

JMDM1

JWOL1

5VSB
GND
MP_WAKEUP

1

NC

MDM_WAKEUP

5VSB

1

GND

NC

Hardware Setup

2-19

SPDIF Connector: JSP1

The connector is used to connect SPDIF (Sony & Philips Digital Inter-

connect Format) interface for digital audio transmission.

Connected to JSP1

SPDIF Bracket

1 VCC
2 SPDIF
3NC

JSP1 Pin Definition

PIN SIGNAL

JSP1

1

3

Chapter 2

2-20

Front Panel Audio Connector: JAUD1

The JAUD1 front panel audio connector allows you to connect to the
front panel audio and is compliant with Intel® Front Panel I/O Connectivity
Design Guide.

Note:

If you don’t want to connect to the front audio
header, pins 5 & 6, 9 & 10 have to be jumpered
in order to have signal output directed to the
rear audio ports. Otherwise, the Line-Out con­nector on the back panel will not function.

PIN SIGNAL DESCRIPTION

1 AUD_MIC Front panel microphone input signal
2 AUD_GND Ground used by analog audio circuits
3 AUD_MIC_BIAS Microphone power
4 AUD_VCC Filtered +5V used by analog audio circuits
5 AUD_FPOUT_R Right channel audio signal to front panel
6 AUD_RET_R Right channel audio signal return from front panel
7 HP_ON Reserved for future use to control headphone amplifier
8 KEY No pin
9 AUD_FPOUT_L Left channel audio signal to front panel
10 AUD_RET_L Left channel audio signal return from front panel

Pin Definition

JAUD1

1
2

9

10

5

610

9

Hardware Setup

2-21

Modem Connector: MC1

This connector is connected to a modem module. The modem module
functions in the same way as a modem, which allows users to connect to the
internet via the telephone line.

Modem Module

Connect to a telephone set

Connect to a telephone line from the wall

PIN SIGNAL DESCRIPTION

1 BIT_CLK (to LAN controller) Serial port bit clock output/input
2 SYNC (from LAN controller) Frame Sync input
3 RESET (from LAN controller) Reset input (active low)
4 SDAT A_OUT (from LAN controller) Serial port data input
5 SDATA_IN (to LAN controller) Serial port data output
6 Ground (from M/B) Connect to System Digital Ground
7 Ground (from M/B) Connect to System Digital Ground
8 Aout (to M/B) Analog speaker output
9 +3.3Vaux (from M/B) +3.3V Vaux power input
10 Ground (from M/B) Connect to System Digital Ground
11 +3.3Vaux (from M/B) +3.3V Vaux power input
12 PIN REMOVE PIN REMOVE

MC1 Pin Definition

MC1

2
1

12
11

Chapter 2

2-22

Front Panel Connectors: JFP1 & JFP2

The mainboard provides two front panel connectors for electrical con­nection to the front panel switches and LEDs. JFP1 is compliant with Intel

®

Front Panel I/O Connectivity Design Guide.

1

2

9

10

JFP1

HDD
LED

Reset
Switch

Power
LED

Power
Switch

Power
LED

Speaker

1

2

7

8

JFP2

PIN SIGNAL PIN SIGNAL

1 GND 2 SPK­3 SLED 4 BUZ+
5 PLED 6 BUZ­7 NC 8 SPK+

JFP2 Pin Definition

PIN SIGNAL DESCRIPTION

1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.

JFP1 Pin Definition

Hardware Setup

2-23

Front USB Connector: JUSB1 or JUSB2

The mainboard provides two USB 2.0 pin headers JUSB1 & JUSB2
(optional USB 2.0 Bracket available). USB 2.0 technology increases data trans­fer rate up to a maximum throughput of 480Mbps, which is 40 times faster than
USB 1.1, and is ideal for connecting high-speed USB interface peripherals such
as USB HDD, digital cameras , MP3 players, printers, modems and the like.
Both JUSB1 & JUSB2 are compliant with Intel® Front Panel I/O Connectivity
Design Guide.

Pin Description Pin Description

1 VCC 2 VCC
3 USB0- 4 USB1­5 USB0+ 6 USB1+
7 GND 8 GND
9 NC 10 OC0

Pin Definition

JUSB2

JUSB1

1

9

2

10

1

9

2

10

Chapter 2

2-24

Clear CMOS Jumper: JBA T1

There is a CMOS RAM on board that has a power supply from external
battery to keep the data of system configuration. With the CMOS RAM, the
system can automatically boot OS every time it is turned on. That battery has
long life time for at least 5 years. If you want to clear the system configuration,
use the JBAT1 (Clear CMOS Jumper ) to clear data. Follow the instructions
below to clear the data:

Jumpers

The motherboard provides one jumper for you to set the computer’s
function. This section will explain how to change your motherboard’s function
through the use of the jumper.

You can clear CMOS by shorting 2-3 pin while the
system is off. Then return to 1-2 pin position. Avoid
clearing the CMOS while the system is on; it will
damage the mainboard.

WARNING!

JBAT1

1

Clear Data

Keep Data

3

1

3

1

Hardware Setup

2-25

Slots

AGP (Accelerated Graphics Port) Slot

The AGP slot allows you to insert the AGP graphics card. AGP is an
interface specification designed for the throughput demands of 3D graphics.
It introduces a 66MHz, 32-bit channel for the graphics controller to directly
access main memory. The slot only supports 1.5V 4x AGP card.

PCI Slots

Three PCI slots allow you to insert the expansion cards to meet your
needs. When adding or removing expansion cards, make sure that you unplug
the power supply first. Meanwhile, read the documentation for the expansion
card to make any necessary hardware or software settings for the expansion
card, such as jumpers, switches or BIOS configuration.

CNR (Communication Network Riser)

The CNR slot allows you to insert the CNR expansion cards. CNR is a
specially designed network, audio, or modem riser card for ATX family
motherboards. Its main processing is done through software and controlled by
the motherboard’s chipset.

The motherboard provides three 32-bit Master PCI bus slots, one AGP
slot and one CNR slot.

PCI Slots

AGP Slot

CNR Slot

Chapter 2

2-26

PCI Interrupt Request Routing

The IRQ, abbreviation of interrupt request line and pronounced I-R-Q,
are hardware lines over which devices can send interrupt signals to the
microprocessor. The PCI IRQ pins are typically connected to the PCI bus INT
A# ~ INT D# pins as follows:

Order 1 Order 2 Order 3 Order 4
PCI Slot 1 INT A# INT B# INT C# INT D#
PCI Slot 2 INT B# INT C# INT D# INT A#
PCI Slot 3 INT C# INT D# INT A# INT B#

AWARD® BIOS Setup

3-1

Chapter 3. AWARD® BIOS Setup

TOPICS

Entering Setup 4-2
The Main Menu 4-4
Standard CMOS Features 4-6
Advanced BIOS Features 4-8
Advanced Chipset Features 4-12
Integrated Peripherals 4-14
Power Management Setup 4-18
PNP/PCI Configurations 4-22
PC Health Status 4-24
Frequency/Voltage Control 4-25
Load Fail-Safe/Optimized Defaults 4-27
Set Supervisor/User Password 4-28

3

AWARD® BIOS Setup

This chapter provides information on the AWARD® BIOS Setup program and
allows you to configure the system for optimum use.

You may need to run the Setup program when:

An error message appears on the screen during the system booting up, and

requests you to run SETUP.

You want to change the default settings for customized features.

Chapter 3

3-2

Entering Setup

Control Keys

Power on the computer and the system will start POST (Power On Self Test)
process. When the message below appears on the screen, press <DEL> key to
enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter
Setup, restart the system by turning it OFF and On or pressing the RESET
button. You may also restart the system by simultaneously pressing <Ctrl>,
<Alt>, and <Delete> keys.

<↑>

Move to the previous item

<↓>

Move to the next item

<←>

Move to the item in th e left hand

<→>

Move to the item in th e right hand
<Enter> Select the item
<Esc> Jumps to the Exit menu or returns to the main menu from a submenu
<+/PU> Increase the numeric value or make chan ges
<-/PD> Decrease the numeric value or make changes
<F1> General help, only for Status Page Setup Menu and Option Page

Setup Menu
<F5> Restore th e previous CMOS value from CMOS, only for Option Page

Setup Menu
<F6> Load the default CMOS value from Fail-Safe default table, only for

Option Page Setup Menu
<F7> Load Optimized defaults
<F10> Save all the CMOS changes and exit

AWARD® BIOS Setup

3-3

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. Y ou can use
the control keys ( ↑↓ ) to select the item. The on-line description of the high­lighted setup function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol (as shown
in the right view) appears to the left of cer­tain fields that means a sub-menu can be
launched from this field. A sub-menu con­tains additional options for a field parameter.
Y ou can use control keys ( ↑↓ ) to highlight
the field and press <Enter> to call up the
sub-menu. Then you can use the control keys to enter values and move from
field to field within a sub-menu. If you want to return to the main menu, just
press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this
screen from any menu by simply pressing <F1>. The Help screen lists the
appropriate keys to use and the possible selections for the highlighted item.
Press <Esc> to exit the Help screen.

Chapter 3

3-4

The Main Menu

Standard CMOS Features

Use this Menu for basic system configurations.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your
system’s performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

Once you enter A ward® BIOS CMOS Setup Utility, the Main Menu (Figure 1)
will appear on the screen. The Main Menu allows you to select from twelve
setup functions and two exit choices. Use arrow keys to select among the items
and press <Enter> to accept or enter the sub-menu.

AWARD® BIOS Setup

3-5

PnP/PCI Configurations

This entry appears if your system supports PnP/PCI.

PC Health Status

This entry shows your PC health status.

Frequency/V oltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for minimal but stable system
performance.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory settings for
optimal system operations.

Set Supervisor/User Password

Use this menu to set User and Supervisor Passwords.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

Chapter 3

3-6

Standard CMOS Features

Date

The date format is <day><month> <date> <year>.

day Day of the week, from Sun to Sat, determined by BIOS. Read-only.
month The month from Jan. through Dec.
date The date from 1 to 31 can be keyed by numeric function keys.
year The year, depends on the year of the BIOS

Time

The time format is <hour> <minute> <second>.

IDE Primary/Secondary Master/Slave

Press PgUp/<+> or PgDn/<-> to select Manual, None, Auto type. Note that the
specifications of your drive must match with the drive table. The hard disk will
not work properly if you enter improper information for this category. If your
hard disk drive type is not matched or listed, you can use Manual to define
your own drive type manually.

If you select Manual, related information is asked to be entered to the follow-

The items in Standard CMOS Features Menu are divided into 10 categories.
Each category includes no, one or more than one setup items. Use the arrow
keys to highlight the item and then use the <PgUp> or <PgDn> keys to select
the value you want in each item.

AWARD® BIOS Setup

3-7

ing items. Enter the information directly from the keyboard. This information
should be provided in the documentation from your hard disk vendor or the
system manufacturer.

If the controller of HDD interface is SCSI, the selection shall be “None”.

If the controller of HDD interface is CD-ROM, the selection shall be “None”.

Access Mode The settings are CHS, LBA, Large, Auto.
Capacity The formatted size of the storage device.
Cylinder Number of cylinders.
Head Number of heads.
Precomp Write precompensation.
Landing Zone Cylinder location of the landing zone.
Sector Number of sectors.

Drive A/B

This item allows you to set the type of floppy drives installed. Available
options are None, 360K, 5.25 in., 1.2M, 5.25 in., 720K, 3.5 in., 1.44M, 3.5 in.,

2.88M, 3.5 in.

Video

The setting controls the type of video adapter used for the primary monitor of
the system. Available options are EGA/VGA , CGA 40, CGA 80 and Mono.

Halt On

The setting determines whether the system will stop if an error is detected at
boot. A vailable options are:

All Errors The system stops when any error is detected.
No Errors The system doesn’t stop for any detected error.
All, But Keyboard The system doesn’t stop for a keyboard error.
All, But Diskette The system doesn’t stop for a disk error.
All, But Disk/Key The system doesn’t stop for either a disk or a

keyboard error.

Chapter 3

3-8

Advanced BIOS Features

Quick Boot

The setting allows the system to skip certain tests while booting. This will
decrease the time needed to boot the system. Setting options: Enabled,
Disabled.

Anti-Virus Protection

The item is to set the Virus Warning feature for IDE Hard Disk boot sector
protection. If the function is enabled and any attempt to write data into this
area is made, BIOS will display a warning message on screen and beep. Settings:
Disabled and Enabled.

CPU L1 & L2 Cache

Cache memory is additional memory that is much faster than conventional
DRAM (system memory). When the CPU requests data, the system transfers
the requested data from the main DRAM into cache memory, for even faster
access by the CPU. The settings enable/disable the internal cache (also known
as L1 or level 1 cache) and external cache (also known as L2 or level 2 cache).
Setting options: Disabled, Enabled.

CPU L3 Cache

Level 3 cache is the extra cache built into motherboards between the micropro-

AWARD® BIOS Setup

3-9

cessor and the main memory. Located away from the CPU, the L3 cache is
slower than the L1 & L2 caches. This setting allows you to turn on or off the L3

cache. Setting options: Enabled, Disabled.

Fast Boot

The setting allows the system to boot within 10 seconds, which is compliant
with PC2001 spec. Fast Boot saves more boot time than Quick Boot by skip­ping more check items and not displaying standard summary table on the
screen. With this field enabled, system BIOS will automatically set Quick Boot

to Enabled at the same time. Setting options: Enabled, Disabled.

1st/2nd/3rd Boot Device

The items allow you to set the sequence of boot devices where BIOS attempts
to load the disk operating system. The settings are:

Floppy The system will boot from floppy drive.
LS120 The system will boot from LS-120 drive.
HDD-0 The system will boot from the first HDD.
SCSI The system will boot from the SCSI.
CDROM The system will boot from the CD-ROM.
HDD-1 The system will boot from the second HDD.
HDD-2 The system will boot from the third HDD.
HDD-3 The system will boot from the fourth HDD.
ZIP The system will boot from A TAPI ZIP drive.

USB-FDD The system will boot from the floppy drive at USB ports.

USB-ZIP The system will boot from the ZIP drive at USB ports.
USB-CDROM The system will boot from the CD-ROM at USB ports.
USB-HDD The system will boot from the HDD at USB ports.
LAN The system will boot from the Network drive.
Disabled Disable this sequence.

Boot Other Device

Setting the option to Enabled allows the system to try to boot from other
device if the system fails to boot from the 1st/2nd/3rd boot device.

Swap Floppy

Setting to Enabled will swap floppy drives A: and B:.

Seek Floppy

Setting to Enabled will make BIOS seek floppy drive A: before booting the

Chapter 3

3-10

system. Settings: Disabled and Enabled.

Boot Up Num-Lock LED

This item is to set the Num Lock status when the system is powered on.
Setting to On will turn on the Num Lock key when the system is powered on.
Setting to Off will allow end users to use the arrow keys on the numeric keypad.
Settings: On and Off.

Gate A20 Option

This item is to set the Gate A20 status. A20 refers to the first 64KB of extended
memory. When the default value Fast is selected, the Gate A20 is controlled by
Port92 or chipset specific method resulting in faster system performance. When
Normal is selected, A20 is controlled by a keyboard controller or chipset
hardware.

T ypematic Rate Setting

This item is used to enable or disable the typematic rate setting including
T ypematic Rate & Typematic Delay.

T ypematic Rate (Chars/Sec)

After Typematic Rate Setting is enabled, this item allows you to set the rate
(characters/second) at which the keys are accelerated. Settings: 6, 8, 10, 12,
15, 20, 24 and 30.

T ypematic Delay (Msec)

This item allows you to select the delay between when the key was first pressed
and when the acceleration begins. Settings: 250, 500, 750 and 1000.

Security Option

This specifies the type of BIOS password protection that is implemented. Set­tings are described below:

Option Description

Setup The password prompt appears only when end users try to

run Setup.

System A password prompt appears every time when the com-

puter is powered on or when end users try to run Setup.

AWARD® BIOS Setup

3-11

APIC Function

This field is used to enable or disable the APIC (Advanced Programmable
Interrupt Controller). Due to compliance with PC2001 design guide, the system
is able to run in APIC mode. Enabling APIC mode will expand available IRQ
resources for the system. Settings: Enabled and Disabled.

MPS Table Version

This field allows you to select which MPS (Multi-Processor Specification)
version to be used for the operating system. You need to select the MPS
version supported by your operating system. To find out which version to use,
consult the vendor of your operating system. Settings: 1.4 and 1.1.

Boot OS/2 For DRAM > 64MB

This allows you to run the OS/2® operating system with DRAM greater than
64MB. Setting options: Y es, No.

Chapter 3

3-12

Advanced Chipset Features

Note: Change these settings only if you are familiar with the chipset.

Configure DRAM Timing

This setting determines whether DRAM timing is configured by reading the
contents of the SPD (Serial Presence Detect) EPROM on the DRAM module.
Selecting By SPD makes the following settings automatically determined by
BIOS according to the configurations on the SPD. Setting options: By SPD, By
User.

CAS# Latency

The field controls the CAS latency, which determines the timing delay
before SDRAM starts a read command after receiving it. Setting options:

1.5, 2, 2.5. 1.5 increases system performance while 2.5 provides more
stable system performance.

Precharge Delay

This setting controls the number of clock cycles for DRAM to be allowed
to precharge from the active state. Setting options: 7, 6, 5.

RAS# to CAS# Delay

This field lets you insert a timing delay between the CAS and RAS strobe

The Advanced Chipset Features Setup option is used to change the values of
the chipset registers. These registers control most of the system options in the
computer.

AWARD® BIOS Setup

3-13

signals, used when DRAM is written to, read from, or refreshed. Fast
gives faster performance; and Slow gives more stable performance. This
field applies only when synchronous DRAM is installed in the system.
The settings are: 2 and 3.

RAS# Precharge

This item controls the number of cycles for Row Address Strobe (RAS) to
be allowed to precharge. If insufficient time is allowed for the RAS to
accumulate its charge before DRAM refresh, refresh may be incomplete
and DRAM may fail to retain data. This item applies only when synchro­nous DRAM is installed in the system. The settings are: 2 and 3.

DRAM Data Integrity Mode

Select ECC (Error-Checking & Correcting Code) or Non-ECC according to the
type of DRAM installed.

DRAM Frequency

Use this item to configure the clock frequency of the installed SDRAM. Set­tings are: Auto, DDR200, DDR266.

Delayed T ransaction

The chipset has an embedded 32-bit posted write buffer to support delayed
transactions cycles so that transactions to and from the ISA bus are buffered
and PCI bus can perform other transactions while the ISA transaction is
underway. Select Enabled to support compliance with PCI specification ver­sion 2.1. The settings are: Enabled and Disabled.

AGP Aperture Size (MB)

This setting controls just how much system RAM can be allocated to AGP for
video purposes. The aperture is a portion of the PCI memory address range
dedicated to graphics memory address space. Host cycles that hit the aperture
range are forwarded to the AGP without any translation. The option allows the
selection of an aperture size of 4, 8, 16, 32, 64, 128, and 256 (MB).

Chapter 3

3-14

Integrated Peripherals

On-Chip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with support for
two IDE channels. Choose Enabled to activate each channel separately.

IDE Primary/Secondary Master/Slave PIO

The four items allow you to set a PIO (Programmed Input/Output) mode for
each of the four IDE devices that the onboard IDE interface supports. Modes
0~4 provide increased performance. In Auto mode, BIOS automatically deter­mines the best mode for each IDE device.

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA implementation is possible only if your IDE device supports it and
your operating environment contains a DMA driver. If both your hard drive
and software support Ultra DMA 33, select Auto to enable BIOS support.

AWARD® BIOS Setup

3-15

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB) controller
and you have USB peripherals. The settings are: Enabled, Disabled.

USB Keyboard/Mouse Support

Set to Enabled if your need to use an USB keyboard/mouse in the operating
system that does not support or have any USB driver installed, such as DOS
and SCO Unix.

Init Display First

This item specifies which VGA card is your primary graphics adapter. Settings:
PCI Slot and AGP.

AC’97 Audio

Auto allows the mainboard to detect whether an audio device is used. If the
device is detected, the onboard AC’97 (Audio Codec’97) controller will be
enabled; if not, it is disabled. Disable the controller if you want to use other
controller cards to connect an audio device. Settings: Auto and Disabled.

AC’97 Modem

Auto allows the mainboard to detect whether a modem is used. If a modem is
used, the onboard MC’97 (Modem Codec’97) controller will be enabled; if not,
it is disabled. Disable the controller if you want to use other controller cards to
connect to a modem. Settings: Auto and Disabled.

Onboard LAN Selection

This setting disables/enables the onboard LAN controller. Setting options:
Disabled, Enabled.

IDE HDD Block Mode

This allows your hard disk controller to use the fast block mode to transfer data
to and from the hard disk drive. Block mode is also called block transfer, multi­ple commands or multiple sector read/write. Enabled enables IDE controller to
use block mode; Disabled allows the controller to use standard mode.

Floppy Controller

The item is used to enable or disable the onboard Floppy controller. Select
Enabled when you have installed a floppy disk drive and want to use it.

Chapter 3

3-16

Serial Port A/B

The items specify the base I/O port address and IRQ for the onboard Serial Port
A/Serial Port B. Selecting Auto allows BIOS to automatically determine the
correct base I/O port address. Settings: Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/
IRQ4, 2E8/IRQ3 and Auto.

Serial Port B Mode

The field allows you to specify the operation mode for serial port “COM
B”. Settings are:

Normal: RS-232C Serial Port
IrDA: IrDA-compliant Serial Infrared Port
ASKIR: Amplitude Shift Keyed Infrared Port

RxD, TxD Active

This setting controls the receiving and transmitting speed of the IR pe­ripheral in use. Setting options: Hi/Hi, Hi/Lo, Lo/Hi, Lo/Lo.

IR T ransmission Delay

This setting determines whether the IR transmission rate will be delayed
while converting to receiving mode. Setting options: Disabled, Enabled.

IR Duplex Mode

This setting controls the operating mode of IR transmission/reception.
Setting options: Full, Half. Under Full Duplex mode, synchronous, bi-
directional transmission/reception is allowed. Under Half Duplex mode,
only asynchronous, bi-directional transmission/reception is allowed.

IR Pin Select

Please consult your IR peripheral documentation to select the correct set­ting of the TxD and RxD signals. Setting options: RxD2/TxD2, IR-Rx2Tx2.

Parallel Port

This specifies the I/O port address and IRQ of the onboard parallel port. Settings:
378/IRQ7, 278/IRQ5, 3BC/IRQ7 and Disabled.

Parallel Port Mode

SPP : Standard Parallel Port
EPP : Enhanced Parallel Port
ECP : Extended Capability Port
ECP + EPP: Extended Capability Port + Enhanced Parallel Port

AWARD® BIOS Setup

3-17

SPP/EPP/ECP/ECP+EPP

T o operate the onboard parallel port as Standard Parallel Port only, choose
“SPP .” T o operate the onboard parallel port in the EPP mode simultaneously ,
choose “EPP.” By choosing “ECP”, the onboard parallel port will operate
in ECP mode only. Choosing “ECP + EPP” will allow the onboard parallel
port to support both the ECP and EPP modes simultaneously.

EPP V ersion

The onboard parallel port is EPP Spec. compliant, so after the user chooses
the onboard parallel port with the EPP function, the following message will
be displayed on the screen: “EPP Mode Select.” At this time either EPP 1.
7 spec or EPP 1.9 spec can be chosen.

ECP Mode Use DMA

The ECP mode has to use the DMA channel, so choose the onboard
parallel port with the ECP feature. After selecting it, the following message
will appear: “ECP Mode Use DMA.” At this time, the user can choose
between DMA channel 3 or 1.

Onboard Game Port

This setting disables or assigns an address for the onboard game port.

Onboard Midi Port

This setting disables or assigns an address for the onboard midi port.

Midi IRQ Select

This setting specifies an IRQ for the onboard midi port.

Chapter 3

3-18

Power Management Setup

ACPI Function

This item is to activate the ACPI (Advanced Configuration and Power Man­agement Interface) Function. If your operating system is ACPI-aware, such as
Windows 98SE/2000/ME, select Enabled. Settings: Enabled and Disabled.

ACPI Standby State

This item specifies the power saving modes for ACPI function. Options are:

S1/POS The S1 sleep mode is a low power state. In this state, no

system context (CPU or chipset) is lost and hardware
maintains all system context.

S3/STR The S3 sleep mode is a power-down state in which power

is supplied only to essential components such as main
memory and wake-capable devices and all system con­text is saved to main memory. The information stored in

The Power Management Setup allows you to configure you system to most
effectively save energy while operating in a manner consistent with your own
style of computer use.

AWARD® BIOS Setup

3-19

memory will be used to restore the PC to the previous
state when an “wake up” event occurs.

Power Management/APM

This item is used to select the degree (or type) of power saving and is related
to these modes: Suspend Mode and HDD Power Down. There are three op­tions for power management:

Min Saving Minimum Power Management. Suspend Mode = 1 Hour.
Max Saving Maximum Power Management. Suspend Mode = 1 Min.
User Define Allows end users to configure each mode separately.

Suspend Type

This setting allows you to select the type of Suspend mode. Setting options:
Stop Grant (saves the state of the entire system to disk and then powers off
the system), PwrOn Suspend (the CPU and core system remain powered on in

a very low-power mode).

Modem Use IRQ

Name the interrupt request (IRQ) line assigned to the modem (if any) on your
system. Activity of the selected IRQ always awakens the system. Settings are
3, 4, 5, 7, 9, 10, 11 and NA.

Suspend Time Out

If system activity is not detected for the length of time specified in this field, all
devices except CPU will be shut off. Settings are Disabled, 1 Min, 2 Min, 4
Min, 8 Min, 12 Min, 20 Min, 30 Min, 40 Min and 1 Hour.

Power Button Function

This setting determines the function of the power button. When set to Power
Off, the power button works as normal power off button. When set to Suspend,

the computer will enter the suspend/sleep mode if you press the power button.
But if the button is pressed for more than four seconds, the computer is turned
off. Setting options: Power Off, Suspend.

Wake Up On PME, W ake Up On Ring, USB W akeup From S3

These fields specify whether the system will be awakened from power saving
modes when activity or input signal of the specified hardware peripheral or
component is detected.

Note: To use the function of “Wake Up On Ring”, you need to install a
modem supporting power on function.

Chapter 3

3-20

CPU THRM-Throttling

The item allows you to specify the CPU speed (at percentage) to which it will
slow down when the CPU reaches the predetermined overheat temperature.
Settings range from 12.5% to 87.5% at 12.5% increment.

Resume by RTC Alarm

The field is used to enable or disable the feature of booting up the system on
a scheduled time/date.

Date (of Month) Alarm

The field specifies the date for Resume by RTC Alarm. Settings: 0~31.

Time (hh:mm:ss) Alarm

The field specifies the time for Resume by RTC Alarm. Format is <hour>
<minute><second>.

POWER ON Function

This setting controls which part on the PS/2 mouse or keyboard can power on
the system. Settings: Password, Hot KEY, Mouse Left, Mouse Right, BUTTON
ONLY and Keyboard 98. Please note that this function will only work under S3
mode.

KB Power ON Password

If POWER ON Function is set to Password, then you can set a password in the
field for the PS/2 keyboard to power on the system. Please note that this
function will only work under S3 mode.

Hot Key Power ON

If POWER ON Function is set to Hot KEY, you can assign a hot key combina­tion in the field for the PS/2 keyboard to power on the system. Settings: Ctrl-
F1 through Ctrl-F12. Please note that this function will only work under S3
mode.

After AC Power Lost

This setting specifies whether your system will reboot after a power failure or
interrupts occurs. Available settings are:

Power Off Leaves the computer in the power off state.
Power On Reboots the computer.
Last State Restores the system to the status before power failure or

interrupt occurs.

AWARD® BIOS Setup

3-21

Reload Global Timer Events: Primary/Secondary Master/Slave IDE, FDC/
LPT/COM Ports

Global Timer Events are I/O events whose occurrence can prevent the system
from entering a power saving mode or can awaken the system from such a
mode. In effect, the system remains alert for anything which occurs to a device
that is configured as Enabled, even when the system is in a power down mode.

Chapter 3

3-22

PNP/PCI Configurations

This section describes configuring the PCI bus system. PCI, or Peripheral
Component Interconnect, is a system which allows I/O devices to operate at

speeds nearing the speed the CPU itself uses when communicating with its
own special components. This section covers some very technical items and it
is strongly recommended that only experienced users should make any changes
to the default settings.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended Sys­tem Configuration Data (ESCD) when you exit Setup if you have installed a
new add-on and the system reconfiguration has caused such a serious conflict
that the operating system can not boot. The settings are: Enabled and Disabled.

Resource Controlled By

The A ward Plug and Play BIOS has the capacity to automatically configure all
of the boot and Plug and Play compatible devices. However, this capability
means absolutely nothing unless you are using a Plug and Play operating
system such as Windows® 95/98. If you set this field to “manual” choose
specific resources by going into each of the sub menu that follows this field (a
sub menu is preceded by a “¾”). The settings are: Auto (ESCD), Manual.

IRQ Resources

The items are adjustable only when Resources Controlled By is set to Manual.

AWARD® BIOS Setup

3-23

Press <Enter> and you will enter the sub-menu of the items. IRQ Resources list
IRQ 3/4/5/7/9/10/11/12/14/15 for users to set each IRQ a type depending on the
type of device using the IRQ. Settings are:

PCI Device For Plug & Play compatible devices designed for PCI

bus architecture.

Reserved The IRQ will be reserved for further request.

PCI/VGA Palette Snoop

When set to Enabled, multiple VGA devices operating on different buses can
handle data from the CPU on each set of palette registers on every video
device. Bit 5 of the command register in the PCI device configuration space is
the VGA Palette Snoop bit (0 is disabled). For example, if there are two VGA
devices in the computer (one PCI and one ISA) and the:

The setting must be set to Enabled if any ISA bus adapter in the system
requires VGA palette snooping.

VGA Palette Snoop
Bit Setting Action

Disabled Data read or written by the CPU is only directed to the PCI

VGA device’s palette registers.

Enabled Data read or written by the CPU is directed to both the PCI

VGA device’s palette registers and the ISA VGA device’s
palette registers, permitting the palette registers of both VGA
devices to be identical.

Chapter 3

3-24

PC Health Status

CPU Critical T emperature

If the CPU temperature reaches the upper limit preset in this setting, the warn­ing mechanism will be activated. This helps you to prevent the CPU overheat
problem.

Current System/CPU T emperature, System/CPU Fan, Vcore, 3.3V , +5V , +12V ,

-12V, -5V, VBAT(V), 5VSB(V)

These items display the current status of all of the monitored hardware de­vices/components such as CPU voltages, temperatures and all fans’ speeds.

Chassis Intrusion Detect

Set this option to enable, reset, or disable the chassis intrusion detector. Dur­ing Enabled, any intrusion on the system chassis will be recorded. The next
time you turn on the system, it will show a warning message. T o be able to clear
those warnings, choose Reset. After clearing the message it will go back to
Enabled.

CPU Shutdown T emperature

This option is for setting the shutdown temperature level for the processor.
When the processor reaches the temperature you set, the system will be shut
down.

This section monitors the current hardware status including CPU/system
temperature, CPU/system fan speeds, Vcore etc. Monitor function is available
only if there is hardware monitoring mechanism onboard.

AWARD® BIOS Setup

3-25

Frequency/Voltage Control

This section controls the frequency/voltage of the CPU and certain onboard
hardware to enhance overall system performance.

CPU Ratio Selection

This setting controls the multiplier that is used to determine the internal clock
speed of the processor relative to the external or motherboard clock speed.

Auto Detect DIMM/PCI Clock

This item is used to auto detect the DIMM/PCI slots. When set to Enabled,
the system will remove (turn off) clocks from empty DIMM/PCI slots to mini-

mize the electromagnetic interference (EMI). Setting options: Enabled, Disabled.

Spread Spectrum

When the motherboard’s clock generator pulses, the extreme values (spikes)
of the pulses creates EMI (Electromagnetic Interference). The Spread Spec­trum function reduces the EMI generated by modulating the pulses so that the
spikes of the pulses are reduced to flatter curves. If you do not have any EMI
problem, leave the setting at Disabled for optimal system stability and
performance. But if you are plagued by EMI, activate the Spread Spectrum for
EMI reduction. Remember to disable Spread Spectrum if you are overclocking
because even a slight jitter can introduce a temporary boost in clockspeed
which may just cause your overclocked processor to lock up.

Chapter 3

3-26

CPU Host/PCI Clock

This setting specifies the clock frequencies of the CPU host bus (FSB) and PCI
buses. It provides a method for end users to overclock the processor
accordingly. When set to Default, the BIOS will use the default clock frequen­cies for the CPU host bus and PCI buses.

AWARD® BIOS Setup

3-27

When you select Load Optimized Defaults, a message as below appears:

Pressing Y loads the default factory settings for optimal system performance.

The two options on the main menu allow users to restore all of the BIOS
settings to the default Fail-Safe or Optimized values. The Optimized Defaults
are the default values set by the mainboard manufacturer specifically for opti­mal performance of the mainboard. The Fail-Safe Defaults are the default val­ues set by the BIOS vendor for stable system performance.

When you select Load Fail-Safe Defaults, a message as below appears:

Pressing Y loads the BIOS default values for the most stable, minimal system
performance.

Load Fail-Safe/Optimized Defaults

Chapter 3

3-28

Set Supervisor/User Password

When you select this function, a message as below will appear on the screen:

Type the password, up to six characters in length, and press <Enter>. The
password typed now will replace any previously set password from CMOS
memory. You will be prompted to confirm the password. Retype the password
and press <Enter>. You may also press <Esc> to abort the selection and not
enter a password.

T o clear a set password, just press <Enter> when you are prompted to enter the
password. A message will show up confirming the password will be disabled.
Once the password is disabled, the system will boot and you can enter Setup
without entering any password.

When a password has been set, you will be prompted to enter it every time you
try to enter Setup. This prevents an unauthorized person from changing any
part of your system configuration.

Additionally, when a password is enabled, you can also have Award BIOS to
request a password each time the system is booted. This would prevent unau­thorized use of your computer. The setting to determine when the password
prompt is required is the Security Option of the ADV ANCED BIOS FEATURES
menu. If the Security Option is set to System, the password is required both at
boot and at entry to Setup. If set to Setup, password prompt only occurs when
you try to enter Setup.

About Supervisor Password & User Password:

Supervisor password: Can enter and change the settings of

the setup menu.

User password: Can only enter but do not have the right

to change the settings of the setup menu.

G-1

Glossary

ACPI (Advanced Configuration & Power Interface)
This power management specification enables the OS (operating system) to control the
amount of power given to each device attached to the computer. Windows 98/98SE,
Windows 2000 and Windows ME can fully support ACPI to allow users managing the
system power flexibly.

AGP (Accelerated Graphics Port)
A new, high-speed graphics interface that based on PCI construction and designed
especially for the throughput demands of 3-D graphics. AGP provides a direct channel
(32-bit wide bus) between the display controller and main memory for high graphics
quality and performance.

ATX

A modern shape and layout of mainboard that supersedes the widely-used Baby AT
form factor. It improves many placement of components and makes a more efficient
design.

BIOS (basic input/output system)
On PCs, an essential software that contains all the control code of input/output inter­face (such as keyboard, disk drives, etc.). It executes hardware test on booting the
system, starts the OS, and provides an interface between the OS and the components.
The BIOS is stored in a ROM chip.

Bus

A set of hardware lines within the computer system, through which the data is trans­ferred among different components. In a PC, the term bus usually refers to a local bus
that connects the internal components to the CPU and main memory.

Cache

A special memory subsystem that is used to speed up the data transfer. It stores the
contents of frequently accessed RAM locations and the addresses where these data
items are stored.

Chipset

A collection of integrated chips designed to perform one or more related functions. For

Glossary

Glossary

G-2

Glossary

Dynamic RAM (DRAM) Memory Technologies

Type

FPM (60,70ns)

EDO (50,60,70ns)

SDRAM (66MHz)

SDRAM (100MHz)

SDRAM (133MHz)

RDRAM (Direct Rambus)

DDR SDRAM (100MHz)

DDR SDRAM (133MHz)

First Used

1990

1994

1996

1998

1999

1999

2000

2000

Clock Rate

25MHz

40MHz

66MHz

100MHz

133MHz

400MHz

100MHz

133MHz

Bus* Width

64 bits

64 bits

64 bits

64 bits

64 bits

16 bits

64 bits

64 bits

Bandwidth

200 MBps

320 MBps

528 MBps

800 MBps

1.1 GBps

1.6 GBps

1.6 GBps

2.1 GBps

Volts

5v

5v

3.3v

3.3v

3.3v

2.5v

3.3v

3.3v

Peak

* Memory channel width (64 bits started with 75MHz Pentium)

Source: Computer Desktop Encyclopedia

example, a modem chipset contains all the primary circuits for transmitting and receiv­ing data; a PC chipset provides the electronic interfaces between all subsystems.

CMOS (complementary metal-oxide semiconductor)
CMOS is a widely used type of semiconductor, which features high speed and low
power consumption. PCs usually contain a small amount of battery-powered CMOS
memory to retain the date, time, and system setup parameters.

COM

In MS-DOS system, the name of a serial communications port. DOS supports four
serial ports. For example, if a modem is connected to one serial port and a serial mouse
to another, they are identified as COM1 and COM2.

DIMM (dual in-line memory module)
A small circuit board that holds memory chips. A SIMM (single in-line memory
module) has a 32-bit path to the memory chips whereas a DIMM has 64-bit path.

DRAM (Dynamic RAM)
A most common type of computer memory. It usually uses one transistor and a
capacitor to represent a bit. As the development of technology, the memory type and
specification used in computer becomes variety, such as SDRAM, DDR SDRAM, and
RDRAM. For further instruction, please see the table below:

G-3

Glossary

ECC Memory (error correcting code memory)
A type of memory that contains special circuitry for testing the accuracy of data and
correcting the errors on the fly.

IDE (Integrated Drive Electronics)
A type of disk-drive interface widely used to connect hard disks, CD-ROMs and tape
drives to a PC, in which the controller electronics is integrated into the drive itself,
eliminating the need for a separate adapter card. The IDE interface is known as the
ATA (AT Attachment) specification.

IEEE 1394

A new, high speed external bus standard, also known as FireWire or iLink, which
supports data transfer rates of up to 400 Mbps for connecting up to 63 external
devices.

IrDA (Infrared Data Association)
A group of device vendors, including computer, component and telecommunications,
who have developed a standard for transmitting data via infrared light waves. This
enables you to transfer data from one device to another without any cables.

LAN (local area network)
A computer network that covers a relatively smaller area, such as in a building or an
enterprise. It is made up of servers, workstations, shared resources, a network oper­ating system and a communications link. These individual PCs and devices on a LAN
are known as “nodes”, and are connected by cables to access data and devices any­where on the LAN, so that many users can share expensive devices and data.

LED (light emitting diode)
A semiconductor device that converts electrical energy into light. Since it lights up
(usually red) when electricity is passed through it, it is usually used for the activity
lights on computer’s component, such as disk drivers.

LPT (line printer terminal)
Logical device name for a line printer; a name reserved by the MS-DOS for up to three
parallel printer ports: LPT1, LPT2, and LPT3. It is frequently used by the OS to
identify a printer.

G-4

Glossary

PCI (Peripheral Component Interconnect)
A local bus standard developed by Intel that first appeared on PCs in late 1993. PCI
provides “plug and play” capability and allows IRQs to be shared. The PCI controller
can exchange data with the system's CPU either 32 bits or 64 bits at a time.

PnP (Plug and Play)
A set of specifications that allows a PC to configure itself automatically to work with
peripherals. The user can "plug" in a peripheral device and "play" it without configur­ing the system manually. To implement this useful feature, both the BIOS that sup­ports PnP and a PnP expansion card are required.

POST (Power On Self Test)
During booting up your system, the BIOS executes a series of diagnostic tests, include
checking the RAM, the keyboard, the disk drives, etc., to see if they are properly
connected and operating.

PS/2 Port

A type of port developed by IBM for connecting a mouse or keyboard to a PC. The
PS/2 port supports a mini DIN plug containing just 6 pins. Most modern PCs equipped
with PS/2 ports so that the special port can be used by another device, such as a
modem.

USB (universal serial bus)
A hardware interface for low-speed peripherals such as the keyboard, mouse, joystick,
etc. USB provides a maximum bandwidth of 12 Mbit/sec (Mbps) for connecting up to
127 peripheral devices to PC. USB features hot swap capability and multiple data
streams, allows external devices to be plugged in and unplugged without turning the
system off.

Virus

A program or a piece of code that infects computer files by inserting in those files
copies of itself. The virus code is buried within an existing program, and is activated
when that program is executed. All the viruses are man-made, and often have damaging
side effects.
