MSI MS-6385 User Manual

Page 1

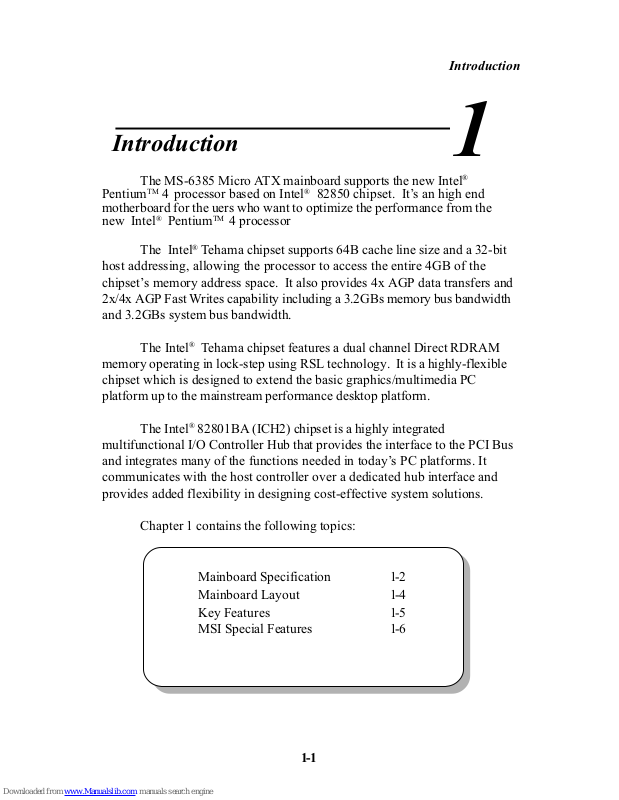

Introduction

1-1

Introduction

The MS-6385 Micro ATX mainboard supports the new Intel

PentiumTM 4 processor based on Intel® 82850 chipset. Its an high end motherboard for the uers who want to optimize the performance from the new Intel® Pentium

4 processor

The Intel® Tehama chipset supports 64B cache line size and a 32-bit host addressing, allowing the processor to access the entire 4GB of the chipsets memory address space. It also provides 4x AGP data transfers and 2x/4x AGP Fast Writes capability including a 3.2GBs memory bus bandwidth and 3.2GBs system bus bandwidth.

The Intel® Tehama chipset features a dual channel Direct RDRAM memory operating in lock-step using RSL technology. It is a highly-flexible chipset which is designed to extend the basic graphics/multimedia PC platform up to the mainstream performance desktop platform.

The Intel® 82801BA (ICH2) chipset is a highly integrated multifunctional I/O Controller Hub that provides the interface to the PCI Bus and integrates many of the functions needed in todays PC platforms. It communicates with the host controller over a dedicated hub interface and provides added flexibility in designing cost-effective system solutions.

Chapter 1 contains the following topics:



Mainboard Specification 1-2 Mainboard Layout 1-4 Key Features 1-5

MSI Special Features 1-6

Introduction

Page 2

111111111111

111111

1-2

Chapter 1

CPU

! Support Intel® PentiumTM 4 processor. ! Support 1.7GHz or faster.

Chipset

! Intel® 850 chipset.

- Up to 2GB maximum memory (Rambus)

- AGP interface with 4x SBA/Data Transfer

! Intel® ICH2 chipset.

- AC97 Controller Integrated

- 2 Full IDE channels, up to ATA100

- Low pin count interface for SIO

- Support up to 4 USB ports

- Support one CNR slot

Main Memory

! Four 184-pin gold-lead RIMM sockets ! Support a maximum memory size of 2GB

Slots

! One AGP (Accelerated Graphics Port) slot

- support 2x/4x mode.

! Three 32-bit/33MHz Master PCI Bus slots ! Support 3.3v/5v PCI bus Interface ! One CNR slot

On-Board IDE

! An IDE controller on the Intel® ICH2 Chipset provides IDE HDD/CD-

ROM with PIO, Bus Master and Ultra DMA 100 operation modes.

! Can connect up to four IDE devices

Audio

! ICH2 chip integrated ! AC97 Compliant

Mainboard Specification

Page 3

Introduction

1-3

Introduction

Super I/O Controller

! Winbond W83627HF-AW I/O controller

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2. 88 Mbytes.

- 2 serial ports (COM A & COM B)

- 1 parallel port supports SPP/EPP/ECP mode

Network (Optional)

! Intel® 82562 ET/EM Platform LAN connect for 10 Base-T and 100 Base-T

BIOS

! The mainboard BIOS provides Plug & Play BIOS which detects the

peripheral devices and expansion cards of the board automatically.

! IDE drive auto configure, Advanced Power Management (APM) 1.2,

ACPI 1.0, DMI 2.0, support ECC/Parity, support LS120

Dimension

! Micro-ATX Form Factor : 9.6 inches (L) x 9.6 inches(W) PCB

Mounting

! 8 mounting holes.

Special FeaturesSpecial Features

Special Features

Microsoft® PC99 Compliant Micro-ATX Form Factor Support Intel® Pentium® 4 processors Support DMI(Desktop Management Interface) through BIOS LAN Wake Up Function via PME PC Alert System Hardware Monitor (optional) Modem Wake Up Function via PME Support PCI 2.2 Suspend to RAM/Disk

Page 4

111111111111

111111

1-4

Chapter 1

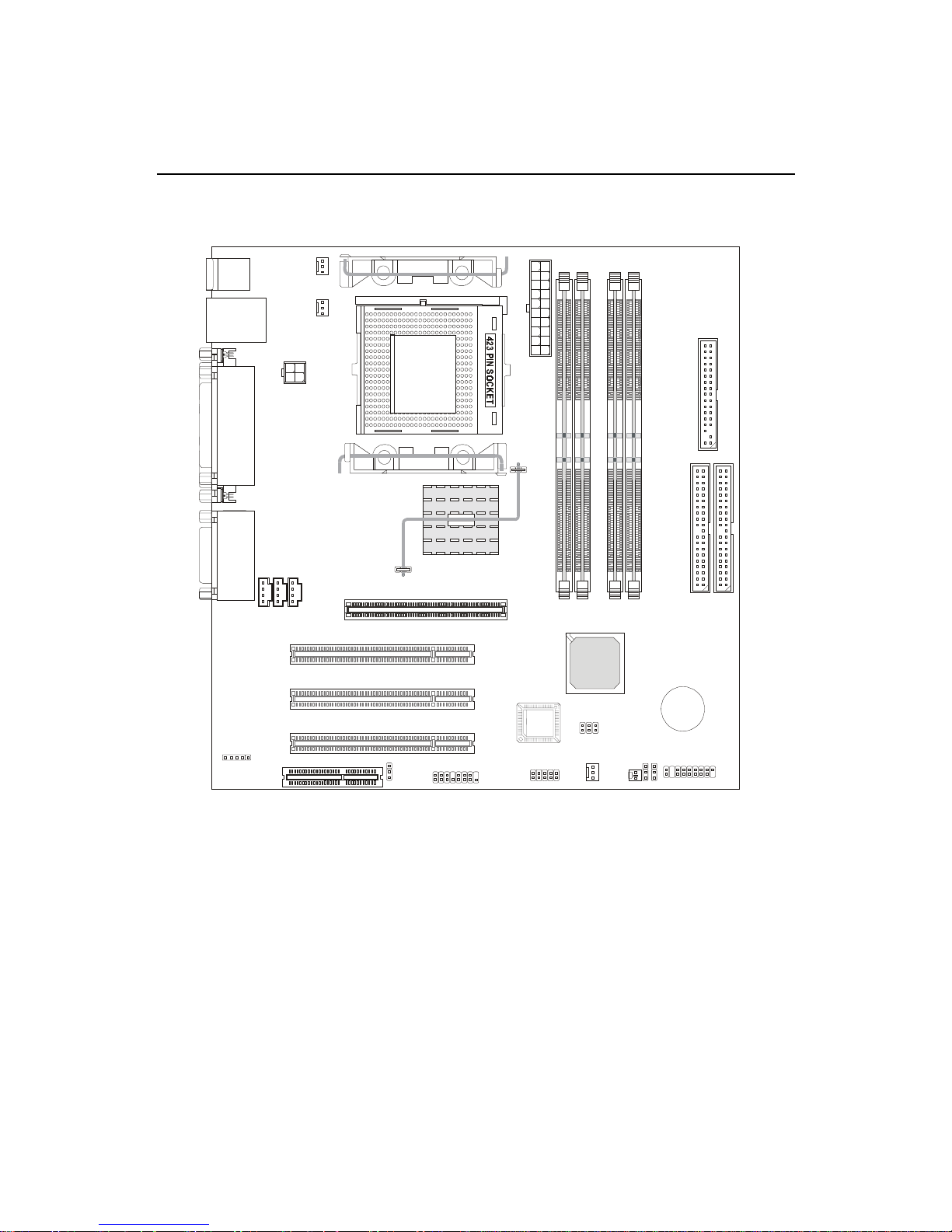

Mainboard Layout

MS-6385 MICRO ATX Mainboard

AGP Slot

BATT

Intel

FW82801BA

JUSB2

JP2

ATX Power Supply

JFP2

JBAT1

J14

J13

SYSFAN1

JWR2

CPUFAN1

J12

SYSFAN2

J16

J17

J15

BIOS

PC I Sl ot 1

PC I Sl ot 2

PCI Slot 3

1,-

1,-

.,,

RIMM1

RIMM2

RIMM3

RIMM4

CNR

Top : Parallel Port

Bottom: COM A COM B

Top : mo use Bottom: keyboard

Top: LAN J ack Bottom: USB ports

CD_IN

MODEM_IN

AUX_IN

Top : Game port

Bottom: Line-Out Line-In Mic

J18

Page 5

Introduction

1-5

Introduction

Component Function Reference

Socket 423 Installing CPU p. 2-2 RIMM1~4 Installing memory module p. 2-4 ATX Power Supply Installing power supply p. 2-6 FDD Connecting to floppy disk drive p. 2-11 JUSB2 Connecting to USB device p. 2-11 IDE1 & IDE2 Connecting to HDD drive p. 2-12 JFP2 Connecting to case p. 2-13 J15 Connecting to IR module p. 2-14 J12 & 17 Connecting to chassis intrusion switch p. 2-14 CPUFAN1 Connecting to processor fan p. 2-15 SYSFAN1&2 Connecting to system fan p. 2-15 J18 Connecting to front audio p. 2-17 JBAT1 Setting clear CMOS p. 2-18 J13 Clearing BIOS password p. 2-19 J16 Setting beep by buzzer/speaker P. 2-19 JP2 Setting onboard audio codec P. 2-20 J14 Setting BIOS flash P. 2-21 AGP Inserting AGP expansion card p. 2-22 PCI Slot Inserting expansion cards p. 2-22 CNR Inserting CNR expansion card p. 2-22

Quick Components Guide

Page 6

111111111111

111111

1-6

Chapter 1

MSI Special Features

The MSI special features are designed by MSI R&D which are only available in MSI mainboards. The 6385 mainboard is equipped with PC Alert

III.

PC Alert III

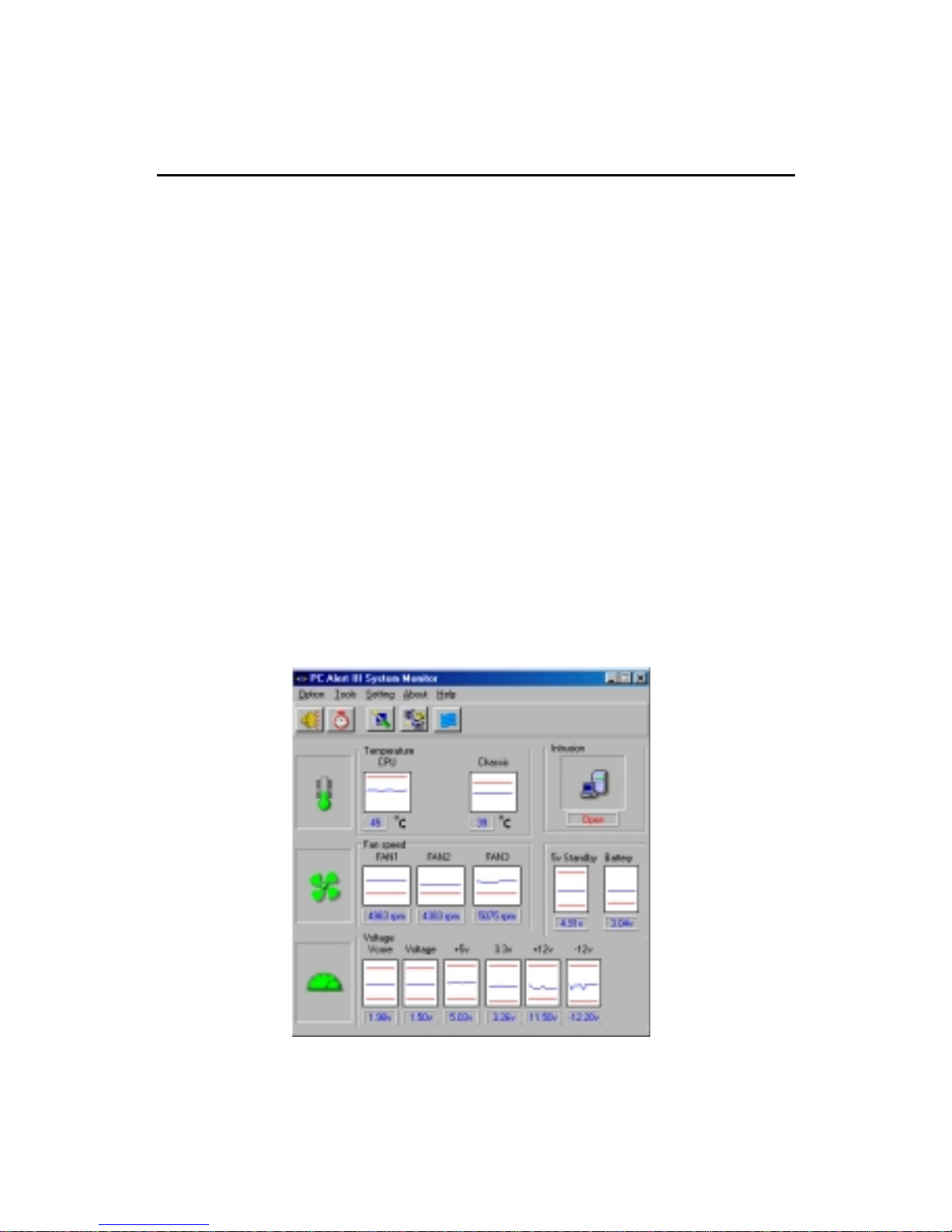

The PC AlertTM III is a utility you can find in the CD-ROM. The utility is just like your PC doctor that can detect the following PC hardware status during real time operation: * monitor CPU & system temperature * monitor fan speed * monitor system voltage * monitor chassis intrusion If one of the items above is abnormal, the program main screen will be immediately shown on the screen, with the abnormal item highlighted in red. This will continue to be shown until user disables warning.

Page 7

Introduction

1-7

Introduction

Features:

! Network Management

- Monitoring & remote control

! Basic System Utilities

- Scandisk & Defragment to maintain your HDD

! 3D Graphics Design

- Enables a more friendly user interface

! Software Utilities

- SoftCooler Optimized Cooling
