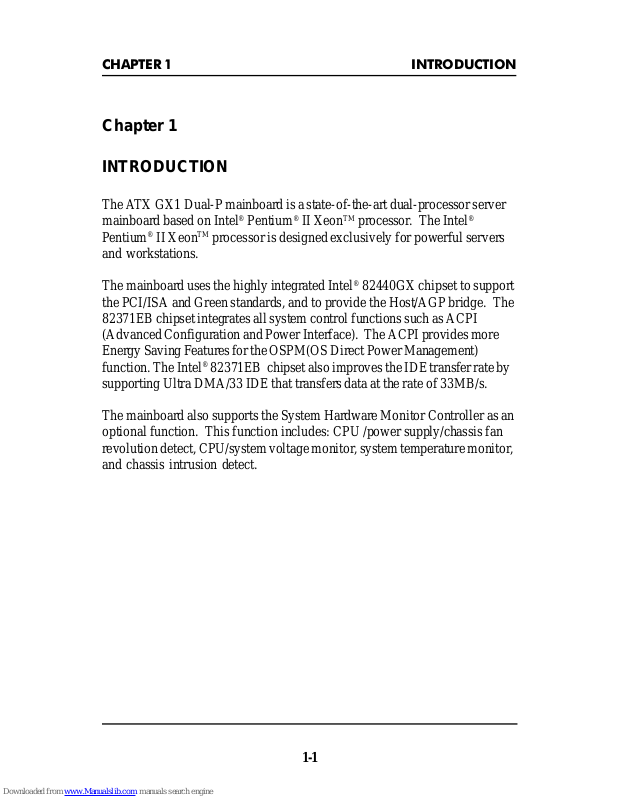

CHAPTER 1 INTRODUCTION
1-1
Chapter 1
INTRODUCTION
The ATX GX1 Dual-P mainboard is a state-of-the-art dual-processor server
mainboard based on Intel® Pentium® II XeonTM processor. The Intel
®
Pentium® II XeonTM processor is designed exclusively for powerful servers
and workstations.
The mainboard uses the highly integrated Intel® 82440GX chipset to support
the PCI/ISA and Green standards, and to provide the Host/AGP bridge. The
82371EB chipset integrates all system control functions such as ACPI
(Advanced Configuration and Power Interface). The ACPI provides more
Energy Saving Features for the OSPM(OS Direct Power Management)
function. The Intel® 82371EB chipset also improves the IDE transfer rate by
supporting Ultra DMA/33 IDE that transfers data at the rate of 33MB/s.
The mainboard also supports the System Hardware Monitor Controller as an
optional function. This function includes: CPU /power supply/chassis fan
revolution detect, CPU/system voltage monitor, system temperature monitor ,
and chassis intrusion detect.
Page 2
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
l Dual Slot 2 for Intel
®
Pentium® II Xeon processor .
l Support 400MHz or faster with 512KB, 1MB or 2MB integrated L2 cache.
Chipset
l Intel
®
82440GX AGPset.
l Intel
®
82371EB chipset.
Onboard SCSI Connector
l SYM 53C896
- supports high performance 80Mbytes/sec Ultra 2 SCSI peripherals at
a cable lengths up to 12 meters.
l Supported RAID
- support AMI series 762 RAID Card
- support Mylex Acceleraid 200 RAID card
- support Mylex Acceleraid 250 RAID card
PCI-T o-PCI Bridge
l Digital 21152
- complies fully with Revision 2.1 of PCI Local Bus Specification.
- support six PCI master .
Main Memory
l Support eight memory banks using four 168-pin gold-lead DIMM sockets.
l Support a maximum memory size of 2GB.
l Support unbuffered or registered ECC(1-bit Error Code Correct) SDRAM.
l Support 3.3v SDRAM DIMM.
Slots
l One AGP (Accelerated Graphics Port) slot
- data transfer rates at 133MHz (with AC timing)
l Six 32-bit Master PCI Bus slots and one ISA bus slot (wherein 1 PCI/ISA
is shared).
l Support 3.3v/5v PCI bus Interface.
Page 3
CHAPTER 1 INTRODUCTION
1-3
On-Board IDE
l An IDE controller on the Intel
®
82371EB Chipset provides IDE HDD/CD-
ROM with PIO, Bus Master and Ultra DMA/33 operation modes.
l Can connect up to four IDE devices.
Integrated Super I/O Controller
l W inbond W83977F-A W I/O controller
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial port (COM A + COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 1 IrDA connector for SIR.
Network
l Intel
®
82558 10/100MB Ethernet
- ACPI
- Magic packet filtering to support wake-up on LAN.
- ARP & FLEXIBLE frame filtering.
- Software drivers are backwards compatible.
- 1 Lan Connector (RJ-45)
USB
l T wo USB ports
BIOS
l The mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
l IDE drive auto configure, Advanced Power Management (APM) 1.2,
ACPI 1.0, DMI 2.0, ECC/Parity support, LS120 support, Auto enable
onboard SCSI terminator .
Dimension
l Custom A TX Form Factor : 33cm(L) x 30.5cm(W) x 6 layers PCB
Mounting
l 12 mounting holes.
Page 4
CHAPTER 1 INTRODUCTION
1-4
System Hardware Monitor
l CPU/Power Supply/Chassis Fan Revolution Detect
l CPU Fan Control (the fan will automatically stop when the system enters
suspend mode)
l System Voltage Detect
l CPU Overheat W arning.
l Display Actual Current Voltage
Page 5
CHAPTER 1 INTRODUCTION
1-5

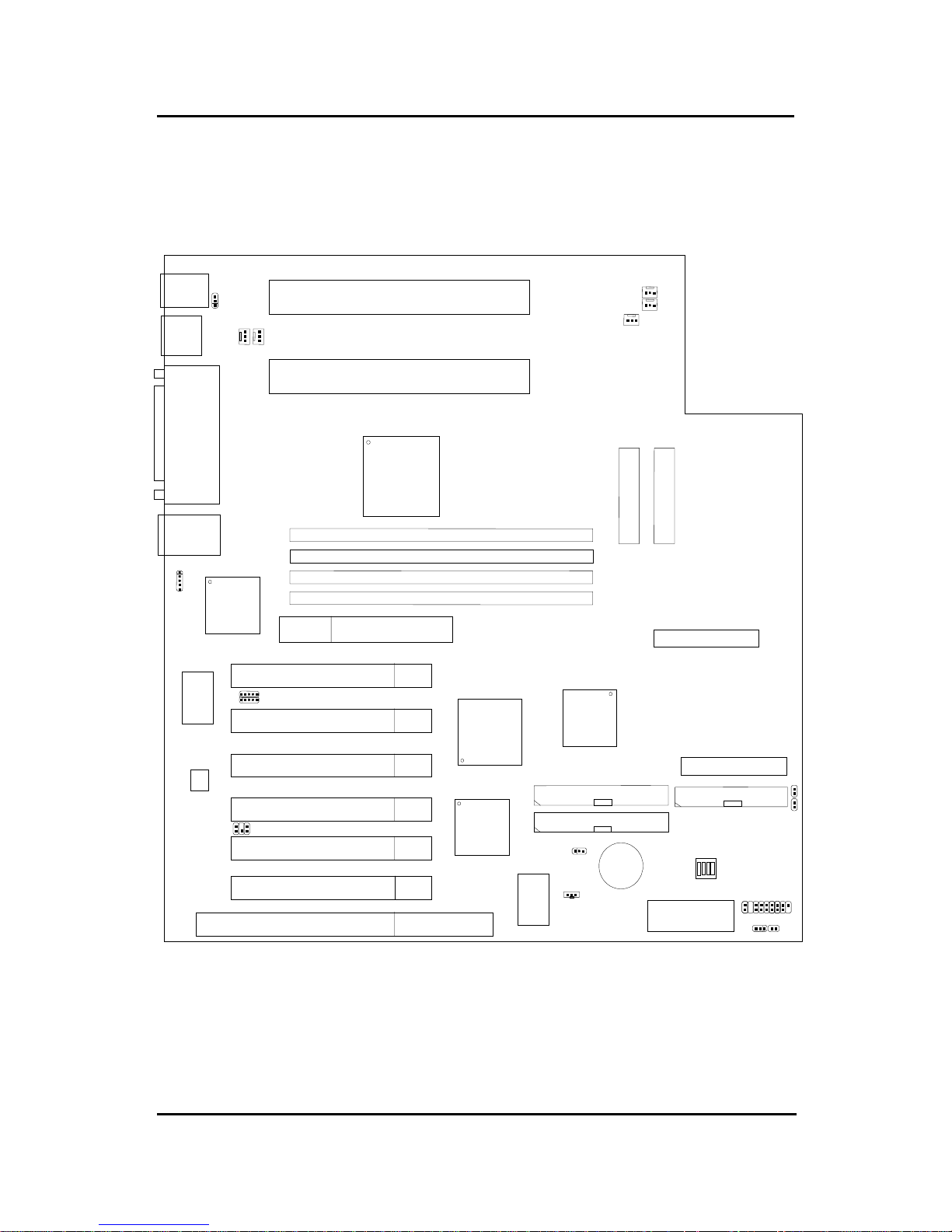

1.2 Mainboard Layout
MS-6135 ATX GX1 Dual-P Mainboard
DIMM 1
Top: mouse
Bottom:
keyboard
Top: Port 1
USB
Top: LPT
Bottom:
COM A
COM B
ISA SLOT 1
PCI SLOT 4
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
SLOT 2
FDC
BATT
+
IDE1
977TF-AW
ATX
Power Supply
BIOS
PIIX4E
JFP1
SW
CPUFA2
82558
PSFAN1
FW82443BX
AGP
Bottom:
Port 2
CPUFA1
PCI SLOT 5
J1
JBAT1
JSOUND1
JWOL1
System
Hardware
Monitor
JRMS1
HI-LAN
Ultra Wide 2 SCSI
SYM
53C896
PCI SLOT 6
DIMM 2
DIMM 3
DIMM 4
RJ-45 LAN
Connector
SLOT 2
JKBMB1
CPUFA4
CPUFA3
JMODEM
IDE2
ACTLAN
I/O
APIC
Digital
21152
ATX
Power Supply
Ultra Wide 2 SCSI
IR1
