MS-1453(Switchable) & MS-1454(UMA) Ver : 0A
D
E
2009/07/07
Calpella Platform
1 1
Table of Contents
Page Description

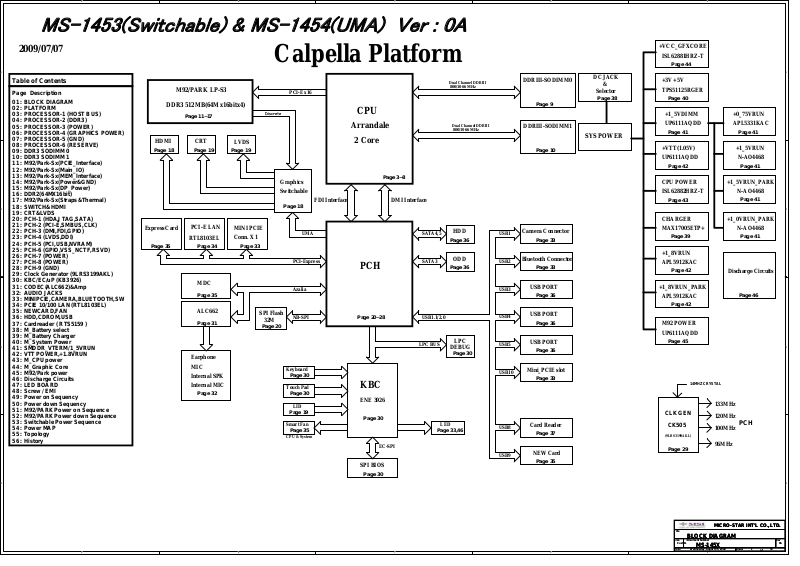

01 : BLOCK DIAGRAM
02 : PLATFORM
03 : PROCESSOR-1 (HOST BUS)
04 : PROCESSOR-2 (DDR3)
05 : PROCESSOR-3 (POWER)
06 : PROCESSOR-4 (GRAPHICS POWER)
07 : PROCESSOR-5 (GND)
08 : PROCESSOR-6 (RESERVE)
09 : DDR3 SODIMM 0
10 : DDR3 SODIMM 1
11 : M92/Park-Sx(PCIE_Interface)
12 : M92/Park-Sx(Main_IO)
13 : M92/Park-Sx(MEM_Interface)
14 : M92/Park-Sx(Power&GND)
15 : M92/Park-Sx(DP_Power)
16 : DDR2(64MX16bit)
17 : M92/Park-Sx(Straps&Thermal)
18 : SWITCH&HDMI
2 2
19 : CRT&LVDS
20 : PCH-1 (HDA,JTAG,SATA)
21 : PCH-2 (PCI-E,SMBUS,CLK)
22 : PCH-3 (DMI,FDI,GPIO)
23 : PCH-4 (LVDS,DDI)
24 : PCH-5 (PCI,USB,NVRAM)
25 : PCH-6 (GPIO,VSS_NCTF,RSVD)
26 : PCH-7 (POWER)
27 : PCH-8 (POWER)
28 : PCH-9 (GND)
29 : Clock Generator (9LRS3199AKL)
30 : KBC/EC/uP (KB3926)
31 : CODEC(ALC662)&Amp
32: AUDIO JACKS
33 : MINIPCIE,CAMERA,BLUETOOTH,SW
34 : PCIE 10/100 LAN (RTL8103EL)
35 : NEWCARD,FAN
36 : HDD,CDROM,USB
37 : Cardreader ( RTS5159 )
38 : M_Battery select
39 : M_Battery Charger
40 : M_System Power
3 3
41 : SMDDR_VTERM/1_5VRUN
42 : VTT POWER,+1.8VRUN
43 : M_CPU power
44 : M_Graphic Core
45 : M92/Park power
46 : Discharge Circuits
47 : LED BOARD
48 : Screw / EMI

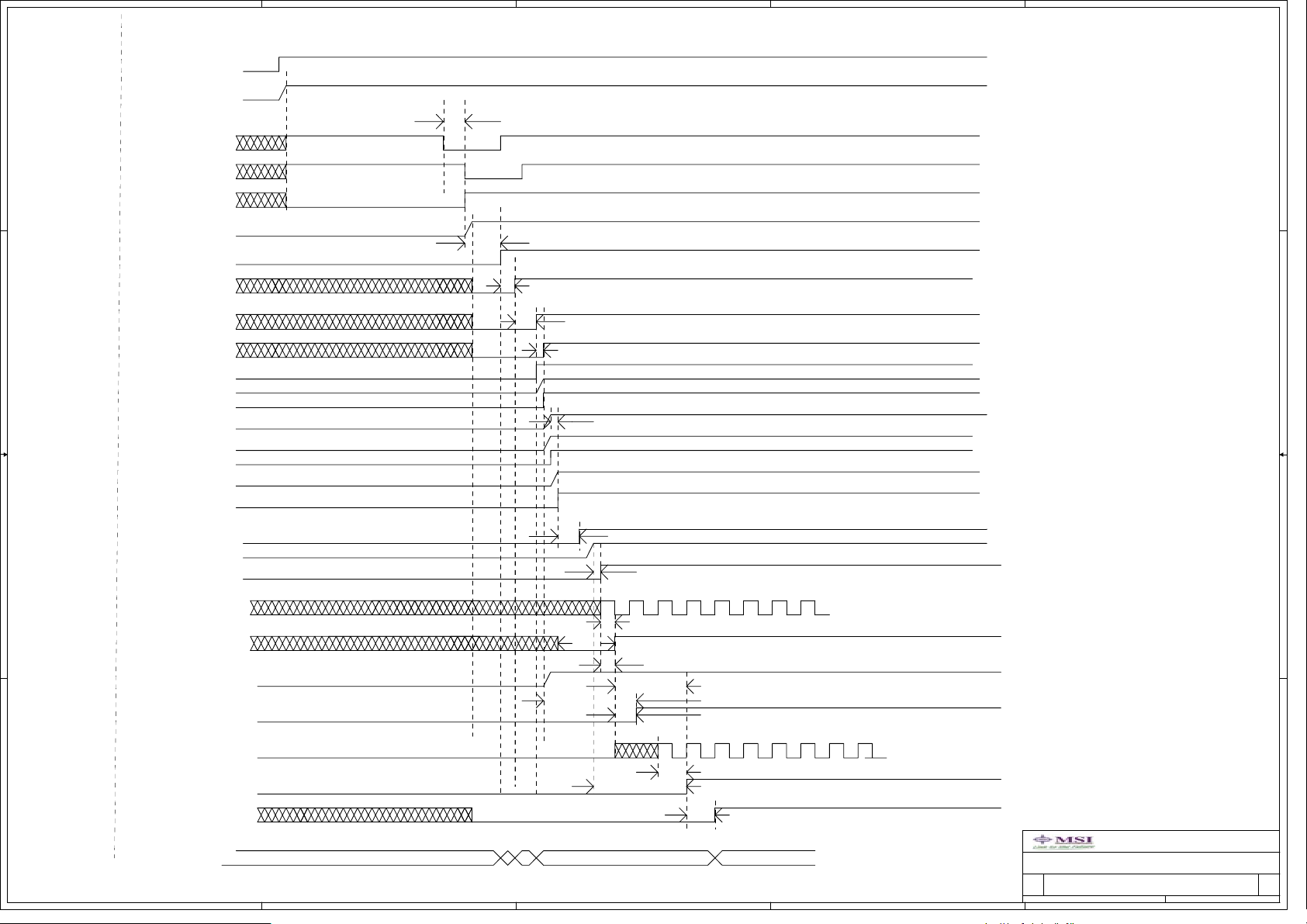

49 : Power on Sequency
50 : Power down Sequency
51 : M92/PARK Power on Sequence
52 : M92/PARK Power down Sequence
53 : Switchable Power Sequence
54 : Power MAP
55 : Topology
56 : History
Express Card
M92/PARK LP-S3
DDR3 512MB(64Mx16bitx4)
Page 11~17
HDMI
Page 18
CRT
Page 19
PCI-E LAN
RTL8103EL
Page 35
Page 34
MDC
Page 35
ALC662
Page 31
Earphone
MIC
Internal SPK
Internal MIC
Page 32
LVDS
Page 19
MINI PCIE
Conn. X1
Page 33
SPI Flash
32M
Discrete
Page 20
PCI-E x16
CPU
Arrandale
2 Core
Graphics
Switchable
Page 18
FDI Interface
UMA
PCI-Express SATA3
Azalia
NB-SPI
Keyboard
Page 30
Touch Pad
Page 30
LID
Page 19
Smart Fan
Page 35
CPU & System
Page 3~8
DMI Interface
PCH
Page 20~28
KBC
ENE 3926
Page 30
EC-SPI
LPC BUS
SATA4,5
USB1.1/2.0
Page 33,46
Dual Channel DDRIII
800/1066 MHz
Dual Channel DDRIII
800/1066 MHz
HDD
Page 36
ODD
Page 36
LPC
DEBUG
Page 30
LED
SPI BIOS
4 4
Page 30
USB1
USB2
USB3
USB4
USB5
USB10
USB8
USB9
DDRIII-SODIMM0
Page 9
DDRIII-SODIMM1
Page 10
Camera Connector
Page 33
Bluetooth Connector
Page 33
USB PORT
Page 36
USB PORT
Page 36
USB PORT
Page 36
Mini_PCIE slot
Page 33
Card Reader
Page 37
NEW Card
Page 35
DC JACK
&
Selector
Page 38
SYS POWER
+VCC_GFXCORE
ISL62881HRZ-T
Page 44
+3V +5V
TPS51125RGER
Page 40
+1_5VDIMM
UP6111AQDD
Page 41
+VTT(1.05V)
UP6111AQDD
Page 42
CPU POWER
ISL62882HRZ-T
Page 43
CHARGER
MAX17005ETP+
Page 39
+1_8VRUN
APL5912KAC
Page 42
+1_8VRUN_PARK
APL5912KAC
Page 42
M92 POWER
UP6111AQDD
Page 45
14MHZ CRYSTAL
CLK GEN
CK505
(9LRS3199AKL)
Page 29
+0_75VRUN
APL5331KAC
Page 41
+1_5VRUN
N-AO4468
Page 41
+1_5VRUN_PARK
N-AO4468
Page 41
+1_0VRUN_PARK
N-AO4468
Page 41
Discharge Circuits
Page 46
133MHz
120MHz
PCH
100MHz
96MHz
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
BLOCK DIAGRAM
BLOCK DIAGRAM
BLOCK DIAGRAM
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
156Wednesday, August 05, 2009
156Wednesday, August 05, 2009
156Wednesday, August 05, 2009
of
of
of
Page 2
A
B
SCHEMATIC ANNOTATIONS AND BOARD INFORMATION
C
D
E

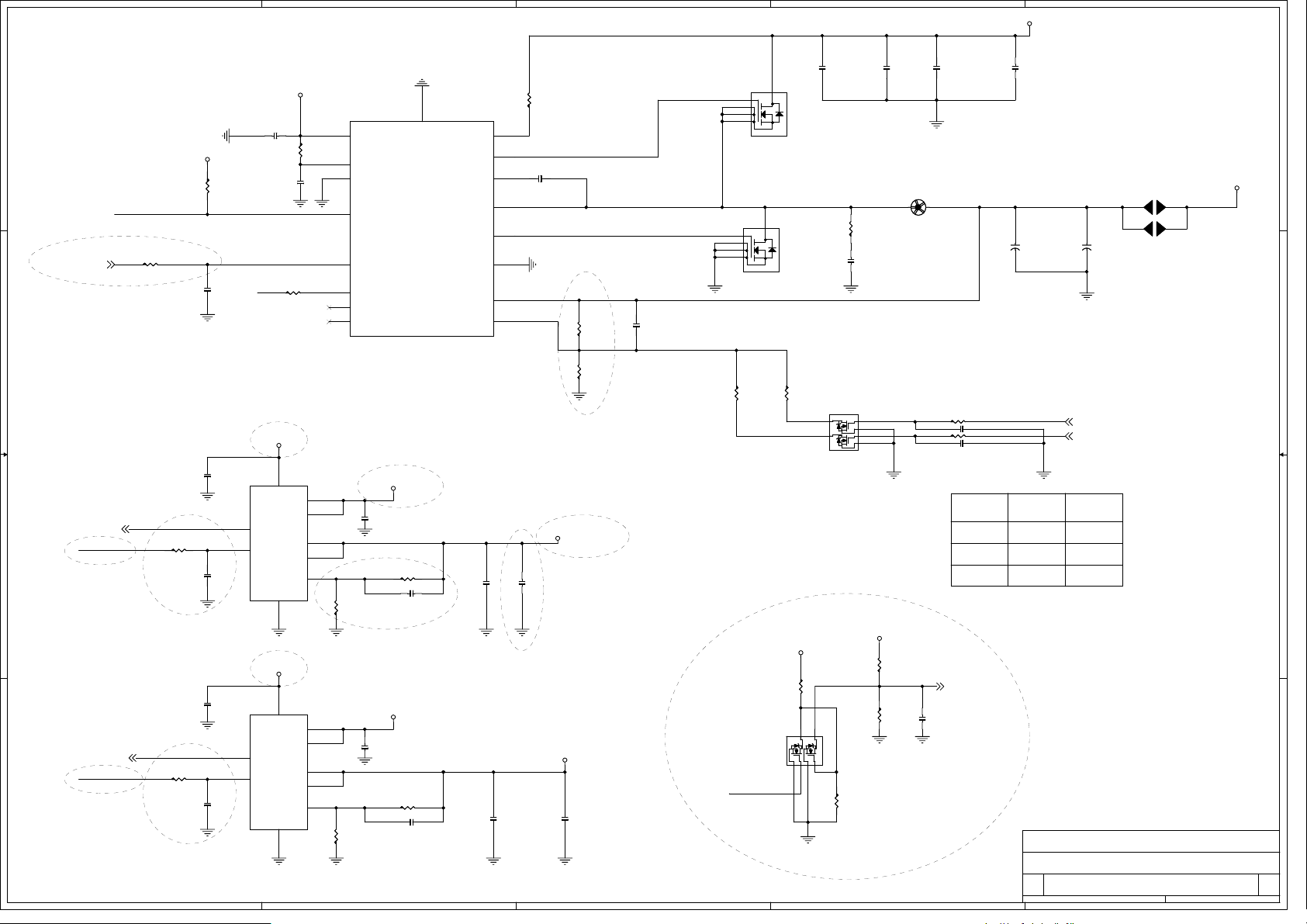

Voltage Rails
POWER PLANE
PWR_SRC
1 1
+5VALW
+5VRUN
+5VSUS
+3VALW
+3VSUS
+3VRUN
+1_5VDIMM
+1_5VRUN
VTT
+0_75VRUN
+VCC_CORE
+VCC_GFXCORE
2 2
M92S_VDD_CORE
+1_8VRUN_PARK
+1_5VRUN_PARK
+1_0VRUN_PARK
VDDR3
VOLTAGE
19V
5V
5V
5V
3.3V
3.3V
3.3V
1.5V
1.5V
1.05V
0.75V
1.05V-1.1V
1.1V
0.95V
1.8V
1.5V
1.0V
3.3V
S0,(S3-S5)
S0,(S3-S5)
S0
S0
S0,(S3-S5)
S0,(S3-S5)
S0
S0,S3
S0,S3
S0
S0
S0
S0
S0
S0
S0
S0
S0
S0
DESCRIPTIONACTIVE IN
LAN
DDRIII core
PCH
DDRIII command & control pull up.
CPU core rail
Graphics core rail ( Dual Core only )
GPU core power
GPU PCIE power
GPU DDR3 power
GPU PCIE power
GPU I/O and DAC power
Net Naming Conventions
Suffix
# = Active Low Signal
Prefix
H = Host
M = DDR Memory
TP = Test Point (does not connect anywhere else)
PCB Footprints
SOT-23
1
3
As seen from top
2
1
2
3
5
4
SOT23-5
AC Mode
3 3
Power States
S0 (Full on)
S3 (Suspend to RAM)
S4 (Suspend to Disk)
S5 (Soft Off)
SLP_S3# SLP_S4# SLP_S5# SLP_LAN# +V*ALWAYS +V*SUS +V*RUN CLK
HIGH
LOW
LOW
LOW
HIGH
HIGH
LOW
LOW
HIGH
HIGH
HIGH
LOW
HIGH
HIGH
HIGH
HIGH
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
ON
OFF
OFF
OFF
Battery Mode
Power States
S0 (Full on)
S3 (Suspend to RAM)
4 4
S4 (Suspend to Disk)
S5 (Soft Off)
A
SLP_S3# SLP_S4# SLP_S5# SLP_LAN# +V*ALWAYS +V*SUS +V*RUN CLK
HIGH
LOW
LOW
LOW
HIGH
HIGH
LOW
LOW
HIGH
HIGH
HIGH
LOW
HIGH
HIGH
HIGH
HIGH
B
ON
ON
ON
ON
ON
ON
OFF
OFF
ON
OFF
OFF
OFF
C
ON
OFF
OFF
OFF
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
PLATFORM
PLATFORM
PLATFORM
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
of
of
of
256Wednesday, August 05, 2009
256Wednesday, August 05, 2009
256Wednesday, August 05, 2009
E
0A
0A
0A
Page 3
A
B
C
D
E

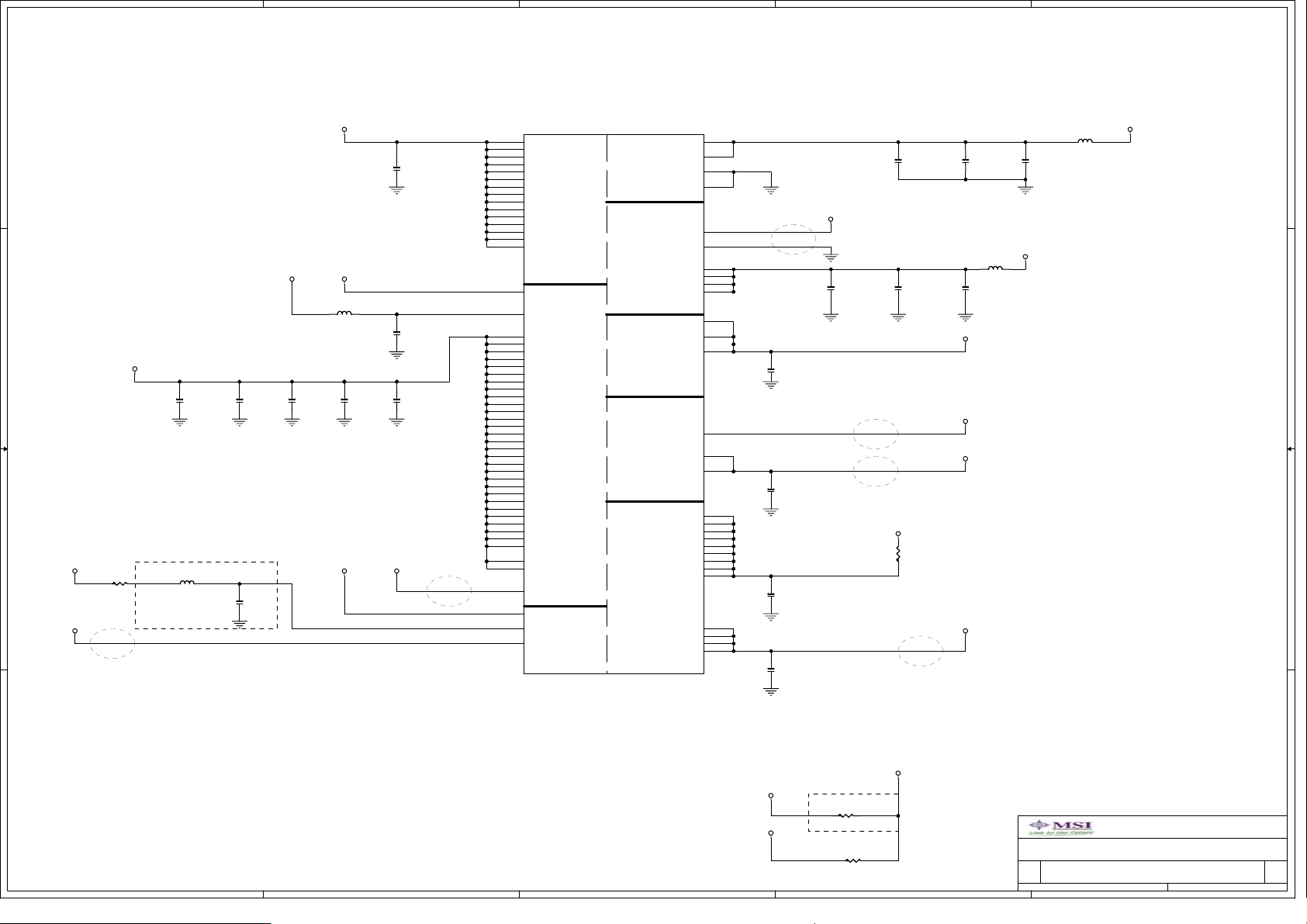

ARRANDALE PROCESSOR (CLK,MISC,JTAG)
U39B
U39B
AT23
COMP3
AT24
COMP2
G16
COMP1
AT26
COMP0
AH24
SKTOCC#
AK14
CATERR#
AT15
PECI
AN26
PROCHOT#
AK15
THERMTRIP#
AP26
RESET_OBS#
AL15
PM_SYNC
AN14
VCCPWRGOOD_1
AN27
VCCPWRGOOD_0
AK13
SM_DRAMPWROK
AM15
VTTPWRGOOD
AM26
TAPPWRGOOD
AL14
RSTIN#
IC,AUB_CFD_rPGA,R0P9
IC,AUB_CFD_rPGA,R0P9
MISC THERMAL
MISC THERMAL
DPLL_REF_SSCLK
DPLL_REF_SSCLK#
CLOCKS
CLOCKS
DDR3
MISC
DDR3
MISC
PWR MANAGEMENT
PWR MANAGEMENT
JTAG & BPM
JTAG & BPM
+VTT
H_CATERR#
R16149.9R1%0402 R16149.9R1%0402
H_PROCHOT#_R
R22449.9R1%0402 R22449.9R1%0402
H_CPURST#
R418X_68R0402 R418X_68R0402
2009/06/16 R224改50ohm
BCLK
BCLK#
BCLK_ITP
BCLK_ITP#
PEG_CLK
PEG_CLK#
SM_DRAMRST#
SM_RCOMP[0]
SM_RCOMP[1]
SM_RCOMP[2]
PM_EXT_TS#[0]
PM_EXT_TS#[1]
PRDY#
PREQ#
TRST#
TDI_M
TDO_M
DBR#
BPM#[0]
BPM#[1]
BPM#[2]
BPM#[3]
BPM#[4]
BPM#[5]
BPM#[6]
BPM#[7]
TCK
TMS
TDI
TDO
BCLK_CPU_P_R
A16
BCLK_CPU_N_R
B16
TP2JNC
AR30
TP3JNC
AT30
BCLK_EXP_P_R
E16
BCLK_EXP_N_R
D16
CLK_DP_R
A18
CLK_DP#_R
A17
F6
SM_RCOMP_0
AL1
SM_RCOMP_1
AM1
SM_RCOMP_2
AN1
PM_EXTTS#[0]
AN15
PM_EXTTS#[1]
AP15
XDP_PRDY#
AT28
XDP_FREQ#
AP27
XDP_TCLK
AN28
XDP_TMS
AP28
AT27
XDP_TDI_R
AT29
XDP_TDO_R
AR27
XDP_TDI_M
AR29
XDP_TDO_M
AP29
XDP_DBRESET#
AN25
AJ22
AK22
AK24
AJ24
AJ25
2009/06/30 移除
AH22
AK23
AH23
ER39ER39
ER38ER38
TPJNC40TPJNC40
TPJNC41TPJNC41
ER41ER41
ER40ER40
ER43ER43
ER42ER42
CPU_DRAMRST# 47
TP64TP64
XDP_TRST#
TP65TP65 R426X_51R1%0402 R426X_51R1%0402
TP63TP63
TP67TP67
TP66TP66
R154100R1%0402 R154100R1%0402
R15524.9R1%0402 R15524.9R1%0402
R157130R1%0402 R157130R1%0402
BCLK_CPU 25
BCLK_CPU# 25
BCLK_EXP 21
BCLK_EXP# 21
CLK_DP 21
CLK_DP# 21
+VTT
R188
R188
X_12.4KR1%0402
X_12.4KR1%0402
R189
R189
10KR1%0402
10KR1%0402
XDP_TDO_R
XDP_TMS
XDP_TDI_R
XDP_FREQ#
XDP_TCLK
XDP_DBRESET#
XDP_TRST#
R183
R183
10KR1%0402
10KR1%0402
R184 X_0402R184 X_0402
R193 X_0402R193 X_0402
R194
R194
X_12.4KR1%0402
X_12.4KR1%0402
R223 1KR1%0402R223 1KR1%0402
R420
R420
51R1%0402
51R1%0402
2009/06/30 R223,R420等0A實驗是否可移除
R422X_51R1%0402 R422X_51R1%0402
R429X_51R1%0402 R429X_51R1%0402
R424X_51R1%0402 R424X_51R1%0402
R235X_51R1%0402 R235X_51R1%0402
+3VRUN
TS#_DIMM0_1 9
TS#_DIMM1_1 10
+VTT
ER37ER37
ER50ER50
ER26ER26
ER25ER25
TP24TP24
R41420R1%0402 R41420R1%0402
R41520R1%0402 R41520R1%0402
R20449.9R1%0402 R20449.9R1%0402
R41749.9R1%0402 R41749.9R1%0402
TP23TP23
TP15TP15
R1751.5KR1%0402 R1751.5KR1%0402
COMP3
COMP2
COMP1
COMP0
TP_SKTOCC#_R
H_CATERR#
H_PECI_ISO
H_PROCHOT#_R
H_CPURST#
H_PM_SYNC_R
SYS_AGENT_PWROK
VCCPWRGOOD_0_R
VDDPWRGOOD_R
H_VTTPWRGD
TP_H_PWRGD_XDP_R
PLT_RST#_R
R171
R171
750R1%0402
750R1%0402
U39A
U39A
DMI_TXN022
4 4
3 3
2 2
DMI_TXN122
DMI_TXN222
DMI_TXN322
DMI_TXP022
DMI_TXP122
DMI_TXP222
DMI_TXP322
DMI_RXN022
DMI_RXN122
DMI_RXN222
DMI_RXN322
DMI_RXP022
DMI_RXP122
DMI_RXP222
DMI_RXP322
FDI_TXN022
FDI_TXN122
FDI_TXN222
FDI_TXN322
FDI_TXN422
FDI_TXN522
FDI_TXN622
FDI_TXN722
FDI_TXP022
FDI_TXP122
FDI_TXP222
FDI_TXP322
FDI_TXP422
FDI_TXP522
FDI_TXP622
FDI_TXP722
FDI_FSYNC022
FDI_FSYNC122
FDI_INT22
FDI_LSYNC022
FDI_LSYNC122
A24
DMI_RX#[0]
C23
DMI_RX#[1]
B22
DMI_RX#[2]
A21
DMI_RX#[3]
B24
DMI_RX[0]
D23
DMI_RX[1]
B23
DMI_RX[2]
A22
DMI_RX[3]
D24
DMI_TX#[0]
G24
DMI_TX#[1]
F23
DMI_TX#[2]
H23
DMI_TX#[3]
D25
DMI_TX[0]
F24
DMI_TX[1]
E23
DMI_TX[2]
G23
DMI_TX[3]
E22
FDI_TX#[0]
D21
FDI_TX#[1]
D19
FDI_TX#[2]
D18
FDI_TX#[3]
G21
FDI_TX#[4]
E19
FDI_TX#[5]
F21
FDI_TX#[6]
G18
FDI_TX#[7]
D22
FDI_TX[0]
C21
FDI_TX[1]
D20
FDI_TX[2]
C18
FDI_TX[3]
G22
FDI_TX[4]
E20
FDI_TX[5]
F20
FDI_TX[6]
G19
FDI_TX[7]
F17
FDI_FSYNC[0]
E17
FDI_FSYNC[1]
C17
FDI_INT
F18
FDI_LSYNC[0]
D17
FDI_LSYNC[1]
N12-9880010-L06
N12-9880010-L06
PGA989
PGA989
IC,AUB_CFD_rPGA,R0P9
IC,AUB_CFD_rPGA,R0P9
PEG_ICOMPI
PEG_ICOMPO
PEG_RCOMPO
PEG_RBIAS
PEG_RX#[0]
PEG_RX#[1]
PEG_RX#[2]
DMI Intel(R) FDI
DMI Intel(R) FDI
PEG_RX#[3]
PEG_RX#[4]
PEG_RX#[5]
PEG_RX#[6]
PEG_RX#[7]
PEG_RX#[8]
PEG_RX#[9]
PEG_RX#[10]
PEG_RX#[11]
PEG_RX#[12]
PEG_RX#[13]
PEG_RX#[14]
PEG_RX#[15]
PEG_RX[0]
PEG_RX[1]
PEG_RX[2]
PEG_RX[3]
PEG_RX[4]
PEG_RX[5]
PEG_RX[6]
PEG_RX[7]
PEG_RX[8]
PEG_RX[9]
PEG_RX[10]
PEG_RX[11]
PEG_RX[12]
PEG_RX[13]
PEG_RX[14]
PEG_RX[15]
PEG_TX#[0]
PEG_TX#[1]
PEG_TX#[2]
PEG_TX#[3]
PEG_TX#[4]
PEG_TX#[5]
PEG_TX#[6]
PEG_TX#[7]
PEG_TX#[8]
PEG_TX#[9]
PEG_TX#[10]
PEG_TX#[11]
PEG_TX#[12]
PEG_TX#[13]
PEG_TX#[14]
PCI EXPRESS -- GRAPHICS
PCI EXPRESS -- GRAPHICS
PEG_TX#[15]
PEG_TX[0]
PEG_TX[1]
PEG_TX[2]
PEG_TX[3]
PEG_TX[4]
PEG_TX[5]
PEG_TX[6]
PEG_TX[7]
PEG_TX[8]
PEG_TX[9]
PEG_TX[10]
PEG_TX[11]
PEG_TX[12]
PEG_TX[13]
PEG_TX[14]
PEG_TX[15]
PEG_COMP
PEG_RXN0
PEG_RXN1
PEG_RXN2
PEG_RXN3
PEG_RXN4
PEG_RXN5
PEG_RXN6
PEG_RXN7
PEG_RXN8
PEG_RXN9
PEG_RXN10
PEG_RXN11
PEG_RXN12
PEG_RXN13
PEG_RXN14
PEG_RXN15
PEG_RXP0
PEG_RXP1
PEG_RXP2
PEG_RXP3
PEG_RXP4
PEG_RXP5
PEG_RXP6
PEG_RXP7
PEG_RXP8
PEG_RXP9
PEG_RXP10
PEG_RXP11
PEG_RXP12
PEG_RXP13
PEG_RXP14
PEG_RXP15
PEG_TXN0
PEG_TXN1
PEG_TXN2
PEG_TXN3
PEG_TXN4
PEG_TXN5
PEG_TXN6
PEG_TXN7
PEG_TXN8
PEG_TXN9
PEG_TXN10
PEG_TXN11
PEG_TXN12
PEG_TXN13
PEG_TXN14
PEG_TXN15
PEG_TXP0
PEG_TXP1
PEG_TXP2
PEG_TXP3
PEG_TXP4
PEG_TXP5
PEG_TXP6
PEG_TXP7
PEG_TXP8
PEG_TXP9
PEG_TXP10
PEG_TXP11
PEG_TXP12
PEG_TXP13
PEG_TXP14
PEG_TXP15
R413 49.9R1%0402R413 49.9R1%0402
R410 750R1%0402R410 750R1%0402
PEG_RXN[15:0] 11
PEG_RXP[15:0] 11
PEG_TXN[15:0] 11
PEG_TXP[15:0] 11
H_PECI25
H_PROCHOT#30
H_THRMTRIP#25
H_PM_SYNC22
ER49ER49
H_CPUPWRGD25
PM_DRAM_PWRGD22,47
BUF_PTL_RST#24
ER27ER27
ER24ER24
B26
A26
B27
A25
K35
J34
J33
G35
G32
F34
F31
D35
E33
C33
D32
B32
C31
B28
B30
A31
J35
H34
H33
F35
G33
E34
F32
D34
F33
B33
D31
A32
C30
A28
B29
A30
L33
M35
M33
M30
L31
K32
M29
J31
K29
H30
H29
F29
E28
D29
D27
C26
L34
M34
M32
L30
M31
K31
M28
H31
K28
G30
G29
F28
E27
D28
C27
C25
R180
EC_ALLSYSPG22,30
1 1
A
B
R180
2KR1%0402
2KR1%0402
H_VTTPWRGD
R179
R179
1KR1%0402
1KR1%0402
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
PROCESSOR
PROCESSOR
PROCESSOR
MS-145X
MS-145X
MS-145X
E
0A
0A
356Wednesday, August 05, 2009
356Wednesday, August 05, 2009
356Wednesday, August 05, 2009
0A
of
of
of
Page 4
A
B
C
D
E
ARRANDALE PROCESSOR (DDR3)
U39C
U39C
U39D
U39D
4 4
M_A_DQ[63:0]9
3 3
2 2
M_A_BS09
M_A_BS19
M_A_BS29
M_A_CAS#9
M_A_RAS#9
M_A_WE#9
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
C10
D10
H10
G10
AH5
AF5
AK6
AK7
AF6
AG5
AJ10
AL10
AK12
AK8
AK11
AN8
AM10
AR11
AL11
AM9
AN9
AT11
AP12
AM12
AN12
AM13
AT14
AT12
AL13
AR14
AP14
AC3
AB2
AE1
AB3
AE9
A10
SA_DQ[0]
SA_DQ[1]
C7
SA_DQ[2]
A7
SA_DQ[3]
B10
SA_DQ[4]
SA_DQ[5]
E10
SA_DQ[6]
A8
SA_DQ[7]
D8
SA_DQ[8]
F10
SA_DQ[9]
E6
SA_DQ[10]
F7
SA_DQ[11]
E9
SA_DQ[12]
B7
SA_DQ[13]
E7
SA_DQ[14]
C6
SA_DQ[15]
SA_DQ[16]
G8
SA_DQ[17]
K7
SA_DQ[18]
J8
SA_DQ[19]
G7
SA_DQ[20]
SA_DQ[21]
J7
SA_DQ[22]
J10
SA_DQ[23]
L7
SA_DQ[24]
M6
SA_DQ[25]
M8
SA_DQ[26]
L9
SA_DQ[27]
L6
SA_DQ[28]
K8
SA_DQ[29]
N8
SA_DQ[30]
P9
SA_DQ[31]
SA_DQ[32]
SA_DQ[33]
SA_DQ[34]
SA_DQ[35]
SA_DQ[36]
SA_DQ[37]
AJ7
SA_DQ[38]
AJ6
SA_DQ[39]
SA_DQ[40]
AJ9
SA_DQ[41]
SA_DQ[42]
SA_DQ[43]
SA_DQ[44]
AL7
SA_DQ[45]
SA_DQ[46]
AL8
SA_DQ[47]
SA_DQ[48]
SA_DQ[49]
SA_DQ[50]
SA_DQ[51]
SA_DQ[52]
SA_DQ[53]
U7
SA_DQ[54]
SA_DQ[55]
SA_DQ[56]
SA_DQ[57]
SA_DQ[58]
SA_DQ[59]
SA_DQ[60]
SA_DQ[61]
SA_DQ[62]
SA_DQ[63]
SA_BS[0]
SA_BS[1]
SA_BS[2]
SA_CAS#
SA_RAS#
SA_WE#
DDR SYSTEM MEMORY A
DDR SYSTEM MEMORY A
SA_CK[0]
SA_CK#[0]
SA_CKE[0]
SA_CK[1]
SA_CK#[1]
SA_CKE[1]
SA_CS#[0]
SA_CS#[1]
SA_ODT[0]
SA_ODT[1]
SA_DM[0]
SA_DM[1]
SA_DM[2]
SA_DM[3]
SA_DM[4]
SA_DM[5]
SA_DM[6]
SA_DM[7]
SA_DQS#[0]
SA_DQS#[1]
SA_DQS#[2]
SA_DQS#[3]
SA_DQS#[4]
SA_DQS#[5]
SA_DQS#[6]
SA_DQS#[7]
SA_DQS[0]
SA_DQS[1]
SA_DQS[2]
SA_DQS[3]
SA_DQS[4]
SA_DQS[5]
SA_DQS[6]
SA_DQS[7]
SA_MA[0]
SA_MA[1]
SA_MA[2]
SA_MA[3]
SA_MA[4]
SA_MA[5]
SA_MA[6]
SA_MA[7]
SA_MA[8]
SA_MA[9]
SA_MA[10]
SA_MA[11]
SA_MA[12]
SA_MA[13]
SA_MA[14]
SA_MA[15]
AA6
AA7
P7
Y6
Y5
P6
AE2
AE8
AD8
AF9
B9
D7
H7
M7
AG6
AM7
AN10
AN13
C9
F8
J9
N9
AH7
AK9
AP11
AT13
C8
F9
H9
M9
AH8
AK10
AN11
AR13
Y3
W1
AA8
AA3
V1
AA9
V8
T1
Y9
U6
AD4
T2
U3
AG8
T3
V9
M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_A15
M_CLK_DDR0 9
M_CLK_DDR#0 9
M_CKE0 9
M_CLK_DDR1 9
M_CLK_DDR#1 9
M_CKE1 9
M_CS#0 9
M_CS#1 9
M_ODT0 9
M_ODT1 9
M_A_DM[7:0] 9
M_A_DQS#[7:0] 9
M_A_DQS[7:0] 9
M_A_A[15:0] 9
M_B_DQ[63:0]10
M_B_BS010
M_B_BS110
M_B_BS210
M_B_CAS#10
M_B_RAS#10
M_B_WE#10
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
AF3
AG1
AK1
AG4
AG3
AH4
AK3
AK4
AM6
AN2
AK5
AK2
AM4
AM3
AP3
AN5
AT4
AN6
AN4
AN3
AT5
AT6
AN7
AP6
AP8
AT9
AT7
AP9
AR10
AT10
AB1
AC5
AC6
AJ3
AJ4
B5
A5
C3
B3
E4
A6
A4
C4
D1
D2
F2
F1
C2
F5
F3
G4
H6
G2
G1
G5
K2
L3
M1
K5
K4
M4
N5
W5
R7
Y7
J6
J3
J2
J1
J5
SB_DQ[0]
SB_DQ[1]
SB_DQ[2]
SB_DQ[3]
SB_DQ[4]
SB_DQ[5]
SB_DQ[6]
SB_DQ[7]
SB_DQ[8]
SB_DQ[9]
SB_DQ[10]
SB_DQ[11]
SB_DQ[12]
SB_DQ[13]
SB_DQ[14]
SB_DQ[15]
SB_DQ[16]
SB_DQ[17]
SB_DQ[18]
SB_DQ[19]
SB_DQ[20]
SB_DQ[21]
SB_DQ[22]
SB_DQ[23]
SB_DQ[24]
SB_DQ[25]
SB_DQ[26]
SB_DQ[27]
SB_DQ[28]
SB_DQ[29]
SB_DQ[30]
SB_DQ[31]
SB_DQ[32]
SB_DQ[33]
SB_DQ[34]
SB_DQ[35]
SB_DQ[36]
SB_DQ[37]
SB_DQ[38]
SB_DQ[39]
SB_DQ[40]
SB_DQ[41]
SB_DQ[42]
SB_DQ[43]
SB_DQ[44]
SB_DQ[45]
SB_DQ[46]
SB_DQ[47]
SB_DQ[48]
SB_DQ[49]
SB_DQ[50]
SB_DQ[51]
SB_DQ[52]
SB_DQ[53]
SB_DQ[54]
SB_DQ[55]
SB_DQ[56]
SB_DQ[57]
SB_DQ[58]
SB_DQ[59]
SB_DQ[60]
SB_DQ[61]
SB_DQ[62]
SB_DQ[63]
SB_BS[0]
SB_BS[1]
SB_BS[2]
SB_CAS#
SB_RAS#
SB_WE#
DDR SYSTEM MEMORY - B
DDR SYSTEM MEMORY - B
SB_CK[0]
SB_CK#[0]
SB_CKE[0]
SB_CK[1]
SB_CK#[1]
SB_CKE[1]
SB_CS#[0]
SB_CS#[1]
SB_ODT[0]
SB_ODT[1]
SB_DM[0]
SB_DM[1]
SB_DM[2]
SB_DM[3]
SB_DM[4]
SB_DM[5]
SB_DM[6]
SB_DM[7]
SB_DQS#[0]
SB_DQS#[1]
SB_DQS#[2]
SB_DQS#[3]
SB_DQS#[4]
SB_DQS#[5]
SB_DQS#[6]
SB_DQS#[7]
SB_DQS[0]
SB_DQS[1]
SB_DQS[2]
SB_DQS[3]
SB_DQS[4]
SB_DQS[5]
SB_DQS[6]
SB_DQS[7]
SB_MA[0]
SB_MA[1]
SB_MA[2]
SB_MA[3]
SB_MA[4]
SB_MA[5]
SB_MA[6]
SB_MA[7]
SB_MA[8]
SB_MA[9]
SB_MA[10]
SB_MA[11]
SB_MA[12]
SB_MA[13]
SB_MA[14]
SB_MA[15]
W8
W9
M3
V7
V6
M2
AB8
AD6
AC7
AD1
D4
E1
H3
K1
AH1
AL2
AR4
AT8
D5
F4
J4
L4
AH2
AL4
AR5
AR8
C5
E3
H4
M5
AG2
AL5
AP5
AR7
U5
V2
T5
V3
R1
T8
R2
R6
R4
R5
AB5
P3
R3
AF7
P5
N1
M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_A15
M_CLK_DDR2 10
M_CLK_DDR#2 10
M_CKE2 10
M_CLK_DDR3 10
M_CLK_DDR#3 10
M_CKE3 10
M_CS#2 10
M_CS#3 10
M_ODT2 10
M_ODT3 10
M_B_DM[7:0] 10
M_B_DQS#[7:0] 10
M_B_DQS[7:0] 10
M_B_A[15:0] 10
IC,AUB_CFD_rPGA,R0P9
IC,AUB_CFD_rPGA,R0P9
IC,AUB_CFD_rPGA,R0P9
1 1
A
B
C
IC,AUB_CFD_rPGA,R0P9
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
DDR3
DDR3
DDR3
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
456Wednesday, August 05, 2009
456Wednesday, August 05, 2009
456Wednesday, August 05, 2009
Page 5
A
B
C
D
E
ARRANDALE PROCESSOR (POWER)
ARRANDALE:
SV=48A
4 4
LV=35A
ULV=27A
+VCC_CORE +VTT
PROCESSOR CORE POWER
3 3
2 2
1 1
AG35
AG34
AG33
AG32
AG31
AG30
AG29
AG28
AG27
AG26
AF35
AF34
AF33
AF32
AF31
AF30
AF29
AF28
AF27
AF26
AD35
AD34
AD33
AD32
AD31
AD30
AD29
AD28
AD27
AD26
AC35
AC34
AC33
AC32
AC31
AC30
AC29
AC28
AC27
AC26
AA35
AA34
AA33
AA32
AA31
AA30
AA29
AA28
AA27
AA26
U39F
U39F
VCC1
VCC2
VCC3
VCC4
VCC5
VCC6
VCC7
VCC8
VCC9
VCC10
VCC11
VCC12
VCC13
VCC14
VCC15
VCC16
VCC17
VCC18
VCC19
VCC20
VCC21
VCC22
VCC23
VCC24
VCC25
VCC26
VCC27
VCC28
VCC29
VCC30
VCC31
VCC32
VCC33
VCC34
VCC35
VCC36
VCC37
VCC38
VCC39
VCC40
VCC41
VCC42
VCC43
VCC44
VCC45
VCC46
VCC47
VCC48
VCC49
VCC50
Y35
VCC51
Y34
VCC52
Y33
VCC53
Y32
VCC54
Y31
VCC55
Y30
VCC56
Y29
VCC57
Y28
VCC58
Y27
VCC59
Y26
VCC60
V35
VCC61
V34
VCC62
V33
VCC63
V32
VCC64
V31
VCC65
V30
VCC66
V29
VCC67
V28
VCC68
V27
VCC69
V26
VCC70
U35
VCC71
U34
VCC72
U33
VCC73
U32
VCC74
U31
VCC75
U30
VCC76
U29
VCC77
U28
VCC78
U27
VCC79
U26
VCC80
R35
VCC81
R34
VCC82
R33
VCC83
R32
VCC84
R31
VCC85
R30
VCC86
R29
VCC87
R28
VCC88
R27
VCC89
R26
VCC90
P35
VCC91
P34
VCC92
P33
VCC93
P32
VCC94
P31
VCC95
P30
VCC96
P29
VCC97
P28
VCC98
P27
VCC99
P26
VCC100
CPU CORE SUPPLY
CPU CORE SUPPLY
POWER
POWER
SENSE LINES
SENSE LINES
VTT0_1
VTT0_2
VTT0_3
VTT0_4
VTT0_5
VTT0_6
VTT0_7
VTT0_8
VTT0_9
VTT0_10
VTT0_11
VTT0_12
VTT0_13
VTT0_14
VTT0_15
VTT0_16
VTT0_17
VTT0_18
VTT0_19
VTT0_20
VTT0_21
VTT0_22
VTT0_23
VTT0_24
VTT0_25
VTT0_26
VTT0_27
VTT0_28
VTT0_29
VTT0_30
VTT0_31
1.1V RAIL POWER
1.1V RAIL POWER
VTT0_32
VTT0_33
VTT0_34
VTT0_35
VTT0_36
VTT0_37
VTT0_38
VTT0_39
VTT0_40
VTT0_41
VTT0_42
VTT0_43
VTT0_44
PROC_DPRSLPVR
CPU VIDS
CPU VIDS
VTT_SELECT
ISENSE
VCC_SENSE
VSS_SENSE
VTT_SENSE
VSS_SENSE_VTT
VID[0]
VID[1]
VID[2]
VID[3]
VID[4]
VID[5]
VID[6]
PSI#
ARRANDALE:
SV=18A
LV=TBD
ULV=TBD
AH14
AH12
AH11
AH10
J14
J13
H14
H12
G14
G13
G12
G11
F14
F13
F12
F11
E14
E12
D14
D13
D12
D11
C14
C13
C12
C11
B14
B12
A14
A13
A12
A11
AF10
AE10
AC10
AB10
Y10
W10
U10
T10
J12
J11
J16
J15
AN33
AK35
AK33
AK34
AL35
AL33
AM33
AM35
PM_DPRSLPVR_R
AM34
G15
AN35
VCCSENSE_R
AJ34
VSSSENSE_R
AJ35
B15
TP_VSS_SENSE_VTT_JNC
A15
C531
TPJNC15TPJNC15
IMVP_IMON 43
C531
C10u6.3X50805
C10u6.3X50805
C530
C530
C22u6.3X50805-RH
C22u6.3X50805-RH
C532
C532
C22u6.3X50805-RH
C22u6.3X50805-RH
PSI# 43
ER46ER46
VTT_SENSE 42
C212
C212
C10u6.3X50805
C10u6.3X50805
C540
C540
C22u6.3X50805-RH
C22u6.3X50805-RH
C533
C533
C22u6.3X50805-RH
C22u6.3X50805-RH
PM_DPRSLPVR 43
2009/06/23 Can be floating if VTT is fixed
by Intel checklist 1.6
+VCC_CORE
ER47ER47
ER48ER48
TPJNC16TPJNC16
PROCESSOR CORE POWER
C441
C441
C10u6.3X50805
C10u6.3X50805
R432
R432
100R1%0402
100R1%0402
R433
R433
100R1%0402
100R1%0402
C265
C265
C10u6.3X50805
C10u6.3X50805
C536
C536
C22u6.3X50805-RH
C22u6.3X50805-RH
H_VID0 43
H_VID1 43
H_VID2 43
H_VID3 43
H_VID4 43
H_VID5 43
H_VID6 43
VCCSENSE 43
VSSSENSE 43
C539
C539
C10u6.3X50805
C10u6.3X50805
+VTT
+VTT
+VTT
C266
C266
C10u6.3X50805
C10u6.3X50805
+VCC_CORE
C294
C294
C10u6.3X50805
C10u6.3X50805
C544
C544
C22u6.3X50805-RH
C22u6.3X50805-RH
C537
C537
C22u6.3X50805-RH
C22u6.3X50805-RH
C542
C542
C10u6.3X50805
C10u6.3X50805
C578
C578
C10u6.3X50805
C10u6.3X50805
P2
+
N2
C538
P1
-N1-
EC26
EC26
+
C1000u2SO-HF
C1000u2SO-HF
C538
X_C10u6.3X50805
X_C10u6.3X50805
C541
C541
C22u6.3X50805-RH
C22u6.3X50805-RH
C552
C552
C22u6.3X50805-RH
C22u6.3X50805-RH
C577
C577
C10u6.3X50805
C10u6.3X50805
C213
C213
X_C10u6.3X50805
X_C10u6.3X50805
C550
C550
C10u6.3X50805
C10u6.3X50805
2009/06/12 修改 by power team
close to cpu socket
C543
C543
C10u6.3X50805
C10u6.3X50805
C554
C554
C10u6.3X50805
C10u6.3X50805
IC,AUB_CFD_rPGA,R0P9
IC,AUB_CFD_rPGA,R0P9
A
B
C
D
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
PROCESSOR POWER
PROCESSOR POWER
PROCESSOR POWER
MS-145X
MS-145X
MS-145X
E
0A
0A
556Wednesday, August 05, 2009
556Wednesday, August 05, 2009
556Wednesday, August 05, 2009
0A
of
of
of
Page 6
A
B
C
D
E
ARRANDALE:
+VCC_GFXCORE
1 1
2 2
SV=15A
LV=TBD
ULV=TBD
C529
C529
X_C22u6.3X50805-RH
X_C22u6.3X50805-RH
C549
C549
X_C22u6.3X50805-RH
X_C22u6.3X50805-RH
I=14A
C526
C526
X_C22u6.3X50805-RH
X_C22u6.3X50805-RH
C527
C527
X_C22u6.3X50805-RH
X_C22u6.3X50805-RH
+VTT
C528
C528
C22u6.3X50805-RH
C22u6.3X50805-RH
C300
C300
C22u6.3X50805-RH
C22u6.3X50805-RH
ARRANDALE PROCESSOR (GRAPHICS POWER)
U39G
U39G
AT21
C548
C548
C22u6.3X50805-RH
C22u6.3X50805-RH
+VTT
C211
C211
C22u6.3X50805-RH
C22u6.3X50805-RH
C547
C547
C10u6.3X50805
C10u6.3X50805
C579
C579
C22u6.3X50805-RH
C22u6.3X50805-RH
C534
C534
C22u6.3X50805-RH
C22u6.3X50805-RH
C546
C546
C10u6.3X50805
C10u6.3X50805
C259
C259
C22u6.3X50805-RH
C22u6.3X50805-RH
C535
C535
C22u6.3X50805-RH
C22u6.3X50805-RH
AT19
AT18
AT16
AR21
AR19
AR18
AR16
AP21
AP19
AP18
AP16
AN21
AN19
AN18
AN16
AM21
AM19
AM18
AM16
AL21
AL19
AL18
AL16
AK21
AK19
AK18
AK16
AJ21
AJ19
AJ18
AJ16
AH21
AH19
AH18
AH16
VAXG1
VAXG2
VAXG3
VAXG4
VAXG5
VAXG6
VAXG7
VAXG8
VAXG9
VAXG10
VAXG11
VAXG12
VAXG13
VAXG14
VAXG15
VAXG16
VAXG17
VAXG18
VAXG19
VAXG20
VAXG21
VAXG22
VAXG23
VAXG24
VAXG25
VAXG26
VAXG27
VAXG28
VAXG29
VAXG30
VAXG31
VAXG32
VAXG33
VAXG34
VAXG35
VAXG36
J24
VTT1_45
J23
VTT1_46
H25
VTT1_47
K26
VTT1_48
J27
VTT1_49
J26
VTT1_50
J25
VTT1_51
H27
VTT1_52
G28
VTT1_53
G27
VTT1_54
G26
VTT1_55
F26
VTT1_56
E26
VTT1_57
E25
VTT1_58
GRAPHICS
GRAPHICS
FDI PEG & DMI
FDI PEG & DMI
VAXG_SENSE
VSSAXG_SENSE
SENSE
LINES
SENSE
LINES
GFX_DPRSLPVR
GRAPHICS VIDs
GRAPHICS VIDs
POWER
POWER
DDR3 - 1.5V RAILS
DDR3 - 1.5V RAILS
1.1V1.8V
1.1V1.8V
GFX_VID[0]
GFX_VID[1]
GFX_VID[2]
GFX_VID[3]
GFX_VID[4]
GFX_VID[5]
GFX_VID[6]
GFX_VR_EN
GFX_IMON
VDDQ1
VDDQ2
VDDQ3
VDDQ4
VDDQ5
VDDQ6
VDDQ7
VDDQ8
VDDQ9
VDDQ10
VDDQ11
VDDQ12
VDDQ13
VDDQ14
VDDQ15
VDDQ16
VDDQ17
VDDQ18
VTT0_59
VTT0_60
VTT0_61
VTT0_62
VTT1_63
VTT1_64
VTT1_65
VTT1_66
VTT1_67
VTT1_68
VCCPLL1
VCCPLL2
VCCPLL3
AR22
AT22
AM22
AP22
AN22
AP23
AM23
AP24
AN24
AR25
AT25
AM24
AJ1
AF1
AE7
AE4
AC1
AB7
AB4
Y1
W7
W4
U1
T7
T4
P1
N7
N4
L1
H1
P10
N10
L10
K10
J22
J20
J18
H21
H20
H19
L26
L27
M26
GFXVR_DPRSLPVR_R
C223
C223
C1u16X-RH
C1u16X-RH
C270
C270
C10u6.3X5-RH
C10u6.3X5-RH
C284
C284
C22u6.3X50805-RH
C22u6.3X50805-RH
C372
C372
C1u16X-RH
C1u16X-RH
R4160R0402 R4160R0402
C222
C222
C1u16X-RH
C1u16X-RH
+VTT
C288
C288
C10u6.3X5-RH
C10u6.3X5-RH
C289
C289
C22u6.3X50805-RH
C22u6.3X50805-RH
C381
C381
C1u16X-RH
C1u16X-RH
VCC_AXG_SENSE 44
VSS_AXG_SENSE 44
GFXVR_VID_0 44
GFXVR_VID_1 44
GFXVR_VID_2 44
GFXVR_VID_3 44
GFXVR_VID_4 44
GFXVR_VID_5 44
GFXVR_VID_6 44
GFXVR_EN 44
GFXVR_DPRSLPVR 44
GFXVR_IMON 44
C221
C221
C1u16X-RH
C1u16X-RH
C370
C370
C2.2u6.3X5
C2.2u6.3X5
+VTT
C217
C217
C1u16X-RH
C1u16X-RH
C389
C389
C4.7u6.3X
C4.7u6.3X
C216
C216
C1u16X-RH
C1u16X-RH
C369
C369
C22u6.3X50805-RH
C22u6.3X50805-RH
ARRANDALE:
3A
C215
C215
C22u6.3X50805-RH
C22u6.3X50805-RH
+1_8VRUN
C207
C207
C22u6.3X50805-RH
C22u6.3X50805-RH
ARRANDALE:
0.6A
+1_5VRUN
12
+
+
C208
C208
C330u2.5pSO-1
C330u2.5pSO-1
3 3
4 4
A
B
IC,AUB_CFD_rPGA,R0P9
IC,AUB_CFD_rPGA,R0P9
C
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
GRAPHICS POWER
GRAPHICS POWER
GRAPHICS POWER
MS-145X
MS-145X
MS-145X
E
0A
0A
656Wednesday, August 05, 2009
656Wednesday, August 05, 2009
656Wednesday, August 05, 2009
0A
of
of
of
Page 7
A
B
C
D
E

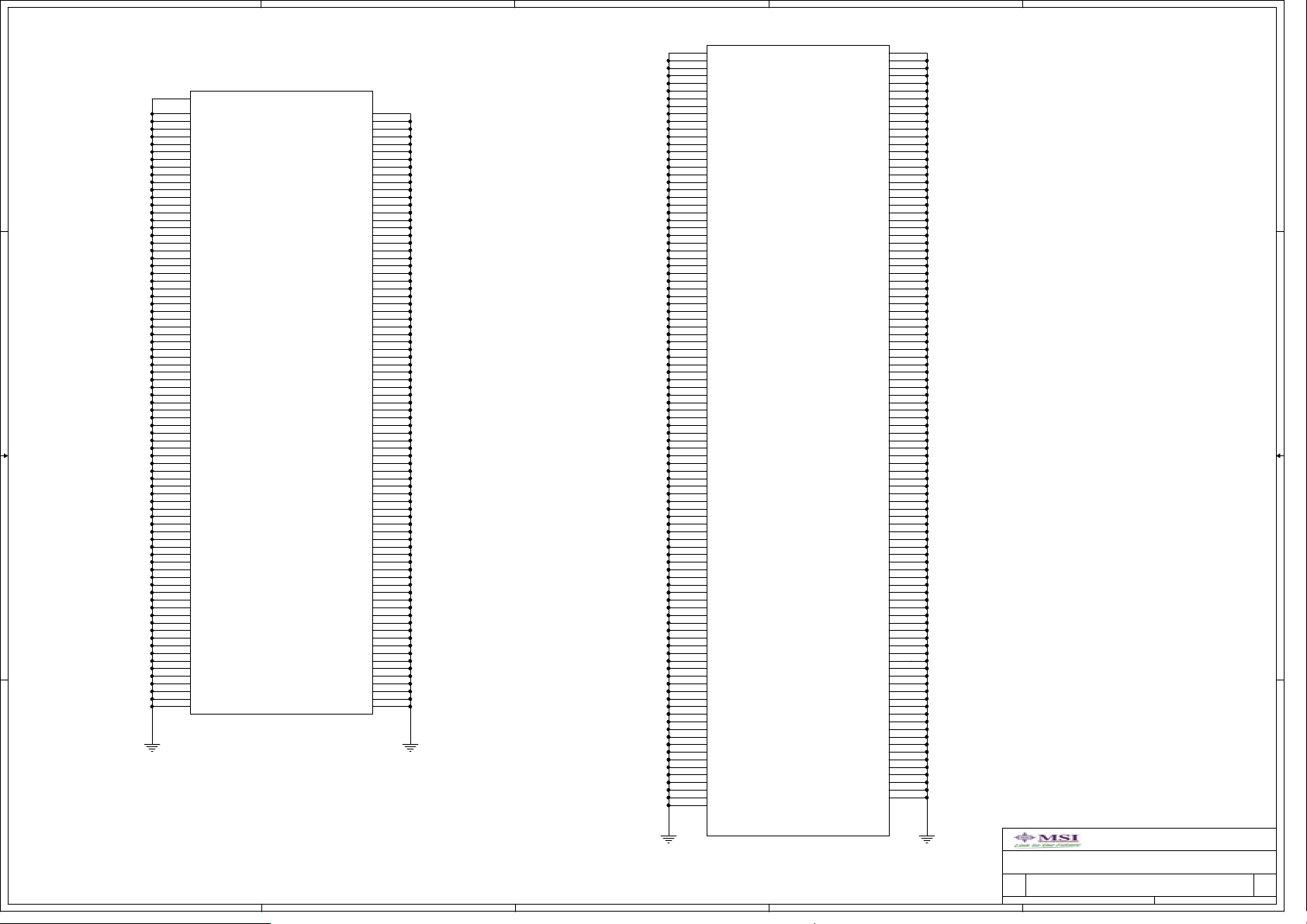

ARRANDALE PROCESSOR (GND)
U39I
U39H
U39H
AT20
VSS1
AT17
VSS2
AR31
4 4
3 3
2 2
1 1
AR28
AR26
AR24
AR23
AR20
AR17
AR15
AR12
AR9
AR6
AR3
AP20
AP17
AP13
AP10
AP7
AP4
AP2
AN34
AN31
AN23
AN20
AN17
AM29
AM27
AM25
AM20
AM17
AM14
AM11
AM8
AM5
AM2
AL34
AL31
AL23
AL20
AL17
AL12
AL9
AL6
AL3
AK29
AK27
AK25
AK20
AK17
AJ31
AJ23
AJ20
AJ17
AJ14
AJ11
AJ8
AJ5
AJ2
AH35
AH34
AH33
AH32
AH31
AH30
AH29
AH28
AH27
AH26
AH20
AH17
AH13
AH9
AH6
AH3
AG10
AF8
AF4
AF2
AE35
IC,AUB_CFD_rPGA,R0P9
IC,AUB_CFD_rPGA,R0P9
A
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS65
VSS66
VSS67
VSS68
VSS69
VSS70
VSS71
VSS72
VSS73
VSS74
VSS75
VSS76
VSS77
VSS78
VSS79
VSS80
VSS
VSS
VSS81
VSS82
VSS83
VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
VSS91
VSS92
VSS93
VSS94
VSS95
VSS96
VSS97
VSS98
VSS99
VSS100
VSS101
VSS102
VSS103
VSS104
VSS105
VSS106
VSS107
VSS108
VSS109
VSS110
VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS127
VSS128
VSS129
VSS130
VSS131
VSS132
VSS133
VSS134
VSS135
VSS136
VSS137
VSS138
VSS139
VSS140
VSS141
VSS142
VSS143
VSS144
VSS145
VSS146
VSS147
VSS148
VSS149
VSS150
VSS151
VSS152
VSS153
VSS154
VSS155
VSS156
VSS157
VSS158
VSS159
VSS160
AE34
AE33
AE32
AE31
AE30
AE29
AE28
AE27
AE26
AE6
AD10
AC8
AC4
AC2
AB35
AB34
AB33
AB32
AB31
AB30
AB29
AB28
AB27
AB26
AB6
AA10
Y8
Y4
Y2
W35
W34
W33
W32
W31
W30
W29
W28
W27
W26
W6
V10
U8
U4
U2
T35
T34
T33
T32
T31
T30
T29
T28
T27
T26
T6
R10
P8
P4
P2
N35
N34
N33
N32
N31
N30
N29
N28
N27
N26
N6
M10
L35
L32
L29
L8
L5
L2
K34
K33
K30
B
U39I
K27
VSS161
K9
VSS162
K6
VSS163
K3
VSS164
J32
VSS165
J30
VSS166
J21
VSS167
J19
VSS168
H35
VSS169
H32
VSS170
H28
VSS171
H26
VSS172
H24
VSS173
H22
VSS174
H18
VSS175
H15
VSS176
H13
VSS177
H11
VSS178
H8
VSS179
H5
VSS180
H2
VSS181
G34
VSS182
G31
VSS183
G20
VSS184
G9
VSS185
G6
VSS186
G3
VSS187
F30
VSS188
F27
VSS189
F25
VSS190
F22
VSS191
F19
VSS192
F16
VSS193
E35
VSS194
E32
VSS195
E29
VSS196
E24
VSS197
E21
VSS198
E18
VSS199
E13
VSS200
E11
VSS201
E8
VSS202
E5
VSS203
E2
VSS204
D33
VSS205
D30
VSS206
D26
VSS207
D9
VSS208
D6
VSS209
D3
VSS210
C34
VSS211
C32
VSS212
C29
VSS213
C28
VSS214
C24
VSS215
C22
VSS216
C20
VSS217
C19
VSS218
C16
VSS219
B31
VSS220
B25
VSS221
B21
VSS222
B18
VSS223
B17
VSS224
B13
VSS225
B11
VSS226
B8
VSS227
B6
VSS228
B4
VSS229
A29
VSS230
A27
VSS231
A23
VSS232
A9
VSS233
IC,AUB_CFD_rPGA,R0P9
IC,AUB_CFD_rPGA,R0P9
C
VSS
VSS
NCTF
NCTF
VSS_NCTF1
VSS_NCTF2
VSS_NCTF3
VSS_NCTF4
VSS_NCTF5
VSS_NCTF6
VSS_NCTF7
AT35
AT1
AR34
B34
B2
B1
A35
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
D
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
PROCESSOR GND
PROCESSOR GND
PROCESSOR GND
E
0A
0A
0A
of
of
of
756Wednesday, August 05, 2009
756Wednesday, August 05, 2009
756Wednesday, August 05, 2009
Page 8
A
B
C
D
E
ARRANDALE PROCESSOR (RESERVED)
U39E
U39E
AJ13
RSVD32
AJ12
1 1
AP25
AL25
AL24
AL22
AJ33
AG9
M27
L28
J17
H17
G25
G17
E31
E30
RSVD1
RSVD2
RSVD3
RSVD4
RSVD5
RSVD6
RSVD7
RSVD8
RSVD9
RSVD10
RSVD11
RSVD12
RSVD13
RSVD14
RSVD33
RSVD34
RSVD35
RSVD36
RSVD_NCTF_37
RSVD38
RSVD39
RSVD_NCTF_40
RSVD_NCTF_41
RSVD_NCTF_42
RSVD_NCTF_43
AH25
AK26
AL26
AR2
AJ26
AJ27
AP1
AT2
AT3
AR1
TP32TP32
TP34TP34
TP43TP43
TP44TP44
TP46TP46
PCI-Express Configuration Select
CFG0 1:Single PEG
CFG3 - PCI-Express Static Lane Reversal
CFG3
0:Bifurcation enabled
1 :Normal Operation
0 :Lane Numbers Reversed
15 -> 0, 14 -> 1, ...
2009/06/30 Only reserved CFG TP
AL28
CFG0
AM30
TP26TP26
TP37TP37
2 2
3 3
TP35TP35
TP30TP30
TP41TP41
TP42TP42
TP38TP38
TP28TP28
TP27TP27
TP33TP33
TP39TP39
TP40TP40
TP29TP29
TP31TP31
TP36TP36
TP19TP19
TP_CFG1
TP_CFG2
TP_CFG5
TP_CFG6
TP_CFG7
TP_CFG8
TP_CFG9
TP_CFG10
TP_CFG11
TP_CFG12
TP_CFG13
TP_CFG14
TP_CFG15
TP_CFG16
TP_CFG17
TP_CFG18
CFG3
CFG4
AM28
AP31
AL32
AL30
AM31
AN29
AM32
AK32
AK31
AK28
AJ28
AN30
AN32
AJ32
AJ29
AJ30
AK30
H16
B19
A19
A20
B20
AC9
AB9
A34
A33
C35
B35
U9
T9
C1
A3
J29
J28
CFG[0]
CFG[1]
CFG[2]
CFG[3]
CFG[4]
CFG[5]
CFG[6]
CFG[7]
CFG[8]
CFG[9]
CFG[10]
CFG[11]
CFG[12]
CFG[13]
CFG[14]
CFG[15]
CFG[16]
CFG[17]
RSVD_TP_86
RSVD15
RSVD16
RSVD17
RSVD18
RSVD19
RSVD20
RSVD21
RSVD22
RSVD_NCTF_23
RSVD_NCTF_24
RSVD26
RSVD27
RSVD_NCTF_28
RSVD_NCTF_29
RSVD_NCTF_30
RSVD_NCTF_31
RESERVED
RESERVED
RSVD45
RSVD46
RSVD47
RSVD48
RSVD49
RSVD50
RSVD51
RSVD52
RSVD53
RSVD_NCTF_54
RSVD_NCTF_55
RSVD_NCTF_56
RSVD_NCTF_57
RSVD58
RSVD_TP_59
RSVD_TP_60
KEY
RSVD62
RSVD63
RSVD64
RSVD65
RSVD_TP_66
RSVD_TP_67
RSVD_TP_68
RSVD_TP_69
RSVD_TP_70
RSVD_TP_71
RSVD_TP_72
RSVD_TP_73
RSVD_TP_74
RSVD_TP_75
RSVD_TP_76
RSVD_TP_77
RSVD_TP_78
RSVD_TP_79
RSVD_TP_80
RSVD_TP_81
RSVD_TP_82
RSVD_TP_83
RSVD_TP_84
RSVD_TP_85
VSS
AL29
AP30
AP32
AL27
AT31
AT32
AP33
AR33
AT33
AT34
AP35
AR35
AR32
E15
F15
A2
D15
C15
AJ15
AH15
AA5
AA4
R8
AD3
AD2
AA2
AA1
R9
AG7
AE3
V4
V5
N2
AD5
AD7
W3
W2
N3
AE5
AD9
AP34
CFG4 - Display Port Presence
1:Disabled; No Physical Display Port
CFG4
R4310R0402 R4310R0402
attached to Embedded Display Port
0:Enabled; An external Display Port
device is connected to the Embedded
Display Port
Layout Note:
Location of all CFG strap resistors needs
to be close to trace to minimize stub
Vss (AP34) can be left NC
IC,AUB_CFD_rPGA,R0P9
4 4
IC,AUB_CFD_rPGA,R0P9
is CRB implementation;
EDS/DG recommendation to GND
CFG0
CFG3
CFG4
NO_STUFF
R228
R228
X_3.01KR1%0402
X_3.01KR1%0402
NO_STUFF
R239
R239
X_3.01KR1%0402
X_3.01KR1%0402
NO_STUFF
R238
R238
X_3.01KR1%0402
X_3.01KR1%0402
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
PROCESSOR RESERVED
PROCESSOR RESERVED
PROCESSOR RESERVED
of
of
of
856Wednesday, August 05, 2009
856Wednesday, August 05, 2009
856Wednesday, August 05, 2009
E
0A
0A
0A
Page 9
A
SODIMM#A
1 1
2 2
SA0_DIM0
SA1_DIM0
R136R136
R137R137
2009/06/30 Change to 0 ohm
3 3
M_A_A[15:0]4
M_A_BS04
M_A_BS14
M_A_BS24
M_CS#04
M_CS#14
M_CLK_DDR04
M_CLK_DDR#04
M_CLK_DDR14
M_CLK_DDR#14
M_CKE04
M_CKE14
M_A_CAS#4
M_A_RAS#4
M_A_WE#4
SMB_CLK_DIMM10,21,29
SMB_DATA_DIMM10,21,29
M_ODT04
M_ODT14
M_A_DM[7:0]4
M_A_DQS[7:0]4
M_A_DQS#[7:0]4
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_A15
SA0_DIM0
SA1_DIM0
M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
B
98
A0
97
A1
96
A2
95
A3
92
A4
91
A5
90
A6
86
A7
89
A8
85
A9
107
A10/AP
84
A11
83
A12/BC#
119
A13
80
A14
78
A15
109
BA0
108
BA1
79
BA2
114
S0#
121
S1#
101
CK0
103
CK0#
102
CK1
104
CK1#
73
CKE0
74
CKE1
115
CAS#
110
RAS#
113
WE#
197
SA0
201
SA1
202
SCL
200
SDA
116
ODT0
120
ODT1
11
DM0
28
DM1
46
DM2
63
DM3
136
DM4
153
DM5
170
DM6
187
DM7
12
DQS0
29
DQS1
47
DQS2
64
DQS3
137
DQS4
154
DQS5
171
DQS6
188
DQS7
10
DQS#0
27
DQS#1
45
DQS#2
62
DQS#3
135
DQS#4
152
DQS#5
169
DQS#6
186
DQS#7
N13-2040060-L41
N13-2040060-L41
SODIMM_S204
SODIMM_S204
DDR3SODIMM-204PS_BLACK-RH
DDR3SODIMM-204PS_BLACK-RH
SOCKET8A
SOCKET8A
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
C
M_A_DQ0
5
M_A_DQ1
7
M_A_DQ2
15
M_A_DQ3
17
M_A_DQ4
4
M_A_DQ5
6
M_A_DQ6
16
M_A_DQ7
18
M_A_DQ8
21
M_A_DQ9
23
M_A_DQ10
33
M_A_DQ11
35
M_A_DQ12
22
M_A_DQ13
24
M_A_DQ14
34
M_A_DQ15
36
M_A_DQ16
39
M_A_DQ17
41
M_A_DQ18
51
M_A_DQ19
53
M_A_DQ20
40
M_A_DQ21
42
M_A_DQ22
50
M_A_DQ23
52
M_A_DQ24
57
M_A_DQ25
59
M_A_DQ26
67
M_A_DQ27
69
M_A_DQ28
56
M_A_DQ29
58
M_A_DQ30
68
M_A_DQ31
70
M_A_DQ32
129
M_A_DQ33
131
M_A_DQ34
141
M_A_DQ35
143
M_A_DQ36
130
M_A_DQ37
132
M_A_DQ38
140
M_A_DQ39
142
M_A_DQ40
147
M_A_DQ41
149
M_A_DQ42
157
M_A_DQ43
159
M_A_DQ44
146
M_A_DQ45
148
M_A_DQ46
158
M_A_DQ47
160
M_A_DQ48
163
M_A_DQ49
165
M_A_DQ50
175
M_A_DQ51
177
M_A_DQ52
164
M_A_DQ53
166
M_A_DQ54
174
M_A_DQ55
176
M_A_DQ56
181
M_A_DQ57
183
M_A_DQ58
191
M_A_DQ59
193
M_A_DQ60
180
M_A_DQ61
182
M_A_DQ62
192
M_A_DQ63
194
M_A_DQ[63:0] 4
+1_5VDIMM
R133
R133
1KR1%0402
1KR1%0402
M_VREF_DQ_DIMM0_R
R132
R132
1KR1%0402
1KR1%0402
TS#_DIMM0_13
+1_5VDIMM
R140
R140
10KR1%0402
10KR1%0402
M_VREF_CA_DIMM0
R142
R142
10KR1%0402
10KR1%0402
DDR3_DRAMRST#10,47
2009/06/16 R140,R142改10K1%
+1_5VDIMM
C179
C193
C193
C0.1u10X0402
C0.1u10X0402
+1_5VDIMM
C177
C177
C10u6.3X50805
C10u6.3X50805
2009/06/30 Remove 330uF
CPU及Switching power
C179
C0.1u10X0402
C0.1u10X0402
C192
C192
C10u6.3X50805
C10u6.3X50805
C195
C195
C0.1u10X0402
C0.1u10X0402
C190
C190
C10u6.3X50805
C10u6.3X50805
端已有
+3VRUN
C197
C197
C0.1u10X0402
C0.1u10X0402
M_VREF_DQ_DIMM0_R
C166
C166
C0.1u10X0402
C0.1u10X0402
M_VREF_CA_DIMM0
C182
C182
C2.2u6.3X5
C2.2u6.3X5
C180
C180
C0.1u10X0402
C0.1u10X0402
C178
C114
C114
C10u6.3X50805
C10u6.3X50805
C178
C10u6.3X50805
C10u6.3X50805
+1_5VDIMM
C196
C196
C2.2u6.3X5
C2.2u6.3X5
C164
C164
C2.2u6.3X5
C2.2u6.3X5
C185
C185
C2.2u6.3X5
C2.2u6.3X5
C113
C113
C10u6.3X50805
C10u6.3X50805
D
SOCKET8B
SOCKET8B
75
VDD
76
VDD
81
VDD
82
VDD
87
VDD
88
VDD
93
VDD
94
VDD
99
VDD
100
VDD
105
VDD
106
VDD
111
VDD
112
VDD
117
VDD
118
VDD
123
VDD
124
VDD
199
VDDSPD
77
NC1
122
NC2
125
NCTEST
198
EVENT#
30
RESET#
1
VREF_DQ
126
VREF_CA
2
VSS
3
VSS
8
VSS
9
VSS
13
VSS
14
VSS
19
VSS
20
VSS
25
VSS
26
VSS
31
VSS
32
VSS
37
VSS
38
VSS
43
VSS
DDR3SODIMM-204PS_BLACK-RH
DDR3SODIMM-204PS_BLACK-RH
C191
C191
X_C10u6.3X50805
X_C10u6.3X50805
44
VSS
48
VSS
49
VSS
54
VSS
55
VSS
60
VSS
61
VSS
65
VSS
66
VSS
71
VSS
72
VSS
127
VSS
128
VSS
133
VSS
134
VSS
138
VSS
139
VSS
144
VSS
145
VSS
150
VSS
151
VSS
155
VSS
156
VSS
161
VSS
162
VSS
167
VSS
168
VSS
172
VSS
173
VSS
178
VSS
179
VSS
184
VSS
185
VSS
189
VSS
190
VSS
195
VSS
196
VSS
MEC1
MEC1
MEC2
MEC2
203
VTT
204
VTT
205
205
206
206
C189
C189
X_C10u6.3X50805
X_C10u6.3X50805
C184
C184
C1u16X-RH
C1u16X-RH
E
C188
C188
C1u16X-RH
C1u16X-RH
C102
C102
C1u16X-RH
C1u16X-RH
+0_75VRUN
C194
C194
C1u16X-RH
C1u16X-RH
4 4
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
DDR3 SODIMM0
DDR3 SODIMM0
DDR3 SODIMM0
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
956Wednesday, August 05, 2009
956Wednesday, August 05, 2009
956Wednesday, August 05, 2009
0A
of
of
of
Page 10
A
B
C
D
E
SODIMM#B
C497
C497
C2.2u6.3X5
C2.2u6.3X5
C108
C108
C2.2u6.3X5
C2.2u6.3X5
C131
C131
C2.2u6.3X5
C2.2u6.3X5
C142
C142
C10u6.3X50805
C10u6.3X50805
+1_5VDIMM
SOCKET7A
M_B_A[15:0]4
+3VRUN
1 1
R323
R323
10KR0402
10KR0402
SA1_DIM1
SA0_DIM1
2 2
3 3
R324
R324
0R0402
0R0402
2009/06/30
Change to 0 ohm
M_B_BS04
M_B_BS14
M_B_BS24
M_CS#24
M_CS#34
M_CLK_DDR24
M_CLK_DDR#24
M_CLK_DDR34
M_CLK_DDR#34
M_CKE24
M_CKE34
M_B_CAS#4
M_B_RAS#4
M_B_WE#4
SMB_CLK_DIMM9,21,29
SMB_DATA_DIMM9,21,29
M_ODT24
M_ODT34
M_B_DM[7:0]4
M_B_DQS[7:0]4
M_B_DQS#[7:0]4
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_A15
SA0_DIM1
SA1_DIM1
M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
98
A0
97
A1
96
A2
95
A3
92
A4
91
A5
90
A6
86
A7
89
A8
85
A9
107
A10/AP
84
A11
83
A12/BC#
119
A13
80
A14
78
A15
109
BA0
108
BA1
79
BA2
114
S0#
121
S1#
101
CK0
103
CK0#
102
CK1
104
CK1#
73
CKE0
74
CKE1
115
CAS#
110
RAS#
113
WE#
197
SA0
201
SA1
202
SCL
200
SDA
116
ODT0
120
ODT1
11
DM0
28
DM1
46
DM2
63
DM3
136
DM4
153
DM5
170
DM6
187
DM7
12
DQS0
29
DQS1
47
DQS2
64
DQS3
137
DQS4
154
DQS5
171
DQS6
188
DQS7
10
DQS#0
27
DQS#1
45
DQS#2
62
DQS#3
135
DQS#4
152
DQS#5
169
DQS#6
186
DQS#7
N13-2040080-L41
N13-2040080-L41
SODIMM_S204_1
SODIMM_S204_1
DDR3SODIMM-204PS_BLACK-RH-1
DDR3SODIMM-204PS_BLACK-RH-1
SOCKET7A
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
M_B_DQ0
5
M_B_DQ1
7
M_B_DQ2
15
M_B_DQ3
17
M_B_DQ4
4
M_B_DQ5
6
M_B_DQ6
16
M_B_DQ7
18
M_B_DQ8
21
M_B_DQ9
23
M_B_DQ10
33
M_B_DQ11
35
M_B_DQ12
22
M_B_DQ13
24
M_B_DQ14
34
M_B_DQ15
36
M_B_DQ16
39
M_B_DQ17
41
M_B_DQ18
51
M_B_DQ19
53
M_B_DQ20
40
M_B_DQ21
42
M_B_DQ22
50
M_B_DQ23
52
M_B_DQ24
57
M_B_DQ25
59
M_B_DQ26
67
M_B_DQ27
69
M_B_DQ28
56
M_B_DQ29
58
M_B_DQ30
68
M_B_DQ31
70
M_B_DQ32
129
M_B_DQ33
131
M_B_DQ34
141
M_B_DQ35
143
M_B_DQ36
130
M_B_DQ37
132
M_B_DQ38
140
M_B_DQ39
142
M_B_DQ40
147
M_B_DQ41
149
M_B_DQ42
157
M_B_DQ43
159
M_B_DQ44
146
M_B_DQ45
148
M_B_DQ46
158
M_B_DQ47
160
M_B_DQ48
163
M_B_DQ49
165
M_B_DQ50
175
M_B_DQ51
177
M_B_DQ52
164
M_B_DQ53
166
M_B_DQ54
174
M_B_DQ55
176
M_B_DQ56
181
M_B_DQ57
183
M_B_DQ58
191
M_B_DQ59
193
M_B_DQ60
180
M_B_DQ61
182
M_B_DQ62
192
M_B_DQ63
194
M_B_DQ[63:0] 4
+1_5VDIMM
R93
R93
1KR1%0402
1KR1%0402
M_VREF_DQ_DIMM1_R
R92
R92
1KR1%0402
1KR1%0402
TS#_DIMM1_13
+1_5VDIMM
R114
R114
10KR1%0402
10KR1%0402
M_VREF_CA_DIMM1
R115
R115
10KR1%0402
10KR1%0402
DDR3_DRAMRST#9,47
2009/06/16 R114,R115改10K1%
+1_5VDIMM
C112
C112
C0.1u10X0402
C0.1u10X0402
+1_5VDIMM
C170
C170
C10u6.3X50805
C10u6.3X50805
2009/06/30 Remove 330uF
CPU及Switching power
C117
C117
C0.1u10X0402
C0.1u10X0402
C115
C115
C10u6.3X50805
C10u6.3X50805
端已有
+3VRUN
M_VREF_DQ_DIMM1_R
M_VREF_CA_DIMM1
C111
C111
C0.1u10X0402
C0.1u10X0402
C116
C116
C10u6.3X50805
C10u6.3X50805
C496
C496
C0.1u10X0402
C0.1u10X0402
C109
C109
C0.1u10X0402
C0.1u10X0402
C138
C138
C2.2u6.3X5
C2.2u6.3X5
C110
C110
C0.1u10X0402
C0.1u10X0402
SOCKET7B
SOCKET7B
75
VDD
76
VDD
81
VDD
82
VDD
87
VDD
88
VDD
93
VDD
94
VDD
99
VDD
100
VDD
105
VDD
106
VDD
111
VDD
112
VDD
117
VDD
118
VDD
123
VDD
124
VDD
199
VDDSPD
77
NC1
122
NC2
125
NCTEST
198
EVENT#
30
RESET#
1
VREF_DQ
126
VREF_CA
2
VSS
3
VSS
8
VSS
9
VSS
13
VSS
14
VSS
19
VSS
20
VSS
25
VSS
26
VSS
31
VSS
32
VSS
37
VSS
38
VSS
43
VSS
DDR3SODIMM-204PS_BLACK-RH-1
DDR3SODIMM-204PS_BLACK-RH-1
C137
C137
C10u6.3X50805
C10u6.3X50805
C140
C140
C10u6.3X50805
C10u6.3X50805
44
VSS
48
VSS
49
VSS
54
VSS
55
VSS
60
VSS
61
VSS
65
VSS
66
VSS
71
VSS
72
VSS
127
VSS
128
VSS
133
VSS
134
VSS
138
VSS
139
VSS
144
VSS
145
VSS
150
VSS
151
VSS
155
VSS
156
VSS
161
VSS
162
VSS
167
VSS
168
VSS
172
VSS
173
VSS
178
VSS
179
VSS
184
VSS
185
VSS
189
VSS
190
VSS
195
VSS
196
VSS
MEC1
MEC1
MEC2
MEC2
203
VTT
204
VTT
205
205
206
206
C172
C172
X_C10u6.3X50805
X_C10u6.3X50805
C122
C122
C1u16X-RH
C1u16X-RH
C141
C141
X_C10u6.3X50805
X_C10u6.3X50805
C100
C100
C1u16X-RH
C1u16X-RH
C125
C125
C1u16X-RH
C1u16X-RH
+0_75VRUN
C186
C186
C1u16X-RH
C1u16X-RH
4 4
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
DDR3 SODIMM1
DDR3 SODIMM1
DDR3 SODIMM1
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
10 56Wednesday, August 05, 2009
10 56Wednesday, August 05, 2009
10 56Wednesday, August 05, 2009
Page 11
5
2009/06/30 靠近CPU(TX)
4
U40A
U40A
3
2
1
PEG_TXP0
PEG_TXN0
D D
C C
B B
PEG_TXP1
PEG_TXN1
PEG_TXP2
PEG_TXN2
PEG_TXP3
PEG_TXN3
PEG_TXP4
PEG_TXN4
PEG_TXP5
PEG_TXN5
PEG_TXP6
PEG_TXN6
PEG_TXP7
PEG_TXN7
PEG_TXP8
PEG_TXN8
PEG_TXP9
PEG_TXN9
PEG_TXP10
PEG_TXN10
PEG_TXP11
PEG_TXN11
PEG_TXP12
PEG_TXN12
PEG_TXP13
PEG_TXN13
PEG_TXP14
PEG_TXN14
PEG_TXP15
PEG_TXN15
C555 C0.1u10X0402C555 C0.1u10X0402
C557 C0.1u10X0402C557 C0.1u10X0402
C559 C0.1u10X0402C559 C0.1u10X0402
C561 C0.1u10X0402C561 C0.1u10X0402
C563 C0.1u10X0402C563 C0.1u10X0402
C564 C0.1u10X0402C564 C0.1u10X0402
C565 C0.1u10X0402C565 C0.1u10X0402
C566 C0.1u10X0402C566 C0.1u10X0402
C567 C0.1u10X0402C567 C0.1u10X0402
C570 C0.1u10X0402C570 C0.1u10X0402
C572 C0.1u10X0402C572 C0.1u10X0402
C573 C0.1u10X0402C573 C0.1u10X0402
C574 C0.1u10X0402C574 C0.1u10X0402
C575 C0.1u10X0402C575 C0.1u10X0402
C576 C0.1u10X0402C576 C0.1u10X0402
C586 C0.1u10X0402C586 C0.1u10X0402
C587 C0.1u10X0402C587 C0.1u10X0402
C588 C0.1u10X0402C588 C0.1u10X0402
C596 C0.1u10X0402C596 C0.1u10X0402
C595 C0.1u10X0402C595 C0.1u10X0402
C585 C0.1u10X0402C585 C0.1u10X0402
C584 C0.1u10X0402C584 C0.1u10X0402
C594 C0.1u10X0402C594 C0.1u10X0402
C593 C0.1u10X0402C593 C0.1u10X0402
C583 C0.1u10X0402C583 C0.1u10X0402
C582 C0.1u10X0402C582 C0.1u10X0402
C592 C0.1u10X0402C592 C0.1u10X0402
C591 C0.1u10X0402C591 C0.1u10X0402
C581 C0.1u10X0402C581 C0.1u10X0402
C580 C0.1u10X0402C580 C0.1u10X0402
C590 C0.1u10X0402C590 C0.1u10X0402
C589 C0.1u10X0402C589 C0.1u10X0402
GFX_RXP0
GFX_RXN0
GFX_RXP1
GFX_RXN1
GFX_RXP2
GFX_RXN2
GFX_RXP3
GFX_RXN3
GFX_RXP4
GFX_RXN4
GFX_RXP5
GFX_RXN5
GFX_RXP6
GFX_RXN6
GFX_RXP7
GFX_RXN7
GFX_RXP8
GFX_RXN8
GFX_RXP9
GFX_RXN9
GFX_RXP10
GFX_RXN10
GFX_RXP11
GFX_RXN11
GFX_RXP12
GFX_RXN12
GFX_RXP13
GFX_RXN13
GFX_RXP14
GFX_RXN14
GFX_RXP15
GFX_RXN15
AF30
AE31
AE29
AD28
AD30
AC31
AC29
AB28
AB30
AA31
AA29
Y28
Y30
W31
W29
V28
V30
U31
U29
T28
T30
R31
R29
P28
P30
N31
N29
M28
M30
L31
L29
K30
PCIE_RX0P
PCIE_RX0N
PCIE_RX1P
PCIE_RX1N
PCIE_RX2P
PCIE_RX2N
PCIE_RX3P
PCIE_RX3N
PCIE_RX4P
PCIE_RX4N
PCIE_RX5P
PCIE_RX5N
PCIE_RX6P
PCIE_RX6N
PCIE_RX7P
PCIE_RX7N
PCIE_RX8P
PCIE_RX8N
PCIE_RX9P
PCIE_RX9N
PCIE_RX10P
PCIE_RX10N
PCIE_RX11P
PCIE_RX11N
PCIE_RX12P
PCIE_RX12N
PCIE_RX13P
PCIE_RX13N
PCIE_RX14P
PCIE_RX14N
PCIE_RX15P
PCIE_RX15N
PCIE_TX0P
PCIE_TX0N
PCIE_TX1P
PCIE_TX1N
PCIE_TX2P
PCIE_TX2N
PCIE_TX3P
PCIE_TX3N
PCI EXPRESS INTERFACE
PCI EXPRESS INTERFACE
PCIE_TX4P
PCIE_TX4N
PCIE_TX5P
PCIE_TX5N
PCIE_TX6P
PCIE_TX6N
PCIE_TX7P
PCIE_TX7N
PCIE_TX8P
PCIE_TX8N
PCIE_TX9P
PCIE_TX9N
PCIE_TX10P
PCIE_TX10N
PCIE_TX11P
PCIE_TX11N
PCIE_TX12P
PCIE_TX12N
PCIE_TX13P
PCIE_TX13N
PCIE_TX14P
PCIE_TX14N
PCIE_TX15P
PCIE_TX15N
AH30
AG31
AG29
AF28
AF27
AF26
AD27
AD26
AC25
AB25
Y23
Y24
AB27
AB26
Y27
Y26
W24
W23
V27
U26
U24
U23
T26
T27
T24
T23
P27
P26
P24
P23
M27
N26
GFX_TXP0
GFX_TXN0
GFX_TXP1
GFX_TXN1
GFX_TXP2
GFX_TXN2
GFX_TXP3
GFX_TXN3
GFX_TXP4
GFX_TXN4
GFX_TXP5
GFX_TXN5
GFX_TXP6
GFX_TXN6
GFX_TXP7
GFX_TXN7
GFX_TXP8
GFX_TXN8
GFX_TXP9
GFX_TXN9
GFX_TXP10
GFX_TXN10
GFX_TXP11
GFX_TXN11
GFX_TXP12
GFX_TXN12
GFX_TXP13
GFX_TXN13
GFX_TXP14
GFX_TXN14
GFX_TXP15
GFX_TXN15
C260 C0.1u10X0402C260 C0.1u10X0402
C264 C0.1u10X0402C264 C0.1u10X0402
C267 C0.1u10X0402C267 C0.1u10X0402
C263 C0.1u10X0402C263 C0.1u10X0402
C272 C0.1u10X0402C272 C0.1u10X0402
C268 C0.1u10X0402C268 C0.1u10X0402
C271 C0.1u10X0402C271 C0.1u10X0402
C276 C0.1u10X0402C276 C0.1u10X0402
C287 C0.1u10X0402C287 C0.1u10X0402
C283 C0.1u10X0402C283 C0.1u10X0402
C286 C0.1u10X0402C286 C0.1u10X0402
C291 C0.1u10X0402C291 C0.1u10X0402
C295 C0.1u10X0402C295 C0.1u10X0402
C299 C0.1u10X0402C299 C0.1u10X0402
C298 C0.1u10X0402C298 C0.1u10X0402
C302 C0.1u10X0402C302 C0.1u10X0402
C304 C0.1u10X0402C304 C0.1u10X0402
C313 C0.1u10X0402C313 C0.1u10X0402
C307 C0.1u10X0402C307 C0.1u10X0402
C314 C0.1u10X0402C314 C0.1u10X0402
C318 C0.1u10X0402C318 C0.1u10X0402
C323 C0.1u10X0402C323 C0.1u10X0402
C322 C0.1u10X0402C322 C0.1u10X0402
C325 C0.1u10X0402C325 C0.1u10X0402
C329 C0.1u10X0402C329 C0.1u10X0402
C333 C0.1u10X0402C333 C0.1u10X0402
C332 C0.1u10X0402C332 C0.1u10X0402
C336 C0.1u10X0402C336 C0.1u10X0402
C343 C0.1u10X0402C343 C0.1u10X0402
C347 C0.1u10X0402C347 C0.1u10X0402
C348 C0.1u10X0402C348 C0.1u10X0402
C345 C0.1u10X0402C345 C0.1u10X0402
PEG_RXP0
PEG_RXN0PEG_RXN0
PEG_RXP1
PEG_RXN1PEG_RXN1
PEG_RXP2
PEG_RXN2PEG_RXN2
PEG_RXP3
PEG_RXN3
PEG_RXP4
PEG_RXN4PEG_RXN4
PEG_RXP5
PEG_RXN5PEG_RXN5
PEG_RXP6
PEG_RXN6PEG_RXN6
PEG_RXP7
PEG_RXN7PEG_RXN7
PEG_RXP8
PEG_RXN8PEG_RXN8
PEG_RXP9
PEG_RXN9PEG_RXN9
PEG_RXP10
PEG_RXN10PEG_RXN10
PEG_RXP11
PEG_RXN11PEG_RXN11
PEG_RXP12
PEG_RXN12
PEG_RXP13
PEG_RXN13
PEG_RXP14
PEG_RXN14
PEG_RXP15
PEG_RXN15
PEG_RXN[15:0]
PEG_RXP[15:0]
PEG_TXP[15:0]
PEG_TXN[15:0]
PEG_RXN[15:0] 3
PEG_RXP[15:0] 3
PEG_TXP[15:0] 3
PEG_TXN[15:0] 3
CLOCK
CLK_PEGA_MXM_P21
CLK_PEGA_MXM_N21
R390 0R0402R390 0R0402
R391 0R0402R391 0R0402
CheckResetSequence
A A
R215
PCIE_RST#24
PARK-S3M92-S2
X-
4
For Park-S3: PWRGOOD pin
must need to pull low
For M92-S2/S3: PWRGOOD pin
should be NC
5
R215
R215
X_10KR0402
X_10KR0402
CLOCK
AK30
PCIE_REFCLKP
AK32
PCIE_REFCLKN
N10
PWRGOOD
AL27
PERSTB
216-0728020-00-A12-RH
216-0728020-00-A12-RH
CALIBRATION
CALIBRATION
PCIE_CALRP
PCIE_CALRN
Y22
AA22
3
VGA_PE_CP
VGA_PE_CN
R203 1.27KR%R203 1.27KR%
R205 2KR1%0402R205 2KR1%0402
+1_0VRUN_PARK
2
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
M92/Pak-Sx (PCIE_Interface)
M92/Pak-Sx (PCIE_Interface)
M92/Pak-Sx (PCIE_Interface)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
11 56Wednesday, August 05, 2009
11 56Wednesday, August 05, 2009
11 56Wednesday, August 05, 2009
of
of
1
of
0A
0A
0A
Page 12
5
PARK-S3M92-S2
X-
R210
R195
X-
R208 X-
C659
X-
C658 X-
D D
C512
X-
C662 X-
X-
C661
C660 X -
X-R197
R356 X-
X-C665
C664 X-
X-C663
For PARK-S3: Install All components in this
Box INCLUDING Decoupling caps and Bead
connecting to DPC_VDD18#
For M92-S2: DO NOT Install any Component
in this Box.
DVPDATA_1917
DVPDATA_2117
DVPDATA_217
C659
C659
X_C10u6.3X50805
X_C10u6.3X50805
C662
C662
X_C10u6.3X50805
X_C10u6.3X50805
C665X_C10uC665X_C10u
DVPDATA_017
X_C1u6.3Y0402-RH
X_C1u6.3Y0402-RH
X_C1u6.3Y0402-RH
X_C1u6.3Y0402-RH
C664X_1uC664X_1u
+1_8VRUN_PARK
+1_0VRUN_PARK
R210 X_0RR210 X_0R
R195 X_0RR195 X_0R
R208 X_0RR208 X_0R
R406 X-
X-
R404
R402 X
C C
M92_THERMDA
M92_THERMDC
T_CRIT_M92#40
Sequence
ATI suggestion
B B
+1_8VRUN_PARK
B9
B9
470L1.5A-150-RH
470L1.5A-150-RH
+1_0VRUN_PARK
470L1.5A-150-RH
470L1.5A-150-RH
2009/07/09 Default use clock GEN. 27MHz(SS)
Note:1
For M9x-S2/S3 XO_IN and XO_IN2 Pins are NC, can be gronded
For Park-S3: XO_IN and XO_IN2 can be use as
A A
3.3V CLK Input. These poins can be grounded if not
in use.
VDDR3
B14
B14
CLK_XTAL_27M_IN29
-
VDDR3 +3VRUN
R478
R478
X_0R0402
X_0R0402
C560
C560
C100p16N0402
C100p16N0402
C615
C615
C0.1u16Y0402
C0.1u16Y0402
RN26
RN26
8P4R-10KR0402
8P4R-10KR0402
1
3
5
7
RN0402_MSI
RN0402_MSI
(1.8V@75mA DPLL_PVDD)
C241
C241
C10u6.3X50805
C10u6.3X50805
(1.0V@125mA DPLL_VDDC)
(1.1V@150mA DPLL_VDDC)
C275
C275
C10u6.3X50805
C10u6.3X50805
R479
R479
0R0402
0R0402
1.0 change P/N
U41
U41
1
VCC
2
DXP
3
DXN
THERM#4GND
SNSR-G780P81U-RH
SNSR-G780P81U-RH
T_CRIT_M92#
2
4
6
M92_THRM_ALERT-
8
C261
C261
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C274
C274
C1u6.3Y0402-RH
C1u6.3Y0402-RH
R385 0R0402R385 0R0402
5
SMBCLK
SMBDATA
ALERT#
C247
C247
C0.1u10X0402-1
C0.1u10X0402-1
C273
C273
C0.1u10X0402-1
C0.1u10X0402-1
M92_XTAL_IN
VDDR3
8
SMB_THRM_CLK 30
7
SMB_THRM_DATA 30
6
5
JTAG DEBUG
PORT
TP22 35milTP22 35mil
TP59 35milTP59 35mil
TP60 35milTP60 35mil
TP62 35milTP62 35mil
TP61 35milTP61 35mil R202 10KR0402R202 10KR0402
R190 10KR0402R190 10KR0402
TEST_EN13
C521
C521
X_C22p50N0402
X_C22p50N0402
C522
C522
X_C22p50N0402
X_C22p50N0402
R187
R187
0R0402
0R0402
PEG_CLKREQ#21
PLACE VREFG
DIVIDER AND CAP
CLOSE TO ASIC
Y11
Y11
X_27MHZ
X_27MHZ
R384
R384
X_1MR0402
X_1MR0402
R186
R186
0R0402
0R0402
+1_8VRUN_PARK
R220 X_0R0402R220 X_0R0402
M92_XTAL_IN
M92_XTAL_OUT
C658
C658
C661
C661
C663 X_0.1uC663 X_0.1u
R407 4.7KR0402R407 4.7KR0402
R408 4.7KR0402R408 4.7KR0402
GPIO017
GPIO117
GPIO217
GPIO517
LVDS_BLON18
GPIO817
GPIO917
GPIO1117
GPIO1217
GPIO1317
POW_SW145
TP58TP58
POW_SW245
GPIO2217
GENERICC17
+1_8VRUN_PARK
R165
R165
499R1%0402
499R1%0402
R166
R166
249R1%0402
249R1%0402
(1.8V@20mA TSVDD)
4
C512
C512
X_C0.1u10X0402-1
X_C0.1u10X0402-1
R197 X_0RR197 X_0R
C660
C660
X_C0.1u10X0402-1
X_C0.1u10X0402-1
R356 X_0RR356 X_0R
R406 X_0R0603R406 X_0R0603
R404 X_0R0603R404 X_0R0603
R402 X_0R0603R402 X_0R0603
M92_THRM_ALERT-
GPIO24_TRSTB
GPIO25_TDI
GPIO26_TCK
GPIO27_TMS
GPIO28_TDO
HPD1
C230
C230
C0.1u10X0402-1
C0.1u10X0402-1
M92_THERMDA
M92_THERMDC
4
U40B
U40B
M93-S3/M92-S2
M93-S3/M92-S2
AE9
DVCNTL_0/ DVPDATA_18
L9
DVCNTL_1 / NC
N9
DVCNTL_2 / NC
AE8
DVDATA_12 / DVPDATA_16
AD9
DVDATA_11 / DVPDATA_20
AC10
DVDATA_10 / DVPDATA_22
AD7
DVDATA_9 / DVPDATA_12
AC8
DVDATA_8 / DVPDATA_14
AC7
DVDATA_7 / DVPCNTL_0
AB9
DVDATA_6 / DVPDATA_8
AB8
DVDATA_5 / DVPDATA_6
AB7
DVDATA_4 DVPDATA_4
AB4
DVDATA_3 / DVPDATA_19
AB2
DVDATA_2 / DVPDATA_21
Y8
DVDATA_1 / DVPDATA_2
Y7
DVDATA_0 / DVPDATA_0
DVO
DVO
M93-S3/M92-S2
M93-S3/M92-S2
W6
DPC_PVDD / DVPDATA_11
V6
DPC_PVSS / GND
AC6
DPC_VDD18#1/DVPDAT10
AC5
DPC_VDD18#2/DVPDAT23
AA5
DPC_VDD10#1/DVPDAT15
AA6
DPC_VDD10#2/DVPDAT17
U1
DPC_VSSR#1 / DVPCLK
W1
DPC_VSSR#2 / DVPDAT5
U3
DPC_VSSR#3 / GND
Y6
DPC_VSSR#4 / GND
AA1
DPC_VSSR#5/ DVPCNTL_MV0
R1
SCL
R3
SDA
GENERAL PURPOSE I/O
GENERAL PURPOSE I/O
U6
GPIO_0
U10
GPIO_1
T10
GPIO_2
U8
GPIO_3_SMBDATA
U7
GPIO_4_SMBCLK
T9
GPIO_5_AC_BATT
T8
GPIO_6
T7
GPIO_7_BLON
P10
GPIO_8_ROMSO
P4
GPIO_9_ROMSI
P2
GPIO_10_ROMSCK
N6
GPIO_11
N5
GPIO_12
N3
GPIO_13
Y9
GPIO_14_HPD2
N1
GPIO_15_PWRCNTL_0
M4
GPIO_16_SSIN
R6
GPIO_17_THERMAL_INT
W10
GPIO_18_HPD3
M2
GPIO_19_CTF
P8
GPIO_20_PWRCNTL_1
P7
GPIO_21_BB_EN
N8
GPIO_22_ROMCSB
N7
GPIO_23_CLKREQB
L6
JTAG_TRSTB
L5
JTAG_TDI
L3
JTAG_TCK
L1
JTAG_TMS
K4
JTAG_TDO
AF24
TESTEN
AB13
GENERICA
W8
GENERICB
W9
GENERICC
W7
GENERICD
AD10
GENERICE_HPD4
AC14
HPD1
AC16
VREFG
PLL/CLOCK
PLL/CLOCK
AF14
DPLL_PVDD
AE14
DPLL_PVSS
AD14
DPLL_VDDC
AM28
XTALIN
AK28
XTALOUT
AC22
NC#2/XO_IN
AB22
NC#1/XO_IN2
T4
DPLUS
T2
DMINUS
R5
TS_FDO
AD17
TSVDD
AC17
TSVSS
216-0728020-00-A12-RH
216-0728020-00-A12-RH
I2C
I2C
THERMAL
THERMAL
TXCAP_DPA3P
TXCAM_DPA3N
TX0P_DPA2P
DPA
DPA
TX0M_DPA2N
TX1P_DPA1P
TX1M_DPA1N
TX2P_DPA0P
TX2M_DPA0N
TXCBP_DPB3P
TXCBM_DPB3N
TX3P_DPB2P
TX3M_DPB2N
DPB
DPB
TX4P_DPB1P
TX4M_DPB1N
TX5P_DPB0P
TX5M_DPB0N
M92-S2/M93-S3
M92-S2/M93-S3
DVPDATA_3/TXCCP_DPC3P
DVPCNTL_2/TXCCM_DPC3N
DVPDATA_7 / TX0P_DPC2P
DVPDATA_1 / TX0M_DPC2N
DVPCNTL_MV1 / TX1P_DPC1P
DVPDATA_9 / TX1M_DPC1N
DVPDATA_13 / TX2P_DPC0P
DVPCNTL_1 / TX2M_DPC0N
VDDR4 / DPCD_CALR
DPC
DPC
DAC1
DAC1
HSYNC
VSYNC
RSET
AVDD
AVSSQ
VDD1DI
VSS1DI
M92-S2/M93-S3
M92-S2/M93-S3
R2 / NC
R2B / NC
G2 / NC
G2B / NC
B2 / NC
B2B / NC
C / NC
DAC2
DAC2
Y / NC
COMP / NC
H2SYNC
V2SYNC
VDD2DI / NC
VSS2DI / NC
A2VDD / NC
A2VDDQ / NC
A2VSSQ
R2SET / NC
M92-S2/M93-S3M92-S2/M93-S3
M92-S2/M93-S3M92-S2/M93-S3
DDC1CLK
DDC1DATA
AUX1P
DDC/AUX
DDC/AUX
AUX1N
DDC2CLK
DDC2DATA
AUX2P
AUX2N
DDCCLK_AUX5P
DDCDATA_AUX5N
DDC6CLK
DDC6DATA
NC/DDCCLK_AUX3P
NC/DDCDATA_AUX3N
3
AF2
AF4
AG3
AG5
AH3
AH1
AK3
AK1
AK5
AM3
AK6
AM5
AJ7
AH6
AK8
AL7
For M92-S2: Use 0R to VDDR4
For Park-S3: DNI (NC)
V4
U5
W3
V2
Y4
W5
R206 0R0402R206 0R0402
AA3
Y2
AA12
R206
AM26
R
AK26
RB
AL25
G
AJ25
GB
AH24
B
AG25
BB
AH26
AJ27
AD22
AG24
AE22
AE23
AD23
AM12
AK12
AL11
AJ11
AK10
AL9
AH12
AM10
AJ9
AL13
AJ13
AD19
AC19
AE20
AE17
AE19
AG13
AE6
AE5
AD2
AD4
AC11
AC13
AD13
AD11
AE16
AD16
AC1
AC3
AD20
AC20
VDD1DI
0R10R1
A2VDD
A2VDDQ
R191 715R1%0402R191 715R1%0402
DVI_CLK_MXM 18
DVI_DATA_MXM 18
I2C_CLK 18
I2C_DATA 18
DAC_SCL 18
DAC_SDAT 18
I2C_DATA
I2C_CLK
DAC_SDAT
DAC_SCL
DVI_DATA_MXM
DVI_CLK_MXM
3
+1_8VRUN_PARK
B7
B7
120L200mA-200
VDDR3
JNC12 X_0603JNC12 X_0603
120L200mA-200
JNC9 X_0603JNC9 X_0603
B10
B10
120L200mA-200
120L200mA-200
JNC10 X_0603JNC10 X_0603
CLK+_MXM 18
CLK-_MXM 18
TX0+_MXM 18
TX0-_MXM 18
TX1+_MXM 18
TX1-_MXM 18
TX2+_MXM 18
TX2-_MXM 18
VDDR4
PARK-S3M92-S2
X-
R18
G18
B18
HSYNC# 17,18
VSYNC# 17,18
R200
R200
AVDD
499R1%0402
499R1%0402
AVSSQ have to be away from noisy ground
A2VSSQ have to be away from noisy ground
it is for layout recommendation
HSYNC_DAC2 17
VSYNC_DAC2 17
VDD2DI
HDMI
LVDS
5V
CRT
R392 10KR0402R392 10KR0402
R393 10KR0402R393 10KR0402
R397 10KR0402R397 10KR0402
R398 10KR0402R398 10KR0402
R396 10KR0402R396 10KR0402
R395 10KR0402R395 10KR0402
5V
3.3V
VDDR3
R
G
B
R386 150R1%0402R386 150R1%0402
R382 150R1%0402R382 150R1%0402
R387 150R1%0402R387 150R1%0402
2
(1.8V@70mA AVDD)
C249
C249
C238
C238
C0.1u10X0402-1
C0.1u10X0402-1
X_C10u6.3X50805
X_C10u6.3X50805
(1.8V@45mA VDD1DI)
C218
C218
C228
C228
C1u6.3Y0402-RH
C1u6.3Y0402-RH
X_C10u6.3X50805
X_C10u6.3X50805
(1.8V@2mA A2VDDQ)
C256
C256
C0.1u10X0402-1
C0.1u10X0402-1
C235
C235
X_C10u6.3X50805
X_C10u6.3X50805
(1.8V@40mA VDD2DI)
C219
C219
C282
C282
C0.1u10X0402-1
C0.1u10X0402-1
X_C10u6.3X50805
X_C10u6.3X50805
(3.3V@65mA A2VDD)
C257
C257
C236
C236
C1u6.3Y0402-RH
C1u6.3Y0402-RH
X_C10u6.3X50805
X_C10u6.3X50805
DGPU_PWR_EN25,45
+1_8VRUN_PARK
2
AVDD
C262
C262
C1u6.3Y0402-RH
C1u6.3Y0402-RH
VDD1DI
C277
C277
C0.1u10X0402-1
C0.1u10X0402-1
A2VDDQ
C242
C242
C1u6.3Y0402-RH
C1u6.3Y0402-RH
VDD2DI
C229
C229
C1u6.3Y0402-RH
C1u6.3Y0402-RH
A2VDD
C243
C243
C0.1u10X0402-1
C0.1u10X0402-1
R443 0R0402R443 0R0402
R451 X_47KR0402R451 X_47KR0402
OPTIONAL RC NETWORK
TO FINE TUNE
POWER SEQUENCING
Check 1.8VRUN and VDDR3 Sequence
For Park-S3 : Stuff R443
For M92-S2 : Stuff R451
HPD1
Q28
Q28
P-NDS352AP
P-NDS352AP
C623
C623
C0.1u16Y0402
C0.1u16Y0402
LVDS Interface
U40F
U40F
LVDS CONTROL
LVDS CONTROL
LVTMDP
LVTMDP
216-0728020-00-A12-RH
216-0728020-00-A12-RH
VARY_BL
DIGON
TXCLK_UP_DPF3P
TXCLK_UN_DPF3N
TXOUT_U0P_DPF2P
TXOUT_U0N_DPF2N
TXOUT_U1P_DPF1P
TXOUT_U1N_DPF1N
TXOUT_U2P_DPF0P
TXOUT_U2N_DPF0N
TXOUT_U3P
TXOUT_U3N
TXCLK_LP_DPE3P
TXCLK_LN_DPE3N
TXOUT_L0P_DPE2P
TXOUT_L0N_DPE2N
TXOUT_L1P_DPE1P
TXOUT_L1N_DPE1N
TXOUT_L2P_DPE0P
TXOUT_L2N_DPE0N
TXOUT_L3P
TXOUT_L3N
1
+3VRUN
53
VCC
VCC
1
A
A
4
Y
Y
2
B
B
GND
R158
R158
10KR0402
10KR0402
ER20ER20
R201 X_10KR0402R201 X_10KR0402
AB11
AB12
AH20
AJ19
AL21
AK20
AH22
AJ21
AL23
AK22
AK24
AJ23
AL15
AK14
AH16
AJ15
AL17
AK16
AH18
AJ17
AL19
AK18
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
GND
S08P5X_SC70
S08P5X_SC70
U28
U28
DGPU_HPD_INTR# 25
+3VRUNVDDR3
R453
R453
100KR0402
100KR0402
DS
Q29
Q29
G
N-BSS138_SOT23
N-BSS138_SOT23
BLON_PWM 18
LVDS_DIGON 18
LVDS_TX_CLKLP 18
LVDS_TX_CLKLN 18
LVDS_TX_L0P 18
LVDS_TX_L0N 18
LVDS_TX_L1P 18
LVDS_TX_L1N 18
LVDS_TX_L2P 18
LVDS_TX_L2N 18
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
M92/Pak-Sx (Main_IO)
M92/Pak-Sx (Main_IO)
M92/Pak-Sx (Main_IO)
MS-145X
MS-145X
MS-145X
1
DVI_A_HPD 18
DGPU_PWROK 25
of
of
of
12 56Wednesday, August 05, 2009
12 56Wednesday, August 05, 2009
12 56Wednesday, August 05, 2009
0A
0A
0A
Page 13
5
MDA[63..0]16
MAA[13..0]16
A_BA016
A_BA116
A_BA216
DQMA#[7..0]16
QSA#[7..0]16
D D
QSA[7..0]16
CLKA116
CLKA1#16
CLKA016
CLKA0#16
RASA0#16
RASA1#16
CASA0#16
CASA1#16
CSA0#_016
CSA1#_016
CKEA016
CKEA116
WEA0#16
C C
WEA1#16
MDA[63..0]
MAA[13..0]
A_BA0
A_BA1
A_BA2
DQMA#[7..0]
QSA#[7..0]
QSA[7..0]
CLKA1
CLKA1#
CLKA0
CLKA0#
RASA0#
RASA1#
CASA0#
CASA1#
CSA0#_0
CSA1#_0
CKEA0
CKEA1
WEA0#
WEA1#
MVDDQ = 1.5V FOR
DDR3 Memory
PARK-S3M92-S2
R419
X-
R421 X-
Note:2
R419 X_150R1%0402R419 X_150R1%0402
R421 240R1%0402R421 240R1%0402
PLACE MVREF DIVIDERS
AND CAPS CLOSE TO ASIC
+1_5VRUN_PARK
B B
+1_5VRUN_PARK
R232
R232
100R1%0402
100R1%0402
Ra
R233
R233
Rb
100R1%0402
100R1%0402
Ra
Rb
R237
R237
100R1%0402
100R1%0402
R236
R236
100R1%0402
100R1%0402
C354
C354
C0.1u10X0402-1
C0.1u10X0402-1
R234
R181 X -
R230 X -
C358
C358
C0.1u10X0402-1
C0.1u10X0402-1
+1_5VRUN_PARK
TEST_EN12
R428
R428
4.7KR0402
4.7KR0402
DPC_CALR
PARK-S3M92-S2
X-
MVREF
Note: 1
X_0R0402
X_0R0402
R181
R181
Note: 1
R226
R226
C568
C568
4.7KR0402
4.7KR0402
X_C0.1u10X0402-1
X_C0.1u10X0402-1
R0402
R0402
R0402
R0402
PARK-S3M92-S2
A A
R428
R226 X-
Use this option ONLY
X-
for M9x-S2/S3vFamily
route 50ohms
single-ended/100ohms diff
DIVIDER RESISTORS DDR3 GDDR3
MVREF TO 1.5V (Ra)
MVREF TO GND (Rb)
5
40.2R100R
100R100R
and keep short
Use this option ONLY
for Park-S3
4
MDA0
MDA1
MDA2
MDA3
MDA4
MDA5
MDA6
MDA7
MDA8
MDA9
MDA10
MDA11
MDA12
MDA13
MDA14
MDA15
MDA16
MDA17
MDA18
MDA19
MDA20
MDA21
MDA22
MDA23
MDA24
MDA25
MDA26
MDA27
MDA28
MDA29
MDA30
MDA31
MDA32
MDA33
MDA34
MDA35
MDA36
MDA37
MDA38
MDA39
MDA40
MDA41
MDA42
MDA43
MDA44
MDA45
MDA46
MDA47
MDA48
MDA49
MDA50
MDA51
MDA52
MDA53
MDA54
MDA55
MDA56
MDA57
MDA58
MDA59
MDA60
MDA61
MDA62
MDA63
R234
R234
X_240R1%0402
X_240R1%0402
Note:3
DPC_CALR
R230 X_240R1%0402R230 X_240R1%0402
DRAM_RST
CLKTESTA
R423
R423
X_51.1R1%0402
X_51.1R1%0402
4
K27
J29
H30
H32
G29
F28
F32
F30
C30
F27
A28
C28
E27
G26
D26
F25
A25
C25
E25
D24
E23
F23
D22
F21
E21
D20
F19
A19
D18
F17
A17
C17
E17
D16
F15
A15
D14
F13
A13
C13
E11
A11
C11
F11
A9
C9
F9
D8
E7
A7
C7
F7
A5
E5
C3
E1
G7
G6
G1
G3
J6
J1
J3
J5
K26
J26
J25
K7
J8
K25
L10
K8
CLKTESTB
L7
C341
C341
X_C0.1u10X0402-1
X_C0.1u10X0402-1
R227
R227
X_51.1R1%0402
X_51.1R1%0402
U40C
U40C
DQA_0
DQA_1
DQA_2
DQA_3
DQA_4
DQA_5
DQA_6
DQA_7
DQA_8
DQA_9
DQA_10
DQA_11
DQA_12
DQA_13
DQA_14
DQA_15
DQA_16
DQA_17
DQA_18
DQA_19
DQA_20
DQA_21
DQA_22
DQA_23
DQA_24
DQA_25
DQA_26
DQA_27
DQA_28
DQA_29
DQA_30
DQA_31
DQA_32
DQA_33
DQA_34
DQA_35
DQA_36
DQA_37
DQA_38
DQA_39
DQA_40
DQA_41
DQA_42
DQA_43
DQA_44
DQA_45
DQA_46
DQA_47
DQA_48
DQA_49
DQA_50
DQA_51
DQA_52
DQA_53
DQA_54
DQA_55
DQA_56
DQA_57
DQA_58
DQA_59
DQA_60
DQA_61
DQA_62
DQA_63
MVREFDA
MVREFSA
MEM_CALRN0
NC/TESTEN#2
MEM_CALRP1/DPC_CALR
MEM_CALRP0
DRAM_RST
CLKTESTA
CLKTESTB
216-0728020-00-A12-RH
216-0728020-00-A12-RH
3
DDR3 Memory
Interface
MAA0
K17
MAA_0
MAA_1
MAA_2
MAA_3
MAA_4
MAA_5
MAA_6
MAA_7
MAA_8
MAA_9
MAA_10
MAA_11
MAA_12
MAA_13/BA2
MAA_14/BA0
MAA_15/BA1
DQMA_0
DQMA_1
DQMA_2
DQMA_3
DQMA_4
DQMA_5
DQMA_6
DQMA_7
MEMORY INTERFACE
MEMORY INTERFACE
RDQSA_0
RDQSA_1
RDQSA_2
RDQSA_3
RDQSA_4
RDQSA_5
RDQSA_6
RDQSA_7
WDQSA_0
WDQSA_1
WDQSA_2
WDQSA_3
WDQSA_4
WDQSA_5
WDQSA_6
WDQSA_7
ODTA0
ODTA1
CLKA0
CLKA0B
CLKA1
CLKA1B
RASA0B
RASA1B
CASA0B
CASA1B
CSA0B_0
CSA0B_1
CSA1B_0
CSA1B_1
CKEA0
CKEA1
WEA0B
WEA1B
PX_EN
RSVD#2
RSVD#3
C568
C341
R423
R227
J20
H23
G23
G24
H24
J19
K19
J14
K14
J11
J13
H11
G11
J16
L15
E32
E30
A21
C21
E13
D12
E3
F4
H28
C27
A23
E19
E15
D10
D6
G5
H27
A27
C23
C19
C15
E9
C5
H4
L18
K16
H26
H25
G9
H9
G22
G17
G19
G16
H22
J22
G13
K13
K20
J17
G25
H10
AB16
G14
G20
For PARK-S3 only
For M9X-S2/S3 with
DDR3: this pin is
not in use.
X
X
X
X
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA11
MAA12
A_BA2
A_BA0
A_BA1
DQMA#0
DQMA#1
DQMA#2
DQMA#3
DQMA#4
DQMA#5
DQMA#6
DQMA#7
QSA0
QSA1
QSA2
QSA3
QSA4
QSA5
QSA6
QSA7
QSA#0
QSA#1
QSA#2
QSA#3
QSA#4
QSA#5
QSA#6
QSA#7
ODTA0
ODTA1
CLKA0
CLKA0#
CLKA1
CLKA1#
RASA0#
RASA1#
CASA0#
CASA1#
CSA0#_0
CSA1#_0
CKEA0
CKEA1
WEA0#
WEA1#
MAA13
PARK-S3M92-S2
3
TPJNC34TPJNC34
-
-
-
-
QSA#[7..0]
QSA[7..0]
QSA#[7..0]
QSA[7..0]
ODTA0
ODTA1
QSA#[7..0] 16
QSA[7..0] 16
QSA#[7..0] 16
QSA[7..0] 16
ODTA0 16
ODTA1 16
2
PARK-S3M92-S2
R419
X-
1
R421 X -
CKEA1
CKEA0
R247
R247
10KR0402
10KR0402
Option for DDR3/GDDR3/DDR2 with Park
R246
R246
10KR0402
10KR0402
Do not Install for M9X-S2/S3
INSTALL for Park-S3 to save power in auto refresh mode
These can be placed close to ASIC side or Memory side.
Note 1 : Do not Install for M9X-S2/S3, Install 240 Ohms 0.5% Resistor for PARK-S3.
Note 2 :For M9X-S2/S3,J8 Pin Connect to VSS through 240 Ohms(0.5%) resistor.
For Park-S3,J8 Pin Connect to VSS through 150 Ohms(1%) resistor for DPC_CALR
Note 3 :For M9X-92/93, K7 Pin (NC_MEM_CALRP1) is Not connected.
For PARK-S3, K7 Pin (TESTEN#2) connect to TEST_EN Signal At AF24
DRAM_RST
R425
R425
10KR0402
10KR0402
This basic topology should be used for DRAM_RST for
**
DDR3/GDDR3/GDDR5.These Capacitors and Resistor vvalues
are an example only. The Series R and || Cap values
will depend on the DRAM load and will have to be
calculated for different Memory ,DRAM Load and board
to pass Reset Signal Spec.
Designator
R425
R427
R430
C571
**
R427
R427
680R0402-RH
680R0402-RH
**
For M9X-S2
and M93-S3
DNI
0R/Short
2.2K
2.2nF
2
**
C571
C571
C68p50N0402-RH
C68p50N0402-RH
+1_5VRUN_PARK
For Park-S3
10K
680R
DNI
68pF
**
R430
R430
X_2.2KR0402
X_2.2KR0402
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
M92/Pak-Sx (MEM_Interface)
M92/Pak-Sx (MEM_Interface)
M92/Pak-Sx (MEM_Interface)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
MEM_RST 16
1
0A
0A
0A
of
of
of
13 56Wednesday, August 05, 2009
13 56Wednesday, August 05, 2009
13 56Wednesday, August 05, 2009
Page 14
5
4
3
2
1
+1_5VRUN_PARK
D D
+1_8VRUN_PARK
PARK-S3M92-S2
R211
R207
R209
R213
C C
X
-
-
X
-
X
X
-
PARK-S3M92-S2
B18
X-
B19 X -
B B
A A
( for DDR2 and GDDR3: 1.8V@2.2A VDDR1)
C619
C619
C368
C368
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C334
C334
C355
C355
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C366
C366
C363
C363
X_C10u6.3X50805
X_C10u6.3X50805
X_C10u6.3X50805
X_C10u6.3X50805
VDDR3
C269
C269
C293
C293
X_C10u6.3X50805
X_C10u6.3X50805
C1u6.3Y0402-RH
C1u6.3Y0402-RH
R199 X_0402R199 X_0402
R214 X_0402R214 X_0402
B12
B12
120L200mA-200
120L200mA-200
M92S_VDD_CORE
+1_0VRUN_PARK
For Park-S3: Connect +1_0VRUN_PARK to SPV10 ONLY
For M9X-S2/S3: Connect M92S_VDD_CORE to SPV10 ONLY
B17
B17
120L200mA-200
120L200mA-200
B16
B16
470L1.5A-150-RH
470L1.5A-150-RH
(1.8V@40mA PCIE_PVDD)
B18
B18
(DNI For M9X-S2/S3)
(For PARK-S3)
(1.8V@90mA SPV18)
(1.8V@75mA MPV18)
C413
C413
C636
C636
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C346
C346
C608
C608
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C367
C367
C414
C414
X_C10u6.3X50805
X_C10u6.3X50805
X_C10u6.3X50805
X_C10u6.3X50805
JNC11 X_0603JNC11 X_0603
C280
C280
C285
C285
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C279
C279
C281
C281
X_C10u6.3X50805
X_C10u6.3X50805
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C308
C308
C311
C311
X_C10u6.3X50805
X_C10u6.3X50805
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C232
C232
X_C10u6.3X50805
X_C10u6.3X50805
120L200mA-200
120L200mA-200
1.0V @100mA
B19
B19
X_120L200mA-200
X_120L200mA-200
C338
C338
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C339
C339
C1u6.3Y0402-RH
C1u6.3Y0402-RH
VDDR4
VDDR5
C234
C234
C1u6.3Y0402-RH
C1u6.3Y0402-RH
SPV10
C337
C337
C0.1u10X0402-1
C0.1u10X0402-1
C340
C340
C0.1u10X0402-1
C0.1u10X0402-1
(For DDR3, MVDDQ = 1.5V@2.0A)
C622
C622
C625
C625
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C364
C364
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C365
C365
X_C10u6.3X50805
X_C10u6.3X50805
C613
C0.1u10X0402-1
C0.1u10X0402-1
C0.1u10X0402-1
C0.1u10X0402-1
C328
C328
C326
C326
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
DNI
(1.8V@110mA VDD_CT)
C220
C220
C290
C290
X_C10u6.3X50805
X_C10u6.3X50805
C1u6.3Y0402-RH
C1u6.3Y0402-RH
For S2: INSTALL R211,
R209,R213 and REMOVE
R207
For M9X-S3/ Park-S3: REMOVE
R211, R209,R213 and INSTALL
C278
C278
R207
C0.1u10X0402-1
C0.1u10X0402-1
+1_5VRUN_PARK
C312
C312
C0.1u10X0402-1
C0.1u10X0402-1
C233
C233
C0.1u10X0402-1
C0.1u10X0402-1
For Park-S3: REMOVE R229,
C342
SPV18
MPV18
C362
C362
C0.1u10X0402-1
C0.1u10X0402-1
C359
C359
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C225
C225
C1u6.3Y0402-RH
C1u6.3Y0402-RH
R229 X_0R_0603R229 X_0R_0603
SPV10
M92S_VDD_CORE
C327
C327
C330
C330
C0.1u10X0402-1
C0.1u10X0402-1
C0.1u10X0402-1
C0.1u10X0402-1
C356
C356
C620
C620
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
VDDC_CT
C224
C224
C226
C226
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C0.1u10X0402-1
C0.1u10X0402-1
VDDR4 VDDR5
R211 X_0R0603R211 X_0R0603
R207 0R0603R207 0R0603
R209 X_0R0603R209 X_0R0603
R213 X_0R0603R213 X_0R0603
C342
C342
X_C1u6.3Y0402-RH
X_C1u6.3Y0402-RH
PCIE_PVDD
MPV18
C352
C352
X_C10u6.3X50805
X_C10u6.3X50805
For PARK-S3:BAckBias(BBP#1 and
#2) is not supported, Connect to
VDDC Rail
C349
C349
C350
C350
C0.1u10X0402-1
C0.1u10X0402-1
C1u6.3Y0402-RH
C1u6.3Y0402-RH
JNC13 X_0603JNC13 X_0603
SPV18
H13
H16
H19
J10
J23
J24
J9
K10
K23
K24
K9
L11
L12
L13
L20
L21
L22
AA20
AA21
AB20
AB21
AA17
AA18
AB17
AB18
V12
Y12
U12
AA11
Y11
V11
U11
L17
L16
AM30
L8
H7
H8
J7
M11
M12
C309
C309
C0.1u10X0402-1
C0.1u10X0402-1
U40D
U40D
MEM I/O
MEM I/O
VDDR1#1
VDDR1#2
VDDR1#3
VDDR1#4
VDDR1#5
VDDR1#6
VDDR1#7
VDDR1#8
VDDR1#9
VDDR1#10
VDDR1#11
VDDR1#12
VDDR1#13
VDDR1#14
VDDR1#15
VDDR1#16
VDDR1#17
LEVEL
LEVEL
TRANSLATION
TRANSLATION
VDD_CT#1
VDD_CT#2
VDD_CT#3
VDD_CT#4
M93-S3/M92-S2
M93-S3/M92-S2
VDDR3#1
I/O
I/O
VDDR3#2
VDDR3#3
VDDR3#4
VDDR4#1 / VDDR5
VDDR4#2
VDDR4#3 / VDDR5
NC#1 / VDDR4
DVCLK / VDDR4
NC#3 / VDDR5
NC / VDDR5
MEM CLK
MEM CLK
VDDRHA
VSSRHA
PLL
PLL
PCIE_PVDD
MPV18
SPV18
SPV10
SPVSS
BACK BIAS
BACK BIAS
BBP#1
BBP#2
PCIE
PCIE
PCIE_VDDR#1
PCIE_VDDR#2
PCIE_VDDR#3
PCIE_VDDR#4
PCIE_VDDR#5
PCIE_VDDR#6
PCIE_VDDR#7
PCIE_VDDR#8
PCIE_VDDC#1
PCIE_VDDC#2
PCIE_VDDC#3
PCIE_VDDC#4
PCIE_VDDC#5
PCIE_VDDC#6
PCIE_VDDC#7
PCIE_VDDC#8
PCIE_VDDC#9
PCIE_VDDC#10
PCIE_VDDC#11
PCIE_VDDC#12
CORE
CORE
POWER
POWER
VDDC#23 /BIF_VDDC
VDDC#19/BIF_VDDC
ISOLATED
ISOLATED
CORE I/O
CORE I/O
216-0728020-00-A12-RH
216-0728020-00-A12-RH
VDDC#1
VDDC#2
VDDC#3
VDDC#4
VDDC#5
VDDC#6
VDDC#7
VDDC#8
VDDC#9
VDDC#10
VDDC#11
VDDC#12
VDDC#13
VDDC#14
VDDC#15
VDDC#16
VDDC#17
VDDC#18
VDDC#20
VDDC#21
VDDC#22
VDDCI#1
VDDCI#2
VDDCI#3
VDDCI#4
VDDCI#5
VDDCI#6
VDDCI#7
VDDCI#8
AB23
AC23
AD24
AE24
AE25
AE26
AF25
AG26
L23
L24
L25
L26
M22
N22
N23
N24
R22
T22
U22
V22
AA15
N15
N17
R13
R16
R18
Y21
T12
T15
T17
T20
U13
U16
U18
V21
V15
V17
V20
Y13
Y16
Y18
R21
U21
M13
M15
M16
M17
M18
M20
M21
N20
PCIE_VDDR
(1.8V@500mA PCIE_VDDR)
C253
C253
C252
C254
C254
C0.1u10X0402-1
C0.1u10X0402-1
C252
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C0.1u10X0402-1
C0.1u10X0402-1
(1.1V@2A PCIE_VDDC)
C556
C556
C558
C558
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C297
C297
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C301
C301
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C384
C384
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C375
C375
DNI
X_C10u6.3X50805
X_C10u6.3X50805
(0.95V-1.1V@2A VDDCI)
0.9-1.1V @2A (DDR3) ??(GDDR5)
C320
C320
C344
C331
C331
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C344
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
JNC14 X_0603JNC14 X_0603C613
C250
+1_0VRUN_PARK
C545
C545
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C250
X_C10u6.3X50805
X_C10u6.3X50805
C255
C255
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C551
C551
C553
C553
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C251
C251
C1u6.3Y0402-RH
C1u6.3Y0402-RH
SEE DATABOOK FOR REQUIRED EDP
C316
C316
C324
C324
C387
C387
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C319
C319
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C296
C296
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C374
C374
X_C10u6.3X50805
X_C10u6.3X50805
C335
C335
C10u6.3X50805
C10u6.3X50805
C1u6.3Y0402-RH
C305
C305
C377
C377
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C310
C310
C303
C303
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C373
C373
X_C10u6.3X50805
X_C10u6.3X50805
B15
B15
220L2A-50-RH
220L2A-50-RH
Warning:Select the correct
Bead to support expected
VDDCI current. See databook
for details.
C562
C562
X_C10u6.3X50805
X_C10u6.3X50805
C378
C378
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C292
C292
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C317
C317
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C392
C392
X_C10u6.3X50805
X_C10u6.3X50805
+1_8VRUN_PARK
C371
C371
C315
C315
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C380
C380
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C391
C391
X_C10u6.3X50805
X_C10u6.3X50805
M92S_VDD_CORE
M92S_VDD_CORE
C306
C306
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C390
C390
X_C10u6.3X50805
X_C10u6.3X50805
C321
C321
X_C10u6.3X50805
X_C10u6.3X50805
AA27
AB24
AB32
AC24
AC26
AC27
AD25
AD32
AE27
AF32
AG27
AH32
K28
K32
L27
M32
N25
N27
P25
P32
R27
T25
T32
U25
U27
V32
W25
W26
W27
Y25
Y32
M6
N11
N12
N13
N16
N18
N21
P6
P9
R12
R15
R17
R20
T13
T16
T18
T21
T6
U15
U17
U20
U9
V13
V16
V18
Y10
Y15
Y17
Y20
U40E
U40E
PCIE_VSS#1
PCIE_VSS#2
PCIE_VSS#3
PCIE_VSS#4
PCIE_VSS#5
PCIE_VSS#6
PCIE_VSS#7
PCIE_VSS#8
PCIE_VSS#9
PCIE_VSS#10
PCIE_VSS#11
PCIE_VSS#12
PCIE_VSS#13
PCIE_VSS#14
PCIE_VSS#15
PCIE_VSS#16
PCIE_VSS#17
PCIE_VSS#18
PCIE_VSS#19
PCIE_VSS#20
PCIE_VSS#21
PCIE_VSS#22
PCIE_VSS#23
PCIE_VSS#24
PCIE_VSS#25
PCIE_VSS#26
PCIE_VSS#27
PCIE_VSS#28
PCIE_VSS#29
PCIE_VSS#30
PCIE_VSS#31
GND#56
GND#57
GND#58
GND#59
GND#60
GND#61
GND#62
GND#63
GND#64
GND#65
GND#66
GND#67
GND#68
GND#69
GND#70
GND#71
GND#72
GND#73
GND#74
GND#75
GND#76
GND#77
GND#78
GND#79
GND#80
GND#81
GND#82
GND#83
GND#84
GND#3 / EVDDQ#2
GND#6 / EVDDQ#3
GND
GND
GND#1
GND#2
GND#4
GND#5
GND#7
GND#8
GND#9
GND#10
GND#11
GND#12
GND#13
GND#14
GND#15
GND#16
GND#17
GND#18
GND#19
GND#20
GND#21
GND#22
GND#23
GND#24
GND#25
GND#26
GND#27
GND#28
GND#29
GND#30
GND#31
GND#32
GND#33
GND#34
GND#35
GND#36
GND#37
GND#38
GND#39
GND#40
GND#41
GND#42
GND#43
GND#44
GND#45
GND#46
GND#47
GND#48
GND#49
GND#50
GND#51
GND#52
GND#53
GND#54
GND#55
GND#85
GND#86
VSS_MECH#1
VSS_MECH#2
VSS_MECH#3
A3
A30
AA13
AA16
AB10
AB15
AB6
AC9
AD6
AD8
AE7
AG12
AH10
AH28
B10
B12
B14
B16
B18
B20
B22
B24
B26
B6
B8
C1
C32
E28
F10
F12
F14
F16
F18
F2
F20
F22
F24
F26
F6
F8
G10
G27
G31
G8
H14
H17
H2
H20
H6
J27
J31
K11
K2
K22
K6
T11
R11
A32
AM1
AM32
216-0728020-00-A12-RH
216-0728020-00-A12-RH
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
M92/Pak-Sx (Power & GND)
M92/Pak-Sx (Power & GND)
M92/Pak-Sx (Power & GND)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
1
0A
0A
14 56Wednesday, August 05, 2009
14 56Wednesday, August 05, 2009
14 56Wednesday, August 05, 2009
0A
of
of
of
Page 15
5
4
3
2
1
+1_8VRUN_PARK
B8
B8
120L200mA-200
120L200mA-200
D D
C C
B B
NOTE:4
B22
B22
120L200mA-200
120L200mA-200 C239
B11
B11
470L1.5A-150-RH
470L1.5A-150-RH
B21
B21
120L200mA-200
120L200mA-200
See Databook and Application note table for Voltage and Current requirements for each individual rail.
(1.8V@130mA )
C231
C231
X_C10u6.3X50805
X_C10u6.3X50805
C248
C248
C1u6.3Y0402-RH
C1u6.3Y0402-RH
(1.8V@20mA )
C525
C523
C523
X_C10u6.3X50805
X_C10u6.3X50805
C525
C1u6.3Y0402-RH
C1u6.3Y0402-RH
LVDS Mode:1.8V@200mA
(DP Mode:1.8V@130mA)
C237
C237
X_C10u6.3X50805
X_C10u6.3X50805
C258
C258
C1u6.3Y0402-RH
C1u6.3Y0402-RH
(1.8V@20mA )
C516
C514
C514
X_C10u6.3X50805
X_C10u6.3X50805
C516
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C240
C240
C0.1u10X0402-1
C0.1u10X0402-1
C524
C524
C0.1u10X0402-1
C0.1u10X0402-1
C246
C0.1u10X0402-1
C0.1u10X0402-1
C520
C520
C0.1u10X0402-1
C0.1u10X0402-1
DPA_VDD18
DPA_PVDD
DPE_VDD18
DPE_PVDD
DPE_VDD18
DPE_VDD10
DPE_VDD18
DPE_VDD10
R173 150R1%0402R173 150R1%0402C246
DPE_PVDD
DPE_PVDD
U40G
U40G
AG15
DPE_VDD18#1
AG16
DPE_VDD18#2
AG20
DPE_VDD10#1
AG21
DPE_VDD10#2
AG14
DPE_VSSR#1
AH14
DPE_VSSR#2
AM14
DPE_VSSR#3
AM16
DPE_VSSR#4
AM18
DPE_VSSR#5
AF16
DPF_VDD18#1
AG17
DPF_VDD18#2
AF22
DPF_VDD10#1
AG22
DPF_VDD10#2
AF23
DPF_VSSR#1
AG23
DPF_VSSR#2
AM20
DPF_VSSR#3
AM22
DPF_VSSR#4
AM24
DPF_VSSR#5
AF17
DPEF_CALR
AG18
DPE_PVDD
AF19
DPE_PVSS
AG19
DPF_PVDD
AF20
DPF_PVSS
216-0728020-00-A12-RH
216-0728020-00-A12-RH
For M9X-S2/S3 , DPx_VDD10 = 1.1V
For Park-S3, DPx_VDD10 = 1.0V
DP A/B POWERDP E/F POWER
DP A/B POWERDP E/F POWER
AE11
AF11
AF6
AF7
AE1
AE3
AG1
AG6
AH5
AE13
AF13
AF8
AF9
AF10
AG9
AH8
AM6
AM8
R394 150R1%0402R394 150R1%0402
AE10
AG8
AG7
AG10
AG11
DP PLL POWER
DP PLL POWER
DPA_VDD18#1
DPA_VDD18#2
DPA_VDD10#1
DPA_VDD10#2
DPA_VSSR#1
DPA_VSSR#2
DPA_VSSR#3
DPA_VSSR#4
DPA_VSSR#5
DPB_VDD18#1
DPB_VDD18#2
DPB_VDD10#1
DPB_VDD10#2
DPB_VSSR#1
DPB_VSSR#2
DPB_VSSR#3
DPB_VSSR#4
DPB_VSSR#5
DPAB_CALR
DPA_PVDD
DPA_PVSS
DPB_PVDD
DPB_PVSS
DPA_PVDD
DPA_PVDD
DPA_VDD18
DPA_VDD10
DPA_VDD18
DPA_VDD10
Park-S3:110mA@1.0V
DPA_VDD10
Park-S3: TMDS/DP=110mA@1.0V : LVDS=120mA@1.0V
M9X-S2/S3: TMDS/DP=170mA@1.1V LVDS=100mA@1.1V
DPE_VDD10
M9X-S2/S3:200mA@1.1V
C244
C244
C245
C245
C239
X_C10u6.3X50805
X_C10u6.3X50805
C513
C513
X_C10u6.3X50805
X_C10u6.3X50805
C0.1u10X0402-1
C0.1u10X0402-1
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C515
C515
C519
C519
C0.1u10X0402-1
C0.1u10X0402-1
C1u6.3Y0402-RH
C1u6.3Y0402-RH
B20
B20
+1_0VRUN_PARK
B13
B13
120L600mA-250
120L600mA-250
120L600mA-250
120L600mA-250
NOTE:4: Do not Install for M9X-S2/S3. INSTALL ONLY for
PARK-S3. Other Notes can be apply as well.
A A
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
M92/Pak-Sx (DP_Power)
M92/Pak-Sx (DP_Power)
M92/Pak-Sx (DP_Power)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
of
of
of
15 56Wednesday, August 05, 2009
15 56Wednesday, August 05, 2009
15 56Wednesday, August 05, 2009
1
0A
0A
0A
Page 16
5
+1_5VRUN_PARK
R457
R457
4.99KR1%0402
4.99KR1%0402
VFEFCA_REF1
VREFDQ_REF1
R452
R452
C616
C616
4.99KR1%0402
4.99KR1%0402
C0.1u10X0402-1
C0.1u10X0402-1
D D
+1_5VRUN_PARK
R245
R245
4.99KR1%0402
4.99KR1%0402
C399
C399
R240
R240
4.99KR1%0402
4.99KR1%0402
C0.1u10X0402-1
C0.1u10X0402-1
C C
B B
A A
CLKA013
CLKA0#13
CLKA113
CLKA1#13
MAA0
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA11
MAA12
MAA13
A_BA013
A_BA113 A_BA113
A_BA213
CLKA013
CLKA0#13
CKEA013
ODTA013
CSA0#_013
RASA0#13
CASA0#13
WEA0#13
MEM_RST13
120R for dual rank
For M9X-S2/S3 with DDR3: Support MAA12-MAA0 Address or 64MX16 DDR3. MAA13 is NC
QSA2
QSA0
DQMA#2
DQMA#0
QSA#2
QSA#0
R446
R446
243R1%0402
243R1%0402
U42
U42
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
C7
DQSU
E7
DML
D3
DMU
G3
DQSL
B7
DQSU
T2
RESET
L8
ZQ
J1
NC1
L1
NC2
J9
NC3
L9
NC4
INFINEON 96-BALL
INFINEON 96-BALL
SDRAM DDR3
SDRAM DDR3
H5TQ1G63BFR-12C-HF
H5TQ1G63BFR-12C-HF
R243
R243
56R0402
56R0402
402
R244
R244
56R0402
56R0402
402
R250
R250
56R0402
56R0402
402
R253
R253
56R0402
56R0402
402
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
C396
C396
C0.01u10X0402-RH
C0.01u10X0402-RH
402
C404
C404
C0.01u10X0402-RH
C0.01u10X0402-RH
402
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
B2
VDD
D9
VDD
G7
VDD
K2
VDD
K8
VDD
N1
VDD
N9
VDD
R1
VDD
R9
VDD
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
VSS
B3
VSS
E1
VSS
G8
VSS
J2
VSS
J8
VSS
M1
VSS
M9
VSS
P1
VSS
P9
VSS
T1
VSS
T9
VSS
B1
B9
D1
D8
E2
E8
F9
G1
G9
MDA20
MDA17
MDA21
MDA18
MDA23
MDA16
MDA22
MDA19
MDA6
MDA3
MDA7
MDA0
MDA4
MDA1
MDA5
MDA2
+1_5VRUN_PARK
+1_5VRUN_PARK
+1_5VRUN_PARK
C621
C621
C1u6.3Y0402-RH
C1u6.3Y0402-RH
+1_5VRUN_PARK
C408
C408
C1u6.3Y0402-RH
C1u6.3Y0402-RH
+1_5VRUN_PARK
R254
R254
4.99KR1%0402
4.99KR1%0402
R252
R252
4.99KR1%0402
4.99KR1%0402
+1_5VRUN_PARK
R435
R435
4.99KR1%0402
4.99KR1%0402
R436
R436
4.99KR1%0402
4.99KR1%0402
C397
C397
C412
C412
C1u6.3Y0402-RH
C1u6.3Y0402-RH
402402 402402402 402 402 402
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C605
C605
C410
C410
C1u6.3Y0402-RH
C1u6.3Y0402-RH
402402 402402402 402 402 402
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C407
C407
C0.1u10X0402-1
C0.1u10X0402-1
C610
C610
C0.1u10X0402-1
C0.1u10X0402-1
Should be 240
Ohms +-1%
C403
C403
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C382
C382
C1u6.3Y0402-RH
C1u6.3Y0402-RH
4
VREFDQ_REF2
MAA0
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA11
MAA12
MAA13
A_BA013
A_BA113
A_BA213
CLKA013
CLKA0#13
CKEA013
ODTA013
CSA0#_013
RASA0#13
CASA0#13
WEA0#13
QSA3
QSA1
DQMA#3
DQMA#1
QSA#3
QSA#1
MEM_RST13
R249
R249
243R1%0402
243R1%0402
C627
C627
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C386
C386
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C603
C603
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C400
C400
C1u6.3Y0402-RH
C1u6.3Y0402-RH
U31
U31
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
C7
DQSU
E7
DML
D3
DMU
G3
DQSL
B7
DQSU
T2
RESET
L8
ZQ
J1
NC1
L1
NC2
J9
NC3
L9
NC4
INFINEON 96-BALL
INFINEON 96-BALL
SDRAM DDR3
SDRAM DDR3
H5TQ1G63BFR-12C-HF
H5TQ1G63BFR-12C-HF
C634
C634
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C601
C601
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C617
C617
C10u6.3X5-RH
C10u6.3X5-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C606
C606
C10u6.3X5-RH
C10u6.3X5-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C402
C402
C599
C599
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
MDA31
E3
MDA24
F7
MDA29
F2
MDA26
F8
MDA28
H3
MDA27
H8
MDA30
G2
MDA25
H7
MDA15
D7
MDA10
C3
MDA14
C8
MDA11
C2
MDA12
A7
A2
MDA13
B8
MDA9
A3
+1_5VRUN_PARK
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
C388
C388
C10u6.3X5-RH
C10u6.3X5-RH
C598
C598
C10u6.3X5-RH
C10u6.3X5-RH
MDA8
+1_5VRUN_PARK
C379
C379
C10u6.3X5-RH
C10u6.3X5-RH
C597
C597
C10u6.3X5-RH
C10u6.3X5-RH
+1_5VRUN_PARK
R255
R255
4.99KR1%0402
4.99KR1%0402
R251
R251
4.99KR1%0402
4.99KR1%0402
+1_5VRUN_PARK
R242
R242
4.99KR1%0402
4.99KR1%0402
R241
R241
4.99KR1%0402
4.99KR1%0402
3
C406
C406
C0.1u10X0402-1
C0.1u10X0402-1
C398
C398
C0.1u10X0402-1
C0.1u10X0402-1
Should be 240
Ohms +-1%
+1_5VRUN_PARK
C411
C411
C1u6.3Y0402-RH
C1u6.3Y0402-RH
+1_5VRUN_PARK
C612
C612
C1u6.3Y0402-RH
C1u6.3Y0402-RH
U30
R248
R248
243R1%0402
243R1%0402
U30
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
C7
DQSU
E7
DML
D3
DMU
G3
DQSL
B7
DQSU
T2
RESET
L8
ZQ
J1
NC1
L1
NC2
J9
NC3
L9
NC4
INFINEON 96-BALL
INFINEON 96-BALL
SDRAM DDR3
SDRAM DDR3
H5TQ1G63BFR-12C-HF
H5TQ1G63BFR-12C-HF
C628
C628
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C600
C600
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C626
C626
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C637
C637
C1u6.3Y0402-RH
C1u6.3Y0402-RH
VREFCA_REF3VFEFCA_REF2
VREFDQ_REF3
MAA0
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA11
MAA12
MAA13
A_BA013
A_BA113
A_BA213
CLKA113
CLKA1#13
CKEA113
ODTA113
CSA1#_013
RASA1#13
CASA1#13
WEA1#13
QSA4
QSA5
DQMA#4
DQMA#5
QSA#4
QSA#5
MEM_RST13
C394
C394
C409
C409
C1u6.3Y0402-RH
C1u6.3Y0402-RH
402402 402402402 402 402 402
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C607
C607
C609
C609
C1u6.3Y0402-RH
C1u6.3Y0402-RH
402402 402402402 402 402 402
C1u6.3Y0402-RH
C1u6.3Y0402-RH
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
B2
VDD
D9
VDD
G7
VDD
K2
VDD
K8
VDD
N1
VDD
N9
VDD
R1
VDD
R9
VDD
A1
VDDQ
A8
VDDQ
C1
VDDQ
C9
VDDQ
D2
VDDQ
E9
VDDQ
F1
VDDQ
H2
VDDQ
H9
VDDQ
A9
VSS
B3
VSS
E1
VSS
G8
VSS
J2
VSS
J8
VSS
M1
VSS
M9
VSS
P1
VSS
P9
VSS
T1
VSS
T9
VSS
B1
VSSQ
B9
VSSQ
D1
VSSQ
D8
VSSQ
E2
VSSQ
E8
VSSQ
F9
VSSQ
G1
VSSQ
G9
VSSQ
C602
C602
C405
C405
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C385
C385
C393
C393
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C1u6.3Y0402-RH
MDA35
MDA36
MDA32
MDA39
MDA34
MDA38
MDA33
MDA37
MDA43
MDA45
MDA40
MDA44
MDA42
MDA47
MDA41
MDA46
+1_5VRUN_PARK
C395
C395
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C401
C401
C1u6.3Y0402-RH
C1u6.3Y0402-RH
+1_5VRUN_PARK
R295
R295
4.99KR1%0402
4.99KR1%0402
R282
R282
4.99KR1%0402
4.99KR1%0402
+1_5VRUN_PARK
R281
R281
4.99KR1%0402
4.99KR1%0402
R372
R372
4.99KR1%0402
4.99KR1%0402
C376
C376
C10u6.3X5-RH
C10u6.3X5-RH
C611
C611
C10u6.3X5-RH
C10u6.3X5-RH
2
VREFDQ_REF4
C415
C415
C10u6.3X5-RH
C10u6.3X5-RH
C604
C604
C10u6.3X5-RH
C10u6.3X5-RH
VFEFCA_REF4
C517
C517
C0.1u10X0402-1
C0.1u10X0402-1
C425
C425
C0.1u10X0402-1
C0.1u10X0402-1
Should be 240
Ohms +-1%
C383
C383
C10u6.3X5-RH
C10u6.3X5-RH
C638
C638
C10u6.3X5-RH
C10u6.3X5-RH
1
RANK1: 256MB/ 512MB DDR3
U43
U43
M8
VREFCA
H1
QSA6
QSA7
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
C7
DQSU
E7
DML
D3
DMU
G3
DQSL
B7
DQSU
T2
RESET
L8
ZQ
J1
NC1
L1
NC2
J9
NC3
L9
NC4
INFINEON 96-BALL
INFINEON 96-BALL
SDRAM DDR3
SDRAM DDR3
H5TQ1G63BFR-12C-HF
H5TQ1G63BFR-12C-HF
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
MAA0
MAA1
MAA2
MAA3
MAA4
MAA5
MAA6
MAA7
MAA8
MAA9
MAA10
MAA11
MAA12
MAA13
A_BA013
A_BA213
CLKA113
CLKA1#13
CKEA113
ODTA113
CSA1#_013
RASA1#13
CASA1#13
WEA1#13
DQMA#6
DQMA#7
QSA#6
QSA#7
MEM_RST13
R444
R444
243R1%0402
243R1%0402
M12-K4W1G85-S02
U901
U901
SAMSUNG
SAMSUNG
K4W1G1646E-HC12-HF
K4W1G1646E-HC12-HF
U902
U902
SAMSUNG
SAMSUNG
K4W1G1646E-HC12-HF
K4W1G1646E-HC12-HF
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
MDA51
E3
MDA52
F7
MDA49
F2
MDA53
F8
MDA48
H3
MDA54
H8
MDA50
G2
MDA55
H7
MDA63
D7
MDA59
C3
MDA62
C8
MDA56
C2
MDA60
A7
MDA57
A2
MDA61
B8
MDA58
A3
+1_5VRUN_PARK+1_5VRUN_PARK
B2
VDD
D9
VDD
G7
VDD
K2
VDD
K8
VDD
N1
VDD
N9
VDD
R1
VDD
R9
VDD
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
+1_5VRUN_PARK
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
MDA[63..0]13
MAA[13..0]13
A_BA013
A_BA113
A_BA213
DQMA#[7..0]13
QSA#[7..0]13
QSA[7..0]13
CLKA113
CLKA1#13
CLKA013
CLKA0#13
RASA0#13
RASA1#13
CASA0#13
CASA1#13
CSA0#_013
CSA1#_013
CKEA013
CKEA113
WEA0#13
WEA1#13
QSA#[7..0]13
QSA[7..0]13
ODTA013
ODTA113
5020
5010
QSA#[7..0]
QSA[7..0]
MDA[63..0]
MAA[13..0]
A_BA0
A_BA1
A_BA2
DQMA#[7..0]
QSA#[7..0]
QSA[7..0]
CLKA1
CLKA1#
CLKA0
CLKA0#
RASA0#
RASA1#
CASA0#
CASA1#
CSA0#_0
CSA1#_0
CKEA0
CKEA1
WEA0#
WEA1#
ODTA0
ODTA1
For PARK-S3 with DDR3: Support MAA13-MAA0 Address or 128MX16 DDR3.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
DDR2 (64Mx16bit)
DDR2 (64Mx16bit)
DDR2 (64Mx16bit)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
1
0A
0A
0A
of
of
of
16 56Wednesday, August 05, 2009
16 56Wednesday, August 05, 2009
16 56Wednesday, August 05, 2009
Page 17
5
4
3
2
1
D D
C C
B B
GPIO012
GPIO112
GPIO212
GPIO812
GPIO912
GENERICC12
VSYNC_DAC212
HSYNC_DAC212
GPIO2212
GPIO512
GPIO_5_AC_BATT is an optional input which allows the system to request (AC) performance
mode or battery mode operation.
AC (Performance mode) = H
Battery saving mode = L
GPIO1112
GPIO1212
GPIO1312
VSYNC#12,18
HSYNC#12,18
GPIO0
GPIO1
GPIO2
GPIO8
GPIO9
GPIO5
AC_IN#30,38,39
GPIO11
GPIO12
GPIO13
G
R405 10KR0402R405 10KR0402
R216 10KR0402R216 10KR0402
R217 X_10KR0402R217 X_10KR0402
R218 X_10KR0402R218 X_10KR0402
R411 X_10KR0402R411 X_10KR0402
R403 X_10KR0402R403 X_10KR0402
R388 X_10KR0402R388 X_10KR0402
R389 X_10KR0402R389 X_10KR0402
R222 X_10KR0402R222 X_10KR0402
R409 10KR0402R409 10KR0402
DS
Q27
Q27
N-2N7002_SOT23-1
N-2N7002_SOT23-1
SOT23SGD_T
SOT23SGD_T
R221 10KR0402R221 10KR0402
R219 X_10KR0402R219 X_10KR0402
R412 X_10KR0402R412 X_10KR0402
R198 10KR0402R198 10KR0402
R196 10KR0402R196 10KR0402
PIN STRAPS
VDDR3
VDDR3
VDDR3
PIN
GPIO0
GPIO1
GPIO2
GPIO9
VSYNC_DAC2
GPIO22
M92-S2 LP
1 GPIO=0 50% TX output swing
1 GPIO=0 TX de-emphasis disabled
1 GPIO=0 Advertises the PCIE device as 2.5 GT/S capable at power -on
0 GPIO=0 VGA controller capacity enabled.
0 GPIO=0 Driver would ignore the value sampled on DVPDATA_20 during reset.
0
PIN DESCRIPTION OF DEFAULT SETTINGS
GPIO 12GPIO 13 0 0 0=128 MB
GPIO 11
PIN DESCRIPTION OF DEFAULT SETTINGS
VGA_VSYNC#VGA_HSYNC#
CONFIGURATION STRAPS
PARK LP S3
GPIO=1 Full TX output swing
GPIO=1 TX de-emphasis enabled
GPIO=1 Advertises the PCIE device as 5 GT/S capable at power -on
GPIO=1 The device will not be recognized as the system's VGA controler.
GPIO=0 not used external BIOS ROM GPIO=1 if used
M92-S2 LP PARK LP S3
100
M92-S2 LP PARK LP S3
11
DESCRIPTION OF DEFAULT SETTINGS
0 0 1=256 MB
0 1 0=64 MB
0 0=No audio function
0 1=Audio for display port only
1 0=Audio for display port and HDMI if dongle is detected
1 1=Audio for both displayport and HDMI
+1_8VRUN_PARK
A A
5
DVPDATA_012
DVPDATA_212
DVPDATA_2112
DVPDATA_1912
X_10KR0402R401 X_10KR0402R401
X_10KR0402R212 X_10KR0402R212
X_10KR0402R399 X_10KR0402R399
X_10KR0402R400 X_10KR0402R400
4
DVPDATA19
0
0
0
0
0
0
0
0
0
0
11
3
0
1
01
MEM_TYPEDVPDATA21 DVPDATA0DVPDATA2
Hynix 64Mx16 DDR3
(M12-5TQ1G25-H23)
Samsung 64Mx16 DDR3
(M12-K4W1G85-S02)
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
M92/Pak-Sx (Straps & Thermal)
M92/Pak-Sx (Straps & Thermal)
M92/Pak-Sx (Straps & Thermal)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
B
B
B
Date: Sheet
Date: Sheet
2
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
of
of
of
17 56Wednesday, August 05, 2009
17 56Wednesday, August 05, 2009
17 56Wednesday, August 05, 2009
1
0A
0A
0A

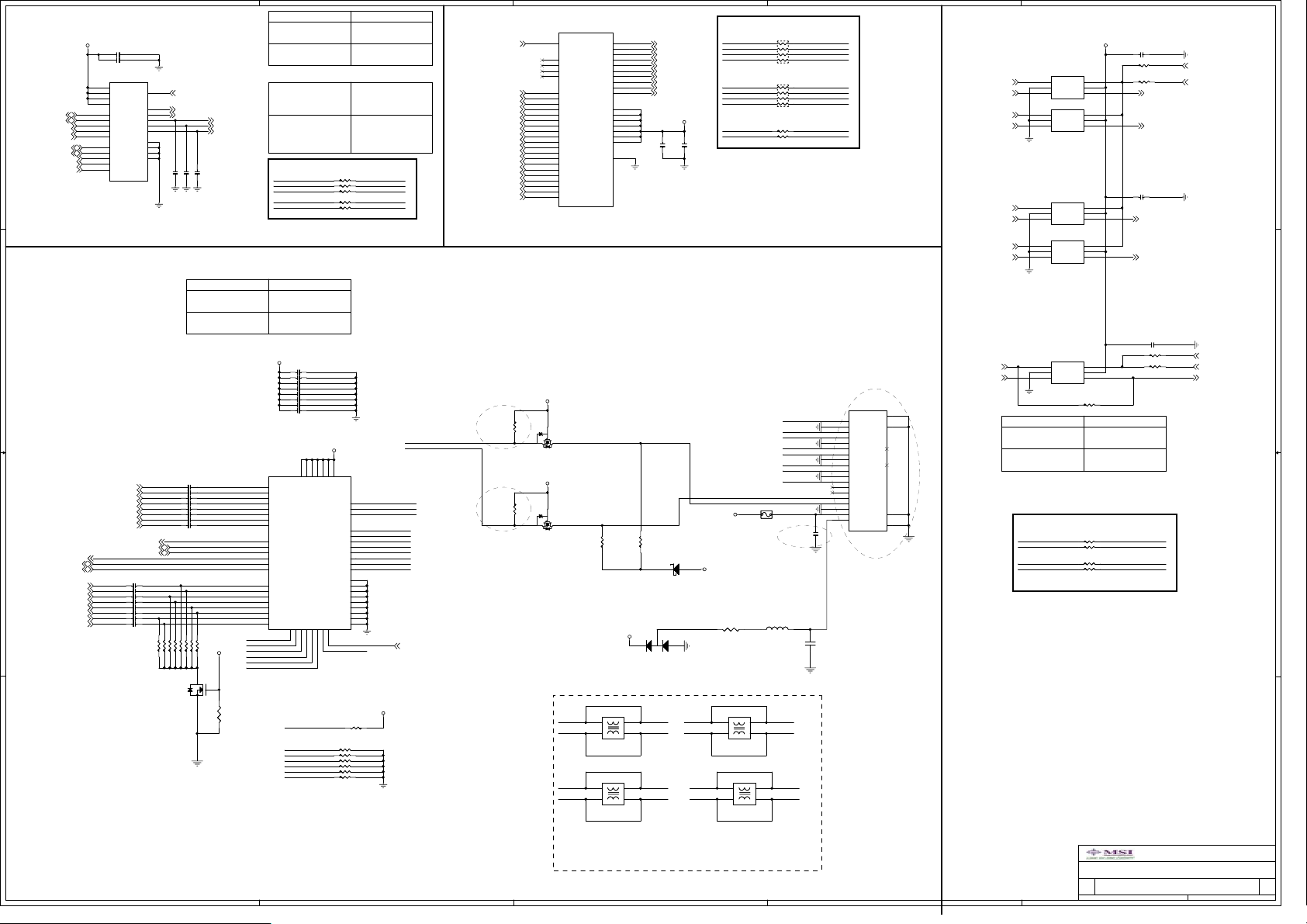

Page 18
CRT Switch
+3VRUN
HSYNC#12,17
1 1
VSYNC#12,17
R12
G12
B12
CRT_HSYNC_UMA23
CRT_VSYNC_UMA23
CRT_R_UMA23
CRT_G_UMA23
CRT_B_UMA23
HDMI Switch
2009/07/14 Change HDMI SW
2 2
UMA I2C Pull high to +3VRUN by 4.7K
DVI_A_HPD12
DVI_DATA_MXM12
3 3
DVI_CLK_MXM12
MXM I2C Pull high to VDDR3 by 10K
CLK-_MXM12
CLK+_MXM12
TX0-_MXM12
TX0+_MXM12
TX1-_MXM12
TX1+_MXM12
TX2-_MXM12
TX2+_MXM12
CLOSE TO U2030
4 4
A
2009/07/14 Change RGB SW
C13 C0.1u10X0402C13 C0.1u10X0402
C15 C0.1u10X0402C15 C0.1u10X0402
U7
U7
1
VDD
VDD
VDD
VDD
IA0
IB0
IC0
ID0
IE0
IA1
IB1
IC1
ID1
IE1
DVI_CLK_UMA23
HDMI_HPD_UMA23
DVI_DATA_UMA23
12
SEL
2
YA
5
YB
6
YC
8
YD
11
YE
3
GND
7
GND
10
GND
20
GND
C510C0.1u10X0402 C510C0.1u10X0402
C509C0.1u10X0402 C509C0.1u10X0402
C508C0.1u10X0402 C508C0.1u10X0402
C507C0.1u10X0402 C507C0.1u10X0402
C506C0.1u10X0402 C506C0.1u10X0402
C504C0.1u10X0402 C504C0.1u10X0402
C503C0.1u10X0402 C503C0.1u10X0402
C502C0.1u10X0402 C502C0.1u10X0402
N-2N7002_SOT23-1
N-2N7002_SOT23-1
R360 499R1%0402R360 499R1%0402
4
9
19
24
22
18
17
14
23
21
16
15
13
X_PI3V512QE_QSOP24-RH
X_PI3V512QE_QSOP24-RH
DPD_LANE3_N_C23
DPD_LANE3_P_C23
DPD_LANE0_N_C23
DPD_LANE0_P_C23
DPD_LANE1_N_C23
DPD_LANE1_P_C23
DPD_LANE2_N_C23
DPD_LANE2_P_C23
DGPU_SELECT# 24
VGA_HSYNC 19
VGA_VSYNC 19
C_E7 X_C0.1u10X0402C_E7 X_C0. 1u10X0402
R364 499R1%0402R364 499R1%0402
R358 499R1%0402R358 499R1%0402
R366 499R1%0402R366 499R1%0402
R363 499R1%0402R363 499R1%0402
Q25
Q25
VGA_RED 19
VGA_GREEN 19
VGA_BLUE 19
C_E9 X_C0.1u10X0402C_E9 X_C0. 1u10X0402
C_E8 X_C0.1u10X0402C_E8 X_C0. 1u10X0402
Logic Input
C440C0.1u10X0402 C440C0.1u10X0402
C439C0.1u10X0402 C439C0.1u10X0402
C80C0.1u10X0402 C80C0.1u10X0402
C74C0.1u10X0402 C74C0.1u10X0402
C70C0.1u10X0402 C70C0.1u10X0402
C69C0.1u10X0402 C69C0.1u10X0402
C67C0.1u10X0402 C67C0.1u10X0402
C64C0.1u10X0402 C64C0.1u10X0402
+5VRUN
R361 499R1%0402R361 499R1%0402
R362 499R1%0402R362 499R1%0402
R365 499R1%0402R365 499R1%0402
DS
G
0
1
DPD_LANE3_N
DPD_LANE3_P
DPD_LANE0_N
DPD_LANE0_P
DPD_LANE1_N
DPD_LANE1_P
DPD_LANE2_N
DPD_LANE2_P
TXC-_C
TXC+_C
TX0-_C
TX0+_C
TX1-_C
TX1+_C
TX2-_C
TX2+_C
R357
R357
100KR0402
100KR0402
Logic Input
0
1
BR-ADJ
MXM only
Switchable
UMA (MS-1454) USE ONLY
CRT_G_UMA
CRT_R_UMA
Function
B PORT
A PORT
+3VRUN
C201 C0.01u50Y0402-RHC201 C0.01u50Y0402-RH
C199 C0.01u50Y0402-RHC199 C0.01u50Y0402-RH
C501 C0.01u50Y0402-RHC501 C0.01u50Y0402-RH
C500 C0.01u50Y0402-RHC500 C0.01u50Y0402-RH
C198 C0.01u50Y0402-RHC198 C0.01u50Y0402-RH
C200 C0.01u50Y0402-RHC200 C0.01u50Y0402-RH
C202 C0.01u50Y0402-RHC202 C0.01u50Y0402-RH
C203 C0.01u50Y0402-RHC203 C0.01u50Y0402-RH
U38
U38
41
48
13
CLK-A
CLK+A
D0-A
D0+A
D1-A
D1+A
D2-A
D2+A
HPDA
SDAA
SCLA
HPDB
SDAB
SCLB
CLK-B
CLK+B
D0-B
D0+B
D1-B
D1+B
D2-B
D2+B
VDD
EQ_S126EQ_S028OC_S229OC_S130OC_S0
EQ_S1
EQ_S0
OC_S2
OC_S1
OC_S0
OE#
VDD
31
19
VDD35VDD
VDD
HPD_SINK
SDA_SINK
SCL_SINK
OE#
27
50
SEL2
EQ_S1
EQ_S0
OC_S2
OC_S1
OC_S0
OE#
55
56
2
3
5
6
8
9
51
52
53
23
24
25
11
12
14
15
17
18
20
21
R14 X_0R0402R14 X_0R0402
R13 X_0R0402R13 X_0R0402
R11 X_0R0402R11 X_0R0402
R12 X_0R0402R12 X_0R0402
R15 X_0R0402R15 X_0R0402
+3VRUN
1
7
VDD
VDD
CLK-
CLK+
D0-
D0+
D1-
D1+
D2-
D2+
GND
GND
GND
GND
GND
GND
GND
GND
GND
SEL2
SEL1
49
X_PI3HDMI201ZFE_TQFN56-RH
X_PI3HDMI201ZFE_TQFN56-RH
SEL2
I94-3H2010C-P23
R489 X_47KR0402R489 X_47KR0402
R490 X_47KR0402R490 X_47KR0402
R491 47KR0402R491 47KR0402
R492 47KR0402R492 47KR0402
R494 47KR0402R494 47KR0402
R493 47KR0402R493 47KR0402
47
46
45
43
42
40
39
37
36
34
33
4
10
16
22
32
38
44
54
57
R371
R371
4.7KR0402
4.7KR0402
B
Function
S2 PORT
S1 PORT
1. MXM
2. EC
1. MXM
2. iGPU
3. EC
VGA_BLUECRT_B_UMA
VGA_GREEN
VGA_RED
VGA_HSYNCCRT_HSYNC_UMA
VGA_VSYNCCRT_VSYNC_UMA
HDMI_HPD
HDM_SDA
HDM_SCL
LTXC-_C
LTXC+_C
LTX0-_C
LTX0+_C
LTX1-_C
LTX1+_C
LTX2-_C
LTX2+_C
+3VRUN
HDM_SDA
HDM_SCL
DGPU_SELECT# 24
LVDS Switch
DGPU_SELECT#24
LVDS_TX_CLKLN12
LVDS_TX_CLKLP12
LVDSA_CLK#23
LVDSA_CLK23
LVDS_TX_L0N12
LVDS_TX_L0P12
LVDSA_DATA0#23
LVDSA_DATA023
LVDS_TX_L1N12
LVDS_TX_L1P12
LVDSA_DATA1#23
LVDSA_DATA123
LVDS_TX_L2N12
LVDS_TX_L2P12
LVDSA_DATA2#23
LVDSA_DATA223
LVDS_DIGON12
LVDS_BLON12
LVDS_VDD_EN23
L_BKLT_EN23
+3VRUN
R167
R167
49.9KR1%0402
49.9KR1%0402
N-FDV301N_SOT23-3-RH
N-FDV301N_SOT23-3-RH
+3VRUN
R168
R168
49.9KR1%0402
49.9KR1%0402
N-FDV301N_SOT23-3-RH
N-FDV301N_SOT23-3-RH
C
U37
U37
12
SEL
17
NC
19
NC
41
NC
42
NC
39
0B1
38
1B1
37
0B2
36
1B2
35
2B1
34
3B1
33
2B2
32
3B2
30
4B1
29
5B1
28
4B2
27
5B2
26
6B1
25
7B1
24
6B2
23
7B2
16
8B1
18
9B1
20
8B2
21
9B2
TS3DV520ERUAR_QFN42-RH
TS3DV520ERUAR_QFN42-RH
TS3DV520ERUAR
TS3DV520ERUAR
2009/07/02 R167,R168 改為49.9K ohm
G
2009/07/14 R167,R168,Q20,Q21 not stuff for MS-1454
Q20
Q20
DS
G
Q21
Q21
DS
LTX2-_C
LTX2+_C LTX0-_C
LTXC-_C
LTXC+_C
2
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
VCC
VCC
VCC
VCC
VCC
VCC
VCC
GND
LVDSA_CLK_N1 19
3
LVDSA_CLK_P1 19
5
LVDSA_D_N0 19
6
LVDSA_D_P0 19
8
LVDSA_D_N1 19
9
LVDSA_D_P1 19
10
LVDSA_D_N2 19
11
LVDSA_D_P2 19
14
LVDS_VDDEN 19
15
BLON 19
1
4
7
13
22
31
40
43
X_C0.1u10X0402
X_C0.1u10X0402
R160,R169 stuff for MS-1454
R383
R383
R381
R381
2.2KR0402
2.2KR0402
2.2KR0402
2.2KR0402
D23
D23
SCS551V-30
SCS551V-30
+3VRUN
YZX
D20
D20
X_BAV99LT1_SOT23
X_BAV99LT1_SOT23
LTX2-
2
431
L32
L32
X_CMC-L12-9008064-RH
X_CMC-L12-9008064-RH
431
L29
L29
X_CMC-L12-9008064-RH
X_CMC-L12-9008064-RH
LTX2+
LTXC-
2
LTXC+
+3VRUN
C505
C505
X_C0.1u10X0402
X_C0.1u10X0402
HDMI_HPD
AC
LTX0+_C
LTX1-_C
LTX1+_C
C499
C499
+5VRUN
R143 10KR143 10K
UMA (MS-1454) USE ONLY
RN4
LVDSA_CLK#
LVDSA_CLK
LVDSA_DATA0# LVDSA_D_N0
LVDSA_DATA0
LVDSA_DATA1#
LVDSA_DATA1
LVDSA_DATA2#
LVDSA_DATA2
L_BKLT_EN BLON
+5VRUN
431
L30
L30
X_CMC-L12-9008064-RH
X_CMC-L12-9008064-RH
3
4
RN4
1
3
5
7
X_8P4R-0R0402
X_8P4R-0R0402
RN5
RN5
1
3
5
7
X_8P4R-0R0402
X_8P4R-0R0402
R71 X_0R0402R71 X_0R0402
R359 X_0R0402R359 X_0R0402
F8
F8
1 2
F-SMD1206P050TF-15-RH
F-SMD1206P050TF-15-RH
L5
180L1.5AL5180L1.5A
220P50N0402
220P50N0402
LTX0+
LTX0-
2
2
1
L31
L31
X_CMC-L12-9008064-RH
X_CMC-L12-9008064-RH
2
4
6
8
2
4
6
8
LTX2+
LTX2-
LTX1+
LTX1-
LTX0+
LTX0-
LTXC+
LTXC-
HDMI_SCL
HDMI_SDA
HDMI_5V
C657
C657
C0.1u10X0402
C0.1u10X0402
C25
C25
LTX1LTX1+
D
LVDSA_CLK_N1
LVDSA_CLK_P1
LVDSA_D_P0
LVDSA_D_N1
LVDSA_D_P1
LVDSA_D_N2
LVDSA_D_P2
LVDS_VDDENLVDS_VDD_EN
L37
L37
CONN-HDMI19P_BLACK-RH-4
CONN-HDMI19P_BLACK-RH-4
20
SHELL1
1
D2+
GND
D2 Shield
D2D1+
D1 Shield
D1-
MEC2
D0+
D0 Shield
D0-
MEC1
CK+
CK Shield
CKCE Remote
NC
DDC CLK
DDC DATA
GND
GND
+5V
HP DET
SHELL2
N5I-19M0180-AF2
N5I-19M0180-AF2
HDMI_S19_3
HDMI_S19_3
22
MEC2
MEC1
23
21
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2009/06/22 Modify HDMI conn PN
by ME
2009/07/09 Add C657
E
EDID Switch ( CRT,LVDS)
+3VRUN
C472 C0.1u10X0402C472 C0.1u10X0402
IN
IN
IN
IN
IN
R58
R58
6
5
4
6
5
4
6
5
4
6
5
4
6
5
4
X_0R0402
X_0R0402
Function
PORT 1
PORT 2
R68 X_0R0402R68 X_0R0402
R67 0R0402R67 0R0402
LVDS_DATA 19
LVDS_CLK 19
C24 C0.1u10X0402C24 C0.1u10X0402
RGB_DATA 19
RGB_CLK 19
C424 C0.1u10X0402C424 C0.1u10X0402
R60 X_0R0402R60 X_0R0402
R59 0R0402R59 0R0402
R58 UMA (MS-1454)
USE ONLY
LVDS_CLK
LVDS_DATALVDS_DDC_DATA
RGB_DATA
RGB_CLK
U15
U15
LVDS_DDC_DATA23
I2C_DATA12
LVDS_DDC_CLK23
I2C_CLK12
UMA I2C Pull high to +3VRUN by 2.2K
MXM I2C Pull high to VDDR3 by 10K
CRT_DATA_UMA23
DAC_SDAT12
CRT_CLK_UMA23
DAC_SCL12
UMA I2C Pull high to +3VRUN by 2.2K
MXM I2C Pull high to VDDR3 by 10K
1
S1
2
GND
S23D
NC7SB3157P6X_SOT323-6
NC7SB3157P6X_SOT323-6
U17
U17
1
S1
2
GND
S23D
NC7SB3157P6X_SOT323-6
NC7SB3157P6X_SOT323-6
U35
U35
1
S1
2
GND
S23D
NC7SB3157P6X_SOT323-6
NC7SB3157P6X_SOT323-6
U32
U32
1
S1
2
GND
S23D
NC7SB3157P6X_SOT323-6
NC7SB3157P6X_SOT323-6
VCC
VCC
VCC
VCC
2009/07/14 DEL HDMI I2C SW (U26,U27)
U12
U12
L_BKLT_CTRL23
BLON_PWM12
1
S1
2
GND
VCC
S23D
NC7SB3157P6X_SOT323-6
NC7SB3157P6X_SOT323-6
Logic Input
0
1
UMA (MS-1454) USE ONLY
LVDS_DDC_CLK
CRT_DATA_UMA
CRT_CLK_UMA
2009/07/14 DEL HDMI I2C RES (R372,R374)
R84 X_0R0402R84 X_0R0402
R82 X_0R0402R82 X_0R0402
R265 X_0R0402R265 X_0R0402
R266 X_0R0402R266 X_0R0402
EDID_SELECT# 21
DGPU_SELECT# 24
LVDS EDID
RGB EDID
DGPU_SELECT# 24
DGPU_PWM_SELECT# 24
PWM-ADJ 19
CLOSE TO CONNECTOR
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
SWITCH&HDMI
SWITCH&HDMI
SWITCH&HDMI
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
18 56Wednesday, August 05, 2009
18 56Wednesday, August 05, 2009
18 56Wednesday, August 05, 2009
0A
of
of
of

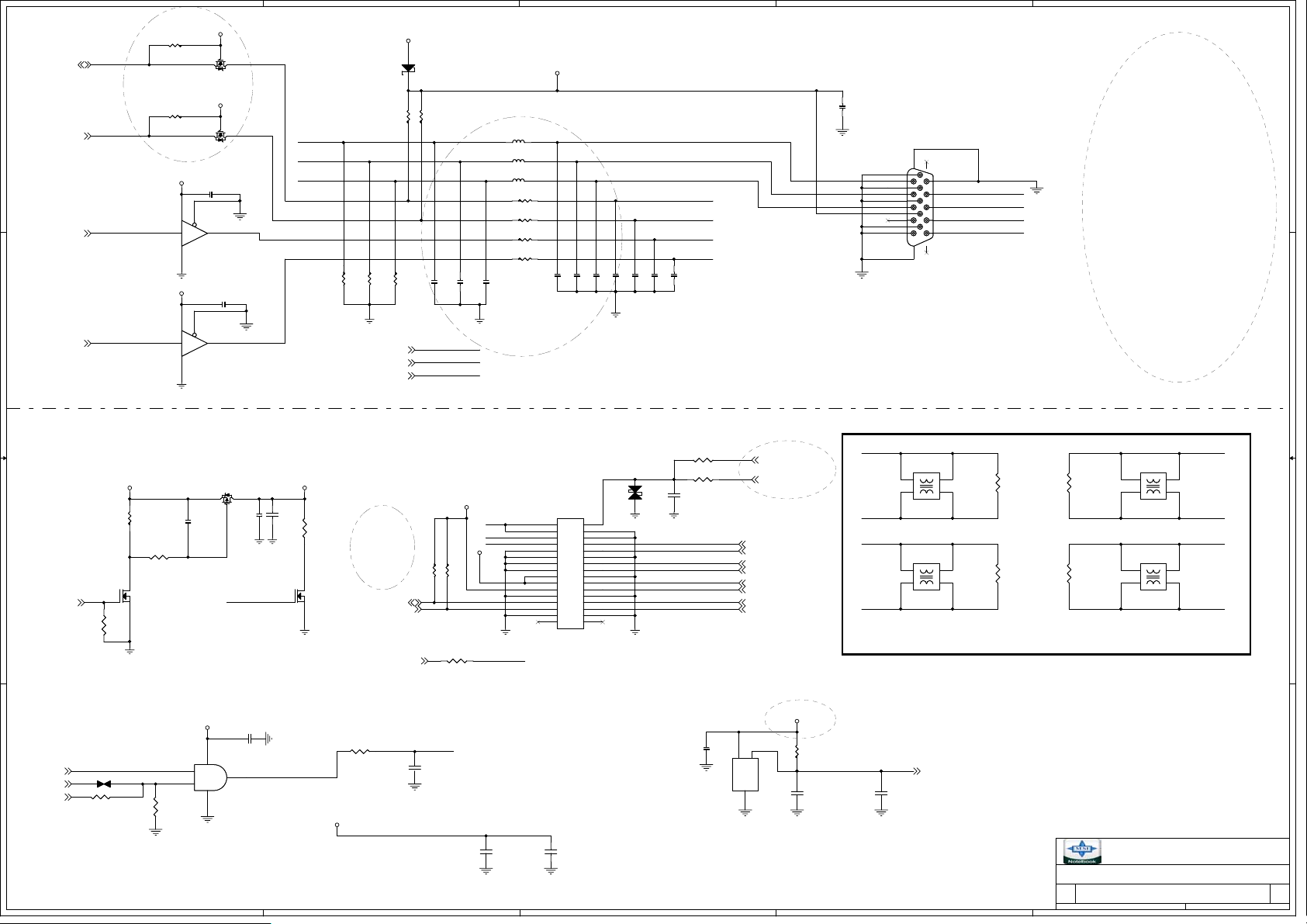

Page 19
A
2009/07/02 R262,R267,R73,R79改為49.9K ohm
R267 49.9KR1%0402R267 49.9KR1%0402
RGB_DATA18
1 1
2 2
RGB_CLK18
VGA_HSYNC18
VGA_VSYNC18
R262 49.9KR1%0402R262 49.9KR1%0402
+3VRUN
Q23
Q23
G
N-BSS138_SOT23
N-BSS138_SOT23
+3VRUN
Q22
Q22
G
N-BSS138_SOT23
N-BSS138_SOT23
+5VRUN
C422 X_C0.1u10X0402C422 X_C0.1u10X0402
U34
U34
5
1
2
4
SN74AHCT1G125DBVR_SOT23-5
SN74AHCT1G125DBVR_SOT23-5
3
+5VRUN
C423 X_C0.1u10X0402C423 X_C0.1u10X0402
U33
U33
5
1
2
4
SN74AHCT1G125DBVR_SOT23-5
SN74AHCT1G125DBVR_SOT23-5
3
DVI_D1
DS
DVI_D2
DS
VGA_RED
VGA_GREEN
VGA_BLUE
R_HSYN
R_VSYN
R7
150R1%0402R7150R1%0402
B
+5VRUN
AC
D7
D7
SCS551V-30
SCS551V-30
R264
R264
R263
150R1%0402R8150R1%0402
R263
2.2KR0402
2.2KR0402
C12
C12
C10P25N0402
C10P25N0402
VGA_RED
VGA_GREEN
VGA_BLUE
C11
C11
C10P25N0402
C10P25N0402
C14
C14
C10P25N0402
C10P25N0402
2.2KR0402
2.2KR0402
R8
R9
150R1%0402R9150R1%0402
VGA_RED18
VGA_GREEN18
VGA_BLUE18
+5V_CRT
L8 0.1u300mAL8 0.1u300mA
L9 0.1u300mAL9 0.1u300mA
L10 0.1u300mAL10 0.1u300mA
R260 100R0402R260 100R0402
R258 100R0402R258 100R0402
R259 33R0402R259 33R0402
R261 33R0402R261 33R0402
C8
C8
C10P25N0402
C10P25N0402
C9
C9
C10P25N0402
C10P25N0402
C10
C10
2009/06/30 Modify LC value to 0.1uH and 10pF
C420
C420
C22p50N0402
C22p50N0402
C10P25N0402
C10P25N0402
C
C418
C418
C22p50N0402
C22p50N0402
DAC_SDAT_DVI
DAC_SCL_DVI
HSYNC_DVI
VSYNC_DVI
C419
C419
C421
C421
C22p50N0402
C22p50N0402
R_DVI
G_DVI
B_DVI
C22p50N0402
C22p50N0402
C7
C7
C0.1u10X0402
C0.1u10X0402
D
1617
6
1
7
2
8
3
9
4
10
5
1819
11
DAC_SDAT_DVI
12
HSYNC_DVI
13
VSYNC_DVI
14
DAC_SCL_DVI
15
CON9
CON9
CONN-D-SUB15F_blue-3
CONN-D-SUB15F_blue-3
N59-15F0621-AF2
N59-15F0621-AF2
VGAP15_D1_145_2
VGAP15_D1_145_2
E
2009/07/07 Remove EMI diode
for switch placement
LVDSA_D_N2 LVDSA_D_N1
RI8
4
3
LVDSA_D_P2
LVDSA_D_N0
4
3
LVDSA_D_P0
RI8
X_180R0402
X_180R0402
RI9
RI9
X_180R0402
X_180R0402
RI10
RI10
X_180R0402
X_180R0402
LVDSA_D_P1
LVDSA_CLK_N1LVDSA_D_N0
RI7
RI7
X_180R0402
X_180R0402
LVDSA_CLK_P1LVDSA_D_P0
1
2
X_CMC-L02-9008014-T34
X_CMC-L02-9008014-T34
1
2
X_CMC-L02-9008014-T34
X_CMC-L02-9008014-T34
Q9
Q9
IRLML6402PBF_SOT23
IRLML6402PBF_SOT23
DS
C78
C78
R49
R49
1MR0402
1MR0402
3 3
R85
R85
100KR0402
100KR0402
G
LVDS_VDDEN18
C0.01U16X0402
C0.01U16X0402
R48
R48
100KR0402
100KR0402
LVDS_VDDEN#
DS
Q13
Q13
N-2N7002_SOT23-1
N-2N7002_SOT23-1
SOT23SGD_T
SOT23SGD_T
C79
C79
G
LVDS_VDDEN_G
LVDS_VDDEN#
C0.1u10X0402
C0.1u10X0402
N-2N7002_SOT23-1
N-2N7002_SOT23-1
SOT23SGD_T
SOT23SGD_T
+3V_LCD+3VRUN
C77
C77
C10u10Y0805
C10u10Y0805
G
Q12
Q12
R53
R53
47R0805
47R0805
3V_LCD_D
DS
2009/06/30 Add LVDS DDC pull high
+3VRUN
PWR_INVERTER
BL-ON
DA_ADJ
+3V_LCD
49.9KR1%0402
49.9KR1%0402
49.9KR1%0402
49.9KR1%0402
R79
R79
R73
R73
LVDS_DATA18
LVDS_CLK18
DA_ADJ
R368
BR_DA_ADJ30
R368
X_0R0402
X_0R0402
CI19
X_ESD-VPORT0402100MV05-RH
X_ESD-VPORT0402100MV05-RH
CONP7
CONP7
112
334
556
778
9910
111112
131314
151516
171718
191920
212122
232324
25
25
272728
292930
313132
LVDS_30P
LVDS_30P
BHEADSMD2X15_1
BHEADSMD2X15_1
N32-2150100-A81
N32-2150100-A81
CI19
2
4
6
8
10
12
14
16
18
20
22
24
26
26
28
30
32
21
R313 X_0R0402R313 X_0R0402
R315 0R0402R315 0R0402
C476
C476
X_C0.1u25X
X_C0.1u25X
LVDSA_CLK_P1
LVDSA_CLK_N1
LVDSA_D_P2
LVDSA_D_N2
LVDSA_D_P1
LVDSA_D_N1
LVDSA_D_P0
LVDSA_D_N0
PWM-ADJ 18
BR-PWM-ADJ 30
LVDSA_CLK_P1 18
LVDSA_CLK_N1 18
LVDSA_D_P2 18
LVDSA_D_N2 18
LVDSA_D_P1 18
LVDSA_D_N1 18
LVDSA_D_P0 18
LVDSA_D_N0 18
LVDSA_D_P2
EL10
EL10
1
2
X_CMC-L02-9008014-T34
X_CMC-L02-9008014-T34
EL11
EL11
1
2
X_CMC-L02-9008014-T34
X_CMC-L02-9008014-T34
LVDSA_D_N1LVDSA_D_N2
EL12
EL12
4
3
LVDSA_D_P1
LVDSA_CLK_N1
EL9
EL9
4
3
LVDSA_CLK_P1
2009/06/26 Add by EMI
FOR CCFL PANEL
+3VRUN
C448 X_C0.1u10X0402C448 X_C0.1u10X0402
C461
C461
BL-ON
PWR_INVERTER
B
C82
C82
X_C0.1u25X
X_C0.1u25X
C76
C76
C0.1u25X
C0.1u25X
R290 33RR290 33R
R299
R299
100KR0402
100KR0402
2
1
U36
U36
3 5
S08P5X_SC70
S08P5X_SC70
BLON_AND
4
PWR_SRC
C0.01U16X0402
C0.01U16X0402
LID#30
R297 X_0402R297 X_0402
BLON18
R298 X_0R0402R298 X_0R0402
EC_BLON30
4 4
A
C58
C58
C0.1u10X0402
C0.1u10X0402
U10
U10
APX9131AI
APX9131AI
I36-0913109-A30
I36-0913109-A30
C
+3VRUN
R37
EC 11/26
R37
10KR0402
10KR0402
C56
C56
C1000P50X0402
C1000P50X0402
C57
C57
X_C0.1u25X
X_C0.1u25X
D
LID# 30
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
CRT & LVDS
CRT & LVDS
CRT & LVDS
MS-145X
MS-145X
MS-145X
E
19 56Wednesday, August 05, 2009
19 56Wednesday, August 05, 2009
19 56Wednesday, August 05, 2009
of
of
of
0A
0A
0A
Y
X
VDD
VOUT
GND
Z

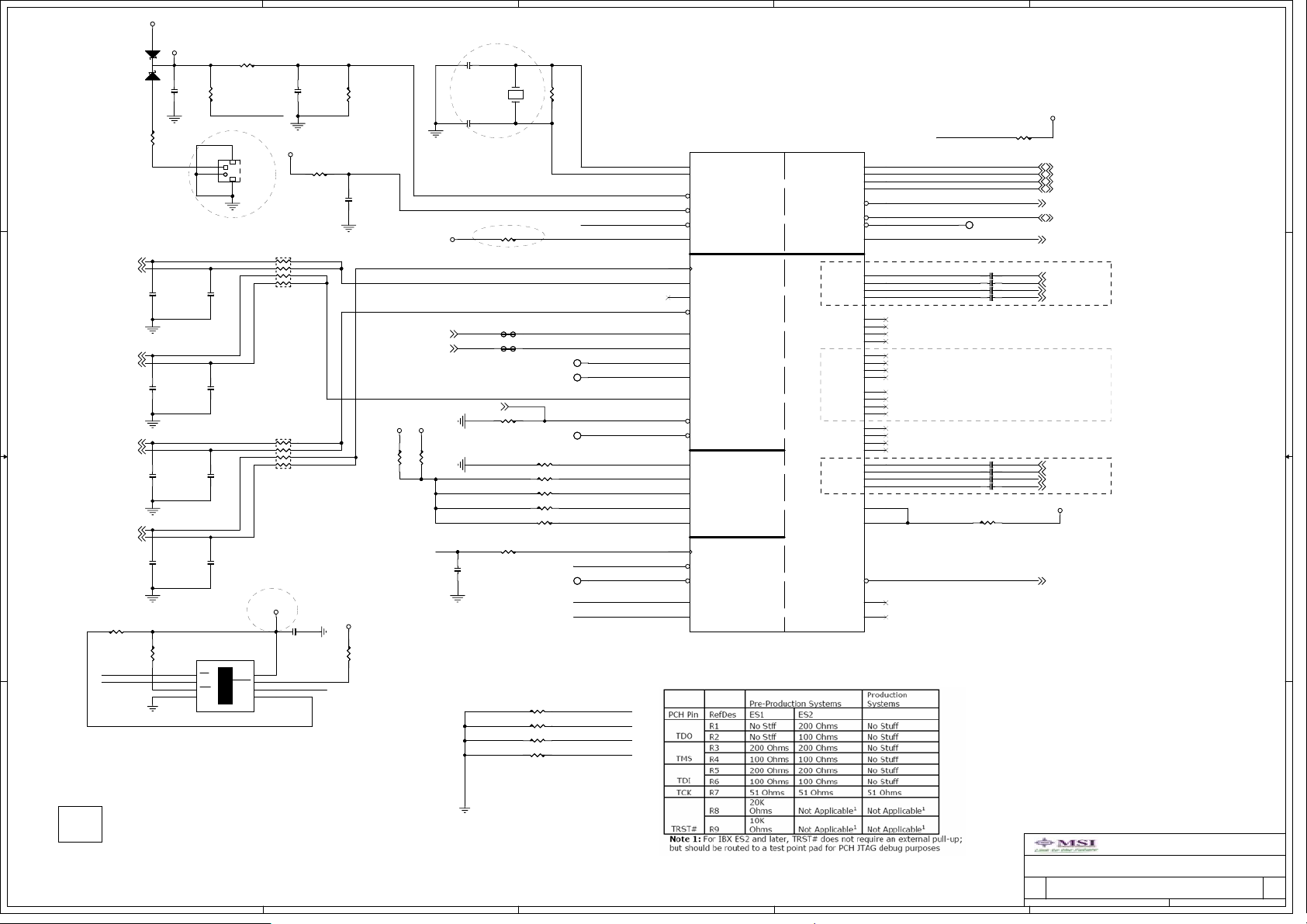

Page 20
A
+3VALW
Y
RTCVCC
D16
D16
Z
S-BAT54C_SOT23
S-BAT54C_SOT23
1 1
2009/06/17 RTC conn 修改
for 空間考量
CODEC_HDA_SYNC31
MDC_HDA_SYNC35
2 2
3 3
MDC_HDA_SDOUT35
CODEC_HDA_SDOUT31
CODEC_HDA_RST#31
MDC_HDA_RST#35
MDC_HDA_BIT_CLK35
CODEC_HDA_BIT_CLK31
R65
R65
X_20KR0402-2
X_20KR0402-2
SPI_MOSI :Enable iTPM: Connect to Vcc3_3 with 8.2-kΩ weak pull-up
resistor
Disable iTPM: Left floating, no pull-down required.
SPI_CS0#
SPI_MISO
X
D_P1
R296
R296
1KR0402
1KR0402
RTC_P3
EC17
EC17
X_C10p50N0402
X_C10p50N0402
EC19
EC19
X_C10p50N0402
X_C10p50N0402
EC14
EC14
X_C10p50N0402
X_C10p50N0402
EC15
EC15
X_C10p50N0402
X_C10p50N0402
R66
R66
2.2KR0402
2.2KR0402
R307 20KR0402-2R307 20KR0402-2
R321
R321
C458
C458
1MR0402
1MR0402
C1u16X-RH
C1u16X-RH
SM_INTRUDER#
34
1
2
EC18
EC18
X_C10p50N0402
X_C10p50N0402
EC20
EC20
X_C10p50N0402
X_C10p50N0402
EC13
EC13
X_C10p50N0402
X_C10p50N0402
EC16
EC16
X_C10p50N0402
X_C10p50N0402
U18
U18
1
CS
2
DO
HLOD
3
WP
GND4DI
SPI FLASH-8P_BLACK-RH
SPI FLASH-8P_BLACK-RH
N14-0080030-L06
N14-0080030-L06
SPIFLASH8
SPIFLASH8
RTCVCC
J28
J28
BH1X2HS-1.25PITCH-RH
BH1X2HS-1.25PITCH-RH
RN14
RN14
1
3
5
7
8P4R-33R0402
8P4R-33R0402
RN13
RN13
1
3
5
7
8P4R-33R0402
8P4R-33R0402
+3VRUN
C0.1u16Y0402
C0.1u16Y0402
8
VCC
7
SPI_CLK
6
CLK
SPI_MOSI
5
C473
C473
C1u16X-RH
C1u16X-RH
R306 20KR0402-2R306 20KR0402-2
2
4
6
8
2
4
6
8
+3VRUN
C86
C86
B
C
IBEXPEAK - M (HDA,JTAG,SATA)
C97 C18p50N0402C97 C18p50N0402
RTCRST7
RTCRST7
X_0R
X_0R
C90
C90
C1u16Y
C1u16Y
RTCVCC
C95
C95
C18p50N0402
C18p50N0402
12
R318 330KRR318 330KR
Y9
Y9
32.768KHZ12.5P_S
32.768KHZ12.5P_S
2009/07/14 R318改為330K ohm(By Intel checklist)
SPI_CLK
ER35ER35
ER34ER34
EC21
EC21
X_C10p50N0402
X_C10p50N0402
R36910KR0402 R36910KR0402
R10333R0402 R10333R0402
0R0402
0R0402
R63
R63
2.2KR0402
2.2KR0402
CODEC_HDA_SDIN031
HDA_SDIN135
R129
R129
+3VSUS
+VTT
TP_HDA_DOCK_EN#30
R128
R128
X_0R0402
X_0R0402
2009/07/10 Y9改為4pin(D04-0302500-S35)
R87
R87
10MR1%0402
10MR1%0402
TPJNC25TPJNC25
TPJNC27TPJNC27
TP_HDA_DOCK_EN#
TPJNC28TPJNC28
R34251R1%0402 R34251R1%0402
R122200R0402 R122200R0402
R121200R0402 R121200R0402
R120200R0402 R120200R0402
R119X_200R0402 R119X_200R0402
TPJNC7TPJNC7
PCH_JTAG_TMS
R350100R1%0402 R350100R1%0402
PCH_JTAG_TDI
R351100R1%0402 R351100R1%0402
PCH_JTAG_TDO
R349100R1%0402 R349100R1%0402
PCH_JTAG_RST#
R348X_100R1%0402 R348X_100R1%0402
RTCX1
RTCX2
RTCRST#
SRTCRST#
SM_INTRUDER#
HDA_BIT_CLK_PCH_R
HDA_SYNC_PCH_R
HDA_RST#_PCH_R
HDA_SDIN0_R
HDA_SDIN1_R
MXM_HDA_SDIN2_R
TP_HDA_SDIN3
HDA_SDOUT_PCH_R
TP_HDA_DOCK_RST#
PCH_JTAG_TCK_BUF
PCH_JTAG_TMS
PCH_JTAG_TDI
PCH_JTAG_TDO
PCH_JTAG_RST#
SPI_CS0#
TP_SPI_CS1#
SPI_MOSI
SPI_MISO
B13
RTCX1
D13
RTCX2
C14
RTCRST#
D17
SRTCRST#
A16
INTRUDER#
A14
INTVRMEN
A30
HDA_BCLK
D29
HDA_SYNC
P1
SPKR
C30
HDA_RST#
G30
HDA_SDIN0
F30
HDA_SDIN1
E32
HDA_SDIN2
F32
HDA_SDIN3
B29
HDA_SDO
H32
HDA_DOCK_EN# / GPIO33
J30
HDA_DOCK_RST# / GPIO13
M3
JTAG_TCK
K3
JTAG_TMS
K1
JTAG_TDI
J2
JTAG_TDO
J4
JTAG_RST#
BA2
SPI_CLK
AV3
SPI_CS0#
AY3
SPI_CS1#
AY1
SPI_MOSI
AV1
SPI_MISO
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
U14A
U14A
RTCIHDA
RTCIHDA
SPI JTAG
SPI JTAG
FWH0 / LAD0
FWH1 / LAD1
FWH2 / LAD2
FWH3 / LAD3
FWH4 / LFRAME#
LDRQ1# / GPIO23
LPC
LPC
SATA0RXN
SATA0RXP
SATA0TXN
SATA0TXP
SATA1RXN
SATA1RXP
SATA1TXN
SATA1TXP
SATA2RXN
SATA2RXP
SATA2TXN
SATA2TXP
SATA3RXN
SATA3RXP
SATA3TXN
SATA3TXP
SATA4RXN
SATA4RXP
SATA4TXN
SATA
SATA
SATA4TXP
SATA5RXN
SATA5RXP
SATA5TXN
SATA5TXP
SATAICOMPO
SATAICOMPI
SATALED#
SATA0GP / GPIO21
SATA1GP / GPIO19
LDRQ0#
SERIRQ
D
INT_SERIRQ
LAD0
D33
LAD1
B33
LAD2
C32
LAD3
A32
LPC_FRAME#
C34
L_LDRQ0#
A34
TP_LDRQ1#
F34
AB9
SATA3RXN_C
AK7
SATA3RXP_C
AK6
SATA3TXN_C
AK11
SATA3TXP_C
AK9
AH6
AH5
AH9
AH8
AF11
AF9
AF7
AF6
NOTE: SATA Port 2,3 may not be
available in all Ibex Peak SKUs.
AH3
AH1
AF3
AF1
AD9
AD8
AD6
AD5
SATA5RXN_C
AD3
SATA5RXP_C
AD1
SATA5TXN_C
AB3
SATA5TXP_C
AB1
SATAICOMPO
AF16
AF15
T3
Y9
V1
TPJNC26TPJNC26
2009/07/01
電容靠近
connector
R319 37.4R1%0402-RHR319 37.4R1%0402-RH
2009/07/14
需注意QS之後版本只需
C492C0.01u25X0402 C492C0.01u25X0402
C490C0.01u25X0402 C490C0.01u25X0402
C493C0.01u25X0402 C493C0.01u25X0402
C495C0.01u25X0402 C495C0.01u25X0402
C155C0.01u25X0402 C155C0.01u25X0402
C154C0.01u25X0402 C154C0.01u25X0402
C157C0.01u25X0402 C157C0.01u25X0402
C156C0.01u25X0402 C156C0.01u25X0402
+3VRUN
R34010KR0402 R34010KR0402
LAD0 30
LAD1 30
LAD2 30
LAD3 30
LPC_FRAME# 30
L_LDRQ0# 30
INT_SERIRQ 30
SATA3RXN 36
SATA3RXP 36
SATA3TXN 36
SATA3TXP 36
能有較好的信號品質
SATA5RXN 36
SATA5RXP 36
SATA5TXN 36
SATA5TXP 36
+VTT
SATA_ACTIVE# 33
TCK的R342
E
ODD
HDD
上件
4 4
BIOS1
BIOS1
W25X32VSSIG-RH
W25X32VSSIG-RH
2009/07/01 0A
A
版先上
ROM SOCKET
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
IBEXPEAK - M (HDA,JTAG,SATA)
IBEXPEAK - M (HDA,JTAG,SATA)
IBEXPEAK - M (HDA,JTAG,SATA)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
B
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
20 56Wednesday, August 05, 2009
20 56Wednesday, August 05, 2009
20 56Wednesday, August 05, 2009

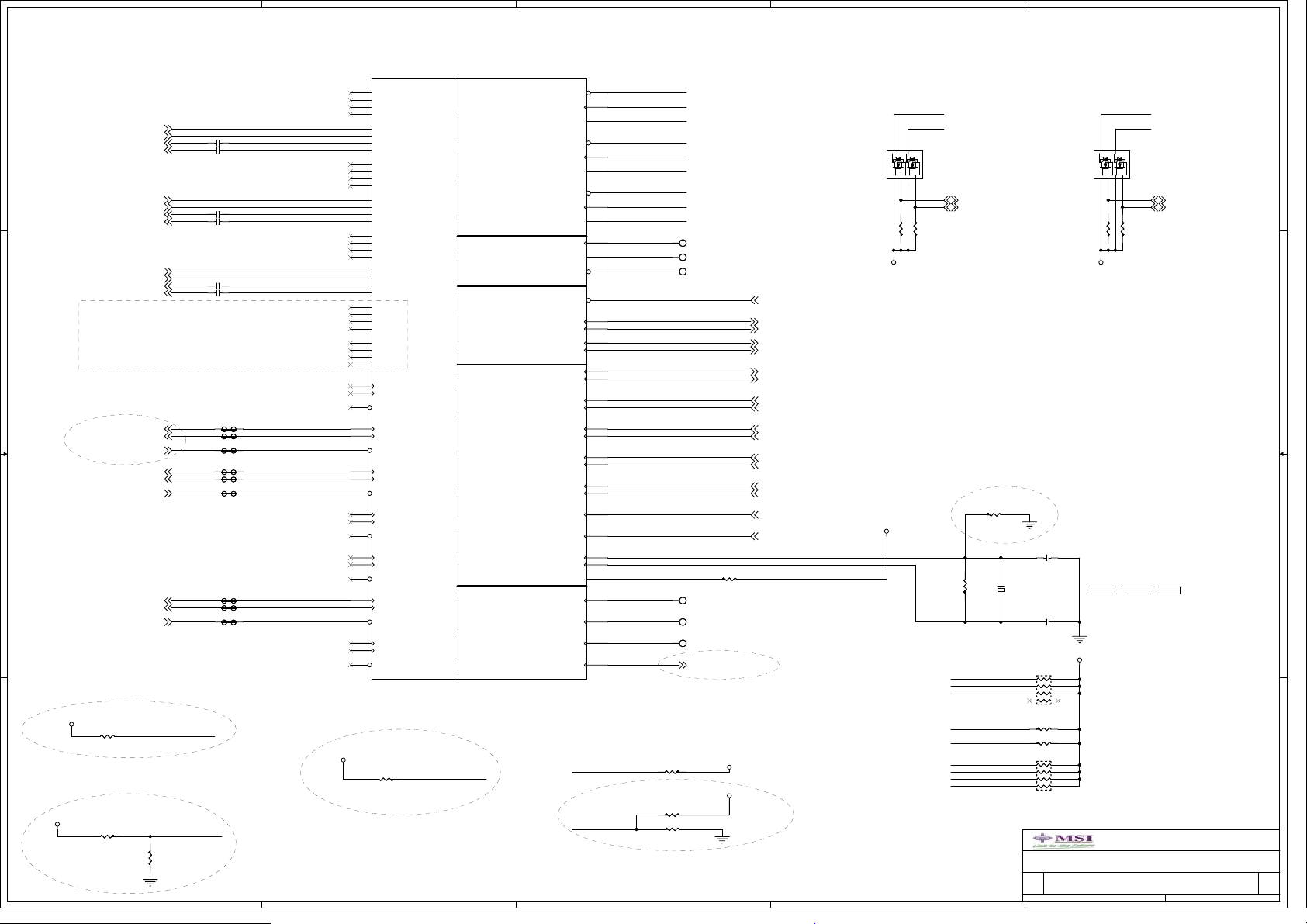

Page 21
A
B
C
D
E
IBEXPEAK - M (PCI-E,SMBUS,CLK)
U14B
U14B
BG30
PERN1
BJ30
PERP1
BF29
PETN1
BH29
+3VSUS
AW30
BA30
BC30
BD30
AU30
AT30
AU32
AV32
BA32
BB32
BD32
BE32
BF33
BH33
BG32
BJ32
BA34
AW34
BC34
BD34
AT34
AU34
AU36
AV36
BG34
BJ34
BG36
BJ36
AK48
AK47
AM43
AM45
AM47
AM48
AH42
AH41
AM51
AM53
AJ50
AJ52
AK53
AK51
PETP1
PERN2
PERP2
PETN2
PETP2
PERN3
PERP3
PETN3
PETP3
PERN4
PERP4
PETN4
PETP4
PERN5
PERP5
PETN5
PETP5
PERN6
PERP6
PETN6
PETP6
PERN7
PERP7
PETN7
PETP7
PERN8
PERP8
PETN8
PETP8
CLKOUT_PCIE0N
CLKOUT_PCIE0P
P9
PCIECLKRQ0# / GPIO73
CLKOUT_PCIE1N
CLKOUT_PCIE1P
U4
PCIECLKRQ1# / GPIO18
CLKOUT_PCIE2N
CLKOUT_PCIE2P
N4
PCIECLKRQ2# / GPIO20
CLKOUT_PCIE3N
CLKOUT_PCIE3P
A8
PCIECLKRQ3# / GPIO25
CLKOUT_PCIE4N
CLKOUT_PCIE4P
M9
PCIECLKRQ4# / GPIO26
CLKOUT_PCIE5N
CLKOUT_PCIE5P
H6
PCIECLKRQ5# / GPIO44
CLKOUT_PEG_B_N
CLKOUT_PEG_B_P
P13
PEG_B_CLKRQ# / GPIO56
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
R23 10KR0402R23 10KR0402
B
PCI-E*
PCI-E*
From CLK BUFFER
From CLK BUFFER
Clock Flex
Clock Flex
CLK_GLAN_OE#
1 1
2 2
PCIE_NEWCARD_RXN35
PCIE_NEWCARD_RXP35
PCIE_NEWCARD_TXN35
PCIE_NEWCARD_TXP35
PCIE_RXN2_SLOT233
PCIE_RXP2_SLOT233
PCIE_TXN2_SLOT233
PCIE_TXP2_SLOT233
PCIE_GLAN_RXN34
PCIE_GLAN_RXP34
PCIE_GLAN_TXN34
PCIE_GLAN_TXP34
NOTE: PCI-E Port 7,8 may not be
available in all Ibex Peak SKUs.
CLK_MINI_PCIE3#33
CLK_MINI_PCIE333
CLK_MINI_OE#33
CLK_NEW_CARD#35
CLK_NEW_CARD35
CLK_NEWCARD_OE#35
C449 C0.1u10X0402C449 C0.1u10X0402
C451 C0.1u10X0402C451 C0.1u10X0402
C443 C0.1u10X0402C443 C0.1u10X0402
C445 C0.1u10X0402C445 C0.1u10X0402
C434 C0.1u10X0402C434 C0.1u10X0402
C437 C0.1u10X0402C437 C0.1u10X0402
ER29ER29
ER28ER28
ER17ER17
ER32ER32
ER33ER33
ER16ER16
PETN2
PETP2
PETN4
PETP4
PETN6
PETP6
CLK_PCH_SRC3_N
CLK_PCH_SRC3_P
CLK_MINI_OE#_R
CLK_PCH_SRC2_N
CLK_PCH_SRC2_P
CLK_NEWCARD_OE#_R
2009/06/22 Modify MiniPCIE to group 1
3 3
CLK_PCIE_LAN#34
CLK_PCIE_LAN34
CLK_GLAN_OE#34
2009/06/17 Add CLK_NEWCARD_OE#
pull high
+3VRUN
R469 10KR0402R469 10KR0402
CLK_NEWCARD_OE#
ER9ER9
ER8ER8
ER36ER36
CLK_PCH_SRC1_N
CLK_PCH_SRC1_P
CLK_GLAN_OE#_R
2009/06/22 Add MiniPCIE clock request pull high
4 4
+3VRUN
R12410KR0402 R12410KR0402
A
CLK_MINI_OE#_R
R125
R125
X_10KR0402
X_10KR0402
SMBALERT# / GPIO11
SMBCLK
SMBDATA
SML0ALERT# / GPIO60
SML0CLK
SML0DATA
SML1ALERT# / GPIO74
SMBus
SMBus
Controller
Controller
PEG
PEG
CLKOUT_DP_N / CLKOUT_BCLK1_N
CLKOUT_DP_P / CLKOUT_BCLK1_P
SML1CLK / GPIO58
SML1DATA / GPIO75
Link
Link
PEG_A_CLKRQ# / GPIO47
CLKIN_SATA_N / CKSSCD_N
CLKIN_SATA_P / CKSSCD_P
CL_DATA1
CL_RST1#
CLKOUT_PEG_A_N
CLKOUT_PEG_A_P
CLKOUT_DMI_N
CLKOUT_DMI_P
CLKIN_DMI_N
CLKIN_DMI_P
CLKIN_BCLK_N
CLKIN_BCLK_P
CLKIN_DOT_96N
CLKIN_DOT_96P
REFCLK14IN
CLKIN_PCILOOPBACK
XTAL25_IN
XTAL25_OUT
XCLK_RCOMP
CLKOUTFLEX0 / GPIO64
CLKOUTFLEX1 / GPIO65
CLKOUTFLEX2 / GPIO66
CLKOUTFLEX3 / GPIO67
CL_CLK1
2009/07/01 Reserved 10K ohm pull high
B9
H14
C8
J14
C6
G8
M14
E10
G12
T13
T11
T9
H1
AD43
AD45
AN4
AN2
AT1
AT3
AW24
BA24
AP3
AP1
F18
E18
AH13
AH12
P41
J42
AH51
AH53
AF38
T45
P43
T42
N50
EDID_SELECT#
PEG_CLKREQ#
PCH_GPIO11
SUS_SMBCLK
SUS_SMBDATA
PCH_UPEK_INIT#
SML0_CLK
SML0_DATA
PCH_GPIO74
SML1_CLK
SML1_DATA
TP_CL_CLK
TP_CL_DATA
TP_CL_RST#
XTAL25_IN
XTAL25_OUT
XCLK_RCOMP
TP_CLK_FLEX0
TP_CLK_FLEX1
TP_CLK_FLEX2
R118 X_10KR0402R118 X_10KR0402
R347 10KR0402R347 10KR0402
C
TPJNC31TPJNC31
TPJNC32TPJNC32
TPJNC33TPJNC33
R289 90.9R1%0402R289 90.9R1%0402
TPJNC18TPJNC18
TPJNC24TPJNC24
TPJNC23TPJNC23
EDID_SELECT# 18
+3VRUN
R3010KR0402 R3010KR0402
+3VSUS
PEG_CLKREQ# 12
CLK_PEGA_MXM_N 11
CLK_PEGA_MXM_P 11
BCLK_EXP# 3
BCLK_EXP 3
CLK_DP# 3
CLK_DP 3
CLK_BUF_EXP# 29
CLK_BUF_EXP 29
CLK_BUF_BCLK# 29
CLK_BUF_BCLK 29
CLK_BUF_DOT96# 29
CLK_BUF_DOT96 29
CLK_BUF_SATA# 29
CLK_BUF_SATA 29
CLK_BUF_REF14 29
CLK_PCI_FB 24
R83
R83
2.2KR0402
2.2KR0402
+VTT
SUS_SMBCLK
SUS_SMBDATA
D1
D2
S2
G2
G1
D
S1
R69
R69
2.2KR0402
2.2KR0402
X_1MR1%0402
X_1MR1%0402
Q14
Q14
NN-2N7002DW-7-F_SOT363-6-RH
NN-2N7002DW-7-F_SOT363-6-RH
SMB_CLK_DIMM 9,10,29
SMB_DATA_DIMM 9,10,29
R24 0R0402R24 0R0402
C48 X_C27p50N0402C48 X_C27p50N0402
R35
R35
PCH_GPIO74
PCH_UPEK_INIT#
PCH_GPIO11
SUS_SMBCLK
SUS_SMBDATA
SML1_DATA
SML1_CLK
SML0_DATA
SML0_CLK
12
X7
X7
X_25MHZ20p_S-RH-2
X_25MHZ20p_S-RH-2
C49 X_C27p50N0402C49 X_C27p50N0402
R331 2.2KR0402R331 2.2KR0402
R94 2.2KR0402R94 2.2KR0402
SML1_CLK
SML1_DATA
D1
D2
Q16
Q16
NN-2N7002DW-7-F_SOT363-6-RH
NN-2N7002DW-7-F_SOT363-6-RH
S2
S1
G2
G1
R89
R89
2.2KR0402
2.2KR0402
+3VRUN+3VRUN
2009/06/22 Add 0R to GND
by Intel DG1.6 page.369
Cap values depend on Xtal
+3VSUS
RN22
RN22
1
2
3
4
5
6
7
8
8P4R-10KR0402
8P4R-10KR0402
RN23
RN23
1
2
3
4
5
6
7
8
8P4R-2.2KR0402-RH
8P4R-2.2KR0402-RH
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
IBEXPEAK - M (PCI-E,SMBUS,CLK)
IBEXPEAK - M (PCI-E,SMBUS,CLK)
IBEXPEAK - M (PCI-E,SMBUS,CLK)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
R86
R86
2.2KR0402
2.2KR0402
SMB_CLK_EC 30
SMB_DATA_EC 30
E
of
of
of
21 56Wednesday, August 05, 2009
21 56Wednesday, August 05, 2009
21 56Wednesday, August 05, 2009
0A
0A
0A

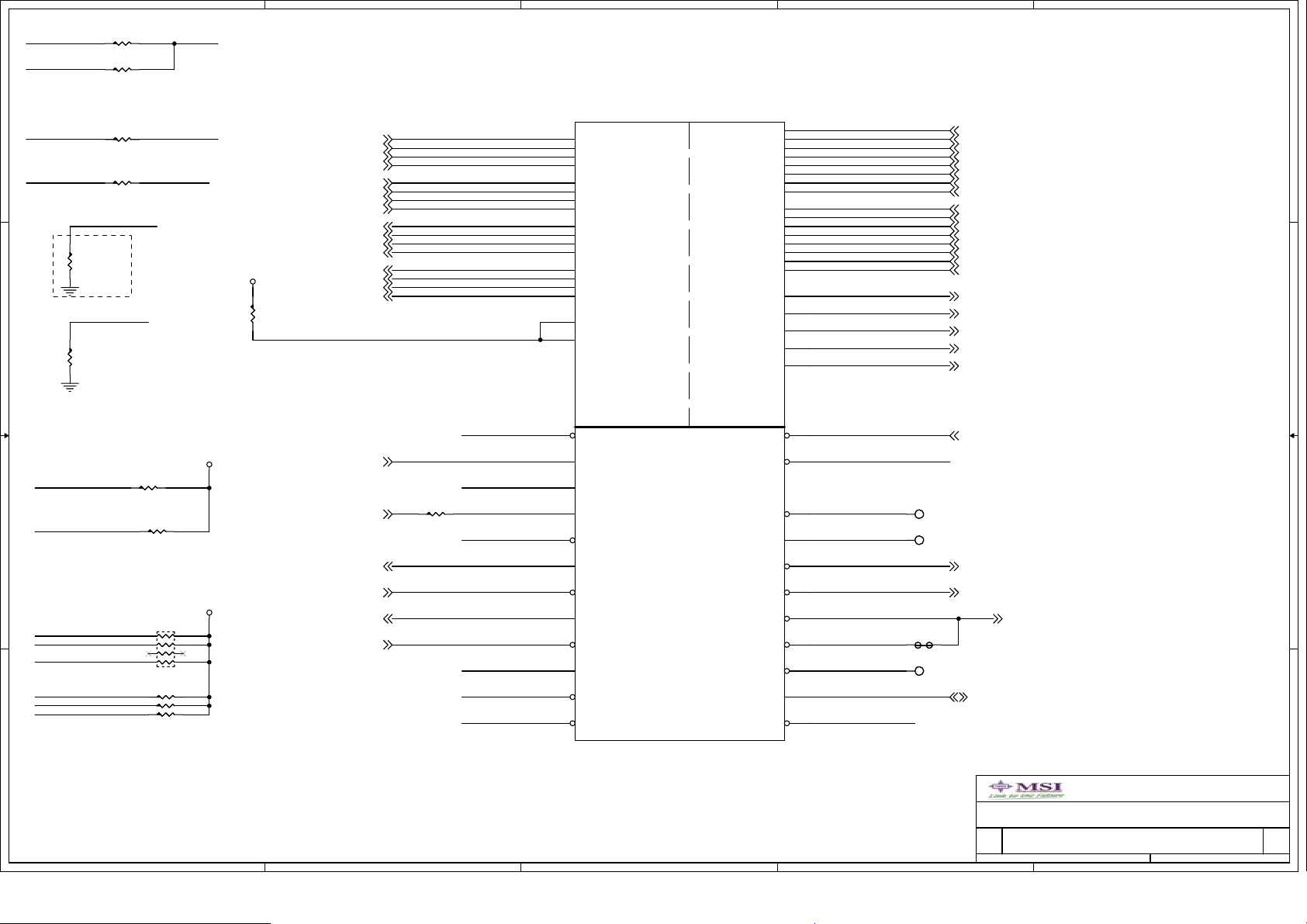

Page 22
A
B
C
D
E
SYS_PWROK
EC_ALLSYSPG
1 1
SYS_PWROK MPWROK_R
R311 0R0402R311 0R0402
R301 X_0R0402R301 X_0R0402
R333 0R0402R333 0R0402
R310 X_0R0402R310 X_0R0402
PM_PCH_PWROK
R70
R70
X_10KR0402
X_10KR0402
NO_STUFF
2 2
AUXPWROK_R
R327
R327
10KR0402
10KR0402
PM_PCH_PWROK
AUXPWROK_RSYS_PWROK
+VTT
R64
R64
49.9R1%0402
49.9R1%0402
IBEXPEAK - M (DMI,FDI,GPIO)
U14C
U14C
FDI
FDI
FDI_RXN0
FDI_RXN1
FDI_RXN2
FDI_RXN3
FDI_RXN4
FDI_RXN5
FDI_RXN6
FDI_RXN7
FDI_RXP0
FDI_RXP1
FDI_RXP2
FDI_RXP3
FDI_RXP4
FDI_RXP5
FDI_RXP6
FDI_RXP7
FDI_FSYNC0
FDI_FSYNC1
FDI_LSYNC0
FDI_LSYNC1
DMI_RXN03
DMI_RXN13
DMI_RXN23
DMI_RXN33
DMI_RXP03
DMI_RXP13
DMI_RXP23
DMI_RXP33
DMI_TXN03
DMI_TXN13
DMI_TXN23
DMI_TXN33
DMI_TXP03
DMI_TXP13
DMI_TXP23
DMI_TXP33
DMI_COMP_R
BC24
BJ22
AW20
BJ20
BD24
BG22
BA20
BG20
BE22
BF21
BD20
BE18
BD22
BH21
BC20
BD18
BH25
BF25
DMI0RXN
DMI1RXN
DMI2RXN
DMI3RXN
DMI0RXP
DMI1RXP
DMI2RXP
DMI3RXP
DMI0TXN
DMI1TXN
DMI2TXN
DMI3TXN
DMI0TXP
DMI1TXP
DMI2TXP
DMI3TXP
DMI_ZCOMP
DMI_IRCOMP
DMI
DMI
FDI_INT
BA18
BH17
BD16
BJ16
BA16
BE14
BA14
BC12
BB18
BF17
BC16
BG16
AW16
BD14
BB14
BD12
BJ14
BF13
BH13
BJ12
BG14
FDI_INT
FDI_FSYNC0
FDI_FSYNC1
FDI_LSYNC0
FDI_LSYNC1
FDI_TXN0 3
FDI_TXN1 3
FDI_TXN2 3
FDI_TXN3 3
FDI_TXN4 3
FDI_TXN5 3
FDI_TXN6 3
FDI_TXN7 3
FDI_TXP0 3
FDI_TXP1 3
FDI_TXP2 3
FDI_TXP3 3
FDI_TXP4 3
FDI_TXP5 3
FDI_TXP6 3
FDI_TXP7 3
FDI_INT 3
FDI_FSYNC0 3
FDI_FSYNC1 3
FDI_LSYNC0 3
FDI_LSYNC1 3
PULL LOW FOR NOT INTEL LAN 2008.12.12
PM_SYSRST#
+3VRUN
PM_CLKRUN#
PM_SYSRST#
3 3
SUS_PWR_ACK
AC_PRESENT
PM_RI#
PM_SLP_LAN#
PM_BATLOW#
PCIE_WAKE#
4 4
R111 8.2KR1%0402R111 8.2KR1%0402
R352 10KR0402R352 10KR0402
+3VSUS
RN16
RN16
1
2
3
4
5
6
7
8
8P4R-10KR0402
8P4R-10KR0402
R337 X_10KR0402R337 X_10KR0402
R99 8.2KR1%R99 8.2KR1%
R325 1KR0402R325 1KR0402
SYS_PWROK29,43
PM_PCH_PWROK
EC_ALLSYSPG3,30
PM_DRAM_PWRGD3,47
RSMRST#30
SUS_PWR_ACK30
PM_PWRBTN#30
R294 X_0R0402R294 X_0R0402
MPWROK_R
AUXPWROK_R
RSMRST#
SUS_PWR_ACK
PM_PWRBTN#
AC_PRESENT
PM_BATLOW#
PM_RI#
T6
SYS_RESET#
M6
SYS_PWROK
B17
PWROK
K5
MEPWROK
A10
LAN_RST#
D9
DRAMPWROK
C16
RSMRST#
M1
SUS_PWR_ACK / GPIO30
P5
PWRBTN#
P7
ACPRESENT / GPIO31
A6
BATLOW# / GPIO72
F14
RI#
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
J12
WAKE#
SLP_S4#
SLP_S3#
SLP_M#
TP23
Y1
P8
F3
E4
H7
P12
K8
N2
BJ10
F6
CLKRUN# / GPIO32
SUS_STAT# / GPIO61
SUSCLK / GPIO62
SLP_S5# / GPIO63
System Power Management
System Power Management
PMSYNCH
SLP_LAN#
PCIE_WAKE#
PM_CLKRUN#
TP_PM_SUS_STAT#
TP_SUS_CLK
PM_SLP_S5#
PM_SLP_S4#
PM_SLP_S3#
TP_PM_SLP_M#
TP_PM_SLP_DSW#
H_PM_SYNC
PM_SLP_LAN#
PCIE_WAKE# 33,34,35
TP48TP48
TP50TP50
PM_SLP_S5# 30
PM_SLP_S4# 30
PM_SLP_S3# 30,47
ER15ER15
TP13TP13
H_PM_SYNC 3
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
IBEXPEAK - M (DMI,FDI,GPIO)
IBEXPEAK - M (DMI,FDI,GPIO)
IBEXPEAK - M (DMI,FDI,GPIO)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
of
of
of
22 56Wednesday, August 05, 2009
22 56Wednesday, August 05, 2009
22 56Wednesday, August 05, 2009
E
0A
0A
0A

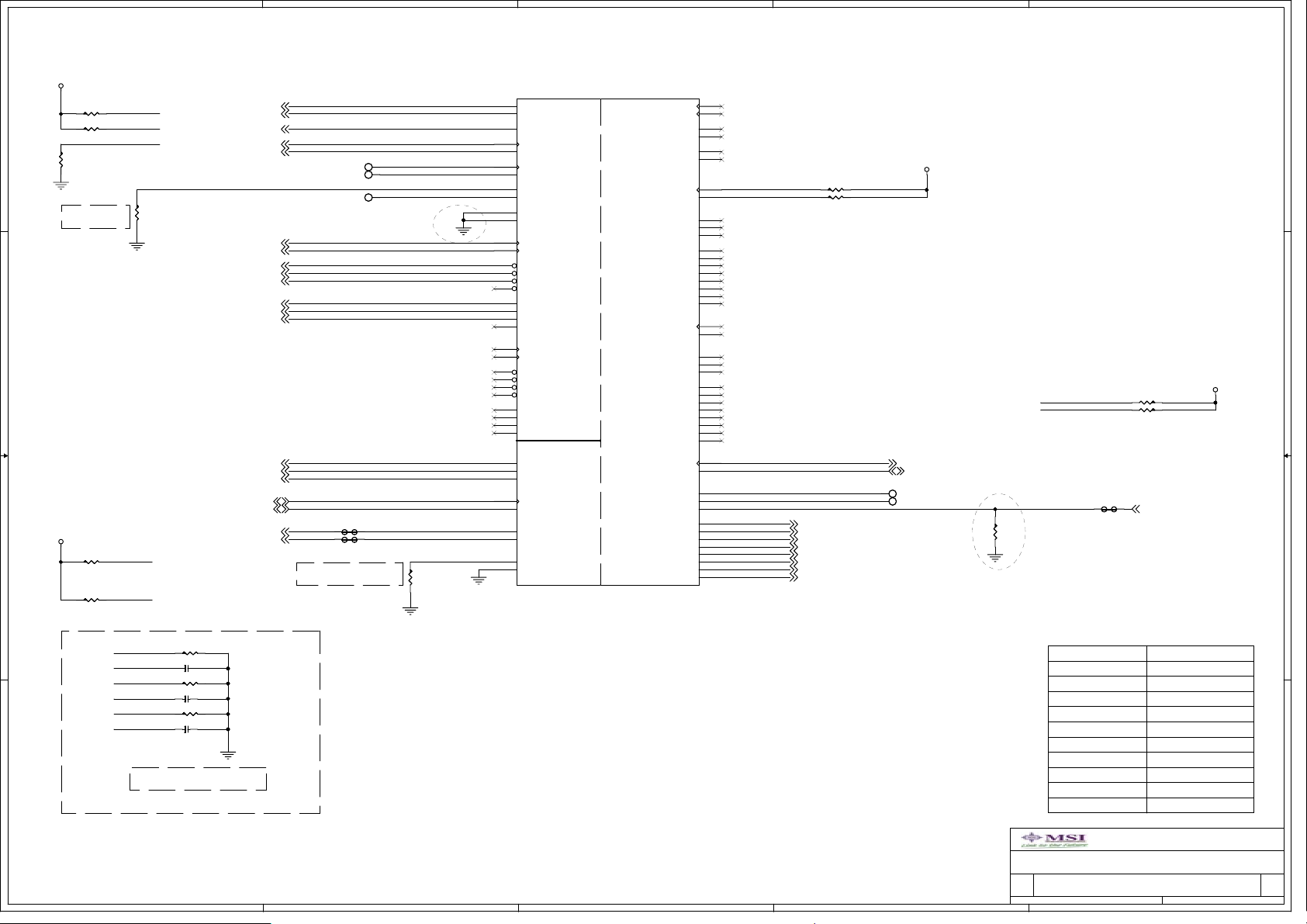

Page 23
A
B
C
D
E
IBEXPEAK - M (LVDS,DDI)
+3VRUN
R268 2.2KR0402R268 2.2KR0402
1 1
1.MXM only LVD_IBG, LVD_VREFH and LVD_VREFL
floating. VCCA_LCD and VCCTX_LVD can be connected
to GND.
2.If use LVDS, LVD_IBG connect 2.37k to GND.
LVD_VREFH and LVD_VREFL connect to GND.
VCCA_LCD and VCCTX_LVD connect to power.
2 2
+3VRUN
3 3
LVDS_DDC_CLK
LVDS_DDC_DATA
R269 2.2KR0402R269 2.2KR0402
L_BKLT_EN
R279
R279
100KR0402
100KR0402
Place near PCH
R271 2.2KR0402R271 2.2KR0402
CRT_CLK_UMA
R272 2.2KR0402R272 2.2KR0402
CRT_DATA_UMA
R287
R287
2.37KR1%0402-RH
2.37KR1%0402-RH
L_BKLT_EN18
LVDS_VDD_EN18
L_BKLT_CTRL18
LVDS_DDC_CLK18
LVDS_DDC_DATA18
LVDSA_CLK#18
LVDSA_CLK18
LVDSA_DATA0#18
LVDSA_DATA1#18
LVDSA_DATA2#18
LVDSA_DATA018
LVDSA_DATA118
LVDSA_DATA218
CRT_B_UMA18
CRT_G_UMA18
CRT_R_UMA18
CRT_CLK_UMA18
CRT_DATA_UMA18
CRT_HSYNC_UMA18
CRT_VSYNC_UMA18 DPD_LANE1_N_C 18
TPJNC20TPJNC20
TPJNC21TPJNC21
TPJNC22TPJNC22
ER30ER30
ER31ER31
LO note: Place near PCH
LVDS_DDC_CLK
LVDS_DDC_DATA
TP_L_CTRL_CLK
TP_L_CTRL_DATA
TP_LVDS_IBG
TP_LVDS_VBG
HSYNC
VSYNC
DAC_IREF_R
R276
R276
1KR1%0402
1KR1%0402
U14D
U14D
T48
L_BKLTEN
T47
L_VDD_EN
Y48
L_BKLTCTL
AB48
L_DDC_CLK
Y45
L_DDC_DATA
AB46
L_CTRL_CLK
V48
L_CTRL_DATA
AP39
LVD_IBG
AP41
LVD_VBG
AT43
LVD_VREFH
AT42
LVD_VREFL
AV53
LVDSA_CLK#
AV51
LVDSA_CLK
BB47
LVDSA_DATA#0
BA52
LVDSA_DATA#1
AY48
LVDSA_DATA#2
AV47
LVDSA_DATA#3
BB48
LVDSA_DATA0
BA50
LVDSA_DATA1
AY49
LVDSA_DATA2
AV48
LVDSA_DATA3
AP48
LVDSB_CLK#
AP47
LVDSB_CLK
AY53
LVDSB_DATA#0
AT49
LVDSB_DATA#1
AU52
LVDSB_DATA#2
AT53
LVDSB_DATA#3
AY51
LVDSB_DATA0
AT48
LVDSB_DATA1
AU50
LVDSB_DATA2
AT51
LVDSB_DATA3
AA52
CRT_BLUE
AB53
CRT_GREEN
AD53
CRT_RED
V51
CRT_DDC_CLK
V53
CRT_DDC_DATA
Y53
CRT_HSYNC
Y51
CRT_VSYNC
AD48
DAC_IREF
AB51
CRT_IRTN
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
DDPB_0N
DDPB_0P
DDPB_1N
DDPB_1P
DDPB_2N
DDPB_2P
DDPB_3N
DDPB_3P
DDPC_0N
DDPC_0P
DDPC_1N
DDPC_1P
DDPC_2N
DDPC_2P
DDPC_3N
DDPC_3P
DDPD_0N
DDPD_0P
DDPD_1N
DDPD_1P
DDPD_2N
DDPD_2P
DDPD_3N
DDPD_3P
BJ46
BG46
BJ48
BG48
BF45
BH45
T51
T53
BG44
BJ44
AU38
BD42
BC42
BJ42
BG42
BB40
BA40
AW38
BA38
Y49
AB49
BE44
BD44
AV40
BE40
BD40
BF41
BH41
BD38
BC38
BB36
BA36
U50
U52
BC46
BD46
AT38
BJ40
BG40
BJ38
BG38
BF37
BH37
BE36
BD36
SDVO_TVCLKINN
SDVO_TVCLKINP
SDVO_STALLN
SDVO_STALLP
SDVO_INTN
SDVO_INTP
SDVO_CTRLCLK
SDVO_CTRLDATA
DDPB_AUXN
DDPB_AUXP
DDPB_HPD
LVDS
LVDS
DDPC_CTRLCLK
DDPC_CTRLDATA
DDPC_AUXN
DDPC_AUXP
DDPC_HPD
Digital Display Interface
Digital Display Interface
DDPD_CTRLCLK
DDPD_CTRLDATA
DDPD_AUXN
DDPD_AUXP
DDPD_HPD
CRT
CRT
SDVO_CTRL_CLK
SDVO_CTRL_DATA
TPJNC85JNC
TPJNC86JNC
R32 X_20KR1%0402R32 X_20KR1%0402
R28 X_20KR1%0402R28 X_20KR1%0402
DPD_LANE2_N_C 18
DPD_LANE2_P_C 18
DPD_LANE1_P_C 18
DPD_LANE0_N_C 18
DPD_LANE0_P_C 18
DPD_LANE3_N_C 18
DPD_LANE3_P_C 18
+3VRUN
DVI_CLK_UMA 18
DVI_DATA_UMA 18
TPJNC19TPJNC19
TPJNC17TPJNC17
DVI_DATA_UMA
DVI_CLK_UMA
DVI_A_HPD_R
R29
R29
110KR1%0402-RH
110KR1%0402-RH
2009/06/22 R29 change to 110KR
by checklist 1.6
R274 4.7KR0402R274 4.7KR0402
R273 4.7KR0402R273 4.7KR0402
ER7ER7
HDMI_HPD_UMA 18
+3VRUN
CRT_B_UMA
CRT_B_UMA
CRT_G_UMA
CRT_G_UMA
CRT_R_UMA
CRT_R_UMA
R25 150R1%0402R25 150R1%0402
EC10 X_C10p50N0402EC10 X_C10p50N0402
R26 150R1%0402R26 150R1%0402
EC11 X_C10p50N0402EC11 X_C10p50N0402
R27 150R1%0402R27 150R1%0402
EC9 X_C10p50N0402EC9 X_C10p50N0402
DisplayPort
DP_X_L0
DP_X_L0# TX_x_D2#
DP_X_L1 TX_x_D1
DP_X_L1#
DP_X_L2
DP_X_L2#
DP_X_L3
Place the 3 resistors close to PCH
4 4
For EMI suggestion
A
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
B
C
D
Date: Sheet
DP_X_L3#
DP_X_AUX
DP_X_AUX#
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
IBEXPEAK - M (LVDS,DDI)
IBEXPEAK - M (LVDS,DDI)
IBEXPEAK - M (LVDS,DDI)
MS-145X
MS-145X
MS-145X
DVI/HDMI
TX_x_D2
TX_x_D1#
TX_x_D0
TX_x_D0#
TX_x_CLK
TX_x_CLK#
DDC_x_CLK
DDC_x_DATA
E
0A
0A
0A
of
of
of
23 56Wednesday, August 05, 2009
23 56Wednesday, August 05, 2009
23 56Wednesday, August 05, 2009

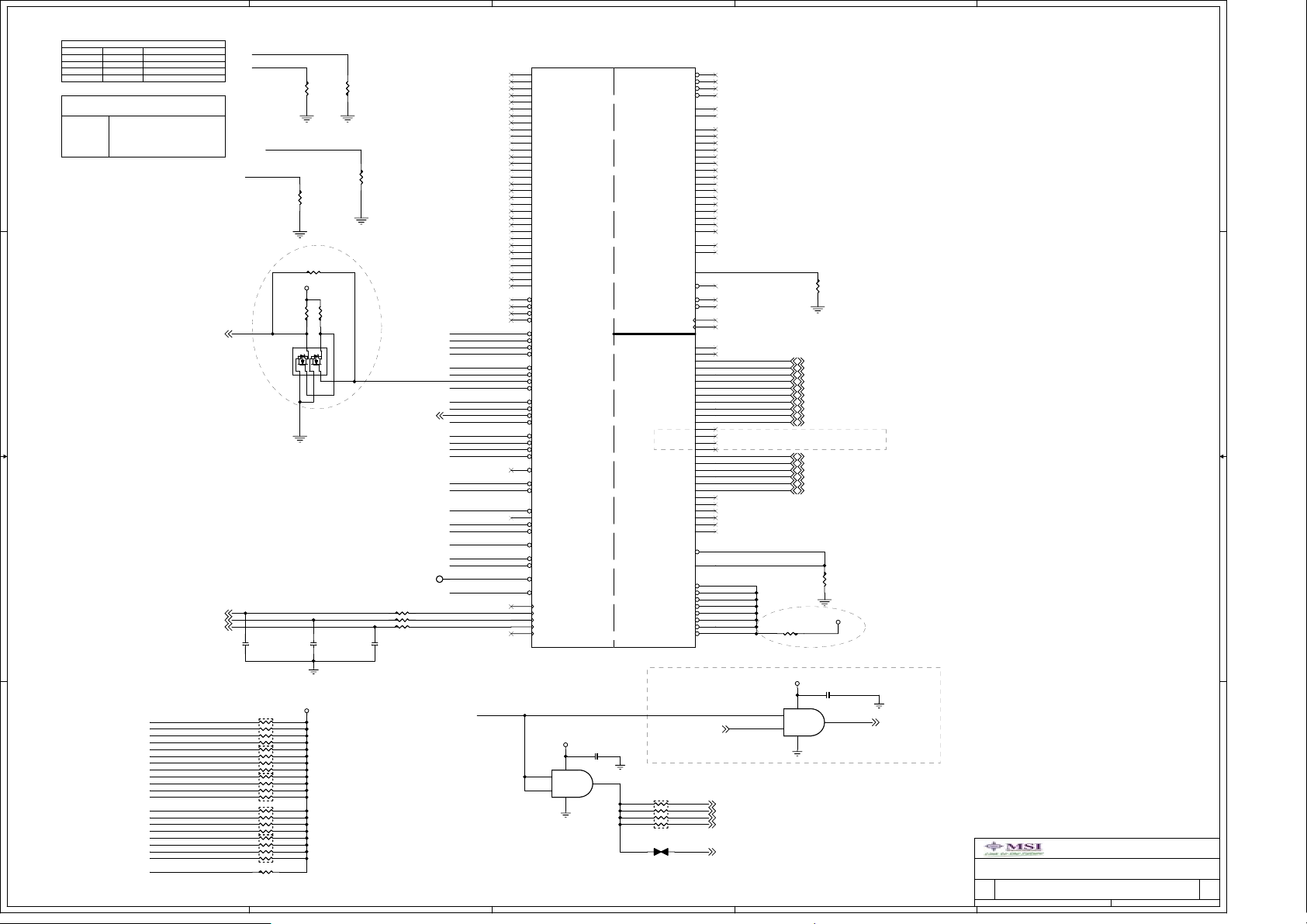

Page 24
A
B
C
D
E
Boot BIOS Strap
IBEXPEAK - M (PCI,USB,NVRAM)
PCI_GNT#1
PCI_GNT#0 Boot BIOS Location
0 LPC
0
1
0
1
A16 swap override Strap/Top-Block
1 1
2009/06/26 For DGPU_SELECT# driving reserved
(No need for MS-1454)
R367 not stuff for MS-1454
2 2
3 3
4 4
Swap Override jumper
PCI_GNT#3
Reserved
0
PCI
SPI
11
Low = A16 swap
override/Top-Block
Swap Override enabled
High = Default
DGPU_SELECT#18
CLK_PCI_KBC30
CLK_PCIF_PORT8030
PCI_REQ#1
PCI_FRAME#
PCI_TRDY#
INT_PIRQH#
PCI_REQ#0
INT_PIRQB#
INT_PIRQF#
PCI_REQ#3
INT_PIRQG#
INT_PIRQC#
INT_PIRQE#
PCI_STOP#
PCI_LOCK#
PCI_PERR#
PCI_DEVSEL#
INT_PIRQA#
PCI_IRDY#
PCI_SERR#
INT_PIRQD#
PCI_REQ#2
DGPU_PWM_SELECT#
A
CLK_PCI_FB21
PCI_GNT#0
PCI_GNT#1
R280
R280
X_1KR0402
X_1KR0402
PCI_GNT#3
DGPU_PWM_SELECT#
R291
R291
X_1KR0402
X_1KR0402
R367 0R0402R367 0R0402
+3VRUN
R31
R31
X_10KR0402
X_10KR0402
D1
D2
S2
S1
G2
G1
CLK_PCI_FB
CLK_PCI_KBC
CLK_PCIF_PORT80
EC8
EC8
X_C10p50N0402
X_C10p50N0402
RN10 8P4R-8.2KR0402-1RN10 8P4R-8.2KR0402-1
1
2
3
4
5
6
7
RN9 8P4R-8.2KR0402-1RN9 8P4R-8.2KR0402-1
RN12 8P4R-8.2KR0402-1RN12 8P4R-8.2KR0402-1
RN21 8P4R-8.2KR0402-1RN21 8P4R-8.2KR0402-1
RN11 8P4R-8.2KR0402-1RN11 8P4R-8.2KR0402-1
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
R288 10KR0402R288 10KR0402
+3VRUN
EC27
EC27
X_C10p50N0402
X_C10p50N0402
R277
R277
X_1KR0402
X_1KR0402
R275
R275
X_1KR0402
X_1KR0402
R36
R36
X_10KR0402
X_10KR0402
Q7
Q7
X_NN-2N7002DW-7-F_SOT363-6-RH
X_NN-2N7002DW-7-F_SOT363-6-RH
DGPU_PWM_SELECT#18
R34 22R0402R34 22R0402
R283 22R0402R283 22R0402
R33 22R0402R33 22R0402
EC7
EC7
X_C10p50N0402
X_C10p50N0402
B
TP51TP51
INT_PIRQA#
INT_PIRQB#
INT_PIRQC#
INT_PIRQD#
PCI_REQ#0
PCI_REQ#1
PCI_REQ#2
PCI_REQ#3
PCI_GNT#0
PCI_GNT#1
PCI_GNT#3
INT_PIRQE#
INT_PIRQF#
INT_PIRQG#
INT_PIRQH#
PCI_SERR#
PCI_PERR#
PCI_IRDY#
PCI_DEVSEL#
PCI_FRAME#
PCI_LOCK#
PCI_STOP#
PCI_TRDY#
TP_PCI_PME#
PLT_RST#
CLKOUT_PCI1
CLKOUT_PCI2
CLKOUT_PCI3
PLT_RST#
U14E
U14E
H40
AD0
N34
AD1
C44
AD2
A38
AD3
C36
AD4
J34
AD5
A40
AD6
D45
AD7
E36
AD8
H48
AD9
E40
AD10
C40
AD11
M48
AD12
M45
AD13
F53
AD14
M40
AD15
M43
AD16
J36
AD17
K48
AD18
F40
AD19
C42
AD20
K46
AD21
M51
AD22
J52
AD23
K51
AD24
L34
AD25
F42
AD26
J40
AD27
G46
AD28
F44
AD29
M47
AD30
H36
AD31
J50
C/BE0#
G42
C/BE1#
H47
C/BE2#
G34
C/BE3#
G38
PIRQA#
H51
PIRQB#
B37
PIRQC#
A44
PIRQD#
F51
REQ0#
A46
REQ1# / GPIO50
B45
REQ2# / GPIO52
M53
REQ3# / GPIO54
F48
GNT0#
K45
GNT1# / GPIO51
F36
GNT2# / GPIO53
H53
GNT3# / GPIO55
B41
PIRQE# / GPIO2
K53
PIRQF# / GPIO3
A36
PIRQG# / GPIO4
A48
PIRQH# / GPIO5
K6
PCIRST#
E44
SERR#
E50
PERR#
A42
IRDY#
H44
PAR
F46
DEVSEL#
C46
FRAME#
D49
PLOCK#
D41
STOP#
C48
TRDY#
M7
PME#
D5
PLTRST#
N52
CLKOUT_PCI0
P53
CLKOUT_PCI1
P46
CLKOUT_PCI2
P51
CLKOUT_PCI3
P48
CLKOUT_PCI4
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
1
2
+3VSUS
C128 C0.1u10X0402C128 C0.1u10X0402
53
U19
U19
VCC
VCC
A
A
B
B
GND
GND
S08P5X_SC70
S08P5X_SC70
Y
Y
4
PCI
PCI
NV_DQ0 / NV_IO0
NV_DQ1 / NV_IO1
NV_DQ2 / NV_IO2
NV_DQ3 / NV_IO3
NV_DQ4 / NV_IO4
NV_DQ5 / NV_IO5
NV_DQ6 / NV_IO6
NV_DQ7 / NV_IO7
NV_DQ8 / NV_IO8
NV_DQ9 / NV_IO9
NV_DQ10 / NV_IO10
NV_DQ11 / NV_IO11
NVRAM
NVRAM
NV_DQ12 / NV_IO12
NV_DQ13 / NV_IO13
NV_DQ14 / NV_IO14
NV_DQ15 / NV_IO15
NV_RCOMP
NV_WR#0_RE#
NV_WR#1_RE#
NV_WE#_CK0
NV_WE#_CK1
USB
USB
USBRBIAS#
OC0# / GPIO59
OC1# / GPIO40
OC2# / GPIO41
OC3# / GPIO42
OC4# / GPIO43
OC5# / GPIO9
OC6# / GPIO10
OC7# / GPIO14
Not stuff for MS-1454
RN18
RN18
1
3
5
7
8P4R-33R0402
8P4R-33R0402
R98 X_0402R98 X_0402
C
NV_CE#0
NV_CE#1
NV_CE#2
NV_CE#3
NV_DQS0
NV_DQS1
NV_ALE
NV_CLE
NV_RB#
USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP5N
USBP5P
USBP6N
USBP6P
USBP7N
USBP7P
USBP8N
USBP8P
USBP9N
USBP9P
USBP10N
USBP10P
USBP11N
USBP11P
USBP12N
USBP12P
USBP13N
USBP13P
USBRBIAS
DGPU_HOLD_RST#25
2
4
6
8
AY9
BD1
AP15
BD8
AV9
BG8
AP7
AP6
AT6
AT9
BB1
AV6
BB3
BA4
BE4
BB6
BD6
BB7
BC8
BJ8
BJ6
BG6
BD3
AY6
NV_RCOMP
AU2
AV7
AY8
AY5
AV11
BF5
H18
J18
USB_PN1
A18
USB_PP1
C18
USB_PN2
N20
USB_PP2
P20
USB_PN3
J20
USB_PP3
L20
USB_PN4
F20
USB_PP4
G20
USB_PN5
A20
USB_PP5
C20
M22
NOTE: USB Port 6,7 may not be
N22
B21
available in all Ibex Peak SKUs.
D21
USB_PN8
H22
USB_PP8
J22
USB_PN9
E22
USB_PP9
F22
USB_PN6
A22
USB_PP6
C22
G24
H24
L24
M24
A24
C24
USB_BIAS
B25
D25
N16
J16
F16
L16
E14
G16
F12
T15
LAN_RST# 34
LPC_RST# 30
NEWCARD_RST# 35
WLAN_RST# 33
BUF_PTL_RST# 3
R314 10KR0402R314 10KR0402
+3VSUS
53
VCC
VCC
1
A
A
B
B
2
GND
GND
R107
R107
X_32.4R1%0402-RH
X_32.4R1%0402-RH
USB_PN1 33
USB_PP1 33
USB_PN2 33
USB_PP2 33
USB_PN3 36
USB_PP3 36
USB_PN4 36
USB_PP4 36
USB_PN5 36
USB_PP5 36
USB_PN8 37
USB_PP8 37
USB_PN9 35
USB_PP9 35
USB_PN6 33
USB_PP6 33
R303
R303
22.6R1%0402
22.6R1%0402
+3VSUS
C151 C0.1u10X0402C151 C0.1u10X0402
U21
U21
4
Y
Y
S08P5X_SC70
S08P5X_SC70
D
PCIE_RST# 11
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
IBEXPEAK - M (PCI,USB,NVRAM)
IBEXPEAK - M (PCI,USB,NVRAM)
IBEXPEAK - M (PCI,USB,NVRAM)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
24 56Wednesday, August 05, 2009
24 56Wednesday, August 05, 2009
24 56Wednesday, August 05, 2009
of
of
of
0A
0A
0A

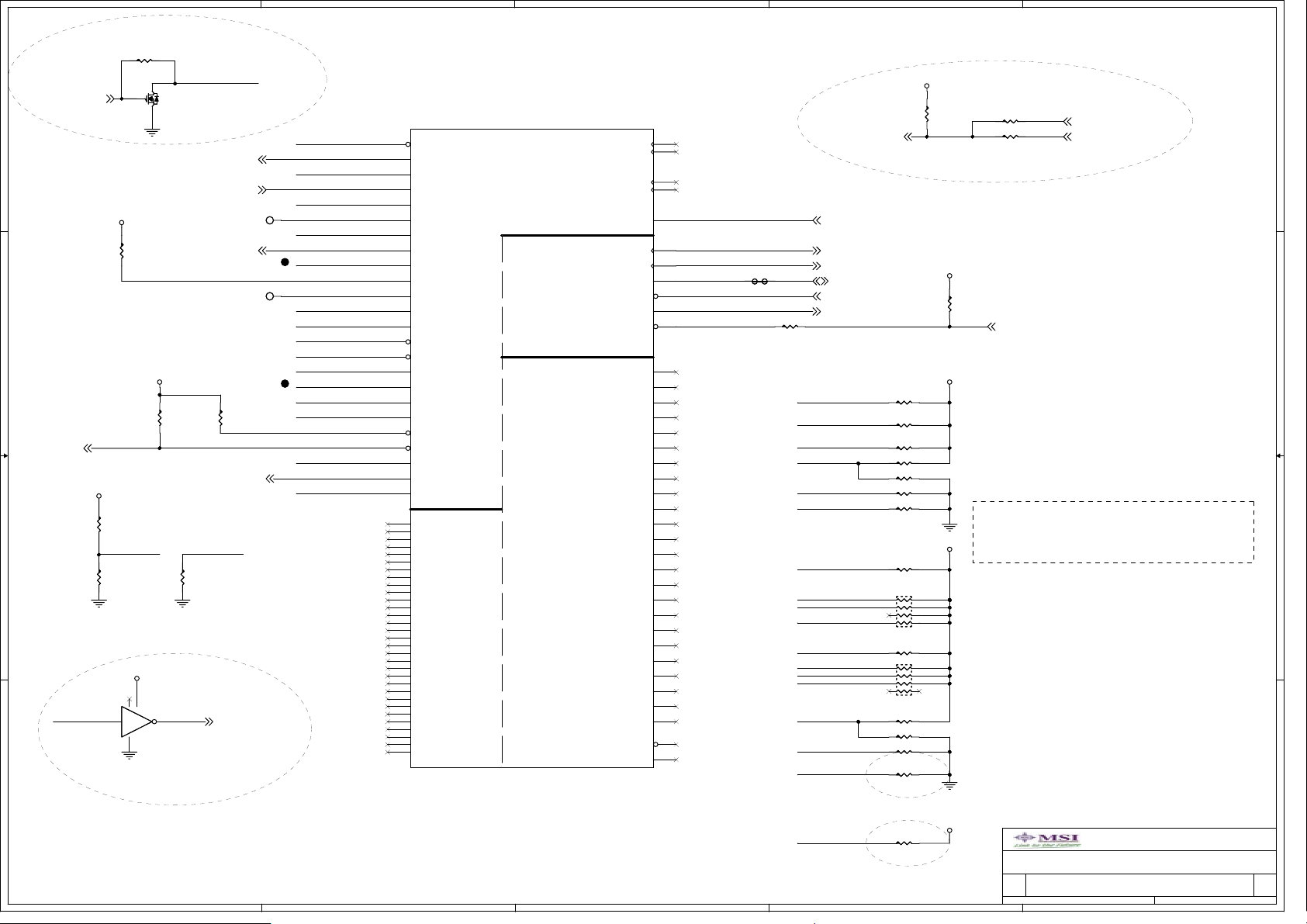

Page 25
A
B
C
D
E
Not stuff for MS-1454(UMA only)
R278 X_0R0402R278 X_0R0402
DGPU_HPD_INTR_R#
DS
Q24
Q24
DGPU_HPD_INTR#12
1 1
2 2
RS_GATE#47
3 3
DGPU_PWR_EN#
G
+3VRUN
R353
R353
10KR0402
10KR0402
+3VSUS
R345
R345
X_10KR0402
X_10KR0402
SATA_PWR_EN#0
R332
R332
X_10KR0402
X_10KR0402
+3VRUN
5
NC
NC
VCC
VCC
2 4
A
A
GND
GND
SN74LVC1G04DBV_SOT23-5-RH
SN74LVC1G04DBV_SOT23-5-RH
3 1
X_N-2N7002_SOT23
X_N-2N7002_SOT23
+3VSUS
R346
R346
10KR0402
10KR0402
U24
U24
Y
Y
KBSMI#30
KBSCI#30
DGPU_HOLD_RST#24
R117
R117
10KR0402
10KR0402
CRIT_TEMP_REP#_R30
SATA_PWR_EN#1
R343
R343
10KR0402
10KR0402
DGPU_PWR_EN 12,45
TP45TP45
TP49TP49
S_GPIO0
DGPU_HPD_INTR_R#
HOST_ALERT#2
PM_LANPHY_EN
HOST_ALERT#1
DGPU_HOLD_RST#
DGPU_PWROK
BIOS_REC
TP_UPEK_PWR_EN
SATA_PWR_EN#0
SPI_CS#2
STP_PCI#
SATA_PWR_EN#1
DGPU_PWR_EN#
DGPUPRSNT#
MFG_MODE
CRB_SV_DET
SPI2_SO
SPI2_SI
SV_SET_UP
CRIT_TEMP_REP#_R
GPIO57
Not stuff for MS-1454(UMA only)
4 4
IBEXPEAK - M (GPIO,VSS_NCTF,RSVD)
U14F
U14F
A20GATE
PECI
RCIN#
TP10
TP11
TP12
TP13
TP14
TP15
TP16
TP17
TP18
TP19
NC_1
NC_2
NC_3
NC_4
NC_5
INIT3_3V#
TP24
TP1
TP2
TP3
TP4
TP5
TP6
TP7
TP8
TP9
AH45
AH46
AF48
AF47
U2
AM3
AM1
BG10
T1
BE10
BD10
BA22
AW22
BB22
AY45
AY46
AV43
AV45
AF13
M18
N18
AJ24
AK41
AK42
M32
N32
M30
N30
H12
AA23
AB45
AB38
AB42
AB41
T39
P6
C10
H_PECI_R
PCH_THRMTRIP#_R
ER14ER14
R329 56R1%0402R329 56R1%0402
HOST_ALERT#1
HOST_ALERT#2
SPI_CS#2
GPIO57
DGPU_HOLD_RST#
HOST_ALERT#2
DGPU_PWR_EN#
CRIT_TEMP_REP#_R
DGPU_HPD_INTR#
STP_PCI#
DGPU_HOLD_RST#
SV_SET_UP
S_GPIO0
MFG_MODE
CRB_SV_DET
DGPU_PWROK
DGPUPRSNT#
Y3
BMBUSY# / GPIO0
C38
TACH1 / GPIO1
D37
TACH2 / GPIO6
J32
TACH3 / GPIO7
F10
GPIO8
K9
LAN_PHY_PWR_CTRL / GPIO12
T7
GPIO15
AA2
SATA4GP / GPIO16
F38
TACH0 / GPIO17
Y7
SCLOCK / GPIO22
H10
MEM_LED / GPIO24
AB12
GPIO27
V13
GPIO28
M11
STP_PCI# / GPIO34
V6
SATACLKREQ# / GPIO35
AB7
SATA2GP / GPIO36
AB13
SATA3GP / GPIO37
V3
SLOAD / GPIO38
P3
SDATAOUT0 / GPIO39
H3
PCIECLKRQ6# / GPIO45
F1
PCIECLKRQ7# / GPIO46
AB6
SDATAOUT1 / GPIO48
AA4
SATA5GP / GPIO49
F8
GPIO57
A4
VSS_NCTF_1
A49
VSS_NCTF_2
A5
VSS_NCTF_3
A50
VSS_NCTF_4
A52
VSS_NCTF_5
A53
VSS_NCTF_6
B2
VSS_NCTF_7
B4
VSS_NCTF_8
B52
VSS_NCTF_9
B53
VSS_NCTF_10
BE1
VSS_NCTF_11
BE53
VSS_NCTF_12
BF1
VSS_NCTF_13
BF53
VSS_NCTF_14
BH1
VSS_NCTF_15
BH2
VSS_NCTF_16
BH52
VSS_NCTF_17
BH53
VSS_NCTF_18
BJ1
VSS_NCTF_19
BJ2
VSS_NCTF_20
BJ4
VSS_NCTF_21
BJ49
VSS_NCTF_22
BJ5
VSS_NCTF_23
BJ50
VSS_NCTF_24
BJ52
VSS_NCTF_25
BJ53
VSS_NCTF_26
D1
VSS_NCTF_27
D2
VSS_NCTF_28
D53
VSS_NCTF_29
E1
VSS_NCTF_30
E53
VSS_NCTF_31
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
MISC
MISC
CLKOUT_BCLK0_N / CLKOUT_PCIE8N
CLKOUT_BCLK0_P / CLKOUT_PCIE8P
GPIO
GPIO
CPU
CPU
NCTF
NCTF
RSVD
RSVD
CLKOUT_PCIE6N
CLKOUT_PCIE6P
CLKOUT_PCIE7N
CLKOUT_PCIE7P
PROCPWRGD
THRMTRIP#
DGPU_PWROK12
H_A20GATE 30
BCLK_CPU# 3
BCLK_CPU 3
H_PECI 3
KBRST# 30
H_CPUPWRGD 3
R344 X_1KR0402R344 X_1KR0402
R335 10KR0402R335 10KR0402
R341 10KR0402R341 10KR0402
R336 X_10KR0402R336 X_10KR0402
R334 10KR0402R334 10KR0402
R110 X_10KR0402R110 X_10KR0402
R328 X_1KR0402R328 X_1KR0402
R339 1KR0402R339 1KR0402
8P4R-10KR0402
8P4R-10KR0402
R338 X_10KR0402R338 X_10KR0402
8P4R-10KR0402
8P4R-10KR0402
R123 X_10KR0402R123 X_10KR0402
R109 10KR0402R109 10KR0402
R286 X_10KR0402R286 X_10KR0402
R322 10KR0402R322 10KR0402
1
3
5
7
1
3
5
7
2009/07/01 Combine Park 1.8V and 1.0V to DGPU_PWROK
+3VRUN
Not stuff for MS-1454(UMA only)
R284
R284
10KR0402
10KR0402
RN25
RN25
RN17
RN17
R257 0R0402R257 0R0402
R256 0R0402R256 0R0402
+VTT
R330
R330
56R0402
56R0402
H_THRMTRIP# 3
+3VSUS
Retain 25-MHz crystal footprint on your platform.
---Though FCIM will not be available, retaining the footprint will allow
Intel and customer to test and evaluate FCIM for future platforms.
---25-MHz crystal and associated capacitor footprints only are requested
– components do not need to be populated.
+3VRUN
---Keep 1K Ohm resistor un-stuffed to GND on Ibex Peak GPIO8.
2
4
6
8
2
4
6
8
+1_8VRUN_PARK_PWRGD 45
+1_0VRUN_PARK_PWRGD 45
2009/07/02 Stuff R316 and not stuff R322 for MS-1454
+3VRUN
DGPUPRSNT#
A
B
C
R316 X_10KR0402R316 X_10KR0402
D
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
IBEXPEAK-M(GPIO,VSS_NCTF,RSVD)
IBEXPEAK-M(GPIO,VSS_NCTF,RSVD)
IBEXPEAK-M(GPIO,VSS_NCTF,RSVD)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
of
of
of
25 56Wednesday, August 05, 2009
25 56Wednesday, August 05, 2009
25 56Wednesday, August 05, 2009
0A
0A
0A
Page 26
A
B
C
D
E
IBEXPEAK - M (POWER)
1 1
0.04A
2 2
+VTT
3.062A
C460
C91
C91
C10u6.3X50805-1
C10u6.3X50805-1
3 3
0.037A
R90 X_0R0805R90 X_0R0805
+VTT
NO_STUFF
L20
L20
X_1u400mA-RH
X_1u400mA-RH
C460
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C103
C103
X_C10u6.3X50805-1
X_C10u6.3X50805-1
1.432A
C453
C453
C1u6.3Y0402-RH
C1u6.3Y0402-RH
+VTT
+VTT+VTT
L19
L19
X_1u400mA-RH
X_1u400mA-RH
C468
C468
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C462
C462
C0.1u16Y0402
C0.1u16Y0402
+V1_1S_VCCAPLL_EXP
C92
C92
X_C10u6.3X50805-1
X_C10u6.3X50805-1
C446
C446
C1u6.3Y0402-RH
C1u6.3Y0402-RH
+3VRUN+VTT +VCCVRM
+V1_1S_VCCAPLL_FDI
U14G
U14G
AB24
VCCCORE[1]
AB26
VCCCORE[2]
AB28
VCCCORE[3]
AD26
VCCCORE[4]
AD28
VCCCORE[5]
AF26
VCCCORE[6]
AF28
VCCCORE[7]
AF30
VCCCORE[8]
AF31
VCCCORE[9]
AH26
VCCCORE[10]
AH28
VCCCORE[11]
AH30
VCCCORE[12]
AH31
VCCCORE[13]
AJ30
VCCCORE[14]
AJ31
VCCCORE[15]
AK24
VCCIO[24]
BJ24
VCCAPLLEXP
AN20
VCCIO[25]
AN22
VCCIO[26]
AN23
VCCIO[27]
AN24
VCCIO[28]
AN26
VCCIO[29]
AN28
VCCIO[30]
BJ26
VCCIO[31]
BJ28
VCCIO[32]
AT26
VCCIO[33]
AT28
VCCIO[34]
AU26
VCCIO[35]
AU28
VCCIO[36]
AV26
VCCIO[37]
AV28
VCCIO[38]
AW26
VCCIO[39]
AW28
VCCIO[40]
BA26
VCCIO[41]
BA28
VCCIO[42]
BB26
VCCIO[43]
BB28
VCCIO[44]
BC26
VCCIO[45]
BC28
VCCIO[46]
BD26
VCCIO[47]
BD28
VCCIO[48]
BE26
VCCIO[49]
BE28
VCCIO[50]
BG26
VCCIO[51]
BG28
VCCIO[52]
BH27
VCCIO[53]
AN30
VCCIO[54]
AN31
VCCIO[55]
AN35
VCC3_3[1]
AT22
VCCVRM[1]
BJ18
VCCFDIPLL
AM23
VCCIO[1]
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
POWER
POWER
VCC CORE
VCC CORE
DMI
DMI
PCI E*
PCI E*
NAND / SPI
NAND / SPI
FDI
FDI
CRTLVDS
CRTLVDS
VCCTX_LVDS[1]
VCCTX_LVDS[2]
VCCTX_LVDS[3]
VCCTX_LVDS[4]
HVCMOS
HVCMOS
VCCADAC[1]
VCCADAC[2]
VSSA_DAC[1]
VSSA_DAC[2]
VCCALVDS
VSSA_LVDS
VCC3_3[2]
VCC3_3[3]
VCC3_3[4]
VCCVRM[2]
VCCDMI[1]
VCCDMI[2]
VCCPNAND[1]
VCCPNAND[2]
VCCPNAND[3]
VCCPNAND[4]
VCCPNAND[5]
VCCPNAND[6]
VCCPNAND[7]
VCCPNAND[8]
VCCPNAND[9]
VCCME3_3[1]
VCCME3_3[2]
VCCME3_3[3]
VCCME3_3[4]
AE50
AE52
AF53
AF51
AH38
AH39
AP43
AP45
AT46
AT45
AB34
AB35
AD35
AT24
AT16
AU16
AM16
AK16
AK20
AK19
AK15
AK13
AM12
AM13
AM15
AM8
AM9
AP11
AP9
+VCCA_DAC_1_2
+3VRUN
+VCC_TX_LVDS
C444
C444
C0.1u16Y0402
C0.1u16Y0402
C478
C478
C1u6.3Y0402-RH
C1u6.3Y0402-RH
+V_NVRAM_VCCPNAND
C480
C480
X_C1u6.3Y0402-RH
X_C1u6.3Y0402-RH
C482
C482
C0.1u16Y0402
C0.1u16Y0402
0.001A
C438
C438
C0.01u10X0402-RH
C0.01u10X0402-RH
+1_8VRUN
0.156A
C47
C47
C0.01u10X0402-RH
C0.01u10X0402-RH
C436
C436
C0.01u10X0402-RH
C0.01u10X0402-RH
+VCCVRM
0.058A
R317
R317
X_0R0805
X_0R0805
C45
C45
C0.1u16Y0402
C0.1u16Y0402
C431
C431
C22u6.3X51206-RH-4
C22u6.3X51206-RH-4
+3VRUN
+VTT
+3VRUN
0.085A
L33
L33
0.1u300mA-RH
0.1u300mA-RH
0.357A
0.196A
+1_8VRUN
L13
L13
180L230mA-300-RH
180L230mA-300-RH
C38
C38
C10u6.3X50805-1
C10u6.3X50805-1
0.059A
+3VRUN
0.069A
+VCCVRM
4 4
The VCCVRM rail (1.8 V/1.5 V) powers an internal voltage regulator module (VRM) that
regulates clean 1.05-V voltage supply for analog rails (VCCAClk, VccapllEXP, VCCFDIPLL,
and VCCSATAPLL). This solution will allow us to remove the LC filter requirements for
those rails, thereby reducing platform BOM cost. VCCVRM is enabled by default via
internal pull up to GPIO27, therefore GPIO27 should be left as No Connect. The
following diagram shows implementation details on how to enable and disable VccVRM.
A
B
C
+1_5VRUN
+1_8VRUN
NO_STUFF
R293 X_0R0805R293 X_0R0805
R302 0R0805R302 0R0805
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
IBEXPEAK - M (POWER)
IBEXPEAK - M (POWER)
IBEXPEAK - M (POWER)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
26 56Wednesday, August 05, 2009
26 56Wednesday, August 05, 2009
26 56Wednesday, August 05, 2009
of
of
of
0A

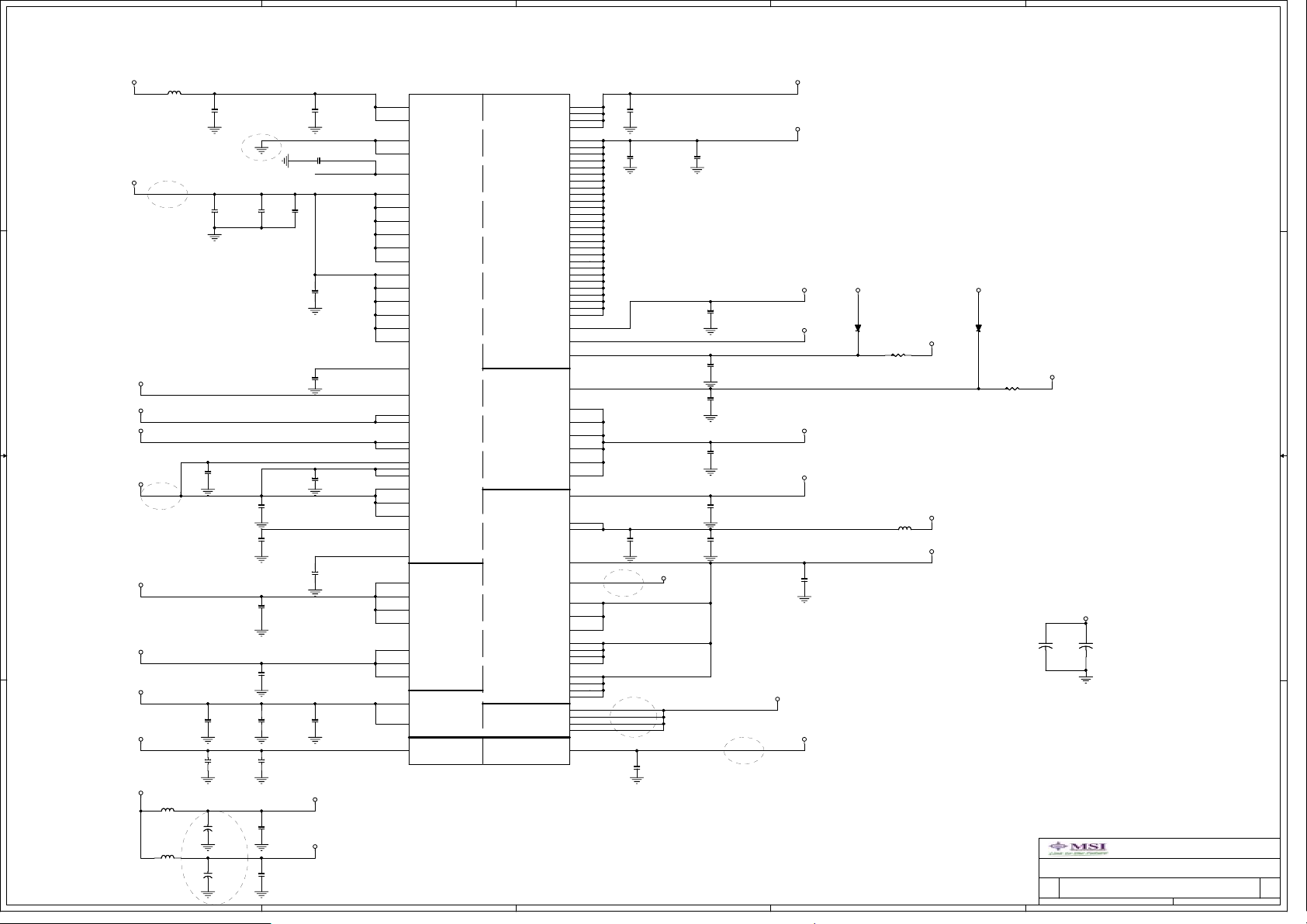

Page 27
A
B
C
D
E
IBEXPEAK - M (POWER)
+VTT
0.052A
1 1
L14 X_10u100mA_0805-RHL14 X_10u100mA_0805-RH
+VTT
C46
C46
X_C10u6.3X50805-1
X_C10u6.3X50805-1
+V1_1S_VCCA_CLK
C54
C54
X_C1u6.3Y0402-RH
X_C1u6.3Y0402-RH
C475 C0.1u16Y0402C475 C0.1u16Y0402
TP_PCH_DSW
1.849A
C428
C428
C433
C430
C430
C22u6.3X50805-RH
C22u6.3X50805-RH
C22u6.3X50805-RH
C22u6.3X50805-RH
2 2
+VCCVRM
0.196A
+V1_1S_VCCA_A_DPL
0.068A
+V1_1S_VCCA_B_DPL
0.069A
C450
+VTT
3.062A
3 3
4 4
0.163A
0.357A
0.001A
0.002A
+3VSUS
+3VRUN
RTCVCC
+VTT
+VTT
L15 10u100mA_0805-RHL15 10u100mA_0805-RH
L34 10u100mA_0805-RHL34 10u100mA_0805-RH
A
C450
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C467
C467
C4.7u10Y0805
C4.7u10Y0805
C105
C105
C0.1u16Y0402
C0.1u16Y0402
12
+
+
C50
C50
C100u6.3pSO
C100u6.3pSO
+
+
12
C62
C62
C100u6.3pSO
C100u6.3pSO
C433
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C447
C447
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C466
C466
C0.1u16Y0402
C0.1u16Y0402
C452
C452
C0.1u16Y0402
C0.1u16Y0402
C484
C484
C0.1u16Y0402
C0.1u16Y0402
C456
C456
C0.1u16Y0402
C0.1u16Y0402
C104
C104
C0.1u16Y0402
C0.1u16Y0402
C51
C51
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C432
C432
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C435
C435
C0.1u16Y0402
C0.1u16Y0402
+VCCRTCEXT
C469
C469
C0.1u16Y0402
C0.1u16Y0402
C455
C455
C1u6.3Y0402-RH
C1u6.3Y0402-RH
+VCCSST +V1_1S_VCCAPLL
+V1_1A_INT_VCCSUS
C465
C465
C0.1u16Y0402
C0.1u16Y0402
C474
C474
C0.1u16Y0402
C0.1u16Y0402
+V1_1S_VCCA_A_DPL
+V1_1S_VCCA_B_DPL
2009/07/01 C50,C62 change to 100uF POSCAP
U14J
U14J
AP51
VCCACLK[1]
AP53
VCCACLK[2]
AF23
VCCLAN[1]
AF24
VCCLAN[2]
Y20
DCPSUSBYP
AD38
VCCME[1]
AD39
VCCME[2]
AD41
VCCME[3]
AF43
VCCME[4]
AF41
VCCME[5]
AF42
VCCME[6]
V39
VCCME[7]
V41
VCCME[8]
V42
VCCME[9]
Y39
VCCME[10]
Y41
VCCME[11]
Y42
VCCME[12]
V9
DCPRTC
AU24
VCCVRM[3]
BB51
VCCADPLLA[1]
BB53
VCCADPLLA[2]
BD51
VCCADPLLB[1]
BD53
VCCADPLLB[2]
AH23
VCCIO[21]
AJ35
VCCIO[22]
AH35
VCCIO[23]
AF34
VCCIO[2]
AH34
VCCIO[3]
AF32
VCCIO[4]
V12
DCPSST
Y22
DCPSUS
P18
VCCSUS3_3[29]
U19
VCCSUS3_3[30]
U20
VCCSUS3_3[31]
U22
VCCSUS3_3[32]
V15
VCC3_3[5]
V16
VCC3_3[6]
Y16
VCC3_3[7]
AT18
V_CPU_IO[1]
AU18
V_CPU_IO[2]
A12
VCCRTC
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
B
POWER
POWER
VCCSUS3_3[1]
VCCSUS3_3[2]
VCCSUS3_3[3]
VCCSUS3_3[4]
VCCSUS3_3[5]
VCCSUS3_3[6]
VCCSUS3_3[7]
VCCSUS3_3[8]
VCCSUS3_3[9]
VCCSUS3_3[10]
VCCSUS3_3[11]
VCCSUS3_3[12]
VCCSUS3_3[13]
USB
USB
VCCSUS3_3[14]
VCCSUS3_3[15]
VCCSUS3_3[16]
VCCSUS3_3[17]
VCCSUS3_3[18]
VCCSUS3_3[19]
VCCSUS3_3[20]
VCCSUS3_3[21]
VCCSUS3_3[22]
VCCSUS3_3[23]
VCCSUS3_3[24]
VCCSUS3_3[25]
VCCSUS3_3[26]
VCCSUS3_3[27]
VCCSUS3_3[28]
Clock and Miscellaneous
Clock and Miscellaneous
PCI/GPIO/LPC
PCI/GPIO/LPC
VCCSATAPLL[1]
VCCSATAPLL[2]
SATA
SATA
PCI/GPIO/LPC
PCI/GPIO/LPC
CPU
CPU
RTC
RTC
HDA
HDA
VCCIO[5]
VCCIO[6]
VCCIO[7]
VCCIO[8]
VCCIO[56]
V5REF_SUS
V5REF
VCC3_3[8]
VCC3_3[9]
VCC3_3[10]
VCC3_3[11]
VCC3_3[12]
VCC3_3[13]
VCC3_3[14]
VCCIO[9]
VCCVRM[4]
VCCIO[10]
VCCIO[11]
VCCIO[12]
VCCIO[13]
VCCIO[14]
VCCIO[15]
VCCIO[16]
VCCIO[17]
VCCIO[18]
VCCIO[19]
VCCIO[20]
VCCME[13]
VCCME[14]
VCCME[15]
VCCME[16]
VCCSUSHDA
V24
V26
Y24
Y26
V28
U28
U26
U24
P28
P26
N28
N26
M28
M26
L28
L26
J28
J26
H28
H26
G28
G26
F28
F26
E28
E26
C28
C26
B27
A28
A26
U23
V23
F24
K49
J38
L38
M36
N36
P36
U35
AD13
AK3
AK1
AH22
AT20
AH19
AD20
AF22
AD19
AF20
AF19
AH20
AB19
AB20
AB22
AD22
AA34
Y34
Y35
AA35
L30
C454
C454
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C84
C84
C0.022u16X0402
C0.022u16X0402
+V1_1S_VCCAPLL
C135
C135
X_C1u6.3Y0402-RH
X_C1u6.3Y0402-RH
C
+VCCVRM
C68
C68
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C85
C85
C0.1u16Y0402
C0.1u16Y0402
C457
C457
C0.1u16Y0402
C0.1u16Y0402
+V5A_PCH_VCC5REFSUS
C470
C470
C1u6.3Y0402-RH
C1u6.3Y0402-RH
+V5S_PCH_VCC5REF
C429
C429
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C442
C442
C0.1u16Y0402
C0.1u16Y0402
C481
C481
C0.1u16Y0402
C0.1u16Y0402
C148
C148
X_C10u6.3X50805-1
X_C10u6.3X50805-1
+VTT
+VTT
+3VSUS
+VTT
+3VRUN
+3VRUN
0.006A
+3VSUS
0.163A
+3VSUS+3VSUS +3VRUN
D17
D17
S-RB551V-30_SOD323
S-RB551V-30_SOD323
R305
R305
100R
100R
L24
L24
X_10u100mA_0805-RH
X_10u100mA_0805-RH
C463
C463
C1u6.3Y0402-RH
C1u6.3Y0402-RH
D
+5VSUS
+VTT
+VTT
0.001A
0.031A
D15
D15
S-RB551V-30_SOD323
S-RB551V-30_SOD323
R270
R270
100R
100R
100U6.3Y1210
100U6.3Y1210
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
+5VRUN
12
Custom
Custom
Custom
0.001A
+VTT
12
C41
C41
C40
C40
100U6.3Y1210
100U6.3Y1210
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
IBEXPEAK - M (POWER)
IBEXPEAK - M (POWER)
IBEXPEAK - M (POWER)
MS-145X
MS-145X
MS-145X
0A
0A
27 56Wednesday, August 05, 2009
27 56Wednesday, August 05, 2009
E
27 56Wednesday, August 05, 2009
0A
of
of
of
Page 28
A
B
C
D
E
IBEXPEAK - M (GND)
U14H
U14H
AB16
VSS[0]
AA19
VSS[1]
1 1
2 2
3 3
4 4
AA20
VSS[2]
AA22
VSS[3]
AM19
VSS[4]
AA24
VSS[5]
AA26
VSS[6]
AA28
VSS[7]
AA30
VSS[8]
AA31
VSS[9]
AA32
VSS[10]
AB11
VSS[11]
AB15
VSS[12]
AB23
VSS[13]
AB30
VSS[14]
AB31
VSS[15]
AB32
VSS[16]
AB39
VSS[17]
AB43
VSS[18]
AB47
VSS[19]
AB5
VSS[20]
AB8
VSS[21]
AC2
VSS[22]
AC52
VSS[23]
AD11
VSS[24]
AD12
VSS[25]
AD16
VSS[26]
AD23
VSS[27]
AD30
VSS[28]
AD31
VSS[29]
AD32
VSS[30]
AD34
VSS[31]
AU22
VSS[32]
AD42
VSS[33]
AD46
VSS[34]
AD49
VSS[35]
AD7
VSS[36]
AE2
VSS[37]
AE4
VSS[38]
AF12
VSS[39]
Y13
VSS[40]
AH49
VSS[41]
AU4
VSS[42]
AF35
VSS[43]
AP13
VSS[44]
AN34
VSS[45]
AF45
VSS[46]
AF46
VSS[47]
AF49
VSS[48]
AF5
VSS[49]
AF8
VSS[50]
AG2
VSS[51]
AG52
VSS[52]
AH11
VSS[53]
AH15
VSS[54]
AH16
VSS[55]
AH24
VSS[56]
AH32
VSS[57]
AV18
VSS[58]
AH43
VSS[59]
AH47
VSS[60]
AH7
VSS[61]
AJ19
VSS[62]
AJ2
VSS[63]
AJ20
VSS[64]
AJ22
VSS[65]
AJ23
VSS[66]
AJ26
VSS[67]
AJ28
VSS[68]
AJ32
VSS[69]
AJ34
VSS[70]
AT5
VSS[71]
AJ4
VSS[72]
AK12
VSS[73]
AM41
VSS[74]
AN19
VSS[75]
AK26
VSS[76]
AK22
VSS[77]
AK23
VSS[78]
AK28
VSS[79]
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
VSS[80]
VSS[81]
VSS[82]
VSS[83]
VSS[84]
VSS[85]
VSS[86]
VSS[87]
VSS[88]
VSS[89]
VSS[90]
VSS[91]
VSS[92]
VSS[93]
VSS[94]
VSS[95]
VSS[96]
VSS[97]
VSS[98]
VSS[99]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
AK30
AK31
AK32
AK34
AK35
AK38
AK43
AK46
AK49
AK5
AK8
AL2
AL52
AM11
BB44
AD24
AM20
AM22
AM24
AM26
AM28
BA42
AM30
AM31
AM32
AM34
AM35
AM38
AM39
AM42
AU20
AM46
AV22
AM49
AM7
AA50
BB10
AN32
AN50
AN52
AP12
AP42
AP46
AP49
AP5
AP8
AR2
AR52
AT11
BA12
AH48
AT32
AT36
AT41
AT47
AT7
AV12
AV16
AV20
AV24
AV30
AV34
AV38
AV42
AV46
AV49
AV5
AV8
AW14
AW18
AW2
BF9
AW32
AW36
AW40
AW52
AY11
AY43
AY47
AY7
BG12
BB12
BB16
BB20
BB24
BB30
BB34
BB38
BB42
BB49
BB5
BC10
BC14
BC18
BC2
BC22
BC32
BC36
BC40
BC44
BC52
BH9
BD48
BD49
BD5
BE12
BE16
BE20
BE24
BE30
BE34
BE38
BE42
BE46
BE48
BE50
BE6
BE8
BF3
BF49
BF51
BG18
BG24
BG4
BG50
BH11
BH15
BH19
BH23
BH31
BH35
BH39
BH43
BH47
BH7
C12
C50
D51
G10
G14
G18
G22
G32
G36
G40
G44
G52
AF39
H16
H20
H30
H34
H38
H42
U14I
U14I
VSS[159]
B11
VSS[160]
B15
VSS[161]
B19
VSS[162]
B23
VSS[163]
B31
VSS[164]
B35
VSS[165]
B39
VSS[166]
B43
VSS[167]
B47
VSS[168]
B7
VSS[169]
VSS[170]
VSS[171]
VSS[172]
VSS[173]
VSS[174]
VSS[175]
VSS[176]
VSS[177]
VSS[178]
VSS[179]
VSS[180]
VSS[181]
VSS[182]
VSS[183]
VSS[184]
VSS[185]
VSS[186]
VSS[187]
VSS[188]
VSS[189]
VSS[190]
VSS[191]
VSS[192]
VSS[193]
VSS[194]
VSS[195]
VSS[196]
VSS[197]
VSS[198]
VSS[199]
VSS[200]
VSS[201]
VSS[202]
VSS[203]
VSS[204]
VSS[205]
VSS[206]
VSS[207]
VSS[208]
VSS[209]
VSS[210]
VSS[211]
VSS[212]
VSS[213]
VSS[214]
VSS[215]
VSS[216]
VSS[217]
VSS[218]
VSS[219]
VSS[220]
VSS[221]
VSS[222]
VSS[223]
VSS[224]
VSS[225]
VSS[226]
VSS[227]
E12
VSS[228]
E16
VSS[229]
E20
VSS[230]
E24
VSS[231]
E30
VSS[232]
E34
VSS[233]
E38
VSS[234]
E42
VSS[235]
E46
VSS[236]
E48
VSS[237]
E6
VSS[238]
E8
VSS[239]
F49
VSS[240]
F5
VSS[241]
VSS[242]
VSS[243]
VSS[244]
G2
VSS[245]
VSS[246]
VSS[247]
VSS[248]
VSS[249]
VSS[250]
VSS[251]
VSS[252]
VSS[253]
VSS[254]
VSS[255]
VSS[256]
VSS[257]
VSS[258]
VSS[259]
VSS[260]
VSS[261]
VSS[262]
VSS[263]
VSS[264]
VSS[265]
VSS[266]
VSS[267]
VSS[268]
VSS[269]
VSS[270]
VSS[271]
VSS[272]
VSS[273]
VSS[274]
VSS[275]
VSS[276]
VSS[277]
VSS[278]
VSS[279]
VSS[280]
VSS[281]
VSS[282]
VSS[283]
VSS[284]
VSS[285]
VSS[286]
VSS[287]
VSS[288]
VSS[289]
VSS[290]
VSS[291]
VSS[292]
VSS[293]
VSS[294]
VSS[295]
VSS[296]
VSS[297]
VSS[298]
VSS[299]
VSS[300]
VSS[301]
VSS[302]
VSS[303]
VSS[304]
VSS[305]
VSS[306]
VSS[307]
VSS[308]
VSS[309]
VSS[310]
VSS[311]
VSS[312]
VSS[313]
VSS[314]
VSS[315]
VSS[316]
VSS[317]
VSS[318]
VSS[319]
VSS[320]
VSS[321]
VSS[322]
VSS[323]
VSS[324]
VSS[325]
VSS[326]
VSS[327]
VSS[328]
VSS[329]
VSS[330]
VSS[331]
VSS[332]
VSS[333]
VSS[334]
VSS[335]
VSS[336]
VSS[337]
VSS[338]
VSS[339]
VSS[340]
VSS[341]
VSS[342]
VSS[343]
VSS[344]
VSS[345]
VSS[346]
VSS[347]
VSS[348]
VSS[349]
VSS[350]
VSS[351]
VSS[352]
VSS[353]
VSS[354]
VSS[355]
VSS[356]
VSS[366]
H49
H5
J24
K11
K43
K47
K7
L14
L18
L2
L22
L32
L36
L40
L52
M12
M16
M20
N38
M34
M38
M42
M46
M49
M5
M8
N24
P11
AD15
P22
P30
P32
P34
P42
P45
P47
R2
R52
T12
T41
T46
T49
T5
T8
U30
U31
U32
U34
P38
V11
P16
V19
V20
V22
V30
V31
V32
V34
V35
V38
V43
V45
V46
V47
V49
V5
V7
V8
W2
W52
Y11
Y12
Y15
Y19
Y23
Y28
Y30
Y31
Y32
Y38
Y43
Y46
P49
Y5
Y6
Y8
P24
T43
AD51
AT8
AD47
Y47
AT12
AM6
AT13
AM5
AK45
AK39
AV14
IBEX PEAK-M(QMGS)
IBEX PEAK-M(QMGS)
A
B
C
D
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
IBEXPEAK - M (GND)
IBEXPEAK - M (GND)
IBEXPEAK - M (GND)
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
28 56Wednesday, August 05, 2009
28 56Wednesday, August 05, 2009
28 56Wednesday, August 05, 2009
Page 29
A
B
C
D
E
C59 Close to L16 ; C60,C61,C81,C87 Close to power pin
+3VRUN
L16
L16
80L700mA-150-RH
80L700mA-150-RH
+3VRUN
1 1
SYS_PWROK22,43
VR_PWRGD_CLKEN#43
2 2
X_0R0402-RH
X_0R0402-RH
N-2N7002_SOT23
N-2N7002_SOT23
PR188
PR188
R46
R46
10KR0402
10KR0402
Q8
Q8
G
VR_PWRGD_CLKEN
DS
+3VRUN
CARDREADER_4837
C55
C55
SMB_CLK_DIMM9,10,21
SMB_DATA_DIMM9,10,21
+3VCLKGEN
C59
C10u10Y0805
C10u10Y0805
C59
C81
C81
C0.1u16Y0402
C0.1u16Y0402
C61
C61
C0.1u16Y0402
C0.1u16Y0402
C0.1u16Y0402
C0.1u16Y0402
2009/06/30 C63 close to L17
by vendor
L17 80L700mA-150-RHL17 80L700mA-150-RH
C66
C66
C63
C88
C88
X_C10p50N0402
X_C10p50N0402
C63
R78 33R0402R78 33R0402
C10u10Y0805
C10u10Y0805
R74 0R0402R74 0R0402
R62 0R0402R62 0R0402
C0.1u16Y0402
C0.1u16Y0402
C60
C60
C87
C87
C0.1u16Y0402
C0.1u16Y0402
C73
C73
C0.1u16Y0402
C0.1u16Y0402
VR_PWRGD_CLKEN
FSA
C0.1u16Y0402
C0.1u16Y0402
XTAL_IN CLK_BUF_SATA#_R
XTAL_OUT
U13
U13
1
VDDD48MHz_3.3
5
VDD_27MHz
17
VDDSRC_3.3
24
VDDCPU_3.3
29
VDDREF_3.3
15
VDDSRC_IO
18
VDDCPU_IO
28
X1
27
X2
25
CLKPWRGD/PD#_3.3
32
SCLK_3.3
31
SDATA_3.3
33
PAD
2
GND48MHz
8
USB48MHz
9
GND27MHz
12
GNDSRC
21
GNDCPU
26
GNDREF
CPUT0_LPR
CPUC0_LPR
CPUT1_LPR
CPUC1_LPR
DOT96T_LPR
DOT96C_LPR
SATAT_LPR
SATAC_LPR
SRCT1_LPR
SRCC1_LPR
CPU_STOP#
27MHz_SS
27MHz_nonSS
REF_3L/FSLC_3.3**
9LRS3199AKLFT_MLF32-RH
9LRS3199AKLFT_MLF32-RH
CLK_BUF_BCLK_R
23
CLK_BUF_BCLK#_R
22
20
19
CLK_BUF_DOT96_R
3
CLK_BUF_DOT96#_R
4
CLK_BUF_SATA_R
10
11
CLK_DMI_R
13
CLK_DMI#_R
14
R47 10KR0402R47 10KR0402
16
CLK_XTAL_27M_S_IN
7
CLK_XTAL_27M_NS_IN
6
CPU_SEL
30
R44 0R0402R44 0R0402
R45 0R0402R45 0R0402
R75 0R0402R75 0R0402
R76 0R0402R76 0R0402
R61 0R0402R61 0R0402
R54 0R0402R54 0R0402
R52 0R0402R52 0R0402
R51 0R0402R51 0R0402
+3VRUN
R77 22R0402R77 22R0402
RB7 X_22R0402RB7 X_22R0402
R304 33R0402R304 33R0402
CLK_BUF_BCLK 21
CLK_BUF_BCLK# 21
CLK_BUF_DOT96 21
CLK_BUF_DOT96# 21
CLK_BUF_SATA 21
CLK_BUF_SATA# 21
CLK_BUF_EXP 21
CLK_BUF_EXP# 21
2009/06/22
Recommend 4.7KR or 10KR by vendor
For Silego change to 2.2KR
CLK_XTAL_27M_IN 12
To Park OSC Option
CLK_BUF_REF14 21
2009/07/08 Reserved for 0A test
R3211 is for Spread clock(Default use)
RB8 is for non-Spread clock
2009/07/08
Y4換成49S type(cost down as MS-1122)
2009/06/30 R292 not stuff
C75 C33p50N0402C75 C33p50N0402
3 3
C71 C33p50N0402C71 C33p50N0402
Capacity select
If Cload=20pf C71/C75=33pf
If Cload=32pf C71/C75=56pf
4 4
XTAL_IN
23
14
Y8
Y8
D04-0100920-F07
D04-0100920-F07
14.31818MHz
14.31818MHz
XTAL_OUT
+VTT
R292 X_10KR0402R292 X_10KR0402
X_10KR0402
X_10KR0402
R55
R55
CPU_SEL
Internal pull low
For CPU frequency select (133MHz)
Clock GEN. Vendor Table
9LRS3199 SLG8SP587V
VDDIO spec
BOM
0.9975~3.465 1.05~3.466
R39 stuff R40 stuff
CPU0 CPU1CPU_SEL
0(Default)
133MHz
1(1.05~1.5V) 100MHz
133MHz
100MHz
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Clock Generator (9LRS3199AKLFT)
Clock Generator (9LRS3199AKLFT)
Clock Generator (9LRS3199AKLFT)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
29 56Wednesday, August 05, 2009
29 56Wednesday, August 05, 2009
29 56Wednesday, August 05, 2009
of
of
E
of
0A
0A
0A
Page 30
1
+3VRUN
R141 X_10KR0402R141 X_10KR0402
R130 X_10KR0402R130 X_10KR0402
R104 X_10KR0402R104 X_10KR0402
R105 X_10KR0402R105 X_10KR0402
RN15
RN15
1
3
5
7
8P4R-10KR0402
TP9TP9
TP7TP7
TP11TP11
TP8TP8
TP10TP10
8P4R-10KR0402
KBOUT3
KBOUT2
KBOUT1
KBOUT0
8p4C-100p50N0402-RH
8p4C-100p50N0402-RH
KBOUT7
KBOUT6
KBOUT5
KBOUT4
8p4C-100p50N0402-RH
8p4C-100p50N0402-RH
EC_RD#
EC_WR#
EC_CS#
EC_SPICLK
SPI_HOLD#
1 1
2 2
2
4
6
8
EC25
EC25
1
3
5
7
EC24
EC24
1
3
5
7
R43
R43
2.2KR0402
2.2KR0402
KBSMI#
KBSCI#
H_A20GATE
KBRST#
EC_CLKRUN#
BATT_DACCHG
ENCHG
RSMRST#
2
4
6
8
2
4
6
8
SPI_HOLD#
EC_SPICLK
EC_WR#
KBOUT11
KBOUT10
KBOUT9
KBOUT8
8p4C-100p50N0402-RH
8p4C-100p50N0402-RH
KBOUT15
KBOUT14
KBOUT13
KBOUT12
8p4C-100p50N0402-RH
8p4C-100p50N0402-RH
+3VALW+3VALW
C65
C65
C0.1u16Y0402
C0.1u16Y0402
ER10ER10
EC_SPI_CLK EC_SPICLK
R41 22R0402R41 22R0402
EC23
EC23
1
2
3
4
5
6
7
8
EC22
EC22
1
2
3
4
5
6
7
8
R42 2.2KR0402R42 2.2KR0402
U11
U11
8
7
6
5
1
CS#
VCC
2
SO
HOLD#
3
WP#
SCLK
4
GND
SI
MX25L512MC-12G-RH
MX25L512MC-12G-RH
SPI ROM
ER11ER11
EC12
EC12
C22p50N0402
C22p50N0402
EC_CS#
EC_RD#
For EMI suggestion
For SW Debug
LPC_FRAME#
LAD3
LAD2
LAD1
LAD0
+5VRUN
+3VRUN
R312
R312
X_10KR0402
X_10KR0402
AB
AB
LEFT
L_LDRQ0#
INT_SERIRQ
LPC_RST#
FWH_ID0
L_LDRQ0#20
CLK_PCIF_PORT8024
3 3
SW12
SW12
F E
D C
SW_TC017PS
SW_TC017PS
N71-0100900-D02
N71-0100900-D02
SW11
SW11
F E
D C
SW_TC017PS
SW_TC017PS
N71-0100900-D02
N71-0100900-D02
1
2
3
4
5
6
7
8
9
10
11
12
13
14
BH1X4#S_WHITE-1.25PITCH-RH
BH1X4#S_WHITE-1.25PITCH-RH
11/25 EMI
C417
C417
X_C10p50N0402
X_C10p50N0402
TP_CLK
TP_DATARIGHT
C416
C416
X_C10p50N0402
X_C10p50N0402
11/25 EMI
CON11
CON11
1
2
3
15
4
15
5
6
7
8
9
10
16
11
16
12
13
14
N32-1140060-H06
N32-1140060-H06
53398_14
53398_14
+5VRUN
R231
R231
10KR0402
10KR0402
R225
R225
10KR0402
10KR0402
C353
C353
X_C10p50N0402
X_C10p50N0402
RIGHT
LEFT
+5VRUN
C143
C143
X_C10p50N0402
X_C10p50N0402
CN9
CN9
1
SW_R
2
RSV
3
RSV
4
SW_L
5
GND
6
GND
7
CLK
8
CLK
9
DAT
10
DAT
11
VDD
12
VDD
CONN-FPC12U_white-RH
CONN-FPC12U_white-RH
FPC_SD54548_1211
FPC_SD54548_1211
N5A-12F0170-A81
N5A-12F0170-A81
2009/07/14 Change PN and footprint as MS-1451
4 4
2
INT_SERIRQ20
LPC_FRAME#20
CLK_PCI_KBC24
LAD020
LAD120
LAD220
+3VALW
BR-PWM-ADJ19
C18p50N0402
C18p50N0402
13
GND
14
GND
LAD320
R147 10KR0402R147 10KR0402
KBRST#25
KBSCI#25
H_A20GATE25
LPC_RST#24
AC_CTL38
EC_BLON19
BATT_PWM_CHG39
TP_HDA_DOCK_EN#20
CPUFAN_FB35
LED_P1#33
LED_WLAN_BT#33
LED_CAMERA#33
PM_SLP_S5#22
R102 10MR1%0402R102 10MR1%0402
32.768KHZ12.5P_S
32.768KHZ12.5P_S
C120
C120
TPJNC38TPJNC38
TPJNC39TPJNC39
Y10
Y10
TPJNC9TPJNC9
TPJNC10TPJNC10
TPJNC8TPJNC8
12
TPJNC36TPJNC36
TPJNC37TPJNC37
TP52TP52
EC_CLKRUN#
EC_RST#
KBRST#
KBSCI#
H_A20GATE
TP2067_N
TP2064_N
KBOUT0
KBOUT1
KBOUT2
KBOUT3
KBOUT4
KBOUT5
KBOUT6
KBOUT7
KBOUT8
KBOUT9
KBOUT10
KBOUT11
KBOUT12
KBOUT13
KBOUT14
KBOUT15
KBOUT16
KBIN0
KBIN1
KBIN2
KBIN3
KBIN4
KBIN5
KBIN6
KBIN7
ESBDATA
EC_CIR
CAP_RST
EC_RD#
EC_WR#
EC_SPI_CLK
EC_CS#
TP_CLK
TP_DATA
GPIO_8
TP2066_N
TP2065_N
EC_XIN
EC_XOUT
C119
C119
C18p50N0402
C18p50N0402
U23
U23
3
4
12
38
10
8
7
5
37
2
20
1
13
21
23
25
34
26
27
28
29
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
81
82
55
56
57
58
59
60
61
62
17
18
73
74
16
19
119
120
126
128
87
88
85
86
83
84
30
31
122
123
124
KB3926QFD2-RH
KB3926QFD2-RH
C121
C121
X_C1u6.3Y0402-RH
X_C1u6.3Y0402-RH
3
SERIRQ
LFARAME#
PCICLK
CLKRUN#/GPIO1D
LAD0
LAD1
LAD2
LAD3
ECRST#
KBRST#
SCI#/GPIO0E
GA20
PCIRST#
PWM0/GPIO0F
PWM1/GPIO10
GPIO11/PWM2
GPIO19/PWM3
FANPWM0/GPIO12
FANPWM1/GPIO13
FANFB0/GPIO14
FANFB1/GPIO15
KSO0/GPIO20/TP_TEST
KSO1/GPIO21/TP_PLL
KSO2/GPIO22/TP_ANA_TEST
KSO3/GPIO23/TP_ISP
KSO4/GPIO24
KSO5/GPIO25
KSO6/GPIO26
KSO7/GPIO27
KSO8/GPIO28
KSO9/GPIO29
KSO10/GPIO2A
KSO11/GPIO2B
KSO12/GPIO2C
KSO13/GPIO2D
KSO14/GPIO2E
KSO15/GPIO2F/E51_RXD(ISP)
KSO16/GPIO48
KSO17/GPIO49
KSI0/GPIO30/E51TXD(ISP)
KSI1/GPIO31
KSI2/GPIO32
KSI3/GPIO33
KSI4/GPIO34/EDI_CS
KSI5/GPIO35/EDI_CLK
KSI6/GPIO3/EDI_DIN
KSI7/GPIO37/EDI_DO
GPIO0B/ESB_CLK
GPIO0C/ESB_DAT_O/ESB_DAT_I
GPIO40/CIR_RX
GPIO41/CIR_RLC_TX
GPIO0A/RLC_RX2
GPIO0D/RLC_TX2
MISO
MOSI
SPICLK/GPIO58
SPICS#
PSCLK2/GPIO4E
PSDAT2/GPIO4F
PSCLK1/GPIO4C
PSDAT1/GPIO4D
PSCLK0/GPIO4A/P80CLK
PSDAT0/GPIO4B/P80DAT
E51TXD/GPIO16
E51RXD/GPIO17
XCLKI
XCLKO
V18R
LPC I/F
LPC I/F
FAN&PWM
FAN&PWM
IKB
IKB
SPI FLASH
SPI FLASH
PS2 I/F
PS2 I/F
Footprint換回3926C
ESB
ESB
CIR
CIR
UART
UART
R170
R170
X_100KR0402
X_100KR0402
G
C227
C227
X_C2.2u6.3X5
X_C2.2u6.3X5
POWER/GROUND
POWER/GROUND
SMBUS
SMBUS
AD/DA
AD/DA
SDI
SDI
GPXIOA02/SDIMOSI
E51TMR0/GPIO54/WDT_LED#
GPIO59/TEST_CLKSPICLKI
E51TMR1/GPIO53/CAPSLED#
E51INT0/GPIO55/SCROLED#
LED
LED
+3VSUS
R156
R156
X_100KR0402
X_100KR0402
DS
QA8
QA8
X_N-2N7002_SOT23
X_N-2N7002_SOT23
+1_8VRUN_PWRGD42
+1_5VDIMM_PWRGD41
AVCC
AGND
SDA0/GPIO45
SCL0/GPIO44
SDA1/GPIO47
SCL1/GPIO46
DA0/GPO3C
DA1/GPO3D
DA2/GPO3E
DA3/GPO3F
AD0/GPI38
AD1/GPI39
AD2/GPI3A
AD3/GPI3B
AD4/GPI42
AD5/GPI43
GPXIOA00/SDICS#
GPXIOA01/SDICLK
GPXIOA03
GPXIOA04
GPXIOA05
GPXIOA06
GPXIOA07
GPXIOA08
GPXIOA09
GPXIOA10
GPXIOA11
GPXIOD0
GPXIOD1
GPXIOD2
GPXIOD3
GPXIOD4
GPXIOD5
GPXIOD6
GPXIOD7
GPIO04
GPIO07/i_clk_8051
GPIO08/i_clk_peri
GPIO18
GPIO50
E51CS#/GPIO52
E51INT1/GPIO56
GPIO57/XCLK32K
GPIO1A/NUMLED#
G
CA7
CA7
X_C0.1u10X0402
X_C0.1u10X0402
GVR_PWRGD44
+VTT_PWRGD42
9
VCC
22
VCC
33
VCC
96
VCC
111
VCC
125
VCC
67
69
11
GND
24
GND
35
GND
94
GND
113
GND
78
77
80
79
68
70
71
72
63
64
65
66
75
76
97
98
99
100
101
102
103
104
105
106
107
108
109
110
112
114
115
116
117
118
6
14
15
32
89
90
92
95
121
127
36
91
93
DS
QA7
QA7
X_N-2N7002_SOT23
X_N-2N7002_SOT23
ER23ER23
R162 X_0R0402R162 X_0R0402
ER21ER21
ER22ER22
+3VALW
SMB_CPU_DATA
SMB_CPU_CLK
FAN_DA
GPIO_12
TP2060_N
H_PROCHOT#
ER19ER19
ER18ER18
MXM_PWR_EN
LED_ACPI#
LED_CHARGE#
LED_BATLOW#
LED_BLUETOOTH#
EC_DE_POP
HOTKEY_P1_K-
WLAN_BT_K#
SEARCH/CAMERA_K#
LED_WLAN#
+3VRUN+3VRUN
4
L28
L28
80L700mA-150-RH
80L700mA-150-RH
C183
C183
C0.1u10X0402
C0.1u10X0402
TPJNC12TPJNC12
TPJNC13TPJNC13
R159
R159
10KR0402
10KR0402
ALLSYSPG
+3VALW
C187
C187
C10u10Y0805
C10u10Y0805
BATDATA_M 38
BATCLK_M 38
BR_DA_ADJ 19
FAN_DA 35
SUS_PWR_ACK 22
CRIT_TEMP_REP#_R 25
AC_IN# 17,38,39
BAT_IN# 38
TP12TP12
SUS_ON 40
RSMRST# 22
DIMM_ON 41
RUN_ON 40,42,46
VR_ON 43,46
KBC_MUTE 31
WLAN_PWRON 33
LED_ACPI# 33
LED_CHARGE# 33
LED_BATLOW# 33
LED_BLUETOOTH# 33
SUSPWROK 40
PM_SLP_S4# 22
PM_SLP_S3# 22,47
EC_ALLSYSPG 3,22
PWR_SW_KEY# 33
LID# 19
EC_DE_POP 31
HOTKEY_P1_K- 33
WLAN_BT_K# 33
SEARCH/CAMERA_K# 33
KBSMI# 25
ENCHG 38,39
LED_POWER# 33
LED_WLAN# 33
PM_PWRBTN# 22
BT_PWR_ON 33
CAMERA_ON# 33
LED_NUM# 33
LED_CAP# 33
LED_SCR# 33
+3VSUS
53
U29
U29
VCC
VCC
1
A
A
2
B
B
GND
GND
S08P5X_SC70
S08P5X_SC70
5
C486
C491
C485
C485
C0.1u10X0402
C0.1u10X0402
BATT_DACCHG 39
H_PROCHOT# 3
C491
C0.1u10X0402
C0.1u10X0402
Footprint FPC_S25_3 pin definition相(N5A-25F0130-H06 )
BATCLK_M
BATDATA_M
SMB_CPU_DATA
SMB_CPU_CLK
EC_ALLSYSPG
4
Y
Y
C214
C214
X_C2.2u6.3X5
X_C2.2u6.3X5
C486
C0.1u10X0402
C0.1u10X0402
KeyBoard
KBOUT16
25
KBOUT15
24
KBOUT14
23
KBOUT13
22
KBOUT12
21
KBOUT11
20
KBOUT10
19
KBOUT9
18
KBOUT8
KBIN7
KBIN6
KBIN5
KBIN4
KBIN3
KBIN2
KBIN1
KBIN0
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
KBOUT7
KBOUT6
KBOUT5
KBOUT4
KBOUT3
KBOUT2
KBOUT1
KBOUT0
CON7
CON7
CONN-FPC25B_WHITE-RH
CONN-FPC25B_WHITE-RH
FPC_S25_3
FPC_S25_3
N5A-25F0130-H06
N5A-25F0130-H06
2009/07/23 Change PN and footprint
R126 2.2KR0402R126 2.2KR0402
R116 2.2KR0402R116 2.2KR0402
ER12ER12
ER13ER13
ER45ER45
ER44ER44
+3VALW
SMB_DATA_EC 21
SMB_CLK_EC 21
SMB_THRM_DATA 12
SMB_THRM_CLK 12
26
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
27
27
2009/07/08 因Switchable會切換電源
所以R162不上
1
2
3
4
EC_ALLSYSPG3,22
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
KBC/EC/uP (ENE3925-LFQP144)
KBC/EC/uP (ENE3925-LFQP144)
KBC/EC/uP (ENE3925-LFQP144)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
5
0A
0A
30 56Wednesday, August 05, 2009
30 56Wednesday, August 05, 2009
30 56Wednesday, August 05, 2009
0A
of
of
of
Page 31
5
4
3
2
1
CP7
C99
C99
X_C10p50N0402
X_C10p50N0402
MIC1_L32
MIC1_R32
CP7
X_CP002
X_CP002
CODEC_HDA_BIT_CLK20
D D
CODEC_HDA_SDIN020
C C
A_BIT_CLK
CI12
CI12
X_C10p50N0402
X_C10p50N0402
CP9
CP9
+3VRUN
CP8
CP8
CODEC_HDA_SDOUT20
R91 22R0402R91 22R0402
CODEC_HDA_SYNC20
CODEC_HDA_RST#20
NOT USE GPIO
C152 C2.2u6.3X5C152 C2.2u6.3X5
MIC1_VREFOUT_L32
MIC1_VREFOUT_R32
X_CP002
X_CP002
X_CP002
X_CP002
C144 C2.2u6.3X5C144 C2.2u6.3X5
+V3_AUDIO
+V3_AUDIO
C106
C106
C10u10Y0805
C10u10Y0805
A_BIT_CLK
CODEC_HDA_SDIN0_R
FOUT_R32
FOUT_L32
EAPD
+V5_AUDIO
C107
C107
C0.1u10X0402
C0.1u10X0402
9
U20
U20
5
SDATA-OUT
6
BCLK
8
SDATA-IN
10
SYNC
11
RESET#
2
GPIO0/DMIC_CLK
3
MIC1_L_C
MIC1_R_C LINE2_R
SENSE_A
GPIO1/DMIC_DATA
21
MIC1-L
22
MIC1-R
23
LINE1-L
24
LINE1-R
29
LINE1-VREFO
28
MIC1-VREFO-L
37
PIC37-VREFO
32
MIC1-VREFO-R
13
SENSE A
36
FRONT-R
35
FRONT-L
48
SPDIFO
47
SPDIFI/EAPD
12
BEEP
ALC662
ALC662
ALC662-GR
ALC662
ALC662
38
AVDD125AVDD2
DVDD11DVDD2
LINE2-VREFO
MIC2-VREFO
SIDESURR-L
SIDESURR-R
DVSS14DVSS27AVSS126AVSS2
42
VREF
CD-R
CD-GND
CD-L
MIC2-R
MIC2-L
LINE2-R
LINE2-L
SENSE B
SURR-L
SURR-R
CENTER
JDREF
27
33
NC
20
19
18
MIC2_R
17
MIC2_L
16
15
LINE2_L
14
31
30
34
39
41
45
46
43
44
LFE
40
R108
R108
20KR1%0402
20KR1%0402
C169 C0.1u10X0402C169 C0.1u10X0402
C167 C10u10Y0805C167 C10u10Y0805
C136 C1u6.3X5C136 C1u6.3X5
C130 C1u6.3X5C130 C1u6.3X5
C126 C0.33u16X5-RHC126 C0.33u16X5-RH
C123 C0.33u16X5-RHC123 C0.33u16X5-RH
+5VSUS
C693
C693
2.2U6.3Y
2.2U6.3Y
+3VRUN
AGND
INT_MIC 32
SPK_R
SPK_L
MIC2_VREFOUT_R 32
Q30
Q30
IRLML6402PBF_SOT23
IRLML6402PBF_SOT23
G
R503
R503
100KR0402
100KR0402
DS
Q31
Q31
2N7002
2N7002
G
C494 X_0.47U10XC494 X_0.47U10X
C139
C139
AGND
DS
+V5_AUDIO
C160 0.47U10XC160 0.47U10X
C147 0.47U10XC147 0.47U10X
C10u10Y0805
C10u10Y0805
C168
C168
AGND
JNC49
JNC49
1 2
1 2
JNC50
JNC50
X_NC_93519
X_NC_93519
X_NC_93519
X_NC_93519
SPK_L
SPK_R
C0.1u10X0402
C0.1u10X0402
RIN+
LIN+
BYPASS
GAIN0
GAIN1
+V5_AUDIO
+V5_AMP
C146
C146
C10u10Y0805
C10u10Y0805
6
15
16
5
17
7
9
10
2
3
+ADD=5V
C158
C158
C10u10Y0805
C10u10Y0805
AGND
U22
U22
PVDD
PVDD
VDD
LINRIN-
RIN+
LIN+
BYPASS
GAIN0
GAIN1
APA2031RI-TRL_TSSOP20-LF
APA2031RI-TRL_TSSOP20-LF
ROUT+
ROUTLOUT+
LOUT-
SHUTDOWN
GND
GND
GND
GND
GND
NC
C498
C498
C0.1u10X0402
C0.1u10X0402
18
14
4
8
12
19
21
11
13
1
20
AGND
OUT_R+
OUT_R#
OUT_L+
OUT_L#
EMC8 X_C0.1u25Y0402-RHEMC8 X_C0.1u25Y0402-RH
EMC7 C0.1u25Y0402-RHEMC7 C0.1u25Y0402-RH
EMC9 X_C0.1u25Y0402-RHEMC9 X_C0.1u25Y0402-RH
L22L22
L21L21
CP11
CP11
For EMI solution
OUT_R+ 32
OUT_R# 32
OUT_L+ 32
OUT_L# 32
MUTE_INTSPK_R#
R134
R134
X_0R0402
X_0R0402
KBC_MUTE
X_CP002
X_CP002
C165
C165
C1u10X5
C1u10X5
AGND AGND
AGND
R139
R139
100KR0402
100KR0402
C181
C181
X_C10u6.3X5-RH
X_C10u6.3X5-RH
+V5_AMP
CP10
EC_DE_POP30
B B
MIC_JD32
FRONT_JD32
KBC_MUTE30 KBC_MUTE_ OUT 32
A A
MIC_JD SENSE_A
FRONT_JD
CP10
X_CP002
X_CP002
5
EAPD
R50 X_0402R50 X_0402
R9620KR1%0402 R9620KR1%0402
R1015.1KR1%0402 R1015.1KR1%0402
+5VALW
G
R72
R72
100KR0402
100KR0402
R0402
R0402
DS
Q10
Q10
N-2N7002_SOT23-1
N-2N7002_SOT23-1
PWR_SRC
DS
G
R57
R57
33K/6
33K/6
Q11
Q11
N-2N7002_SOT23-1
N-2N7002_SOT23-1
R56
R56
330K/6
330K/6
C83
C83
X_1u25Y8
X_1u25Y8
4
AGND
AGND
Av
For FAN7031
GAIN0
1
1
X
SE/BTL#
GAIN1GAIN0
00
1
0
0
0
0
11
X
Title
Title
Title
AUDIO(ALC662 + AMP(APA2031)
AUDIO(ALC662 + AMP(APA2031)
AUDIO(ALC662 + AMP(APA2031)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
MS-145X
MS-145X
MS-145X
Date: Sheet
Date: Sheet
Date: Sheet
+V5_AMP
R354 X_100KRR354 X_100KR
R131 100KRR131 100KR
R355 100KRR355 100KR
R138 X_100KRR138 X_100KR
AGND
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
1
GAIN0
GAIN1
GAIN0
GAIN1
0A
0A
0A
of
of
of
31 56Wednesday, August 05, 2009
31 56Wednesday, August 05, 2009
31 56Wednesday, August 05, 2009
For APA2031
Av
6dB
10dB 0
15.6dB
21.6dB
3
GAIN1
0
0
0
1
1
X4.3dB 1
6dB 0
10dB
1
0
15.6dB
21.6dB
4.3dB
X
2
Page 32
5
4
3
2
1
D D
D03-0340409-A68
Q18
+
+
FOUT_L31
FOUT_R31
C C
MIC2_VREFOUT_R31 MIC1_VREFOUT_R31
R113
R113
4.7KR0402
4.7KR0402
C153
C153
Internal Mic
BH1X2HS-1.25PITCH-RH
BH1X2HS-1.25PITCH-RH
N32-1020790-A81
N32-1020790-A81
53398_02
53398_02
CON14
34
B B
AGND
CON14
1
2
AGND
INT_MIC
AGND
R127
R127
1KR0402
1KR0402
C161
C161
C1000P50X0402
C1000P50X0402
C0.1u10X0402
C0.1u10X0402
INT_MIC 31
AGND
1 2
C98
C98
C100u16EL-RH-8
C100u16EL-RH-8
+
+
1 2
C150
C150
C100u16EL-RH-8
C100u16EL-RH-8
1KR0402
1KR0402
KBC_MUTE_ OUT31
FOR EMI close to CON12
INT_MIC
CI14
CI14
21
X_ESD-VPORT0402100MV05-RH
X_ESD-VPORT0402100MV05-RH
R106
R106
D12
D12
AC
X_BAS40WS
X_BAS40WS
AGND
Q18
D S
AO3404 SOT23SGD_T
AO3404 SOT23SGD_T
G
AO3404
AO3404
R100
R100
1KR0402
1KR0402
R88
R88
20KR0402-2
20KR0402-2
MIC1_VREFOUT_L31
MIC1_R31
MIC1_L31
Q19
Q19
D S
R308 75R0402R308 75R0402
R326 75R0402R326 75R0402
SOT23SGD_T
SOT23SGD_T
AGND
G
C124
C124
1u25Y8
1u25Y8
MIC1_VREFOUT_R
MIC1_VREFOUT_L
R320
R320
X_1KR0402
X_1KR0402
AGNDAGNDAGNDAGND
R135
R135
2.2KR0402
2.2KR0402
MIC1_R
MIC1_L MIC1_L_L
C163
C163
X_C1000P50X0402
X_C1000P50X0402
AGND
AGND AGND
L35
L35
300L300mA-350-RH
300L300mA-350-RH
L36
L36
300L300mA-350-RH
300L300mA-350-RH
R309
R309
X_1KR0402
X_1KR0402
C477
C477
C470p50X0402
C470p50X0402
R112
R112
2.2KR0402
2.2KR0402
L23
L23
L25
L25
300L300mA-350-RH
300L300mA-350-RH
300L300mA-350-RH
300L300mA-350-RH
C134
C134
X_C1000P50X0402
X_C1000P50X0402
X_ESD-VPORT0402100MV05-RH
X_ESD-VPORT0402100MV05-RH
FRONT_JD31
X_C1000P50X0402
X_C1000P50X0402
X_ESD-VPORT0402100MV05-RH
X_ESD-VPORT0402100MV05-RH
C471
C471
C470p50X0402
C470p50X0402
AGNDAGND
MIC_JD31
21
D14
D14
C483
C483
EMC
AGND
21
D18
D18
09/21
X_C1000P50X0402
X_C1000P50X0402
21
X_ESD-VPORT0402100MV05-RH
X_ESD-VPORT0402100MV05-RH
AGND
AGND
C129
C129
EMC
AGND
C145
C145
C470p50X0402
C470p50X0402
D13
D13
FRONT_JD
FOUTL
FOUTR
21
D19
D19
X_ESD-VPORT0402100MV05-RH
X_ESD-VPORT0402100MV05-RH
AGND
MIC_JD
MIC1_R_L
C171
C171
C470p50X0402
C470p50X0402
For EMI
7
5
4
1
6
2 3
LOUT7
LOUT7
JACK-AUDIOF_BL-RH-7
JACK-AUDIOF_BL-RH-7
N54-05F0951-H06
N54-05F0951-H06
JACK_AUDPH5_3
JACK_AUDPH5_3
7
8
5
4
3
6
2
1
CN7
CN7
JACK-AUIDO6PSPRING_BLACK-RH
JACK-AUIDO6PSPRING_BLACK-RH
AUDIO_JACK_6P_OB
AUDIO_JACK_6P_OB
N54-06F0481-H06
N54-06F0481-H06
MIC
2009/06/29 Modify internal MIC PN to N32-1020790-A81
4
1
2
3
4
J29
J29
MOLEX
MOLEX
N32-10400V0-A81
N32-10400V0-A81
53261_04
53261_04
OUT_L+31
OUT_L#31
OUT_R#31
A A
OUT_R+31
5
C173
C173
X_680P50X0402
X_680P50X0402
X_680P50X0402
X_680P50X0402
AGND
C174
C174
C175
C175
X_680P50X0402
X_680P50X0402
C176
C176
X_680P50X0402
X_680P50X0402
5
6
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
3
2
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
SPK / HP / MIC
SPK / HP / MIC
SPK / HP / MIC
MS-145X
MS-145X
MS-145X
1
32 56Wednesday, August 05, 2009
32 56Wednesday, August 05, 2009
32 56Wednesday, August 05, 2009
0A
0A
0A
of
of
of
Page 33
A
2009/07/07 0ohm 不上for 漏電issue
+3VRUN
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
+1_5VRUN
Wireless LAN
+3VRUN
R285 X_0R0402R285 X_0R0402
WAKE#1+3.3V_1
3
RSVD1
RSVD25+1.5V_1
7
CLKREQ#
9
GND1
11
REFCLK-
13
REFCLK+
15
GND2
KEY
KEY
17
RSVD3
19
RSVD4
21
GND3
23
PER_N0
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
56
+3.3_AUX
PER_P0
GND4
GND5
SMB_CLK
PET_N0
SMB_DATA
PET_P0
GND6
RSVD5
RSVD6
RSVD7
LED_WWAN#
RSVD8
LED_WLAN#
RSVD9
LED_WPAN#
RSVD10
RSVD11
RSVD12
GNDM1
NC1
NC2
CON15
CON15
SLOT-PCI52P_black-0.8pitch-RH
SLOT-PCI52P_black-0.8pitch-RH
SLOT_MINIPCIEXP52_H9
SLOT_MINIPCIEXP52_H9
N11-0520170-L06
N11-0520170-L06
GND7
RSVD13
RSVD14
RSVD15
RSVD16
RSVD17
GND8
RSVD18
PERST#
GND9
+1.5V_2
GND10
USB_D-
USB_D+
GND11
+1.5V_3
GND12
+3.3V_2
GNDM2
PCIE_WAKE#22,34,35
CLK_MINI_OE#21
CLK_MINI_PCIE3#21
CLK_MINI_PCIE321
4 4
PCIE_RXN2_SLOT221
PCIE_RXP2_SLOT221
PCIE_TXN2_SLOT221
PCIE_TXP2_SLOT221
C89
C89
X_C10u10Y0805
X_C10u10Y0805
B
C94
C94
X_C0.1u10X0402
X_C0.1u10X0402
WLAN_PWRON 30
WLAN_RST# 24
USB_PN6 24
USB_PP6 24
+3VRUN
C72
C72
X_C10u10Y0805
X_C10u10Y0805
C479
C479
X_C0.1u10X0402
X_C0.1u10X0402
+3VRUN
USB_PN624
USB_PP624
C93
C93
X_C2.2u6.3Y
X_C2.2u6.3Y
C
LI8
LI8
4
1
3
2
X_CMC-L02-9008014-T34
X_CMC-L02-9008014-T34
2009/06/26 Reserved by EMI
D
BLUETOOTH
2009/05/11 修改 for new MS-3801
BT_PWR_ON30
USB_PN224
USB_PP224
+5VRUN+3VRUN
R462
R462
R463
R463
X_0R0603
X_0R0603
0R0603
0R0603
USB_PN2
USB_PP2
LI10
LI10
4
1
3
2
X_CMC-L02-9008014-T34
X_CMC-L02-9008014-T34
Reserved for EMI
C629 C0.1u10X0402C629 C0.1u10X0402
8910
7
6
5
4
3
2
1
J30
J30
N32-1080400-A81
N32-1080400-A81
BHEADSMD1X8
BHEADSMD1X8
BH1X8HS-1.25PITCH_WHITE-RH-2
BH1X8HS-1.25PITCH_WHITE-RH-2
USB_PN2
USB_PP2
1
2
DI7
DI7
3
X_ESD-RCLAMP0502B.TCT-RH
X_ESD-RCLAMP0502B.TCT-RH
E
LED light
3 3
+3VRUN
+3VALW
del CN8 0716
SW9
SW9
F E
D C
SW_TC017PS
SW_TC017PS
N71-0100900-D02
N71-0100900-D02
SW-TACT-1B
SW-TACT-1B
SW10
SW10
F E
D C
SW_TC017PS
SW_TC017PS
N71-0100900-D02
N71-0100900-D02
SW-TACT-1B
SW-TACT-1B
SW7
SW7
F E
D C
SW_TC017PS
SW_TC017PS
N71-0100900-D02
N71-0100900-D02
SW-TACT-1B
SW-TACT-1B
SW8
SW8
F E
D C
SW_TC017PS
SW_TC017PS
N71-0100900-D02
N71-0100900-D02
SW-TACT-1B
SW-TACT-1B
1
3
5
7
AB
AB
AB
AB
+3VALW
+3VSUS
+3VRUN
2 2
LED7
LED8
SW7
SW8
1453
1454
1 1
OEM
NostuffStuff Discreate UMA
Stuff
Nostuff
Stuff P1
LED9
SW9
LED10
SW10
IE
P1
CameraWireless
Stuff for CHANNEL
Stuff for OEM
A
LED16 LED-G_20125 LEDS_SML210LED16 LED-G_20125 LEDS_SML210
R476 68RR476 68R
LED19 LED-G_20125 LEDS_SML210LED19 LED-G_20125 LEDS_SML210
R477 68RR477 68R
LED18 LED-O_20125 LEDS_SML210LED18 LED-O_20125 LEDS_SML210
RN19
RN19
2
4
6
8
8P4R-75R
8P4R-75R
+3VRUN
RN7
RN7
8P4R-10KR0402
8P4R-10KR0402
B
1 2
1 2
1 2
LED17
LED17
LED-B_20125 LEDS_SML210
LED-B_20125 LEDS_SML210
1 2
LED15
LED15
LED-B_20125 LEDS_SML210
LED-B_20125 LEDS_SML210
1 2
+3VALW
246
8
135
7
2009/06/29 Change to independent 0.1uF
by EMI
2009/07/10
C133 X_C0.1u16Y0402C133 X_C0.1u16Y0402
C159 X_C0.1u16Y0402C159 X_C0.1u16Y0402
C149 X_C0.1u16Y0402C149 X_C0.1u16Y0402
C487 X_C0.1u16Y0402C487 X_C0.1u16Y0402
For Channel : Stuff SW7,SW9,SW10
For OEM : Stuff all
C653
C653
C655
C655
D11
D11
D9
D9
A C
DIODE_SOD323
DIODE_SOD323
DIODE_SOD323
DIODE_SOD323
X_S-RB751V-40_SOD323-RH
X_S-RB751V-40_SOD323-RH
C0.1u16Y0402C0402
C0.1u16Y0402C0402
C0.1u16Y0402C0402
C0.1u16Y0402C0402
A C
D10
D10
A C
DIODE_SOD323
DIODE_SOD323
X_S-RB751V-40_SOD323-RH
X_S-RB751V-40_SOD323-RH
C652
C0.1u16Y0402C0402
C652
C0.1u16Y0402C0402
C654
C0.1u16Y0402C0402
C654
C0.1u16Y0402C0402
D8
D8
A C
DIODE_SOD323
DIODE_SOD323
X_S-RB751V-40_SOD323-RH
X_S-RB751V-40_SOD323-RH
C656
C0.1u16Y0402C0402
C656
C0.1u16Y0402C0402
X_S-RB751V-40_SOD323-RH
X_S-RB751V-40_SOD323-RH
LED_WLAN# 30
LED_CHARGE# 30
EMI
LED_BATLOW# 30
LED_ACPI# 30
LED_BLUETOOTH# 30
EMI
WLAN_BT_K# 30
SEARCH/CAMERA_K# 30
PWR_SW_KEY# 30
HOTKEY_P1_K- 30
C
GREEN
GREEN
ORANGE
Blue
Blue
+3VSUS
+3VRUN
+3VRUN
2009/07/10
For Channel : Stuff RN8,LED7,LED9, LED10
For OEM : Stuff all
CAMERA
2009/06/29 Reserved 0 ohm pad
by EMI
RN8
RN8
1
3
5
7
8P4R-220R
8P4R-220R
1
3
5
7
8P4R-220R
8P4R-220R
RN24
RN24
LED7 LED-B_20125 LEDS_SML210LED7 LED-B_20125 LEDS_SML210
2
4
6
LED10 LED-B_20125 LEDS_SML210LED10 LED-B_20125 LEDS_SML210
8
LED9 LED-B_20125 LEDS_SML210LED9 LED-B_20125 LEDS_SML210
LED8 LED-B_20125 LEDS_SML210LED8 LED-B_20125 LEDS_SML210
LED11 LED-B_20125 LEDS_SML210LED11 LED-B_20125 LEDS_SML210
2
4
6
LED12 LED-B_20125 LEDS_SML210LED12 LED-B_20125 LEDS_SML210
8
LED13 LED-B_20125 LEDS_SML210LED13 LED-B_20125 LEDS_SML210
LED14 LED-B_20125 LEDS_SML210LED14 LED-B_20125 LEDS_SML210
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
+3VRUN
+5VRUN
R146
R146
R1440RR144
0R
USB_PN124
LI9
LI9
X_CMC-L12-9008084-RH
X_CMC-L12-9008084-RH
USB_PP124
EMI
D
X_0R
X_0R
IRLML6402PBF_SOT23
IRLML6402PBF_SOT23
CAMERA_ON#30
2
1
11/25 EMI
C118 X_C0.1u16Y0402C118 X_C0.1u16Y0402
C132 X_C0.1u16Y0402C132 X_C0.1u16Y0402
C162 X_C0.1u16Y0402C162 X_C0.1u16Y0402
C127 X_C0.1u16Y0402C127 X_C0.1u16Y0402
Q15
Q15
3
4
C21 X_C0.1u16Y0402C21 X_C0.1u16Y0402
C22 X_C0.1u16Y0402C22 X_C0.1u16Y0402
CAM_PWR
DS
C459
C459
G
C10u10Y0805
C10u10Y0805
C20 X_C0.1u16Y0402C20 X_C0.1u16Y0402
C23 X_C0.1u16Y0402C23 X_C0.1u16Y0402
C464
C464
X_C0.01U16X0402
X_C0.01U16X0402
CON12
CON12
1
2
3
7
4
8
5
6
BOX/HEADER/1*6
BOX/HEADER/1*6
53261_06
53261_06
N32-1060410-A81
C488
C488
C489
C489
X_C10p50N0603
X_C10p50N0603
X_C10p50N0603
X_C10p50N0603
LED_POWER# 30
LED_CAMERA# 30
LED_WLAN_BT# 30
LED_P1# 30
SATA_ACTIVE# 20
LED_NUM# 30
LED_CAP# 30
LED_SCR# 30
Title
Title
Title
MINIPCIE,CAMERA,BLUETOOTH,SW
MINIPCIE,CAMERA,BLUETOOTH,SW
MINIPCIE,CAMERA,BLUETOOTH,SW
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet of
Date: Sheet of
N32-1060410-A81
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Blue
MSI CORPORATION
MSI CORPORATION
MSI CORPORATION
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
33 56Wednesday, August 05, 2009
33 56Wednesday, August 05, 2009
33 56Wednesday, August 05, 2009
Page 34
1
2
3
4
5
+3VSUS VDD33
1 1
L12
L12
CH-4.7u1.24A
CH-4.7u1.24A
CHK_S2_2_9
CHK_S2_2_9
CTRL12A
R500
R500
X_0R
X_0R
R0603
R0603
2 2
Note 1: The Trace length
between L1 and 8111DL's Pin
1 must be within 0.5 cm. C5
and C8 to L1 must be within
0.5cm. Refer to Layout guide
for more detail.
3 3
CN12
CN12
1
2
3 4
BH1X2S_white-1.25pitch
BH1X2S_white-1.25pitch
N32-1020650-H06
N32-1020650-H06
SD_53780_0210
SD_53780_0210
4 4
MCT1
MCT2
MCT3
MCT4
1
3
5
7
8P4R-75R
8P4R-75R
RN0402_MSI
RN0402_MSI
IDD33
J38
J38
1 2
X_NC_93519
X_NC_93519
C677
C677
C22u6.3X50805-RH
C22u6.3X50805-RH
C0805_67
C0805_67
IDD33 = Icc33 + ICC12
= 58mA + 289mA
= 347mA
12
C683
C683
C22u6.3X50805-RH
C22u6.3X50805-RH
C0805_67
C0805_67
C684
C684
C0.1u10X0402
C0.1u10X0402
C0402
C0402
MDC CONN
L11
RN20
RN20
1
TS
2
4
6
8
1000L400m_450_0805
1000L400m_450_0805
1000L400m_450_0805
1000L400m_450_0805
EC2
EC2
C1000p50N
C1000p50N
C0805_67
C0805_67
CN_TS CN_TS
L7
L7
CN_RINGRING
R495 is only required by RTL8102EL
R495
R495
X_1KR0402
X_1KR0402
R0402
R0402
EECS_LAN
LED1/EESK
LED2/EEDI
LED3/EEDO
12
R498
R498
3.6K
3.6K
R0402
R0402
+3VSUS
C685
C685
C22u6.3X50805-RH
C22u6.3X50805-RH
C0805_67
C0805_67
R499
R499
0R
0R
R0603
R0603
For RTL8111DL,use this block
R501
VDD33
R501
0R0402
0R0402
R0402
R0402
CTRL12/VDD
For RTL8102EL/8103EL,use this block
R502
CN_RING
TRD3TRD3+
TRD1TRD1+
R502
X_0R0402
X_0R0402
R0402
R0402
CTRL12/VDD
CN11
CN11
12
RJ11
RJ11
10
9
1
2
RJ45
RJ45
3
6
LTK_RJ4511ROS_RJ4511
LTK_RJ4511ROS_RJ4511
N55-12F0110-AF2
N55-12F0110-AF2
RJ45_RJ11_SMT_14P
RJ45_RJ11_SMT_14P
DVDD12
2009/06/24 Modify as 1451
2
U47
U47
1
2
3
4
X_AT93C46DN-SH-T-RH
X_AT93C46DN-SH-T-RH
13
1411
TRD2-
4
TRD2+
5
TRD0-
7
TRD0+
8
CS
SK
DI
DO
VCC
NC
ORG
GND
LAN_GND
VDD33
8
7
6
5
EVDD12
C686
C686
1U 0402
1U 0402
C0402
C0402
DVDD12
Close to Transfomer
C674 C0.1u10XC674 C0.1u10XL11
C675 C0.1u10XC675 C0.1u10X
C676 C0.1u10XC676 C0.1u10X
C673 C0.1u10XC673 C0.1u10X
C678 is only RTL8111DL
C678
C678
C22u6.3X50805-RH
C22u6.3X50805-RH
C0805_67
C0805_67
Close to LAN
Close to LAN
C0402
C0402
C0402
C0402
C0402
C0402
VDD33
MDI0+
MDI0DVDD12
MDI1+
MDI1-
MDI2+
MDI2DVDD12
MDI3+
MDI3-
C687 C0.1u10X0402
C687 C0.1u10X0402
C688 C0.1u10X0402
C688 C0.1u10X0402
C691 C0.1u10X0402
C691 C0.1u10X0402
Close to LAN
PCIE_GLAN_TXP21
PCIE_GLAN_TXN21
LAN MAGNETICS
T7
V_DAC
MDI3MDI3+
V_DAC
MDI2MDI2+ TRD2+TRD2+
V_DAC
MDI1- TRD1-TRD1MDI1+ TRD1+TRD1+
V_DAC
MDI0MDI0+
3
T7
1
TCT1
2
TD1+
3
TD1-
4
TCT2
5
TD2+
6
TD2-
7
TCT3
8
TD3+
9
TD3-
10
TCT4
11
TD4+
12
TD4-
GST5009 LF-RH
GST5009 LF-RH
C679
C679
C0.1u10X0402
C0.1u10X0402
C0402
C0402
U9
U9
1
AVDD33
2
MDIP0
3
MDIN0
4
FB12
5
MDIP1
6
MDIN1
7
GND
8
MDIP2
9
MDIN2
10
AVDD12
11
MDIP3
12
MDIN3
RTL8111DL-GR-RH
RTL8111DL-GR-RH
C692
C692
C0.1u10X0402
C0.1u10X0402
C0402
C0402
24
MCT1
23
MX1+
22
MX1-
21
MCT2
20
MX2+
19
MX2-
18
MCT3
17
MX3+
16
MX3-
15
MCT4
14
MX4+
13
MX4-
VDD33
R496 is only RTL8111DL
R496
R496
0R0402
0R0402
R0402
R0402
R497
R497
2.49KR1%0402
2.49KR1%0402
R0402
R0402
C681C0.1u10X0402C681C0.1u10X0402
C680C0.1u10X0402C680C0.1u10X0402
C682C0.1u10X0402C682C0.1u10X0402
CTRL15/VDD33
CTRL12A
RSET
CTRL12/VDD
CTRL12/VDD
XTAL2
XTAL1
VDD33
DVDD12
VDD33
41
40
44
45
46
47
48
GND
RSET
VDDSR
SROUT12
39
CKTAL242CKTAL1
37
38
LED0
VDD33
AVDD33
AVDD12
EEDI/AUX/LED2
LED3/EEDO
43
ENSR
VDDSR
RTL8111DL
LANWAKEB
DVDD1213GND14HSIP15HSIN16REFCLK_P17REFCLK_N18EVDD1219HSOP20HSON21EGND22NC123NC2
24
DVDD12
MCT4MCT4
TRD3-TRD3TRD3+TRD3+
MCT3MCT3
TRD2-TRD2-
MCT2MCT2
MCT1MCT1
TRD0-TRD0TRD0+TRD0+
LAN_GND
PCIE_GLAN_RXN_C
PCIE_GLAN_RXP_C
4
C17
C17
C27p50N
C27p50N
C0402
C0402
C18
C18
C27p50N
C27p50N
C0402
C0402
Y7
Y7
25MHZ20p
25MHZ20p
TXC7A
TXC7A
1 2
XTAL2
XTAL1
Close to LAN
DVDD12
DVDD12
LED1/EESK
EECS
GND
DVDD12
VDD33
ISOLATEB
PERSTB
CLKREQB
EVDD12
36
35
34
33
32
31
30
29
28
27
26
25
C42
C42
LED1/EESK
LED2/EEDI
LED3/EEDO
EECS_LAN
DVDD12
VDD33
ISOLATEB
1U 0402
1U 0402
C0402
C0402
C26 C0.1u10X0402C0402C26 C0.1u10X0402C0402
C689C0.1u10X0402C0402C689 C0.1u10X0402C0402
C690C0.1u10X0402C0402C690 C0.1u10X0402C0402
LAN_RST# 24
PCIE_WAKE# 22,33,35
CLK_GLAN_OE# 21
Close to LAN
+3VRUN
Close to LAN
C44 C0.1u10X0402C44 C0.1u10X0402
C43 C0.1u10X0402C43 C0.1u10X0402
R20
R20
1 2
X_NC_93519
X_NC_93519
LAN_GND
Title
Title
Title
PCIE 1G LAN (RTL8111DL)
PCIE 1G LAN (RTL8111DL)
PCIE 1G LAN (RTL8111DL)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MS-145X
MS-145X
MS-145X
PCIE_GLAN_RXN 21
PCIE_GLAN_RXP 21
CLK_PCIE_LAN# 21
CLK_PCIE_LAN 21
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
34 56
34 56
34 56
of
of
5
of
R22
R22
1KR0402
1KR0402
R21
R21
15KR1%0402
15KR1%0402
0A
0A
0A
Page 35
A
NEW CARD
U45
U45
NEWCARD_RST#24
4 4
+3VSUS +3VRUN +1_5VRUN +3VRUN_CARD +1_5VRUN_CARD+3VSUS_CARD
C640
C640
C0.1u10X0402
3 3
C0.1u10X0402
+3VRUN_CARD
C645
C645
C0.1u10X0402
C0.1u10X0402
+3VRUN
NEWCARD_PERST#
C631
C631
C0.1u10X0402
C0.1u10X0402
20
16
6
1
2
4
3
5
8
7
SYSRST#
SHDN#
STBY#
3.3VIN
NC1
3.3VOUT
NC2
PERST#
NC3
GND
P2231NFE2
P2231NFE2
AUXOUT
1.5VOUT
OC#
AUXIN
RCLKEN
1.5VIN
NC5
NC4
CPPE#
CPUSB#
GND1
B
19
17
18
15
12
14
11
13
10
9
21
C632
C632
C0.1u10X0402
C0.1u10X0402
+3VSUS
+3VSUS_CARD
+1_5VRUN
+1_5VRUN_CARD
NEWCARD_CPPE#
CPUSB#
C646
C646
C2.2u6.3Y
C2.2u6.3Y
C633
C633
C2.2u6.3Y
C2.2u6.3Y
C
PCIE_WAKE#22,33,34
USB_PN924
USB_PP924
TPB7TPB7
TPB8TPB8
D
PCIE_NEWCARD_TXP21
PCIE_NEWCARD_TXN21
PCIE_NEWCARD_RXP21
PCIE_NEWCARD_RXN21
CLK_NEW_CARD21
CLK_NEW_CARD#21
CLK_NEWCARD_OE#21
+3VRUN_CARD
+3VSUS_CARD
+1_5VRUN_CARD
CONN_TP2
CONN_TP3
E
CON8
CON8
28
30
26
25
24
23
22
21
CLK_NEW_CARD
CLK_NEW_CARD#
NEWCARD_CPPE#
CLK_NEWCARD_OE#
NEWCARD_PERST#
PCIE_WAKE#
USB_PP924
USB_PN924
CPUSB#
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
29
27
32
31
FCI-CON26
FCI-CON26
CARDBUS_S26
CARDBUS_S26
N5D-26F0060-SH4
N5D-26F0060-SH4
2009/06/26 Reserved by EMI
MDC Connector CPU FAN
2 2
1 1
+3VSUS
C101
C101
C0.01U16X0402
C0.01U16X0402
C96
C96
C10u10Y0805
C10u10Y0805
MDC Connector Ver
1.5
3536
31
CON13
CON13
MDC ver 1.5 CON
MDC ver 1.5 CON
33
dual mode select
1 2
MDC_HDA_SDOUT20
MDC_HDA_SYNC20
HDA_SDIN120
MDC_HDA_RST#20 MDC_HDA_BIT_CLK 20
R97 22R0402R97 22R0402
A
3 4
5 6
7 8
9 10
11 12
32
N5C-12F0060-A81
N5C-12F0060-A81
BTB_S12_H2_65
BTB_S12_H2_65
2009/07/14
因限高問題,改回
34
1451用料N5C-12F0060-A81
B
+3VSUS
+3VSUS
CI11
CI11
X_C10p50N0402
X_C10p50N0402
EMI Solution
C204
C204
C1u16Y
C1u16Y
FAN_DA30
C
R153 100KR0402R153 100KR0402
D
U25
U25
1
FSM#
2
VIN
3
VOUT
4
VSET
APL5606KI-TRL_SOP8-RH
APL5606KI-TRL_SOP8-RH
C210
C210
C0.1u16Y0402
C0.1u16Y0402
8
GND
7
GND
6
GND
5
GND
Title
Title
Title
NEWCARD,FAN
NEWCARD,FAN
NEWCARD,FAN
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
MS-145X
MS-145X
Date: Sheet
Date: Sheet
Date: Sheet
MS-145X
+3VRUN+5VRUN
R376
R376
10KR0402
10KR0402
CPUFAN_FB 30
45
3
2
1
C10u10Y0805
C10u10Y0805
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
E
CPUFAN7
CPUFAN7
N32-1030720-A81
N32-1030720-A81
53261_03
53261_03
BH1X3HS-1.25PITCH-RH
BH1X3HS-1.25PITCH-RH
C511
C511
VCCFAN1VCCFAN1
35 56
35 56
35 56
of
of
of
0A
0A
0A
Page 36
A
B
C
D
E
SATA HDD
1.5A_MSMD_POLY_SW
G2G1
N2
CON10
CON10
SATA22PS_BLACK-RH-1
SATA22PS_BLACK-RH-1
N1
N5N-22F0080-H06
N5N-22F0080-H06
SATA_CON_22P_H5
SATA_CON_22P_H5
R19 X_0R0402R19 X_0R0402
P10
P11
P12
P13
P14
P15
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
P7
P8
P9
SATA5TXP20
4 4
SATA5TXN20
SATA5RXN20
SATA5RXP20
SATA5TXP
SATA5TXN
SATA5RXN
SATA5RXP
2009/06/22 Stuff for HDD
shutdown broken issue
+5VRUN
12
C36
C36
100U6.3Y1210
100U6.3Y1210
3 3
C37
C37
X_C0.1u10X0402
X_C0.1u10X0402
C35
C35
X_C0.1u10X0402
X_C0.1u10X0402
1.5A_MSMD_POLY_SW
MINISMD050
MINISMD050
C32
C32
X_C0.1u10X0402
X_C0.1u10X0402
C0402
C0402
USB_PN324
USB_PP324
USB_PN424
X_C470p50X0402
X_C470p50X0402
2009/06/22 SATA HDD P11 is Staggered Spinup function
Staggered Spinup :
USB_PP424
F7
F7
USB5V
USB5V+5VSUS
X_C470p50X0402
X_C470p50X0402
43
C426
C426
43
C52
C52
12
EL8
EL8
X_CMC-L12-9008084-RH
X_CMC-L12-9008084-RH
CCHK_ACM2012
CCHK_ACM2012
C427
C427
X_C0.1u16Y0402
X_C0.1u16Y0402
12
EL7
EL7
X_CMC-L12-9008084-RH
X_CMC-L12-9008084-RH
CCHK_ACM2012
CCHK_ACM2012
C53
C53
X_C0.1u16Y0402
X_C0.1u16Y0402
CI9
CI9
X_C10p50N0402
X_C10p50N0402
C0402
C0402
CI7
CI7
X_C10p50N0402
X_C10p50N0402
C0402
C0402
12
+
+
C39
C39
220U6.3V-SOD
220U6.3V-SOD
100UF_16V_SMD_H6
100UF_16V_SMD_H6
CI10
CI10
X_C10p50N0402
X_C10p50N0402
C0402
C0402
CI8
CI8
X_C10p50N0402
X_C10p50N0402
C0402
C0402
5 6
123
5 6
123
4
4
78
78
USB8
USB8
USB-D-WH-B
USB-D-WH-B
USB_A1_4_8
USB_A1_4_8
N53-04M0630-AF2
N53-04M0630-AF2
USB7
USB7
USB-D-WH-B
USB-D-WH-B
USB_A1_4_8
USB_A1_4_8
N53-04M0630-AF2
N53-04M0630-AF2
如果system 支援這個功能,開機時 HDD 的馬達是不轉的,
BIOS 必須下command 把 HDD wake up,才能做偵測HDD的動作
如果不支援Staggered Spinup 這個function 這隻腳必須接地
2 2
SATA ODD
CON16
CON16
S1
GND
SATA3TXP20
SATA3TXN20
SATA3RXN20
1 1
SATA3RXP20
S2
TX
S3
TX#
S4
GND
S5
RX#
S6
RX
S7
GND
S8
GND
SATA13PSM_BLACK-RH
SATA13PSM_BLACK-RH
N5N-13M0010-A81
N5N-13M0010-A81
SATA_S13
SATA_S13
A
DP
+5V
+5V
MD
GND
GND
GND
EMI Solution
P1
P2
P3
P4
P5
P6
P7
R375 10KR0402R375 10KR0402
12
+
+
C206
C206
X_C100u6.3pSO
X_C100u6.3pSO
+5VRUN
+5VRUN
C205
C205
X_C0.1u10X0402
X_C0.1u10X0402
B
+5VSUS USB_5V
1.5A_MSMD_POLY_SW
1.5A_MSMD_POLY_SW
MINISMD050
MINISMD050
C569
C569
X_C0.1u10X0402
X_C0.1u10X0402
C0402
C0402
F9
F9
C357
C357
X_C1000P50X0402
X_C1000P50X0402
C0402
C0402
USB_PN524
USB_PP524
43
2009/07/07 USB common choke先不上
C
C351
C351
100U6.3Y1210
100U6.3Y1210
C1210MS
C1210MS
12
EL13
EL13
X_CMC-L12-9008084-RH
X_CMC-L12-9008084-RH
CCHK_ACM2012
CCHK_ACM2012
C360
C360
X_C470p50X0402
X_C470p50X0402
C361
C361
X_C0.1u16Y0402
X_C0.1u16Y0402
CI21
CI21
X_C10p50N0402
X_C10p50N0402
C0402
C0402
C0402
C0402
D
RVS
6
USB9
4
4
3
3
2
2
1
1
CI22
CI22
X_C10p50N0402
X_C10p50N0402
Title
Title
Title
HDD,CDROM,USB
HDD,CDROM,USB
HDD,CDROM,USB
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MS-145X
MS-145X
MS-145X
USB9
6
USB-D-WH-B
USB-D-WH-B
USB_CONN_0517
USB_CONN_0517
N53-04M0411-H06
N53-04M0411-H06
5
5
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
E
36 56Wednesday, August 05, 2009
36 56Wednesday, August 05, 2009
36 56Wednesday, August 05, 2009
of
of
of
0A
0A
0A
Page 37
A
CARD_XIN
1 1
CARDREADER_4829
R4730R0402 R4730R0402
B
C
D
E
2009/07/01 48MHz from Clock GEN.
C650 X_15P50N0402C650 X_15P50N0402
C651 X_15P50N0402C651 X_15P50N0402
R475
R475
X_270KR1%0402
X_270KR1%0402
CARD_XOUT
Y12
Y12
X_12MHZ16P_S
X_12MHZ16P_S
1 2
CARD_XIN
+3VRUN
CARD_3V3
+3V_A
31
VCC18
SmWpZ_GND
SmALE_CLK
SDCDZ
SmCLE
SmCeZ
SmReZ
6
XD_D7/MS_D7
+3VRUN
TP47TP47
XD_WP#
32
XD_WE#/SD_WP/MS_BS
3
XD_CD#/MS_INS
27
XD_ALE/SD_CLK/MS_CLK
24
XD_RDY/SD_CMD
22
SD_CD#
26
XD_CLE
23
XD_CE#
7
XD_RE#
25
C671
C671
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C0402
C0402
C624
C624
+3V_A +3V_A
C672
C672
C1u6.3Y0402-RH
C1u6.3Y0402-RH
C0402
C0402
CARD_GND CARD_GND CARD_GND
CARD_3V3
C0402
C0402
X_C0.1u16Y0402
X_C0.1u16Y0402
C647
C647
C10u10Y0805
C10u10Y0805
C695
C695
X_C0.1u16Y0402
X_C0.1u16Y0402
C0402
C0402
2 2
10
U44
U44
1
LedZ_WpZ
2
CARD_XIN
CARD_XOUT
USB_PN824
USB_PP824
R176
R176
12KR1%0402
12KR1%0402
3 3
CARD_GND
NC
8
EClkI_XI
9
12MOut_XO
13
UbDmB
14
UbDpB
12
REXT
11
GND_PHY
16
AGND_PHY
33
GND_TH
UB6250A1 B07-062500C-E18
UB6250A1 B07-062500C-E18
15
VCC_PHY
VDD_PHY
Card_D017Card_D118Card_D220Card_D3
XD_D0/MS_D0/SD_D0
28
29
30
VCC3V
SYSVCC
CardVCC
SmWeZ_SDWPD_MSBS
SmCDZ_MSINSZ
SmBsyZ_SDCMD
Card_D4
Card_D5
Card_D65Card_D7
4
19
21
XD_D2/MS_D2/SD_D2
XD_D3/MS_D3/SD_D3
XD_D4/MS_D4
XD_D5/MS_D5
XD_D1/MS_D1/SD_D1
XD_D6/MS_D6
CLOCK frequency can vary
lie on strap pin config(pin7&pin25)
4 4
XD_RDY/SD_CMD
XD_RE#
XD_CE#
XD_CLE
XD_ALE/SD_CLK/MS_CLK
XD_WE#/SD_WP/MS_BS
XD_WP#
XD_D0/MS_D0/SD_D0
XD_D1/MS_D1/SD_D1
XD_D2/MS_D2/SD_D2
XD_D3/MS_D3/SD_D3
XD_RDY/SD_CMD
XD_ALE/SD_CLK/MS_CLK
XD_D3/MS_D3/SD_D3
XD_CD#/MS_INS
XD_D2/MS_D2/SD_D2
XD_D0/MS_D0/SD_D0
XD_D1/MS_D1/SD_D1
XD_WE#/SD_WP/MS_BS
XD_ALE/SD_CLK/MS_CLK
XD_D0/MS_D0/SD_D0
XD_D2/MS_D2/SD_D2
XD_D3/MS_D3/SD_D3
XD_D4/MS_D4
XD_D1/MS_D1/SD_D1
XD_D5/MS_D5
XD_D6/MS_D6
XD_D7/MS_D7
XD_CD#/MS_INS
XD_WE#/SD_WP/MS_BS
SD_CD#
+3V_A
C696
C696
X_C0.1u16Y0402
X_C0.1u16Y0402
C0402
C0402
CARD_GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
J39
J39
1 2
X_NC_93519
X_NC_93519
CN15
CN15
XD_R/B
XD_RE
XD_CE
XD_CLE
XD_ALE
XD_WE
XD_WP
XD_D0
XD_D1
SD_D2
SD_D3
SD_CMD
GND1
MS_VCC
MS_SCLK
MS_D3
MS_INS
MS_D2
MS_D0
MS_D1
MS_BS
GND2
SD_VCC
SD_CLK
SD_D0
XD_D2
XD_D3
XD_D4
SD_D1
XD_D5
XD_D6
XD_D7
XD_VCC
XD_CD_SW
SD_WP_SW
SD_CD_SW
SD+MS+MMC+XD
SD+MS+MMC+XD
N58-38F0020-TB4
N58-38F0020-TB4
IOASM_4IN1_38_1
IOASM_4IN1_38_1
GND3
GND4
37
38
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
CARD_READER (RTS5159)
CARD_READER (RTS5159)
CARD_READER (RTS5159)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
of
of
of
37 56Wednesday, August 05, 2009
37 56Wednesday, August 05, 2009
37 56Wednesday, August 05, 2009
E
0A
0A
0A
Page 38
A
B
C
D
E
2009/07/10 65W adaptor只需要上一個BEAD
PL7 X_80L6A-30_6A
PL7 X_80L6A-30_6A
L0805_67
L0805_67
L02-8008074-J07
L02-8008074-J07
PL8 80L6A-30_6A
CN13
1 1
CN13
N92-03M0131-H06
N92-03M0131-H06
DCJACK_5
DCJACK_5
1
2
3
PWR-JACK3P_black-5.2mm
PWR-JACK3P_black-5.2mm
4
5
PL8 80L6A-30_6A
L0805_67
L0805_67
L02-8008074-J07
L02-8008074-J07
PC83
PC83
C0.1u50Y
C0.1u50Y
C0603
C0603
AC_CTL30
G
PR73
PR73
100KR0402
100KR0402
R0402
R0402
PC7
PC7
C2200p50X0402
C2200p50X0402
C0402
C0402
DS
PQ19
PQ19
N-2N7002_SOT23-1
N-2N7002_SOT23-1
SOT23SGD_T
SOT23SGD_T
PC8
PC8
C0.1u50Y
C0.1u50Y
C0603
C0603
IN
IN
X
+DC_IN
GND
GND
YZ
OUT
OUT
PQ20
PQ20
P-DTA114EKA
P-DTA114EKA
SOT23_3P_U1
SOT23_3P_U1
PC82
PC82
0.47u25Y
0.47u25Y
C0805_67
C0805_67
PR68
PR68
240K
240K
R0402
R0402
PQ17
PQ17
1
2
3
D03-0443303-A68
D03-0443303-A68
4
PR67 47K
PR67 47K
8
7
6
5
P-AO4433
P-AO4433
SOIC8
SOIC8
R0603
R0603
DC_IN+
PC78
PC78
C0.01u25X0402
C0.01u25X0402
C0402
C0402
PC77
PC77
C0.1u50Y
C0.1u50Y
C0603
C0603
PC79
PC79
C10u25X51206-RH
C10u25X51206-RH
C1206_113
C1206_113
BATCLK_M30
BATDATA_M30
BAT_IN#30
+3VALW
PR72
PR72
100KR0402
100KR0402
R0402
R0402
PC86
PC86
X_C0.1u25X
X_C0.1u25X
C0603
C0603
CI17
CI17
X_C10p50N0402
X_C10p50N0402
2009/06/26 Reserve 10p to GND
by EMI
PR70 100R0402R0402PR70 100R0402R0402
PR71 100R0402R0402PR71 100R0402R0402
CI16
CI16
X_C10p50N0402
X_C10p50N0402
+VBATA
PC85
PC85
C0.1u25Y0402-RH
C0.1u25Y0402-RH
C0402
C0402
1
2
3
4
5
6
7
8
9
1011
CN14
CN14
BATTERY_9pin_black-NB
BATTERY_9pin_black-NB
BATHOLD_D9_1
BATHOLD_D9_1
N91-09M0141-AF2
N91-09M0141-AF2
JBAT1 Pin Definition
2 2
1: VBATA+
2: VBATA+
3: NC
PQ8A
+3VALW
PR15
PR15
100KR0402
100KR0402
D1
D2
PQ9
PQ9
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
S2
S1
G2
CHG_BATT_N
G1
1 7
PQ7A
PQ7A
PP-AO4805_SO8
PP-AO4805_SO8
AC_IN#17,30,39
3 3
PQ8B
PQ8B
PP-AO4805_SO8
V_CHG
PR12 10KR0402PR12 10KR0402
PP-AO4805_SO8
6
4
35
PC16 C0.1u25Y0402-RHPC16 C0.1u25Y0402-RH
PR10 100KR0402PR10 100KR0402
SDC_IN+
PR14 10KR0402PR14 10KR0402
8
2
+VBATA
PQ8A
PP-AO4805_SO8
PP-AO4805_SO8
17
8
2
PR16 100KR0402PR16 100KR0402
PD9 ES3BB-13-F-RHPD9 ES3BB-13-F-RH
PQ7B
PQ7B
PP-AO4805_SO8
PP-AO4805_SO8
35
6
4
PWR_SRC
PWR_SRC
4: NC
5: SMBCLK
6: SMBDATA
7: BAT_IN#
8: GND
9: GND
PQ10
PQ10
D
C0.1u16Y0402
C0.1u16Y0402
PC26
PC26
D
N-2N7002_SOT23-1
N-2N7002_SOT23-1
G
G
S
S
B
C
PR24 100KR0402PR24 100KR0402
ENCHG30,39
4 4
A
PR8
PR8
470KR0402
470KR0402
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Battery Select
Battery Select
Battery Select
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
38 56Wednesday, August 05, 2009
38 56Wednesday, August 05, 2009
38 56Wednesday, August 05, 2009
Page 39
A
DC_IN+
1 1
PR26
PR26
365KR1%0402
365KR1%0402
GND
2 2
PR27
PR27
49.9KR1%0402
49.9KR1%0402
BATT_PWM_CHG30
BATT_DACCHG30
+5VALW
3 3
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
ENCHG30,38
PR19 0R0402PR19 0R0402
PR23
PR23
X_0R0402
X_0R0402
PR18
PR18
100KR0402
100KR0402
PQ12
PQ12
17005_GND
D1
D2
S2
G2
G1
PC28
PC28
C0.1u25X
C0.1u25X
X_C100p16X0402
X_C100p16X0402
C0402
C0402
S1
PR33
PR33
22.6KR1%0402
22.6KR1%0402
PC27
PC27
X_100KR0402
X_100KR0402
17005_GND
AC_IN#17,30,38
PR25
PR25
17005_GND
100KR0402
100KR0402
100KR0402
100KR0402
PC34
PC34
C0.1u25X
C0.1u25X
PR31
PR31
B
PD8
PD8
S-RB751V-40_SOD323-RH
S-RB751V-40_SOD323-RH
PC32
PC32
X_C0.01u25X0402
X_C0.01u25X0402
PC33
PC33
C1u25X5-RH
C1u25X5-RH
PC30
PC30
C1u25X5-RH
C1u25X5-RH
+3VALW
PR32
PR32
PR66 0.02R1%XTRAPR66 0.02R1%XTRA
PR28
PR28
1KR1%0402
1KR1%0402
PR29
PR29
15KR1%0402
15KR1%0402
PD7 X_S-RB501V-40_SOD323PD7 X_S-RB501V-40_SOD323
PC29
PC29
X_C0.01u25X0402
X_C0.01u25X0402
17005_GND 17005_GND
8
CSSP
BP
21
9
CSSN
BST
LDO
DHI
DLO
PGND
CSIP
CSIN
BATT
LX
CC
14
13
15
16
12
11
3
4
6
19
C0.01u25X0402
C0.01u25X0402
PU8
PU8
1
DCIN
17
ACIN
5
IINP
2
AGND
18
VAA
10
ISET
20
VCTL
7
ACOK#
MAX17005ETP+_TQFN20-RH
MAX17005ETP+_TQFN20-RH
C
SDC_IN+
Modify P/N to set maximum power
PR22 1R0402PR22 1R0402
PC25
PC25
C0.1u25Y0402-RH
GND
C0.1u25Y0402-RH
PC12
PC12
C470p50X0402
C470p50X0402
PC24 C1u16X5PC24 C1u16X5
GND
PR30
PR30
0R0402
0R0402
R0402
R0402
PC31
PC31
GND
D
2009/06/26 Reserve 10p to GND
by EMI (Close to PQ16)
SDC_IN+
PC76
CI15
CI15
X_C10p50N0402
X_C10p50N0402
PQ18
PQ18
72
658
N-SI4392DY-T1-E3_SOIC8-RH
4
4
N-SI4392DY-T1-E3_SOIC8-RH
3
1
PQ16
PQ16
72
658
3
1
N-SI4392DY-T1-E3_SOIC8-RH
N-SI4392DY-T1-E3_SOIC8-RH
GND
GND
PC76
C0.1u25X
C0.1u25X
PL9
PL9
1 2
CH-2.5u7.5A10.5mS-RH
CH-2.5u7.5A10.5mS-RH
PR74
PR74
X_2.2R
X_2.2R
PC87
PC87
X_C470p50X0402
X_C470p50X0402
PC80
PC80
C10u25X51206-RH
C10u25X51206-RH
GND
PR7 0.01R1%XTRAPR7 0.01R1%XTRA
PC9
PC9
C0.1u25X
C0.1u25X
PC81
PC81
C10u25X51206-RH
C10u25X51206-RH
2009/07/10 PQ16,PQ18 change PN to D03-0439203-V02
E
V_CHG
PC11
GND
PC11
C10u25X51206-RH
C10u25X51206-RH
PC10
PC10
C10u25X51206-RH
C10u25X51206-RH
GND
JNC20 NC_93519JNC20 NC_93519
JNC7 NC_93519JNC7 NC_93519
JNC8 NC_93519JNC8 NC_93519
4 4
17005_GND GND
EMI
17005_GND
2009/06/26 Add two X-copper
by EMI
A
B
Maximum power 3.2A
C
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Battery Charger
Battery Charger
Battery Charger
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
of
of
of
39 56Wednesday, August 05, 2009
39 56Wednesday, August 05, 2009
39 56Wednesday, August 05, 2009
E
0A
0A
0A
Page 40
A
PWR_SRC
Place these CAPs
close to FETs
1 1
PC106
PC106
C10u25X51206-RH
C10u25X51206-RH
Current limit at 6A for +3.3VSUS
+3VSUS
+3VSUS
2 2
PQ27
PQ27
N-AO4468_SOIC8-RH
N-AO4468_SOIC8-RH
G13G13
21
12
+
+
PC98
PC98
C220u6.3pSO-1
C220u6.3pSO-1
72
658
PR86
PR86
RUND
10KR0402
10KR0402
4
PC94
PC94
3
1
+3VRUN
C0.1u50Y
C0.1u50Y
2009/07/08 PR86 change to 10K ohm 5%
PC112
PC112
C0.1u25Y0402-RH
C0.1u25Y0402-RH
CH-4.7u10A40mS-RH-2
CH-4.7u10A40mS-RH-2
PC108
PC108
C0.1u10X0402
C0.1u10X0402
X_C2200p50X0402
X_C2200p50X0402
C2200p50X0402
C2200p50X0402
PC124
PC124
PL13
PL13
1 2
PR94
PR94
X_2.7R
X_2.7R
PC105
PC105
B
PR76 13KR1%0402PR76 13KR1%0402
+3VALW
+3VALW
PC101 C0.1u50YPC101 C0.1u50Y
PQ30
PQ30
81
7
2
5
3
6
4
NN-SI4914BDY-T1-E3_SOIC8-RH
NN-SI4914BDY-T1-E3_SOIC8-RH
C4.7u6.3X50805
C4.7u6.3X50805
C0805_67
C0805_67
2009/07/09 PQ30,PQ32
Change PN to D03-0491413-V02
GND_TPS51125
PR91 4.7RPR91 4.7R
PC96
PC96
GND_TPS51125
C
JNC24 X_R/2JNC24 X_R/2
GND_TPS51125
C1u6.3X50402-HF
C1u6.3X50402-HF
PC93
PC93
PR85
PR85
20KR1%0402
20KR1%0402
VFB2 VFB1
PR84
PR84
115KR1%0402-RH
115KR1%0402-RH
7
VO2
8
VREG3
9
VBST2
DH2
10
DRVH2
LL2
11
LL2
DL2
12
DRVL2
25
SGND
6
ENTRIP2
EN0
13
JNC25
JNC25
VREF
VREF
0R0402
0R0402
3
5
4
2
PR82
PR82
VFB2
VFB1
VREF
TONSEL
VIN16GND15SKIPSEL
17
14
X_R/2
X_R/2
PC104
PC104
C0.1u25X
C0.1u25X
5VSUS_EN3VSUS_EN
PR80
PR80
20KR1%0402
20KR1%0402
PR83
PR83
107KR1%0402-RH
107KR1%0402-RH
1
ENTRIP1
24
VO1
23
PGOOD
22
VBST1
21
DRVH1
20
LL1
19
DRVL1
VCLK18VREG5
TPS51125RGER_QFN24-RH
TPS51125RGER_QFN24-RH
PU14
PU14
+5VALW
PC100
PC100
C22u6.3X50805-RH
C22u6.3X50805-RH
PR77 31.6KR1%0402PR77 31.6KR1%0402
GND_TPS51125
SUSPWROK
PR89 4.7RPR89 4.7R
DH1
LL1
DL1
PWR_SRC
+5VALW
D
PC99
PC99
C0.1u50Y
C0.1u50Y
PQ32
PQ32
8 1
7
2
5
3
6
4
NN-SI4914BDY-T1-E3_SOIC8-RH
NN-SI4914BDY-T1-E3_SOIC8-RH
2009/06/26 Reserve by EMI
SUSPWROK30
T_CRIT_M92#12
SUSPWROK
DIODE_SOD323
DIODE_SOD323
PL14
PL14
1 2
CH-4.7u10A40mS-RH-2
CH-4.7u10A40mS-RH-2
RI11
RI11
X_2.7R
X_2.7R
CI24
CI24
X_C2200p50X0402
X_C2200p50X0402
+3VALW
D22X_BAS40WS
D22X_BAS40WS
AC
E
PWR_SRC
C2200p50X0402
C2200p50X0402
PC119
PC119
2009/06/26 Reserve 10p to GND
by EMI (Close to PQ32)
PC126
PC126
C10u25X51206-RH
C10u25X51206-RH
PC118
PC118
C10u25X51206-RH
C10u25X51206-RH
Current limit at 7A for +5VSUS
G14G14
12
+
+
PC130
PC130
CI23
CI23
X_C10p50N0402
PR79
PR79
10KR0402
10KR0402
X_C10p50N0402
C0.1u10X0402
C0.1u10X0402
+5VRUN
RUND
PC127
PC127
C220u6.3pSO-1
C220u6.3pSO-1
4
+5VSUS
21
72
658
3
1
+5VSUS
PQ33
PQ33
N-AO4468_SOIC8-RH
N-AO4468_SOIC8-RH
JNC23 X_COPPERJNC23 X_COPPER
GND_TPS51125
JNC22 X_COPPERJNC22 X_COPPER
JNC15 X_COPPERJNC15 X_COPPER
A
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
SUS_ON30
B
PQ25
PQ25
PR78
PR78
X_47KR0402
X_47KR0402
+5VALW
D1
S1
G1
PR81
PR81
100KR0402
100KR0402
D2
S2
G2
5VSUS_EN
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
RUN_ON30,42,46
C
3 3
2009/06/26 Add two X-copper
by EMI
4 4
PR92
PR92
100KR0402
100KR0402
PQ26
PQ26
PWR_SRC
D2
G2
RUN_ON_R
D1
S2
G1
S1
PR93
PR93
100KR0402
100KR0402
PWR_SRC
PR90
PR90
33KR0402
33KR0402
PR87
PR87
470KR0402
470KR0402
RUND 41,46
PC97
PC97
C0.1u25Y0402-RH
C0.1u25Y0402-RH
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
System power
System power
System power
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
40 56Wednesday, August 05, 2009
40 56Wednesday, August 05, 2009
40 56Wednesday, August 05, 2009
Page 41
A
PC17
PC17
C1u16X-RH
C1u16X-RH
PC21
PC21
C1u16X-RH
C1u16X-RH
LL_1V5
+5VSUS
PR17
PR17
2.2R
2.2R
PR13
PR13
4.75KR1%0402
4.75KR1%0402
9
PVCC
2
VCC
6
AGND
4
POK
15
EN/PSM
10
IMAX
5
NC1
14
NC2
1 1
+1_5VDIMM_PWRGD30
DIMM_ON30
2 2
PR20 0R0402PR20 0R0402
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
PC23
PC23
PU7
PU7
B
2009/07/10
S-RB751V-40_SOD323-RH
S-RB751V-40_SOD323-RH
17
17
提升效率用
PD11
PD11
16
TON
12
UGATE
13
BOOT
11
PHASE
8
LGATE
7
PGND
1
VOUT
3
FB
UP6111AQDD_WQFN16-RH
UP6111AQDD_WQFN16-RH
+5VSUS
PR21
PR21
1MR0402
1MR0402
PC22
PC22
C0.1u25Y
C0.1u25Y
DH_1V5
LL_1V5
DL_1V5
PR9
PR9
11KR1%0402
11KR1%0402
C
4
3
2
1
N-SIR472DP-T1-GE3-HF
N-SIR472DP-T1-GE3-HF
PQ21
PQ21
4
3
2
1
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
PC15
PC15
X_C100p16N0402
X_C100p16N0402
D
2009/06/26 Reserve 10p to GND
by EMI (Close to PQ21)
PC19
CI18
CI18
PC88
PC88
C2200p50X0402
5
PQ22
PQ22
X_C10p50N0402
X_C10p50N0402
C2200p50X0402
PC20
PC20
C0.1u50Y
C0.1u50Y
PC19
C10u25X6S1206-RH
C10u25X6S1206-RH
PWR_SRC
PC18
PC18
C10u25X6S1206-RH
C10u25X6S1206-RH
E
OCP 20A
MAX 16A
PL10
PL10
1 2
5
CH-1.5u33A4.2mS-RH
CH-1.5u33A4.2mS-RH
PR69
PR69
X_2.2R
X_2.2R
PC84
PC84
X_C1000P50X0402
X_C1000P50X0402
PC14
PC14
C330u2.5pSO-1
C330u2.5pSO-1
PC13
PC13
+
+
12
+
+
12
X_C330u2.5pSO-1
X_C330u2.5pSO-1
G7G7
21
G8G8
21
PQ11
PQ11
N-AO4468_SOIC8-RH
N-AO4468_SOIC8-RH
RUND40,46
72
658
4
3
+1_5VDIMM
1
ILIM= (Rimax X 20uA / Rdson) + 1.82A
+5VSUS
PR36
PR36
10KR1%0402
3 3
NN-2N7002DW-7-F_SOT363-6-RH
NN-2N7002DW-7-F_SOT363-6-RH
0.75VRUN_EN47
4 4
A
10KR1%0402
D1
PQ13
PQ13
S1
G1
B
10KR1%0402
10KR1%0402
D2
10KR1%0402
10KR1%0402
S2
G2
PR35
PR35
PR34
PR34
PR11
PR11
10.7KR1%0402
10.7KR1%0402
+1_5VDIMM
PC35
PC35
C0.1u25Y
C0.1u25Y
PU9
PU9
thermal pad(GND)
1
VIN
2
GND
3
VREF
4
VOUT
APL5331KAC-TRL_SOP8-RH
APL5331KAC-TRL_SOP8-RH
PC37
PC37
C22u6.3X51206-RH-4
C22u6.3X51206-RH-4
C
9
8
NC1
7
NC2
6
VCNTL
5
NC3
PC36
PC36
C22u6.3X51206-RH-4
C22u6.3X51206-RH-4
+5VRUN
+0_75VRUN
MAX 2A
PQ14
PQ14
N-AO4468_SOIC8-RH
1_5V_RUND45
+1_5VRUN_PARK
N-AO4468_SOIC8-RH
72
658
4
3
1
+1_5VRUN
Add switch mosfet
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
SMDDR_VTERM /1_5VRUN
SMDDR_VTERM /1_5VRUN
SMDDR_VTERM /1_5VRUN
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
41 56Wednesday, August 05, 2009
41 56Wednesday, August 05, 2009
41 56Wednesday, August 05, 2009
Page 42
A
B
C
D
E
+5VSUS
2009/07/10
1 1
+5VSUS
PU10
PC42
PC42
C1u16X-RH
C1u16X-RH
C1u16X-RH
C1u16X-RH
+VTT_PWRGD30
RUN_ON30,40,46
2 2
PR43 0R0402PR43 0R0402
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
PC45
PC45
LL_VTT
PC43
PC43
PR40
PR40
4.75KR1%0402
4.75KR1%0402
PR42
PR42
2.2R
2.2R
PU10
9
PVCC
2
VCC
6
AGND
4
POK
15
EN/PSM
10
IMAX
5
NC1
14
NC2
ILIM= (Rimax X 20uA / Rdson) + 3.5A
提升效率用
S-RB751V-40_SOD323-RH
S-RB751V-40_SOD323-RH
17
17
UGATE
BOOT
PHASE
LGATE
PGND
VOUT
UP6111AQDD_WQFN16-RH
UP6111AQDD_WQFN16-RH
TON
PC38
PR75
PR75
X_2.2R
X_2.2R
PC89
PC89
X_C1000P50X0402
X_C1000P50X0402
PR39 10R1%0402PR39 10R1%0402
+5VSUS
PC38
C0.1u50Y
C0.1u50Y
1 2
CH-0.56u25A1.8mS-RH-1
CH-0.56u25A1.8mS-RH-1
PL11
PL11
PC40
PC40
C10u25X6S1206-RH
C10u25X6S1206-RH
SENSE_VTT
PC92
PR41
PR41
0R0402
0R0402
PC92
C2200p50X0402
C2200p50X0402
VTT_SENSE 5
PD12
PD12
PR44
PR44
1MR0402
1MR0402
16
12
13
11
8
7
1
3
FB
PC44
PC44
C0.1u25Y
C0.1u25Y
DH_VTT
LL_VTT
DL_VTT
PR37
PR37
4.32KR1%0402
4.32KR1%0402
PR38
PR38
10.7KR1%0402
10.7KR1%0402
PC41
PC41
X_C100p16N0402
X_C100p16N0402
PQ23
PQ23
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
PC170
PC170
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
2009/07/14 Reserve 0.1uF to GND for VTT_SENSE long feedback path(Follow Intel CRB)
5
4
3
2
1
N-SIR472DP-T1-GE3-HF
N-SIR472DP-T1-GE3-HF
5
4
3
2
1
PQ24
PQ24
PWR_SRC
12
+
+
PC90
PC90
C330u2.5pSO-1
C330u2.5pSO-1
2009/06/26 Reserve 10p to GND
by EMI (Close to PQ23)
CI20
PC39
PC39
C10u25X6S1206-RH
C10u25X6S1206-RH
CI20
X_C10p50N0402
X_C10p50N0402
12
+
+
PC91
PC91
C330u2.5pSO-1
C330u2.5pSO-1
OCP 22A
MAX 18A
G9G9
21
G10G10
21
+VTT
PC64
PC64
X_C1u10X
X_C1u10X
3 3
+1_8VRUN_PWRGD30
RUN_ON30,40,46
Modify net name
PR53 0R0402PR53 0R0402
PC63
PC63
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
6
PU12
PU12
5
VIN1
VCNTL
9
POK
EN
VOUT1
VOUT2
GND
1
VIN2
4
3
2
FB
7
8
APL5912KAC-TRL_SOIC8-RH
APL5912KAC-TRL_SOIC8-RH
+1_8VRUN_FB
PR51
PR51
3.01KR1%0402
3.01KR1%0402
+3VRUN
PC60
PC60
C10u10Y0805
C10u10Y0805
PR50
PR50
3.83KR1%0402
3.83KR1%0402
PC57 C470p16X0402-RHPC57 C470p16X0402-RH
Maximum 2A
+1_8VRUN
PC55
PC55
C22u6.3X50805-RH
C22u6.3X50805-RH
PC58
PC58
C22u6.3X50805-RH
C22u6.3X50805-RH
FB Vref=0.8 V
Add MLCC cap
4 4
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
VTT Power,+1.8VRUN
VTT Power,+1.8VRUN
VTT Power,+1.8VRUN
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
42 56Wednesday, August 05, 2009
42 56Wednesday, August 05, 2009
42 56Wednesday, August 05, 2009
Page 43
5
+VTT
VR_TT#
PR155 68R1%0402-RHPR155 68R1%0402-RH
D D
SYS_PWROK22,29
VR_PWRGD_CLKEN#29
H_VID05
H_VID15
H_VID25
H_VID35
H_VID45
H_VID55
H_VID65
VR_ON30,46
PM_DPRSLPVR5
PSI#5
C C
Rdroop
2.87KR1%0402
2.87KR1%0402
VCCSENSE5
VSSSENSE5
PR171
PR171
X_10R0402-1
X_10R0402-1
B B
PR160
PR160
562R1%
562R1%
PR161
PR161
PC141
PC141
390p
390p
PR170
PR170
X_10R0402-1
X_10R0402-1
GND_ISL62882
2009/07/14 PR170,PR171 not stuff
(在CPU
端已有
跟
CPU
拉載的位置有關
Rocset
GND_ISL62882
PC150
PC150
C1000P50X0402
C1000P50X0402
pull up及pull down電阻)
PR157
PR157
X_464KR1%0402-HE
X_464KR1%0402-HE
PC149
PC149
C330p16N0402-RH-1
C330p16N0402-RH-1
IMVP_IMON5
1.91KR1%
1.91KR1%
JNC45 X_R/2JNC45 X_R/2
JNC44 X_R/2JNC44 X_R/2
JNC43 X_R/2JNC43 X_R/2
JNC42 X_R/2JNC42 X_R/2
JNC41 X_R/2JNC41 X_R/2
JNC40 X_R/2JNC40 X_R/2
JNC39 X_R/2JNC39 X_R/2
JNC38 X_R/2JNC38 X_R/2
JNC37 X_R/2JNC37 X_R/2
JNC36 X_R/2JNC36 X_R/2
PR159
PR159
412KR1%0402
412KR1%0402
PC136
PC136
C1000P50X0402
C1000P50X0402
PR158
PR158
8.06KR1%
8.06KR1%
PR151
PR151
PC138 C10P25N0402PC138 C10P25N0402
PC139
PC139
150p
150p
PC142
PC142
C330p16N0402-RH-1
C330p16N0402-RH-1
PC154
PC154
C0.22u6.3X50402
C0.22u6.3X50402
+3VSUS
PR152
PR152
1.91KR1%
1.91KR1%
GND_ISL62882
VR_TT#
PC65
PC65
C22p50N0402
C22p50N0402
PR154
PR154
147KR1%0402-RH
147KR1%0402-RH
GND_ISL62882
4
C1u16X-RH
C1u16X-RH
PR172
PR172
8.25KR1%
8.25KR1%
PC67
PC67
PU16
PU16
1
PGOOD
40
CLK_EN#
31
VID0
32
VID1
33
VID2
34
VID3
35
VID4
36
VID5
37
VID6
38
VR_ON
39
DPRSLPVR
2
PSI#
4
VR_TT#
8
FB
6
VW
7
COMP
9
FB2
12
VSEN
13
RTN
18
IMON
5
NTC
3
RBIAS
ISL62882HRZ-T_QFN40-RH
ISL62882HRZ-T_QFN40-RH
+5VSUS
16
VDD
PR55
PR55
2.2R
2.2R
3
PWR_SRC
PR540RPR54
0R
PC66
17
VIN
BOOT1
UGATE1
PHASE1
LGATE1a
LGATE1b
BOOT2
UGATE2
PHASE2
LGATE2
VSSP1
ISEN1
ISEN2
VSSP2
ISUM+
ISUM-
GND
PC66
C0.22u25X-RH
C0.22u25X-RH
GND_ISL62882GND_ISL62882
19
20
21
23
24
22
11
10
41
30
27
29
28
26
15
PR60
PR60
82.5R1%
82.5R1%
PC69
PC69
14
PR162
PR162
ISEN1
ISEN2
GND_ISL62882
PR150
PR150
2.2R
2.2R
C0.01u25X0402
C0.01u25X0402
Ri
PR163
PR163
1KR1%0402
1KR1%0402
PC144
PC144
C1000P50X0402
C1000P50X0402
2.2R
2.2R
PC134
PC134
C0.22u25X-RH
C0.22u25X-RH
PC148
PC148
PC155
PC155
X_C0.022u25X0402
X_C0.022u25X0402
PR164
PR164
100R1%0402
100R1%0402
PC140
PC140
C0.22u25X-RH
C0.22u25X-RH
PR168
PR168
10KR1%0402
10KR1%0402
PC146
PC146
C0.22u25X5-HF
C0.22u25X5-HF
PR167
PR167
10KR1%0402
10KR1%0402
PC145
PC145
C0.22u25X5-HF
C0.22u25X5-HF
C0.22u25X-RH
C0.22u25X-RH
PR166
PR166
11KR1%0402
11KR1%0402
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
LX1_CORE
VSUM-
LX2_CORE
VSUM-
RntcCn
VSUM+
PR173
PR173
2.61KR1%
2.61KR1%
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
PR131
PR131
10KRT/6
10KRT/6
Close to Phase 1 Inductor
VSUM-
PC151
PC151
C0.1u16X0402-2
C0.1u16X0402-2
GND_ISL62882
4
3
2
1
CI27
CI27
X_C10p50N0402
X_C10p50N0402
4
3
2
1
4
3
2
1
N-SIR472DP-T1-GE3-HF
N-SIR472DP-T1-GE3-HF
5
PQ47
PQ47
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
4
3
2
1
N-SIR472DP-T1-GE3-HF
N-SIR472DP-T1-GE3-HF
5
PQ46
PQ46
4
3
2
1
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
PC137
PC137
C1u16X-RH
C1u16X-RH
25
VCCP
2
PC153
PC153
C10u25X51206-RH
C10u25X51206-RH
5
PQ44
PQ44
5
PQ48
PQ48
4
3
2
1
PC121
PC121
C10u25X51206-RH
C10u25X51206-RH
5
PQ43
PQ43
2009/06/26 Reserve 10p to GND
by EMI (Close to PQ45 or PQ46)
5
PQ45
PQ45
PC147
PC147
C10u25X51206-RH
C10u25X51206-RH
PR156
PR156
X_2.2R
X_2.2R
預留
PC135
PC135
X_C2200p50X0402
X_C2200p50X0402
PC115
PC115
C10u25X51206-RH
C10u25X51206-RH
PR153
PR153
X_2.2R
X_2.2R
PC133
PC133
X_C2200p50X0402
X_C2200p50X0402
預留
LX1_CORE
for EMI
PWR_SRC
LX2_CORE
for EMI
PR169
PR169
3.65KR1%
3.65KR1%
PR64
PR64
3.65KR1%
3.65KR1%
12
+
+
C470u25EL-RH
C470u25EL-RH
PC131
PC131
PL16
PL16
CH-0.36u60A1.2mS-RH
CH-0.36u60A1.2mS-RH
1 2
PR165
PR165
1R0402
1R0402
Parallel
VSUM+
PL15
PL15
CH-0.36u60A1.2mS-RH
CH-0.36u60A1.2mS-RH
1 2
PR63
PR63
1R0402
1R0402
Parallel
VSUM+
1
2009/06/26 Reserve 10p to GND
by EMI (Close to PQ47 or PQ48)
PWR_SRC
CI25
CI25
X_C10p50N0402
X_C10p50N0402
+VCC_CORE
12
12
+
+
+
+
PC52
PC52
PC50
PC50
X_C330u2-RH-1
X_C330u2-RH-1
X_C330u2-RH-1
X_C330u2-RH-1
PR174
PR174
X_0R0402
X_0R0402
ISEN2
VSUM-
+VCC_CORE
12
12
+
+
+
+
PC49
PC49
PC51
PC51
X_C330u2-RH-1
X_C330u2-RH-1
X_C330u2-RH-1
X_C330u2-RH-1
PR175
PR175
X_0R0402
X_0R0402
ISEN1
VSUM-
GND
+VTT
PR139
PR139
PR149
PR149
1KR1%0402
1KR1%0402
X_1KR1%0402
X_1KR1%0402
1KR1%0402
1KR1%0402
PR138
PR138
X_1KR1%0402
X_1KR1%0402
PR148
PR148
4
PR137
PR137
PR147
PR147
1KR1%0402
1KR1%0402
X_1KR1%0402
X_1KR1%0402
PR136
PR136
PR146
PR146
X_1KR1%0402
X_1KR1%0402
1KR1%0402
1KR1%0402
PR135
PR135
PR145
PR145
X_1KR1%0402
X_1KR1%0402
1KR1%0402
1KR1%0402
PR134
PR134
PR144
PR144
1KR1%0402
1KR1%0402
X_1KR1%0402
X_1KR1%0402
PR133
PR133
PR143
PR143
X_1KR1%0402
X_1KR1%0402
1KR1%0402
1KR1%0402
PR132
PR132
PR142
PR142
1KR1%0402
1KR1%0402
X_1KR1%0402
X_1KR1%0402
PR141
PR141
PR140
PR140
X_1KR1%0402
X_1KR1%0402
1KR1%0402
1KR1%0402
3
JNC47 X_COPPERJNC47 X_COPPER
JNC46 X_COPPERJNC46 X_COPPER
JNC48 X_COPPERJNC48 X_COPPER
GND_ISL62882
A A
2009/07/01 Add three X-copper
5
H_VID0
H_VID1
H_VID2
H_VID3
H_VID4
H_VID5
H_VID6
PM_DPRSLPVR
PSI#
Parallel
MSI CORPORATION
MSI CORPORATION
CPU Power
CPU Power
CPU Power
MS-145X
MS-145X
MS-145X
MSI CORPORATION
1
0A
0A
0A
of
43 56Wednesday, August 05, 2009
43 56Wednesday, August 05, 2009
43 56Wednesday, August 05, 2009
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet of
Date: Sheet of
2
Date: Sheet
Page 44
5
4
PWR_SRC
3
+5VSUS+3VSUS
2
1
PR118
PR118
CI26
CI26
X_C10p50N0402
X_C10p50N0402
PR88
PR88
2.2R
2.2R
PC95
PC95
C1000p16X0402
C1000p16X0402
預留
RsumRntc
PWR_SRC
for EMI
PR45
PR45
PR470RPR47
PU15
PU15
0R
12
VIN
29
GND_ISL62881
2.2R
2.2R
PC47
PC47
C0.1u16Y0402
C0.1u16Y0402
GND_ISL62881
11
VCCP
VDD
BOOT
UGATE
PHASE
LGATE
VSSP
ISUM+
ISUM-
GND
ISL62881HRZ-T_QFN28-RH
ISL62881HRZ-T_QFN28-RH
19
14
15
16
18
17
10
9
PC128
PC128
C0.1u16Y0402
C0.1u16Y0402
GND_ISL62881
PR128
PR128
2.2R
2.2R
PR46
PR46
82.5R1%
82.5R1%
PC46
PC46
C0.01u25X0402
C0.01u25X0402
PC129
PC129
C0.22u25X-RH
C0.22u25X-RH
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
Ri
PR115
PR115
3KR1%0402
3KR1%0402
PC117
PC117
C1000P50X0402
C1000P50X0402
4
3
2
1
PC122
PC122
PR112
PR112
100R1%0402
100R1%0402
4
3
2
1
N-SIR472DP-T1-GE3-HF
N-SIR472DP-T1-GE3-HF
5
PQ29
PQ29
PC123
PC123
C0.22u25X-RH
C0.22u25X-RH
X_C0.022u25X0402
X_C0.022u25X0402
PC143
PC143
PC152
PC152
C10u25X51206-RH
C10u25X51206-RH
5
PQ31
PQ31
4
3
2
1
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
C10u25X51206-RH
C10u25X51206-RH
5
PQ28
PQ28
Cn
PR122
PR122
2.61KR1%
2.61KR1%
PR119
PR119
11KR1%0402
11KR1%0402
GND_ISL62881
PR95
PR95
10KRT/6
10KRT/6
PC120
PC120
C0.1u16X0402-2
C0.1u16X0402-2
Close to Phase 1 Inductor
3.65KR1%
3.65KR1%
PR102
PR102
X_1.91KR1%
X_1.91KR1%
PC48
PC48
C0.22u25X-RH
C0.22u25X-RH
GND_ISL62881
PR103 0R0402PR103 0R0402
PC111
PC111
PC109
PC109
390p
390p
PC125
PC125
C0.22u6.3X50402
C0.22u6.3X50402
GVR_PWRGD
C1000P50X0402
C1000P50X0402
PR100
PR100
8.06KR1%
8.06KR1%
PR97
PR97
562R1%
562R1%
PR98
PR98
9.53KR1%0402
9.53KR1%0402
Rdroop
PR127
PR127
8.25KR1%
8.25KR1%
PR101
PR101
47KR1%
47KR1%
GND_ISL62881
2
20
21
22
23
24
25
26
27
28
1
4
5
6
7
8
13
3
PGOOD
VID0
VID1
VID2
VID3
VID4
VID5
VID6
VR_ON
DPRSLPVR
CLK_EN#
VW
COMP
FB
VSEN
RTN
IMON
RBIAS
D D
C C
VCC_AXG_SENSE6
VSS_AXG_SENSE6
GVR_PWRGD30
GFXVR_VID_06
GFXVR_VID_16
GFXVR_VID_26
GFXVR_VID_36
GFXVR_VID_46
GFXVR_VID_56
GFXVR_VID_66
GFXVR_EN6
GFXVR_DPRSLPVR6
GND_ISL62881
Parallel
10R0402-1
10R0402-1
PR104
PR104
PR109
PR109
10R0402-1
10R0402-1
JNC34 X_R/2JNC34 X_R/2
JNC33 X_R/2JNC33 X_R/2
JNC32 X_R/2JNC32 X_R/2
JNC31 X_R/2JNC31 X_R/2
JNC30 X_R/2JNC30 X_R/2
JNC29 X_R/2JNC29 X_R/2
JNC28 X_R/2JNC28 X_R/2
JNC27 X_R/2JNC27 X_R/2
JNC26 X_R/2JNC26 X_R/2
PR99
PR99
X_174KR1%0402-EM
X_174KR1%0402-EM
PR96
PR96
412KR1%0402
412KR1%0402
PC114
PC114
C330p16N0402-RH-1
C330p16N0402-RH-1
PC116
PC116
PC113
PC113
C1000P50X0402
C1000P50X0402
C330p16N0402-RH-1
C330p16N0402-RH-1
GND_ISL62881
GFXVR_IMON6
GND_ISL62881
PC110
PC110
C100p50N0402
C100p50N0402
PC107
PC107
150p
150p
2009/06/26 Reserve 10p to GND
by EMI (Close to PQ28 or PQ29)
PL12
PL12
1 2
CH-0.56u25A1.8mS-RH
CH-0.56u25A1.8mS-RH
12
+
+
PC103
PC103
C330u2-RH-1
C330u2-RH-1
Parallel
12
+
+
PC102
PC102
C330u2-RH-1
C330u2-RH-1
+VCC_GFXCORE
G12G12
G11G11
IMAX=22A
21
21
Parallel
B B
+VTT
GPU Select voltage
PR126
PR126
PR124
1KR1%0402
1KR1%0402
1KR1%0402
1KR1%0402
PR124
2009/07/14 Modify GFXVR_EN net name
GFXVR_VID_0
GFXVR_VID_1
GFXVR_VID_2
GFXVR_VID_3
GFXVR_VID_4
GFXVR_VID_5
GFXVR_VID_6
GFXVR_EN
GFXVR_DPRSLPVR
PR130
PR130
PR107 change to 4.7K ohm and PR108 not stuff
A A
5
PR125
PR125
PR129
PR129
GND
X_1KR1%0402
X_1KR1%0402
X_1KR1%0402
X_1KR1%0402
PR123
PR123
1KR1%0402
1KR1%0402
X_1KR1%0402
X_1KR1%0402
PR117
PR117
PR121
PR121
PR120
PR120
4
X_1KR1%0402
X_1KR1%0402
1KR1%0402
1KR1%0402
PR114
PR114
1KR1%0402
1KR1%0402
PR116
PR116
PR113
PR113
X_1KR1%0402
X_1KR1%0402
X_1KR1%0402
X_1KR1%0402
1KR1%0402
1KR1%0402
PR108
PR108
PR111
PR111
PR110
PR110
1KR1%0402
1KR1%0402
X_1KR1%0402
X_1KR1%0402
PR106
PR106
1KR1%0402
1KR1%0402
X_1KR1%0402
X_1KR1%0402
4.7KR0402
4.7KR0402
PR107
PR107
PR105
PR105
X_1KR1%0402
X_1KR1%0402
3
JNC17 X_COPPERJNC17 X_COPPER
JNC35 X_COPPERJNC35 X_COPPER
JNC16 X_COPPERJNC16 X_COPPER
GND_ISL62881
2009/06/26 Add two X-copper
by EMI
2
MSI CORPORATION
MSI CORPORATION
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet of
Date: Sheet of
MSI CORPORATION
Graphic Core
Graphic Core
Graphic Core
MS-145X
MS-145X
MS-145X
of
44 56Wednesday, August 05, 2009
44 56Wednesday, August 05, 2009
1
44 56Wednesday, August 05, 2009
0A
0A
0A
Page 45
A
+5VSUS
4 4
+3VRUN
PR186
PR186
100KR0402
100KR0402
+M92_PWRGD
DGPU_PWR_EN12,25
3 3
PR179 0R0402PR179 0R0402
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
PC160
PC160
PC168
PC168
C1u16X-RH
C1u16X-RH
PC165
PC165
C1u16X-RH
C1u16X-RH
LL_M92
PR180
PR180
2.2R
2.2R
PR183
PR183
4.75KR1%0402
4.75KR1%0402
9
2
6
4
15
10
5
14
ILIM= (Rimax X 20uA / Rdson) + 3.5A
2009/06/23 Resistors value is depend on GPU type
+5VSUS
PU17
PU17
PVCC
VCC
AGND
POK
EN/PSM
IMAX
NC1
NC2
B
PR178
PR178
1MR0402
17
17
TON
UGATE
BOOT
PHASE
LGATE
PGND
VOUT
FB
UP6111AQDD_WQFN16-RH
UP6111AQDD_WQFN16-RH
1MR0402
16
12
PC164
PC164
13
C0.1u25Y
C0.1u25Y
11
8
7
1
3
PR181
PR181
2.94KR1%0402
2.94KR1%0402
PR182
PR182
10.7KR1%0402
10.7KR1%0402
DH_M92
LL_M92
DL_M92
C
PC167
PC167
X_C100p16N0402
X_C100p16N0402
5
PQ49
PQ49
4
3
2
1
N-SIR472DP-T1-GE3-HF
N-SIR472DP-T1-GE3-HF
5
PQ51
PQ51
4
3
2
1
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
N-SIR466DP-T1-GE3_POWERPAK-SO8-HF
PR176
PR176
X_100KR0402
X_100KR0402
PR185
PR185
X_100KR0402
X_100KR0402
PC156
PC156
C2200p50X0402
C2200p50X0402
PR187
PR187
X_2.2R
X_2.2R
PC169
PC169
X_C1000P50X0402
X_C1000P50X0402
PQ50
PQ50
X_NN-2N7002DW_SOT363-RH
X_NN-2N7002DW_SOT363-RH
D2
D1
G2
S2
G1
S1
D
PC157
PC157
C0.1u50Y
C0.1u50Y
1 2
CH-0.56u25A1.8mS-RH-1
CH-0.56u25A1.8mS-RH-1
PC161
PC161
C10u25X6S1206-RH
C10u25X6S1206-RH
PL17
PL17
SENSE_M92
PR177 X_10KR1%0402PR177 X_10KR1%0402
PC159 X_C0.1u10X0402PC159 X_C0.1u10X0402
PR184 X_10KR1%0402PR184 X_10KR1%0402
PC166 X_C0.1u10X0402PC166 X_C0.1u10X0402
PWR_SRC
PC158
PC158
C10u25X6S1206-RH
C10u25X6S1206-RH
12
+
+
PC162
PC162
C330u2.5pSO-1
C330u2.5pSO-1
12
+
+
PC163
PC163
X_C330u2.5pSO-1
X_C330u2.5pSO-1
2009/07/08 PC213 not stuff
POW_SW1 12
POW_SW2 12
E
OCP 22A
MAX 16A
G16G16
21
G15G15
21
M92S_VDD_CORE
Modify net name
PC62
PC62
X_C1u10X
X_C1u10X
+1_0VRUN_PARK_PWRGD25
+M92_PWRGD
2 2
Modify net name
PR52 0R0402PR52 0R0402
PC59
PC59
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
6
PU11
PU11
5
VIN1
VCNTL
9
7
8
VIN2
POK
EN
APL5912KAC-TRL_SOIC8-RH
APL5912KAC-TRL_SOIC8-RH
VOUT1
VOUT2
GND
1
4
3
2
FB
+1_0VRUN_FB
PR48
PR48
137KR1%0402
137KR1%0402
+1_5VRUN_PARK
PC61
PC61
C10u10Y0805
C10u10Y0805
PR49
PR49
34.8KR1%0402
34.8KR1%0402
PC53 C100p16X0402PC53 C100p16X0402
PC54
PC54
C22u6.3X50805-RH
C22u6.3X50805-RH
FB Vref=0.8 V
Modify P/N
+5VSUS
PC74
PC74
X_C1u10X
X_C1u10X
+1_8VRUN_PARK_PWRGD25
+M92_PWRGD
1 1
PR65 0R0402PR65 0R0402
X_C0.1u25Y0402-RH
X_C0.1u25Y0402-RH
A
PC73
PC73
6
PU13
PU13
5
VIN1
VCNTL
9
7
8
VIN2
POK
EN
APL5912KAC-TRL_SOIC8-RH
APL5912KAC-TRL_SOIC8-RH
VOUT1
VOUT2
GND
1
4
3
2
FB
+3VRUN
PC75
PC75
C10u10Y0805
C10u10Y0805
+1_8VRUN_PARK_FB
PR62
PR62
3.01KR1%0402
3.01KR1%0402
PR61
PR61
3.83KR1%0402
3.83KR1%0402
PC71 C470p16X0402-RHPC71 C470p16X0402-RH
FB Vref=0.8 V
B
MAX 2.5A
Modify net name
+1_0VRUN_PARK
PC56
PC56
C22u6.3X50805-RH
C22u6.3X50805-RH
Add MLCC cap
Maximum 2A
+1_8VRUN_PARK
PC70
PC72
PC72
C22u6.3X50805-RH
C22u6.3X50805-RH
PC70
C22u6.3X50805-RH
C22u6.3X50805-RH
PSW_1 PSW_2
1
0
PWR_SRC
PR58
PR58
100KR0402
100KR0402
D1
PQ15
NN-2N7002DW_SOT363-RH
NN-2N7002DW_SOT363-RH
C
PQ15
+M92_PWRGD
D2
S2
S1
G2
G1
PWR_SRC
PR57
PR57
100KR0402
100KR0402
PR59
PR59
33KR0402
33KR0402
PR56
PR56
470KR0402
470KR0402
D
1_5V_RUND 41
PC68
PC68
C0.1u25Y0402-RH
C0.1u25Y0402-RH
0
1.2V
1
1.1V
00
0.95V
MSI CORPORATION
MSI CORPORATION
Title
Title
Title
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet of
Date: Sheet of
MSI CORPORATION
M92/Pak Power
M92/Pak Power
M92/Pak Power
MS-145X
MS-145X
MS-145X
of
45 56Wednesday, August 05, 2009
45 56Wednesday, August 05, 2009
E
45 56Wednesday, August 05, 2009
0A
0A
0A
Page 46
A
PWR_SRC
PD10
PD10
ES3BB-13-F-RH
4 4
ES3BB-13-F-RH
B
C
D
E
+5VRUN
12
+
+
PC132
PC132
C22u25-RH
C22u25-RH
DS
R4610R0402 R4610R0402
RUND40,41
RUN_ON30,40,42 RUN_ON30,40,42
3 3
G
R460X_0R0402 R460X_0R0402
R441
R441
100KR
100KR
N-2N7002_SOT23-1
N-2N7002_SOT23-1
PQ42
PQ42
R434
R434
1MR
1MR
DS
G
+3VRUN
DS
G
+1_5VRUN
R438
R438
100R1%0805
100R1%0805
N-2N7002_SOT23-1
N-2N7002_SOT23-1
PQ34
PQ34
R437
R437
100R1%0805
100R1%0805
N-2N7002_SOT23-1
N-2N7002_SOT23-1
PQ35
PQ35
R450
R450
X_100KR
X_100KR
DS
X_N-2N7002_SOT23-1
RUND40,41 VR_ON30,43
R4550R0402 R4550R0402
R454X_0R0402 R454X_0R0402
X_N-2N7002_SOT23-1
G
PQ41
PQ41
R458
R458
X_1MR
X_1MR
+VTT
DS
G
R464
R464
X_470R
X_470R
X_N-2N7002_SOT23-1
X_N-2N7002_SOT23-1
PQ40
PQ40
+VCC_CORE
R470
DS
G
R470
X_47R1%0805
X_47R1%0805
X_N-2N7002_SOT23-1
X_N-2N7002_SOT23-1
PQ38
PQ38
R448
R448
X_100KR
X_100KR
DS
X_N-2N7002_SOT23-1
G
X_N-2N7002_SOT23-1
PQ39
PQ39
R445
R445
X_1MR
X_1MR
R4590R0402 R4590R0402
2009/02/18 +3,+5VRUN 上件
R439
R439
X_68R0805
X_68R0805
DS
X_N-2N7002_SOT23-1
X_N-2N7002_SOT23-1
G
PQ36
2 2
PQ36
+1_8VRUN
R440
R440
X_68R0805
X_68R0805
DS
X_N-2N7002_SOT23-1
X_N-2N7002_SOT23-1
G
PQ37
PQ37
1 1
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Discharge Circuits
Discharge Circuits
Discharge Circuits
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
46 56Wednesday, August 05, 2009
46 56Wednesday, August 05, 2009
46 56Wednesday, August 05, 2009
of
of
E
of
0A
0A
0A
Page 47
A
+1_5VDIMM
R370
Q37
Q37
N-BSS138
1 1
CPU_DRAMRST#3
CPU_DRAMRST#
N-BSS138
R484
R484
X_100KR0402
X_100KR0402
R370
1KR
1KR
DS
G
DDR3_DRAMRST# 9,10
1
RS_GATE#25
Be careful PCH GPIO must
is a SUS WELL type
2 2
B
+1_5VRUN
R481
R481
220R
220R
Q34
Q34
DS
N-2N7002
N-2N7002
PM_S3_CNTRL
G
+0.75V charge no need stuff,
for APL5331 has sink ability
C
D
E
3
+1_5VRUN_PWGD
+3VSUS
C668
C668
C0.1u10X0402-1
C0.1u10X0402-1
5
U903A
U903A
VCC
VCC
3
AY
AY
GND
GND
NC7WZ14P6X_SC70
NC7WZ14P6X_SC70
2
R378
R378
4
1.5KR1%0402
1.5KR1%0402
R482
R482
10KR0402
10KR0402
C670
C670
C0.1u10X0402-1
C0.1u10X0402-1
+3VSUS
Q35
Q35
C
C
B
B
E
E
N-SST3904_SOT23
N-SST3904_SOT23
R480
R480
10KR0402
10KR0402
A
+1_5VRUN
3 3
4 4
+1_5VDIMM
2
R177
R177
X_1.1KR1%0402
X_1.1KR1%0402
PM_DRAM_PWRGD 3,22
R178
R178
750R1%0402
750R1%0402
B
C666
C666
1u10X0402
1u10X0402
Q40
Q40
G
4
0.75VRUN_EN 41
DS
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
INTEL S3 POWER
INTEL S3 POWER
INTEL S3 POWER
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
47 56Wednesday, August 05, 2009
47 56Wednesday, August 05, 2009
47 56Wednesday, August 05, 2009
R486
+3VSUS
Q39
Q39
N-2N7002
N-2N7002
PM_SLP_S3#22,30
G
+1_5VRUN_PWGD
R485
R485
220R
220R
DS
PM_S3_CNTRL
C
R486
100KR0402
100KR0402
N-2N7002
N-2N7002
Page 48
A
MH17
MH17
HOLES_8X8_D3MM_VIA8
HOLES_8X8_D3MM_VIA8
8
9
1
7
2
6
4
3
5
MH7
MH7
HOLES_8X8_D3MM_VIA8
HOLES_8X8_D3MM_VIA8
8
9
1
7
1 1
2
6
4
3
5
C-case & D-case
MH14
MH14
HOLES_8X8_D3MM_VIA5
HOLES_8X8_D3MM_VIA5
2 3 4
1
MH13
MH13
HOLES_8X8_D3MM_VIA5
HOLES_8X8_D3MM_VIA5
2 3 4
1
5
5
6
6
MH18
MH18
HOLES_8X8_D3MM_VIA8
HOLES_8X8_D3MM_VIA8
9
1
2
4
3
MH12
MH12
HOLES_8X8_D3MM_VIA5
HOLES_8X8_D3MM_VIA5
2 3 4
1
5
5
8
7
6
6
MH19
MH19
HOLES_8X8_D3MM_VIA8
HOLES_8X8_D3MM_VIA8
8
9
1
7
2
6
4
3
5
MH9
MH9
HOLES_8X8_D3MM_VIA8
HOLES_8X8_D3MM_VIA8
8
9
1
7
2
6
4
3
5
MH15
MH15
HOLES_8X8_D3MM_VIA8
HOLES_8X8_D3MM_VIA8
9
1
2
3
MH11
MH11
HOLES_8X8_D3MM_VIA5
HOLES_8X8_D3MM_VIA5
2 3 4
1
12/1 EMI
UME1
UME1
HDMI
HDMI
LABEL
LABEL
HDMI_LABEL
HDMI_LABEL
Holes_R276D185P_PT
Holes_R276D185P_PT
H7 HOLES_R268D142
H7 HOLES_R268D142
(PTH)
(PTH)
2 2
1
Holes_R276D185P_PT
Holes_R276D185P_PT
H8 HOLES_R268D142
H8 HOLES_R268D142
(PTH)
(PTH)
1
PCB PN
PCB4
PCB4
PCB
PCB
P30-1451111-H73
P30-1451111-H73
Holes_R276D185P_PT
Holes_R276D185P_PT
H10 E2B-1676010-RH
H10 E2B-1676010-RH
(PTH)
(PTH)
4
1
8
7
6
5
6
5
B
MH10
MH10
HOLES_8X8_D3MM_VIA8
HOLES_8X8_D3MM_VIA8
9
1
2
3
UME8
UME8
HOLES_R177D91
HOLES_R177D91
1
E2B-1634020-L63
E2B-1634020-L63
MDC Stand off
CPU
Holes_R276D185P_PT
Holes_R276D185P_PT
H9 E2B-1676010-RH
H9 E2B-1676010-RH
(PTH)
(PTH)
1
8
7
6
4
5
MH16
MH16
HOLES_8X8_D3MM_VIA5
HOLES_8X8_D3MM_VIA5
2 3 4
6
1
5
Holes_R276D185P_PT
Holes_R276D185P_PT
H11 E2B-1676010-RH
H11 E2B-1676010-RH
MH8
MH8
HOLES_8X8_D3MM_VIA8
HOLES_8X8_D3MM_VIA8
9
1
2
4
3
5
(PTH)
(PTH)
1
8
7
6
CN10
CN10
FRAME_62_55X44_7
FRAME_62_55X44_7
New Card Socket
New Card Socket
E2M-4410111-SH4
E2M-4410111-SH4
SCREW5
SCREW5
E43-1204004-H29
E43-1204004-H29
GPUPCH
HOLES_R177D91
HOLES_R177D91
H12 E2B-1022010-RH
H12 E2B-1022010-RH
(PTH)
(PTH)
1
C
2
1
SCREW6
SCREW6
E43-1204004-H29
E43-1204004-H29
ExpressCard
阻抗測試線確認
J19
J19
L3_DIFF_8/5/8_70_Ohm+
X_H1X2_black-RH
X_H1X2_black-RH
J10
J10
L3_DIFF_8/5/8_70_Ohm-
X_H1X2_black-RH
X_H1X2_black-RH
J11
J11
L4_DIFF_4.5/5.5/4.5_90_Ohm+
X_H1X2_black-RH
X_H1X2_black-RH
J22
J22
L4_DIFF_4.5/5.5/4.5_90_Ohm-
X_H1X2_black-RH
X_H1X2_black-RH
J27
J27
L1_DIFF_4/7/4_100_Ohm+
X_H1X2_black-RH
X_H1X2_black-RH
J26
J26
L1_DIFF_4/7/4_100_Ohm-
X_H1X2_black-RH
X_H1X2_black-RH
D
J24
J24
L4_DIFF_8/5/8_70_Ohm+
X_H1X2_black-RH
X_H1X2_black-RH
J18
J18
L4_DIFF_8/5/8_70_Ohm-
X_H1X2_black-RH
X_H1X2_black-RH
J20
J20
L6_DIFF_4.5/5.5/4.5_90_Ohm+
X_H1X2_black-RH
X_H1X2_black-RH
J23
J23
L6_DIFF_4.5/5.5/4.5_90_Ohm-
X_H1X2_black-RH
X_H1X2_black-RH
J7
J7
X_H1X2_black-RH
X_H1X2_black-RH
J15
J15
L3_DIFF_4/7/4_100_Ohm-
X_H1X2_black-RH
X_H1X2_black-RH
J17
J17
L1_5mil_55_Ohm L6_5mil_55_Ohm
X_H1X2_black-RH
X_H1X2_black-RH
J12
J12
X_H1X2_black-RH
X_H1X2_black-RH
J16
J16
L4_5.5mil_50_Ohm
X_H1X2_black-RH
X_H1X2_black-RH
J9
J9
L4_DIFF_4/7/4_100_Ohm+L3_DIFF_4/7/4_100_Ohm+
X_H1X2_black-RH
X_H1X2_black-RH
J14
J14
L4_DIFF_4/7/4_100_Ohm-
X_H1X2_black-RH
X_H1X2_black-RH
J13
J13
X_H1X2_black-RH
X_H1X2_black-RH
J25
J25
X_H1X2_black-RH
X_H1X2_black-RH
J8
J8
X_H1X2_black-RH
X_H1X2_black-RH
J21
J21
X_H1X2_black-RH
X_H1X2_black-RH
E
L4_4.5mil_55_ohmL3_4.5mil_55_ohm
L6_DIFF_4/7/4_100_Ohm+
L6_DIFF_4/7/4_100_Ohm-
Thermal_Module_Stand-off
PAD12
PAD12
E23-1029050-RH
E23-1029050-RH
1
PAD10
PAD10
1
1
X_E23-1029050-RH
X_E23-1029050-RH
X_E23-1029050-RH
X_E23-1029050-RH
3 3
4 4
1
PAD7
PAD7
PAD11
PAD11
1
1
1
1
GND PAD in TOP side
X_E23-1029050-RH
X_E23-1029050-RH
FM1
FM1
F_PAD_X
F_PAD_X
FM6
FM6
F_PAD_X
F_PAD_X
FM11
FM11
F_PAD_X
F_PAD_X
FM16
FM16
F_PAD_X
F_PAD_X
PAD9
PAD9
1
1
E23-1029050-RH
E23-1029050-RH
FM2
FM2
F_PAD_X
F_PAD_X
FM7
FM7
F_PAD_X
F_PAD_X
FM12
FM12
F_PAD_X
F_PAD_X
FM17
FM17
F_PAD_X
F_PAD_X
FM3
FM3
F_PAD_X
F_PAD_X
FM8
FM8
F_PAD_X
F_PAD_X
FM13
FM13
F_PAD_X
F_PAD_X
FM18
FM18
F_PAD_X
F_PAD_X
FM4
FM4
F_PAD_X
F_PAD_X
FM9
FM9
F_PAD_X
F_PAD_X
FM14
FM14
F_PAD_X
F_PAD_X
FM19
FM19
F_PAD_X
F_PAD_X
FM5
FM5
F_PAD_X
F_PAD_X
FM10
FM10
F_PAD_X
F_PAD_X
FM15
FM15
F_PAD_X
F_PAD_X
FM20
FM20
F_PAD_X
F_PAD_X
+1_5VDIMM
CE18
CE18
+1_8VRUN
CE38
CE38
+VTT
CE53
CE53
螺絲孔
+VTT
0.1u_0402
0.1u_0402
CE39
CE39
0.1u_0402
0.1u_0402
CE54
CE54
0.1u_0402
0.1u_0402
PWR_SRC
PAD18
PAD18
10X6.7X3.1
10X6.7X3.1
1
CE1
CE1
+VTT
CE31
CE31
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
CE57 2200p50V0402CE57 2200p50V0402
PAD19
PAD19
10X6.7X3.1
10X6.7X3.1
1
CE2
CE2
0.1u_0402
0.1u_0402
CE58 0.1U25Y0402C E58 0.1U25Y0402
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
CE59 2200p50V0402CE59 2200p50V0402
PAD20
PAD20
X_MS-55101-RH
X_MS-55101-RH
1
CE3
CE3
CE60 0.1U25Y0402C E60 0.1U25Y0402
CE4
CE4
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
+5VRUN
CE55
CE55
CE61 0.1U25Y0402C E61 0.1U25Y0402
PAD21
PAD21
X_MS-55101-RH
X_MS-55101-RH
1
CE5
CE5
0.1u_0402
0.1u_0402
+VCC_CORE
CE21
CE21
+VCC_GFXCORE
CE40
CE40
CE56
CE56
0.1u_0402
0.1u_0402
CE62 0.1U25Y0402C E62 0.1U25Y0402
CE63 0.1U25Y0402C E63 0.1U25Y0402
CE6
CE6
CE7
CE7
0.1u_0402
0.1u_0402
CE22
CE22
0.1u_0402
0.1u_0402
CE41
CE41
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
CE64 0.1U25Y0402C E64 0.1U25Y0402
PAD22
PAD22
X_MS-55101-RH
X_MS-55101-RH
1
CE23
CE23
0.1u_0402
0.1u_0402
CE42
CE42
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
CE65 0.1U25Y0402C E65 0.1U25Y0402
CE24
CE24
0.1u_0402
0.1u_0402
CE43
CE43
0.1u_0402
0.1u_0402
CE8
CE8
CE66 0.1U25Y0402C E66 0.1U25Y0402
CE25
CE25
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
CE67 0.1U25Y0402C E67 0.1U25Y0402
CE9
CE9
CE26
CE26
0.1u_0402
0.1u_0402
CE10
CE10
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
CE68 2200p50V0402CE68 2200p50V0402
CE11
CE11
0.1u_0402
0.1u_0402
CE69 0.1U25Y0402C E69 0.1U25Y0402
CE12
CE12
0.1u_0402
0.1u_0402
CE70 0.1U25Y0402C E70 0.1U25Y0402
CE44
CE44
0.1u_0402
0.1u_0402
CE19
CE19
+5VRUN
+5VSUS
CE71 0.1U25Y0402C E71 0.1U25Y0402
CE20
CE20
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
CE72 0.1U25Y0402C E72 0.1U25Y0402
CE16
CE16
CE17
CE17
CE45
CE45
0.1u_0402
0.1u_0402
+0_75VRUN
CE13
CE13
0.1u_0402
0.1u_0402
CE73 0.1U25Y0402C E73 0.1U25Y0402
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
CE14
CE14
0.1u_0402
0.1u_0402
+3VSUS
CE35
CE35
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
10000p_0402
10000p_0402
+3VALW
CE50
CE50
0.1u_0402
0.1u_0402
CE74
CE74
CE46
CE46
SDC_IN+
+3VRUN
CE47
CE47
0.1u_0402
0.1u_0402
CE75
CE75
1000p_0402
1000p_0402
CE48
CE48
0.1u_0402
0.1u_0402
1000p_0402
1000p_0402
CE49
CE49
CE15
CE15
0.1u_0402
0.1u_0402
0.1u_0402
0.1u_0402
CE76
CE76
CE77
CE77
10000p_0402
10000p_0402
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Screw/EMI
Screw/EMI
Screw/EMI
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
48 56Wednesday, August 05, 2009
48 56Wednesday, August 05, 2009
48 56Wednesday, August 05, 2009
Page 49
A
B
C
D
E
Calpella System Power on Sequence DC mode
PWR_SRC
PWR_SRC
+3VALW/+5VALW
1 1
SWITCH->EC
EC->PCH
EC
EC->PCH
PCH->EC
PCH->EC
2 2
PCH->EC
PWRSW#
PM_PWRBT#
SUS_ON
+3VSUSPWROK
RSMRST#
PM_SLP_S5#
PM_SLP_S4#
PM_SLP_S3#
DIMM_ON
(+3VSUS,+5VSUS)
Switch de-bounce time
>=50ms
KBC Delay 50ms ( SPC. >10ms )
t07 PCH internal timing >100ms "boot after G3"
t08 S5# to S4# PCH internal timing >30us
t09 S4# to S3# PCH internal timing >30us
+V1.5_DIMM
EC->POWER
CPU->POWER
POWER->PCH
RUN_ON
RUN POWER
GFX_VR_EN
ALLSYSPG
( PM_SLP_S3# )
VTT
(+1_5VRUN, +3VRUN )
( +VCC_GFXCORE)
VAXG
(+V1.5_DIMM0_PWRGD, +VTT_PWRGD, +1_5VRUN_PWRGD, +VTT_CORE_PWRGD, S3_CNTRL )
t13 VTT to VTT_PWRGD 0.0001~500ms
EC->POWER
VR_ON
t16 KBC Delay 99ms ( SPC. >99ms )
VHCORE (CPU POWER)
3 3
POWER->CLK
CLKGEN
POWER->PCH
CLK_EN
CLK_GEN
IMVP_PWRGD
>99ms
PCH VCCcore 1.1V
PCH->CPU
PCH->CPU
4 4
PCH->DEVICE
PM_DRAM_PWRGD
BCLK_CPU
VCCPWRGOODPCH->CPU
PLT_RST#
System State
A
G3->S5
B
t18 IMVP6.5 spec. 10~100us
t19 CLKIN_BCLK stable to IMVP_PWRGD >1ms
KBC Delay 150ms ( SPC. >99ms......RUN>>PWROK )
t20 CLK_EN to IMVP_PWRGD=3~20ms ( IMVP6.5 SPC )
t26 IMVP_PWRGD to VCCPWRGOOD default 100ms
t22 VDDQ(DIMM power) to PM_DRAM_PWRGD >100ns
t23 IMVP_PWRGD to PM_DRAM_PWRGD >1ms
t24 BCLK_CPU stable to VCCPWRGOOD >1ms
t27 VHCORE to VCCPWRGOOD=0.05~650ms
t32 VCCPWRGOOD to PLT_RST# >1ms
S0S3 -> S0S4S5
C
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Power on Sequency
Power on Sequency
Power on Sequency
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
49 56Wednesday, August 05, 2009
49 56Wednesday, August 05, 2009
49 56Wednesday, August 05, 2009
0A
of
of
of
Page 50
A
B
C
D
E
Power down Sequence DC mode S0 to G3
PWR_SRC
1 1
+3VALW/+5VALW
EC
PWR_SRC
SUS_ON
+3VSUSPWROK
EC->PCH
PCH->EC
PCH->EC
PCH->EC
EC->POWER
2 2
EC->POWER
RSMRST#
PM_SLP_S5#
PM_SLP_S4#
PM_SLP_S3#
DIMM_ON
+V1.5_DIMM0
RUN_ON
Ta>30us
Tb>30us
RUN POWER
VTT
CPU->POWER
+VTT_CORE_PWRGD
GFX_VR_EN
Tf +VTT_CORE_PWRGD to 0.9*VTT >100ns
VAXG
POWER->PCH
ALLSYSPG
EC->POWER
3 3
VHCORE (CPU POWER)
POWER->CLK
CLKGEN
POWER->PCH
IMVP_PWRGD(PWROK)
PCH VCCcore 1.1V
VR_ON
Tg<200ns
CLK_EN
CLK_GEN
Th<100ns
Ti>40ns
Tj>5us
PM_DRAM_PWRGD
Tk<100ns
Ts>1us
BCLK_CPU
4 4
PCH->DEVICE
VCCPWRGOODPCH->CPU
PLT_RST#
System State
A
B
Tr>10us
Tn>30us
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
S5S4S3S0
G3
C
D
Title
Power on Sequency
Power on Sequency
Power on Sequency
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
A3
A3
A3
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
50 56Wednesday, August 05, 2009
50 56Wednesday, August 05, 2009
50 56Wednesday, August 05, 2009
of
of
of
Page 51
A
B
C
D
E
M92 Power on Sequence
A A
DGPU_PWR_EN
M92_VDD_CORE
+M92_PWRGD
+1_8VRUN_PARK
PARK Power on Sequence
DGPU_PWR_EN
VDDR3
M92_VDD_CORE
+M92_PWRGD
+1_5VRUN_PARK
+1_0VRUN_PARK
VDDR3
B B
+1_8VRUN_PARK_PWRGD
+1_0VRUN_PARK_PWRGD
+1_8VRUN_PARK_PWRGD
+1_0VRUN_PARK_PWRGD
(DGPU_PWROK)
PCIE_REFCLK
DGPU_HOLD_RST#
+1_8VRUN_PARK
+1_5VRUN_PARK
+1_0VRUN_PARK
(DGPU_PWROK)
PCIE_REFCLK
DGPU_HOLD_RST#
C C
D D
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
M92/PARK Power on Sequence
M92/PARK Power on Sequence
M92/PARK Power on Sequence
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
51 56Wednesday, August 05, 2009
51 56Wednesday, August 05, 2009
51 56Wednesday, August 05, 2009
of
of
E
of
0A
0A
0A
Page 52
A
B
C
D
E
M92 Power down Sequence
1 1
DGPU_PWR_EN
DGPU_HOLD_RST#
PCIE_REFCLK
M92_VDD_CORE
PARK Power down Sequence
DGPU_PWR_EN
DGPU_HOLD_RST#
PCIE_REFCLK
M92_VDD_CORE
VDDR3
+M92_PWRGD
+M92_PWRGD
+1_8VRUN_PARK_PWRGD
2 2
+1_0VRUN_PARK_PWRGD
(DGPU_PWROK)
+1_8VRUN_PARK_PWRGD
+1_0VRUN_PARK_PWRGD
(DGPU_PWROK)
+1_8VRUN_PARK
+1_5VRUN_PARK
+1_0VRUN_PARK
VDDR3
+1_8VRUN_PARK
+1_5VRUN_PARK
+1_0VRUN_PARK
3 3
4 4
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
M92/PARK Power down Sequence
M92/PARK Power down Sequence
M92/PARK Power down Sequence
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
52 56Wednesday, August 05, 2009
52 56Wednesday, August 05, 2009
52 56Wednesday, August 05, 2009
of
of
of
Page 53
A
B
C
D
E
Switchable DGPU Power on Sequence
Discrete Mode
A A
DGPUPRSNT#
DGPU_PWR_EN
DGPU_PWROK
DGPU_HPD_INTR#
Switchable DGPU Power off Sequence
UMA Mode
DGPUPRSNT#
GFX_VR_EN
DGPU_SELECT#
DGPU_HOLD_RST#
100ms
DGPU_PWR_EN
B B
PCIE_REFCLK
DGPU_HOLD_RST#
100ms
EDID_SELECT#
DGPU_SELECT#
GFX_VR_EN
C C
D D
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Switchable Power Sequence
Switchable Power Sequence
Switchable Power Sequence
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
MS-145X
MS-145X
MS-145X
MICRO-STAR INT'L CO.,LTD.
53 56Wednesday, August 05, 2009
53 56Wednesday, August 05, 2009
53 56Wednesday, August 05, 2009
of
of
E
of
0A
0A
0A
Page 54
A
B
C
D
E
PWR_SRC
BAT : 3S2P = 9V
3S3P = 9V
1 1
11.779A
VCC_CORE(2 Core) = 38A
3.425A
1.243A
1.592A
0.449A
UP611AQDD
ISL62882HRZ
UP611AQDD
ISL62882HRZ
+VTT
18A
+VCC_GFXCORE
+1_05VRUN
6.5A
VCC_CORE
22A
38A
1.75A
CPU Arrandale(989)
VCC_CORE
VCC_GFXCORE
VTT
+1.5V
+1.8V
+VTT(1.05V) = 18A
+VCC_GFXCORE = 22A
+1_5VDIMM = 20.2A
+0_75VRUN = 2A
+1.5VRUN = 4.5A
1.43A
UP6111AQDD
+1_5VDIMM
+3VALW = 0.02A
+3VSUS = 9.716A
+1_8VRUN = 1.75A
+1.5VSUS = 0.3A
2 2
+3VRUN = 5.486A
+5VSUS =5.236A
+5VRUN = 5.23A
+1_8VRUN_PARK = 0.895A
M92S_VDD_CORE=16A
3.545A
UP6111AQDD
TPS51125RGER
+3VALW
+3VSUS
+5VALW
+5VSUS
5.236A
0.02A
9.216A
16A1A
MOS SW
MOS SW
MOS SW
20.2A
APL5331KAC
N-AO4468
N-AO4468
N-AO4468
+1_8VRUN
+1.5VSUS
+3.3VRUN
APL5912KAC
+0_75VRUN
+1_5VRUN
+1_0VRUN_PARK
+1_5VRUN_PARK
1.75A
0.3A
4.986A
+1_8VRUN_PARK
895mA
10A
2A
4.5A
2.5A
1.2A
2.18A
2.191A
2 Core
0.97V (38A)
1.1V (22A)
1.05V (18A)
1.5V (3A)
1.8V (1.35A)
PCH (IBEXPEAK)
+1.8VRUN (410mA)
+1.05VRUN (6.5A)
+3VRUN (510mA)
+3VSUS (170mA)
+1.5VRUN (11mA)
+1.5VSUS (300mA)
+3VALW (2mA)
DDR 3
+1_5VDIMM (10A)
+0_75VRUN (2A)
PARK LP
+3VRUN (190mA)
+1_8VRUN_PARK (895mA)
+1_0VRUN_PARK (2.5A)
+1.5VRUN_PARK (2A)
M92S_VDD_CORE(16A)
Mini PCI-E*2
+3VRUN (1.1A)
+1_5VRUN (0.375A)
Card reader
+3VRUN (350mA)
ALC662
DVDD +3VRUN (41mA)
+5VSUS (61mA)
0.061A
3 3
Battery charger
MAX17005ETP+
4 4
A
MOS SW
B
+5VRUN
4.85A
USB Port*4
+5VRUN (2A)
CPU FAN
+5VRUN (0.25A)
SATA HDD + ODD
+5VRUN (2.6A)
1.9A
+3VRUN (0.1A)
LED Panel 14.3"
+3VRUN (1.8A)
C
0.38A
ENE3926
+3VALW (0.02A)
Clock
D
Audio AMP
VDD +5VRUN (380mA)
LAN REALTEK 8103E
+3VSUS (668mA)
MDC card
+3VSUS (30mA)
NEW CARD
+3VSUS (1.5A)
+1.5VRUN (0.65A)
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Power MAP
Power MAP
Power MAP
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
of
of
of
54 56Wednesday, August 05, 2009
54 56Wednesday, August 05, 2009
54 56Wednesday, August 05, 2009
0A
0A
0A
Page 55
A
1 1
B
C
D
E
MS-145X
SW2
Power_button(FOR OEM)
HotKeyP1_button( FOR OEM)
SW3
WLAN/BT_button(FOR OEM)
SW4
SW5
Search/Webcam_button (FOR OEM)
SW6
Power_button(FOR Channel)
Right_button
SW7
Left_button
SW8
2 2
MS-145X
LED3
HDD LED(FOR OEM)
LED4
NUM_LED( FOR OEM)
LED5
CAP_LED(FOR OEM)
LED6
SCR_LED (FOR OEM)
LED7
BT_LED
WLAN_LED
LED8
ACPI_LED
LED9
LED10
CHARGE_LED
LED11
BATTERY_LOW_LED
LED12
POWER_LED
MS-145XA
LEDA1
NUM_LED(FOR OEM)
LEDA2
HDD_LED( FOR OEM)
LEDA3
CAP_LED(FOR OEM)
LEDA4
SCR_LED (FOR OEM)
3 3
SW6
LED3
LED4
LED5
LED6
CNA1
2 Pin
1
1
LEDA4
LEDA3
LEDA1
LEDA2
MDC conn
CN6
12 Pin
LED12
SW5
SW4SW3SW2
LCP conn
CON12
MIC conn
CON9
1
2 Pin
14 Pin
4 Pin
1
J25
1
SPKR conn
12 Pin
CONP2
MDC conn
1
1
1
12 Pin
CON11
1
40 Pin
LVDS conn
6 Pin
1
CN10
WebCam conn
26 Pin
CN22
TOP
CON2
Keyboard conn
BOT
Touch Pad conn
CN4
12 Pin
1
Buletooth conn
CN9
1
CPUFAN1
1
3Pin
CPUFAN conn
8 Pin
MS-145X : Main Board
MS-145XA : LED board
SW7
LED7
LED8
LED9
SW8
LED10
LED11
MS-145X TOP VIEW
12 Pin
4 4
A
B
1
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
Topology
Topology
Topology
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
55 56Wednesday, August 05, 2009
55 56Wednesday, August 05, 2009
55 56Wednesday, August 05, 2009
of
of
of
Page 56
A
2009/06/25 [Page33] Add LED and switch function for OEM reserved
[Page30] Delete KBOUT16,KBOUT17 for MS-1451 keyboard matrix
[Page41/42] Modify APL5912 VCNTL to +5VSUS
[Page43/44] Modify some RC footprint and value
B
C
D
E
[Page25] DGPUPRSNT#改接pull down
[Page30] 修改+1_8VRUN_PARK_PWRGD及+1_0VRUN_PARK_PWRGD
結合為
DGPU_PWROK
[Page34] C47,C49改為0.1uF
[Page43] Add three X-copper
2009/06/26 Modify circuit to Switchable
A A
[Page19] Add LVDS common choke by EMI
[Page12] Reserve RGB 10p to GND
[Page38] Reserve BAT CLK and DATA 10p to GND
[Page39] Reserve 10p SDC_IN+ to GND and close to PQ57
Add two X-Copper
[Page40] Reserve 10p +5VSUS to GND and close to PQ60
Reserve 2.2R+2200p
[Page41] Reserve 10p PWR_SRC to GND and close to PQ68
[Page42] Reserve 10p PWR_SRC to GND and close to PQ72
[Page43] Reserve 10p PWR_SRC to GND and close to PQ75 or PQ76
Reserve 10p PWR_SRC to GND and close to PQ78 or PQ79
[Page43] Reserve 10p PWR_SRC to GND and close to PQ81 or PQ82
Add two X-Copper
B B
2009/06/29 [Page35] Modify CPU FAN.Add C121 and C304 by datasheet.Add one more RC for FAN speed calculation(as MS-1122)
Modify PARK circuit
Modify PCH PN to OB1-1675001 for Mobile IntelR 5 Series Chipset Full Feature
Modify Audio jack PN to N54-05F0951-H06
Modify internal MIC PN to N32-1020790-A81
Modify power sequence map
2009/07/01 [Page3]
R234,R412等0A
實驗結果再決定是否移除
BPM#[0~7] remove
BCLK只保留from PCH,移除from CLOCK GEN.
[Page5] Short bead
[Page6] Short bead
C C
[Page7] VSS_NCTF1~7 remove
[Page8] 只保留CFG的測點,其餘移除
[Page9] SA0_DIM0及SA1_DIM0改為0 ohm
移除
330uF,因在CPU以及switching power
[Page10] SA0_DIM1改為0 ohm
移除
330uF,因在CPU以及switching power
對地
對地
端已有
端已有
[Page12] 補上HPD線路
[Page16] MDA0~MDA7 swap
[Page18] CRT及LVDS
的預留電阻
(for MS-1454)
均改為單顆的
0 ohm
EDID switch的電源pin加上0.1uF
D D
R3238,R3239改為10K ohm
移除
[Page19]
BR-AD-ADJ,BR-PWM-ADJ
兀型濾波LC值改為
0.1uH+10pF
名稱改為
新增LVDS DDC pull high,backlight adj預留net PWM-ADJ
A
PWM-ADJ,HDMI DDC
名稱改為
HDM_SDA及HDM_SCL
B
MICRO-STAR INT'L CO.,LTD.
MICRO-STAR INT'L CO.,LTD.
Title
Title
Title
History
History
History
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Custom
Custom
Custom
Date: Sheet
Date: Sheet
C
D
Date: Sheet
MICRO-STAR INT'L CO.,LTD.
MS-145X
MS-145X
MS-145X
E
0A
0A
0A
of
of
of
56 56Wednesday, August 05, 2009
56 56Wednesday, August 05, 2009
56 56Wednesday, August 05, 2009
Loading...
