MSI Mega Player P200 User Manual

GB - 1

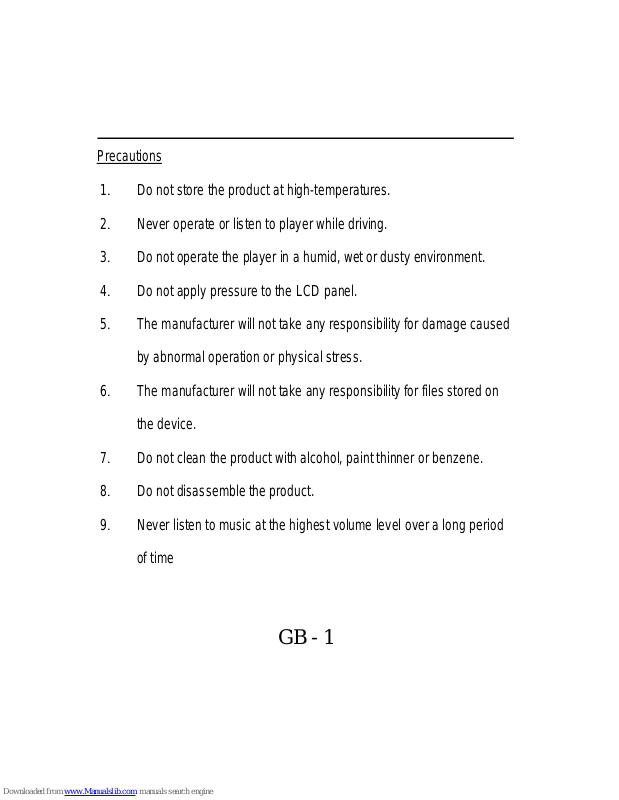

Precautions

1． Do not store the product at high-temperatures.
2． Never operate or listen to player while driving.
3． Do not operate the player in a humid, wet or dusty environment.
4． Do not apply pressure to the LCD panel.
5． The manufacturer will not take any responsibility for damage caused

by abnormal operation or physical stress.

6． The manufacturer will not take any responsibility for files stored on

the device.
7． Do not clean the product with alcohol, paint thinner or benzene.
8． Do not disassemble the product.
9． Never listen to music at the highest volume level over a long period

of time

GB - 2

Battery Status
(Time unit: hour)

Battery Mp3 player

AAA Battery(1.5) 10

Battery life may vary with different using condition, manufacturers and
manufacturing date.

1.when initially operating, the icons of the remaining capacity may not
readable.

(enough) (middle) (low) (empty)
* Please change a new battery in the following cases, When the icon blinks
signaling battery low level or empty.

GB - 3

2. .when using a general battery type instead of Alkaline, the player could
stop working, even though the battery capacity icon shows medium level.

Player overview

MODE

Lanyard loop

To Ste reo earphones wit

h

3.5 mm mini Audio plug

Hold

VO L-

B ack

VOL+

For ward

Battery compartment

LCD

USB t y p e A i nt e r f ac e

Power on/Pl ay/pause

Power OFF/STOP

GB - 4

Accessories

LCD

ALL

HAPPY E VERY DAY.MP3

Bat tery Le vel

Rep eat m od e

So ng co u nt er

ID 3 Di sp l ay

Bit rate

Mu si c mode

Pl ay mode

NO . o f s o n g

Hol d

EQ mode

Turning the power on/off

1. Press the PLAY button moment arily for 2 seconds and the MP3

Player will turn on with an opening backlit image “Digital Music”.

GB - 5

2. The backlit durations can be preset in the “Back Light” menu.

3. Pressing PLAY button for more than 3 seconds until the “Good

Bye” appears will turn off the MP3 Ultra Flash Player.

Key Lock Function

Push the hold switch and the screen will show out “Key Lock!”

Playing MP3 music

1. Turning on the power by pressing PLAY button, you could see the
following interfaces: no. of songs, song timer, bit rate and the ID3 display.

GB - 6

2. PLAY/ PAUSE status
Short press PLAY KEY after turning on MP3, the music is played; Short
press PLAY key again when music is being played, it will pause

3. If you want to select forward/back song, turn the Mode switch wheel
left or right to get the track.

4. By pressing VOL+/VOL-button, you could control the volume under
either PLAY or PAUSE status. The volume steps (see illustration) will
increase or decrease when the VOL+/VOL- button is pressed
correspondingly.

ALL

5.In music mode, long dial

forward/back button, the player will fast

GB - 7

backward/fast forward in the selected song

Subfolder function

This function can help user to separate songs in MP3 and put different
songs into different subfolders so as to find the songs you like to listen.
You can establish subfolders in computer when MP3 is connected with PC.
When MP3 is under MODE status, long press Mode key and the following
window popped up:

You can see all subfolders which you set up yourself under root folder,
choose the folder and press PLAY key to enter into and see the following:

And press PLAY key again to confirm the song.
If you want to exit subfolder menu, please short press Mode key and MP3

GB - 8

will be back to music status.

Menu

A. Menu under the playing mode

1.Turn on the MP3 Player

2.When it is playing song, press the Mode Switch (In the middle of the
rolling wheel), you can see the function menu as following:

This menu include EQ and Repeat Mode setting

EQ (Equalizer)

Under the music play mode, press the mode key, and then enter the
EQ mode. Or when the music pause, presses the mode key, choose
the EQ mode with adjust forward/back key and confirm with play key.

You can select different mode according to different music.Enter into EQ

GB - 9

list in the menu by short press PLAY key.There are six EQ in the list as
following:

NORMAL
CLASSIC

LIVE
POP

ROCK

DBB
You can adjust the modes by the EQ menu. You could experience perfect
Classic, Live, Pop, Rock, DBB would effect by choosing suitable

corresponding mode. Normal mode could bring you original sound effect.
If you don’t want to change current settings, you can Press the Mode
Switch to exit.

Repeat mode

GB - 10

If you’d like to listen to a song again and again, then you need change the
Repeat mode.

1. Under the music play mode, press the mode key, and then enter

the Repeat mode. Or when the music pause, presses the mode key,
choose the Repeat mode with adjust forward/back key and c onf irm
with play key,

and the Play Repeat mode can be changed.

2. Repeat modes include Normal, Repeat one, Repeat folder, Repeat All

and Repeat Random

B. Main Menu

When MP3 is under PAUSE and STOP status, press the Mode Switch, you
can see Function menu as following:

GB - 11

Music Player

Voice player

Voice Record

Line-in Record

FM radio

File Delete

EQ
Repeat
Setting

All the options are listed in the above table.

1.You may select every item by the rolling left or right of Mode switch and
press Play/Stop key to enter the function.

2.When you select “File Delete”, you will enter the Delete interface. More
information is to be mentioned behind.

GB - 12

3.With no button being pressed, it will return to Play interface after 2
seconds.

Voice Playing and Recording Function
Notice: should press play key to record the recording documents, so
please confirm the power of battery, if the power is not enough, the
document can’t be recorded.

1.After turning on the power by pressing PLAY button, press the Mode
switch to enter into Main Menu, and then you can see the menu as
illustration.

2.Now you can select the “Voice Player” to be played. Short Press the
PLAY button to listen to the recorded files (see the following illustration) If
there are no recorded files, the interface would show “No voice”

GB - 13

Æ

ALL

MIC_ 0 01.WAV_

TRACK:001

3.In Main Menu, you will see Voice Recording item. Select it to start
voice recording. The Recording interface is showed as the following right
figure.

Æ

ALL

34K

You could stop recording by short pressing PLAY/STOP button
momentarily and exit from Voice Recording mode and switch to MP3
function by select Main menu.
Note: While recording all buttons except PLAY/STOP or Hold button are
not workable.

Exit the voice recording mode

Completing recording, if you want to enjoy the music, you can exit the
Voice Recording mode and switch to the Music mode.

GB - 14

1.Press Mode Switch (in the middle of the rolling wheel) in the Voice
Recording mode to pops up the Main Menu as following:

2.Turning Menu switch Left or right to select Music Player item in the
menu.

4.Short Press the Play/Stop to confirm. And then if will return to Music
mode.

Line-in recording

When you want to transfer song from another MP3 player to your MP3
player, you only need to use the Line-in cable (not included), shown as
diagram:

GB - 15

Press Play key to start record sounding, if you at this time put on
headphones can still enjoy the wonderful music. Line-in recording process
is shown as diagram below:

After completing recording, there will be a LINE_REC folder for storage of
Line-in recording files in your player, you are able to choose the recorded
file you wanted.

FM radio mode

Remark: This function is optional

1. Open the main menu and choose “FM Radio”

GB - 16

3. There are 3 kinds of modes of searching.
Choose FM mode: under the FM mode, search the program with
forward/back key, the bound of frequency is 87.5—108.5MHz.
Automatic search: Keep the PLAY key forward or backward, the frequency
will be increased or decreased automatically.
Hand search: Just roll the PLAY key once, the frequency will be increased
100kHz(91.8MHz-91.9MHz)

3. Press the mode key Under reception condition, you can see the menu
as following:

GB - 17

“PRESET”: Automatically searching the channels. When it find a qualified
channel, it will stop searching. If you think the channel is not satisfied, you
can keep the PLAY key forward or backward again to go on searching, if
you just roll the PLAY key once, the frequency will return back to the
frequency of channel 01 saved( if there is no saved channel, it will return to

87.50MHz)
“FREQUENCY”: Hand search mode.The only difference with Automatically
searching is that when you stop searching and go on to search again, if
you just move the PLAY key once, the frequency can be increased or
decreased 100kHz(91.8MHz-91.9MHz) accordingly.
“AUTO SCAN”: Automatically searching the channels. When you choose
this item, MP3 will scan from 87.50MHz, The difference with “PRESET” is
When you choose preset, the scan will begin from the frequency you
stopped last time but not from 87.50MHz.
“SAVE PRESET”: when you find a qualified frequency, just press the PLAY

GB - 18

key and choose this item, then the frequency can be save as channel01 or
channel02 as you like;
“CLR PRESET”: If you want to delete any channel saved, choose this item
and press the PLAY key to confirm.

FM sensitivity:

Under the FM mode, press mode key to enter FM menu, and choose ‘FM
sensitivity’ and press play key, then you can adjust and choose the
reasonable sensitivity based on condition.

FM Recording

Record FM program: press mode key after your choosing frequency,
choose ‘FM recording’ with forward/back key, and then recording the

GB - 19

program with play key. After that, there will be a ‘FM_REC’ folder to
storage recording files.
Our MP3 player can record the program the when you are listening FM,
and the recording quality and be adjusted, it can be divided into
32kbps,64kbps,96kbps,112kbps,128kbps, 192kbps,

Of six grades .The following diagram shows:

3. Exit the FM radio mode
Press the PLAY key to stop the FM radio, see the indication as following:

Then press the MODE button to return to main menu

GB - 20

Delete files

If you want to delete the files in the player, you may do it by using the
delete function in the menu.

1.Press Menu button (in the middle of the rolling wheel) to get the Main
menu.

2.Select “File Delete” by short pressing PLAY key and the following display
will appear.
The upper row shows which track you have selected and the bottom row
shows the recorded file or the name of the song.

GB - 21

MIC_ 002.WAV_

ALL

3.Now you are allowed to choose the files to be deleted by dial Mode
Switch forward/back. In this dialog box ,short press Play/Stop key to
confirm and if you will not delete the file press any key to exit.

Setting Options

Choose Setting item in the Main menu, you can see the system setting
list as following:

GB - 22

Language function establishes

1. Open the main menu, and enter into “Setting” ,choose “Language” item
by short pressing PLAY/STOP button, then the following diagram to show:

Language

Lyric Display

LCD Contrast
Back Light

Bitrate
Format Momory
Reset setting

Memory Info.
S/W Version

GB - 23

2.Enter the language to establish the item, and can see English, simplified
Chinese character（GB2312）, and traditional Chinese character
（Big5）,Korean, Japanese, German, French, Italian, Spanish, etc.
following diagram to show:

Choose the language you prefer to set up the languages MP3 displaying.

Lyrics display

1. Install the lyrics synchronous
The synchronous manifestation of lyrics is a procedure when playing the
MP3 file and at the same time showing the lyrics.

GB - 24

The software in the CD driver offer you to modify, and delete, and edit lyric
of song.

Install the software in the CD driver , choose the " LP Setup .exe" and
press" Next" the key according to the guidance on window popped up.

2.Use the lyrics synchronous

GB - 25

The detailed information that lyrics edit pleases see the helps.

3.Press to open the machine key to open to broadcast the MP3 player .
Under the music pause the mode, regulate the function menu, and pass to
go forward/ retreat the key choice the lyrics to show the options.

Press to Play the key after confirming the following diagram show:

Contrast Level

Under the music pause mode, press mode key and choose “setting”,
then, press play key to enter submenu and choose “Contrast Level”
and press play key to confirm.

You can adjust the contrast level to low, middle and high in “ SETTING”

GB - 26

LCD Contrast

The Backlight

You can setup how long the backlight will last according to your demands.

1.Select Backlight in the setting submenu.

2.You may choose to turn off the backlight or let the backlight on for 5, 10,

15. 20 seconds and ON each time the button is pressed

5 Seconds

5S

10S

15S

GB - 27

Recording speed（FM Reaording and Circuit record speed）

You can use the menu to regulate the FM recording speed, recording
speed can is divided into
32kbps,64kbps,96kbps,112kbps,128kbps,192kbps

of six grades .The following diagram shows:

diagram shows 1

112

diagram shows 2

Format Memory

GB - 28

Notice: Please backup the important documents if you want to format
the memory.

You can format the internal memory First enter the SETTING and select
the function “ Format Memory”.

And answer the “yes” to start the formatting!

please do not format your MP3 when battery power status is too low and
change new battery before starting format. When formatting is in progress,
please do not remove the battery.

Reset setting

By choosing this item, your MP3 player will be reverted to the default

GB - 29

setting in manufacturer,
such as the menu language will be back to English etc.

Reset Setting

Examine the internal memory size

You could examine the memory size without being connected to the PC.

1.Select Memory Info in the menu in ”Setting” item

2.Short Press Play/Stop key to confirm. The Digital Audio will pops up a
dialog box as following to show the capacity of available memory.

GB - 30

ALL

Firmware edition

1.Select S/W version in “SETTING”. The following diagram shows:

?

2.You can see this product now of the following diagram of information of
firmware edition show:

ALL

S/W version
V.30 0 3

USB Connection

Once you connect with PC and you player will show “USB RDY” means

GB - 31

USB ready.

Warni ng : Download operation of WMA music with DRM
protection to MP3-Player

On Window 98SE/ Window ME / Windows 2000/ Windows XP , WMA
music with DRM should be transferred by Windows Media Player 9.0
and 10.0 version (10.0 version for Windows XP only) to MP3-Player
Other download operation probably will cause MP3-Player can not
read the WMA music with DRM file.

Operation introduction :

On Window 98SE/ Window ME / Windows 2000/ Windows XP, user
should upgrade Windows Media Player to 9.0 or 10.0 version ( 10.0
version only for Windows XP).

A) On Windows Media Player 9.0 version :

(Window 98SE/ Window

ME / Windows 2000/ Windows XP)

1) Connect your MP3.Player to PC

GB - 32

2) Open Windows Media Player 9.0

3) In Windows Media Player 9.0 , open the desired WMA
music with DRM

System maybe requested to download the license in case if
user does not download the WMA music with DRM properly
from the website.
In this case, user need download the license from music
publisher as instruction of Microsoft Website.

4) In operation windows , click “File ” Æ “Copy” Æ “Copy
to Portable Device”

GB - 33

5) In the opening windows , choose the desired WMA
music with DRM as step 2)
And choose “Removable Disk”

6) Then click Icon “Copy ” to transfer the WMA music
with DRM to your Mp3-Player

GB - 34

7) Safely remove your Mp3-Player from PC

B) On Windows Media Player 10.0 version (Windows XP only)

1) Connect your MP3-Player to PC

2) Choose the desired WMA music with DRM

GB - 35

3) Click Right button of mouse and choose “Add to Sync
list”

GB - 36

4) On the open windows , choose “Sync ” option

GB - 37

5) On “Sync ” window , choose the desired WMA music
with DRM as step 2)
And choose “Removable Disk”

6) Click “start Sync “ to trans fer the WMA music with DRM
to your MP3-Player

GB - 38

7) Safely remove your MP3-Player from PC.

System requirment

1. 1set compatible personal computer

2. Pentium 166 MHz MMX or faster

3. Windows 98 SE, Windows 2000 or Windows XP

GB - 39

4. USB Port

5. 32MB RAM or more (64MB is recommended for Windows 2000)

6. 20MB free hard disk space or more

7. 4Xcd-ROM drive or more
Installation of windows 98 Driver:
NO DRIVE INSTALLATION NECESSARY UNDER WIN ME/ 2000 / XP
Put the Installation CD into CD-ROM Drive and then it will be installed
automatically. You should click the “Next” button on installation screens.

GB - 40

The windows 98 Driver will be finished installation until the last

window show out.

Troubleshooting

1) The software does not work properly Refer to previous pages “ Set UP
Environment”

2) The player does not work or nothing is displayed on LCD.
Check the capacity of the batteries. 1 AAA size battery is required.
Check the polarity (+ and -) of the batteries.

GB - 41

3) The buttons are not working
Check the hold switch is off.

4) There is no audio produced.
Check that MP3 files are stored in the built-in memory as
following:MPEG-1 Layer 3, MPEG-2 Layer 3 and MPEG-2.5 Layer 3WMA
Version 4.1/7.0/8.0 and sampling rate should be over 64kbps.

5) MP3 files cannot be downloaded:
Check and / or replace the battery; Check the hold switch is in the off
position; Check the connection conditions.

6) MP3 player cannot connect to PC or USB port does not function.
Check the configuration of the set-up is correct or not (refer to the “set up
environment”)

1.Install battery correctly, observing the (+/-) polarity signs.

2.Never mix old and used battery in the same compartment.

3.Remove exhausted battery and battery not in use for extended periods.

GB - 42

4.Do not recharge or dispose of battery in fire as they may explode

5.Remove battery that isn't in use for a prolonged period of time as there is
a risk of leakage.

MP3 Electrical Specification：

Request the item Specification

Dimension L86mm*W22mm*H19.5mm

Support format MP3 WMA

Compression ratio for

supporting

MP3 File Mpeg1 layer3 Mpeg2

Layer3

Compression rate MP3 : 8kbps-320kbps

WMA : 32kbps-192kbps

GB - 43

Sampling rate 16KHz-48KHz

Voice Recording

FM、 Line-inRecording MP3; Adopt the kind

rate:32-128KHZ
MIC: WAV;Adopt the kind rate

:34KHZ

USB Port USB Spec 1.1

Memory 32M/64M/128M/256M/512M/1GB

Battery AAA battery (1.5V)

Headphone Jack HEAD PHONE JACK: 3.5mm

Playback time Up to 10 Hours

Voice Recording time 128M, 8 Hours

Download speed Read：900kb/s Write：900kb/s

S/N ratio >87dB

Output power >7.5 mw

Operation voltage 1.5V

GB - 44

Language English, Chinese GB2312,Korean, Japanese, German,

French, Italian, Spanish

FM radio 87.5—108MHZ
FM recording FM recording

Lyr ic display Player MP3 of Lyric display.

Line-in recording Circuit recording
DRM9 Support DRM9

ALL INFORMATION ARE SUBJECT TO BE CHANGED WITHOUT
PRIOR NOTICE!
