MSI Mega Player 536 User Manual

User’s Manual

MSI

MEGA PLAYER 536

User’s Guide

2

Table of Contents

Safety Instructions ...............................................................................................4

Chapter 1. Introduction.......................................................................................5

How to Use This Guide ................................................................................6

Unpack..........................................................................................................7

Chapter 2. Getting Started ..................................................................................8

Overview......................................................................................................8

LCD Display...............................................................................................10

Main Menu.................................................................................................10

Normal Playback Mode..............................................................................11

Li-ion Battery Recharge .............................................................................12

Battery Consuming Reference....................................................................12

Hold Switch................................................................................................12

Chapter 3. Utility Installation ........................................................................... 13

Connect MEGA PLAYER 536 to Your Computer......................................13

Install Utilities............................................................................................13

Copy songs with Windows Media Player 9................................................14

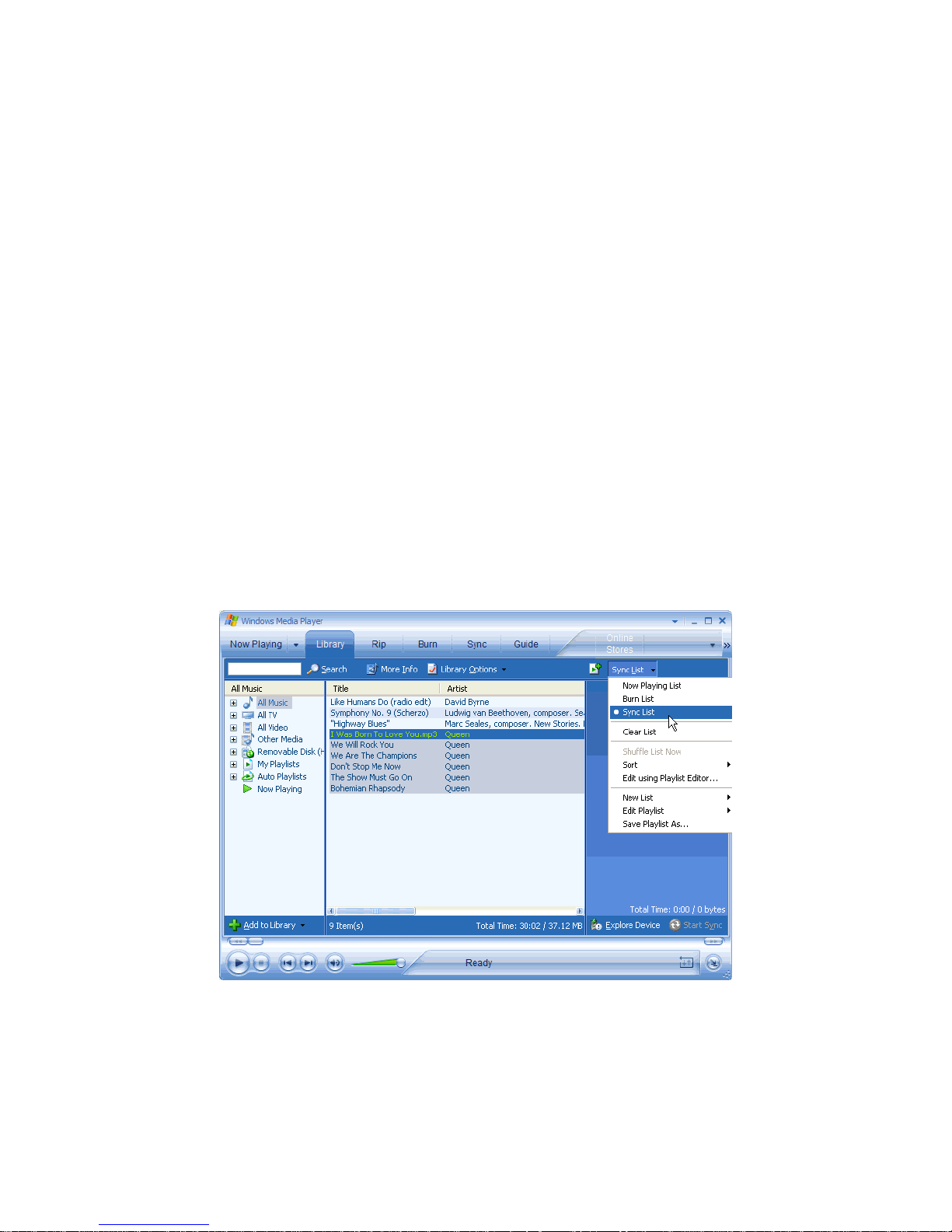

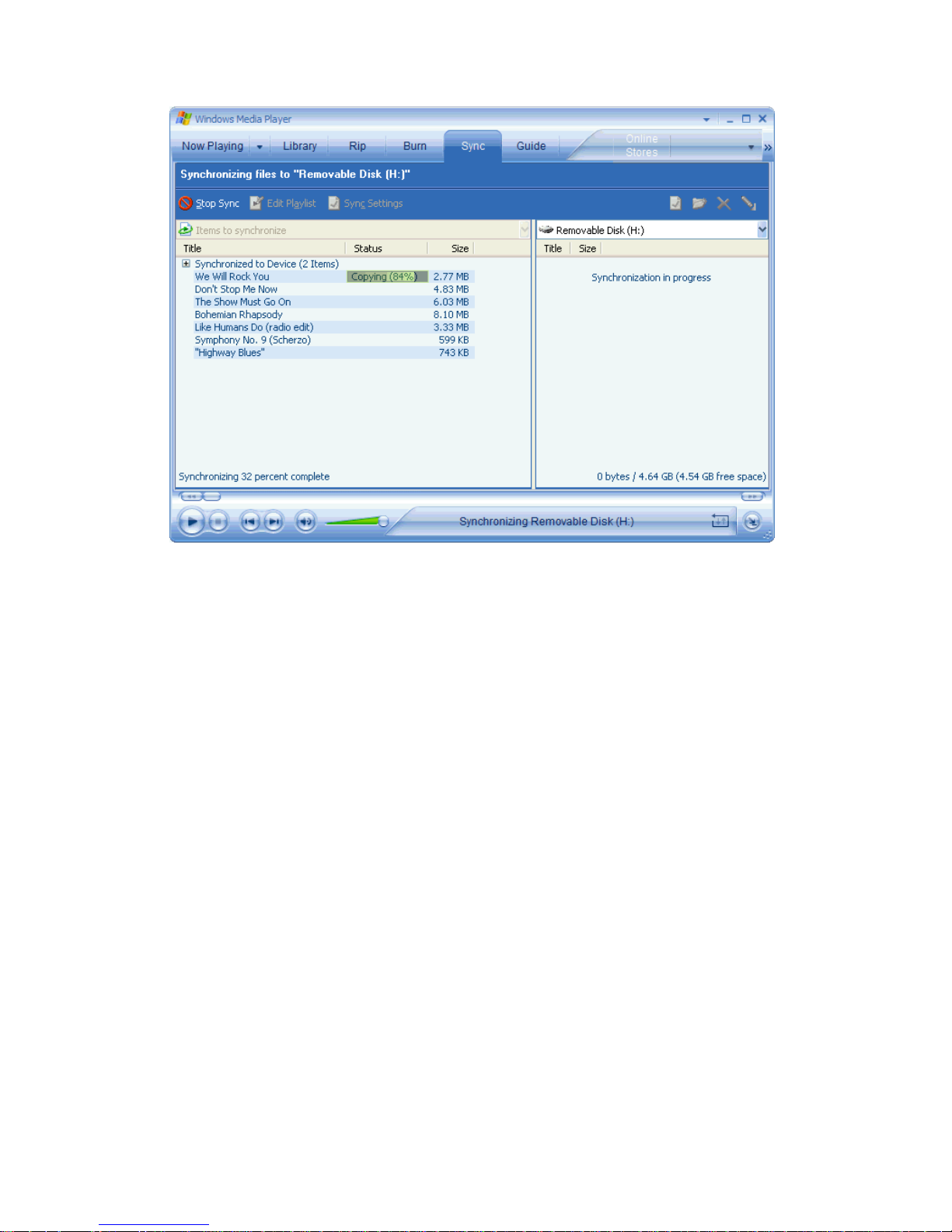

Synchronize songs with Windows Media Player 10...................................15

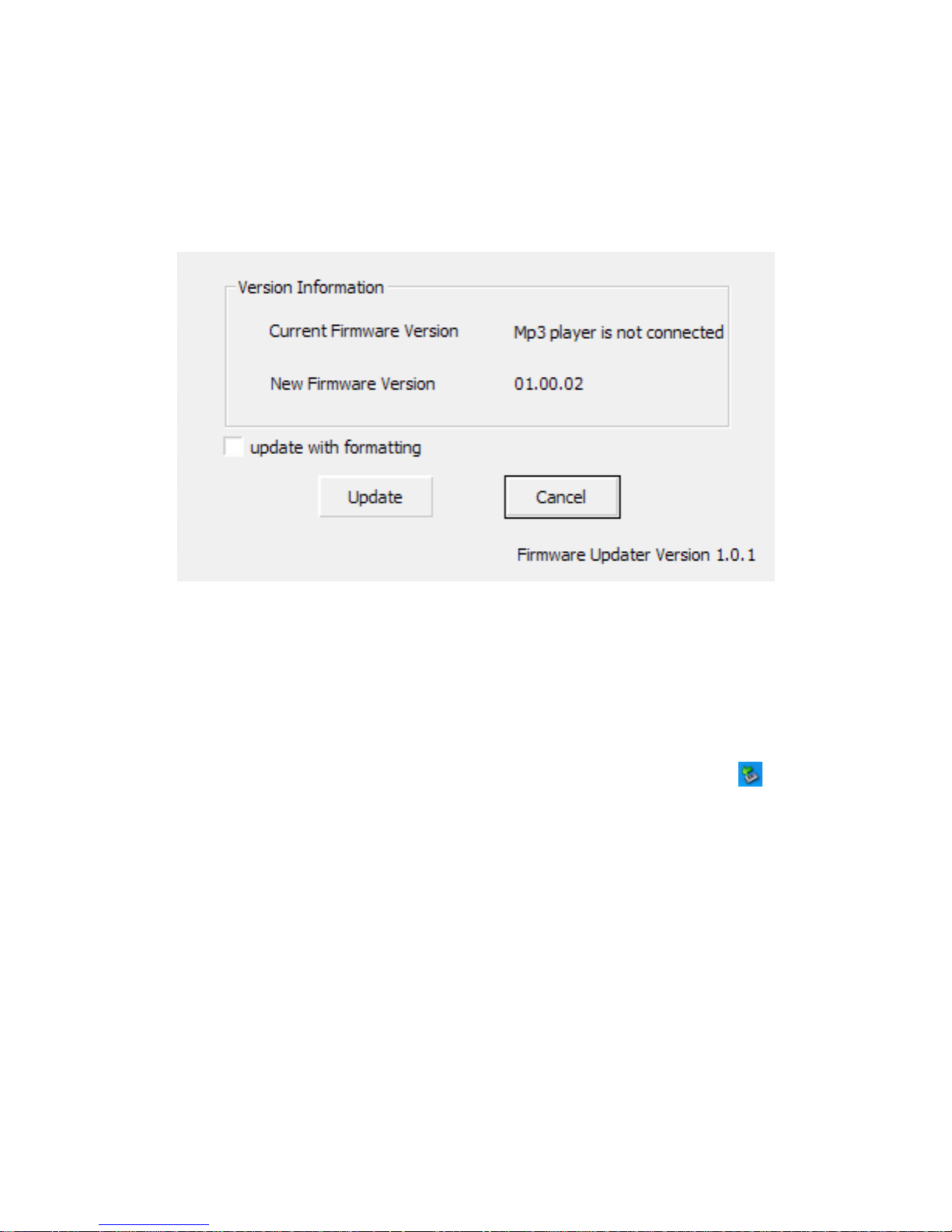

Firmware Recovery or Updating................................................................16

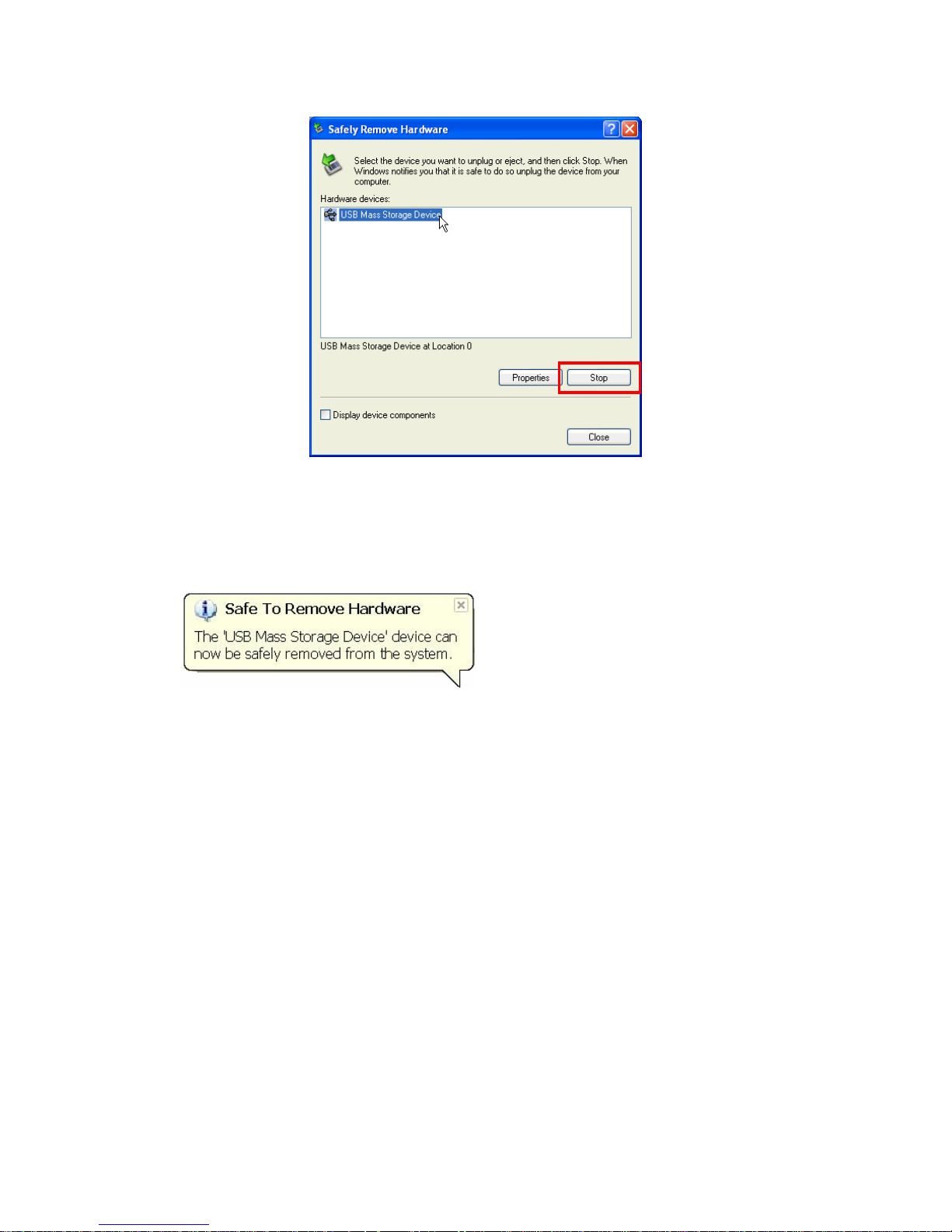

Safety Remove MEGA PLAYER 536 from Computer ..............................17

Chapter 4. Basic Usage ...................................................................................... 19

Using Touch Button....................................................................................19

Using Navigation Buttons ..........................................................................20

Using Exit/Submenu Button.......................................................................20

Power On....................................................................................................20

Power Off...................................................................................................20

Music/Voice Playback ................................................................................21

Adding songs to Playlist.............................................................................22

Deleting songs in Playlist ...........................................................................22

Setting SRS(WOW) Enhancement Effect ..................................................23

Setting EQ ..................................................................................................24

Setting Repeat Mode..................................................................................24

Viewing Photos...........................................................................................25

Slideshow ...................................................................................................26

Rotating Photos ..........................................................................................26

Playing V i deo.............................................................................................27

3

FM Radio Mode (Optional)........................................................................28

File Browser...............................................................................................29

Setting.........................................................................................................31

Setting Record Quality ...............................................................................31

Setting Record File Type............................................................................32

Setting Slide Interval..................................................................................33

Setting Slide Repeat ...................................................................................33

Setting Power Off.......................................................................................34

Setting Backlight Off ..................................................................................35

Setting Language........................................................................................36

Setting Date and Time................................................................................36

Setting Brightness.......................................................................................37

Resetting to original setting........................................................................38

Device Information.....................................................................................39

Encoding MP3 Directly from CD...............................................................39

Microphone Recording...............................................................................40

Radio Broadcast Recording (Option).........................................................41

Language Learning Function......................................................................42

Reset Button ...............................................................................................43

Appendix A. Specifications ................................................................................ 44

Appendix B. Utility CD...................................................................................... 45

　 Install Firmware Recovery Utility...........................................45

　 Install Windows Media Player Plug-In....................................45

　 Install Adobe Acrobat Reader..................................................45

　 Read MEGA PLAYER 536 User Manual................................45

4

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User’s Guide for future re fere nce.

3. Keep this equipment away from humidity.

4. Never pour any liquid into the opening that could damage or cause

electrical shock.

5. If any of the following situations arises, get the equipment checked by a

service personnel:

• Liquid has penetrated into the equipment.

• The equipment has been exposed to moisture.

• The equipment has not worked well or you can not get it work

according to User’s Guide.

• The equipment has been dropped and been damaged.

6. If any failure occurred to MEGA PLAYER 536, use a clip or a pin to

click the Reset button on the back side, and then slide the Power switch
once to power on the system.

7. Do not change the default folders in the MEGA PLAYER 536, or the

device might function abnormally.

8. Do not format the built-in hard disk.

5

Chapter 1. Introduction

Congratulations on becoming a new user of MEGA PLAYER 536. The new

MEGA PLAYER 536 will improve the convenience of listening music, viewing
photos, videos and sharing date. We are proud to tell our users that MEGA
PLAYER 536 is thoroughly tested and certified by our reputation for

unsurpassed dependability and customer satisfaction.

MEGA PLAYER 536 is a high performance portable digital audio/video player
and a photo browser that enables users not only to play MP3, WMA, WMA with
DRM audio files or M-JPEG video files, show JPEG graphic files, listen to the
FM radio broadcast (FM radio is an optional function), and record voice, FM
program or directly record whenever needed, but also to store personal data in
the memory of this device.

Here are the major features:

 Digital Audio Player – supports MP3

, WMA and WMA with DRM audio

files playback.

 Video Player – supports M-JPEG format and the smaller the 320x240

pixels video files.

 Photo Browser – supports JPEG graphic files and provides slideshow

function.

 FM Radio (optional) – the FM Radio module, while optional, receiving

FM Radio function will be plus in MEGA PLAYER 536.

 Voice Recorder – provides synchronous rec or din g function for voice.
 Radio Program / CD Direct Recording – provides synchronous

recording function for FM or directly from a CD player, recorded files will
be stored in MP3 or WAV format.

6

 Language Learning Function – enables users to repeat particular section

during normal playback. With this function, users will be able to pay
attention on the repeated playback to learn language.

 EQ and SRS effect – you are able to select SRS effect or one of EQ mode

to enjoy your music listening.

 SD/ MMC Card – supports SD/ MMC card, plug the card into slot to read

the files inside.

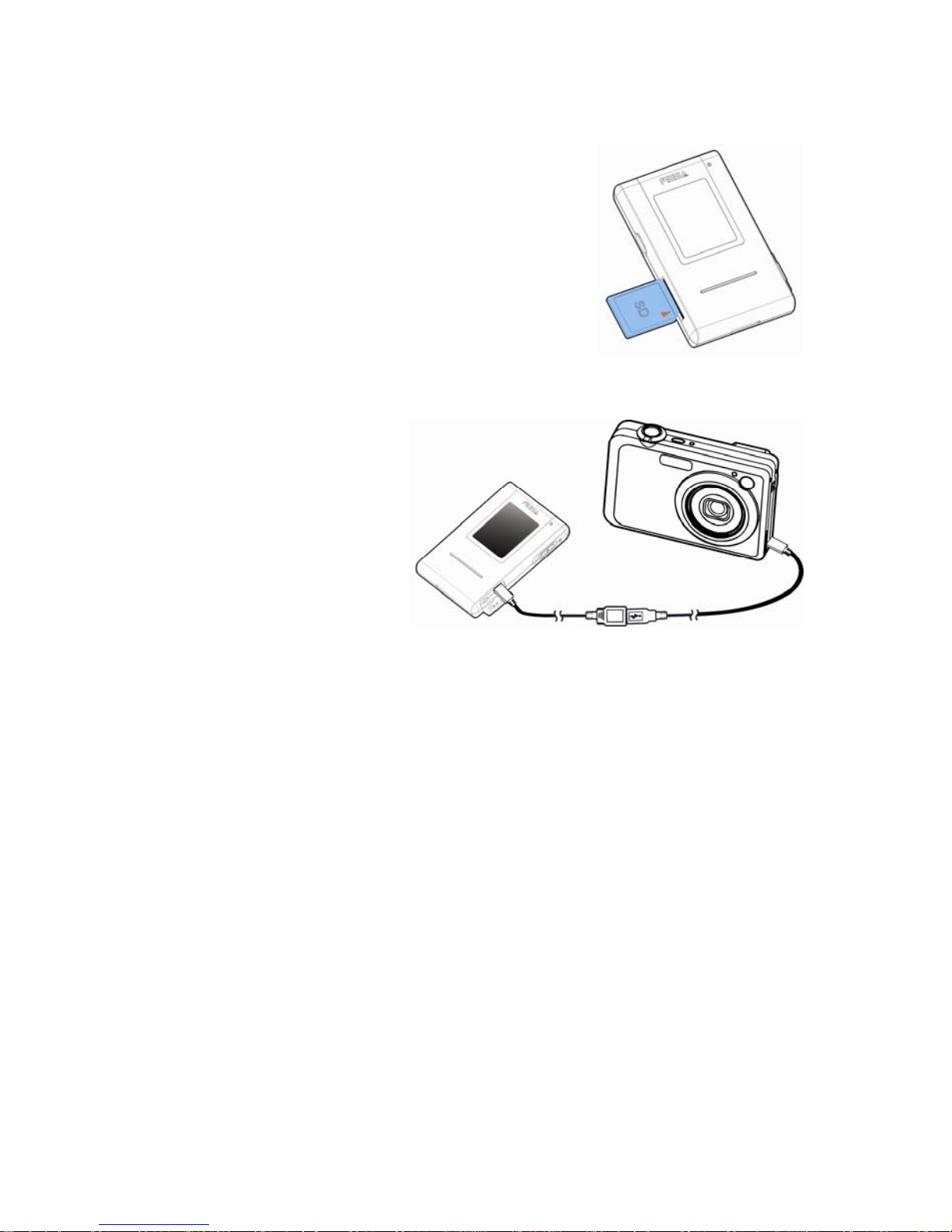

 Photo Bank – you can transfer the data from the digital camera to the

internal HDD. Especially when your digital camera memory is fu ll an d you
want to release the space, it is a helpful function.

 USB Flash Disk

– allows users to store data needed in MEGA PLAYER

536. (The capacity depends on the model you bought.)

How to Use This Guide

This User’s Guide provides instructions and illustrations on how to install and
operate your MEGA PLAYER 536. We assume that those users whose
operating system is at least Windows ME / 2000 / XP are familiar with their OS,
and are capable to follow the step-by-step instructions to install the driver of
MEGA PLAYER 536. For users who are not able to manage the operating
system properly, it is suggested to learn more about Microsoft Windows by
referring to your Microsoft Windows manual before installing the provided
utility.

Chapter 1, Introduction, tells you the descriptions of all the accessories of
MEGA PLAYER 536. Please check if you have all the accessories included
when you open the packing box. If any item is damaged or missing, please
contact the vendor where you purchased MEGA PLAYER 536 directly.

7

Chapter 2, Getting Started, introduces the function keys on MEGA PLAYER
536, the LCD Display status in different mode.

Chapter 3, Utility Installation, describes how to install MEGA PLAYER 536
and the specially designed utility for your new MEGA PLAYER 536.

Chapter 4, Basic Usage, describes how to use MEGA PLAYER 536 in various
ways. It is recommended to read this chapter carefully before using MEGA
PLAYER 536.

Appendix A, Specification, provides the specification and accessories of
MEGA PLAYER 536.

Appendix B, Utilities CD

Unpack

Please unpack your MEGA PLAYER 536 and check that the following
accessories are complete with nothing missing.

MEGA PLAYER 536 (Portable Digital Audio Player)
Earphone
USB Regular Cable
USB Host Cable
Driver Disk (User’s Manual included)
Quick Starting Guide
Power Adaptor
Line-in Cable

Chapter 2. Getting Started

Overview

1. MIC Internal Microphone.

2. Record/Repeat A->B Press to record voice or enable the A to B repeat

function.

3. SD/ MMC Card Slot Plug SD or MMC card to read and manage the

files.

4. Line-In Jack Plug the external Line-In device here.

5. Earphone Jack Plug the supplied earphone here.

6. LED Indicator Indicate the device status.

7. Display Window Read status and information at this window.

8.

Exit/Submenu Button

Press it to exit from menu.

Down and hold it for two seconds to disp lay the

8

options available.

9.

Left/Previous/Rewind Button

Press it to go the previous track.
Press and hold to move back within a track.

10.

Up/Volume Up Button

Press it to select menu items.
Press it to increase volume level.

11.

Play/Pause/Enter Button

Press it to play the selection of track. While
playing press the button to pause and press it
again to resume the track.

Press it to confirm the item selection.

12.

Right/Forward Button

Press it to go the next track.
Press and hold to move fast-forward within a
track.

13.

Down/Volume Down Button

Press it to select menu items.
Press it to decrease volume level.

14. Power/Hold Push to Power position to power on.

Push and hold to Power position to power off.
Switch to hold position to prevent any miss
touching while MEGA PLAYER 536 is
recording or playing. Switch to the middle to
unlock the prevention.

15. USB Connecter Connect one end of the supplied U SB extension

cable here.

9

- Connect USB Host cable to DSC or USB

flash disks.

- Connect regular USB cable to computers.

16. DC Connecter Connect to the power adapter.

LCD Display

Main Menu

1. Music Play music

2. Multi-Media Play multimedia files

3. File Browser Management files

4. Record Play recorded voice, music and radio.

5. Radio Listen to the radio (Optional)

6. Setting Adjust setting values of the device

10

Normal Playback Mode

1. Track Timer Displays the on going timer of the current playback

file.

2. Clock Displays current local time.

3. Repeat/A-B Indicates when A to B Section Repeat function is

enabled.

4. EQ/SRS Indicates

status or the EQ mode settings

that include Normal, Classical, POP, Rock, and Jazz.

5. Play/Pause/Stop Displays the music or voice files playback status.

6. Battery Indicates the Battery Status.

7. Info of music Indicates Title, Artist and Album Title.

8. Equalizer Shows the equalizer bar of current playback.

9. Track Number Display the current playback number and the total

number of sound tracks.

11

12

Li-ion Battery Recharge

MEGA PLAYER 536 comes with a Li-ion rechargeable battery. To use the
device for the very first time, remember to charge the Li-ion battery. Follow the
instructions below:

1. Open the rubber cover of MEGA PLAYER 536 USB/DC port, you will see

a DC input port inside.

2. Connect MEGA PLAYER 536 to the adapter, and plug it to AC power

outlet.

3. While recharging is on going, the LED will be light in orange color. If the

LED changes to green, the battery is full of power. The built-in battery is
80-percent charged in about three hours, and fully charged in about five
hours.

4. To stop recharging, disconnect cable from MEGA PLAYER 536.

Note: The built-in battery will not be recharged when MEGA PLAYER 536 is
connected to the computer with the supplied USB cable.

Battery Consuming Reference

MEGA PLAYER 536 comes with a Li-ion rechargeable battery.

Note: Before using for the first time, we recommend eight hours for a full
battery charge.

Hold Switch

MEGA PLAYER 536 has a Hold Switch, which is located on the side of the
device for preventing any accidental operation while MEGA PLAYER 536 is
recording or playing. Once the Hold Switch is slide to the lock position, all
function keys on MEGA PLAYER 536 will be disabled instantly.

Chapter 3. Utility Installation

Connect MEGA PLAYER 536 to Your Computer

1. Open the rubber cover of MEGA PLAYER 536 USB/DC port, you will see

a mini USB (AB-type) port inside.

2. Plug one end of the supplied USB regular cable to MEGA PLAYER 536,

and plug the other end to your computer.

3. Once MEGA PLAYER 536 is connected to computer, it should be detected

by the operating system automatically.

Install Utilities

The supplied Driver CD includes a MEGA PLAYER 536 specialized utility. It
is recommended to install even if your operatin g system is Windows ME, 2000

13

or XP. Then, your system can recognize and fully support this device. The driver
program includes a Windows Media Player plug-in function. Simply insert the
supplied disk into the CD drive, and then follow the on-screen instructions to
complete the installation.

Copy songs with Windows Media Player 9

Once you installed the MEGA PLAYER 536 utility, you will be able to update
and synchronize songs and information of songs with Windows Media Player.
Note: Requires Windows Me di a Pl ayer 9 or higher

1. Connect MEGA PLAYER 536 to your computer.

2. Start Windows Media Player 9.

3. Click “Copy to CD or Device”.

4. In the Items to Copy pane, in the drop-down list, click the playlist, category,

or other item that you want to copy.

5. Clear the check boxes next to any files you do not want to copy.

6. In the Items on Device pane, in the drop-down list, click the device Portable

Digital Player.

14

7. Click the Copy button.

8. When an item is copied to MEGA PLAYER 536, the Status column in the

Items to Copy pane displays the following information for each item:

- Inspecting. Windows Media Player verifies that there is enough storage

space on the portable device, and inspects the selected files for errors.

- Converting/Converted (includes the percentage of conversion done). If

necessary, each file is converted to the selected quality level or
compression rate.

- Copying (includes the percentage of copy done). The file is being

copied.

- Complete. The copy is done.

Synchronize songs with Windows Media Player 10

1. Connect MEGA PLAYER 536 to your computer.

2. Start Windows Media Player 10.

3. In the Library feature, in the Playlist pane, click <List name> List, and then

click Sync List.

15

4. In the Items on Device pane, select Portable Digital Player.

5. Click the Start Sync button in the List pane.

- O nce you installed the MEGA PLAYER 536 utility, you will be able to

update and synchronize songs and information of songs with Windows
Media Player.

Firmware Recovery or Updating

NOTE: THIS IS AN ADVANCED OPERATION. NORMAL USERS ARE

NOT RECOMMENDED TO PERFORM THIS OPERATION!

To recover or update the firmware, download the latest firmware from MSI
website or on the supplied CD, and then unpack the file.

After the data is

unpacked a folder will be created containi ng the files required for the firmware
update.

1. Connect MEGA PLAYER 536 to your computer.

2. Double-click the "Firmware Recovery Utility" icon included in the folder

16

where the files were unpacked.

3. Click “Update”, it will take few seconds.

Note: If you update firmware, the data and files stored inside may be all erased! Make

sure you have a backup before you update.

4. Turn the device off, and then disconnect the USB cable from the device.

Safety Remove MEGA PLAYER 536 from Computer

After managing the files or updating firmware, you have to follow the steps to
safety remove the MEGA PLAYER 536, to prevent system or device corrupt:

1. While an USB device is connecting to computer, there will be an

icon

on the task bar. Double click the icon to bring the Safely Remove Hardware
dialog box. You can find all the devices connected on the display. To
remove MEGA PLAYER 536, close all the programs related, and click
USB Mass Storage Device and Stop button.

17

2. Click USB Mass Storage Device and OK

There will be the following message, and you can remove the device now.

18

Chapter 4. Basic Usage

Using Touch Button

Down and hold the or
button to scroll though menu
items rapidly.

Note: when you touch the
button the blue LED under
the panel should lighten
automatically.

Lightly tap a button to select
an item.

19

Using Navigation Buttons

Use Navigation Buttons to navigate though menus, play mu sic, play video,
browse photos and arrange files. In this document, we will use the term,
“Select”, to mean that you should lightly tap the

/ / / button to

browse through options, and then select the option by lightly tap the

button.

You can adjust volume levels with the

/ button. Tap the button to up

to increase volume,

to decrease volume, also pause during music or video is

playing with

button, and then tap the button again to resume.

Using Exit/Submenu Button

Use the button to exit from folders, menus or call submenu. In this
document, we will use the term, “Call submenu”, to mean that you should down

and hold

button for two seconds to display the options available.

Power On

1. Slide Power Switch once.

2. The screen will display the last mode.
Note: Start Logo will be displayed at the first time power on.

Power Off

Slide the Power switch and hold for two seconds.

20

Music/Voice Playback

1. To play music stored on the built-in hard disk or

SD card, select the Music item in Main Menu.
To play recorded voice, select the Record item.

2. Select a music file to play or select a Playlist

item to play music files according to the play list.

Note:

- To play music from the SD card which is

installed in the SD card slot, select the SD item,
and then select a music file.

- To play all of your music by the same

artist/album, select the Artist/Album item.

- Please r efer to Chapter 2 Synchronizing music

with Windows Media Player. Otherwise, the
playlist of Artist or Album might not be updated.

21

Adding songs to Playlist

1. In playback mode, call submenu.

2. Select the Add to PL item.

3. Select a Playlist number you want to add to.

Deleting songs in Playlist

1. Select the Music item in Main Menu.

2. Select the Playlist you want edit.

3. Use

or button to scroll the song you want

to delete, and then call submenu.

4. Select Delete in the submenu.

22

Setting Enhancement Effect

WOW is a special combination of SRS audio technologies that creates a
thrilling experience with deep rich bass from sound source. Note that once SRS

is enabled, the EQ settings will be disabled at the same time.

1. In playback mode, call submenu.

2. Select the SRS item.

is a trademark of SRS Labs, Inc.

WOW technology is incorporated under license from
SRS Labs, Inc.

3. Select On to enable the SRS(WOW) effect.

Select Off to disable the SRS(WOW) effect.

4. Also you can select the other sound effects Field

Width, TruBass, or Focus and then adjust the
values.

23

Setting EQ

MEGA PLAYER 536 provides various EQ modes, such as POP, Rock, Jazz,
and Classical, for users to choose as following step to increase the enjoyment of
listening to music, and to meet the personal need or habit.

1. In playback mode, call submenu.

2. Select the EQ item.

3. Select Normal, POP, Rock, Jazz or Classical.

Note: Once EQ is enabled, the SRS(WOW) settings
will be disabled at the same time.

Setting Repeat Mode

1. In playback mode, call submenu.

2. Select the Repeat item.

24

3. Select one of the following items in the Repeat

mode screen.

a. Normal: Plays users selected tracks in

sequential order.

b. Repeat one: Repeat the current track.
c. Repeat All: Repeat all selected tracks.
d. Shuffle: Plays all selected tracks in random

order, once only.

e. Shuffle REP: Plays and repeats all selected

tracks, in random order.

Viewing Photos

1. To view photos stored on the built-in hard disk

or SD card, select the Multi Media item in Main
Menu.

2. Select Photo item in Multi Media menu.

25

3. Select a photo file to view in Browser Menu.
Note:

- To view photo from the SD card which is

installed in the SD card slot, select the SD item,
and then select a music file.

Slideshow

To play slideshow, tap button while viewing
photos. You can set how long each image is

displayed, please refer to Setting Slide Interval.

Rotating Photos

To rotate photos, call submenu while viewing photos,
and then select the Rotate item.

26

Playing Video

1. To play video stored on the built-in hard disk or

SD card, select the Multi Media item in Main
Menu.

2. Select Video item in Multi Media menu.

3. Select a video file to play in Browser Menu.

4. You can tap the

button to pause or resume

the video.

Note:

- To play video from the SD card which is

installed in the SD card slot, select the SD item,
and then select a video file.

27

FM Radio Mode (Optional)

28

1. To listen to the radio broadcast, select the Radio

item in Main Menu.

2. When the radio frequency appears on the LCD

screen, tap the

or button to adjust and

search the frequency you want, or select the CH
by tap the

button. also you can hold down the

buttons to adjust faster.

To save the frequency in a channel, call submenu,
select the Save CH item. Select a CH(Channel), and
then use left button to select “Yes”.

To automatically scan and save radio stations, call
submenu, and then select the Auto Preset item.

File Browser

MEGA PLAYER 536 provides an easy access to
files management. File Browser can arrange files
stored on the SD card and the built-in hard disk. If
you want to read files stored on the SD card, Please
plug the SD card first.
In addition MEGA PLAYER 536 can backup data
as a data/photo bank from portable disks and digital cameras.
If you want to manage files
on the USB device, or backup
data to the USB device,
firstly plug one end of the
USB Host cable to the
MEGA PLAYER 536 USB
port, the other end to the
proprietary cable of the USB device, such as digital camera and USB stick, and
then go through with following steps.

Note: The USB device should be turned on the power before connection, or it

will not be detected by MEGA PLAYER 536.
Note: Some outdated USB disk or digital cameras may not support.
Note: We strongly recommend that using MEGA PLAYER 536’s power

adaptor while it connect to USB device. When MEGA PLAYER 536 in

low battery status, plugged with the power-consuming USB device may

cause system power insufficiency and then turn off automatically.

29

1. Select the File Browser item in Main Menu.

2. Select the file you want to copy or delete.

3. Call submenu, select one of the following items

in the submenu.

a. Copy to hdd: Copy the file to MEGA

PLAYER 536 built-in hard disk.

b. Copy to usb: Copy the file to the USB device.

c. Delete: Select Delete and then select YES to

confirm and remove the file.

Note: You can only use File Brower to delete files on
the SD card, therefore the Copy item is not available
for SD submenu.

4. When the file is copying or deleting, a

percentage pop-up window will appear on the
screen.

5. When it is complete, the “Finish” message will

show on the screen.

Note: Please do not remove the SD card or turn off
the device until it is completed.

30

Setting

MEGA PLAYER 536’s setting can be adjusted to
suit your needs.

Setting Record Quality

1. Select the Setting item in Main Menu.

2. Select Record.

3. Select the Quality item.

31

4. Select one of the items you want in the Quality

selection screen.

Setting Record File Type

This function can encode the audio source to MP3 format files directly when
users are recording.

1. Select the Setting item in Main Menu.

2. Select the Record item.

3. Select the File Type item.

32

4. Select the File Type setting that you want.

Setting Slide Interval

You can set how long each image is displayed.

1. Select the Setting item in Main Menu.

2. Select the Slide Interval item.

3. Select a Slide Interval setting that you want.

Setting Slide Repeat

You can repeat to play photo slideshow.

33

1. Select the Setting item in Main Menu.

2. Select the Slide Repeat item.

3. Select On to repeat slideshow. Select Off to play

the slideshow only once.

Setting Power Off

You can set the timer under Power Off setting to turn off MEGA PLAYER 536
automatically when it is playing or recording for a certain time.

1. Select the Setting item in Main Menu.

2. Select the Power Off item.

34

3. Select the Power Off setting you want.

Setting Backlight Off

Backlight timer program can save the power. Afte r ha vi n g been idle fo r few
seconds, the device will run the Backlight timer program automatically and
cease the backlight, you can press any button to wake the backlight up.

1. Select the Setting item in Main Menu.

2. Select the Backlight Off item.

3. Select the Backlight Off setting that you want.

35

Setting Language

1. Select the Setting item in Main Menu.

2. Select the Language item.

3. Select a language you want to use.

Setting Date and Time

1. Select the Setting item in Main Menu.

2. Select the Date/Time item.

36

3. To adjust how the time is displayed, select the

Time Format item, and then select 12 hour or 24
hour.

4. Select Set Time or Set date to change the time

or date settings.

5. The current time or date is displayed.

6. Set the time or date, and then tap the

button

to confirm and exit.

Setting Brightness

1. Select the Setting item in Main Menu.

2. Select the Brightness item.

37

3. Adjust the brightness setting, and then tap the

button to confirm and exit.

Resetting to original setting

1. Select the Setting item in Main Menu.

2. Select the Master Reset item.

3. Select the Yes item.

38

Device Information

1. Select the Setting item in Main Menu.

2. Select the Info item.

3. You can read device information on the screen.

Encoding MP3 Directly from CD

MEGA PLAYER 536 has a build-in CD-to-MP3 encoder, that’s able to record
via Line-In.

1. Connect to a Walkman, Computer, Radio, TV, and Audio Equipment or plug

a Microphone.

39

1. Set Setting -> Record -> File Type to MP3.

(Please refer to Setting Record File Type in
Cheaper 4)

2. Press the A→B/REC button to start recording

and then play music from the audio source.

3. On the Display, a recording file should be

generated and placed under the folder of
[ /RECORD/ ]. The file name sequence starts
from [LineIn001.mp3], and then
[LineIn002.MP3], and so forth.

4. Press the A→B/REC button again to stop

recording, and you will see the status jump to the
file list in the RECORD folder.

Microphone Recording

MEGA PLAYER 536 also works as a synchronizing recorder. You are allowed
to use it for Microphone Recording. In different word, you can use it to record
your own voice, an interview or a speech via internal microphone. To do the

40

Microphone Recording, please follow the steps shown below.

1. Press the A→B/REC button to start recording.

2. On the Display, a recording file should be

generated and placed under the folder of
[ /RECORD/ ]. The file name sequence starts
from [LineIn001.mp3], and then
[LineIn002.mp3], and so forth.

3. Press the A→B/REC button again to stop

recording. It will be encoded to a MP3 format
file and save in the RECORD folder in the
MEGA PLAYER 536 automatically, and you
will see the status jump to the file list in the
RECORD folder.

Radio Broadcast Recording (Option)

1. Select a radio broadcast channel that you want to

record.

2. Press the A→B/REC button to start recording.

3. On the Display, a recording file should be

generated and placed under the folder of
[ /RECORD/ ]. The file name sequence starts
from [FM01.MP3], and then [FM02.MP3], and
so forth.

41

4. Press the A→B/REC button again to stop

recording, and you will see the status return to
the previous status.

Language Learning Function

MEGA PLAYER 536 enables users to listen to a particular section repeatedly
during music or voice playback. With this function, users will be able to pay
attention to the repeated section and to achieve the result of language learning.
During music playback:

1. Press the A→B/REC button to set the starting

point when playback. The A- icon will appear on
the middle bottom of the screen.

42

2. Press the A→B/REC button again to set the
terminal point. The A-B icon will appear on the
screen. You will hear the repeating playback that
you have set previously again and again.

3. Press the A→B/REC button again back to the
normal playback. Meanwhile the A-B icon will
disappear on the screen.

Reset Button

NOTE: THIS IS AN ADVANCED OPERATION. NORMAL USERS ARE

NOT RECOMMENDED TO PERFORM THIS OPERATION!

MEGA PLAYER 536 provides a Reset Button on the
back side of device. Please note that you only need to
use this button if the device does not response for
several minutes. The button is like a power down button
of the device. You can turn off the device by using a
reset tip, such as a straightened paper clip with diameter
of 1.2mm. Once you Press reset button, the adjustments
you made during last operation will be gone.

43

Appendix A. Specifications

MEGA PLAYER 536

Dimension 88.5 (W) x 50 (D) x 15.6 (H) mm
Weight 95g (with built-in battery)
Operating Temperature 0°C ~ 45°C
Storage Temperature 0°C ~ +60°C
Audio Spec Max Output : 36mW rms ( 18mW / channel), support

function.
Frequency: 20 to 20K Hz
SNR: >90dB

LCD module 1.8” CSTN 128x160 pixels module
Line-In / Voice / FM
Recording

Record format: MP3, WAV

USB Flash Disk 1. Meets USB specificat io n re vi si on 2. 0

2. Supports OS: Windows ME, Windows 2000,

Windows XP Home/ Pro, Mac OS 9 and above
Built-in HDD 1”HDD
I/O Input 1. Stereo Audio-out, 3.5mm

2. Stereo line-in jack, 3.5mm

3. USB port for USB Slave and USB Host.
EMI and Safety FCC Class B, CE ,BSMI, CB
Interface Language Supports up to more than 10 languages which may vary

from country to country.
Earphone Stereo output: 30mW rms ( 15mW / channel)
Battery Life Up to 8hrs audio playback.

44

45

Appendix B. Utility CD

Insert the supplied CD disk into the CD drive.

 Install Firmware Recovery Utility

Recover the firmware of the device.

 Install Windows Media Player Plug-In

This plug-in allows you to synchronize data of songs with Windows
Media Player 9 series or higher.

 Install Adobe Acrobat Reader

A free software for viewing and printing Portable Document Format (PDF)
files. To read the MEGA PLAYER 536 User Manual, you also have to
install the Adobe Acrobat Reader .

 Read MEGA PLAYER 536 User Manual

This PDF document is packed in the CD, click on the button to read.
