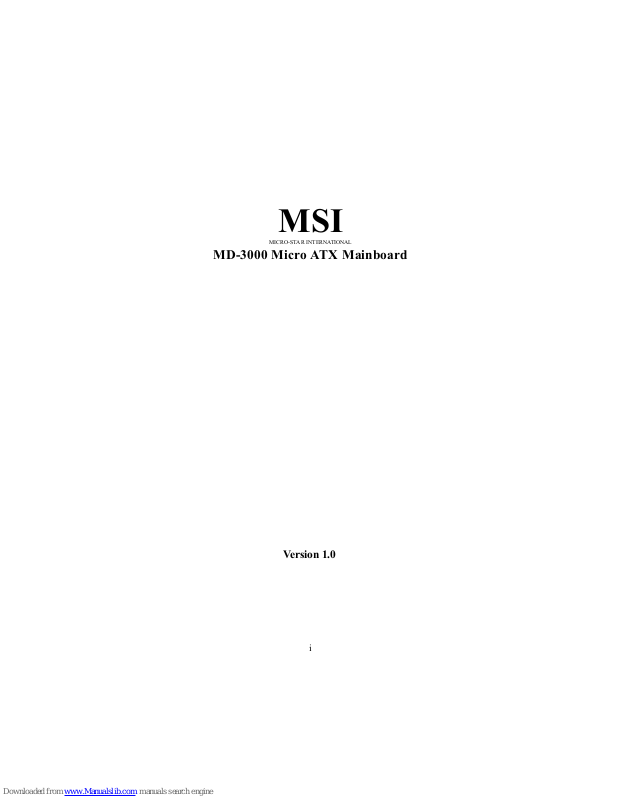

MSI MD-3000 User Manual

i

Version 1.0

MD-3000 Micro ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

ii

Manual Rev: 1.0
Release Date: Dec. 2001

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MD-3000

Tested to comply

with FCC Standard

For Home or Office Use

iii

Edition

Dec. 2001

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.

Trademarks

All trademarks are the properties of their respective owners.

AMD, Athlon and Duron are registered trademarks of AMD Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 95/98/2000/NT/ME/XP are registered trademarks of Microsoft
Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

iv

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri­cal shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

! The power cord or plug is damaged
! Liquid has penetrated into the equipment
! The equipment has been exposed to moisture
! The equipment has not work well or you can not get it work according

to User’s Manual.

! The equipment has dropped and damaged
! If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F), IT
MAY DAMAGE THE EQUIPMENT.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the
manufacturer.

v

CONTENTS

Chapter 1. Getting Started ........................................................................ 1-1

Mainboard Specification ...................................................................... 1-2

Mainboard Layout ............................................................................... 1-4

Chapter 2. Hardware Setup ....................................................................... 2-1

Central Processing Unit: CPU .............................................................. 2-2

CPU Installation Procedures ......................................................... 2-2

CPU Core Speed Derivation Procedure ......................................... 2-3

Memory ................................................................................................2-4

Introduction to SDRAM ............................................................... 2-4

DIMM Module Combination ......................................................... 2-5

Installing DIMM Modules ............................................................ 2-5

Power Supply ....................................................................................... 2-6

ATX 20-Pin Power Connector ....................................................... 2-6

ATX 12V Power Connector: JPW1 ................................................ 2-6

Back Panel ............................................................................................ 2-7

Mouse Connector: JKBMS1 ......................................................... 2-7

Keyboard Connector: JKBMS1 ..................................................... 2-8

USB Connectors ............................................................................ 2-8

LAN (RJ-45) Jack ........................................................................... 2-9

Serial Port Connector: COM A & COM B1 ....................................2-9

Joystick/Midi Connectors ........................................................... 2-10

Audio Port Connectors ............................................................... 2-10

SPDIF Connectors ....................................................................... 2-10

Parallel Port Connector: LPT1 ...................................................... 2-11

Connectors ......................................................................................... 2-12

Floppy Disk Drive Connector: FDD1 ........................................... 2-12

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-13

CD-In Connector: CD_IN1 .......................................................... 2-14

Front Audio Line-out Connector: JAUDIO1 ............................... 2-14

vi

Fan Power Connectors: C_FAN1 ................................................. 2-15

Front Panel Connector: FP_1 ....................................................... 2-16

Front USB Connector: USB1 ....................................................... 2-17

SPDIF Bracket Jumper: JSPDIF1 .................................................. 2-18

Jumpers .............................................................................................. 2-19

Clear CMOS Jumper: JBAT1 ........................................................ 2-19

LAN Enable/Disable Jumper: JLAN1 ........................................... 2-20

Center/Bass Setting Jumper: J11 & J12 ........................................ 2-21

Slots ................................................................................................... 2-22

AGP (Accelerated Graphics Port) Slot ......................................... 2-22

PCI Slots ...................................................................................... 2-22

PCI Interrupt Request Routing .................................................... 2-23

Appendix A: Using SPDIF & 4-/6-channel Audio Function ..................... A-1

Getting Started

1-1

Chapter 1. Getting Started

1

Getting Started

Congratulations on purchasing the MSI mainboard. MD-3000 Micro
ATX mainboard is an excellent computer mainboard based on the innova­tive Intel® Brookdale and ICH2 chipset, which supports the Intel

®

Pentium 4 processor and provides you with a cost-effective solution.

TOPICS

Mainboard Specification 1-2

Mainboard Layout 1-5

MSI Special Features 1-6

Chapter 1

1-2

Mainboard Specification

CPU

Support Socket478 for Intel® Pentium 4(FC-PGA2) processor
Support 1.3GHz, 1.4GHz and up to 2.XGHz

Chipset

Intel® Brookdale chipset

- AGP 4x/2x universal slot

- Support 100MHz FSB

- Support 400MHz Intel NetBurst micro-architecture bus.

Intel® ICH2 chipset (360 BGA)

- AC’97 Controller integrated

- 2 full IDE channels, up to ATA100

- Integrated 10/100Mbit/sec Etherent

- Low pin count interface for Winbond SIO

Main Memory (This section refers only to S-DRAM Layout)

Support two 168-pin DIMM sockets
Support a 32 to 1GB memory using 512Mbit technology
Max. memory size: 2GB

Slots

One AGP (Accelerated Graphics Port) 2x/4x slot
Two PCI 2.2 32-bit Master PCI Bus slots, the third PCI can support 2

Master devices
Support 3.3v/5v PCI bus interface

On-board IDE

An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM

with PIO, Bus Master and Ultra DMA 66/ 100 operation modes
Can connect to four IDE devices

Getting Started

1-3

On-board Peripherals

One floppy port that supports two FDD with 360KB, 720KB, 1.44MB

and 2.88MB
Two serial ports (COM A/ Reserved in pin header)
One parallel port that supports SPP/EPP/ECP modes
Four USB ports (2 rear connectors and 2 USB front pin header)
One RJ-45 connector
One Line-In/ 3 Line-Out/Game port

Network

Realtek 8100 single chip fast 10/100 Mb/s Ethernet controller
ACPI, APM supported

H/W Audio (option)

C-media CMI8738-6CH-MX
Support 6 channel audio
AC’97 2.1 compliant
Support SPDIF

BIOS

The mainboard BIOS provides “Plug & Play” BIOS that can detect

the periph-eral devices and expansion cards installed on the board

automatically
Support Desktop Management Interface (DMI) function that can record

your mainboard specifications

Dimension

Micro ATX Form Factor (24.4cm x 22.4cm)

Mounting

6 mounting holes

Chapter 1

1-4

Mainboard Layout

MD-3000 Micro ATX Mainboard

AGP Slot

JAUDIO1

USB1

FP_1

ATX

Power Supply

JLAN1

JSPDIF1

J12

J11

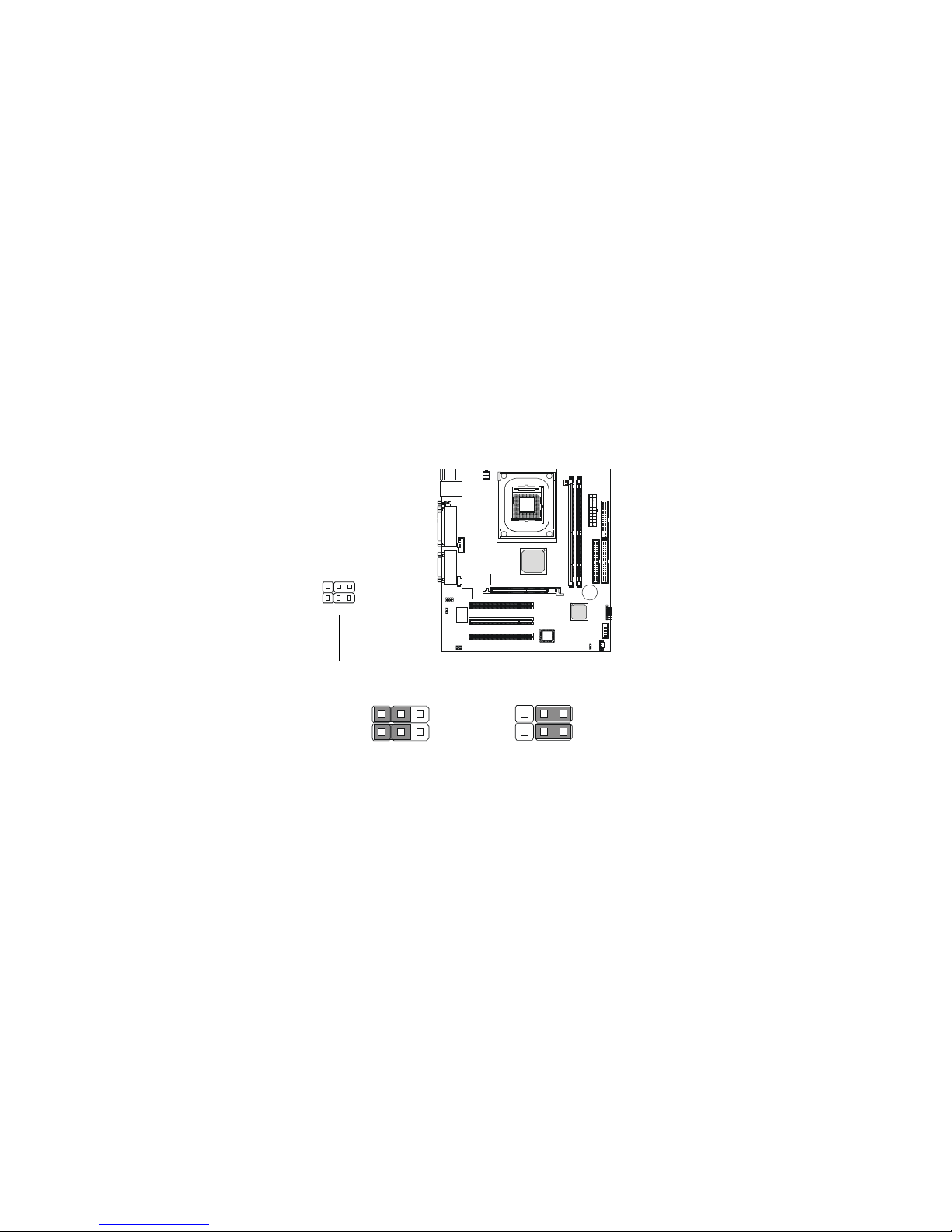

JBAT1

IDE 1

Winbond

W83627HF- AW

RTL

8100L

C-media

CMI8738

IDE 2

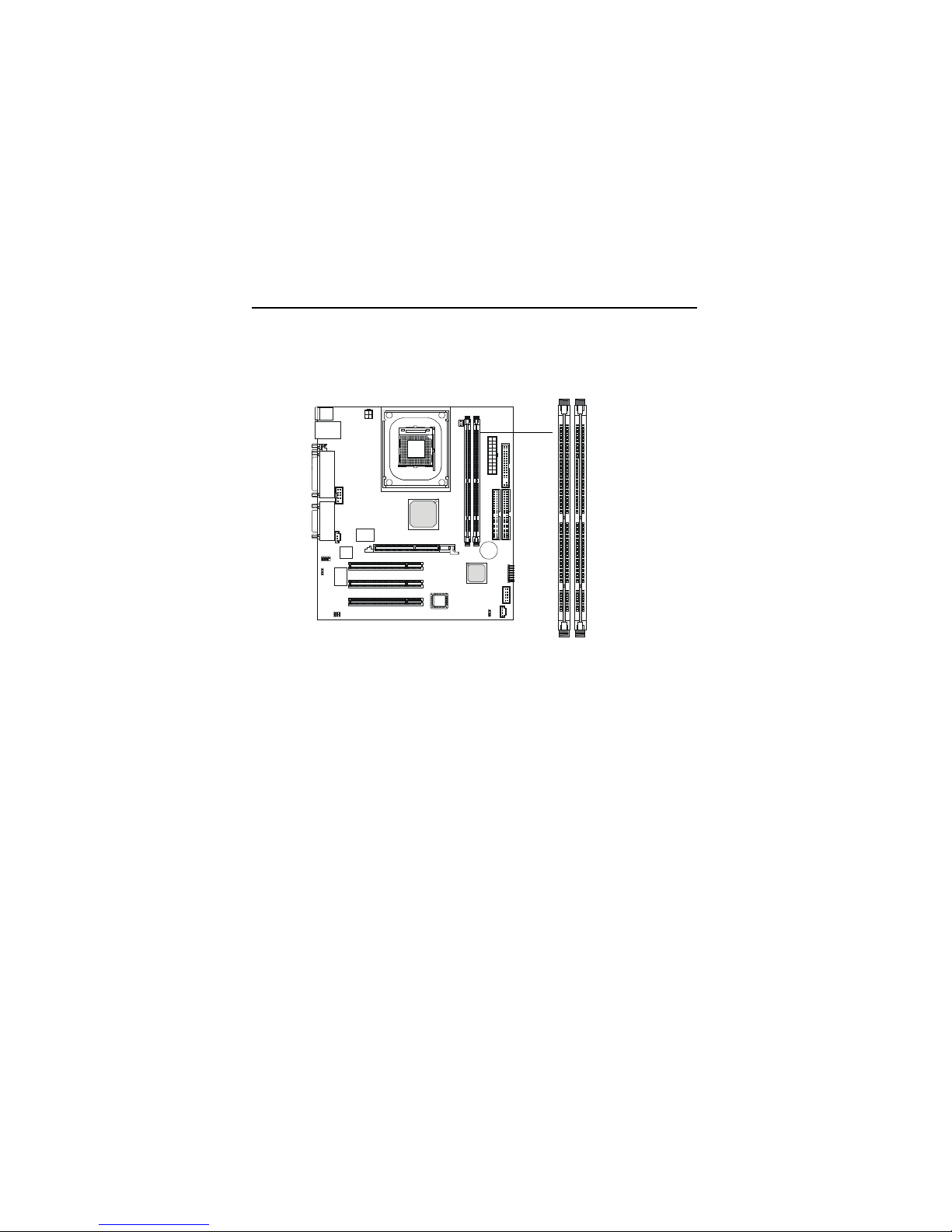

DIMM 1

DIMM 2

Top : Parallel Port

Bottom:
COM A
SPDIF IN/OUT

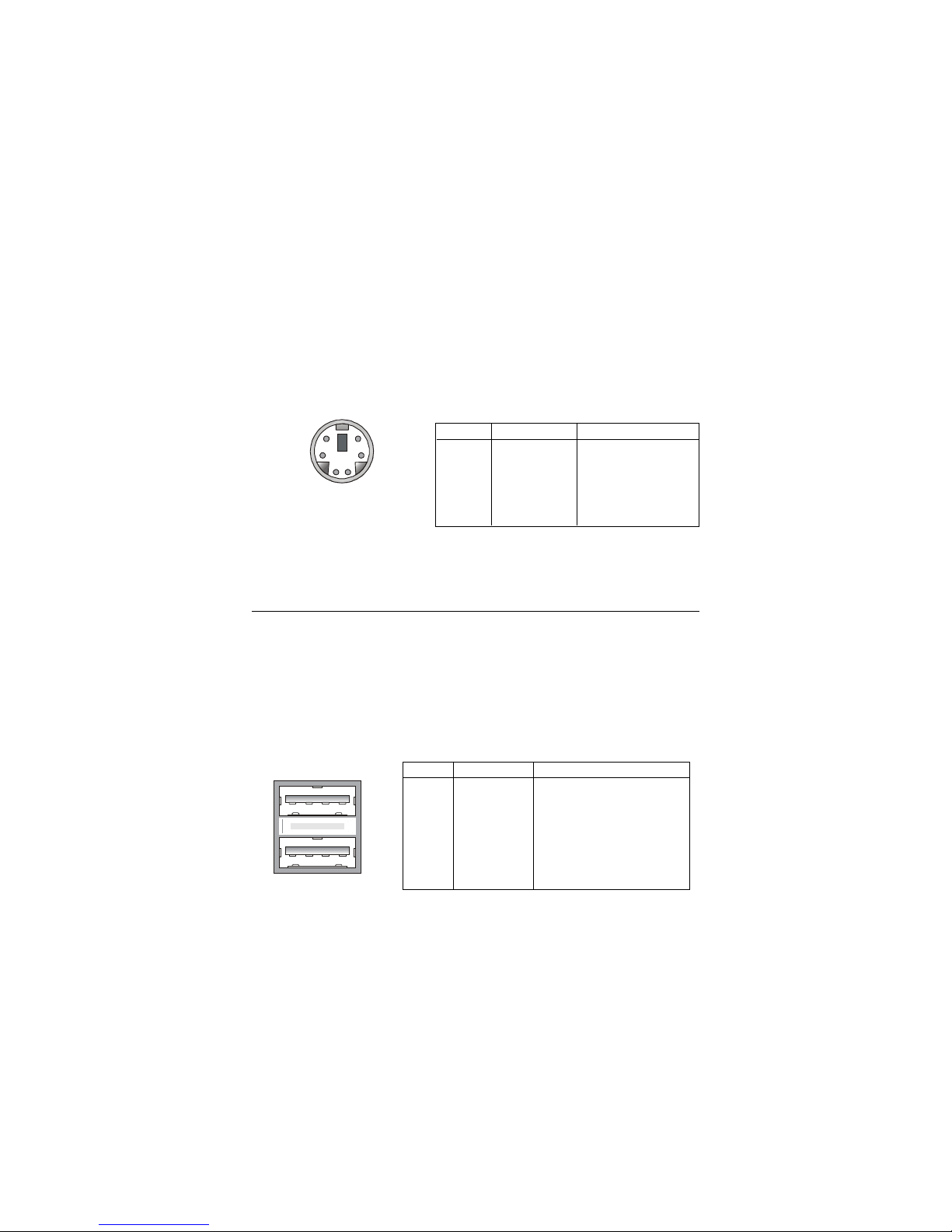

Top : mou se
Bottom: keyboard

Top: LAN Jack
Bottom: USB
ports

Top :

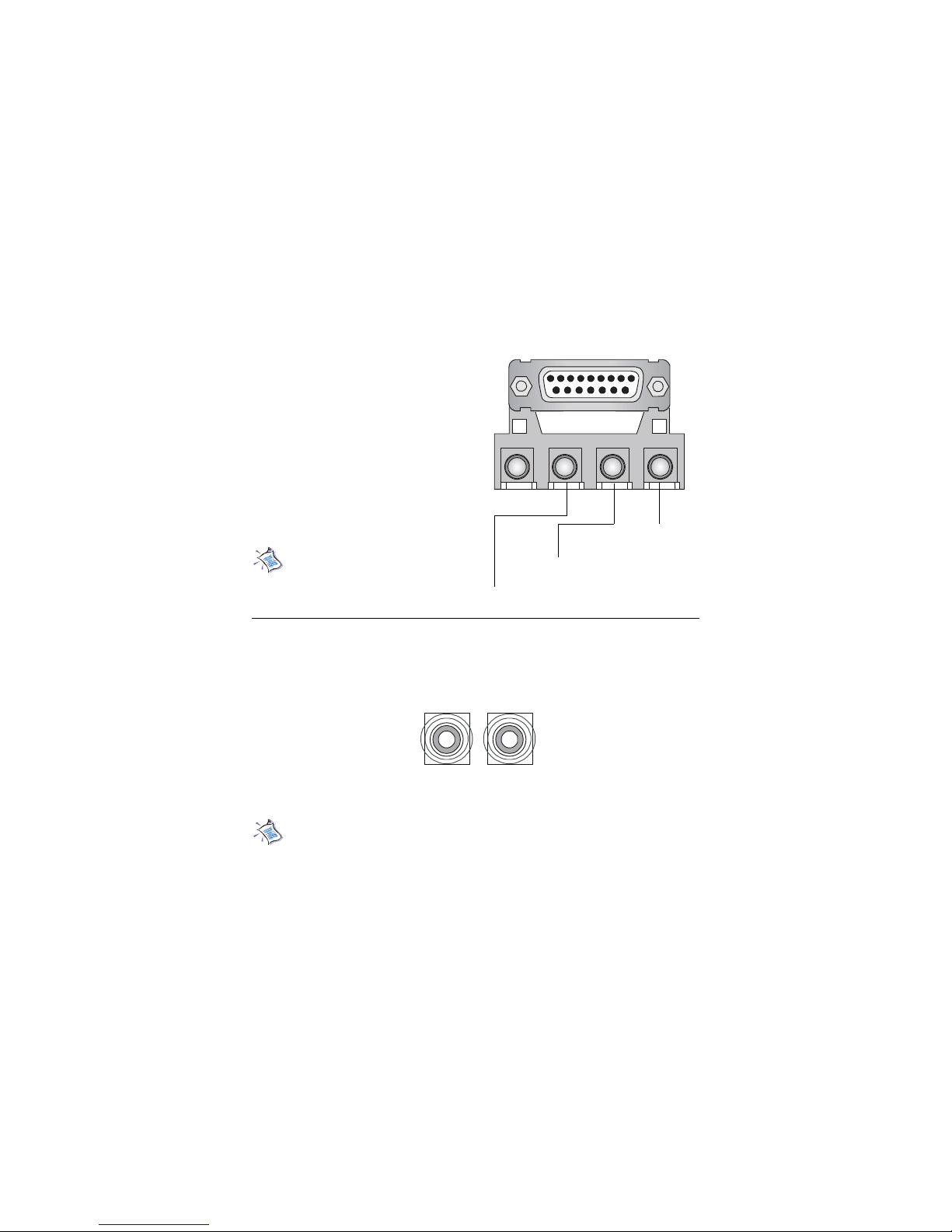

Game port

Bottom:
Line-Out
Line-In
Mic

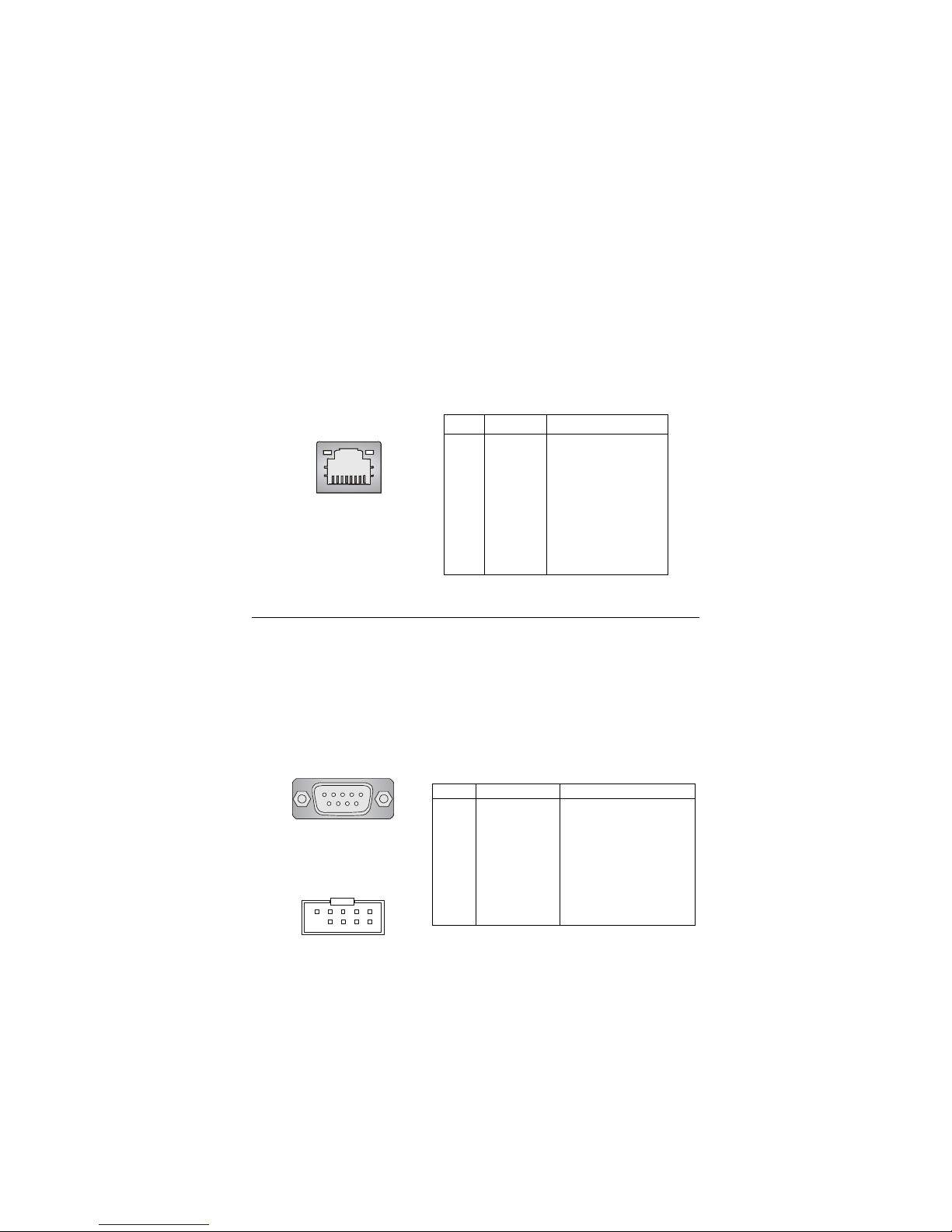

COM B1

CD_IN1

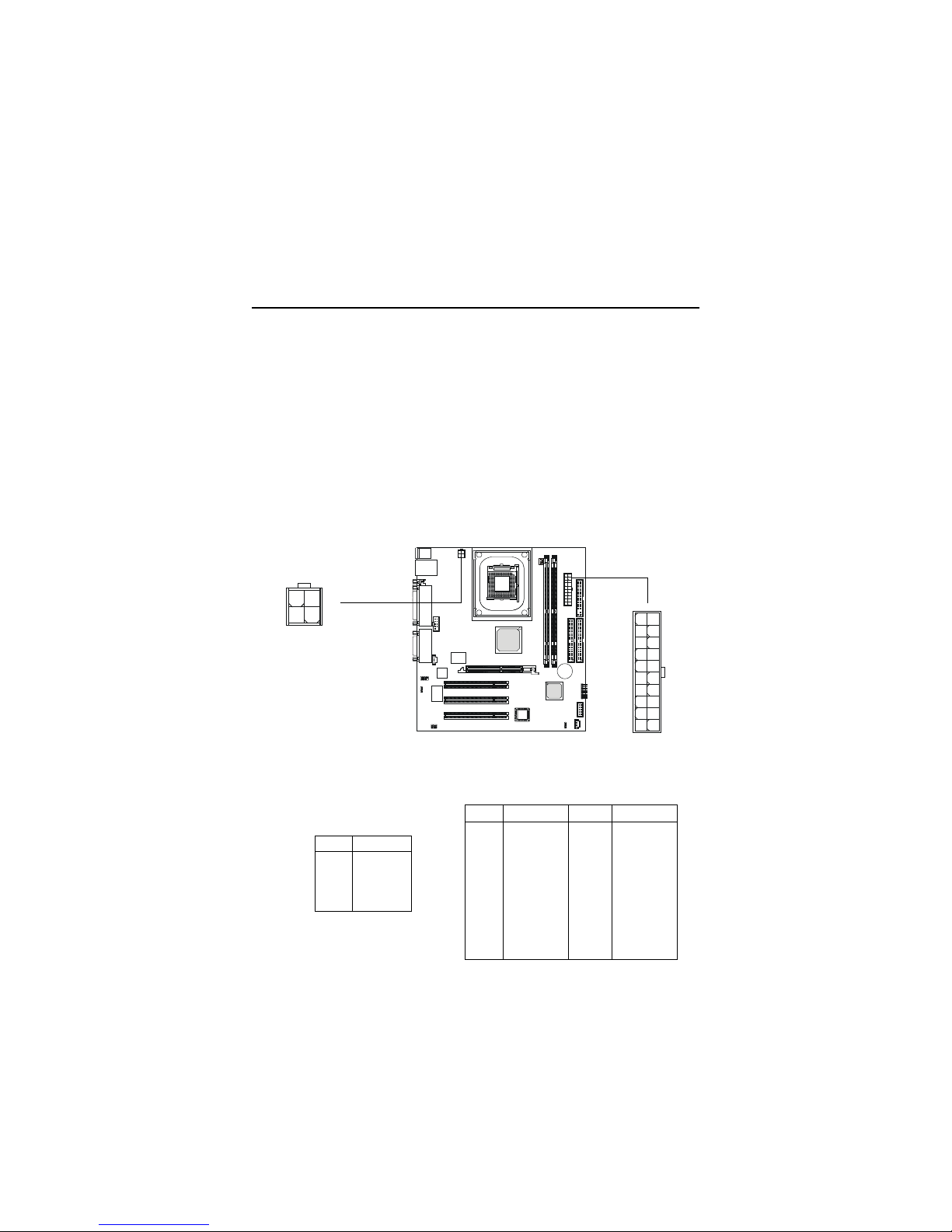

JPW1

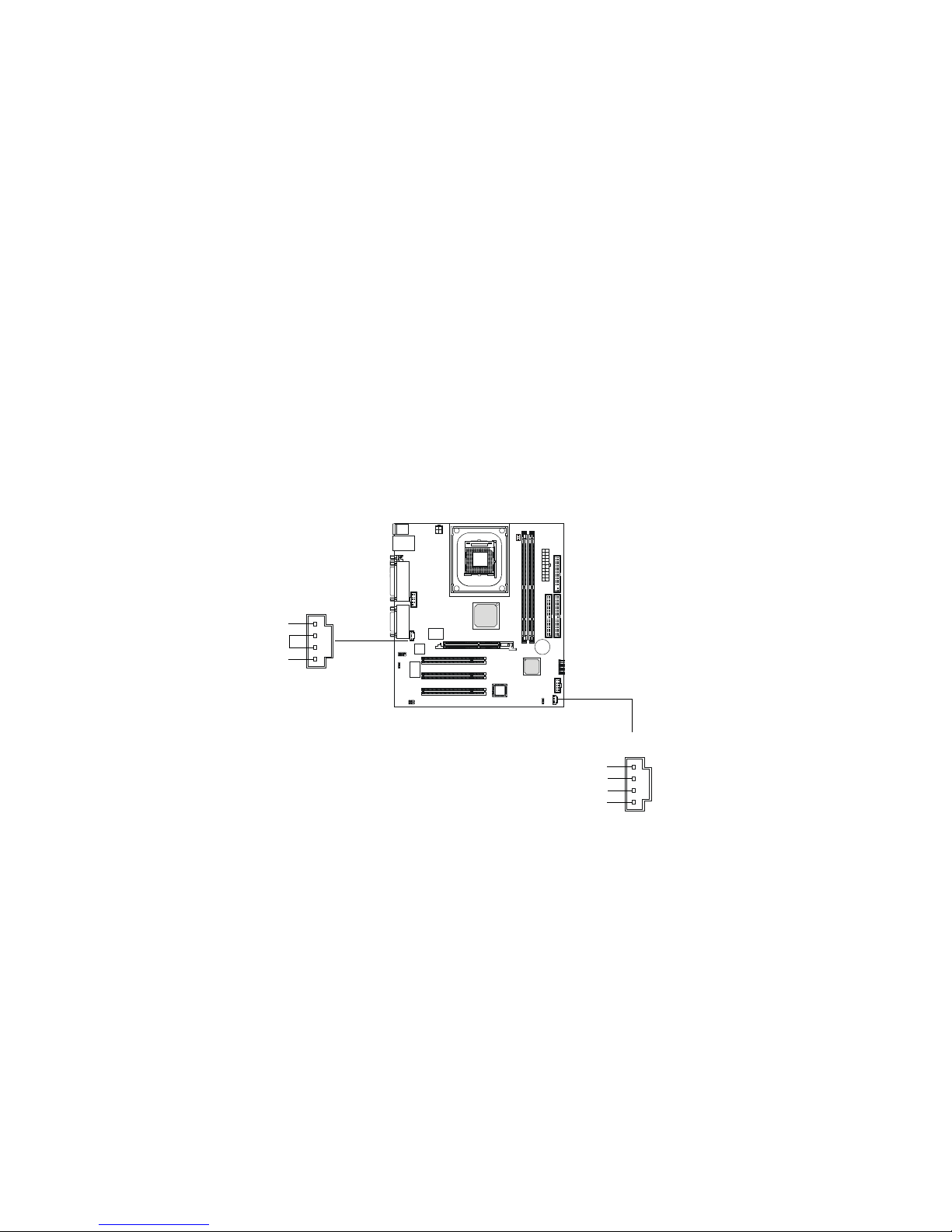

C_FAN1

PCI Slot 1

PCI Slot 2

PCI Slot 3

BATT

+

ICH2

Intel

Brookdale

Chipset

FWH

FDD1

Hardware Setup

2-1

Chapter 2. Hardware Setup

This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the compo­nents and follow the installation procedures. For some components, if you
install in the wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

TOPICS

Central Processing Unit: CPU 2-2
Memory 2-5
Power Supply 2-7
Back Panel 2-8
Connectors 2-13
Jumpers 2-20
Slots 2-23

2

Hardware Setup

Chapter 2

2-2

Open Lever

Dot / Cut edge

Sliding

Plate

Close

Lever

Central Processing Unit: CPU

The mainboard supports Intel® Pentium® 4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a heat
sink and a cooling fan attached on the top to prevent overheating. If you do not
find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.

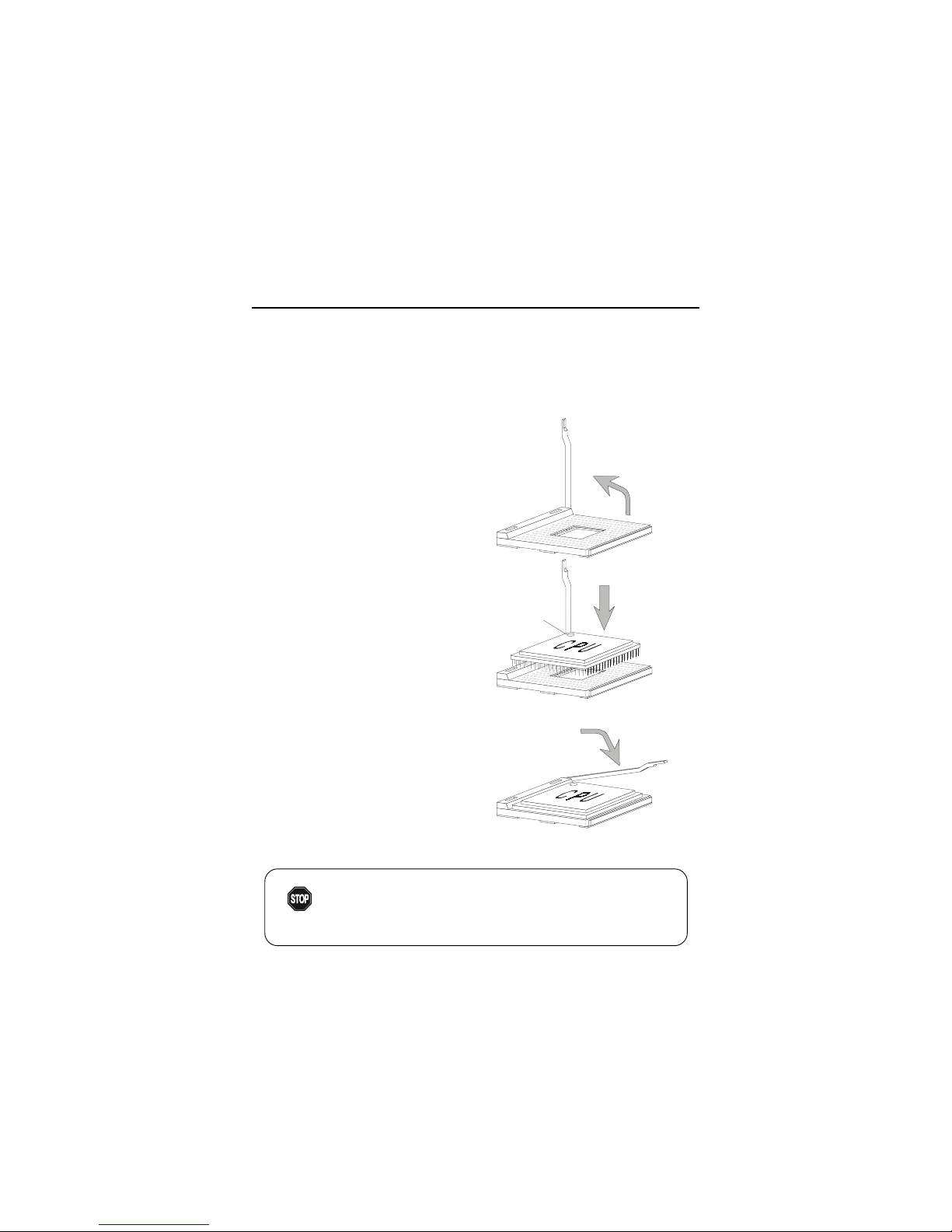

1. Pull the lever sideways away

from the socket. Then, raise
the lever up to a 90-degree
angle.

2. Look for the dot/cut edge. The

dot/cut edge should point to­wards the lever pivot. The
CPU will only fit in the correct
orientation.

3. Hold the CPU down firmly, and

then close the lever to com­plete the installation.

CPU Installation Procedures

Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.

WARNING!

Hardware Setup

2-3

CPU Core Speed Derivation Procedure

If CPU Clock = 100MHz

Core/Bus ratio = 14

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 14
= 1.4GHz

Overclocking

This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is
not recommended. We do not guarantee the damages or

risks caused by inadequate operation or beyond product
specifications.

WARNING!

Chapter 2

2-4

The mainboard provides 2 slots for 168-pin, 3.3V SDRAM DIMM with 4
memory banks. You can install PC133/PC100 SDRAM modules on the DIMM
slots (DIMM 1~2). Advice: DDR Modules have only one notch!

Memory (This section describes only S-DRAM

DIMM Slots

(DIMM 1~2)

Introduction to SDRAM

Synchronous DRAM (SDRAM) is a type of dynamic RAM memory
chip that has been widely used starting in the latter part of the 1990s. SDRAMs
are based on standard dynamic RAM chips, but have sophisticated features
that make them considerably faster. First, SDRAM chips are fast enough to be
synchronized with the CPU's clock, which eliminates wait states. Second, the
SDRAM chip is divided into two cell blocks, and data is interleaved between
the two so that while a bit in one block is being accessed, the bit in the other is
being prepared for access. This allows SDRAM to burst the second and
subsequent, contiguous characters at a rate of 10ns, compared to 60ns for the
first character.

SDRAM provides 800 MBps or 1 GBps data transfer depending on
whether the bus is 100MHz or 133MHz.

Hardware Setup

2-5

T o operate properly, at least one DIMM module must be installed. Memory
modules can be installed on the slots in any order. You can install either single­or double-sided modules to meet your own needs.

Memory modules can be installed in any combination as follows:

Slot Memory Module Total Memory

DIMM 1
(Bank 0 & Bank 1)

S/D 32MB~1GB

DIMM 2
(Bank 2 & Bank 3)

S/D 32MB~1GB

Maximum System Memory Supported

32MB~2GB

DIMM Module Combination

S: Single Side D: Double Side

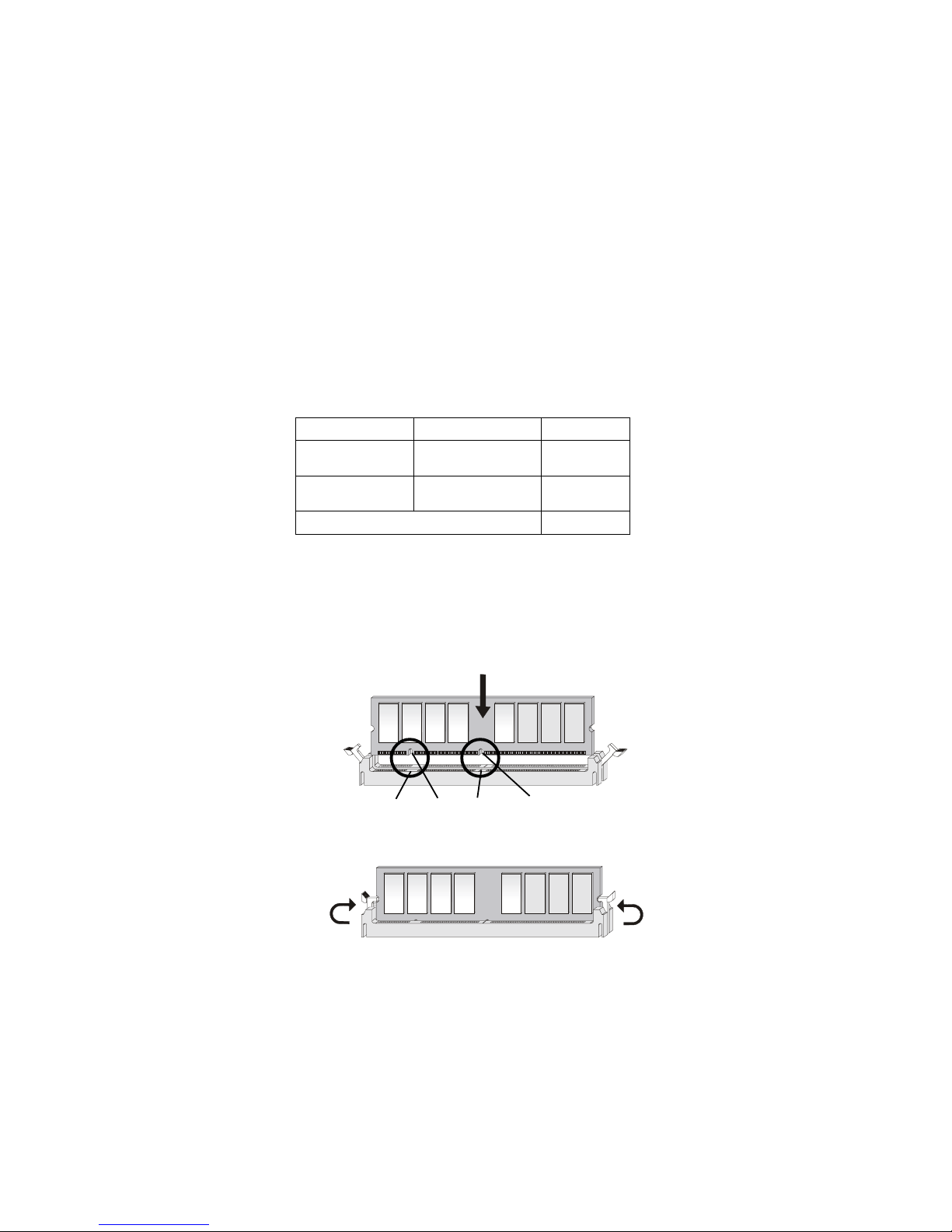

1. Insert the DIMM memory module vertically into the DIMM slot. Then push

it in.

2. The plastic clip at each side of the DIMM slot will automatically close.

Installing DIMM Modules

The DIMM slot has 2 Notch Keys “VOL T and DRAM”. The module will
only fit in the right orientation.

VOLT

notch

DRAM

notch

Chapter 2

2-6

Power Supply

A TX 20-Pin Power Connector

This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.

The mainboard supports ATX power supply for the power system. Be­fore inserting the power supply connector, always make sure that all compo­nents are installed properly to ensure that no damage will be caused.

A TX 12V Power Connector: JPW1

This 12V power connector is used to provide power to the CPU.

PIN SIGNAL

1 GND
2 GND
3 12V
4 12V

JPW1 Pin Definition

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

ATX Power Supply Pin Definition

10

1

20

11

JPW1

1

3

2

4

Hardware Setup

2-7

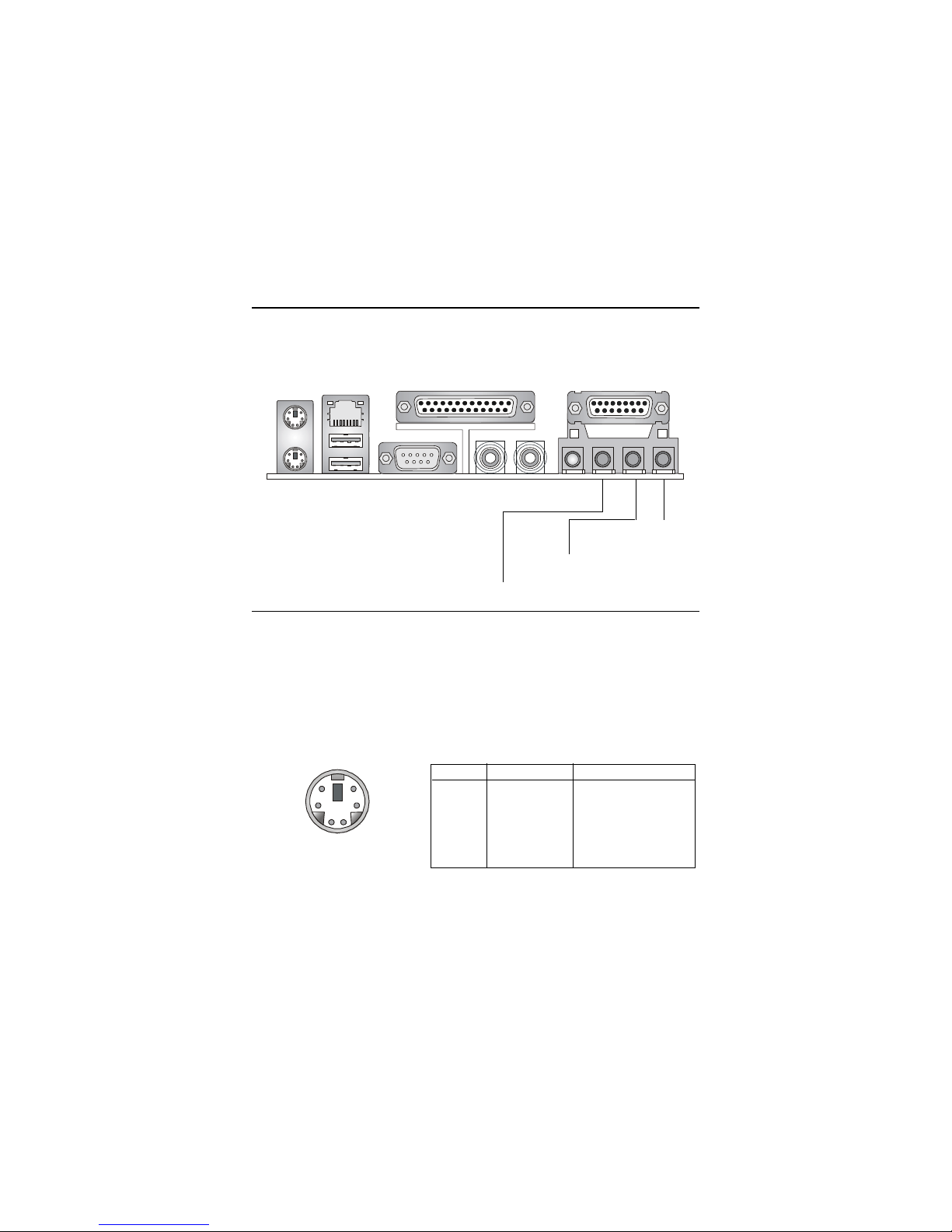

The Back Panel provides the following connectors:

Back Panel

Mouse Connector: JKBMS1

The mainboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector. The connector location and pin assignments are as follows:

Mouse

Keyboard USB

Parallel

COM A

SPDIF

IN

Line-in

Midi/Joystick

PIN SIGNAL DESCRIPTION

1 Mouse DATA Mouse DAT A
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection

Pin Definition

PS/2 Mouse (6-pin Female)

2

1

3

4

5

6

LAN

SPDIF

OUT

Line-out (Front)

(2 Channel output speaker)

Line-out (Rear)

(2 Channel output speaker)

Center / Bass

(2 Channel output speaker)

Chapter 2

2-8

Keyboard Connector: JKBMS1

The mainboard provides a standard PS/2® keyboard mini DIN connector
for attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into
this connector.

USB Connectors

The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into
the connector.

PIN SIGNAL DESCRIPTION

1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground

PIN SIGNAL DESCRIPTION

1 Keyboard DATA Keyboard DAT A
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection

Pin Definition

USB Port Description

USB Ports

1 2 3 4

5 6 7 8

PS/2 Keyboard (6-pin Female)

2

1

3

4

5

6

Hardware Setup

2-9

Serial Port Connector: COM A & COM B1

The mainboard offers two 9-pin male DIN connectors for serial port COM
A and COM B1. The ports are 16550A high speed communication ports that
send/receive 16 bytes FIFOs. You can attach a serial mouse or other serial
devices directly to them.

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate

Pin Definition

9-Pin Male DIN Connectors

1 2 3 4

6 7 8 9

COM A

1 2 3 4 5

6 7 8 9

COM B1

LAN (RJ-45) Jack

The mainboard provides one standard RJ-45 jack for connection to Local
Area Network (LAN). Y ou can connect a network cable to the LAN jack.

Pin Definition

PIN SIGNAL DESCRIPTION

1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used

Chapter 2

2-10

Joystick/Midi Connectors

You can connect a joystick or game pad to this connector.

SPDIF Connectors

The SPDIF connectors privided on the back pannel can be used to con­nect your digital audio equipment.

SPDIF

IN

SPDIF

OUT

Audio Port Connectors

Line In is used for external CD

player, Tape player, or other audio
devices. Line Out are connectors for
Speakers or Headphones. Center/Bass
is a connector for audio device which is
used as a center speaker or supports
bass effect.

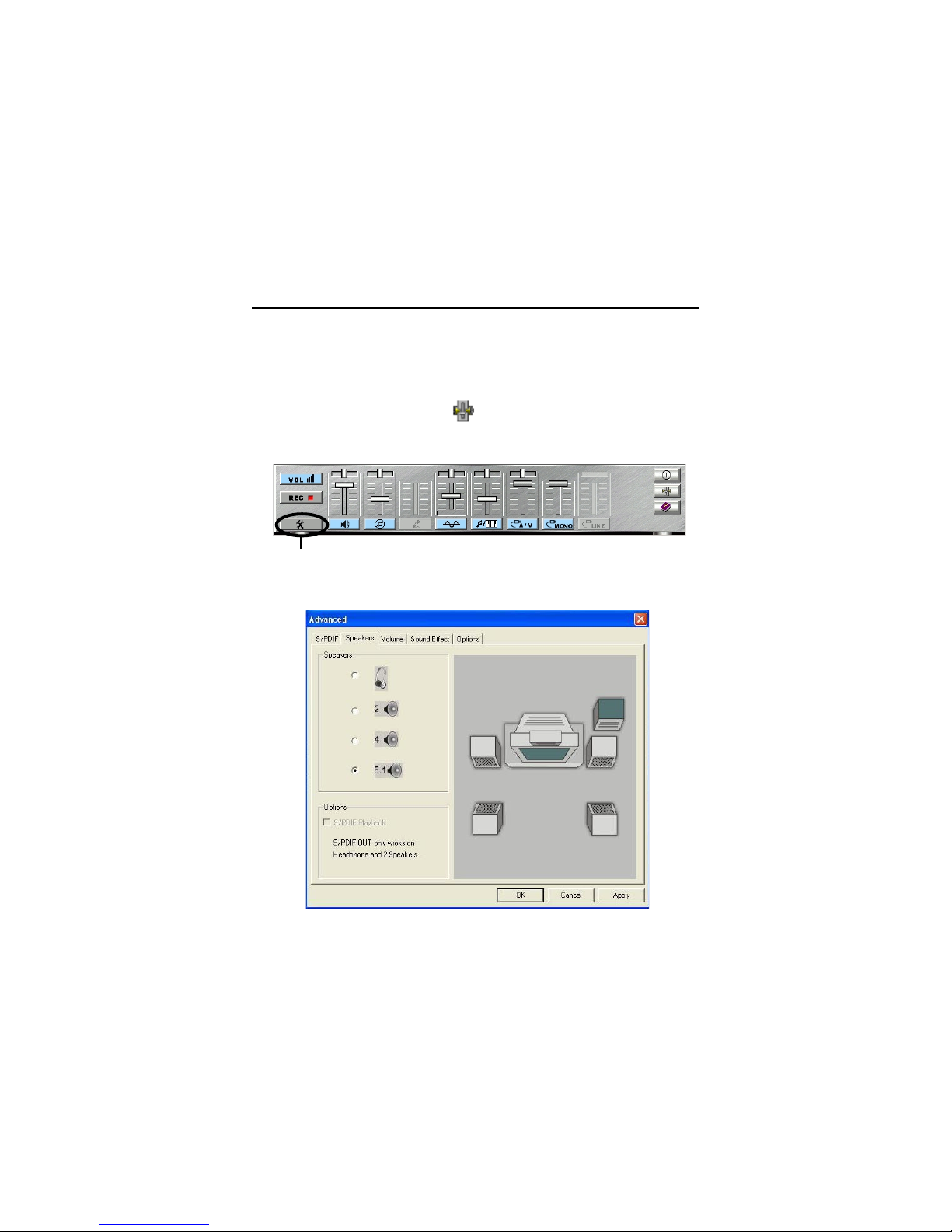

Note: Details on the appli­cation of 6-channel audio can be
acquired in Appendix A.

Line-in

Line-out (Front)

(2 Channel output speaker)

Line-out (Rear)

(2 Channel output speaker)

Center / Bass

(2 Channel output speaker)

Note: Details on the application of 6-channel audio can be acquired

in Appendix A.

Hardware Setup

2-11

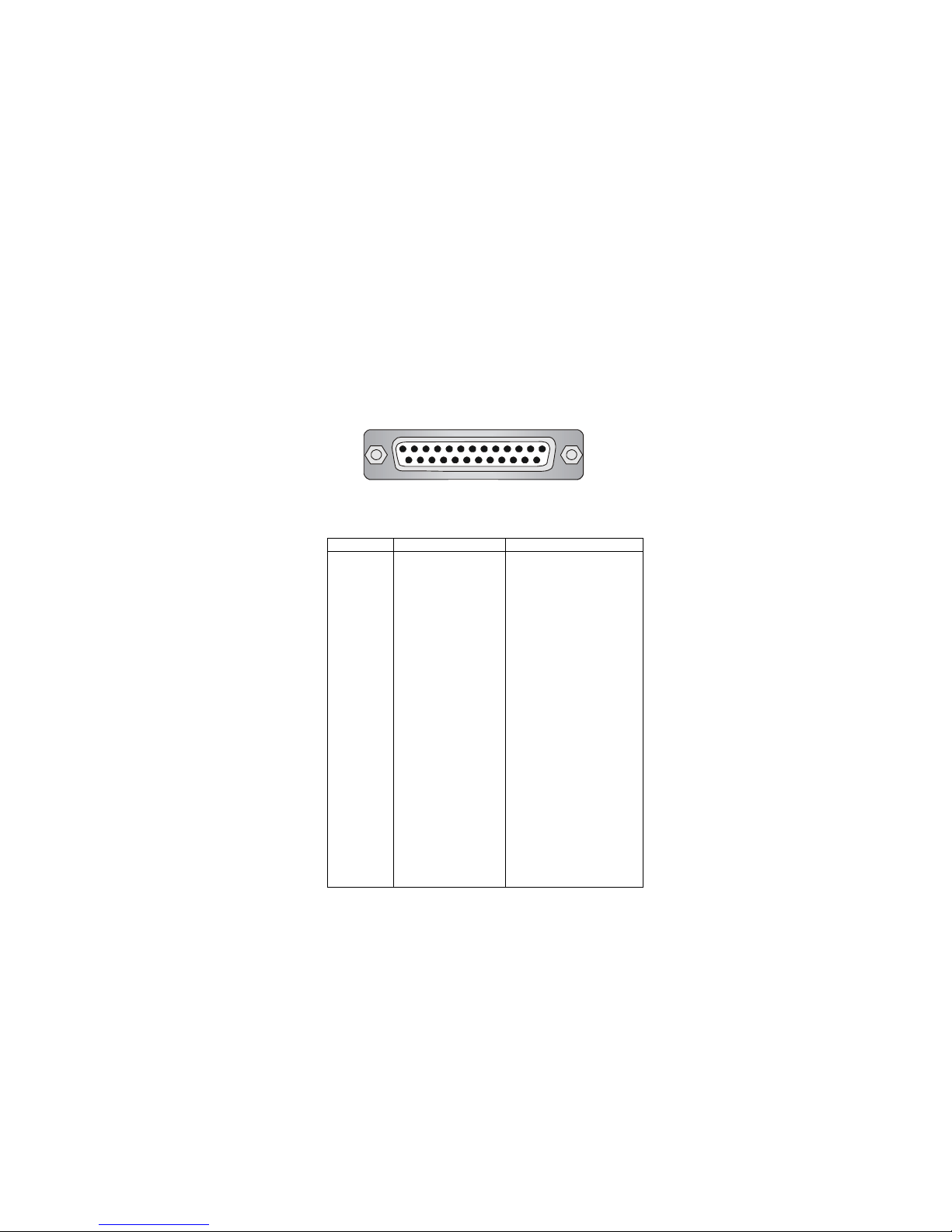

Parallel Port Connector: LPT1

The mainboard provides a 25-pin female centronic connector for LPT. A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.

13 1

14

25

PIN SIGNAL DESCRIPTION

1 STROBE Strobe
2 DAT A0 Data0
3 DAT A1 Data1
4 DAT A2 Data2
5 DAT A3 Data3
6 DAT A4 Data4
7 DAT A5 Data5
8 DAT A6 Data6
9 DAT A7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground

Pin Definition

Chapter 2

2-12

The mainboard provides connectors to connect to FDD, IDE HDD, case,
LAN, USB Ports, and CPU/System FAN.

Floppy Disk Drive Connector: FDD1

The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.

Connectors

FDD1

Hardware Setup

2-13

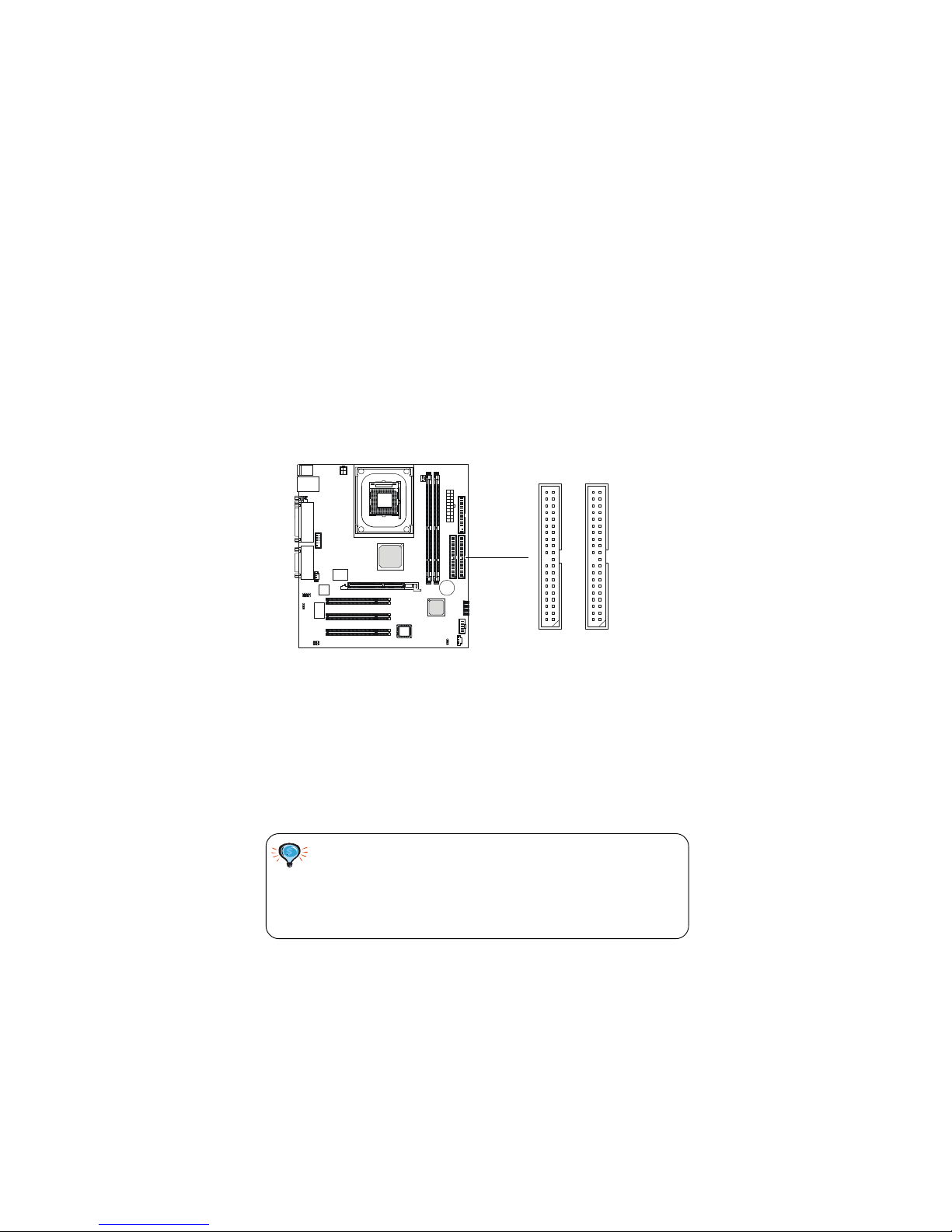

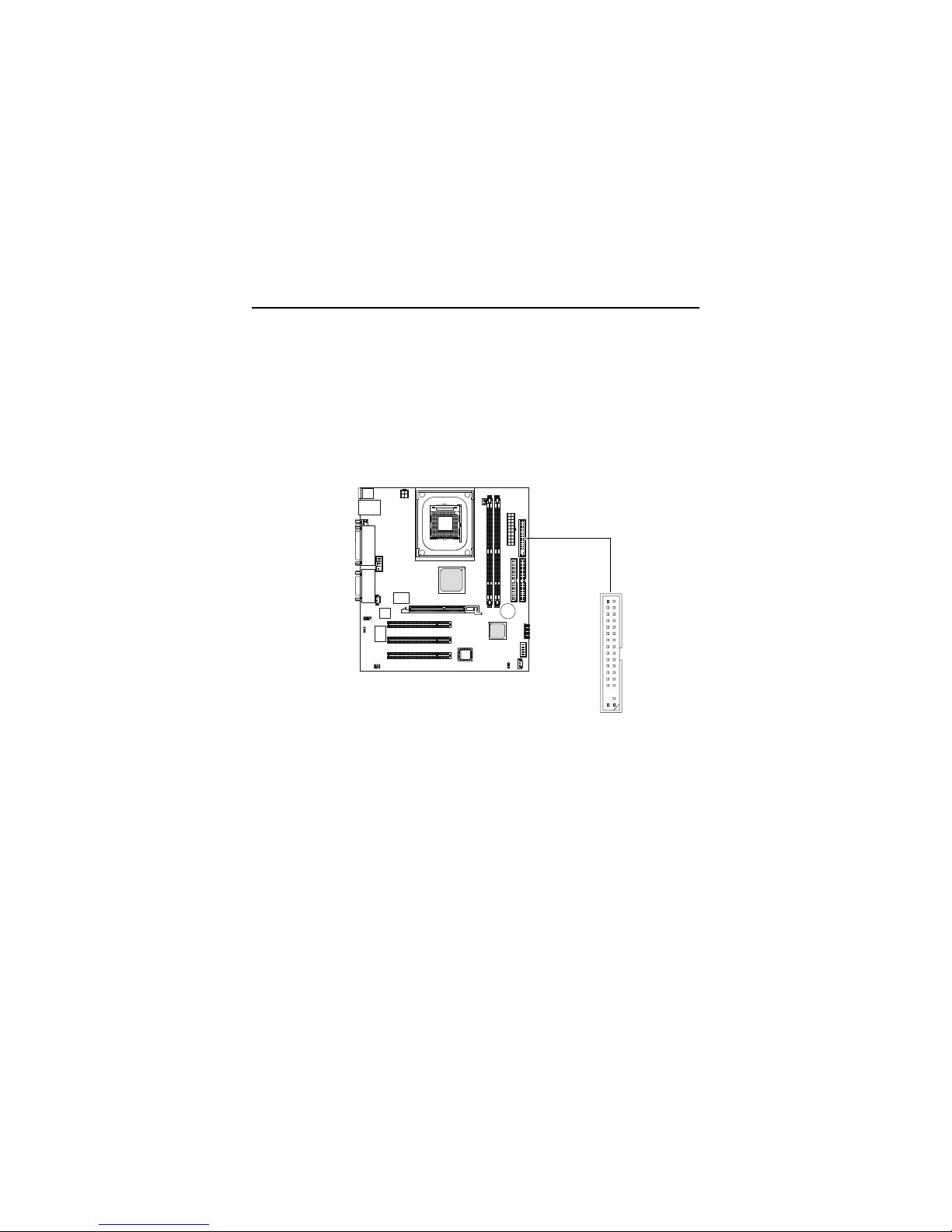

Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100
controller that provides PIO mode 0~4, Bus Master, and Ultra DMA/33/66/100
function. You can connect up to four hard disk drives, CD-ROM, 120MB
Floppy (reserved for future BIOS) and other devices. These connectors sup­port the provided IDE hard disk cable.

IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can

connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly.

IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.

TIP:

If you install two hard disks on cable, you must configure the
second drive to Slave mode by setting its jumper. Refer to the
hard disk documentation supplied by hard disk vendors for
jumper setting instructions.

IDE1

IDE2

Chapter 2

2-14

CD-In Connector: CD_IN1

The connector is for CD-ROM audio connector.

Front Audio Line-out Connector: JAUDIO1

The connector is for front audio output devices.

CD_IN1

GND

R

L

JAUDIO1

GND

AUXR

AUXL

MIC

Hardware Setup

2-15

Fan Power Connectors: C_F AN1

The C_F AN1 (processor fan) supports system cooling fan with +12V. It
supports three-pin head connector. When connecting the wire to the
connectors, always take note that the red wire is the positive and should be
connected to the +12V, the black wire is Ground and should be connected to
GND. If the mainboard has a System Hardware Monitor chipset on-board, you
must use a specially designed fan with speed sensor to take advantage of the
CPU fan control.

Note:

1. Always consult the vendor for proper CPU cooling fan.

2. CPU Fan supports the fan control. You can install the PC Alert
utility that will automatically control the CPU Fan speed accord­ing to the actual CPU temeperature.

C_FAN1

SENSOR

+12V

GND

Chapter 2

2-16

Front Panel Connectors: FP_1

The case connector block FP_1 allows you to connect to the Power

Switch, Reser Switch, Speaker, Power LED, and HDD LED on the case.

FP_1

HDD LED
Reset Switch

Power LED

Power Switch

Hardware Setup

2-17

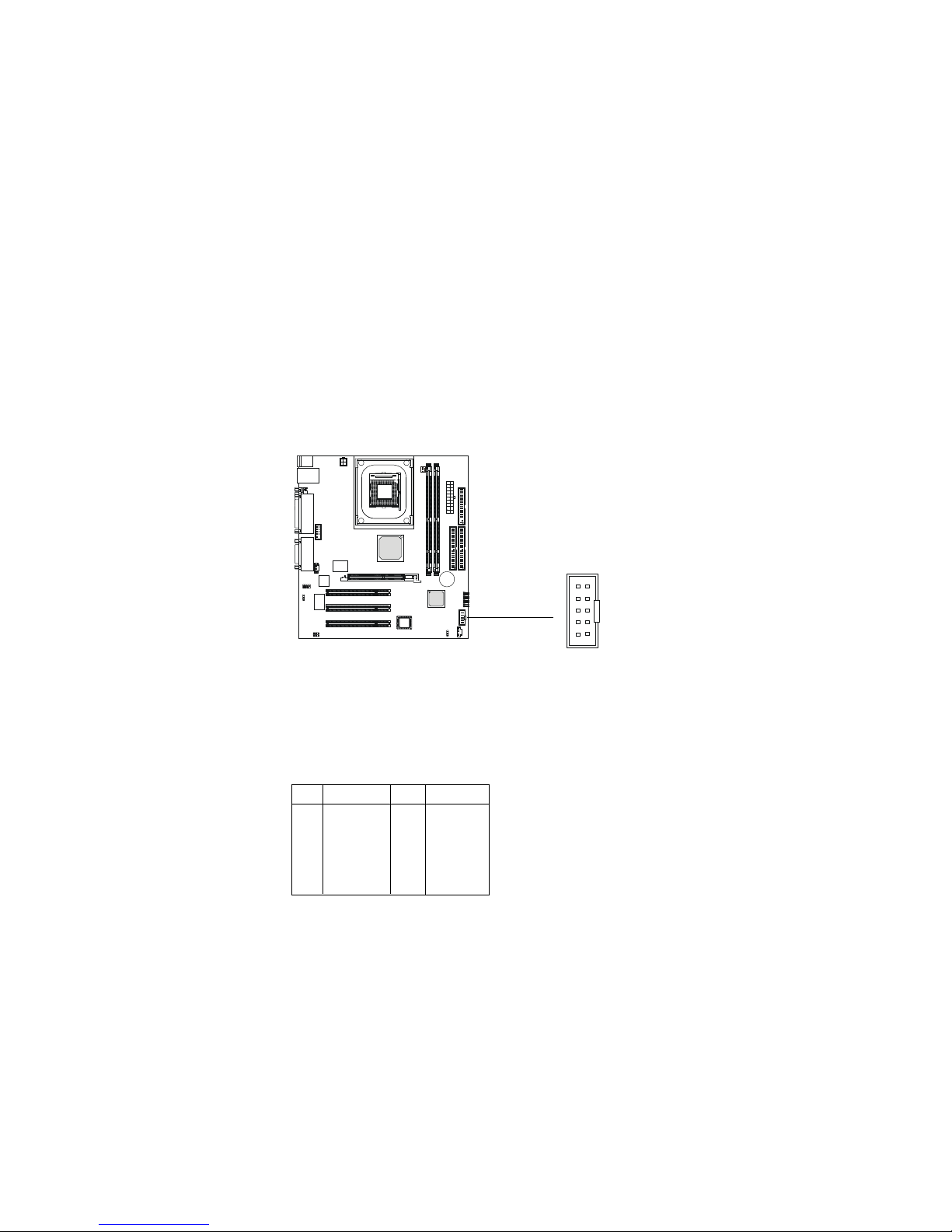

Front USB Connector: USB1

The mainboard provides a front Universal Serial Bus connector for users

to connect to USB port.

Pin Description Pin Description

1 USBPWR 2 GND
3 USBDT2- 4 GND
5 USBDT2+ 6 USBDT3+
7 GND 8 USBDT3­9 GND 10 USBPWR

USB1 Pin Definition

USB1

1 2

9 10

Chapter 2

2-18

1

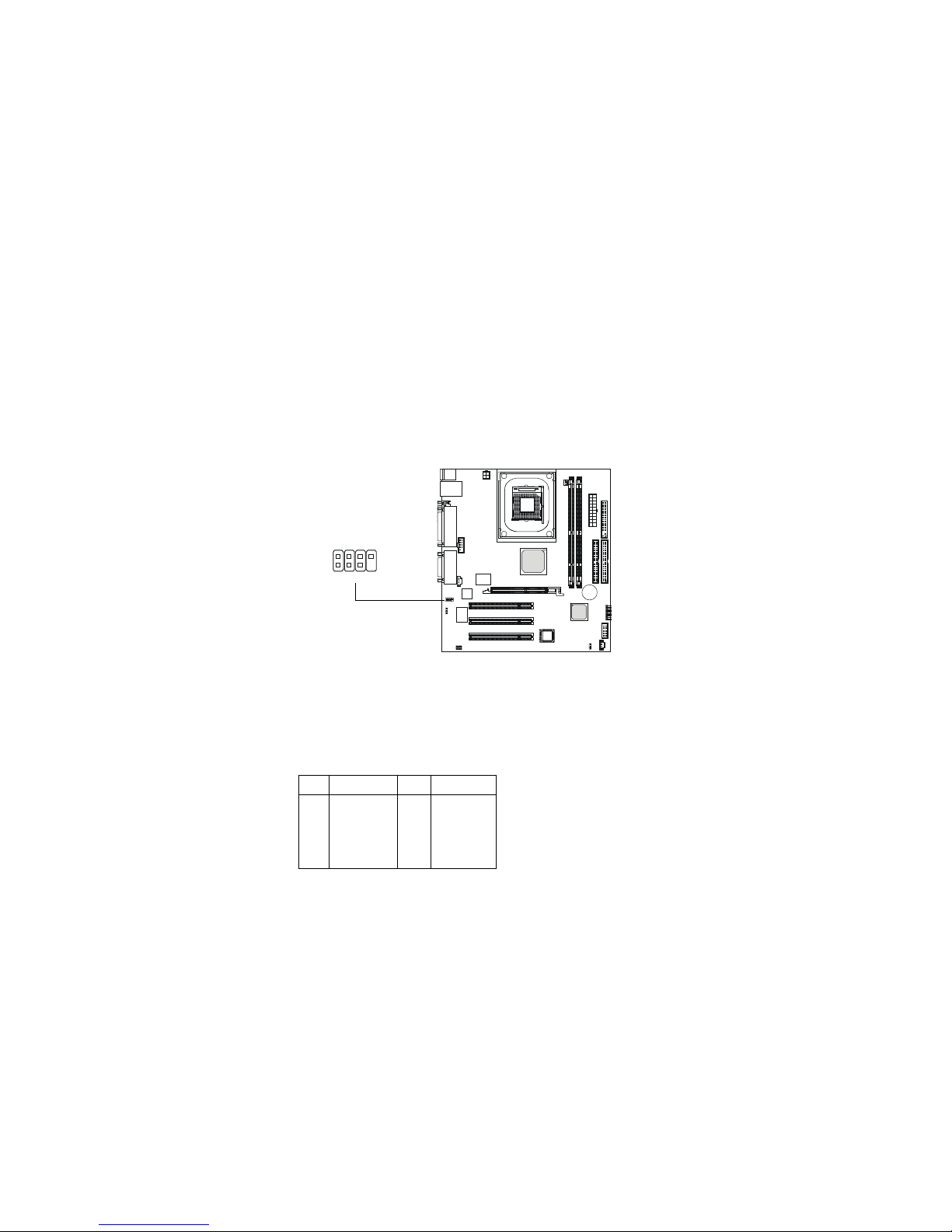

SPDIF Bracket Jumper: JSPDIF1

The mainboard comes with a jumper for users to connect an optional

bracket for SPDIF output and input.

JSPDIF1

2

7

8

Pin Description Pin Description

1 +12V 2 NC
3 NC 4 SPDIFO
5 SPDIFI 6 GND
7 SPDIF2 8 SPGPIO

JSPDIF1 Pin Definition

Hardware Setup

2-19

The motherboard provides the following jumpers for you to set the
computer’s function. This section will explain how to change your
motherboard’s function through the use of these jumpers.

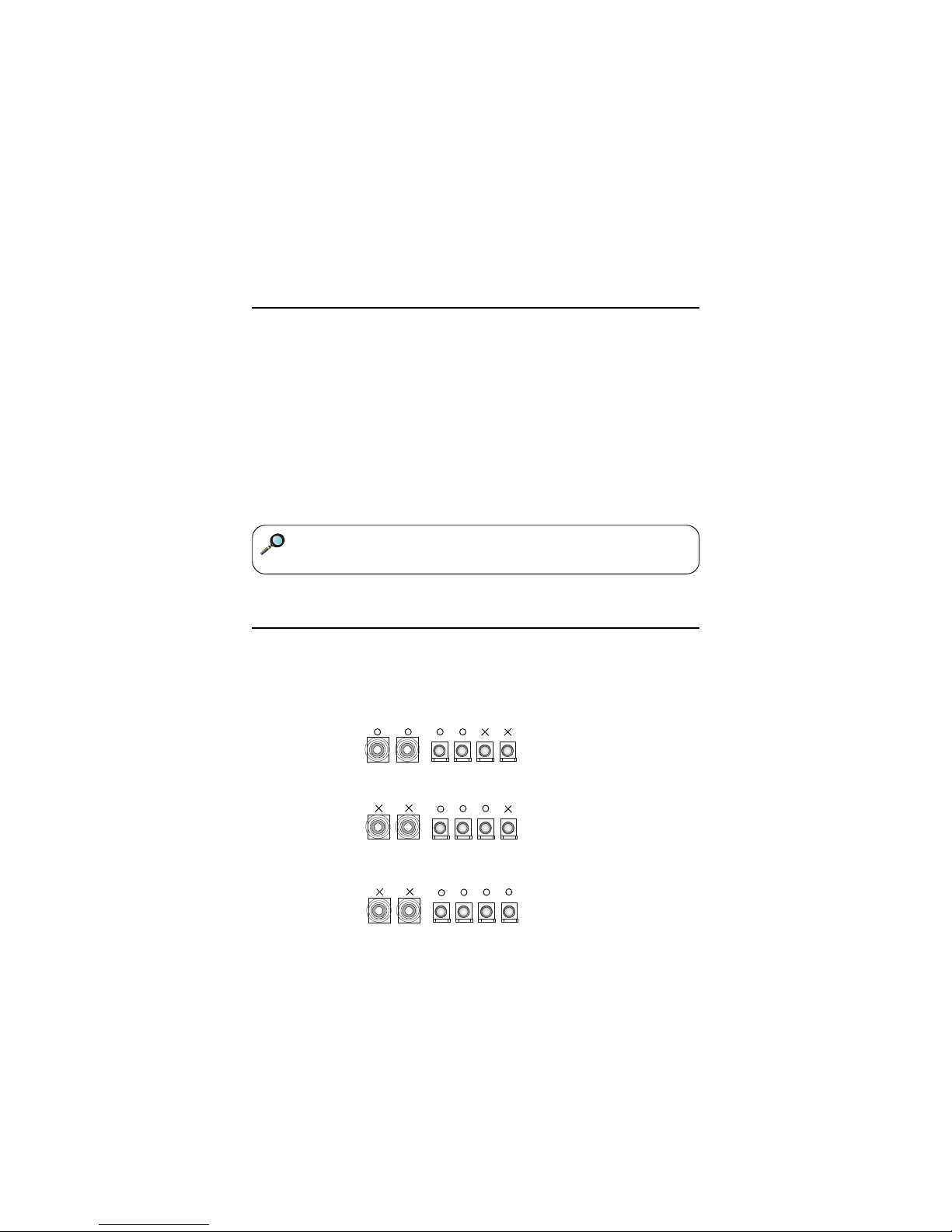

You can clear CMOS by shorting 2-3 pin while the
system is off. Then return to 1-2 pin position. Avoid
clearing the CMOS while the system is on; it will dam­age the mainboard.

WARNING!

Keep Data

3

1

Clear Data

3

1

JBAT1

1

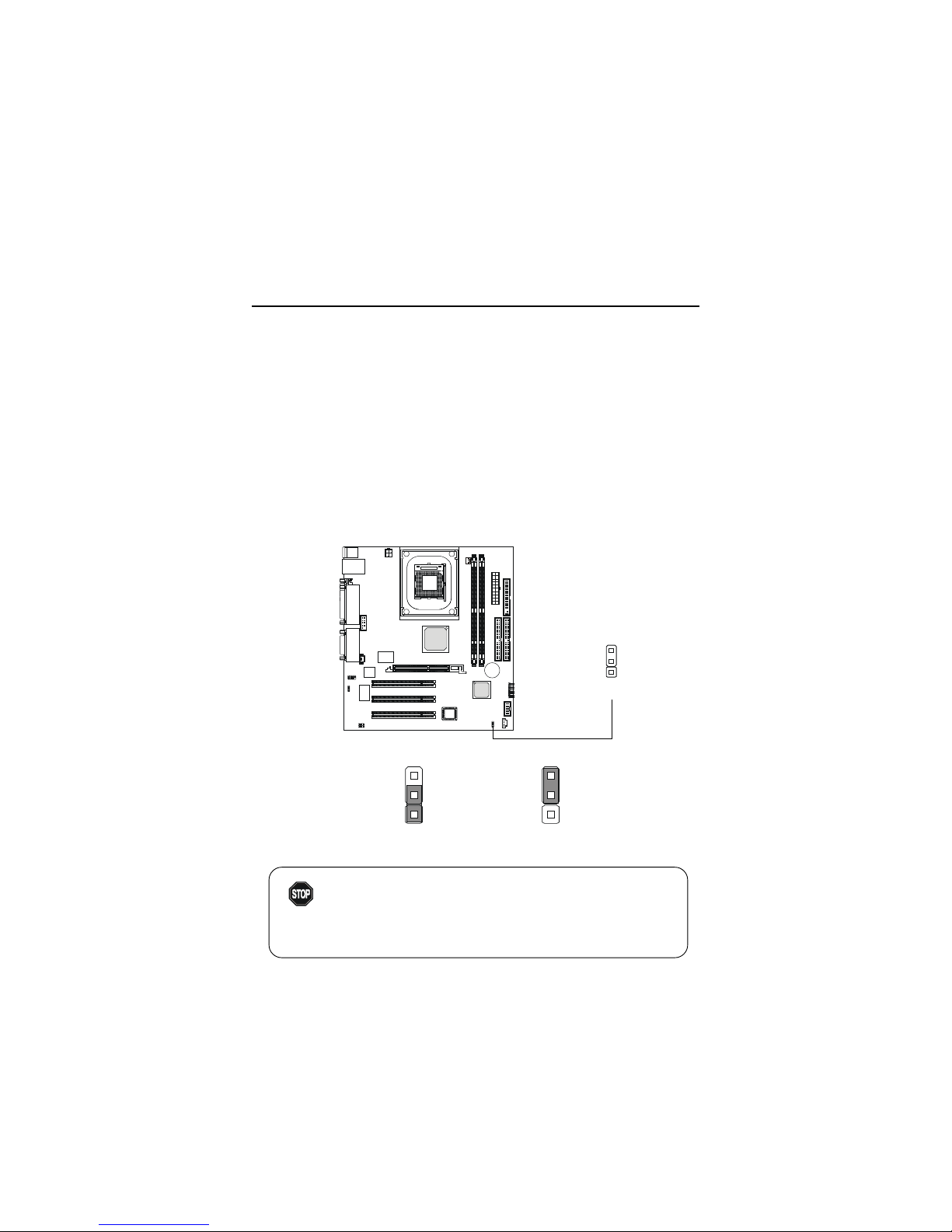

Clear CMOS Jumper: JBA T1

There is a CMOS RAM on board that has a power supply from external
battery to keep the data of system configuration. With the CMOS RAM, the
system can automatically boot OS every time it is turned on. If you want to
clear the system configuration, use the JBAT1 (Clear CMOS Jumper ) to clear
data. Follow the instructions below to clear the data:

Jumpers

Chapter 2

2-20

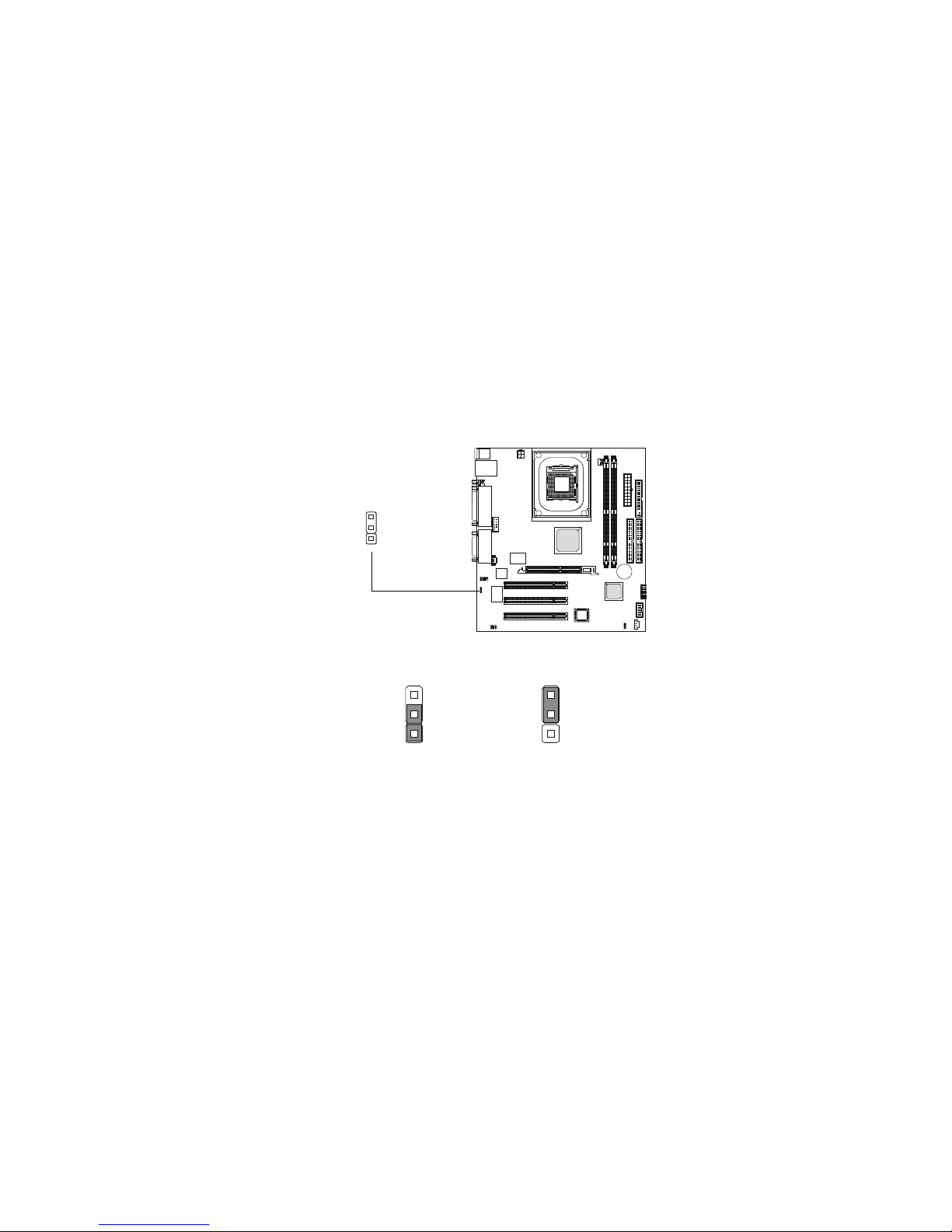

LAN Enable

3

1

LAN Disable

3

1

JLAN1

1

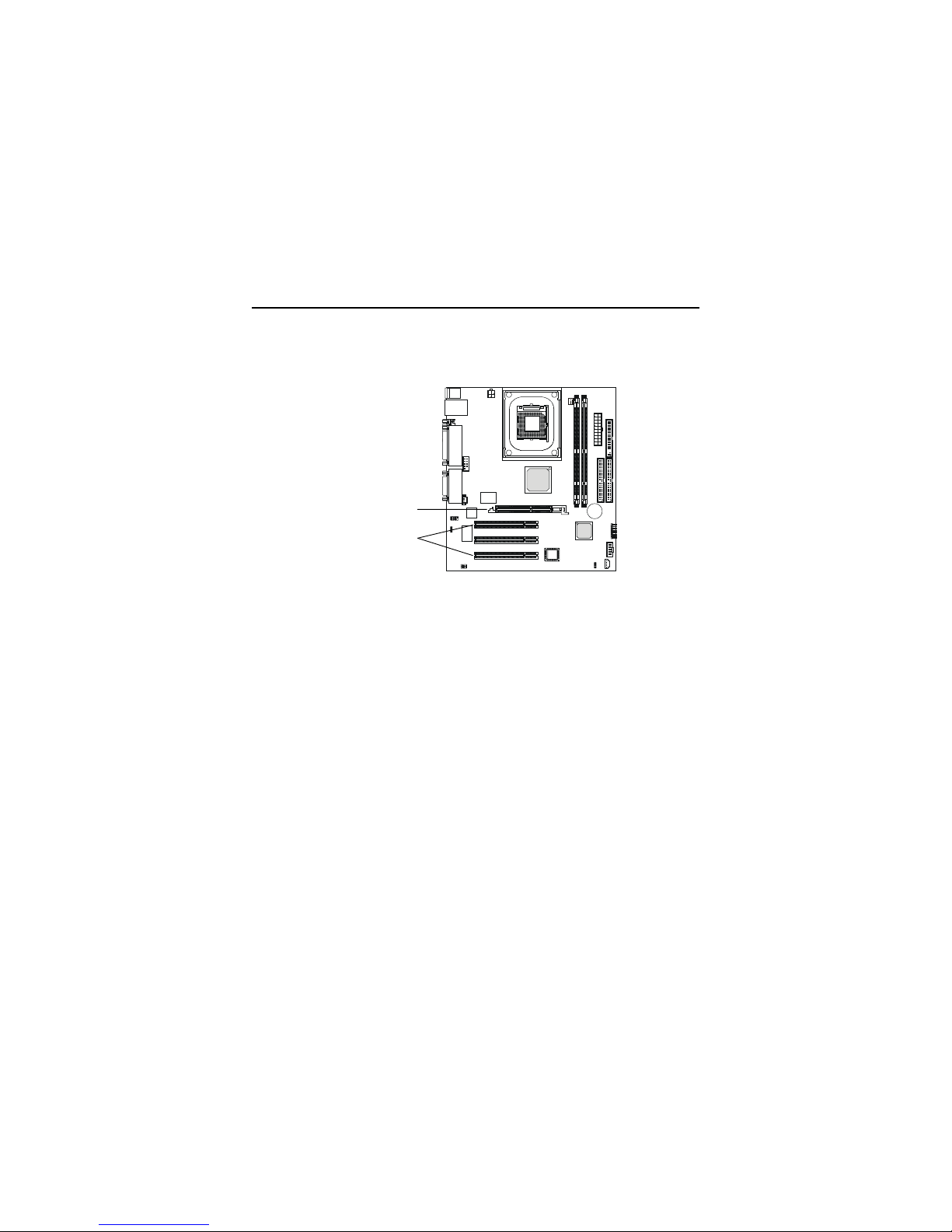

LAN Enable/Disable Jumper: JLAN1

Use the jumper to enable or disable the onboard LAN function. Follow
the instructions below to clear the data:

Hardware Setup

2-21

Set the center speaker to
the left and woofer to the
right

J11

1

Center/Bass Setting Jumper: J11 & J12

The mainboard comes with two Jumpers for users to set up their center or
bass speaker. If you connect a pair of speakers which supports bass through
the Center/Bass audio connector (refer to P.2-11), you may need to set up
which speaker can output bass in order to get a better sound effect. If you
merely connect a single center or bass speaker, the setting of these two jump­ers will be invalid. Follow the instructions below to set up the speakers:

3

1

3

J12

3

1

31

3

1

31

Set the center speaker to
the right and woofer to the
left

Chapter 2

2-22

Slots

AGP (Accelerated Graphics Port) Slot

The AGP slot allows you to insert the AGP graphics card. AGP is an
interface specification designed for the throughput demands of 3D graphics.
It introduces a 66MHz, 32-bit channel for the graphics controller to directly
access main memory and provides three levels of throughputs: 1x (266Mbps),
2x (533Mbps) and 4x (1.07Gbps).

PCI Slots

Three PCI slots allow you to insert the expansion cards to meet your
needs. When adding or removing expansion cards, make sure that you unplug
the power supply first. Meanwhile, read the documentation for the expansion
card to make any necessary hardware or software settings for the expansion
card, such as jumpers, switches or BIOS configuration.

The motherboard provides three 32-bit Master PCI bus slots and one
AGPslot.

PCI Slots

AGP Slot

Hardware Setup

2-23

PCI Interrupt Request Routing

The IRQ, abbreviation of interrupt request line and pronounced I-R-Q,
are hardware lines over which devices can send interrupt signals to the
microprocessor. The PCI IRQ pins are typically connected to the PCI bus INT
A# ~ INT D# pins as follows:

Order 1 Order 2 Order 3 Order 4
PCI Slot 1 INT A# INT B# INT C# INT D#
PCI Slot 2 INT B# INT C# INT D# INT A#
PCI Slot 3 INT C# INT D# INT A# INT B#

Using SPDIF & 4-/6-channel Audio Function

A-1

Appendix A: Using 4-/6-channel Audio
Function

The mainboard comes with C-Media 6-channel audio function, which
allows you to attach digital audio device or 4/6 speakers for better space sound
effect. The section will tell you how to activate SPDIF or 4-/6-channel audio
function.

TOPICS

Installing C-Media Drivers A-2
Hardware Configuration A-2
Software Configuration A-3

A

Using SPDIF & 4-/6-channel Audio
Function

Appendix A

A-2

The mainboard is able to active the audio connectors from 2-channel to 4-/6­channel or the SPDIF connectors. To use the function, you need to install the
C-Media drivers.

T o install C-Media drivers:

1. Insert the companion CD into the CD-ROM drive. The setup screen will

automatically appear.

2. Click on C-Media Sound Drivers.

3. Follow the on-screen instructions to complete installation.

4. Restart the system.

Installing C-Media Drivers

After installing the C-Media drivers, you can attach the speakers for 4-/6­channel audio output. Always connect the speakers to the LINE OUT
connectors. The SPDIF is void when 4-/6-channel audio output is active. Dif­ferent connector configurations for 2-/4-/6-channel operations are listed below:

Hardware Configuration

Note: For Windows NT4.0, you need to install the C-Media Sound
Drivers manually.

2-Channel

4-Channel

6-Channel

When set to 4-channel
configuration,Line In, Line Out
(Front) and Line Out (Rear)
connectors are active.

When set to 6-channel
configuration, Line In, Line Out
(Front), Line Out (Rear), Line
Out (C/Bass) connectors are
active.

In 2-channel configuration, Line
In, Line Out (Front) and SPDIF
connectors are active.

SPDIFINSPDIF

OUT

LINEINLINE

OUT

(Front)

LINE
OUT

(Rear)

LINE
OUT

(C/Bass)

SPDIFINSPDIF

OUT

LINEINLINE

OUT

(Front)

LINE
OUT

(Rear)

LINE
OUT

(C/Bass)

SPDIFINSPDIF

OUT

LINEINLINE

OUT

(Front)

LINE
OUT

(Rear)

LINE
OUT

(C/Bass)

Using SPDIF & 4-/6-channel Audio Function

A-3

To have 4-/6-channel audio work, you must set appropriate configuration in
the C-Media software application.

T o set the multi-channel configuration:

1. Click the C-Media Mixer icon from the window tray on the bottom.

2. The following screen appears. Click the indicated button.

3. The “Advanced” window appears.

4. Select 5.1 for 6-channel or 4 for 4-channel audio output.

5. Click OK.

Software Configuration

Click here
