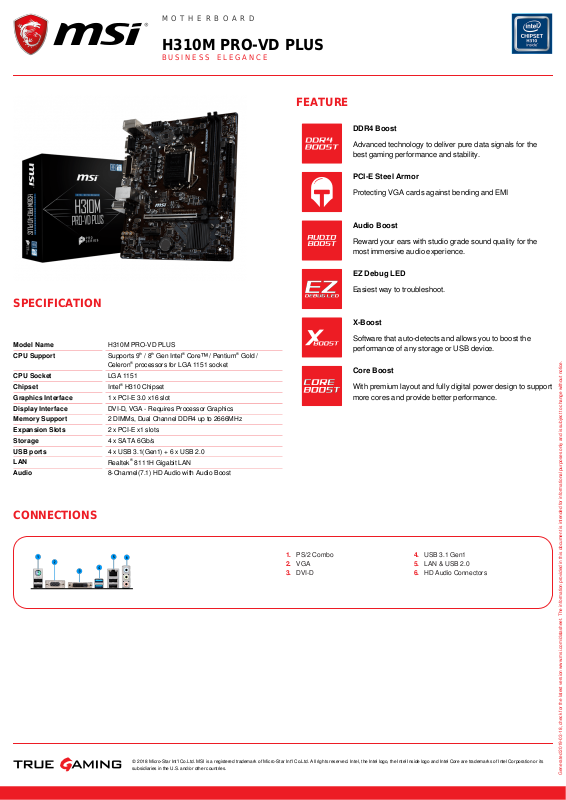

MSI H310M Pro-VD Plus Service Manual

SPECIFICATION

MOTHERBOARD

H310M PRO-VD PLUS

BUSINESS ELEGANCE

FEATURE

DDR4 Boost

Advanced technology to deliver pure data signals for the best gaming performance and stability.

PCI-E Steel Armor

Protecting VGA cards against bending and EMI

Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.

EZ Debug LED

Easiest way to troubleshoot.

Model Name H310M PRO-VD PLUS

CPU Support

CPU Socket LGA 1151

Chipset

Graphics Interface 1 x PCI-E 3.0 x16 slot

Display Interface DVI-D, VGA - Requires Processor Graphics

Memory Support 2 DIMMs, Dual Channel DDR4 up to 2666MHz

Expansion Slots 2 x PCI-E x1 slots

Storage 4 x SATA 6Gb/s

USB ports 4 x USB 3.1(Gen1) + 6 x USB 2.0

LAN

Audio 8-Channel(7.1) HD Audio with Audio Boost

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

Intel® H310 Chipset

Realtek® 8111H Gigabit LAN

CONNECTIONS

X-Boost

Software that auto-detects and allows you to boost the performance of any storage or USB device.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

PS/2 Combo1. VGA2. DVI-D3.

USB 3.1 Gen14. LAN & USB 2.05. HD Audio Connectors6.

© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved. Intel, the Intel logo, the Intel Inside logo and Intel Core are trademarks of Intel Corporation or its

subsidiaries in the U.S. and/or other countries.

Generated 2019-03-18, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
