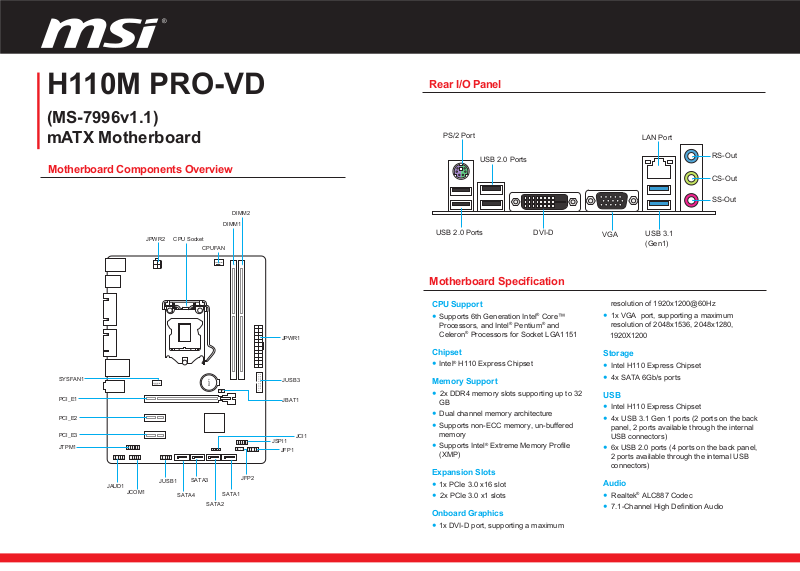

MSI H110M Pro-VD Service Manual
H110M PRO-VD
(MS-7996v1.1)
mATX Motherboard
Motherboard Components Overview
DIMM2
DIMM1
CPU Socket
JPWR2
CPUFAN
Rear I/O Panel
PS/2 Port
USB 2.0 Ports
USB 2.0 Ports
DVI-D
Motherboard Specification
VGA
LAN Port
RS-Out
CS-Out
SS-Out
USB 3.1
(Gen1)
SYSFAN1
PCI_E1
PCI_E2
PCI_E3
JTPM1
JAUD1
JCOM1
JUSB1
SATA4
SATA3
BAT1
SATA2
SATA1
JFP2
JSPI1
JPWR1
JUSB3
JBAT1
JFP1
JCI1
CPU Support
● Supports 6th Generation Intel® Core™
Processors, and Intel® Pentium® and
Celeron® Processors for Socket LGA1151
Chipset
● Intel® H110 Express Chipset
Memory Support
● 2x DDR4 memory slots supporting up to 32
GB
● Dual channel memory architecture
● Supports non-ECC memory, un-buffered
memory
● Supports Intel® Extreme Memory Profile
(XMP)
Expansion Slots
● 1x PCIe 3.0 x16 slot
● 2x PCIe 3.0 x1 slots
Onboard Graphics
● 1x DVI-D port, supporting a maximum
resolution of 1920x1200@60Hz
● 1x VGA port, supporting a maximum
resolution of 2048x1536, 2048x1280,
1920X1200
Storage
● Intel H110 Express Chipset
● 4x SATA 6Gb/s ports
USB
● Intel H110 Express Chipset
● 4x USB 3.1 Gen 1 ports (2 ports on the back
panel, 2 ports available through the internal
USB connectors)
● 6x USB 2.0 ports (4 ports on the back panel,
2 ports available through the internal USB
connectors)
Audio
● Realtek® ALC887 Codec
● 7.1-Channel High Definition Audio
Motherboard Specification
LAN
● 1x Realtek 8111H Gigabit LAN controller
Back Panel Connectors
● 1x PS/2 keyboard/ mouse port
● 4x USB 2.0 ports
● 2x USB 3.1 Gen 1 ports
● 1x DVI-D port
● 1x VGA Port
● 1x LAN (RJ45) port
● 3x Audio Jacks
Internal Connectors
● 1x 24-pin ATX main power connector
● 1x 4-pin ATX 12V power connector
● 4x SATA 6Gb/s connectors
● 1x USB 2.0 connector (supports additional 2
USB 2.0 ports)
● 1x USB 3.1 Gen 1 connector (supports
additional 2 USB 3.1 Gen 1 ports)
● 1x 4-pin CPU fan connector
● 1x 4-pin system fan connector
● 1x Clear CMOS jumper
● 1x Front panel audio connector
● 2x System panel connectors
● 1x TPM module connector
● 1x Chassis Intrusion connector
● 1x Serial port connector
● Multi-language
Special Features
● PCI Express 3.0 Support
● EZ Debug LED
● Smart Fan Control
MSI Exclusive Features
● Click BIOS 5
● Command Center
● RAMDisk
● Super Charger
● Fast boot
● Live Update 6
● M-Cloud
Form Factor
● mATX Form Factor
● 23.5 cm x 18.0 cm
I/O Controller
● NUVOTON NCT5563D Controller Chip
Hardware Monitor
● CPU/System temperature detection
● CPU/System fan speed detection
● CPU/System fan speed control
BIOS Features
● 1x 64 Mb flash
● UEFI AMI BIOS
● ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0
* These specication is subject to change without prior notice.
(MS-7996v1.1)2015/07/29
