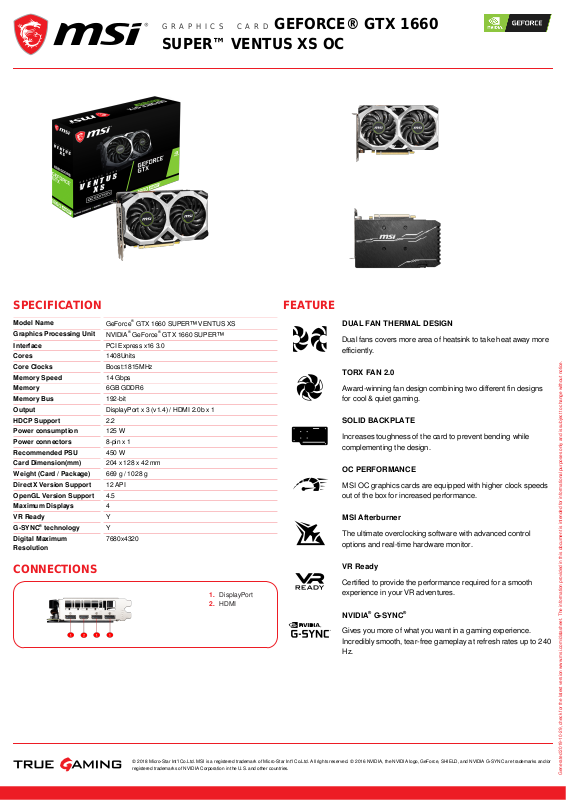

MSI GTX 1660 SUPER Ventus XS OC Service Manual
GRAPHICS CARD GEFORCE® GTX 1660
GRAPHICS CARD GEFORCE® GTX 1660
SUPER™ VENTUS XS OC
SUPER™ VENTUS XS OC
SPECIFICATION
Model Name
Graphics Processing Unit
Interface PCI Express x16 3.0
Cores 1408Units
Core Clocks Boost:1815MHz
Memory Speed 14 Gbps
Memory 6GB GDDR6
Memory Bus 192-bit
Output DisplayPort x 3 (v1.4) / HDMI 2.0b x 1
HDCP Support 2.2
Power consumption 125 W
Power connectors 8-pin x 1
Recommended PSU 450 W
Card Dimension(mm) 204 x 128 x 42 mm
Weight (Card / Package) 669 g / 1028 g
DirectX Version Support 12 API
OpenGL Version Support 4.5
Maximum Displays 4
VR Ready Y
G-SYNC® technology
Digital Maximum
Resolution
GeForce® GTX 1660 SUPER™ VENTUS XS
NVIDIA® GeForce® GTX 1660 SUPER™
Y
7680x4320
CONNECTIONS
FEATURE
DUAL FAN THERMAL DESIGN
Dual fans covers more area of heatsink to take heat away more
efficiently.
TORX FAN 2.0
Award-winning fan design combining two different fin designs
for cool & quiet gaming.
SOLID BACKPLATE
Increases toughness of the card to prevent bending while
complementing the design.
OC PERFORMANCE
MSI OC graphics cards are equipped with higher clock speeds
out of the box for increased performance.
MSI Afterburner
The ultimate overclocking software with advanced control
options and real-time hardware monitor.
VR Ready
Certified to provide the performance required for a smooth
DisplayPort1.
HDMI2.
experience in your VR adventures.
NVIDIA® G-SYNC
®
Gives you more of what you want in a gaming experience.
Incredibly smooth, tear-free gameplay at refresh rates up to 240
Hz.
© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved. © 2016 NVIDIA, the NVIDIA logo, GeForce, SHIELD, and NVIDIA G-SYNC are trademarks and/or
© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved. © 2016 NVIDIA, the NVIDIA logo, GeForce, SHIELD, and NVIDIA G-SYNC are trademarks and/or
registered trademarks of NVIDIA Corporation in the U.S. and other countries.
registered trademarks of NVIDIA Corporation in the U.S. and other countries.
Generated 2019-10-29, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
