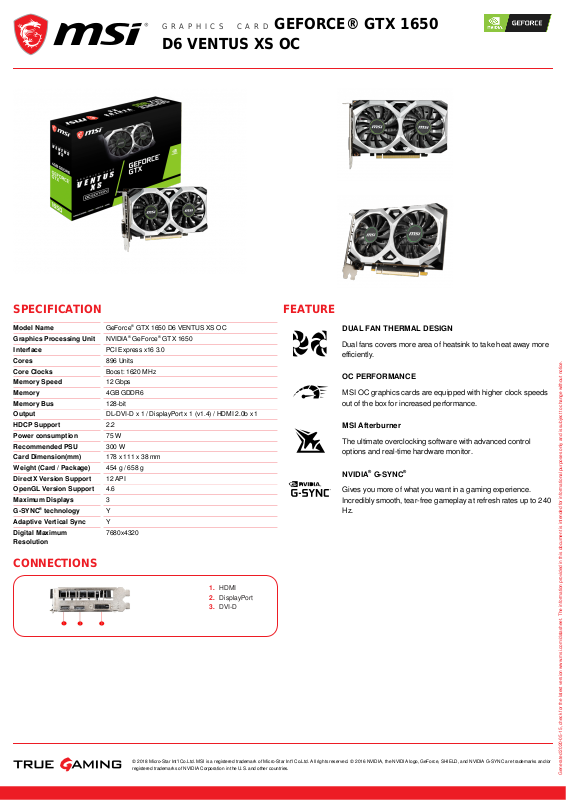

MSI GTX 1650 D6 Ventus XS OC Service Manual
GRAPHICS CARD GEFORCE® GTX 1650
GRAPHICS CARD GEFORCE® GTX 1650
D6 VENTUS XS OC
D6 VENTUS XS OC
SPECIFICATION
Model Name
Graphics Processing Unit
Interface PCI Express x16 3.0
Cores 896 Units
Core Clocks Boost: 1620 MHz
Memory Speed 12 Gbps
Memory 4GB GDDR6
Memory Bus 128-bit
Output DL-DVI-D x 1 / DisplayPort x 1 (v1.4) / HDMI 2.0b x 1
HDCP Support 2.2
Power consumption 75 W
Recommended PSU 300 W
Card Dimension(mm) 178 x 111 x 38 mm
Weight (Card / Package) 454 g / 658 g
DirectX Version Support 12 API
OpenGL Version Support 4.6
Maximum Displays 3
G-SYNC® technology
Adaptive Vertical Sync Y
Digital Maximum
Resolution
GeForce® GTX 1650 D6 VENTUS XS OC
NVIDIA® GeForce® GTX 1650
Y
7680x4320
CONNECTIONS
FEATURE
DUAL FAN THERMAL DESIGN
Dual fans covers more area of heatsink to take heat away more
efficiently.
OC PERFORMANCE
MSI OC graphics cards are equipped with higher clock speeds
out of the box for increased performance.
MSI Afterburner
The ultimate overclocking software with advanced control
options and real-time hardware monitor.
NVIDIA® G-SYNC
®
Gives you more of what you want in a gaming experience.
Incredibly smooth, tear-free gameplay at refresh rates up to 240
Hz.
HDMI1.
DisplayPort2.
DVI-D3.
© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved. © 2016 NVIDIA, the NVIDIA logo, GeForce, SHIELD, and NVIDIA G-SYNC are trademarks and/or
© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved. © 2016 NVIDIA, the NVIDIA logo, GeForce, SHIELD, and NVIDIA G-SYNC are trademarks and/or
registered trademarks of NVIDIA Corporation in the U.S. and other countries.
registered trademarks of NVIDIA Corporation in the U.S. and other countries.
Generated 2020-05-15, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
