MSI G271 User Guide

Optix Series

LCD Monitor

Optix G241 (3BA4) Optix G271 (3CB5)

Contents

Copyright and Trademarks Notice ��iii Revision Technical Support Safety Instructions CE Conformity FCC-B Radio Frequency Interference Statement WEEE Statement Chemical Substances Information RoHS Statement

Getting Started ��1-1

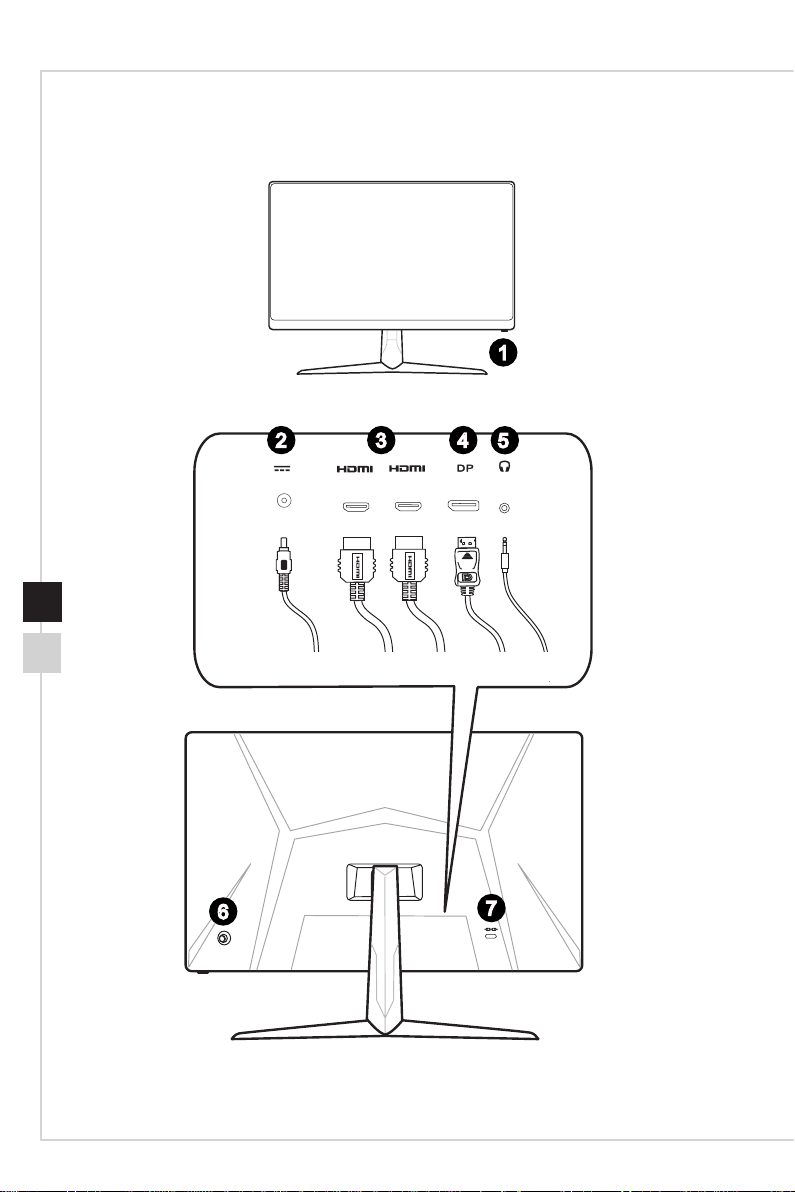

Package Contents ��1-2 Installing the Monitor Stand Adjusting the Monitor Monitor Overview Connecting the Monitor to PC

OSD Setup ��2-1

Navi Key ��2-2 OSD Setup via Navi Key

Appendix ��A-1

Speci󰘰cations ��A-2 Preset Display Modes Troubleshooting

��iii

��iv

��vi

��vii

��1-3

��1-5

��1-6

��1-8

��2-5

��A-3

��A-4

Preface

Copyright and Trademarks Notice

Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied� MSI reserves the right to make changes to this document without prior notice�

Revision

Revision Date V1�0 2019/11

Technical Support

If a problem arises with your product and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor� Alternatively, please visit https://www�msi�com/support/ for further guidance�

iiiii

Safety Instructions

◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the device or user’s manual should be noted� ◙ Refer servicing to quali󰘰ed personnel only.

Keep the User’s Guide that comes with the package for future reference�

To prevent 󰘰re or shock hazard, keep this device away from humidity and high

temperature�

Lay this device on a reliable 󰘱at surface before setting it up.

◙ Make sure that the power voltage is within its safety range and has been

adjusted properly to the value of 100~240V before connecting the device to the power outlet� Do not disable the protective earth pin from the plug� The device must be connected to an earthed mains socket-outlet�

◙ Always disconnect the power cord or switch the wall socket o󰘯 if the device

would be left unused for a certain time to achieve zero energy consumption.

The ventilator on the device is used for air convection and to prevent the device from overheating� Do not cover the ventilator�

Do not leave the device in an unconditioned environment with a storage temperature above 60OC or below -20OC, which may damage the device�

NOTE: The maximum operating temperature is around 40OC�

When cleaning the device, be sure to remove the power plug� Use a piece of soft cloth rather than industrial chemical to clean the device� Never pour any liquid into the opening; that could damage the device or cause electric shock�

Preface

Place the power cord in a way that people are unlikely to step on it� Do not place anything on the power cord�

Always keep strong magnetic or electrical objects away from the device�

If any of the following situations arises, get the device checked by service personnel:

◙ The power cord or plug is damaged� ◙ Liquid has penetrated into the device� ◙ The device has been exposed to moisture� ◙ The device does not work well or you can not get it work according to user’s

manual�

◙ The device has dropped and damaged� ◙ The device has obvious sign of breakage�

Green Product Features

◙ Reduced energy consumption during use and stand-by ◙ Limited use of substances harmful to the environment and health ◙ Easily dismantled and recycled ◙ Reduced use of natural resources by encouraging recycling ◙ Extended product lifetime through easy upgrades ◙ Reduced solid waste production through take-back policy

Environmental Policy

◙ The product has been designed to enable proper reuse of parts and

recycling and should not be thrown away at its end of life�

◙ Users should contact the local authorized point of collection for recycling

and disposing of their end-of-life products�

◙ Visit the MSI website and locate a nearby distributor for further recycling

information�

◙ Users may also reach us at gpcontdev@msi�com for information regarding

proper disposal, take-back, recycling, and disassembly of MSI products�

viv

★ Warning! Overuse of screens is likely to a󰘯ect eyesight. ★ Recommendations:

1� Take a 10-minute break for every 30 minutes of screen time� 2� Children under 2 years of age should have no screen time� For children aged

2 years and over, screen time should be limited to less than one hour per day�

CE Conformity

This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/ EU)� This product has been tested and found to comply with the harmonized standards

for Information Technology Equipment published under Directives of O󰘲cial Journal of

the European Union�

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules� These limits are designed to provide reasonable protection against harmful interference in a residential installation� This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications� However, there is no guarantee that interference will not occur in a particular installation� If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o󰘯 and on, the

user is encouraged to try to correct the interference by one or more of the measures listed below:

￭ Reorient or relocate the receiving antenna� ￭ Increase the separation between the equipment and receiver� ￭ Connect the equipment into an outlet on a circuit di󰘯erent from that to which

the receiver is connected�

￭ Consult the dealer or an experienced radio/television technician for help�

Notice 1

The changes or modi󰘰cations not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment� Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits�

This device complies with Part 15 of the FCC Rules� Operation is subject to the following two conditions:

1� this device may not cause harmful interference, and 2� this device must accept any interference received, including interference that may

cause undesired operation�

MSI Computer Corp� 901 Canada Court, City of Industry, CA 91748, USA (626)913-0828 www�msi�com

Preface

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and

Electronic Equipment, Directive 2012/19/EU, which takes e󰘯ect on August

13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life�

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No� 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

https://www�msi�com/html/popup/csr/evmtprtt_pcm�html

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, de󰘰ned by speci󰘰cation JIS C 0950, mandates

that manufacturers provide material declarations for certain categories of electronic

products o󰘯ered for sale after July 1, 2006.

https://www�msi�com/html/popup/csr/cemm_jp�html https://tw�msi�com/html/popup/csr_tw/cemm_jp�html

viivi

India RoHS

This product complies with the "India E-waste (Management and Handling) Rule 2016" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0�1 weight % and 0�01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule�

Turkey EEE Regulation

Conforms to the EEE Regulations of the Republic Of Turkey

Ukraine Restriction of Hazardous Substances

The equipment complies with requirements of the Technical Regulation, approved by

the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057,

in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment�

Vietnam RoHS

As from December 1, 2012, all products manufactured by MSI comply with Circular

30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous

substances in electronic and electric products�

Getting Started

This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity�

IMPORTANT

•

The illustrations are for reference only� Your monitor may vary in appearance�

•

Do not use any sharp objects on the monitor�
