AP1622E
All-in-One (AIO) PC
MS-A615 System
G52-A6151X2
Contents
Copyright Notice iii Trademarks iii Revision iii Upgrade and Warranty iv Acquisition of Replaceable Parts iv Technical Support iv Green Product Features iv Environmental Policy v Chemical Substances Information v Battery Information v Safety Instructions vi CE Conformity viii FCC-B Radio Frequency Interference Statement viii WEEE Statement viii RoHS Statement ix
1. Overview 1-1
Packing Contents 1-2 ii System Overview 1-3 Component Replacement & Upgrade 1-9
2. Getting Started 2-1
Safety & Comfort Tips 2-2 Hardware Setup 2-3
3. System Operations 3-1
Power Management 3-2 Network Connection (Windows 7) 3-4 Network Connection (Windows 10) 3-7 System Recovery (Windows 7) 3-10 System Recovery (Windows 10) 3-20
A. Troubleshooting A-1
Preface
The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.
All trademarks are the properties of their respective owners.
Revision |
Date |
V1.0 |
2015/08 |
iii
Please note that certain components preinstalled in the product may be upgradable or replaceable by user’s request. For any further information about the product users purchased, please contact the local dealer. Do not attempt to upgrade or replace any component of the product if you are not an authorized dealer or service center, since it may cause the warranty void. It is strongly recommended that you contact the authorized dealer or service center for any upgrade or replace service.
Please be noticed that the acquisition of replaceable parts (or compatible ones) of the product users purchased in certain countries or territories may be fulfilled by the manufacturer within 5 years at most since the product has been discontinued, depending on the official regulations declared at the time. Please contact the manufacturer via http://www.msi.com/support/ for the detailed information about the acquisition of spare parts.
If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for technical guide, BIOS updates, driver updates and other information via http://www.msi.com/
iv support/
◙◙ Reduced energy consumption during use and stand-by
◙◙ Limited use of substances harmful to the environment and health ◙◙ Easily dismantled and recycled
◙◙ Reduced use of natural resources by encouraging recycling ◙◙ Extended product lifetime through easy upgrades
◙◙ Reduced solid waste production through take-back policy
Preface
◙◙ The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
◙◙ Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.
◙◙ Visit the MSI website and locate a nearby distributor for further recycling information.
◙◙ Users may also reach us at gpcontdev@msi.com for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products.
In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:
http://www.msi.com/html/popup/csr/evmtprtt_pcm.html
v
European Union:
Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.
Taiwan:
For better environmental protection, waste batteries should be collected separately for recycling or special disposal.
California, USA:
The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.
For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
◙◙ Read the safety instructions carefully and thoroughly.
◙◙ All cautions and warnings on the equipment or user’s manual should be noted.
Keep the User’s Guide that comes with the package for future reference.
Keep this equipment away from humidity and high temperature.
Lay this equipment on a reliable flat surface before setting it up.
vi
◙◙ Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100~240V before connecting the equipment to the power outlet. Do not disable the protective earth pin from the plug. The equipment must be connected to an earthed mains socket-outlet.
◙◙ Always unplug the AC power cord before installing any add-on card or module to the equipment.
◙◙ Always disconnect the AC power cord or switch the wall socket off if the equipment would be left unused for a certain time to achieve zero energy consumption.
The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.
Do not leave the equipment in an unconditioned environment with a storage temperature above 60OC (140OF) or below 0OC (32OF), which may damage the equipment.
NOTE: The maximum operating temperature is around 40OC.
Preface
|
|
|
|
|
|
|
|
|
|
|
Never pour any liquid into the opening that could damage or cause electrical |
|
|
||
|
|
|
|
|
|||
|
|
|
shock. |
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
Place the power cord in a way that people are unlikely to step on it. Do not place |
|
|
||
|
|
|
|
|
|||
|
|
|
anything on the power cord. |
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
◙◙ When installing the coaxial cable to the TV Tuner, it is necessary to ensure |
|
|
||
|
|
|
|
that the metal shield is reliably connected to protective earthing system of |
|
|
|
|
|
|
◙◙ |
the building. |
|
|
|
|
|
|
Cable distribution system should be grounded (earthed) in accordance with |
|
|
||
|
|
|
|
ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section |
|
|
|
|
|
|
|
820.93, Grounding of Outer Conductive Shield of a Coaxial Cable. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Always keep the strong magnetic or electrical objects away from the |
|
|
||
|
|
|
equipment. |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If any of the following situations arises, get the equipment checked by service |
vii |
|||
|
|
|
personnel: |
|
|
||
|
|
|
◙◙ |
The power cord or plug is damaged. |
|
|
|
|
|
||||||
|
|
|
◙◙ |
Liquid has penetrated into the equipment. |
|
|
|
|
|
|
◙◙ |
The equipment has been exposed to moisture. |
|
|
|
|
|
||||||
|
|
|
◙◙ |
The equipment does not work well or you can not get it work according to |
|
|
|
|
|
|
◙◙ |
user’s manual. |
|
|
|
|
|
|
The equipment has dropped and damaged. |
|
|
||
|
|
|
◙◙ |
The equipment has obvious sign of breakage. |
|
|
|
|
|
|
|
|
|
|
|
1.The optical storage devices are classified as CLASS 1 LASER PRODUCT. Use of controls or adjustments or performance of procedures other than those specified is prohibited.
2.Do not touch the lens inside the drive.
Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.
|
FCC-B Radio Frequency Interference |
|
Statement |
|
This equipment has been tested and found to comply with the limits for |
|
a Class B digital device, pursuant to Part 15 of the FCC Rules. These |
|
limits are designed to provide reasonable protection against harmful |
|
interference in a residential installation. This equipment generates, |
|
uses and can radiate radio frequency energy and, if not installed and |
|
used in accordance with the instruction manual, may cause harmful interference to |
|
radio communications. However, there is no guarantee that interference will not occur |
|
in a particular installation. If this equipment does cause harmful interference to radio or |
|
television reception, which can be determined by turning the equipment off and on, the |
|
user is encouraged to try to correct the interference by one or more of the measures |
|
listed below: |
|
Reorient or relocate the receiving antenna. |
|
Increase the separation between the equipment and receiver. |
|
Connect the equipment into an outlet on a circuit different from that to which |
viii |
the receiver is connected. |
|
Consult the dealer or an experienced radio/television technician for help. |
|
Notice 1 |
|
The changes or modifications not expressly approved by the party responsible for |
|
compliance could void the user’s authority to operate the equipment. |
|
Notice 2 |
|
Shielded interface cables and AC power cord, if any, must be used in order to comply |
|
with the emission limits. |
|
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU. |
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.this device may not cause harmful interference, and
2.this device must accept any interference received, including interference that may cause undesired operation.
Under the European Union (“EU”) Directive on Waste Electrical and
Electronic Equipment, Directive 2002/96/EC, which takes effect on August
13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.
Preface
Japan JIS C 0950 Material Declaration
A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.
http://www.msi.com/html/popup/csr/cemm_jp.html http://tw.msi.com/html/popup/csr_tw/cemm_jp.html
India RoHS
This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Turkey EEE regulation
Conforms to the EEE Regulations of the Republic Of Turkey
Ukraine restriction of hazardous substances |
|
The equipment complies with requirements of the Technical Regulation, approved by |
|
the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057, |
|
in terms of restrictions for the use of certain dangerous substances in electrical and |
|
electronic equipment. |
ix |
Vietnam RoHS
As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
1
This system is designed with green commerce and smart digital lifestyle, using an LED backlit display to increase clarity, while reducing the burden to the eyes.
With the compact chassis and flexible stand, it blends technology with life, making computers easier to use - suitable for both individuals and businesses.
All-in-One PC |
AC/DC Adapter |
AC Power Cord |
Keyboard (Optional) |
Mouse (Optional) |
Driver/ Utility Disc |
1-2
User Manual &
Quick Guide
*Please contact us immediately if any of the items is damaged or missing.
*The illustrations are for reference only and your packing contents may slightly vary depending on the model you purchased.
Overview
hhFront View
1 2 3
5
4
1-3
1Microphone
The built-in microphone can be used for video chatting online.
2Webcam
The built-in webcam with the microphone can be used for picture taking, video recoding, online conferencing and any other interactive applications.
3LED Indicator
The LED indicator indicates when it is recording. The LED indicator should be on when device is capturing video and off when the device is not capturing video.
4Stereo Speakers
The built-in stereo speakers deliver high quality sound with stereo system.
5Display
The 15.6-inch LED-backlit display is with an optimal resolution of 1366 x 768 pixels and standard proportion of 16:9 widescreen.
hhRear View
1
1
4 |
2 |
|
1-4
3
1Ventilator
The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.

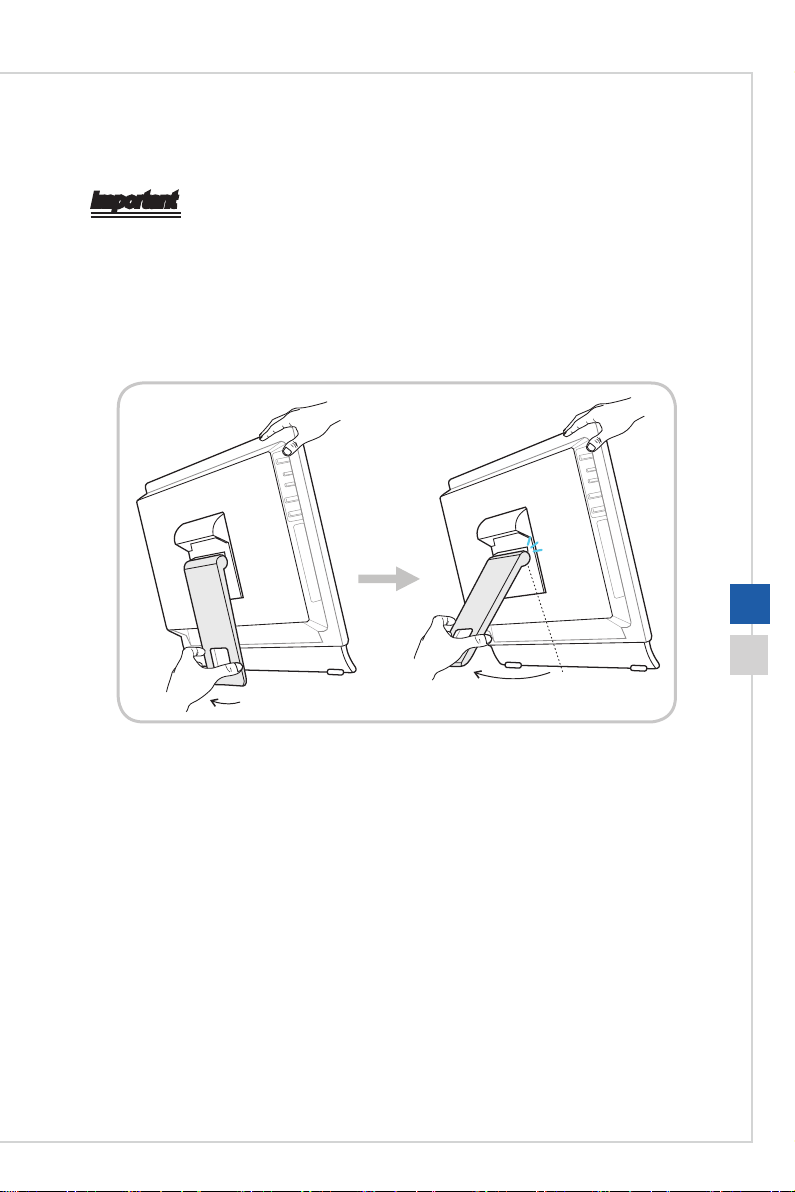

2Stand
Use this stand to position your system on a flat and stable surface.
3Cable Routing Hole
Route the cables through the cable routing hole to avoid cable spaghetti when connecting devices.
4Kensington Lock Port
This AIO PC provides a Kensington lock port, which allows users to secure the AIO PC in place with a key or some mechanical PIN device and attached through a rubberised metal cable. The end of the cable has a small loop which allows the whole cable to be looped around a permanent object, such as a heavy table or other similar equipment, thus securing the AIO PC in place.
Overview
hhTop & Bottom View
|
|
|
1 |
|
Optional |
|
|
|
|
3 |
5 |
6 |
7 |
8 |
2 |
4 |
|
|
|
|
|
|
|
|
3 |
5 |
6 |
|
7 |
2 |
4 |
|
|
1-5 |
1Ventilator
The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.
2Line-Out Jack
This connector is provided for headphones or speakers.
3Microphone Jack
This connector is provided for microphones.
4USB 2.0 Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It supports up to 480Mbit/s (Hi-Speed) data transfer rate.
5RJ-45 LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it.
|
|
|
Green/ Orange |
Yellow |
|
LED |
Color |
LED State |
Condition |
|
Right |
Yellow |
Off |
LAN link is not established. |
|
|
|
On (steady state) |
LAN link is established. |
|
|
|
On (brighter & pulsing) |
The computer is communicating with |
|
|
|
|
another computer on the LAN. |
|
Left |
Green |
Off |
10 Mbit/sec data rate is selected. |
|
|
|
On |
100 Mbit/sec data rate is selected. |
|
|
Orange |
On |
1000 Mbit/sec data rate is selected. |
6 |
VGA Port |
|
|
|
|
The VGA port supports monitors and other VGA interface devices. |
|||
7 |
Serial Port (Optional) |
|
||
1-6 |
The serial port supports barcode scanners, barcode printers, bill printers, credit card |
|||
|
machine, etc. |
|
|
8Parallel Port (Optional)
The parallel port supports printers and other parallel interface devices.
