Getting Started

Chapter 1

Getting Started

Thank you for choosing the 790GX-G65 Series (MS­7576 v1.X) ATX mainboard. The 790GX-G65 Series
mainboards are based on AMD 790GX/780G & SB710/
SB750 chipset for optimal system efficiency. Designed
to fit the advanced 64bit AMD Phenom II processor,
the 790GX-G65 Series deliver a high performance and
professional desktop platform solution.

1-1

MS-7576 Mainboard

Mainboard Specifications

Processor Support

- Supports AMD® PhenomTM II X4/ X3 and Athlon X4 /X3/ X2
processors in the AM3 package.

(For the latest information about CPU, please visit
http://global.msi.com.tw/index.php?func=cpuform2)

HyperTransport

- Hyper Transport 3.0 up to 5.2GT/s

Chipset

- North Bridge: AMD® 790GX / 780G chipset

- South Bridge: AMD® SB710 / SB750 chipset

Memory Support

- DDR3 800/1066/1333/1600(OC) SDRAM (16GB Max)

- 4 DDR3 DIMMs (240pin/1.5V)

(For more information on compatible components, please visit
http://global.msi.com.tw/index.php?func=testreport)

Side Port Memory

- DDR3 SDRAM 1Gbit (optional)

LAN

- Supports LAN 10/100/1000 Fast Ethernet by RTL8111DL

IEEE 1394 (optional)

- Chip integrated by VIA VT6315N

- Transfer rate is up to 400Mbps

- Supports up to 2 ports

Audio

- HD Audio ALC888S / ALC889

- Up to 8-channel audio with jack sensing

IDE

- 1 IDE port by SB710 / SB750

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

SATA

- 5 SATA II ports by SB710 / SB750

- 1 eSATA port by SB710 / SB750

- Supports storage and data transfers at up to 3 Gb/s

RAID

- SATA1~5 supports RAID 0/ 1/ 10 or JBOD mode by SB710

- SATA1~5 supports RAID 0/ 1/ 10/ 5 or JBOD mode by SB750

(optional)

1-2

Getting Started

Floppy

- 1 floppy port

- Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

Connectors

Back panel

- 1 PS/2 port

- 1 Optical S/PDIF-Out port

- 1 VGA port

- 1 DVI-D port

- 1 HDMI port

- 1 1394 port (optional)

- 6 USB 2.0 ports

- 1 eSATA port

- 1 LAN jack

- 6 flexible audio jacks

On-Board Pinheaders/ Connectors

- 3 USB 2.0 pinheaders

- 1 IEEE1394 pinheader (optional)

- 1 SPDIF out connector

- 1 CD-In connector

- 1 Front Panel Audio pinheader

- 1 Chassis Intrusion Switch pinheader

- 1 Serial port connector

- 1 TPM pinheader (optional)

- 1 OC switch

- 1 Power LED Button

- 1 Reset LED Button

- 1 Clear CMOS Button

Slots

For 790GX

- 1 PCI Express x16 slot supports up to PCI Express x16 speed. When
dual graphic cards enabled, it will turn to x8 speed.

- 1 PCI Express x16 slot supports up to PCI Express x8 speed

- 2 PCI Express x1 slots

- 2 PCI slot, support 3.3V/ 5V PCI bus Interface

For 780G

- 1 PCI Express x16 slot

- 3 PCI Express x1 slots

- 2 PCI slot, support 3.3V/ 5V PCI bus Interface

Form Factor

- ATX (30.4cm X 24.5cm)

Mounting

- 9 mounting holes

1-3

MS-7576 Mainboard

BATT

SYSFA

N

3

CPUFAN1

J1394_1

JUSB2

JSPI1

JUSB3

JCOM1

JUSB1

S

A

T

A

4

_5I

D

E

1

JPW

R

1

SATA1

Mainboard Layout

Top :

SPDIF
Bottom:
Keyboard or Mouse

Top: VGA port
Bottom:DVI port

Top:

USB ports
Bottom:HDMI

T:1394 port (optional)
M:B:USB ports

eSATA port

Top:

LAN Jack

Bottom:

USB ports

T:

Line-In

M:

Line-Out

B:

Mic
T:RS-Out
M:CS-Out
B:SS-Out

JAUD1

JCD1 JSP1

PWR1

2
N
A
F
S
Y
S

1
N
A
F
S
Y
S

(optional)

FDD1

3
_
2

+

A
T
A
S

2
P
F
J

1
P
F

1

J
M
P
T
J

790GX-G65 Series

(MS-7576 v1.X) ATX Mainboard

1-4

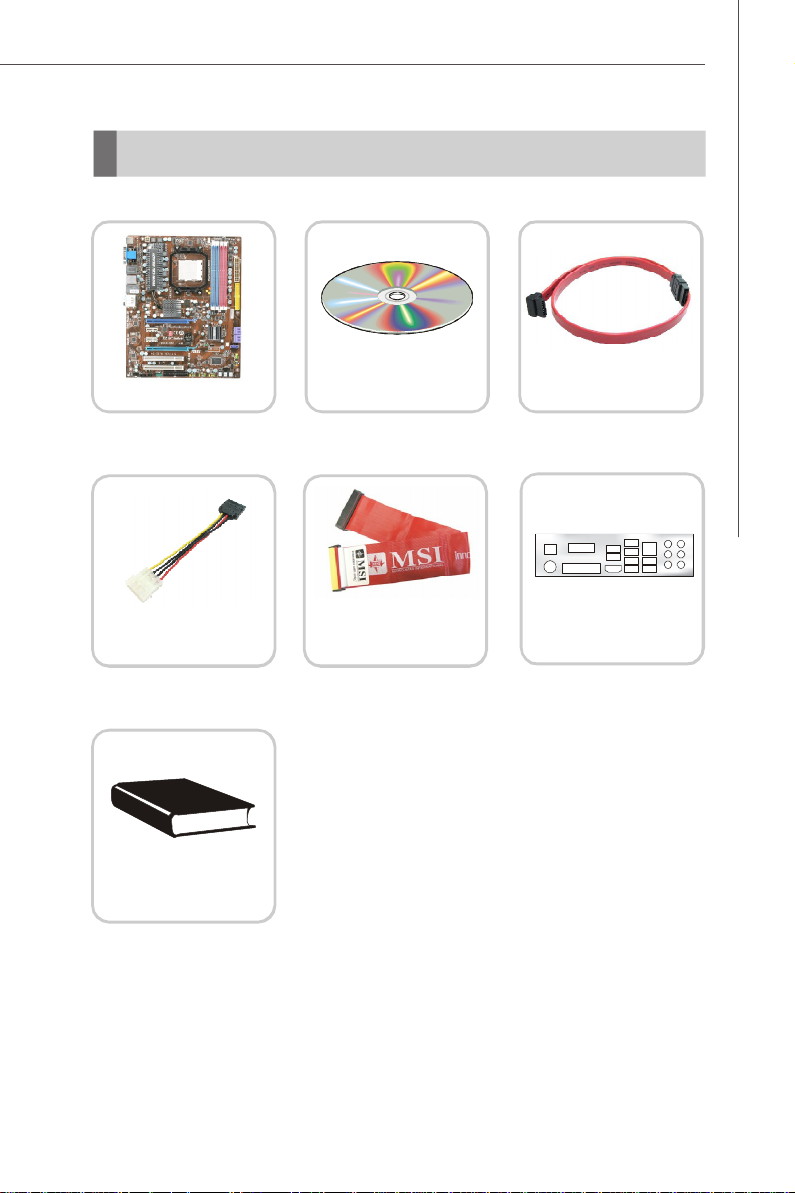

Packing Checklist

Getting Started

MSI motherboard

Power Cable

User’ s Guide

MSI Driver/Utility DVD

Standard Cable for

IDE Devices

SATA Cable

Back IO Shield

* The pictures are for reference only and may vary from the packing contents of the
product you purchased.

1-5

Hardware Setup

Chapter 2

Hardware Setup

This chapter provides you with the information about
hardware setup procedures. While doing the installation,
be careful in holding the components and follow the
installation procedures. For some components, if you
install in the wrong orientation, the components will not
work properly.

Use a grounded wrist strap before handling computer
components. Static electricity may damage the
components.

2-1

MS-7576 Mainboard

Quick Components Guide

Back Panel I/O,

p.2-9

SYSFAN1/2,

p.2-13

PCIE,

p.2-20

PCI,

p.2-25

PWR1, p.2-8

JCD1,

p.2-16

JAUD1,

p.2-17

JSP1,

p.2-17

FDD1,

p.2-11

J1394_1,

p.2-12

CPU, p.2-3

CPUFAN1,

p.2-13

JUSB1~3,

p.2-14

DDR3, p.2-6

POWER1,

p.2-18

CLR_CMOS1,

p.2-18

RESET1,

p.2-18

JPWR1, p.2-8

IDE1, p.2-11

OCSWITCH1,

p.2-19

SYSFAN3,

p.2-13

SATA1~5,

p.2-12

JFP2, p.2-16
JFP1, p.2-16
JTPM1, p.2-15
JCOM1, p.2-15

JCI1, p.2-13

2-2

Hardware Setup

CPU (Central Processing Unit)

When you are installing the CPU, make sure to install the cooler to prevent
overheating. If you do not have the CPU cooler, consult your dealer before turning

on the computer.
For the latest information about CPU, please visit http://global.msi.com.tw/index.

php?func=cpuform2

Important

Overheating

Overheating will seriously damage the CPU and system. Always make sure
the cooling fan can work properly to protect the CPU from overheating. Make
sure that you apply an even layer of thermal paste (or thermal tape) between
the CPU and the heatsink to enhance heat dissipation.

Replaceing the CPU

While replacing the CPU, always turn off the ATX power supply or unplug the
power supply’s power cord from the grounded outlet first to ensure the safety
of CPU.

Overclocking

This mainboard is designed to support overclocking. However, please make
sure your components are able to tolerate such abnormal setting, while
doing overclocking. Any attempt to operate beyond product specifications is
not recommended. We do not guarantee the damages or risks caused

by inadequate operation or beyond product specifications.

2-3

MS-7576 Mainboard

CPU & Cooler Installation

When you are installing the CPU, make sure the CPU has a cooler attached on
the top to prevent overheating. Meanwhile, do not forget to apply some thermal

paste on CPU before installing the heat sink/cooler fan for better heat dispersion.
Follow the steps below to install the CPU & cooler correctly. Wrong installation will
cause the damage of your CPU & mainboard.

1.Pull the lever sideways away from
the socket. Make sure to raise the
lever up to a 90-degree angle.

3.If the CPU is correctly installed, the
pins should be completely
embedded into the socket and can
not be seen. Please note that any
violation of the correct installation
procedures may cause permanent
damages to your mainboard.

2.Look for the gold arrow of the CPU.
The gold arrow should point as
shown in the picture. The CPU can
only fit in the correct orientation.

4. Press the CPU down firmly into the
socket and close the lever. As the
CPU is likely to move while the lever
is being closed, always close the
lever with your fingers pressing
tightly on top of the CPU to make
sure the CPU is properly and com­pletely embedded into the socket.

2-4

Hardware Setup

5.Position the cooling set onto the re­tention mechanism.

Hook one end of the clip to hook first.

7.Fasten down the lever.

6. Then press down the other end of
the clip to fasten the cooling set on
the top of the retention mechanism.
Locate the Fix Lever and lift up it .

8.Attach the CPU Fan cable to the CPU
fan connector on the mainboard.

Important

1.Mainboard photos shown in this section are for demonstration of the cooler
installation for Socket AM2+ CPUs only. The appearance of your mainboard
may vary depending on the model you purchase.

2.While disconnecting the Safety Hook from the fixed bolt, it is necessary to
keep an eye on your fingers, because once the Safety Hook is disconnected
from the fixed bolt, the fixed lever will spring back instantly.

2-5

MS-7576 Mainboard

1

2

3

Installed

Memory

These DIMM slots are used for installing memory modules.
For more information on compatible components, please visit http://global.msi.com.

tw/index.php?func=testreport

DDR3

240-pin, 1.5V

48x2=96 pin

Dual-Channel: Channel A in SKYBLUE; Channel B in PINK

Dual-Channel Memory Population Rules

In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.

72x2=144 pin

DIMM1
DIMM2
DIMM3
DIMM4

DIMM1
DIMM2
DIMM3
DIMM4

DIMM1
DIMM2
DIMM3
DIMM4

Empty

2-6

Hardware Setup

Installing Memory Modules

1. The memory module has only one notch on the center and will only fit in the right
orientation.

2. Insert the memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the DIMM slot. The plastic
clip at each side of the DIMM slot will automatically close when the memory module
is properly seated.

Important

You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.

3. Manually check if the memory module has been locked in place by the DIMM slot
clips at the sides.

Volt

Notch

Important

-DDR3 memory modules are not interchangeable with DDR2 and the DDR3
standard is not backwards compatible. You should always install DDR3
memory modules in the DDR3 DIMM slots.

-In dual-channel mode, make sure that you install memory modules of the
same type and density in differentchannel DDR DIMMs.

-To enable successful system boot-up, always insert the memory modules
into the DIMM1 first.

2-7

MS-7576 Mainboard

Power Supply

ATX 24-Pin Power Connector: JPWR1

This connector allows you to connect an ATX 24-pin power supply.
To connect the ATX 24-pin power supply, make sure the plug of the
power supply is inserted in the proper orientation and the pins are
aligned. Then push down the power supply firmly into the connector.

You may use the 20-pin ATX power supply as you like. If you’d like
to use the 20-pin ATX power supply, please plug your power sup­ply along with pin 1 & pin 13 (refer to the image at the right hand).
There is also a foolproof design on pin 11, 12, 23 & 24 to avoid
wrong installation.

12

JPWR1

24

131

PIN SIGNAL

1 +3.3V

2 +3.3V

3 GND

4 +5V

5 GND

6 +5V

7 GND

8 PWR OK

9 5VSB

10 +12V

11 +12V

12 +3.3V

Pin Definition

PIN SIGNAL

13 +3.3V

14 -12V

15 GND

16 PS-ON#

17 GND

18 GND

19 GND

20 Res

21 +5V

22 +5V

23 +5V

24 GND

pin 13

pin 12

ATX 4-Pin Power Connector: PWR1

This 4-pin power connector is used to provide power to the CPU.

PWR1

3 4
1

Pin Definition

2

PIN SIGNAL

1 GND

2 GND

3 12V

4 12V

Important

1. Make sure that all the connectors are connected to proper ATX power sup­plies to ensure stable operation of the mainboard.

2. Power supply of 450 watts (and above) is highly recommended for system
stability.

2-8

Back Panel

Hardware Setup

1394 Port
Optical
S/PDIF-Out

PS/2 posrt USB PortsMic

Optical S/PDIF-Out

This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical fiber cable.

PS/2 port

The standard PS/2® mouse/keyboard DIN connector is for a PS/2® mouse/keyboard.

VGA Port

The DB15-pin female connector is provided for monitor.

DVI-D Port

The DVI-D (Digital Visual Interface) connector allows you to connect a LCD monitor.
It provides a high-speed digital interconnection between the computer and its display
device. To connect an LCD monitor, simply plug your monitor cable into the DVI-D
connector, and make sure that the other end of the cable is properly connected to
your monitor (refer to your monitor manual for more information.)

HDMI Port

The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface
capable of transmitting uncompressed streams. HDMI supports all TV format, includ­ing standard, enhanced, or high-definition video, plus multi-channel digital audio on a
single cable.

1394 Port (optional)

The IEEE1394 port on the back panel provides connection to IEEE1394 devices.

eSATA Port

The eSATA port is for attaching the eSATA external hard drive.

VGA Port

DVI-D Port HDMI Port eSATA

USB Ports

(optional)

Port

LAN

Line-In

RS-Out

Line-Out

CS-Out

SS-Out

Important

eSATA port only supports RAID and AHCI mode (does not support IDE mode)

2-9

MS-7576 Mainboard

USB Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.

LAN

The standard RJ-45 LAN jack is for con­nection to the Local Area Network (LAN).

Link IndicatorActivity Indicator

You can connect a network cable to it.

LED Color LED State Condition

Left Orange On (steady state) LAN link is established.

Green Off 10 Mbit/sec data rate is selected.

Right On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

Off LAN link is not established.

On (brighter & pulsing)The computer is communicating with another computer on the LAN.

Audio Ports

These audio connectors are used for audio devices. You can differentiate the color
of the audio jacks for different audio sound effects.

Line-In (Blue) - Line In is used for external CD player, tapeplayer or other

audio devices.

Line-Out (Green) - Line Out, is a connector for speakers or headphones.
Mic (Pink) - Mic, is a connector for microphones.
RS-Out (Black) - Rear-Surround Out in 4/ 5.1/ 7.1 channel mode.
CS-Out (Orange) - Center/ Subwoofer Out in 5.1/ 7.1 channel mode.
SS-Out (Gray) - Side-Surround Out 7.1 channel mode.

2-10

Hardware Setup

Connectors

Floppy Disk Drive Connector: FDD1

This connector supports 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB floppy disk drive.

FDD1

IDE Connector: IDE1

This connector supports IDE hard disk drives, optical disk drives and other IDE devices.

IDE1

Important

If you install two IDE devices on the same cable, you must configure the
drives separately to master / slave mode by setting jumpers. Refer to IDE
device’s documentation supplied by the vendors for jumper setting
instructions.

2-11

MS-7576 Mainboard

Serial ATA Connector: SATA1~5

This connector is a high-speed Serial ATA interface port. Each connector can con­nect to one Serial ATA device.

SATA1

SATA4_5

SATA2_3

Important

1.SATA5 only supports RAID and AHCI mode (does not support IDE mode)

2.Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.

IEEE1394 Connector: J1394_1 (Optional)

This connector allows you to connect the IEEE1394 device via an optional IEEE1394
bracket.

2

1

J1394_1

(optional)

10
9

PIN SIGNAL PIN SIGNAL

1 TPA+ 2 TPA-

3 Ground 4 Ground

5 TPB+ 6 TPB-

7 Cable power 8 Cable power

9 Key (no pin) 10 Ground

Pin Definition

2-12

IEEE1394 Bracket (Optional)

Hardware Setup

Fan Power Connectors: CPUFAN1, SYSFAN1~3

The fan power connectors support system cooling fan with +12V. When connecting
the wire to the connectors, always note that the red wire is the positive and should
be connected to the +12V; the black wire is Ground and should be connected to GND.
If the mainboard has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan control.

GND
+12V

SENSOR

Control

CPUFAN1

+12V

SENSOR

GND

SYSFAN1/2

NC
+12V
GND

SYSFAN3

Important

1.Please refer to the recommended CPU fans at processor’s official website
or consult the vendors for proper CPU cooling fan.

2.CPUFAN1 supports fan control. You can install Overclocking Center
utility that will automatically control the these fan speed according to the
actual CPU and system temperature.

3. Fan/heatsink with 3 or 4 pins are both available for CPUFAN1.

4. SYSFAN1/2 support fan control, too. You may select how percentage of

speed for the SYSFAN1/2 in BIOS.

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is
opened, the chassis intrusion mechanism will be activated. The system will record
this status and show a warning message on the screen. To clear the warning, you
must enter the BIOS utility and clear the record.

1

CINTRU

2

GND

JCI1

2-13

MS-7576 Mainboard

Front USB Connector: JUSB1~3

This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for con­necting high-speed USB interface peripherals such as USB HDD, digital cameras,

MP3 players, printers, modems and the like.

Pin Definition

PIN SIGNAL PIN SIGNAL

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 GND 8 GND

9 Key (no pin) 10 USBOC

USB 2.0 Bracket

(Optional)

9

10

JUSB1~3

1
2

Important

Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.

2-14

Hardware Setup

TPM Module connector: JTPM1(optional)

This connector connects to a TPM (Trusted Platform Module) module (optional). Please
refer to the TPM security platform manual for more details and usages.

14

13

21

Pin Signal Description Pin Signal Description

1 LCLK LPC clock 2 3V dual/3V_STB 3V dual or 3V standby power

3 LRST# LPC reset 4 VCC3 3.3V power

5 LAD0 LPC address & data pin0 6 SIRQ Serial IRQ

7 LAD1 LPC address & data pin1 8 VCC5 5V power

9 LAD2 LPC address & data pin2 10 KEY No pin

11 LAD3 LPC address & data pin3 12 GND Ground

13 LFRAME# LPC Frame 14 GND Ground

Serial Port Connector: JCOM1

This connector is a 16550A high speed communication port that sends/receives 16
bytes FIFOs. You can attach a serial device.

Pin Definition

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate

2-15

JCOM1

19
2

MS-7576 Mainboard

Front Panel Connectors: JFP1, JFP2

These connectors are for electrical connection to the front panel switches and LEDs.
The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Power
Switch++

Power
LED

10

-

JFP1

2

1

9

+

Reset

-

Switch

-

HDD
LED

Speaker

+

JFP2

8

­+

2

7

Power
LED

1

JFP1 Pin Definition

PIN SIGNAL DESCRIPTION

1 HD_LED + Hard disk LED pull-up

2 FP PWR/SLP MSG LED pull-up

3 HD_LED - Hard disk active LED

4 FP PWR/SLP MSG LED pull-up

5 RST_SW - Reset Switch low reference pull-down to GND

6 PWR_SW + Power Switch high reference pull-up

7 RST_SW + Reset Switch high reference pull-up

8 PWR_SW - Power Switch low reference pull-down to GND

9 RSVD_DNU Reserved. Do not use.

JFP2 Pin Definition

PIN SIGNAL DESCRIPTION

1 GND Ground

2 SPK- Speaker-

3 SLED Suspend LED

4 BUZ+ Buzzer+

5 PLED Power LED

6 BUZ- Buzzer-

7 NC No connection

8 SPK+ Speaker+

CD-In Connector: JCD1

This connector is provided for external audio input.

JCD1

R

L

GND

2-16

Hardware Setup

S/PDIF-Out Connector: JSP1

This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format)
interface for digital audio transmission.

JSP1

GND

SPDIF

VCC

S/PDIF Bracket (Optional)

Front Panel Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with
Intel® Front Panel I/O Connectivity Design Guide.

2
1

10

9

JAUD1

HD Audio Pin Definition

PIN SIGNAL DESCRIPTION

1 MIC_L Microphone - Left channel

2 GND Ground

3 MIC_R Microphone - Right channel

4 PRESENCE# Active low signal-signals BIOS that a High Definition Audio dongle

5 LINE out_R Analog Port - Right channel

6 MIC_JD Jack detection return from front panel microphone JACK1

7 Front_JD Jack detection sense line from the High Definition Audio CODEC

8 NC No control

9 LINE out_L Analog Port - Left channel

10 LINEout_JD Jack detection return from front panel JACK2

is connected to the analog header. PRESENCE# = 0 when a

High Definition Audio dongle is connected

jack detection resistor network

2-17

MS-7576 Mainboard

Buttons

The motherboard provides the following button for you to set the computer’s function.
This section will explain how to change your motherboard’s function through the use
of button.

Clear CMOS Button: CLR_CMOS1

There is a CMOS RAM on board that has a power supply from external battery to
keep the system configuration data. With the CMOS RAM, the system can automati­cally boot OS every time it is turned on. If you want to clear the system configuration,
use the button to clear data. Press the button to clear the data.

CLR_CMOS1

Important

Make sure that you power off the system before clearing CMOS data.

Power Button: POWER1

This power button is used to turn-on or turn-off the system. Press the button to turn­on or turn-off the system. This button will light after you power-on the system, and
the light will turn-off when you power-off the system.

POWER1

Reset Button: RESET1

This reset button is used to reset the system. Press the button to reset the system.
This button will light when the system is in S0 status.

RESET1

2-18

Hardware Setup

Please shutdown and adjust oc switch to lower frequency.

Switch

This mainboard provides the following switch for you to set the computer’s function.
This section will explain how to change your mainboard’s function through the use of
switch.

Overclock FSB Switch: OCSWITCH1

You can overclock the FSB to increase the processor frequency by changing the
switch. Follow the instructions below to set the FSB.

DOC1 DOC2 CPU Frequency

1:ON 2:ON Default

1:ON 2:OFF Increase 10% speed of FSB

1:OFF 2:ON Increase 15% speed of FSB

1:OFF 2:OFF Increase 20% speed of FSB

Important

1.Make sure that you power off the system before setting the switch.

2.When overclocking cause system instability or crash during boot, the

following warning message will display during POST. And then,please set
the switch to default setting.

Warning!!! OC switch overclocking had failed,

Try again!

2-19

MS-7576 Mainboard

Slots

PCI (Peripheral Component Interconnect) Express Slot

The PCI Express slot supports the PCI Express interface expansion card.
The PCI Express x16 slot supports up to 4.0 GB/s transfer rate.
The PCI Express x8 slot supports up to 2.0 GB/s transfer rate.
The PCI Express x1 slot supports up to 250 MB/s transfer rate.

PCIE slot allocation for 790GX chipset

PCI_E1 supports up to PCI Express x16 speed.

When dual graphic cards enabled, it will turn to x8 speed.

PCI_E2 supports up to PCI Express x1 speed.

PCI_E3 supports up to PCI Express x1 speed.

PCI_E4 supports up to PCI Express x8 speed.

PCIE slot allocation for 780G chipset

PCI_E1 supports up to PCI Express x16 speed.

PCI_E2 supports up to PCI Express x1 speed.

PCI_E3 supports up to PCI Express x1 speed.

PCI_E4 supports up to PCI Express x1 speed.

2-20

Hardware Setup

ATI CrossFireXTM (Multi-GPU) Technology (for 790GX)

ATI CrossFireXTM is the ultimate multi-GPU performance gaming platform. Enabling
game-dominating power, ATI CrossFireXTM technology enables two or more discrete
graphics processors to work together to improve system performance. ATI CrossFireX
technology allows you to expand your system’ss graphics capabilities. It allows you
the ability to scale your system’s graphics horsepower as you need it, supporting up
to two or more ATI RadeonTM HD graphics cards, making this the most scalable gaming
platform ever. The mainboard can auto detect the CrossFireXTM mode by software,
therefore you don’t have to enable the CrossFireXTM in BIOS by yourself. The follow­ing details the 2-way CrossFireXTM installation.

1. Install one ATI Radeon
install one ATI Radeon

2. With two cards installed, an CrossFireXTM Video Link cable is required to connect
the golden fingers on the top of these two graphics cards (refer to the picture
below). Please note that although you have installed two or more graphics cards,
only the video outputs on the graphics card installed in PCI_E1 will work. Hence,
you only need to connect a monitor to this graphics card.

TM

HD graphics card in the first PCIE x16 (PCI_E1) slot , then

TM

HD graphics card in the second PCIE x16 (PCI_E4) slot.

CrossFireXTM Video Link cable

Important

1. Mainboard photos shown in this section are for demonstration only. The
appearance of your mainboard may vary depending on the model you purchase.

2. If you intend to install TWO graphics cards for CrossFireXTM mode, make
sure that:

a. these graphics cards are of the same brand and specifications;
b. these graphics cards are installed on PCI_E1 & PCI_E4 slots.

3. Make sure that you connect an adequate power supply to the power connec­tor on the graphics card to ensure stable operation of the graphics card.

4. Only Windows® XP with Service Pack 2 (SP2)& Windows® XP Profes

-sional x64 Edition & Windows® Vista support the CrossFireXTM function.

2-21

MS-7576 Mainboard

3.When all of the hardware and software has been properly set up and installed,
reboot the system. After entering the O.S., click the “Catalyst™ Control Center”
icon on the desktop. There is a setting in the Catalyst™ Control Center that
needs to be enabled for CrossFireX™ to operate. The following aspect appears in
Catalyst™ Control Center:

Select the
Advanced View
from the view
drop menu.

Important

A CrossFireX™ system has four possible display modes:

• SuperTiling

• Scissor Mode

• Alternate Frame Rendering

• Super Anti-aliasing.

for more details, please consult the graphics card manual from the
manufacturer.

2-22

Hardware Setup

Hybrid CrossFireXTM Technology (for 780G)

Hybrid CrossFireXTM technology brings multi-GPU performance capabilities by en­abling an AMD 780 integrated graphics processor and a discrete graphics processor
to operate simultaneously with combined output to a single display for blisteringly­fast frame rates. Unleash the graphics performance.

System Request

1. Hybrid CrossFireXTM is only supported with the Vista operating system.

2. Graphic card based on an ATI RadeonTM HD 2400 Series2, ATI RadeonTM HD 3400

Series or ATI Mobility RadeonTM HD 3400 Series graphics processor.

3. Mainboard based on an AMD 780 integrated chipset.

Enabling Hybrid CrossFireXTM Technology

Power off the system and install the ATI graphic card that supports Hybrid CrossFireX
technology. After then, power on the system and install the driver that Hybrid
CrossFireX technology. Restart the system and wait for the ATI Icon to show in the
System Tray. Click the icon and then the following aspect appears in Catalyst™
Control Center:

1. Select the Advanced View from the

view drop menu.

2-23

MS-7576 Mainboard

2. From the Graphics Settings tree in the Catalyst

TM

Control Center, click CrossFire

TM

3. From the Graphics Adapter list, select the graphics card that acts as the Display

GPU.

4. Select Enable CrossFire

TM

5. Click Apply.

When Hybrid CrossFireX is enabled, GPU Accelerated Physics is automatically dis­abled for all cards in the configuration as are all displays except the one used by
Hybrid CrossFireX.

More details please refer to http://game.amd.com/us-en/crossfirex_hybrid.aspx

Important

Changing integrated graphic memory operating mode may cause Hybrid
CrossFire fail. To avoid the issue, please follow the steps below to setup
the system:

1.Disable the Hybrid CrossFire in Catalyst Control Center.

2.Reboot into BIOS

3.Select the option in Advanced BIOS Features -> Chipset Feature ->
On-Chip VGA

4.Save BIOS settings and reboot

5.Enable the Hybrid CrossFire in Catalyst Control Center.

.

2-24

Hardware Setup

PCI (Peripheral Component Interconnect) Slot

The PCI slot supports LAN cards, SCSI cards, USB cards, and other add-on cards
that comply with PCI specifications. At 32 bits and 33 MHz, it yields a throughput rate
of 133 MBps.

32-bit PCI Slot

Important

When adding or removing expansion cards, make sure that you unplug the
power supply first. Meanwhile, read the documentation for the expansion card
to configure any necessary hardware or software settings for the expansion
card, such as jumpers, switches or BIOS configuration.

PCI Interrupt Request Routing

The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines
over which devices can send interrupt signals to the microprocessor. The PCI IRQ
pins are typically connected to the PCI bus pins as follows:

Order 1 Order 2 Order 3 Order 4

PCI Slot 1 INT A# INT B# INT C# INT D#

PCI Slot 2 INT B# INT C# INT D# INT A#

2-25

BIOS Setup

Chapter 3

BIOS Setup

This chapter provides information on the BIOS Setup
program and allows you to configure the system for
optimum use.
You may need to run the Setup program when:

² An error message appears on the screen during the

system booting up, and requests you to run SETUP.

² You want to change the default settings for cus-

tomized features.

3-1

MS-7576 Mainboard

Entering Setup

Power on the computer and the system will start POST (Power On Self Test) process.
When the message below appears on the screen, press <DEL> key to enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup,
restart the system by turning it OFF and On or pressing the RESET button. You may
also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Important

1.The items under each BIOS category described in this chapter are under
continuous update for better system performance. Therefore, the descrip­tion may be slightly different from the latest BIOS and should be held for
reference only.

2.Upon boot-up, the 1st line appearing after the memory count is the BIOS
version. It is usually in the format:

3-2

A7576AMS V1.0 010109 where:

1st digit refers to BIOS maker as A = AMI, W = AWARD, and P =
PHOENIX.
2nd - 5th digit refers to the model number.
6th digit refers to the chipset as I = Intel, N = nVidia, A = ATi and
V = VIA.
7th - 8th digit refers to the customer as MS = all standard customers.
V1.0 refers to the BIOS version.
010109 refers to the date this BIOS was released.

BIOS Setup

Control Keys

< ↑> Move to the previous item
< ↓> Move to the next item
< ←> Move to the item in the left hand
<→> Move to the item in the right hand

<Enter> Select the item
<Esc> Jumps to the Exit menu or returns to the main menu from a

submenu

<+/PU> Increase the numeric value or make changes
<-/PD> Decrease the numeric value or make changes
<F6> Load Optimized Defaults
<F10> Save configuration changes and exit setup

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use the
arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted setup
function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol (as shown in the
right view) appears to the left of certain fields that
means a sub-menu can be launched from this field. A
sub-menu contains additional options for a field
parameter. You can use arrow keys ( ↑↓ ) to highlight the field and press <Enter> to
call up the sub-menu. Then you can use the control keys to enter values and move
from field to field within a sub-menu. If you want to return to the main menu, just press
the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this screen
from any menu by simply pressing <F1>. The Help screen lists the appropriate keys
to use and the possible selections for the highlighted item. Press <Esc> to exit the
Help screen.

3-3

MS-7576 Mainboard

The Main Menu

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of AMI® special enhanced features.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

H/W Monitor

This entry shows your PC health status.

Green Power

Use this menu to specify the power phase.

BIOS Setting Password

Use this menu to set the password for BIOS.

Cell Menu

Use this menu to specify your settings for frequency/voltage control and overclocking.

User Settings

Use this menu to save/ load your settings to/ from CMOS for BIOS.

3-4

BIOS Setup

Load Fail-Safe Defaults

Use this menu to load the default values set by the BIOS vendor for stable system
performance.

Load Optimized Defaults

Use this menu to load the default values set by the mainboard manufacturer specifi­cally for optimal performance of the mainboard.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

3-5

MS-7576 Mainboard

Standard CMOS Features

The items in Standard CMOS Features Menu includes some basic setup items. Use
the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select
the value you want in each item.

Date (MM:DD:YY)

This allows you to set the system to the date that you want (usually the current date).
The format is <day><month> <date> <year>.

day Day of the week, from Sun to Sat, determined by

month The month from Jan. through Dec.
date The date from 1 to 31 can be keyed by numeric function keys.
year The year can be adjusted by users.

BIOS. Read-only.

Time (HH:MM:SS)

This allows you to set the system time that you want (usually the current time). The
time format is <hour> <minute> <second>.

IDE Primary Master/ Slave, SATA1~5 & E-SATAA

Press <Enter> to enter the sub-menu, and the following screen appears.

Important

IDE Primary Master/ Slave, SATA1~5 & E-SATA are appearing when
you connect the HD devices to the IDE/ SATA connector on the mainboard.

3-6

BIOS Setup

Device/ Vender/ Size

It will showing the device information that you connected to the IDE/SATA
connector.

LBA/Large Mode

This allows you to enable or disable the LBA Mode. Setting to Auto enables LBA
mode if the device supports it and the devices is not already formatted with LBA
mode disabled.

DMA Mode

Select DMA Mode.

Hard Disk S.M.A.R.T.

This allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis & Reporting
Technology) capability for the hard disks. S.M.A.R.T is a utility that monitors your
disk status to predict hard disk failure. This gives you an opportunity to move
data from a hard disk that is going to fail to a safe place before the hard disk
becomes offline.

Floppy A

This item allows you to set the type of floppy drives installed.

3-7

MS-7576 Mainboard

System Information

Press <Enter> to enter the sub-menu, and the following screen appears.

CPU Infromation/ BIOS Version/ Memory Information

These items show the CPU information, BIOS version and memory status of your
system (read only).

3-8

BIOS Setup

Advanced BIOS Features

BIOS Flash Protection

This function protects the BIOS from accidental corruption by unauthorized users or
computer viruses. When enabled, the BIOS’ data cannot be changed when attempt­ing to update the BIOS with a Flash utility. To successfully update the BIOS, you’ll
need to disable this Flash BIOS Protection function.
You should enable this function at all times. The only time when you need to disable
it is when you want to update the BIOS. After updating the BIOS, you should immedi­ately re-enable it to protect it against viruses.

Full Screen Logo Display

This item enables this system to show the company logo on the bootup screen.
Settings are:

[Enabled] Shows a still image (logo) on the full screen at boot.
[Disabled] Shows the POST messages at boot.

Quick Booting

Setting the item to [Enabled] allows the system to boot within 10 seconds since it will
skip some check items.

Boot Up Num-Lock LED

This setting is to set the Num Lock status when the system is powered on. Setting to
[On] will turn on the Num Lock key when the system is powered on. Setting to [Off]
will allow users to use the arrow keys on the numeric keypad.

IOAPIC Function

This field is used to enable or disable the APIC (Advanced Programmable Interrupt
Controller). Due to compliance with PC2001 design guide, the system is able to run in
APIC mode. Enabling APIC mode will expand available IRQ resources for the system.

3-9

MS-7576 Mainboard

MPS Table Version

This field allows you to select which MPS (Multi-Processor Specification) version to
be used for the operating system. You need to select the MPS version supported by
your operating system. To find out which version to use, consult the vendor of your
operating system.

Primary Graphic’s Adapter

This setting specifies which graphics card is your primary graphics adapter.

PCI Latency Timer

This item controls how long each PCI device can hold the bus before another takes
over. When set to higher values, every PCI device can conduct transactions for a
longer time and thus improve the effective PCI bandwidth. For better PCI performance,
you should set the item to higher values.

CPU Feature

Press <Enter> to enter the sub-menu and the following screen appears:

SVM Support

This item allows you to enable/disable the AMD SVM (Secure Virtual Machine)
Technology.

C1E Support

To enable this item to read the CPU power consumption while idle. Not all
porcessors support Enhanced Halt state (C1E).

Chipset Feature

Press <Enter> to enter the sub-menu and the following screen appears:

HPET

The HPET (High Precision Event Timers) is a component that is part of the chipset.
You can to enable it, and will provide you with the means to get to it via the
various ACPI methods.

On-chip VGA

This item specifies whether to allocate the memory for onboard VGA from the

3-10

BIOS Setup

system memory or sideport memory. Setting to [UMA], allocates the system
share memory for onboard VGA. Setting to [SIDEPORT], allocates the sideport
memory for onboard VGA. Setting to [UMA+SIDEPORT], allocates both system
memory and sideport memory for onbaord VGA.

VGA Share Memory

The system shares memory to the onboard VGA card. This setting controls the
exact memory size shared to the VGA card.

UMA Location

This function is used to select the location of UMA to avoid overlaping with the
other data blocks in system memory.

SIDEPORT Memory Frequency

This item allows you to set the SIDEPORT memory frequency (in MHz).

UMA-SP Interleave Mode

This item allows you to adjust the ratio of UMA to SIDEPORT memory.

Boot Device Priority

Press <Enter> to enter the sub-menu and the following screen appears:

xxx Boot Device

The items allow you to set the sequence of boot devices where BIOS attempts
to load the disk operating system.

Boot From Other Device

Setting the option to [Yes] allows the system to try to boot from other device if
the system fails to boot from the 1st/2nd/3rd boot device.

Trusted Computing

Press <Enter> to enter the sub-menu and the following screen appears:

TCG/TPM SUPPORT

This setting allows you to enable/disable the TCG/TPM.

TPM Enable/Disable Status

This item is not configurable.

TPM Owner Status

This item is not configurable.

3-11

MS-7576 Mainboard

Integrated Peripherals

USB Controller

This setting allows you to enable/disable the onboard USB 1.1/ 2.0 controller.

USB Device Legacy Support

Select [Enabled] if you need to use a USB-interfaced device in the operating system.

Onboard LAN Controller

This setting allows you to enable/disable the onboard LAN controller.

LAN Option ROM

This item is used to decide whether to invoke the Boot ROM of the onboard LAN.

Onboard IEEE1394 Controller

This item allows you to enable/disable the onboard IEEE1394 controller.

HD Audio Controller

This setting is used to enable/disable the onboard audio controller.

On-Chip ATA Devices

Press <Enter> to enter the sub-menu and the following screen appears:

3-12

BIOS Setup

PCI IDE BusMaster

This item allows you to enable/ disable BIOS to used PCI busmastering for
reading/ writing to IDE drives.

OnChip SATA Controller

This item allows users to enable or disable the SATA controller.

RAID Mode

This item is used to select mode for SATA connectors.

I/O Devices Configuration

Press <Enter> to enter the sub-menu and the following screen appears:

COM Port 1

Select an address and corresponding interrupt for the serial port.

3-13

MS-7576 Mainboard

Power Management Setup

Important

S3-related functions described in this section are available only when your
BIOS supports S3 sleep mode.

ACPI Function

This item is to activate the ACPI (Advanced Configuration and Power Management
Interface) Function. If your operating system is ACPI-aware, such as Windows XP/
Vista, select [Enabled].

ACPI Standby State

This item specifies the power saving modes for ACPI function. If your operating
system supports ACPI, such as Windows XP/Vista , you can choose to enter the
Standby mode in S1(POS) or S3(STR) fashion through the setting of this field. Set­tings are:

[S1/POS] The S1 sleep mode is a low power state. In this state, no

[S3/STR] The S3 sleep mode is a lower power state where the in

system context is lost (CPU or chipset) and hardware main­tains all system context.

formation of system configuration and open applications/files
is saved to main memory that remains powered while most
other hardware components turn off to save energy. The
information stored in memory will be used to restore the sys­tem when a “wake up” event occurs.

3-14

BIOS Setup

Power Button Function

This feature sets the function of the power button. Settings are:

[Power On/ Off] The power button functions as normal power off

[Suspend] When you press the power button, the computer enters the

Restore On AC Power Loss

This item specifies whether your system will reboot after a power failure or interrupt
occurs. Settings are:

[Off] Always leaves the computer in the power off state.
[On] Always leaves the computer in the power on state.
[Last State] Restores the system to the status before power failure

Wakeup Event Setup

Press <Enter> to enter the sub-menu, and the following screen appears.

button.

suspend/sleep mode, but if the button is pressed for more
than four seconds, the computer is turned off.

or interrupt occurred.

Wake Up Event By

Setting to [BIOS] activates the following fields, and use the following fields to set
the wake up events. Setting to [OS], the wake up events will be defined by OS.

Resume From S3 By USB Device

The item allows the activity of the USB device to wake up the system from S3
(Suspend to RAM) sleep state.

Resume From S3 By PS/2 Keyboard

This controls how the PS/2 keyboard is able to power on the system. If you
choose Specific Key, the power button on the case will not function anymore
and you must type the password to power on the system.

Resume from S3 By PS/2 Mouse

This setting determines whether the system will be awakened from what power
saving modes when input signal of the PS/2 mouse is detected.

Resume by PCI Device (PME#)

When set to [Enabled], the feature allows your system to be awakened from the
power saving modes through any event on PME (Power Management Event).

3-15

MS-7576 Mainboard

Resume by PCI-E Device

When set to [Enabled], the feature allows your system to be awakened from the
power saving modes through any event on PCIE device.

Resume by RTC Alarm

The field is used to enable or disable the feature of booting up the system on a
scheduled time/date.

3-16

BIOS Setup

H/W Monitor

Chassis Intrusion

The field enables or disables the feature of recording the chassis intrusion status
and issuing a warning message if the chassis is once opened. To clear the warning
message, set the field to [Reset]. The setting of the field will automatically return to
[Enabled] later.

CPU Smart Fan Target

The mainboard provides the Smart Fan function which can control the CPU fan speed
automatically depending on the current temperature to keep it with in a specific range.
You can select a fan target value here. If the current CPU fan temperature reaches to
the target value, the smart fan function will be activated. It provides several sections
to speed up for cooling down automaticlly.

SYS FAN1/2 Control

This item allows users to select how percentage of speed for the SYSFAN1/2.

PC Health Status

CPU/ System Temperature, CPU FAN/ SYS FAN1/ SYS FAN2 Speed, CPU

Vcore, 3.3V, 5V, 12V

These items display the current status of all of the monitored hardware devices/
components such as CPU voltage, temperatures and all fans’ speeds.

3-17

MS-7576 Mainboard

Green Power

CPU Phase Control

When set to [Auto], the hardware will auto adjust the CPU power phase according to
the loading of CPU to reach the best power saving function.

LED Power Control

This item allows you to enable/disable the CPU Power Phase LED.

3-18

BIOS Setup

BIOS Setting Password

When you select this function, a message as below will appear on the screen:

Type the password, up to six characters in length, and press <Enter>. The password
typed now will replace any previously set password from CMOS memory. You will
be prompted to confirm the password. Retype the password and press <Enter>. You
may also press <Esc> to abort the selection and not enter a password.
To clear a set password, just press <Enter> when you are prompted to enter the
password. A message will show up confirming the password will be disabled. Once
the password is disabled, the system will boot and you can enter Setup without
entering any password.
When a password has been set, you will be prompted to enter it every time you try
to enter Setup. This prevents an unauthorized person from changing any part of your
system configuration.

3-19

MS-7576 Mainboard

Cell Menu

Important

Change these settings only if you are familiar with the chipset.

Current CPU/ DRAM Frequency

These items show the current clocks of CPU and Memory speed. Read-only.

AMD Cool’n’Quiet

The Cool’ n’ Quiet technology can effectively and dynamically lower CPU speed and
power consumption.

3-20

BIOS Setup

Important

To ensure that Cool’n’Quiet function is ac­tivated and will be working properly, it is
required to double confirm that:

1.Run BIOS Setup, and select Cell Menu.

Under Cell Menu, find AMD
Cool’n’Quiet, and set this item to
“Enable.”

2.Enter Windows, and select [Start]->

[Settings]->[Control Pannel]->[Power
Options]. Enter Power Options Prop-

erties tag, and select Minimal Power
Management under Power schemes.

Adjust CPU FSB Frequency (MHz)

This item allows you to select the CPU Front Side Bus clock frequency (in MHz).

Adjust CPU Ratio

This item is used to adjust CPU clock multiplier (ratio). It is available only when the
processor supports this function.

Adjust CPU-NB Ratio

This item is used to adjust CPU-NB ratio.

Adjusted CPU Frequency (MHz)

It shows the adjusted CPU frequency. Read-only.

Advance DRAM Configuration

Press <Enter> to enter the sub-menu and the following screen appears.

DRAM Timing Mode

This field has the capacity to automatically detect all of the DRAM timing. If you
set this field to [DCT 0], [DCT 1] or [Both], some fields will appear and selectable.
DCT 0 controls channel A and DCT1 controls channel B.

3-21

MS-7576 Mainboard

DRAM Drive Strength

This feature allows you to control the memory data bus' signal strength. Increasing
the drive strength of the memory bus can increase stability during overclocking.

DRAM Controller Selection

This feature allows you to select the DRAM controller.

1T/2T Memory Timing

This item controls the SDRAM command rate. Select [1T] makes SDRAM signal
controller to run at 1T (T=clock cycles) rate. Selecting [2T] makes SDRAM signal
controller run at 2T rate.

DCT Unganged Mode

This feature is used to Integrate two 64-bit DCTs into a 128-bit interface.

Bank Interleaving

Bank Interleaving is an important parameter for improving overclocking capability
of memory. It allows system to access multiple banks simultaneously.

Power Down Enable

This is a memory power-saving technology. When the system does not access
memory over a period of time, it will automatically reduce the memory power
supply.

MemClk Tristate C3/ATLVID

This setting allows you to enable/disable the MemClk Tristating during C3 and
ATLVID.

FSB/DRAM Ratio

This item allows you to select the FSB/DRAM ratio.

Adjusted DRAM Frequency (MHz)

It shows the adjusted Memory frequency. Read-only.

Onboard VGA Over Clock

This item allows you to overclock the onboard VGA.

Onboard VGA Clock

This item will appear when Onboard VGA Over Clock sets to [Enabled]. It allows
you to adjust the onboard VGA clock.

HT Link Control

Press <Enter> to enter the sub-menu and the following screen appears.

3-22

BIOS Setup

HT Incoming Link Width

This field specifies the operation width of the incoming link.

HT Outgoing Link Width

This field specifies the operation width of the outgoing link.

HT Link Speed

This item allows you to set the Hyper-Transport Link speed. Setting to [Auto], the
system will detect the HT link speed automatically.

Adjust PCI-E Frequency (MHz)

This field allows you to select the PCIE frequency (in MHz).

Auto Disable DIMM/PCI Frequency

When set to [Enabled], the system will remove (turn off) clocks from empty DRAM/
PCI slots to minimize the electromagnetic interference (EMI).

CPU Voltage (V)/ CPU-NB Voltage (V)/ CPU VDD Voltage (V)/ CPU-NB VDD
Voltage (V)/ DRAM Voltage (V)/ NB Voltage (V)/ SB Voltage (V)/ HT Link Voltage
(V)

These items are used to asjust the voltage of CPU, Memory and chipset.

Spread Spectrum

When the motherboard’s clock generator pulses, the extreme values (spikes) of the
pulses create EMI (Electromagnetic Interference). The Spread Spectrum function
reduces the EMI generated by modulating the pulses so that the spikes of the pulses
are reduced to flatter curves. If you do not have any EMI problem, leave the setting at
Disabled for optimal system stability and performance. But if you are plagued by EMI,
set to Enabled for EMI reduction. Remember to disable Spread Spectrum if you are
overclocking because even a slight jitter can introduce a temporary boost in clock
speed which may just cause your overclocked processor to lock up.

Important

1.If you do not have any EMI problem, leave the setting at [Disabled] for
optimal system stability and performance. But if you are plagued by EMI,
select the value of Spread Spectrum for EMI reduction.

2.The greater the Spread Spectrum value is, the greater the EMI is reduced,
and the system will become less stable. For the most suitable Spread
Spectrum value, please consult your local EMI regulation.

3.Remember to disable Spread Spectrum if you are overclocking because
even a slight jitter can introduce a temporary boost in clock speed which
may just cause your overclocked processor to lock up.

3-23

MS-7576 Mainboard

CPU and Memory Clock Overclocking

The Adjust CPU Ratio, FSB/DRAM Ratio items for you to overclock the CPU and the
Memory. Please refer to the descriptions of these fields for more information.

Important

1.CPU Speed = Base clock * CPU Ratio

2.This motherboard supports overclocking greatly. However, please make
sure your peripherals and components are bearable for some special
settings. Any operation that exceeds product specification is not
recommended. Any risk or damge resulting from improper operation will
not be under our product warranty.

Two ways to save your system from failed overclocking...

Reboot

1. Press the Power button to reboot the system three times. Please note that, to

avoid electric current to affect other devices or components, we suggest an
interval of more than 10 seconds among the reboot actions.

2. At the fourth reboot, BIOS will determine that the previous overclocking is failed

and restore the default settings automatically. Please press any key to boot the
system normally when the following message appears on screen.

Warning !!! The previous overclocking had failed,
and system will restore its defaults setting,

Press any key to continue.......

Clear CMOS

- Please refer to “chapter 2” for more information about how to clear CMOS data.

3-24

BIOS Setup

User Settings

Save Settings 1/ 2/ 3/ 4

These items are used to save the settings set by yourself to CMOS.

Load Settings 1/ 2/ 3/ 4

These items are available after you save your settings in Save Settings 1/ 2/ 3/ 4
items , and are used to load the settings from CMOS.

3-25

MS-7576 Mainboard

Load Fail-Safe/ Optimized Defaults

The two options on the main menu allow users to restore all of the BIOS settings to
the default Fail-Safe or Optimized values. The Optimized Defaults are the default
values set by the mainboard manufacturer specifically for optimal performance of the
mainboard. The Fail-Safe Defaults are the default values set by the BIOS vendor for
stable system performance.

When you select Load Fail-Safe Defaults, a message as below appears:

Selecting [Ok] and pressing Enter loads the BIOS default values for the most stable,
minimal system performance.

When you select Load Optimized Defaults, a message as below appears:

Selecting [Ok] and pressing Enter loads the default factory settings for optimal sys­tem performance.

3-26

Realtek Audio

Appendix A

Realtek Audio

The Realtek Audio provides 10-channel DAC that simul­taneously supports 7.1 sound playback and 2 channels
(multiple streaming) of independent stereo sound out­put through the Front-Out-Left and Front-Out-Right
channels.

A-1

MS-7576 Mainboard

Installing the Realtek HD Audio Driver

You need to install the driver for Realtek Audio codec to function properly before you
can get access to 2-, 4-, 6-, 8- channel or 7.1+2 channel audio operations. Follow the
procedures described below to install the drivers for different operating systems.

Installation for Windows XP /Vista

For Windows® XP, you must install Windows® XP Service Pack1 or later before
installing the driver.
The following illustrations are based on Windows® XP environment and could look
slightly different if you install the drivers in different operating systems.

1.Insert the MSI DVD into the DVD-ROM drive. The setup screen will automati­cally appear.

2.Click Realtek HD Audio Drivers.

Click here

Important

The HD Audio Configuration software utility is under continuous update
to enhance audio applications. Hence, the program screens shown here in

this section may be slightly different from the latest software utility and shall
be held for reference only.

a

A-2

3.Click Next to install the Realtek High Definition Audio Driver.

Click here

4.Click Finish to restart the system.

Realtek Audio

Select this
option

A-3

MS-7576 Mainboard

Software Configuration

After installing the audio driver, you are able to use the 2-, 4-, 6- or 8- channel audio

feature now. Click the audio icon from the system tray at the lower-right corner of
the screen to activate the HD Audio Configuration. It is also available to enable the

audio driver by clicking the Realtek HD Audio Manager from the Control Panel.

Double click

a

A-4

Realtek Audio

Sound Effect

Here you can select a sound effect you like from the Environment list.

Environment Simulation

You will be able to enjoy different sound experience by pulling down the arrow,
totally 23 kinds of sound effect will be shown for selection. Realtek HD Audio Sound
Manager also provides five popular settings “Stone Corridor” , “Bathroom”, “Sewer
pipe”, “Arena” and “Audio Corridor” for quick enjoyment.

You may choose the provided sound effects, and the equalizer will adjust automatically.
If you like, you may also load an equalizer setting or make an new equalizer setting to
save as an new one by using the “ Load EQ Setting” and “Save Preset” button,
click “Reset EQ Setting” button to use the default value, or click “Delete EQ Set-
ting” button to remove a preset EQ setting.

There are also other pre-set equalizer models for you to choose by clicking “Others”
under the Equalizer part.

A-5

MS-7576 Mainboard

Equalizer Selection

Equalizer frees users from default settings; users may create their owned preferred
settings by utilizing this tool.

10 bands of equalizer, ranging from 100Hz to 16KHz.

Save

The settings are saved
permanently for future
use

Enable / Disable

To disable, you can tem­porarily stop the sound
effect without losing the
settings

Delete

To delete the pre-saved settings which are created from previous steps.

a

A-6

Reset

10 bands of equalizer
would go back to the de­fault setting

Load

Whenever you would like to
use preload settings, simply
click this, the whole list will
be shown for your selection.

Realtek Audio

Frequently Used Equalizer Setting

Realtek recognizes the needs that you might have. By leveraging our long experience
at audio field, Realtek HD Audio Sound Manager provides you certain optimized equal­izer settings that are frequently used for your quick enjoyment.

[How to Use It]
Other than the buttons “Pop” “Live” “Club” & “Rock” shown on the page, to pull down
the arrow in “Others”, you will find more optimized settings available to you.

Karaoke Mode

Karaoke mode brings Karaoke fun back home. Simply using the music you usually
play, Karaoke mode can help you eliminate the vocal of the song or adjust the key to
accommodate your range.

1.Vocal Cancellation: Single click on “ Voice Cancellation” , the vocal of the song would
be eliminated, while the background music is still in place, and you can be that
singer!

2.Key Adjustment: Using “Up / Down Arrow” to find a key which better fits your vocal
range.

Raise the key

Remove the
human voice

Lower the key

A-7

MS-7576 Mainboard

Mixer

In the Mixer part, you may adjust the volumes of the rear and front panels individually.

1. Adjust Volume

You can adjust the volume of the speakers that you plugged in front or rear panel by
select the Realtek HD Audio rear output or Realtek HD Audio front output
items.

Important

Before set up, please make sure the playback devices are well plugged in the
jacks on the rear or front panel. The Realtek HD Audio front output item
will appear after you plugging the speakers into the jacks on the front panel.

2. Multi-Stream Function

ALC888 supports an outstanding feature called Multi-Stream, which means you may
play different audio sources simultaneously and let them output respectively from the
indicated real panel or front panel. This feature is very helpful when 2 people are
using the same computer together for different purposes.

Click the button and the Mixer ToolBox menu will appear. Then check the Enable

playback multi-streaming and click OK to save the setup.

Important

You have to plug the device into the jacks on the rear/ front panel before
enable the multi-stream function.

a

A-8

Realtek Audio

When you are playing the first audio source (for example: use Windows Media
Player to play DVD/VCD), the output will be played from the rear panel, which is the
default setting.

Then you must to select the Realtek HD Audio front output from the scroll list
first, and use a different program to play the second audio source (for example: use
Winamp to play MP3 files). You will find that the second audio source (MP3 music) will
come out from the Line-Out audio jack of Front Panel.

A-9

MS-7576 Mainboard

3. Playback control

Playback device

Tool Mute

This function is to let you freely decide which ports to

output the sound. And this is essential when multi-

streaming playback enabled.

- Realtek HD Audio Rear Output

- Realtek HD Audio Front Output

Mute

You may choose to mute single or multiple volume controls or to completely mute
sound output.

Tool

- Show the following volume controls

This is to let you freely decide which volume control items to be displayed.

- Advanced controls

- Enable playback multi-streaming
With this function, you will be able to have an audio chat with your friends via
headphone (stream 1 from front panel) while still have music (stream 2 from back
panel) in play. At any given period, you can have maximum 2 streams operating
simultaneously.

a

A-10

4. Recording control

Realtek Audio

Tool Mute

Recording device

-Back Line in/Mic, Front Line in

-Realtek HD Audio Input

Mute

You may choose to mute single or multiple volume controls or to completely mute
sound input.

Tool

- Show the following volume controls

This is to let you freely decide which volume control items to be displayed.

- Enable recording multi-streaming

Important

Realtek Audio allows you to record the CD, Line, Mic and Stereo Mix channels
simultaneously, frees you from mixing efforts. At any given period, you may
choose 1 of the following 4 channels to record.

A-11

MS-7576 Mainboard

Audio I/O

In this tab, you can easily configure your multi-channel audio function and speakers.
You can choose a desired multi-channel operation here.

a. Headphone for the common headphone
b. 2CH Speaker for Stereo-Speaker Output
c. 4CH Speaker for 4-Speaker Output
d. 6CH Speaker for 5.1-Speaker Output
e. 8CH Speaker for 7.1-Speaker Output

Speaker Configuration:

1. Plug the speakers in the corresponding jack.

2. Dialogue “connected device” will pop up for your selection. Please select the
device you have plugged in.

- If the device is being plugged into the correct jack, you will be able to find the icon
beside the jack changed to the one that is same as your device.

- If not correct, Realtek HD Audio Manager will guide you to plug the device into the
correct jack.

a

A-12

Realtek Audio

Connector Settings

Click to access connector settings.

Disable front panel jack detection (option)

Find no function on front panel jacks? Please check if front jacks on your system are
so-called AC’97 jacks. If so, please check this item to disable front panel jack detection.

Mute rear panel output when front headphone plugged in.

Enable auto popup dialogue, when device has been plugged in

Once this item checked, the dialog “Connected device” would automatically pop up
when device plugged in.

A-13

MS-7576 Mainboard

S/PDIF

Short for Sony/Philips Digital Interface, a standard audio file transfer format. S/PDIF
allows the transfer of digital audio signals from one device to another without having
to be converted first to an analog format. Maintaining the viability of a digital signal
prevents the quality of the signal from degrading when it is converted to analog.

Output Sampling Rate

44.1KHz: This is recommend while playing CD.
48KHz: This is recommended while playing DVD or Dolby.
96KHz: This is recommended while playing DVD-Audio.
192KHz: This is recommended while playing High quality Audio.

Output Source

Output digital audio source: The digital audio format (such as .wav, .mp3,.midi etc)
will come out through S/PDIF-Out.

a

A-14

Realtek Audio

Test Speakers

You can select the speaker by clicking it to test its functionality. The one you select
will light up and make testing sound. If any speaker fails to make sound, then check
whether the cable is inserted firmly to the connector or replace the bad speakers

with good ones. Or you may click the auto test button to test the sounds of

each speaker automatically.

Center

Front Left

Side Left

Rear Left

Front Right

Side Right

Subwoofer

Rear Right

A-15

MS-7576 Mainboard

Microphone

In this tab you may set the function of the microphone. Select the Noise Suppres­sion to remove the possible noise during recording, or select Acoustic Echo Can­cellation to cancel the acoustic echo during recording.

Acoustic Echo Cancellation prevents playback sound from being recorded by

microphone together with your sound. For example, you might have chance to use
VOIP function through Internet with your friends. The voice of your friend will come
out from speakers (playback). However, the voice of your friend might also be
recorded into your microphone then go back to your friend through Internet. In that
case, your friend will hear his/her own voice again. With AEC(Acoustic Echo
Cancellation) enabled at your side, your friend can enjoy the benefit with less echo.

a

A-16

Realtek Audio

3D Audio Demo

In this tab you may adjust your 3D positional audio before playing 3D audio applica­tions like gaming. You may also select different environment to choose the most
suitable environment you like.

A-17

MS-7576 Mainboard

Information

In this tab it provides some information about this HD Audio Configuration utility,
including Audio Driver Version, DirectX Version, Audio Controller & Audio Codec. You
may also select the language of this utility by choosing from the Language list.

Also there is a selection Show icon in system tray. Switch it on and an icon
will show in the system tray. Right-click on the icon and the Audio Accessories

dialogue box will appear which provides several multimedia features for you to take
advantage of.

a

A-18

Realtek Audio

Hardware Setup

Connecting the Speakers

When you have set the Multi-Channel Audio Function mode properly in the software
utility, connect your speakers to the correct phone jacks in accordance with the
setting in software utility.

n 2-Channel Mode for Stereo-Speaker Output

1 Line In
2 Line Out (Front channels)

3 MIC

4 No function

5 No function

6 No function

1

2

3

4

5

6

A-19

MS-7576 Mainboard

n 4-Channel Mode for 4-Speaker Output

4-Channel Analog Audio Output

1 Line In
2 Line Out (Front channels)

3 MIC
4 Line Out (Rear channels)

5 No function

6 No function

1

2

3

4

5

6

a

A-20

n 6-Channel Mode for 6-Speaker Output

Realtek Audio

1

2

3

6-Channel Analog Audio Output

1 Line In
2 Line Out (Front channels)

3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel)

6 No function

4

5

6

A-21

MS-7576 Mainboard

n 8-Channel Mode for 8-Speaker Output

1

2

3

8-Channel Analog Audio Output

1 Line In
2 Line Out (Front channels)

3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel)
6 Line Out (Side channels)

4

5

6

Important

To enable 7.1 channel audio-out function on Vista operating system, you have to
install the Realtek Audio Driver. Or, the mainboard will support 5.1 channel
audio-out only.

a

A-22

Overclocking Center

Appendix B

Overclocking Center

Overclocking Center, the most useful and powerful
utility that MSI has spent much research and efforts to
develop, helps users to monitor or configure the hard­ware status of MSI Motherboard in windows, such as
CPU clock, voltage, fan speed and temperature.
Before you install the Overclocking Center, please make
sure the system has meet the following requirements:

1. 256MB system memory.

2. DVD-ROM drive for software installation.

3. Operation system: Windows XP or up.

4. DotNet Frame Work 2.0

B-1

MS-7576 Mainboard

Activating Overclocking Center

Once you have your Overclocking Center installed (locate the setup source file in the
setup DVD accompanying with your motherboard, path: Utility --> MSI Utility -->
Overclocking Center), it will have a short cut icon on the desktop, and a short cut
path in your “Start-up” menu. You may double-click on each icon to activate
Overclocking Center.

short-cut icon on the desktop

B-2

short-cut path in the start-up menu
(path: Start-->Program Files-->MSI-->
Overclocking Center-->Overclocking Center)

Overclocking Center

System Info

In the System Info screen, you can read the information of motherboard/ memory/ PCI.

Motherboard

Click Motherboard to read the information of motherboard, BIOS, installed CPU and
installed graphics card.

B-3

MS-7576 Mainboard

Memory

Click Memory to read the information of each memory DIMM slot. You can select a
DIMM slot you want to read from the SPD list.

PCI

Click PCI to read the information of devices on the motherboard.

B-4

Overclocking Center

DOT

Click DOT to enter the DOT screen. In DOT, you can select the basic setting to reach
optimal performance in Novice menu or you can adjust advanced values for
overclocking in Advance menu.

Novice

In the Novice menu, it provides one default setting and several common settings for
different environments. You may choose one of the settings that you need. The
settings in Novice menu are not adjustable.

Important

You may change the values of each environment setting/ default setting in
Advance menu. Please refer the following section for more details.

B-5

MS-7576 Mainboard

Advance

In the Advance menu, you can adjust the values for each environment setting/ default
setting. Click the Cooling/ Silence/ Default/ Game/ Cinema button to enter it’s setting
menu. Please refer to the following descriptions to adjust the values and save them.

B-6

Overclocking Center

In each setting menu, you can select desired values for manual overclocking. Simply
click the right side of the button which arranges an arrow sign, and a drop-down
menu will appear below the button, then select a value.

Click the arrow sign and
the drop-down menu
will appear.

In the “System Warning” block, you can set the maximum CPU/ system temperature
and the minimum CPU/ system fan speed by using the scroll bar. The system will pop­up a warning message to warning you when the temperature/ fan speed is over/
lower the values you set.

Set the thresholds of
CPU temperature & CPU
FAN speed.

B-7

MS-7576 Mainboard

After you adjust the values in setting menu, you can save it for future use.

Click the Save button, and enter a name in
the empty box. Then, click Save button again
to save the settings.

Important

i

It provides you to save up to 20 user settings.

Click the Load button and choose a saved user setting to load the settings for the
system.

Click the Load button, and choose a
saved user setting.

Important

Every time you turn-off the system, the settings will be restored to the factory
default. If you want to use the saved settings, you have to load it after entering
the operating system every time.

B-8

Appendix C

SATA RAID

The 710 / 750 integrate one SATA host controller
separately, and support RAID function for performance
and reliability.
SATA RAID provides support for RAID 0 (Striping), RAID
1 (Mirroring), RAID 0+1 (Striping & Mirroring) & RAID 5
(striping with parity). RAID 0 greatly improves hard disk
I/O performance by concurrently striping data across
multiple drives. RAID 1 makes sure data is not lost if a
drive fails as data is simultaneously written to two
drives. Drives configured for RAID Striping are said to
form a RAID 0 set, while drives configured for RAID
Mirroring are said to form a RAID 1 set. RAID 0+1 is
implemented as a mirrored array whose segments are
RAID 0 arrays. RAID 0+1 has same fault tolerance as
mirroring and reduces overhead by striping. It needs at
least four drives to form a RAID 0+1. RAID 5 defines
techniques for parity data.

SATA RAID

*Only 750 supports RAID 5.

C-1

MS-7576 Mainboard

RAID Configuration

Creating and deleting RAID set and performing other RAID setting up operations are
done in the RAID BIOS. During bootup, a screen similar to the one below will appear
for about few seconds. Press <Ctrl-F> to enter FastBuild utility.

Important

Be sure to enable the RAID function for SATA device in BIOS before config­uring the Fastbuild Utility.

The FastBuild menu screen will appear. The Main Menu is used to choose the opera­tion to be performed.

C-2

SATA RAID

View Drives Assignments

This window displays the model number, capacities and assignment of the drives
physically attached to the SATA host adapter.

C-3

MS-7576 Mainboard

Define LD (Creating RAID)

The selection of the RAID configuration should be based upon factors including
performance, data security, and the number of drives available. It is best to carefully
consider the long-term role of the system and plan the data storage strategy. RAID
sets can be created either automatically, or to allow the greatest flexibility, manually.

1.Press 2 on the Main Menu screen to enter the Define LD Menu.

2.Press the arrow keys to highlight an logical drive number you want to define
and press Enter to select it.

and press Enter to select it.

3.On the next screen, use the space key to choose a RAID mode (RAID 0/ 1/
0+1/ 5) and use the arrow key to move to the Drives Assignments window.

• Initialize logical drive, zero the disk drives. RAID 1 or 10 only.

C-4

SATA RAID

• Stripe Block Size, the default 64KB is best for most applications. RAID 0 or
10 only.

• Gigabyte Boundary, allows use of slightly smaller replacement drives.

• Cache Mode, WriteThru or WriteBack.

4.On the Drives Assignments window, use the arrow key to choose the hard
drives which you want to make part of the LD, use the space key to change
the assignment to “ Y”. Then press [Ctrl+Y] to save the configuration.

5.A message will show up on the bottom, press any key to save the configura­tion or press [Ctrl-Y] to allocate the RAID capacity manually.

Important

1. The default capacity is the full capacity of the selected hard drives.

2. If you allocate the first LD capacity manually, you can create second LD

with remaining capacity of the selected hard drives.

C-5
