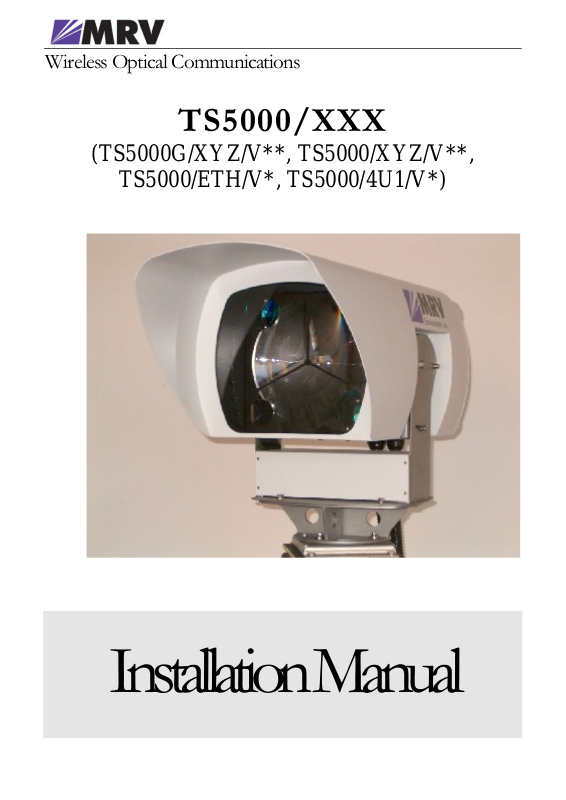

MRV Communications TS5000XXX, TS5000, TS5000ETH, TS50004U1, TS5000V User Manual
...
Wireless Optical Communications
TS5000/XXX
(TS5000G/XYZ/V**, TS5000/XYZ/V**,
TS5000/ETH/V*, TS5000/4U1/V*)
Installation Manual
WIRELESS OPTICAL COMMUNICATIONS
Installation Manual
Document Number 4705000, Rev. 2.7
February 2008
© MRV Communications, Inc.
Web site: www. mrv.com
Table of Contents
STANDARDS
Standards Compliance ............................................................................i
FCC Notice ...............................................................................................i
CE Mark ...................................................................................................i
Other Standards .....................................................................................ii
MRVTM Laser Safety Certification........................................................ii
About this Installation Manual ............................................................iii
SAFETY REQUIREMENTS
Before Installing ....................................................................................iv
Before Powering On ..............................................................................iv
When Installing ......................................................................................iv
Servicing .................................................................................................. v
Introduction............................................................................................vi
MRV Communications, Inc. – Installation Manual
CHAPTER 1 - THE PRODUCT
Models.......................................................................................................1
General Description ................................................................................3
Front................................................................................................3
Back.................................................................................................4
A. TS5000/G Standard Model (w/o Fusion and with one power
supply................................................................................................... 5
B. TS5000/G-F (Standard Model including Fusion Option) ..............9
C. TS5000/155 (w/o Fusion and with one power supply)...................10
D. TS5000/155-F (Standard Model including Fusion option) ..........14
E. TS5000/ETH (Ethernet System)..................................................... 17
F. TS5000/4U1 (4E1 or 4T1 System)................................................... 19
Loop and Remote Loope Operation Mode..........................................21
Heating ...................................................................................................21
Monitoring & Management Options...................................................22
Management.................................................................................22
Dry contact ...................................................................................22
RSM............................................................................................... 22
Typical Connection................................................................................23
MRV Communications, Inc. – Installation Manual
CHAPTER 2 - SITE SURVEY
Line of Sight...........................................................................................24
Orientation............................................................................................. 24
Location & Range.................................................................................. 24
Mounting Environment & Stability.....................................................27
Transmitting through a Window.........................................................29
CHAPTER 3 - INFRASTRUCTURE
Power......................................................................................................30
Data/Signal Cabling ..............................................................................30
CHAPTER 4 - BENCH TEST
TS5000/G & TS5000/G-F......................................................................32
TS5000/155 & TS5000/155-F................................................................33
TS5000/ETH...........................................................................................34
TS5000/4U1............................................................................................34
Test configurations................................................................................35
Display and Results............................................................................... 37
SNMP Management Setting and Operation....................................... 39
CHAPTER 5 - INSTALLATION
Accessories .............................................................................................40
Mounting................................................................................................43
Accessories....................................................................................43
Attachment of the Transceiver...................................................43
Particular Figure Cases/Techniques.................................................... 45
CHAPTER 6 - AIMING PROCEDURE
Powering on the TereScope.................................................................. 46
Transceiver Alignment..........................................................................47
Coarse Alignment.........................................................................47
Fine Alignment.............................................................................47
Link Operating Test..............................................................................50
Installation Log......................................................................................50
Installation Completion ........................................................................51
CHAPTER 8 - MAINTENANCE
Periodic Visits........................................................................................ 53
MRV Communications, Inc. – Installation Manual
APPENDIX A. Product specifications
AP PENDI X B. Digital Readout vs. Distance
APPENDIX C. Unpacking Instructions
AP PENDI X D. Tool Kit, Equipment and Materials
AP PE NDI X E . TereScope Bench Test Procedure
AP PENDI X F. Effect of wind on TereScope Devices
APPENDIX G. FSO Chaining
AP PE NDI X H . Installation Log
AP PE NDI X I . Power Supply Replacement
A P P E N D I X J . TS5000/155 AND TS4000/155 ENHANCEMENTS
MRV Communications, Inc. – Installation Manual
Standards
Standards Compliance
UL 1950; CSA 22.2 No 950; FCC Part 15 Class A; CE-89/336/EEC, 73/23/EEC
FCC Notice
WARNING: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
The user is cautioned that changes and modifications made to the equipment without approval of the
manufacturer could void the user’s authority to operate this equipment
It is suggested that the user use only shielded and grounded cables when appropriate to ensure
compliance with FCC Rules.
CE Mark
The CE mark symbolizes compliance with the EMC directive of the European Community. Such
marking is indicative that the specified equipment meets or exceeds the following technical standards:
• EN 55022 - Limits and Methods of Measurement of Radio Interference Characteristics of
Information Technology Equipment
• EN 50081-1- Electromagnetic compatibility - of Radio Interference Characteristics of
Information Technology Equipment Generic Emission standard Part 1 – Residential
commercial and light industry environment
• EN 50082-1 - Electromagnetic compatibility -- Generic immunity standard Part 1:
Residential, commercial and light industry environment
• EN61000-4-2 (previously IEC 1000-4-2) - Electromagnetic compatibility for industrial-
process measurement and control equipment Part 4: Section 2 - Electrostatic discharge
requirements
• EN61000-4-3 (previously IEC 1000-4-3) - Electromagnetic compatibility for industrial-
process measurement and control equipment Part 4: Section 3 - Radiated electromagnetic
field requirements
• EN61000-4-4 (previously IEC 1000-4-4) - Electromagnetic compatibility for industrial-
process measurement and control equipment Part 4: Section 4 - Electrical fast
transient/burst requirements
• EN61000-4-5 - Electromagnetic compatibility for industrial-process measurement and
control equipment
Part 4: Section 5 – Surge Immunity requirements
• EN61000-4-6 - Electromagnetic compatibility for industrial-process measurement and
control equipment
Part 4: Section 6 – Immunity to conducted disturbances induces by radio frequency fields
• EN61000-4-8- Electromagnetic compatibility for industrial-process measurement and
control equipment
Part 4: Section 8– Power frequency magnetic field immunity requirements
• EN61000-4-11 – Electromagnetic compatibility for industrial-process measurement and
control equipment Part 4: Section 11 – Voltage dips short interruptions and voltage
variations immunity requirements
• EN61000-3-2 – Harmonic standard
• EN61000-3-3 – Voltage Fluctuation and Flicker standard
• CISPR 22 - Radiated and Line-conducted Class A
• EN 60950 - ITE Safety
i
MRV Communications, Inc. – Installation Manual
Other Standards
1. CISPR 22: 1993
AS/NZS 3548: 1995, Class A,
Joint Amendment No. 1: 1997, Joint Amendment No. 2: 1997
2. EN 60950+A1+A2+A3+A4+A11
ACA TS001-1997
AS/NZS 3260: 1993 A4: 1997
ITU G.703, G.704, G.706,G.736, G.737, G.738, G739, G740, G.775, G.823.
MRV ™ Laser Safety Certification
The TereScope is designed, built, and tested to be eyesafe, even if the output beams are viewed directly,
provided that no magnifying optics are used.
This product is Class 1M according to the American National Standard for Safe Use of Lasers ANSI
Z136.1-1993 provided that there is not a reasonable probability of accidental viewing with optics in the
direct path of the beam where the TereScope is installed.
This product is Class 1M according to the International Standard of the International Electro technical
Commission IEC 60825-1, Amendment 2, January 2001 entitled “Safety of laser products.” The
following explanatory label is applicable to these products:
LASER RADIATION
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
(BINOCULARS OR TELESCOPES)
CLASS 1M LASER PRODUCT
This product complies with United States FDA performance standards for laser products except for
deviations pursuant to Laser Notice No. 50 as published in June 2001, which allows for the use of the
IEC 60825-1 classification standard. Under this standard, these products are Class 1M.
A ‘Declaration of Conformity’, in accordance with the above standards, has been made and is on file at
MRV.
Disclaimer
MRV reserves the right to modify the equipment at any time and in any way it sees fit in order to improve it.
MRV provides this document without any warranty of any kind either expressed or implied, including, but not
limited to, the implied warranties of merchantability or fitness for a particular purpose.
Although much care has been taken in the preparation of this document, omissions and errors may still exist.
Therefore, the customer is advised to exercise due discretion in the use of the contents of this document since
the customer bears sole responsibility.
Trademarks
All trademarks are the property of their respective holders.
Copyright © 2007 by MRV
All rights reserved. No part of this document may be reproduced without the prior permission of MRV.
This document and the information contained herein are proprietary to MRV and are furnished to the
recipient solely for use in operating, maintaining and repairing MRV
may not be utilized for any purpose except as stated herein, and may not be disclosed to third parties
without written permission from MRV. MRV
specifications in order to improve reliability, function or design.
reserves the right to make changes to any technical
equipment. The information within
ii
MRV Communications, Inc. – Installation Manual
About this Installation Manual
Audience
This manual is intended for the user who wishes to install, operate, manage and
troubleshoot TereScope5000.
Qualifications
Users of this guide are expected to have working knowledge of:
• Electro-optical equipment
• LAN equipment (Layer 2 and 3)
• License to install equipment on buildings/elevated structures
• License to work with power line (mains) voltages 110/230 Vac
Training
Installers are required to do a training course on MRV TereScopes that includes:
• IR links (site survey, installation equipment, alignment, etc.)
• Indoors and outdoors installation
• On-the-job-training
• Proficiency tests
Experience
Installers are required to have experience in coax cable TV home pass installation,
PTT home pass installation, LAN installation, IR equipment installation, and home
electrical wiring.
Authorization
When all the requirements specified above (namely, Qualifications, Training, and
Experience) have been met, the installer must receive authorization from MRV
certifying eligibility.
iii
Figure A: 3 terminal cord forks
MRV Communications, Inc. – Installation Manual
Safety Requirements
All requirements stipulated in the safety laws of the country of installation must be
abided by when installing the TereScopes.
Caution!
In addition, ensure that the requirements noted in this chapter are met in
order to reduce risk of electrical shock and fire and to maintain proper
installation.
Before Installing
Power: Ensure that all power to the TereScope is cut off. Specifically,
disconnect all TereScope power cords from the power line (mains).
Inspection: Ensure by inspection that no part is damaged.
Before Powering On
Line Power: Ensure that the power from the line (mains) is as specified on
the TereScope.
Power Cord: The power cord of The TereScope must have the following
specifications:
Flexible 3-conductor power cord approved by the cognizant
safety organization of the country. The power cord must be
Type HAR (harmonized), with individual conductor wire
having cross-sectional area 0.75 sq. mm. min. The power cord
terminations should be a suitably rated earthing-type plug at
one end and 3 terminal cord forks for M3 screws (1 for each
wire) at the other end. Both of the power cord terminations
must carry the certification label of the cognizant safety
organization of the country.
When Installing
• Ensure, by visual inspection, that no part of the TereScope is damaged.
• Avoid eye contact with the laser beam at all times.
• Ensure that the system is installed in accordance with ANSI Z136.1
control measures (engineering, administrative, and procedural
controls).
• Ensure that the system is installed in accordance with applicable
building and installations codes.
• Install the TereScope in a restricted location as defined in this manual
since it is a Class 1M FSOCS transmitter and receiver. A restricted
location is a location where access to the transmission equipment and
exposed beam is restricted and not accessible to the general public or
iv
MRV Communications, Inc. – Installation Manual
casual passerby. Examples of restricted locations are: sides of buildings
at sufficient heights, restricted rooftops, and telephone poles. This
definition of a restricted location is in accordance with the proposed
IEC 60825-I Part 12 requirements.
• Avoid using controls, adjustments, or procedures other than those
specified herein as they may result in hazardous radiation exposure.
• Avoid prolonged eye contact with the laser beam (maximum10 sec.).
• CAUTION-CLASS 3B LASER RADIATION WHEN OPEN
AVOID EXPOSURE TO THE BEAM
Servicing
All servicing must be carried out only by qualified service personnel. Before
servicing, ensure that all power to the TereScope is cut off!
v
MRV Communications, Inc. – Installation Manual
Introduction
CAREFULLY READ THE ENTIRE
MANUAL BEFORE INSTALLING
n InfraRed (IR) link allows connection without any cable between two
distant sites. For that, two identical transceivers, each installed on one site
A
other through the air over an optical wavelength carrier, the IR.
and aligned one facing each other, provide a point-to-point connectivity.
This configuration makes possible data transfer from one terminal to the
The installation of such a link can be summed up in 4 stages:
♦ Site survey
♦ Installation of the infrastructure
♦ Mounting of the equipment
♦ Aiming procedure
Always use appropriate safety equipment and
procedures when working with electrical
equipment and when working on roofs.
vi
MRV Communications, Inc. – Installation Manual
The Product
Lift and hold the transceiver cautiously, taking care particularly
not to damage the front Polycarbonate window
Models
Table 1: Models of the TS50001
.
Chapter
Models Part Number Description
TS5000/G TS5000G/XYZ/V**
Standard Model
TS5000G/M8C/V1S
TS5000/G-F TS5000G/XYZ/F**
Standard Model
TS5000G/M8C/F1S
TereScope5000/G, 8 inch receiver Free
Space Optics 870m@30db/km and
3500m@3db/km (clear weather), Open
Protocol 100-1250Mbps with clock
recovery, visual alignment. XYZ coding:
interface options: M8C, M8T, S3C, S5C
(Standard model: TS5000G/M8C/V1S).
RCMU-SNMP included (Remote Control
and Management Unit), Removable
interface, Removable Power supply,
Redundant Power supply: Optional.
**Power supply options: 1S, 2S, 13, 23, 24
(See below for power supply options
explanation). Basic accessories kit supplied
with the link: AD-5000, JMP-8 and JITK
TereScope5000/G-F with buil-in Fusion, 8
inch receiver Free Space Optics
870m@30db/km and 3500m@3db/km
(clear weather), Open Protocol 1001250Mbps with clock recovery, visual
alignment. XYZ coding: interface options:
M8C, M8T, S3C, S5C (Standard model:
TS5000G/M8C/F1S). RCMU-SNMP
included (Remote Control and Management
Unit), Removable interface, Removable
Power supply, Redundant Power supply:
Optional. **Power supply options: 1S, 2S,
13, 23, 24 (See below for power supply
options explanation). Basic accessories kit
supplied with the link: AD-5000, JMP-8 and
JITK
1
TereScope 5000
1
MRV Communications, Inc. – Installation Manual
TS5000/155 TS5000/XYZ/V**
Standard Model
TS5000/M3C/V1S
TS5000/155-F TS5000/XYZ/F**
Standard Model
TS5000/M3C/F1S
TereScope5000/155, 8 inch receiver Free
Space Optics 1185m@30db/km and
5400m@3db/km (clear weather), Open
Protocol 1-155Mbps, Selectable Protocols 34155Mbit/s, visual alignment. XYZ coding:
interface options: M3C, M3T, S3C, S5C
(Standard model: TS5000/M3C/V1S).
RCMU-SNMP included (Remote Control and
Management Unit), Removable interface,
Removable Power supply, Redundant Power
supply: Optional. **Power supply options: 1S,
2S, 13, 23, 24 (See below for power supply
options explanation). Basic accessories kit
supplied with the link: AD-5000, JMP-8 and
JITK.
TereScope5000/155-F with buit-in Fusion, 8
inch receiver Free Space Optics
1185m@30db/km and 5400m@3db/km
(clear weather), Open Protocol 1-155Mbps,
Selectable Protocols 34-155Mbit/s, visual
alignment. XYZ coding: interface options:
M3C, M3T, S3C, S5C (Standard model:
TS5000/M3C/F1S). RCMU-SNMP included
(Remote Control and Management Unit),
Removable interface, Removable Power
supply, Redundant Power supply: Optional.
**Power supply options: 1S, 2S, 13, 23, 24 (See
below for power supply options explanation).
Basic accessories kit supplied with the link:
AD-5000, JMP-8 and JITK.
TS5000/ETH TS5000/ETH/V*
TS5000/4U1 TS5000/4U1/V*
TereScope5000/ETH, 8 inch receiver Free
Space Optics 1400m@30db/km and
6700m@3db/km (clear weather),
ETHERNET Link, 10 Mbit/s, (RJ45), visual
alignment. RSM-SNMP included, Removable
Power supply, Power supply S or 3 (See below
for power supply options explanation). Basic
accessories kit supplied with the link: AD5000, JMP-8 and JITK.
TereScope5000/4E1 or
TereScope5000/4T1 Free Space
1400m@30db/km and 6700m@3db/km
(clear weather), 4E1 Link, G.703/G.704, and
Interface: 4 Universal connectors to be used
with 75 Ohm (Coax) or 120 Ohm (STP),
visual alignment. RSM-SNMP included,
Removable Power supply, Power supply S or
3 (See below for power supply options
explanation). Basic accessories kit supplied
with the link: AD-5000, JMP-8 and JITK.
Using the Part Number for Ordering
To place an order for a TS5000 model having a specific configuration, use the
Part Number format shown in Table 1, noting the following:
In 155 Series the ‘155’ is omitted in the part number, the absence of "155"
represents link operation speed in the range 1 to 155 Mbps.
‘G’ represents link operation speed in the range 100 to 1250 Mbps.
‘ETH’ represents 10 Mbps (Ethernet) operation speed.
‘X’ represents Optical Fiber Mode.
Instead of X use one of the following:
2
MRV Communications, Inc. – Installation Manual
M (for Multimode)
S (for Single Mode)
‘Y’ represents operating wavelength.
Instead of Y use one of the following:
8 (for 850 nm)
3 (for 1310 nm)
5 (for 1550 nm)
‘Z’ represents connector type.
Instead of Z use one of the following:
C (for SC)
T (for ST)
‘V’ represents yes or not with Fusion.
Instead of V use one of the following:
V represents no built-in Fusion option.
F represents built-in Fusion option.
Power Supply
: Each product base code ends with * or **. * means that the
product has one power supply. **means that the product can have two power
supplies: one main and the other one - for back-up. In the products description,
there is a list of all compatible power supplies. When ordering, please specify the
required power supply and make sure that it is in the above list. For example, if a
TS5000/155 with one power supply, high voltage (100-240VAC) is required;
TS5000/XYZ/V1S should be ordered. Similarly, in case of 2 power supplies low
voltage (35-60VDC), the p/n will be TS5000/XYZ/V23. If the required product
can have only one power supply, for example TS5000/ETH, high voltage, the
p/n will be TS5000/ETH/VS.
‘S’ represents power supply type
Instead of S use one of the following:
S (for input to the power supply in the range 100-240 VAC)
3 (for input to the power supply in the range 35-60 VDC)
‘U’ represents telephony protocol type.
Instead of U use one of the following:
E (for E1)
T (for T1)
Front view
Showing the receiver
side, the transmitters and
the telescope
Transmitter
CAUTION!
AVOID EXPOSURE –
INVISIBLE LASER
RADIATION IS EMITTED
FROM THIS APERTURE
General Description
1. Front
Each unit comprises a receiver, 3 transmitters and an interface on the rear panel for
the connection to the peripheral equipment.
Transmitters
Telescope
Figure 1.1: Front View Schematic
3
MRV Communications, Inc. – Installation Manual
2. Back
The TS5000 has a pluggable power supply. In the field, a failed power supply can
be replaced within seconds without the need for performing any other changes to
the TS5000. Appendix I gives the procedure for replacing the power supply.
All models of the TS5000 are SNMP manageable. SNMP monitoring can be
performed using MRV’s MegaVision SNMP management server application.
TS5000/G and TS5000/155
There have been several additional improvements to the TS5000/G and
TS5000/155 models:
An additional optional power supply, i.e. a standard model has one
modular power supply and a redundant power supply can be ordered
or even added in the field. (fig 1.2a)
The interface of these models is modular as well. (Fig. 1.2b)
A new SNMP Management card. See Appendix J: "TS5000 & TS4000
enhancements" for further info on the improvements to these models.
Figure 1.2a: Connecting the
redundant Power supply
Figure 1.2b: Changing the Optical
interface
4
A
V
p
N
ot in use
MRV Communications, Inc. – Installation Manual

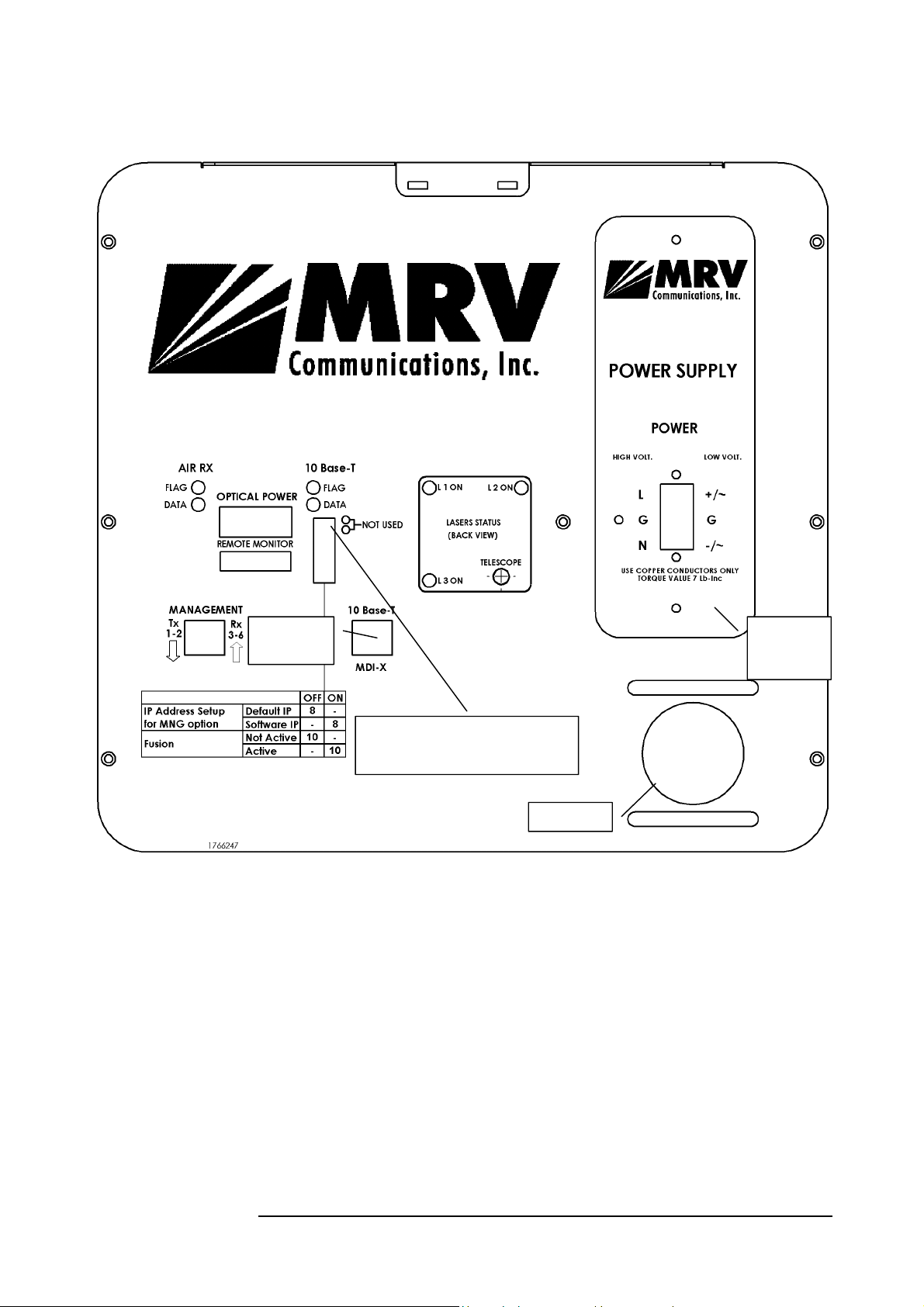

A. TS5000/G Standard Model (w/o Fusion and with one power supply)
The TS5000/G can support various data rates and protocols within the 20Mbps -
1.5 Gbps range, for example Fast Ethernet, ATM, 622 Mbps, Fiber Channel,
Gigabit Ethernet, etc. The TS5000/G has Clock Recovery for the entire operation
range. There is no need to set the clock by means of DIP switches or other means.
The TereScope automatically identifies and locks on to the clock frequency of the
transferred data
LASERS STATUS
(BACK VIEW)
L 2 ONL 1 ON
L 3 ON
TELESCOPE
AIR RX
FLAG
SYNC
1
10 10
DS 1
OPTICAL POWER
REMOTE MONITOR
DIP Switch
Toggles 4, 7
and 9
ositions are
immaterial.
1
DS 2
ALIGNMENT
LOOP
FUSION
HEATING
SW MODE
POWER SUPPLYPOWER SUPPLY
DISCONNECT POWER SUPPLY
FROM MAINS
BEFORE REMOVAL FROM UNIT
POWERPOWER
USE COPPER CONDUCTORS ONLYUSE COPPER CONDUCTORS ONLY
TORQUE VALUE 7 Lb-InchTORQUE VALUE 7 Lb-Inch
HIGH HIGH VOLT.
OLT.
L L
G G GGN N
+/~+/~
-/~-/~
LOW LOW VOLT.VOLT.
REDUNDANT
POWER SUPPLY
This slot can
house an additiona l
power supply
to be fed
from backup
voltage source.
This can be
independent
of the primary
voltage source for
maximum redundanc y.
For details:
Contact an authorized
MRV representative
or visit www.mrv.com
MANAGEMENT
Rx
Tx
3-6
1-2
Pluggable
interface
1766240
INVISIBLE LASER RADIATION IS EMITTED FROM THIS APERTURE
Tx
Rx
TABLE FOR DS 2
Mode Select
Attenuation for
Short Di stance Li nk
Fusion
Window Heater
(if exist)
IP Address Setup
Control Mode
VOID EXPOSURE
F I B E R O P T I C
TX RX
Normal
Alignment
Local Loopback
Remote Loopback
Normal
Attenuated
Disable
Enable
Off
On
Default IP
Software IP
HW MODE
SW MODE
FLAG
SYNC
OFF
ON
-
1,2
1 2
2
1
-
1,2
-
3
-
3
5
-
-
5
-
6
-
6
-
8
-
8
-
10
-
10
Pluggable
Power
Supply
CAUTION
DO NOT USE
TELESCOPE
TO LIFT UNIT ! !
Telescope
PS1
PS2 HEATER ON
Slot for
Redundant
PS
Figure 1.3: TS5000/G Standard Model Panel Schematic
5
MRV Communications, Inc. – Installation Manual
Back Panel Description
Table 2: TS5000/G Back Panel Controls, Interfaces, and Indicators
Power
Connectors
Power source Terminal Block (Main or UPS).
AC power supply (100 to 240 Vac) or DC power
supply (35 to 60 Vdc)
Fiber optic
Remote Monitor Connection to an optional Remote Status Monitor
Management
Fiber Optic interface for connection to the
peripheral equipment. The standard interface is MM
850nm SC connector; other interfaces are available
upon request (refer to price list or data sheet).
In model TS5000/G-F with the fusion option, there
are two fiber optic interface ports for connection to
the Fusion system; one primary and the other
redundant.
(RSM) or to RSM-DC (for Dry Contact connection)
(not included in the standard transceiver kit)
Connection to 10Base-T SNMP management
interface. Pins 1,2: TX and 3,6 RX.
Pins (4,5) and (7,8) of this connector can be used for
dry contact purposes, for Airlink flag and F/O flag
alarms respectively
Note:
Pins (4, 5) and (7, 8) of the management RJ45 connector can be used for dry contact
purposes, for Airlink flag and F/O flag alarms respectively.
Alignment Telescope
Power
Power Supply
Slot for Power Supply
For fine alignment.
Pluggable AC power supply (100 to 240 Vac) or
DC power supply (35 to 60 Vdc)
This slot can house an additional power supply to
be fed from backup voltage source. This can be
independent of primary voltage source for
maximum redundancy.
6
MRV Communications, Inc. – Installation Manual
Selectors
(DIP Switch
DS1 Toggles)
-- shown on
Figure 1.3and
1.4
Selectors
(DIP Switch
DS2 Toggles)
-- shown on
Figure 1.3 and
1.4
Not in use Not in use
Mode Select
(Toggles 1, 2)
Set the Operating Mode
ALIGNMENT = Idle transmitted automatically
NORMAL
transmitted through the Airlink TX. Signal received
via the Airlink RX is transmitted through the F/O
TX.
LOOPBACK
directly returned through the F/O TX.
REMOTE LOOP
electrical TX and optical RX to the optical TX of the
remote unit.
Attenuation for
Short distance link
(Toggle 3)
Turning off 1 TX when the DIP switch toggle is
moved to ON. (The LED L1 will turn off also).
Use this option for distances between 500 and 700m
Fusion
(Toggle 5)
This switch toggle enables working with MRV’s
Fusion system (Built-in fusion option or switch
option). For additional information, see page 9.
Switch toggle 5 OFF: Fusion not Active (Disabled)
Switch toggle 5 ON: Fusion active (Enabled).
Window Heater
(Optional)
(Toggle 6)
Used only with the heating option (To be specified
in the PO).
Switch toggle 6 OFF: The heater is disabled
Switch toggle 5 ON: The heater is enabled.
The heating will start operating only if one of the
following conditions is present: or the temperature is
lower than 15
above 80%. There is a controller with a thermostat
inside the TereScope, which controls the heating in
accordance with the above conditions.
IP address set up
(Toggle 8)
When the Switch toggle is on OFF position, the
TereScope’s IP address is the default one (shown on
the back panel label: 10.0.0.101). To set a new IP
address, please refer to the “IP address setting
procedure for TereScope management card” file in
the Manuals CD. The new IP address is valid only
after the TereScope is powered off and on.
Control Mode
(Toggle 10)
When the Dip Switch toggle #10 is on OFF
position, the TereScope is in the HARDWARE
mode, i.e. the TereScope is controlled only by the
TereScope itself by means of the switches on its
back panel.
When the Dip Switch toggle is on ON position, the
TereScope is in the SOFTWARE mode i.e. the
TereScope is controlled by the management
Software and various functions can be activated by
means of this management Software.
= Signal received via the F/O port is
= Data received by the F/O RX is
= Loops the electrical RX to the
o
C; or the humidity level in the air is
7
MRV Communications, Inc. – Installation Manual
Indicators
(7-segment
display and
LEDs)
Air RX Flag LED Green LED indicates data received by the Airlink
receiver. Turns ON at the threshold level.
Air RX Sync LED Yellow LED. Turns ON if the rate of the received
Data matches the Data Rate set on the Data Rate
DIP switch.
F/O Main, RX Flag
LED
Upper green LED indicates Data received by the
Fiber Optic receiver. Turns ON at the threshold
level.
F/O Main, RX Sync
LED
Lower green LED. Turns ON if the rate of the
received Data matches the Data Rate set on the
Data Rate DIP switch.
F/O Redundant, RX
Flag LED
(Optional)
Upper green LED indicates Data received by the
Fiber Optic receiver. Turns ON at the threshold
level.
F/O Redundant, RX
Sync LED
(Optional)
Lower green LED. Turns ON if the Fusion is
active and there is synchronization with the
received Data.
Optical Power 7segment display
Digital readout indicates the Optical Power level
received by the Airlink receiver.
Alignment LED Yellow LED. Turns ON if the Alignment
Operating Mode is selected.
Loop LED Yellow LED. Turns ON in LOOPBACK mode.
Flashing in Remote Loop mode.
Fusion LED Yellow LED. Turns ON if the Fusion mode is
enabled.
Flashing when the Fusion (radio back-up system) is
active.
Heating LED Yellow LED. Turns ON if the heating mode is
selected (Heating is enabled).
SW Mode LED Red LED. Turns ON if the SW Mode
(SOFTWARE) Operating Mode is selected.
Lasers status LEDs There are 3 LEDs – L1, L2, L3 indicating if the
lasers are switched on or off. If the LED is
switched off, the laser is switched off. If the LED is
switched ON, the laser is switched ON.
When the DIP switch toggle #3 is moved to ON
position the LED L1 and its corresponding laser
will turn off
PS1 Green LED. Turns ON when main power supply is
active
PS2 Green LED. Turns ON when redundant power
supply is active
Heater ON Green LED. Turns ON when the heating of the
front window is active.
The heating will start operating only if one of the
following conditions is present: or the temperature
is lower than 15
o
C; or the humidity level in the air is
above 80%. There is a controller with a thermostat
inside the TereScope, which controls the heating in
accordance with the above conditions. (The heating
option is not standard, and exists only if purchased)
Management TX Flashing when the RSM-SNMP is connected and
the TereScope is transmitting management Data.
(There is no Link indication)
Management RX Flashing when the RSM-SNMP is connected and
the TereScope is receiving management Data.
(There is no Link indication)
8
MRV Communications, Inc. – Installation Manual
A
N
B. TS5000/G-F (Standard Model including Fusion option)
LASERS STATUS
(BACK VIEW)
L 2 ONL 1 ON
ot in use
L 3 ON
AIR RX
FLAG
SYNC
1
MANAGEMENT
DS 1
Tx
1-2
Rx
3-6
OPTICAL POWER
REMOTE MONITOR
Pluggable
interface, with
Fusion option
1766240
Tx
Rx
TELESCOPE
DIP Switch
Toggles 4,
7 and 9
positions
are
immaterial.
1
1010
ALIGNMENT
LOOP
FUSION
HEATING
SW MODE
DS 2
VOID EXPOSURE
INVISIBLE LASER RADIATION IS EMITTED FROM THIS APERTURE
INVISIBLE LASER RADIATION IS EMITTED FROM THIS APERTURE
FLAG FLAG
SYNC SYNC
Mode Select
Attenuation for
Short Di stance Link
Fusion
Window Heater
(if exist)
IP Address Setup
Control Mode
AVOID EXPOSURE
F I B E R O P T I C
REDUNDANT
TX RX
FOR FUSION
TABLE FOR DS 2
Normal
Alignment
Local Loopback
Remote Loopback
Normal
Attenuated
Disable
Enable
Off
On
Default IP
Software IP
HW MODE
SW MODE
TX RX
POWER SUPPLY
USE COPPER CONDUCTORS ONLY
TORQUE VALUE 7 Lb-Inch
L
+/~
MAIN
OFF
ON
-
1,2
1 2
1
2
-
1,2
3
-
-
3
5
-
-
5
-
6
-
6
-
8
-
8
-
10
-
10
POWER
HIGH VOLT.
G GN
-/~
LOW VOLT.
Telescope
Pluggable
Power
Supply
CAUTION
DO NOT USE
TELESCOPE
TO LIFT UNIT ! !
POWER SUPPLY
POWER
USE COPPER CONDUCTORS ONLY
TORQUE VALUE 7 Lb-Inch
HIGH VOLT.
G
L
+/~
PS1 PS2 HEATER ON
G
LOW VOLT.
N
-/~
Redundant PS
Figure 1.4: TS5000/G-F with a redundant power supply Panel Schematic
This special TS5000/G-F model can be connected to the back-up radio system
without special MRV’s Switch and card supporting Fusion. This TereScope
can be connected to any Giga-Switch with
1000Base-SX port, which should
be connected to the optical port of the TereScope labeled “Redundant”, while
the back-up radio system is connected to the 10Base-T port of the same
Switch.
For more details please see pages 15 and 16
9
MRV Communications, Inc. – Installation Manual
V
LASERS STATUS
(BACK VIEW)
L 2 ONL 1 ON
L 3 ON
TELESCOPE
AIR RX
FLAG
SYNC
1
10
MANAGEMENT
TABLE FOR DS 1
Data Rate
1766240
OPTICAL POWER
REMOTE MONITOR
DS 1 DS 2
Tx
Rx
Tx
3-6
1-2
Fast Ethe rnet 100M bps
ATM/OC3/STM1: 155Mbps
SMPTE: 143 Mbps
E3: 34.368 Mbps
T3: 44.736 Mbps
OC1/STM0 : 51 .8 40 Mb ps
Customiz ed 1
Customiz ed 2
Open Protocol
Rx
OFF
1,2,3,4
2,3,4
3,4 1,2
1,2,4
2,4
1,4
4
1,3,4
1,2,3
C. TS5000/155
(w/o Fusion and with one power supply)
The TS5000 supports most of the prevalent protocols in the 34-155 Mbps range.
Special protocol, which is not on the list, can be ordered after coordination with
the factory. This model can be used for Open Protocol applications, which
ensures complete transparency (including all data in the range of 1-155 Mbps.)
In this case maximum 2 dB of the performance is lost.
POWER SUPPLYPOWER SUPPLY
DISCONNECT POWER SUPPLY
FROM MAINS
BEFORE REMOVAL FROM UNIT
POWERPOWER
USE COPPER CONDUCTORS ONLYUSE COPPER CONDUCTORS ONLY
TORQUE VALUE 7 Lb-InchTORQUE VALUE 7 Lb-Inch
HIGH HIGH VOLT.
OLT.
L L
G G GGN N
1
10
ALIGNMENT
LOOP
FUSION
HEATING
SW MODE
+/~+/~
LOW LOW VOLT.VOLT.
-/~-/~
REDUNDANT
POWER SUPPLY
This slot can
house an additi ona l
power supply
to be fed
from backup
voltage source.
This can be
independent
of the primary
voltage so urce for
maximum redundancy.
For details:
Contact an authorized
MRV representative
or visit www.mrv.com
INVISIBLE LASER RADIATION IS EMITTED FROM THIS APERTURE
AVOID EXPOSURE
F I B E R O P T I C
TX RX
FLAG
SYNC
PS1 PS2 HEATER ON
ON
1,3
2,3
1,2,3
1
3
2
4
TABLE FOR DS 2
Mode Select
Alignment Signal
Attenuation
Laser Status
Fusion
Window Heater
(if exist)
IP Address Setup
Control Mode
Normal
Alignment
Local Loopback
Remote Loopback
Off
On
Laser Enable
Laser Disable
Disable
Enable
Off
On
Default IP
Software IP
HW MODE
SW MODE
OFF
ON
-
1,2
1 2
1
2
-
1,2
-
3
-
3
-
4
-
4
-
5
5
-
-
6
-
6
-
8
-
8
-
10
10
-
CAUTION
DO NOT USE
TELESCOPE
TO LIFT UNIT ! !
Figure 1.5: TS5000/155 Standard Model Panel Schematic
10
MRV Communications, Inc. – Installation Manual
Back Panel Description
Table 3: TS5000/155 Back Panel Controls, Interfaces, and Indicators
Connectors
Power Power source Terminal Block (Main or UPS).
AC power supply (100 to 240 Vac) or DC power
supply (35 to 60 Vdc)
Fiber optic
Remote Monitor Connection to an optional Remote Status Monitor
Management
Fiber Optic interface for connection to the
peripheral equipment. The standard interface is MM
1310nm SC connector; other interfaces are available
upon request (refer to price list or data sheet).
In model TS5000/155-F with the fusion option,
there are two fiber optic interface ports for
connection to the Fusion system; one primary and
the other redundant.
(RSM) or to RSM-DC (for Dry Contact connection)
(not included in the standard transceiver kit)
Connection to 10Base-T SNMP management
interface. Pins 1,2: TX and 3,6 RX.
Pins (4,5) and (7,8) of this connector can be used for
dry contact purposes, for Airlink flag and F/O flag
alarms respectively
Note:
Pins (4, 5) and (7, 8) of the management RJ45 connector can be used for dry contact
purposes, for Airlink flag and F/O flag alarms respectively
Alignment Telescope
For fine alignment.

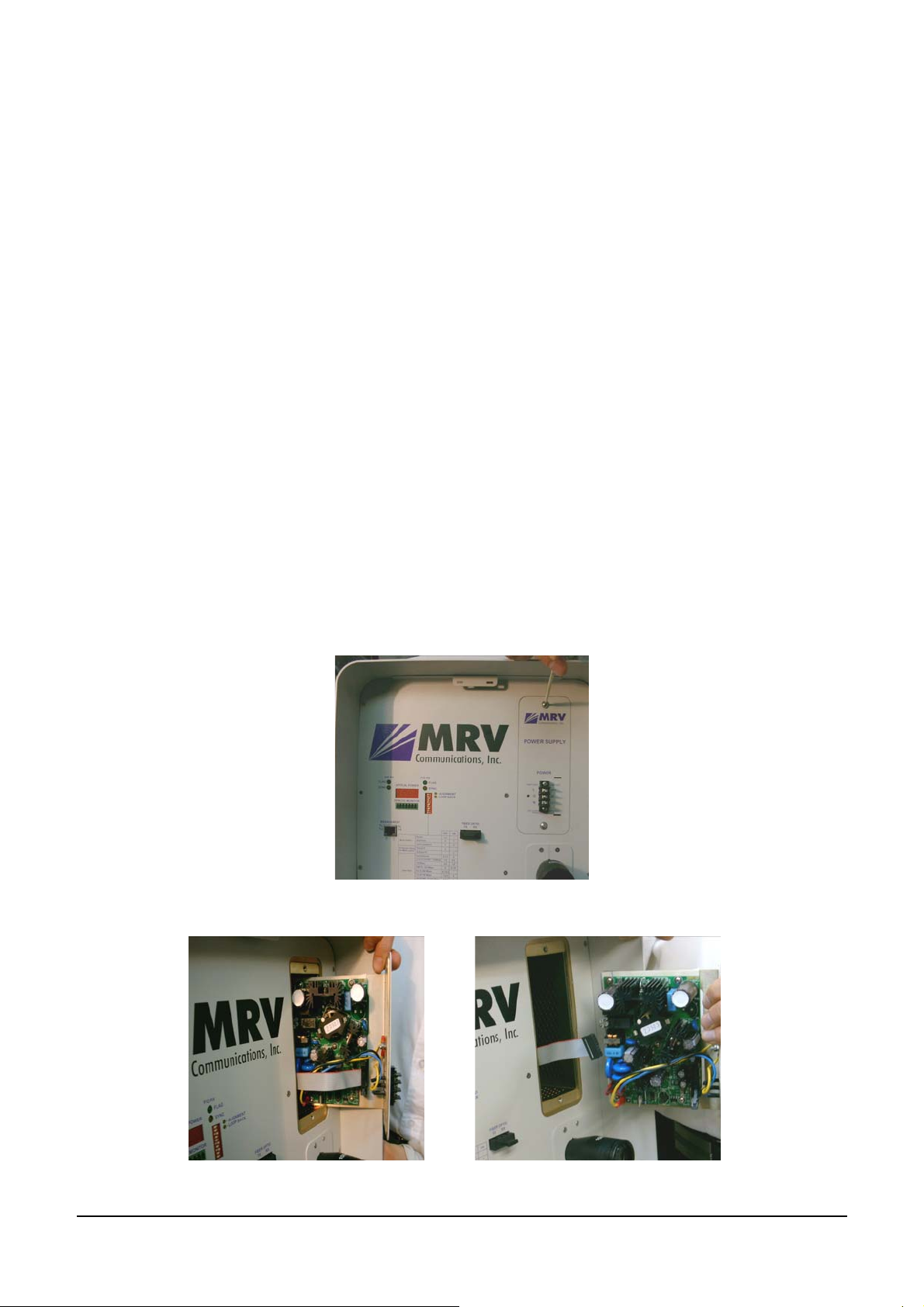

Power
Power Supply
Slot for Power Supply
Pluggable AC power supply (100 to 240 Vac) or
DC power supply (35 to 60 Vdc)
This slot can house an additional power supply to
be fed from backup voltage source. This can be
independent of primary voltage source for
maximum redundancy.
.
11
MRV Communications, Inc. – Installation Manual
Selectors
(DIP Switch
DS1 Toggles)
---shown on
Figures 1.5and
1.6
Selectors
(DIP Switch
DS2 Toggles)
-- shown in
Figures 1.5 and
1.6
Data Rate
(Toggles 1, 2, 3 and
4)
Mode Select
(Toggles 1, 2)
Alignment Signal
Attenuation
(Toggle 3)
Laser Status
(Toggle 4)
Fusion
(Toggle 5)
Window Heater
(Optional)
(Toggle 6)
IP address set up
(Toggle 8)
Control Mode
(Toggle 10)
Set the transmission rate of the transceiver (internal
clock).
- Fast Ethernet: 1,2,3,4 OFF
- ATM/OC3/STM1: 155 Mbps: 2,3,4 OFF, 1 ON
- SMPTE 143 Mbps: 3,4 OFF, 1,2 ON
- E3: 34.368 Mbps 1,2,4 OFF, 3 ON
- T3: 44.736 Mbps: 2,4 OFF, 1,3 ON
- OC1/STM0: 51.840 Mbps: 1,4 OFF, 2,3 ON
- Customized 1 : 4 OFF, 1,2,3 ON
- Customized 2 : 1,3,4 OFF, 2 ON
- Open Protocol: 1, 2, 3 OFF, 4 ON.
Set the Operating Mode
ALIGNMENT = Idle transmitted automatically
NORMAL
= Signal received via the F/O port is
transmitted through the Airlink TX. Signal received
via the Airlink RX is transmitted through the F/O
TX.
LOOPBACK
= Data received by the F/O RX is
directly returned through the F/O TX.
REMOTE LOOP
= Loops the electrical RX to the
electrical TX and optical RX to the optical TX of the
remote unit.
ATTENUATION: The alignment signal is
attenuated (~20db) when the DIP switch toggle #3
is moved to ON position.(to use when the
installation distance is less than 900m only for
alignment mode). Switch back to OFF position for
normal mode.
Turning off TXs lasers when the DIP switch toggle
#4 is moved to ON
This switch toggle enables working with MRV’s
Fusion system (Built-in fusion option or switch
option). For additional information, see page 14.
Switch toggle 5 OFF: Fusion not Active (Disabled)
Switch toggle 5 ON: Fusion active (Enabled).
Used only with the heating option (To be specified
in the PO).
Switch toggle 6 OFF: The heater is disabled
Switch toggle 5 ON: The heater is enabled.
The heating will start operating only if one of the
following conditions is present: or the temperature is
o
lower than 15
C; or the humidity level in the air is
above 80%. There is a controller with a thermostat
inside the TereScope, which controls the heating in
accordance with the above conditions.
When the Switch toggle is on OFF position, the
TereScope’s IP address is the default one (shown on
the back panel label: 10.0.0.101). To set a new IP
address, please refer to the “IP address setting
procedure for TereScope management card” file in
the Manuals CD. The new IP address is valid only
after the TereScope is powered off and on.
When the Dip Switch toggle #10 is on OFF
position, the TereScope is in the HARDWARE
mode, i.e. the TereScope is controlled only by the
TereScope itself by means of the switches on its
back panel.
When the Dip Switch toggle is on ON position, the
TereScope is in the SOFTWARE mode i.e. the
TereScope is controlled by the management
Software and various functions can be activated by
means of this management Software.
12
MRV Communications, Inc. – Installation Manual
Indicators
(7-segment
display and
LEDs)
Air RX Flag LED Green LED indicates data received by the Airlink
receiver. Turns ON at the threshold level.
Air RX Sync LED Yellow LED. Turns ON if the rate of the received
Data matches the Data Rate set on the Data Rate
F/O Main, RX Flag
LED
DIP switch.
Upper green LED indicates Data received by the
Fiber Optic receiver. Turns ON at the threshold
level.
F/O Main, RX Sync
LED
Lower green LED. Turns ON if the rate of the
received Data matches the Data Rate set on the
Data Rate DIP switch.
F/O Redundant, RX
Flag LED
(Optional)
Upper green LED indicates Data received by the
Fiber Optic receiver. Turns ON at the threshold
level.
F/O Redundant, RX
Sync LED
(Optional)
Lower green LED. Turns ON if the Fusion is
active and there is synchronization with the
received Data.
Optical Power 7segment display
Digital readout indicates the Optical Power level
received by the Airlink receiver.
Alignment LED Yellow LED. Turns ON if the Alignment
Operating Mode is selected.
Loop LED Yellow LED. Turns ON in LOOPBACK mode.
Flashing in Remote Loop mode.
Fusion LED Yellow LED. Turns ON if the Fusion mode is
enabled.
Flashing when the Fusion (radio back-up system) is
active.
Heating LED Yellow LED. Turns ON if the heating mode is
selected (Heating is enabled).
SW Mode LED Red LED. Turns ON if the SW Mode
(SOFTWARE) Operating Mode is selected.
Lasers status LEDs There are 3 LEDs – L1, L2, L3 indicating if the
lasers are switched on or off. If the LED is
switched off, the laser is switched off. If the LED is
switched ON, the laser is switched ON.
When the DIP switch toggle #3 is moved to ON
position the LED L1 and its corresponding laser
will turn off
PS1 Green LED. Turns ON when main power supply is
active
PS2 Green LED. Turns ON when redundant power
supply is active
Heater ON Green LED. Turns ON when the heating of the
front window is active.
The heating will start operating only if one of the
following conditions is present: or the temperature
is lower than 15
o
C; or the humidity level in the air is
above 80%. There is a controller with a thermostat
inside the TereScope, which controls the heating in
accordance with the above conditions. (The heating
option is not standard, and exists only if purchased)
Management TX Flashing when the RSM-SNMP is connected and
the TereScope is transmitting management Data.
(There is no Link indication)
Management RX Flashing when the RSM-SNMP is connected and
the TereScope is receiving management Data.
(There is no Link indication)
13
MRV Communications, Inc. – Installation Manual
D. TS5000/155-F (Standard Model including Fusion option)
LASERS STATUS
(BACK VIEW)
L 2 ONL 1 ON
L 3 ON
TELESCOPE
AIR RX
FLAG
SYNC
1
OPTICAL POWER
REMOTE MONITOR
10
DS 1 DS 2
MANAGEMENT
Rx
Tx
3-6
1-2
Tx
Rx
OFF
1,2,3,4
2,3,4
3,4 1,2
1,2,4
2,4
1,4
4
1,3,4
1,2,3
Data Rate
1766240
TABLE FOR DS 1
Fast Ethernet 100Mbps
ATM/OC3/STM1: 155Mbps
SMPTE: 143 Mbps
E3: 34.368 Mbps
T3: 44.736 Mbps
OC1/STM0 : 51.8 40 Mbps
Customized 1
Customized 2
Open Protocol
ON
1,3
2,3
1,2,3
POWER SUPPLY
POWER
USE COPPER CONDUCTORS ONLY
TORQUE VALUE 7 Lb-Inch
HIGH VOLT.
L
G
N
1
10
1
3
2
4
ALIGNMENT
LOOP
FUSION
HEATING
SW MODE
INVISIBLE LASER RADIATION IS EMITTED FROM THIS APERTURE
FLAG FLAG
SYNC SYNC
Mode Select
Alignment Signal
Attenuation
Laser Status
Fusion
Window Heater
(if exist)
IP Address Setup
Control Mode
AVOID EXP OSU RE
F I B E R O P T I C
REDUNDANT
TX RX
FOR FUSION
TABLE FOR DS 2
Normal
Alignment
Local Loopback
Remote Loopback
Off
On
Laser Enable
Laser Disable
Disable
Enable
Off
On
Default IP
Software IP
HW MODE
SW MODE
MAIN
TX RX
OFF
1,2
1
3
-
4
5
-
6
-
8
-
10
-
ON
-
1 2
2
1,2
3
4
5
-
6
8
-
10
+/~
G
LOW VOLT.
-/~
CAUTION
DO NOT USE
TELESCOPE
TO LIFT UNIT ! !
POWER SUPP LY
POWER
USE COPPER CONDUCTORS ONLY
TORQUE VALUE 7 Lb-Inch
HIGH VOLT.
G
L
+/~
PS1 PS2 HEATER ON
G
LOW VOLT.
N
-/~
Figure 1.6: TS5000/155-F with a redundant power supply Panel Schematic
This special TS5000/155-F model can be connected to the back-up radio
system without special MRV’s Switch and card supporting Fusion. This
TereScope can be connected to any Switch (supporting 10/100) via standard
converter, which should be connected to the optical port of the TereScope
labeled “Redundant”, while the back-up radio system is connected to the same
Switch.
The TereScope can be also directly connected to MC (Media Converter) of the
type 10/100 TX-100 FX (for example MRV’s media converter MC102F).
When the TereScope stops operating, the connectivity from the main optical
module to the air channel stops and starts flowing into the second optical
module designated for radio.
14
MRV Communications, Inc. – Installation Manual
That’s what
happens when
the air channel
stops
Main
F/O
Network
RF Transceiver
F/O
Redundant
10/100TX-100FX
Media Converter
IR = 100 Mbps or 1.25Gbps
RF = 2-10 Mbps
Or 100Mbps
TS
Redundant
Main
F/O
F/O
RF Transceiver
10/100 BaseT
STP
Switch
10/100 BT
MC
Network
10/100 BaseT
STP
Figure 1.7a: TS5000/155-F or TS5000/G-F & Fusion Connections
For Description of the Back Panel and all the functions see Paragraph B for TS5000/G-F and
paragraph D for TS5000/155-F, Figure 1.4 or 1.6 – TS5000 with Fusion model, page 9 or 14.
Fusion Operation Mode
When at least one of the air channels (IR) is cut for more than one second or drops to
approx. 40mV
1. TereScope switches to Fusion mode,
2. Data is transmitted from Main module to Redundant module without passing
through the air channel,
3. The signal is converted to 10/100BaseT by the Switch and the data Rate
decreases to ~ 2-50 Mbps (depending on RF system).
The system switches back to IR channel (TereScope) only when the display readout on
both sides increases to approx. 110mV2 for TS5000/155 and 60mV for TS5000/G.
Note: To activate the Fusion option, DIP Switch DS2 toggle 5 to the ON position.
1
at the display readout:
_____________________________________________________
1
100mV for TS5000/155 Rev 3.0 and less
2
200mV for TS5000/155 Rev 3.0 and less
15
MRV Communications, Inc. – Installation Manual
Fusion
Maximizing Link Availability in All Weather Conditions.
The TereScope Fusion was designed to combine the best features of two
transport mediums, laser light and radio waves, to form a single, seamless,
wireless communication link between network devices. By leveraging both
technologies, we can provide the 99.999% availability that your network
requires.
Protocol: 10Base-T (IEEE 802.1 1 b)
Frequency: 2.4 - 2.4835 GHz
ISM band (ETSI, FCC
2.4 – 2.497 GHz (Japan)
Output Power: -4 to 24 dBm
Sensitivity: -85 dBm
Operating Power: 110/220 VAC, 500/250
mA
Interface: Shielded RJ45
Specifications are subject to change at any time without
notice.
The TereScope Fusion has been specifically constructed to maximize link
availability between network nodes. These systems use the internationally
unlicensed, 2.4 GHz ISM band and are used as a backup for a number of
TereScope systems.
TereScope Fusion systems have an optical wireless link that provides Fast
Ethernet connectivity as the primary link and Ethernet RF as the backup link.
These systems operate in most weather conditions, including heavy rain, snow
and fog, to nearly 100% link availability. Ease of installation and freedom
from licensing make these systems very simple to deploy.
Figure 1.7b: TS & Fusion
16
Loading...
