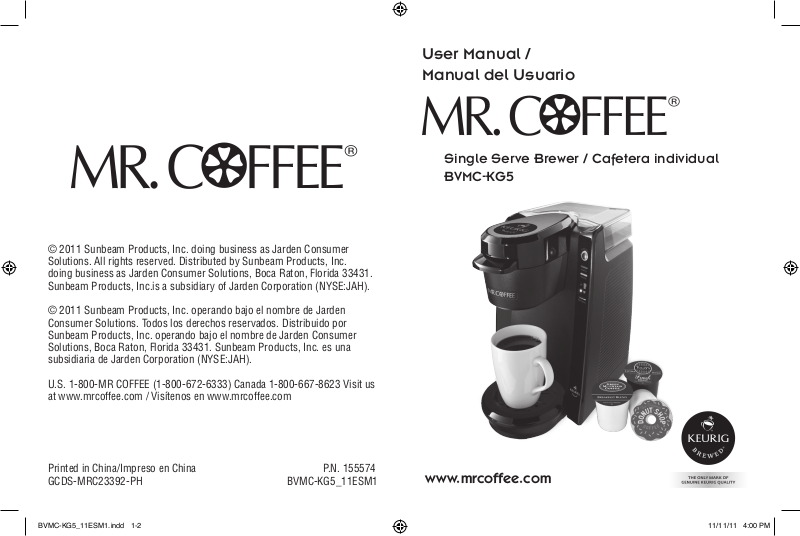

Mr. Coffee BVMC-KG5 User Manual

© 2011 Sunbeam Products, Inc. doing business as Jarden Consumer
Solutions. All rights reserved. Distributed by Sunbeam Products, Inc.
doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.
Sunbeam Products, Inc.is a subsidiary of Jarden Corporation (NYSE:JAH).

© 2011 Sunbeam Products, Inc. operando bajo el nombre de Jarden
Consumer Solutions. Todos los derechos reservados. Distribuido por
Sunbeam Products, Inc. operando bajo el nombre de Jarden Consumer
Solutions, Boca Raton, Florida 33431. Sunbeam Products, Inc. es una
subsidiaria de Jarden Corporation (NYSE:JAH).

U.S. 1-800-MR COFFEE (1-800-672-6333) Canada 1-800-667-8623 Visit us
at www.mrcoffee.com / Visítenos en www.mrcoffee.com

User Manual /
Manual del Usuario

Single Serve Brewer / Cafetera individual
BVMC-KG5

Printed in China/Impreso en China P.N. 155574
GCDS-MRC23392-PH BVMC-KG5_11ESM1

BVMC-KG5_11ESM1.indd 1-2 11/11/11 4:00 PM

www.mrcoffee.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions
should be followed, including the following:

1. Read all instructions before using.

2. Do not touch hot surfaces. Use handles and knobs when
available. Scalding may occur if the coffee brewer is
moved or opened or K-Cup® Portion Pack is disturbed
during brewing cycles.

3. This appliance must be properly installed and located in
accordance with these instructions before it is used.

4. The use of accessory attachments not recommended by
the appliance manufacturer may result in fire, electrical
shock or injury to persons.

5. Do not place on or near a hot gas or electric burner, or in
a heated oven.

6. Do not use outdoors.

7. To protect against fire, electric shock and injury, do not
immerse cords, plugs or the appliance in water or any
other liquid.

8. Use only water in this appliance! Do not put any other
liquids or foods in the Water Reservoir.

9. To disconnect, unplug power cord when not in use and
before cleaning.

10. Do not operate any appliance with a damaged cord or
plug or after the appliance malfunctions or is damaged in
any manner. Contact your Mr. Coffee® Customer Service
to arrange for replacement or repair.

11. Do not let the cord hang over the edge of the table or
counter, or touch hot surfaces.

12. Close supervision is necessary when any appliance is used
by or near children.

13. Do not open the brewer while brewing is in progress.

14. Do not use appliance for other than intended use.

CAUTION: There are two sharp needles that puncture the
K-Cup® portion pack, one above the K-Cup® portion pack
Holder and the other in the bottom of the K-Cup® portion
pack Holder. To avoid risk of injury, do not put your fingers in
the K-Cup® portion pack Assembly Housing.
CAUTION: There is extremely hot water in the K-Cup® portion
pack Holder during the brew process. To avoid risk of injury,
do not lift the Handle or open the K-Cup® portion pack
Assembly Housing during the brewing process.

WARNING: To reduce the risk of fire or electric
shock, do not remove any service covers. There are
no user serviceable parts inside the coffeemaker.
Only authorized personnel should repair the
coffeemaker.

Please read ALL of the instructions in this manual carefully
before you begin to use this appliance. Proper care and
maintenance will ensure a long life and a trouble-free
operation for this appliance. Please save these instructions
and refer to them for cleaning and care tips.

SAVE THESE INSTRUCTIONS

2 3

BVMC-KG5_11ESM1.indd 3-4 11/11/11 4:00 PM

SPECIAL CORD SET INSTRUCTIONS

1. A short power supply cord is provided to reduce
the hazards resulting from a person or pet becoming
entangled in, or tripping over, a longer cord.

2. An extension cord may be purchased and used if care is
exercised in its use.

3. If an extension cord is used, the marked electrical rating
of the extension cord must be at least 10 amps and 120
volts. The resulting extended cord must be arranged
so that it will not drape over a countertop or tabletop
where it can be pulled on by children or tripped over
accidentally.

4. This appliance has a polarized plug (one blade is wider
than the other). To reduce the risk of electric shock,
this plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician. Do not
modify the plug in any way.

THIS PRODUCT IS FOR

HOUSEHOLD USE ONLY

Table of Contents

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Special Cord Set Instructions. . . . . . . . . . . . . . . . . . . . . . . . . 4

Parts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Set-Up & How to Brew . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Cleaning and Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Service and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Welcome and congratulations on the purchase of your new
Mr. Coffee® Single Serve Brewer. Your new brewer will wake
up with you in the morning and provide you breaks and
treats during your hectic daily activities.
How you enjoy your Mr. Coffee® Single Serve Brewer is up to
you!

4 5

BVMC-KG5_11ESM1.indd 5-6 11/11/11 4:00 PM

PARTS DIAGRAM

14

13

SET-UP & HOW TO BREW

1. Place Brewer upright on

1

a flat surface, remove all
product packaging and plug
into outlet.

2

12

11

10

9

1 Reservoir Lid
2 Reservoir
3 Brew Now / Off
4 Heating Indicator (Red)
5 Brewing Indicator (Green)
6 Serving Size Indicators
7 Serving Size Button
8 Drip Tray

3

4

2. Remove reservoir and

5

reservoir lid, then fill with
water to the MAX FILL line.

6

7

3. Replace reservoir lid and place

reservoir on top of Brewer.

8

9 Drip Tray Base (Not

shown)
10 Drip Tray Plate
11 K-cup® Portion Pack

Assembly Housing
12 K-cup® Portion Pack
13 Brew Head Handle
14 Brew Head

4. DO NOT remove or
puncture the foil lid
of the K-Cup® portion
pack.

Lift the handle of the

brewer to insert a
K-Cup® portion pack.

6 7

BVMC-KG5_11ESM1.indd 7-8 11/11/11 4:00 PM

5. Place chosen K-Cup® Portion
Pack into the K-Cup® Portion
Pack assembly housing.

CAUTION: Avoid the
sharp needle inside the
brew head.

8. Place a coffee cup in the
dispense area on the drip
tray. Press the BREW NOW
button.

NOTE: Drip Tray and Drip
Tray Plate can be removed to
accomodate larger mugs.

6. Close by pressing down on top of
the brew head.

NOTE: Closing the brew head will
puncture the K-Cup® Portion Pack.

temperature, the Heating
indicator light will go off and
the Brewing indicator light will
turn on.

NOTE: Pump will remain on for
up to 90 seconds after brew is
completed to dry the K-Cup®
Portion Pack.

9. When the water reaches

7. Select Brew Size by pressing the

10. Enjoy!

serving size button.

8 9

BVMC-KG5_11ESM1.indd 9-10 11/11/11 4:00 PM

Helpful Hints

• Initial Cleansing Brew – Before you use your Brewer for

the first time, perform an initial cleansing brew by running
clean water through the brew cycle without using a K-Cup®
portion pack.

• One Cup at a Time – Your new Brewer makes one fresh

beverage at a time.

• Water Reservoir for Convenience - Your new Brewer holds

up to 24oz. or water. This will make 4 small cups of coffee
(6 oz. each) or 2 large cups of coffee (10 oz. each).

• The Right Water Makes a Difference – For the best tasting

gourmet coffee, tea or hot cocoa, we recommend using
bottled or filtered water. We do not recommend using
distilled or reverse osmosis water. Water quality varies from
place to place. If you notice an undesirable taste in your
cup of coffee such as chlorine or other mineral taste, we
recommend you consider using bottled water or water
from a filtration system.

• Customize Your Flavor & Brew – With the choice of over

200 varieties of K-Cup® portion pack, your Brewer gives you
endless options to customize the flavor and strength that’s
perfect for you. For a strong, intense cup, select an Extra
Bold K-Cup® portion pack (with up to 30% more ground
coffee than regular varieties). Fill the reservoir with filtered
or bottled water up to the FILL LEVEL indicator and brew
normally.

• Brewing Into a Tall Mug – To brew into a tall mug, simply

remove the Drip Tray Assembly and place the tall mug on
the Drip Tray Base.

• The Drip Tray – Any liquid overflow (from your cup or the

Cold Water Reservoir) will be caught in the Drip Tray. Be sure
to empty the Drip Tray. The Drip Tray has a snug fit to ensure
it stays put in transit.

• Clean Your Brewer Regularly – To keep your Brewer looking

and performing its best, be sure to clean the external and

internal components on a regular basis. See page 11 for
more information.

• De-Scaling – Mineral content in water varies from place

to place. Depending on the mineral content of the water
in your area, calcium deposits or scale may build up in
your Brewer. Scale is non-toxic, but left unattended, it can
hinder Brewer performance. De-scaling your Brewer helps
maintain the heating element and other internal parts of the
Brewer that come in contact with water. See page 13 for
more information.

• Storing – When storing your Brewer, carefully empty the Drip

tray and water reservoir. Store your Brewer upright in a safe,
dry, frost-free environment.

CLEANING AND MAINTAINING
YOUR SINGLE SERVE BREWER

Cleaning External Parts

IMPORTANT: Make sure the Brewer is unplugged before

cleaning Regular cleaning of the Brewer’s external
components is recommended. Allow to Cool.

1. Never immerse the Brewer in water or other liquids. The
Housing and other external components may be cleaned
with a soapy, damp, non-abrasive cloth.

2. The Drip Tray can accumulate liquids. The Drip Tray and
Drip Tray Plate should be periodically inspected and
cleaned with a damp soapy nonabrasive lint free cloth. The
Drip Tray and Drip Tray Plate should not be put into the
dishwasher. To remove the Drip Tray Assembly, simply slide
it toward you, keeping it level at all times to avoid spilling.

Cleaning the K-Cup® Portion Pack Holder Assembly

1. Cleaning the Parts – The K-Cup® portion pack Holder
Assembly can be placed onto the top shelf of a
dishwasher. NOTE: Use low temperature cycles in the
dishwasher. To remove from the Brewer, lift the front face
of the Brewer. Grasp the top of the K-Cup® portion pack

10 11
