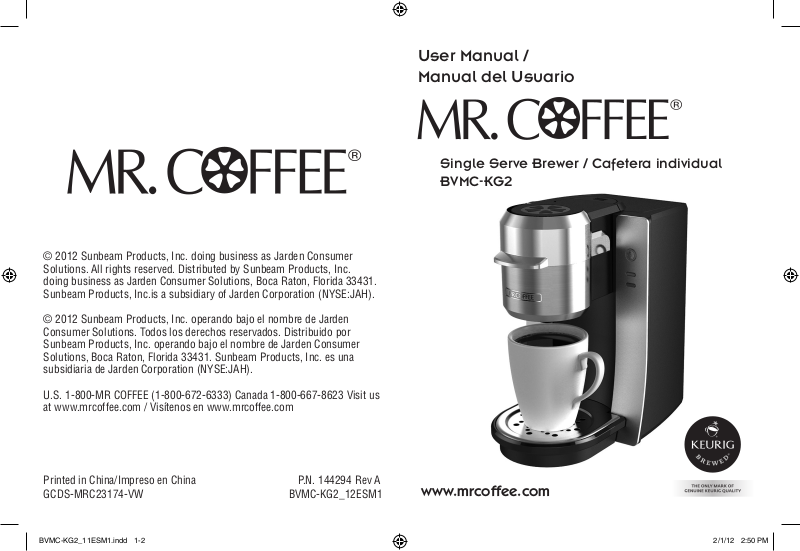

Mr. Coffee BVMC-KG2-001 User Manual

© 2012 Sunbeam Products, Inc. doing business as Jarden Consumer
Solutions. All rights reserved. Distributed by Sunbeam Products, Inc.
doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.
Sunbeam Products, Inc.is a subsidiary of Jarden Corporation (NYSE:JAH).

© 2012 Sunbeam Products, Inc. operando bajo el nombre de Jarden
Consumer Solutions. Todos los derechos reservados. Distribuido por
Sunbeam Products, Inc. operando bajo el nombre de Jarden Consumer
Solutions, Boca Raton, Florida 33431. Sunbeam Products, Inc. es una
subsidiaria de Jarden Corporation (NYSE:JAH).

U.S. 1-800-MR COFFEE (1-800-672-6333) Canada 1-800-667-8623 Visit us
at www.mrcoffee.com / Visítenos en www.mrcoffee.com

User Manual /
Manual del Usuario

Single Serve Brewer / Cafetera individual
BVMC-KG2

Printed in China/Impreso en China P.N. 144294 Rev A
GCDS-MRC23174-VW BVMC-KG2_12ESM1

BVMC-KG2_11ESM1.indd 1-2 2/1/12 2:50 PM

www.mrcoffee.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions
should be followed, including the following:

1. Read all instructions before using.

2. Do not touch hot surfaces. Use handles and knobs
when available. Scalding may occur if the decanter lid is
removed during brewing cycles.

3. This appliance must be properly installed and located in
accordance with these instructions before it is used.

4. The use of accessory attachments not recommended by
the appliance manufacturer may result in fire, electrical
shock or injury to persons.

5. Do not place on or near a hot gas or electric burner, or in
a heated oven.

6. Do not use outdoors.

7. To protect against fire, electric shock and injury, do not
immerse cords, plugs or the appliance in water or any
other liquid.

8. Use only water in this appliance! Do not put any other
liquids or foods in the Water Reservoir.

9. Turn off and unplug the coffee brewer when not in use
and before cleaning. Allow to cool before attaching or
removing parts and before cleaning the appliance.

10. Do not operate any appliance with a damaged cord or
plug or after the appliance malfunctions or is damaged in
any manner. Contact your Mr. Coffee
to arrange for replacement or repair.

11. Do not let the cord hang over the edge of the table or
counter, or touch hot surfaces.

12. Close supervision is necessary when any appliance is used
by or near children.

13. Do not open the brewer while brewing is in progress.

14. Do not use appliance for other than intended use.

TM

Customer Service

CAUTION: There are two sharp needles that puncture the

®

K-Cup
other in the bottom of the K-Cup® Pack Holder. To avoid risk
of injury, do not put your fingers in the K-Cup® Pack
Assembly Housing.
CAUTION: There is extremely hot water in the K-Cup® Pack
Holder during the brew process. To avoid risk of injury,
do not lift the Handle or open the K-Cup® Pack Assembly
Housing during the brewing process.
WARNING: To reduce the risk of fire or electric shock, do

Please read ALL of the instructions in this manual carefully
before you begin to use this appliance. Proper care and
maintenance will ensure a long life and a trouble-free
operation for this appliance. Please save these instructions
and refer to them for cleaning and care tips.

pack, one above the K-Cup® Pack Holder and the

not remove any service covers. There are no
user serviceable parts inside the coffeemaker.
Only authorized personnel should repair the
coffeemaker.

SAVE THESE INSTRUCTIONS

2 3

BVMC-KG2_11ESM1.indd 3-4 2/1/12 2:50 PM

SPECIAL CORD SET INSTRUCTIONS

1. A short power supply cord is provided to reduce
the hazards resulting from a person or pet becoming
entangled in, or tripping over, a longer cord.

2. An extension cord may be purchased and used if care is
exercised in its use.

3. If an extension cord is used, the marked electrical rating
of the extension cord must be at least 10 amps and 120
volts. The resulting extended cord must be arranged
so that it will not drape over a countertop or tabletop
where it can be pulled on by children or tripped over
accidentally.

4. This appliance has a polarized plug (one blade is wider
than the other). To reduce the risk of electric shock,
this plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician. Do not
modify the plug in any way.

Table of Contents

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Special Cord Set Instructions. . . . . . . . . . . . . . . . . . . . . . . . . 4

Parts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Set-Up & How to Brew . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Helpful Hints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setting The Clock and Delay Brew Time. . . . . . . . . . . . . . . . .10

Cleaning and Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Service and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

THIS PRODUCT IS FOR

HOUSEHOLD USE ONLY

4 5

BVMC-KG2_11ESM1.indd 5-6 2/1/12 2:50 PM

Welcome and congratulations on the purchase of your new
Mr. Coffee
up with you in the morning and provide you breaks and
treats during your hectic daily activities.
How you enjoy your Mr. Coffee
up to you!

®

Single Serve Brewer. Your new brewer will wake

®

Single Serve Brewer is

PARTS DIAGRAM

7

1

SET-UP & HOW TO BREW

1. Place Brewer upright on a flat
surface, remove protective sheet
and plug into outlet.

6

5

4

1 Brew Now / Off
2 Heating Indicator (Red)
3 Brewing Indicator (Green)
4 Drip Tray Plate

2

2. DO NOT remove or puncture
the foil lid of the K-Cup

3

3. Lift front handle of the brewer to
insert a K-Cup

®

Pack.

4. Place chosen K-Cup

®

Pack.

®

Pack into the

K-Cup® Pack Assembly Housing.

CAUTION: There are two
sharp needles that puncture
the K-Cup® Pack, one above

5 Drip Tray
6 Lift Handle & Insert

K-Cup® Pack

7 Hot Water Tank

the K-Cup® Pack Holder and
the other in the bottom of
the K-Cup® Pack Holder.
To avoid risk of injury, do
not put your fingers in
the K-Cup® Pack Housing
Assembly.

6 7

BVMC-KG2_11ESM1.indd 7-8 2/1/12 2:50 PM

5. Lower the handle completely and
firmly to close the Lid and puncture
the K-Cup® Pack.

6. Depress the water marking button
and the hot water tank will open
automatically.

7. Fill the Hot Water tank with filtered
or bottled water up to the desired
fill level without exceeding the
max fill line.

Note: Any spills outside the fill area
will flow to the drip tray.

8. Close the Hot Water Tank cover.

9. Place a coffee cup in the
dispense area on the drip tray.
Press the BREW NOW button.

NOTE: Drip Tray can be removed
to accommodate larger mugs.

10. When the water reaches

temperature, the HEATING light
will go off and the brewing light
will turn on.

NOTE: Pump will remain on for up
to 90 seconds to complete brewing
and drying the K-Cup

®

Pack.

11. Enjoy!

8 9

BVMC-KG2_11ESM1.indd 9-10 2/1/12 2:50 PM

HELPFUL HINTS

• Initial Cleansing Brew – Before you use your Brewer for the

first time, perform an initial cleansing brew by running clean
water through the brew cycle without using a K-Cup® pack.

• One Cup at a Time – Your new Brewer makes one fresh

beverage at a time. You’ll need to add fresh water each
time you brew.

• The Right Water Makes a Difference – For the best tasting

gourmet coffee, tea or hot cocoa, we recommend using
bottled or filtered water. We do not recommend using
distilled or reverse osmosis water. Water quality varies from
place to place. If you notice an undesirable taste in your
cup of coffee such as chlorine or other mineral taste, we
recommend you consider using bottled water or water
from a filtration system.

• Customize Your Flavor & Brew – With the choice of over

200 varieties of K-Cup
endless options to customize the flavor and strength that’s
perfect for you. For a strong, intense cup, select an Extra
Bold K-Cup® Pack (with up to 30% more ground coffee
than regular varieties). Fill the Hot Water Tank with filtered
or bottled water up to the FILL LEVEL indicator and brew
normally.

• Brewing Into a Tall Mug – To brew into a tall mug, simply

remove the Drip Tray Assembly and place the tall mug on
the Drip Tray Base.

• The Drip Tray – Any liquid overflow (from your cup or the

Cold Water Reservoir) will be caught in the Drip Tray. Be sure
to empty the Drip Tray. The Drip Tray has a snug fit to ensure
it stays put in transit.

• Clean Your Brewer Regularly – To keep your Brewer looking

and performing its best, be sure to clean the external and
internal components on a regular basis. See page 11 for
more information.

• De-Scaling – Mineral content in water varies from place

®

Packs, your Brewer gives you

to place. Depending on the mineral content of the water
in your area, calcium deposits or scale may build up in
your Brewer. Scale is non-toxic, but left unattended, it can
hinder Brewer performance. De-scaling your Brewer helps
maintain the heating element and other internal parts of the
Brewer that come in contact with water. See page 13 for
more information.

• Storing – When storing your Brewer, carefully empty the

Drip Tray and make sure the Internal Hot Water Tank is
empty. Store your Brewer upright in a safe, dry, frost-free
environment.

CLEANING AND MAINTAINING
YOUR SINGLE SERVE BREWER

Cleaning External Parts

IMPORTANT: Make sure the Brewer is unplugged before

cleaning Regular cleaning of the Brewer’s external
components is recommended.

1. Never immerse the Brewer in water or other liquids. The
Housing and other external components may be cleaned
with a soapy, damp, non-abrasive cloth.

2. The Drip Tray can accumulate liquids. The Drip Tray and
Drip Tray Plate should be periodically inspected and
cleaned with a damp soapy nonabrasive lint free cloth. The
Drip Tray and Drip Tray Plate should not be put into the
dishwasher. To remove the Drip Tray Assembly, simply slide
it toward you, keeping it level at all times to avoid spilling.

Cleaning the K-Cup® Pack Holder Assembly

1. Cleaning the Parts – The K-Cup® Pack Holder Assembly
can be placed onto the top shelf of a dishwasher. NOTE:
Use low temperature cycles in the dishwasher. To remove
from the Brewer, lift the front face of the Brewer. Grasp
the top of the K-Cup® Pack Holder with one hand while
pushing up on the bottom of the K-Cup® Pack Holder from
underneath with the other until it releases. After cleaning,

10 11
