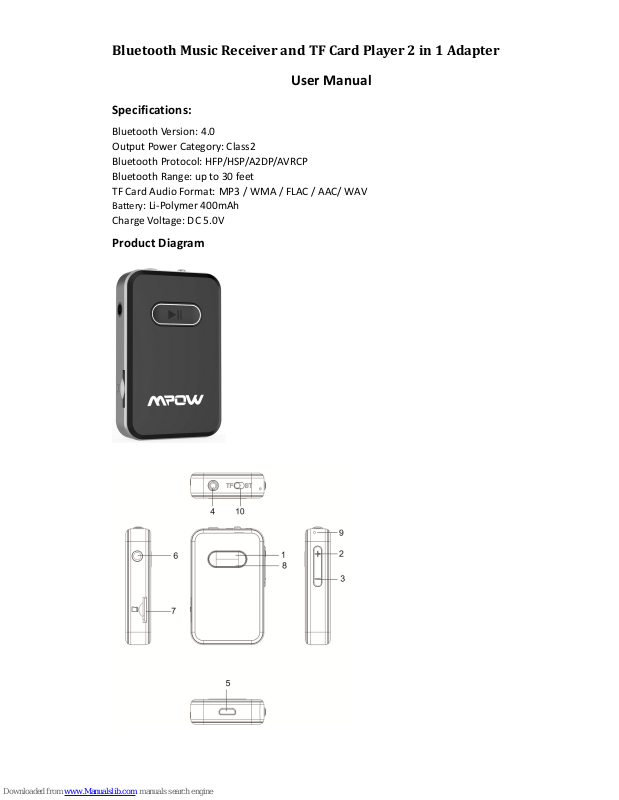

Bluetooth Music Receiver and TF Card Player 2 in 1 Adapter
User Manual
Specifications:
Bluetooth Version: 4.0
Output Power Category: Class2
Bluetooth Protocol: HFP/HSP/A2DP/AVRCP
Bluetooth Range: up to 30 feet
TF Card Audio Format: MP3 / WMA / FLAC / AAC/ WAV
Battery: Li-Polymer 400mAh
Charge Voltage: DC 5.0V
Product Diagram
1. Multifunction Button：Power ON/OFF; Pause/Play; Answer/Hang Up
2. Next Song/Volume Up
3. Previous Song /Volume Down
4. Switch Button
5. USB Charge
6. Audio Output
7. TF Card Socket
8. Indicator Light
9. Microphone
10. TF Card / Bluetooth Switch
Power On
Long press the button “ ” about 2s, it will power on automatically, blue light
will stay on for 1 second then the Indicator light flashing .
Power Off
Long press the button “ ” about 2s, red light will stay on for 1 second then
power off automatically.
TF & BT
TF: TF Card Player mode.
BT: Bluetooth Music mode.
Bluetooh Mode
Instruction
1. Connect the device to audio port of your headphone/Home Speakers or Car Stereo
System with 3.5mm audio cable.
2. Pair the receiver to your smart device.
3. Now you can enjoy your music through your Headphone, Speakers, Home Stereo
System/ Car Stereo System, or answer calls with hands free.
Pair to your smart device:
1. When power on,Turn the switch to the ‘BT’ side.
2. short press the button “ ”, the red and blue light flash alternately,it will enter
into pairing state.
3. Turn on the Bluetooth function of your smart device.
4. Search for the Bluetooth device "BH182"and connect.
5. Enter the code "0000" if needed.
6. If it pairs successfully, the blue indicator will stay on.
