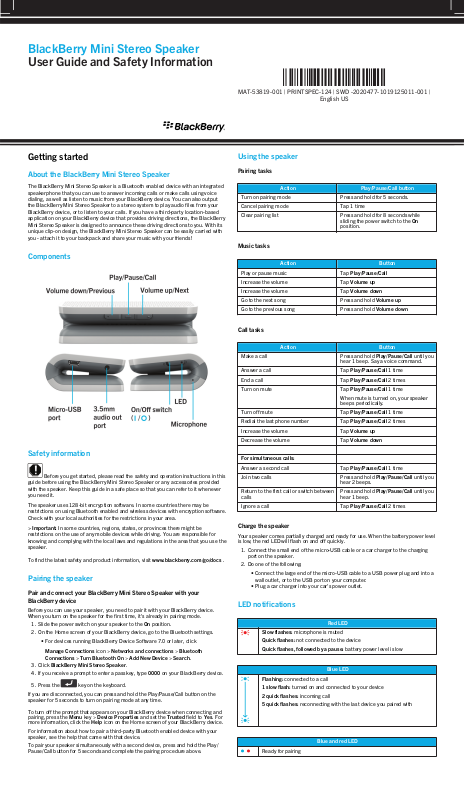

BlackBerry Mini Stereo Speaker
User Guide and Safety Information
Getting started
About the BlackBerry Mini Stereo Speaker
The BlackBerry Mini Stereo Speaker is a Bluetooth enabled device with an integrated
speakerphone that you can use to answer incoming calls or make calls using voice
dialing, as well as listen to music from your BlackBerry device. You can also output
the BlackBerry Mini Stereo Speaker to a stereo system to play audio files from your
BlackBerry device, or to listen to your calls. If you have a third-party location-based
application on your BlackBerry device that provides driving directions, the BlackBerry
Mini Stereo Speaker is designed to announce these driving directions to you. With its
unique clip-on design, the BlackBerry Mini Stereo Speaker can be easily carried with
you - attach it to your backpack and share your music with your friends!
Components
MAT-53819-001 | PRINTSPEC-124 | SWD -2020477-1019125011-001 |
Using the speaker
Pairing tasks
Action Play/Pause/Call button
Turn on pairing mode Press and hold for 5 seconds.
Cancel pairing mode Tap 1 time
Clear pairing list Press and hold for 8 seconds while
Music tasks
Action Button
Play or pause music Tap Play/Pause/Call
Increase the volume Tap Volume up
Increase the volume Tap Volume down
Go to the next song Press and hold Volume up
Go to the previous song Press and hold Volume down
English US
sliding the power switch to the On
position.
%"$!)'!#'%+!"%*)!-%*"&!*)"&"*%*!&"%*")&")&"*%%&&-%%')!1
Safety information
Before you get started, please read the safety and operation instructions in this
guide before using the BlackBerry Mini Stereo Speaker or any accessories provided
with the speaker. Keep this guide in a safe place so that you can refer to it whenever
you need it.
The speaker uses 128-bit encryption software. In some countries there may be
restrictions on using Bluetooth enabled and wireless devices with encryption software.
Check with your local authorities for the restrictions in your area.
> Important: In some countries, regions, states, or provinces there might be
restrictions on the use of any mobile devices while driving. You are responsible for
knowing and complying with the local laws and regulations in the area that you use the
speaker.
To find the latest safety and product information, visit www.blackberry.com/go/docs .
Pairing the speaker
Pair and connect your BlackBerry Mini Stereo Speaker with your
BlackBerry device
Before you can use your speaker, you need to pair it with your BlackBerry device.
When you turn on the speaker for the first time, it's already in pairing mode.
1. Slide the power switch on your speaker to the On position.
2. On the Home screen of your BlackBerry device, go to the Bluetooth settings.
• For devices running BlackBerry Device Software 7.0 or later, click
Manage Connections icon > Networks and connections > Bluetooth
Connections > Turn Bluetooth On > Add New Device > Search.
3. Click BlackBerry Mini Stereo Speaker.
4. If you receive a prompt to enter a passkey, type 0000 on your BlackBerry device.
5. Press the
If you are disconnected, you can press and hold the Play/Pause/Call button on the
speaker for 5 seconds to turn on pairing mode at any time.
To turn off the prompt that appears on your BlackBerry device when connecting and
pairing, press the Menu key > Device Properties and set the Trusted field to Yes. For
more information, click the Help icon on the Home screen of your BlackBerry device.
For information about how to pair a third-party Bluetooth enabled device with your
speaker, see the help that came with that device.
To pair your speaker simultaneously with a second device, press and hold the Play/
Pause/Call button for 5 seconds and complete the pairing procedure above.
key on the keyboard.
Call tasks
Action
Make a call Press and hold Play/Pause/Call until you
Answer a call Tap Play/Pause/Call 1 time
End a call Tap Play/Pause/Call 2 times
Turn on mute Tap Play/Pause/Call 1 time
Turn off mute Tap Play/Pause/Call 1 time
Redial the last phone number Tap Play/Pause/Call 2 times
Increase the volume Tap Volume up
Decrease the volume Tap Volume down
For simultaneous calls:
Answer a second call Tap Play/Pause/Call 1 time
Join two calls Press and hold Play/Pause/Call until you
Return to the first call or switch between
calls
Ignore a call Tap Play/Pause/Call 2 times
hear 1 beep. Say a voice command.
When mute is turned on, your speaker
beeps periodically.
hear 2 beeps.
Press and hold Play/Pause/Call until you
hear 1 beep.
Button
Charge the speaker
Your speaker comes partially charged and ready for use. When the battery power level
is low, the red LED will flash on and off quickly.
1. Connect the small end of the micro-USB cable or a car charger to the charging
port on the speaker.
2. Do one of the following:
• Connect the large end of the micro-USB cable to a USB power plug and into a
wall outlet, or to the USB port on your computer.
• Plug a car charger into your car's power outlet.
LED notifications
Red LED
Slow flashes: microphone is muted
Quick flashes: not connected to the device
Quick flashes, followed by a pause: battery power level is low
Blue LED
Flashing: connected to a call
1 slow flash: turned on and connected to your device
2 quick flashes: incoming call
5 quick flashes: reconnecting with the last device you paired with
Blue and red LED
Ready for pairing
Green LED
Flashing: turning on or charging
Solid: fully charged
Troubleshooting
I can't connect the speaker with my device
You might have accidentally deleted the pairing options that you set for your
BlackBerry Mini Stereo Speaker. Complete the steps for connecting and pairing your
speaker with your BlackBerry device.
I can't hear anything when I use my speaker
Try the following actions:
• Turn up the volume on your BlackBerry Mini Stereo Speaker.
• Turn up the volume on your BlackBerry device.
• Make sure that your speaker is turned on and is connected to your device.
Battery safety and disposal
The BlackBerry Mini Stereo Speaker contains a non-removable lithium-polymer
battery. Charge the battery with only the approved BlackBerry charging accessories.
Do not attempt to remove the battery. Do not dispose of the speaker in a fire, as the
battery might explode. Dispose of the speaker in accordance with the laws and
regulations in your area governing disposal of lithium-polymer cell types.
The lithium-polymer battery might present a fire or chemical burn hazard or might
explode if mistreated. Do not disassemble, crush, or puncture the lithium-polymer
battery. Do not heat the lithium-polymer battery above 140°F (60°C).
Device disposal
The BlackBerry Mini Stereo Speaker should not
be placed in household waste bins. Please
check local regulations for information about
the disposal of electronic products in your area.
I hear static noise when I use my speaker
The BlackBerry Mini Stereo Speaker is designed to be used within 10 meters (33 feet)
of your device, without any large objects in between.
Try the following actions:
• Move away from any large objects that might cause interference.
• Keep your speaker on the same side of your body as your device.
Safety and product information
Important safety information
Tip
Before you use your BlackBerry Mini Stereo Speaker, it is important
Use only Research In Motion approved chargers. Use of chargers that
Do not rely on your speaker for emergency communications.
Do not disassemble your speaker. Your speaker contains small parts
Keep your speaker away from medical devices, including pacemakers
Do not put your speaker in contact with liquids as this might cause a
that you read the compliance information and the guidelines for the
safe use of your speaker that are found in this guide.
have not been approved by RIM might present a risk of fire or
explosion, which could cause serious harm, death, or property loss.
that might be a choking hazard.
and hearing aids, as they might malfunction causing serious harm or
death to you or others.
short circuit, a fire, or an electric shock.
Description
Safe use guidelines
• Do not place heavy objects on the BlackBerry Mini Stereo Speaker.
• Do not attempt to modify or service the speaker.
• Do not attempt to cover or push objects into openings on the speaker unless
instructed to do so in the documentation supplied by Research In Motion.
Drive safely!
WARNING: Driving a vehicle requires your full attention to road conditions, weather,
and vehicular traffic. It is important to set up your BlackBerry Mini Stereo Speaker
prior to driving. Using this hands-free accessory may cause you to be distracted and
may put you, your passengers, and occupants of other vehicles at risk of suffering
bodily injury, death and/or loss of property. You should only use the hands-free
accessory where permitted by law and when you will not be distracted from the proper
operation of your motor vehicle.
Many jurisdictions have prohibited the use of wireless devices while driving. You are
responsible for knowing and obeying the laws and regulations regarding the use of
wireless devices in the areas where you drive.
If your vehicle is equipped with an air bag, do not place the speaker or other objects
above the air bag, or in the air bag deployment area. If in-vehicle wireless equipment
is improperly stored or installed, and the air bag inflates, serious injury could result.
Radio frequency (RF) signals might affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with the manufacturer or its
representative regarding your vehicle. If any equipment has been added to your
vehicle, you should also consult the manufacturer of that equipment for information
on radio frequency signals.
Accessories
Use only those accessories approved by Research In Motion. Using any accessories
not approved by RIM for use with this particular BlackBerry Mini Stereo Speaker
model might invalidate any approval or warranty that is applicable to the speaker,
might result in the non-operation of the speaker, and might be dangerous.
Driving a vehicle requires your full attention to road conditions,
Do not use your speaker in the presence of gas fumes as it might
Do not use or store your speaker in temperatures that exceed 113° F
Do not dispose of your speaker in a fire as this might cause an
Turn off your speaker in aircrafts. Using your speaker on an aircraft
The speaker is not inherently safe and cannot be used in the
weather, and vehicular traffic. It is important to set up your speaker
prior to driving.
present a risk of fire or explosion.
(45°C) as the speaker might become hot.
explosion resulting in serious injury, death, or property loss.
might affect aircraft instrumentation, communication, and
performance; might disrupt the network; might otherwise be
dangerous to the operation of the aircraft, its crew, and its
passengers; and might be illegal.
presence of explosive fumes, explosive dust, or other explosive
chemicals. Sparks in such areas could cause an explosion or fire
resulting in serious injury, death, or damage to property.
Electrical safety
Charge the BlackBerry Mini Stereo Speaker using only the charging accessory
provided or charging accessories specifically approved by Research In Motion Limited
(RIM) for use with this speaker. Any approval from RIM under this document must be
in writing and must be from a person authorized to provide such approval. Use of any
other accessory might invalidate any warranty provided with the speaker and might be
dangerous.
Use the charging accessories provided with the speaker or any other RIM approved
charging accessories only from the type of power source indicated on the marking
label. Before using any power supply, verify that the mains voltage is in accordance
with the voltage printed on the power supply.
Do not overload power outlets, extension cords, or convenience receptacles as this
might result in a risk of fire or electric shock. To reduce the risk of damage to the cord
or the plug, pull the plug rather than the cord when you disconnect the charging
accessory from the power outlet or convenience receptacle.
Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where the power cord connects to the
speaker. Unplug charging accessories during lightning storms or when unused for
long periods of time.
Do not use charging accessories outside or in any area exposed to the elements.
For more information about connecting to the power supply, see the instructions in
this guide.
Antenna care
Use only the supplied integrated antenna. Unauthorized antenna modifications or
attachments could damage the BlackBerry Mini Stereo Speaker and might violate
U.S. Federal Communications Commission (FCC) regulations.
Operating and storage temperatures
Place the BlackBerry Mini Stereo Speaker or BlackBerry Mini Stereo Speaker
accessories away from heat sources, such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat. If you are not going to use the
speaker for more than 2 weeks, turn off the power.
Follow the operating and storage temperatures listed below:
Speaker operating
OPERATING OUTSIDE OF THIS TEMPERATURE RANGE CAN IMPAIR AUDIO
QUALITY AND CAUSE BATTERY DAMAGE.
Speaker storage
STORING OUTSIDE OF THIS TEMPERATURE RANGE CAN CAUSE BATTERY
DAMAGE.
32 to 113°F (0 to 45°C)
14 to 113°F (10 to 45°C)
Interference with electronic equipment
Most modern electronic equipment is shielded from radio frequency signals. However,
certain electronic equipment might not be shielded against the radio frequency
signals from the BlackBerry Mini Stereo Speaker.
Pacemakers: Consult a physician or the manufacturer of your pacemaker if you have
any questions regarding the effect of radio frequency signals on your pacemaker. If
you have a pacemaker, verify that you are using the speaker in accordance with the
safety requirements associated with your particular pacemaker, which might include
the following requirements:
• Always keep the speaker more than 7.88 in. (20 cm) from the pacemaker when the
speaker is turned on.
• Do not carry the speaker in your breast pocket.
• If you have any reason to suspect that interference is taking place, turn off the
speaker immediately.
Hearing aids: Some digital wireless devices may interfere with some hearing aids. In
the event of such interference, consult your wireless service provider or contact the
manufacturer of your hearing aid to discuss alternatives.
Other medical devices: If you use any other personal medical device, consult the
manufacturer of your device to determine if the device is adequately shielded from
external radio frequency energy. Your physician may be able to assist you in obtaining
this information.
Health care facilities: Turn off Bluetooth technology on the speaker in health care
facilities when any regulations posted in these areas instruct you to do so. Hospitals or
health care facilities may be using equipment that could be sensitive to external radio
frequency energy.
Aircraft: Federal Aviation Administration (FAA) and Federal Communications
Commission (FCC) regulations prohibit using the radio of wireless devices while in the
air. Turn off the speaker before boarding an aircraft. The effect of using Bluetooth
technology on the speaker in an aircraft is unknown. Such use might affect aircraft
instrumentation, communication, and performance, might disrupt the network, might
otherwise be dangerous to the operation of the aircraft, and might be illegal.
Dangerous areas
The BlackBerry Mini Stereo Speaker is not an intrinsically safe device and is not
suitable for use in hazardous environments, where such devices are required,
including without limitation, in presence of gas fumes, explosive dust situations,
operation of nuclear facilities, aircraft navigation or communication services, air traffic
control, and life support or weapons systems.
Potentially explosive atmospheres: Turn off the speaker when in any area with a
potentially explosive atmosphere, and obey all signs and instructions. Sparks in such
areas could cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly
marked. They include fueling areas such as gasoline or petrol stations; below deck on
boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum
gas (such as propane or butane); areas where the air contains chemicals or particles,
such as grain, dust, or metal powders; and any other area where you would normally
be advised to turn off your vehicle engine.
Blasting areas: To avoid interfering with blasting operations, turn off Bluetooth
technology on the speaker when in a “blasting area” or in areas that post “Turn off
two-way radio”. Obey all signs and instructions.
US Information Concerning the Federal Communications
Commission ("FCC") Requirements for Hearing Aid
Compatibility with Wireless Devices
When wireless devices are used near hearing devices (such as hearing aids and
cochlear implants), users may detect a buzzing, humming, or whining noise. Some
hearing devices are more immune than others to this interference, and wireless
devices also vary in the amount of interference that they generate.
The wireless telephone industry has developed ratings to assist hearing device users
in finding wireless devices that may be compatible with their hearing devices. Not all
wireless devices have been rated. Wireless devices that are rated will have the rating
displayed on the box together with other relevant approval markings.
The ratings are not guarantees. Results will vary depending on the user's hearing
device and hearing loss. If your hearing device is vulnerable to interference, you may
not be able to use a rated wireless device successfully.
Consulting with your hearing health professional and testing the wireless device with
your hearing device is the best way to evaluate it for your personal needs.
Service
Only qualified service personnel should perform repairs to the BlackBerry Mini Stereo
Speaker. Disconnect the power supply cables from the computer or electrical outlet
and refer the speaker or charging accessory for service to qualified service personnel
if any of the following situations occur:
• the power supply cord, plug, or connector is damaged
• liquid has been spilled or objects have fallen into the speaker or charging
accessory
• the speaker or charging accessory has been exposed to rain or water
• the speakeror charging accessory becomes very hot to the touch
• the speaker or charging accessory has been dropped or damaged in any way
• the speaker or charging accessory does not operate normally by following the
instructions in the user documentation
• the speaker or charging accessory exhibits a distinct change in performance
Do not attempt to disassemble the speaker or any charging accessory.
To reduce the risk of fire or electric shock, adjust only those controls that are covered
in the user documentation for the speaker. An improper adjustment of other controls
might cause damage and will often require extensive work by a qualified technician to
restore the speaker, charging accessory, or any other accessory to normal operation.
Failure to observe all safety instructions contained in the user documentation for the
speaker will void the Limited Warranty and might lead to suspension or denial of
services to the offender, legal action, or both.
Overheating and damage:
speaker or speaker accessory has been dropped or damaged, if the speaker or
speaker accessory has a damaged cord or plug, or if the speaker or speaker accessory
has been dropped in a liquid, discontinue use.
If the speaker or speaker accessory overheats, if the
Compliance information
Exposure to radio frequency signals
The BlackBerry Mini Stereo Speaker radio is a low power radio transmitter and
receiver. When the speaker radio is turned on, it receives and also sends out radio
frequency (RF) signals. The speaker is designed to comply with Federal
Communications Commission (FCC) and Industry Canada (IC) guidelines respecting
safety levels of RF exposure for wireless devices, which in turn are consistent with the
following safety standards previously set by Canadian, U.S., and international
standards bodies:
• ANSI/IEEE C95.1, 1999, American National Standards Institute/Institute of
Electrical and Electronics Engineers Standard for Safety Levels with Respect to
Human Exposure to Radio Frequency Electromagnetic Fields (3 kHz to 300 GHz)
• National Council on Radiation Protection and Measurements (NCRP) Report 86,
1986, Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic
Fields
• Health Canada, Safety Code 6, 1999, Limits of Human Exposure to
Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300
GHz
• EN 50371, 2002, Generic Standard to demonstrate the compliance of low power
electronic and electrical apparatus with the basic restrictions related to human
exposure to electromagnetic fields (10 MHz to 300 GHZ)
• International Commission on Non-Ionizing Radiation Protection (ICNIRP), 1998,
Guidelines for Limiting Exposure to Time-Varying Electric, Magnetic, and
Electromagnetic fields (up to 300 GHz)
• Official Journal of the European Union (OJEU), 1999, Council Recommendation of
12 July 1999 on the limitation of exposure of the general public to electromagnetic
fields (0 Hz to 300 GHz)
FCC compliance statement (United States)
FCC Class B Part 15
This device complies with Part 15 of the Federal Communications Commission (FCC)
Rules. The FCC ID for this device is BCE-HS300. Operation is subject to the following
two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the manufacturer’s instructions, may
cause interference harmful to radio communications.
There is no guarantee, however, that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio or TV technician for help.
Industry Canada certification
This BlackBerry Mini Stereo Speaker complies with Industry Canada RSS-210
standard, under certification number 2386C-HS300.
Operation is subject to the following two conditions: (1) This device may not cause
interference and (2) This device must accept any interference, including interference
that may cause undesired operation of the device. See RSS-GEN 7.1.5. The term “IC:”
before the certification/registration number only signifies that registration was
performed based on a Declaration of Conformity indicating that Industry Canada
technical specifications were met. The term “IC:” before the certification/registration
number does not imply that Industry Canada approved the equipment.
Additional safety guidelines
Child safety: Keep your BlackBerry Mini Stereo Speaker out of reach of children.
Operating machinery: Keep your speaker and any cords or cables away from
machinery that is in operation.
LED aperture: Exposure to flashing lights on the speaker can cause epileptic seizures
or blackouts and might be dangerous to you or others. In the event that you
experience, or your use of the speaker causes in others, any disorientation, loss of
awareness, twitching, convulsions, or any involuntary movements, stop using the
speaker immediately and consult a physician. If you are susceptible to epileptic
seizures or blackouts, consult your physician before using the speaker.
CAUTION: Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Liquids and foreign objects: Never push objects of any kind into the speaker or
speakeraccessories through openings as this action might cause a short circuit, a fire,
or electric shock. Do not use the speaker or speaker accessories near water (for
example, near a bathtub or a sink, in a wet basement, or near a swimming pool).
Never spill liquid of any kind on the speaker or speaker accessories.
Stability: Do not place the speaker or a speaker accessory on any unstable surface.
Take care when using the speaker with any charging accessories to route the power
cord in a way that reduces the risk of injury to others, such as by tripping or choking.
Cleaning: Do not use liquid, aerosol cleaners, or solvents on or near the speaker or a
speaker accessory. Clean only with a soft dry cloth. Disconnect any cables from the
computer and unplug any charging accessories from the electrical outlet before
cleaning either the speaker or the charging accessory.
Designated areas and dangerous environments: Observe all signs and instructions
that require an electrical device or radio frequency device to be switched off in
designated areas. Do not use the speaker in environments where there is a danger of
ignition of flammable gases.
Class B compliance
This BlackBerry Mini Stereo Speaker complies with the Class B limits for radio noise
emissions as set out in the interference-causing equipment standard entitled “Digital
Apparatus,” ICES-003 of Industry Canada.
EU regulatory conformance
This product is CE marked according to the provisions of the R&TTE Directive (99/5/
EC). Research In Motion Limited hereby declares that this BlackBerry Mini Stereo
Speaker is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
The Declaration of Conformity made under Directive 1999/5/EC is available for
viewing at the following location in the EU community:
Research In Motion UK Limited
200 Bath Road
Slough, Berkshire SL1 3XE
United Kingdom
Additional regulatory conformance
Loading...
