SPARE PARTS CATALOG
OFFICE PRO 24
DocID: 00G00091EA
Page 2
Table of Contents
No.
1 GX484000-3681 0112XXXX240 to Present R410A
2 GX484000-3680 0407XXXX240 to 1211XXXX240 R410A
3
NUMBER
LA484000-3410
LA484000-2390
SERIAL NUMBER RANGE
0100XXXX240 to 0307XXXX240 R22
UNIT PART
REFRIGERANT
SERIAL NUMBER LOCATION AND IDENTIFICATION
SECTION
Page 3 to 13
SP0071-00
Page 15 to 25
SP0025-01
Page 27 to 37
SP0024-01
Nameplate Label
COOLING AMPS. WITH PUMP
COMPR. OUTPUT
REFRIGERANT/TOTAL CHARGE
DESIGN PRESSURE LO/HI
PART NO./WEIGHT
SERIAL NO.
Month
Nameplate Label Position
© 2012 DENSO SALES CALIFORNIA, INC.
All rights reserved. This book may not be reproduced or copied, in whole or in part, without the
written permission of the publisher. DENSO SALES CALIFORNIA, INC. reserves the right to
make changes without prior notice. MovinCool®, Office Pro® and SpotCool® are registered
trademarks of DENSO Corporation.
Yea r
▲▲ XXXX ###
Model
Sequential
Number
Page 3
No.1 SP0071-00
OFFICE PRO 24
Unit Part No: GX484000-3681
Unit Serial Number Range:
0112XXXX240 to Present
3
Page 4

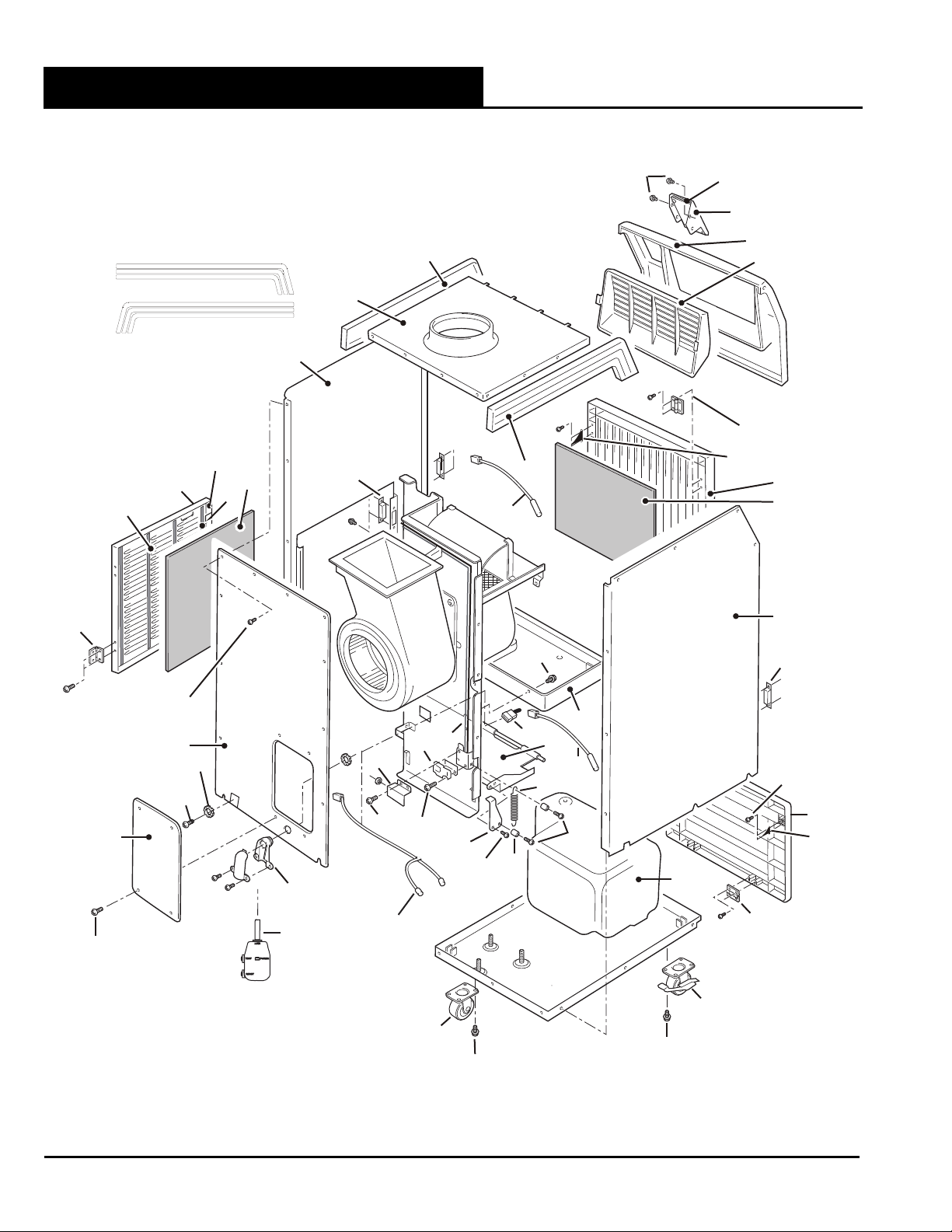

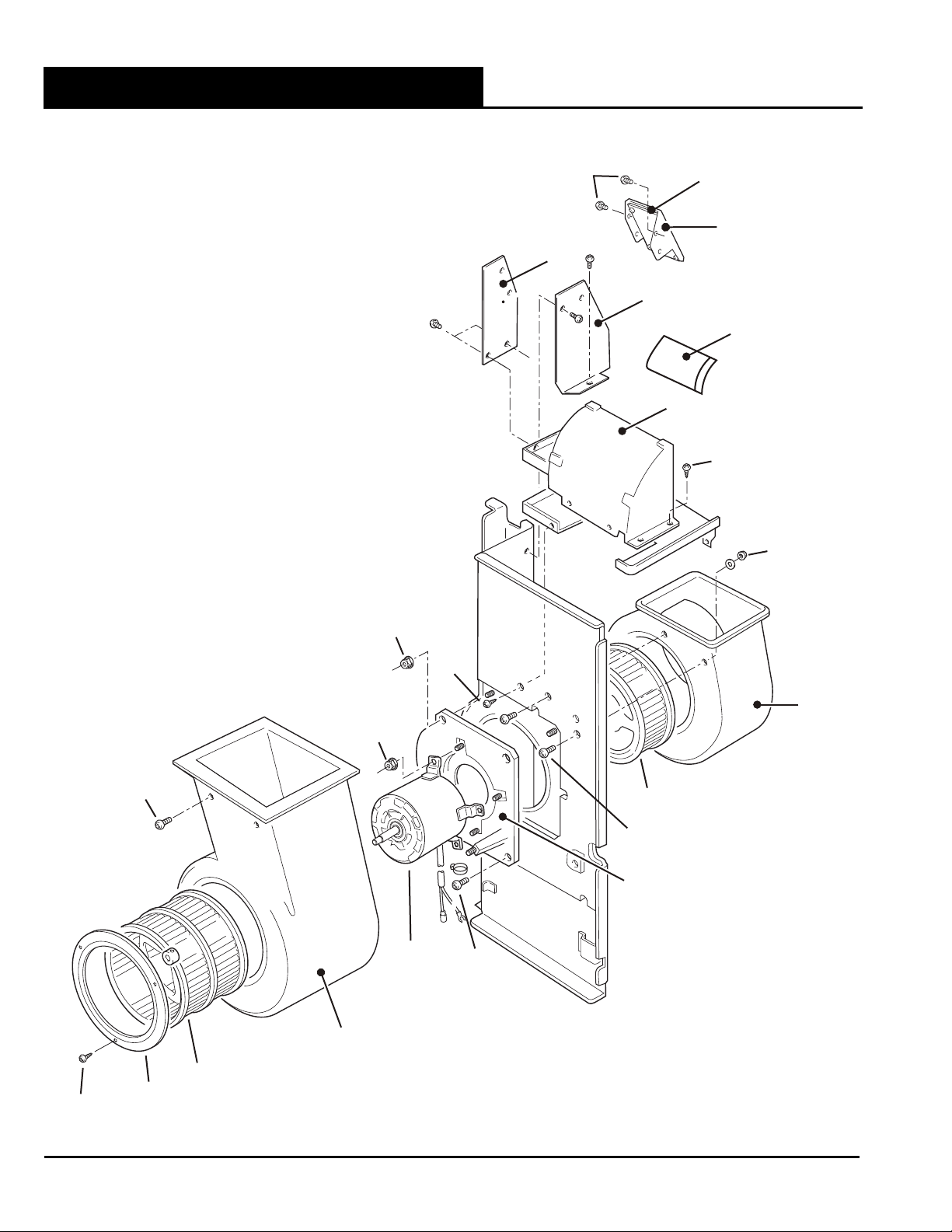

Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
21-1
21-4
21-2
20-3
21
34
9
27-2
22-2
23
20
20-2
20-3
9
20-1
20-4
22-1
20-3
24-2
28-3
17
18
15
15-1
27
27-1
21-2
24-1
28
28-2
28-1
22
20-4
33
31
29
29-1
13
10
32
8
24-2
24
24-1
26
21-2
20-3
25
1
3
ILL00606-00
11
19
4
5
6
30
14
9
12
16
7
2
3
4SP0071-00
Page 5
Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
ILL.
No.
DESCRIPTION PART No. QTY.
UNIT
SERIAL No.
REMARKS
RANGE*
1 Caster w/Brake LA484702-0330 2
2 Caster LA484702-0340 2
3 Bolt w/Washer 91510-08141 16 M8×1.25, L=14
4 Washer, Plate 90201-06400 1 Ground
5 Screw 90051-06120 1 Ground (M6×1, L=12)
6 Connector (Retainer, Power Cord) LA484506-0090 1
7 Frame Sub-Assy LA484310-3600 1 For Drain Tank
8 Nut 949056-1501 7 M4×0.7
9 Screw 949006-5850 46 M4×0.7, L=10
10 Spring, Tension Coil 949171-2090 2 For Drain Tank
1 1 Switch, Drain Tank LA484502-0380 1
12 Screw w/Washer 91310-03161 2 M3×0.5, L=16
13 Pan Assy, Drain LA484430-0120 1
14 Wire Assy LA484930-8310 1 For Drain Pump
15 Switch Assy GX484560-1802 1 Operation Panel & PCB
w/ILL.NO.15-1
15-1 Cover Assy GX484420-0430 1 Operation Panel
16 Wire Assy GX484930-9022 1 Main Harness (RB)↔(CB)
17 Thermistor, Room Temperature LAY84532-0021 1
18 Thermistor, Anti-Freeze Up LAY84532-0011 1
19 Cover LA484391-1870 1
20 Panel Assy GX484410-8120 1 w/ILL.NO.20-1~20-4
20-1 Right Handle LA484450-0051 1
20-2 Holder (Magnet Type) 484927-0990 2
20-3 Screw 949006-4440 4 M3×0.5, L=8
20-4 Catch LA481922-0030 3 Door Hook
21 Panel Assy GX484410-8130 1 Filter Panel Condenser
w/ILL.NO.21-1~21-4
21-1 Filter (Condenser) GX484401-1660 1
21-2 Hinge LA484912-0040 6
21-3 Screw 949006-3300 24 M3×0.5, L=6
21-4 Wire Frame (Condenser) GX484310-5040 1
22 Panel Assy, Left GX484410-8140 1 w/ILL.NO.22-1~22-2
22-1 Left Handle LA484450-0061 1
22-2 Screw, Tapping 949001-3530 23 D4, L=10
23 Panel Assy, Top Rear LA484410-5531 1
24 Panel Assy LA484410-5031 1 Tank Door
w/ILL.NO.20-3, 21-2, 24-1~24-2
24-1 Holder, Latch (Hook Type) LA484927-1010 3 Door Hook
24-2 Screw, Tapping LA949001-1 730 4 D4, L=16
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
5 SP0071-00
Page 6
Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
21-1
21-4
21-2
20-3
21
34
9
27-2
22-2
23
20
20-2
20-3
9
20-1
20-4
22-1
20-3
24-2
28-3
17
18
15
15-1
27
27-1
21-2
24-1
28
28-2
28-1
22
20-4
33
31
29
29-1
13
10
32
8
24-2
24
24-1
26
21-2
20-3
25
1
3
ILL00606-00
11
19
4
5
6
30
14
9
12
16
7
2
3
6SP0071-00
Page 7
Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
25 Nut 91160-03241 4 M3×0.5
26 Tank, Drain 484731-0021 1
27 Panel Assy, Top Front LA484410-5541 1 w/ILL.NO.27-1~27-2
27-1 Air Louver, Outlet LA480431-0101 1
27-2 Pin LA484913-0070 3
28 Panel Assy, Front Filter LAY84410-0021 1 w/ILL.NO.20-3, 21-2, 24-1~24-2,
28-1 Filter LA484401-1160 1
28-2 Wire Frame (Evaporator) LAY84310-0020 1
28-3 Clip LAY84917-0051 2 Holder, Wire Frame
29 Panel Assy, Rear GX484410-8150 1 w/ILL.NO.29-1
29-1 Cap Cover GX484926-0700 1
30 Wire Assy LA484930-8970 1 Power Cord
31 Panel Assy, Service GX484410-8160 1
32 Connector LA484930-8181 1 Jumper Connector
33 Screw w/Washer 480919-0370 26 M4×0.7, L=10
34 Stripe Kit Assy LA484003-1110 1 6 each (Both Sides)
UNIT
SERIAL No.
RANGE*
REMARKS
28-1~28-3
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
7 SP0071-00
Page 8
Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
4
1-2
1-3
5
4-1
3
2
6
6-1
1
1-1
7
ILL00610-00
8SP0071-00
Page 9
Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
1 Compressor Assy GX484650-3210 1 w/Pipe for Discharge & Suction
1-1 Wire Assy LA484930-7260 1 For Compressor
1-2 Cushion GX484904-0380 3
1-3 Collar GX484915-0410 3
2 Washer, Steel Plate 949011-5330 3
3 Nut 90190-08651 3 M8×1.25
4 Core Assy, Evaporator GX484600-2340 1 w/ILL.NO.4-1
4-1 Pipe Assy, Capillary GX484800-4480 1
5 Core Assy, Condenser GX484600-2130 1
6 Pipe Assy, Connecting GX484800-5430 1 w/ILL.NO.6-1
6-1 Switch Assy, Pressure GX484660-0550 1
7 Pipe Assy, Charging 484800-0440 1 5 Pieces Per Package
UNIT
SERIAL No.
RANGE*
REMARKS
w/ILL.NO.1-1~1-3
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
9 SP0071-00
Page 10
Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
3
3
12
3
18
18-1
7
11
6
3
4
17
4
5
4
1
10
2
9
8
14
13
15
16
ILL00608-00
10SP0071-00
Page 11
Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
1 Casing, Evaporator Fan 484261-0010 1
2 Screw w/Washer 91370-06161 4 M6×1, L=16
3 Screw 949006-5850 10 M4×0.7, L=10
4 Nut 949056-1430 12 M6×1
5 Screw, Tapping 949001-1570 7 D4, L=10
6 Deflector, Air GX484340-3020 1 Upper
7 Deflector, Air LA484331-718A 1 Lower
8 Fan Motor LA484211-1481 1
9 Motor Stay LA484330-0520 1
10 Fan, Evaporator 484221-0112 1
11 Stay, Control Panel Left GX484340-3050 1
12 Stay, Control Panel Right LA484331-7200 1
13 Screw w/Washer 91370-04101 3 M4×0.7, L=10
14 Casing Assy, Condenser Fan LA484260-0310 1
15 Fan, Condenser LA484221-0370 1 w/Set Screw
16 Ring Sub-Assy LA484280-0090 1
17 Screw w/Washer 949007-3600 2 M4×0.7, L=10
18 Switch Assy GX484560-1802 1 Operation Panel & PCB
18-1 Cover Assy GX484420-0430 1 Operation Panel
UNIT
SERIAL No.
RANGE*
REMARKS
w/ILL.NO.18-1
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
11 SP0071-00
Page 12
Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
20
2
17, 18
14
15
13
16
3, 4, 24
2-1
23
1
19
22
25
11, 12
10
8
6
9
5
7
21
20
ILL00609-00
12SP0071-00
Page 13
Unit Serial Number Range: 0112XXXX240 to Present
OFFICE PRO 24
ILL.
No.
DESCRIPTION PART No. QTY.
UNIT
SERIAL No.
REMARKS
RANGE*
1 Box Sub-Assy GX484520-1073 1
2 Relay Board GX484500-3590 1 w/ILL.NO.2-1
2-1 Fuse, Relay Board LAY65765-0030 1 250mA, 250V
3 Spacer LA484921-0150 5
4 Screw w/Washer 91370-03081 5 M3×0.5, L=8
5 Capacitor, Compressor GX484507-2080 1 440VAC, 45μF
6 Holder, Capacitor LA484927-1020 1 For Compressor
7 Capacitor, Fan LA484507-0710 1 440VAC, 12.5μF
8 Holder, Capacitor LA484927-0880 1 For Fan
9 Screw 949006-3250 4 M4×0.7, L=10
10 Terminal Block LA484503-040A 1 For Power
11 Screw 949006-3280 2 M4×0.7, L=18
12 Washer, Plate 90200-04331 2
13 Bracket GX484391-2220 1
14 Terminal Block GX484503-0840 1 For Input/Output Signal
15 Screw w/Washer 91310-03161 2 M3×0.5, L=16
16 Screw 949006-5850 4 M4×0.7, L=10
17 Screw 91051-04100 3 Ground (M4×0.7, L=10)
18 Washer, Plate 90201-04300 3 Ground
19 Grommet LA484926-0490 1 For Compressor Wire
20 Grommet LA484926-0500 3
21 Grommet 484926-0290 1 For Main Wire
22 Wire Assy LA484930-5222 1 (CF, CC)↔(TB)
23 Wire Assy LA484930-523A 1 (TB)↔(RB)
24 Washer, Plate 90200-03211 5
25 Wire Assy GX484930-9022 1 Main Harness (RB)↔(CB)
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
13 SP0071-00
Page 14
[ Memo ]
14
Page 15
No.2 SP0025-01
OFFICE PRO 24
Unit Part No: GX484000-3680
Unit Serial Number Range:
0407XXXX240 to 1211XXXX240
15
Page 16

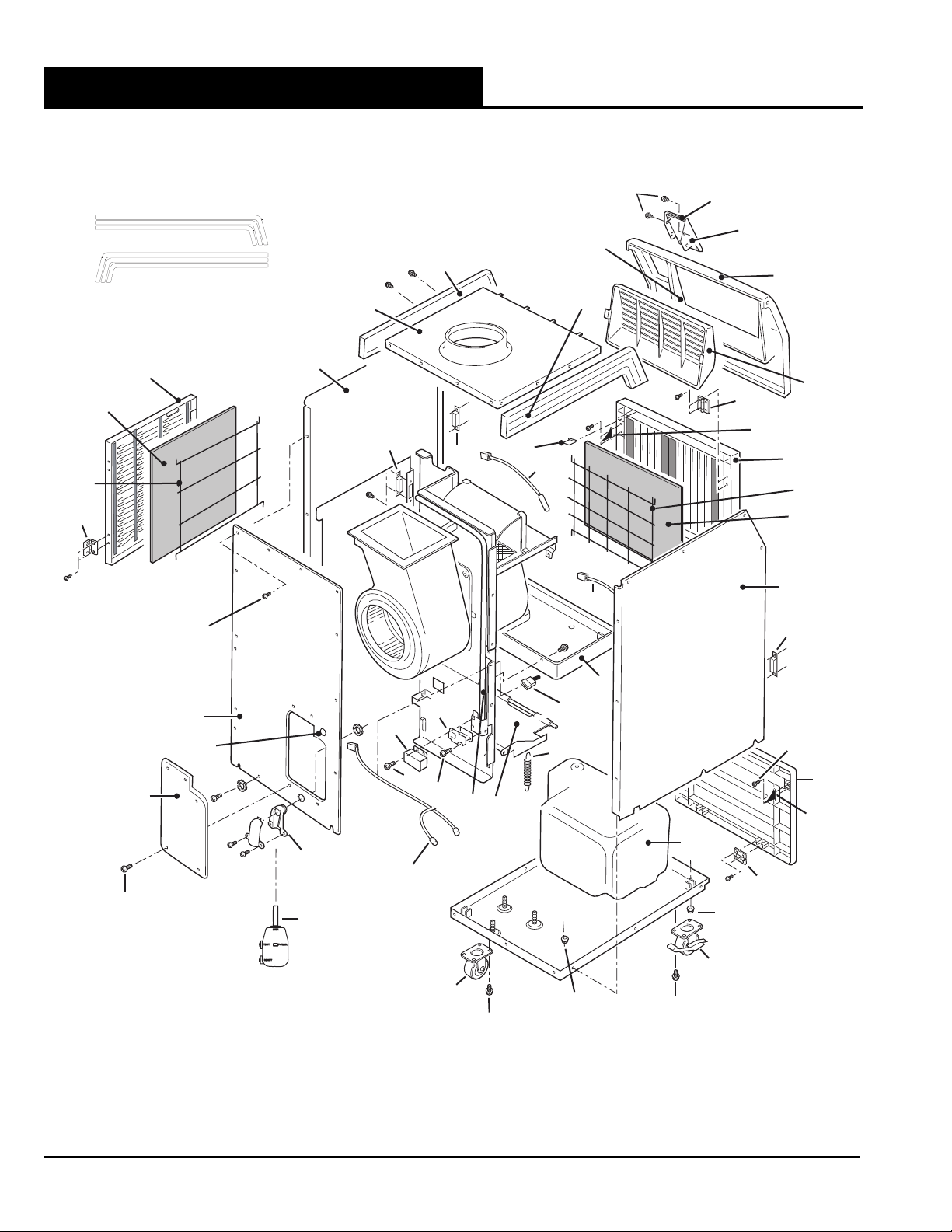

Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
21-1
21-4
21-2
20-3
21
34
9
27-2
22-2
23
20
20-2
20-3
9
20-1
20-4
22-1
20-3
24-2
28-3
17
18
15
15-1
27
27-1
21-2
24-1
28
28-2
28-1
22
20-4
33
31
29
29-1
13
10
32
8
24-2
24
24-1
26
21-2
20-3
25
1
3
ILL00606-00
11
19
4
5
6
30
14
9
12
16
7
2
3
16SP0025-01
Page 17
Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
ILL.
No.
DESCRIPTION PART No. QTY.
UNIT
SERIAL No.
REMARKS
RANGE*
1 Caster w/Brake LA484702-0330 2
2 Caster LA484702-0340 2
3 Bolt w/Washer 91510-08141 16 M8×1.25, L=14
4 Washer, Plate 90201-06400 1 Ground
5 Screw 90051-06120 1 Ground (M6×1, L=12)
6 Connector (Retainer, Power Cord) LA484506-0090 1
7 Frame Sub-Assy LA484310-3600 1 For Drain Tank
8 Nut 949056-1501 7 M4×0.7
9 Screw 949006-5850 46 M4×0.7, L=10
10 Spring, Tension Coil 949171-2090 2 For Drain Tank
1 1 Switch, Drain Tank LA484502-0380 1
12 Screw w/Washer 91310-03161 2 M3×0.5, L=16
13 Pan Assy, Drain LA484430-0120 1
14 Wire Assy LA484930-8310 1 For Drain Pump
15 Switch Assy GX484560-1802 1 Operation Panel & PCB
w/ILL.NO.15-1
15-1 Cover Assy GX484420-0430 1 Operation Panel
16 Wire Assy GX484930-9022 1 Main Harness (RB)↔(CB)
17 Thermistor, Room Temperature LAY84532-0021 1
18 Thermistor, Anti-Freeze Up LAY84532-0011 1
19 Cover LA484391-1870 1
20 Panel Assy GX484410-8120 1 w/ILL.NO.20-1~20-4
20-1 Right Handle LA484450-0051 1
20-2 Holder (Magnet Type) 484927-0990 2
20-3 Screw 949006-4440 4 M3×0.5, L=8
20-4 Catch LA481922-0030 3 Door Hook
21 Panel Assy GX484410-8130 1 Filter Panel Condenser
w/ILL.NO.21-1~21-4
21-1 Filter (Condenser) GX484401-1660 1
21-2 Hinge LA484912-0040 6
21-3 Screw 949006-3300 24 M3×0.5, L=6
21-4 Wire Frame (Condenser) GX484310-5040 1
22 Panel Assy, Left GX484410-8140 1 w/ILL.NO.22-1~22-2
22-1 Left Handle LA484450-0061 1
22-2 Screw, Tapping 949001-3530 23 D4, L=10
23 Panel Assy, Top Rear LA484410-5531 1
24 Panel Assy LA484410-5031 1 Tank Door
w/ILL.NO.20-3, 21-2, 24-1~24-2
24-1 Holder, Latch (Hook Type) LA484927-1010 3 Door Hook
24-2 Screw, Tapping LA949001-1 730 4 D4, L=16
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
17 SP0025-01
Page 18
Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
21-1
21-4
21-2
20-3
21
34
9
27-2
22-2
23
20
20-2
20-3
9
20-1
20-4
22-1
20-3
24-2
28-3
17
18
15
15-1
27
27-1
21-2
24-1
28
28-2
28-1
22
20-4
33
31
29
29-1
13
10
32
8
24-2
24
24-1
26
21-2
20-3
25
1
3
ILL00606-00
11
19
4
5
6
30
14
9
12
16
7
2
3
18SP0025-01
Page 19
Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
25 Nut 91160-03241 4 M3×0.5
26 Tank, Drain 484731-0021 1
27 Panel Assy, Top Front LA484410-5541 1 w/ILL.NO.27-1~27-2
27-1 Air Louver, Outlet LA480431-0101 1
27-2 Pin LA484913-0070 3
28 Panel Assy, Front Filter LAY84410-0021 1 w/ILL.NO.20-3, 21-2, 24-1~24-2,
28-1 Filter LA484401-1160 1
28-2 Wire Frame (Evaporator) LAY84310-0020 1
28-3 Clip LAY84917-0050 2 Holder, Wire Frame
29 Panel Assy, Rear GX484410-8150 1 w/ILL.NO.29-1
29-1 Cap Cover GX484926-0700 1
30 Wire Assy LA484930-8970 1 Power Cord
31 Panel Assy, Service GX484410-8160 1
32 Connector LA484930-8181 1 Jumper Connector
33 Screw w/Washer 480919-0370 26 M4×0.7, L=10
34 Stripe Kit Assy LA484003-1110 1 6 each (Both Sides)
UNIT
SERIAL No.
RANGE*
REMARKS
28-1~28-3
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
19 SP0025-01
Page 20
Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
4
1-2
1-3
5
4-1
3
2
6
6-1
1
1-1
7
ILL00610-00
20SP0025-01
Page 21
Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
1 Compressor Assy GX484650-2620 1 w/Pipe for Discharge & Suction
1-1 Wire Assy LA484930-7260 1 For Compressor
1-2 Cushion GX484904-0380 3
1-3 Collar GX484915-0410 3
2 Washer, Steel Plate 949011-5330 3
3 Nut 90190-08651 3 M8×1.25
4 Core Assy, Evaporator GX484600-2120 1 w/ILL.NO.4-1
4-1 Pipe Assy, Capillary GX484640-0360 1
5 Core Assy, Condenser GX484600-2130 1
6 Pipe Assy, Connecting GX484800-4050 1 w/ILL.NO.6-1
6-1 Switch Assy, Pressure GX484660-0550 1
7 Pipe Assy, Charging 484800-0440 1 5 Pieces Per Package
UNIT
SERIAL No.
RANGE*
REMARKS
w/ILL.NO.1-1~1-3
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
21 SP0025-01
Page 22
Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
3
3
12
3
18
18-1
7
11
6
3
4
17
4
5
4
1
10
2
9
8
14
13
15
16
ILL00608-00
22SP0025-01
Page 23
Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
1 Casing, Evaporator Fan 484261-0010 1
2 Screw w/Washer 91370-06161 4 M6×1, L=16
3 Screw 949006-5850 10 M4×0.7, L=10
4 Nut 949056-1430 12 M6×1
5 Screw, Tapping 949001-1570 7 D4, L=10
6 Deflector, Air GX484340-3020 1 Upper
7 Deflector, Air LA484331-718A 1 Lower
8 Fan Motor LA484211-1481 1
9 Motor Stay LA484330-0520 1
10 Fan, Evaporator 484221-0112 1
11 Stay, Control Panel Left GX484340-3050 1
12 Stay, Control Panel Right LA484331-7200 1
13 Screw w/Washer 91370-04101 3 M4×0.7, L=10
14 Casing Assy, Condenser Fan LA484260-0310 1
15 Fan, Condenser LA484221-0370 1 w/Set Screw
16 Ring Sub-Assy LA484280-0090 1
17 Screw w/Washer 949007-3600 2 M4×0.7, L=10
18 Switch Assy GX484560-1802 1 Operation Panel & PCB
18-1 Cover Assy GX484420-0430 1 Operation Panel
UNIT
SERIAL No.
RANGE*
REMARKS
w/ILL.NO.18-1
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
23 SP0025-01
Page 24
Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
20
2
17, 18
14
15
13
16
3, 4, 24
2-1
23
1
19
22
25
11, 12
10
8
6
9
5
7
21
20
ILL00609-00
24SP0025-01
Page 25
Unit Serial Number Range: 0407XXXX240 to 1211XXXX240
OFFICE PRO 24
ILL.
No.
DESCRIPTION PART No. QTY.
UNIT
SERIAL No.
REMARKS
RANGE*
1 Box Sub-Assy GX484520-1073 1
2 Relay Board GX484500-3590 1 w/ILL.NO.2-1
2-1 Fuse, Relay Board LAY65765-0030 1 0108 to 1211 250mA, 250V
LA481936-0080 1 0807 to 1207 160mA, 250V
LAY65765-0030 1 0407 to 0707 250mA, 250V
3 Spacer LA484921-0150 5
4 Screw w/Washer 91370-03081 5 M3×0.5, L=8
5 Capacitor, Compressor LA484507-0880 1 370VAC, 45μF
6 Holder, Capacitor LA484927-0890 1 For Compressor
7 Capacitor, Fan LA484507-0710 1 440VAC, 12.5μF
8 Holder, Capacitor LA484927-0880 1 For Fan
9 Screw 949006-3250 4 M4×0.7, L=10
10 Terminal Block LA484503-040A 1 For Power
11 Screw 949006-3280 2 M4×0.7, L=18
12 Washer, Plate 90200-04331 2
13 Bracket GX484391-2220 1
14 Terminal Block GX484503-0840 1 For Input/Output Signal
15 Screw w/Washer 91310-03161 2 M3×0.5, L=16
16 Screw 949006-5850 4 M4×0.7, L=10
17 Screw 91051-04100 3 Ground (M4×0.7, L=10)
18 Washer, Plate 90201-04300 3 Ground
19 Grommet LA484926-0490 1 For Compressor Wire
20 Grommet LA484926-0500 3
21 Grommet 484926-0290 1 For Main Wire
22 Wire Assy LA484930-5222 1 (CF, CC)↔(TB)
23 Wire Assy LA484930-523A 1 (TB)↔(RB)
24 Washer, Plate 90200-03211 5
25 Wire Assy GX484930-9022 1 Main Harness (RB)↔(CB)
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
25 SP0025-01
Page 26
[ Memo ]
26
Page 27
No.3 SP0024-01
OFFICE PRO 24
Unit Part No: LA484000-3410
LA484000-2390
Unit Serial Number Range:
0100XXXX240 to 0307XXXX240
27
Page 28
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
11
17-1
39
11
10-1
21
20
3
22
5
24
4
32
6
26
34
31
7
15
43
19
13
14
40
9
9-2
9-3
8
9-1
12
10
33
16
1
28
28
2
34
27
11-2
36
25
11-1
9-2
11-1
11-2
17
35-1
35, 44
18
34
37
34
36
9-4
37
30
29
37
38
41
42
ILL00611-00
23
OFFICE PRO 24
28SP0024-01
Page 29
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
OFFICE PRO 24
ILL.
No.
DESCRIPTION PART No. QTY.
UNIT
SERIAL No.
REMARKS
RANGE*
1 Caster w/Brake LA484702-0330 2
2 Caster LA484702-0340 2
3 Frame Sub-Assy (Drain Tank) LA484310-3600 1 0103 to 0307
LAY84310-0010 1 0100 to 1202
4 Bracket LA484321-0510 1 0100 to 1202
5 Socket 480837-0030 4 0100 to 1202
6 Switch, Drain Tank LA484502-0380 1
7 Spring, Tension Coil 949171-2090 2 For Drain Tank
8 Panel Assy, Top Rear LA484410-5531 1
9 Panel, Right LA484410-5511 1 w/ILL.NO.9-1~9-4
9-1 Right Handle LA484450-0051 1
9-2 Catch LA481922-0030 3 Door Hook
9-3 Holder (Magnet Type) 484927-0990 2
9-4 Screw 949006-4440 4 M3×0.5, L=8
10 Panel, Left LA484410-5520 1 w/ILL.NO.10-1
10-1 Left Handle LA484450-0061 1
1 1 Panel Assy, Front Filter (Evap.) LAY84410-0021 1 w/ILL.NO.11-1~11-2
11 -1 Hinge LA484912-0040 6
11-2 Holder, Latch (Hook Type) LA484927-1010 3 Door Hook
12 Filter (Evap.) LA484401-1160 1
13 Panel, Rear LA484410-5562 1
14 Panel Assy, Front Filter (Cond.) LA484410-5550 1 w/Velcro & Filter
15 Retainer, Power Cord LA484506-0090 1
16 Tank, Drain 484731-0021 1
17 Panel Assy, Top Front LA484410-5541 1 w/ILL.NO.17-1
17-1 Air Louver, Outlet LA480431-0101 1
18 Filter (Condenser) LA484401-1220 1
19 Panel, Service LA484410-7610 1 0103 to 0307
LA484410-5570 1 0100 to 1202
20 Drain Pan Assy LA484430-0120 1
21 Thermistor, Room Temperature LAY84532-0021 1
22 Thermistor, Anti-Freeze Up LAY84532-0011 1
23 Wire Assy LA484930-8970 1 0103 to 0307 Power Cord
LA484930-483A 1 0100 to 1202
24 Screw w/Washer 91370-04101 1 M4×0.7, L=10
25 Screw, Tapping 91060-04161 4 D4, L=16
26 Screw w/Washer 91310-03161 2 M3×0.5, L=16
27 Screw, Tapping 949007-6700 27 D4, L=10
28 Bolt w/Washer 91510-08141 16 M8×1.25, L=14
29 Washer, Plate 90201-06400 1 Ground
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
29 SP0024-01
Page 30
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
11
17-1
39
11
10-1
21
20
3
22
5
24
4
32
6
26
34
31
7
15
43
19
13
14
40
9
9-2
9-3
8
9-1
12
10
33
16
1
28
28
2
34
27
11-2
36
25
11-1
9-2
11-1
11-2
17
35-1
35, 44
18
34
37
34
36
9-4
37
30
29
37
38
41
42
ILL00611-00
23
OFFICE PRO 24
30SP0024-01
Page 31
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
30 Screw 90051-06120 1 Ground (M6×1, L=12)
31 Cover, Drain Switch LA484391-1870 1 0103 to 0307
LA484391-056A 1 0100 to 1202
32 Wire Assy LA484930-6840 1 0804 to 0307 Main Harness, (RB)↔(CB)
LAY84930-0010 1 0100 to 0704 Main Harness, (RB)↔(CB)
33 Drain Tank, Panel Assy LA484410-5031 1 Tank Door
34 Screw 949006-5850 42 M4×0.7, L=10
35 Switch Assy LA484560-1680 1 0405 to 0307 Operation Panel & PCB
35-1 Cover Assy LAY84420-0010 1 Operation Panel
36 Screw, Tapping LA949001-1730 8 D4, L=16
37 Screw 949006-3300 12 M3×0.5, L=6
38 Velcro LA484311-2190 1 Condenser
39 Stripe Kit Assy LA484003-1110 1 6 each (Both Sides)
40 Velcro LA484311-2071 3 Condenser
41 Velcro LA484311-2200 2 Condenser
42 Wire Assy LA484930-8310 1 0407 to 0307 For LA484000-3410 Unit
43 Connector LA484930-8181 1 0407 to 0307 For LA484000-3410 Unit
44 Switch Assy LA484560-1520 1 0100 to 0305 Operation Panel & PCB
UNIT
SERIAL No.
RANGE*
REMARKS
w/ILL.NO.11-1,11-2,36,37
w/ILL.NO.35-1
For Drain Pump
Jumper Connector
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
31 SP0024-01
Page 32
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
OFFICE PRO 24
3
2
3-1
8
7
5
6
1
4-1
4
1-1
9
ILL00612-00
32SP0024-01
Page 33
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
1 Compressor Assy LA484650-1530 1 w/Pipe for Discharge & Suction
1-1 Wire Assy LA484930-7260 1 For Compressor
2 Core Assy, Condenser LA484600-1451 1 w/Pipes
3 Core Assy, Evaporator LA484600-1441 1 w/ILL.NO.3-1
3-1 Pipe Assy, Capillary LA484640-0330 1
4 Pipe Assy, Connecting LA484800-3080 1 w/ILL.NO.4-1
4-1 Switch Assy, Pressure LA484660-0420 1
5 Cushion LA484904-0240 3
6 Collar, Steel LA484915-0320 3
7 Washer, Steel Plate 949011-5330 3
8 Nut 90190-08651 3 M8×1.25
9 Pipe Assy, Charging 484800-0440 1 5 Pieces Per Package
UNIT
SERIAL No.
RANGE*
REMARKS
w/ILL.NO.1-1
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
33 SP0024-01
Page 34
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
8
1
2
9
8
10
3
4
5
6
7
11
16
8
13
14
18
17
12
12
12
15
19-1
19, 20
12
ILL00613-00
OFFICE PRO 24
34SP0024-01
Page 35
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
1 Casing, Evaporator Fan 484261-0010 1
2 Fan, Evaporator 484221-0112 1 w/Set Screw
3 Fan Motor LA484211-1481 1
4 Casing Assy, Condenser Fan LA484260-0310 1
5 Fan, Condenser LA484221-0370 1 w/Set Screw
6 Ring Sub-Assy LA484280-0090 1
7 Screw w/Washer 91370-04101 3 M4×0.7, L=10
8 Nut 949056-1430 8 M6×1
9 Screw w/Washer 91370-06161 4 M6×1, L=16
10 Screw w/Washer 91370-06121 5 M6×1, L=12
11 Screw w/Washer 949007-3600 2 M4×0.7, L=10
12 Screw 949006-5850 10 M4×0.7, L=10
13 Screw, Tapping 949001-1570 8 D4, L=10
14 Deflector, Air LA484340-2541 1 Upper
15 Deflector, Air LA484331-718A 1 Lower
16 Motor Stay LA484330-0520 1
17 Stay, Control Panel Right LA484331-7200 1
18 Stay, Control Panel Left GX484340-3050 1
19 Switch Assy LA484560-1680 1 0405 to 0307 Operation Panel & PCB
19-1 Cover Assy LAY84420-0010 1 Operation Panel
20 Controller Assy LA484560-1520 1 0100 to 0305 PCB Only
UNIT
SERIAL No.
RANGE*
REMARKS
w/ILL.NO.19-1
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
35 SP0024-01
Page 36
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
OFFICE PRO 24
16
1
11, 17
20
12
21
9, 10
14
15
7, 19
8
13
5
6
4
3
2
18
22
ILL00614-00
36SP0024-01
Page 37
Unit Serial Number Range: 0100XXXX240 to 0307XXXX240
OFFICE PRO 24
ILL.
DESCRIPTION PART No. QTY.
No.
1 Box Sub-Assy, Control LA484520-0770 1
2 Capacitor, Fan LA484507-0710 1 440VAC, 12.5μF
3 Holder, Capacitor LA484927-0880 1 Fan
4 Capacitor, Compressor LA484507-0960 1 440VAC, 50μF
5 Holder, Capacitor LA484927-1020 1 Compressor
6 Screw 949006-3250 4 M4×0.7, L=10
7 Screw 949006-3280 2 M4×0.7, L=18
8 T erminal Block LA484503-040A 1 For Power
9 Screw 91051-04100 3 Ground (M4×0.7, L=10)
10 Washer, Plate 90201-04300 3 Ground
11 Screw w/Washer 91370-03081 5 M3×0.5, L=8
12 Grommet LA484926-0490 1 For Compressor
13 Grommet LA484926-0500 2
14 Wire Assy LA484930-5222 1 (CF, CC)↔(TB)
15 Wire Assy LA484930-523A 1 (TB)↔(RB)
16 Relay Board Assy GX484500-3590 1 (RB) 230V
17 Spacer LA484921-0150 5
18 Grommet 484926-0290 1 For Main Wire
19 Washer, Plate 90200-04331 2
20 Fuse, Relay Board LA481936-0080 1 0103 to 0307 160mA, 250V
LAY65765-0010 1 0100 to 1202 2/10A, 250V
21 Wire Assy LA484930-7260 1 0503 to 0307 For Compressor
LA484930-5210 1 0100 to 0403 For Compressor
22 Wire Assy LA484930-6840 1 0 804 to 0307 Main Harness (RB)↔(CB)
LAY84930-0010 1 0100 to 0704 Main Harness (RB)↔(CB)
UNIT
SERIAL No.
RANGE*
REMARKS
*: Please refer to page number 2 for the position of the nameplate showing the serial number on the unit.
”Unit Serial Number Range*” column indicates the first four digits of the unit serial number.
37 SP0024-01
Page 38
Second Issue: June 2012
Loading...
