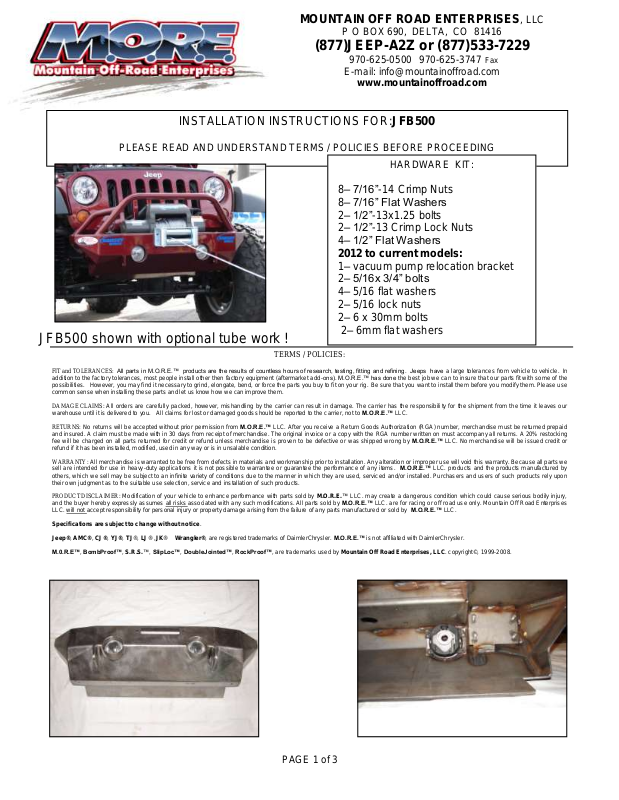

Mountain Off Road JFB500 User Manual

MOUNTAIN OFF ROAD ENTERPRISES, LLC

P O BOX 690, DELTA, CO 81416

(877)JEEP-A2Z or [phone]

970-625-0500 970-625-3747 Fax

E-mail: [e-mail]

www.mountainoffroad.com

INSTALLATION INSTRUCTIONS FOR:JFB500

PLEASE READ AND UNDERSTAND TERMS / POLICIES BEFORE PROCEEDING

HARDWARE KIT:

8– 7/16”-14 Crimp Nuts
8– 7/16” Flat Washers
2– 1/2”-13x1.25 bolts
2– 1/2”-13 Crimp Lock Nuts
4– 1/2” Flat Washers

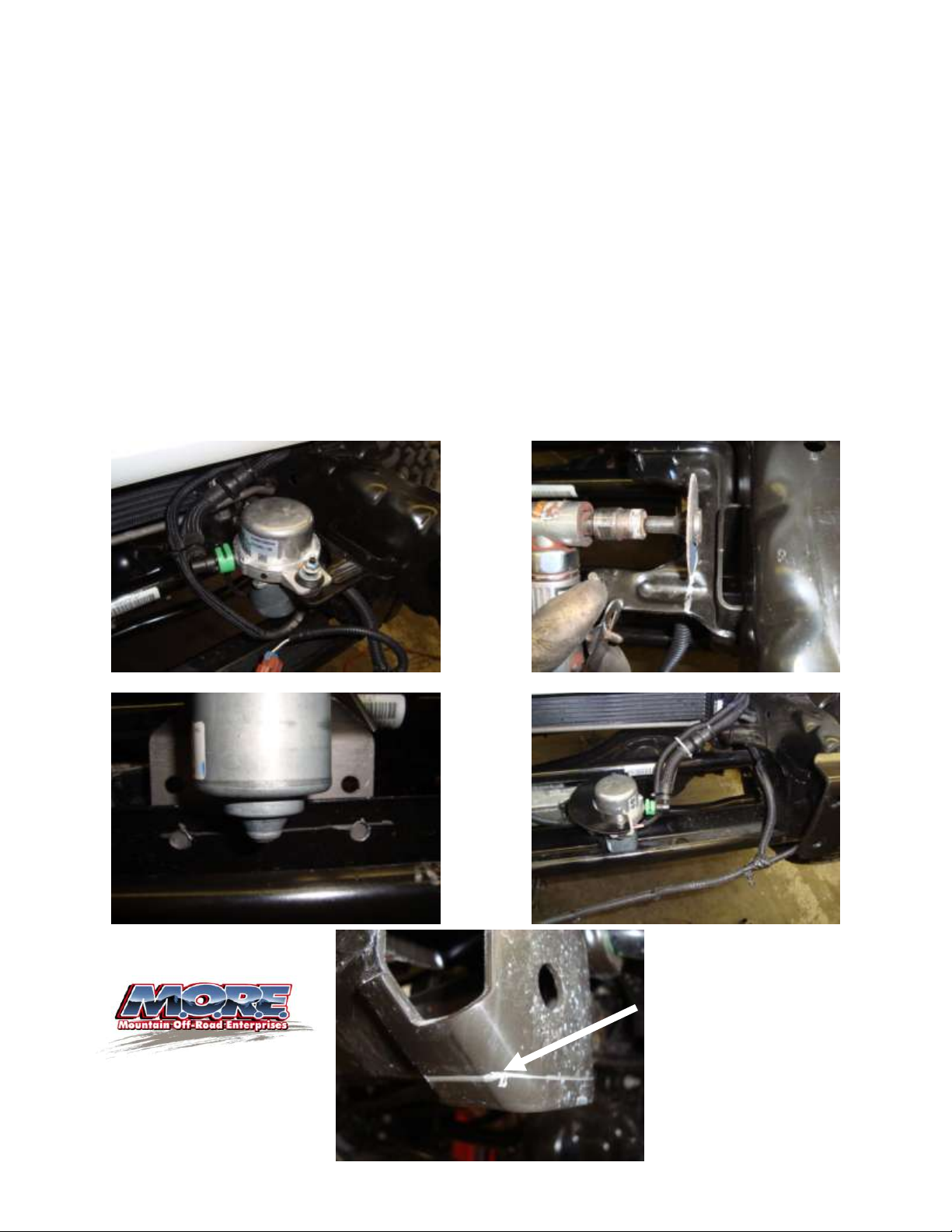

2012 to current models:
1– vacuum pump relocation bracket
2– 5/16x 3/4” bolts
4– 5/16 flat washers
2– 5/16 lock nuts
2– 6 x 30mm bolts
2– 6mm flat washers

JFB500 shown with optional tube work !

FIT and TOLERANCES: All parts i n M.O.R.E.™ products are the results of c ountless hours of research, testing, fitting and refining. Jeeps have a large tolerances from vehicle to vehicle. In
addition to the factory tolerances, most people install other then factory equipment (aftermarket add-ons). M.O.R.E.™ has done t he best job we can to insure that our parts fit with some of the
possibilities. However, you may find it necessary to grind, elongate, bend, or force the parts you buy to fit on your rig. Be sure that you want to install them before you modify them. Please use
common sense when installing these parts and let us know how we can improve them.

DAMAGE CLAIMS: All orders are carefully packed, however, mishandling by the carrier can result in damage. The carrier has the responsibility for the shipment from the time it leaves our
warehouse until it is delivered to you. All claims for lost or damaged goods should be reported to the carrier, not to M.O.R.E.™ LLC.

RETURNS: No returns will be accepted without prior permission from M.O.R.E.™ LLC. After you receive a Return Goods Authorization (RGA) number, merchandise must be returned prepaid
and insured. A claim must be made with in 30 days from receipt of merchandise. The original invoice or a copy with the RGA number written on must accompany all returns. A 20% restocking
fee will be charged on all parts returned for credit or refund unless merchandise is proven to be defective or was shipped wrong by M.O.R.E.™ LLC. No merchandise will be issued credit or
refund if it has been installed, modified, used in any way or is in unsalable condition.

WARRANTY: All merchandise is warranted to be free from defects in materials and workmanship prior to installation. Any alteration or improper use will void this warranty. Because all parts we
sell are intended for use in heavy-duty applications it is not possible to warrantee or guarantee the performance of any items. M.O.R.E.™ LLC. products and the products manufactured by
others, which we sell may be subject to an infinite variety of conditions due to the manner in which they are used, serviced and/or installed. Purchasers and users of such products rely upon
their own judgment as to the suitable use selection, service and installation of such products.

PRODUCT DISCLAIMER: Modification of your vehicle to enhance performance with parts sold by M.O.R.E.™ LLC. may create a dangerous condition which could cause serious bodily injury,
and the buyer hereby expressly assumes all risks associated with any such modifications. All parts sold by M.O.R.E.™ LLC. are for racing or off road use only. Mountain Off Road Enterprises
LLC. will not accept responsibility for personal injury or property damage arising from the failure of any parts manufactured or sold by M.O.R.E.™ LLC.

Specifications are subject to change without notice.
Jeep®, AMC®, CJ®, YJ®, TJ®, LJ® ,JK® Wrangler®, are registered trademarks of DaimlerChrysler. M.O.R.E.™ is not affiliated with DaimlerChrysler.
M.0.R.E™, BombProof™, S.R.S.™, SlipLoc™, DoubleJointed™, RockProof™, are trademarks used by Mountain Off Road Enterprises, LLC. copyright©, 1999-2008.

TERMS / POLICIES:

PAGE 1 of 3

M.O.R.E.™ recommends pre-fitting this BUMPER onto your Jeep® BEFORE you paint it. Make
sure that you Have no fit issues with any Aftermarket accessories and that you are happy with
all aspects of it. If you are, then paint it and re-install it. Once you modify it in any way, it is NON­RETURNABLE !!!

1- Remove the grille facia by removing the plastic screw retainers and carefully pull forward on
the bottom to release the snap clips. Remove the turn signal electrical connectors and grille facia
is able to be re-moved (See figures 1, 2 & 3)

2– Remove Factory bumper , air deflector and plastic trim plate. Remove factory fog lights from
the bumper and save the mounting hardware.

3– Install winch & fairlead into winch tray using supplied hardware with the winch. Install fog
lights into the mounting brackets on the back side of bumper. For 2012 to current models see

page 3.

4– Slide the bumper over the frame and align the bolts with the frame brackets holes. Install

7/16” flat washers and Crimp Nuts on all the bumper bolts and snug but do not tighten. There are
2 holes on the bottom lip of the bumper that will locate on the lower frame bracket. Install the 1/2”

x 1.25 bolts , washers and nuts. Tighten all mounting hardware.
5– Reattach the fog light wiring , hook up your winch and you are ready to Roll.

Figure 1

Figure 2 Figure 3

PAGE 2 of 3
