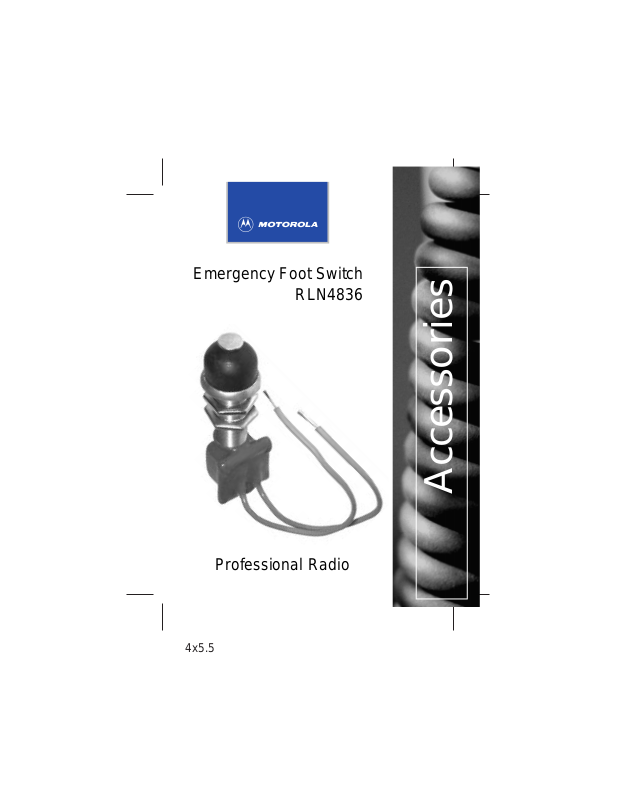

Emergency Foot Switch
RLN4836
Professional Radio
Accessories
DESCRIPTION
In case of emergency situations, the user of a mobile
radio may need to secretly communicate to the base
station. The RLN4836 Emergency Foot Switch
provides the means to quickly and secretly trigger the
Professional Radio to send an emergency alert.
INSTALLATION
Carefully select the installation location for the
RLN4836 Emergency Foot Switch. Plan the location
so that once installed, the foot switch is readily
accessible to the user, but will not be stepped on
accidentally while performing normal vehicle
operation. Refer to Figure 1 for foot switch detail and
parts identification.
Preparing the Foot Switch
The foot switch is assemb led with two hex nuts and a
rubber cap. Disassemble the foot switch as follows:
1. Unscrew the rubber cap in a counterclockwise
direction until it is loose on the threaded shaft.
2. Pull the rubber cap away from the threaded shaft
and off the switch actuator shaft.
3. Remove one hex nut from the threaded shaft.
1
Installing the Foot Switch
Once an installation location has been decided,
perform the following steps:
1. Drill a 16.5mm (41/64 inch) hole through the
mounting surface.
2. Place one lockwasher (supplied in plastic bag) on
the foot switch threaded shaft.
3. Insert the threaded shaft up through the mounting
surface.
4. Adjust the hex nut until the exposed threaded
shaft is 12.7 mm (1/2 inch) above the top of the
mounting surface.
5. Place one lockwasher (supplied in plastic bag) on
the threaded shaft.
6. Screw the second hex nut onto the threaded
shaft, and tighten it to secure the foot switch in the
hole.
7. Screw the metal portion of the rubber cap onto the
threaded shaft and pop the boot over the switch
actuator shaft.
8. Screw the rubber cap down to secure it.
2
Switch Actuator Shaft
Rubber Cap
3283316K01
12.7mm
(1/2 inch)
Threaded Shaft
Hex Nut
2983317K01
Lockwasher
0400114522
Lockwasher
0400114522
Hex Nut
2983317K01
Figure 1. Emergency Foot Switch Detail
Making Final Connections
The emergency foot switch includes a cable. One
end of the cable has two exposed wires, the other
end has two wires with a lug and a terminal pin
attached. Refer to Figure 2, and make connections
as follows:
1. Connect the two wires from the foot switch to the
cable (end with exposed wires). Polarity is not
important.
3
Accessory
Connector
#15
#9
#1
#2
4
Secure lug to vehicle
chassis ground.
#16
FL0830343O
FL0830342O
1
Connect cable wires
to foot switch wires.
Figure 2. Making Final Connections
2. Route and secure the cable.
3. Insert the cable wire with terminal pin into the #9
socket of the accessory connector.
4. Secure the cable wire with connector lug to
vehicle chassis ground.
OPERATION
Refer to your radio’s user guide for information on
Sending An Emergency Alert
. Send an emergency
alert by pressing the emergency foot switch. Cancel
the emergency alert by pressing the PTT or by
pressing another button preprogrammed by your
dealer. The only difference in the operation of
emergency alert is that, unlike other ways of initiating
the alert, the emergency foot switch will power up a
radio that is off.
4
8000 W. Sunrise Blvd., Ft. Lauderdale, FL 33322
© 1999 by Motorola, Inc.
, Motorola, and Professional Radio are trademarks of Motorola, Inc.
Printed in U.S.A. 7/99. All Rights Reserved.
*6881093C44*
68P81093C44-O
