PTP Solutions Guide Motorola Fixed Point-to-Point Wireless Bridges

Contents

Pg Section

3 Introduction

4 Solutions Overview

10 Motorola PTP 100 and 200 Warranties

11 Motorola PTP 300, 400, 500 and 600 Warranties

12 PTP Portfolio Summary

13 Key PTP 100 and 200 Selling Points

14 Key PTP 300, 400, 500 and 600 Selling Points

17 PTP 300, 400, 500 and 600 Value Proposition

19 PTP 100 Products

19 PTP 200 Product Descriptions

21 PTP 300, 400, 500 and 600 Product Descriptions

22 Key PTP 300, 400, 500 and 600 Technical Features

26 PTP 400 Series Bridges – Aggregate Ethernet Throughput Rates

27 PTP 600 Series Bridges – Aggregate Ethernet Throughput Rates

28 PTP Lightning Protection Unit (PTP-LPU) Product Description

30 Memorylink UltraSync™ GPS-100M Synchronization Unit

32 PTP LINKPlanner for PTP 300, 400, 500 and 600 Series Links

35 Frequently Asked Questions

40 Motorola PTP 100 Series Products and Part Numbers

41 Motorola PTP 200 Series Products and Part Numbers

42 Motorola PTP 300 Series Products and Part Numbers

43 Motorola PTP 400 Series Products and Part Numbers

45 Motorola PTP 500 Series Products and Part Numbers

46 Motorola PTP 600 Series Products and Part Numbers

48 Motorola PTP 300, PTP 500 and PTP 600 Series Accessories

49 Motorola PTP-LPU Kits and Part Numbers

50 Appendix A: Speciﬁcations for 5.4 GHz PTP 200 Series Solutions

51 Appendix A: Speciﬁcations for 5.4 and 5.8 GHz PTP 300 Series Solutions

52 Appendix A: Speciﬁcations for 5.4 GHz PTP 400 Series Solutions

53 Appendix A: Speciﬁcations for 4.9 GHz PTP 400 Series Solutions

54 Appendix A: Speciﬁcations for 5.4 and 5.8 GHz PTP 500 Series Solutions

55 Appendix A: Speciﬁcations for 5.4 and 5.8 GHz PTP 600 Series Solutions

56 Appendix A: Speciﬁcations for 2.5 GHz PTP 600 Series Solutions

57 Appendix A: Speciﬁcations for 4.5 GHz PTP 600 Series Solutions

58 Appendix A: Speciﬁcations for the PTP-LPU

59 Appendix B: External Antennas

The contents of this Solutions Guide are subject to change without notice.

PTP SOLUTIONS GUIDE

Introduction

The purpose of this document is to equip Motorola account teams and sales channel with the information needed to communicate the features and beneﬁts of the Motorola Fixed Point-to-Point Wireless Solutions.

This is a living document that acts as a central point of reference for all marketing collateral. It is permissible to extract certain sections or subsections that apply to speciﬁc customer situations and incorporate them into sales collateral materials. This document should not be used for contracts or proposals in lieu of an ofﬁcial Motorola customer document.

DIRECTORY OF ACRONYMS

PTP 100 with a Reﬂector PTP 200 Radio Motorola PTP 300, 400, 500 and

600 Series Integrated Radio

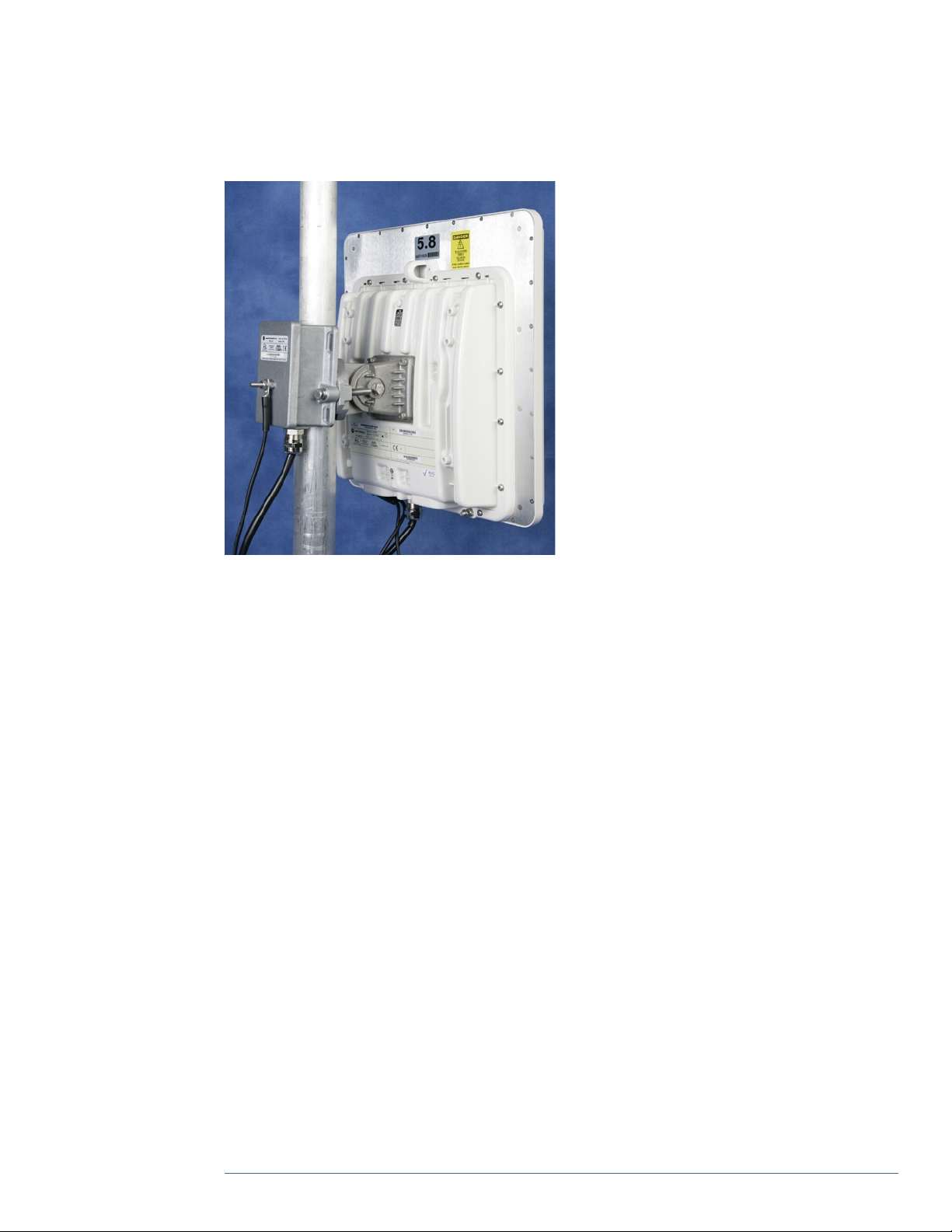

Motorola PTP 300, 400, 500 and 600 Series Connectorized Radio

This directory will help you interpret the acronyms used within this Solutions Guide:

OFDM Orthogonal Frequency Division Multiplexing – a method of digital modulation in which a signal is

split into several narrowband channels at different frequencies

QAM Quadrature Amplitude Modulation – a method of combining two Amplitude-Modulated (AM)

signals into a single channel, thereby doubling the effective bandwidth

LoS Line-of-sight (clear line-of-sight, and Fresnel zone is clear)

nLoS Near-line-of-sight (clear line-of-sight, but Fresnel zone is blocked)

NLoS Non-line-of-sight (no line-of-sight, and Fresnel zone is blocked)

ODU Outdoor Unit (Integrated or Connectorized Radio)

PIDU Powered Indoor Unit

DFS Dynamic Frequency Selection

PMP Point-to-Multipoint

PTP Point-to-Point

PoE Power over Ethernet

RF Radio Frequency

PTP SOLUTIONS GUIDE

Solutions Overview

Fixed Point-to-Point Wireless Ethernet Bridges:

Currently, there are several families of products within the Fixed Point-to-Point (PTP) bridge offerings:

• PTP 100 Series (formerly the Canopy® 10 and 20 Mbps Backhaul Modules)

• PTP 200 Series

• PTP 300 Series

• PTP 400 Series

• PTP 500 Series

• PTP 600 Series

All PTP radios, except the PTP 100 Series, are available in two versions: Integrated and Connectorized. The Integrated systems have built-in antennas, while the Connectorized versions offer the gain advantage of external antennas. In extremely adverse environments, Connectorized solutions enable connections over greater distances with a higher level of reliability and speed than many comparable solutions.

PTP 100 and PTP 200 systems are based on the same technology as the Canopy® PMP systems. The only difference is that the PTP 100 and 200 Series systems are conﬁgured as point-to-point solutions, rather than point-to-multipoint. The PTP 100 Series products provide line-of-sight (LOS) connectivity, while the PTP 200 OFDM (Orthogonal Frequency Division Multiplexing) products provide LOS and near-line-of-sight (nLOS) connectivity.

PTP 300, 400, 500 and 600 Series systems use a unique combination of innovative technologies that earned Motorola the market leadership in the global unlicensed Ethernet market. It’s these Orthogon-legacy technologies working together that enable the PTP 300, 400, 500 and 600 bridges to deliver exceptional range, capacity, reliability and performance – especially over water and long distances, in non-line-of-sight (NLoS) or near-line-of-sight (nLos) conditions, and in areas where there is signiﬁcant radio-frequency (RF) interference such as a city. This unique technology combination includes:

• Multiple-Input Multiple-Output (MIMO)

• Intelligent Orthogonal Frequency Division Multiplexing (i-OFDM)

• Advanced Spectrum Management with Intelligent Dynamic Frequency Selection (i-DFS)

• Adaptive Modulation

• Inherent Spatial Diversity

• Best-in-class radios with the highest system gain in their class

Accessories:

In addition to its point-to-point radios, Motorola offers the following accessory items for use with PTP 300, 400, 500 and 600 bridges:

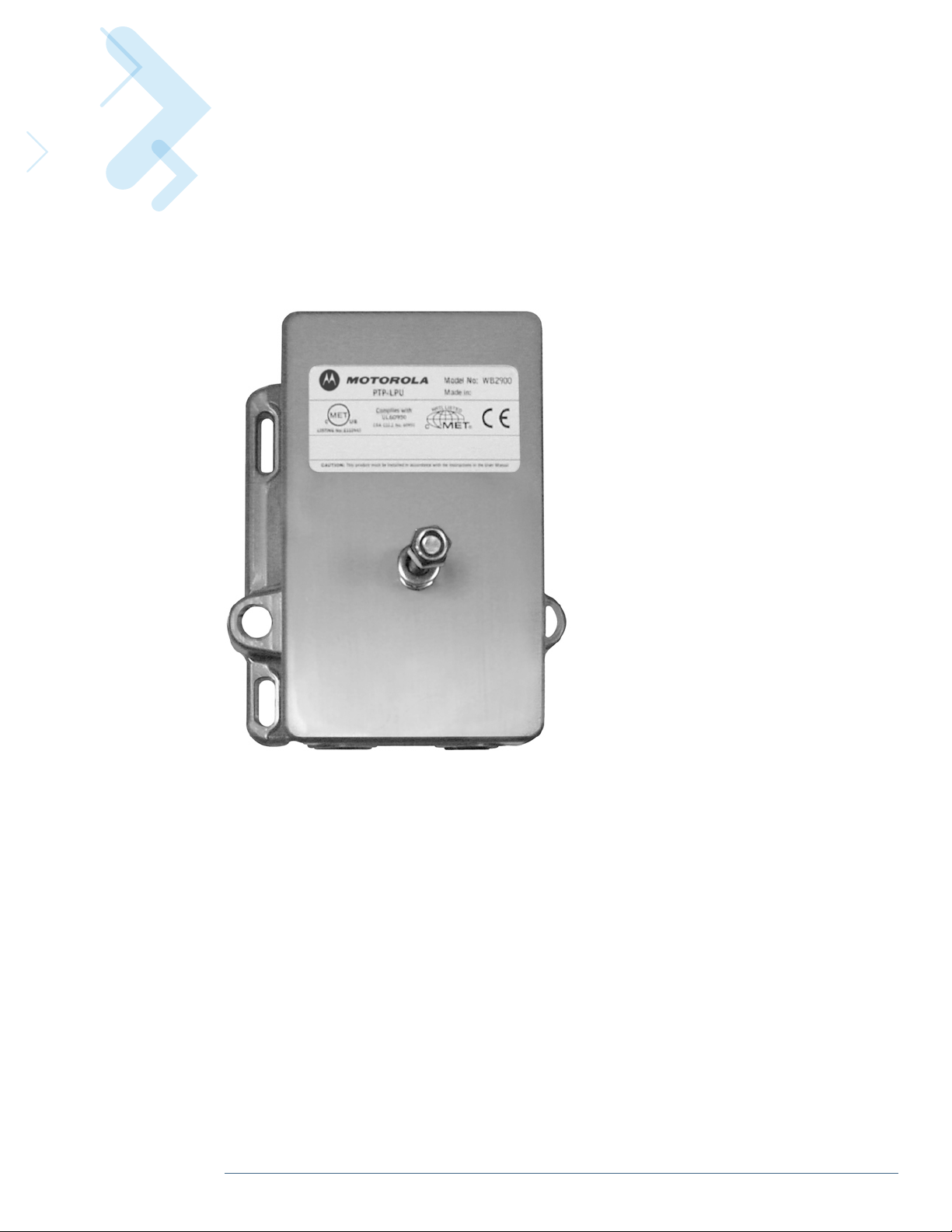

• Point-to-Point Lightning Protection Unit (PTP-LPU): The cost-effective PTP-LPU is designed to shield PTP 300, 400, 500 and 600 radios from sudden power surges induced by electromagnetic activity (lightning). Motorola strongly recommends including PTP-LPUs as an integral part of a PTP 300, 400, 500 or 600 Series link. While purchasing the Motorola PTP Link Guard All Risk Extended Warranty will cover the cost of replacing a radio damaged by lightning, deploying lightning protection initially will help the operator avoid the delays and costs associated with taking down damaged radios and installing replacement units. When correctly installed, the Motorola PTP-LPU gives a PTP 300, 400, 500 or 600 radio the best protection from the harmful effects of lightning. However, 100% protection is neither implied nor possible.

• GPS Synchronization Unit: Motorola partners with Memorylink to deploy the Memorylink UltraSync™ GPS-100M Synchronization Unit. The UltraSync GPS-100M generates a precise timing reference signal that is used by the PTP 600 radios as the timing reference for the PTP 600’s TDD Synchronization functionality. A Memorylink UltraSync GPS-100M is required for each TDD-enabled PTP 600 link.

PTP SOLUTIONS GUIDE

Solutions Overview continued

Motorola Wireless Broadband:

All Fixed Point-to-Point Wireless Ethernet Bridges are part of Motorola’s portfolio of Wireless Broadband solutions that help service providers and network operators improve communications, increase efﬁciency and enhance customer and public service. All point-to-point Wireless Ethernet Bridges can operate as standalone systems or integrate easily with the other solutions in the Wireless Broadband portfolio to provide the right solution or combination of solutions for the individual applications and environment. Delivering IP coverage to virtually all spaces, the Wireless Broadband portfolio includes Fixed, Mesh, Indoor and WiMAX solutions for high-speed connectivity over private and public networks.

Choice and Flexibility:

While there are a number of internal and external factors (e.g., infrastructure complexities, budget, bandwidth requirements, path obstructions, applications, etc.) that will inﬂuence the decision about which Motorola solution best ﬁts a speciﬁc customer situation, all Motorola point-to-point products offer exceptional advantages. As a general guideline, solutions are recommended for a wide variety of applications as described below.

PTP 100 Series Solutions:

Delivering data rates up to 14 Mbps at distances up to 35 miles (56 km), these cost-effective systems offer consistent throughput, interference mitigation capabilities, weather resistant operations and a compact, rugged design. Operating in the 2.4, 5.2, 5.4 and 5.8 GHz frequencies, the systems are designed to provide reliable, line-of-sight connectivity for a variety of applications, including rural, remote or campus connectivity, temporary services, emergency communications, video surveillance, distance learning, telemedicine, banking and backbone operations for Metro WiFi networks. The PTP 100 is an excellent choice for WISPs and ISPs with low-capacity requirements. Models within the PTP 100 family of products include:

PTP 100 Series Maximum Products Data Rate

PTP 24100 – 2.4 GHz Bridge 14 Mbps

PTP 24100 Lite – 2.4 GHz Bridge 7.5 Mbps

PTP 52100 – 5.2 GHz Bridge 14 Mbps

PTP 52100 Lite – 5.2 GHz Bridge 7.5 Mbps

PTP 54100 – 5.4 GHz Bridge 14 Mbps

PTP 54100 Lite – 5.4 GHz Bridge 7.5 Mbps

PTP 58100 – 5.8 GHz Bridge 14 Mbps

PTP 58100 Lite – 5.8 GHz Bridge 7.5 Mbps

Although PTP 100 Series Point-to-Point solutions are included in the Motorola portfolio of Point-to-Point Wireless Ethernet Bridges, they utilize unique Motorola technology and do not share the same technology provided in the PTP 300, 400, 500 and 600 Series solutions.

PTP SOLUTIONS GUIDE

Solutions Overview continued

PTP 200 Series Solutions:

Operating in the 5.4 GHz band, PTP 200 solutions are designed to cost-effectively transport data, voice and video communications in nLOS and LOS environments. The current models available within the PTP 200 family of products are:

PTP 200 Series Max. Ethernet Products Data Rate

PTP 54200 – 5.4 GHz Bridge 21 Mbps with 56-bit DES

PTP 54200 – 5.4 GHz Bridge 21 Mbps with 128-bit AES

PTP 200 bridges are available in Integrated and Connectorized versions. The Integrated systems have a built-in antenna, while the Connectorized systems can be ﬁtted with external antennas.

Previously, many service providers and enterprises could not provide wireless broadband connectivity for their subscribers and users because of obstacles that disrupted communications. As a result, their connectivity options were limited to expensive and restrictive wired solutions. With the PTP 200 Series bridges, enterprises of all types and sizes can have a reliable, secure alternative that performs well in paths where foliage and buildings partially block the radio line-of-sight (Fresnel zone) but not the visual line-ofsight. With a very low cost of ownership, the PTP 200 solutions bring the speed and bandwidth advantages of wireless broadband connectivity to virtually any enterprise and service provider – regardless of budgetary constraints.

PTP 300 Series Solutions:

Operating in the 5.4 and 5.8 GHz bands, the PTP 300 solutions provide reliable, cost-effective connectivity for data, voice and video communications in virtually any environment and weather conditions. The current models available within the PTP 300 family of products are:

PTP 300 Series Max. Ethernet Products Data Rate

PTP 54300* – 5.4 GHz Bridge 25 Mbps

PTP 58300 – 5.8 GHz Bridge 25 Mbps

PTP 300 bridges are available in Integrated and Connectorized versions. The Integrated systems have built-in antennas, while the Connectorized systems can be ﬁtted with external antennas.

* The 5.4 GHz version of this device has not been authorized as required by the rules of the Federal Communications Commission (FCC).

That device is not, and may not be, offered for sale or lease, or sold or leased in the United States, until authorization is obtained.

Until now, many emerging companies and government agencies have had to choose between performance and price when expanding their communication capabilities. The challenges of meeting bandwidth and environmental requirements while staying within budgetary guidelines frequently resulted in having to buy less than needed, pay more than desired, or postpone purchase. That has all changed with the PTP 300 Series bridges. Now growing and budget-constrained service providers and enterprises have an affordable, high performance alternative for obstructed and high interference environments. With the same awardwinning combination of technologies that made Motorola the leader in the unlicensed Ethernet bridge market, PTP 300 bridges provide class-leading connectivity, even in obstructed and high-interference environments. The PTP 300 Integrated systems are an excellent choice to deliver carrier-class, reliable and secure connectivity for distances up to 50 miles (80.5 km). With up to 155 miles (250 km) reach, the Connectorized model offers the high-gain advantage of external antennas, providing high-performance connectivity across extremely long distances and challenging environments.

PTP SOLUTIONS GUIDE

Solutions Overview continued

PTP 400 Series Solutions:

The PTP 400 Series wireless Ethernet bridges operate in the 4.9 GHz licensed band and the 5.4 GHz unlicensed frequencies, delivering proven, cost-effective, secure, carrier-grade broadband access when and where it is needed. There are several models available within the PTP 400 Series to meet a variety of customer requirements:

PTP 400 Series* Max. Ethernet Products Data Rate

PTP 49400 – 4.9 GHz Bridge 35 Mbps

PTP 49400 Lite – 4.9 GHz Bridge 17 Mbps

PTP 54400 – 5.4 GHz Bridge 43 Mbps

PTP 54400 Lite – 5.4 GHz Bridge 21 Mbps

The PTP 400 bridges are available in Integrated and Connectorized versions. The Integrated systems have built-in antennas, while the Connectorized systems can be ﬁtted with external antennas. Plus, the Lite models are software upgradeable to 43 Mbps (PTP 54400) or 35 Mbps (PTP 49400).

* The PTP 58400 has been removed from this document because the PTP 58400 models are being retired effective October 7, 2008.

The Integrated versions of the PTP 400 Series solutions are recommended for near- and non-line-of-sight environments and over long distances. The Connectorized versions offer the high-gain advantage of external antennas, enabling reliable connections in extremely adverse environments, including deep nonline-of-sight and long-range line-of-sight. The Integrated Lite and Connectorized Lite versions of the PTP 400 bridges are excellent choices for growing WISPs and ISPs, and for any budget constrained organization that needs a robust solution to overcome interference and navigate obstructions.

For public safety ofﬁcials with 4.9 GHz licenses, PTP 49400 solutions provide the mission-critical reliability, throughput, bandwidth and quality of service they require for applications such as on-scene streaming video, Internet and database access, and transfers of maps, blueprints, medical ﬁles and missing-person images.

PTP 500 Series Solutions:

Operating in the 5.4 and 5.8 GHz bands, a PTP 500 solution is an excellent choice when the PTP 400 does not provide enough throughput and the PTP 600 provides more than is needed. The current models available within the PTP 500 family of products are:

PTP 500 Series Max. Ethernet Products Data Rate

PTP 54500* – 5.4 GHz Bridge 105 Mbps

PTP 54500* Lite – 5.4 GHz Bridge 52 Mbps

PTP 58500 – 5.8 GHz Bridge 105 Mbps

PTP 58500 Lite – 5.8 GHz Bridge 52 Mbps

PTP 500 bridges are available in Integrated and Connectorized versions. The Integrated systems have built-in antennas, while the Connectorized systems can be ﬁtted with external antennas. Plus, the PTP 500 Lite is software upgradeable from 52 to 105 Mbps as throughput requirements increase.

* The 5.4 GHz version of this device has not been authorized as required by the rules of the Federal Communications Commission (FCC).

That device is not, and may not be, offered for sale or lease, or sold or leased in the United States, until authorization is obtained.

PTP SOLUTIONS GUIDE

Solutions Overview continued

When connectivity requirements call for mid-range throughput, the PTP 500 Integrated systems are an excellent alternative for service providers and enterprises, delivering carrier-class, high-speed performance at distances up to 50 miles (80.5 km) in virtually any environment. With up to 155 miles (250 km) reach, the Connectorized model combines all the innovative technology found in the Integrated version with the high-gain advantage of external antennas, providing high-performance connectivity across extremely long distances and challenging environments.

With all the same robust capabilities as the “full speed” models, the Lite versions of the PTP 500 solutions offer an excellent option where budgets are somewhat restricted, yet high throughput and reliability are key to supporting the customer’s requirements.

PTP 600 Series Solutions:

The PTP 600 Series wireless Ethernet bridges operate in the 2.5 and 4.4 to 4.6 GHz licensed bands plus the 5.4 and 5.8 GHz unlicensed bands. These solutions deliver high-throughput, secure, carrier-grade connectivity virtually anywhere and are available in several models to meet a variety of requirements:

PTP 600 Series Max. Ethernet Products Data Rate

PTP 25600 – 2.5 GHz Bridge 300 Mbps

PTP 45600 – 4.5 GHz Bridge 300 Mbps

PTP 54600 – 5.4 GHz Bridge 300 Mbps

PTP 54600 Lite – 5.4 GHz Bridge 150 Mbps

PTP 58600 – 5.8 GHz Bridge 300 Mbps

PTP 58600 Lite – 5.8 GHz Bridge 150 Mbps

The PTP 600 bridges are available in Integrated and Connectorized versions. The Integrated systems have built-in antennas, while the Connectorized systems can be ﬁtted with external antennas. Plus, the Lite models of the PTP 600 5.4 and

5.8 GHz bridges are software upgradeable to 300 Mbps as throughput requirements increase.

All models within the PTP 600 family of products offer selectable channel sizes and varying data rates to provide even greater ﬂexibility to meet the needs of solutions providers and end-user customers

Channel Sizes* for Max. Ethernet 45600, 54600 and Data Rate 58600 Full Versions

5 MHz Channel Up to 41 Mbps

10 MHz Channel Up to 84 Mbps

15 MHz Channel Up to 127 Mbps

30 MHz Channel Up to 300 Mbps

Channel Sizes* for Max. Ethernet 54600 and 58600 Data Rate Lite Versions

10 MHz Channel Up to 42 Mbps

15 MHz Channel Up to 63 Mbps

30 MHz Channel Up to 150 Mbps

* Local regulations should be conﬁrmed prior to system purchase.

The PTP 600 “full” solutions are the perfect choice for any environment where high throughput is a major requirement and/or dual T1/E1 capability is needed. With up to 150 Mbps Ethernet data rate and the same high-performance technology of the full-speed systems, the PTP 54600 and PTP 58600 Integrated Lite and Connectorized Lite are the right solutions where the application needs more speed and bandwidth than is provided by the PTP 400 and PTP 500 Series bridges and/or single T1/E1 capability is required.

PTP SOLUTIONS GUIDE

Operating in the 4.4 to 4.6 GHz licensed frequencies, the PTP 45600 bridges are designed to support U.S. Federal and NATO licensees with cost-effective, high-throughput connectivity for a variety of applications such as battleﬁeld communications, public safety, video surveillance, border security, tactical military operations, training and simulation networks, building-to-building and campus communications and robust trafﬁc backhaul. While the PTP 45600 bridges are available in Integrated and Connectorized versions, there is no Lite version because PTP 45600 systems offer selectable channel sizes with varying data rates based on the channel width selected.

In 2004, the U.S. Federal Communications Commission (FCC) instituted the Educational Broadband Service (EBS), formerly known as the Instructional Television Fixed Service (ITFS), with the primary purposes being high-speed Internet access and the transmission of instructional material utilizing low-power broadband systems. Designed for 2.5 GHz license holders with EBS programs, the PTP 25600 solutions provide network operators with high-throughput, low-latency and high-availability connectivity to deliver even the richest educational applications ﬂawlessly. Like the PTP 45600, the PTP 25600 bridges are available in Integrated and Connectorized versions, but no Lite version.

Channel Sizes* for Max. Ethernet 25600 Full Versions Data Rate

5 MHz Channel Up to 48 Mbps

10 MHz Channel Up to 100 Mbps

15 MHz Channel Up to 151 Mbps

30 MHz Channel** Up to 300 Mbps

* Local regulations should be conﬁrmed prior to system purchase. ** 30 MHz is not FCC compliant.

Power Restrictions for 5.4 GHz Solutions:

It is important to note that governmental authorities in the US, Canada and EU have imposed power restrictions on 5.4 GHz radios. Motorola’s PTP 54300, PTP 54400, PTP 54500 and PTP 54600 bridges comply with those power restrictions, providing solutions that are particularly well suited for:

• Line-of-sight hops – up to 12 miles (20 km)

• Non-line-of-sight links – up to 3 miles (5 km)

• Backhaul for point-to-multipoint and mesh networks

In regions where power restrictions are not imposed, as well as for U.S. Federal Government agencies that are exempt from the power restrictions, network operators can request an Alternate License Key to set their systems to operate at full power, thereby achieving long-distance line-of-sight communications.

The PTP 54200 bridges also comply with these power restrictions, providing cost-effective solutions for nLOS and LOS hops of up to 5 miles (8 km) in distance.

PTP SOLUTIONS GUIDE

Motorola PTP 100 and 200 Warranties

The PTP 100 and PTP 200 Series solutions are manufactured to meet our high quality standards. Even with such attention to quality, hardware components can fail sometimes due to a variety of severe situations. In response to such situations, Motorola provides the following hardware and software warranties to support its PTP 100 and 200 solutions:

12-Month Hardware Warranty

A one-year limited warranty is included in the purchase price of a PTP 100 or PTP 200 Series radio. Motorola warrants that its PTP 100 or PTP 200 radios will conform to the current published speciﬁcations and will be free from defects in material and workmanship under normal use and service. In the event of a hardware failure, the warranty provides repair or replacement of the defective unit. Plus Motorola pays shipping from Motorola’s repair center to the customer’s location.

Under this warranty, Motorola also warrants that its PTP 100 and PTP 200 Series software will perform in accordance with its published speciﬁcations for the release level of the software and will be free from defects in material and workmanship under normal use and service. Under this 12-month warranty, Software Warranty, Motorola will correct or replace software to ﬁx signiﬁcant, demonstrable program or documentation errors and/or replace defective media.

PTP SOLUTIONS GUIDE

Motorola PTP 300, 400, 500 and 600 Warranties

While our PTP 300, 400, 500 and 600 Series products are engineered and quality-tested to withstand severe conditions, occasionally hardware components can fail as a result of extreme situations. Therefore, Motorola offers the following equipment coverage and repair-and-replacement options to support its PTP 300, 400, 500 and 600 solutions:

12-Month Standard Warranty

At the time of equipment purchase or prior to the end of the 12-month standard warranty, Motorola recommends that organizations purchase one of the following Extended Warranties to receive upgraded and/or extended equipment coverage:

Link Guard All Risk Extended Warranty

The purchase price of a PTP 300, 400, 500 or 600 Series radio includes a one-year limited warranty on all hardware components, plus minor software enhancements as they become available. The hardware warranty provides a 30-day repair-and-return program for damaged parts. Each product must be registered online to activate the free 12-month warranty period and receive notiﬁcation of software updates. To activate a standard warranty, go to www.motorola.com/ptp.

The Motorola PTP Link Guard All Risk Extended Warranty upgrades the initial 12-month warranty to the 24-hour Advanced Replacement program and All Risk equipment coverage for virtually any type of equipment damage, including lightning damage, dropped units, vandalism, ﬁre or other hardware damage. The All Risk coverage with 24-hour Advanced Replacement can be extended through the second, third or ﬁfth years of ownership.

This warranty option ensures that replacement product will be shipped from the United Kingdom on the next business day after receipt of a conﬁrmed Return Material Authorization (RMA). All shipping materials are provided when the RMA is approved, and Motorola picks up shipping costs in both directions. While the replacement shipping process will be started immediately, delivery time will be dependent upon customs and ship-to location.

Link Protector Extended Warranty

PTP Software Maintenance Contract

PTP SOLUTIONS GUIDE

The Motorola PTP Link Protector Extended Warranty extends the initial 12-month standard equipment warranty with 30-day repair-and-replacement terms through the second, third or ﬁfth years of ownership. This option is typically chosen when an organization purchases one or more spare PTP links to use as replacement units, and fast repair and return for damaged hardware components is not required.

After the initial 12-month standard warranty, an annual Software Maintenance Contract must be obtained to continue receiving software updates and technical support. The contract includes minor software enhancements as they become available and 24/7 telephone support. Technical support is provided under an assigned Customer Contract Number (CCN) or the MAC address of the unit that is covered under the initial 12-month standard warranty. Contracts are available through Motorola’s authorized reseller partners or directly from the Technical Support Center using a credit card.

PTP Portfolio Summary

Motorola PTP products have an array of features that enable network architects to meet service requirements at the lowest cost. These families of products complement Motorola’s Point-to-Multipoint (PMP), WiMAX, Mesh and Indoor solutions, giving network operators a wide variety of solutions that can be tailored to meet speciﬁc requirements.

Features PTP 100 PTP 200 PTP 300 PTP 400 PTP 500 PTP 600

Radio frequencies 2.4, 5.2, 5.4 5.4 GHZ 5.4, 5.8 GHz 4.9, 5.4 5.4, 5.8 2.5, 4.5, 5.4,

5.8 GHz GHz GHz 5.8 GHz

Ethernet throughput* 14 Mbps 21 Mbps 25 Mbps 5.4-43 Mbps 105 Mbps 300 Mbps (maximum) 4.9-35 Mbps

Latency 5-7 ms < 6 ms 5.4 < 7 ms < 6 ms 5.4 < 1 ms (average round trip) 4.9 < 6 ms 5.8 < 1 ms

2.5 2-4 ms

4.5 2-4 ms

LOS range Integrated – (maximum with 35 mi 5 mi 155 mi 124 mi 155 mi 124 mi external antennas) (56 km) (8 km) (250 km) (200 km) (250 km) (200 km)

nLOS range Integrated – (maximum with 5 mi 20 mi 25 mi 20 mi 20 mi external antennas) (8 km) (32 km) (40 km) (32 km) (32 km)

NLOS range (maximum with 5 mi 6 mi 5 mi 5 mi external antennas) (8 km) (10 km) (8 km) (8 km)

Channel Width 10 MHz 15 MHz 4.9-10 MHz 15 MHz Selectable

5.4-12 MHz 5, 10, 15, 30 MHz

System gain 123 dB 4.9-163 dB 167 dB 5.4-162 dB (maximum with 5.4-167 dB 5.8-162 dB integrated antennas) 2.5-154 dB

4.5-165.9 dB

Security 56-bit DES Scrambling Scrambling Scrambling Scrambling 128-bit AES & optional & optional & optional & optional 128-bit AES 128-bit AES 128-bit AES 128-bit AES 256-bit AES 256-bit AES 256-bit AES

DFS 4 4 4 4 4

ODFM 4 4 4 4 4

MIMO 4 4 4 4

MSRP DES $3,595 $5,995 Full $11,995 Full $12,995 5.4, 5.8 GHz (USD – per link) AES $4,095 Lite $7,200 Lite $8,995 Full $19,995 Lite $15,995

2.5 $15,995

4.5 $24,995

* Data rates are dynamically variable with modulation. Due to the power restrictions imposed by U.S., Canadian and EU authorities

on systems operating in the 5.4 GHz band, lower ranges will be realized with systems operating in the 5.4 GHz band within powerrestricted regions. Use the Motorola PTP LINKPlanner to provide accurate link performance estimates for all systems.

PTP SOLUTIONS GUIDE

Key PTP 100 and 200 Selling Points

PTP 100 Series:

• Data rates up 14 Mbps at distances up to 35 miles (56 km)

• 2.4, 5.2, 5.4 and 5.8 GHz RF bands

• Extremely cost effective solutions

• Reliable LOS connectivity for applications such as rural, remote or campus connectivity, temporary services, emergency communications, video surveillance, distance learning, telemedicine, banking and backbone operations for Metro WiFi networks

• Excellent alternative for WISPs and ISPs with low-capacity requirements

• Easy and quick deployment

• Proven, time-tested Motorola technology

PTP 200 Series:

• Data rates up to 21 Mbps

• Integrated models connect at distances up to 5 miles (8km)

• Reliable, secure connectivity for cost-conscious organizations

• Transports data, voice and video in nLOS and LOS environments for applications such as building-tobuilding and campus connectivity, high-speed Internet access, Voice-over-IP and video surveillance

• Robust, cost-effective backhaul for PMP, Mesh and WiMAX networks in nLOS and LOS environments

• Wireless broadband communications in previously inaccessible locations

• Quick and easy deployment with built-in deployment assistance features

• OFDM technology to reach around obstacles that partially block a path’s radio line-of-sight (Fresnel zone) while leaving the visual line-of-sight clear

• GPS synchronization capabilities that greatly reduce self-interference, allowing network operators to collocate multiple radios on a tower or rooftop and collocate backhaul links with existing Canopy networks

• Network design that complements existing networks and integrates easily with Web-based and SNMP-based management systems as well as Prizm and CNUT

• Compatible with existing Canopy® power supplies, surge suppressors, brackets and software

PTP SOLUTIONS GUIDE

Key PTP 300, 400, 500 and 600 Selling Points

Remove System Bottlenecks in the Network with Increased Throughput

PTP 54300 and 58300:

• Up to 25 Mbps – aggregate throughput

PTP 54400 Lite:

• Up to 21 Mbps - aggregate throughput (30 Mbps - signaling rate)

• Software upgradeable to 43 Mbps

PTP 54400:

• Up to 43 Mbps - aggregate throughput (60 Mbps - signaling rate)

PTP 49400 Lite:

• Up to 17 Mbps - aggregate throughput

• Software upgradeable to 35 Mbps

PTP 49400:

• Up to 35 Mbps - aggregate throughput

PTP 54500 and 58500 Lite:

• Up to 52 Mbps – aggregate throughput

• Software upgradeable to 105 Mbps

PTP 54500 and 58500:

• Up to 105 Mbps – aggregate throughput

PTP 54600 and 58600 Lite:

• Up to 150 Mbps - aggregate throughput

• Selectable 10, 15 and 30 MHz channel sizes

• Software upgradeable to 300 Mbps

PTP 25600, 45600, 54600 and 58600:

• Up to 300 Mbps - aggregate throughput

• Selectable 5, 10, 15 and 30 MHz* channel sizes

* For the PTP 25600, the 30 MHz channel size is not FCC compliant

Establish Robust Links to Challenging Locations

• Single-hop, long-range LoS links – up to 124 miles (200 km) with PTP 400 and PTP 600 bridges or 155 miles (250 km) with PTP 300 and PTP 500 bridges

• Previously impossible or marginal links can now be established in:

> nLoS – up to 25 miles (40 km) > NLoS – up to 6 miles (10 km) > An area already saturated with RF

• Disaster recovery connectivity in a matter of hours

Reduce Capital and Deployment Costs

• Connect previously inaccessible locations in nLoS and NLoS conditions:

> Reach around buildings, trees, hills and over water > Establish long-range LoS links with a single hop

• Meet the growing bandwidth requirements of voice, video and data

• Expand video surveillance applications beyond the constraints of an existing wired infrastructure

• Replace a wired connection with a higher-capacity, less expensive wireless connection

Eliminate Monthly Recurring Costs Associated with Leased T1/E1 Voice Circuits

• Built-in T1/E1 in PTP 600 systems:

> Single port on PTP 54600 and PTP 58600 Lite bridges > Dual ports on PTP 54600 and PTP 58600 bridges > Single port on PTP 25600 and PTP 45600 bridges with 10 and 15 MHz channel sizes > Dual ports on PTP 25600 and PTP 45600 bridges with 30 MHz channel sizes

• Pair PTP 300, 400 and 500 Series bridges with a T1/E1 Multiplexer

• Provide Secure Communications

> Pre-programmed to communicate only with a user-conﬁgured partner to eliminate “man-in-the-

middle” attacks > Utilize a complex proprietary scrambling mechanism for data transmission > Another layer of security is available with 128-bit and 256-bit AES encryption (optional)

PTP SOLUTIONS GUIDE

Key PTP 300, 400, 500 and 600 Selling Points (continued)

Easy Link Planning

• Perform path calculations for PTP 300, 400, 500 and 600 Series solutions using the PTP LINKPlanner

which simulates a link’s performance and allows variables to be changed to instantly see the effects on performance

• Quickly and easily optimize a single link or multiple links simultaneously

Reduce Overall Operating Costs

• Operators can remotely manage, monitor and optimize link performance via comprehensive web-

based management

• Small form factor reduces the costs of leasing tower space

• More links can be collocated without creating excess interference: > Narrow 8° antenna beam width – dual polarized antennas > Narrow Channels:

• 12 MHz Channel for 5.4 GHz PTP 400 Series bridges

• 10 MHz Channel for 4.9 GHz PTP 400 bridge

• 15 MHz Channel for 5.8 and 5.4 GHz PTP 300 and 500 Series bridges

• Selectable 5, 10, 15 and 30 MHz channels for PTP 600 Series bridges

Deliver High Availability in Noisy and Constantly Changing RF Environments

• Unique combination of interference mitigation techniques: > Multiple-Input Multiple-Output (MIMO) transmits multiple signals which are de-correlated

temporarily and spatially; being de-correlated, each path fades at different times, and the receiver is able to select the best signal at any time, resulting in better performance and link availability.

> Advanced Spectrum Management with i-DFS (intelligent Dynamic Frequency Selection)

automatically changes channels to avoid interference and combat fading.

> Adaptive Modulation ensures maximum throughput optimized for the radio path even as path

characteristics change.

> Time Division Duplex (TDD) Synchronization (PTP 600 Series radios): Using a timing

reference from the Memorylink UltraSync™ GPS-100M synchronization unit, the PTP 600’s TDD Synchronization capability synchronizes transmit and receive signals to minimize interference and promote optimal spectral reuse. By timing and synchronizing transmit and receive signals, network operators can collocate multiple PTP radios on a rooftop or tower with greatly reduced interference.

Bring Reliable, High-Capacity Connectivity to a Wide Variety of Applications

• Deliver high bandwidth for demanding applications, such as Voice-over-IP, IP gaming, video

surveillance, distance learning and telemedicine

• Support public safety ofﬁcials with high-bandwidth, super-reliable connectivity for voice, video and

data communications (PTP 49400 4.9 GHz systems)

• Connect buildings in a campus setting

• Create a seamless local-area-network between a company headquarters and a warehouse, branch

ofﬁce, service center or other facility

• Backhaul more local loops using a single link

• Extend T1/E1 PBX circuits

• Support sophisticated convergent, multimedia applications

• Backhaul trafﬁc from multiple wireless LAN access points to a point of presence

• Fast, cost-effective deployment for disaster recovery and temporary services

• Combine T1/E1 and Ethernet ports in a single radio

• Backhaul trafﬁc from Motorola Point-to-Multipoint, WiMAX and Mesh networks

• Provide 2.5 GHz license holders with high-throughput, spectrally-efﬁcient connectivity to deliver the

richest educational applications reliably (PTP 25600 2.5 GHz system)

• Provide U.S. Federal and NATO agencies with 4.4 to 4.6 GHz licenses the high-performance,

reliable connectivity they need to support tactical communications in difﬁcult RF environments and geographies (PTP 45600 4.5 GHz system)

PTP SOLUTIONS GUIDE

Key PTP 300, 400, 500 and 600 Selling Points (continued)

Offer Network Design Flexibility

• Choose from several platforms – PTP 300 Series, PTP 400 Series, PTP 400 Series Lite, PTP 500

Series, PTP 500 Series Lite, PTP 600 Series, PTP 600 Series Lite – each available in two versions – Integrated or Connectorized

• PTP 300, 400, 500 and 600 Series systems integrate with Motorola’s Fixed Point-to-Multipoint

(Canopy®), Mesh, WiMAX and Indoor networks

• Migration path to higher bandwidths: > 21 Mbps to 43 Mbps (PTP 54400) > 17 Mbps to 35 Mbps (PTP 49400) > 52 Mbps to 105 Mbps (PTP 54500 and PTP 58500) > 150 Mbps to 300 Mbps (PTP 54600 and PTP 58600) > Selectable channel widths and data rates with PTP 600 bridges

• Dual powering options (±48V DC and AC) provide several different power supply conﬁgurations such

as wind or solar power and redundant conﬁgurations

Easy, Flexible System Management

• Web or SNMP V1/2c using MIB-II or private PTP MIB

• Canopy® Prizm

PTP SOLUTIONS GUIDE

PTP 300, 400, 500 and 600 Value Proposition

Motorola PTP 300, 400, 500 and 600 Series solutions deliver unique and exciting opportunities to different markets.

uction

MARKET

OPPORTUNITY

Rural Carriers

Enterprise Network Operators

Urban Carriers

Municipalities, Education, Healthcare

Public Safety

2.5 GHz EBS License Holders

Grow subscriber networks by establishing service in distant locations with a single, wireless backhaul link.

Provide high throughput point-to-point links to connect buildings to branch ofﬁces and other facilities that may not be reached cost-effectively with a wired connection. While a wired solution may take weeks to provision, a PTP 300, 400, 500 or 600 Series solution offers more bandwidth for less money and can be up and running in hours or a few days.

Remove network bottlenecks and eliminate monthly leased wire/ﬁber connections with a high throughput wireless backhaul that works well in nLoS and NLoS environments and high interference environments that are typical in urban settings.

Establish cost-effective network redundancy or extend network reach to aggregate voice, video and data from remote locations without trenching new ﬁber.

Provide reliable, high-bandwidth voice, video and data communications for onscene streaming video, Internet and database access, and large ﬁle transfers (maps, blueprints, medical ﬁles, missing person images, etc.), plus backhaul for wireless networks and temporary ﬁxed point-to-point links.

Establish a dedicated broadband Internet connection to access library and laboratory research, online work assignments, media-rich content, slide, audio or video presentations, online testing and performance tracking, virtual ﬁeld trips, individual tutoring or mentoring, and much more.

U.S. Federal and NATO Agencies

PTP SOLUTIONS GUIDE

Support 4.4 to 4.6 GHz license holders with a wide variety of connectivity requirements such as battleﬁeld communications, video surveillance, border security, public safety, training and simulation networks, building-to-building and campus communications and trafﬁc backhaul.

PTP 300, 400, 500 and 600 Value Proposition continued

The features of the PTP 300, 400, 500 and 600 Series solutions deliver real, measurable value to customers.

VALUE

Revenue Generation

Reduce Costs

Reliability and Performance

Lower Risk

DRIVER

Increased nLoS or NLoS and long range LoS performance enables links to be established in previously inaccessible locations.

Increased nLoS, NLoS and long range LoS performance reduces the number of hops, saving on equipment and associated tower costs.

Replace leased T1/E1 voice circuits by pairing a T1/E1 multiplexer with PTP 300, 400 and 500 Series systems or by activating the single or dual T1/E1 ports in PTP 600 Series systems.

The radio’s small footprint and Power-over-Ethernet capabilities mean that operators can deploy in space-constrained and aesthetically-challenging environments, saving valuable tower space.

More “ﬁrst pass” installs and less “truck rolls” after installation because each radio features an integrated web server which enables remote management to conﬁgure, monitor and upgrade a link via a remote browser.

PTP 300, 400, 500 and 600 solutions offer exceptional interference mitigation techniques (Multiple-Input Multiple-Output [MIMO], Advanced Spectrum Management with i-DFS and Adaptive Modulation) that provide a reliable network connection in noisy RF environments. As conditions change, the radios will automatically change the channels (i-DFS) and dynamically “upshift” or “downshift” modulation to maintain a reliable connection without user intervention.

A single Ethernet drop cable transports both data and Power-over-Ethernet. Dual powering options enable both ±48 VDC and AC power plus the ﬂexibility to conﬁgure the power supply in a standalone or redundant conﬁguration.

i-OFDM technology combined with MIMO enables a highly reliable connection in challenging conditions – around buildings, through and over trees, around hills and over water.

High-capacity throughput enables efﬁcient backhaul connections between business locations or to reach multiple clusters. The PTP 400 Series Lite (17 Mbps or 21 Mbps) provides a migration path to PTP 400 Series (35 Mbps or 43 Mbps respectively) via a software activation key. The 5.4 and 5.8 GHz PTP 500 and 600 Series Lite models (52 Mbps or 150 Mbps) provide a migration path to the PTP 500 and 600 Series (105 Mbps or 300 Mbps respectively) via a software activation key.

Using the Motorola PTP LINKPlanner, an operator can simulate and optimize link performance before deploying a PTP 300, 400, 500 or 600 link by ﬁne tuning a number of factors to instantly see the effect on link performance.

PTP 300, 400, 500 and 600 Series bridges use narrow RF channels which enable collocation with Motorola’s Canopy® Access Point Clusters and provide the ability to function in crowded and challenged RF environments.

PTP SOLUTIONS GUIDE

PTP 100 with a Reﬂector

PTP 100 Products

Designed for line-of-sight applications, PTP 100 (previously known as the Canopy® BH10 and Canopy BH

20) solutions have an array of modules that enable network architects to meet service requirements at extremely low cost. The units complement the Canopy Point-to-Multipoint products, providing network operators a wide variety of line-of-sight solutions that can be tailored their speciﬁc requirements, including rural, remote and campus connectivity, temporary services, emergency communications, video surveillance, distance learning, telemedicine, banking and backbone operations for metropolitan WiFi networks.

PTP 200 Radio

PTP 200 Product Descriptions

For stand-alone systems, a PTP 200 link consists of a pair of PTP 200 radios, each ﬁtted with a Canopy power supply and surge suppressor. For systems that will be used for backhauling a Canopy network, a link consists of two PTP 200 radios ﬁtted with a Cluster Management Module 3 (CMM3) and surge suppressors.

PTP SOLUTIONS GUIDE

+ 42 hidden pages
