Motorola PR400 User Manual

The Motorola Difference
Motorola has developed two-way radios with a number of key factors in mind to provide you with great quality and enhanced value. These key factors represent the essential elements you depend on and expect in your communication – and Motorola brings them all together for you!
Value to ensure you get the most for your communication dollars
Reliability so you can depend on your radio, even in harsh environments
Ease of Use for simple operation and customization
Size and Weight to provide convenient installation or easy portability
Battery Life to give you the power you need to communicate – as long as you need
Programmable to customize features of each radio for each user
Range that lets you reach coworkers across the street or across town
Motorola – A Name You Know and Trust
For 75 years, Motorola has been a leader in creating state-of-the-art wireless communication for people like you. The PR400 portable and PM400 mobile two-way radios continue to uphold that standard of excellence that Motorola is known for. Each radio is backed by a limited two-year* warranty on parts and labor. So when you select the PR400 or PM400, you will experience the same exceptional quality you have come to expect from Motorola products.
The PR400 and PM400 two-way radios are ideal for many businesses and industries including:
• Agriculture
• Hospitality
• Light Construction
• Light Industrial
• Manufacturing
• Public Administration
• Delivery Services
• Security
• Taxi and Limousine Services
• Transportation/Fleet
• Utilities
*Radio accessories are covered by Motorola’s one-year accessories warranty.
Superb Performance, More Channels … Still Affordable
The PR400 portable and PM400 mobile two-way radios are easy to use. The time-tested durability of Motorola’s two-way radios represents an exceptional value when you consider the life span of the radios and minimal downtime for replacement parts and repairs.
The PR400 and PM400 are ideal for small businesses and companies that need reliable communication that delivers every time, while also providing an affordable communication solution with the features you need and Motorola’s renowned quality.
MOTOROLA DIFFERENCE
• More channels provide you with options, flexibility and control over your communication.
• Motorola dealers can help program your favorite features so each portable and mobile radio can be customized to best suit the needs of the individual radio user.
• Upgrading is easy because the PR400 and PM400 radios share compatible accessories with some of Motorola’s most popular two-way radios.
• All of the PR and PM Series radios come standard with an option board port for future expandability and added flexibility.
• The PR400 is available in three models that vary by display, channels and features so there is a perfect model for every level of manager and employee.
• The PR400 and PM400 have a high-quality speaker that provides noticeably clear, crisp audio with minimum distortion at maximum power.
• The PM400 offers the most features and channels of any Motorola mobile in our Commercial Series and can be mounted in just about any vehicle. It also serves as an ideal desktop base station in the office or on the factory floor.
• Motorola Original®replacement parts are on hand and easily available so radio repairs can be turned around quickly.
ACCESSORIES
PR400 and PM400 Radio Accessories Customize Your Radio for Your Specific Needs
Choose from many Motorola Original Accessories or Motorola Certified Accessories to expand the capabilities of your radio and create a truly customized communication solution for your business. Motorola accessories are system-tested with Motorola radios to ensure optimum performance. Ask us how we can help customize your two-way radios with just the right accessories for your communication needs.
In addition to the accessories below, Motorola offers a variety of antenna options, such as the UHF Heliflex Stubby Antenna (NAE6522) shown throughout this brochure and VHF Stubby Antenna (HAD9742/HAD9743). Contact us for complete accessory availability.
Why Are the PR400 and PM400 Right for You?
PR400 RADIO ACCESSORIES
Antenna Accessories
For transmission and reception range, choose from a variety of antennas
Batteries
Different battery chemistries to best suit your needs
Carry Accessories
Keep the radio secure and take it with you wherever you need to go
Chargers
Keep your Motorola batteries fully powered and ready when you need them
Headsets For hands-free operation so you can do the work you need to do
Surveillance Accessories/Earpieces
Enhance privacy and discrete communication
Ear Microphone Accessories
Ideal for hands-free communication
Remote Speaker Microphones
Talk or listen without removing the radio from your belt or case
PM400 RADIO ACCESSORIES
Microphone Accessories – microphones and speakers
Make it easy to hear and be heard
Hands-Free Accessories
Help improve operating efficiency so that drivers stay focused and keep their hands on the wheel
Desktop Base Station Accessories –
power supplies and stands
Set up an efficient, centralized base station or dispatch center
Mounting Accessories
Customize the mobile’s mounting for any vehicle configuration
Antenna Accessories
For transmission and reception range, choose from a variety of antennas
Mobile Data Accessories
Allow your communication system to grow, with Global Positioning Systems, Automatic Vehicle Locator, Mobile Display Status Terminals and more
Public Address Accessories
Convert your mobile unit into a public address system for broadcast communication
Alarm Accessories
Provide a warning or an alert
PR400 FEATURES
PR400 Features
• 16 Channels
• UHF and VHF Frequencies
• Up to 4 Programmable Features
• Busy Channel Lockout
• Transmit Time-Out Timer
• Voice-Operated Transmit (requires voice-activated microphone)
• TPL Standard and Non-Standard Reverse Burst (for better compatibility with fleets)
• Privacy Codes (42 standard TPL codes, 84 standard DPL codes and non-standard codes)
• System Scan and Auto Scan
• Single and Dual Priority Scan (frequently scans higher-priority channels)
• Revert Scan (radio moves automatically to last landed scan channel when exiting scan mode)
• Scan Talkback (respond to transmission while scanning)
• Option Board Expandability
• Quik-Call II™ Selective Call/Call Alert Decode – Selective Call: Calls a specific group or individual
– Call Alert: Notifies a specific group or individual user
with an alert tone and lighted LED
• MDC1200 Signaling – PTT ID Encode: Sends unique four-digit ID (Caller ID)
information when transmitting on the current MDC system
– Selective Radio Inhibit Decode: Dispatcher can
remotely disable radio to prevent transmission from reaching stolen or inactive radios
– Radio Check Decode: Dispatcher can determine remotely
if radio is powered on without disturbing user
• DTMF Signaling – PTT ID Encode: Sends unique one to eight-digit ID (Caller
ID) information when transmitting on the current DTMF system, which can be displayed on radios equipped with DTMF decoding capabilities
• 2-Year Standard Warranty
Note: All standard features listed here also are included on the Full Display and Limited Keypad model.
16 Channels
Antenna
Choice of antenna options for your specific needs
Large Rotary Channel Selector
Fixed rotary knob changes channels quickly and easily
Rotary On/Off/Volume Control
Tri-Color LED Indicator
Indicates radio status and battery levels
Accessory Connector with Dust Cover
Convenient access for audio accessories
Microphone/Speaker
Larger, with improved components for enhanced audio
3" Belt Clip
Attaches radio firmly to belt
Rugged, Die-Cast Chassis
With polycarbonate housing for greater protection
Two Programmable Option Buttons (S1, S2)
Support up to 4 favorite features
Large, Textured Push-to-Talk Button
Easy to find and use, even when wearing gloves
Battery Latch Lock
Secures battery in case the radio is dropped
PR400 Portable with No Display or Keypad
PR400 FEATURES
PR400 Programmable Features
(You can choose up to 4)
High/Low Power
Adjusts transmit power to accommodate user environment
Tight/Loose Squelch
Tight squelch helps minimize interference from undesired strong signals; loose squelch helps weak signals to be heard
Repeater/Talkaround
Unit-to-unit communication, bypassing the repeater
VOX On/Off
Enables/disables voice-operated transmit functionality for the current channel (Can also program VOX headset sidetone)
Option Board On/Off
Enables/disables option board functionality for the current personality
Battery Indicator
Displays battery charge level via LED
Volume Set
Sets preferred volume level for radio speaker
Nuisance Channel Delete
Temporarily deletes a specific channel from your scan mode if you no longer want to hear activity on that channel
Monitor
Monitors the selected channel for any activity
Sticky Permanent Monitor
Allows continuous channel monitoring
2 Memory Channels
Direct access to up to 2 memory channels
Escalert
TM
Increases volume of unanswered alarm alert
PR400 Portable Standard Package
• Radio
• 1600 mAh Slim Lithium-ion Battery
• 90-Minute Rapid Charger
• 3" Spring Belt Clip
• Antenna (VHF Heliflex or UHF Whip)*
• User Guide
• Safety Manual
• 2-Year Radio Warranty
*Motorola offers a variety of antenna options, such as the UHF Heliflex
Stubby Antenna (NAE6522) shown throughout this brochure and VHF Stubby Antenna (HAD9742/HAD9743).
Great care was taken in the design process of the PR400 and PM400 to not only help ensure ruggedness and reliability, but ease of use and functionality.
What’s in a test? Motorola’s radios must survive multiple drops from a height of five feet onto a hard surface to surpass our durability standards. And Motorola’s Accelerated Life Test dishes out the equivalent of five years of abuse over a period of just three to five weeks. Our comprehensive testing is intended to design and develop a tough, high-quality radio that serves you for the long term.
Excellence in Design
PR400 FEATURES
PR400 Additional Features
The Full Display/Limited Keypad model has all of the same regular and programmable features as the Non Display model plus the following:
• 32 Channels
• Up to 8 Programmable Features
• Supports Up to 16 Scan Lists of Up to 16 Channels Per List
• User Editable Standard TPL/DPL Codes
• User Editable Scan List
• Lights On/Off Keypad and display backlights
• Tones On/Off
• Call Tone Tagging Tag a special tone for a particular call
• Quik Call IITMSignaling – Selective Call Encode: Calls a specific group or
individual
– Call Alert Encode: Notifies a specific group or
individual user with an alert tone and lighted LED
• DTMF Signaling – Selective Call/Call Alert Encode
PR400 Additional Programmable Features
(You can choose up to 8)
Phone Mode
Provides access to telephone interconnect through a repeater
Menu Mode Enter/Exit
Access to radio menu and to select a menu option
Radio Call
Allows a user to initiate Quik-Call IITMand/or DTMF Call Alert or Selective Call Encode from a call list
Scan List Edit
Allows user to add/remove channels from current scan list
PR400 Portable with Full Display and Limited Keypad
32 Channels
Large Rotary Channel Selector
Continuous rotary knob changes channels quickly and easily
Backlit 8-Character Alphanumeric Display with User-Friendly Icons
Display indicates radio status and battery levels and allows for viewing of channel names and Caller IDs, so users know who’s contacting them on the radio
Menu Scroll Buttons
Allow user to change channels and access menu features
Four Programmable Option Buttons (S1, S2, P1, P2)
2 side and 2 front buttons support up to 8 favorite features
PR400 FEATURES
Because you need to hear and be heard
The PR400 and PM400 use Motorola’s X-Pand™ technology to compress the speaker’s voice at transmission and expand it at the receiving end while simultaneously reducing extraneous noise. X-Pand improves the signal-to-noise ratio to improve audio quality, particularly at 12.5 kHz channel spacing.
Batteries and Chargers
All PR400 radios come standard with a lightweight 1600 mAh Slim Lithium-ion bat­tery. It’s easy to carry, does not suffer from memory effect and can be charged in 90 minutes with Motorola’s new rapid charger included in the standard package. There’s also a new FM-certified “intrinsically safe” NiMH 1300 mAh battery option.
Whether you select our nickel-cadmium, nickel-metal hydride or lithium-ion battery, remember to only charge it with a Motorola Original®battery charger.
PR400 Additional Features
The Full Display/Full Keypad model has all of the same regular and programmable features as the Non Display and Limited Keypad models plus the following:
• 64 Channels
• User Editable Standard and Non-Standard TPL/DPL Codes
• Keypad Tones On/Off
• Manual Access Repeater:
Send DTMF tones to repeater
• User Editable Phone List
• Speed Dial for Radio Call Encode
PR400 Additional Programmable Features
(You can choose up to 8)
Speed Dial
Keypad Lock/Unlock
Allows user to lock/unlock keypad access to prevent unauthorized phone use
PR400 Portable with Full Display and Full Keypad
64 Channels
Large Rotary Channel Selector
Continuous rotary knob changes channels quickly and easily
Backlit 8-Character Alphanumeric Display with User-Friendly Icons
Display indicates radio status and battery levels and allows for viewing of channel names and Caller IDs, so users know who’s contacting them on the radio
Menu Scroll Buttons
Allows user to change channels and access menu features
Full DTMF Keypad
Four Programmable Option Buttons
(S1, S2, P1, P2)
2 side and 2 front buttons support up to
8 favorite features
PM400 FEATURES

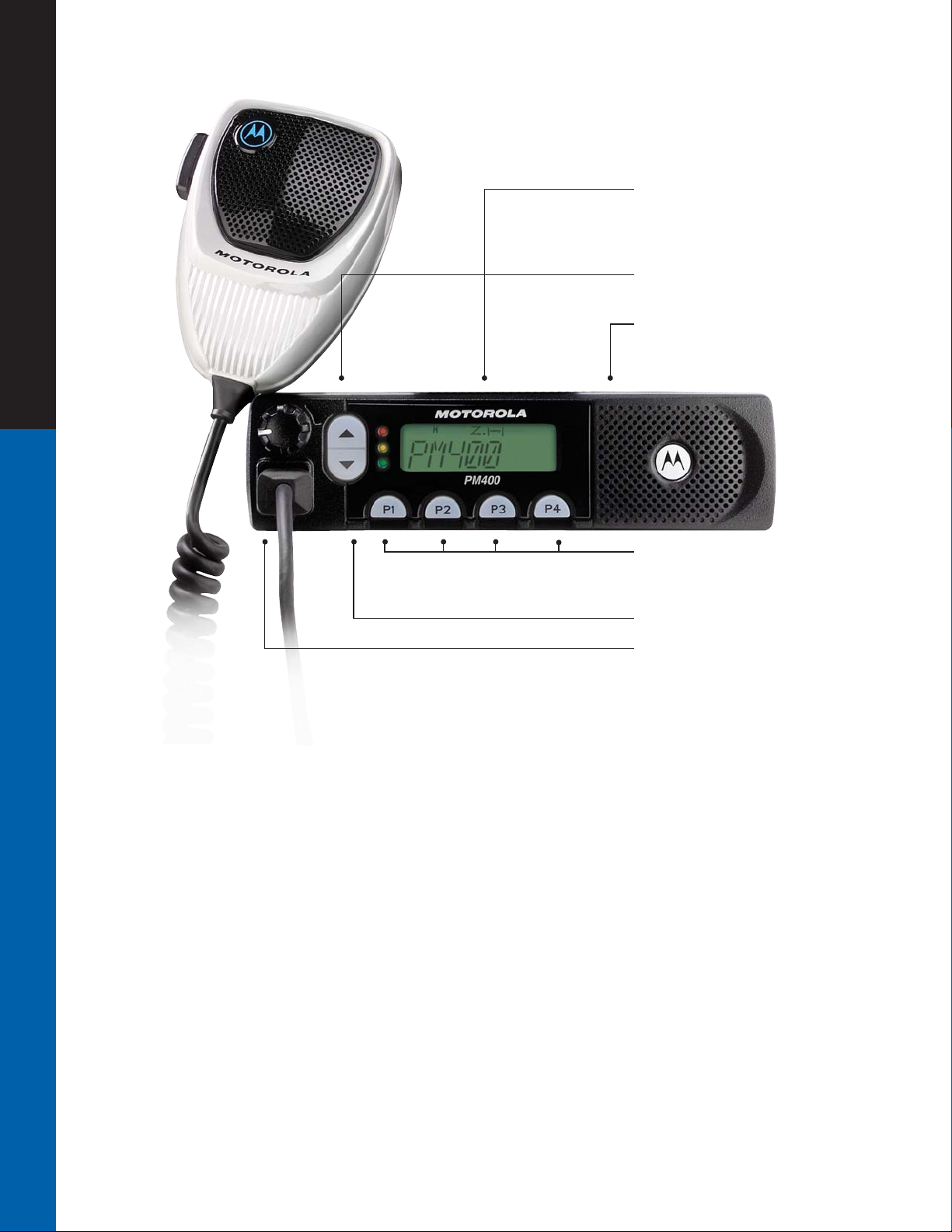

PM400 Mobile
64 Channels
8-Character Alphanumeric Display with User-Friendly Icons
Assign a name to each channel for ease of use
Up/Down Channel Selector and Menu Scroll Buttons
4-Watt Front-Projecting Speaker
Die-Cast Housing with Polycarbonate Outer Casing
4 Programmable Buttons (P1, P2, P3, P4)
Customize shortcuts for up to 8 favorite features with a short/long press
Red/Yellow/Green LED Indicators
Rotary On/Off/Volume Control
PM400 Features
• 64 Channels
• Up to 8 Programmable Features
• VHF and UHF Frequencies
• Transmit Time-Out Timer
• Busy Channel Lockout
• Voice-Operated Transmit (requires voice-activated microphone)
• Private-Line/Digital Private-Line Code Editing
• TPL Standard and Non-Standard Reverse Burst (for better compatibility with fleets)
• Privacy Codes (42 standard TPL codes, 84 standard DPL codes and non-standard codes)
• System Scan and Auto Scan
• Supports Up to 16 Scan Lists of Up to 16 Channels Each
• Single and Dual Priority Scan (frequently scans higher-priority channels)
• Revert Scan (radio moves automatically to last landed scan channel when exiting scan mode)
• Scan Talkback (respond to transmission while scanning)
• Adjustable Backlight Intensity
• Quik-Call IITMSignaling Encode/Decode
– Selective Call: Calls a specific group or individual – Call Alert: Notifies a specific group or individual user
with an alert tone and lighted LED
• MDC1200 Signaling – PTT ID Encode/Decode: Sends unique four-digit
(Caller ID) information when transmitting on the current MDC system
– Selective Radio Inhibit Decode: Dispatcher can
remotely disable radio to prevent transmission from reaching stolen or inactive radios
– Radio Check Decode: Dispatcher can determine
remotely if radio is powered on without disturbing user
– Emergency Encode: Causes an MDC Emergency
Signal to be transmitted on the current MDC system
• DTMF Signaling – PTT ID Encode: Sends unique one to eight-digit ID
(Caller ID) information when transmitting on the current DTMF system, which can be displayed on radios equipped with DTMF decoding capabilities
– Selective Call/Call Alert Encode
• Call Tone Tagging (special tone for a particular call)
• 2-Year Standard Warranty
PM400 Programmable Features (You can choose up to 8)
2-Channel Home Revert
Returns to 1 or 2 favorite channels
Volume Set
Sets preferred volume level for radio speaker
Silent Monitor/Open Squelch
Silent monitor causes radio to remain silent when there is no channel activity; open squelch monitor causes “white noise” to be heard when there is no channel activity
Sticky Permanent Monitor
Allows continuous channel monitoring
High/Low Power
Adjusts transmit power to accommodate user environment
Repeater Talkaround
Unit-to-unit communication, bypassing the repeater
Local/Distance
Local mode reduces interference from nearby radios; distance mode helps improve range
Tight/Loose Squelch
Tight squelch helps minimize interference from undesired strong signals; loose squelch helps weak signals to be heard
Nuisance Channel Delete
Temporarily deletes a specific channel from your scan mode if you no longer want to hear activity on that channel
Scan On/Off
Enables/disables scan mode of operation
VOX On/Off
Enables/disables voice-operated transmit function for the current channel
Escalert
Increases volume of unanswered alarm alert
Menu Mode
Access to radio menu and to select a menu option
Option Board On/Off
Enables/disables option board functionality for the current personality
Phone Mode
Provides access to telephone interconnect through a repeater
Speed Dial
Initiates a phone call to a preprogrammed recipient with the press of a DTMF key (requires a DTMF keypad microphone)
Radio Call
Allows user to initiate Quik-Call IITMand/or DTMF Call Alert or Selective Call Encode from a call list
Scan List Edit
Allows user to add/remove channels from current scan list
External Alarm
Activates a warning or alert by triggering flashing headlights, a siren or a horn (requires an external alarm accessory and an accessory connector pin to be programmed for external alarm through CPS)
Standard PM400 Product Package
• Radio with Rear-Mounted Connectors for Power, 16-Pin Accessory and Mini-U Antenna
• Low-Profile Mounting Bracket
• Heavy-Duty Microphone with Hang-Up Clip
• Standard Power Cable
• User Guide
• Safety Booklet
• 2-Year Standard Warranty
PM400 FEATURES
SPECIFICATIONS
General Specifications
VHF UHF Frequency 146-174MHz 403-440MHz, 438-470MHz, 465-495MHz Channel Capacity 16, 32 or 64 16, 32 or 64 Power Supply 7.5 Volts +/- 20% 7.5 Volts +/- 20% FCC Description ABZ99FT3045 ABZ99FT4057, ABZ99FT4056, ABZ99FT4058
No Display or Keypad
DIMENSIONS WEIGHT
H w/o knobs x W @spkr x D @ spkr w/o belt clip (w/ radio, battery, and belt clip, w/o antenna)
1100 mAh NiCd 130mm H x 62mm W x 45mm D 430 g
(5.12” H x 2.4” W x 1.75” D) (15.17 oz)
1300 mAh NiMH Intrinsically Safe (FM) 130mm H x 62mm W x 45mm D 449 g
(5.12” H x 2.4” W x 1.75” D) (15.83 oz)
1400 mAh NiMH 130mm H x 62mm W x 43mm D 446 g
(5.12” H x 2.4” W x 1.69” D) (15.73 oz)
1600 mAh Slim Li-ion 130mm H x 62mm W x 42mm D 377 g
(5.12” H x 2.4” W x 1.65” D) (13.30 oz)
1800 mAh Li-ion 130mm H x 62mm W x 45mm D 376 g
(5.12” H x 2.4” W x 1.75” D) (13.26 oz)
Full Display and Limited Keypad
DIMENSIONS WEIGHT
H w/o knobs x W @spkr x D @ spkr (w/ radio, battery, and belt clip, w/o antenna)
1100 mAh NiCd 130mm H x 62mm W x 45mm D 451 g
(5.12” H x 2.4” W x 1.75” D) (15.91 oz)
1300 mAh NiMH Intrinsically Safe (FM) 130mm H x 62mm W x 45mm D 469 g
(5.12” H x 2.4” W x 1.75” D) (16.54 oz)
1400 mAh NiMH 130mm H x 62mm W x 43mm D 467 g
(5.12” H x 2.4” W x 1.69” D) (16.47 oz)
1600 mAh Slim Li-ion 130mm H x 62mm W x 42mm D 397 g
(5.12” H x 2.4” W x 1.65” D) (14.0 oz)
1800 mAh Li-ion 130mm H x 62mm W x 45mm D 396 g
(5.12” H x 2.4” W x 1.75” D) (13.97 oz)
Full Display and Full Keypad
DIMENSIONS WEIGHT
H w/o knobs x W @spkr x D @ spkr (w/ radio, battery, and belt clip, w/o antenna)
1100 mAh NiCd 130mm H x 62mm W x 45mm D 451 g
(5.12” H x 2.4” W x 1.75” D) (15.91 oz)
1300 mAh NiMH Intrinsically Safe (FM) 130mm H x 62mm W x 45mm D 469 g
(5.12” H x 2.4” W x 1.75” D) (16.54 oz)
1400 mAh NiMH 130mm H x 62mm W x 43mm D 467 g
(5.12” H x 2.4” W x 1.69” D) (16.47 oz)
1600 mAh Slim Li-ion 130mm H x 62mm W x 42mm D 397 g
(5.12” H x 2.4” W x 1.65” D) (14.0 oz)
1800 mAh Li-ion 130mm H x 62mm W x 45mm D 396 g
(5.12” H x 2.4” W x 1.75” D) (13.97 oz)
Average Battery Life
BATTERY CAPACITY HI-PWR LO-PWR
(mAh) 5W Talk Time (hrs) 1W Talk Time (hrs) 1100 mAh NiCd 1100 8 10 1300 mAh NiMH Intrinsically Safe (FM) 1300 9 11 1400 mAh NiMH 1400 10 13 1600 mAh Slim Li-ion 1600 12 17 1800 mAh Li-ion 1800 14 19
PR400 Portable Two-Way Radio Specifications
*
*All specifications subject to change without notice.
Receiver Specifications
VHF VHF UHF UHF
12.5kHz 20/25/30kHz 12.5kHz 20/25/30kHz Frequency 146-174MHz 403-440MHz, 438-470MHz, 465-495MHz Sensitivity 12dB SINAD 0.25µV (typical) 0.25µV (typical) Adjacent Channel Selectivity -65 dB -70 dB -65 dB -70 dB Intermodulation -70 dB -70 dB Frequency Stability (-30 C to +60 C) 0.00025% 0.00025% Spur Rejection -75 dB -75 dB Image and 1/2 I-F Rejection -70 dB -70 dB Audio Output @ <5% Distortion 500 mW 500 mW
Transmitter Specifications
VHF VHF UHF UHF
RF Output Low High Low High
1W 5W 1W 4W Frequency 146-174MHz 403-440MHz, 438-470MHz, 465-495MHz Channel Spacing 12.5/20/25kHz 12.5/20/25kHz Frequency Stability (-30 C to +60 C) 0.00025% 0.00025% Spurs/Harmonics -36 dBm < 1GHz -36 dBm < 1GHz
-30 dBm > 1GHz -30 dBm > 1GHz Audio Response (from 6 dB/oct. Premphasis, 300 to 3000Hz) +1, -3 dB +1, -3 dB Audio Distortion @ 1000 Hz, 60% Rated < 3% < 3% FM Noise -40 dB (12.5kHz) -40 dB (12.5kHz)
-45 dB (25kHz) -45 dB (25kHz) FCC Modulation 20/25/30 kHz 16K0F3E 16K0F3E
12.5 kHz 11K0F3E 11K0F3E
PR400 Portable Two-Way Radio Specifications
*
Portable Military Standards 810 C, D, E & F
810C 810D 810E 810F Applicable MIL-STD Methods Procedures Methods Procedures Methods Procedures Methods Procedures Low Pressure 500.1 1 500.2 2 500.3 2 500.4 1 High Temp 501.1 1, 2 501.2 1, 2 501.3 1, 2 501.4 1, 2 Low Temp 502.1 1 502.2 1, 2 502.3 1, 2 501.4 1, 2 Temp Shock 503.1 1 503.2 1 503.3 1 503.4 1 Solar Radiation 505.1 1 505.2 1 505.3 1 505.4 1 Rain 506.1 1, 2 506.2 1, 2 506.3 1, 2 506.4 1 Humidity 507.1 2 507.2 2, 3 507.3 2, 3 507.4 3 Salt Fog 509.1 1 509.2 1 509.3 1 509.4 1 Dust 510.1 1 510.2 1 510.3 1 510.4 1 Vibration 514.2 8, 10 514.3 1 514.4 1 514.5 1 Shock 516.3 1, 2, 5 516.3 1, 4 516.4 1, 4 516.5 1
PR400 Environmental Specifications
Operating Temperature - 30 C to + 60 C Storage Temperature - 40 C to + 85 C ESD IEC 801-2 KV Water and Dust Intrusion IP 54
*All specifications subject to change without notice.
SPECIFICATIONS
PM400 Mobile Two-Way Radio Specifications
*
General Specifications
VHF UHF
Channel Capacity 64 64 Technical RF Output Low High Low High
1-25W 25-45W 1-25W 25-40W Frequency 146-174MHz 438-470MHz, 465-495MHz Dimensions ( H * W * L ) 1.73" x 6.67" x 4.64" 1.73" x 6.67" x 4.64"
(44mm x 169mm x 118mm) (44mm x 169mm x 118mm) Weight (radio only) 2.25 lbs (1.02 Kg) 2.25 lbs (1.02 Kg) Current Drain: Standby 0.3A 0.3A Rx@ rated, external 8 ohm speaker 1.5A 1.5A Transmit 7A (25W) 9.5A (45W) 8A (25W) 9A (40W) FCC Description AZ492FT3805 (25W) AZ492FT4856 (25W)
ABZ99FT3046 (45W) ABZ99FT4048 (40W), AZ99FT4049 (40W)
Receiver
VHF UHF Frequencies 146-174MHz 438-470MHz, 465-495MHz Channel Spacing 12.5/20/25kHz 12.5/20/25kHz Frequency Stability (-30 C + 60 C, +25 C) +/-2.5ppm +/-2.5ppm Sensitivity (12db Sinad) 0.35µV (12.5kHz) 0.3µV (25kHz) 0.35µV (12.5kHz) 0.3µV (25kHz)
typical typical Intermodulation 65dB (12.5kHz) 75dB (25kHz) 60dB (12.5kHz) 70dB (25kHz) Adjacent Channel Selectivity 65dB (12.5kHz) 75dB (25kHz) 60dB (12.5kHz) 70dB (25kHz) Spurious Rejection 75dB 70dB Rated Audio (extended audio with 4 ohm speaker)
4W internal 13W external 4W internal 13W external Audio Distortion @ Rated Audio 3% typical 3% typical Hum and Noise -40 dB (12.5kHz) -35 dB (12.5kHz)
-45 dB (25kHz) -40 dB (25kHz) Audio Response +1, -3 dB +1, -3 dB Conducted Spurious Emission -57 dBm < 1GHz -57 dBm < 1GHz
-47 dBm > 1GHz -47 dBm > 1GHz
Transmitter
VHF UHF Frequencies 146-174MHz 438-470MHz, 465-495MHz Channel Spacing 12.5/20/25kHz 12.5/20/25kHz Frequency Stability (-30 C + 60 C, +25 C) +/-2.5ppm +/-2.5ppm Modulation Limiting +/-2.5kHz (12.5kHz) +/-2.5kHz (12.5kHz)
+/-4kHz (20kHz) +/-4kHz (20kHz) +/-5kHz (25kHz) +/-5kHz (25kHz)
FM Hum and Noise -40 dB (12.5kHz) -35 dB (12.5kHz)
-45 dB (25kHz) -40 dB (25kHz)
Conducted/Radiated Power -36 dBm < 1GHz -36 dBm < 1GHz
-30 dBm > 1GHz -30 dBm > 1GHz
Adjacent Channel Power -60 dB (12.5kHz) -60 dB (12.5kHz)
-70 dB (25kHz) -70 dB (25kHz) Audio Response +1, -3 dB +1, -3 dB Audio Distortion 3% typical 3% typical FM Modulation 11K0F3 (12.5kHz) 11K0F3 (12.5kHz)
16K0F3E (25kHz) 16K0F3E (25kHz)
SPECIFICATIONS
Accelerated Life Test
Motorola’s Accelerated Life Test (ALT) is a developmental process of rigorous laboratory testing that simulates years of field use. Motorola has a firm commitment to quality and reliability. These radios have been designed, manufactured and tested to achieve high levels of component and workmanship quality. Motorola radios are designed to minimize costly repairs and downtime.
Exceptional Durability
There’s a reason why Motorola two-way radios are built to last. Motorola’s rugged and reliable radios, including the PR and PM Series radios, undergo rigorous testing in the design process. We use U.S. Military Standards and Motorola‘s Accelerated Life Test, so you can be assured Motorola radios will hold up under demanding conditions. These tests are designed to simulate very harsh environments, including:
Rain*– steady rainfall and wind for 30 minutes on every surface. Ideal for agriculture, light
construction, utility and public administration personnel who work outdoors in any type of weather.
Salt Fog – 48 hours of exposure to an atomized salt solution. Hospitality staff, utility workers and public administration personnel working near oceans or around winter salt applications will appreciate our radios’ resistance to salt corrosion.
Dust*– 6 hours of blowing dust on all surfaces. Ideal for agriculture, light construction,
utility and public administration workers who are exposed to a variety of dusty environments.
Vibration – up to 9 hours of exposure to vibration that simulates the rigors that portables and mobiles could undergo while being transported. Because portables are carried by the radio user, it’s important they hold up to extensive vibration tests, and mobiles must withstand the rigors of the road. Light construction and industrial workers, agriculture, utility and public administration staff expect a radio to withstand any vibrations.
Shock – 18 shocks with a minimum G force of 40 Gs each make these portables and mobiles ideal for light construction and light industrial, agriculture, public administration, utilities and anyone who has dropped a radio at some time.
*PR400 only
PM400 Mobile Military Standards
810C 810D 810E
Applicable MIL - STD Methods Procedures Methods Procedures Methods Procedures Temperature Shock 503.1 I 503.2 I 503.3 I Solar Radiation 505.1 I 505.2 I 505.3 I Salt Fog 509.1 I (48 Hours) 509.2 I (48 Hours) 509.3 I (48 Hours) Vibration 514.3 I. Cat. 1 514.4 I. Cat. 1 Shock 516.2 I, III 516.3 I, V 516.4 I, V
PM400 Environmental Specifications
Operating Temperature - 30 C to + 60 C Storage Temperature - 40 C to + 85 C Thermal Shock - 40 C to + 80 C Humidity 95%RH @8Hr Water and Dust Intrusion IP 54 Packing Test Impact test
MOTOROLA, Radius and the Stylized M Logo are registered in the US Patent and Trademark Office. All other product or service names are the property of their respective owners.
© Motorola, Inc. 2003.
https://www.motorola.com
MD-EUPR400/PM400
For more information:
Motorola’s Commercial, Government and Industrial Solutions Sector (CGISS) is a recipient of the prestigious 2002 Malcolm Baldrige National Quality Award, in recognition of its commitment to performance excellence and quality achievement.
Loading...
