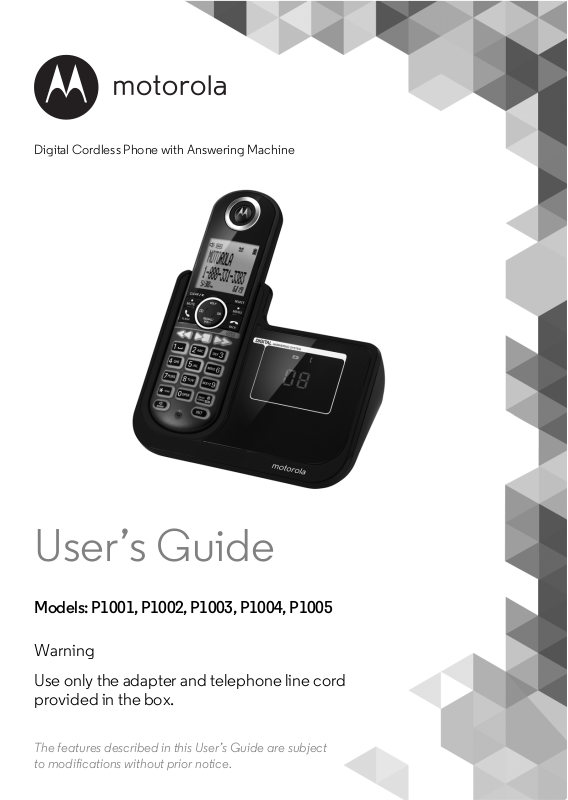

Digital Cordless Phone with Answering Machine

User’s Guide

Models: P1001, P1002, P1003, P1004, P1005

Warning

Use only the adapter and telephone line cord provided in the box.

The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...

to your new Motorola Phone!

Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

For product-related questions, please call:

US and Canada 1-888-331-3383

Email: support@motorolahome.com

30 name and number phonebook.

Answering machine with up to 15 minutes digital recording time.*

Caller ID shows you who is calling and includes details of the last 30 callers in a calls list.**

Make internal calls, transfer external calls, hold 3-way conversation between two internal callers and an external caller.

*The recording time includes the pre-recorded voice menu and outgoing announcements.

**You must subscribe to your network provider's Caller ID or Call Waiting service for these features to work.

Please note that this equipment is not designed for making emergency telephone calls when the power fails.

Alternative arrangements should be made if emergency telephone call is necessary.

This User’s Guide provides you with all the information you need to get the most from your phone.

Before you make your first call you will need to set up your phone. Follow the simple instructions in 'Getting Started', on the next few pages.

IMPORTANT

Only use the telephone line cord supplied.

This equipment is not designed to make emergency telephone calls during power failures. Alternative arrangements should be made for access to emergency services.

Got everything?

Handset

Base

Ni-MH Rechargeable Battery Pack

Handset Back Cover

Wall-mount Bracket

Power Adapter

Telephone Line Cord

Quick Start Guide

In multi-handset packs, you will find one or more additional handsets, chargers with power adapter units, additional rechargeable battery packs and battery doors.

1.

Getting started .................................................................

6



1.1

Connecting the base .......................................................................................

7



1.2

Wall mounting on the base..............................................................................

7



1.3

Installing and charging the handset battery pack...........................................

8



1.4

Setting the display language ...........................................................................

9



1.5

Setting the date and time.................................................................................

9

2. Getting to know your phone .........................................

10

3.

Using the Phone.............................................................

15



3.1

Making a call...................................................................................................

15



3.2

Speed dialing .................................................................................................

15



3.3

Answering a call .............................................................................................

15



3.4

Ending a call ...................................................................................................

15



3.5

Adjusting volume ...........................................................................................

15



3.6

Muting a call ...................................................................................................

15



3.7

Dialing from the redial list ..............................................................................

15



3.8

Dialing from the calls list ................................................................................

15



3.9

Adding an entry to the phonebook ...............................................................

15



3.10

Storing a phonebook entry as a one touch number .....................................

16



3.11

Dialing from the phonebook .........................................................................

16



3.12

Caller ID..........................................................................................................

16





3.12.1

Calls List ..............................................................................................

16





3.12.2 Viewing the calls list ...........................................................................

17





3.12.3 Saving a number from the calls list to the phonebook ......................

17





3.12.4 Deleting a calls list entry .....................................................................

17





3.12.5 Deleting the entire calls list ................................................................

17



3.13

Personal Settings............................................................................................

18



3.14

Intercom .........................................................................................................

19





3.14.1

Calling another handset .....................................................................

19





3.14.2 Transferring a call to another handset ................................................

19





3.14.3

Three-party conference call ...............................................................

20



3.15

Setting the dial mode.....................................................................................

20



3.16

Setting the flash time......................................................................................

20



3.17

Setting the area code.....................................................................................

20



3.18

Registration ....................................................................................................

21



3.19

Resetting all settings ......................................................................................

21



3.20

Paging/Finding a handset .............................................................................

21



3.21

Using your answering machine .....................................................................

21





3.21.1

Playing messages ...............................................................................

21





3.21.2 Turning on or off the answering machine ..........................................

22





3.21.3 Setting the announcement mode ......................................................

22





3.21.4 Setting the number of rings ................................................................

22





3.21.5

Announcement ...................................................................................

23





3.21.6

Recording a memo .............................................................................

23

4



3.21.7

Call screening on/off .........................................................................

24



3.21.8

Deleting all old messages ..................................................................

24



3.21.9

Remote access ...................................................................................

24



3.21.10

Setting the security code ...................................................................

25

4.

Help ................................................................................



26

5.

General information.......................................................

27

ENGLISH

5

1. Getting started

WARNING

Do not place your phone in the bathroom or other humid areas.

Location

When choosing a location for your new phone, here are some important guidelines you should consider:

Avoid sources of noise and heat, such as motors, fluorescent lighting, microwave ovens, heating appliances and direct sunlight.

Avoid areas of excessive dust, moisture and low temperature.

Avoid other cordless telephones or personal computers.

Never install telephone wiring during a lightning storm.

Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

Never touch non-insulated telephone wires or terminals, unless the telephone line has been disconnected at the network interface.

Use caution when installing or modifying telephone lines.

HANDSET RANGE

Optimal range is reached when there are no other electrical appliances working within the range area. Any obstruction between the base and handset will also reduce the range significantly.

SIGNAL STRENGTH

When out of range of the corded base, the screen shows OUT OF RANGE. If you are on a call, the line will hang up. Move back within in range. The cordless handset will automatically reconnect to the corded base.

Setting up

IMPORTANT

The base must be plugged into an electrical outlet at all times. Do not connect the telephone line cord into the telephone wall jack until the handset is fully charged. Only use the adapter and telephone line cord supplied with the product.

WHICH POWER ADAPTER?

The power adapter with the smaller pin is for the base unit and the power adapter with the bigger pin is for the charger unit (only for multi-handset packs).

6

Getting started

1.1Connecting the base

ENGLISH

1.Plug the power adapter and the telephone line cord into the base. The power adapter with the bigger pin is for the charger (only in multihandset packs).

2.Plug the other end of the power adapter into a power outlet and the telephone line cord into a telephone wall jack.

3.Use only the provided power adapter.

1.2Wall mounting on the base

This phone can be mounted on any standard wall plate.

1.Plug the power adapter with smaller pin plug and the telephone line cord into the base.

2.Snap the wall-mount bracket into the notches on the back of base, as shown.

3.Plug the other end of the power adapter into a power outlet and the telephone line cord into a telephone wall jack.

4.Align the mounting slots on the base with the mounting posts on the wall. Then push in and down until the phone is firmly seated.

NOTE

DO NOT use a power outlet controlled by a wall switch.

Getting started

7

Make sure the wall is capable of supporting the weight of the phone, and use the proper type of anchoring device for the wall material.

1.3Installing and charging the handset battery pack

1.Take off the battery compartment cover to remove it. Place the supplied rechargeable battery pack in the battery compartment, with the battery connector plugged in, as shown.

2.Install the battery compartment cover back on.

3. Put the handset on the base to charge for at least 24 hours. Once charged, the will indicate that the handset is fully charged.

IMPORTANT

Use only the rechargeable battery pack provided with the product.

8

Getting started

1.4

Setting the display language





1.

Press MENU then VOL+ or REDIAL/VOL- to select SETUP HS.

ENGLISH

2.

Press MENU then VOL+ or REDIAL/VOL- to select LANGUAGE.



3.

Press MENU then VOL+ or REDIAL/VOL- to select the desired language.



4.

Press MENU to save.



1.5

Setting the date and time





1.Press MENU and then VOL+ or REDIAL/VOL- to select DATE&TIME. If you're a subscriber to your network's Caller ID service, the date and time is automatically set when a call is received.

2.Press MENU and then use the keypad to enter the year and the date

Alternatively, press VOL+ or REDIAL/VOL- or or CID key to move the cursor to the target input field.

3.Press MENU and then use the keypad to edit the time in 12 HR format. Press VOL+ or

REDIAL/VOL- to toggle AM/PM settings. Press or CID to move the cursor to the target input field.

4. Press MENU to save the settings.

Your phone is now ready for use.

Getting started

9

2. Getting to know your phone

Overview of your cordless handset

1SCROLL UP / VOLUME UP

a)In menu mode: Press to scroll up.

b)In editing mode: Press to move cursor to the left.

c)During a call: Press to increase volume.

d)Calls list / phonebook / redial list entry: Press to scroll up the list.

e)In answering machine mode: Press to increase volume.

2MENU / SELECT

a)In idle mode: Press to access menu list.

b)In menu / editing mode: Press to confirm and save the settings.

c)During a call: Press to transfer the call to another handset.

d)In calls list entry: Press to save the entry to the phonebook.

e)In phonebook entry: Press to go to phonebook editing mode.

3RIGHT / CALLS LIST

a)In idle mode / during a call: Press to access calls list.

b)In editing mode: Press to move the cursor to the right.

10

Getting to know your phone

4 TALK OFF / BACK

a) In menu / editing mode: Press to exit to previous level.

ENGLISH

b) In pre-dial mode / phonebook / calls list / redial list entry / answering machine



mode: Press to exit to idle.



c) During a call: Press to end a call.



5 SKIP FORWARD

a) During message playback: Press skip to play the next message.

6 PLAY / STOP

a) In idle mode: Press to play the messages via speakerphone. b) During message playback: Press to stop playing messages.

7 ALPHANUMERIC KEYPAD

a) In idle / pre-dial / editing mode / during a call: Press to enter characters / numbers. b) In idle mode: Long press to activate speed dial.

8 # / PAUSE / ABC / FORMAT

a) In idle / pre-dial / number editing mode / during a call mode: Press to insert a "#", press and hold to insert a pause (P).

b) In name editing mode: Toggle ABC / abc.

c) In calls list entry: Press to toggle Caller ID display format between 7, 8, 10 and 11 digits.

d) In Calls List / Phonebook / Redial list entry: If the number is more than 15 digits, press to review the remaining digits in the next screen page.

9 INTERCOM

a) In idle mode / during a call: Press to initiate an intercom call.

10 MICROPHONE

11 SPEAKER

a) In idle / menu / pre-dial mode / during a call: Press to turn on / off the speakerphone.

b) Calls List / phonebook / redial list entry: Press to make a call with speakerphone. c) During ringing: Press to answer a call with speakerphone.

d) In answering machine mode: Press to toggle the message playback via earpiece / speakerphone.

Getting to know your phone

11
