Motorola MEA Enhanced Wireless User Manual
MEA
Enhanced Wireless
and
Portable Wireless
Routers
Users Guide
Documentation Revision 3.1.3
Mesh Enabled Access EWR/PWR Users Guide
Copyrights
The Motorola products described in this document may include copyrighted Motorola computer programs. Laws in the
United States and other countries reserve for Motorola certain exclusive rights for copyrighted computer progr ams.
Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this
document may not be copied or reproduced in any manner without the express written permission of Motorola.
Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication,
estoppels or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the
normal nonexclusive, royalty-free license to use that arises by operation of la w in the sale of a product.
Disclaimer
Please note that certain features, facilities and capabilitie s described in this document may not be applicable to or
licensed for use on a particular system, or may be dependent upon the characteristics of a particular mobile
subscriber unit or configuration of certain parameters. Please refer to your Motorola contact for further information.
Trademarks
Motorola, the Motorola logo, and all other trademarks identified as such herein are trademarks of Motorola, Inc. All
other product or service names are the property of their respective owners.
Copyrights
© 2007 Motorola, Inc. All rights reserved. No part of this document may be reproduced, transmitted, stored in a
retrieval system, or translated into any language or computer language, in any form or by any means, without the
prior written permission of Motorola, Inc.
iii
Table of Contents
1 PRODUCT INTRODUCTION...................................................................................1
1.1 Product Contents......................................................................................................1
2 DEVICE INSTALLATION.........................................................................................2
2.1 Installation Requirements ........................................................................................2
2.1.1 Enhanced Wireless Router (EWR)...............................................................................2
2.1.2 Portable Wireless Router (PWR)..................................................................................2
2.2 Software Requirements............................................................................................2
2.3 Equipment Requirements.........................................................................................3
2.3.1 EWR6300.....................................................................................................................3
2.3.2 PWR6300.....................................................................................................................3
2.4 MAC Address Label Location ..................................................................................4
2.4.1 EWR.............................................................................................................................4
2.4.2 PWR.............................................................................................................................4
2.4.3 MAC Address Table.....................................................................................................4
2.5 EWR6300 Assembly Information.............................................................................6
2.5.1 EWR6300 Assembly.....................................................................................................6
2.5.2 EWR Installation procedure:.........................................................................................6
2.5.3 EWR6300 Mounting Bracket........................................................................................6
2.6 PWR6300 Assembly Information.............................................................................9
2.6.1 PWR Installation Procedure.......................................................................................10
2.7 Device Deployment Considerations......................................................................10
2.7.1 Antenna Deployment Tips..........................................................................................11
2.8 Testing the Device Installation...............................................................................11
3 DEVICE CONFIGURATION...................................................................................12
3.1 IP Addressing Considerations...............................................................................12
3.2 Accessing the MEA Device Administration Web Pages......................................12
3.2.1 User Name and Administrator Access Information....................................................12
3.2.2 Viewing MEA Redirecting Page.................................................................................14
3.2.3 Viewing MEA Device Administration Home Page......................................................15
3.2.3.1 Viewing MEA Device Administration Home Page as a Normal User.........16
3.2.4 Viewing the EWR Device Administ ration Configuration Tab......................................17
3.2.4.1 Viewing the EWR Device Configuration Tab as a Normal User................18
3.3 Device Addressing Schemes.................................................................................20
3.3.1 Network DHCP Scheme.............................................................................................20
iv
Mesh Enabled Access EWR/PWR Users Guide
3.3.2 Statically Provisioned Scheme...................................................................................20
3.3.3 User Supplied Scheme...............................................................................................21
3.3.3.1 Setting User Supplied IP Addresses..........................................................21
3.4 External Device Provisioning.................................................................................23
3.4.1 Connecting to the Ethernet Port.................................................................................24
4 DEVICE MAINTENANCE ......................................................................................25
4.1 Resetting the EWR via the Device Administration Web Page.............................25
4.2 Restoring Factory Settings – User Supplied Mode Limitations..........................27
4.2.1 Recovering from EWR/P W R Reset-to-Default in User-Supplied Mode.....................27
4.2.1.1 Resetting Device Addressing Mode Using Device Manager.....................27
4.2.1.2 Resetting Device Addressing Mode via Configuration Web Page.............27
4.2.1.3 Resetting User-Supplied Parameters via Configuration Web Page ..........27
4.3 Restoring Factory Settings – Normal Operations................................................28
4.4 Changing the Web Interface Password.................................................................30
4.5 Security Provisioning Web Page...........................................................................32
4.5.1 Provision Username Section......................................................................................32
4.5.2 Provision Groupname Section....................................................................................32
4.6 Upgrading the Device Firmware ............................................................................33
5 CUSTOMER SERVICE INFORMATION................................................................ 35
5.1 Obtaining Support...................................................................................................36
5.1.1 System Information.....................................................................................................36
5.2 Return Material Request.........................................................................................36
5.2.1 Radio Products and Services Division .......................................................................36
5.2.1.1 Radio Products and Services Division Telephone Numbers.....................37
5.2.2 Returning System Components to Motorola..............................................................37
5.2.3 Returning FREs..........................................................................................................37
6 WARRANTY INFORMATION................................................................................38
7 FCC REGULATORY INFORMATION ................................................................... 41
7.1 FCC Information......................................................................................................41
7.2 FCC RF Energy Exposure Statement ....................................................................41
7.3 Regulatory and RF Safety Exposure.....................................................................41
v
List of Figures
Figure 2-1 EWR6300 Identification Label Example.............................................................4
Figure 2-2 PWR6300 Identification Label Example.............................................................4
Figure 2-3 EWR6300 External Connection Points..............................................................6
Figure 2-4. EWR6300 Mounting Bracket...............................................................................7

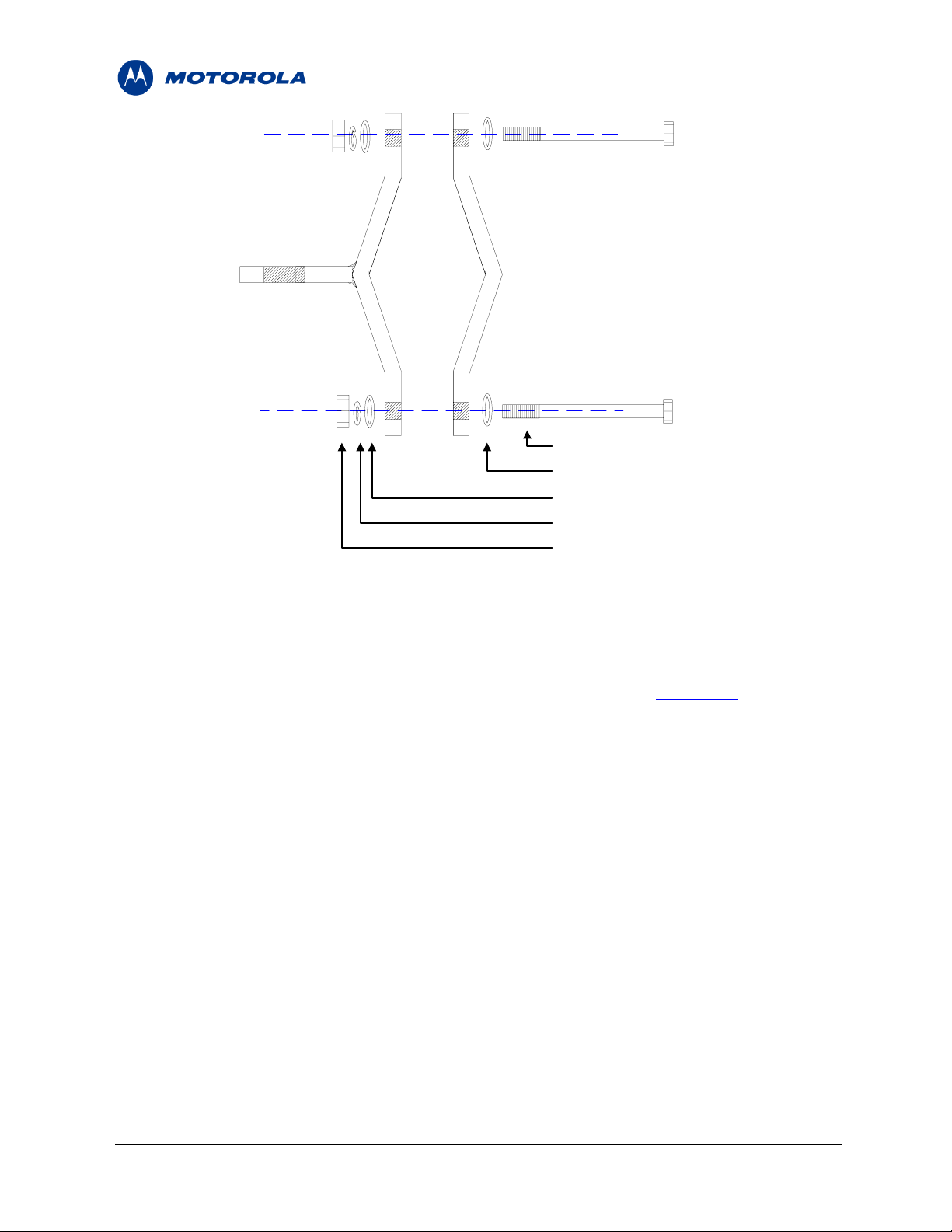

Figure 2-5. C-Clamp Bracket Assembly................................................................................8

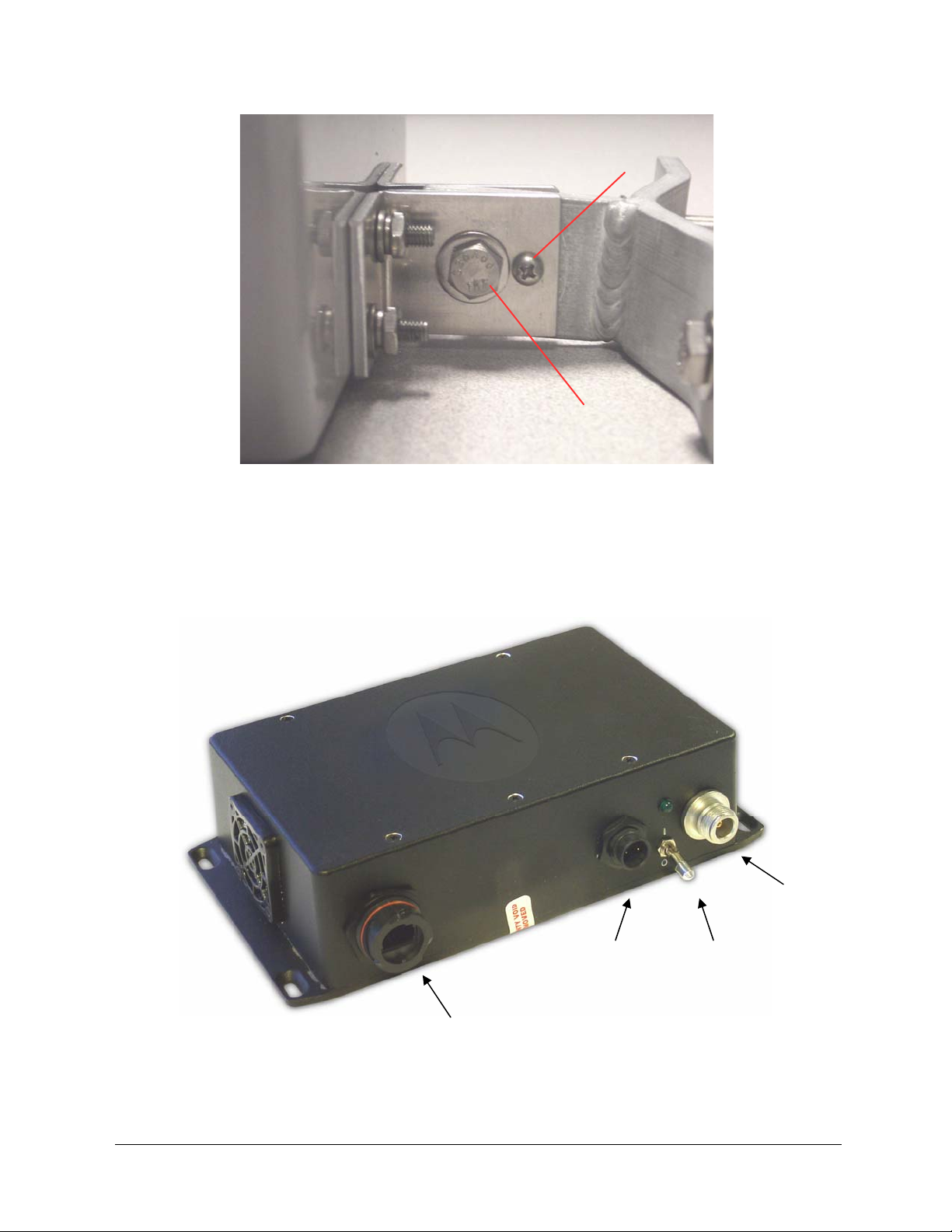

Figure 2-6. EWR Pivot and Angle Locking Bolts.................................................................9
Figure 2-7. PWR External Connection Point........................................................................9

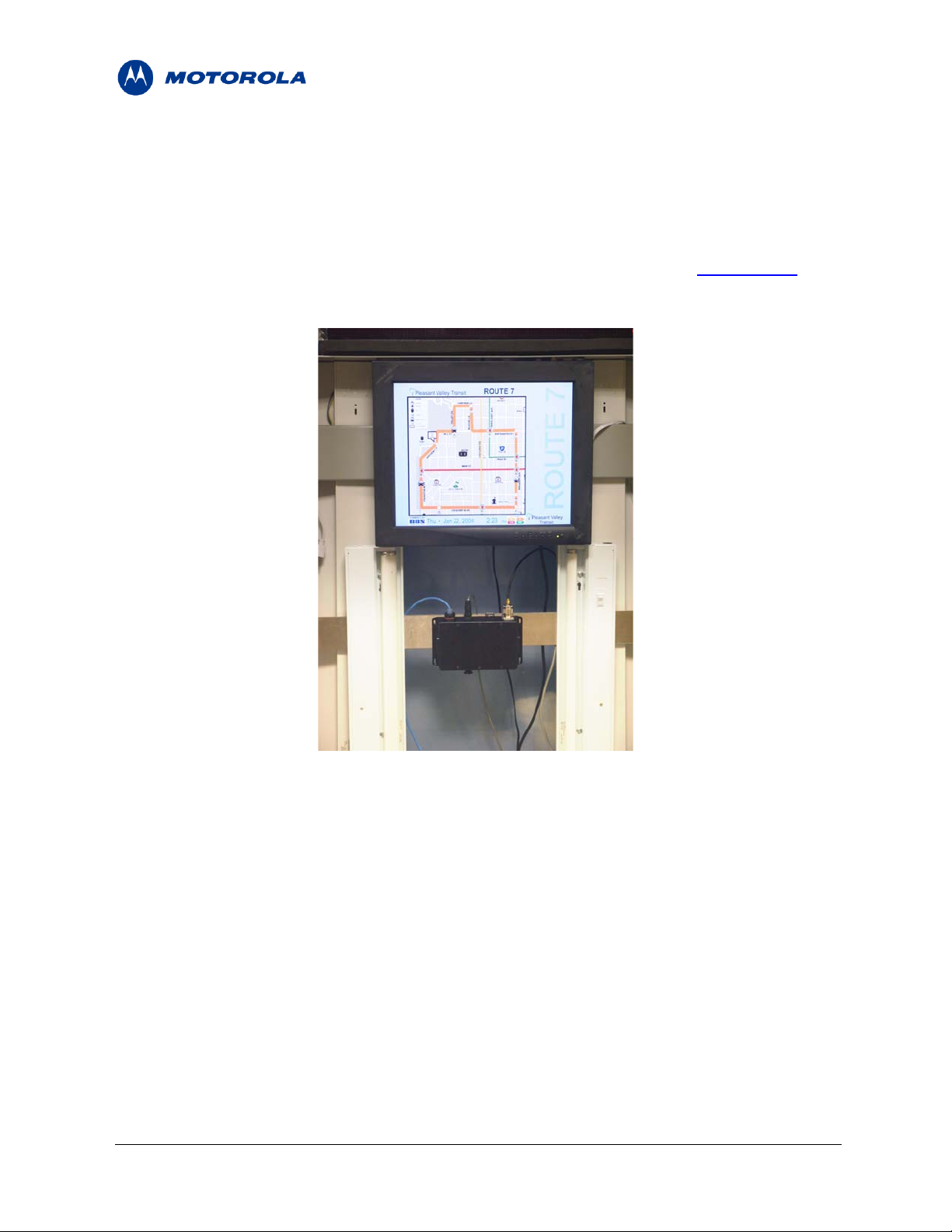

Figure 2-8 PWR6300 Cabinet Mounting.............................................................................10

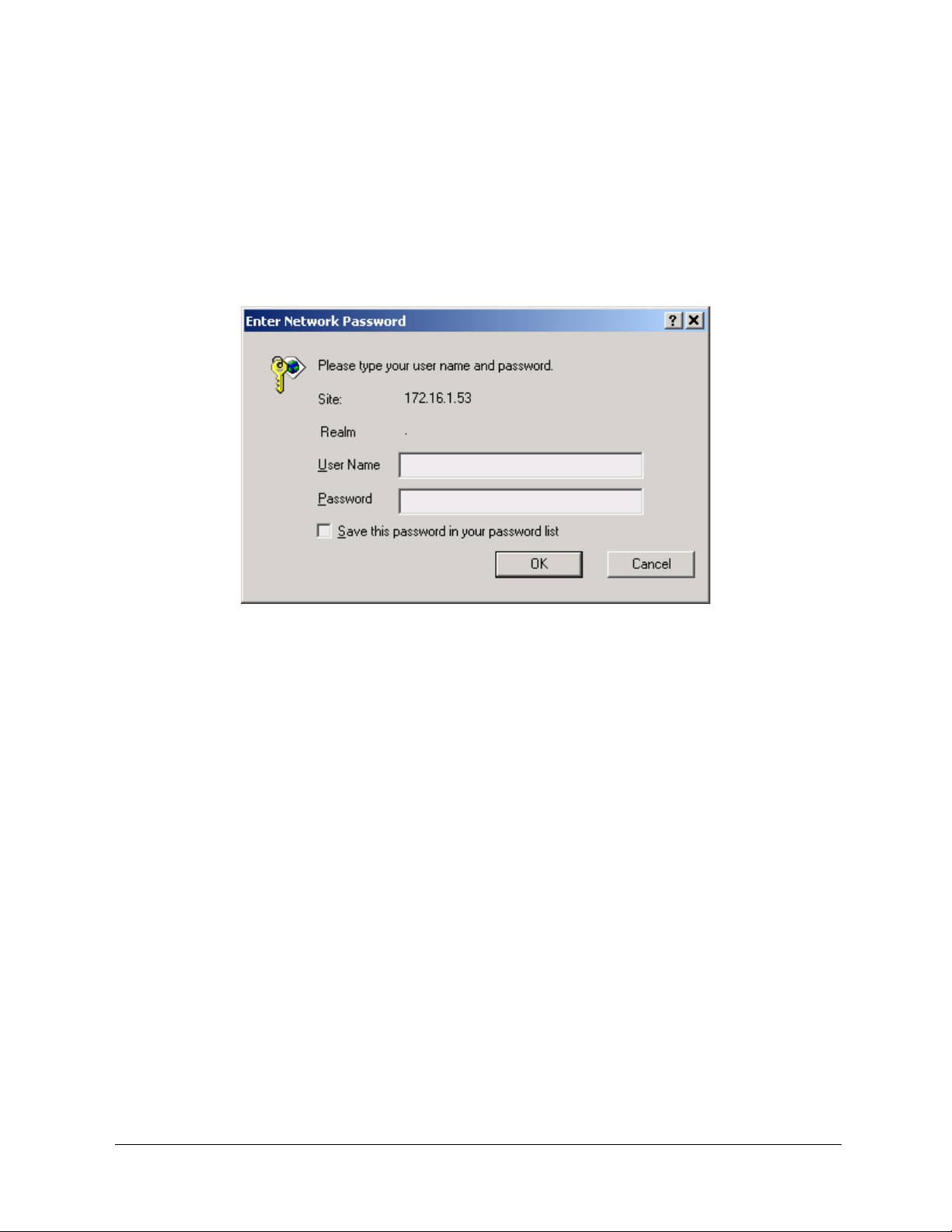

Figure 3-1 Enter Network Password Initial Web Page Authentication Dialog ...............13
Figure 3-2. MEA Device Administration Redirecting Web Page.......................................14
Figure 3-3. MEA Device Administration Home Page (Super User Login)........................15
Figure 3-4. MEA Device Administration Home Page (Normal User Login) .....................16

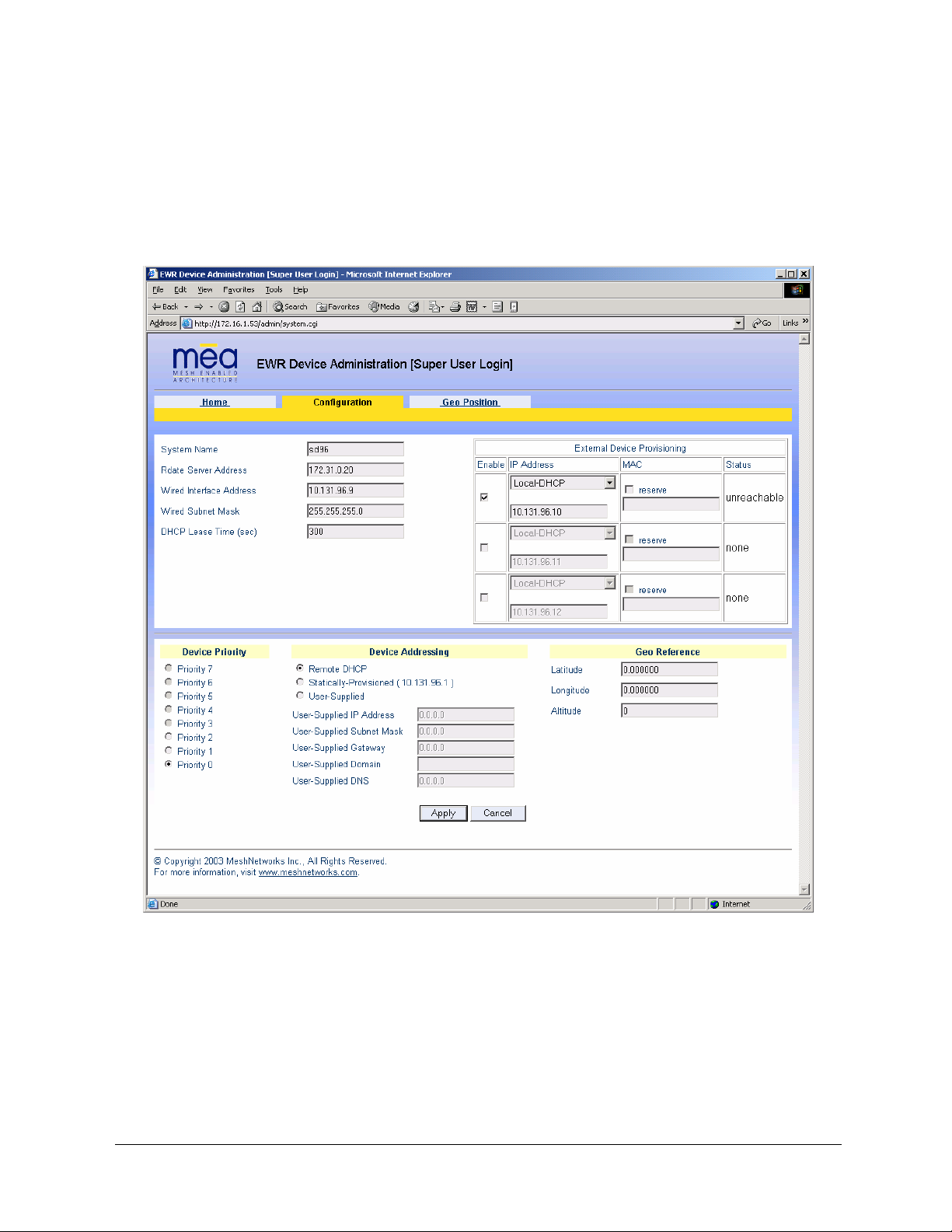

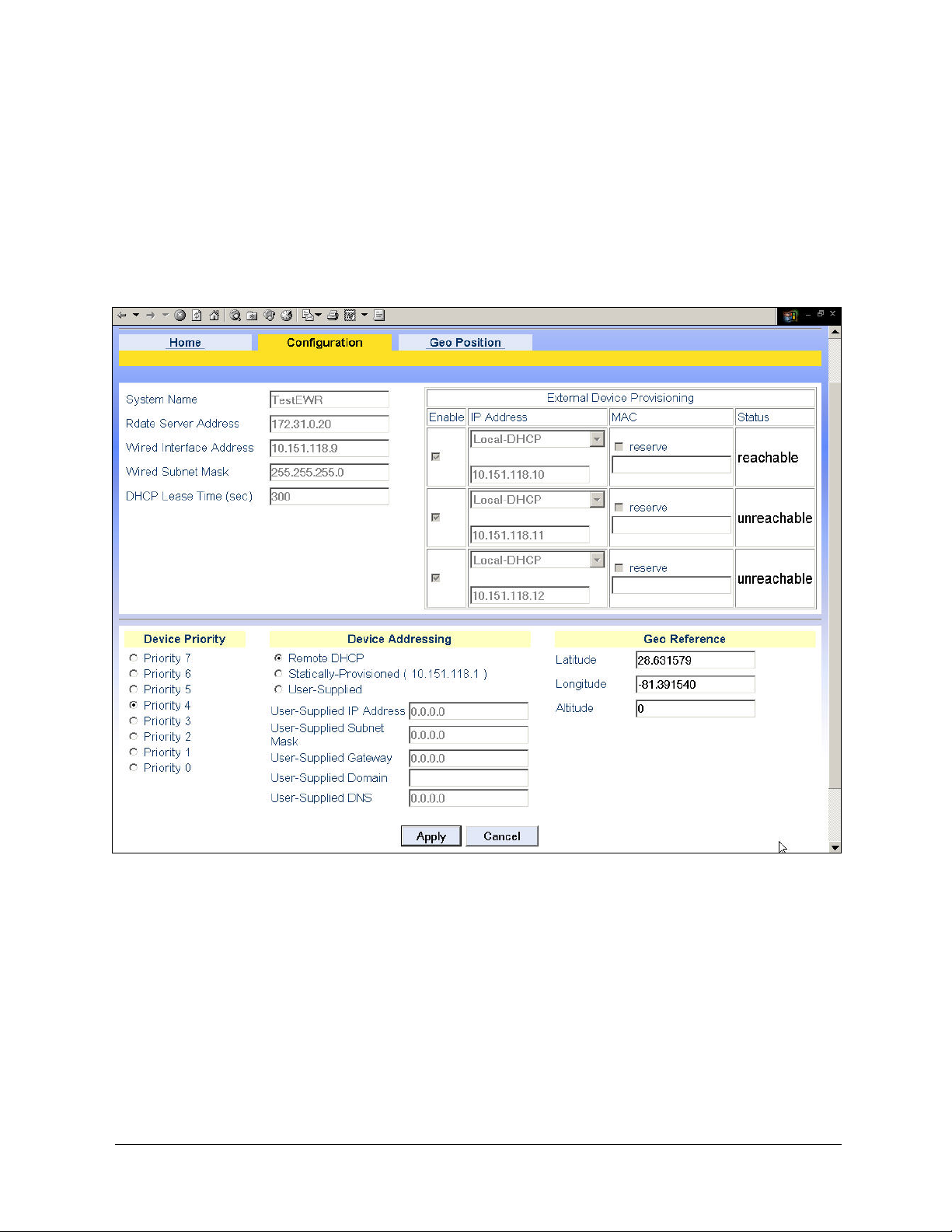

Figure 3-5. EWR (PWR) Device Configuration Page (Super User Login) ........................17
Figure 3-6. EWR (PWR) Device Configuration Page (Normal User Login)......................19

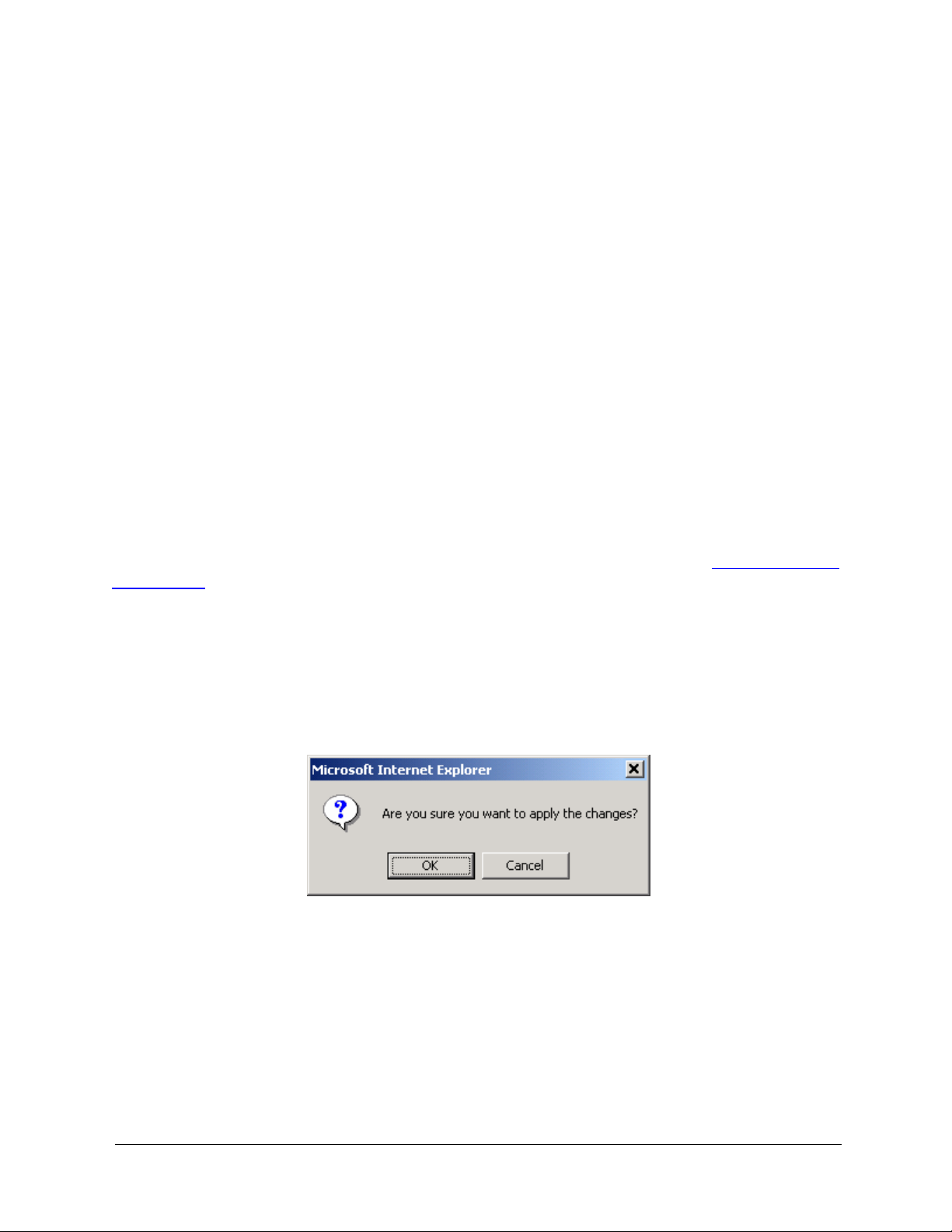

Figure 3-7. Configuration Change Dialog...........................................................................21

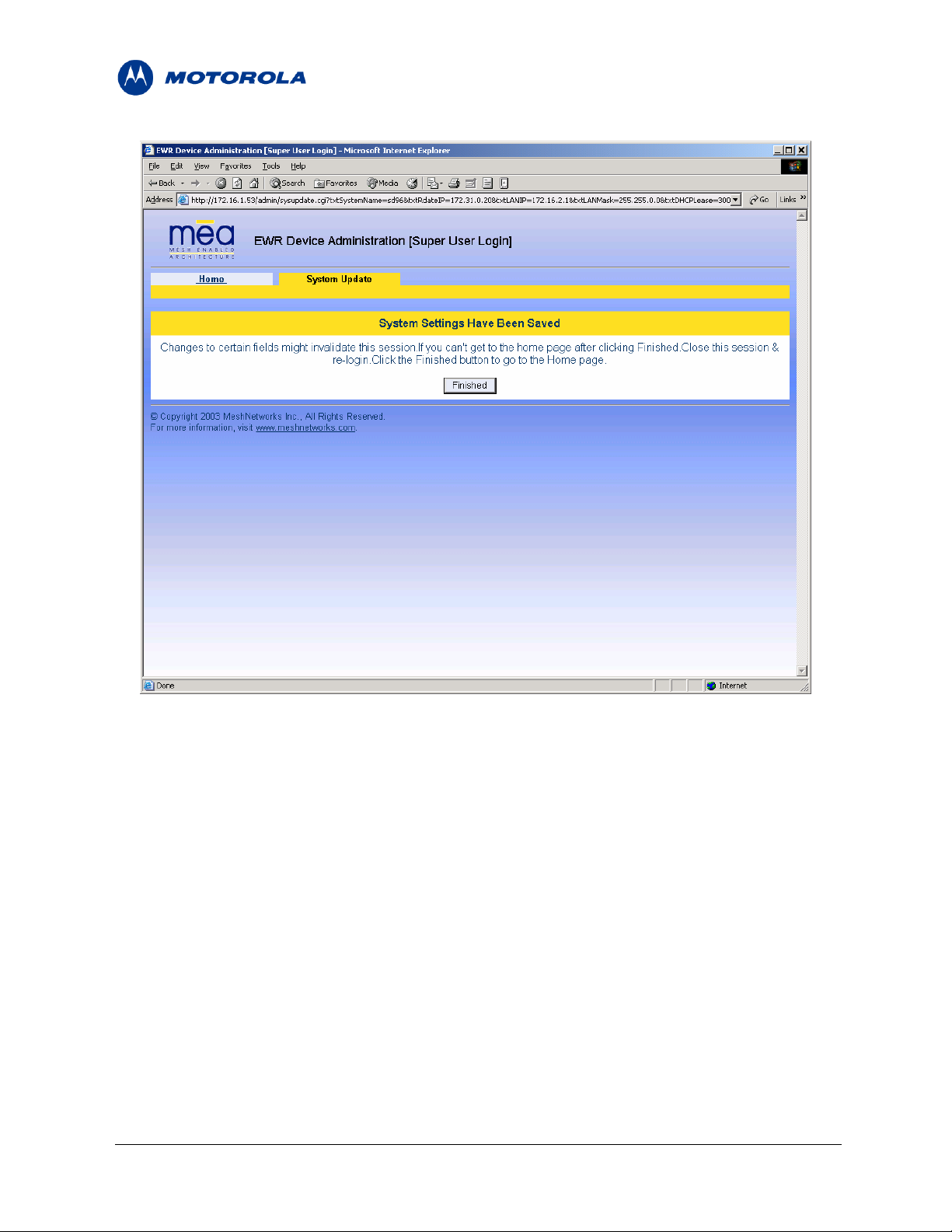

Figure 3-8. System Update Save Completed Web Page ...................................................22
Figure 3-9. External Device Provisioning Table.................................................................23
Figure 4-1. Device Reset Prompt Web Page ......................................................................25
Figure 4-2. Device Reset in Progress Page ........................................................................26
Figure 4-3. Restore Factory Settings Web Page................................................................28
Figure 4-4. Confirm Changes Window for Restore Factory Settings ..............................29
Figure 4-5. Factory Settings Restored Web Page..............................................................29
Figure 4-6. Enter New Password Web Page.......................................................................30
Figure 4-7. Confirm Changes Window for Enter New Password .....................................30
Figure 4-8. Password Changed Confirmation Web Page..................................................31
Figure 4-9. Security Provisioning Web Page .....................................................................32

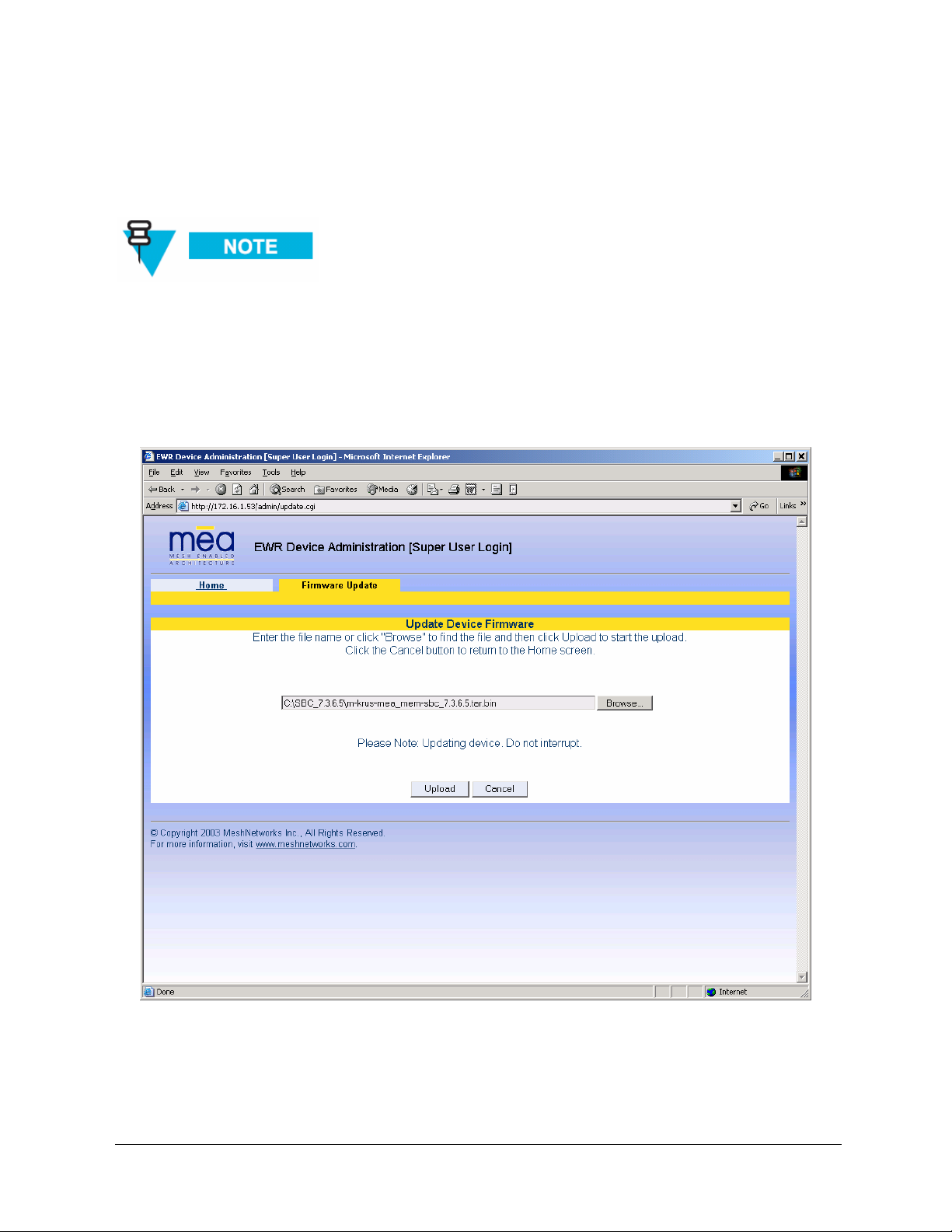

Figure 4-10. Update Device Firmware Web Page.................................................................33
vi
Mesh Enabled Access EWR/PWR Users Guide
Figure 4-11. Confirm Upload Window for Firmware Update...............................................34
Figure 4-12. Firmware Upload Progress Web Page.............................................................34
vii
Mesh Enabled Access EWR/PWR Users Guide
1 Product Introduction
Thank you for purchasing the MEA Enhanced Wireless Router (EWR) or the MEA Portable
Wireless Router (PWR). Both of these devices are designed to integrate with the Mesh Enabled
Access (MEA®) wireless communication system capable of supporting high data rate mobile
communication at variable rates of vehicular speeds. This document provides detailed
installation and configuration instructions for installing the MEA EWR and PWR.
The EWR is designed to be deployed outdoors, while the PWR is designed for indoor use, such
as traffic cabinets or inside outdoor kiosks. Both of these devices offer wireless coverage in
large geographic areas and provide wireless network access to one or more IP devices via a
built-in RJ45 Ethernet port.
Both the EWR and the PWR efficiently combine the functionality of a Motorola Wireless Router
and client modem into a single cost-effective wireless network component. This makes it easy
for any Ethernet-ready device to access a Mesh Enabled Access (MEA), mobile broadband
network. IP-enabled computers, video cameras, sensors, signs, signals, and other devices can
all be Mesh Enabled to send and receive data at burst rates of up to 6 Mbps. All standard
Wireless Router functionality including Multi-Hopping®, near Line-of-Sight communications, and
geo-location services are fully supported.
The EWR and the PWR are configured for the connection of multiple IP addressable devices
using standard Ethernet connectivity. This allows devices that cannot accept the PCMCIA
based WMC6300 product to function transparently on a MEA network without drivers
1.1 Product Contents
Each MEA EWR and PWR is a full-featured wireless networking device. The following is a list
of the items provided with each device:
EWR
• MEA Enhanced Wireless Router
• 1 Field Attachable Sealed Ethernet Boot
• High Gain Antenna
• Power Cord
PWR
• MEA Portable Wireless Router
• 15 foot cable assembly
• PWR cable connector (end 1): Switchcraft EN3C2F
• PWR cable connector (end 2): Molex 19121-009 spade lugs
• Mag Mount Antenna
1
2 Device Installation
2.1 Installation Requirements
2.1.1 Enhanced Wireless Router (EWR)
The MEA Enhanced Wireless Router 6300 (EWR6300) is an infrastructure device positioned in
a fixed location, such as on a pole, wall, or rooftop. The device requires professional installation
to ensure the installation is performed in accordance with FCC licensing regulations.
The EWR provides range extension, a means to route around obstructions, a fixed location
reference for use in Geo-Location, and the capability of enabling IP devices.
The EWR6300 comes with a mounting bracket that can be attached to a pole with a diameter of
1-3.5 inches. For correct MEA deployment, a power source for each EWR must be provided.
2.1.2 Portable Wireless Router (PWR)
The PWR6300 Portable Wireless Router (PWR) has the same functionality as the EWR,
including network routing, Multi-Hopping®, and geo-location services, but in a smaller form. It
combines the functionality of a Wireless Router and the Wireless Modem Card into a single
device. Adding an Ethernet port to a Wireless Router enables video cameras, computers or any
other Ethernet-capable device to get high-speed access to the MEA wireless broadband
network, without the need to purchase a separate Wireless Modem Card.
The MEA Portable Wireless Router 6300 (PWR6300) is an infrastructure device positioned in a
fixed location, such as on a traffic cabinet or outdoor kiosk.
The PWR6300 provides range extension, a means to route around obstructions, a fixed location
reference for use in Geo-Location, and the capability of enabling IP devices.
2.2 Software Requirements
Two types of software interfaces will be required during the installation and setup process of the
EWR and PWR device: MeshManager and the EWR Device Administration web interface.
MeshManager software needs to be installed and running on a network computer prior to EWR
and PWR installation and configuration. MeshManager will be used in the EWR and PWR
setup process to validate the installation of the device. MeshManager software will also be
used to manage an EWR, PWR, and other subscriber devices within the MEA network.
The EWR Device Administration web interface is also utilized by the PWR and is used to
administer and configure the device. The web interface can be accessed by connecting a PC to
the wired interface. Additional information is provided later in this manual.
Detailed information about MeshManager software and its usage is found in the following
publications: QuickStart for MeshManager and MeshManager Users Guide.
2
Mesh Enabled Access EWR/PWR Users Guide
2.3 Equipment Requirements
An EWR6300 and a PWR6300 are utilized similarly to a subscriber device within a MEA
network. Both will be used with the following Motorola’ infrastructure devices: IAP6300 and
MWR6300.
2.3.1 EWR6300
The following list defines the standard MEA hardware components needed to set up a EWR:
• EWR Box with N-type Antenna Connector
• 120V A/C Power Cable with a NEMA 5-15 plug
• Antenna with N-type Male Antenna Connector
• Mounting Bracket
The Network Operator must supply the following:
• Mounting Location
• Power Source (120V A/C or 5 V D/C depending on EWR configuration)
• Hand tools for bracket installation (7/16” wrench (2), Phillips screwdriver)
Optional Equipment:
• DC powered EWR (EWR6300-DC-IN)
• Power cord to connect to a photoelectric cell
2.3.2 PWR6300
The following list defines the standard MEA hardware components to install a PWR:
• PWR Box with N-type Antenna Connector
• 15 feet cable assembly
• Mounting Bracket
The Network Operator must supply the following:
• Mounting Location
• Power Source (12 VDC)
• Hand tools for bracket installation
Optional Equipment:
• An Antenna Cable and connector
3
r
2.4 MAC Address Label Location
2.4.1 EWR
The transceiver Media Access Control (MAC) address and the Ethernet MAC address is
typically listed on a label located on the antenna end of the EWR6300. A sample label is shown
in
Figure 2-1.
Record the transceiver MAC Address and Ethernet MAC Address in the MAC Address
Table below, as they will be required later to configure and test the device.
Ethernet
MAC
Address
Figure 2-1 EWR6300 Identification Label Example
Transceiver
MAC
Add
ess
2.4.2 PWR
The transceiver and Ethernet MAC addresses are recorded on a label located on the PWR unit.
Record these numbers in the MAC Address Table, as they will be required later to configure and
provision the device.
Figure 2-2 PWR6300 Identification Label Example
2.4.3 MAC Address Table
The MAC Address table has been included for recording the Ethernet MAC address and
transceiver MAC address for a set of EWR and PWR devices as a quick reference. These
4
Mesh Enabled Access EWR/PWR Users Guide
addresses will be required later in the configuration and management process.
Write the MAC numbers into the MAC Address Table provided below.
MAC Address Table
MAC Address (00-05-12-0A-xx-yy) ETH MAC Address (00-05-12-30-xx-yy)
5
A
(op
2.5 EWR6300 Assembly Information
The EWR6300 Assembly information will be described in the following subsections.
2.5.1 EWR6300 Assembly
ntenna Connector
Power In (4-pin)
Test Port
(Not Shown)
Figure 2-3 EWR6300 External Connection Points
Power Out (3-pin)
tional)
RJ45 (Data) Port
2.5.2 EWR Installation procedure:
The following instructions describe the EWR6300 hardware installation procedure:
1. If desired, mount the EWR box using the enclosed bracket. Refer to the
Mounting Bracket section for detailed information.
2. Insert the Antenna into the N-type Connector on the top of the box, and tighten.
3. Insert the Power Plug into the 4-pin Connector and tighten.
4. Verify the MAC address and Ethernet (ETH) address has been recorded in
Both addresses will be required to configure and test the device.
5. The Test Port is unused during deployment.
EWR6300
Section 2.4.3.
2.5.3 EWR6300 Mounting Bracket
The EWR6300 mounting bracket is identical to the mounting bracket for the IAP6300 and the
MWR6300. The bracket is robust secure; and can be used for horizontal, vertical, and off-angle
pole mounted installations. The mounting bracket is preinstalled and supplied with two 3 1/2 x
1/4 inch stainless steel bolts. The mounting bracket can accommodate up to a 3 1/4 inch
diameter mounting pole. Substitute for the 1/4-inch bolts supplied with the bracket may be used
to accommodate mounting poles smaller than 3 inches.
Motorola strongly recommends the use of stainless steel mounting hardware to prevent
corrosion. The standard mounting hardware supplied with the bracket is stainless steel. The
bracket is made of aluminum.
The following procedure outlines the required steps for installing a MEA EWR6300 using the
bracket shown in
Figure 2-4.
6
Mesh Enabled Access EWR/PWR Users Guide
Figure 2-4. EWR6300 Mounting Bracket
1 Using the deployment guidelines described in the MEA Setup and Deployment User’s
Guide, locate an appropriate mounting pole such at a streetlight cobra arm or a metal
post. The mounting pole can be vertical, horizontal, or project at almost any angle.
2 Remove one of the C-Clamp Bracket bolts so that the bracket can be positioned around
the mounting pole. If necessary, remove the second bolt. When the two halves of the
Clamp Bracket are correctly positioned, reinstall the bracket bolts.
Note: The C-Clamp Bracket Assembly requires two 3 1/2 x 1/4 inch stainless steel bolts
to secure the C-Clamp to a mounting pole. Each bolt is supplied with (2) stainless steel
flat washers, (1) lock washer, and (1) stainless steel nut. The bracket hardware should
be installed as indicated in
Figure 2-5.
7
Loading...
