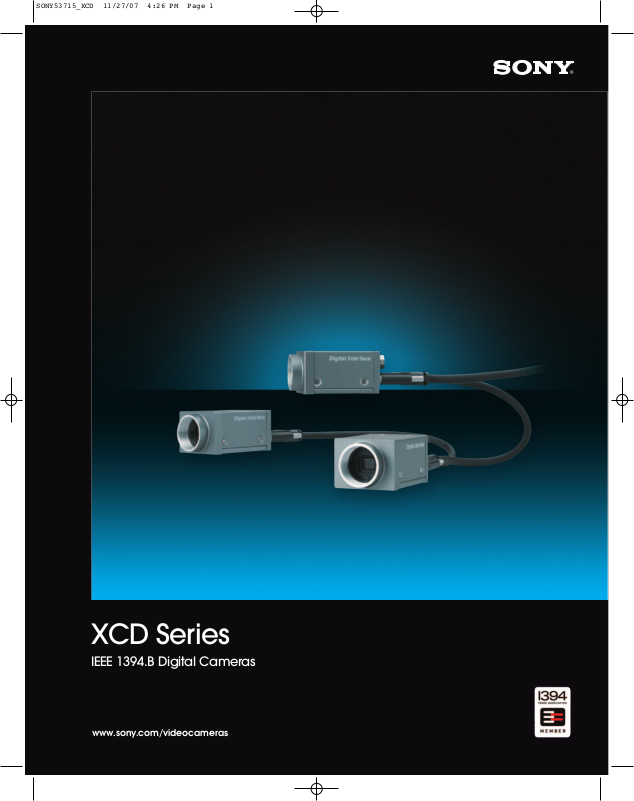

XCD Series
IEEE 1394.B Digital Cameras
www.sony.com/videocameras
Sony’s New XCD Series – With the
IEEE 1394b Interface and a Number
of Resolutions and Frame Rates to
Features
Excellent Picture Quality/
High Frame Rates
Choose From – Selecting the Right
Camera for Your Machine Vision
Application Has Never Been Easier
Sony, a renowned leader in digital camera technology, is
introducing six new models to its XCD Series: the
XCD-U100/U100CR, the XCD-SX90/SX90CR, and the
XCD-V60/V60CR. Featuring outstanding picture quality,
high-speed image capturing, and the digital 1394b
interface, this new XCD Series is perfect for high-quality
industrial and manufacturing solutions.
The XCD-U100/U100CR incorporates a 1/1.8-type IT CCD
that captures extremely, high-quality, detailed images
with an ultra-high resolution of 1600 x 1200 (UXGA). The
XCD-SX90/SX90CR employs a Sony unique CCD that
achieves a frame rate of up to 30 fps at 1280 x 960
(SXGA) resolution. The XCD-V60/V60CR achieves up to
90 fps at VGA resolution, which is commonly used in many
machine-vision applications. With this wide range of new
solutions – each with feature-rich benefits – it’s never
been easier to select the right camera for your specific
machine vision applications.
The new XCD Series of cameras adopts the IEEE 1394b
interface that supports the IIDC protocol. By utilizing this
interface, users can transfer images to a host PC at speeds
of up to 800 Mb/s. Moreover,because multiple cameras
can be connected in a daisy-chain configuration,users can
enjoy the benefits of simplified operation in a multi-camera
system. When these XCD cameras are daisy-chained, Bus
Synchronization and Broadcast Delivery are available. With
Bus Synchronization, users can capture images from different
angles simultaneously simply by sending a single trigger from
the host PC. Broadcast Delivery allows users to capture
images from multiple cameras using a software trigger
instead of a hardware trigger, which helps to minimize the
occurrence of false triggers. This function also enables users
to change the settings of multiple cameras simultaneously.
Their compact design and rugged body enables the
XCD Series to be integrated into a wide variety of
industrial environments. In addition, the XCD series
incorporates other features such as partial scanning,
binning, and a hardware LUT (Look Up Table). The new
XCD Series of cameras is ideal for industrial machinevision applications such as object recognition, inspection,
measurement, alignment, and for microscopy
applications in scientific research.
The XCD-U100/XCD-U100CR features a UXGA
CCD that provides the highest resolution out of
all the new XCD cameras. This particular
camera is ideal for applications that require the
capture of ultra-high image detail.
The XCD-SX90/XCD-SX90CR employs an
exclusive Sony CCD and achieves up to 30 fps
with SXGA image quality. For applications that
require high-speed image capture at up to
90 fps, the XCD-V60/XCD-V60CR is the answer.
XCD-U100
XCD-U100CR
B&W Color B&W Color B&W Color
1
/1.8-type
progressive scan
IT CCD
1600 x 1200
(UXGA)
15 fps 30 fps 90 fps
XCD-SX90
1280 x 960
(SXGA)
XCD-SX90CR
progressive scan
XCD-V60 XCD-V60CR
1
/3-type
IT CCD
640 x 480
(VGA)
IEEE 1394b Digital Interface
The new XCD Series employs the IEEE 1394b
interface which attains high data-transfer rates
of up to 800 Mb/s. Since the XCD Series is
backward compatible with IEEE 1394a, these
cameras can be easily integrated with legacy
1394a systems.
Daisy-chain Configuration
The new XCD cameras are equipped with two
IEEE 1394b ports allowing multiple cameras to
be daisy-chained and controlled from a single
PC. A daisy-chain configuration with a large
number of cameras
EIAJ 12-pin connector,which allows external
power to be supplied to the cameras.
*1
Up to 62 cameras, with additional external power being
supplied, can be daisy-chained.
*1
is made possible by their
IEEE 1394b 9-pin cable
PC
XCD Series
2
Bus Synchronization
Host PC
The new XCD Series also features a bus synchronization
function enabling users to simultaneously capture images
from different angles with multiple cameras by sending a
single trigger to all cameras from the host PC. This feature is
not only useful for viewing images from different angles, but
can be used to recreate a 3D image for more detailed
inspection
.
Image Buffer
The new XCD Series is equipped with an image buffer,
which serves as temporary storage for captured images
for later transmission or retransmission. This function
allows users to maximize bandwidth in multiple-camera
operations or reconfirm specific images as required.
Vertical and Horizontal Partial Scanning
By selecting a particular area of an image to be scanned,
users of the XCD Series can reduce data size and increase
frame rate to minimize processing time.
Bus Synchronization (Reproduction of 3D Images)
Broadcast Delivery
The broadcast delivery function of the XCD Series can be
used to send a software trigger to multiple cameras in a
daisy chain. This not only facilitates connections, but
eliminates the need for using a hardware trigger which can
produce false triggers due to noise. In addition, the
broadcast delivery function can be used to simultaneously
change camera settings such as shutter speed, exposure,
white balance, gain, and more.
Bulk Trigger Mode
The new XCD Series has a bulk trigger mode to allow the
capture of up to 16 images in rapid succession using either
a software or hardware trigger. This can be used to
capture multiple images of an item at different shutter
speeds. By doing so, specific areas of that item can be
clearly seen without changing the lighting. Also this allows
a composite image with a wide dynamic range to be
reproduced.
Slow Shutter Speed High Shutter Speed
Vertical and Horizontal Binning
*2
The Vertical binning feature of the XCD series combines
image data for every two lines vertically resulting in
increased frame rates and reduced processing time.
Horizontal binning combines image data for every two
pixels horizontally to achieve greater sensitivity, faster
capture speeds, and quicker processing.
New Sony 1394.b Driver and SDK
A new low level 1394.b driver for these cameras achieves
reliable and efficient image transfer without relying on
Microsoft’s standard Windows
®
driver. In addition, the new
cameras are backward compatible with the current
fcam 1394a driver.
Other Features
Hardware LUT (Look Up Table)
Built-in Real-time 3x3 Image Pre-processing Filter
Low Power Consumption
XCD-U100/XCD-U100CR (3.0 W)
XCD-SX90/XCD-SX90CR (2.8 W)
XCD-V60/XCD-V60CR (2.8 W)
Compact and Lightweight
1 3/4 x 1 5/16 x 2 3/8 inches (44 x 33 x 57.5 mm), (W x H x D)
5 oz. (140 g)
High Shock and Vibration Resistance
Meets IIDC Ver. 1.31 Specifications
*2
Composite Image with Wide Dynamic Range
Bulk Trigger Mode (Composite Image)
(simulated images)
*2
Available with the XCD-U100,XCD-SX90, and XCD-V60.
3
Specifications
XCD-U100 XCD-U100CR XCD-SX90 XCD-SX90CR XCD-V60 XCD-V60CR
Image device
Standard picture size (H x V)
1
/1.8-type progressive scan IT CCD
1600 x 1200 (UXGA) 1280 x 960 (SXGA) 640 x 480 (VGA)
Cell size 4.4 x 4.4 µm 3.75 x 3.75 µm 7.4 x 7.4 µm
Resolution depth
Mono 8: 8 bits/pixel Raw 8: 8 bits/pixel Mono 8: 8 bits/pixel Raw 8: 8 bits/pixel Mono 8: 8 bits/pixel Raw 8: 8 bits/pixel
Mono 16: 10 bits/pixel Raw 16: 10 bits/pixel Mono 16: 10 bits/pixel Raw 16: 10 bits/pixel Mono 16: 10 bits/pixel Raw 16: 10 bits/pixel
Lens mount C mount
Digital interface IEEE1394b-2002 x2, bilingual (screw lock possible)
Transfer rate 800 / 400 / 200 / 100 Mb/s
Max. Frame rate
(at full resolution)
15 fps 30 fps 90 fps
Gain control Manual 0 to 24 dB, Manual 0 to 18 dB, Manual 0 to 24 dB, Manual 0 to 18 dB, Manual 0 to 24 dB, Manual 0 to 18 dB,
Auto gain Auto gain Auto gain Auto gain Auto gain Auto gain
Shutter speed 1/100,000 to 16s, Auto shutter
External trigger shutter Trigger start (Mode 0),Trigger start and exposure duration (Mode 1), Programmable trigger (via the IEEE1394 bus),
Trigger inhibit setting,Trigger/Strobe delay setting, Single/Bulk trigger mode
Image memory 16 MB
Memory channel 15 channels for parameter settings
Broadcast delivery Camera setting, Software trigger via IEEE1394 bus
Readout features Partial Scanning, Partial Scanning, LUT, Partial Scanning, Partial Scanning, LUT, Partial Scanning, Partial Scanning, LUT,
Binning, LUT, 3x3 filter Bayer Pattern Binning, LUT, 3x3 filter Bayer Pattern Binning, LUT, 3x3 filter Bayer Pattern
Arrangement, AWB Arrangement, AWB Arrangement, AWB
Power requirements DC 8 to 30 V (via IEEE1394b 9-pin cable or 12-pin camera cable)
Power consumption 3.0 W (Typ.) 2.8 W (Typ.) 2.8 W (Typ.)
Dimensions (W x H x D)
1 3/4 x 1 5/16 x 2 3/8 inches (44 x 33 x 57.5 mm) (not including protruding parts)
Weight 5 oz (140 g)
Operating temperature 23 to 113 ºF (-5 to 45 ºC)
Storage temperature -22 to 140 ºF (-30 to 60 ºC)
Operating humidity 20 to 80% (no condensation)
Storage humidity 20 to 95% (no condensation)
Vibration resistance 10 G (20 to 200 Hz)
Shock resistance 70 G
Supplied accessories Lens mount cap, Operating instructions
1
/3-type progressive scan IT CCD
Dimensions
1
2-M3, depth 4
1 (44)
/16 (33)
5
1
4-M3, depth 4
1
/16 (26)
1
/16 (26)
1
17
/32 (13)
17
/32 (13)
Pin Assignment
12-pin EIAJ connector
Pin No.
1 DC IN (Ground)
2 DC IN
3 ISO GND
4 Strobe OUT (Isolated)
5 GPIO OUT 1- (Isolated)
6 GPIO OUT 1+ (Isolated)
5
2
/8 (65.5)
(8)
2 3/8 (57.5) (11/32)
2 (50)
12-pin connector
IEEE-1394.b
(screw connectors)
Unit: inches (mm)
7 GPIO IN 1+ (Isolated)
8 GPIO OUT 2- (Isolated)
9 GPIO OUT 2+ (Isolated)
10 GPIO IN 2+ (Isolated)
11 Trigger IN
12 ISO GND
Optional Accessories
Tripod Adapter
VCT-ST70I
Isolated type
Weight: Approx.0.5 oz (14 g)
Dimensions (W x H x D): 1
Camara Adaptor
DC-700
Cables
CCXC-12P02N CCXC-12P05N
CCXC-12P10N CCXC-12P25N
5
/8 x 1/4 x 2 3/8 inches
(40 x 6 x 59 mm)
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/videocameras
IS-1204 (MK10450V1IW07OCT)
Reproduction in whole or in part without written permission is prohibited.
Design, features, and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
All other trademarks are the properties of their respective owners.
© 2007 Sony Corporation. All rights reserved.
Sony is a registered trademark of Sony Corporation.
Printed in USA (11/07)
