Motorola FD-1 User Manual

FD-1

Funktionsdecoder

Motorola-I-Format

Function decoder

Motorola-I-Format

Décodeur de fonctions

Format-Motorola I

Functiedecoder

Motorola-I-format

Anleitung

Manual

Mode d´emploi

Handleiding

Art.-Nr. 22-01-018 n

Deutsch 3

English 17

Français 29

Nederlands 41

Alle Rechte, insbesondere das Recht der Vervielfältigung und Verbreitung sowie der Übersetzung vorbehalten. Vervielfältigungen und Reproduktionen in jeglicher Form bedürfen der schriftlichen Genehmigung durch die Tams Elektronik GmbH.

Technische Änderungen vorbehalten.

All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, without prior permission in writing from Tams Elektronik GmbH.

Subject to technical modification.

Tout droits réservés, en particulier les droits de reproduction et de diffusion ainsi que le traduction. Toute duplication ou reproduction sous quelque forme que ce soit nécessite l´accord écrit de la societé Tams Elektronik GmbH.

Sous réserve de modifications techniques.

Technische wijzigingen voorbehouden.

FD-1 English

Table of contents

How to use this manual 18 Intended use 18 Safety instructions 19 EMC declaration 21 Information: Motorola I and Motorola II format 21 Operation overview 21 Technical specifications 22 Checking the package contents 23 Required tools and consumables 23 Safe and correct soldering 23 Performing a visual check 24 Mounting the function decoder 24 Setting the decoder address 26 FAQ 27 Manufacturer's note 27 Certification 27 Conditional warranty 28 Diagram: Setting the address 54

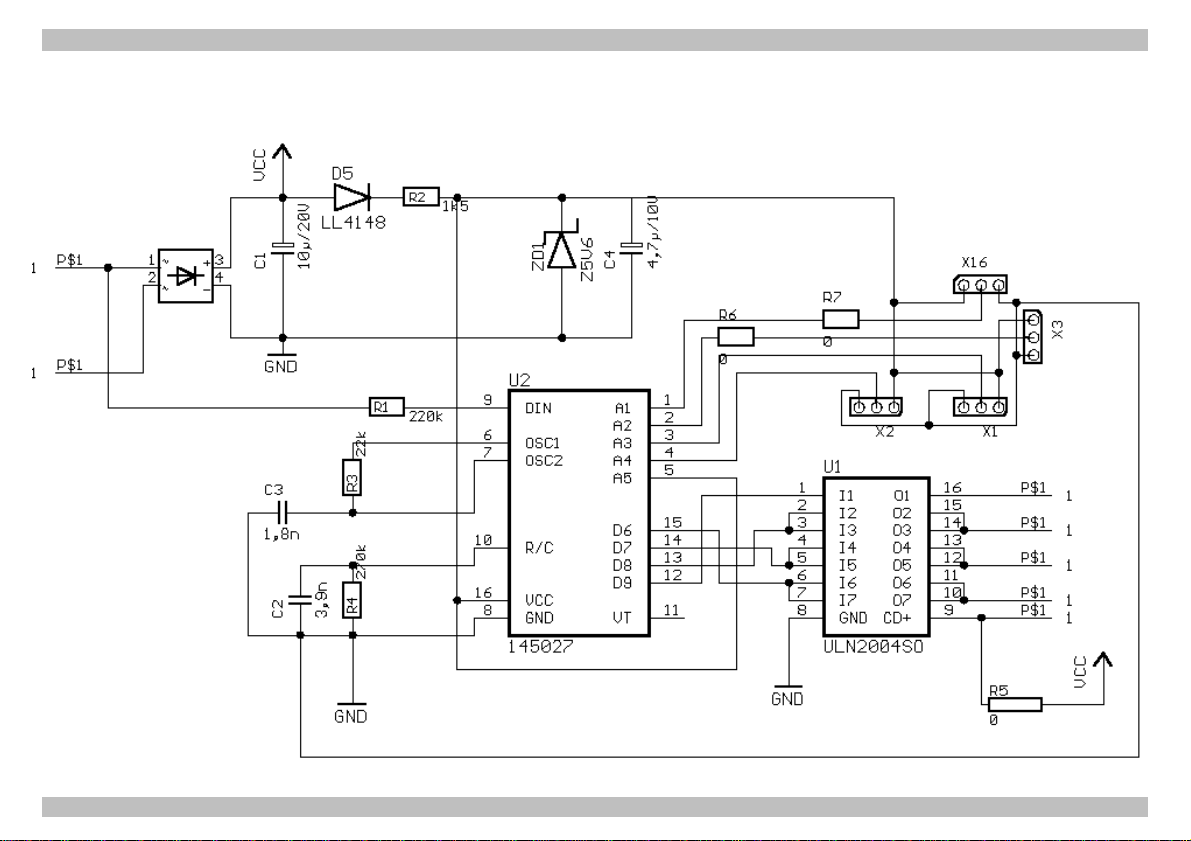

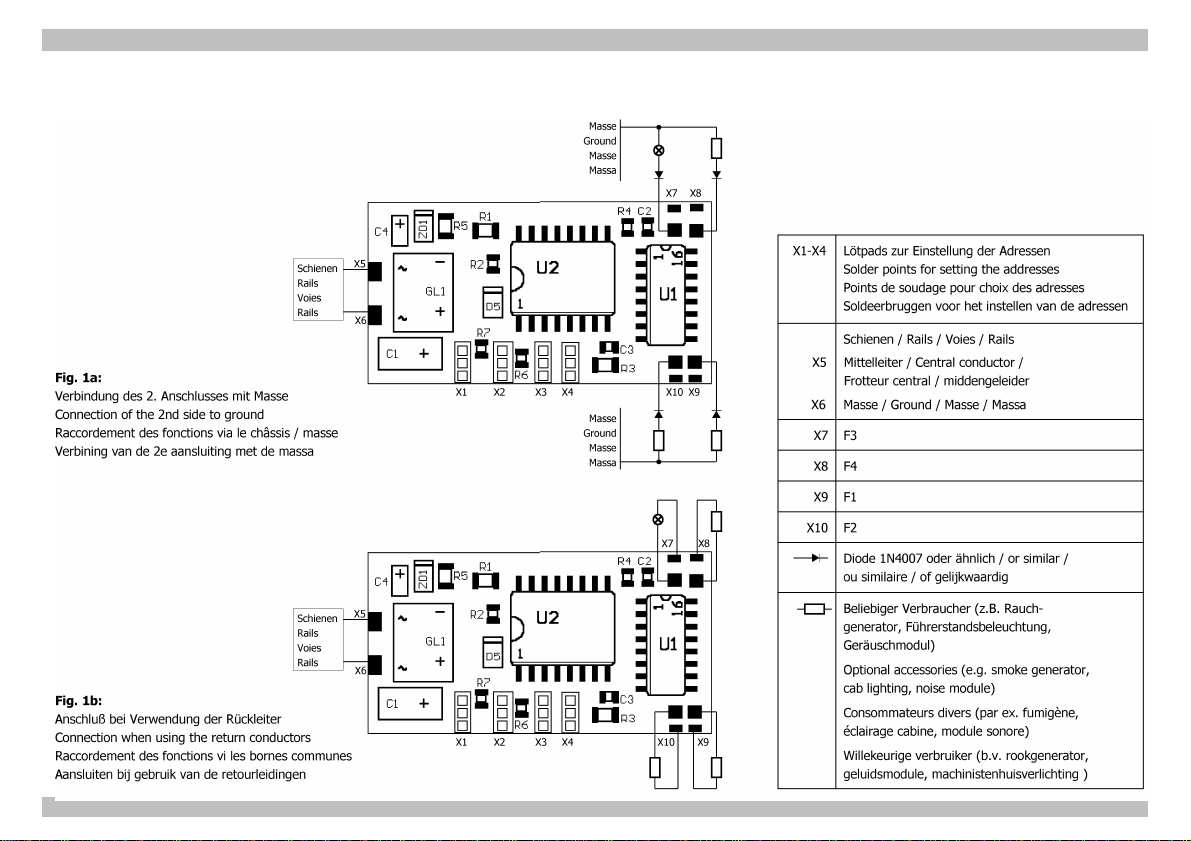

Connections Diagram (Fig. 1) I Circuit Diagram (Fig. 2) II

(Pages I and II in the centre of this handbook are removeable.)

Page 17

English FD-1

How to use this manual

If you have no specialist technical training, this manual gives step-bystep instructions for safe and correct fitting of the module, and operation. Before you start, we advise you to read the whole manual, particularly the chapter on safety instructions and the FAQ chapter. You will then know where to take care and how to prevent mistakes which take a lot of effort to correct.

Keep this manual safely so that you can solve problems in the future. If you pass the kit on to another person, please pass on the manual with it.

Intended use

Caution:

Integrated circuits are very sensitive to static electricity. Do not touch components without first discharging yourself. Touching a radiator or other grounded metal part will discharge you.

The module can be used according to the specifications of this manual. It is designed for a mounting in a model railway locomotive or in a model railway carriage. It evaluates the Motorola I format data sent by the digital central unit to its address. The decoder has 4 outputs for the connection of optional accessories. The module is not suitable for children under the age of 14.

Reading, understanding and following the instructions in this manual are mandatory for the user. Any other use of the module is inappropriate and invalidates any guarantees.

Page 18

FD-1 English

Safety instructions

Mechanical hazards

Cut wires can have sharp ends and can cause serious injuries. Watch out for sharp edges when you pick up the PCB.

Visibly damaged parts can cause unpredictable danger. Do not use damaged parts: recycle and replace them with new ones.

Electrical hazards

§ Do not touch powered, live components.

§ Do not touch conducting components which are live due to

malfunction.

§ Avoid short circuits.

§ Do not connect the circuit to a higher voltage than designed.

§ Impermissibly high humidity.

§ Condensation building up can cause serious injury due to electrical

shock.

Take the following precautions to prevent this danger:

§ Never perform wiring on a powered module.

§ Only use low power for this module as described in this manual and

only use certified transformers.

§ Connect transformers and soldering stations only in approved mains

sockets installed by an authorised electrician.

§ Observe cable diameter requirements.

§ Assembling the kit should only be done in closed, clean, dry rooms.

Beware of humidity.

§ If the humidity in the room is too high, please do not start working

until after a minimum of 2 hours of acclimatisation.

§ Use only original spare parts if you have to repair the kit or the

ready-built module.

Page 19

English FD-1

Fire risk

Touching flammable material with a hot soldering iron can cause lifethreatening fire, burns and toxic smoke. Connect your soldering iron or soldering station only when actually needed. Use the correct soldering iron or station and never leave a hot soldering iron or station unattended.

Thermal danger

A hot soldering iron or liquid solder accidentally touching your skin can cause skin burns. As a precaution:

§ use a heat-resistant mat during soldering,

§ always put the hot soldering iron in the soldering iron stand,

§ point the soldering iron tip carefully when soldering, and

§ remove liquid solder with a thick wet rag or wet sponge.

Dangerous environments

A working area that is too small or cramped is unsuitable and can cause accidents, fires and injury. Prevent this by working in a clean, dry room with enough freedom of movement.

Other dangers

Children can cause any of the accidents mentioned above because they are inattentive and not responsible enough. Children under the age of 14 should not be allowed to work with this kit or the ready-built module.

Little children can swallow small components with sharp edges. Life threatening! Do not allow components to reach small children.

In schools, training centres, clubs and workshops, assembly must be supervised by qualified personnel.

In industrial institutions, health and safety regulations applying to electronic work must be adhered to.

Page 20
