9505

USER’S GUIDE

Options Menu Quick Reference

Phone Book

Personal Numbers Show Services Last T en Calls My Phone Number(s) Fixed Dialing One-Touch Dial Setting

Call Related Features

Show Battery Meter Show Signal Strength Pending Call Drop Call Forwarding Call Waiting Call Barring

1,3,5 1,3,5 1,3,5

Messages Menu

Call Voicemail Received Messages Outgoing Messages Message Editor Message Settings

Note: Unmarked features are available in all modes. 1 Available from Satellite Mode only. 2 Available from TDMA/CDMA/AMPS Cellular Mode. 3 Available from GSM Cellular Mode. 4 Available in Extended Menu. 5 Network and subscription-dependent feature.

1,3 1

Call Meters

Show Call Timers Set Audible Call Timers Set In-Call Display Lifetime Timer

Mode Selection

Satellite Always Cellular Preferred Cellular Always Satellite Preferred

Network Selection

Phone Setup

Emergency Mapping International Dialing Prefix Change Number System Scan System Options Adjust Ring Volume Ring or Vibrate Set Ringer Tone Phone Lock Activate IR Port Require SIM Card PIN Change SIM PIN2 Code New Security Code Extended Menus Show Time and Date Set Time and Date Set Time Format Language Selection Lights Select Keypad Tones Phone Status

1,4

Satellite

Antenna Lock

Release Button

Cellular Cassette

Antenna

(if provided)

Status Indicator

Satellite Antenna

Earpiece

Signal Strength

Indicator

Volume Control

Keys

Display and

Status Indicators

Message Key

Alphanumeric

Keypad

Infra-Red Data Port

Accessory and

Power Connector

Real-Time Clock

Battery Charge Indicator

Display

Battery Compartment/ Cellular Cassette Connector

Quick Access Key

Headset Jack

Microphone

SATELLITE MODE HELPFUL HINTS

• Need clear view of sky, outdoors, away from buildings and tall structures. Rotate and fully extend antenna into a vertical position.

• Wait until registration is complete (you will see and n indicators). If no registration (n missing), press

• To dial, press: [ [phone number],

0 0

] or [0 and hold for two seconds], [country code],

• Talk with antenna above your head and vertical to the ground.

Registered and the

E 8

+

Getting Started

1. Rotate and extend the antenna.

3. Insert the SIM card.

5. Remove battery’s protective cover.

7. Attach battery door cover or optional Cellular Cassette.

(Top)

✁

2. Remove battery door.

(Top)

4. Push down and slide the SIM card tray to the right.

6. Install the battery by matching arrows on phone and battery.

(Top)



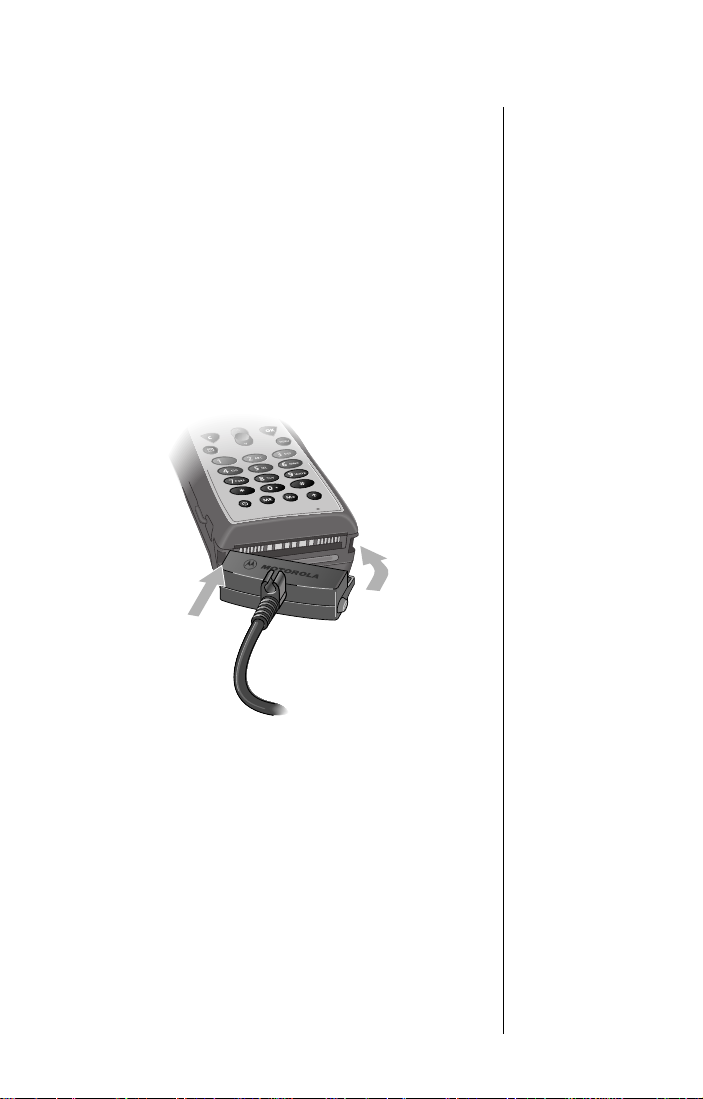

8. Attach charging device.

9505 PORTABLE QUICK REFERENCE

Basic Operation

Turn the phone's power on/off:

Press and hold

Place a call:

Rotate and extend the antenna in a vertical position. To dial, press: [ [phone number], O.

Answer a call (with antenna rotated and extended):

Phone rings and/or vibrates After Call followed by Answer? is in display, press O.

Answer a call (with antenna stowed):

Phone chirps Rotate and extend antenna Phone will ring and/or vibrate After Call followed by Answer? is in display, press O.

End a call:

Press

] or [0 and hold for two seconds], [country code],

0 0

Special Features

Adjust earpiece volume:

Press upper and lower volume keys on the side of the phone.

Adjust ringer volume:

E and then the upper and lower volume keys on the side of

Press the phone.

Clear the last digit in the display or exit a submenu:

Press

Clear the entire display or exit the menu system:

Press and hold C.

Select prompt language:

Press and hold Press M 2 6 O to go to the language selection submenu. Press M until you see the preferred language. Press O to select.

C to return to idle display.

Special Features Continued

Keypad disable:

Press * and # keys simultaneously to prevent accidental usage of the phone. All keys with the exception of the S key will be disabled. You can still answer an incoming call by pressing To remove the keypad disable, press * and # simultaneously.

Display your phone number:

Press Q #.

Also refer to the “View Your SIM Card Phone Number(s)” section of the User’s Guide.

Switch modes:

1. Press M until you see Mode Selection, and then press O.

2. Press M to scroll to Cellular Preferred, Satellite 

Preferred

3. Press O to select.

, Cellular Always or Satellite Always.

O when the keypad is locked.

Quick Access Menu

Factory default for satellite and cellular mode.

1 2



3 4 5

Find Name Mute Call Voicemail Battery Meter Lock Now

Vibrate On/Off

Read Messages



Forward On/Off

Phone Book

Recall a number from the phone book:

1. Press Q.

2. Enter the one-, two-, or three-digit location number of the entry,

and then press O.

3. Press O to call the displayed entry.

Recall last ten numbers dialed:

1. Press M until you see Phone Book, and then press O.

2. Press M to scroll to Last Ten Calls, and then press O to select.

3. Press M to scroll to Last Calls Made and then press O to select.

4. Press M to scroll to the number you are looking for.

5. Press O to place a call to that number.

Welcome

The future of global telecommunications is here—a satellite telephone, providing you with communication in many remote areas around the world.

Motorola proudly introduces its next generation Satellite Series™ 9505 portable phone for the Iridium

All Motorola wireless phones are designed and manufactured to meet Motorola’s exacting specifications and world-class quality standards. During development, our laboratory testing team performed rigorous durability tests including temperature, humidity, shock, dust, vibration, and drop tests—and it still worked! We are confident that the phone you purchased meets your own exacting standards.

Thank you for choosing Motorola, a global leader in communications technology.

Enjoy your new Satellite Series™ 9505 portable phone!

satellite system.

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . .7

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Guide Overview. . . . . . . . . . . . . . . . . . . . . . . . .12

Phone Overview . . . . . . . . . . . . . . . . . . . . . . . .13

Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Satellite Series™ Accessories. . . . . . . . . . . . . .19

Getting Started

Attaching the Satellite Antenna . . . . . . . . . . . . .26

What Is a SIM Card? . . . . . . . . . . . . . . . . . . . . .27

Installing/Removing the SIM Card. . . . . . . . . . .28

Removing the Battery Cover . . . . . . . . . . . . . . .30

Installing the Battery . . . . . . . . . . . . . . . . . . . . .31

Charging the Battery . . . . . . . . . . . . . . . . . . . . .35

Checking Battery Charge Level . . . . . . . . . . . .37

Battery Information . . . . . . . . . . . . . . . . . . . . . .38

Installing the Cellular Cassette . . . . . . . . . . . . .39

Using Y our Phone

Startup Procedures . . . . . . . . . . . . . . . . . . . . . .42

Placing a Call . . . . . . . . . . . . . . . . . . . . . . . . . .46

Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . .51

Additional Phone Features . . . . . . . . . . . . . . . .54

Using In-Call Features

Muting a Call . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Using Call Waiting. . . . . . . . . . . . . . . . . . . . . . .59

Placing a Call on Hold. . . . . . . . . . . . . . . . . . . .61

Making a Conference Call. . . . . . . . . . . . . . . . .63

Sending a Phone Flash . . . . . . . . . . . . . . . . . . .66

Using the Menus

Using the Options Menu . . . . . . . . . . . . . . . . . .68

Using the Quick Access Menu . . . . . . . . . . . . .70

Using the In-Call Menu . . . . . . . . . . . . . . . . . . .72

Managing the Phone Book

Phone Book Menu . . . . . . . . . . . . . . . . . . . . . . .76

Organizing Your Phone Book . . . . . . . . . . . . . .78

Storing Names and Numbers . . . . . . . . . . . . . .80

. . . . . . . . . . . . . . . . . . . . . . . . . .25

. . . . . . . . . . . . . . . . . . . . . . . .41

. . . . . . . . . . . . . . . . . . . .57

. . . . . . . . . . . . . . . . . . . . . . . . .67

. . . . . . . . . . . . . . . . .75

iii

Entering Names . . . . . . . . . . . . . . . . . . . . . . . . 82

Using Pauses in Numbers . . . . . . . . . . . . . . . . 84

Using Phone Number Preﬁxes . . . . . . . . . . . . . 86

Locating Entries . . . . . . . . . . . . . . . . . . . . . . . . 87

Calling, Modifying, or Erasing an Entry . . . . . . 89

Checking Phone Book Capacity. . . . . . . . . . . . 90

Preventing Access to the Phone Book . . . . . . . 91

Restricting Phone Use . . . . . . . . . . . . . . . . . . . 92

Viewing the Last Ten Calls Made or Received . 97 Viewing and Modifying Your Phone Numbers . 99

Using One-Touch Dialing . . . . . . . . . . . . . . . . 101

Viewing Service Phone Numbers . . . . . . . . . . 103

Using Calling Features

. . . . . . . . . . . . . . . . . . 105

Call Related Features Menu . . . . . . . . . . . . . . 106

Forwarding Calls When Unavailable . . . . . . . 108

Forwarding All Your Calls . . . . . . . . . . . . . . . . 110

Using Detailed Call Forwarding . . . . . . . . . . . 112

Canceling All Forwarding . . . . . . . . . . . . . . . . 115

Activating Call Waiting . . . . . . . . . . . . . . . . . . 116

Restricting Calls with Call Barring . . . . . . . . . 117

Viewing the Battery Meter. . . . . . . . . . . . . . . . 122

Viewing Signal Strength . . . . . . . . . . . . . . . . . 123

Deactivating Pending Call Drop Signal . . . . . 124

Restricting Your Phone Number ID. . . . . . . . . 125

Using Message Services

. . . . . . . . . . . . . . . . . 127

Messages Menu . . . . . . . . . . . . . . . . . . . . . . . 128

Checking Your Voicemail . . . . . . . . . . . . . . . . 129

Managing Your Received Messages . . . . . . . 130

Accessing Received Messages. . . . . . . . . . . 132

Managing Outgoing Messages . . . . . . . . . . . 136

Managing Other Message Settings . . . . . . . . 144

Customizing Phone Features

. . . . . . . . . . . . . 149

Phone Setup Menu . . . . . . . . . . . . . . . . . . . . . 150

Managing Phone Ringer Settings. . . . . . . . . . 152

Locking and Unlocking Your Phone . . . . . . . . 154

Activating the Infrared Data Port . . . . . . . . . . 156

Protecting the SIM Card . . . . . . . . . . . . . . . . . 157

Managing Other Security Settings . . . . . . . . . 159

Activating Extended Menus . . . . . . . . . . . . . .161

Managing Time and Date Settings . . . . . . . . .162

Selecting the Display Language . . . . . . . . . . .165

Turning Lights On and Off . . . . . . . . . . . . . . . .166

Setting Keypad Tones . . . . . . . . . . . . . . . . . . .167

Managing Phone Settings . . . . . . . . . . . . . . . .168

Cellular Mode Settings . . . . . . . . . . . . . . . . . .171

Accessing the Network

. . . . . . . . . . . . . . . . . . .177

Network Selection Menu . . . . . . . . . . . . . . . . .178

Registering With the Satellite Network . . . . . .179

Cellular Mode Settings . . . . . . . . . . . . . . . . . .180

Selecting a Mode

. . . . . . . . . . . . . . . . . . . . . . . .185

Mode Selection Menu . . . . . . . . . . . . . . . . . . .186

Phone Behavior by Mode . . . . . . . . . . . . . . . .187

Selecting Satellite Mode . . . . . . . . . . . . . . . . .188

Selecting Cellular Mode . . . . . . . . . . . . . . . . .190

Timing Y our Calls

. . . . . . . . . . . . . . . . . . . . . . .191

Call Meters Menu . . . . . . . . . . . . . . . . . . . . . .192

Showing Call Timers . . . . . . . . . . . . . . . . . . . .193

Setting Audible Call Timers. . . . . . . . . . . . . . .195

Showing the In-Call Timer . . . . . . . . . . . . . . . .197

Showing the Lifetime Timer . . . . . . . . . . . . . . .198

Customizing the Menu System

. . . . . . . . . . . .199

Personalizing the Options Menu . . . . . . . . . . .200

Personalizing the Quick Access Menu . . . . . .202

Troubleshooting Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Patent Information

. . . . . . . . . . . . . . . . . . . . . . . 203

. . . . . . . . . . . . . . . . . . . . . 221

Safety Information

Important: Read this information before using your wireless mobile

phone.

Exposure to Radio Frequency Signals

Your wireless mobile telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.

International agencies have set standards and recommendations for the protection of public exposure to RF electromagnetic energy.

•

International Commission on Non-Ionizing Radiation Protection (ICNIRP)1996

•

Verband Deutscher Elektrotechniker (VDE) DIN-0848

•

United States Federal Commission, Radio Frequency Exposure Guidelines (1996)

•

National Radiological Protection Board of the United Kingdom, GS 11,1988

•

American National Standards Institute (ANSI) IEEE. C95. 1-1992

•

National Council on Radiation Protection and Measurements (NCRP). Report 86

•

Department of Health and Welfare Canada. Safety Code 6

These standards are based on extensive scientiﬁc review. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the updated ANSI standard.

The design of your phone complies with these standards when used as described under “Phone Operation” on page 8.

Antenna Care

Use only the supplied or an approved replacement antenna. Unauthorized antennas, modiﬁcations, or attachments could damage the phone and may violate local agency regulations.

•

Phone Operation

Normal Operation: Hold the phone as you would any other telephone.

Rotate the antenna so that it points straight up. The antenna will click into place in one of two positions designed for left- or right-handed use. Make sure the antenna is fully extended. The antenna should be vertical to the ground and have a clear unobstructed view of the sky.

Tips on Efﬁcient Operation:

•

Rotate and extend your antenna fully.

•

Make sure the antenna has a clear unobstructed view of the sky.

•

Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed.

•

Do not wear the phone on your body while making calls with the headset accessory in satellite mode. Wearing the phone on the body can interfere with proper phone operation, since the antenna requires a clear unobstructed view of the sky to access the Iridium

satellite network.

For your phone to operate most efﬁciently:

Batteries

Caution: All batteries can cause property damage, injury or burns if a

conductive material, such as jewelry, keys or beaded chains, touches exposed terminals. The material may complete an electrical circuit and become quite hot. To protect against such unwanted current drain, exercise care in handling any charged battery, particularly when placing it inside your pocket, purse or other container with metal objects. When the battery is detached from the phone, your batteries are packed with a protective battery cover; please use this cover for storing your batteries when not in use.

Driving

Check the laws and regulations on the use of wireless telephones in the areas where you drive. Always obey them. Observe the following guidelines when using your phone while driving.

Give full attention to driving—driving safely is your ﬁrst responsibility.

Use hands-free phone operation, if available. Pull off the road and park before making or answering a call if

driving conditions so require.

Safety Information

Electronic Devices

Most modern electronic equipment is shielded from RF signals. However, certain equipment may not be shielded against the RF signals from your wireless phone.

Pacemakers

The Health Industry Manufacturers Association recommends that a minimum separation of six inches (6") be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research.

Persons with pacemakers:

•

should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON

•

should not carry the phone in a breast pocket

•

should use the ear opposite the pacemaker to minimize the potential for interference

•

should turn the phone OFF immediately if you have any reason to suspect that interference is taking place

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.

Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.

Safety Information 9

Posted Facilities

Turn your phone OFF in any facility where posted notices so require.

Aircraft

Airline regulations prohibit using your phone while in the air. Check and comply with the policy of your airline regarding the use of your phone while the aircraft is on the ground.

Switch OFF your phone before boarding an aircraft.

Blasting Areas

To avoid interfering with blasting operations, turn your phone OFF when in a “blasting area” or in areas posted: “Turn off two-way radio.” Obey all signs and instructions.

Potentially Explosive Atmospheres

Turn your phone OFF and do not remove your battery when you are in any area with a potentially explosive atmosphere. Obey all signs and instructions. Sparks from your battery in such areas could cause an explosion or ﬁre resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often but not always clearly marked. They include, but are not limited to: fueling areas such as gasoline stations; below deck on boats; fuel or chemical transfer or storage facilities; areas where fuel odors are present (for example, if a gas/propane leak occurs in a car or home); areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and any other area where you normally would be advised to turn off your vehicle engine.

For Vehicles Equipped with an Air Bag

An air bag inﬂates with great force. Do NOT place objects, including both installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inﬂates, serious injury could result.

AC Travel Charger with International Plug Kit

TUV Product Services Approval only applies when the Europlug adapters are used with this product.

Die TÜV-Zulassung ist nur gültig, wenn das Gerät mit Europlug-Adaptern verwendet wird.

Safety Information

Overview

This chapter provides an overview of this user’s guide, your new satellite phone, and available Satellite Series™ accessories.

Guide Overview

Modes

Some phone features described in this user’s guide apply only to satellite mode. Other features apply only to cellular mode (when you have an optional Cellular Cassette installed). The following conventions alert you to these features:

+ This symbol next to a feature name indicates

that your phone must be in satellite mode to access the feature.

r This symbol next to a feature name indicates

that your phone must be in cellular mode to access the feature.

In addition, look for the labels

Cellular Mode

related to each mode.

in the margins for information

Satellite Mode

Key Presses

Key presses are represented in this guide using symbols. A sequence of key presses may be shown as follows:

M O C

This means you should press M followed by O and then

C, in sequence, not simultaneously.

Prompts and Messages

Your phone responds to key presses by displaying either a prompt that guides you to the next action or a message conﬁrming that your action is complete. Prompts and messages are represented in this guide in LCD style, for example:

Completed.

Enter PIN or

Tips

In the margins of this guide are useful hints and ways to optimize your phone’s performance.

12 Overview

Phone Overview

Antenna Lock

Release Button

15, 26

Status Indicator

Satellite Antenna (stowed)

14, 44-45

Cellular Cassette

Antenna

Signal Strength

Indicator

17, 123

Volume Control

Keys

14, 54, 55, 152

Display Status

Indicators

17-18

Message Key

14, 129-147

Alphanumeric

Keypad

Infrared

Data Port

15, 156

Power On/Off

Key

14, 42

Earpiece

Real Time Clock

17, 163-164

Battery Charge Indicator

17, 37

Display

Battery Compartment/ Cellular Cassette Connector

15, 28-29, 31-34, 39-40

Headset Jack

Quick Access Key

14, 70

Accessory and

Power Connector

15, 35-36

Microphone

Note: See pages listed after feature name for additional information. Note: Phone shown with antenna in stowed position.

Overview 13

Special Keys

Key Function

Turns the phone’s power on and off

Selects menu settings or options, or initiates

and answers calls

Takes you directly to the Messages menu

Stores numbers in the phone book

Recalls numbers from the phone book

Enters the Quick Access menu

Enters the Options menu and scrolls forward

through menu features Clears characters from the screen or exits the

Options menu Scrolls backward or forward through menu

features, and moves the cursor backward or

forward when entering names or messages

Volume Control Keys

The volume control keys are located on the left side of the phone. They adjust earpiece and ringer volume. See “Adjust Earpiece Volume” on page 54 and “Adjust Ringer Volume” on page 55 for more information.

14 Overview

Satellite Antenna

When you are in satellite mode, you must rotate and fully extend the satellite antenna to answer calls, make calls, and access satellite services.* See “Holding the Phone” on page 44 for more information.

When you are in cellular mode you do not need to rotate or extend the satellite antenna.

* Satellite products require a clear line of sight to satellite.

Satellite Antenna Lock Release Button

This button releases the satellite antenna so you can attach the auxiliary antenna. You may also want to remove the satellite antenna if you spend a lot of time in cellular mode.

Cellular Cassette Connector

Insert an optional Cellular Cassette onto the back of the phone. The Cellular Cassette connector is located underneath the battery compartment cover next to the battery. The Cellular Cassette interfaces with your phone so that you can use it on the local cellular network.

Display

Your phone’s Liquid Crystal Display (LCD) displays as many as four rows of 16 characters.

The LCD on your phone may respond slowly to key presses in extremely cold temperatures. This is normal and does not affect the phone operation in any way.

Headset Jack

The headset jack located on the right side of the phone provides a connection for an optional headset.

Infrared Data Port

An infrared data (IrDA) port located on the left side of the phone allows wireless communication with an external device such as a personal computer.

Accessory and Power Connector

This connector, located on the bottom of the phone, provides the connection for an external power supply or a data cable.

Overview 15

Indicators

Status Indicator

The status indicator is located at the top of your phone. This LED indicator provides information on your phone’s current state of service depending on your mode.

If the LED is...

Alternating

red and

green

Flashing

green

Flashing

yellow

Flashing

yellow and

red

Flashing red

Then in satellite mode...

A call is incoming. A call is incoming.

You are receiving a signal from the Iridium satellite network. You can make and receive calls.

You are temporarily unable to receive calls.

Your SIM card may be inserted incorrectly, may not be inserted, or you may be in a restricted area. You can make emergency calls only.

Service is not available.

Then in cellular mode...

You are receiving a signal from the cellular network. You can make and receive calls.

You are roaming.

You will not see this indicator in cellular mode.

Service is not available.

16 Overview

Display Status Indicators and Icons

Indicator Description

Signal Strength Indicator

indicates the strength of the signal from the network. The signal

strength indicator appears

12:00

continuously in the top left hand corner of the display. The more segments displayed in the bar graph, the stronger the signal. Five bars indicate full signal strength. No bars indicate a weak signal.

Battery Charge Indicator indicates the strength of the battery charge. The more segments displayed, the greater the battery charge.

When you are in satellite mode, you can also check the strength of the charge at any time through the menu. See “Viewing the Battery Meter” on page 122 for more information.

Real Time Clock displays the time in either 12-hour or 24-hour format. See “Change the Time Displayed” on page 163 for more information.

Message Indicator appears when you receive a new message. It ﬂashes when the SIM card is full. See “Accessing Received Messages” on page 132 for additional information.

Satellite Mode Indicator appears when your phone is in satellite mode. See “Selecting a Mode” on page 185 for more information.

Overview 17

Indicator Description

Home System Indicator appears

in satellite mode when the phone has successfully registered with the Iridium satellite system. In

B...P

cellular mode (when you have the appropriate Cellular Cassette inserted), this indicator appears when the phone is registered with your home cellular system.

Roam Indicator appears when you are roaming on a cellular system (when you have the appropriate Cellular Cassette inserted). This indicator does not appear when the phone is in satellite mode.

No Service Indicator appears when your phone is not capable of placing or receiving calls.

In Use Indicator appears when a call is in progress.

Scroll Bar appears on the right of the display when you are in a menu. The button on the scroll bar indicates where you are in the list.

Check Mark indicates a menu item is currently selected.

Hourglass appears in the display when your phone has to request settings from the network.

Quick Access Menu Icons allow you to easily identify Quick Access features as you scroll through the Quick Access menu.

18 Overview

Satellite Series™ Accessories

Product appearance and speciﬁcations are subject to change without notice.

Note: For maximum performance use only Motorola Original™ accessories.

Batteries

Standard Capacity Lithium Ion Battery

• Provides up to 2.4 hours of

talk time or 24 hours of standby time*

• Weighs 2.3 ounces/66 grams

High Capacity Lithium Ion Battery

• Provides up to 3.6 hours of

talk time or 38 hours of standby time*

• Weighs 3.4 ounces/98 grams

Ultra High Capacity Lithium Ion Battery

• Provides up to 7.6 hours of

talk time or 72 hours of standby time*

• Weighs 7 ounces/200 grams

* All talk and standby times are approximate and depend on

network conﬁguration, signal strength, and the features selected.

Overview 19

AC Travel Charger with International Plug Kit

The AC travel charger with international plug kit provides rapid charge for optimal performance and can be used to power the phone when the battery is depleted.

• Includes four international plug adapters for

use in Europe, Australia, India, and the United Kingdom

• May be used with both the 9505 portable

phone and desktop charger

• Allows you to use the 9505 portable phone

while recharging the battery

• Convenient self-storing cord

• Charges StarTAC

used with optional StarTAC adapter

wireless phone when

20 Overview

Auto Accessory Adapter

Restores full battery power for portable phone operation or desktop charger functions from any operating vehicle (using standard 12-volt accessory connector port).

• Make and receive phone calls using the auto

accessory adapter for direct power when batteries are depleted

• Recharge battery while using the desktop

charger or attached to portable phone

• Charges StarTAC

optional StarTAC adapter

wireless phone with

Headset

The convenient headset provides both an earpiece and microphone in one small unit for simple hands-free and private telephone conversations. The headset plugs directly into the jack on the right side of your phone.

Overview 21

Portable Auxiliary Antenna

From one car to another, this compact pocket-sized antenna with convenient magnetic mount goes in every vehicle you do to provide improved reception.

• For use with the portable phone

• Reliable magnetic mount, ceramic patch

antenna

• Attached 1.5-meter (4.9 feet) cable

Note: The use of wireless devices and their

accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these devices.

Antenna Adapter

This adapter provides the required external antenna connection to use your 9505 portable phone with the portable auxiliary antenna.

22 Overview

Carry Case

This high-quality leather case helps protect your phone. It includes a belt clip and a lanyard wrist strap.

Lanyard Wrist Strap

The lanyard wrist strap is made of nylon. It provides a convenient way to carry your phone.

Cellular Cassettes

Cellular Cassettes are modules that attach to the 9505 portable phone and provide support for various terrestrial or land-based cellular systems. With an attached Cellular Cassette, you can make and receive calls in various cellular modes, assuming service subscription and coverage are available.

Cellular Cassettes create an innovative blend of cellular and satellite technology in one phone.

• When attached to the back of the 9505

portable phone, Cellular Cassettes enable dual mode satellite and cellular operation.

• Cellular Cassettes enable ﬂexible usage of

cellular technologies and provide call delivery compatibility in areas that support cellular service.

Overview 23

24 Overview

Getting Started

Getting started with your new satellite phone is easy. Just insert your phone’s SIM (Subscriber Identity Module) card and charge the battery. This chapter shows you how.

Attaching the Satellite Antenna

Attach the Antenna

1. Attach the antenna in the down position.

2. Press and hold the

lock release button at the top of the phone.

3. Push the antenna

until it clicks into place and release the button.

Remove the Antenna

You may want to remove the satellite antenna to attach an auxiliary antenna, or if you spend the majority of your time in cellular mode.

1. Place the antenna in the down position.

2. Press the button at

the top of the phone.

3. Remove the antenna

by pulling straight out.

26 Getting Started

What Is a SIM Card?

Your SIM (Subscriber Identity Module) card is a small smart card that contains your phone number, service details, and memory for storing phone book entries and messages. This means you can use your SIM card with any phone for the GSM system or any Motorola product for the Iridium satellite system, and all calls go on your account.

Note: Your phone has limited functionality without the SIM card.

GSM SIM Card Capability

If you already have a GSM SIM card and your service provider has a roaming agreement with the Iridium satellite system, you can use it in your satellite telephone. You need an optional Cellular Cassette to access your local cellular/PCS service.

Note: If you are using a GSM SIM card, you may not have access to certain features that are speciﬁc to the Iridium satellite system, and vice versa.

SIM Card Protection

You may want to keep your SIM card in your wallet or purse when you are not using your satellite phone. This helps keep your personal information secure and gives you access to your service even if your phone is not available. If you forget your phone, insert your SIM card into a friend’s phone to access your personal service.

Caution: Do not bend or scratch your SIM card, and avoid exposing your card to static electricity, water, or dirt.

Getting Started 27

Installing/Removing the SIM Card

The SIM card is stored in a recess in the battery compartment. It is normally covered by the battery when you use your phone.

Caution: Make sure your phone is powered off before inserting or removing the SIM card. If you don’t, you may damage the memory on your SIM card.

1. Turn your phone off by pressing and

holding the

2. Remove the battery cover and battery.

(See “Remove the Battery” on page 33.)

3. Slide the SIM card tray to the left and lift up

the right side of the tray.

S key.

28 Getting Started

4. Insert the SIM card into the tray with the

notch up and the gold plate facing out.

or Remove the SIM card from the tray.

5. Push the SIM card tray down and slide the tray to the right to lock it in place.

6. Replace the battery and battery cover. (See “Insert the Battery” on page 31.)

Getting Started 29

Removing the Battery Cover

Your new batteries are shipped uncharged and ﬁtted with protective covers.

Save the covers for storing and carrying unused batteries. The covers prevent metal objects from contacting both battery terminals, which can reduce the risk of injury, or damage from a battery short circuit.

Remove the Battery Safety Cover

1. Press in the release latch.

2. Continue pushing in and upwards until the

battery slips free from its cover.

30 Getting Started

Attach the Battery Safety Cover

1. Lower the side opposite the latch into the

cover.

2. Slip the side with the release latch down

until it clicks.

Installing the Battery

Insert the Battery

Note: Insert only Motorola-approved batteries in your phone. If you insert an unapproved battery you will see an discharge the battery, but you cannot recharge it.

1. Remove or rotate the satellite antenna

2. Press and

3. Pull the cover

4. Align the

Invalid Batt. message. You are able to

before installing the battery. (See “Attaching the Satellite Antenna” on page 26.)

hold the release latch

at the top of the battery compartment cover.

upward, and then remove it from the phone.

arrows on the battery with the arrows in the battery compartment.

Insert the battery,

bottom end ﬁrst, into the compartment, and then press the battery downward until it clicks into place.

Tip:

The battery compartment is located on the back of the phone.

Getting Started 31

5. Insert the bottom end of

the battery compartment

cover into the slots at the end of the compartment.

6. Snap the cover down

into place.

If you have an optional Cellular Cassette, see “Installing the Cellular Cassette” on page 39.

32 Getting Started

Remove the Battery

1. Remove or rotate the satellite antenna

before removing the battery. (See “Attaching the Satellite Antenna” on page 26.)

2. Press and hold the release latch

at the top of the battery compartment cover.

3. Pull the cover upward, and

then remove it from the phone.

4. Press and hold the release latch

at the base of the battery.

Tip:

The battery compartment is located on the back of the phone.

5. Pull the battery upward and

out of the phone.

Getting Started 33

6. Insert the bottom end of

the battery compartment

cover into the slots at the end of the compartment.

7. Snap the cover down

into place.

8. Replace the battery safety cover. See “Attach the Battery Safety Cover” on page 30 for more information.

34 Getting Started

Charging the Battery

Any battery that hasn’t been used for a month or more—including new batteries—should be charged for about 3–4 hours before use.

Using the Internal Charger

A battery charger is built right into your phone. Using either the travel charger or auto accessory adapter, you can plug the handset directly into a power source to charge the installed battery.

1. Connect the travel charger or auto

accessory adapter to the power connector at the base of the phone.

2. Plug the travel charger or auto accessory

adapter into the appropriate power source. The phone beeps, ﬂashes the q (battery charge) indicator, and displays

Battery

3. If the phone is powered on, press

place the phone in charge-only mode. If the phone is powered off, it automatically

enters charge-only mode.

Charging

S to

Getting Started 35

Note: You can still place and answer calls while

using the internal charger. If you wish to place or answer a call:

Press

S to exit charge-only mode and

return to normal operation. Remember that talking on the phone uses

power, so charging takes more time.

Using the Desktop Charger

You can use the front compartment of the desktop charger to charge the battery in your phone. You can also charge a spare battery in the rear compartment. The front compartment charges ﬁrst, then the charger switches to the rear compartment.

To charge:

1. Connect the travel charger to the desktop charger.

2. Plug the travel charger into the appropriate power source.

3. Insert your phone with a battery installed.

4. Insert a spare battery in the rear

compartment, if desired.

36 Getting Started

Checking Battery Charge Level

Low Battery Warning

When the battery level is low and only a few minutes of talk-time remains, your phone signals you in two ways:

•

Low Battery appears on the display.

• A warning tone (two double beeps) sounds.

Note: To help maintain the best battery and phone

performance, recharge your battery as soon as possible after you receive the low battery warning.

View Battery Meter

The q (battery charge) indicator appears continuously in the upper right corner of the display.

You can also display a more detailed battery meter at any time to check the charge level on your battery. See “Viewing the Battery Meter” on page 122 for more information.

This feature is not available in cellular mode.

Satellite Mode

Cellular Mode

Getting Started 37

Battery Information

Maximizing Battery Life

Caution: To prevent injuries or burns, do not allow metal objects to contact or short circuit the battery terminals.

To ensure maximum battery life and use your battery to its fullest capacity, observe the following guidelines.

• Always use Motorola-approved battery

chargers.

• Always use Motorola-approved batteries

(Standard, High Capacity, Ultra High Capacity battery).

• Maintain the battery at or near room

temperature when charging.

• When you do not plan on using a particular

battery for a while, store the battery uncharged in a cool, dark, and dry place.

• To prolong the life of your batteries, avoid

exposing them to temperatures below -10°C (14°F) or above 45°C (113°F).

38 Getting Started

• Always take your phone with you when you

leave your car.

• Use either the Standard or High Capacity

battery when the Cellular Cassette is installed; the Ultra High Capacity battery does not ﬁt when the Cellular Cassette is installed.

Disposing of Batteries

To dispose of batteries, check with your local recycling center for a battery recycler near you. Never dispose of batteries in ﬁre.

Installing the Cellular Cassette

You can attach an optional Cellular Cassette to your satellite phone to allow it to work with land-based cellular systems.

Insert the Cellular Cassette

1. Remove or rotate the satellite antenna

before installing the Cellular Cassette. (See “Remove the Antenna” on page 26.)

2. Press and hold the release latch

at the top of the battery compartment cover.

3. Pull the cover upward, and

then remove it from the phone.

4. Insert the Cellular Cassette,

bottom-end ﬁrst, into the compartment on top of the battery.

Tip:

The phone switches between satellite mode and cellular mode based on your preferences. See “Selecting a Mode” on page 185.

Tip:

You cannot use the Ultra High Capacity battery when the Cellular Cassette is installed.

5. Press the Cellular Cassette downward

until it clicks into place.

6. Save the battery compartment cover for future use.

Getting Started 39

Remove the Cellular Cassette

1. Remove or rotate the satellite antenna

before removing the Cellular Cassette. (See “Remove the Antenna” on page 26.)

2. Press and hold the release latch

at the top of the Cellular Cassette.

3. Pull the Cellular Cassette upward, and

then remove it from the phone.

4. Insert the bottom end of

the battery compartment cover into the slots at the end of the compartment.

40 Getting Started

5. Snap the cover down

into place. If your phone was powered on when you

removed your Cellular Cassette, you will see

Cassette Removed in your display for a few

moments.

Using Your Phone

Read this chapter to learn how to get up and running with your new satellite phone.

The phone features available to you vary depending on whether your phone is operating in satellite mode or cellular mode. The table below shows the features available in each mode. See “Selecting a Mode” on page 185 for more information on changing modes.

900

GSM

900/

1800

Feature Satellite

Automatic Redial

Call a Phone Number in a Message

Dial a Phone Number With Pauses

Dial Special Characters

Earpiece Volume: Adjust

Emergency Call

International Dialing

Keypad: Lock/Unlock

Message Notiﬁcation

Multiple Key Answer

Phone Book: Dial a Phone Number

Phone Number: Display My Phone Number(s)

Redial Last Number Called

Ringer Volume: Adjust

Standby Mode

Unanswered Call Message

1 You must set up this feature ﬁrst in the Phone Setup Menu.

GSM

•

• • • • • •

• • • •1 •1 •1

• • •

• • • • • •

•

TDMA

800/1900

CDMA

1900

CDMA/

AMPS

Startup Procedures

Turn the Power On and Off

1. Insert your SIM card if necessary. (See “Installing/Removing the SIM Card” on page 28.)

2. Press and hold off.

3. If your SIM card is PIN-code protected, enter the SIM card PIN code (a four- to eight-digit

number given to you by your service provider), and then press

Caution: If you enter an incorrect SIM card PIN code three times in a row, your SIM card will be disabled. See “Protecting the SIM Card” on pages 157-158 for more information.

When you turn your phone’s power on, you will hear the wakeup tone (or feel a vibration if the VibraCall alert function is activated) and see the wakeup screen. The wakeup screen displays a short animated sequence that reminds you to rotate and extend the antenna, and shows how to hold the phone for best reception (see illustration). You may see a number of other power-on messages (described on pages 43-44).

S to turn the phone on and

O to continue.

When the the ready to make a call.

42 Using Your Phone

m (no service) indicator disappears and

n (home system) indicator appears, you are

Power-On Messages

Once your phone is powered on, you may see:

Message Description

The phone is attempting to establish

Searching...

Rotate and Extend Antenna

Rotate Antenna Registering...

Registering...

Check Signal

Invalid Account Contact your service provider.

Enter Phone Unlock Code

Enter PIN

Insert Card

Check Card

communications with the satellite or cellular network. See “Accessing the Network” on page 177.

You also hear a tone when you see this message. Make sure the antenna is rotated upward and fully extended and has a clear unobstructed view of the sky.

Your phone is registering with the network. When the process is complete, you will see Registered. See “Accessing the Network” on page 177.

Your phone is unable to establish registration with the satellite network. Move to a location with a clear unobstructed view of the sky.

Your phone was locked after the last use. Enter your four-digit unlock code and press O to proceed. See “Locking and Unlocking Your Phone” on page 154.

Enter the four- to eight-digit SIM card PIN code provided by your service provider and press O to proceed. See “Protecting the SIM Card” on page 157.

Power off your phone, make sure your SIM card is inserted completely, and then power your phone on again.

The SIM card is damaged or inserted the wrong way.

Using Your Phone 43

Message Description

If the SIM card PIN code is incorrectly entered three times in a

Blocked

! Blocked

Bad Card See Supplier

row, your SIM card becomes blocked. See “Unblock the PIN Code” on page 158 for instructions on how to unblock it.

If the SIM card PIN2 code is incorrectly entered three times in a row, your SIM card becomes blocked. See “Unblock the PIN2 Code” on page 160 for instructions on how to unblock it.

Your SIM card has been damaged or incorrectly issued. Contact your service provider for information.

Holding the Phone

1. Rotate the antenna to either the left or right detent. The antenna will stop here.

44 Using Your Phone

Left Detent

Right Detent

2. Extend the antenna by pulling out on the

end of it.

The antenna should be vertical to the ground when you talk on the phone (as shown in the following illustration from the wakeup screen animated sequence).

3. Make sure the antenna has a clear

unobstructed view of the sky.

Standby Mode

To conserve energy, your phone may turn off its display backlight when you have not pressed a key for several seconds. The light reappears the next time you press a key.

Using Your Phone 45

Placing a Call

To place a call, your phone must be powered on, have a SIM card inserted, be unlocked, and be in contact with the satellite or cellular network (depending on your mode). See “Accessing the Network” on page 177 for network information.

You can enter a phone number up to a maximum of 20 digits. The digits are displayed in two rows, 16 digits in the top line and four digits in the next line.

Dial a Number

1. Rotate and fully extend the satellite antenna

Tip:

If you make a mistake, press

once to delete the last digit, or press and hold clear all digits.

2. Enter the number using the digit keys. As

if you are in satellite mode. See “Holding the Phone” on page 44.

you begin entering digits, you will see When you are in satellite mode, you must

enter the phone number in international format: [

international access code

[

country code

[

phone number

Note: If you are calling another Iridium satellite subscriber, use the Iridium code instead of the country code.

Iridium code

]

, 00, or +]

]

Call?.

If the call connects and is answered, appears on the display for a few seconds, followed by

46 Using Your Phone

3. Press

O. You will see Calling followed by

the number you dialed. You will see either the ﬂashing message

Calling or the ﬂashing messages Calling, Registering...

series of setup tones.

, and the phone will play a

Connected

End Call?.

If the call does not connect, you may see one of the following messages:

Message Description

Make sure the antenna is rotated

Rotate and Extend Antenna

upward and fully extended and has a clear unobstructed view of the sky.

Busy Try Later

The phone is unable to access the network. Try again in a few minutes.

Please Try Later

The phone is unable to access the

Restricted Area

Redial?

network. Move to an area where calls are allowed.

Press O to redial the number automatically. See “Automatic Redial” on page 48 for more information.

International Dialing

To make an international phone call:

1. Press and hold

After a few seconds the international dialing preﬁx

+ appears in the display. This allows

you to call from any country without knowing the local international access code.

2. Enter the country code followed by the

phone number. The country code follows the conventional format.

Note: If you are in TDMA or CDMA cellular mode, you must set up the international dialing preﬁx in order for this feature to work. See “Set Up an International Preﬁx” on page 172 for more information.

Using Your Phone 47

Automatic Redial

Satellite Mode

Cellular Mode

If the number or your network is busy, you will see

Redial? for ﬁve seconds.

O to redial the number automatically.

Press

Note: Your phone makes a maximum of ten redial

attempts. If the call cannot be connected within this maximum, you will see the message

This feature is not available in cellular mode.

Redial Failed.

Redial Last Number Called

Whenever your phone is on standby, you can redial the last number called:

1. Press

2. Press

O to display the last number dialed. O again to place the call.

Dial Special Characters

You can insert special characters in your numbers:

To enter... Then...

0 Press 0.

* + (for international calls) Press and hold 0. ® (for pause dialing) Press and hold *.

supplementary service numbers, PINs, and unblocking

Press *.

Press # or * one

or more times as necessary.

Dial a Number With Pauses

See “Using Pauses in Numbers” on page 84 for information on dialing numbers with pauses.

48 Using Your Phone

Dial a Number from the Phone Book

Your phone contains a phone book that you can use to store names and telephone numbers. Once you have stored information in your phone book, you can save dialing steps by:

• using one-touch dialing (page 101)

• recalling and dialing an entry by location

(page 88)

• recalling and dialing an entry by name

(page 87)

• recalling and dialing one of the last ten

numbers called (page 97)

See “Managing the Phone Book” on page 75 for information on how to store and retrieve names and numbers from the phone book.

Make an Emergency Call

You can make an emergency call virtually anywhere in the world (without unlocking your phone) by dialing 112. Provided your phone has found a network, you are able to make an emergency call. The emergency call is directed to a central emergency operator.

To make an emergency call:

Dial

1 1 2.

You will see the message

In addition, your Iridium service provider may have provided an additional emergency calling code on your SIM card. Check with your service provider.

Note: If you are in TDMA or CDMA cellular mode, you may have to set up the emergency number in order for this feature to work. See “Set Up the Emergency Number” on page 171 for more information.

Emergency Calling.

Using Your Phone 49

Call a Number in a Message

Satellite Mode

Cellular Mode

For details on how to call a phone number embedded in a message, see “Return a Call” on page 135.

This feature is not available in cellular mode.

End a Call

Use one of the following procedures to end a call:

• Press

O when you see the End Call? prompt

in the display.

50 Using Your Phone

Receiving a Call

Receive a Phone Call

To receive a call, your phone must be powered on, have a SIM card inserted, be unlocked, and be in contact with the satellite or cellular network (depending on your mode). See “Accessing the Network” on page 177 for network information.

There are two scenarios for receiving calls in satellite mode, depending on the antenna position: (1) antenna raised and fully extended, or (2) antenna stowed or in the down position.

Antenna Raised and Fully Extended

When you receive a call:

• Your phone rings and/or vibrates.

• The status indicator alternates red and

green.

• The phone displays Call, followed by Answer?

on the next line.

To answer the call:

O or any digit key (1 - 9, *

Press

#).

You will see

If the call does not connect properly, you may see one of the following messages:

Connected.

See

Tip:

page 153 to set your phone’s alert.

Message Description

Orient Antenna Call Attempt

Call Failed

You need to fully extend the antenna upwards with a clear unobstructed view of the sky.

The antenna is not properly adjusted or the network signal is not strong enough.

Using Your Phone 51

Antenna Stowed or in the Down Position

When you receive a call:

• The phone chirps up to three times to alert

you of an incoming call.

• The phone displays Rotate Antenna, followed

Call Attempt on the next line.

You must rotate and extend the antenna as quickly as possible to receive the call.

Rotate and fully extend the antenna as described in “Placing a Call” on page 46.

You will see

Iridium Call Attempt. Do not

attempt to answer until the phone rings or vibrates.

After several seconds, your phone will ring or vibrate and display

Call followed by Answer?

on the next line.

To answer the call:

Press O or an y digit key (1 - 9, * or

#).

You will see

Connected.

If the call does not connect properly, you may see one of the following messages:

Message Description

Orient Antenna Call Attempt

Rotate Antenna Call Attempt

Call Failed

You need to fully extend the antenna upwards with a clear unobstructed view of the sky.

The antenna is not properly adjusted or the network signal is not strong enough.

52 Using Your Phone

End a Call

Use one of the following procedures to end a call:

• Press

O when you see the End Call? prompt

in the display.

• Press

Unanswered Calls

If you are away from your phone or choose not to answer a call, your phone displays the message

Unanswered Call.

This feature is not available in cellular mode.

Personal Mailbox

Callers who are unable to reach you can leave numeric, text, and voice messages. The next time you register with the satellite network or GSM cellular network (depending on your mode), you will receive these messages. Then you will have the option of returning the call or saving the message for later viewing.

For information on retrieving messages, see “Accessing Received Messages” on page 132.

This feature is not available in TDMA or CDMA cellular mode.

Satellite Mode

Cellular Mode

Satellite Mode

Cellular Mode

(GSM 900/1800) (GSM 900)

Cellular Mode

(TDMA 800/1900) (CDMA 1900) (CDMA/AMPS)

Using Your Phone 53

Additional Phone Features

Lock and Unlock the Keypad

To prevent accidental usage of the phone, press the

# and * keys simultaneously to lock the

keypad. All keys with the exception of the are disabled. You can still answer an incoming call

The

Tip:

volume control keys are located on the side of the phone.

by pressing To remove the keypad lock, press

simultaneously.

Adjust Earpiece Volume

To adjust earpiece volume:

• Increase the volume by pressing the upper

• Decrease the volume by pressing the lower

As you press the keys, the phone’s speaker demonstrates the new volume level. The bar graph in the display represents the volume level. The higher the graph, the louder the volume.

O when the keypad is locked.

volume control key.

S key

# and *

Note: You can also use the volume control keys to scroll through phone book entries. See page 87 for more information.

54 Using Your Phone

Volume

Quit?

Adjust Ringer Volume

To adjust the ringer volume:

Press E and then the up or down volume control key.

The phone sounds the new volume level as you adjust it.

Note: You can also use the Phone Setup menu to adjust ringer volume. See page 152 for more information.

View Your SIM Card Phone Number

To retrieve and view your phone number from your SIM card:

Press

Q #.

Notes:

• If you do not see your phone number, the

number has not been programmed onto your SIM card. You can program your phone number onto your SIM card by following the steps described in “Modify Your Phone Number(s)” on page 100.

• You can also use the Phone Book menu to

view your phone number. See page 99 for more information.

The

Tip:

volume control keys are located on the left side of the phone.

Using Your Phone 55

56 Using Your Phone

Using In-Call Features

Read this chapter to learn how to use In-Call menu features. The In-Call menu is displayed when you press In-Call Menu” on page 72 for more information.

The feature selection on the In-Call menu varies depending on your mode setting. The table below shows the features available in each mode. See “Selecting a Mode” on page 185 for more information on changing modes.

M during a call. See “Using the

Feature Satellite

Call Waiting

Conference Call

Call Holding

Call Muting

Phone Flash

1 Your service provider may offer similar or additional features. 2 This feature must be activated from the Quick Access menu in this cellular mode.

GSM

1800

• •

•

• •

• • •2 •2 •2 •2

900/

GSM

900

TDMA

800/1900

Service

Provider

Service

Provider

Service

Provider

Service

Provider

Service

Provider

Service

Provider

• • •

CDMA

1900

CDMA/

AMPS

Service

Provider

Service

Provider

Service

Provider

Muting a Call

Satellite Mode

Cellular Mode

(GSM 900/1800)

Tip:

You can also mute the phone from the Quick Access menu. See “Using the Quick Access Menu” on page 70.

Cellular Mode

(GSM 900) (TDMA 800/1900) (CDMA 1900) (CDMA/AMPS)

For privacy during a call, try muting the phone. You hear the party on the other end, but the other party does not hear you.

To mute a call in progress:

1. Press M until you see Turn Mute on or off.

2. Press

Caution: You cannot press

unmute the phone. If you press is muted, you will end the call.

To unmute a call:

1. Press M until you see Turn Mute on or off.

2. Press

The In-Call menu is not available in these cellular modes. You must activate call muting from the Quick Access menu in these cellular modes.

To mute a call in progress:

1. Press

2. Press

O to select. You will see Mute followed

End Call? on the next line.

O a second time to

O when the phone

O to select.

E. M to scroll to Mute, then press O to

select.

To unmute a call:

1. Press E.

2. Press

58 Using In-Call Features

M to scroll to Mute, then press O to

select.

Using Call Waiting

Note: You must subscribe to this network feature through your service provider. Contact your service provider for additional information.

If you have subscribed to Call Waiting, you must ﬁrst activate it through the Options menu. (See “Activating Call Waiting” on page 116.) After you activate it, you are notiﬁed of incoming calls while you are on the line in two ways. When a call comes in, you hear a beep and see the message

Waiting

followed by Answer?.

If you want to... Then...

accept the waiting call

reject the waiting call

end current call before answering the waiting call

Press O. Your current call is placed on hold.

Press C.

1. Press M. You will see

End Active Call.

2. Press O. Your phone rings and

can now be answered normally.

Call

You may see one of the following messages during call waiting activities:

Message Description

Trying

Hold Failed

Cannot Hold Second Call

Reconnect Failed

Busy Try Later

Your phone is attempting to switch between the current and held call.

The attempt to hold a call was unsuccessful.

A call is already on hold. You can only place one call on hold.

The held call could not be made active again.

Your phone is working on a previous command. Wait a short time before repeating the new command.

Satellite Mode

Cellular Mode

(GSM 900/1800)

This feature is not available in GSM 900 cellular mode.

Using In-Call Features 59

Cellular Mode

(GSM 900)

Cellular Mode

(TDMA 800/1900) (CDMA 1900) (CDMA/AMPS)

TDMA and CDMA cellular users who have subscribed to this feature are notiﬁed of an incoming call by two beeps. You may see a message in your display, depending on your service provider.

To handle the waiting call, you must send a phone ﬂash along with the appropriate feature code provided by your service provider. The current call is put on hold. To return to your initial call you must send another phone ﬂash. For instructions on how to send a phone ﬂash, see “Sending a Phone Flash” on page 66.

60 Using In-Call Features

Placing a Call on Hold

Note: You must subscribe to this network feature through your service provider. Contact your service provider for additional information.

You can place a call on hold to receive a new call or while making a new call. You can only place one call on hold at a time, so some options may not be accessible if you have already placed a call on hold.

To place a call on hold:

1. Press

2. Press

M until you see Hold Call. O. Your current call is put on hold

and you will see

Reconnect?

Call Holding followed by

Once your call is on hold, you have these options:

If you want to... Then...

1. Press M until you see Make

New Call

make a new call

switch between calls

to select.

2. Dial the number as usual, and

then press O to place the call.

When you are connected to either number, you will see 2 Calls followed by Switch?.

Press O to switch to the other call and automatically place the current call on hold.

Press M until you see End Active

& Held Call

end both calls

end current call Press C at any time.

to select. Both calls are disconnected, and

the display returns to standby.

, and then press O

Satellite Mode

Cellular Mode

(GSM 900/1800)

Using In-Call Features 61

If you want to... Then...

Press M until you see End Held

Call

end call that is on hold

, and then press O to select.

The held call is disconnected, the current call remains connected, and you see End Call?.

You may see one of the following messages:

Message Description

Trying

Hold Failed

Cannot Hold Second Call

Reconnect Failed

Busy Try Later

Your phone is attempting to switch between the current and held call.

The attempt to hold a call was unsuccessful.

A call is already on hold. You can only place one call on hold.

The held call could not be made active again.

Your phone is working on a previous command. Wait a short time before repeating the new command.

Cellular Mode

(GSM 900)

Cellular Mode

(TDMA 800/1900) (CDMA 1900) (CDMA/AMPS)

This feature is not available in GSM 900 cellular mode.

To place a call on hold, you must send a phone ﬂash along with the appropriate feature code provided by your service provider. To return to your initial call, you must send another phone ﬂash. For instructions on how to send a phone ﬂash, see “Sending a Phone Flash” on page 66.

62 Using In-Call Features

Making a Conference Call

Note: You must subscribe to this network feature through your service provider. Contact your service provider for additional information.

This feature lets you participate in a conference call of up to ﬁve parties.

To make a conference call, you must be engaged in an active call and have another call on hold. You can do this by accepting a waiting incoming call during an active call, or by placing an active call on hold and making a second call.

To begin a conference call:

1. Press

2. Press

M until you see Conference Call. O. Your phone joins your current call

with your held call. and you will see

Conference followed by End Call?.

While in a conference call, you have these options:

If you want to... Then...

Press M until you see Hold Call,

place the active call on hold

and then press O to select. Your current call is put on hold and you will see Call Holding followed by

Reconnect?.

1. Press M until you see Make

make a new call

New Call

to select.

2. Dial the number as usual, and

then press O to place the call.

If you want to add the new party to the conference call, repeat steps 1 and 2 for beginning a conference call as described above.

, and then press O

Satellite Mode

Using In-Call Features 63

If you want to... Then...

1. Press M until you see Split

Call

, and then press O to

select. You will see the name of the ﬁrst party added to the conference call.

hold a private conversation with one of the conference call participants

end conference call

2. Press M to scroll through the

list of call participants until you ﬁnd the party you want to talk to, then press O to select.

The selected party becomes the active call, with the other parties placed on hold.

To return the private call to the conference call, repeat the steps for making a conference call as described on page 63.

Press C at any time.

You may see one of the following messages:

Message Description

One of your calls is already engaged in a conference call

Conference Unsuccessful

Conference Full

Split Call Unsuccessful

controlled by a remote party

The attempt to join the held call and the active call was unsuccessful.

You already have the maximum number of ﬁve callers joined in a conference call.

You already have an active call and a call on hold

The attempt to split the call was unsuccessful

64 Using In-Call Features

Keypad Controls

Many conference call features are directly accessible by entering speciﬁc key sequences on the keypad during a call:

If you want to... Then...

begin a conference call

add a single call to a conference call

hold a private conversation with one participant

place active call on hold, accept held or waiting call

release a speciﬁc conference call participant

end all held calls (no waiting call)

end all active calls, accept held or waiting call

Press 3 O.

Press 2 [

(Where [ sequential order in which the call was placed or received.)

Press 2 O.

Press 1 [

(Where [ sequential order in which the call was placed or received.)

Press 0 O.

Press 1 O.

call number

] O

] is the

] O.

] is the

This feature is not available in GSM cellular mode.

To make a conference call or access conference call options, you must send a phone ﬂash along with the appropriate feature code provided by your service provider. For instructions on how to send a phone ﬂash, see “Sending a Phone Flash” on page 66.

Using In-Call Features 65

Cellular Mode

(GSM 900/1800) (GSM 900)

Cellular Mode

(TDMA 800/1900) (CDMA 1900) (CDMA/AMPS)

Sending a Phone Flash

Satellite Mode

Cellular Mode

(GSM 900/1800) (GSM 900)

Cellular Mode

(TDMA 800/1900) (CDMA 1900) (CDMA/AMPS)

This feature only applies to TDMA or CDMA cellular mode.

Many TDMA and CDMA cellular network features (for example, call waiting, call holding, call forwarding) require you to send a “phone ﬂash” over the air during a call to access them. This is similar to when you press the switch hook on your conventional phone in your home or ofﬁce to switch between calls. The phone ﬂash alerts the network that you want to use a particular network feature. Your service provider will provide you with the appropriate codes to send with the phone ﬂash for the features to which you have subscribed.

To send a phone ﬂash:

1. Press

2. Press

3. Enter the access code for the feature you

M while you are in a call. You will see

Flash Options followed by Select?.

O. You will see Send Flash?.

want to access, if necessary, and then press

O to send the ﬂash.

C to cancel the ﬂash.

Press

66 Using In-Call Features

Using the Menus

Many of your phone’s features are organized into lists of options called

menus

. There are three menus:

• The main Options menu lets you select and/or adjust phone

features.

• The Quick Access menu gives you instant access to the menu

features you use most frequently.

• The In-Call menu gives you access to call-related features when

you are in a call.

Some options give you access to additional lists of options called

submenus

Using the Options Menu

The Options menu gives you access to your phone’s features and options. You can this menu during a call. The submenus that appear under the Options Menu vary depending on your mode setting. See “Selecting a Mode” on page 185 for more information on changing modes.

Navigate the Options Menu

Learning how to use just a few keys enables you to move freely through the entire menu system.

If you want to... Then...

enter the Options menu

scroll through the Options menu

select options and submenus

exit features and menus

Press available submenu.

• Press M to scroll forward.

• Press

Press

option or submenu when that option or submenu name is displayed.

• Press C to exit the feature

• Press and hold C to exit

not

M. You will see the ﬁrst

< to scroll backward

or forward.

O to select a menu

or submenu.

the Options menu.

access

Note:

GSM 900/1800 cellular mode, you will see the In-Call menu, which is described on page 72.

68 Using the Menus

If you press M during a call in satellite mode or

How the Phone Responds

As you scroll through the Options menu, you will see one of three questions on the bottom line of the display.

If your phone asks... Then...

View Options?

Select?

Quit? Press O to exit the feature.

Press O to enter the

submenu.

Press O to select the

displayed feature.

Display Messages and Indicators

If you see... Then...

y Completed

! Failed

Enter PIN

Enter Name

u Busy

Try Later

This indicates a feature has been activated.

The display returns to the menu in a few seconds.

Enter requested information, then press O.

You may have requested information while your phone was completing another task.

The scroll bar indicates where you are in a menu.

Your phone may take a few seconds to request settings from the network.

Customize the Options Menu

To personalize the Options menu—to hide and move features—see “Move Menu Features” on page 200.

Using the Menus 69

Using the Quick Access Menu

The Quick Access menu is a way to keep your favorite menu options readily accessible. Each digit key,

1 to 9, is matched to a Quick Access

feature. See the table on page 71 for the default setup.

If you know the number of the feature, activating that option takes only two button presses! If you do not know the number or want to review your options, just scroll through the icon menu and read the tag attached to each option.

Activate the Feature Directly

To access the feature directly:

E, and then press the digit key of the

Press

feature.

Scroll to the Feature

To scroll to the feature:

1. Press

2. Press

E. M to scroll through the available

features.

70 Using the Menus

3. Press

O to select a feature.

Default Quick Access Settings

The following features (and associated icons) are the default settings for the Quick Access menu.

Key Icon Quick Access Feature

1 You must subscribe to this network feature through your

service provider. Contact your service provider for additional information.

Find Name searches your phone book by the full name.

Mute mutes and unmutes a call in progress.

Call Voicemail

number to check your voicemail.

Battery Meter displays a fuel gauge indicating charge. The more bars, the greater the charge.

Lock Now locks your phone immediately.

Vibrate On/off activates or deactivates the VibraCall function.

Read Messages displays the newest message received.

must wait three minutes between registration attempts.

Forward On/Off

deactivates unconditional call forwarding depending on the current setting.

calls your voicemail

activates or

alert

Customize the Quick Access Menu

See “Personalizing the Quick Access Menu” on page 202 for instructions on how to modify the feature selection on the Quick Access menu.

Using the Menus 71

Using the In-Call Menu

This menu lets you access speciﬁc features while you are in a call. The In-Call menu is only available when you are in a call. You cannot review it off-line.

Entering the In-Call Menu

While you are in a call:

M to view the In-Call menu features.

Press

In-Call Menu Features

The In-Call menu dynamically changes depending on the type of call you are in and the mode you have selected.

Satellite Mode

The following options appear on the In-Call menu in satellite mode.

Type of call Options

Hold Call

single active call

Make New Call Turn Mute on or off

held call

active call and a call waiting

Make New Call End Held Call

End Active Call Reject Call Waiting Turn Mute on or off

End Active Call

active call and a held call

Turn Mute on or off End Held Call End Active & Held Call Conference Call

held call and a call waiting

Reconnect Held Call Reject Call Waiting End Held Call?

72 Using the Menus

Type of call Options

End Active Call 2 Calls Switch

active call, held call, and a call waiting

Turn Mute on or off End Held Call End Active & Held Call Conference Call

Hold Call

single active conference call

Make New Call Turn Mute on or off Split Call

End Active Call

active conference call and a call waiting

Reject Call Waiting Turn Mute on or off Split Call

End Active Call

(conference call) active call and a held call

Turn Mute on or off End Held Call End Active & Held Call Conference Call

End Active Call 2 Calls Switch

(conference call) active call, held call, and a call waiting

Turn Mute on or off End Held Call End Active & Held Call Conference Call

Using the Menus 73

Cellular Mode

(GSM 900/1800)

The following options appear on the In-Call menu in GSM 900/1800 cellular mode.

Type of call Options

Hold Call Make New Call

single active call

Restrict My Phone Number (see

page 125 for more information)

Turn Mute on or off

Make New Call

held call

Restrict My Phone Number (see

page 125 for more information)

End Held Call

active call and a call waiting

End Active Call Reject Call Waiting Turn Mute on or off

End Active Call

active call and a held call

Turn Mute on or off End Held Call End Active & Held Call

held call and a call waiting

Reject Call Waiting End Held Call?

End Active Call

active call, held call, and a call waiting

Turn Mute on or off End Held Call End Active & Held Call

Cellular Mode

(GSM 900)

Cellular Mode

(TDMA 800/1900) (CDMA 1900) (CDMA/AMPS)

74 Using the Menus

This menu is not available in GSM 900 cellular mode.

When you press M during a call in TDMA or CDMA cellular mode, you will see

Select?.

Flash Options followed by

Managing the Phone Book

Your satellite phone can store up to 100 names and numbers, and your SIM card expands memory capacity even more.

You can use the dedicated keys or the Phone Book menu to add and retrieve numbers from the phone book. With the Phone Book menu you can also access phone book maintenance and security features.

The feature selection on the Phone Book menu varies depending on your mode setting. The table below shows the features available in each mode. See “Selecting a Mode” on page 185 for more information on changing modes.

Feature Satellite

Add Entry: Phone Memory/SIM Memory

Check Capacity: Phone Memory/SIM Memory

Find Entry By Name: Call/Modify/Erase

Find Entry By Location: Call/Modify/Erase

Fixed Dialing: View/ Activate/Edit/Add/Erase

Last Ten Calls: View Made/Erase

Last Ten Calls: View Received/ View Made/Erase

My Phone Number(s): View/Modify

One-Touch Dialing: Phone Memory/SIM Memory/Fixed Dial List

One-Touch Dialing: Phone Memory/SIM Memory

Pause Dialing (non- menu item)

Phone Number Preﬁxes (non-menu item)

Prevent Access to Phone Book: Phone Memory/ SIM Memory/Both

Show Service Phone Numbers

• • • • • •

•

• • • • • •

•

• • • • • •

•

• • • • • •

•

GSM

1800

900/

GSM

900

TDMA

800/1900

CDMA

1900

• • • • •

CDMA/

AMPS

Phone Book Menu

Satellite Mode

Phone Book

Personal Numbers

Find Entry By Name

Enter Name:

Call Number Modify Name Or Number Erase Name And Number

Find Entry By Location

Enter Location:

Call Number Modify Name Or Number Erase Name And Number

Add Entry

Add To Phone Memory Add To SIM Card Memory

Check Capacity

Check Phone Capacity Check SIM Capacity

Prevent Access

No Memory Restrictions To Phone Memory To SIM Card Memory

To Phone & SIM Memory Show Services Last T en Calls

Last Calls Made

Erase All Numbers My Phone Number(s) Fixed Dialing

View Fixed Dial List

Setup Fixed Dialing

On/Off Edit Entry Add Entry Erase Entry

One-Touch Dial Setting

To Phone Memory

To SIM Card Memory

To Fixed Dial List

76 Managing the Phone Book

Phone Book

Personal Numbers

Last T en Calls

My Phone Number(s) One-Touch Dial Setting

Cellular Mode

Find Entry By Name

Enter Name:

Call Number Modify Name Or Number Erase Name And Number

Find Entry By Location

Enter Location:

Call Number Modify Name Or Number Erase Name And Number

Add Entry

Add To Phone Memory Add To SIM Card Memory

Last Calls Received Last Calls Made Erase All Numbers

To Phone Memory To SIM Card Memory

Managing the Phone Book 77

Organizing Your Phone Book

Each name and phone number in your phone book is stored in a numbered memory location. The satellite phone has two types of memory—phone memory and SIM card memory.

Phone Memory SIM Card Memory

Personal Numbers

Fixed Dial Numbers

Phone Number Digits

Name Characters

Location Numbers

1 SIM card capacity varies depending upon the card issued by

your service provider.

100 entries 155 entries

No entries 40 entries

32 20

16 16

1-100 101-255

Your phone’s memory can seem overwhelming if you do not have a strategy for organizing your phone book. Begin setting up your phone book by asking yourself three questions:

Which numbers do I call most?

Make a list of the numbers you call most frequently. You will probably want to store these numbers in the ﬁrst nine memory locations of your phone book. You can then dial them with a single keystroke by using one-touch dialing (satellite mode only).

78 Managing the Phone Book

When do I use these numbers?

Group the numbers on the list according to when you use them. Most people call a different set of numbers during the day than they do in the evening and on weekends. You can switch one-touch dialing to your phone’s memory (locations 1–9), your SIM card’s memory (locations 101–109), or to your ﬁxed dial list (locations 1–9). Store your evening and weekend numbers on one type of memory and your daytime numbers on another.

Which numbers do I need to keep secure?

Use your SIM card to store the numbers you need to keep secure, like the numbers of friends and family members. You can remove your SIM card and keep it securely in your wallet or purse when you are not using your phone. If you wish, you can even require a PIN code every time your SIM card is inserted into code, see “Activate and Deactivate the SIM Card PIN Code” on page 157.) Store more public numbers, like business associates and travel agents in your phone’s memory.

any

phone. (To deactivate your PIN

Tip:

If you have many entries, group them in blocks of ten to make them easier to ﬁnd.

Managing the Phone Book 79

Getting to Personal Numbers...

1. Press M until you see Phone Book, and then press O.

2. Press M to scroll to Personal Numbers, and then press O.

3. Press M to scroll to one of the features described below.

Storing Names and Numbers

Add an Entry

Use the Options Menu

1. Follow the steps in “Getting to Personal

When in

Tip:

satellite mode, numbers should be entered in international format.

Numbers...” to get to press

2. Press

3. Press

4. Enter a number , and then press

5. Enter a name (as described in “Entering

6. Enter a one-, two-, or three-digit location

M to scroll to Add To Phone Memory or

Add To SIM Card Memory.

O to select. You will see Enter Number.

see

Enter Name.

Names” on page 82), and then press You will see

number (1-100 for phone memory or 101-255 for SIM memory*), and then press

Enter Location.

O. You will see Stored XXX.

Add Entry, and then

O. You will

or Press

location. You will see

7. Press and hold

* SIM memory is dependent on your SIM card.

80 Managing the Phone Book

O to select the next available

Stored XXX.

C to exit the menu.

Use the Dedicated Keys

1. Enter the phone number you want to store.

2. Press

3. Press

I to begin storing. M to scroll to Add To Phone Memory or

Add To SIM Card Memory, and then press O.

You will see number you entered.

4. Press

Enter Number, followed by the

O to accept the number. You will see

Enter Name.

5. Enter a name (as described in “Entering Names” on page 82), and then press You will see

6. Enter a one-, two-, or three-digit location number, and then press

Enter Location.

O. You will see

Stored XXX.

O to store the entry in the next empty

Press

memory location. You will see

Stored XXX.

Adding Entry Messages

When you enter the location number for your entry, you may see one of these messages:

Tip:

If you have more than one number for the same person, try attaching a descriptive tag to the name, like

Home, Office

Mobile

Message Description

Stored XXX You have stored the entry.

You have chosen a memory location

Range XXX-XX

Overwrite?

outside the appropriate range. Enter a new number within the range listed on the display.

You have chosen an occupied location. Press O to overwrite the location or press any other key to try another location.

Managing the Phone Book 81

Entering Names

You can use the keypad to produce any letter in the alphabet. For example, press letters A, B, or C, as shown:

Enter Characters

Tip:

Press and hold any numeric key to toggle between uppercase and lowercase characters.

1. Enter a letter by pressing a key as many

times as necessary.

2. Press

3. Repeat steps 1 and 2 as many times as necessary, and then press

Correct an Entry

To delete a character:

2 to enter the

press 1 time to insert an A press 2 times to insert a B press 3 times to insert a C

press 4 times to insert a 2

< to advance the cursor.

1. Press the character you want to delete.

2. Press or Press and hold

To add a character:

1. Press

where you want to add a character.

2. Enter a letter by pressing a key as many times as necessary.

82 Managing the Phone Book

< to scroll the cursor to the right of

C to delete one character at a time.

C to clear the display.

< to scroll the cursor to the location

Available Characters

Use this chart as a guide for producing characters:

Space . 1 ? ! , @ _ & : “ ( ) ‘ ¿ ¡ % £ $ Space . 1 ? ! , @ _ & : “ ( ) ‘ ¿ ¡ % £ $

A B C 2 Ä Å à Æ β Ç a b c 2 ä å à æ β Ç

D E F 3 ∆ É è Φ d e f 3 ∆ é è Φ

G H I 4 Γ ì g h i 4 Γ ì

J K L 5 Λ j k l 5 Λ

M N O 6 Ñ Ö Ø Ò Ω m n o 6 ñ ö ø ò Ω

P Q R S 7 Π ß Σ p q r s 7 Π ß Σ

T U V 8 Θ Ü ù t u v 8 Θ ü ù

W X Y Z 9 Ξ Ψ w x y z 9 Ξ Ψ

+ - 0 x * / = > < # + - 0 x * / = > < #

The upper line for each key shows the uppercase characters. The lower line for each key shows the lowercase characters.

Managing the Phone Book 83

Using Pauses in Numbers

When you call automated systems, a recorded message prompts you for numbers such as PIN numbers and account numbers. You can store these numbers in the same memory location as the automated system’s access number. Separate the numbers with “pauses”—special characters that tell your phone to wait a few seconds before sending additional numbers—and store the string in the same way you would other numbers.

Tip:

You can store 32 characters in a phone memory location, or 20 characters in a SIM card memory location. A pause is equal to one character.

Enter Pauses in Numbers

1. Enter the phone number you use to access

the automated system.

2. Press and hold

character inserted into the number entry.

3. Enter the next group of numbers. For

example, enter your PIN number. If the automated system requires a * or #, enter those symbols, too.

4. Repeat steps 2 to 3 as many times as

necessary.

5. To store the entry follow the procedures in

“Add an Entry” on page 80.

*. You will see a ® (pause)

84 Managing the Phone Book

Dial Numbers With Pauses

To dial a number with pauses in satellite mode or GSM cellular mode:

1. Recall the entry. (See “Locating Entries” on

page 87.)

2. Press O to place the call.

The ﬁrst pause in the number waits until the call is answered. When the automated system answers, your phone waits a few seconds and then automatically sends the next set of numbers, then the next, until all numbers are sent.

To dial a number with pauses in TDMA or CDMA cellular mode:

1. Recall the entry. (See “Locating Entries” on

page 87.)

2. Press

3. Press

4. Repeat step 3 until all the digit sequences

O to place the call.

The ﬁrst pause in the number waits until the call is answered.

The phone then waits for you to send the next set of numbers, You will see

Send Digits?.

O to send the next set of digits.

are sent.

Satellite Mode

Cellular Mode

(GSM 900/1800) (GSM 900)

Tip:

Your phone displays up to 32 digits (two rows of 16 digits) when you enter a number with pauses.

Cellular Mode

(TDMA 800/1900) (CDMA 1900) (CDMA/AMPS)

Managing the Phone Book 85

Using Phone Number Preﬁxes

Satellite Mode

Tip:

Try naming the preﬁx by area, like

Downtown Suburbs Germany

, , or .

You can save time when you dial by storing the preﬁxes that you often use. This is sometimes called “postscripting.” Your satellite phone allows you to change or add to phone book entries without overwriting them.

Store a preﬁx in your phone book just as you would any other number. See “Storing Names and Numbers” on page 80.

Use a Stored Preﬁx

To use a stored preﬁx:

1. Recall the preﬁx from your phone book.

(See “Locating Entries” on page 87.)

2. Add the remaining numbers.

3. Press

O to place the call.

Change Entry to a Similar Number

To change an entry to a similar number:

1. Recall the number from your phone book.

(See “Locating Entries” on page 87.)

2. Press C to delete the unwanted digits.

3. Enter the replacement digits.

4. Press

O to place the call.

Cellular Mode

86 Managing the Phone Book

This feature is not available in cellular mode.

Getting to Personal Numbers...

1. Press M until you see Phone Book, and then press O.

2. Press M to scroll to Personal Numbers, and then press O.

3. Press M to scroll to one of the features described below.

Locating Entries

Find an Entry by Name

Search your phone book by the ﬁrst few letters of the entry.

Note: If you have restricted access to either SIM card or phone memory and you are in satellite mode, those entries will not be available. For more information, see “Preventing Access to the Phone Book” on page 91.

1. Follow the steps in “Getting to Personal Numbers...” to get to then press

Name

2. Enter one or more characters of the entry, and then press entry you are looking for.

3. Press and then proceed to “Calling, Modifying, or Erasing an Entry” on page 89.

O to select. You will see Enter

O to access options for that entry,

Find Entry By Name, and

O. If necessary, scroll to the

Tip:

phone sorts SIM card memory and phone memory together alphabetically.

Tip:

volume control keys to scroll through phone book entries.

Your

Use the

, <, or

Managing the Phone Book 87

Getting to Personal Numbers...

1. Press M until you see Phone Book, and then press O.

2. Press M to scroll to Personal Numbers, and then press O.

3. Press M to scroll to one of the features described below.

Find an Entry by Location

Find an entry by its location number.

Use the Options Menu

1. Follow the steps in “Getting to Personal

Numbers...” to get to and then press

Enter Location.

2. Enter the one-, two-, or three-digit location number, and then press

entry displayed. If you enter an empty location number, you

will see then selects the next available location. If no numbers are stored, you will see

Stored

3. Press and then proceed to “Calling, Modifying, or Erasing an Entry” on page 89.

Location XXX is Empty. Your phone

O to access options for that entry,

Find Entry By Location,

O to select. You will see

O. You will see the

No Numbers

Use the Dedicated Keys

1. Press Q. You will see Enter Location.

2. Enter the one-, two-, or three-digit location number of the entry, and then press

will see the entry displayed. If you enter an empty location number, you

will see then selects the next available location.

3. Press see the number followed by

88 Managing the Phone Book

O. You

Location XXX is Empty. Your phone

O to call the displayed entry. You will

Calling.

Calling, Modifying, or Erasing an Entry

Once you have selected a phone book entry, you can call, change, or erase that entry.

Call a Selected Entry

1. Find an entry, and then press O. (See

“Locating Entries” on page 87.)

2. Press

M until you see Call Number, and then

press

O. You will see Calling followed by

the number you dialed.

Modify a Name or Number

1. Find an entry, and then press O. (See

“Locating Entries” on page 87.)

2. Press

3. Enter changes to the number, and then

4. Enter changes to the name, and then

M until you see Modify Name Or Number,

and then press followed by the phone number stored in that entry.

press

O. You will see the name stored in

that entry.

press

O. You will see Modified XXX.

O. You will see Edit Number,

Erase a Name and Number

1. Find an entry, and then press O. (See

“Locating Entries” on page 87.)

2. Press

M until you see Erase Name And Number,

and then press

O. You will see Erased xxx.

Tip:

For help entering letters or changing entries, see “Entering Names” on page 82.

Managing the Phone Book 89

Getting to Personal Numbers...

1. Press M until you see Phone Book, and then press O.

2. Press M to scroll to Personal Numbers, and then press O.

3. Press M to scroll to one of the features described below.

Checking Phone Book Capacity

Satellite Mode

Cellular Mode

Use this feature to see how many available memory locations you have in either SIM card memory or phone memory.

1. Follow the steps in “Getting to Personal

Numbers...” to get to press

O to select.

2. Press

3. Press and hold

This feature is not available in cellular mode.

M until you see Check Phone Capacity or

Check SIM Capacity, and then press O. You

will see

XXX Unused Locations.

Check Capacity, and then

C to exit the menu.

90 Managing the Phone Book

Preventing Access to the Phone Book

You may want to restrict memory access when loaning your phone to others. You can choose to prevent access to the phone memory, SIM memory, or both.

Caution: If you switch to cellular mode these restrictions will not apply.

1. Follow the steps in “Getting to Personal

Numbers...” to get to

press

O to select.

2. Press

3. Press

4. Enter security code. Enter your six-digit

5. Press and hold

Note: If you restrict access to either phone memory or SIM memory and try to access an entry stored in

that type of memory, you will see a list of the entries that are not restricted. If you prevent access to both your phone memory and SIM memory and then try to access an entry, you will see

M until you see the restriction type

you desire:

Memory Memory

No Memory Restrictions, To Phone

, To SIM Card Memory, or To Phone & SIM .

O to select the displayed option. You

will see

security code. You will see

Enter Security Code.

Prevent Access, and then

Completed.

C to exit the menu.

Restricted.

Satellite Mode

The

Tip:

factory default security code is: 000000.

This feature is not available in cellular mode. When you switch to cellular mode, the restrictions you set in satellite mode will not apply.

Managing the Phone Book 91

Cellular Mode

Getting to Fixed Dialing...

1. Press M until you see Phone Book, and then press O.

2. Press M to scroll to Fixed Dialing, and then press O.

3. Press M to scroll to one of the features described below.

Restricting Phone Use

You can restrict calling on your phone to a list of numbers that you create. When the ﬁxed dialing feature is active, you can only call numbers or use preﬁxes (for example, country codes or area codes) that exactly match those stored in your ﬁxed dial list. You can store up to 40 entries on your list. These entries are stored on your SIM card.

Activate Fixed Dialing

Satellite Mode

You should

Tip:

have received your SIM card PIN2 code from your service provider.

Use this feature to activate ﬁxed dialing. For instructions on how to store entries in the ﬁxed dial list, see “Add an Entry” on page 93.

Note: The ﬁxed dialing feature restricts access to your SIM memory.

1. Follow the steps in “Getting to Fixed

Dialing...” to get to then press

PIN2

2. Enter code. Enter your SIM card PIN2 code, and then press

3. Press press

4. Press and hold

O to select. You will see Enter

M until you see On or Off, and then

O. You will see Completed.

Setup Fixed Dialing, and

C to exit the menu.

Cellular Mode

92 Managing the Phone Book

This feature is not available in cellular mode. You must deactivate the ﬁxed dialing feature from satellite mode in order to make and receive calls in cellular mode.

Add an Entry

To add an entry to the ﬁxed dial list:

1. Follow the steps in “Getting to Fixed

Dialing...” to get to then press

PIN2

2. Enter code. Enter your SIM card PIN2 code, and then press

3. Press press

4. Enter the number, and then press

will see

5. Enter the name, and then press O. You will see

6. Enter a location number, and then press

7. Press and hold

O to select. You will see Enter

M until you see Add Entry, and then

O. You will see Enter Number.

Enter Name.

Enter Location.

O. You will see Completed.

Setup Fixed Dialing, and

O. You

C to exit the menu.

Satellite Mode

Phone

Tip:

numbers must be in international format.

See

Tip:

“Entering Names” on page 82 for help entering letters.

This feature is not available in cellular mode. You must deactivate the ﬁxed dialing feature from satellite mode in order to make and receive calls in cellular mode.

Managing the Phone Book 93

Cellular Mode

Getting to Fixed Dialing...

1. Press M until you see Phone Book, and then press O.

2. Press M to scroll to Fixed Dialing, and then press O.

3. Press M to scroll to one of the features described below.

Erase an Entry

Satellite Mode

You should

Tip:

have received your SIM card PIN2 code from your service provider.

Cellular Mode

To erase an entry in the ﬁxed dial list:

1. Follow the steps in “Getting to Fixed

Dialing...” to get to then press

PIN2

2. Enter code. Enter your SIM card PIN2 code, and then press

3. Press press

in your ﬁxed dial list.

4. Press erase. You will see

5. Press

6. Press and hold

This feature is not available in cellular mode. You must deactivate the ﬁxed dialing feature from satellite mode in order to make and receive calls in cellular mode.

O to select. You will see Enter

M until you see Erase Entry, and then

O to select. You will see the ﬁrst entry

M to scroll to the number you wish to

O to conﬁrm. You will see Completed.

Setup Fixed Dialing, and

Erase?.

C to exit the menu.

94 Managing the Phone Book

Edit an Entry

To edit an entry in the ﬁxed dial list:

1. Follow the steps in “Getting to Fixed

Dialing...” to get to then press

PIN2

2. Enter code. Enter your SIM card PIN2 code, and then press

3. Press press

in your ﬁxed dial list.

4. Press

change, and then press current number for that location.

5. Enter changes to the number, and then press

that location.

6. Enter changes to the name, and then press

7. Enter a new location, and then press

You will see

8. Press and hold

This feature is not available in cellular mode. You must deactivate the ﬁxed dialing feature from satellite mode in order to make and receive calls in cellular mode.

O to select. You will see Enter

M until you see Edit Entry, and then

O to select. You will see the ﬁrst entry

M to scroll to the entry you want to

O. You will see the current name for

O. You will see the current location.

Setup Fixed Dialing, and

O. You will see the

Completed.

C to exit the menu.

Satellite Mode

Cellular Mode

Managing the Phone Book 95

Getting to Fixed Dialing...

1. Press M until you see Phone Book, and then press O.

2. Press M to scroll to Fixed Dialing, and then press O.

3. Press M to scroll to one of the features described below.

View Your Fixed Dialing List

Satellite Mode

Cellular Mode

This feature enables you to review, but not change, your ﬁxed dial list.

1. Follow the steps in “Getting to Fixed

Dialing...” to get to then press number on your ﬁxed dial list.

2. Press

your ﬁxed dial list.

3. Press and hold

This feature is not available in cellular mode. You must deactivate the ﬁxed dialing feature from satellite mode in order to make and receive calls in cellular mode.

O to select. You will see the ﬁrst

M to scroll through the numbers on

View Fixed Dial List, and

C to exit the menu.

96 Managing the Phone Book

Motorola 950 user guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Welcome

Contents

Safety Information

Overview

Guide Overview

Phone Overview

Indicators

Satellite Series™ Accessories

Getting Started

Attaching the Satellite Antenna

What Is a SIM Card?

Installing/Removing the SIM Card

Removing the Battery Cover

Installing the Battery

Charging the Battery

Checking Battery Charge Level

Battery Information

Installing the Cellular Cassette

Using Your Phone

Startup Procedures

Placing a Call

Receiving a Call

Additional Phone Features

Using In-Call Features

Muting a Call

Using Call Waiting

Placing a Call on Hold

Making a Conference Call

Sending a Phone Flash

Using the Menus

Using the Options Menu

Using the Quick Access Menu

Managing the Phone Book

Phone Book Menu

Organizing Your Phone Book

Storing Names and Numbers

Entering Names

Using Pauses in Numbers

Locating Entries

Calling, Modifying, or Erasing an Entry

Checking Phone Book Capacity

Preventing Access to the Phone Book

Restricting Phone Use
