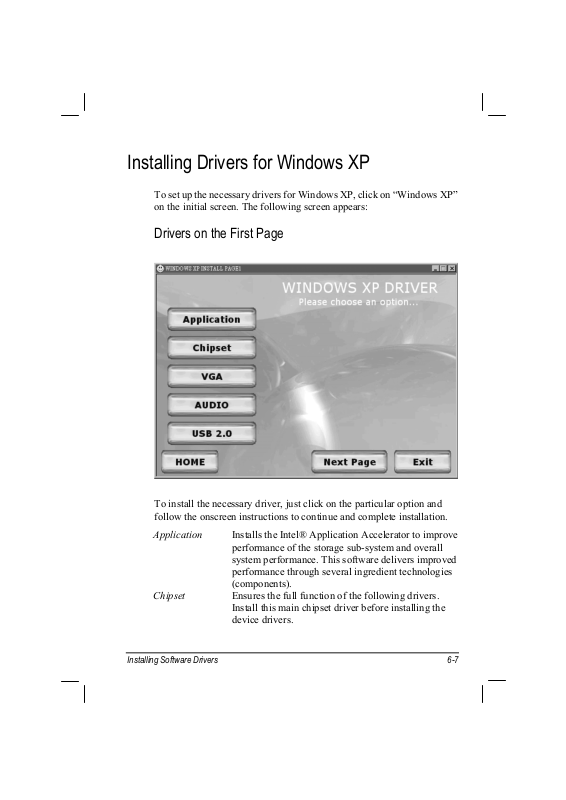

Installing Drivers for Windows XP

To set up the necessary drivers for Windows XP, click on “Windows XP”
on the initial screen. The following screen appears:

Drivers on the First Page

To install the necessary driver, just click on the particular option and
follow the onscreen instructions to continue and complete installation.

Application Installs the Intel® Application Accelerator to improve

performance of the storage sub-system and overall
system performance. This software delivers improved
performance through several ingredient technologies
(components).

Chipset Ensures the full function of the following drivers.

Install this main chipset driver before installing the
device drivers.

Installing Software Drivers 6-7

VGA Allows you to select high-resolution displays with

richer colors. It can drive LCD displays as well as
CRT displays.

Audio Allows you to take full advantage of the audio

subsystem.

USB 2.0 Allows your system to connect to USB 2.0 devices.

Upon clicking “Next Page,” the following screen appears:

Drivers on the Second Page

Touchpad Allows you to take full advantage of the touchpad and

the scroll button features.

Mini-PCI Shows you the instructions on installing the WLAN

driver that allows you to use the internal Mini PCI
WLAN card.

PCI-952 Shows you the instructions on installing the driver that

allows you to use the optional wireless modem and
GPS features to transmit information wirelessly.

6-8 Installing Software Drivers

Touchscreen Allows you to use your fingers as a pointing device on

the LCD screen (refer to the next section for further
instructions).

Upon clicking “Next Page,” the following screen appears:

Drivers on the Third Page

USB-to-LAN Allows you to use the network function of the

computer when the optional docking station is
connected.

Fingerprint Shows you the instructions on installing the driver that

allows you to use the fingerprint recognition system
and its application software.

Video Capture Shows you the instructions on installing the driver that

allows you to connect a video capture device through
the AV input port.

Bluetooth Allows you to use the bluetooth port to connect to

bluetooth-compliant devices.

Installing Software Drivers 6-9

Touchscreen Driver

To install the touchscreen driver, perform the following:

1. Insert the driver CD into the drive.

2. Click on “Windows XP”, then “Touchscreen” and follow the

onscreen instructions to continue.

3. Click on ”Start,” then “Control Panel.”

6-10 Installing Software Drivers

4. Click on the “Performance and Maintenance” category.

5. Click on “System.”

Installing Software Drivers 6-11

6. Click on “Hardware” folder, then click on “Device Manager.”

6-12 Installing Software Drivers

7. Click on “? Unknown device,” then click on the “Properties” icon.

Installing Software Drivers 6-13

8. Click on “Reinstall Driver.”

9. When the “Hardware Update Wizard” appears, select “Install the

software automatically [Recommended],” then click on “Next.”

6-14 Installing Software Drivers

10. Click on “Continue Anyway.”

11. Click on “Finish.”

Installing Software Drivers 6-15

12. When the “PenMount DMC9000 and DMC9100 Properties” screen

appears, click on “Close” to exit the driver installation.

Touchscreen Utility

To install the touchscreen utility, perform the following:

1. Insert the driver CD into the drive.

6-16 Installing Software Drivers

2. Click on “Start”, then “Run.”

3. Enter the following directory on the driver CD:

\TSRC\Setup.exe, then click on “OK.”

4. Select “Yes” to the question if this is the first time to run this setup.

5. When the “InstallShield Wizard” appears, click on “Next” to

continue.

6. Select “I accept the terms in the license agreement,” then click on

“Next.”

7. When the “Ready to Install the Program” screen appears, click on

“Next” to continue.

8. Reboot the system.
