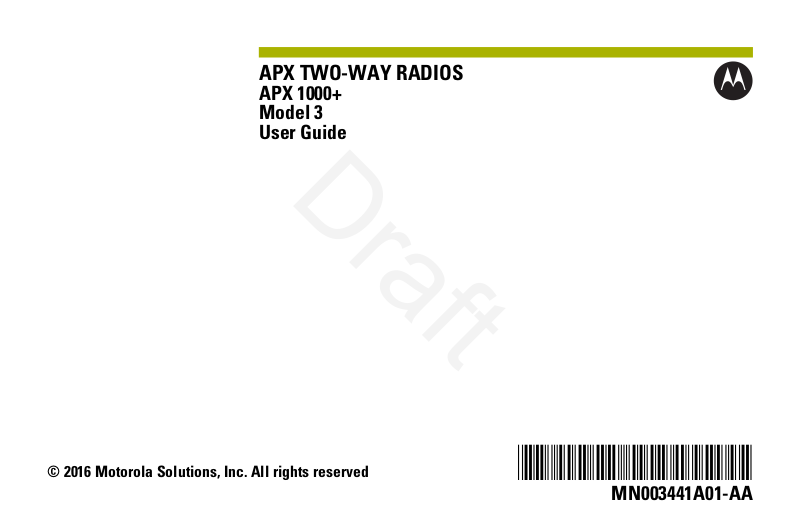

APX TWO-WAY RADIOS
APX 1000+ Model 3 User Guide
© 2016 Motorola Solutions, Inc. All rights reserved
*MN003441A01*
MN003441A01-AA
English

Contents

Declaration of Conformity.............................................13
Important Safety Information........................................15
Notice to Users (FCC and Industry Canada)................17
Software Version...............................................17
Consignes de sécurité importantes..............................19
Avis aux utilisateurs (FCC et Industrie Canada).......... 21
Version logicielle................................................21
Computer Software Copyrights....................................23
Documentation Copyrights...........................................25
Disclaimer.....................................................................27
Getting Started.............................................................29
How to Use This Guide......................................29
Notations Used in This Manual..........................29
Additional Performance Enhancement..............29
ASTRO 25 Enhanced Data.....................30
Dynamic System Resilience (DSR)........ 30
CrossTalk Prevention............................. 30
Encrypted Integrated Data (EID)............ 30
SecureNet...............................................30
Conventional Talkgroup and Radio
Scan Enhancements...............................30
What Your Dealer/System Administrator Can
Tell You............................................................. 31
Preparing Your Radio for Use......................................33
Charging the Battery..........................................33
Attaching the Battery ........................................33
Attaching the Antenna.......................................34
Removing and Attaching the Accessory
Connector Cover............................................... 35
Attaching the Belt Clip.......................................36
Turning On the Radio........................................37
Adjusting the Volume.........................................38
Identifying Radio Controls............................................41
Radio Parts and Controls.................................. 41
Programmable Features....................................42
Assignable Radio Functions................... 42
Assignable Settings or Utility Functions
................................................................46
Accessing the Preprogrammed Functions.........46
Menu Select Buttons...............................47
Home Button...........................................47
Send Feedback 3
English
4-Way Navigation Button........................47
Data Feature Button............................... 47
Keypad.............................................................. 47
Keypad Characters – Uppercase Mode
................................................................48
Keypad Characters – Lowercase Mode
................................................................49
Keypad Characters – Numeric Mode......50
Keypad Characters – Hexadecimal
Mode.......................................................51
Push-To-Talk (PTT) Button............................... 53
Identifying Status Indicators.........................................55
Status Icons.......................................................55
Text Messaging Service (TMS) Indicators.........58
TMS Status Icons................................... 58
TMS Menu Options.................................59
Call Type Icons..................................................59
LED Indicator.....................................................60
Top Lightbar Indicator........................................61
Intelligent Lighting Indicators.............................62
Alert Tones........................................................63
Phone Call Displays and Alerts.........................67
HAZLOC Battery Type Detection...................... 68
General Radio Operation............................................. 69
Selecting a Zone................................................69
Selecting a Radio Channel................................69
Selecting a Channel via Channel Search
Button................................................................70
Mode Select Feature.........................................71
Saving a Zone and a Channel to a
Softkey....................................................71
Saving a Zone and a Channel to a
Button..................................................... 72
Receiving and Responding to a Radio Call.......72
Receiving and Responding to a
Talkgroup Call.........................................72
Receiving and Responding to a Private
Call (Trunking Only)................................73
Receiving and Responding to a
Telephone Call (Trunking Only)..............74
Methods to Make a Radio Call.......................... 74
Making a Talkgroup Call.........................74
Making a Private Call (Trunking Only)....75
Making an Enhanced Private Call
(Trunking Only).......................................76
4 Send Feedback
English
Making a Telephone Call (Trunking
Only).......................................................77
Switching Between Repeater or Direct
Operation Button............................................... 78
Monitor Feature.................................................78
Monitoring a Channel..............................79
Monitoring Conventional Mode...............79
Advanced Features......................................................81
Advanced Call Features....................................81
Selective Call (ASTRO Conventional
Only).......................................................81
Receiving a Selective Call........... 81
Making a Selective Call................81
Talkgroup Call Feature (Conventional
Operation Only)...................................... 82
Selecting a Talkgroup.................. 82
Sending a Status Call.............................83
Responding to the Dynamic
Regrouping Feature (Trunking Only)......84
Requesting a Reprogram
(Trunking Only)............................ 84
Classification of Regrouped
Radios..........................................85
Dynamic Zone Programming (DZP)....... 85
Entering the Dynamic Zone to
Select a Dynamic Channel...........86
Saving a Channel in the Dynamic Zone from List
Selection......................................86
Saving a Channel in the Dynamic Zone from Channel
Name........................................... 87
Deleting a Channel in the
Dynamic Zone..............................88
Contacts............................................................ 88
Making a Private Call from Contacts...... 89
Adding a New Contact Entry...................90
Deleting a Contact Entry.........................91
Adding a Contact to a Call List............... 91
Removing a Contact from a Call List...... 92
Methods of Contact Editing in a Call
List..........................................................92
Editing an Entry Alias...................92
Editing as Entry ID....................... 93
Editing a Call Type.......................93
Viewing Details of a Contact...................94
Send Feedback 5
English
Scan Lists..........................................................94
Viewing a Scan List................................ 95
Editing the Scan List...............................95
Changing the Scan List Status............... 96
Viewing and Changing the Priority
Status......................................................96
Scan.................................................................. 97
Turning Scan On or Off...........................97
Making a Dynamic Priority Change
(Conventional Scan Only).......................97
Deleting a Nuisance Channel................. 98
Restoring a Nuisance Channel...............98
Call Alert Paging................................................98
Receiving a Call Alert Page....................99
Sending a Call Alert Page.......................99
Quick Call II (ASTRO P25 Digital Trunking
and Conventional)........................................... 101
Initiating a Quick Call II Transmission...101
Emergency Operation......................................101
Sending an Emergency Alarm..............103
Sending an Emergency Call (Trunking
Only).....................................................103
Sending an Emergency Alarm with
Emergency Call.................................... 104
Sending a Silent Emergency Alarm......105
Change of Channels during
Emergency............................................105
Emergency Keep-Alive Feature............106
Fireground.......................................................106
Entering Fireground Zone Channel
(Conventional)...................................... 107
Responding to Evacuation Indicator.....108
Man Down....................................................... 108
Pre-Alert Timer..................................... 110
Post-Alert Timer....................................110
Radio Alerts When Man Down Feature
is Triggered...........................................110
Triggering Emergency.......................... 111
Radio Alerts When Man Down
Enhanced is Triggered..........................111
Exiting Man Down Feature................... 112
Re-Initiating Man Down........................ 112
Testing the Man Down Feature............ 112
Automatic Registration Service (ARS).............113
6 Send Feedback
English
Selecting or Changing the ARS Mode..113
User Login Feature...............................114
Logging In as a User..................114
Logging Out............................... 115
Text Messaging Service (TMS)....................... 116
Accessing the Messaging Features......117
Composing and Sending a New Text
Message...............................................117
Sending a Quick Text Message............119
Priority Status and Request Reply of a
New Text Message...............................120
Appending a Priority Status to a
Text Message............................ 120
Removing a Priority Status from
a Text Message......................... 121
Appending a Request Reply to a
Text Message............................ 121
Removing a Request Reply from
a Text Message......................... 122
Appending a Priority Status and
a Reply Request to a Text
Message.................................... 122
Removing a Priority Status and a Reply Request from a Text
Message.................................... 122
Receiving a Text Message.........123
Viewing a Text Message from
the Inbox....................................123
Replying to a Received Text
Message.................................... 124
Accessing the Drafts Folder.......125
Sent Text Messages.................. 126
Deleting a Text Message........... 127
Deleting All Text Messages....... 128
ASTRO 25 Advanced Messaging Solution......128
System Setup for ASTRO Advanced
Messaging Solution.............................. 129
Two-Factor Authentication....................129
Logging in via the Two-Factor
Authentication............................130
Logging out of Two-Factor
Authentication............................131
Sending a Query...................................132
Receiving a Query................................133
Secure Operations...........................................134
Send Feedback 7
English
Selecting Secure Transmissions.......... 134
Selecting Clear Transmissions............. 134
Managing Encryption............................135
Loading an Encryption Key........135
Multikey Feature........................ 136
Selecting an Encryption Key......136
Selecting a Keyset..................... 137
Erasing the Selected Encryption
Keys...........................................138
Requesting an Over-the-Air Rekey (ASTRO Conventional
Only).......................................... 138
MDC Over-the-Air Rekeying
(OTAR) Page............................. 139
Security............................................................140
Radio Lock............................................140
Infinite UKEK Retention............. 139
Hear Clear..................................140
Unlocking Your Radio................ 140
Changing Your Password.......... 141
Changing Your Tactical Inhibit
Password................................... 142
Enabling or Disabling the Radio
Lock Feature (Secure Radios
Only).......................................... 142
Radio Stun and Kill..........................................143
Radio Stun............................................143
Using Radio Stun.......................143
Radio Kill...............................................144
Using Remote Kill to Kill Another
Radio..........................................144
Using Direct Kill to Kill Your
Own Radio................................. 145
Global Positioning System / Global Navigation
Satellite System...............................................145
GPS Operation..................................... 146
GPS Performance Enhancement......... 146
The Outdoor Location Feature (Using
GPS).....................................................147
Military Grid Reference System
(MGRS) Coordinates............................ 148
Accessing the Outdoor Location
Feature................................................. 148
Saving a Waypoint................................149
Viewing a Saved Waypoint...................150
8 Send Feedback
English
Editing the Alias of a Waypoint.............150
Editing the Coordinates of a Waypoint. 151
Deleting a Single Saved Waypoint....... 152
Deleting All Saved Waypoints...............153
Measuring the Distance and Bearing
from a Saved Waypoint........................ 153
Location Feature in Emergency Mode..154
Geofence (ASTRO 25 Trunking System)........ 154
Entering the Geofence Area.................155
Mission Critical Geofence.....................156
Entering Mission Critical Geofence.......156
Exiting Mission Critical Geofence......... 157
Trunking System Controls...............................157
Operating in Failsoft System.................157
Out-of-Range Radio..............................157
Site Trunking Feature...........................158
Locking and Unlocking a Site............... 158
Site Display and Search Button............158
Viewing the Current Site............ 158
Changing the Current Site......... 159
Mission Critical Wireless - Bluetooth®-............ 159
Turning On Bluetooth ...........................160
Turning Off the Bluetooth......................160
Re-Pair Timer....................................... 161
Bluetooth Drop Timer............................162
Pairing with Low Frequency-Motorola
Proximity Pairing (LF-MPP) Feature.....163
Radio Indications of Lost Bluetooth
Connection............................................164
Standard Pairing Feature......................165
Searching and Pairing the
Bluetooth Device........................165
Turning On Bluetooth Visibility...166
Receiving Pairing Request from
other Devices.............................167
Turning Off Bluetooth Visibility...167
PIN Authentication in Pairing................168
Pairing the Authentication PIN
when Receiving a Pairing
Request......................................168
Pairing the Authentication PIN
with the Generated Numeric PIN
...................................................169
Send Feedback 9
English
Pairing the Authentication PIN by Manually Keying in the Same
PIN.............................................170
Turning On the Bluetooth Audio........... 171
Turning Off the Bluetooth Audio........... 172
Adjusting the Volume of the Radio from
Bluetooth Audio Device........................ 172
Viewing and Clearing the Bluetooth
Device Information................................173
Clearing All Bluetooth Devices
Information............................................174
Editing the Bluetooth Friendly Name.... 175
Over-the-Air Programming (POP 25, ASTRO
25, ASTRO Conventional)...............................175
Responding to the Notification of
Upgrade................................................176
Voice Announcement...................................... 176
Site Selectable Alerts (ASTRO 25)..................177
Sending SSA Notification to Single Site
..............................................................178
Sending SSA Notification to Single Site
Via Manual Entry.................................. 179
Sending SSA Notification to All Sites....180
Sending SSA Notification to All
Available Sites......................................181
Stopping SSA Notification of a Single
Site........................................................181
Stopping SSA Notification of a Single
Site Via Manual Entry...........................182
Stopping SSA Notification of All Sites...183 Stopping SSA Notification of All
Available Sites......................................183
Utilities.............................................................184
Viewing Recent Calls............................184
Selecting the Power Level....................185
Selecting a Radio Profile...................... 186
Enabling and Disabling the Radio Alias
..............................................................187
Selecting the Audio Speaker................ 187
Controlling the Display Backlight.......... 188
Locking and Unlocking the Keypad and
Controls................................................ 189
Turning the Controls and Keypad
Buttons Tones On or Off.......................189
Turning Voice Mute On or Off...............189
Using the Time-Out Timer.................... 190
10 Send Feedback
English
Time and Date Setup............................190
Editing the Time and Date......... 191
Using Conventional Squelch Operation
Features................................................192
Analog Options.......................... 192
Digital Options............................192
Using the PL Defeat Feature................192
Digital PTT ID Support..........................193
Smart PTT Feature (Conventional
Only).....................................................193
Transmit Inhibit.....................................194
Enabling Transmit Inhibition.......194
Disabling Transmit Inhibition......195
IMPRES Battery Annunciator............... 195
General Radio Information....................196
Accessing the Battery Info
screen........................................196
Accessing the Radio Information
...................................................196
Viewing the IP Information.........197
Viewing the Control
Assignments.............................. 198
Editing the Soft ID......................198
Helpful Tips................................................................ 201
Radio Care...................................................... 201
Cleaning Your Radio.............................202
Proper Ways to Handle the Radio........ 202
Radio Service and Repair.....................202
Battery Care.................................................... 203
Battery Charge Status.......................... 203
LED and Sounds........................203
Fuel Gauge Icons.......................203
Battery Recycling and Disposal............204
Accessories................................................................205
Maritime Radio Use in the VHF Frequency Range.... 207
Special Channel Assignments.........................207
Emergency Channel.............................207
Non-Commercial Call Channel............. 207
Operating Frequency Requirements............... 208
Declaration of Compliance for the Use of
Distress and Safety Frequencies.....................210
Technical Parameters for Interfacing External
Data Sources...................................................210
Glossary.....................................................................211
Send Feedback 11
English
Limited Warranty........................................................217
MOTOROLA COMMUNICATION
PRODUCTS.................................................... 217
I. WHAT THIS WARRANTY COVERS AND
FOR HOW LONG:...........................................217
II. GENERAL PROVISIONS:...........................218
III. STATE LAW RIGHTS:................................219
IV. HOW TO GET WARRANTY SERVICE:.....219
V. WHAT THIS WARRANTY DOES NOT
COVER:...........................................................219
VI. PATENT AND SOFTWARE
PROVISIONS:.................................................220
VII. GOVERNING LAW:.................................. 221
VIII. For Australia Only.................................... 221
12 Send Feedback

Declaration of Conformity

This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below.
Declaration of Conformity
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola Solutions, Inc. Address: 1303 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A. Phone Number: 1-800-927-2744 Hereby declares that the product: Model Name: APX 1000+
English
conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
Send Feedback 13
Table continued…
English
Class B Digital Device
As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and 2 This device must accept any interference received, including interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and Industry Canada license-exempt RSS standard. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gen­erates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or TV technician for help.
14 Send Feedback
English

Important Safety Information

RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only. Before
using the radio, read the RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations.
For a list of Motorola Solutions-approved antennas, batteries, and other accessories, visit the following website:
http://www.motorolasolutions.com/APX
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter has been approved by Industry Canada to operate with Motorola Solutions-approved antenna with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Send Feedback 15
English
This page intentionally left blank.
16
Notice to Users (FCC and
Industry Canada)
This device complies with Part 15 of the FCC rules and Industry Canada's license-exempt RSS's per the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
• Changes or modifications made to this device, not expressly approved by Motorola, could void the authority of the user to operate this equipment.

Software Version

All the features described in the following sections are supported by the software version R15.00.00 or later.
See Accessing the Radio Information on page 196 to determine the software version of your radio.
Check with your dealer or system administrator for more details of all the features supported.
English
Send Feedback 17
English
This page intentionally left blank.
18
English

Consignes de sécurité importantes

Radios bidirectionnelles portatives : exposition aux radiofréquences et sécurité du produit
ATTENTION!
Cette radio ne doit être utilisée qu'à des fins professionnelles. Avant d'utiliser la radio, lisez le guide
Radios bidirectionnelles portatives : exposition aux radiofréquences et sécurité du produit, qui contient d'importantes instructions de fonctionnement pour une utilisation sécuritaire et des informations sur l'exposition aux fréquences radioélectriques, dans le but d’assurer votre conformité aux normes et règlements en vigueur.
Visitez le site Web suivant pour obtenir la liste des antennes, des batteries et des autres accessoires approuvés par Motorola :
http://www.motorolasolutions.com/APX
Selon la réglementation d'Industrie Canada, cet émetteur radio ne peut être utilisé qu'avec une antenne dont le type et le gain maximal (ou minimal) sont approuvés par
Industrie Canada pour cet émetteur. Afin de limiter les interférences radio pour les autres utilisateurs, le type et le gain de l'antenne doivent être choisis de façon à ce que la puissance isotrope rayonnée équivalente (P.I.R.E.) ne soit pas plus forte qu'il ne le faut pour établir la communication.
Cet émetteur radio a été approuvé par Industrie Canada pour utilisation avec une antenne approuvée par Motorola offrant le gain maximal autorisé et l'impédance requise pour le type d'antenne indiqué. Il est strictement interdit d'utiliser avec cet appareil tout type d'antenne ne figurant pas dans cette liste et présentant un gain supérieur au maximum indiqué pour le type.
Send Feedback 19
English
This page intentionally left blank.
20
English

Avis aux utilisateurs (FCC et Industrie Canada)

Cet appareil est conforme à la partie 15 des règles de la FCC et d'Industrie Canada permis exemptés RSS de par la conditions suivantes:
• Ce dispositif ne doit pas causer d'interférences nuisibles.
• Cet appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent perturber le fonctionnement.
• Les changements ou les modifications apportées à ce dispositif, non expressément approuvées par Motorola, peuvent annuler le droit de l'utilisateur à utiliser cet équipement.

Version logicielle

Toutes les fonctions décrites dans les sections suivantes sont prises en charge par la version R15.00.00 ou les versions ultérieures du logiciel de la radio.
Pour obtenir davantage de renseignements à propos des fonctions prises en charge, adressez-vous à votre détaillant ou à votre administrateur de système.
Send Feedback 21
English
This page intentionally left blank.
22
Computer Software
Copyrights
The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this manual may not be copied, reproduced, modified, reverse­engineered, or distributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non­exclusive license to use that arises by operation of law in the sale of a product.
English
Send Feedback 23
English
This page intentionally left blank.
24

Documentation Copyrights

No duplication or distribution of this document or any portion thereof shall take place without the express written permission of Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola.
English
Send Feedback 25
English
This page intentionally left blank.
26

Disclaimer

The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies. Furthermore, Motorola reserves the right to make changes to any products herein to improve readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights, nor the rights of others.
English
Send Feedback 27
English
This page intentionally left blank.
28
English

Getting Started

How to Use This Guide

This User Guide covers the basic operation of the APX Portables.
However, your dealer or system administrator may have customized your radio for your specific needs. Check with your dealer or system administrator for more information.

Notations Used in This Manual

Throughout the text in this publication, you will notice the use of Warning, Caution, and Note. These notations are used to emphasize that safety hazards exist, and the care that must be taken or observed.
WARNING:
An operational procedure, practice, or condition and so on, which may result in injury or death if not carefully observed.
CAUTION:
An operational procedure, practice, or condition and so on, which may result in damage to the equipment if not carefully observed.
NOTE:
An operational procedure, practice, or condition and so on, which is essential to emphasize.
The following special notations identify certain items.
Example Description
Home button
or
Phon
Buttons and keys are shown in bold print or as an icon.
Menu entries are shown similar to the way they appear on the display of the radio.
This means “Press the right side of the 4-Way Navigation Button”.

Additional Performance Enhancement

The following performance enhancements are some of the latest creations designed to enhance the security, quality and efficiency of the radios.
Send Feedback 29
English

ASTRO 25 Enhanced Data

ASTRO 25 Enhanced Data is optimized to handle different message sizes and variable update rates from different applications of the radio. Add Enhanced Data to the Integrated Data system with a software installation to improve data channel efficiency and enable denser network traffic.

Dynamic System Resilience (DSR)

DSR ensures the radio system is seamlessly switched to a backup master site dynamically in case of system failure. DSR also provides additional indication e.g. failure detection, fault recovery, and redundancy within the system to address to the user in need. Mechanisms related to the Integrated Voice and Data (IV&D) or data centric are all supported by DSR.

CrossTalk Prevention

This feature prevents crosstalk scenarios from happening, especially when a wideband antenna is used. This feature allows the adjustment of the internal SSI clock rate of the radio. This subsequently reduces the possibility of radio frequency interfering spurs and prevents the issues of crosstalk.

Encrypted Integrated Data (EID)

EID provides security encryption and authentication of IV&D data bearer service communication between the radio and the Customer Enterprise Network.

SecureNet

SecureNet allows user to perform secured communications on an Analog or Motorola Data Communication (MDC) channel.

Conventional Talkgroup and Radio Scan Enhancements

A few enhancements have been made to the Conventional Talkgroup at the system. These enhancements improve the Scan feature operation significantly when multiple agencies are using a single conventional radio frequency channel. These enhancements allow users to use Selective Squelch to operate on only the subset of talkgroups that are relevant to the users rather than all talkgroups on the channel. These Scan improvements have been made to eliminate the audio holes that were present and to turn on the busy LED when activity is present on the channel. Mixed Vote Scan and Standard Conventional Scan
30 Send Feedback
English
configurations are supported. Priority Operation is also supported.
Up to 30 different talkgroups can be supported using conventional channels. A maximum of four talkgroups can be supported when Vote Scan channels are being used.
Smart PTT is supported with this enhancement as Smart PTT prevents users from transmitting while other users are on the channel.
NOTE:
User Selectable Talkgroups are not compatible with this Conventional Talkgroup Enhancement.

What Your Dealer/System Administrator Can Tell You

Check with your dealer or system administrator for the correct radio settings, if the radio is to be operated in extreme temperatures (less than -30 °C or more than +60 °C).
You can consult your dealer or system administrator about the following:
• Is your radio programmed with any preset conventional channels?
• Which buttons have been programmed to access other features?
• What optional accessories may suit your needs?
NOTE:
Specifications may vary for different radio models. Check with your dealer or system administrator for more information.
Send Feedback 31
English
This page intentionally left blank.
32
English

Preparing Your Radio for Use

This section provides simple instructions to prepare your radio for use.

Charging the Battery

WARNING:
To avoid a possible explosion:
• Do not replace the battery in any area labeled hazardous atmosphere.
• Do not discard batteries in a fire.
The Motorola-approved battery shipped with your radio is uncharged. Prior to using a new battery, charge it for a minimum of 16 hours to ensure optimum capacity and performance. For a list of Motorola-authorized batteries and chargers available for use with your radio, see Accessories
on page 205.
NOTE:
When charging a battery attached to a radio, turn the radio off to ensure a full charge.
To charge the battery, place the battery (with or without the radio) in a Motorola-approved charger.
The LED on the charger indicates the charging progress; see the charger user guide.

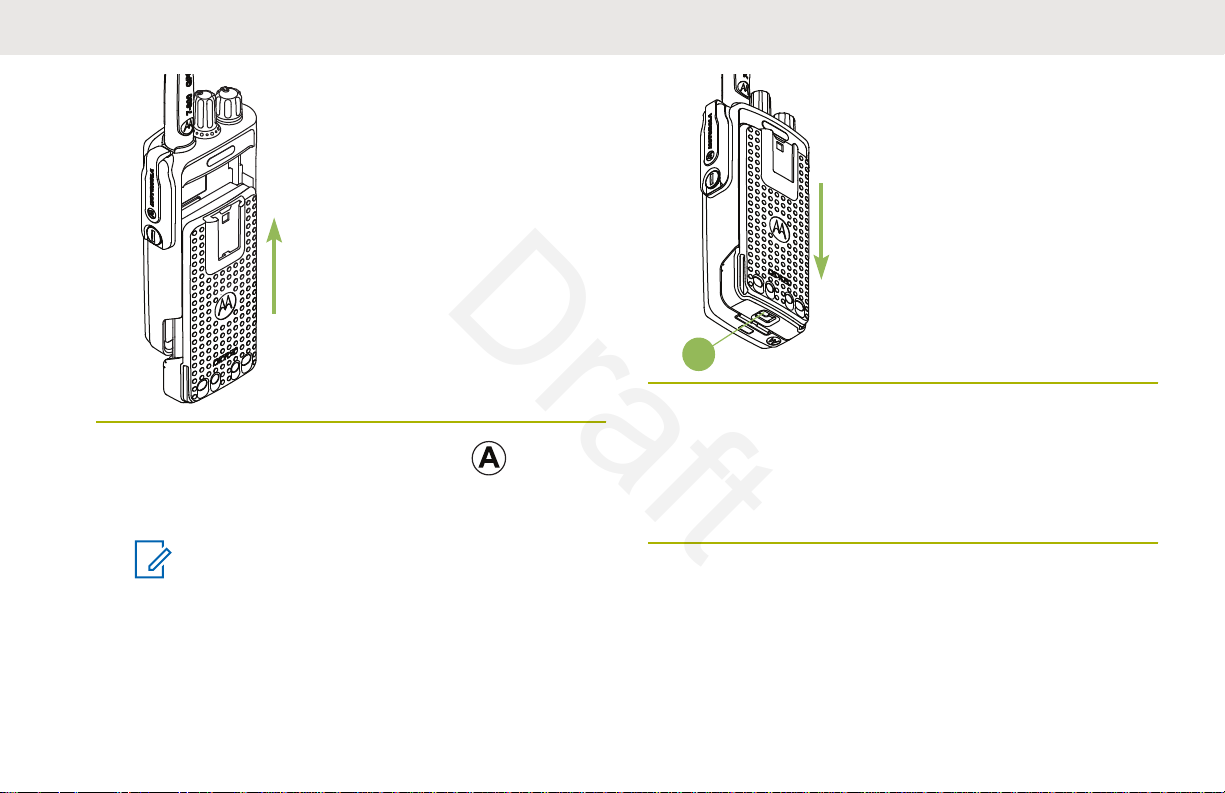

Attaching the Battery

You can view the status of the IMPRES ™ battery if the radio is using an IMPRES battery. See IMPRES Battery
Annunciator on page 195 for more information.
Slide the battery into the radio frame until the latch
1
which is at the bottom of the radio clicks into place.
Send Feedback 33
A
English
2
To remove the battery, lift up the latch which is at the bottom of the radio, then slide the battery out from the radio.
NOTE:
When removing the battery, ensure that the radio is turned off.
34 Send Feedback

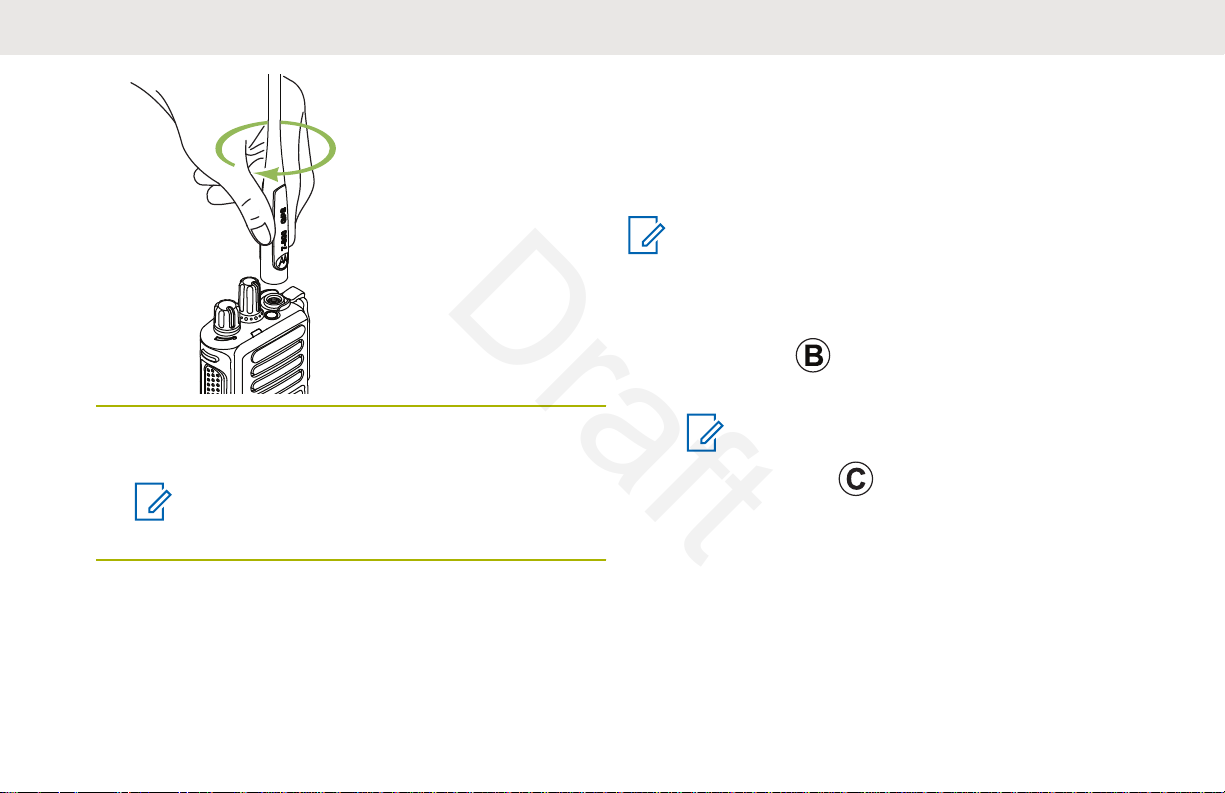

Attaching the Antenna

Ensure the radio is turned off before attaching the antenna.
Set the antenna in its receptacle.
1
Turn the antenna clockwise to attach to the radio.
2
English

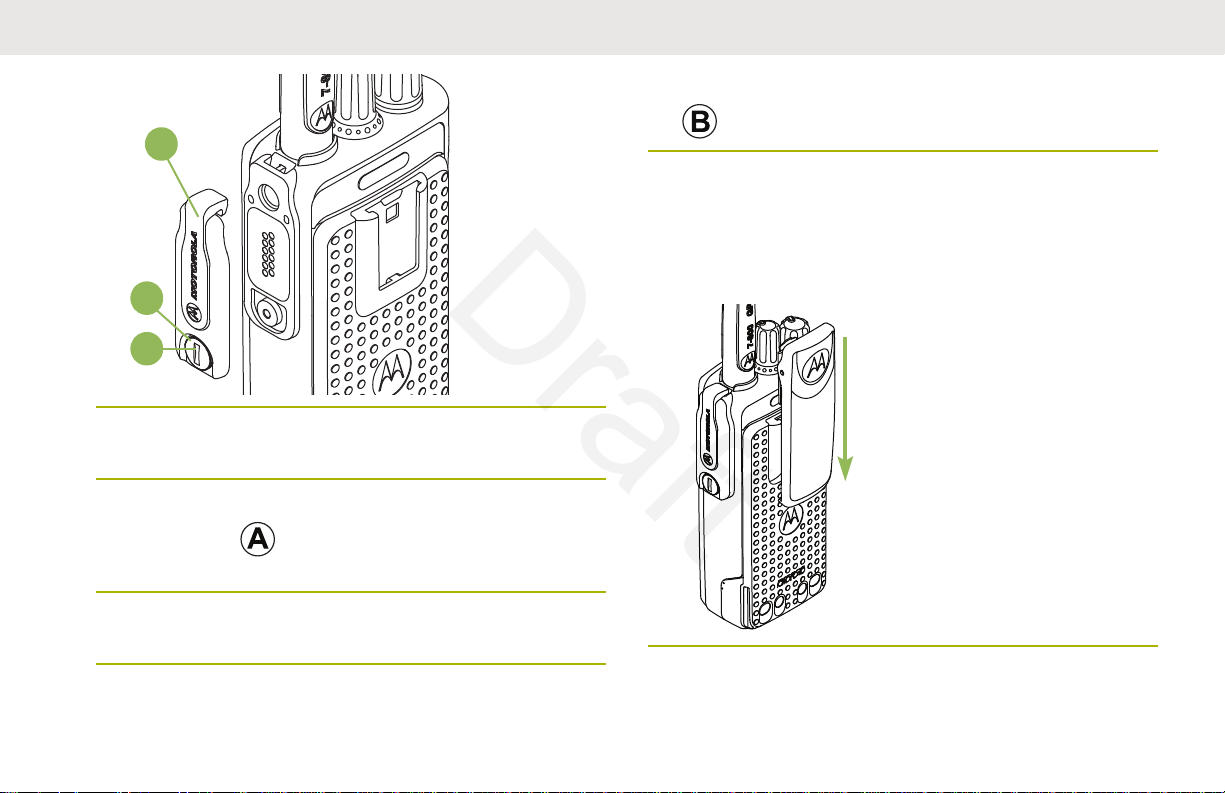

Removing and Attaching the Accessory Connector Cover

The accessory connector is on the antenna side of the radio. It is used to connect accessories to the radio.
NOTE:
To prevent damage to the connector, shield it with the connector cover when not in use.
To remove the accessory connector cover, rotate the
1
thumbscrew counterclockwise until it disengages from the radio.
To remove the antenna, turn the antenna
3
counterclockwise.
NOTE:
When removing the antenna, ensure that the radio is turned off.
Send Feedback 35
NOTE:
If the thumbscrew is too tight, use an Allen wrench at to loosen it first.
A
B
C
English
Rotate and lift the connector cover to disengage it
2
from the radio.
Once in place, tighten by rotating the thumbscrew
5
clockwise by hand.

Attaching the Belt Clip

Align the grooves of the belt clip with those of the
1
radio and push down until you hear a click.
To attach the accessory connector cover, insert the
3
hooked end of the cover into the slot above the connector.
Press downward on the cover’s top to seat it in the
4
slot.
36 Send Feedback

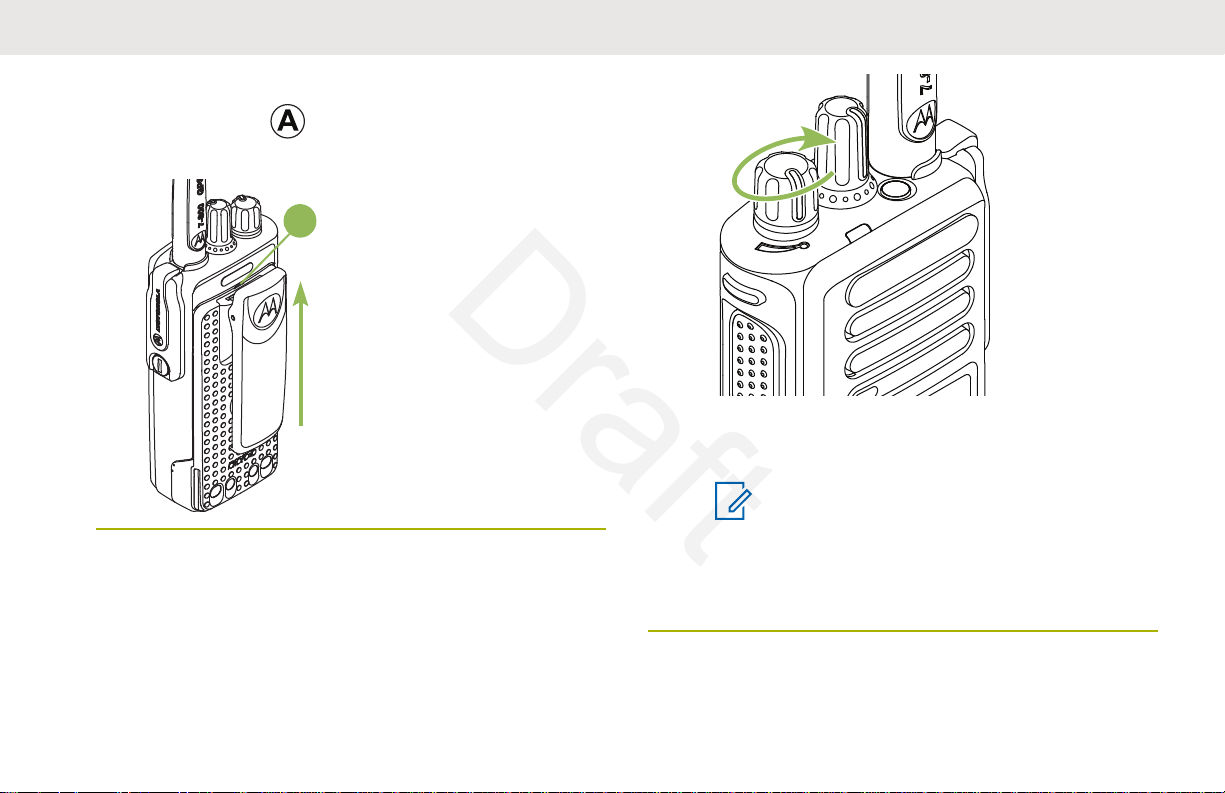

To remove the clip, use a flatbladed object to press
A
2
the belt clip tab away from the radio. Then, slide the clip upward and away from the radio.
English
• If the power-up test is unsuccessful, you see Error XX/YY (XX/YY is an alphanumeric code).

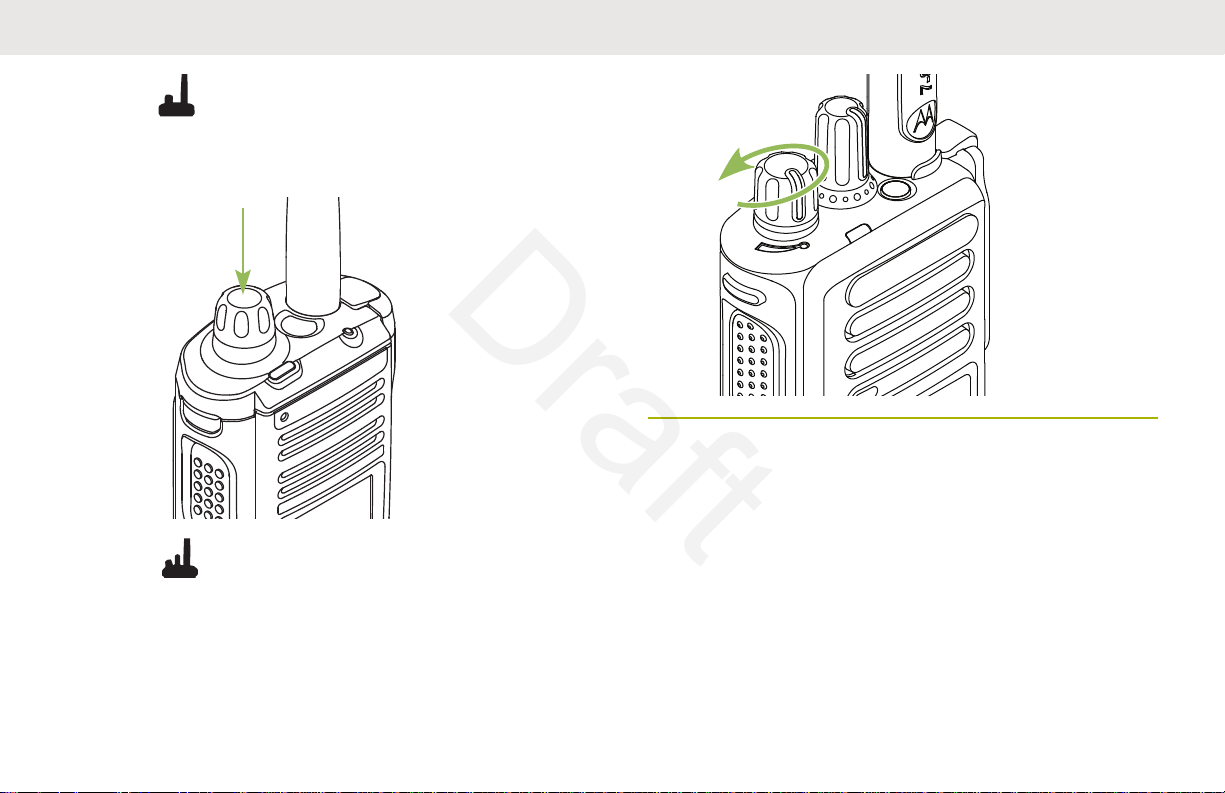

Turning On the Radio

1
• Rotate the On/Off/Volume Control Knob clockwise until you hear a click.
Send Feedback 37
NOTE:
If the radio fails to power-up after repeating a few times, record the Error XX/YY code and contact your dealer.
2
English
• To turn off the radio, press and hold the Multi-Function Knob until the radio display shows Power off?, press the Menu Select button below Yes to power off.
• To turn off the radio, rotate the On/Off/ Volume Control Knob counterclockwise until you hear a click.

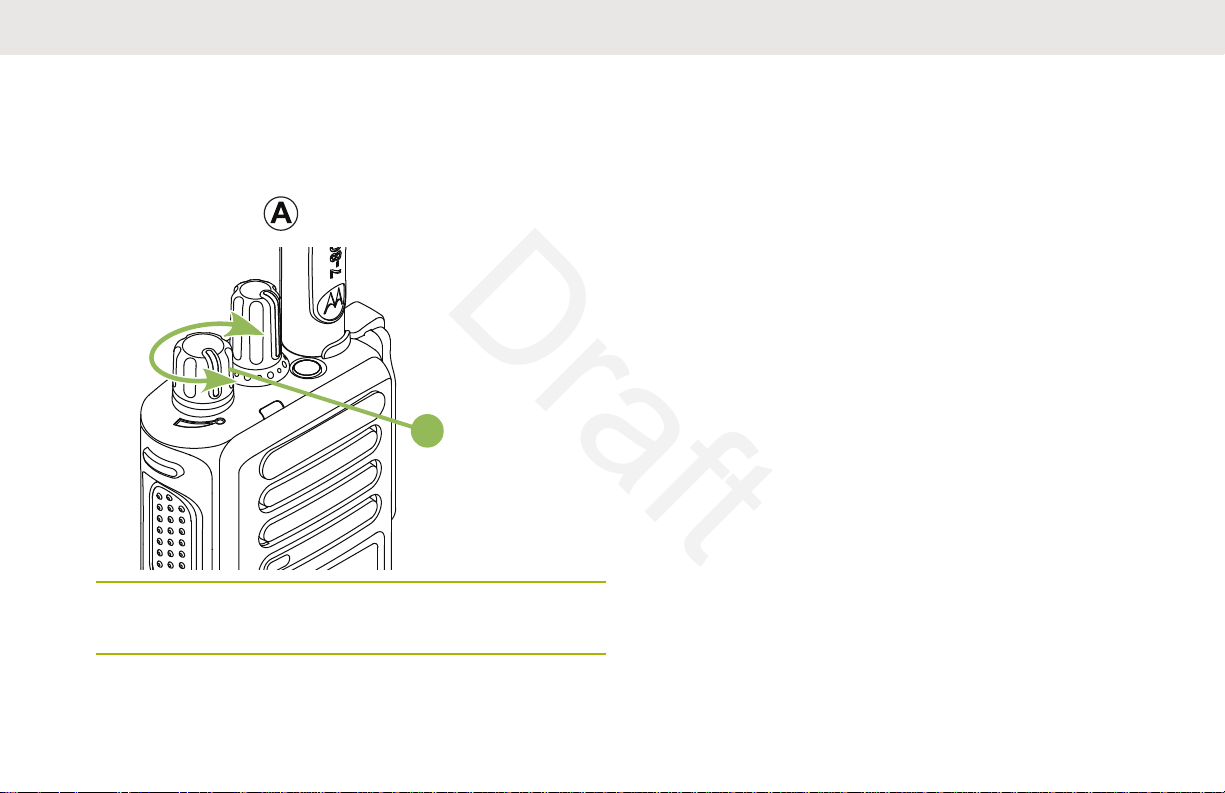

Adjusting the Volume

Ensure the radio is power on and the main speaker is pointed towards you for increased loudness and intelligibility, especially in areas with loud background noises.
38 Send Feedback
Your radio is preprogrammed to reset to medium volume
A
rate, which is Level 12, by default whenever the radio powers up.
1 To increase the volume, rotate the On/Off/Volume
Control Knob clockwise.
English
To decrease the volume, rotate this knob
2
counterclockwise.
The display shows volume bars and volume level when you change the volume.
Send Feedback 39
English
This page intentionally left blank.
40

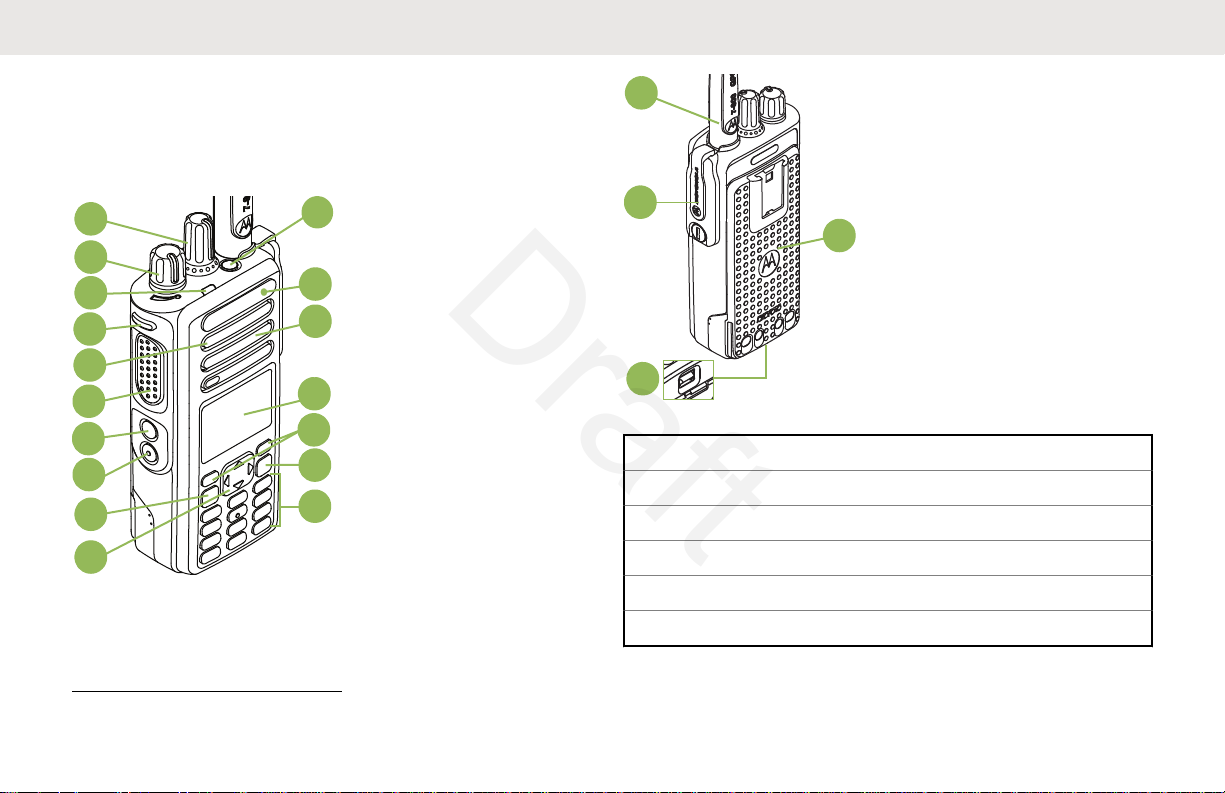

Identifying Radio Controls

1
16
15
13
12
11
9
10
2
3
4
6
7
8
14
17
5
20
21
19
18

Radio Parts and Controls

English
1
These radio controls/buttons are programmable.
Send Feedback 41
1 16–Position Select Knob 2 On/Off/Volume Control Knob 3 LED 4 Top Side (Select) Button 5 Microphone 6 Push-to-Talk (PTT) Button
1
1
Table continued…
English
7 Side Button 1 8 Side Button 2 9 Home Button 10 4-Way Navigation Button 11 Keypad 12 Data Feature Button 13 Menu Select Buttons 14 Main Display 15 Speaker 16 Bluetooth Pairing Location Indicator 17 Top (Orange) Button 18 Antenna 19 Accessory Connector 20 Battery Latch 21 Battery
1 1
1

Programmable Features

Any reference in this manual to controls that are preprogrammed means that a qualified radio technician must use the radio programming software to assign a feature to a control.
Your dealer can program the programmable buttons as shortcuts to radio functions or preset channels/groups depending on the duration of a button press:
Press
Pressing and releasing rapidly.
Long press
Pressing and holding for the preprogrammed duration (between 0.25 seconds and 3.75 seconds).
Hold down
Keeping the button pressed.

Assignable Radio Functions

Bluetooth On/Off
Allows you to turn on/off the Bluetooth.
Bluetooth Configuration
Allows you to access to the Bluetooth menu.
42 Send Feedback
English
Bluetooth Audio Reroute
Allows you to toggle the audio route between radio speaker or Remote Speaker Microphone and Bluetooth headset.
Bluetooth Headset PTT
Keys up the Bluetooth Headset microphone.
Bluetooth Data Devices
Pairs with the data devices for data transfer.
Bluetooth Clear All Pairing
Allows you to clear all pairing information for Bluetooth. This is accessed by a long press of the Bluetooth On/Off Button.
Bluetooth Inquiry On/Off
Enables Bluetooth Search feature.
Bluetooth Discoverable On/Off
Enables Bluetooth visibility. This is accessed by a long press of the Bluetooth Inquiry On/Off Button.
Call Alert
Allows the radio to function like a pager, or to verify if a radio is active on the system.
Call Response
Allows you to answer a private call.
Channel
Selects a channel.
Contacts
Selects the Contacts menu.
Dynamic ID (Conventional Only)
Allows you to edit the ASTRO Individual ID and/or MDC Primary ID of the radio.
Dynamic Priority (Conventional Only)
Allows any channel in a Scan List (except for the Priority-One channel) to temporarily replace the Priority­Two channel.
Emergency
Depending on the programming, initiates or cancels an emergency alarm or call.
Information
Displays the information of the radio.
Internet Protocol Address
Display the Internet Protocol (IP) address, device name and status of the radio.
Location
Determines the current location (latitude, longitude, time and date), and also the distance and bearing to another location. Or, turns the GPS functionality on or off for all locations.
Send Feedback 43
English
Man Down Clear
Clears the alarm of Man Down mode which was triggered when your radio achieves or passes a tilt angle threshold or a combination of the angle threshold and a motion sensitivity level.
Message
Enters the current message list.
Mode Select
Long-press programs a button with the current zone and channel of the radio; once programmed, the short­press of that button changes the radio zone channel to the programmed zone and channel.
Monitor (Conventional Only)
Monitors a selected channel for all radio traffic until function is disabled.
Multiple Private Line (Conventional Only)
Selects the Multiple Private Line lists.
Nuisance Delete
Temporarily removes an unwanted channel, except for priority channels or the designated transmit channel from the scan list.
One Touch 1– 4
Launches a specific feature with one single button­press. You can setup as many as four separately programmed buttons for four different features.
Phone
Allows you to make and receive calls similar to standard phone calls.
Private Call (Trunking Only)
Allows a call from an individual radio to another individual radio.
Private Line Defeat (Conventional Only)
Overrides any coded squelch (DPL or PL) that is preprogrammed to a channel.
Query
Launches a list of predefined short text messages only after successfully logged in the two-Factor Authentification.
Radio Profiles
Allows easy access to a set of preprogrammed visual and audio settings of the radio.
Recent Calls
Allows easy access to the list of calls recently received or made.
44 Send Feedback
English
Rekey Request
Notifies the dispatcher you want a new encryption key.
Repeater Access Button (RAB) (Conventional Only)
Allows user to manually send a repeater access codeword.
Reprogram Request (Trunking Only)
Notifies the dispatcher you want a new dynamic regrouping assignment.
Request-To-Talk (Conventional Only)
Notifies the dispatcher you want to send a voice call.
Scan
Toggles scan on or off.
Scan List Programming
Selects the scan list for editing (by long press on the Scan button).
Secure Transmission Select (Conventional and Trunking)
Toggles the Secure Transmission On or Off when the Secure/Clear Strapping fields is set to Select for the current channel and when the radio is model/option capable.
Selective Call (Conventional Only)
Calls an assigned radio.
Site Display/Search (Trunking Only)
Displays the current site ID and RSSI value; performs site search for Automatic Multiple Site Select (AMSS) or SmartZone operation.
Site Lock/Unlock (Trunking Only)
Locks onto a specific site.
Status (Astro 25 Trunking Only)
Sends data calls to the dispatcher about a predefined status.
Talkaround/Direct (Conventional Only)
Toggles between using a repeater and communicating directly with another radio.
Talkgroup (Conventional Only)
Allows a call from an individual radio to a group of radios.
Text Messaging Service (TMS)
Selects the text messaging menu.
TMS Quick Text
Selects a predefined message.
User
Automatically registers with the server.
Zone Select
Allows selection from a list of zones.
Send Feedback 45
B
C
D
B
E
A
English

Assignable Settings or Utility Functions

Keypad/Controls Lock
Locks or unlocks the keypad, programmable buttons, switches or rotary knobs.
Light/Flip
Press the button to toggle the display backlight on or off; press and hold the button to reverse the content of the top display.
Voice Announcement
Audibly indicates the current feature mode, Zone or Channel the user has just assigned.
Voice Mute
Toggles voice mute on or off.
Volume Set Tone
Sets the volume set tone.
46 Send Feedback

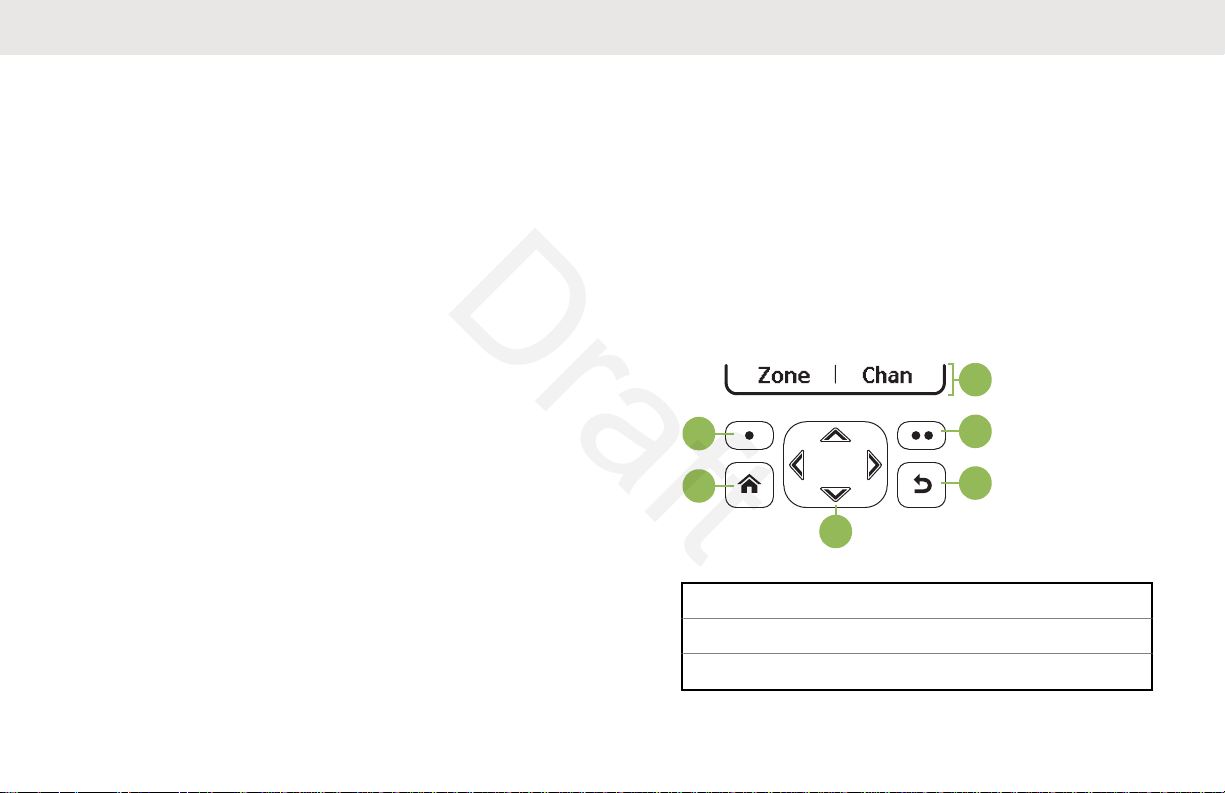

Accessing the Preprogrammed Functions

You can access various radio functions through one of the following methods.
• A short or long press of the relevant programmable buttons.
• Use the Menu Select Button.
• Use the Menu Select and Navigation buttons.
A Softkeys B Menu Select Buttons C Back Button
Table continued…
English
D 4–Way Navigation Button E Home Button

Menu Select Buttons

NOTE:
Check with your dealer or system administrator for the list of features activated in your radio.
Use the Menu Select button to access the menu entry of your radio feature. Your radio may be preprogrammed differently from the following example, but the steps for selecting a channel may appear as shown below:
Press the Menu Select button directly below Chan.

Home Button

Pressing the button returns you to the Home (default) screen. In most cases, this is the current mode. For
selected radio features, the button is also used to save user-edited radio settings or information before returning you to the Home screen.
NOTE:
Some features do not require you to press to go to the Home screen. Refer to the individual feature sections in this manual for further details on saving user-edited radio settings or information.

4-Way Navigation Button

Use the 4-Way Navigation Button to scroll up, down, left or right with one of the following methods.
• Press and release one of the button to scroll from one entry to the next one.
• Press and hold one of the button to have the radio toggles through the list automatically (release the button to stop).

Data Feature Button

Use Data Feature button to access data-related features, such as the Text Messaging Service (TMS) feature screen.

Keypad

You can use the 3 x 4 alphanumeric keypad to access your radio features. The keypad functions in a manner similar to
Send Feedback 47
English
a standard telephone keypad when entering numeric digits. When the keypad is used to edit a list, each key can generate different characters of the alphabet. The following

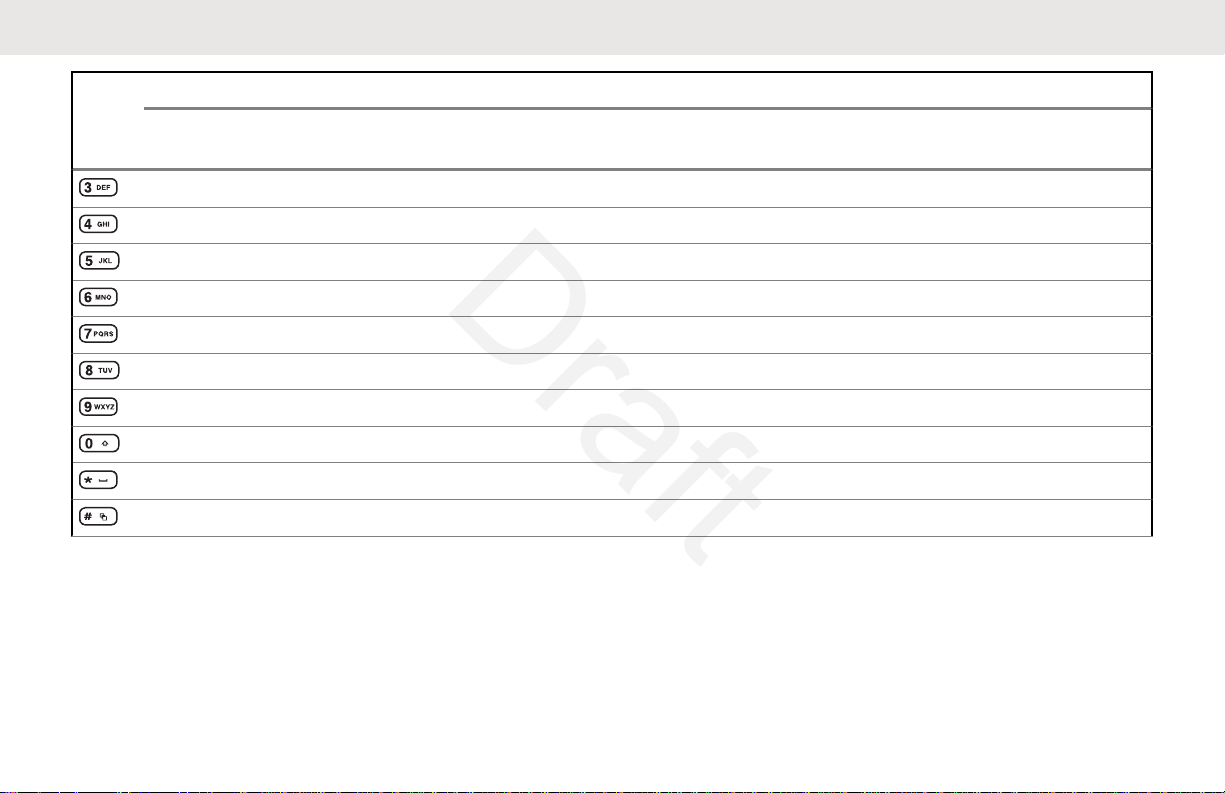

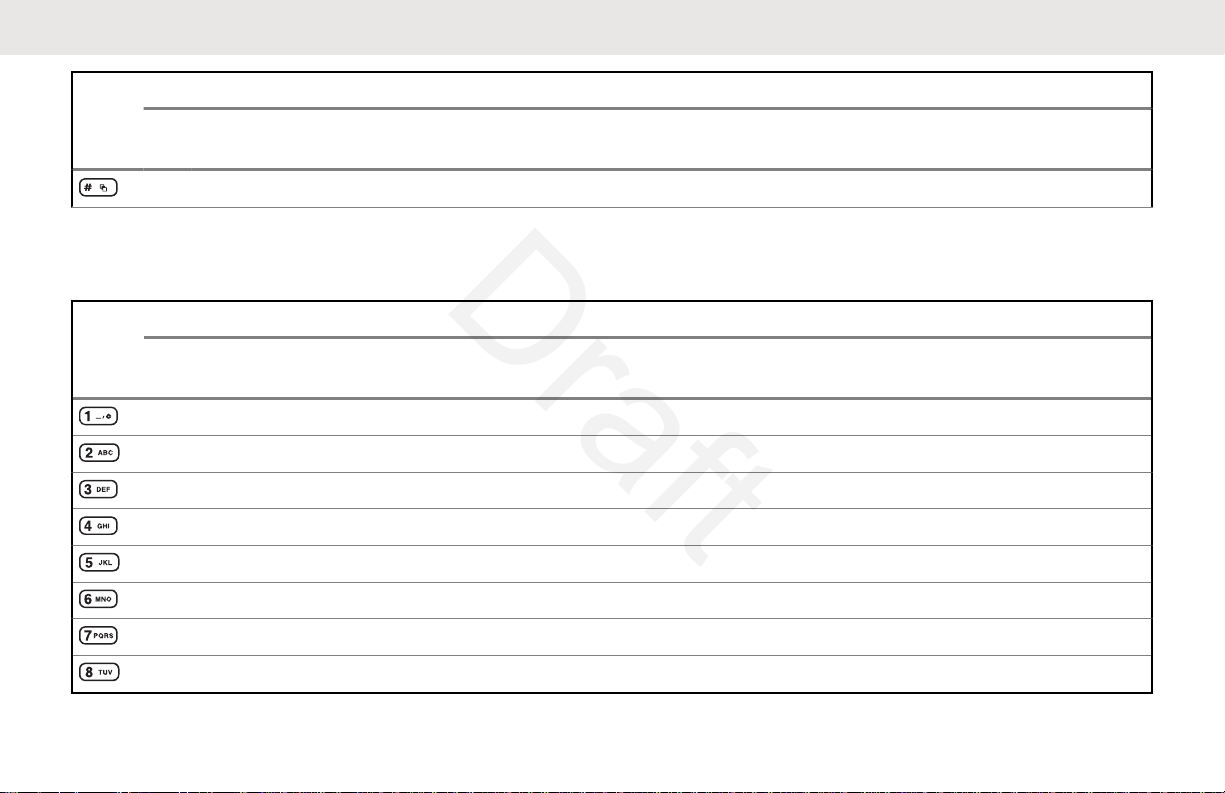

Keypad Characters – Uppercase Mode

Key Number of Times Key is Pressed
1 2 3 4 5 6 7 8 9 10111213141516171819202
1 . , ? ! ; @ _ - * # & $ / + = \ “ ‘ ( ) A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Toggle between mixed case mode, uppercase mode and lowercase mode.
tables show the number of times a key needs to be pressed to generate the required character.
1
Space
Table continued…
48 Send Feedback
Key Number of Times Key is Pressed
1 2 3 4 5 6 7 8 9 10111213141516171819202
Toggle between numeric and letter mode.

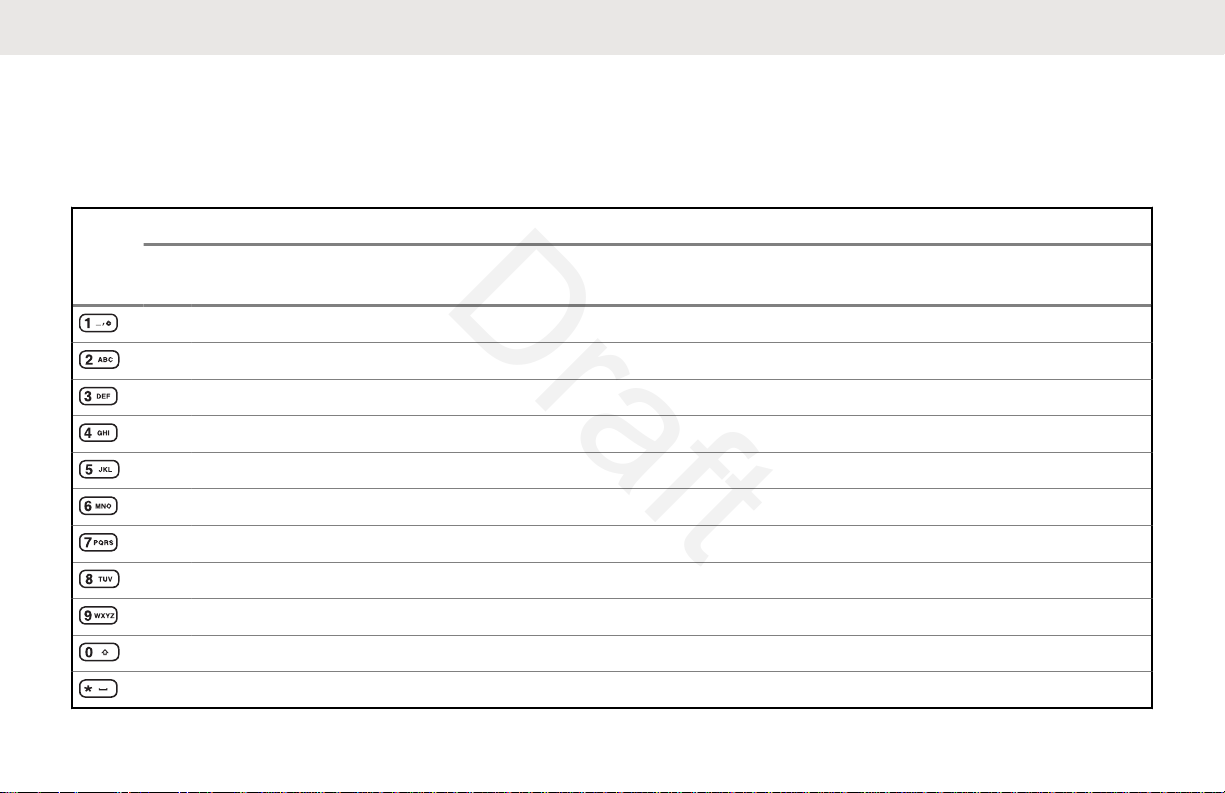

Keypad Characters – Lowercase Mode

Key Number of Times Key is Pressed
1 2 3 4 5 6 7 8 9 10111213141516171819202
1 . , ? ! ; @ _ - * # & $ / + = \ “ ‘ ( ) a b c
English
1
1
d e f g h i j k l m n o p q r s t u v
Send Feedback 49
Table continued…
English
Key Number of Times Key is Pressed
1 2 3 4 5 6 7 8 9 10111213141516171819202
w x y z Toggle between mixed case mode, uppercase mode and lowercase mode. Space Toggle between numeric and letter mode.

Keypad Characters – Numeric Mode

Key Number of Times Key is Pressed
1 2 3 4 5 6 7 8 9 10111213141516171819202
1 . , ? ! ; @ _ - * # & $ / + = \ “ ‘ ( ) 2 3
1
1
4 5
Table continued…
50 Send Feedback
Key Number of Times Key is Pressed
1 2 3 4 5 6 7 8 9 10111213141516171819202
6 7 8 9 0 Space Toggle between numeric and letter mode.

Keypad Characters – Hexadecimal Mode

Key Number of Times Key is Pressed
1 2 3 4 5 6 7 8 9 10111213141516171819202
English
1
1
1 2 A B C
Table continued…
Send Feedback 51
English
Key Number of Times Key is Pressed
1 2 3 4 5 6 7 8 9 10111213141516171819202
3 D E F 4 5 6 7 8 9 0
1
Not applicable Not applicable
52 Send Feedback
A
English

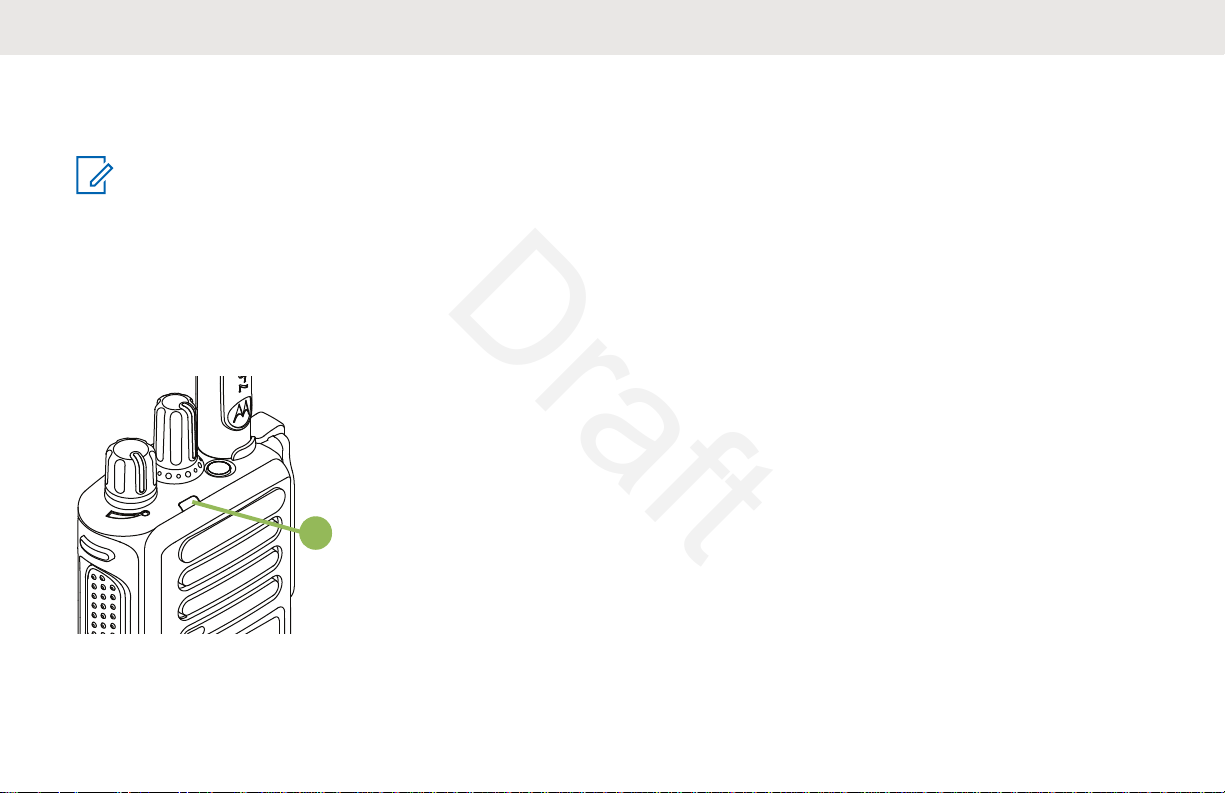

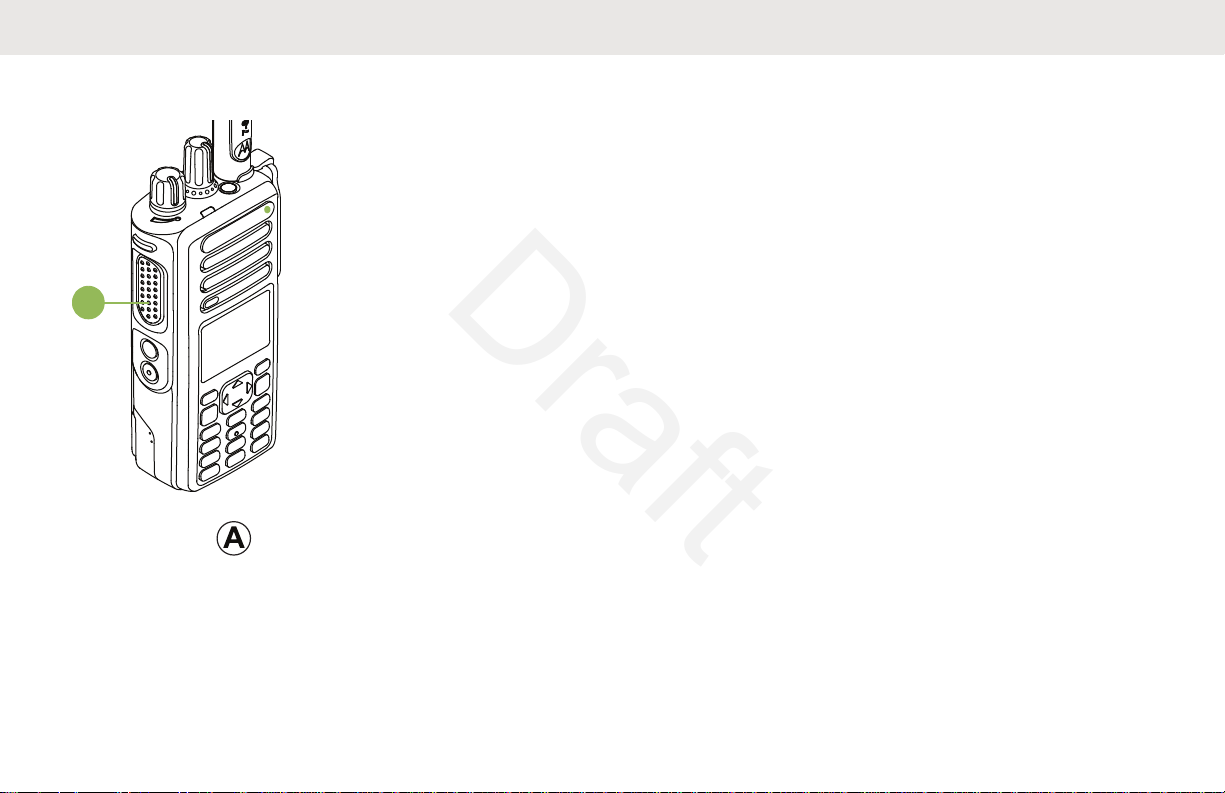

Push-To-Talk (PTT) Button

The PTT button on the side of the radio serves two basic purposes:
• While a call is in progress, the PTT button allows the radio to transmit to other radios in the call. Press and hold down PTT button to talk. Release the PTT button to listen. The microphone is activated when the PTT button is pressed.
• While a call is not in progress, the PTT button is used to make a new call. See Methods to Make a Radio Call on
page 74 for more information.
Send Feedback 53
English
This page intentionally left blank.
54
English

Identifying Status Indicators

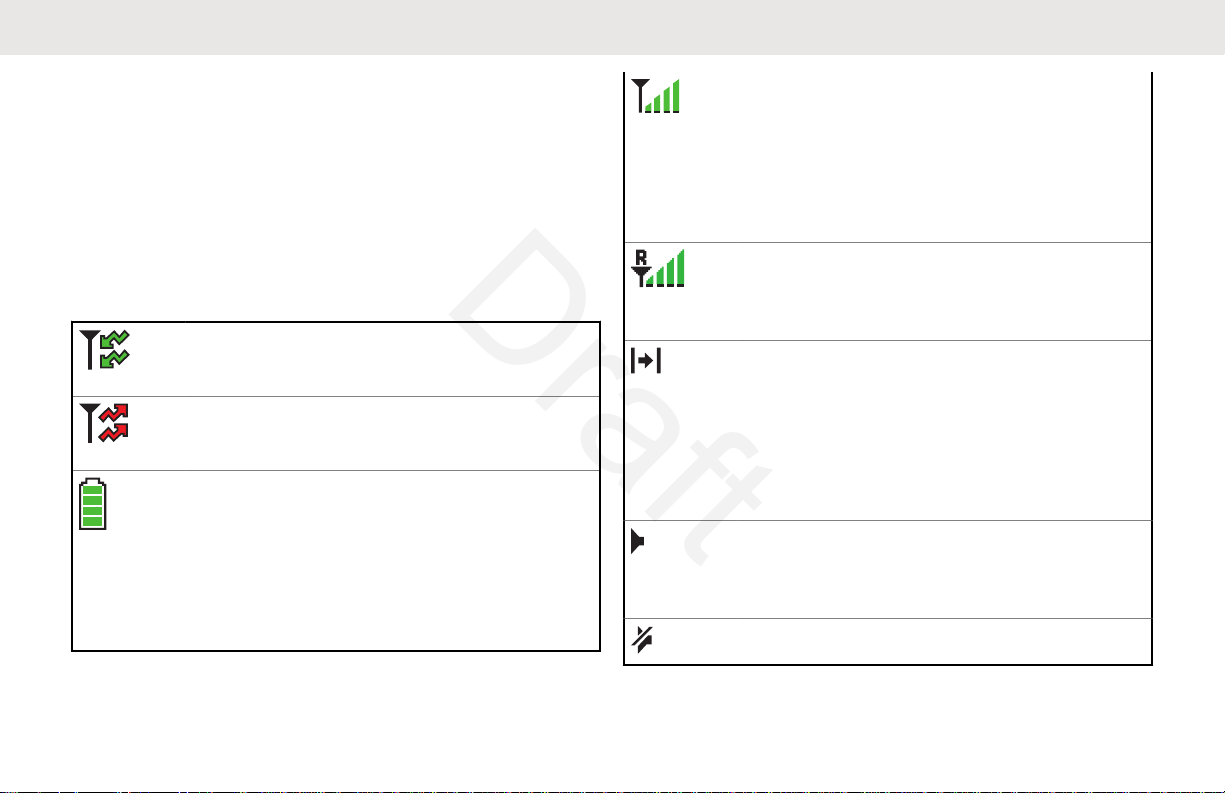

Status Icons

The 160 x 90 pixel front liquid crystal display (LCD) of your radio shows radio status, text entries, and menu entries. The top two display rows contain color icons that indicate radio operating conditions.
Receiving
Radio is receiving a call or data.
Transmitting
Radio is transmitting a call or data.
Battery
For IMPRES ™ battery operation only – the icon shown indicates the charge remaining in the battery.
For all battery operation – the icon blinks when the battery is low.
Table continued…
Received Signal Strength Indicator (RSSI)
The number of bars displayed represents the received signal strength for the current site, for trunking only. The more stripes in the icon, the stronger the signal.
Roaming
The radio has roamed to and is currently registered to a foreign system.
Direct On – Radio is currently configured for di-
rect radio-to-radio communication (during conventional operation only).
Off – Radio is connected with other radios through a repeater.
Monitor (Carrier Squelch)
Selected channel is being monitored (dur­ing conventional operation only).
In-Call User Alert
Table continued…
Send Feedback 55
English
On – The feature is enabled. Voice muting of the affiliated trunking talkgroup or selec­ted conventional channel is activated.
Off – The feature is disabled. Voice muting of the affiliated trunking talkgroup or selec­ted conventional channel is deactivated.
or

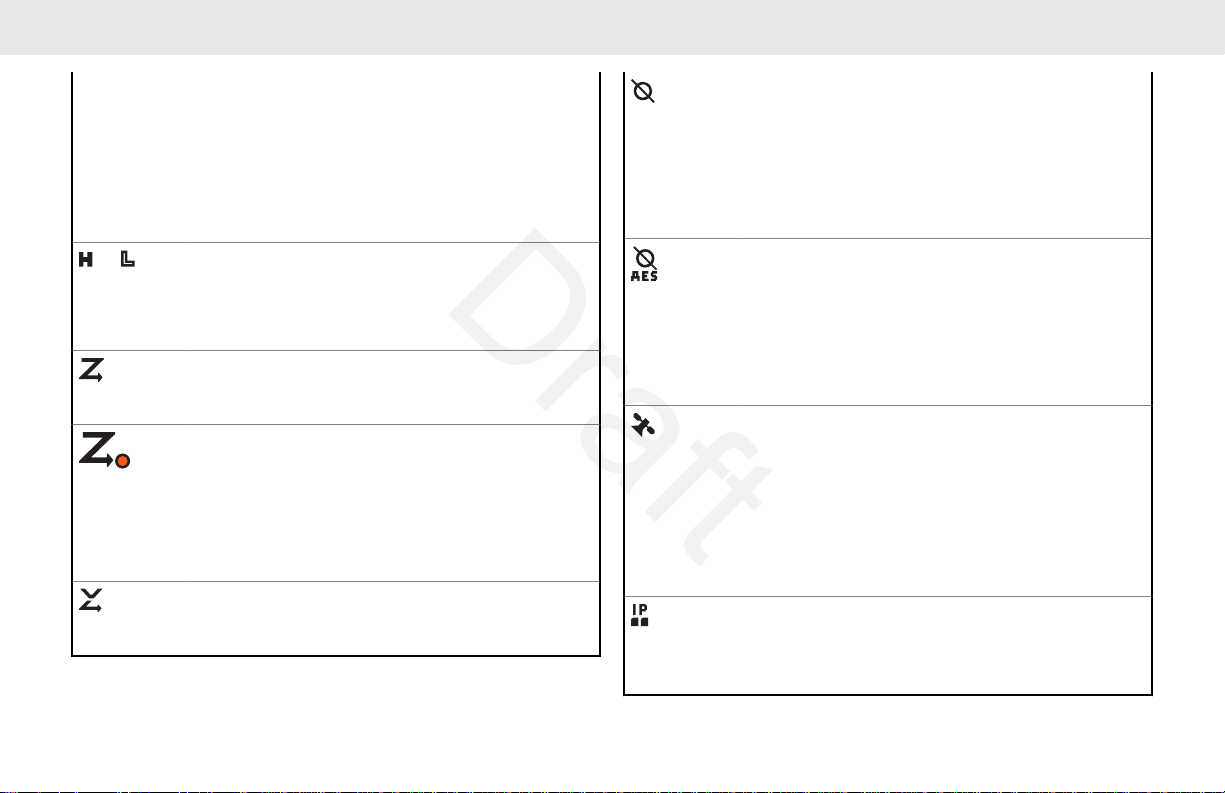

Power Level L – Radio is set at Low power. H – Radio is set at High power.
Scan
Radio is scanning a scan list.
Priority Channel Scan Blinking dot – Radio detects activity on
channel designated as Priority-One. Steady dot – Radio detects activity on
channel designated as Priority-Two.
Vote Scan Enabled
The vote scan feature is enabled.
Table continued…
Secure Operation On – Secure operation. Off – Clear operation. Blinking – Receiving an encrypted voice
call.
AES Secure Operation On – AES secure operation. Off – Clear operation. Blinking – Receiving an encrypted voice
call.
GPS Signal On – Feature is enabled and signal is
available.
Off – Feature is disabled. Blinking – Feature is enabled, but no sig-
nal is available.

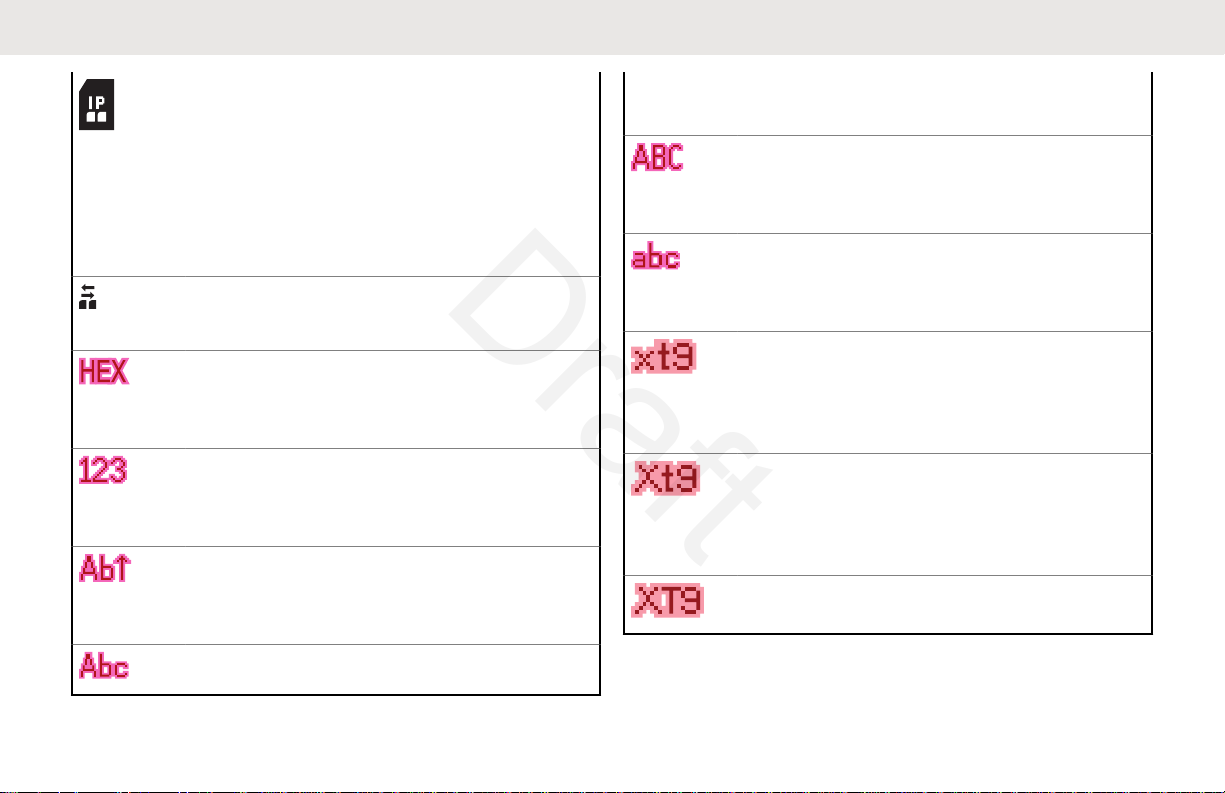

User Login Indicator (IP Packet Data) On – User is currently associated with the
radio.
Table continued…
56 Send Feedback
English
Off – User is currently not associated with the radio.
Blinking – Device registration or user reg­istration with the server failed due to an in­valid username or pin.
Inverted – User successfully login to the secured IP Packet Data.
Data Activity
Data activity is present.
Hexadecimal
Indicates that the text entry is currently in hexadecimal mode.
Numeric
Indicates that the text entry is currently in numeric mode.
Start Case
Indicates that the first character of the text entry is capitalized.
Mixed Case
Indicates that the text entry is currently in normal text mode.
Uppercase
Indicates that the text entry is currently in uppercase mode.
Lowercase
Indicates that the text entry is currently in lowercase mode.
Lowercase Predictive
Indicates that the text entry is currently in lowercase and with predicted words shown at the bottom of the screen.
Mixedcase Predictive
Indicates that the text entry is currently in mixed case and with predicted words shown at the bottom of the screen.
Uppercase Predictive
Table continued…
Table continued…
Send Feedback 57
English
Indicates that the text entry is currently in uppercase and with predicted words shown at the bottom of the screen.

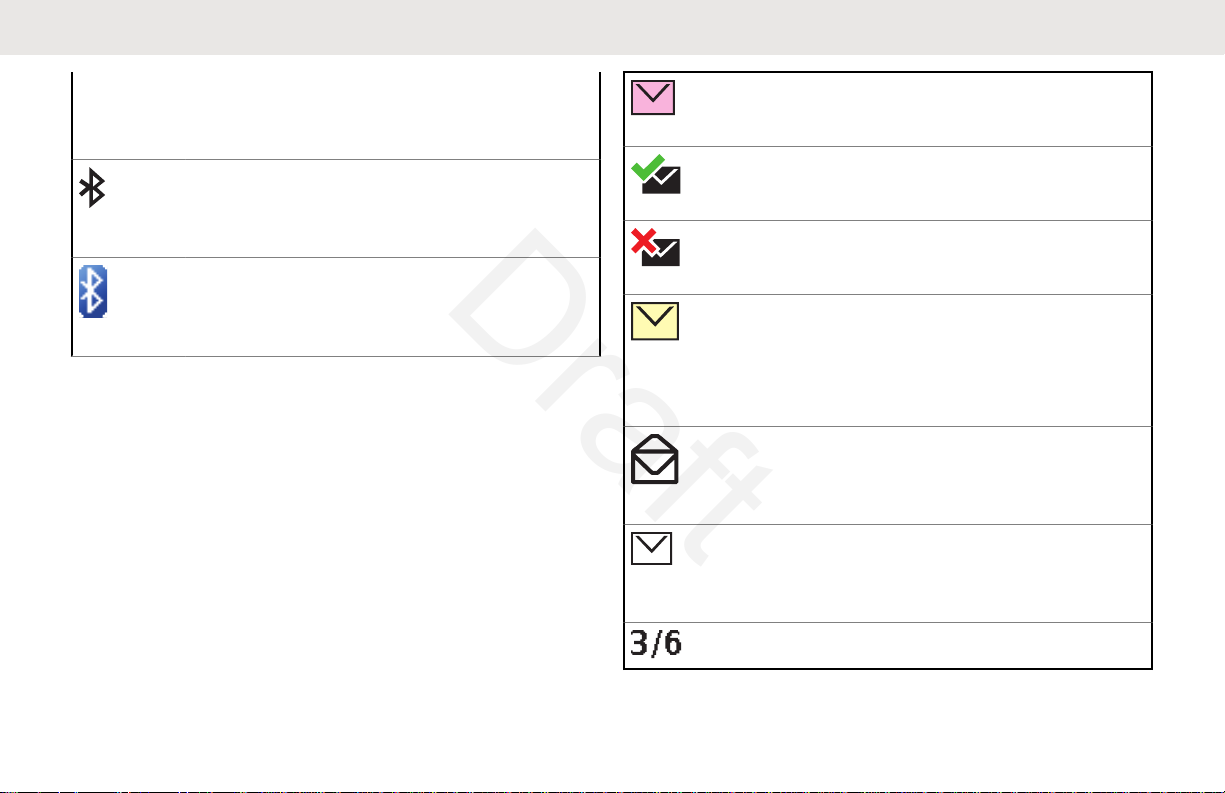

Bluetooth On
Bluetooth is on and ready for Bluetooth connection.
Bluetooth Connected
Bluetooth is currently connected to the ex­ternal Bluetooth device.

Text Messaging Service (TMS) Indicators

This feature allows you to send and receive text messages. Status icons and menu options shown here help you to work more efficiently with TMS feature. See Text
Messaging Service (TMS) on page 116 for more
information.

TMS Status Icons

Inbox Full
The Inbox is full.
Message Sent
The text message is sent successfully.
Message Unsent
The text message cannot be sent.
Unread Message
• User receives a new message.
• The selected text message in the Inbox has not been read.
Read Message
The selected text message in the Inbox has been read.
Normal Message
User is composing a message with normal priority and without a request for a reply.
Message Index
The following icons appear on the radio’s display when you send and receive text messages.
58 Send Feedback
Table continued…
English
Indicates the index of the current message the user is viewing.
Example: If the user is looking at the third message out of a total of 6 messages in the Inbox folder, the icon is displayed as the icon on the left column.

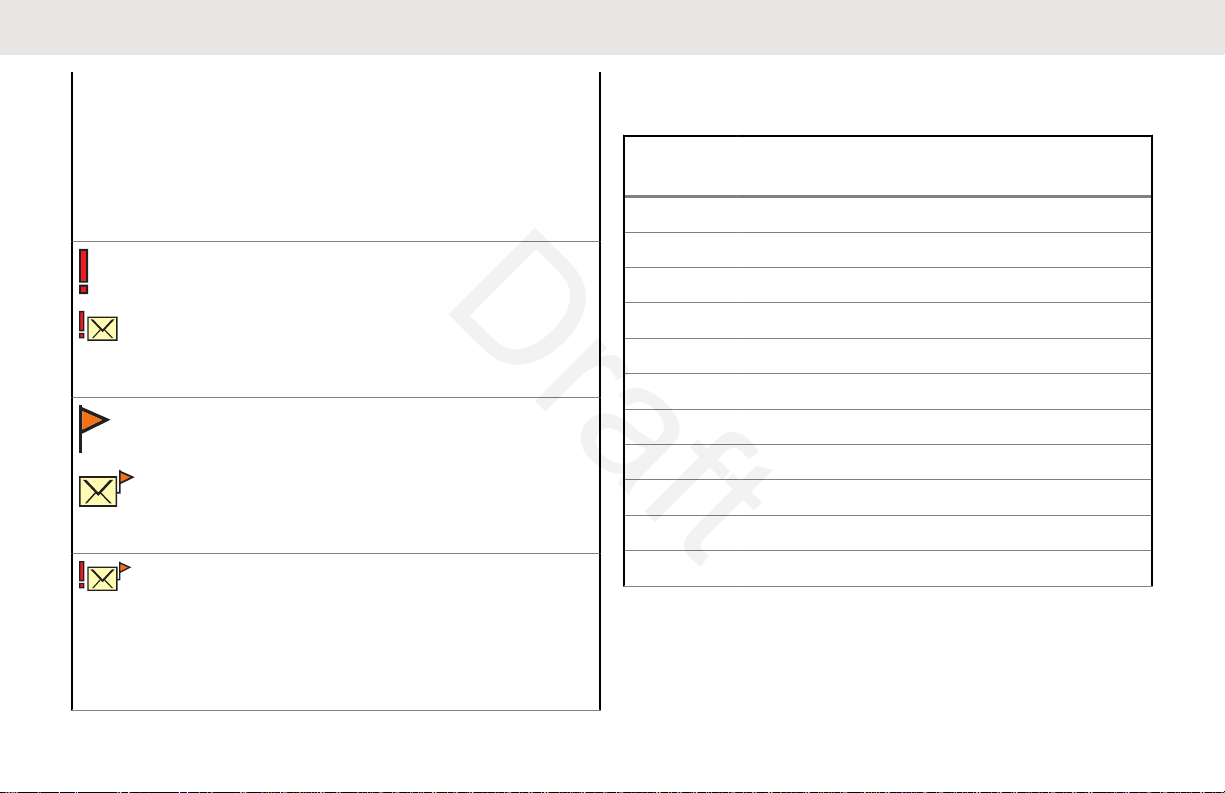

Priority Status
• The “Priority” feature is toggled on before the message is sent.
• Messages in the Inbox folder are flagged with “Priority”.
Request Reply
• The “Request Reply” feature is toggled on before the message is sent.
• Messages in the Inbox folder are flagged with “Request Reply”.
Priority Status and Request Reply
• User is composing a message with a pri­ority status and a request for a reply.
• Messages in the Inbox folder are flagged with “Priority” and “Request Reply”.

TMS Menu Options

Menu Option
Back
Clr
Del
Edit
Exit
No
Optn
Rply
Sel
Send
Yes
Description/Function
Brings you back to the previous screen. Deletes all messages. Deletes a message or text. Brings you to the edit screen. Exits to the Home screen. Returns to the previous screen. Brings you to the Options main screen. Replies to a message. Selects the highlighted command. Sends the message. Updates or saves a command.

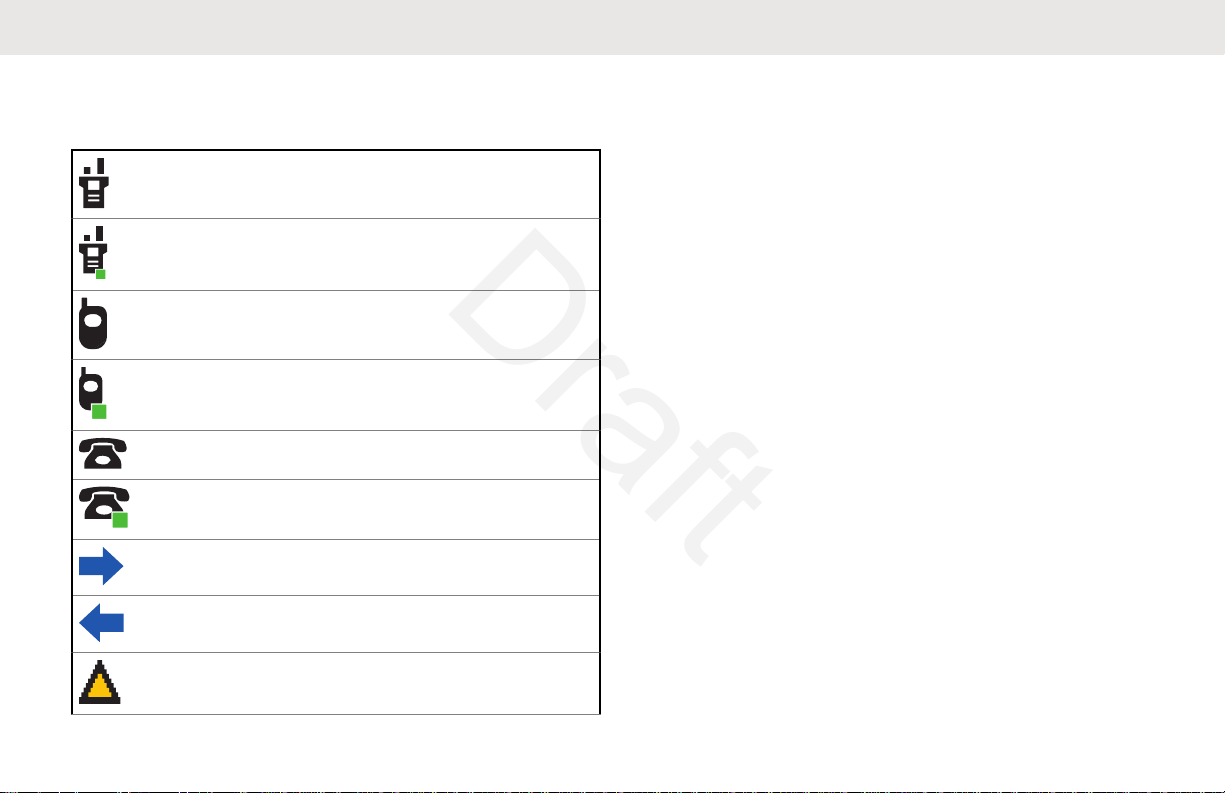

Call Type Icons

The following icons appear on the radio’s main display, when you make or receive a call, or view selected call lists,
Send Feedback 59
English
to indicate the different call types associated with an alias or ID.
Radio number.
Radio number added to a Call List.
Mobile number.
Mobile number added to a Call List.
Landline phone number. Landline phone number added to a Call
List. Incoming call or data.
Outgoing call or data.
Incoming emergency call.

LED Indicator

Solid red
Radio is transmitting.
Blinking red
Radio is transmitting at low battery condition.
Double blinking red
Radio is in Emergency Mode.
Rapidly blinking red
Radio has failed the self test upon powering up or encountered a fatal error.
Solid yellow (Conventional Only)
Channel is busy.
Blinking yellow
Radio is receiving a secured transmission.
Solid green
Radio is powering up, or is on a non-priority channel while in the Scan List Programming mode.
Blinking green
Radio is receiving an individual or telephone call, or is on a Priority-Two channel while in the Scan List Programming mode.
60 Send Feedback
A
English
Rapidly blinking green
Radio is on a Priority-One channel while in the Scan List Programming mode.
NOTE:
No LED indication when the radio receives a clear (non-secured) transmission in trunking Mode. LED indication can be preprogramed by qualified technician to be permanently disabled. Consult your dealer for further details if you want to disable it.

Top Lightbar Indicator

The lightbar turn into solid color of orange, red or green depending on the status of Intelligent Lighting. See
Intelligent Lighting Indicators on page 62 for different
status of Intelligent Lighting.
Send Feedback 61
English

Intelligent Lighting Indicators

This feature temporarily changes the color of the Top Lightbar and adds a color bar to the main display screen to help signal that a radio event has occurred.
NOTE:
This feature must be preprogrammed by a qualified radio technician.
Backlight and Bar Color
Orange Emergency Alerts
Red Critical Alerts
62 Send Feedback
Notification When
The radio initiates an emergency alarm or call. The radio receives an emergency alarm or call. The radio initiates the Man Down Post-Alert timer. The radio initiates Fireground Evacuation alarm. The radio battery is low. The radio is out of range. The radio enters Failsoft mode. The radio is unable to establish a full connection with the system. The radio is unable to authenticate or register with the system. The radio lost GPS signal or GPS function fails.
Table continued…
English
Backlight and Bar Color
Green Call Alerts
Notification When
The radio receives a private call. The radio receives a phone call. The radio receives a call alert. The radio receives a selective call. The radio enters Geofence.

Alert Tones

Your radio uses alert tones to inform you of the condition of your radio. The following table lists these tones and when they occur.
You Hear Tone Name Heard
Short, Low­Pitched Tone
Radio Self Test Fail Reject Time-Out Timer Warning No ACK Received
When radio fails its power-up self test. When an unauthorized request is made. Four seconds before time out. When radio fails to receive an acknowledgment.
Table continued…
Send Feedback 63
English
You Hear Tone Name Heard
Individual Call Warning Tone
Man Down Entry
Long, Low­Pitched Tone
A Group of Low-Pitched Tones
Short, Medi­um-Pitched Tone
Time-Out Timer Timed Out Talk Prohibit/PTT Inhibit (When PTT button is pressed) transmissions are not allowed. Lack of Voice PTT Time
out
Out of Range (When PTT button is pressed) the radio is out of range of the sys-
Invalid Mode Busy
Valid Key-Press Radio Self Test Pass Clear Voice
When radio is in an individual call for greater than 6 seconds with­out any activity.
When radio initiates Man Down mode. After time out.
When the radio ends your call after it detected there is lack of voice for 60 seconds after the PTT is pressed and hold. Your ra­dio ends the call to enable your radio to receive calls from other radio users. The duration of this timer can be preprogrammed by a qualified radio technician.
tem. When radio is on an unpreprogrammed channel. When system is busy.
When a correct key is pressed. When radio passes its power-up self test. At beginning of a non-coded communication.
Table continued…
64 Send Feedback
You Hear Tone Name Heard
English
Priority Channel Received Emergency Alarm /Call En-
try Central Echo
Long, Medi­um-Pitched Tone
A Group of Medium-Pitch­ed Tones
Short, High­Pitched Tone (Chirp)
Volume Set Emergency Exit
Failsoft Automatic Call Back Keyfail Console Acknowledge
Received Individual Call Call Alert Sent Site Trunking Low-Battery Chirp
When activity on a priority channel is received. When entering the emergency state.
When central controller has received a request from a radio. When volume is changed on a quiet channel. When exiting the emergency state.
When the trunking system fails. When voice channel is available from previous request. When encryption key has been lost. When status, emergency alarm, or reprogram request ACK is re-
ceived. When Call Alert or Private Call is received. When Call Alert is received by the target radio. When a SmartZone trunking system fails. When battery is below preset threshold value.
Table continued…
Send Feedback 65
English
You Hear Tone Name Heard
Two High­Pitched Tones
Ringing Fast Ringing
Gurgle Dynamic Regrouping (When PTT button is pressed) a dynamic ID has been received.
Unique, Low­Pitched Chirp
Unique, High­Pitched Chirp
Incremental­Pitched Tone
Decremental­Pitched Tone
A Group of Very High­Pitched Tones
66 Send Feedback
GPS Fails
Enhanced Call Sent Phone Call Received
Talk Permit (When PTT button is pressed) is verifying with the system for ac-
New Message
Priority Status
Bluetooth Paired Bluetooth Connected Bluetooth Unpaired Bluetooth Disconnected Man Down Continuous
Tone
When the GPS signal is lost or when GPS fails.
When system is searching for target of Private Call. When waiting for target of Private Call to answer the call. When a land-to-mobile phone call is received.
cepting its transmissions. When a new message is received.
When a priority message is received.
When Bluetooth accessory is paired with the radio. When Bluetooth accessory is connected to the radio. When Bluetooth accessory is unpaired from the radio. When Bluetooth accessory is disconnected from the radio. When radio is in Man Down mode and prepares to transmit Emer-
gency Alarm when the timer of this alarm ends.
Table continued…
You Hear Tone Name Heard
English
Critical Man Down Contin­uous Tone
When radio is in Man Down Enhanced mode and prepares to transmit Emergency Alarm when the timer of this alarm ends.

Phone Call Displays and Alerts

The following phone call displays and alerts appears on the radio’s display when you make and receive Phone calls. The radio also uses alert tones to indicate the current status.
You Hear You See When Notes
A Long Tone No phone You press the PTT button
and the phone system is not available.
Phone busy The phone system is busy.
A Busy Tone Phone busy When a channel is not
available.
– No acknowl-
edge
A High- Pitch­ed Tone
– When you release the PTT
The call is not acknowl­edged.
button.
Press to hang up. The radio returns to the Home screen.
Press to exit the phone mode and try your call later.
The radio automatically connects when a channel opens.
Press to hang up. The radio returns to the Home screen.
The radio indicates to the landline party that he or she may begin talking.
Send Feedback 67
English
NOTE:
You have the option of sending additional digits (overdial), such as an extension number, or credit card or PIN numbers, to the phone system. If the radio is preprogrammed for live overdial, every digit entered after the call is connected is sent to the phone system. If the radio is preprogrammed for buffered overdial, the digits pressed are entered into memory and then sent when the PTT button is pressed. Press the PTT button to send either digits or voice, but not both at the same time.

HAZLOC Battery Type Detection

This feature alerts the user when there is a HAZLOC certification mismatch between the radio and the battery. This feature supports IMPRES batteries only.
During power up, if there is a mismatch, the following scenarios occurs:
• The radio repetitively displays WRONG BATTERY with red intelligent backlight
• The Battery icon blinks continuously
• A repetitive tone sounds
• LED blinks RED continuously
NOTE:
The radio does not display any indication when the radio is connected to the charger, when the radio and battery match, or when the radio certification type is configured as "None" in Customer Programming Software (CPS).
This feature is enabled through CPS configuration. Check with your dealer or system administrator for more information.
68 Send Feedback
English

General Radio Operation

Selecting a Zone

Your radio must be preprogrammed to allow you to use this feature.
A zone is a group of channels. The following methods are options on how to select a radio zone. The result of all the methods is the same. You can use the options interchangeably depending on your preference and the programmed functions.
• Select a zone via the radio menu Zone: a. or to Zone and press the Menu Select
button directly below Zone.
b. or to the required zone, or use the
keypad to enter the zone number. If the zone number entered is unprogrammed, the
display shows Invalid entry. Repeat this step.
c. Press the Menu Select button directly below Sel
to confirm the displayed zone.
d. Press the PTT button to transmit on the displayed
zone channel.
• Select a zone via the radio menu ZnUp or ZnDn: a. or to ZnUp or ZnDn.
b. Press and hold the Menu Select button directly
below ZnUp or ZnDn until the required zone appears.
Positions of ZnUp and ZnDn on the display may differ each time you release the Menu Select button. Read carefully before you press.
c. Press the PTT button to transmit on the displayed
zone channel.

Selecting a Radio Channel

A channel is a group of radio characteristics, such as transmit/ receive frequency pairs. The following methods are options on how to select a radio channel. The result of all the methods is the same. You can use the options interchangeably depending on your preference and the programmed functions.
• Select a channel via the preprogrammed 16– Position Select Knob to the desired channel.
Send Feedback 69
English
a. Rotate the preprogrammed 16–Position Select
Knob to the desired channel.
b. Press the PTT button to transmit on the displayed
zone channel.
• Select a channel via the radio menu Chan: a. or to Chan.
b. Press the Menu Select button directly below
Chan.
c. or to the required channel or use the
keypad to enter the channel number. If the channel number entered is unprogrammed,
the display shows Invalid entry. Repeat this step.
d. Press the Menu Select button directly below Sel
to confirm the selected channel.
e. Press the PTT button to transmit on the displayed
zone channel.
• Select a channel via the radio menu Channel Up or Channel Down:
a. or to ChUp or ChDn.
b. Press the Menu Select button directly below
ChUp or ChDn. Positions of ChUp and ChDn on the display may
differ each time you release the Menu Select button. Read carefully before you press.
c. Press the PTT button to transmit on the displayed
zone and channel.

Selecting a Channel via Channel Search Button

This feature allows you to do a quick search for a specific channel in your radio by keying in the alias of the channel. If the name matches, your radio prompts the first found matched channel name.
Perform one of the following actions:
1
• Press the preprogrammed Channel Search button.
• or to CSrh and press the Menu Select button directly below CSrh.
A blinking cursor appears on the Channel Search screen.
70 Send Feedback
English
2 Use the keypad to type or edit your channel name. 3 To initiate searching, press the Menu Select button
directly below CSrh once the entry is done. To exit this procedure, press the Menu Select button
directly below Cncl.
The display shows Searching. Once found, the display shows the matched channel name and the radio changed its transmission to the selected channel. If the radio is triggered to search for an empty entry, the display shows Invalid entry. Repeat step step 2 to search again.
If the entry does not match, the display shows Channel name not found. Repeat step step 2 to search again; or
press or the Menu Select button directly below Exit to exit.

Mode Select Feature

Mode Select allows a long press to save the current zone and channel of your radio to a programmable button, keypad button, or a softkey; then once programmed, the short-press of that button or softkey changes the transmission to the saved zone and channel.
There are two methods to save the selected zone and channel:
• Softkeys
• Programmable buttons and keypad buttons (digit 0 to 9)
NOTE:
Your radio must be preprogrammed to allow you to use this feature.

Saving a Zone and a Channel to a Softkey

Five softkeys are available for you to save the frequently used zone and channel.
Toggle your zone and channel to the required zone
1
and channel.
2
or to MS1, MS2 ... or MS5.
3 Press and hold the Menu Select button directly
below one of the softkey (MS1 – MS5).
You hear a short, medium-pitched tone when the zone and channel is saved.
Send Feedback 71
English
NOTE:
To change the programmed zone and channel, repeat this procedure. Short press of the programmed softkey changes your current transmission to the zone and channel programmed in this softkey.

Saving a Zone and a Channel to a Button

You can save the frequent used zone and channel to the programmable buttons and keypad digit 0 to 9 buttons.
Toggle your zone and channel to the required zone
1
and channel. Press and hold the button you desire to program.
2
You hear a short, medium-pitched tone when the zone and channel is saved.
NOTE:
Repeat this procedure to change the zone and channel of the programmed button. Short press of the programmed button changes your current transmission to the zone and channel programmed in this button.

Receiving and Responding to a Radio Call

Once you have selected the required channel and/or zone, you can proceed to receive and respond to calls.
The LED lights up solid red while the radio is transmitting. In conventional mode, the LED lights up solid yellow when the radio is receiving a transmission. In trunking mode, there is no LED indication when the radio receives a transmission.
If the radio is receiving a secure transmission, the LED blinks yellow.

Receiving and Responding to a Talkgroup Call

To receive a call from a group of users, your radio must be configured as part of that talkgroup.
When you receive a talkgroup call (while on the Home screen) the radio triggers for your attention with one of the following scenarios depending on the system your radio is configured:
72 Send Feedback
English
• For ASTRO Conventional system, the LED lights up solid yellow. The display shows the talkgroup alias or ID, and the caller alias or ID.
• For Trunking system, the display shows the caller alias or ID.
Hold the radio vertically 1 to 2 in. (2.5 to 5.0 cm)
1
from your mouth.
2 Press the PTT button to respond to the call.
The LED lights up solid red.
3 Release the PTT button to listen.
See also Making a Talkgroup Call on page 74 for details on making a Talkgroup Call.

Receiving and Responding to a Private Call (Trunking Only)

A Private Call is a call from an individual radio to another individual radio.
The one-to-one call between the two radios are not heard by the others in the current talkgroup. The calling radio
automatically verifies that the receiving radio is active on the system and can display the caller ID.
NOTE:
With the inactivity timer enabled (optional), when there is no response from the receiving radio, the calling radio exits the call with Menu Inactive Exit tone after the timer expires.
When you receive a Private Call, you hear two alert tones and the LED blinks green. The display shows Call received and the call received icon blinks.
Perform one of the following actions:
1
• Press the Menu Select button directly below
Resp.
• Press the Call Response button within 20 seconds after the call indicators begin.
If the caller alias is in the call list, the display shows the caller alias during the call. If the caller name is not in the call list, the display shows the caller ID.
2 Press and hold the PTT button to talk. Release the
PTT button to listen.
Send Feedback 73
English
3
Press or the Call Response button to hang up and return to the Home screen.
See also Making a Private Call (Trunking Only) on page
75 for details on making a Private Call.

Receiving and Responding to a Telephone Call (Trunking Only)

This feature allows you to receive calls similar to standard phone calls from a landline phone.
NOTE:
With the inactivity timer enabled (optional), if there is no response to the call after the timer expires, your radio exits the call with Menu Inactive Exit tone.
When you receive a Telephone Call, you hear a telephone­type ringing and the LED blinks green. The display shows Phone Call and the call received icon blinks.
1 Press the Call Response button within 20 seconds
after the call indicators begin.
2 Press and hold the PTT button to talk. Release the
PTT button to listen.
3
Press or the Call Response button to hang up and return to the Home screen.
See also Making a Telephone Call (Trunking Only) on page
77 for details on making a Telephone Call.

Methods to Make a Radio Call

You can select a zone, channel, subscriber ID, or talkgroup by using:
• The 16-Position Select Channel Knob.
• The Contacts list (see Viewing Details of a Contact on
page 94).
NOTE:
The radio automatically exits the feature, if the feature inactivity timer is enabled, when the radio is left idle and the timer expires. You will hear the Menu Inactive Exit Tone upon feature exit.

Making a Talkgroup Call

To make a call to a group of users, your radio must be configured as part of that talkgroup.
74 Send Feedback
English
1 Turn the 16-Position Select Channel Knob to
select the channel with the desired talkgroup. Hold the radio vertically 1 to 2 in. (2.5 to 5.0 cm)
2
from your mouth.
3 Press the PTT button to make the call.
The radio shows different indicators based on the system the radio is configured.
• For ASTRO Conventional system, the LED lights up solid red. The display shows the talkgroup alias or ID.
• For Trunking system, the LED lights up solid red.
Speak clearly into the microphone.
4 5 Release the PTT button to listen.

Making a Private Call (Trunking Only)

Your radio must be preprogrammed to allow you to use this feature.
This feature allows you to send an individual Call Alert or page if there is no answer from the target radio.
1
or to Call, and press the Menu Select button
directly below Call. The display shows the last transmitted or received
ID.
To select the required ID, perform one of the
2
following actions:
• Press the Menu Select button directly below Cnts to scroll through and select the required ID.
• Press the Menu Select button directly below LNum to go to the last number dialed.
• or to the required ID.
• Use the keypad to enter the required ID.
3 Press the PTT button to initiate the Private Call.
The display shows Calling... <Number>.
Send Feedback 75
English
Hold the radio vertically 1 to 2 in. (2.5 to 5.0 cm)
4
from your mouth. When you are connected, the display shows the ID
of the target radio. If no acknowledgment is received, the display shows No acknowledge.
5 Press and hold the PTT button to talk. Release the
PTT button to listen.
6
Press to return to the Home screen.

Making an Enhanced Private Call (Trunking Only)

Your radio must be preprogrammed to allow you to use this feature.
This feature allows you to send an individual Call Alert Page if there is no answer from the target radio. See
Sending a Call Alert Page on page 99 for more
information.
1
or to Call, and press the Menu Select button
directly below Call. The display shows the last transmitted or received
ID.
To select the required ID, perform one of the
2
following actions:
• Press the Menu Select button directly below Cnts to scroll through and select the required ID.
• Press the Menu Select button directly below LNum to go to the last number dialed.
• or to the required ID.
• Use the keypad to enter the required ID.
3 Press the PTT button to initiate the Private Call.
The display shows Calling... <Number>.
76 Send Feedback
Hold the radio vertically 1 to 2 in. (2.5 to 5.0 cm)
4
from your mouth. When you are connected, the display shows the ID
of the target radio. If no acknowledgment is received, the display shows No acknowledge.
If the target radio does not respond before the time out, the display shows No answer.
5 Press and hold the PTT button to talk. Release the
PTT button to listen.
6
Press to return to the Home screen.
English

Making a Telephone Call (Trunking Only)

This feature allows you to make calls similar to standard phone calls to a mobile or landline phone.
1
or to Phon, and press the Menu Select button
directly below Phon. The display shows the last transmitted or received
ID.
To select the required ID, perform one of the
2
following actions:
• Press the Menu Select button directly below Cnts to scroll through and select the required ID.
• Press the Menu Select button directly below LNum to go to the last number dialed.
• or to the required phone number.
• Use the keypad to enter the required phone number.
3 Press the PTT button to dial the phone number.
Send Feedback 77
English
Hold the radio vertically 1 to 2 in. (2.5 to 5.0 cm)
4
from your mouth.
5 When your call is answered, press and hold the PTT
button to talk. Release the PTT button to listen.
6
Press to return to the Home screen.
See Phone Call Displays and Alerts on page 67 for more information if your call is NOT answered.

Switching Between Repeater or Direct Operation Button

The Repeater Operation increases the radio coverage area by connecting with other radios through a repeater. The transmit and receive frequencies are different.
The Direct or “talkaround operation” allows you to bypass the repeater and connect directly to another radio. The transmit and receive frequencies are the same.
Perform one of the following actions:
• Press the preprogrammed Repeater/Direct switch to toggle between talkaround and repeater modes.
• or to Dir and press the Menu Select button directly below Dir.
The display shows Repeater mode if the radio is currently in Repeater mode. The display shows Direct mode and the Talkaround icon if the radio is currently in Direct mode (during conventional operation only).

Monitor Feature

Radio users who switch from analog to digital radios often assume that the lack of static on a digital channel is an indication that the radio is not working properly. This is not the case.
Digital technology quiets the transmission by removing the noise from the signal and allows only the clear voice or data information to be heard.
Use the Monitor feature to make sure a channel is clear before transmitting.
78 Send Feedback
English

Monitoring a Channel

The following methods are options on how to monitor a channel. The result of all the methods is the same. You can use the options interchangeably depending on your preference and the programmed functions.
• Monitoring a Channel with Monitor button. a. Press the preprogrammed Monitor button. b. Adjust the Volume Control Knob if necessary. c. Press and hold the PTT button to transmit.
The LED lights up solid red.
d. Release the PTT button to receive (listen).
The Carrier Squelch indicator appears on the display when you monitor a channel via the preprogrammed Monitor button.
• Monitoring a Channel via the selected zone channel. a. Select the desired zone and channel. b. Listen for a transmission. c. Adjust the Volume Control Knob if necessary.
d. Press and hold the PTT button to transmit.
The LED lights up solid red.
e. Release the PTT button to receive (listen).

Monitoring Conventional Mode

Your radio may be preprogrammed to receive Private-Line (PL) calls.
1 Momentarily press the Monitor button to listen for
activity. The Carrier Squelch indicator appears on the
display.
2 Press and hold the Monitor button to set continuous
monitor operation. The duration of the button press is programmable.
3 Press the Monitor button again, or the PTT button,
to return to the original squelch setting. If you try to transmit on a receive-only channel, you
hear an invalid tone until you release the PTT button.
®
Send Feedback 79
English
This page intentionally left blank.
80
English

Advanced Features

Advanced Call Features

Selective Call (ASTRO Conventional Only)

This feature allows you to receive a call from or to call a specific individual. It is intended to provide privacy and to eliminate the annoyance of having to listen to conversations that are of no interest to you.
Receiving a Selective Call
When you receive a Selective Call, the radio indicates one of the followings:
• You hear two alert tones and the LED lights up solid yellow to indicate the transmitting radio is still sending signal. The call received icons blinks and the display shows Call received.
• The LED blinks solid green once to indicate the transmitting radio is pending to receive signal.
The speaker unmutes.
Hold the radio vertically 1 to 2 in. (2.5 to 5.0 cm)
1
from your mouth.
2 Press and hold the PTT button to talk. Release the
PTT button to listen.
Making a Selective Call
1
or to Call, and press the Menu Select button
directly below Call. The display shows the last transmitted or received
ID.
To select the required ID, perform one of the
2
following actions:
• Press the Menu Select button directly below Cnts to scroll through and select the required ID.
• Press the Menu Select button directly below LNum to go to the last number dialed.
• or to the required ID.
Send Feedback 81
English
• Use the keypad to enter the required ID. Hold the radio vertically 1 to 2 in. (2.5 to 5.0 cm)
3
from your mouth.
4 Press and hold the PTT button to start the Selective
Call. The display shows the ID of the target radio.
5 Release the PTT button to listen.
6
Press to return to the Home screen.

Talkgroup Call Feature (Conventional Operation Only)

This feature allows you to define a group of conventional system users so that they can share the use of a conventional channel.
NOTE:
Encryption keys are associated to talkgroups. When talkgroups are associated, encryption keys are changed by changing the active talkgroup. See
Secure Operations on page 134 for more
information.
Selecting a Talkgroup
1
or to Tgrp and press the Menu Select button
directly below Tgrp. The display shows the last Talkgroup that was
selected and stored.
Perform one of the following actions:
2
• or to Preset for the preset preprogrammed Talkgroup.
• Use the keypad to enter the number of the corresponding Talkgroup in the list.
82 Send Feedback
English
3 Press the Menu Select button directly below Sel to
save the currently selected Talkgroup and return to the Home screen.
If the encryption key associated to the new Talkgroup is erased, you hear a momentary key fail tone and the display shows Key fail. If the encryption key that is associated to the new Talkgroup is not allowed, you hear a momentary key fail tone and the display shows Illegal key.
4
Press to return to the Home screen.

Sending a Status Call

This feature allows you to send data calls to the dispatcher about a predefined status. Each status can have up to a 14-character name. A maximum of eight status conditions is possible.
NOTE:
The radio automatically exits the feature, if the feature inactivity timer is enabled, when the radio is left idle and the timer expires. You will hear the Menu Inactive Exit Tone upon feature exit.
Perform one of the following actions:
1
• Press the preprogrammed Status button.
• or to Sts and press the Menu Select button directly below Sts.
The display shows the last acknowledged status call, or the first status in the list.
Perform one of the following actions:
2
• Use the keypad to enter a number corresponding to the location in the status list.
3 Press the PTT button to send the status.
When the dispatcher acknowledges, you hear four tones and the display shows Ack received . The radio returns to normal dispatch operation.
Send Feedback 83
English
If no acknowledgment is received, you hear a low­pitched tone and the display shows No acknowledge.
4
Press to return to the Home screen. No traffic is heard on trunked channels while Status
Calls is selected. If the radio detects no Status Call activity for six seconds, an alert tone sounds until
you press or the PTT button.

Responding to the Dynamic Regrouping Feature (Trunking Only)

This feature allows the dispatcher to temporarily reassign selected radios to a particular channel where they can communicate with each other. This feature is typically used during special operations and is enabled by a qualified radio technician. You will not notice whether your radio has this feature enabled until a dynamic regrouping command is sent by the dispatcher.
NOTE:
If you try to access a zone or channel that has been reserved by the dispatcher as a dynamically regrouped mode for other users, you hear an invalid tone.
When your radio is dynamically regrouped, it automatically switches to the dynamically regrouped channel. You hear a Gurgle tone and the display shows the dynamically regrouped channel’s name.
Press the PTT button to talk. Release PTT button to listen.
When the dispatcher cancels dynamic regrouping, the radio automatically returns to the zone and channel that you were using before the radio was dynamically regrouped.
Requesting a Reprogram (Trunking Only)
This feature allows you to notify the dispatcher when you want a new dynamic regrouping assignment.
Perform one of the following actions:
• Press the preprogrammed Reprogram Request button to send reprogram request to the dispatcher.
84 Send Feedback
English
• or to Rpgm then press the Menu Select button directly below Rpgm to send reprogram request to the dispatcher.
The display shows Reprgrm rqst and Please wait.
If you hear five beeps, the dispatcher has acknowledged the reprogram request. The display shows Ack received and the radio returns to the Home screen.
If the dispatcher does not acknowledge the reprogram request within six seconds, you hear a low-pitched alert tone and the display shows No acknowledge. Try again or
press to cancel and return to the Home screen.
Classification of Regrouped Radios
The dispatcher can classify regrouped radios into either of two categories:
Select Enabled
Select-enabled radios are free to change to any available channel, including the dynamic-regrouping channel, once the user has selected the dynamic­regrouping position.
Select Disabled
Select-disabled radios cannot change channels while dynamically regrouped. The dispatcher has forced the radio to remain on the dynamic-regrouping channel.
The Scan or Private Call feature cannot be selected while your radio is Select Disabled.

Dynamic Zone Programming (DZP)

NOTE:
Your radio must be preprogrammed to allow you to use this feature. This feature works on the condition at least one zone in the radio must be a non­dynamic zone.
This feature provides one or more Dynamic Zones to store frequently used channels be it conventional or trunking. These dynamic channels are saved from pre-existing (non­dynamic) channels in the radio. This saves the time and effort from the regular navigation around the working zones and channels. User can also delete or update the list in the Dynamic Zone.
Send Feedback 85
English
Entering the Dynamic Zone to Select a Dynamic Channel
1
or to Zone then press the Menu Select button
directly below Zone. The display shows the Zone screen.
or to <# Dynamic Zone Channels>
2
Perform one of the following actions:
3
• Press the Menu Select button below Sel to select.
• Press the Menu Select button below Exit to exit.
If you have selected one of the Dynamic Zone Channels list, the display returns to Home screen with the selected <# Dynamic Zone Channels> shown on the screen.
If you have selected Exit without selecting any Dynamic Zone Channels list, the display returns to Home screen without any changes.
2
2
Saving a Channel in the Dynamic Zone from List Selection
The radio must be in Dynamic Zone in order to perform this operation.
2
1
or to ZnPr. Press the Menu Select button
directly below ZnPr to enter Program Zone screen.
2 Press the Menu Select button directly below Edit.
The display shows Search Options screen.
3 or to List Selection. Press the Menu
Select button directly below Sel.
The display shows Select Zone screen.
2
# indicates number of the channel on the 16-Position Switch which are numbered from 1 to 16.
86 Send Feedback
English
4 or to the required zone. Press the Menu
Select button directly below Sel. The display shows Select Chan screen.
5 or to the required channel. Press the Menu
Select button directly below Sel.
The display shows Channel updated.
6 Press the Menu Select button directly below Exit to
return to Home screen.
Saving a Channel in the Dynamic Zone from Channel Name
The radio must be in Dynamic Zone in order to perform this operation.
1
or to ZnPr then press the Menu Select button
directly below ZnPr to enter Program Zone screen.
2 Press the Menu Select button directly below Edit.
The display shows Search Options screen.
3 or to Channel Name then press the Menu
Select button directly below Sel. The display shows a blinking cursor on the Channel
Name screen.
4 Use the keypad to type or edit the channel name. 5 Press the Menu Select button directly below Srch
once the entry is done to initiate searching. You can cancel this operation at this step by
pressing the Menu Select button directly below Cncl to return to Search Options screen.
The display shows Searching.... Once found, the
display shows Channel updated. If the radio is triggered to search for an empty entry, the display shows Invalid entry.
If the entry does not match, the display shows Channel name not found. Repeat from step step 4 or step 5 to search again.
6
Press to return to the Home screen.
Send Feedback 87
English
Deleting a Channel in the Dynamic Zone
The radio must be in Dynamic Zone in order to perform this operation.
1
or to ZnPr then press the Menu Select button
directly below ZnPr to enter Program Zone screen. The display shows the dynamic channels list.
or to the saved dynamic channel then press
2
the Menu Select button directly below Del. The display shows Channel deleted screen.
3 Press the Menu Select button below Exit to return
to Home screen. The Home screen shows <Dynamic Zone
Channels>. If the channel deleted is the Home channel, the Home screen shows <Zone Name>+”Blank”.

Contacts

This feature provides “address-book” capabilities on your radio. Each entry corresponds to an alias (name) or ID (number) that you use to initiate a call.
Contact entries are alphabetically sorted according to entry alias. Each alias can have up to five IDs of different call types associated with it.
Additionally, each entry, depending on context (conventional, trunking, or phone), associates with one or more of the four types of calls: Phone Call, Selective Call, Private Call, or Call Alert.
Each entry within Contacts contains the following information:
• Call Alias (Name)
• Call ID (Number)
• Call Type (Icon)
• WACN ID (Astro 25 Trunking IDs only)
• System ID
NOTE:
Your radio must be preprogrammed to allow you to add, edit, or delete the contact entries.
88 Send Feedback
English
Your radio also supports a maximum of 50 call lists. Each list can store up to 100 IDs (numbers).
NOTE:
Your radio is preprogrammed with a number of contacts per Call Lists. Check with your dealer or system administrator for more information. The radio automatically exits the feature, if the feature inactivity timer is enabled, when the radio is left idle and the timer expires. You hear the Menu Inactive Exit Tone upon feature exit.

Making a Private Call from Contacts

Your radio must be preprogrammed to allow you to use this feature.
1
or to Cnts and press the Menu Select button
directly below Cnts. The entries are alphabetically sorted.
or to the required subscriber alias.
2
Perform one of the following actions:
3
• Press the Menu Select button directly below
Optn and proceed to the next step.
• or to scroll through the available IDs for the selected subscriber alias and proceed to step
step 6.
4 or to Call and press the Menu Select
button directly below Sel.
5
6
7 Press the PTT button to initiate the call.
8 Press and hold the PTT button to talk. Release the
If there is no voice activity for a preprogrammed period of time, the call ends.
If the call reaches the maximum ring time, the call ends.
or to select the call type.
Hold the radio vertically 1 to 2 in. (2.5 to 5.0 cm) from your mouth.
During the call, the display shows the subscriber alias.
PTT button to listen. The LED lights up solid red when the PTT button is
pressed.
Send Feedback 89
English

Adding a New Contact Entry

1
or to Cnts and press the Menu Select button
directly below Cnts. The entries are alphabetically sorted.
2 or to [New Contact] and press the Menu
Select button directly below Sel.
3 or to Name and press the Menu Select
button directly below Edit. The display shows Edit name and a blinking cursor
appears.
4 Use the keypad to enter the name and press the
Menu Select button directly below Ok once you have
entered the name. To cancel this operation, press the Menu Select
button directly below Cncl to return to the previous screen.
5 or to [Add Number] and press the Menu
Select button directly below Sel.
6 or to Number 1 and press the Menu Select
button directly below Edit. The display shows Edit Number 1 and a blinking
cursor appears.
7 Use the keypad to enter the number and press the
Menu Select button directly below Ok once you have
entered the number. To cancel this operation, press the Menu Select
button directly below Cncl to return to the previous screen.
Perform one of the following actions per the
8
information you need to add to current name:
• or to Type 1 and press the Menu Select button directly below Edit.
or to the required mode and press the
Menu Select button directly below Ok.
• Repeat Steps step 6 through step 7 to enter or edit the exisitng system IDs.
• Repeat Steps step 5 through step 7 to add a new number.
90 Send Feedback
English
9 Press the Menu Select button directly below Done
once you have finished. The display shows <Entry> Stored, confirming that
the contact entry has been added. The radio returns to the main Contacts screen.

Deleting a Contact Entry

1
or to Cnts and press the Menu Select button
directly below Cnts. The entries are alphabetically sorted.
2
or to the entry you want to delete and press the
Menu Select button directly below Optn.
3
or to Del and press the Menu Select button
directly below Sel. The display shows Delete <Entry> confirm?.
4 Select the Menu Select button directly below Yes to
delete the entry, or No to cancel and return to the main screen of Contacts.
The display shows <Entry> deleted and the radio returns to the main screen of Contacts.

Adding a Contact to a Call List

1
or to Cnts and press the Menu Select button
directly below Cnts. The entries are alphabetically sorted.
2
3 or to Add to CallLst and press the Menu
4
or to the entry you want to add and press
the Menu Select button directly below Optn.
Select button directly below Sel. Perform one of the following actions:
• or to the required Call List and press the Menu Select button directly below Add to add to the Call List.
Send Feedback 91
English
• or to Cncl to cancel and return to the main screen of Contacts.
The display shows Please wait momentarily before showing <Entry> added to Call List, confirming the addition of the contact to the list.
The radio returns to the main display of Contacts.

Removing a Contact from a Call List

1
or to Cnts and press the Menu Select button
directly below Cnts. The entries are alphabetically sorted.
or to the entry you want to delete and press
2
the Menu Select button directly below Optn.
3 or to Rm frm CallLst and press the Menu
Select button directly below Sel.
The display shows Remove <Entry> frm Call List?.
4 Press the Menu Select button directly below Yes to
remove the entry from the Call List, or No to cancel and return to the main display of Contacts.
The display shows Please wait momentarily before showing <Entry> removed from Call List, confirming the removal of the contact from the list.
The radio returns to the main display of Contacts.

Methods of Contact Editing in a Call List

Editing an Entry Alias
1
or to Cnts and press the Menu Select button
directly below Cnts. The entries are alphabetically sorted.
2
or to the entry you want to edit and press
the Menu Select button directly below Optn.
92 Send Feedback
English
3 or to Edit and press the Menu Select
button directly below Sel.
or to the entry alias you wish to change and
4
press the Menu Select button directly below Edit. A blinking cursor appears.
5 Use the keypad to edit the name and press the
Menu Select button directly below Ok once you have
finished. The display returns to the Edit Contact screen.
6 Press the Menu Select button directly below Done to
save your changes and return to the main screen of
Contacts.
Editing as Entry ID
1
or to Cnts and press the Menu Select button
directly below Cnts. The entries are alphabetically sorted.
2
3 or to Edit and press the Menu Select
4
5
6 Press the Menu Select button directly below Done to
or to the entry you want to edit and press
the Menu Select button directly below Optn.
button directly below Sel.
or to the entry ID you wish to change and
press the Menu Select button directly below Edit. A blinking cursor appears.
Use the keypad to edit the number and press the Menu Select button directly below Ok once you have finished.
The display returns to the Edit Contact screen.
save your changes and return to the main screen of
Contacts.
Editing a Call Type
1
or to Cnts and press the Menu Select button
directly below Cnts.
Send Feedback 93
English
The entries are alphabetically sorted.
or to the entry you want to edit and press
2
the Menu Select button directly below Optn.
3 or to Edit and press the Menu Select
button directly below Sel.
4 or to Type and press the Menu Select
button directly below Edit.
or to choose from the list of call types given
5
and press the Menu Select button directly below Ok. The display returns to the Edit Contact screen.
6 Press the Menu Select button directly below Done to
save your changes and return to the main screen of
Contacts.

Viewing Details of a Contact

1
or to Cnts and press the Menu Select button
directly below Cnts.
The entries are alphabetically sorted.
2
3 or to View and press the Menu Select
The display shows all the numbers associated with the entry.
or to the entry you want to view and press
the Menu Select button directly below Optn.
button directly below Sel.

Scan Lists

Scan lists are created and assigned to individual channels/ groups. Your radio scans for voice activity by cycling through the channel/group sequence specified in the scan list for the current channel/group.
Your radio supports different types of Scan Lists:
• Trunking Priority Monitor Scan List
• Conventional Scan List
• Talkgroup Scan List Please refer to a qualified radio technician for the maximum
number of Scan Lists can be programmed in your radio.
94 Send Feedback
English
These lists must be preprogrammed by a qualified radio technician.

Viewing a Scan List

1
or to ScnL and press the Menu Select button
directly below ScnL.
or to view the members on the list.
2
3
Press to exit the current display and return to the Home screen.

Editing the Scan List

This feature lets you change scan list members and priorities.
Perform one of the following actions:
1
• Long press the preprogrammed Scan List Programming button (side button).
• Move the preprogrammed Scan List Programming switch to programming position.
• or to ScnL then press the Menu Select button directly below ScnL.
The display shows the lists that can be changed.
2
3
4
or to the entry you want to edit.
Perform one of the following actions:
• Press the Menu Select button directly below Sel to add and/or change the priority of the currently displayed channel in the scan list.
• Press the Menu Select button directly below Del to delete the currently displayed channel from the scan list.
• Press the Menu Select button directly below Rcl to view the next member of the scan list.
Perform one of the following actions to select another channel that needs to be added or deleted then repeat step step 3. Otherwise, proceed to the next step.
• or to the desired channel.
• Use the keypad to enter the desired channel name.
Send Feedback 95
English
Perform one of the following actions:
5
• Move the Scan List Programming switch out of programming position.
• Press to exit scan list programming and return to the Home screen.
See Viewing and Changing the Priority Status on page 96 for more information on how to add and/or change the priority of the currently displayed channel in the scan list.

Changing the Scan List Status

Perform one of the following actions:
1
• Long press the preprogrammed Scan List Programming button (side button).
• Move the preprogrammed Scan List Programming switch to programming position.
The display shows the programming mode icon and the first list member.
or to the member you want to edit.
2
• Press the Select button once to add the currently displayed channel to the scan list.
• Press the Select button one or more times to change the scan list status icon of the currently displayed channel.
Perform one of the following actions:
4
• or to select more list members whose scan status you want to change.
• Use the keypad to go directly to that scan list member.
• Use the 16-Position Select knob to select another scan list member.
5
Press to exit scan list programming and return to the Home screen.

Viewing and Changing the Priority Status

Perform one of the following actions:
Perform one of the following actions:
3
96 Send Feedback
English
• Press the Menu Select button directly below Sel one or more times to change the priority status of the current displayed channel.
• Press the Select button one or more times to toggle between different status of the Scan List status icon of the current displayed channel.
The radio shows one of following priority status icons and scenarios:
• A Scan icon indicates that the current channel is in the scan list as a non-priority channel. The LED lights up solid green.
• A Priority-Two Channel Scan icon indicates that the current channel is in the scan list as the Priority-Two channel. The LED blinks green.
• A Priority-One Channel Scan icon indicates that the current channel is in the scan list as the Priority-One channel. The LED rapidly blinks green. You hear all traffic on the Priority- One channel, regardless of traffic on non-priority channels.
• No icon indicates that the current channel is deleted from the scan list.

Scan

This feature allows you to monitor traffic on different channels by scanning a preprogrammed list of channels.

Turning Scan On or Off

Perform one of the following actions:
• Press the preprogrammed Scan button to toggle Scan On or Scan Off to initiate or stop scan.
• or to Scan and press the Menu Select button directly below Scan.
If the scan is enabled, the display shows Scan on and the scan status icon.
If the scan is disabled, the display shows Scan Off.
The radio returns to the Home screen.

Making a Dynamic Priority Change (Conventional Scan Only)

While the radio is scanning, the dynamic priority change feature allows you to temporarily change any channel in a
Send Feedback 97
English
scan list (except for the Priority-One channel) to the Priority-Two channel.
This change remains in effect until scan is turned off. Scan then reverts to the preprogrammed (original) setting.
• Making a Dynamic Priority Change via the preprogrammed Dynamic Priority button:
a. When the radio locks onto the channel
designated as the new Priority-Two channel, press the preprogrammed Dynamic Priority button.
The radio continues scanning the remaining channels in the list.

Deleting a Nuisance Channel

If a channel continually generates unwanted calls or noise (termed a “nuisance” channel), you can temporarily remove the unwanted channel from the scan list.
This capability does not apply to priority channels or the designated transmit channel.
When the radio is locked onto the channel to be deleted, perform one of the following actions:
• Press the preprogrammed Nuisance Delete button.
• or to Nuis and press the Menu Select button directly below Nuis.
The radio continues scanning the remaining channels in the list.

Restoring a Nuisance Channel

To restore the deleted nuisance channel, perform one of the following actions:
• Stop and restart a scan.
• Mode change to another channel and back to the original channel.
• Turn off the radio and then turn it on again.
Nuisance mode delete can be disabled by the system administrator.

Call Alert Paging

This feature allows your radio to work like a pager.
98 Send Feedback
English
Even if other users are away from their radios, or if they are unable to hear their radios, you can send them an individual Call Alert page. You can also verify if a radio is active on the system.
Depending on how your radio is programmed, when you make an Enhanced Private Call, the radio either automatically sends a call alert page if there is no answer after the maximum ring time, or when you press the PTT button.
NOTE:
This feature must be preprogrammed by a qualified radio technician.

Receiving a Call Alert Page

When you receive a Call Alert page, you hear four repeating alert tones and the LED blinks green. The call received icons blinks and the display shows Page received.
Press any button to clear the Call Alert page.
See Making a Talkgroup Call on page 74 or Making a
Private Call (Trunking Only) on page 75 for more
information on returning the call.

Sending a Call Alert Page

The following methods are options on how to send a call alert page. The result of all the methods is the same. You can use the options interchangeably depending on your preference and the programmed functions.
NOTE:
If the feature inactivity timer is enabled, your radio automatically exits the feature when your radio is left idle long enough for the time to expire. You hear the Menu Inactive Exit Tone upon feature exit.
• Sending a call alert page via the preprogrammed
Quick Access (One-Touch) Call Alert Paging
button: a. Press the preprogrammed Quick Access (One-
Touch) Call Alert Paging button to send a page to the preprogrammed ID.
The display shows Paging...<Number>. If the call alert page is sent successfully, you hear
a tone and the display shows Ack received. The radio returns to the Home screen.
If the call alert page is not acknowledged, you hear a low tone and the display shows No acknowledge. Press the Menu Select button
Send Feedback 99
English
directly below Ok to return to the main screen for Contacts.
• Sending a call alert page via the radio menu Page: a. or to Page.
b. Press the Menu Select button directly below
Page.
c. Press the Menu Select button directly below
Cnts to view the required ID, or to the required ID, or use the keypad to enter the required ID.
d. Press the PTT button to send the page.
The display shows Paging...<Number>. If the call alert page is sent successfully, you hear
a tone and the display shows Ack received. The radio returns to the Home screen.
If the call alert page is not acknowledged, you hear a low tone and the display shows No acknowledge. Press the Menu Select button directly below Ok to return to the main screen of Contacts.
a. or to Call. b. Press the Menu Select button directly below
Call.
c. or to select the alias or ID, and press the
PTT button to initiate the call. If the target radio does not respond after a
preprogrammed period of time, the display shows Send page?.
d. To send the call alert page, press the Menu
Select button directly below Yes. To exit the screen without sending the call alert page, press the Menu Select button directly below No.
The display shows Paging...<Alias>. If the call alert page is sent successfully, you hear a tone and the display shows Ack received. The radio returns to the Home screen.
If the call alert page is not acknowledged, you hear a low tone and the display shows No acknowledge. Press the Menu Select button directly below Ok to return to the main screen of Contacts.
• Sending a call alert page via the radio menu Call:
100 Send Feedback
