Motion CL920 User Manual

CL920 Tablet PC

Model FWS-002

User’s Guide

This document contains information protected by copyright. No part of this document may be reproduced in any form without written consent from Motion.

The information in this document is provided “as is” and is subject to change without notice. Motion is not liable for errors or omissions in this document.

Motion, Motion Computing, View Anywhere, and SnapWorks are trademarks or registered trademarks of Motion Computing, Inc. in the U.S.A. and other countries.

Acrobat is a registered trademark of Adobe Systems Incorporated.

Bluetooth is a registered trademark owned by the Bluetooth SIG, Inc., U.S.A. and licensed to Motion Computing, Inc.

Intel, Core, and vPro are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Computrace is a registered trademark of Absolute Software Corp.

WinMagic and SecureDoc are trademarks or registered trademarks of WinMagic, Inc.

Realtek is a trademark of Realtek Semiconductor Corporation.

Microsoft, Windows, and Windows Journal are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Qualcomm, Gobi, and Gobi 5000 are trademarks or registered trademarks of Qualcomm Incorporated.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks of HDMI Licensing LLC in the United States and other countries.

AMI and AMI Aptio are trademarks of American Megatrends, Inc.

End users may not loan, rent, lease, lend, or otherwise transfer the CDs or DVDs provided for recovery purposes to another user, except as permitted in the End User License Agreement for such product.

This product incorporates copy protection technology that is protected by U.S. and foreign patents, including patent numbers 5,315,448 and 6,836,549, and other intellectual property rights. The use of Macrovision's copy protection technology in the product must be authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Motion Computing, Inc. has made every effort to identify trademarked properties and owners on this page. All brands and product names used in this document are for identification purposes only and may be trademarks or registered trademarks of their respective companies.

The warranties for Motion products are set forth in the express limited warranty statements accompanying such products. Nothing in this document constitutes an additional warranty.

The Motion Computing products and services may be covered by one or more patent-protected inventions. Additional patents may also be pending. For more information, see

www.motioncomputing.com/info/patents.asp.

The end user may access only one operating system language version.

L'utilisateur final ne peut accéder qu'à une seule version linguistique du système d'exploitation.

Der Endbenutzer darf nur auf eine Sprachversion des Betriebssystems zugreifen.

De eindgebruiker heeft slechts toegang tot één taalversie van het besturingssysteem.

L'utente finale può accedere a una sola lingua del sistema operativo.

El usuario final sólo podrá acceder a una versión de idioma del sistema operativo.

Loppukäyttäjä voi käyttää vain yhtä käyttöjärjestelmän kieliversiota.

Användaren har endast tillgång till en språkversion av operativsystemet.

Slutbrugeren har kun adgang til ét af operativsystemets sprogversioner.

Sluttbruker kan aksessere kun én av operativsystemets språkversjoner.

O utilizador final pode alcançar somente uma versão de língua do sistema de exploração.

O usuário final pode acessar apenas uma versão de idioma do sistema operacional.

Model FWS-002 PN 024-02-0507-A00

Chapter 1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Optional features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Integrated Qualcomm® Gobi™ technology 4G LTE mobile broadband

with GNSS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Integrated u-blox 7-based augmented GPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Motion® CL-Series SlateMate™ with Magnetic Stripe Reader

(MSR) and Barcode Scanner (BCS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Overview of the CL920. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Right side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Left side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Where to begin with your CL920 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Step 1: Power up the tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Step 2: Connect to a wireless network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Step 3: Get familiar with your CL920 Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Step 4: When you take a break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Optional setup tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Create a system image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Attach the pen tether. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Insert the digitizer pen battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connect the tablet to a docking station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connect the tablet to a display monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

For more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Chapter 2 Using your CL920. . . . . . . . . . . . . . . . . . . . . . . .19

Motion Computing applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

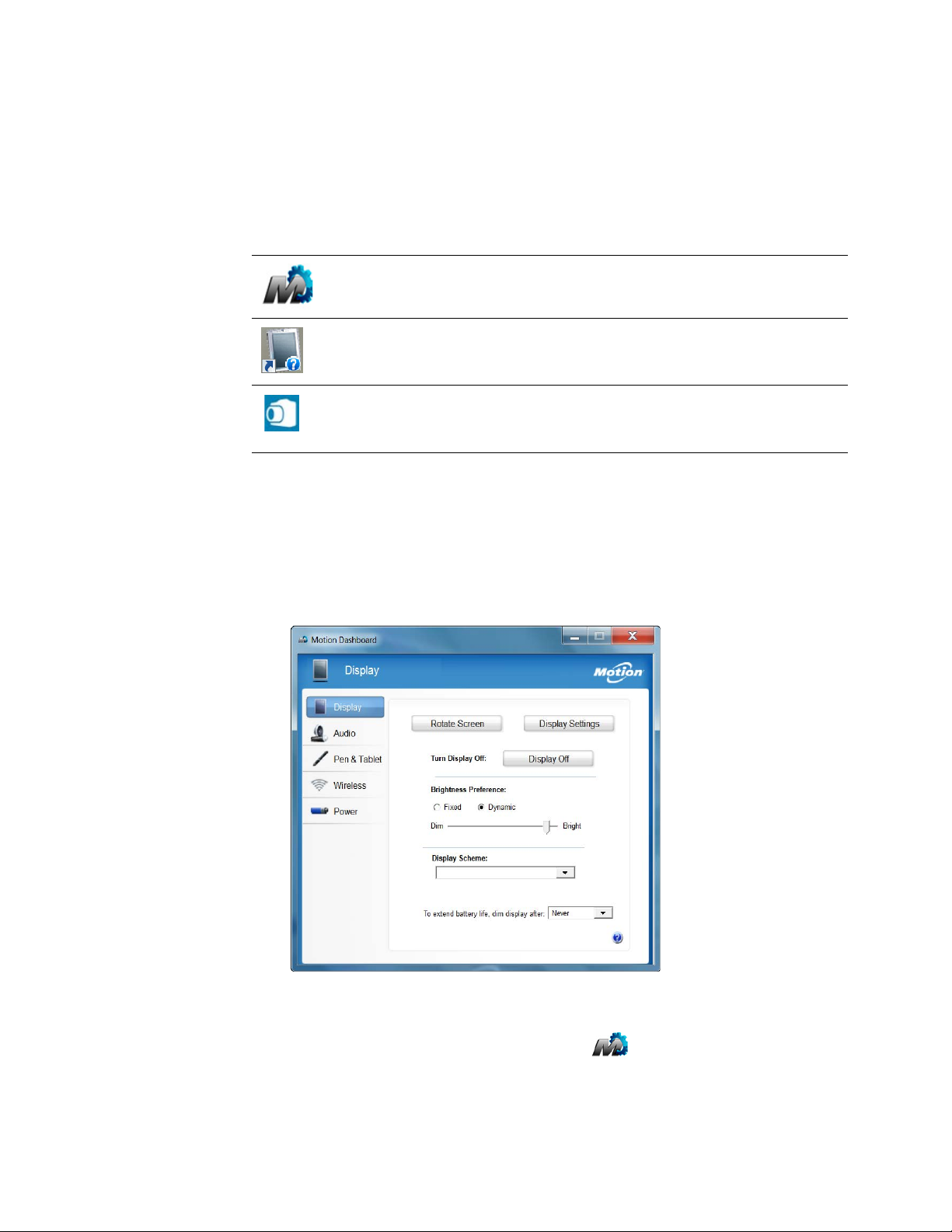

Using Motion Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Accessing Motion tools from the Windows notification area . . . . . . . . . . . . . . . . . . . . . 21

Using touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Changing to one-tap open for touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Configuring touch input mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the touch tuning option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Adjusting touch settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Adjusting pen settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adjusting Tablet PC settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Entering text and handwriting recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Opening and closing the input panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Docking or floating the input panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Entering numbers with numbers pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Contents iii

Entering special keys with the extended keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Using handwriting recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the built-in microphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Connect an external monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the web camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the documentation camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the Magnetic Stripe Reader (optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Using the barcode scanner (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Supported barcode types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Barcode scanner tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Checking tablet battery power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Battery and power management tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Changing the power plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Changing how the power button functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Using 4G LTE mobile broadband with GNSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Enabling 4G LTE Mobile Broadband with GNSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Using Integrated u-blox 7-based augmented GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Using Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Using WinMagic® SecureDoc™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Using the SIM card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Using the SD card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Locating your serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Backing up your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Restoring your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Creating a system image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Restoring your system image from Windows Control Panel . . . . . . . . . . . . . . . . . . . 47

Restoring your system image if you can’t start Windows 7 . . . . . . . . . . . . . . . . . . . . 47

Restoring your system without a system image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Finding other software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Chapter 3 Caring for your CL920. . . . . . . . . . . . . . . . . . . .48

General care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Caring for the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Caring for the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Caring for the tablet battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Traveling with your CL920 Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Chapter 4 Troubleshooting and FAQs. . . . . . . . . . . . . . .51

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Power issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Battery issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Display issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Touch or pen issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Ports and connectors issues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Network issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Audio issues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Contents iv

System issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Contents v

Getting Started

The Motion CL920 Tablet PC is a durable, lightweight, and enterprise-ready rugged tablet that provides robust computing power and a variety of integrated features to increase productivity and reduce downtime in your mobile workflow.

The CL920 Tablet PC includes these features:

• Intel® Bay Trail Pentium N3540 quad-core processor

• Windows® 7 Professional 64-bit

• MIL-STD-810G

• IP52 (Water-, dust- and splash-resistant)

• Corning® Gorilla® Glass 3 for increased display damage resistance

• Magnesium internal frame and SSD storage

• Intel HD Graphics

• New signature Motion dot-pattern design for a ruggedized, non-slip surface texture

• 4 GB DDR3L onboard memory

• USB 3.0 and Micro-HDMI ports and SD card slot

• Integrated 5.0 MP documentation camera and 1.3 MP web camera

• Dual input—digitizer pen and 10-point capacitive multi-touch

• 10.1” Wide HD (LED BL, 1366x768) Dual Bonded Display

• Screen Rotation: 0°, 90°, 180°, 270°

• Integrated 802.11a/g/n/ac Wi-Fi® and Bluetooth® 4.0

• Optional integrated Qualcomm® Gobi™ technology 4G LTE Mobile Broadband with

GNSS or optional integrated u-blox 7-based augmented GPS

• WinMagic® SecureDoc™ hard drive encryption software

• Trusted Platform Module (TPM) 1.2 for hardware-based security and optional Absolute

Computrace®, which allows you to identify your Tablet PC in the case of loss or theft.

Chapter 1 Getting Started 6

Optional features

This section describes the optional features available when you purchase your CL920.

Integrated Qualcomm® Gobi™ technology 4G LTE mobile

broadband with GNSS

You can purchase an CL920 Tablet PC with an optional integrated 4G LTE mobile broadband with Global Navigation Satellite System (GNSS) module that enables you to connect to a variety of mobile broadband networks for sending and receiving data wirelessly. You can typically use mobile broadband anywhere you can use your mobile phone. Mobile Broadband is based on cellular network technology, so you can use it in more places than other local area wireless technologies.

The GNSS receiver uses GPS satellites and GLONASS satellites to determine the current location, altitude, heading, and horizontal velocity of the CL920. You don’t need a network connection or an account with a mobile broadband network carrier to use the GNSS receiver. You can use it with your preferred mapping applications to find your current and desired locations.

OTE: The GNSS module is not available on systems equipped with optional integrated

augmented GPS

For information on setting up mobile broadband, see Using 4G LTE mobile broadband with

GNSS on page 41.

Integrated u-blox 7-based augmented GPS

You can purchase a CL920 Tablet PC with an optional embedded discrete Global Positioning System (GPS) module that supports the Wide Area Augmentation System (WAAS) for improved accuracy in the United States; European Geostationary Navigation Overlay Service (EGNOS) for improved accuracy in Europe; and Multi-functional Satellite Augmentation System (MSAS) for improved accuracy in Japan. The proper Augmentation system will be detected based on your location. No special selection is required. The augmentation feature uses signals from geostationary satellites to improve on the reliability and accuracy of the signals from the GPS satellites. You can use it with your preferred mapping applications to find your current and desired locations.

OTE: This option not available on systems equipped with optional integrated 4G LTE mobile

broadband with GNSS.

Chapter 1 Getting Started Optional features 7

Security

Your CL920 includes several features that you can use to enhance the security of your data and serve as the foundation for complementary security technologies. The core security features include password-protected BIOS, networking control, optional Computrace® Complete tracking software, WinMagic® SecureDoc™ hard drive encryption software, and TCG Trusted Platform Module (TPM) 1.2.

WinMagic® SecureDoc™

WinMagic SecureDoc is an application that you can use to encrypt your hard drive. This application is included with your CL920 Tablet PC and must be enabled to activate. For additional information, Using WinMagic® SecureDoc™ on page 43.

TPM

With the built-in TPM 1.2, you can create and manage digital certificates, user and device authentication, full disk data encryption, and restricted network access. These features are most commonly used by enterprises and enabled by the system administrator. To download and install TPM, go to http://www.motioncomputing.com/us/support/

downloads, select your Tablet PC model and operating system, and then tap Show Results.

Scroll down to the Trusted Platform Module (TPM) Software section and select the download link.

Absolute Computrace®

The CL920 Tablet PC can be purchased with the optional Absolute Computrace®, which offers enhanced data protection, improved IT asset management, and managed computer theft recovery. With Computrace, organizations can track, manage, and secure their entire computer fleet—including remote and mobile devices—on or off the network.

Chapter 1 Getting Started Optional features 8

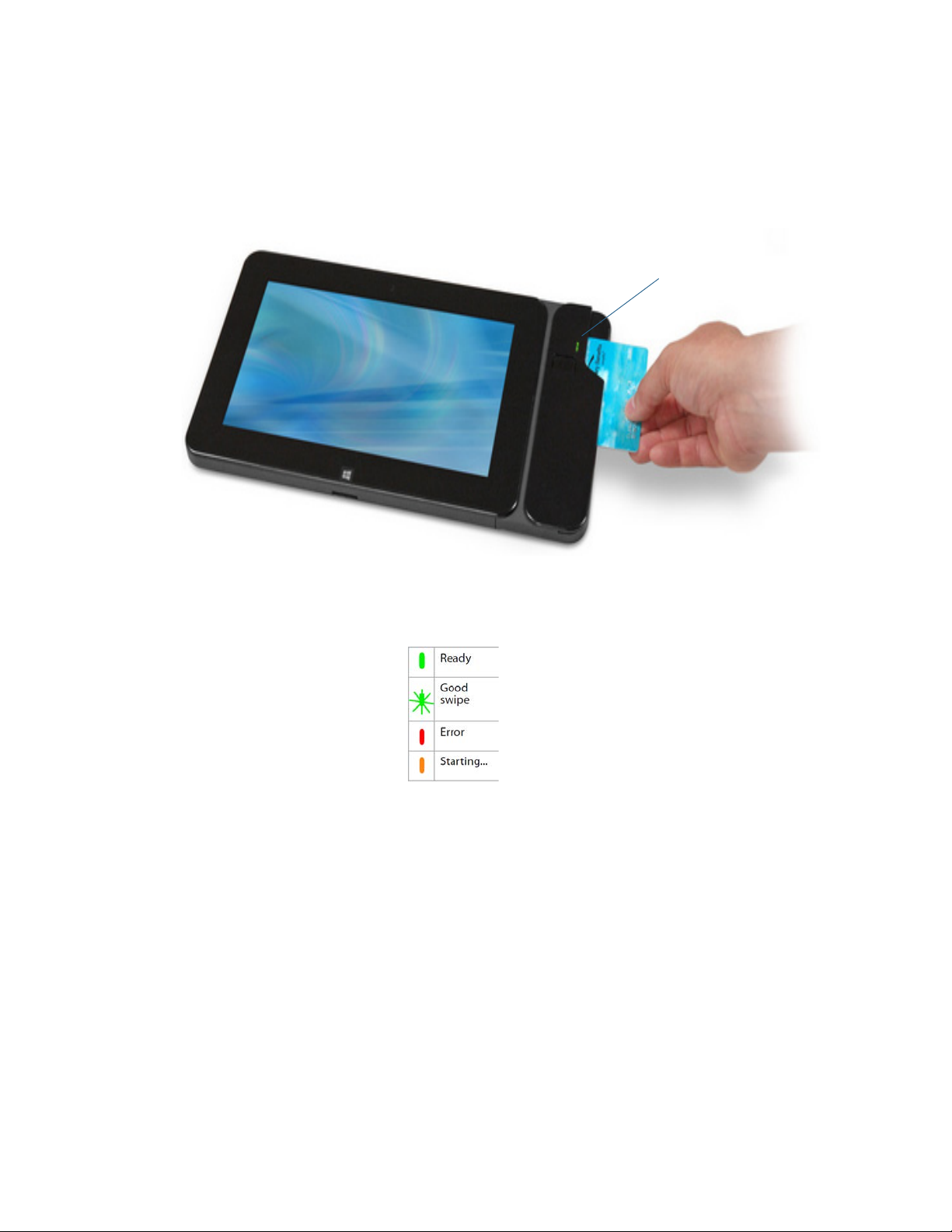

Motion® CL-Series SlateMate™ with Magnetic Stripe Reader

Magnetic Stripe Reader (MSR)

Barcode Scanner (BCS) Button

Status light

(MSR) and Barcode Scanner (BCS)

You can purchase an optional CL-Series SlateMate™ with Magnetic Stripe Reader (MSR) and Barcode Scanner (BCS). The CL-Series SlateMate™ is the first in a family of integrated expansion modules designed to provide additional functionality. You can view additional information about the CL-Series SlateMate here: http://www.motioncomputing.com/us/

products/rugged-tablets/cl920#accessories.

Chapter 1 Getting Started Optional features 9

Overview of the CL920

Microphones

Speaker

Web camera

Web camera light

Windows button

Touchscreen display

Battery charge indicator lights

Volume buttons

Ambient light sensor

The following photos illustrate the features available on the CL920 Tablet PC.

Front

Speaker Listen to audio warnings, music, and other multimedia applications.

Web camera Interact with people online, stream video, or capture color images with

a 1.3MP web camera.

Web camera light Indicates that the web or documentation camera is active.

Microphones Use voice commands, record audio, and dictate notes with the two

dual-array microphones with built-in noise cancellation.

Volume buttons Adjust the volume up or down.

Chapter 1 Getting Started Overview of the CL920 10

Battery charge

Documentation camera

Dock connector

indicator lights

Ambient light sensor Measures the light in your environment and can automatically adjust

Windows button Opens the Windows Start menu.

Touchscreen display Use your finger or pen to access all the functions of the CL920 on the

Monitor battery status. When running on battery, the LED lights on the front show the current level of battery charge when the battery gauge button on the left side of the tablet is pressed.

the brightness of the display.

10.1” HD display.

Back

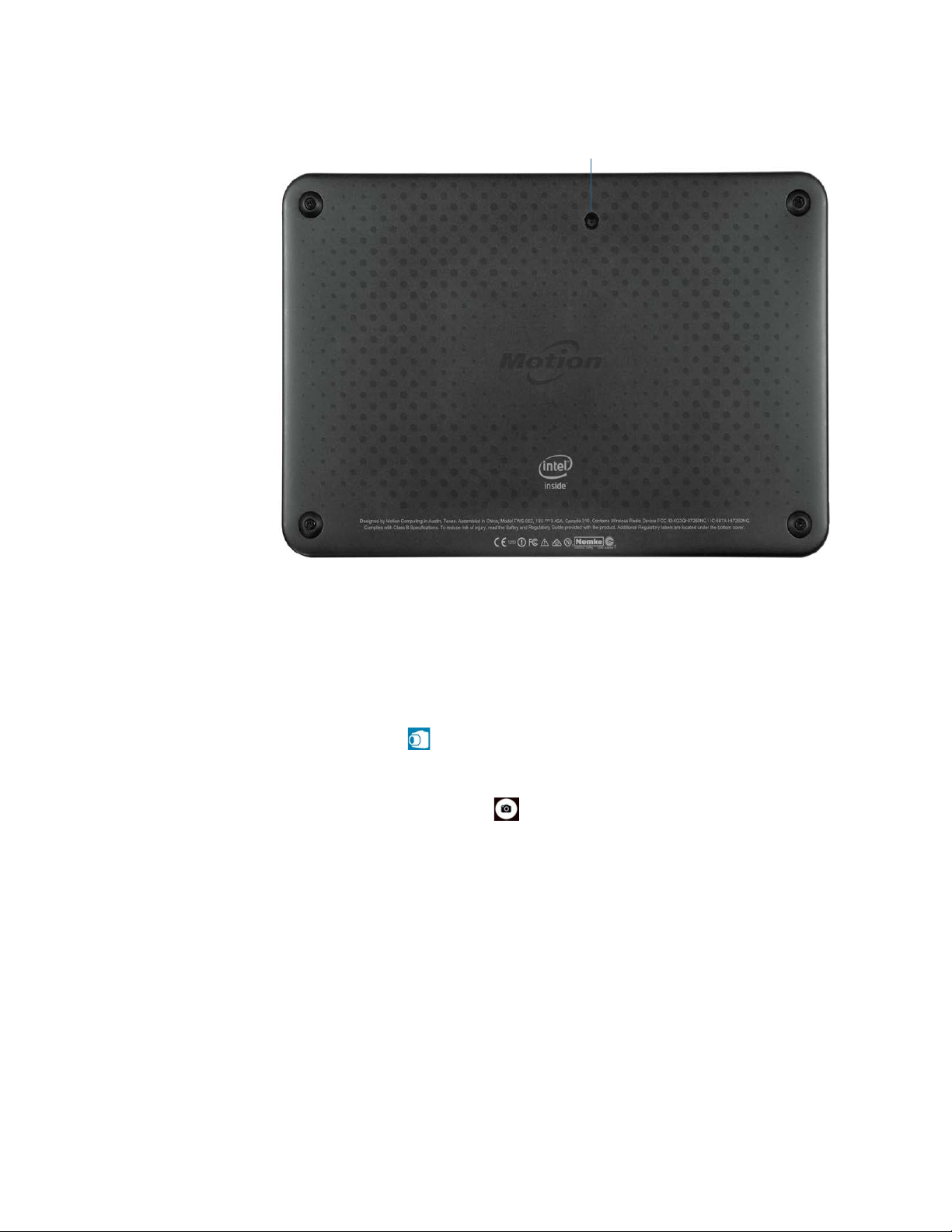

Documentation camera 5MP auto-focus camera that takes photos you can save

in a wide variety of graphic file formats. Note: image capture resolution is limited to 3MP.

Dock connector Connect the CL920 to a CL-Series docking station.

Chapter 1 Getting Started Overview of the CL920 11

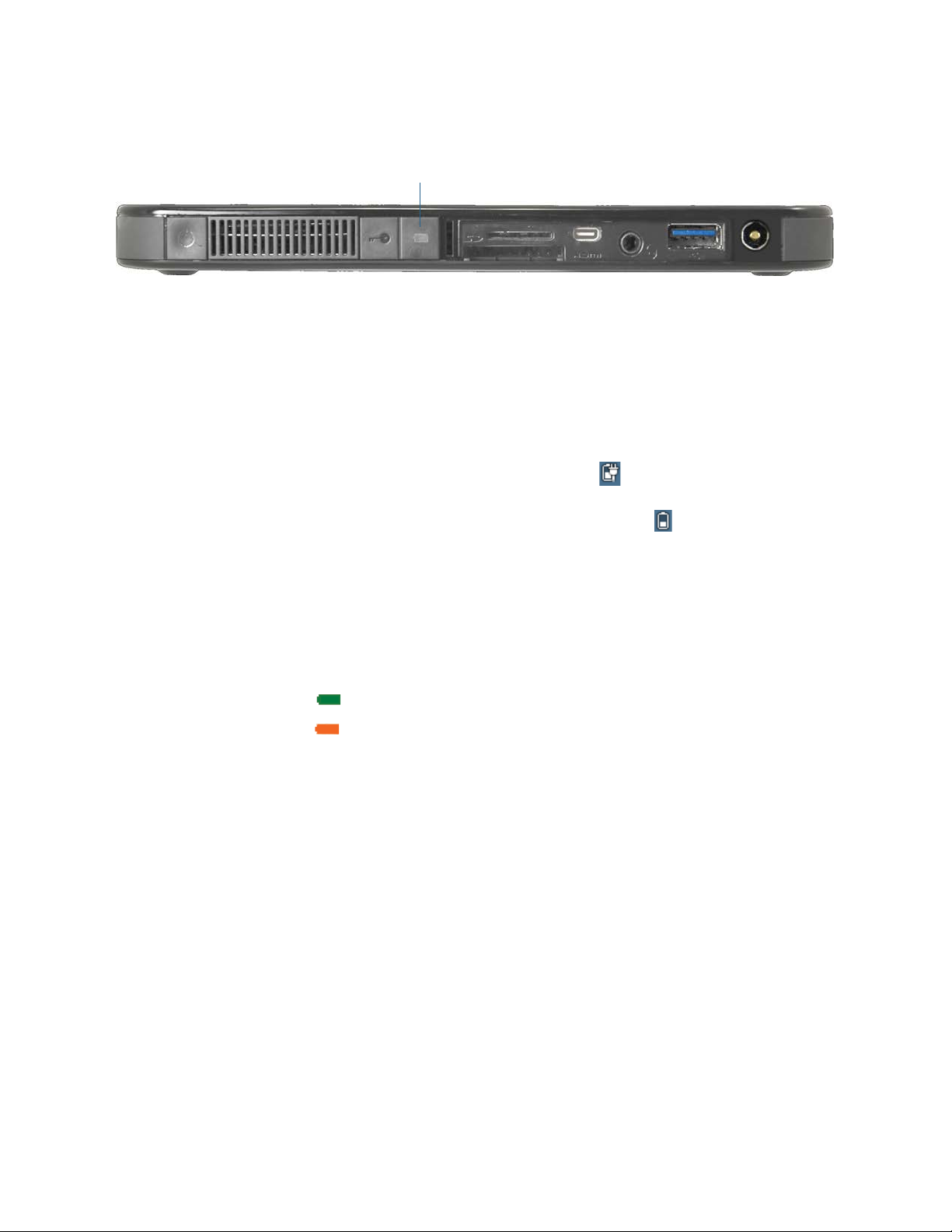

Right side

Pen tether attach point

Pen bay release button

Pen bay

Power button

Fan vent

Security button

Battery gauge button

SIM card slot

Micro-HDMI port

SD HC card slot

Audio in/out jack

USB 3.0

Power adapter port

port

Pen bay Store the pen when not in use.

Pen bay release

Press to open the pen bay.

button

Pen tether anchor Loop a pen tether through this attach point to keep your pen with

the tablet.

Left side

Power button Press to turn the tablet on and to put the CL920 Tablet PC to sleep.

Fan vent Provides ventilation for the internal cooling system.

Security button Press to lock and unlock the CL920. Equivalent to pressing Ctrl+Alt+Delete on a

keyboard.

Battery gauge button Check remaining battery power. Press the button to view battery gauge LED

lights on the front; the number of lights indicates the current level of battery charge. See Checking tablet battery power on page 38.

SIM card slot Holds one mini (2FF) SIM card, required for use with the mobile broadband

option, and provided by your cellular network carrier.

Micro-HDMI port Connect digital audio/video devices such as an external display monitor. The

Micro-HDMI (Type D) supports up to 1080p @ 60Hz.

Chapter 1 Getting Started Overview of the CL920 12

SDHC card slot Secure Digital (SD) memory card slot

Tip

Function button

Battery compartment

Audio in/out jack Supports external stereo speakers, a stereo headset, or a stereo headset with

microphone using a standard TRS or TRRS 3.5mm plug.

USB 3.0 port Connect a USB device such as a mouse, digital camera, printer, or external storage

device.

Power adapter port Connect the power adapter.

Pen

The CL920 Tablet PC supports 10-point capacitive multi-touch with your fingers as well as input with a CL-Series digitizer pen. You may find the pen handy when you want to write a quick email or take notes. The pen is particularly effective for precise data entry and navigation.

The CL-Series digitizer pen includes a pressure-sensitive tip and a function button. The pen comes with an AAAA battery and pen tether.

You can purchase additional pens from the Motion Computing Accessories page. For more information on using the pen, see Adjusting pen settings on page 25.

Chapter 1 Getting Started Overview of the CL920 13

Where to begin with your CL920

Power adapter port door

Power button

This section includes some steps you can follow to power up and get familiar with your CL920 Tablet PC.

Step 1: Power up the tablet

1. Plug the power cord into an outlet.

2. Pull out the port door located at the bottom of the left side of the CL920 to expose the power adapter port and plug the AC adapter into the power adapter port.

• The battery charging indicator on the left side of the CL920 turns amber to indicate

that the battery is charging.

• Keep the tablet on AC power until the battery is fully charged (the battery charging

indicator turns green). You don’t have to wait until the tablet is fully charged to turn it on.

3. Press and release the power button located on the top of the left side of the CL920.

4. Follow the on-screen instructions to set up your user account and activate Windows 7.

Step 2: Connect to a wireless network

The CL920 includes built-in Wi-Fi and Bluetooth. Your Tablet PC may also be equipped with mobile broadband. To set up available wireless networks, follow these steps:

Step 1. Enable Wireless from Motion Dashboard

1. From the taskbar, tap the Dashboard icon.

2. Tap Wireless.

3. Enable the desired available wireless networks:

• Bluetooth Internal Wireless

• 802.11 Internal Wireless

• Mobile Broadband with GPS

Chapter 1 Getting Started Where to begin with your CL920 14

OTE: If mobile broadband isn’t listed, your CL920 isn’t equipped with a mobile broadband

module.

Step 2. Set up Bluetooth

Your CL920 has a built-in Bluetooth adapter to connect to other Bluetooth-enabled devices.

To add a Bluetooth device:

1. From the Windows notification area, tap the Bluetooth icon and select Add a Device.

2. Make sure the Bluetooth device is discoverable according to the device manufacturer’s instructions. When a Bluetooth device is discoverable, it’s visible to other Bluetooth devices within range.

3. Select the desired Bluetooth device from the list of devices.

4. Follow the on-screen instructions.

Step 3. Set up Wi-Fi

1. From the Windows notification area, tap the wireless network icon .

2. Select a wireless network from the list of available networks.

Step 4. Set up Mobile Broadband with GPS (optional)

If you purchased your CL920 with the optional mobile broadband module, you can connect to high-speed cellular networks worldwide. With the mobile broadband module and a data plan from one of several cellular network providers, you have full Internet access.

OTE: Before you can connect to a mobile broadband network, you must have an active account

with a cellular network provider and obtain a SIM card for mobile broadband access.

To set up mobile broadband:

1. Start Skylight. From the Start menu, select All Programs > Sierra Wireless > Skylight > Skylight.

2. Tap the connect button to connect to your wireless networks.

OTE: If you purchased your CL920 with the optional mobile broadband with GPS module or the

optional discrete GPS module, your tablet has GPS capabilities. You can use GPS with your preferred mapping application to find your current and destination locations. Please see

Using 4G LTE mobile broadband with GNSS on page 41 for additional information.

Step 3: Get familiar with your CL920 Tablet PC

Once you’ve set up your CL920, take a few minutes to get familiar with your tablet PC.

• Use Motion Dashboard to customize your tablet to fit your work style. See Using Motion

Dashboard on page 20.

• Open the writing pad and provide handwriting samples to improve handwriting

recognition. See Entering text and handwriting recognition on page 26.

• Take photos or use the web camera. See Using the cameras on page 30.

Chapter 1 Getting Started Where to begin with your CL920 15

Step 4: When you take a break

When you leave your Tablet PC for a while, you can lock it to prevent unauthorized access by pressing the security button and then by tapping Lock this computer on the following screen. You can configure the Power button to shut down your Tablet PC or to put it in Sleep or Hibernate mode to save power when you press the Power button. For more information on power options, see Changing the power plan on page 40.

OTE: The power button blinks when the tablet is in Sleep mode.

Lock and unlock the Tablet PC

To lock the Tablet PC, either:

• Press the security button on the left side of the tablet.

• If a keyboard is attached, press Ctrl+Alt+Delete.

To unlock the tablet:

• Press the security button or Ctrl+Alt+Delete again.

Sleep mode

Place your tablet in Sleep mode when you go away for a short period of time. Push the power button to put your Tablet PC to sleep. Sleep mode conserves battery power while you’re away and when you return, your desktop is the same as you left it. To wake up the tablet from Sleep mode, press the power button again.

Optional setup tasks

This section provides information about some other tasks you may want to perform when you’re getting started with your CL920.

Create a system image

Once you’ve set up your CL920, including installing your applications, create a system image on an external USB drive. This is a safety measure if you encounter any issues with your Windows 7 installation. For more information, see Backing up your system on page 46.

A system image is an exact copy of a drive and includes Windows 7, your system settings, programs, and files. For more information, see Creating a system image on page 46.

Chapter 1 Getting Started Optional setup tasks 16

Attach the pen tether

The CL920 digitizer pen includes a tether so that you can attach the pen to your tablet to help prevent misplacing it.

To attach the pen tether:

1. Slip one end of the tether through the hole at the end of the pen, then pull the pen through the loop until it is tight.

2. Slip the other end of the tether through the attach point on the CL920, then pull the pen through the loop until it is tight.

You can purchase additional pen tethers from the Motion Computing Accessories page.

Insert the digitizer pen battery

The digitizer pen is included with your CL920 and comes in a separate package along with an AAAA battery and pen tether.

To insert the pen battery:

1. Unscrew the pen cap located at the top of the digitizer pen.

2. With the plus side of the battery toward the pen tip, insert the battery in the cavity of the digitizer pen.

3. Screw the digitizer pen cap in place.

Connect the tablet to a docking station

The CL-Series docking station for the CL920 is a separate accessory that you can purchase from the Motion Computing Accessories page.

The docking station includes:

• Three USB ports to connect a keyboard, mouse, or other USB devices

• An Ethernet port to connect to a local network

• A pen holder with a pen tether attach point

Connect the tablet to a display monitor

You can connect an external monitor to the CL920 Tablet PC using the Micro-HDMI port (located on the left side of the tablet) with an appropriate connector, such as a DVI-HDMI adapter.

Chapter 1 Getting Started Optional setup tasks 17

For more information

This User’s Guide describes the full set of CL920 features and provides instructions for common tasks you’ll perform. The other chapters in this User’s Guide include the following information:

• Using your CL920—Provides instructions for basic CL920 tasks including how to

customize your tablet to fit the way you work using Motion Dashboard, how to use the cameras, how to set up speech recognition, and more.

• Caring for your CL920—Provides suggestions for the care and maintenance of your

Tab let PC.

• Troubleshooting and FAQs—Provides answers for common issues you may encounter

as you begin to use your CL920.

The Getting Started document located on the CL920’s desktop provides a number of tips to help you start using the tablet quickly.

OTE: If you don’t have access to a particular feature or setting on your Tablet PC, contact your

system administrator for additional information.

You’ll find other useful information on our website:

• Motion Computing Support

• Free online training videos

• Knowledge Base

• Motion Computing Accessories

• Motion Computing Store

OTE: This User’s Guide is available in French, German, Spanish and Portuguese on our website.

Chapter 1 Getting Started For more information 18

Chapter 1 Getting Started For more information 19

Using your CL920

This chapter provides information about performing the following tasks:

• Using Motion Dashboard on page 20

• Using touch on page 22

• Entering text and handwriting recognition on page 26

• Using the built-in microphones on page 29

• Connect an external monitor on page 30

• Using the cameras on page 30

• Using the Magnetic Stripe Reader (optional) on page 36

• Using the barcode scanner (optional) on page 36

• Using the battery on page 38

• Using 4G LTE mobile broadband with GNSS on page 41

• Using Integrated u-blox 7-based augmented GPS on page 42

• Using Bluetooth on page 42

• Using WinMagic® SecureDoc™ on page 43

• Using the SIM card reader on page 44

• Using the SD card reader on page 45

• Locating your serial number on page 45

• Backing up your system on page 46

• Restoring your system on page 46

• Finding other software on page 48

Chapter 2 Using your CL920 19

+ 46 hidden pages
