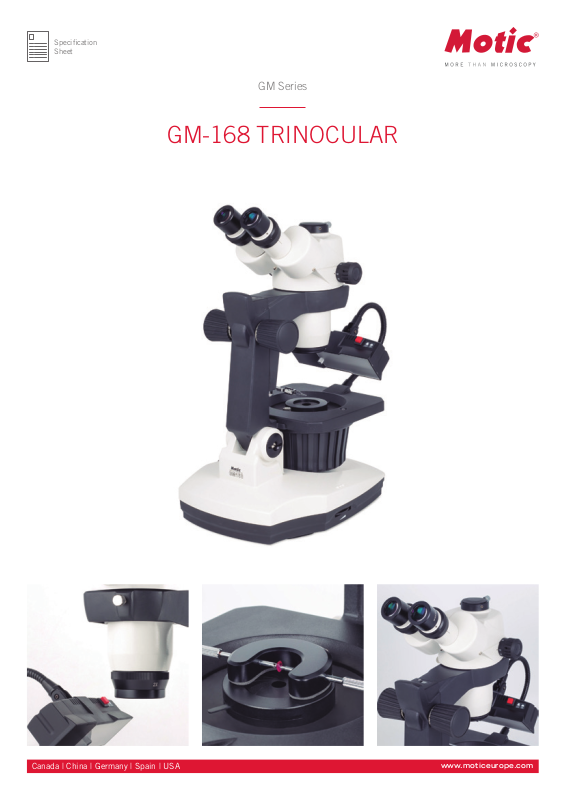

Specification
Sheet
GM Series
GM-168 TRINOCULAR
Canada | China | Germany | Spain | USA
www.moticeurope.com
GM Series
GM-168 TRINOCULAR
Optical system
Observation tube
Inclination
Trinocular light split
Interpupillary distance
Diopter adjustment
Eyepieces
Objectives system
Objectives
Working distance
Stand type
Diaphragm
Head holder
Focus mechanism
Focusing stroke
Incident illumination
Transmitted illumination
Illumination features
Transformer
Power supply
Accessories included
Dimensions LxWxH
Base
Column/Arm
Net weight
Greenough
Trinocular head
35º inclined
100:0/0:100 on right tube
52-75mm
On both tubes, +/- 5 diopter
Widefield WF10X/23mm
Zoom, ratio 6.7:1
0.75X~5X
113mm
360º rotary base
Iris diaphragm, adjustable aperture Ø41mm - Ø2mm
For Ø76mm head
Coarse focusing system with tension adjustment
125mm
Fluorescent 7W with Gooseneck adjustable
Quartz Halogen 6V/30W with intensity control
Darkfield illuminator
Internal
100-24 0V (CE)
Dust cover, stainless steel wire stone holder, aluminium carrying case
391x23 6x50 0mm
306x236mm
Height 268mm, 45º tilting arm
9kg
