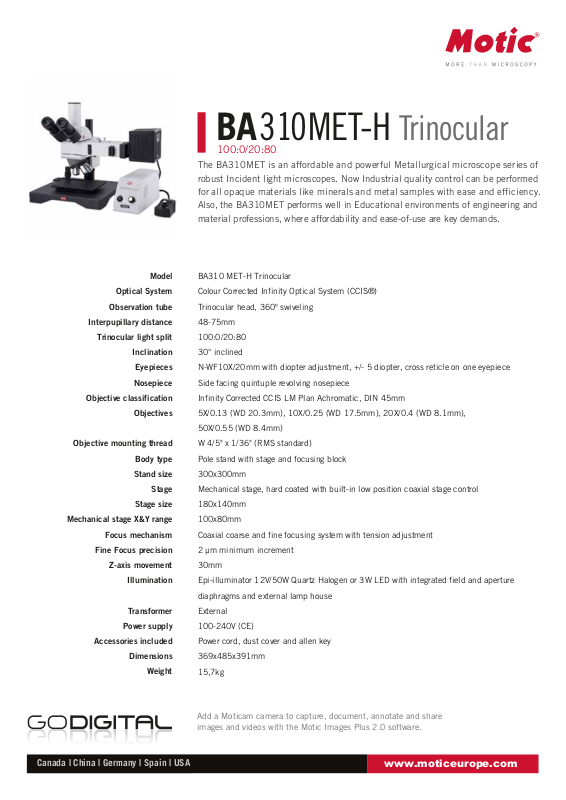

BA310MET-H Trinocular
100:0/20:80
The BA310MET is an affordable and powerful Metallurgical microscope series of
robust Incident light microscopes. Now Industrial quality control can be performed
for all opaque materials like minerals and metal samples with ease and efficiency.
Also, the BA310MET performs well in Educational environments of engineering and
material professions, where affordability and ease-of-use are key demands.
Model
Optical System
Observation tube
Interpupillary distance
Trinocular light split
Inclination
Eyepieces
Nosepiece
Objective classification
Objectives
Objective mounting thread
Body type
Stand size
Stage
Stage size
Mechanical stage X&Y range
Focus mechanism
Fine Focus precision
Z-axis movement
Illumination
Transformer
Power supply
Accessories included
Dimensions
Weight
BA310 MET-H Trinocular
Colour Corrected Infinity Optical System (CCIS®)
Trinocular head, 360º swiveling
48-75mm
100:0/20:80
30° inclined
N-WF10X/20mm with diopter adjustment, +/- 5 diopter, cross reticle on one eyepiece
Side facing quintuple revolving nosepiece
Infinity Corrected CCIS LM Plan Achromatic, DIN 45mm
5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.4 (WD 8.1mm),
50X/0.55 (WD 8.4mm)
W 4/5" x 1/36" (RMS standard)
Pole stand with stage and focusing block
300x300mm
Mechanical stage, hard coated with built-in low position coaxial stage control
180x140mm
100x80mm
Coaxial coarse and fine focusing system with tension adjustment
2 µm minimum increment
30mm
Epi-illuminator 12V/50W Quartz Halogen or 3W LED with integrated field and aperture
diaphragms and external lamp house
External
100-240V (CE)
Power cord, dust cover and allen key
369x485x391mm
15,7kg
Canada | China | Germany | Spain | USA
Add a Moticam camera to capture, document, annotate and share
images and videos with the Motic Images Plus 2.0 software.
