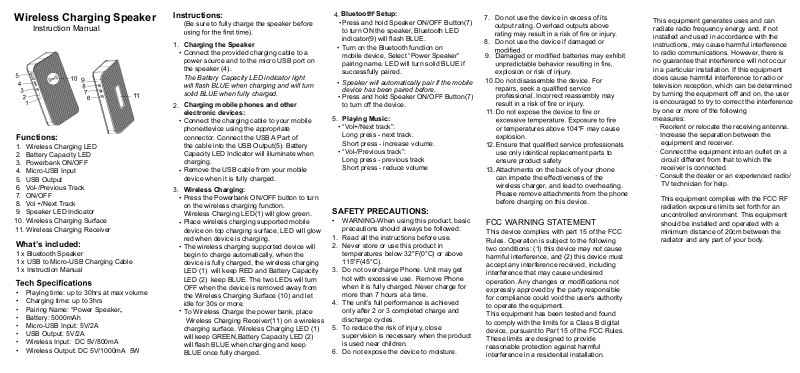

Mossloo XJ0825 User Manual

Wireless Charging Speaker

Instruction Manual

11

Functions:

1.

Wireless Charging LED

2.

Battery Capacity LED

3.

Powerbank ON/OFF

4.

Micro-USB Input

5.

USB Output

6.

Vol-/Previous Track

7.

ON/OFF

8.

Vol +/Next Track

9.

Speaker LED Indicator

10.

Wireless Charging Surface

11. Wireless Charging Receiver

What’s included:

1 x Bluetooth Speaker
1 x USB to Micro-USB Charging Cable
1 x Instruction Manual

•

Playing time: up to 30hrs at max volume

•

Charging time: up to 3hrs

•

Pairing Name: “Power Speaker

•

Battery: 5000mAh

•

Micro-USB Input: 5V/2A

•

USB Output: 5V/2A

•

Wireless Input: DC 5V/800mA

•

Wireless Output: DC 5V/1000mA 5W

”

Instructions:

(Be sure to fully charge the speaker before

Charging the Speaker

1.
Connect the provided charging cable to a

•
power source and to the micro USB port on
the speaker (4).

The Battery Capacity LED indicator light

solid BLUE when fully charged.

Charging mobile phones and other

2.

electronic devices:

Connect the charging cable to your mobile

•
phone/device using the appropriate
connector. Connect the USB A Part of
the cable into the USB Output(5). Battery
Capacity LED Indicator will illuminate when
charging.
Remove the USB cable from your mobile

•
device when it is fully charged.

Wireless Charging:

3.

•

Press the Powerbank ON/OFF button to turn
on the wireless charging function.
Wireless Charging LED(1) will glow green.
Place wireless charging supported mobile

•
device on top charging surface, LED will glow
red when device is charging.
The wireless charging supported device will

•
begin to charge automatically, when the
device is fully charged, the wireless charging
LED (1) will keep RED and Battery Capacity
LED (2) keep BLUE. The two LEDs will turn
OFF when the device is removed away from
the Wireless Charging Surface (10) and let
idle for 30s or more.

•

To Wireless Charge the power bank, place
Wireless Charging Receiver(11) on a wireless
charging surface, Wireless Charging LED (1)
will keep GREEN,Battery Capacity LED (2)
will flash BLUE when charging and keep
BLUE once fully charged.

®

Setup:

Bluetooth

4.
Press and hold Speaker ON/OFF Button(7)

•
to turn ON the speaker, Bluetooth LED
indicator(9) will flash BLUE.
Turn on the Bluetooth function on

•
mobile device, Select “Power Speaker”
pairing name. LED will turn solid BLUE if
successfully paired.

Speaker will automatically pair if the mobile

•

device has been paired before.

Press and hold Speaker ON/OFF Button(7)

•
to turn off the device.

Playing Music:

5.
“Vol+/Next track”:

•
Long press - next track.
Short press - increase volume.
“Vol-/Previous track”:

•
Long press - previous track
Short press - reduce volume

SAFETY PRECAUTIONS:

WARNING-When using this product, basic

•
precautions should always be followed:
Read all the instructions before use.

1.
Never store or use this product in

2.
temperatures below 32°F(0°C) or above
115°F(45°C).
Do not overcharge Phone. Unit may get

3.
hot with excessive use. Remove Phone
when it is fully charged. Never charge for
more than 7 hours at a time.
The unit’s full performance is achieved

4.
only after 2 or 3 completed charge and
discharge cycles.
To reduce the risk of injury, close

5.
supervision is necessary when the product
is used near children.
Do not expose the device to moisture.

6.

Do not use the device in excess of its

7.
output rating. Overload outputs above

8.

Do not use the device if damaged or

9.

explosion or risk of injury.

10.

Do not disassemble the device. For

professional. Incorrect reassembly may

11.

or temperatures above 104°F may cause
explosion.

12.
use only identical replacement parts to
ensure product safety
Attachments on the back of your phone

13.
can impede the effectiveness of the
wireless charger, and lead to overheating.
Please remove attachments from the phone
before charging on this device.

FCC WARNING STATEMENT

This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation. Any changes or modifications not
expressly approved by the party responsible
for compliance could void the user's authority
to operate the equipment.
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.

This equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following
measures:

‐Reorient or relocate the receiving antenna.
‐Increase the separation between the

equipment and receiver.
‐Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
‐Consult the dealer or an experienced radio/
TV technician for help.

This equipment complies with the FCC RF
radiation exposure limits set forth for an
uncontrolled environment. This equipment
should be installed and operated with a
minimum distance of 20cm between the
radiator and any part of your body.
