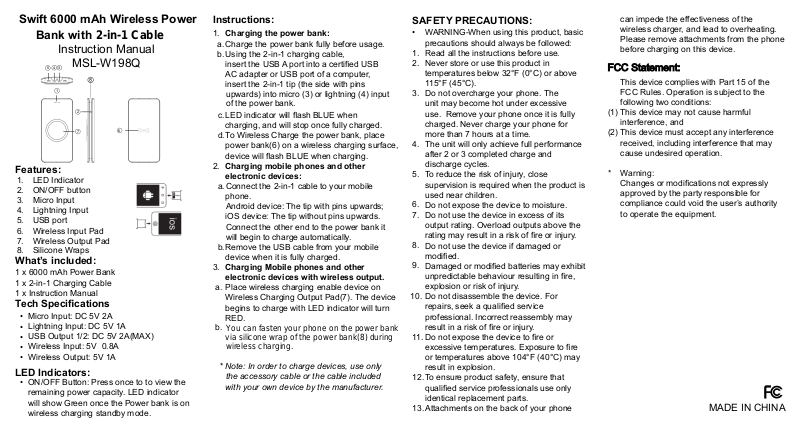

Mossloo MSL-W198Q User Manual
Swift 6000 mAh Wireless Power
Bank with 2-in-1 Cable
Instruction Manual
MSL-W198Q
34
5
1
2
6
7
Features:
1.
LED Indicator
2.
ON/OFF button
3.
Micro Input
4.
Lightning Input
5.
USB port
6.
Wireless Input Pad
7.
Wireless Output Pad
8.
Silicone Wraps
What’s included:
1 x 6000 mAh Power Bank
1 x 2-in-1 Charging Cable
1 x Instruction Manual
Tech Specications
Micro Input: DC 5V 2A
•
Lightning Input: DC 5V 1A
•
USB Output 1/2: DC 5V 2A(MAX)
•
Wireless Input: 5V 0.8A
•
Wireless Output: 5V 1A
•
LED Indicators:
ON/OFF Button: Press once to to view the
•
remaining power capacity. LED indicator
will show Green once the Power bank is on
wireless charging standby mode.
Instructions:
1.
Charging the power bank:
a.
Charge the power bank fully before usage.
b.
Using the 2-in-1 charging cable,
insert the USB A port into a certied USB
AC adapter or USB port of a computer,
insert the 2-in-1 tip (the side with pins
upwards) into micro (3) or lightning (4) input
of the power bank.
c.
LED indicator will ash BLUE when
charging, and will stop once fully charged.
d.
To Wireless Charge the power bank, place
power bank(6) on a wireless charging surface,
device will ash BLUE when charging.
Charging mobile phones and other
2.
electronic devices:
a.
Connect the 2-in-1 cable to your mobile
phone.
Android device: The tip with pins upwards;
iOS device: The tip without pins upwards.
Connect the other end to the power bank it
will begin to charge automatically.
b.
Remove the USB cable from your mobile
device when it is fully charged.
3.
Charging Mobile phones and other
electronic devices with wireless output.
a.
Place wireless charging enable device on
Wireless Charging Output Pad(7). The device
begins to charge with LED indicator will turn
RED.
b.
You can fasten your phone on the power bank
via silicone wrap of the power bank(8) during
wireless charging.
Note: In order to charge devices, use only
*
the accessory cable or the cable included
with your own device by the manufacturer.
SAFETY PRECAUTIONS:
WARNING-When using this product, basic
•
precautions should always be followed:
Read all the instructions before use.
1.
Never store or use this product in
2.
temperatures below 32°F (0°C) or above
115°F (45°C).
Do not overcharge your phone. The
3.
unit may become hot under excessive
use. Remove your phone once it is fully
charged. Never charge your phone for
more than 7 hours at a time.
4.
The unit will only achieve full performance
after 2 or 3 completed charge and
discharge cycles.
5.
To reduce the risk of injury, close
supervision is required when the product is
used near children.
6.
Do not expose the device to moisture.
7.
Do not use the device in excess of its
output rating. Overload outputs above the
rating may result in a risk of re or injury.
8.
Do not use the device if damaged or
modied.
9.
Damaged or modied batteries may exhibit
unpredictable behaviour resulting in re,
explosion or risk of injury.
10.
Do not disassemble the device. For
repairs, seek a qualied service
professional. Incorrect reassembly may
result in a risk of re or injury.
11.
Do not expose the device to re or
excessive temperatures. Exposure to re
or temperatures above 104°F (40°C) may
result in explosion.
To ensure product safety, ensure that
12.
qualied service professionals use only
identical replacement parts.
Attachments on the back of your phone
13.
can impede the effectiveness of the
wireless charger, and lead to overheating.
Please remove attachments from the phone
before charging on this device.
FCC Statement:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
This device may not cause harmful
(1)
interference, and
This device must accept any interference
(2)
received, including interference that may
cause undesired operation.
Warning:
*
Changes or modications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
MADE IN CHINA
