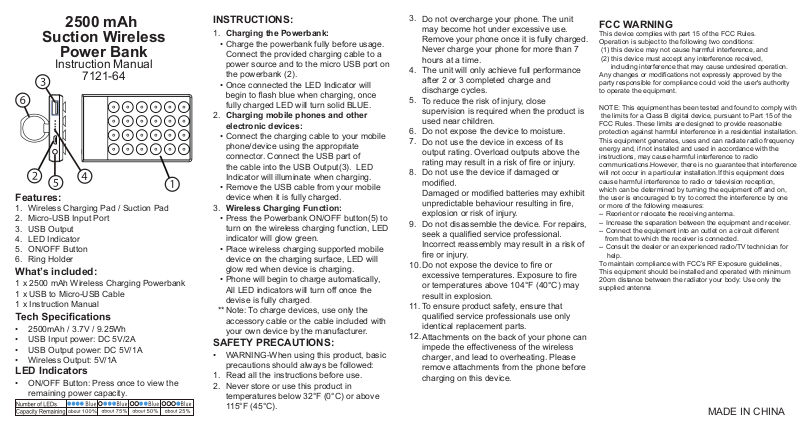

Mossloo MSL W186 User Manual

2500 mAh

Suction Wireless

Power Bank

Instruction Manual

7121-64

Features:

1.

Wireless Charging Pad / Suction Pad

2.

Micro-USB Input Port

3.

USB Output

4.

LED Indicator

5.

ON/OFF Button

6.

Ring Holder

What’s included:

1 x 2500 mAh Wireless Charging Powerbank
1 x USB to Micro-USB Cable
1 x Instruction Manual

2500mAh / 3.7V / 9.25Wh

•
USB Input power: DC 5V/2A

•
USB Output power: DC 5V/1A

•
Wireless Output: 5V/1A

•

LED Indicators

ON/OFF Button: Press once to view the

•
remaining power capacity.

INSTRUCTIONS:

1.

Charging the Powerbank:

•

Charge the powerbank fully before usage.
Connect the provided charging cable to a
power source and to the micro USB port on
the powerbank (2).

•

Once connected the LED Indicator will

fully charged LED will turn solid BLUE.

2.

Charging mobile phones and other
electronic devices:

•

Connect the charging cable to your mobile
phone/device using the appropriate
connector. Connect the USB part of
the cable into the USB Output(3). LED
Indicator will illuminate when charging.

•

Remove the USB cable from your mobile
device when it is fully charged.

3.

Wireless Charging Function:

•

Press the Powerbank ON/OFF button(5) to
turn on the wireless charging function, LED
indicator will glow green.

•

Place wireless charging supported mobile
device on the charging surface, LED will
glow red when device is charging.

•

Phone will begin to charge automatically,
All LED indicators will turn off once the
devise is fully charged.

**

Note: To charge devices, use only the
accessory cable or the cable included with
your own device by the manufacturer.

SAFETY PRECAUTIONS:

WARNING-When using this product, basic

•
precautions should always be followed:
Read all the instructions before use.

1.
Never store or use this product in

2.
temperatures below 32°F (0°C) or above
115°F (45°C).

3.

Do not overcharge your phone. The unit
may become hot under excessive use.
Remove your phone once it is fully charged.
Never charge your phone for more than 7
hours at a time.

4.

The unit will only achieve full performance
after 2 or 3 completed charge and
discharge cycles.

5.

To reduce the risk of injury, close
supervision is required when the product is
used near children.

6.

Do not expose the device to moisture.

7.

Do not use the device in excess of its
output rating. Overload outputs above the

8.

Do not use the device if damaged or

explosion or risk of injury.

9.

Do not disassemble the device. For repairs,

Incorrect reassembly may result in a risk of

10.

or temperatures above 104°F (40°C) may
result in explosion.

11.

To ensure product safety, ensure that

identical replacement parts.

12.

Attachments on the back of your phone can

charger, and lead to overheating. Please
remove attachments from the phone before
charging on this device.

FCC WARNING

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.

NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.However, there is no guarantee that interference
will not occur in a particular installation.If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for
help.
To maintain compliance with FCC’s RF Exposure guidelines,
This equipment should be installed and operated with minimum
20cm distance between the radiator your body: Use only the
supplied antenna

MADE IN CHINA
