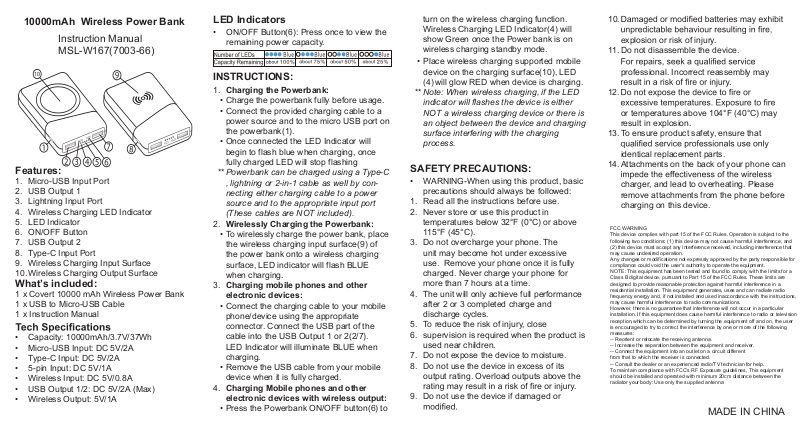

Mossloo MSL W167 User Manual

10000mAh Wireless Power Bank

Instruction Manual
MSL-W167(7003-66)

Features:

1.

Micro-USB Input Port

2.

USB Output 1

3.

Lightning Input Port

4.

Wireless Charging LED Indicator

5.

LED Indicator

6.

ON/OFF Button

7.

USB Output 2

8.

Type-C Input Port

9.

Wireless Charging Input Surface

10.

Wireless Charging Output Surface

What’s included:

1 x Covert 10000 mAh Wireless Power Bank
1 x USB to Micro-USB Cable
1 x Instruction Manual

Capacity: 10000mAh/3.7V/37Wh

•
Micro-USB Input: DC 5V/2A

•
Type-C Input: DC 5V/2A

•
5-pin Input: DC 5V/1A

•
Wireless Input: DC 5V/0.8A

•
USB Output 1/2: DC 5V/2A (Max)

•
Wireless Output: 5V/1A

•

LED Indicators

ON/OFF Button(6): Press once to view the

•
remaining power capacity.

INSTRUCTIONS:

1.

Charging the Powerbank:

•

Charge the powerbank fully before usage.

•

Connect the provided charging cable to a
power source and to the micro USB port on
the powerbank(1).

•

Once connected the LED Indicator will
begin to flash blue when charging, once
fully charged LED will stop flashing

**

Powerbank can be charged using a Type-C
, lightning or 2-in-1 cable as well by con­necting either charging cable to a power
source and to the appropriate input port
(These cables are NOT included).

2.

Wirelessly Charging the Powerbank:

•

To wirelessly charge the power bank, place
the wireless charging input surface(9) of
the power bank onto a wireless charging
surface, LED indicator will flash BLUE
when charging.

3.

Charging mobile phones and other
electronic devices:

•

Connect the charging cable to your mobile
phone/device using the appropriate
connector. Connect the USB part of the
cable into the USB Output 1 or 2(2/7).
LED Indicator will illuminate BLUE when
charging.

•

Remove the USB cable from your mobile
device when it is fully charged.

4.

Charging Mobile phones and other
electronic devices with wireless output:

•

Press the Powerbank ON/OFF button(6) to

turn on the wireless charging function.
Wireless Charging LED Indicator(4) will
show Green once the Power bank is on
wireless charging standby mode.

Place wireless charging supported mobile

•
device on the charging surface(10), LED
(4) will glow RED when device is charging.

Note: When wireless charging, if the LED

**

indicator will flashes the device is either
NOT a wireless charging device or there is
an object between the device and charging
surface interfering with the charging
process.

SAFETY PRECAUTIONS:

WARNING-When using this product, basic

•
precautions should always be followed:
Read all the instructions before use.

1.
Never store or use this product in

2.
temperatures below 32°F (0°C) or above
115°F (45°C).
Do not overcharge your phone. The

3.
unit may become hot under excessive
use. Remove your phone once it is fully
charged. Never charge your phone for
more than 7 hours at a time.
The unit will only achieve full performance

4.
after 2 or 3 completed charge and
discharge cycles.
To reduce the risk of injury, close

5.
supervision is required when the product is

6.
used near children.
Do not expose the device to moisture.

7.
Do not use the device in excess of its

8.
output rating. Overload outputs above the

Do not use the device if damaged or

9.

10.

explosion or risk of injury.
Do not disassemble the device.

11.

professional. Incorrect reassembly may

12.

or temperatures above 104°F (40°C) may
result in explosion.
To ensure product safety, ensure that

13.

identical replacement parts.
Attachments on the back of your phone can

14.

charger, and lead to overheating. Please
remove attachments from the phone before
charging on this device.

FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used inaccordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment
should be installed and operated with minimum 20cm distance between the
radiator your body: Use only the supplied antenna

MADE IN CHINA
