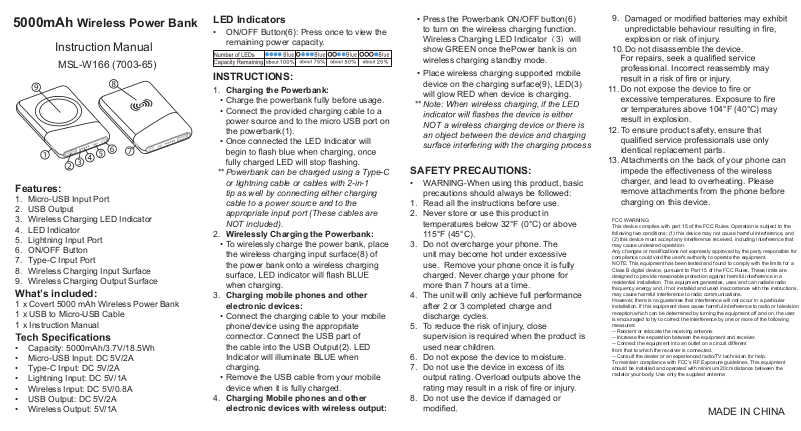

Mossloo MSL W166 User Manual

5000mAh Wireless Power Bank

Instruction Manual

MSL-W166 (7003-65)

Features:

1.

Micro-USB Input Port

2.

USB Output

3.

Wireless Charging LED Indicator

4.

LED Indicator

5.

Lightning Input Port

6.

ON/OFF Button

7.

Type-C Input Port

8.

Wireless Charging Input Surface

9.

Wireless Charging Output Surface

What’s included:

1 x Covert 5000 mAh Wireless Power Bank
1 x USB to Micro-USB Cable
1 x Instruction Manual

Capacity: 5000mAh/3.7V/18.5Wh

•
Micro-USB Input: DC 5V/2A

•
Type-C Input: DC 5V/2A

•
Lightning Input: DC 5V/1A

•
Wireless Input: DC 5V/0.8A

•
USB Output: DC 5V/2A

•
Wireless Output: 5V/1A

•

LED Indicators

ON/OFF Button(6): Press once to view the

•
remaining power capacity.

INSTRUCTIONS:

1.

Charging the Powerbank:

•

Charge the powerbank fully before usage.

•

Connect the provided charging cable to a
power source and to the micro USB port on
the powerbank(1).

•

Once connected the LED Indicator will

**

Powerbank can be charged using a Type-C
or lightning cable or cables with 2-in-1
tip as well by connecting either charging
cable to a power source and to the
appropriate input port (These cables are
NOT included).

2.

Wirelessly Charging the Powerbank:

•

To wirelessly charge the power bank, place
the wireless charging input surface(8) of
the power bank onto a wireless charging

when charging.

3.

Charging mobile phones and other
electronic devices:

•

Connect the charging cable to your mobile
phone/device using the appropriate
connector. Connect the USB part of
the cable into the USB Output(2). LED
Indicator will illuminate BLUE when
charging.

•

Remove the USB cable from your mobile
device when it is fully charged.

4.

Charging Mobile phones and other
electronic devices with wireless output:

Press the Powerbank ON/OFF button(6)

•
to turn on the wireless charging function.
Wireless Charging LED Indicator（3）will
show GREEN once thePower bank is on
wireless charging standby mode.

Place wireless charging supported mobile

•
device on the charging surface(9), LED(3)
will glow RED when device is charging.

Note: When wireless charging, if the LED

**

NOT a wireless charging device or there is
an object between the device and charging
surface interfering with the charging process

SAFETY PRECAUTIONS:

•

WARNING-When using this product, basic
precautions should always be followed:

1.

Read all the instructions before use.

2.

Never store or use this product in
temperatures below 32°F (0°C) or above
115°F (45°C).

3.

Do not overcharge your phone. The
unit may become hot under excessive
use. Remove your phone once it is fully
charged. Never charge your phone for
more than 7 hours at a time.

4.

The unit will only achieve full performance
after 2 or 3 completed charge and
discharge cycles.

5.

To reduce the risk of injury, close
supervision is required when the product is
used near children.

6.

Do not expose the device to moisture.

7.

Do not use the device in excess of its
output rating. Overload outputs above the

Do not use the device if damaged or

8.

9.

explosion or risk of injury.
Do not disassemble the device.

10.

professional. Incorrect reassembly may

11.

or temperatures above 104°F (40°C) may
result in explosion.
To ensure product safety, ensure that

12.

identical replacement parts.
Attachments on the back of your phone can

13.

charger, and lead to overheating. Please
remove attachments from the phone before
charging on this device.

FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used inaccordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment
should be installed and operated with minimum 20cm distance between the
radiator your body: Use only the supplied antenna

MADE IN CHINA
