Rincon Series Quick Start Guide

Document Number: 602-16325-01, Rev. A

March 16, 2011

ii Rincon Quick Start Guide

Table of Contents

1. Quick Start Guide ....................................................................................... 1-1

1.1 Quick Start Hardware Overview.................................................................... 1-1

1.2 Quick Start Software Overview..................................................................... 1-2

1.2.1 PC Network Configuration....................................................................... 1-2

1.3 Rincon Configuration................................................................................... 1-2

1.3.1 Default Network Settings........................................................................ 1-2

1.3.2 Default User Name & Password ............................................................... 1-3

1.3.3 Network Configuration ........................................................................... 1-3

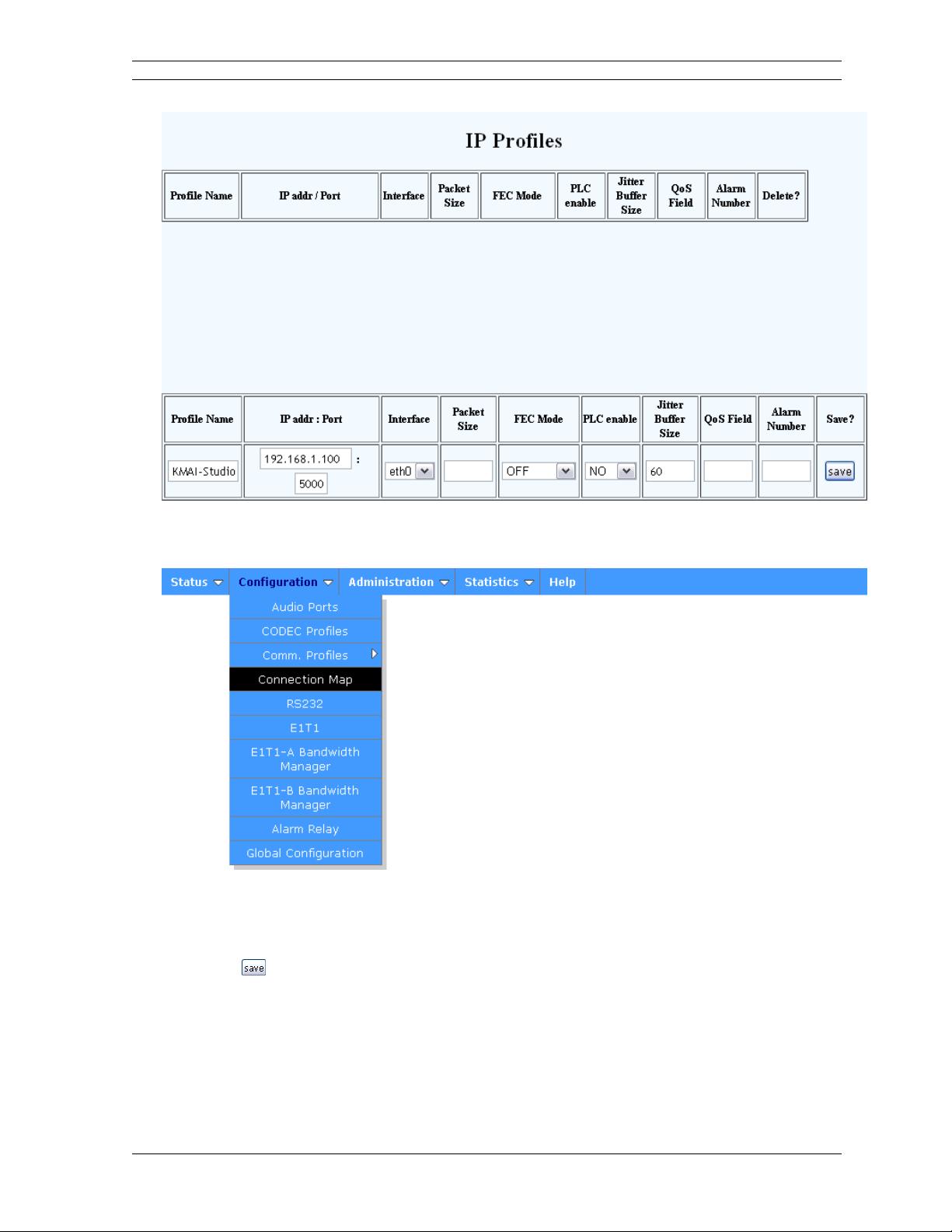

1.3.4 Encoder (Studio) Configuration ............................................................... 1-4

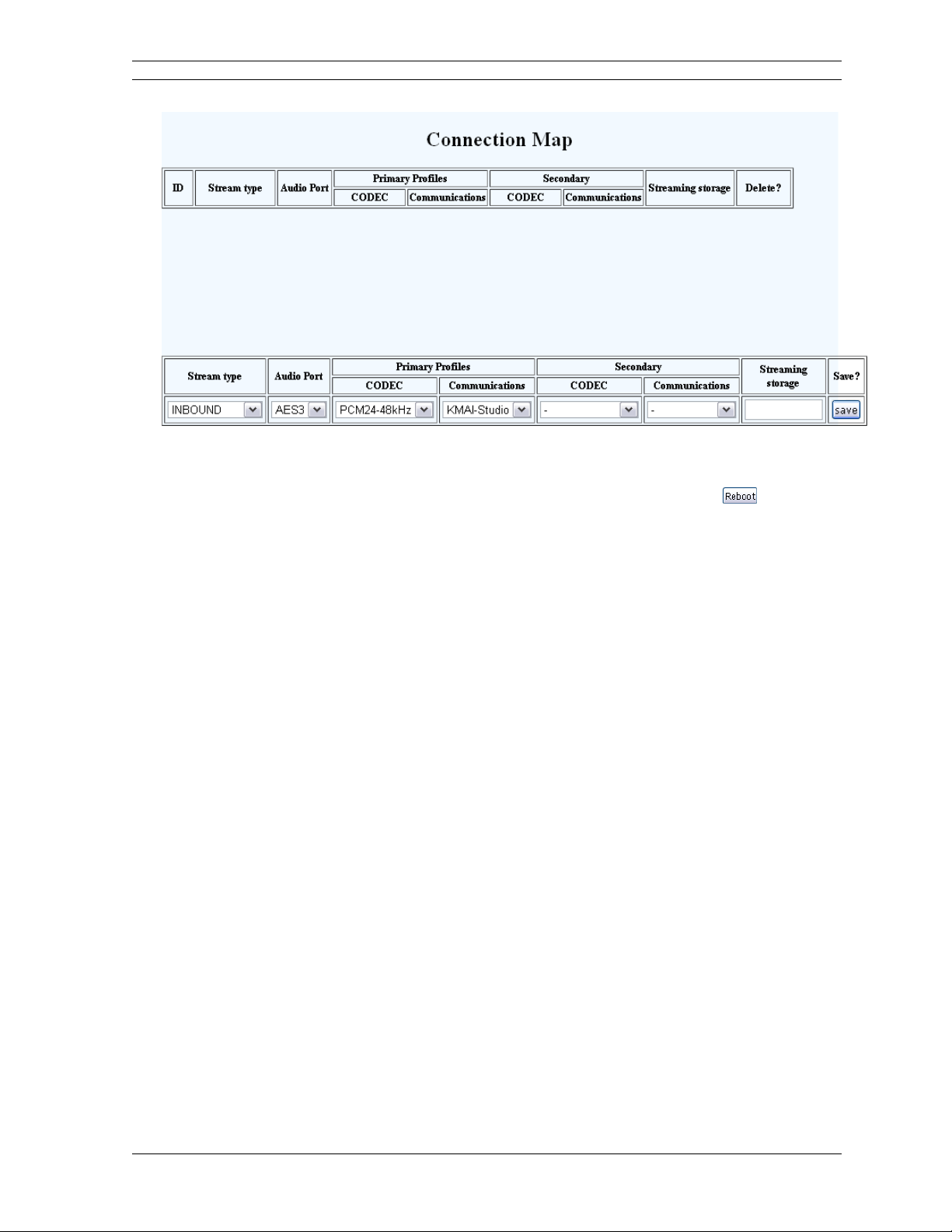

1.3.5 Decoder (Transmitter) Configuration........................................................ 1-7

1.3.6 System Bench Test...............................................................................1-11

Rincon Quick Start Guide 1

1. Quick Start Guide

We highly recommended that you review this manual before you install the Rincon. The information here is only a summary. We also recommend that you test your system on the bench back-to-back before deploying the equipment to remote locations. A small, inexpensive gigabit Ethernet switch or router is very useful in this process.

1.1 Quick Start Hardware Overview

Rincon100 & Rincon200

Rincon300 & Rincon4xx

Figure 1-1, Quick Start Hardware Overview

ii Rincon Quick Start Guide

1.2 Quick Start Software Overview

The Rincon Web Interface can be accessed through a computer connection. This section describes how to setup the initial Rincon configuration via the Web Interface.

The following items are needed:

1) Power supply (-48V DC @ 1 Amp) OR Desktop AC/DC power supply and power cable

2) Computer with networking capability, consisting of either: a laptop computer with

Windows 98/2000/XP/Vista/7 operating system, an Ethernet card with any necessary adapters and a CAT5 Ethernet regular or crossover cable or a networked computer with Windows 98/2000/XP/Vista/7 operating system and an additional Ethernet cable providing access to the network. Other operating systems may be used, but Moseley has not tested them with the Rincon.

3) Web Browser program: Internet Explorer 5.5 (or later), Mozilla Firefox 1.0.6 (or later) . Other browser may be used, but Moseley has not tested them with the Rincon.

4) Appropriate Ethernet cables, and optionally, a 4- to 8-port Ethernet switch or router.

1.2.1 PC Network Configuration

The Web Interface can be accessed by connecting a CAT5 patch cable between the Rincon rear-panel Ethernet port and a PC. The PC’s network interface must be configured to an open IP address within the same subnet. For the default Moseley configuration, the IP address of the PC should be 192.168.1.mm (where mm=a value in the range 2-99). For additional instructions on adding an IP address on your PC, please review

http://www.itsyourip.com/networking/how-to-add-multiple-ip-address-in-windows2000xp2003/.

1.3 Rincon Configuration

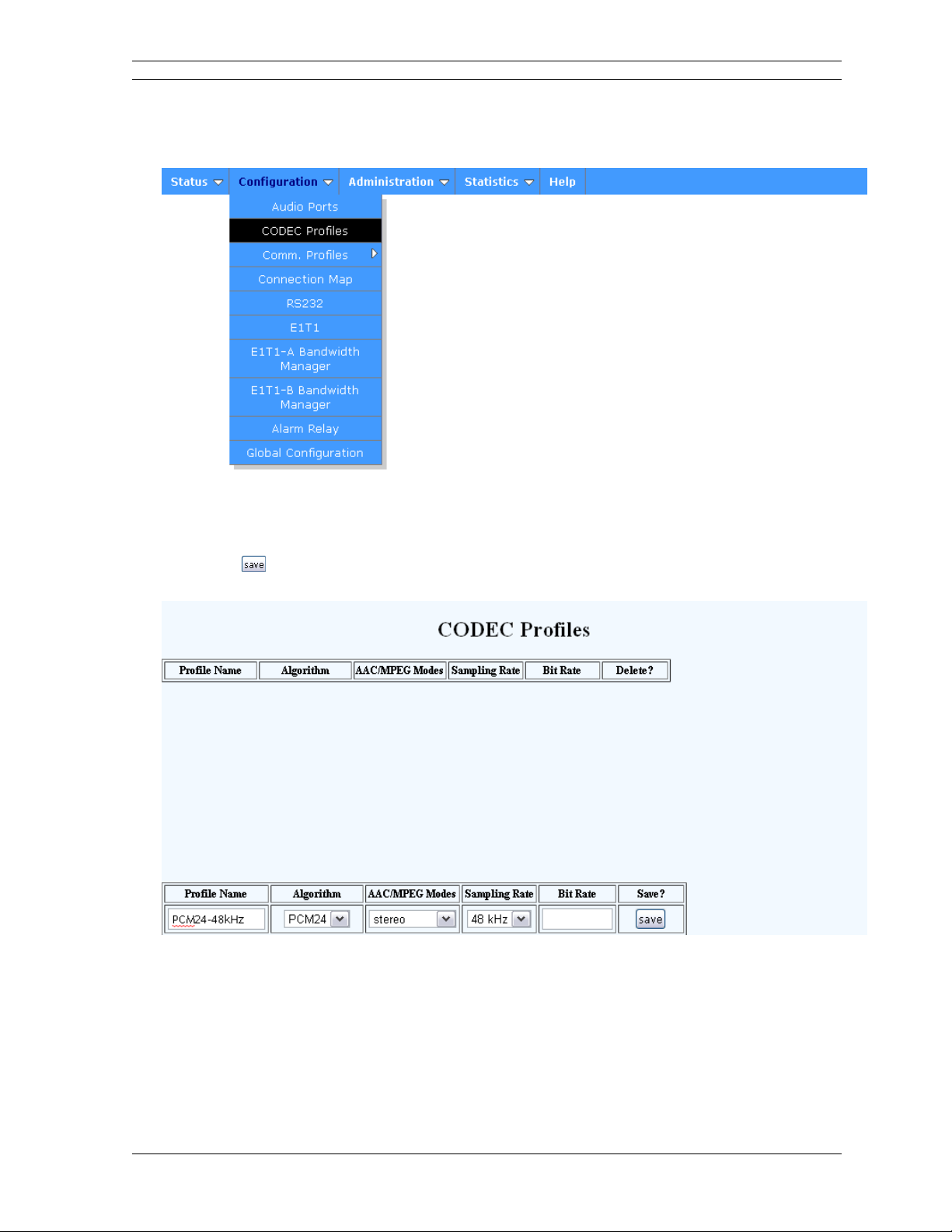

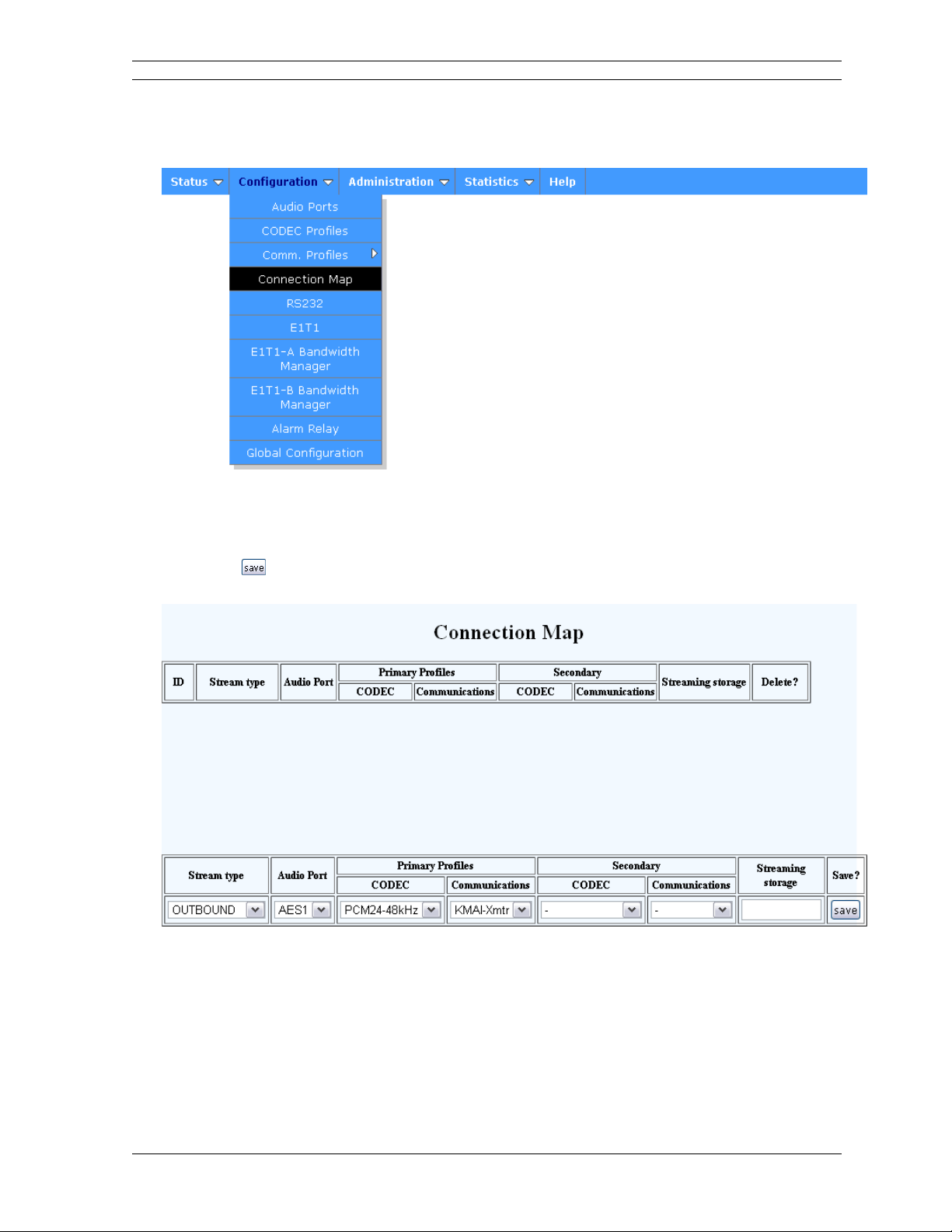

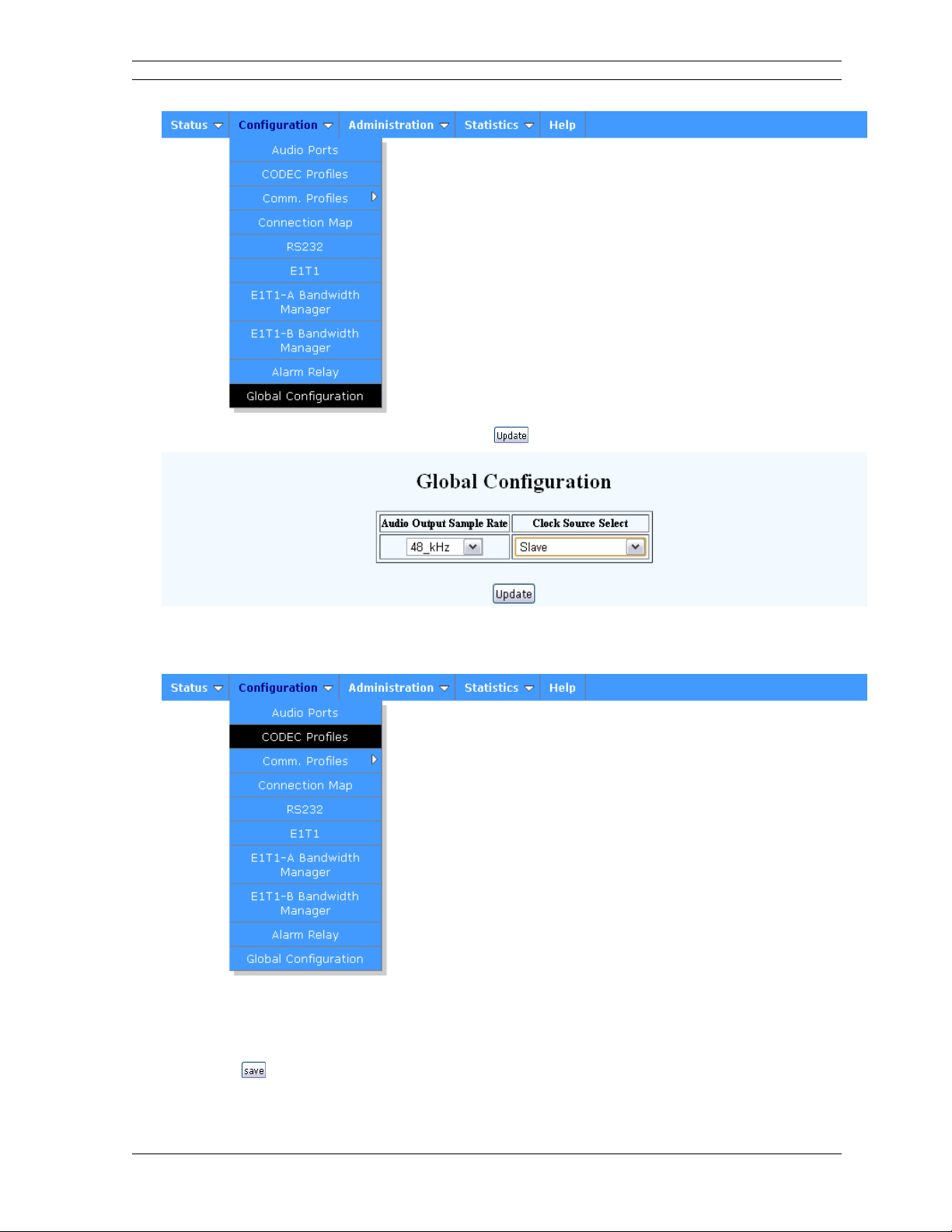

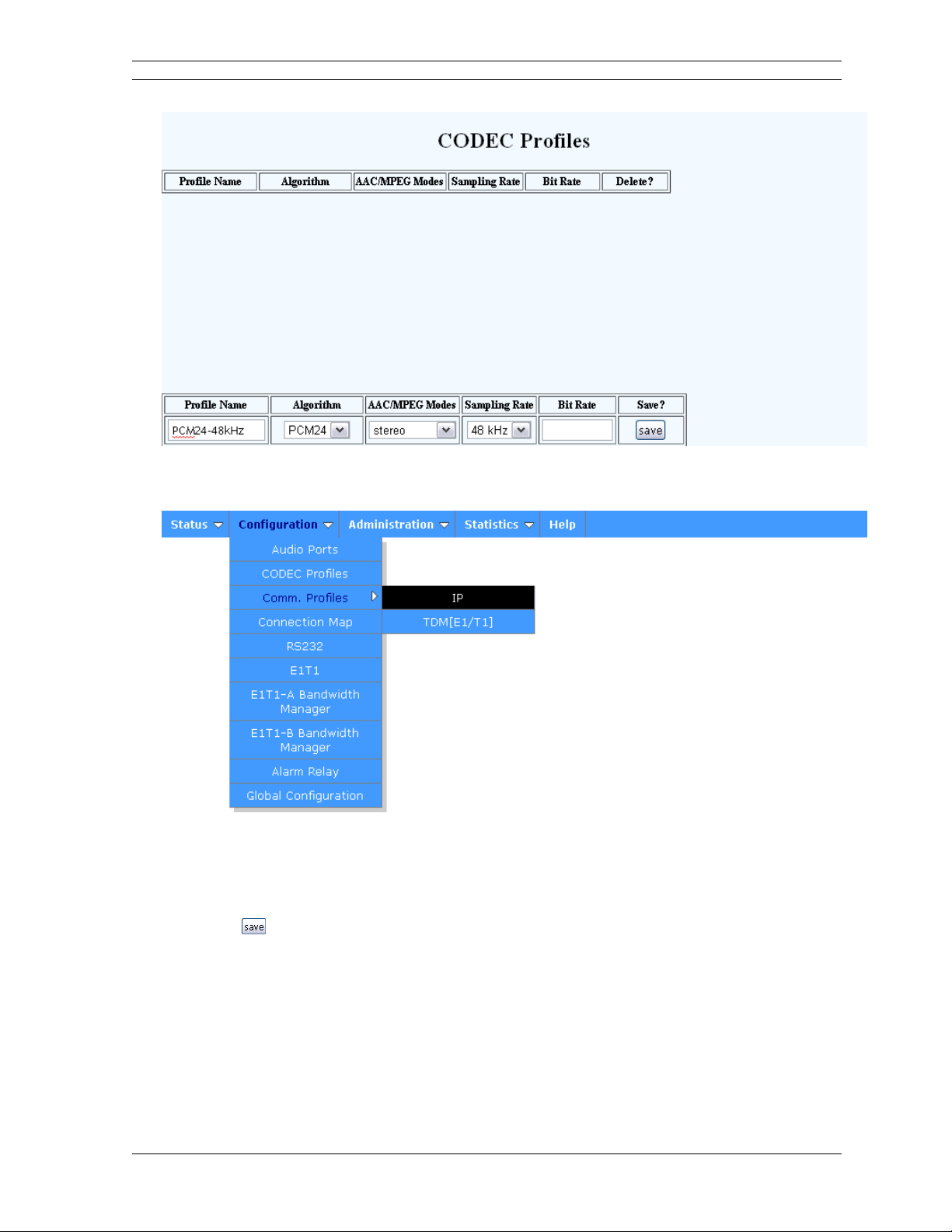

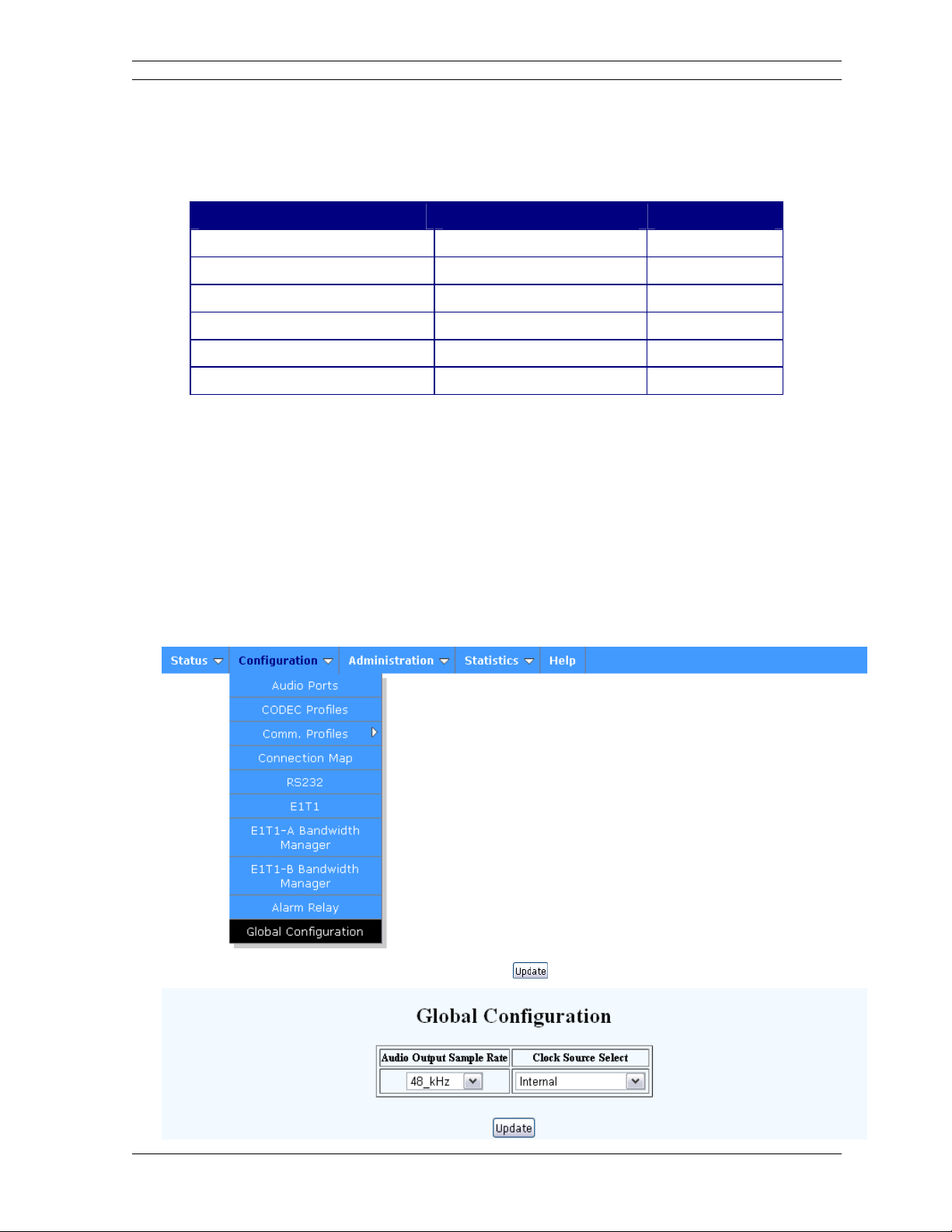

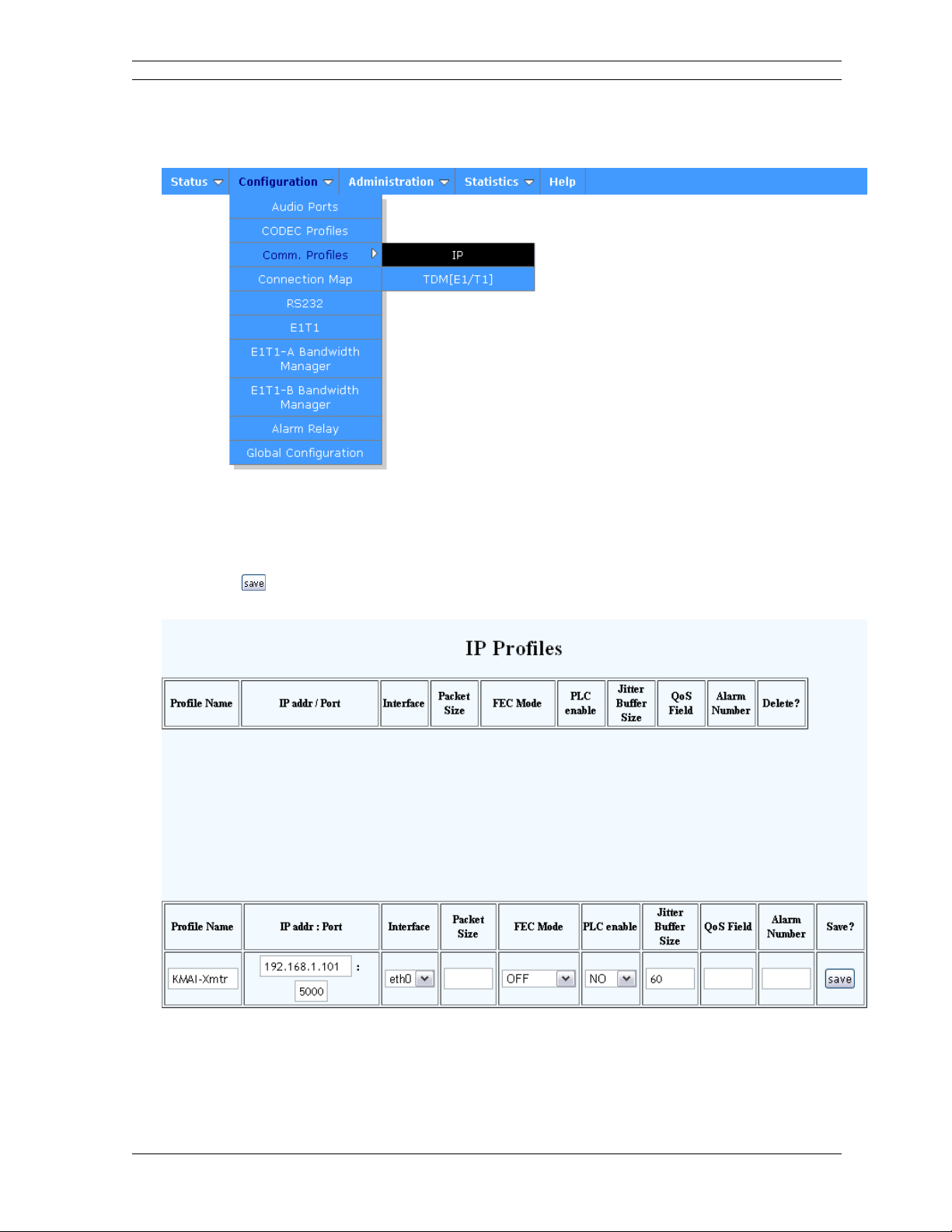

The example provided here sets up a single AES, Linear-24-bit, 48kHz-sample-rate endto-end TCP/IP connection.

1.3.1 Default Network Settings

The system is configured and tested at the factory using these default values:

Table 1-1, Default Network Settings

Parameter Value

IP Address 192.168.1.nnn Netmask 255.255.255.0 Gateway 192.168.1.1

Where: nn=a value in the range 100-254. The IP address is indicated on the rear panel as shown in the following illustration. If it is not shown on the rear panel, the default IP address is 192.168.1.100. On older units the default IP address was 192.168.1.1.

After configuring the PC network interface, launch a web browser and enter the default URL as specified on the rear panel in the address bar of the browser to access the unit’s Web Interface, e.g. http://192.168.1.100/

Rincon Quick Start Guide 3

1.3.2 Default User Name & Password

A dialog box will request a user name and password. The default values are:

Table 1-2, Default User Name & Password

User Name Password

admin welcome

1.3.3 Network Configuration

1) The PC’s network configuration must be set with the parameters provided in section

PC Network Configuration.

1.2.1

2) The Rincon should be accessible from your PC at the default IP address provided in section 1.3.1 previously. Performed a network ping to verify connectivity to the Rincon.

3) Start a web browser and use the Rincon default IP address as the URL.

4) The Web Interface includes a navigation menu at the top, just underneath the

banner. In the navigation menu, select: Administration->Network->IP.

Default Network Settings unless you have changed the IP address

5) Log in at the login prompt with the username and password and click default user name and password are provided in Section 1.3.2 Password.

6) Enter the new IP address, IP net mask, and IP gateway. If you are unsure of the correct items to enter, contact your IT department. Click Reboot the Rincon (Administration->Maint enance->Reprogramming-> power to the unit to apply the changes

power to the unit to apply the changes.

Default User Name &

to save the values.

. The

) or cycle
