Ice Maker
www.morphyrichards.com.au
INSTRUCTION MANUAL
Model: MRICE15SS
Read these instructions carefully before
using this appliance for the rst time.
STORE THESE INSTRUCTIONS CAREFULLY
For product hints and tips plus more join us at
facebook.com/MorphyRichardsAUS instagram.com/morphyrichardsau
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, injury to persons or
damage to property, follow basic precautions including the following:
• WARNING: Misuse of appliance could cause personal injury as it
contains flammable materials.
• WARNING: Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• WARNING: When positioning the appliance, ensure the mains cord is
not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• WARNING: Fill with potable water only.
• If the mains cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a
hazard.
• Do not remove any safety, warning, or product information labels from
your ice maker.
• Keep the appliance and its cord out of the reach of children.
• This appliance is not intended for use by persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge
unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
2
• Children should be supervised to ensure that they do not play with this
appliance.
• In the absence of supervision, the cleaning and maintenance work
should not be done by a child.
• Do not leave the appliance unattended while in use.
• Use of accessories not recommended or sold by the original
manufacturer may cause risks of fire, electric shock or personal injury.
• This appliance must be used in accordance with the instructions and
must not be used for other purposes.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
Location
• Always locate your appliance away from the edge of a worktop and
ensure that the appliance is used on a firm, flat surface.
• For indoor use only. Do not use the appliance outdoors, or near water.
• Do not place the appliance on or near heat sources such as gas or
electric stoves, ovens, or burners.
Mains Cord
• The mains cord should reach from the socket to the base unit without
straining the connections.
• Do not let the mains cord hang over the edge of a worktop where a
child could reach it.
3
• Do not let the cord run across an open space e.g. between a low
socket and table.
• Do not let the cord run across a cooker or toaster or other hot area
which might damage the cord.
Other Safety Considerations
• WARNING: To protect against fire, electric shock and personal injury,
do not immerse cord, plugs, or appliance in water or other liquid.
• WARNING: Extreme caution must be used when moving the
appliance when containing hot food, water, or other hot liquids.
• Unplug from the socket when not in use, before putting on or
taking off attachments, and before cleaning to avoid damaging the
refrigerating system. Pull on the plug, not the cord.
• Do not operate any appliance with a damaged cord or plug, or after
an appliance has malfunctioned, or has been dropped or damaged
in any way.
• Keep the appliance and the cord away from heat, direct sunlight,
moisture and sharp edges.
• To disconnect, turn any control to “OFF”, wait five minutes and then
remove the plug from the wall outlet.
• Do not plug or unplug product with wet hands.
• Do not attempt to disassemble, repair, modify, or replace any part of
your product.
• Check that the voltage on the appliance rating plate corresponds
with your house electricity supply which must be A.C.
4
• Avoid the use of an extension cord because it may overheat and
cause a risk of fire. However, if it is necessary to use an extension
cord:
1) Use only extension cord with grounding plug.
2) The marked rating of an extension cord must be equal to or
greater than the rating of this appliance.
• WARNING: This appliance must be earthed. Plug the ice maker
into an exclusive grounded power outlet. No other appliance
should be plugged into the same outlet.
Product Use
• Do not use with water that is microbiologically unsafe or of unknown
quality.
• Do not clean your ice maker with any flammable fluids. The fumes
may cause illness, fire hazard or explosion.
• Do not overturn the ice maker. If the ice maker is overturned
accidentally, stand it steadily for 2 hours before operating again.
• If the ice maker is brought in from storage in colder seasons, do
not use for a few hours, allowing the unit to warm up to room
temperature before operating.
• Never put flammable, explosive and corrosive articles into the ice
maker.
• Never use the ice maker when there is flammable gas leakage.
• Never store or use gas and other flammable articles near the ice
maker to avoid any fire.
• Do not touch the evaporator when using the ice maker or making ice
to avoid potential frostbite.
• Please dispose of the ice maker according to local regulations as it
uses flammable blowing gas and refrigerant.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
5
INTRODUCTION
Thank you for purchasing a Morphy Richards Ice Maker. Produce
bullet ice at a moment’s notice for a quick chilled drink or up to 15kg in
a 24hr period.
Please take some time to familiarise yourself with your new Ice Maker.
This manual explains what you need to do before first use as well
as explaining some hints and tips to keep your ice maker operating
correctly.
SPECIFICATIONS
Model: MRICE15SS
Colour: Stainless Steel
Rated Voltage: 220-240V~50Hz
Rated Power: 145W
Water Tank Capacity: 2.8L
Ice Cubes Per Cycle: 9
Ice Bin Storage Capacity: 1.8kg
Refrigerant/Refrigerant Amount: R600a/25g
Foaming Agent: C
Product Dimensions (L x W x H): 400 x 246 x 430mm
Net Weight: 11kg
6
5H10
PRODUCT OVERVIEW
Control Panel
Viewing Window
Front Cover
Lid
Rear Housing
Front Housing
Water Reservoir
Ice Basket
Plug
Evaporator
Ice Tray
Ice Exports
Maximum Water Level
Ice Basket
Emitting Tube
Receiving
Tube
Filter
Ice Scoop
Drain Tube Plug
7
CONTROL PANEL
CONTROL PANEL
a
b
a
Ice Size Selector - Large
b
Ice Size Selector - Small
c
Clean
d
Start/Stop Button
c
d
e
e
Ice Size Selector
f
Ice Making In Progress
g
Out Of Water
h
Ice Basket Is Full
f
g
h
BEFORE FIRST USE
Before first use, please take a few minutes to read this instruction book
and find a place to keep it handy for future reference. Please pay particular
attention to the safety instructions.
1. Unpack the appliance, then check and make sure that all the accessories
including ice basket and ice scoop etc. are included.
2. Please ensure the ice maker is level and stable to avoid malfunction.
3. The incline angle of the ice maker cabinet should not exceed 45°during
transportation or use. Do not turn the ice maker upside down. Doing so
could cause the compressor or refrigerating system to operate incorrectly.
Please allow time for the fluids in the compressor to settle after the ice
maker is moved or transported. Before using the ice maker for the first
time, please wait for 2 hours after the unit has been leveled and positioned
in the proper place.
4. The appliance must be placed on a dry and level surface with sufficient
ventilation, far from heat sources such as ovens, heaters and corrosive
gases. Leave a 15cm clearance on all sides of the ice maker for proper
ventilation.
5. Do not fill the water reservoir with hot water, as this may damage the ice
maker. It is recommended to fill the reservoir with room temperature water
or cooler.
8
USING YOUR ICE MAKER
1. Ensure the drain tube plug at the bottom of water reservoir is closed.
2. Plug the ice maker into the wall outlet. The Ice Making In Progress indicator
(f) will blink.
NOTE: The ice maker should not be turned on for 30 minutes, if it has been
moved.
3. Open the lid (refer to the diagram on page 7) and remove the ice basket.
4. Do not fill above the MAX water level mark.
5. Replace the ice basket and close the lid.
6. Press the Ice Size Selector button (e) to select the ice size, (b) for small ice
and (a) for larger sized ice.
7. Press the Start/Stop button (d) and the Ice making In Progress indicator
lights solidly.
8. The ice making cycle will last approximately 7-15 minutes, depending on
the ambient and water temperature.
9. The ice making cycle starts with water being pumped into the ice tray
situated below the evaporator. Over the next 7-15 minutes ice forms on the
evaporator. Once this has completed, the ice tray will tilt backwards and
the remaining water in the ice tray is drained back into the water reservoir.
The ice cubes are then dropped from the evaporator and pushed forward
into the ice basket by the ice export. The ice tray will automatically move
back into position under the evaporator and start the next cycle.
10. The Ice Basket Is Full indicator (h) will light up when the ice basket is full
and the ice maker will stop automatically. Gently remove the ice from the
ice basket with the ice scoop. After approximately 5 seconds, the ice
maker will restart the ice making function automatically.
11. The Out Of Water indicator (g) will light up when the water reservoir is
empty and the ice making cycle will stop automatically. Remove the ice
basket and add water to the water reservoir. Press the Start/Stop button (d)
to restart the ice making cycle.
12. Once the desired amount of ice has been dispensed, press the Start/Stop
button (d) and unplug the unit from the wall outlet.
13. Open the lid and transfer the ice to a freezer.
NOTE: The ice will last in the ice maker for up to an 18 hour period, depending
on the ambient temperature.
9
USING YOUR ICE MAKER
1. Allow the ice maker to warm up to room temperature.
2. It is recommended to replace the water weekly. Please empty the water
reservoir, if the ice maker is not used for a long time.
CLEANING AND MAINTENANCE
To keep your ice tasting fresh and your ice maker looking in great condition, it
is recommended to clean the ice maker at least once per week.
1. Stop the ice making cycle by pressing the Start/Stop button (d). Wait five
minutes and unplug.
2. If residual water is found in the ice tray, gently push the ice tray back so
that all water drains into the water reservoir.

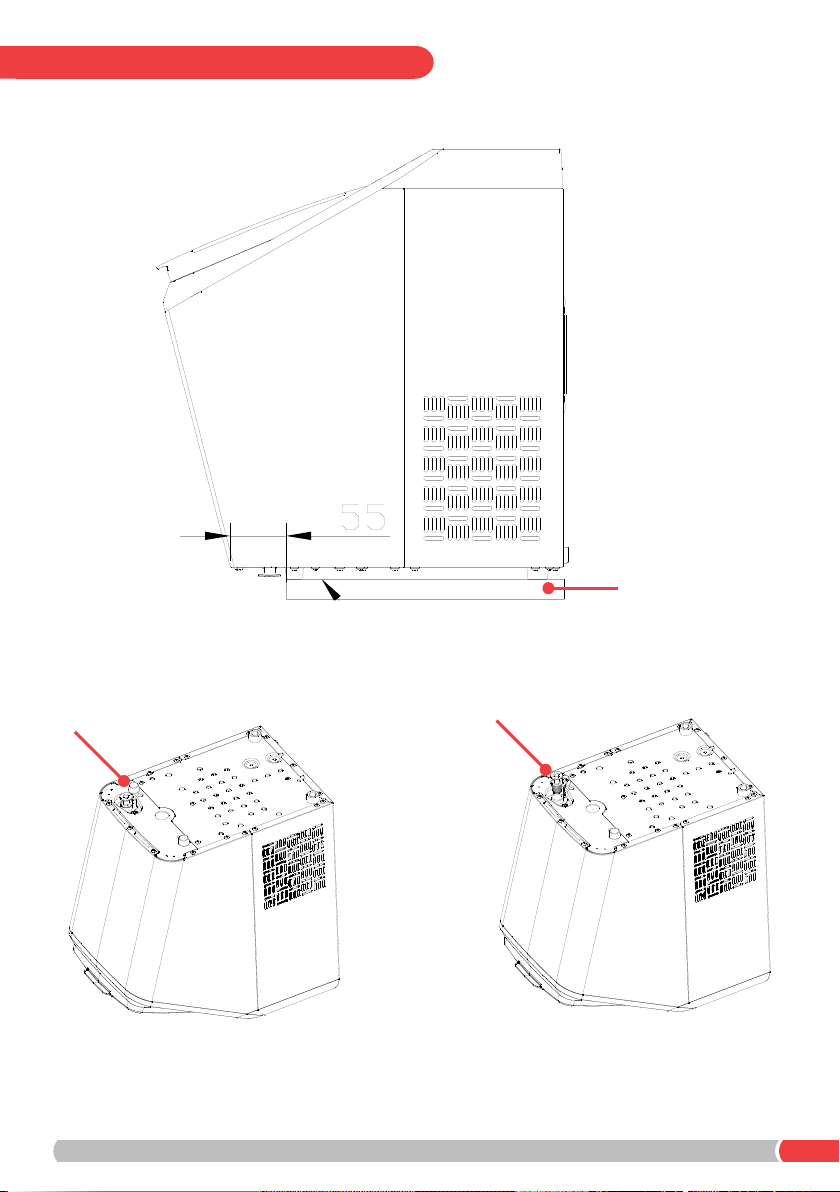

3. Move the appliance forward 55-60mm away from the working table and
remove the drain tube plug to drain excess water (see Fig.1, Fig.2 and
Fig.3).
4. Check and make sure the drain tube plug is closed securely. Fill the water
reservoir with clean water, press the Ice Size Selector button (e) until the
Appliance Needs Cleaning indicator (c) flashes. Press the Start/Stop button
(d) and the pump will run water for approximately 6 minutes. The Ice maker
will go into standby mode after running for 6 minutes. Finally, remove the
drain tube plug and empty the water out.
5. Remove the ice basket.
6. Clean the ice maker interior with a soft cloth soaked with warm water and
vinegar. Then rinse with clean water and drain any remaining water.
7. Replace the drain tube plug securely in position. Wash the ice basket and
ice scoop in warm soapy water. Rinse and dry.
8. Clean the exterior of the ice maker with a soft damp cloth. Use a mild
dishwashing detergent, if necessary.
NOTE: Do not use organic solvent, boiled water, detergent, strong acid and
strong alkali etc. for cleaning.
Please empty the water reservoir and dry it for storage if the ice maker is not
used for a long time.
10
CLEANING AND MAINTENANCE
Work Bench/Table
Fig. 1
Drain Tube Plug
Drain Tube Plug
Fig. 2 Fig. 3
11
TROUBLESHOOTING
Problem Possible Causes Solution
Indicator light on.
Low water level or lack of
water.
The water screen at the
bottom of water reservoir is
blocked.
Stop making ice. Rell water
and press Start/Stop button to
restart the ice making cycle.
Follow cleaning steps on page
10.
Indicator light on.
Indicator blinks.
The ice maker stops
working.
The ice basket is full
but the indicator does
not illuminate.
Pump malfunction.
Ice basket is full and the
infrared light is blocked by
the ice.
Emitting tube & receiving tube
not working.
The ice export is blocked. Remove ice, if the ice export
The ice tray is not in the
correct position.
The “ice full” condition can not
be detected as the infrared
light module is interfered by
excessive sunlight.
Call the Customer Care team
for advice.
Remove ice from ice basket.
Wipe up the foreign objects on
emitting tube & receiving tube
and restart the ice maker.
Call the Customer Care team if
the emitting tube & receiving
tube still can not work after
wiping up the foreign objects
on them and restarting the ice
maker.
is blocked, otherwise,
call Customer Service for
assistance.
Remove the ice in the ice
tray and press the Start/Stop
button to restart the appliance.
Call Customer Care team if
the appliance still does not
work after restart.
Unplug the appliance and
move it to a place which is
not exposed to excessive
sunlight. Then plug the
appliance in and try it again.
12
TROUBLESHOOTING
Problem Possible Causes Solution
The ice gets stuck
together.
The water temperature in the
reservoir is too low.
Fill the water reservoir with
water ranging between 8°C
and 25°C.
The ice making cycle
seems normal but no
ice is produced.
Refrigerating system
leaks
Refrigerating system
blocks
Poor ice making.
The ambient temperature or
water temperature is too high.
Poor heat dissipation.
The water temperature is too
high.
The ambient temperature is
too high.
Start the ice making cycle
in an environment with an
ambient temperature less
than 32°C and ll the water
reservoir with some cold water.
Call Customer Care team
Call Customer Care team
Leave an 8-inch (20cm)
clearance on all sides of
the ice maker for proper
ventilation.
Fill the water reservoir with
water ranging between 8°C
and 28°C.
Operate the ice maker in an
environment with an ambient
temperature between 10°C
and 32°C.
Water pump does not
work or produces
noise.
1. Water pump is damaged.
2. The appliance has not
been cleaned for a long
time, which has resulted in
a substance build up in the
water inlet of the water pump,
so the water is not moving
smoothly. There is air in the
water pipe, so there will be
noise produced when the
water is pumped.
1. Call Customer Care team
2. The appliance should be
cleaned every one to weeks
with a mild detergent.
13
MAINTENANCE
If the unit fails to operate efficiently, is broken or other problems arise, unplug
and do not operate.
Ask for advice by calling your local after sales service agent or the Customer
Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).
WARNING! - It is hazardous for anyone other than an Authorised Service
Person to service this appliance. In Queensland, the authorised Service
Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants,
to carry out Servicing or repairs where the gas system is being opened or
charged.
This appliance contains R600a refrigerant which is flammable.
WARRANTY
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
8 Lakeview Drive, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
14
NOTES
15
Recycling: Do not dispose of electrical appliances
as unsorted municipal waste. Use separate
collection facilities. Contact your local government
for information regarding the collection systems
available. If electrical appliances are disposed
of in landfills or dumps, hazardous substances
can leak into the ground water, polluting the food
chain and damaging health and wellbeing.
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced
in whole or in part, without prior permission in writing of Glen Dimplex Australia.
Glen Dimplex Australia Pty Ltd
8 Lakeview Drive
Scoresby VIC 3179
Phone: 1300 556 816
Email: sales@glendimplex.com.au
Web: www.morphyrichards.com.au
MRICE15SS-IB REV5
Loading...
