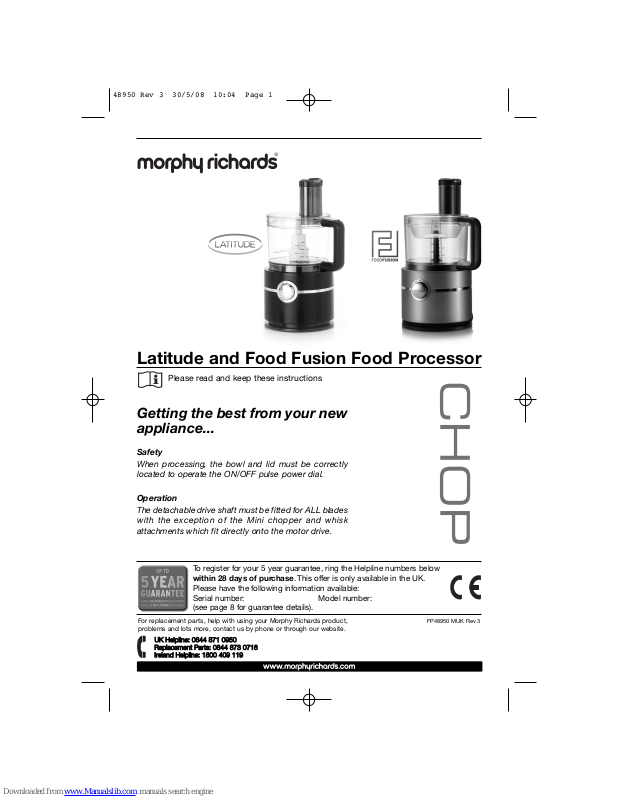

Morphy Richards LATITUDE AND FOOD FUSION FOOD PROCESSOR - REV 3, LATITUDE FOOD PROCESSOR, FOODFUSION FOOD PROCESSOR, 48950 User Manual

wwwwww..mmoorrpphhyyrriicchhaarrddss..ccoomm

FP48950 MUK Rev 3

For replacement parts, help with using your Morphy Richards product, problems and lots more, contact us by phone or through our website.

UUKK HHeellpplliinnee:: 00884444 887711 00995500 RReeppllaacceemmeenntt PPaarrttss:: 00884444 887733 00771166 IIrreellaanndd HHeellpplliinnee:: 11880000 440099 111199

To register for your 5 year guarantee, ring the Helpline numbers below within 28 days of purchase. This offer is only available in the UK. Please have the following information available: Serial number: Model number: (see page 8 for guarantee details).

Getting the best from your new appliance...

Safety

When processing, the bowl and lid must be correctly located to operate the ON/OFF pulse power dial.

Operation

The detachable drive shaft must be fitted for ALL blades with the exceptio n of the Mini chopper and whisk attachments which fit directly onto the motor drive.

Latitude and Food Fusion Food Processor

Please read and keep these instructions

48950 Rev 3 30/5/08 10:04 Page 1

UUKK HHeellpplliinnee 00884444 887711 00995500 RReeppllaacceemmeenntt PPaarrttss 00884444 887733 00771166 IIrreellaanndd HHeellpplliinnee 11880000 440099 111199

IMPORTANT SAFETY INSTRUCTIONS

The use of any electrical appliance requires the following common sense safety rules.

Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions:

WARNING: Danger to the person!

IMPORTANT: Damage to the appliance!

In addition, we offer the following essential safety advice.

Location

• Remove all packaging and retain for future reference.

• Ensure the appliance is used on a firm, flat surface.

• Do not use the appliance outdoors or in a bathroom.

• Do not place the appliance on a highly polished wooden surface as damage may occur to the surface.

• Do not place the appliance on or near a hot surface, such as a hot plate or radiant rings or near a naked flame.

Mains lead

• The mains lead should reach without straining from the socket.

• Do not let the mains lead hang over the edge of a worktop where a child could reach it.

• Do not let the lead run across an open space e.g. between a low socket and table, or a cooker or toaster or other hot area which might damage the cable.

• The power cord cannot be replaced. Contact Morphy Richards for advice.

Personal safety

• Avoid touching moving parts. Keep hands, hair and clothing, as well as the spatula and other utensils, away from the processor blades during operation, to prevent personal injury and/or damage to the appliance.

• WARNING: To protect

against the risk of electric shock, NEVER immerse the appliance body in water or in any other liquid and always ensure the electrical connections are kept dry.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children

• Children do not understand the dangers associated with operating electrical appliances. Never allow children to use this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

Other safety considerations

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.

• The use of attachments or tools not recommended or sold by Morphy Richards may cause fire, electric shock or injury.

• Unplug from the outlet when not in use, or when left unattended, and before assembling, disassembling or cleaning.

• Do not use the appliance for anything other than it’s intended purpose.

Product specific safety

• WARNING: The processor blades are very sharp. Handle with care when using and cleaning.

• Do not overfill the processor bowl. This could cause damage to the motor.

• The processor lid must be on and located correctly for it to work.

ELECTRICAL REQUIREMENTS

Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating Current).

If the socket outlets in your home are not suitable for the plug supplied with this appliance, the plug should be removed and the appropriate one fitted.

WARNING: The plug removed from the mains lead, if severed, must be destroyed, as a plug with bared flexible cord is hazardous if engaged into a live socket outlet.

Should the fuse in the 13 amp plug require changing, a 5 amp BS1362 fuse must be fitted.

WARNING: This appliance must be earthed.

48950 Rev 3 30/5/08 10:04 Page 2

wwwwww..mmoorrpphhyyrriicchhaarrddss..ccoomm

FEATURES

⁄ Processor body

¤ ON/OFF speed pulse

power dial

‹ Induction Motor drive

› Processor bowl

ﬁ Mini chopping bowl

ﬂ Processor lid

‡ Large pusher

· Smaller pusher

‚ Mini chopper blade

„ Spatula

‰ Dough blade

Â Chopping blade

Ê Detachable drive shaft

Á Thick slicing & coarse

shredding blade

Ë Slicing & shredding blade

È Whisk attachment

Í Storage case

⁄⁄

¤¤

‹‹

››

ﬁﬁ

‡‡

··

ﬂﬂ

ÈÈ

‚

„„

‰‰

ÍÍ

48950 Rev 3 30/5/08 10:04 Page 3

UUKK HHeellpplliinnee 00884444 887711 00995500 RReeppllaacceemmeenntt PPaarrttss 00884444 887733 00771166 IIrreellaanndd HHeellpplliinnee 11880000 440099 111199

USING YOUR APPLIANCE FOR THE FIRST TIME

Carefully unpack your new appliance and all it’s attachments and tools,

checking them against the illustrations at the beginning of this book to familiarise yourself with the product. Wash all the parts which are safe to immerse in water.

Never immerse the processor body in water or any other liquid. This may be wiped over with a clean, damp cloth but only when unplugged from the electrical outlet.

‰

ﬁ

‚

QUICK GUIDE

Attachments & tools name Function Type of food Max vol. Time Special notes

CHOPPING BLADE Chopping Meat, vegetables, 700g 15-20 secs Pulse gives control

cheese, chocolate over texture

Blending Soup, drinks 700g 20 secs

Pureeing Cooked vegetables,

potatoes, and fruit 600g 10-15 secs

DOUGH BLADES Mixing Pastry, scones 350g 1 min max Max vol = weight of

flour

Cakes (total weight) 1kg 1 min max

Kneading Bread dough 600g flour 20 secs Max vol = weight of

flour

400g water + 2 min rest Do not over process

SMALL BLADE Chopping Herbs and small 20g herbs 2-5 secs

quantities

SLICING & Slicing Vegetables, cheese, SHREDDING & Shredding potatoes, fruit,

chocolate

THICK SLICING & Vegetables, cheese, COARSE SHREDDING potatoes, fruit,

chocolate

WHISK Whisking Egg whites 6 eggs 1-2 mins

(min 2-max 6)

Cream 570ml 40-50 secs Do not over process

MINI PROCESSOR BOWL

DO NOT PROCESS FOR LONGER THAN THE RECOMMENDED TIME. DO NOT EXCEED THE RECOMMENDED MAXIMUM VOLUMES. ALWAYS HOLD THE BLADES BY THE CENTRE GRIP.

48950 Rev 3 30/5/08 10:04 Page 4

wwwwww..mmoorrpphhyyrriicchhaarrddss..ccoomm

Assembly / setting up

1 Ensure the appliance is

unplugged from the mains.

2 To fit the bowl, align the handle

as shown. Turn the handle clockwise until it clicks into place A.

(Note, the handle can be located for left hand ⁄ or right hand ¤ use).

3 Fit the detachable drive shaft

over the induction motor drive B.

4 Select the appropriate blade and

fit over the detachable drive shaft, referring to the ‘Fitting and using the tools’ section for details.

5 Fit the lid to the processor bowl

by aligning the indicator on the lid to the right hand side of the handle and then rotate clockwise, until the lid clicks firmly into place C.

6 Ensure that both food pushers

are in place before processing. They should only be removed to insert food D.

FITTING AND USING THE TOOLS

In general, all attachments (with the exception of the mini processor bowl and small blade) which are fitted within the processor bowl, must be firmly attached to the detachable drive shaft. Always adjust the attachments until you are sure that they are correctly fitted.

Detachable drive shaft

Insert attachments over the top of the detachable drive shaft and ensure that they are securely clicked into place. Then remove the blade covers (if applicable), taking care, as the blades are sharp E.

Chopping blade

1 Fit the processor bowl as

detailed previously.

2 Fit the chopping blade over the

motor drive, and fit firmly into place F.

WARNING: Use extreme caution - the blades are very sharp. Always handle the chopping blade by it’s central plastic section.

3 Place the food into the bowl.

4 Fit the lid and click into place as

detailed in the ‘Setting up’ section.

5 Plug in the processor and switch

to speed 1 G. If the processor does not come on, check that the processor lid is correctly fitted.

WARNING: For safety, always use the food pusher when putting food into the feeder tube. Never feed by hand or utensils.

6 For large foods, feed through

with the large food pusher. The small pusher should be locked into place when using. When processing small pieces of food, unlock and use the small food pusher, leaving the large pusher in place in the lid H.

WARNING: Do not use the small food pusher without the large food pusher being in place in the lid feed tube.

7 When the processing is

complete, remove the blade from the bowl before removing the processed food.

⁄

48950 Rev 3 30/5/08 10:04 Page 5

UUKK HHeellpplliinnee 00884444 887711 00995500 RReeppllaacceemmeenntt PPaarrttss 00884444 887733 00771166 IIrreellaanndd HHeellpplliinnee 11880000 440099 111199

Dough blade

1 Fit the processor bowl into

place as described in the ‘Setting up’ section.

2 Place the dough blade on the

detachable drive shaft. Then place the ingredients in the bowl.

3 Fit the lid and slot into place,

making sure that it clicks.

4 Now plug in the processor.

5 Turn the processor on and

operate until the dough has formed into a small ball.

6 Remove the blade from the

bowl before removing the dough.

IMPORTANT: When kneading dough, do not operate the machine longer than 30 seconds.

Afterwards, wait at least 2 minutes before operating the machine again.

WARNING: For safety, always leave the pusher in place whilst operating the processor.

Whisk attachment

1 Fit the processor bowl as

detailed previously in the ‘Setting up’ section.

2 Place the whisk attachment

onto the motor drive.

3 Add ingredients into the bowl.

4 Fit the lid and food pusher and

click into place as detailed in the ‘Setting up’ section.

5 Plug in the processor.

6 Turn the processor on.

IMPORTANT: Never use the whisk attachment for dough kneading.

Slicing & Chopping

There is a choice of blades for slicing and shredding.

1 Fit the processor bowl as

before on the motor drive.

2 Fit the detachable drive shaft.

3 Place the blade of your choice

on top of the detachable drive shaft, holding the blade by the centre grip. Ensure that the teeth are facing upwards.

WARNING: Use extreme caution - the blades are sharp.

4 Fit the lid and click into place

as detailed in the ‘Setting up’ section.

5 Fit the large food pusher into

the tube on the processor lid.

6 Use the small food pusher to

add food into the processor bowl through the feeder tube.

Mini processor bowl

Use the mini processor bowl to chop herbs and small quantities of ingredients.

1 Fit the mini chopping bowl on

the processor body, as detailed previously in the ‘Setting up’ section.

2 Slot the mini processor bowl

into the main processor bowl, ensuring that the locators on the processor bowl align with the slots in the mini processor bowl.

3 Using only the small blade,

place on top of the motor drive. This fits in the hole in the mini processor bowl.

4 Add the food.

5 Fit the lid, ensuring that it is

correctly located.

6 Operate the processor for 2 to

5 seconds only.

48950 Rev 3 30/5/08 10:04 Page 6

77 77

wwwwww..mmoorrpphhyyrriicchhaarrddss..ccoomm

OPERATING CONTROLS

The processor control has 1 speed and a pulse button.

Using the pulse button allows greater control over the texture of the food produced. It is only intended to be used for short ‘bursts’ of processing or blending.

CLEANING ACCESSORIES

1 Switch the processor off and

unplug from the electrical socket.

2 All accessories and processor

tools can be washed in hot soapy water except for the processor body.

WARNING: Extreme care must be taken when washing the metal blades as these are extremely sharp.

3 Clean the processor body with

a damp cloth.

WARNING: Always unplug the appliance body before cleaning.

STORAGE

• Place the protective cover on to the chopping blade and small blade and place into the storage container for storage.

TOP TIPS

• For coarser chopping, use the pulse button for a few seconds and monitor food texture.

• Pre-cut larger pieces to make them fit into the feed tube. When chopping hard foods (eg. meat or cheese) cut into 1 inch / 2.5cm cubes.

• For shredding, place food horizontally into the feed tube. For slicing, place food vertically.

• When slicing carrots, place 2 at a time in the feeder tube to keep upright.

HELPLINE

If you have any difficulty with your appliance, do not hesitate to call. We are more likely to be able to help than the store where you bought it.

Please have the following information ready to enable our staff to deal with your enquiry quickly:

• Name of the product

• Model number as shown on the underside of the appliance or rating plate

• Serial number

UK Helpline 0844 871 0950

Replacement Parts 0844 873 0716

Ireland Helpline 1800 409 119

48950 Rev 3 30/5/08 10:04 Page 7

Morphy Richards products are intended for household use only.

Morphy Richards has a policy of continuous improvement in product quality and design. The company, therefore reserves the right to change the specification of it’s models at any time.

FP48950 MUK Rev 3 06/08

The After Sales Division Morphy Richards Ltd

Mexborough, South Yorkshire, England, S64 8AJ

Helplines (office hours) UK 0844 871 0950 Spare Parts 0844 873 0716 Republic of Ireland 1800 409 119

For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country.

For details of other products in the Morphy Richards range, please see our website . . .

YOUR FIVE YEAR GUARANTEE

Available on registration in the UK only

This 5 year guarantee is only valid when registered directly with Morphy Richards within 28 days of purchase. If you do not register your product within 28 days, it is guaranteed for 2 years. To validate your 5 year guarantee, telephone our consumer helpline. Once you have registered your product, you will receive written confirmation from Morphy Richards, please retain this information. Please note that

the 5 year guarantee is only available in the UK. Please

refer to your 2 year guarantee for more information.

YOUR TWO YEAR GUARANTEE

It is important to retain the retailer’s receipt as proof of purchase. Staple your receipt to this back cover for future reference.

Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no.

Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase, it should be returned to the place of purchase for it to be replaced.

If the fault develops after 28 days and within 24 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown.

You will be asked to return the product (in secure, adequate packaging) to the address below along with a copy of proof of purchase.

Subject to the exclusions set out below (see Exclusions), the faulty appliance will then be repaired or replaced and dispatched usually within 7 working days of receipt.

If, for any reason, this item is replaced during the 2 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore, it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 2 year guarantee, the appliance must have been used according to the instructions supplied.

EXCLUSIONS

Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where:

1 The fault has been caused or

is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer’s recommendations or where the fault has been caused by power surges or damage caused in transit.

2 The appliance has been used

on a voltage supply other than that stamped on the product.

3 Repairs have been attempted

by persons other than our service staff (or authorised dealer).

4 The appliance has been used

for hire purposes or non domestic use.

5 The appliance is second hand.

6 Morphy Richards are not liable

to carry out any type of servicing work under the guarantee.

• This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.

• This guarantee is valid in the UK and Ireland only.

48950 Rev 3 30/5/08 10:04 Page 8

Morphy Richards LATITUDE AND FOOD FUSION FOOD PROCESSOR - REV 3, LATITUDE FOOD PROCESSOR, FOODFUSION FOOD PROCESSOR, 48950 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
