FP402502 MUK Rev 1
Hand Blender Set
* Register online for your 2 year guarantee. See the back of this instruction book for details. (UK and Ireland customers only)
** Applies to serrator blade only. See back of this instruction book for details.
*** Independently tested by CATRA using the International Standard Cutting Test System to ISO 8442.5 vs a standard plain
edge blade.
www.facebook.com/morphyrichardsuk
@loveyourmorphy
www.morphyrichards.co.uk/blog
For competitions, product hints and tips
and more join us at
402502_Layout 1 21/03/2013 10:32 Page 1
Please read and keep these instructions for future use.
NOTE: Your product serial number is printed on
the back of this instruction booklet.
2
GUARANTEE
YEAR
2
Health and Safety
In addition, we offer the following safety advice.
Location
• This appliance is intended to be used in household and
similar applications such as:
farm houses;
by clients in hotels, motels and other residential type
environments;
bed and breakfast type environments.
It is not suitable for use in staff kitchen areas in shops,
offices and other working environments.
• Do not use outdoors or in a bathroom.
• Always locate your appliance away from the edge of the
worktop.
• Do not place the bowl used with the appliance on a
highly polished wooden surface as damage may occur to
the surface.
Mains cable
• Do not let the mains cable hang over the edge of the
worktop where a child could reach it.
• Do not let the lead run across an open space e.g.
between a low socket and a table.
• Do not let the cable run across a cooker or other hot area
which might damage the cable.
• The mains cable should reach from the socket to the
base unit without straining the connections.
• The power cord cannot be replaced. Contact Morphy
Richards for advice.
Personal safety
• Avoid touching moving parts. Keep hands, hair and
clothing, and utensils away from the attachment blades
during operation, to prevent personal injury and/or
damage to the appliance.
• Care shall be taken when handling the sharp cutting
blades, emptying the bowl and during cleaning.
• Do not allow children to use the blender without
supervision.
Other safety considerations
• Do not use the appliance for anything other than it’s
intended purpose.
Product specific safety
• WARNING: The blender blades are very sharp. Handle
with care when using and cleaning.
• Do not clean the attachments under running water while
they are in position.
• IMPORTANT: Allow hot liquids to cool before adding to
the blender, always ensure the lid is fitted correctly.
• Do not blend for longer than the time periods
recommended in ‘Usage’ on page 5.
• Do not exceed maximum quantities listed on page 8.
• Be careful whilst hot liquid is blending or poured into the
blender as it can be ejected due to sudden steaming.
• Always disconnect from the supply if it left unattended
and before assembling, dissembling or cleaning.
• Switch off the appliance and disconnect from supply
before changing accessories or approaching parts that
move in use.
Electrical requirements
Check that the voltage on the rating plate of your
appliance corresponds with your house electricity supply
which must be A.C. (Alternating Current).
Should the fuse in the mains plug require changing, a 3
amp BS1362 fuse must be fitted.
The use of any electrical appliance requires the following common sense safety rules.
Please read these instructions carefully before using the product.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilites, or lack of experience and knowledge, if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children
without supervision.
402502_Layout 1 21/03/2013 10:32 Page 2
3
402502_Layout 1 21/03/2013 10:32 Page 3
Congratulations on choosing your new Morphy Richards food preparation
appliance with Serrator Blade technology. With its revolutionary, unique
design the Serrator Blade is designed to give you superior cutting
performance for longer.
How does the Serrator blade work?
Specially developed by our in-house designers the Serrator Blade has
been created to outperform standard plain edge blades. The perfect
serration has been carefully selected and rigourously tested to give you
superior performance and us the confidence that the Serrator Blade will
give you years of satisfaction.
Our new precision Serrator Blades
stay sharper up to 12x longer than
standard blades, maintaining
performance for life.
4
Features
(1) Main Unit
(2) On Button
(3) Turbo Button
(4) Blending Leg
(5) Serrator Blade
(6) Beaker
(7) Pusher
(8) Feed Tube
(9) Lid
(10) Cover Release Buttons
(x2)
(11) Main Unit Unlock Button
(12) Cover
(13) Cover Catch (x2)
(14) Processor Bowl
(15) Spindle
(16) Shaft
(17) Grating/Slicing Disc
(18) Processor Serrator
Blade
(19) Grating Blade
(20) Slicing Blade
Product overview
402502_Layout 1 21/03/2013 10:32 Page 4
1
1
2
2
3
3
7
7
01
10
9
9
71
17
8
8
31
13
41
14
11
11
6
6
4
4
12
21
81
18
19 20
91
15
51
16
61
5
5
5
Unplug from the mains before twisting the
Blending Leg to unlock from the Main Unit.
To clean the Blending Leg, rinse under running
water and clean with a damp cloth.
Hold the Beaker steady with your hand and
press and hold the On Button (2) to start. Move
the Serrator Blade (5) through the food using an
up and down motion. Release the button to stop
BEFORE removing the blade from the food.
Place the Blending Leg into the food to be
blended. We recommend using the Beaker (6)
for the best results.
Insert the Blending Leg (4) onto the Main Unit
(1) and twist to secure into place.
• The Hand Blender is fitted with a Turbo Button (3).
Press the Turbo Button to run the Hand Blender
on a faster speed for intermittent bursts.
• The processor attachment must be run only using
the turbo setting.
• WARNING: Your Hand Blender is designed for
intermittent use. Do not use continuously for
more than 1 minute. Allow to cool down for a
minimum of 5 minutes before further use.
• Do not use the Blending Leg (4) continuously for
more than 10 seconds when lifted out of food.
• The processor attachment can only be used
with the Turbo Button (3). Using a lower setting
may cause irreparable damage to the motor.
Turbo Button Usage
Using the Blending Leg
Thank you for your recent purchase of this
Morphy Richards Hand Blender Work Centre. The
set comes with a number of attachments and a
‘quick twist’ connection mechanism for safety.
Please read the instructions thoroughly for
information on how to use each attachment
before use.
Remember to visit www.morphyrichards.co.uk to
register your product’s two year guarantee.
• Wash all the attachments except the Main Unit (1)
and Cover (12) in hot soapy water and dry
throughly before first use.
• Do not immerse the Main Unit or Cover in water.
• WARNING: Carefully unpack your Hand Blender
Work Centre as the Serrator Blade
(5), (18) is
very sharp.
Before first use
Introduction
402502_Layout 1 21/03/2013 10:32 Page 5
11
33
2
44
6
Attach the Main Unit (1) to the Cover, twist until
it locks into place with an audible click.
Place the Lid (9), Cover (12), and Pusher (7)
onto the Processor Bowl. Push down to lock.
Place the food into the Processor Bowl. Do not
exceed the maximum quantity (see the quantity
table on page 8.)
Place the Spindle (15) and Processor Serrator
Blade
(18) on the Shaft (16) in the Processor
Bowl
(14).
Press the Turbo Button (3) to begin blending.
When finished unplug from the mains.
Press the Main Unit Unlock Button (11) and
twist the Main Unit to remove.
CAREFULLY remove the Processor Serrator
Blade and Spindle before emptying the
Processor Bowl.
Press the Cover Release Buttons (10) to
remove the cover. Remove the Lid and Pusher.
Using the Processor Blade
402502_Layout 1 21/03/2013 10:32 Page 6
1
3
55
2
44
66
77
8
7
Place the food into the Feed Tube (8).
Attach the Main Unit (1) to the Cover, twist until
it locks into place with a audible click.
Place the Spindle (15), onto the shaft (16) in the
Processor Bowl. Place the Grating/Slicing Disc,
Lid
(9), and Cover (12), onto the Processor Bowl
(14). Press down to lock into place.
Attach either the Grating (19) or Slicing Blade
(20) into the Grating/Slicing Disc (17). Ensure
the Blade is correctly located and locked
securely into place.
Press the Turbo Button (3). Use the Pusher (7) to
press the food into the Grating/Slicing Disc.
Unplug from the mains. Press the Main Unit
Unlock Button
(11) and twist the Main Unit to
remove.
Remove the Grating/Slicing Disc and
Spindle before emptying the Processor Bowl.
Press the Cover Release Buttons (10) to
remove the cover. Remove the Lid.
Using the Grating/Slicing Disc
402502_Layout 1 21/03/2013 10:32 Page 7
1
33
55
2
4
66
77
8
8
1. Remove the saucepan from the heat.
2. To avoid excessive splashing, place the Blending
Leg
(4) into the food before switching the Hand
Blender on.
3. Hold the pan steady with your other hand and
press the On Button (2). Do not use the Turbo
Button.
4. Move the Serrator Blade (5) through the food
using a up and down motion.
5. Allow the Serrator Blade to stop moving before
removing from the pan.
• WARNING: Lifting the Serrator Blade out of the
food while running, or using the Turbo Button
could splash hot liquid. Extra care should be
taken when using the Hand Blender in this
manner.
• Do not insert the Hand Blender into the food
past the join between the Main Unit (1) and the
Blending Leg
(4).
• Ensure the power cable does not touch any hot
surfaces (including the side of the pan.)
Blending Leg (4)
• The Blending Leg is designed for pureeing soft
foods like cooked vegetables and for use in
soups and baby food.
• The Blending Leg is not suitable for grinding
hard items such as coffee beans, ice, nuts, meat
or hard vegetables (raw potatoes, raw carrots
etc).
Processor Serrator Blade (18)
• The Processor Serrator Blade is suitable for
chopping nuts, vegetables, herbs, boiled eggs,
meat and dried bread.
• The Processor Serrator Blade is not suitable for
grinding hard objects such as coffee beans or ice.
• Do not use to crush ice.
Suitable foods for blendingBlending in a saucepan
Ingredients Maximum Quantity Time
• Onions / garlic (cut into 8) • 500g • 3-6 seconds
• Parsley • 10 0g • 5-10 seconds
• Raw meat (fat free) • 400g • 10 seconds
• Nuts • 300g • 5-10 seconds
• Fruits • 700g • 10 seconds
• Biscuit • 300g • 5-10 seconds
• Carrots • 400g • 5-10 seconds
Ingredients Maximum Quantity Time
• Carrots • 400g • 5-10 seconds
• Radish • 400g • 5-10 seconds
• Potato • 400g • 5-10 seconds
• Squash • 800g • 5-10 seconds
• Cucumber • 800g • 5-10 seconds
Processor Serrator Blade (18)
Grating Disc (17)
Maximum quantities for use
in the Processor Bowl (14)
402502_Layout 1 21/03/2013 10:32 Page 8
9
• When blending foods with strong colour (eg.
cooked carrots), the plastic parts of the appliance
may become discoloured. Wipe with cooking oil
to clean any discoloured parts.
• When blending using the Blending Leg (4), start
the process by plunging the blender into the
ingredients. This will ensure all the ingredients are
pulled into the blade to be processed. Continue
blending using a up and down motion until the
mixture is to the desired consistency.
• Do not lift the Blending Leg out of the mixture
completely when running, as splashing may
occur.
• For best results use the supplied Beaker (6) when
using the Blending Leg.
• WARNING: Always unplug the appliance from the
mains socket before cleaning and maintenance.
WARNING: Handle the blades with care as they
are very sharp.
• Wash the Blending Leg (4), Beaker (6), Pusher (7),
Lid (9), Processor Bowl (14), Spindle (15), Grating
Disc
(17), Processor Serrator Blade (18), Grating
Blade (19) and Slicing Blade (20) in hot soapy
water.
Dry throughly before use.
• Clean the Main Unit (1) or Cover (12) with a damp
cloth and dry all the parts thoroughly.
• WARNING: Never immerse the Main Unit,or Cover
in water or any other liquid.
• The Beaker (6) Chopping Bowl, Grating Blade and
Slicing Blade are dishwasher safe. No other parts
are dishwasher safe.
Helpline
If you are having a problem with your appliance,
please call our Helpline, as we are more likely to
be able to help than the store you purchased the
item from.
Please have the product name, model number
and serial number to hand when you call to help
us deal with your enquiry quicker.
UK Helpline: 0844 871 0960
IRE Helpline: 1800 409 119
Spares: 0844 873 0726
Talk To Us
If you have any questions or comments, or want
some great tips or recipe ideas to help you get
the most out of your products, join us online:
Blog: www.morphyrichards.co.uk/blog
Facebook: www.facebook.com/morphyrichardsuk
Twitter: @loveyourmorphy
Website: www.morphyrichards.com
Contact us
Care and cleaning
Top tips
402502_Layout 1 21/03/2013 10:32 Page 9
10

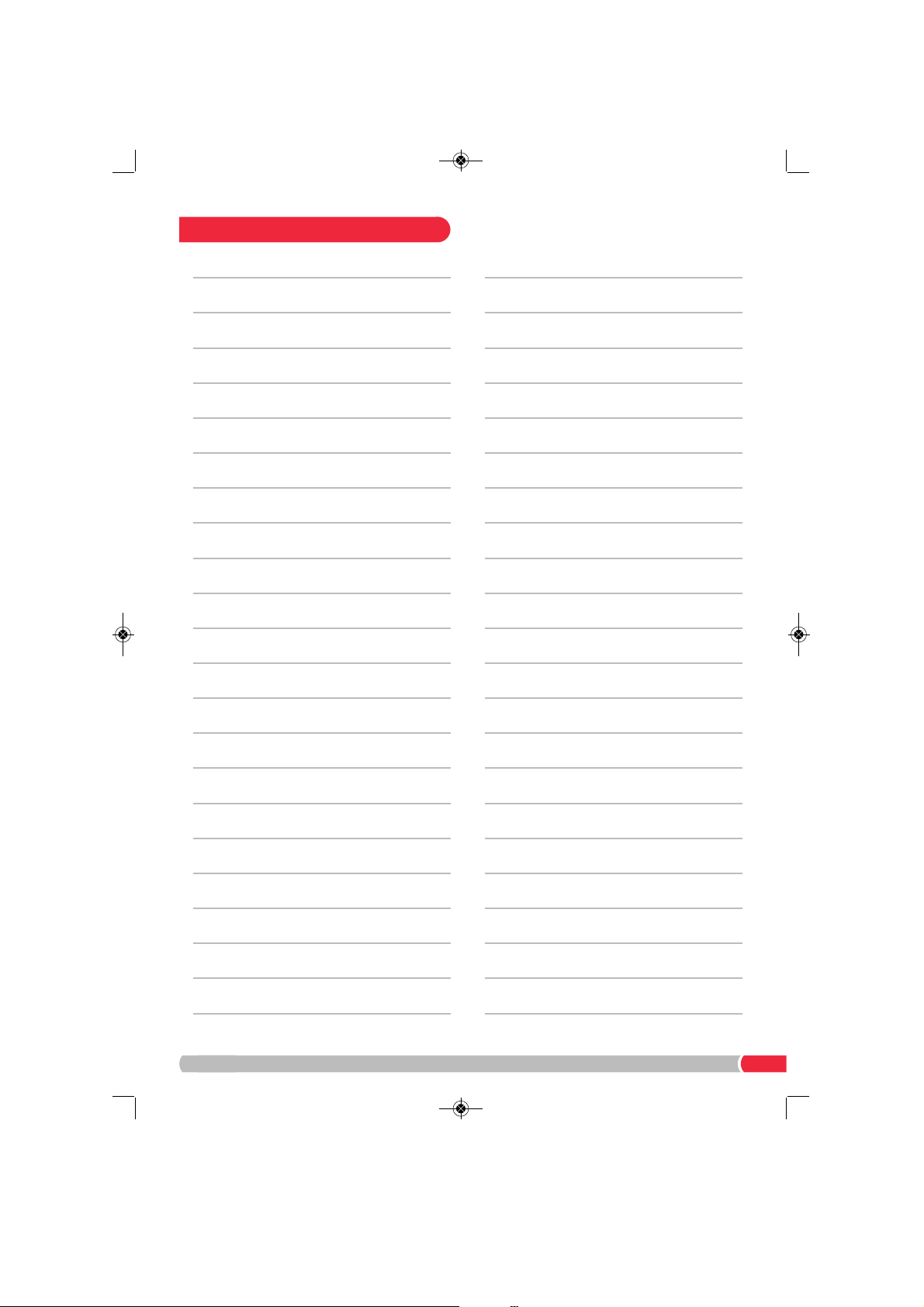

Notes
402502_Layout 1 21/03/2013 10:32 Page 10
11
Notes
402502_Layout 1 21/03/2013 10:32 Page 11
FP402502 MUK Rev 2 03/13
The After Sales Division
Morphy Richards Ltd
Mexborough, South Yorkshire,
England, S64 8AJ
Helplines (office hours)
UK 0844 871 0960
Spare Parts 0844 873 0726
Republic of Ireland 1800 409 119
www.morphyrichards.com
IF YOU ARE HAVING A PROBLEM
WITH ONE OF OUR PRODUCTS, CALL
OUR HELPLINE:
UK: 0844 871 0960
EIRE: 1800 409 119
SPARES: 0844 873 0726
The 'Serrator Blades' are warranted to be free from defects
in materials and workmanship for life. This warranty covers
the original purchaser only and is not assignable or
transferable to any other party. This warranty is available
to consumers who use the 'Serrator Blades' for
non-commercial household purposes. This warranty does
not cover any damage caused by accident, misuse or any
use other than as described in your owner's manual, or
damage resulting from failure to maintain and clean this
product as specified in your owner's manual.
Your standard one year product guarantee is extended
for an additional 12 months when you register the product
within 28 days of purchase with Morphy Richards. If you
do not register the product with Morphy Richards within
28 days, your product is guaranteed for 1 year. To validate
your 2 year guarantee register with us online at
www.morphyrichards.co.uk
Or call our customer registration line
UK 0844 871 0962
IRE 1800 409 119
N.B. Each qualifying product needs to be registered with
Morphy Richards individually.
Please note that the 2 year guarantee is only available in
the UK and Ireland. Please refer to the one year guarantee
for more information.
It is important to retain the retailer’s receipt as proof of
purchase. Staple your receipt to this back cover for future
reference.
Please quote the following information if the product
develops a fault. These numbers can be found on the base
of the product.
Model no.
Serial no.
All Morphy Richards products are individually tested before
leaving the factory. In the unlikely event of any appliance
proving to be faulty within 28 days of purchase, it should
be returned to the place of purchase for it to be replaced.
If the fault develops after 28 days and within 12 months of
original purchase, you should contact the Helpline number
quoting Model number and Serial number on the product,
or write to Morphy Richards at the address shown.
You may be asked to return a copy of proof of purchase.
Subject to the exclusions set out below (see Exclusions),
the faulty appliance will then be repaired or replaced as
appropriate and dispatched usually within 7 working days
of receipt.
If, for any reason, this item is replaced or repaired during
the 1 year guarantee period, the guarantee on the new
item will be calculated from original purchase date.
Therefore it is vital to retain your original till receipt or
invoice to indicate the date of initial purchase.
To qualify for the 1 year guarantee, the appliance must
have been used according to the instructions supplied.
For example, crumb trays should have been emptied
regularly.
Morphy Richards shall not be liable to replace or repair the
goods under the terms of either the Lifetime Blade
Guarantee or the 1 or 2 Year Guarantee where:
1 The fault has been caused or is attributable to accidental
use, misuse, negligent use or used contrary to the
manufacturer’s recommendations or where the fault has
been caused by power surges or damage caused in
transit.
2 The appliance has been used on a voltage supply other
than that stamped on the products.
3 Repairs have been attempted by persons other than our
service staff (or authorised dealer).
4 The appliance has been used for hire purposes or non
domestic use.
5 The appliance is second hand.
6 Morphy Richards reserves the right not to carry out any
type of servicing under the guarantee at its discretion
7 Plastic filters for all Morphy Richards kettles and coffee
makers are not covered by the guarantee.
8 Batteries and damage from leakage are not covered by
the guarantee.
• These guarantees does not confer any rights other than
those expressly set out above and do not cover any claims
for consequential loss or damage. These guarantees are
offered as an additional benefit and do not affect your
statutory rights as a consumer. Morphy Richards products
are intended for household use only. See usage limitations
within the location safety instructions.
Morphy Richards has a policy of continuous improvement
in product quality and design. The company, therefore
reserves the right to change the specification of
it’s models at any time.
For electrical products sold within the European
Community. At the end of the electrical products
useful life, it should not be disposed of with
household waste.
Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice in your
country
Exclusions
Registering your 2 year
guarantee
Your 1 year guarantee
Disclaimer
Lifetime blade guarantee
402502_Layout 1 21/03/2013 10:32 Page 12
Loading...
